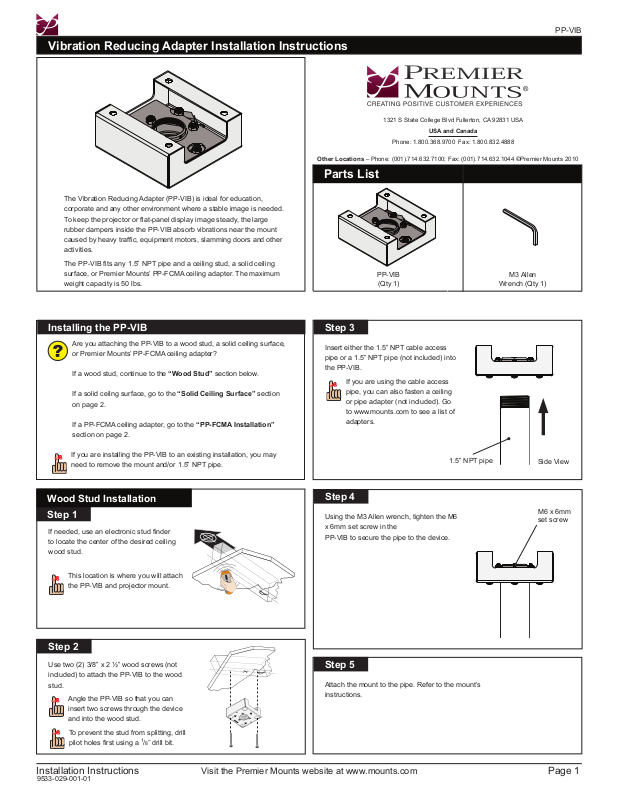

Premier Mounts PP-VIB Installation Guide

Vibration Reducing Adapter Installation Instructions

Other Locations – Phone: [phone]; Fax: [phone] ©Premier Mounts 2010

Parts List

The Vibration Reducing Adapter (PP-VIB) is ideal for education,
corporate and any other environment where a stable image is needed.

To keep the projector or at-panel display image steady, the large

rubber dampers inside the PP-VIB absorb vibrations near the mount

caused by heavy trafc, equipment motors, slamming doors and other

activities.

The PP-VIB ts any 1.5” NPT pipe and a ceiling stud, a solid ceiling

surface, or Premier Mounts’ PP-FCMA ceiling adapter. The maximum
weight capacity is 50 lbs.

1321 S State College Blvd Fullerton, CA 92831 USA

USA and Canada

Phone: [phone] Fax: [phone]

PP-VIB

(Qty 1)

Wrench (Qty 1)

PP-VIB

M3 Allen

Installing the PP-VIB

Are you attaching the PP-VIB to a wood stud, a solid ceiling surface,

or Premier Mounts’ PP-FCMA ceiling adapter?

If a wood stud, continue to the “Wood Stud” section below.

If a solid ceilng surface, go to the “Solid Ceiling Surface” section
on page 2.

If a PP-FCMA ceiling adapter, go to the “PP-FCMA Installation”
section on page 2.

If you are installing the PP-VIB to an existing installation, you may

need to remove the mount and/or 1.5” NPT pipe.

Wood Stud Installation

Step 1

If needed, use an electronic stud nder

to locate the center of the desired ceiling
wood stud.

This location is where you will attach
the PP-VIB and projector mount.

Step 3

Insert either the 1.5” NPT cable access
pipe or a 1.5” NPT pipe (not included) into

the PP-VIB.

If you are using the cable access
pipe, you can also fasten a ceiling
or pipe adapter (not included). Go
to www.mounts.com to see a list of
adapters.

Step 4

Using the M3 Allen wrench, tighten the M6
x 6mm set screw in the
PP-VIB to secure the pipe to the device.

1.5” NPT pipe

Side View

M6 x 6mm
set screw

Step 2

Use two (2) 3/8” x 2 ½” wood screws (not

included) to attach the PP-VIB to the wood
stud.

Angle the PP-VIB so that you can
insert two screws through the device
and into the wood stud.

To prevent the stud from splitting, drill

pilot holes rst using a 1/8˝ drill bit.

Installation Instructions Visit the Premier Mounts website at www.mounts.com Page 1

9533-029-001-01

Step 5

Attach the mount to the pipe. Refer to the mount’s
instructions.

PP-VIB

Solid Ceiling Surface Installation

You can mount the PP-VIB to any solid surface

ceiling with a minimum 6˝ thickness. For concrete

installation, use concrete wedge anchors

(3/8” recommended) to secure the mounting

hardware and a masonry drill bit to drill the pilot
holes.

Step 1

• Drill 4 ceiling mounting holes for the PP-VIB

using the appropriate diameter masonry bit
for your wedge anchor.

• Remove the nut and washer from the

wedge anchors.

• Insert a wedge anchor into each hole.

Drill the holes using the PP-VIB’s 4.5” bolt

pattern.

Step 2

• Place the PP-VIB over the wedge anchors.

• Thread a wedge anchor nut and washer

onto each threaded wedge anchor shaft.

Do not overtighten the wedge anchor nuts.

Step 3

Insert either the 1.5” NPT cable access
pipe or a 1.5” NPT pipe (not included) into

the PP-VIB.

If you are using the cable access
pipe, you can also fasten a ceiling
or pipe adapter (not included). Go
to www.mounts.com to see a list of
adapters.

Step 4

Using the M3 Allen wrench, tighten the M6
x 6mm set screw in the
PP-VIB to secure the pipe to the device.

Example wedge anchors and
masonry bit are not included.

1.5” NPT pipe

Side View

PP-FCMA Installation

Step 1

Using four (4) M8 x 20mm Phillips head

screws and four (4) M8 at washers, attach
the PP-VIB to the 4.5” bolt pattern on the

PP-FCMA ceiling adapter.

The M8 x 20mm Phillips head screws

and M8 at washers are included in

the PP-FCMA hardware pack.

Step 2

Insert either the 1.5” NPT cable access
pipe or a 1.5” NPT pipe (not included) into

the PP-VIB.

If you are using the cable access
pipe, you can also fasten a ceiling
or pipe adapter (not included). Go
to www.mounts.com to see a list of
adapters.

Step 3

Using the M3 Allen wrench, tighten the M6
x 6mm set screw in the
PP-VIB to secure the pipe to the device.

1.5” NPT pipe

Side View

M6 x 6mm
set screw

M6 x 6mm
set screw

Step 5

Attach the mount to the pipe. Refer to the mount’s
instructions.

Step 4

Attach the mount to the pipe. Refer to the mount’s
instructions.

Page 2 Visit the Premier Mounts website at www.mounts.com Installation Instructions
