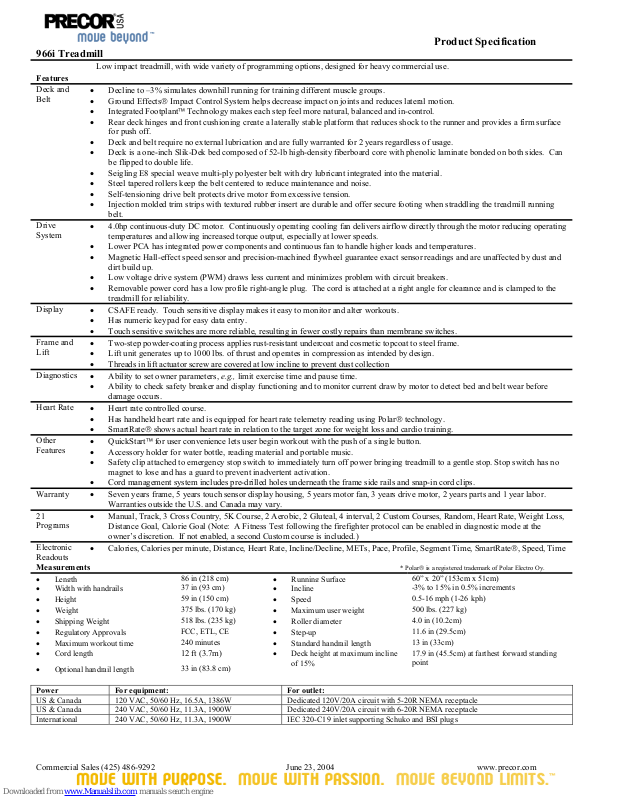

Product Specification
966i Treadmill
Low impact treadmill, with wide variety of programming options, designed for heavy commercial use.
Features
Deck and
Belt
• Decline to –3% simulates downhill running for training different muscle groups.
• Ground Effects Impact Control System helps decrease impact on joints and reduces lateral motion.
• Integrated Footplant Technology makes each step feel more natural, balanced and in-control.
• Rear deck hinges and front cushioning create a laterally stable platform that reduces shock to the runner and provides a firm surface
for push off.
• Deck and belt require no external lubrication and are fully warranted for 2 years regardless of usage.
• Deck is a one-inch Slik-Dek bed composed of 52-lb high-density fiberboard core with phenolic laminate bonded on both sides. Can
be flipped to double life.
• Seigling E8 special weave multi-ply polyester belt with dry lubricant integrated into the material.
• Steel tapered rollers keep the belt centered to reduce maintenance and noise.
• Self-tensioning drive belt protects drive motor from excessive tension.
• Injection molded trim strips with textured rubber insert are durable and offer secure footing when straddling the treadmill running
belt.
Drive
System
• 4.0hp continuous-duty DC motor. Continuously operating cooling fan delivers airflow directly through the motor reducing operating
temperatures and allowing increased torque output, especially at lower speeds.
• Lower PCA has integrated power components and continuous fan to handle higher loads and temperatures.
• Magnetic Hall-effect speed sensor and precision-machined flywheel guarantee exact sensor readings and are unaffected by dust and
dirt build up.
• Low voltage drive system (PWM) draws less current and minimizes problem with circuit breakers.
• Removable power cord has a low profile right-angle plug. The cord is attached at a right angle for clearance and is clamped to the
treadmill for reliability.
Display
• CSAFE ready. Touch sensitive display makes it easy to monitor and alter workouts.
• Has numeric keypad for easy data entry.
• Touch sensitive switches are more reliable, resulting in fewer costly repairs than membrane switches.
Frame and
Lift
• Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
• Lift unit generates up to 1000 lbs. of thrust and operates in compression as intended by design.
• Threads in lift actuator screw are covered at low incline to prevent dust collection
Diagnostics
• Ability to set owner parameters, e.g., limit exercise time and pause time.
• Ability to check safety breaker and display functioning and to monitor current draw by motor to detect bed and belt wear before
damage occurs.
Heart Rate
• Heart rate controlled course.
• Has handheld heart rate and is equipped for heart rate telemetry reading using Polar technology.
• SmartRate shows actual heart rate in relation to the target zone for weight loss and cardio training.
Other
Features
• QuickStart for user convenience lets user begin workout with the push of a single button.
• Accessory holder for water bottle, reading material and portable music.
• Safety clip attached to emergency stop switch to immediately turn off power bringing treadmill to a gentle stop. Stop switch has no
magnet to lose and has a guard to prevent inadvertent activation.
• Cord management system includes pre-drilled holes underneath the frame side rails and snap-in cord clips.
Warranty
• Seven years frame, 5 years touch sensor display housing, 5 years motor fan, 3 years drive motor, 2 years parts and 1 year labor.
Warranties outside the U.S. and Canada may vary.
21
Programs
• Manual, Track, 3 Cross Country, 5K Course, 2 Aerobic, 2 Gluteal, 4 interval, 2 Custom Courses, Random, Heart Rate, Weight Loss,
Distance Goal, Calorie Goal (Note: A Fitness Test following the firefighter protocol can be enabled in diagnostic mode at the
owner’s discretion. If not enabled, a second Custom course is included.)
Electronic
• Calories, Calories per minute, Distance, Heart Rate, Incline/Decline, METs, Pace, Profile, Segment Time, SmartRate, Speed, Time
Readouts
Measurements
• Length
• Width with handrails
• Height
• Weight
• Shipping Weight
• Regulatory Approvals
• Maximum workout time
• Cord length
• Optional handrail length
Power For equipment: For outlet:
US & Canada 120 VAC, 50/60 Hz, 16.5A, 1386W Dedicated 120V/20A circuit with 5-20R NEMA receptacle
US & Canada 240 VAC, 50/60 Hz, 11.3A, 1900W Dedicated 240V/20A circuit with 6-20R NEMA receptacle
International 240 VAC, 50/60 Hz, 11.3A, 1900W IEC 320-C19 inlet supporting Schuko and BSI plugs
* Polar is a registered trademark of Polar Electro Oy.
86 in (218 cm)
37 in (93 cm)
59 in (150 cm)
375 lbs. (170 kg)
518 lbs. (235 kg)
FCC, ETL, CE
240 minutes
12 ft (3.7m)
33 in (83.8 cm)
nning Surf
• Incline
• Speed
• Maximum user weight
• Roller diameter
• Step-up
• Standard handrail length
• Deck height at maximum incline
of 15%
60” x 20” (153cm x 51cm)
-3% to 15% in 0.5% increments
0.5-16 mph (1-26 kph)
500 lbs. (227 kg)
4.0 in (10.2cm)
11.6 in (29.5cm)
13 in (33cm)
17.9 in (45.5cm) at farthest forward standing
point
Commercial Sales (425) 486-9292 June 23, 2004 www.precor.com
