Page 1

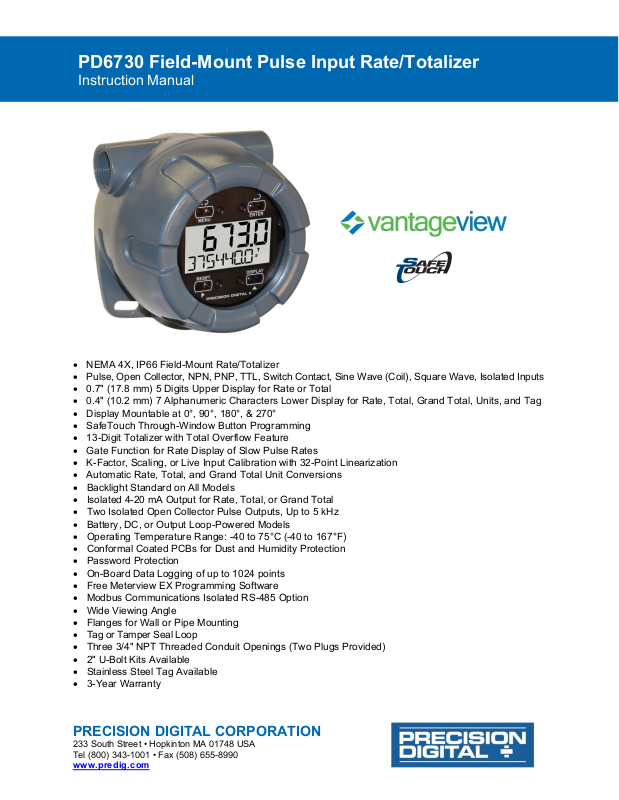

PD6730 Field-Mount Pulse Input Rate/Totalizer

PRECISION DIGITAL CORPORATION

www.predig.com

Instruction Manual

• NEMA 4X, IP66 Field-Mount Rate/Totalizer

• Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave, Isolated Inputs

• 0.7" (17.8 mm) 5 Digits Upper Display for Rate or Total

• 0.4" (10.2 mm) 7 Alphanumeric Characters Lower Display for Rate, Total, Grand Total, Units, and Tag

• Display Mountable at 0°, 90°, 180°, & 270°

• SafeTouch Through-Window Button Programming

• 13-Digit Totalizer with Total Overflow Feature

• Gate Function for Rate Display of Slow Pulse Rates

• K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization

• Automatic Rate, Total, and Grand Total Unit Conversions

• Backlight Standard on All Models

• Isolated 4-20 mA Output for Rate, Total, or Grand Total

• Two Isolated Open Collector Pulse Outputs, Up to 5 kHz

• Battery, DC, or Output Loop-Powered Models

• Operating Temperature Range: -40 to 75°C (-40 to 167°F)

• Conformal Coated PCBs for Dust and Humidity Protection

• Password Protection

• On-Board Data Logging of up to 1024 points

• Free Meterview EX Programming Software

• Modbus Communications Isolated RS-485 Option

• Wide Viewing Angle

• Flanges for Wall or Pipe Mounting

• Tag or Tamper Seal Loop

• Three 3/4" NPT Threaded Conduit Openings (Two Plugs Provided)

• 2" U-Bolt Kits Available

• Stainless Steel Tag Available

• 3-Year Warranty

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

Page 2

PD6730 Field-Mount Pulse Input Rate/Totalizer

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof; and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• This product is not recommended for life support

applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

• Failure to follow installation guidelines could result in death or serious injury. Make sure only qualified personnel perform the installation.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. See Warranty Information and Terms & Conditions on www.predig.com details.

for complete

Instruction Manual

Introduction

The Vantageview PD6730 is a plastic field mounted rate/totalizer designed for rugged and demanding applications in harsh environments. It can be powered from 9-30 VDC, battery, or from the 4-20 mA output loop; includes two isolated open collector pulse outputs and is available with an isolated RS-485 option for Modbus communications. The instrument will operate over a temperature range of -40 to 75°C (-40 to 167°F).

The top numeric display will read rate or total up to five digits and the alphanumeric bottom display will read up to 7 digits, 13 digits with the total overflow feature. The alphanumeric display can also be programmed to show any combination of numbers and letters up to seven characters long for rate, total, grand total, engineering units and/or identification tag. The backlight makes the display more visible in any lighting condition. The enclosure has three threaded conduit holes, integrated pipe or wall mounting flanges, and allows for easy installation of tamper seals.

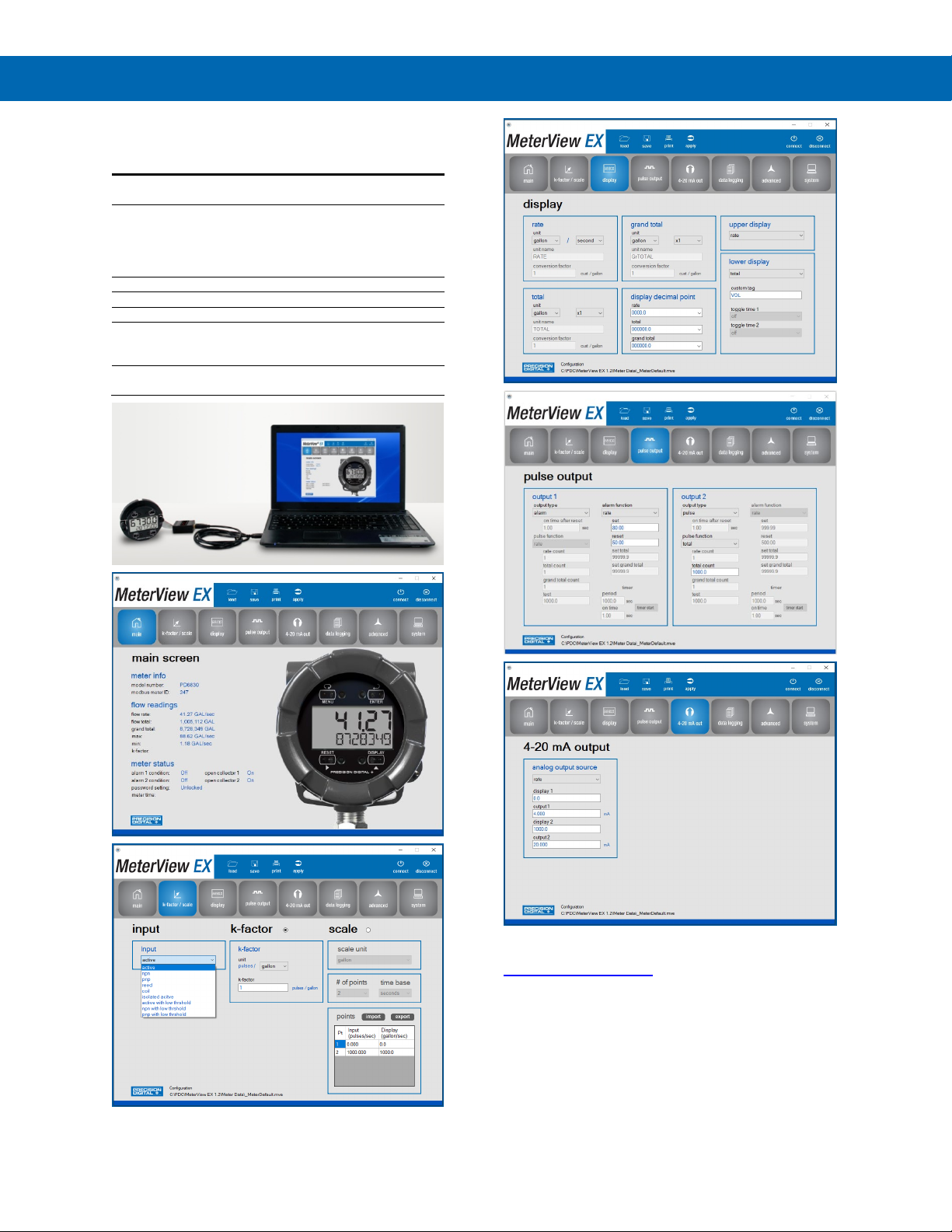

Free, PC-based, MeterView EX software that connects to the meter via the PDA8068, PDA7485-I

PDA8485-I is available for programming and setup of

the instrument.

, or the

The instrument can also be programmed using the four SafeTouch through-window buttons, without removing the cover, or with four internal push-buttons.

The PD6730 includes on-board data logging of up to 1024 points.

Page 3

PD6730 Field-Mount Pulse Input Rate/Totalizer

9-30 VDC Powered, Constant Backlight, 2 Pulse Outputs

9-30 VDC Powered, Constant

2 Pulse Outputs

Battery Powered1, or DC-Powered

2 Pulse Outputs

Battery Powered1, or DC Powered

Output, 2 Pulse Outputs

4-20 mA Output-Powered,

2 Pulse Outputs

4-20 mA Output, 2 Pulse Outputs

Isolated 2-wire RS-485 with Modbus

available on -CTB or -DTB models.

Notes:

When DC-powered, battery will provide backup power when DC

Backlight is constant when DC powered and momentary when

Communication disabled when actively powered by battery.

Stainless Steel 2" U-Bolt Kit. All

Washers, and Nuts.

Ordering Information

Model Description

PD6730-AP0-0

Instruction Manual

PDA1024-01 24 VDC Power Supply

PD6730-APA-0

PD6730-BM0-0

PD6730-BMA-0

PD6730-BTA-0

PD6730-CTB-0

PD6730-DTB-0

-I Option

Backlight, Isolated 4-20 mA Output,

with Battery Backup, Backlight2,

Battery (or 9-30 VDC) Powered1, or DC Powered with Battery Backup, Backlight

with Battery Backup, Loop Output Powered Backlight, Isolated 4-20 mA

Loop-Powered Backlight, Non-Isolated 4-20 mA Output,

4-20 mA Output-Powered with Battery Backup, Loop Output Powered Backlight

protocol3. Replace ending -0 in part number

above with –I (Example: PD6730-APA-I). Not

, Isolated 4-20 mA Output,

, Non-Isolated

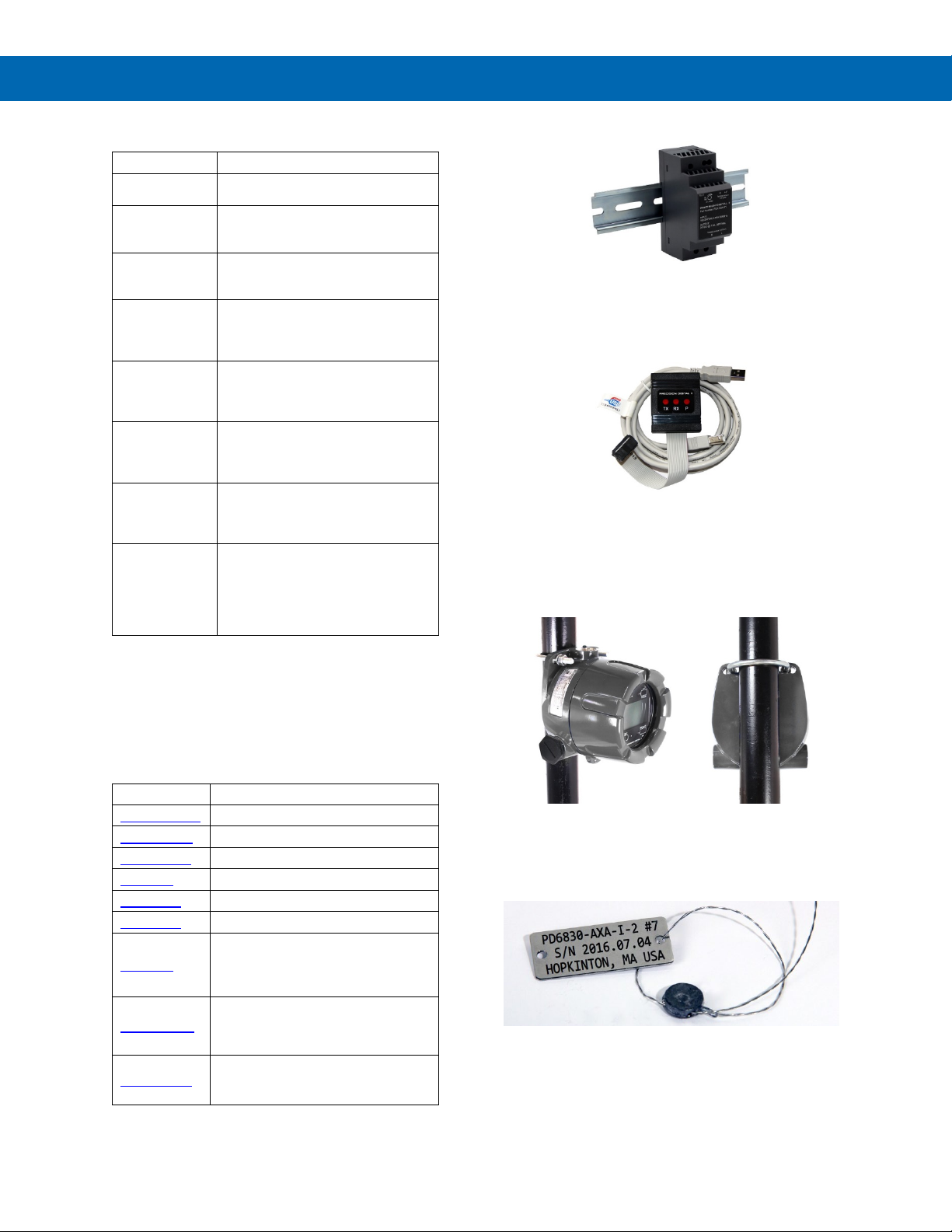

The PDA1024-01 is a DIN rail mounted 1.5 A, 24 VDC power supply that can be used to power the PD6730.

PDA8068 USB Serial Adapter

The PDA8068 USB serial adapter is used to connect the PD6730 directly to a computer via USB. It is intended to be used for programming only. No live monitoring is possible with this module.

PDA6846 2" U-Bolt Kits

power is lost.

battery powered.

Accessories

Model Description

PDAPLUG75P 3/4" NPT Plastic Conduit Plug PDABAT36C 3.6 V C Cell Lithium Battery PDA1024-01 24 VDC Power Supply for DIN Rail PDA8068 PDA7485-I PDA8485-I USB to RS-485 Isolated Converter

PDA6846

PDA6846-SS

PDA-SSTAG

USB Serial Adapter for Programming RS-232 to RS-485 Isolated Converter

Steel 2" U-Bolt Kit. All Material: Zinc Plated Steel; (1) U-Bolt for 2" Pipe with (2 each) Washers, Lock Washers, and Nuts.

Material: Stainless Steel; (1) U-Bolt for 2" Pipe with (2 each) Washers, Lock

Custom Stainless Steel Tag (see website for convenient ordering form)

The PDA6846 U-Bolt Kits provide a convenient way to mount the PD6730 to 1.5" or 2" pipes. They are available in steel and stainless steel.

PDA-SSTAG Stainless Steel Tag

The PDA-SSTAG is a laser etched stainless steel tag that can be customized with three lines of text. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need.

Page 4

PD6730 Field-Mount Pulse Input Rate/Totalizer

Table of Contents

Introduction ......................................................................................................... 2

Ordering Information .......................................................................................... 3

Specifications ..................................................................................................... 6

General ............................................................................................................ 6

Rate Input ........................................................................................................ 7

Rate/Totalizer .................................................................................................. 7

4-20 mA Transmitter Output .......................................................................... 8

Open Collector Output ................................................................................... 8

Serial Communications ................................................................................. 8

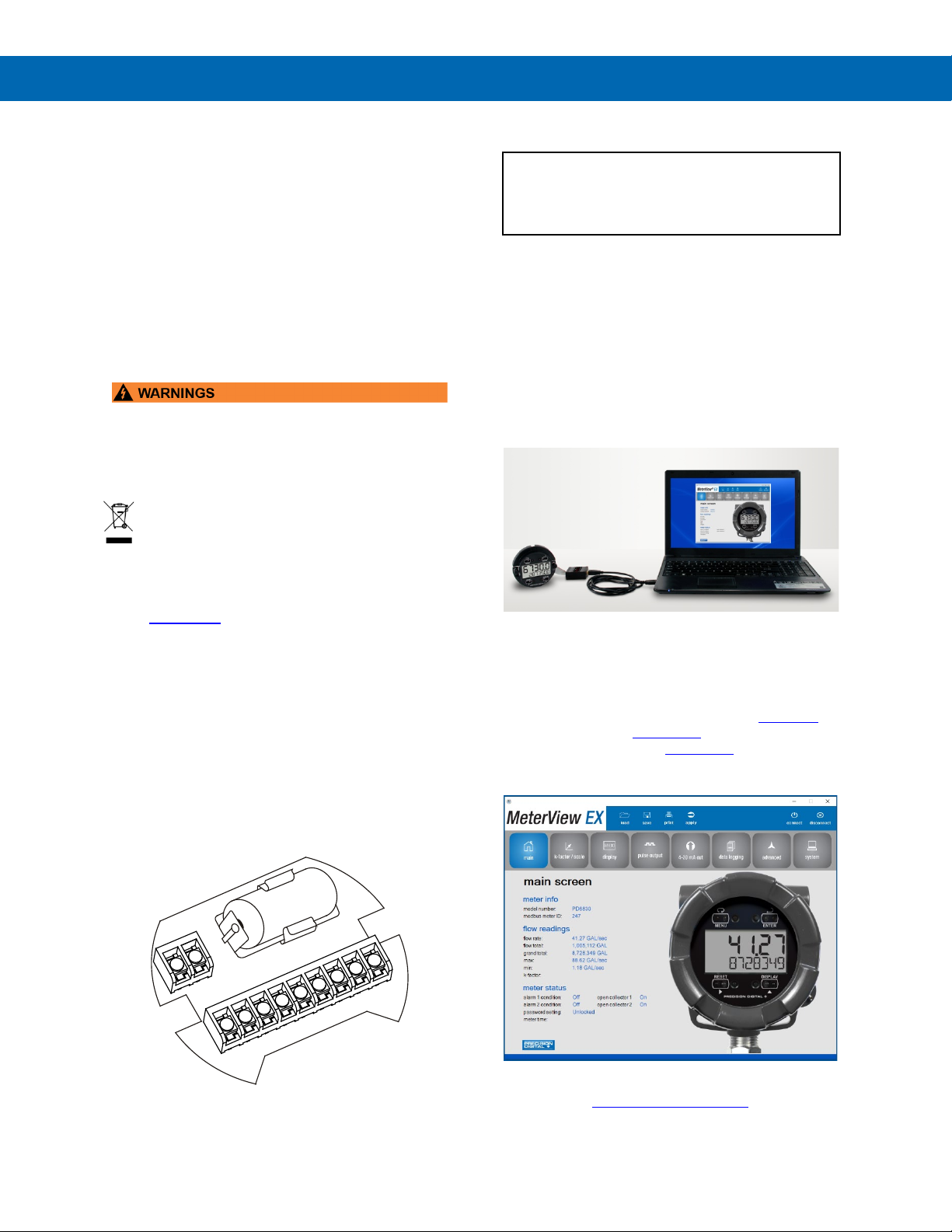

MeterView EX Programming Software ......................................................... 9

Safety Information ........................................................................................ 10

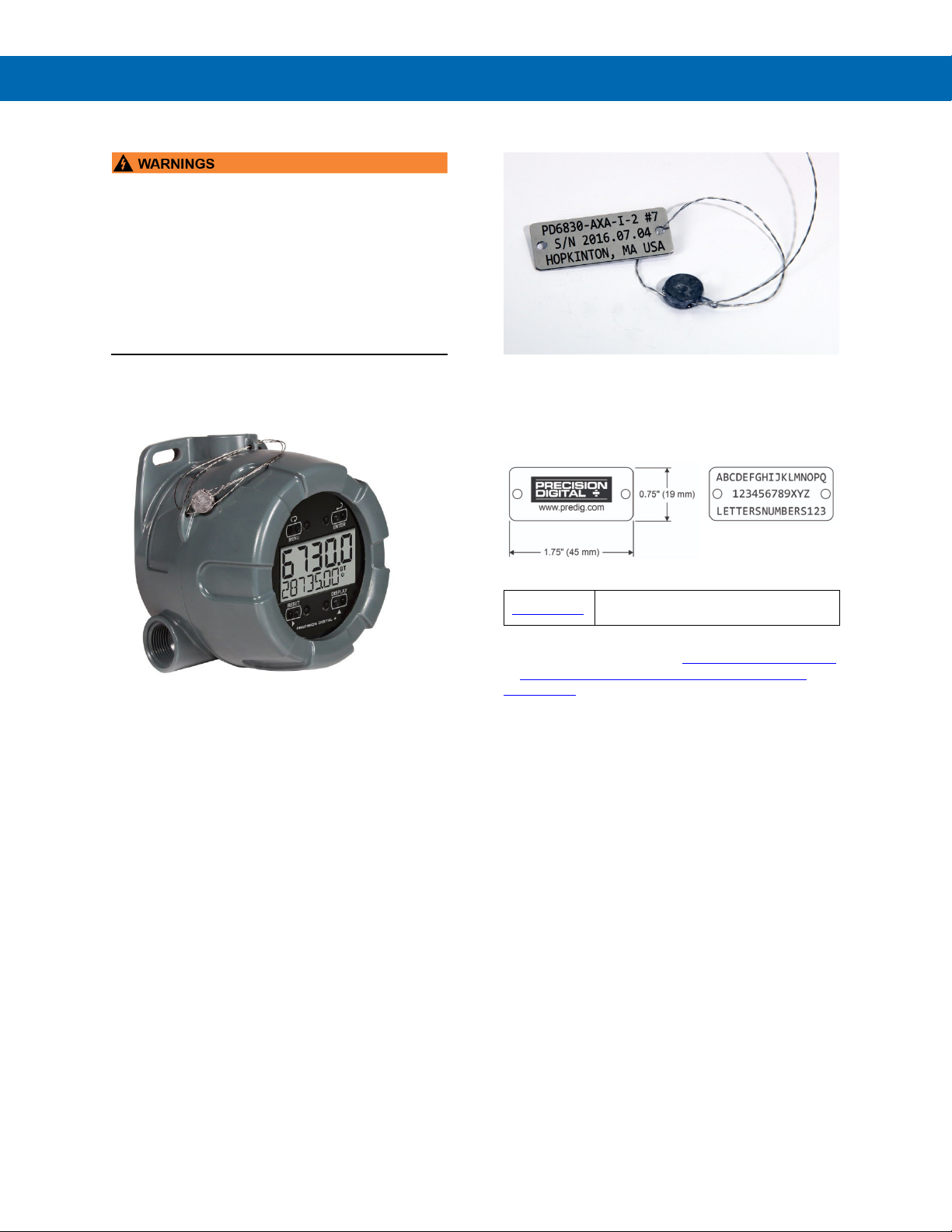

Tag and Tamper Seal Loop ......................................................................... 10

PDA-SSTAG Stainless Steel Tag................................................................. 10

Installation......................................................................................................... 11

Unpacking ..................................................................................................... 11

Conduit Plugs ............................................................................................... 11

Battery Activation Pull Tab .......................................................................... 11

Mounting ....................................................................................................... 11

Dimensions ................................................................................................... 11

Connections ................................................................................................. 12

Wiring Diagrams ........................................................................................... 13

Input Signal Connections ........................................................................... 13

DC Power Connection ............................................................................... 13

External Total Reset Connection ............................................................... 14

4-20 mA Transmitter Output Connections .................................................. 14

RS-485 Serial Connections ........................................................................ 14

Open Collector Output Connections .......................................................... 14

Battery Replacement ................................................................................. 15

Setup and Programming .................................................................................. 15

Overview ....................................................................................................... 15

MeterView EX Programming Software ....................................................... 15

SafeTouch Buttons ...................................................................................... 16

SafeTouch Button Tips and Troubleshooting ............................................. 16

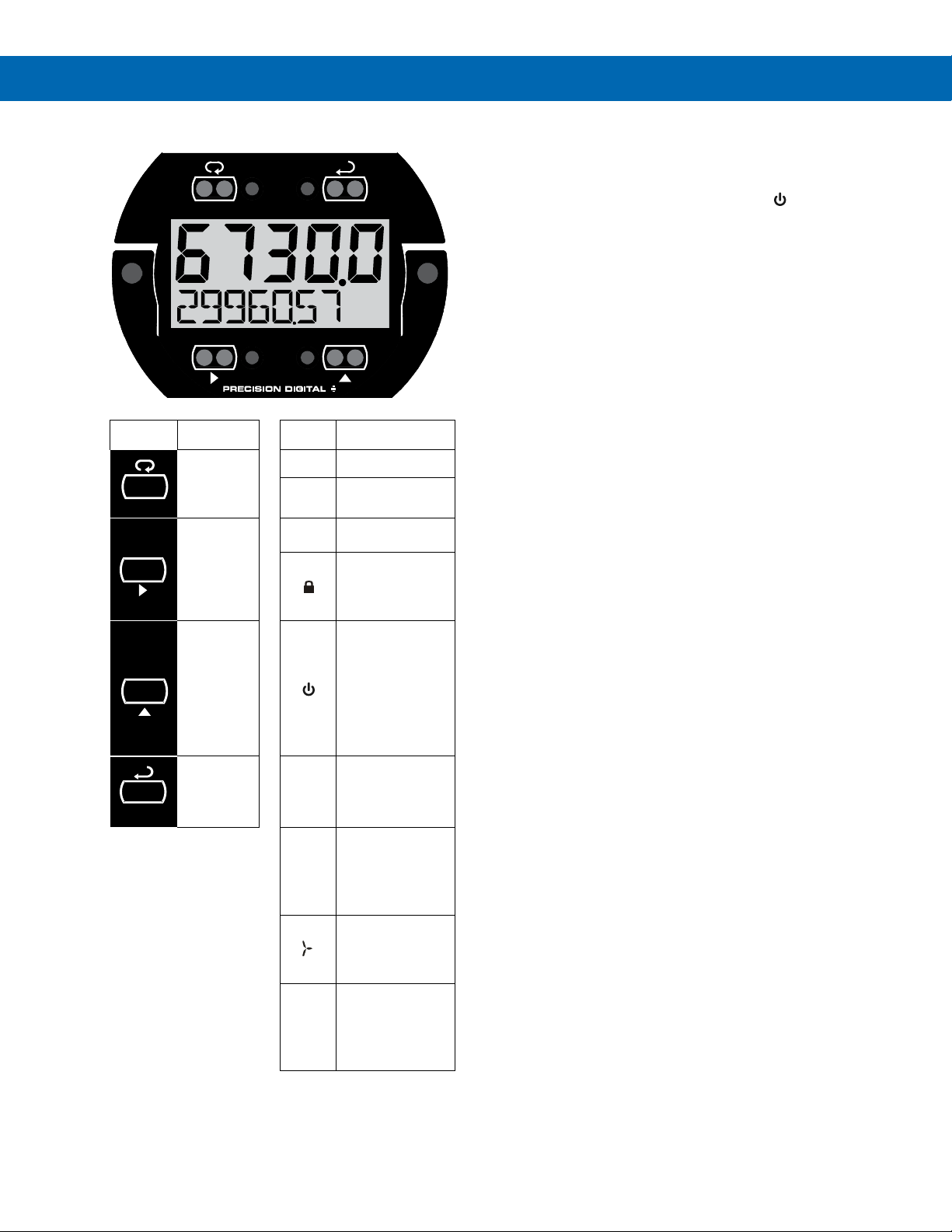

Buttons and Display ..................................................................................... 17

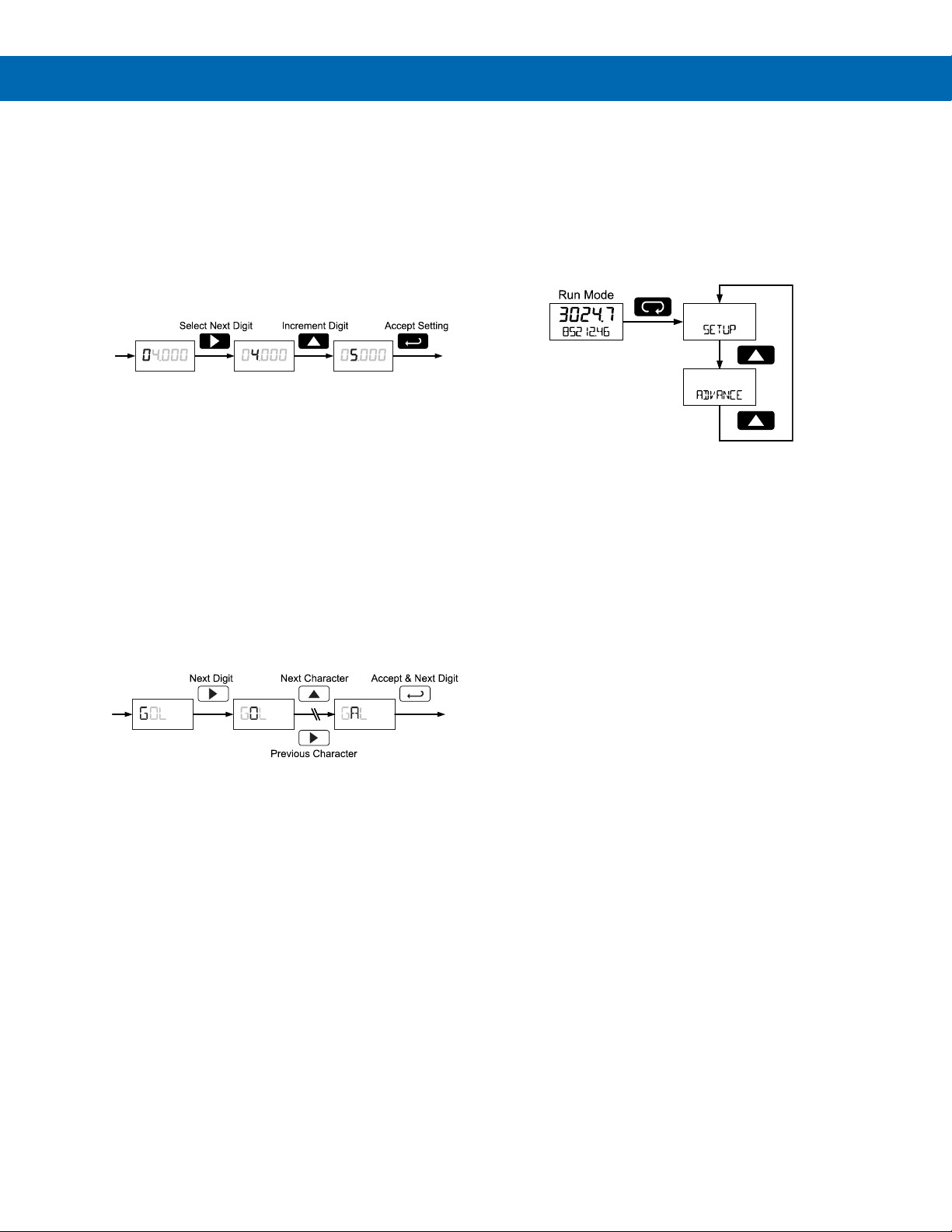

Setting Numeric Values ............................................................................... 18

Setting Alphanumeric Labels (LABEL) ......................................................... 18

Main Menu ..................................................................................................... 18

Setup Menu Display Functions & Messages ............................................. 19

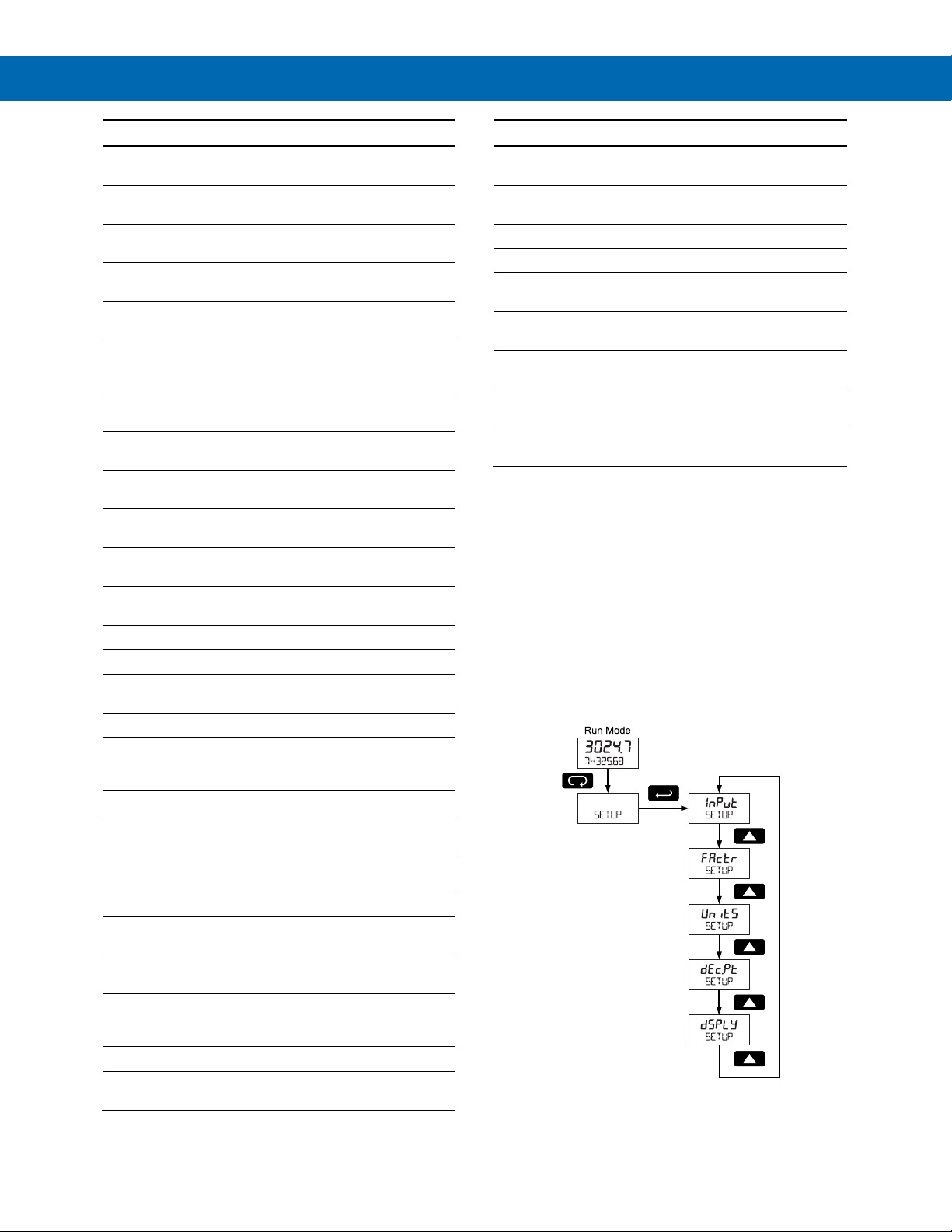

Setting Up the Meter (SETUP) ....................................................................... 20

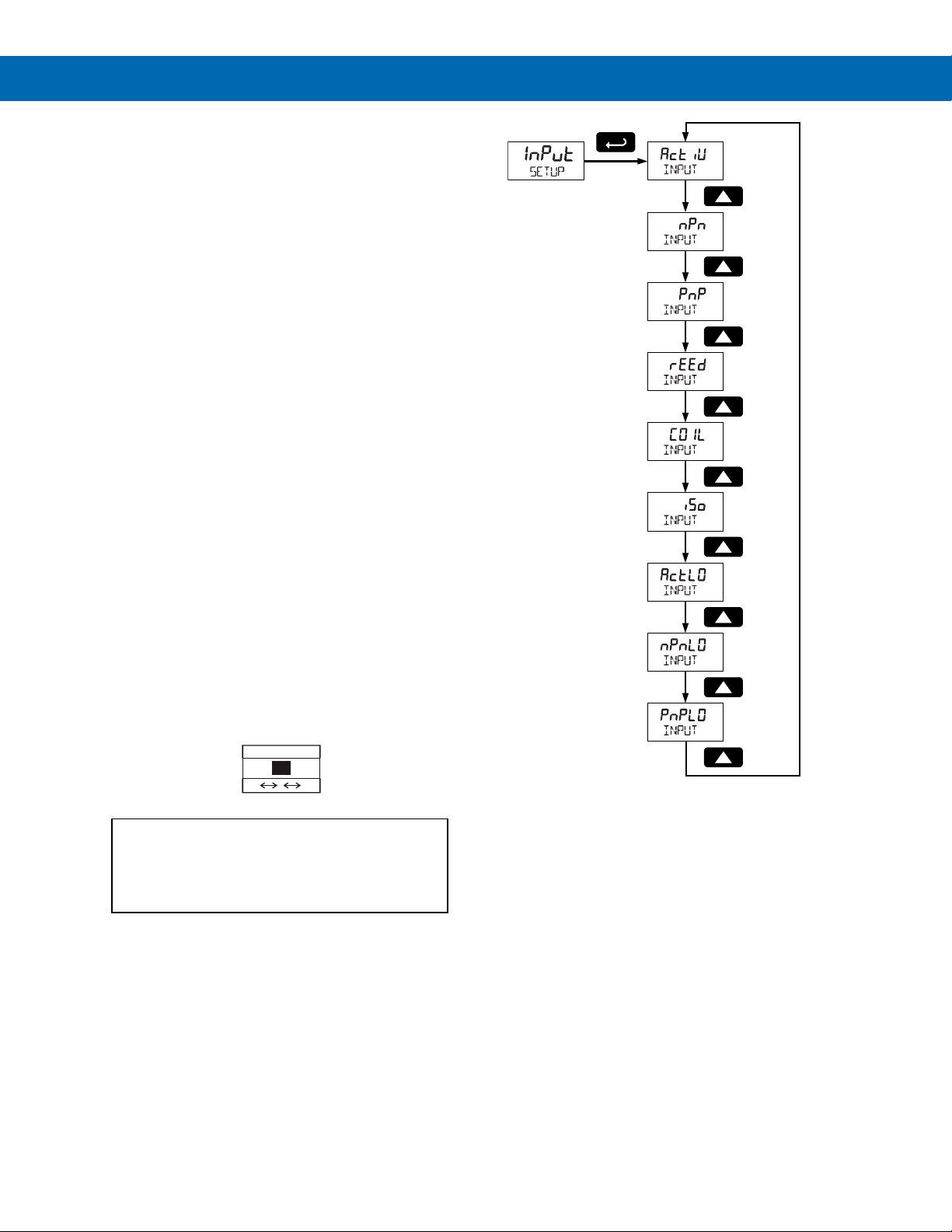

Selecting Input Type (Input) ..................................................................... 21

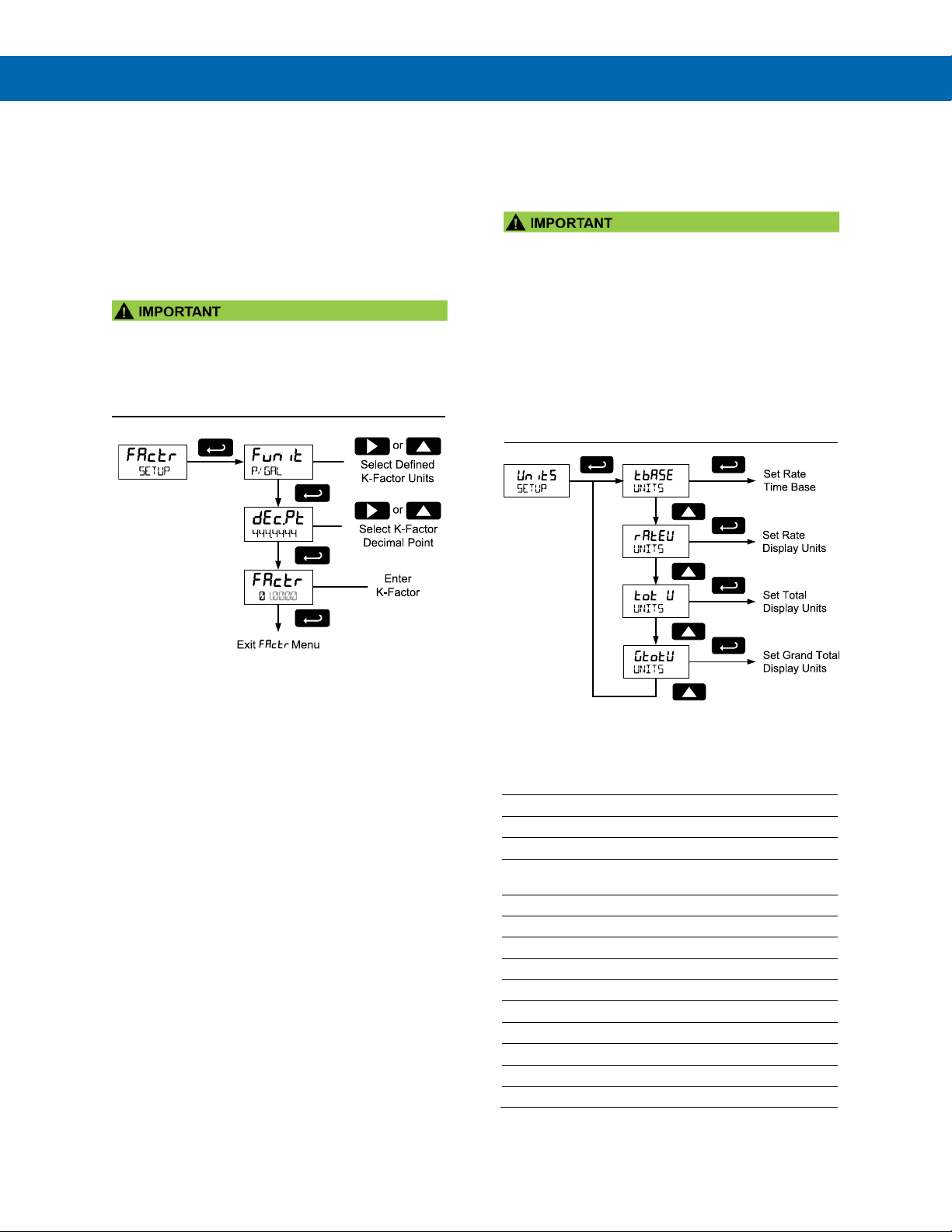

Entering the K-Factor (Factr) .................................................................... 22

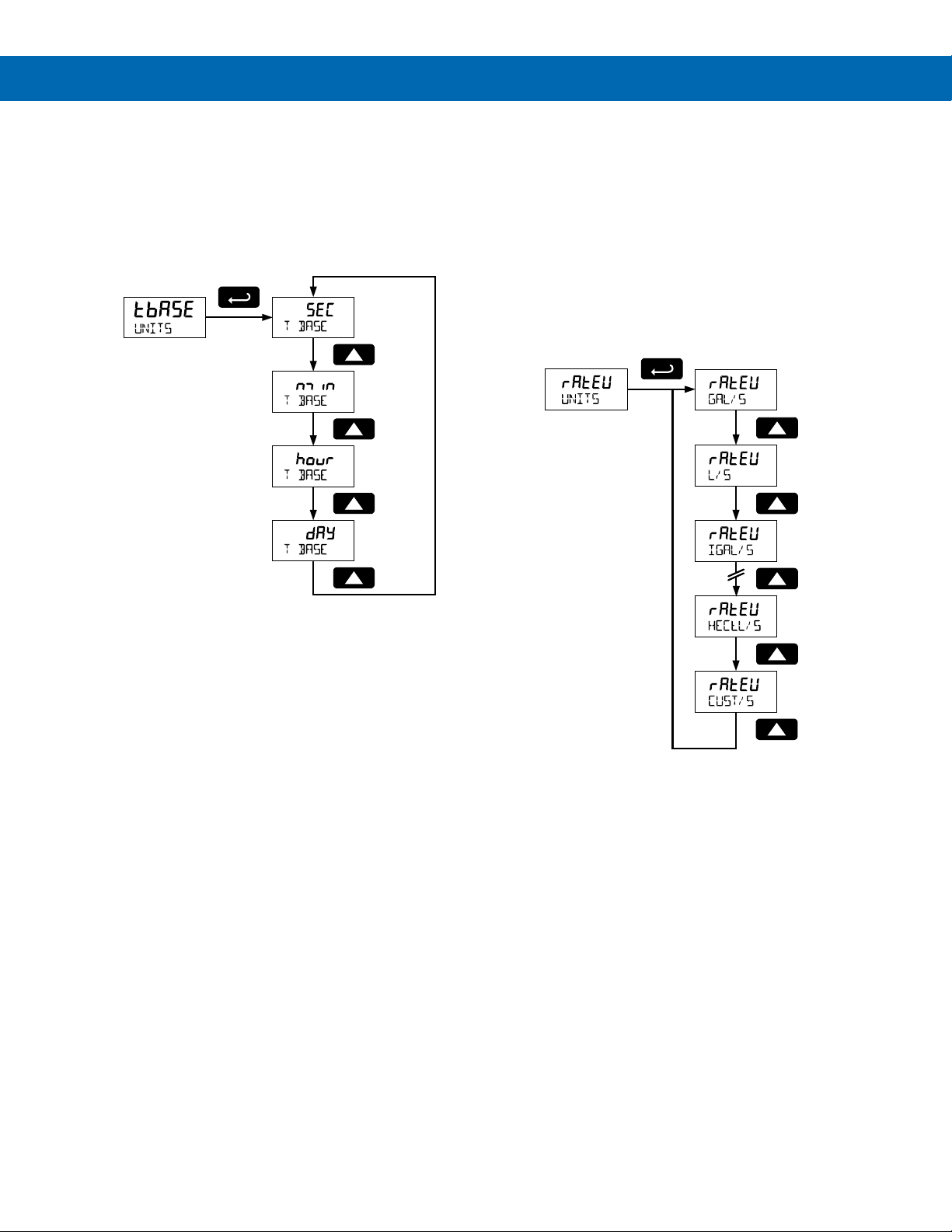

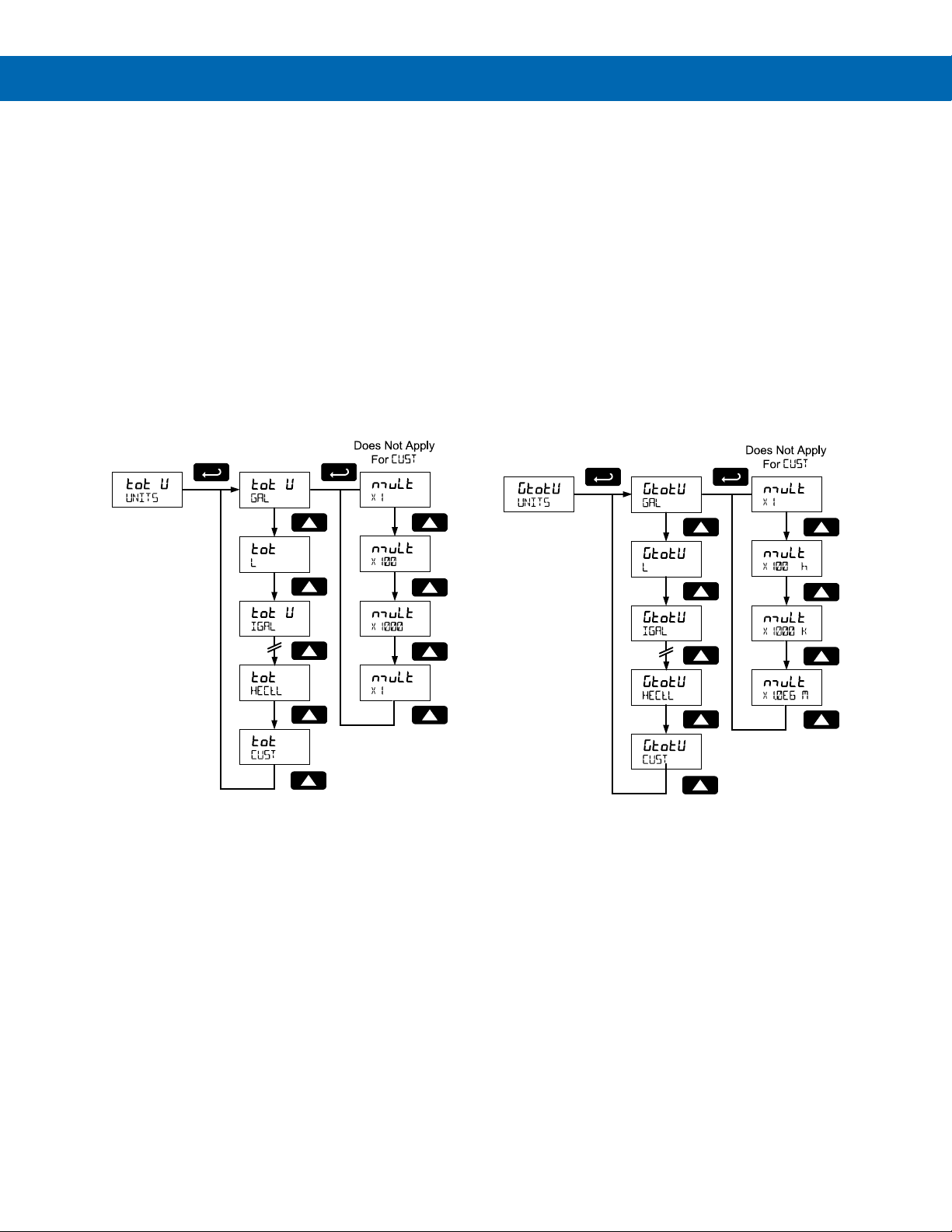

Display Units (Units) ................................................................................. 22

Setting the Decimal Point (dec.PT) ............................................................. 26

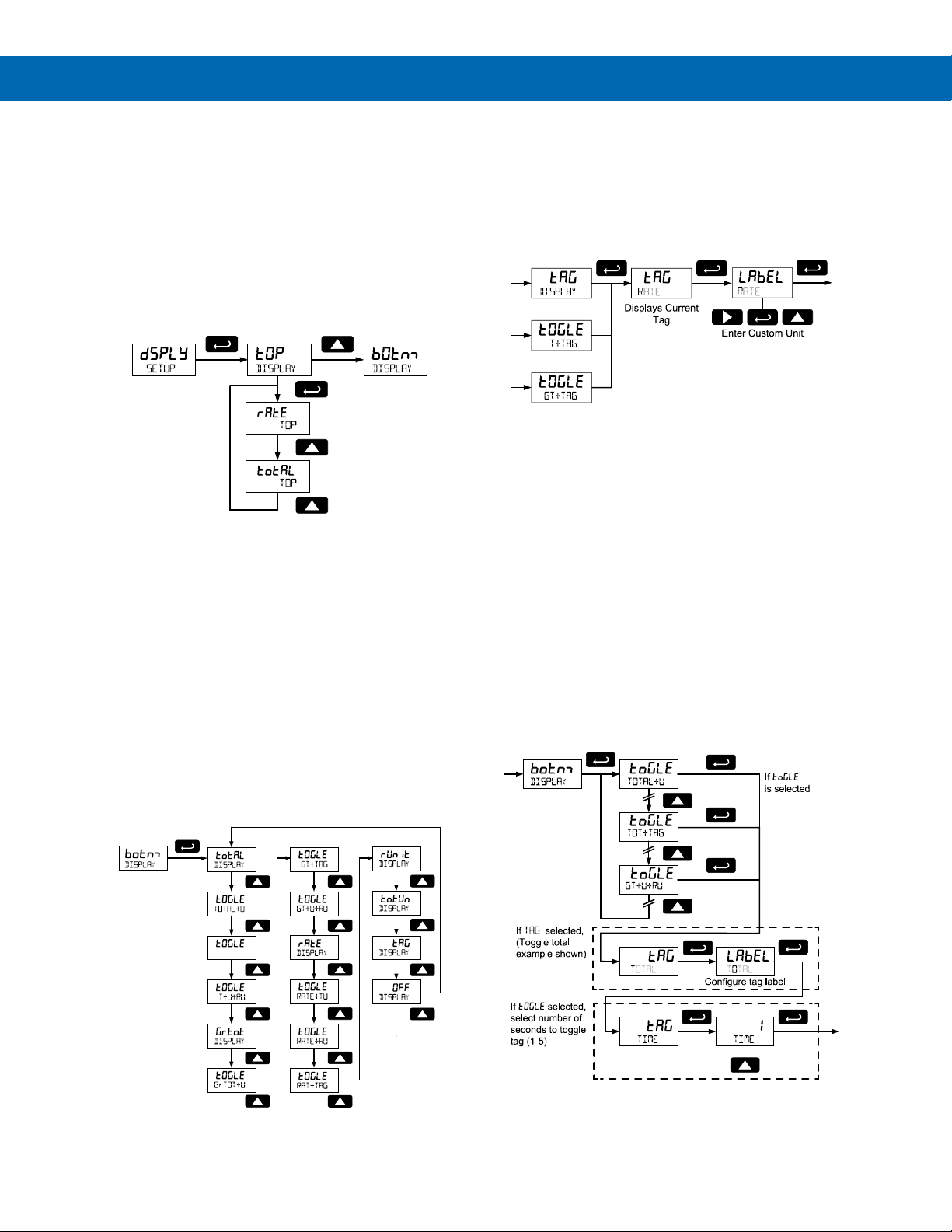

Configuring the Display (Dsply) ................................................................. 27

Instruction Manual

Page 5

PD6730 Field-Mount Pulse Input Rate/Totalizer

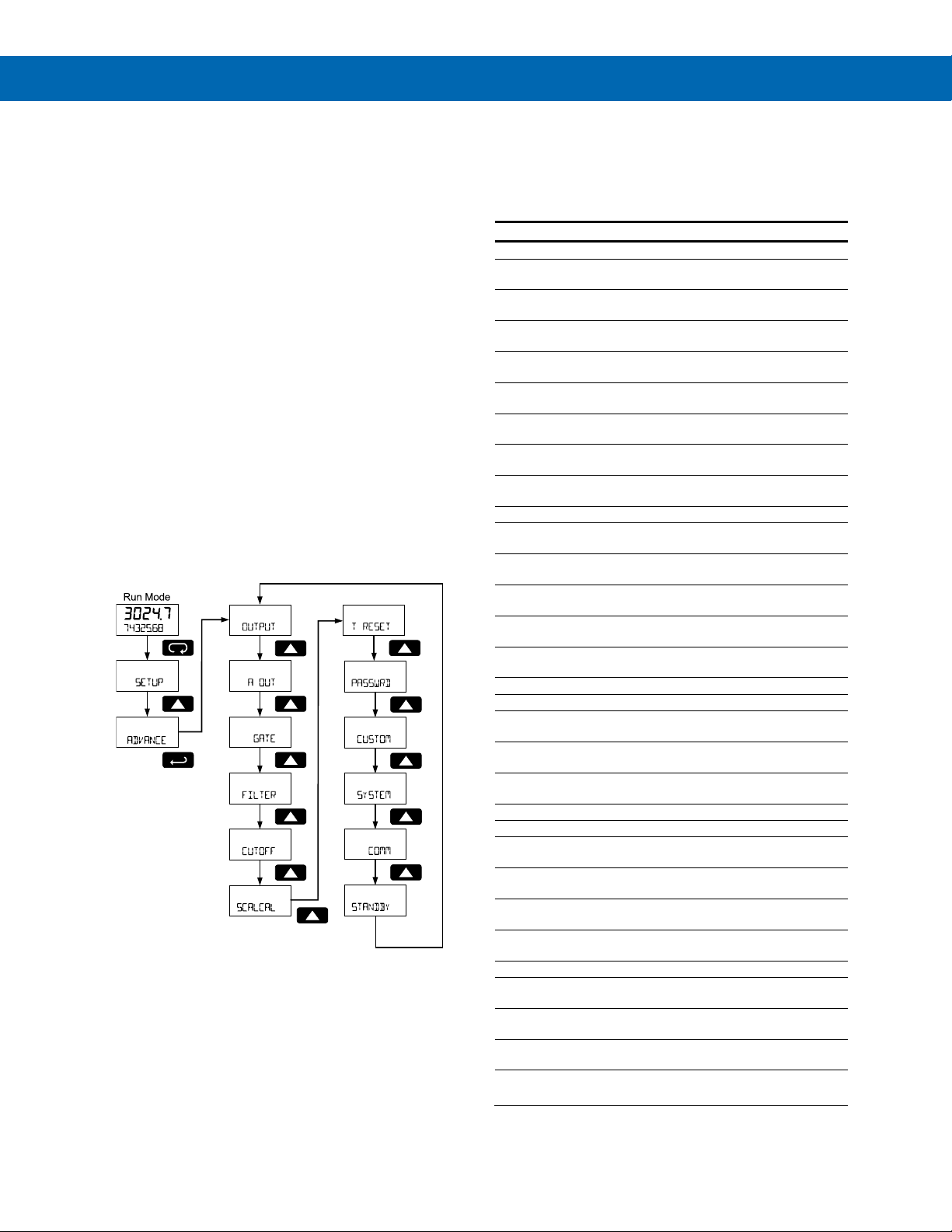

Advanced Features Menu ............................................................................ 28

Advanced Features Menu & Display Messages ......................................... 28

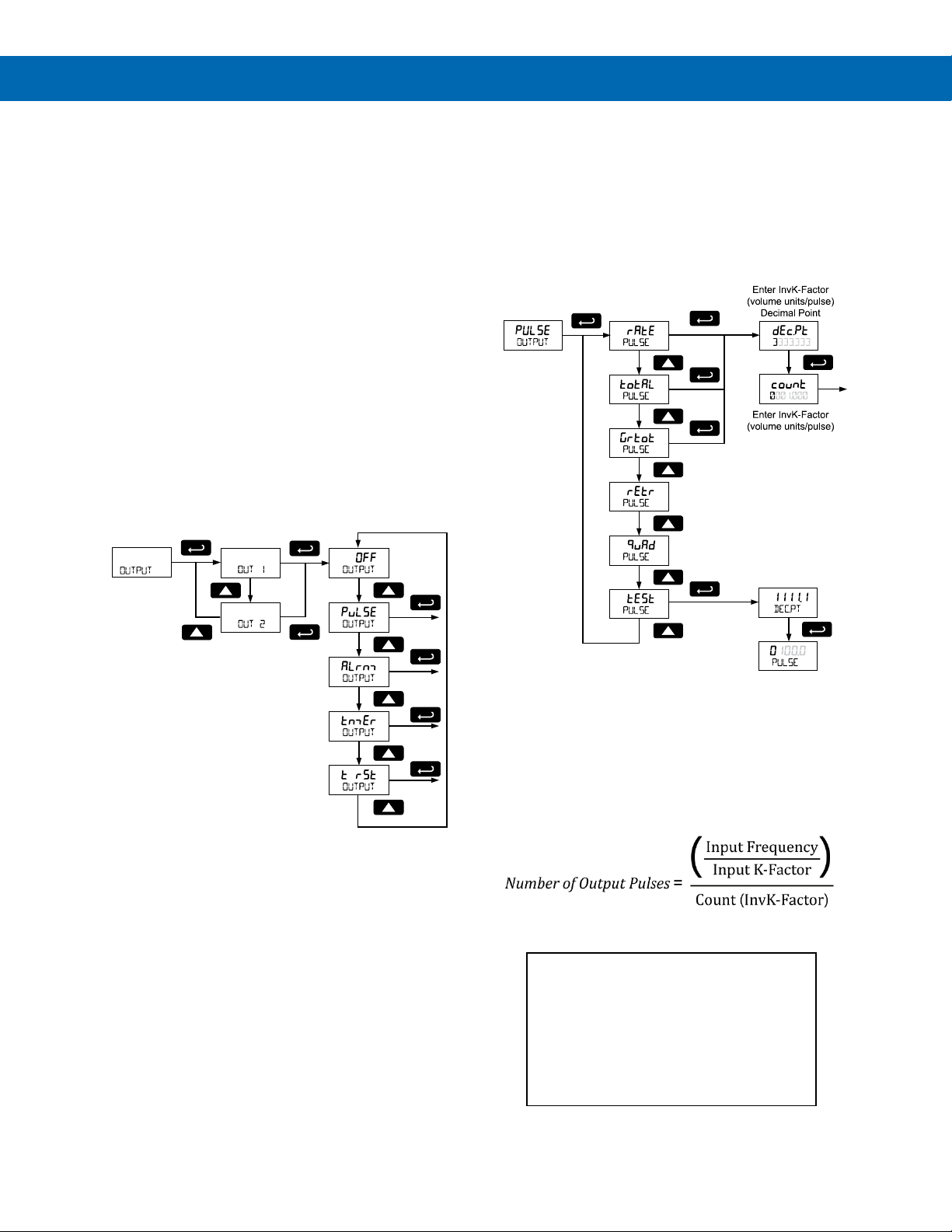

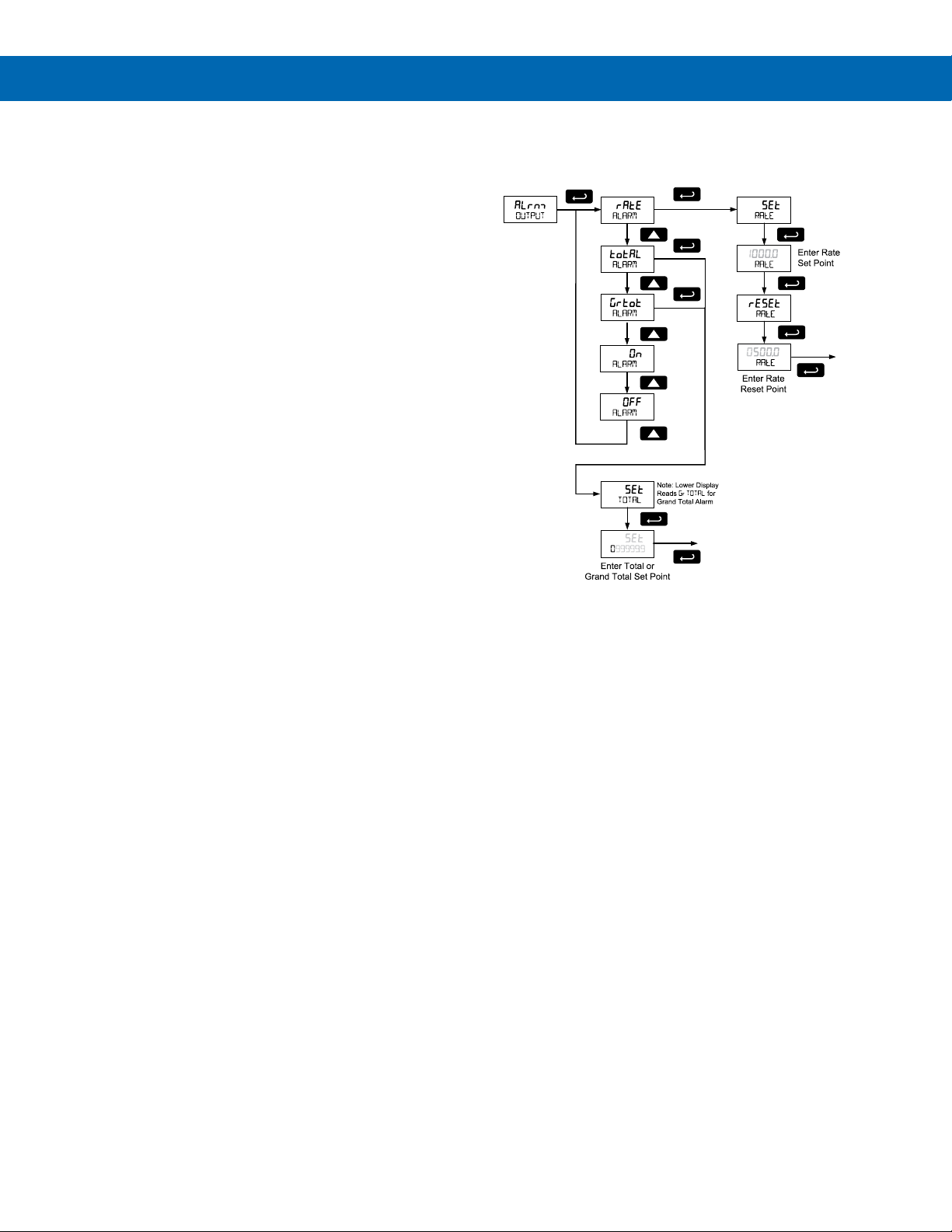

Open Collector Outputs (OUTPUT) .............................................................. 31

Scaling the 4-20 mA Analog Output (Aout) ................................................ 33

Gate Function (GATE) ................................................................................. 33

Contact Debounce Filter (FILTER) ............................................................. 33

Low-Flow Cutoff (CUTOFF) .......................................................................... 33

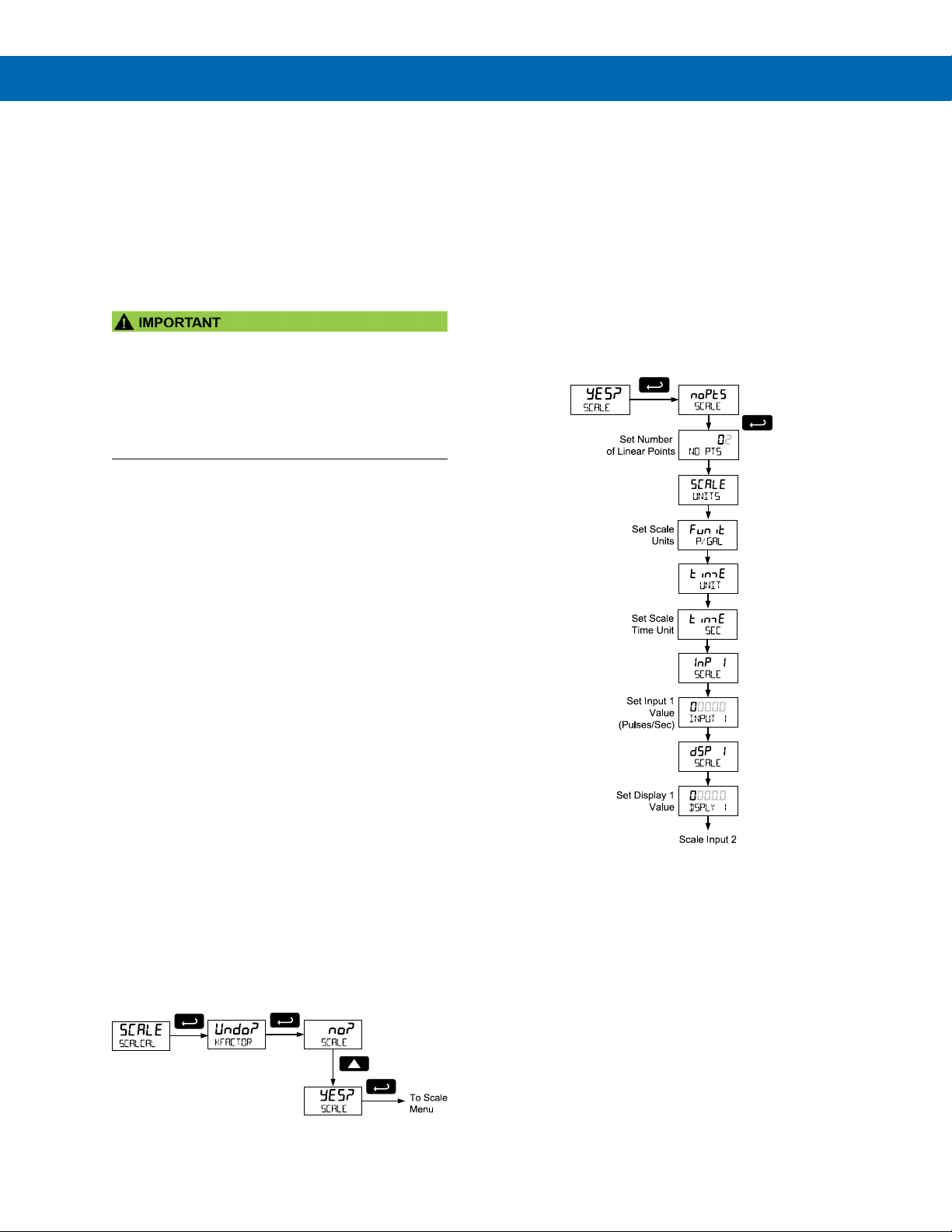

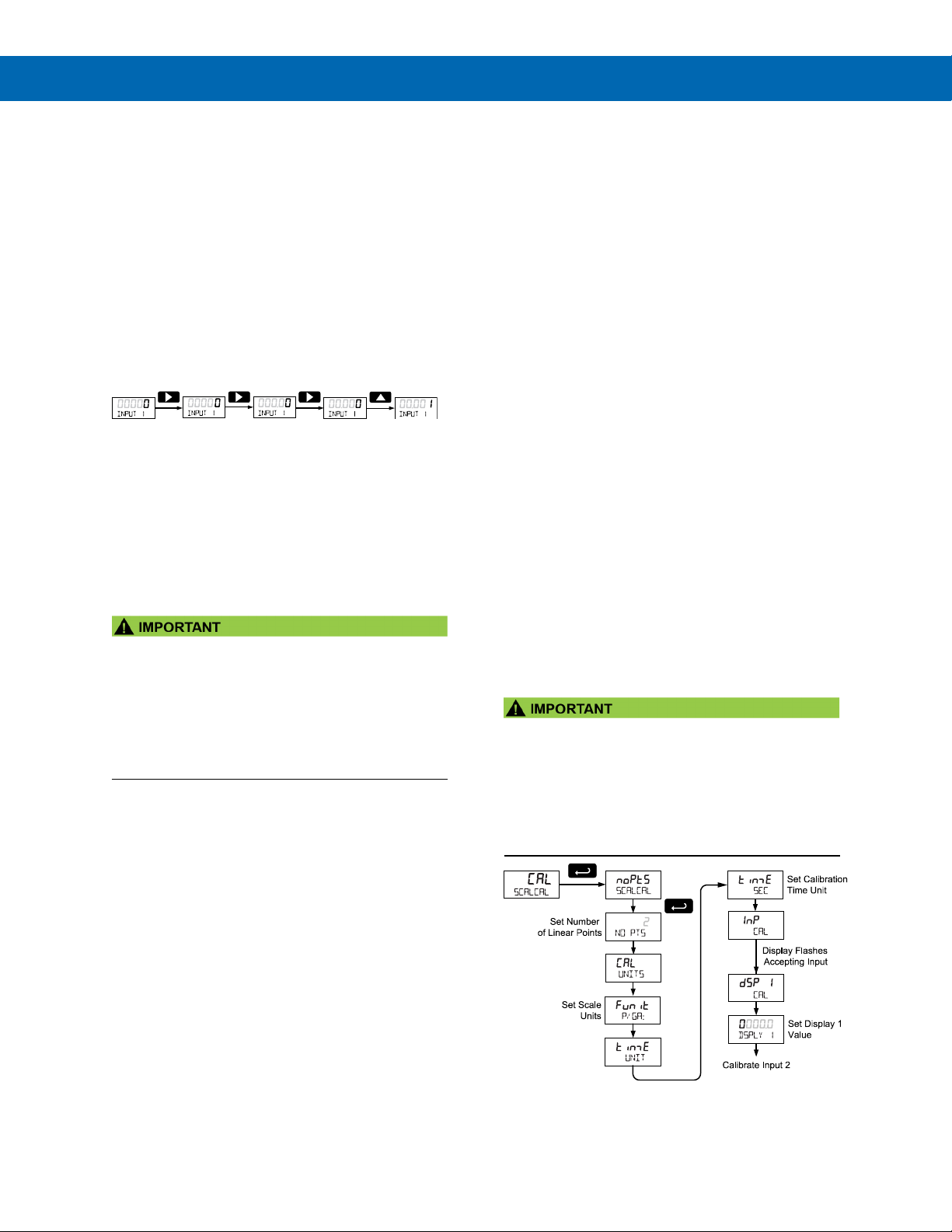

Scaling & Calibration (SCALCAL)................................................................. 34

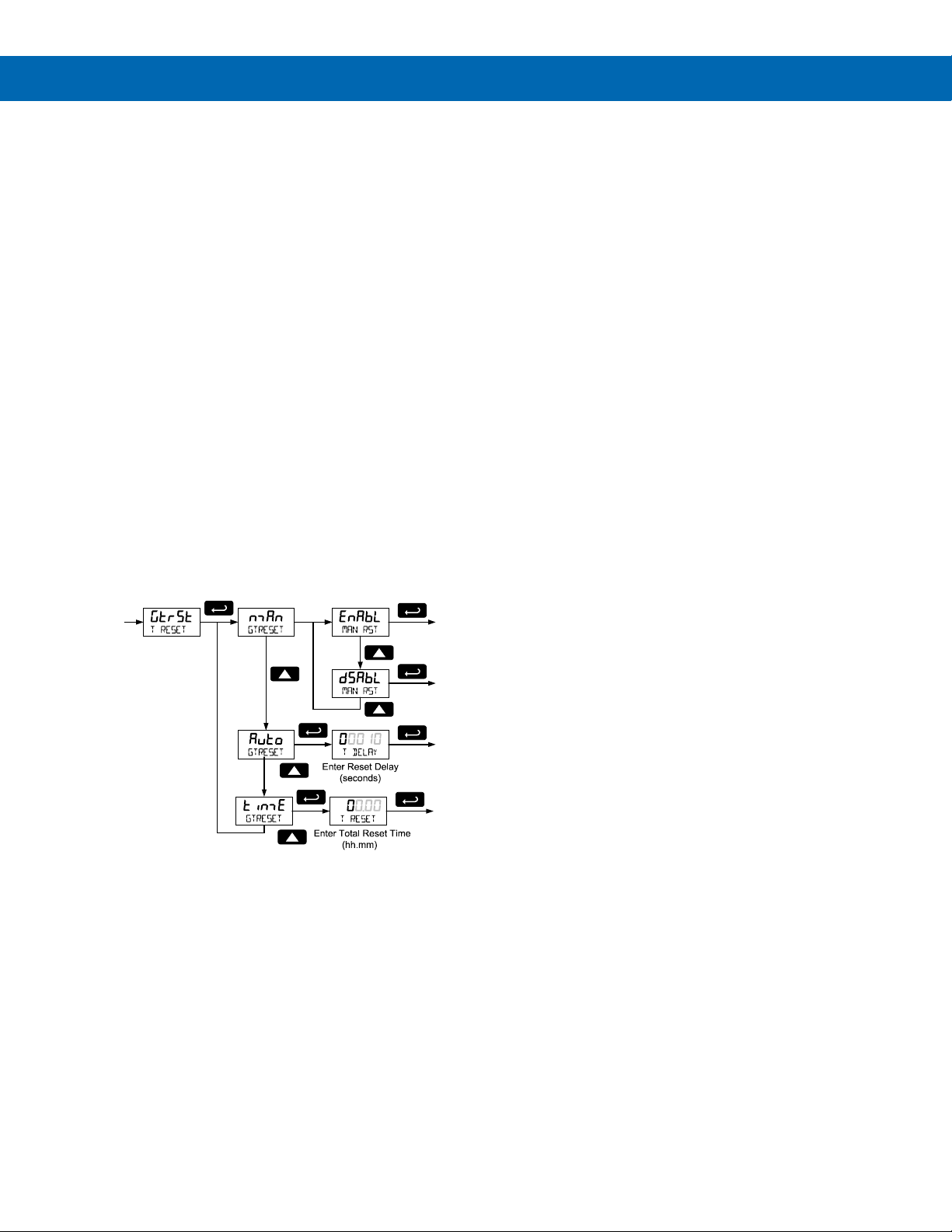

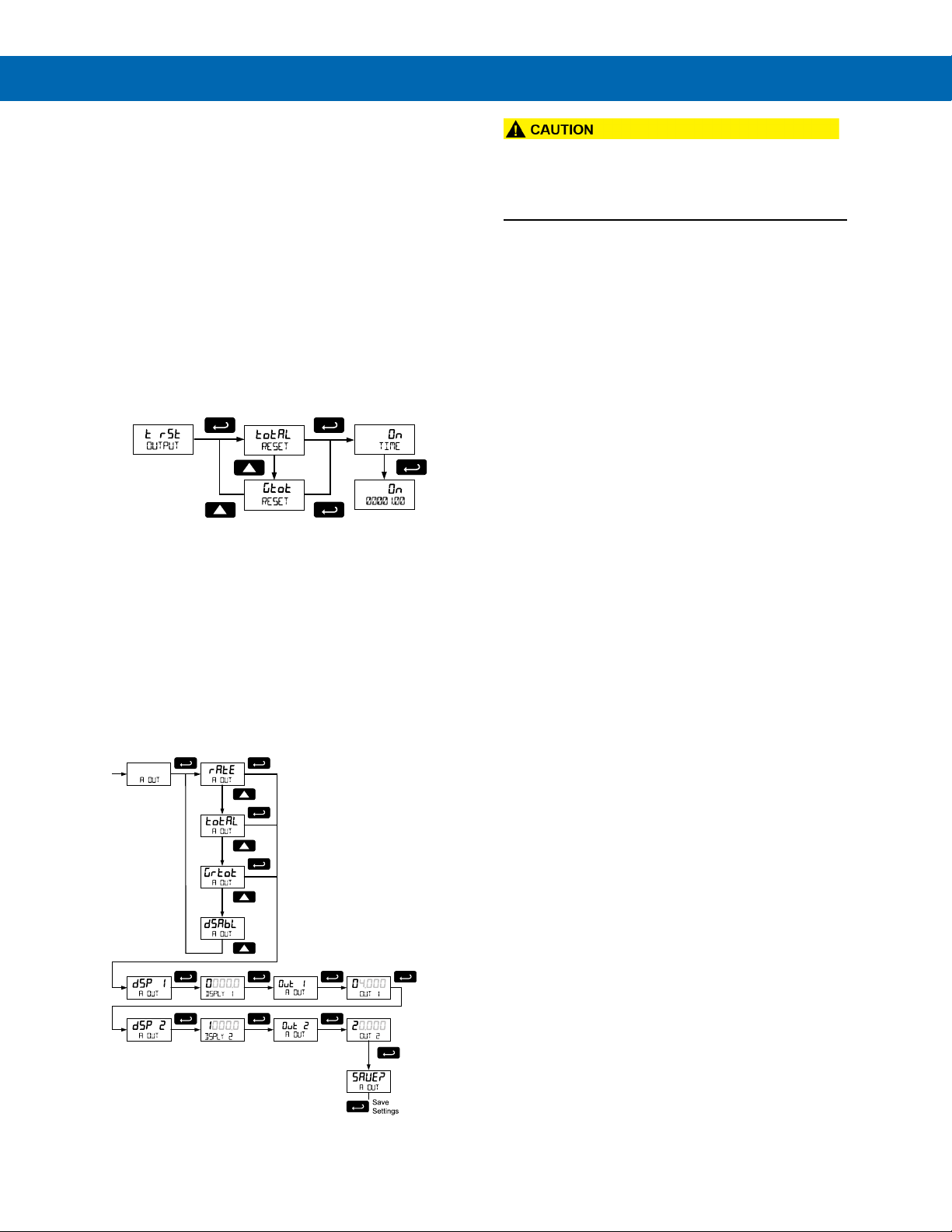

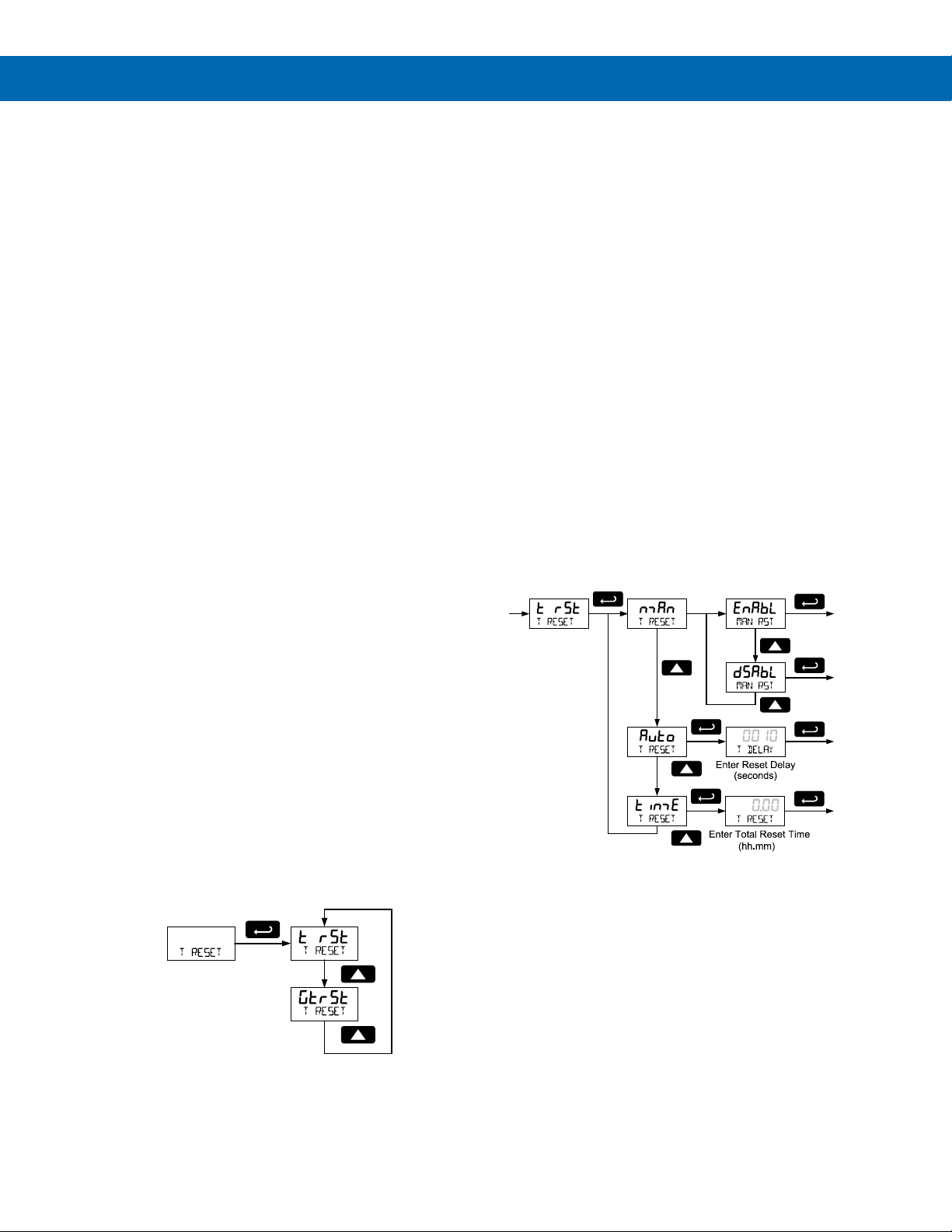

Total Reset (T Reset) ............................................................................... 36

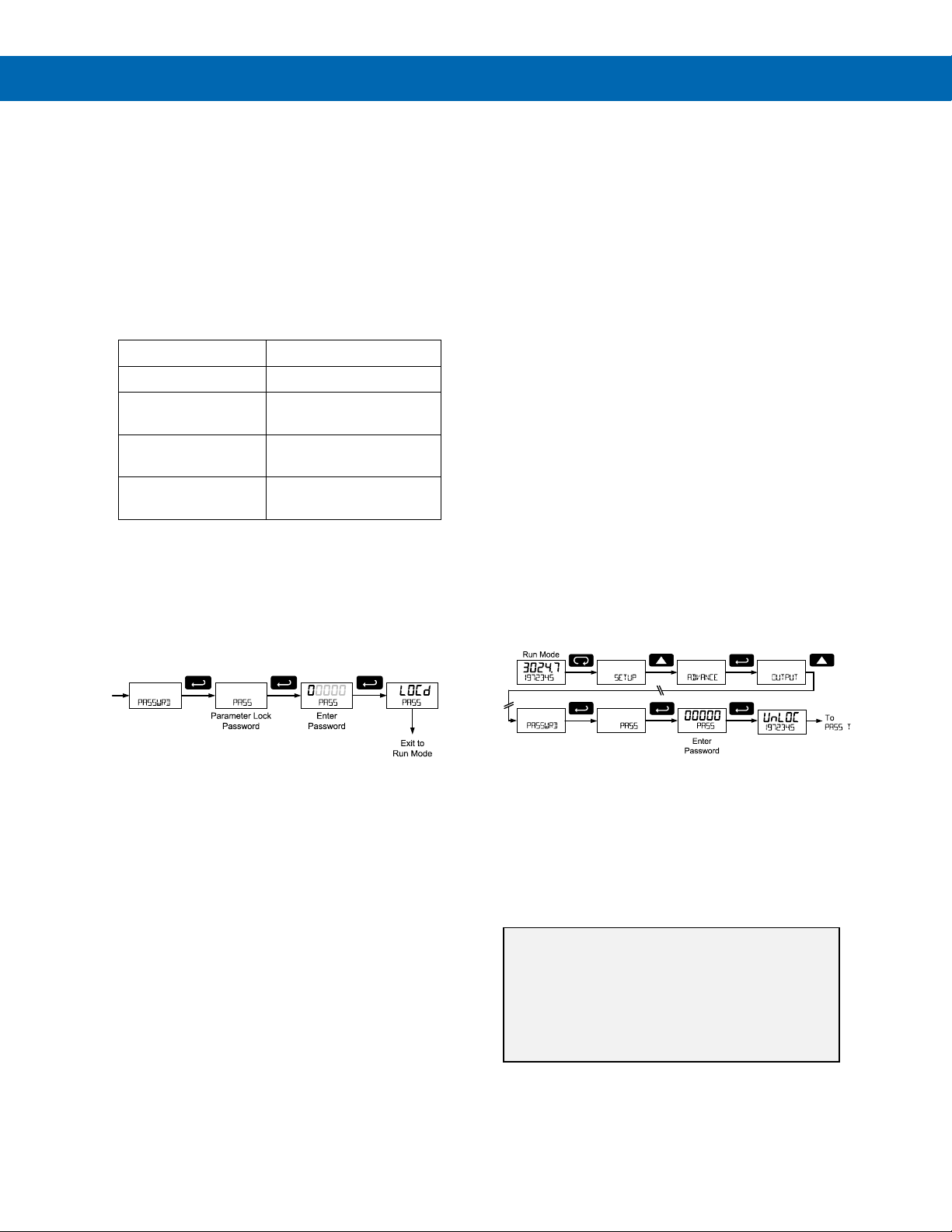

Setting Up Passwords (PASSWRD) ............................................................... 38

Custom Menu (CUSTOM) ............................................................................. 40

System (SYSTEM) ........................................................................................ 41

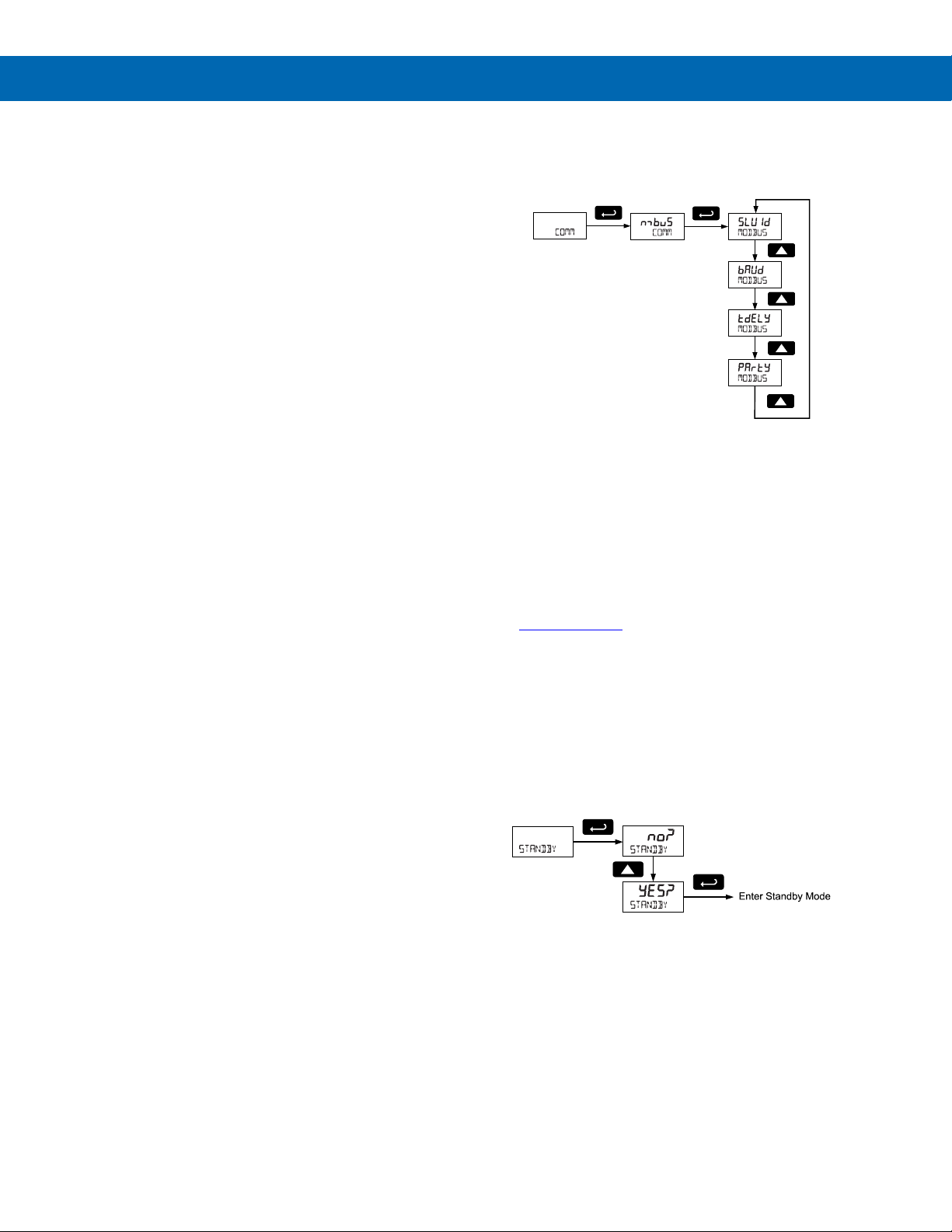

Serial Communications (COMM) ................................................................... 43

Standby Mode (STANDBY) ........................................................................... 43

Operation........................................................................................................... 44

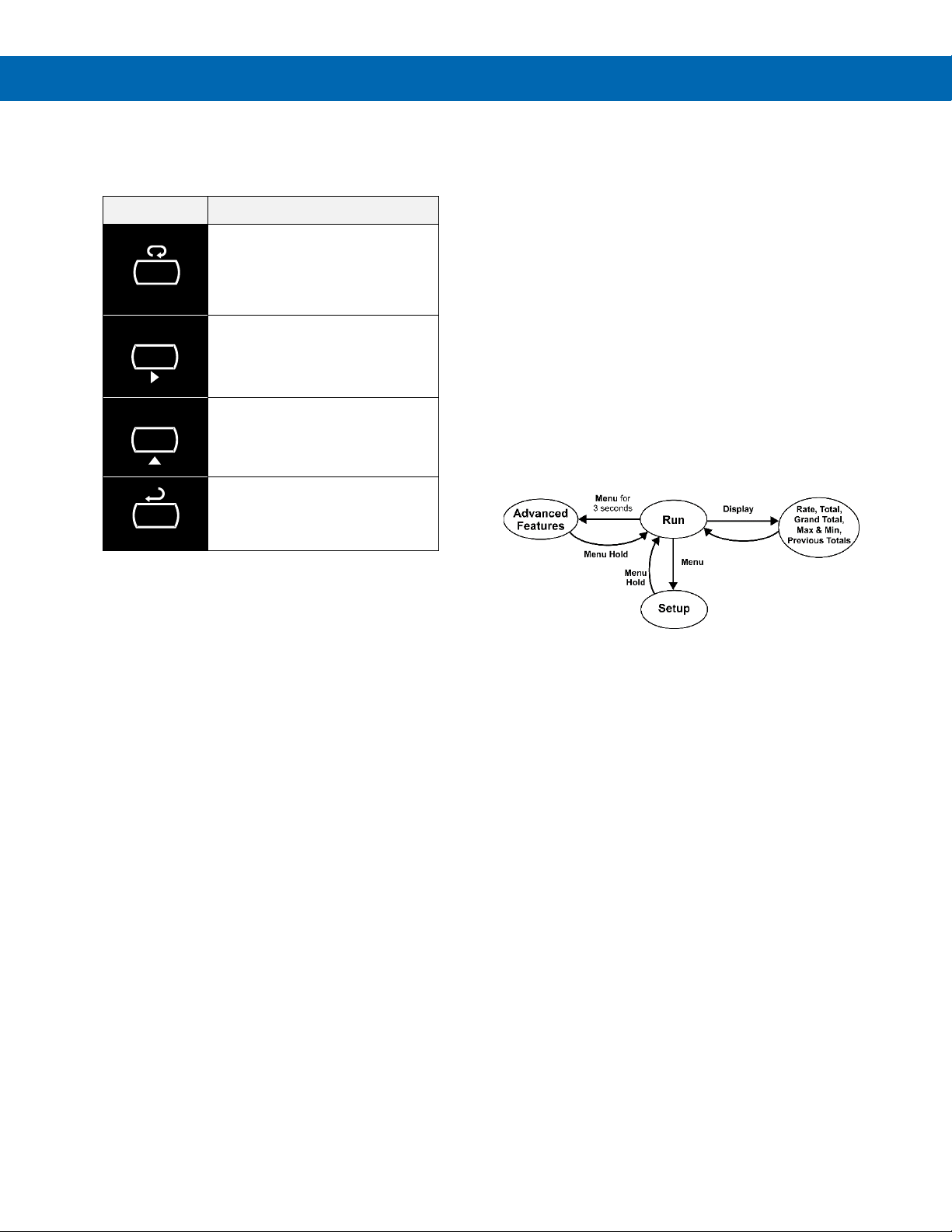

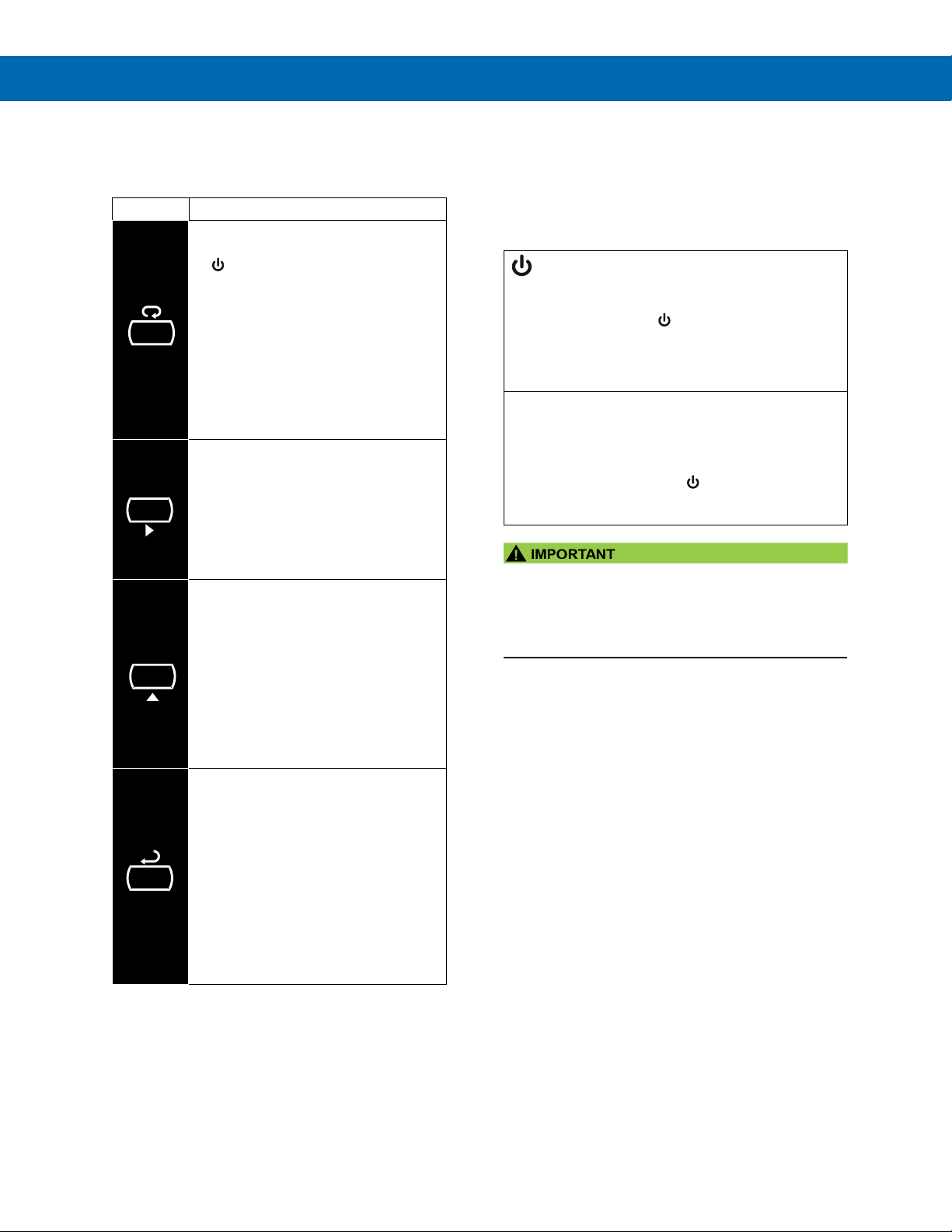

Front Panel Buttons Operation ................................................................... 44

Grand Total Reading (GrTOTAL) ................................................................... 45

Previous Total & Grand Total ...................................................................... 45

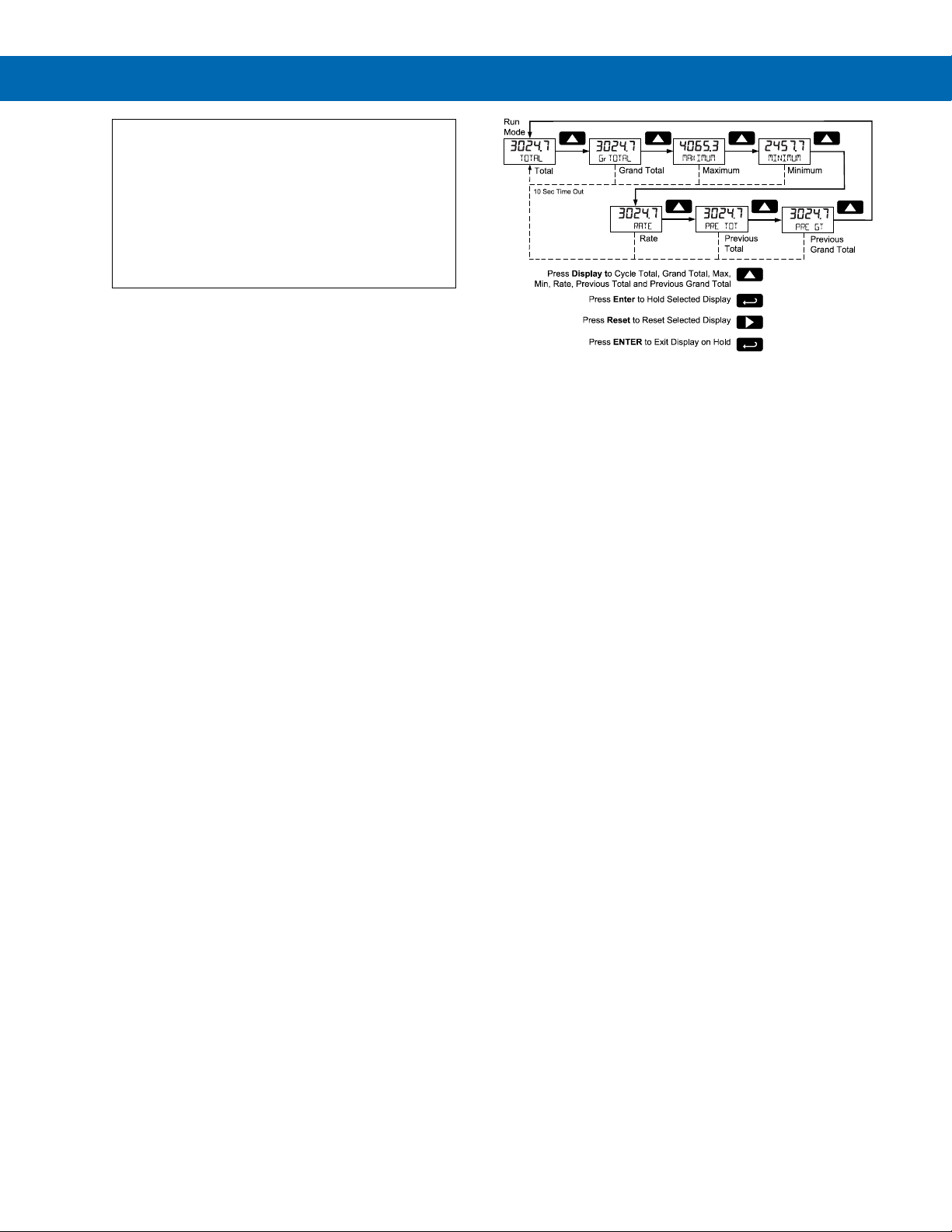

Display Max, Min & Previous Totals ........................................................... 45

Resetting the Total (RESET TOTAL?) .................................................................. 45

Resetting the Grand Total (RESET GrTOT?) ................................................. 45

Resetting Max/Min Readings (RESET MAXIMUM, MINIMUM) ........................... 45

Reset Meter to Factory Defaults.................................................................. 46

Factory Defaults & User Settings................................................................ 46

Troubleshooting ............................................................................................... 47

Troubleshooting Tips ................................................................................... 47

Quick User Interface Reference ...................................................................... 48

Instruction Manual

Table of Figures

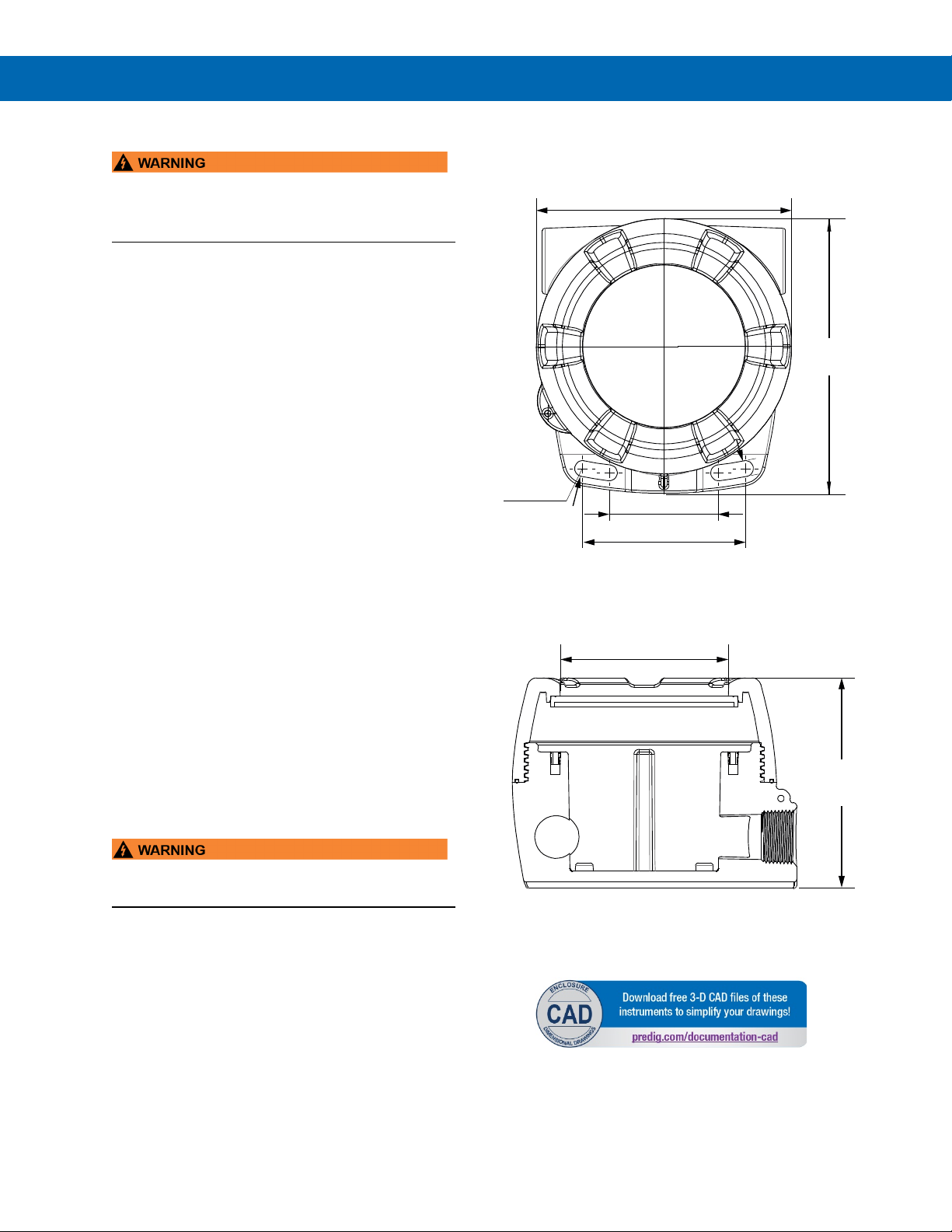

Figure 1. Enclosure Dimensions – Front View ............................................... 11

Figure 2. Enclosure Dimensions – Side Cross Section View ....................... 11

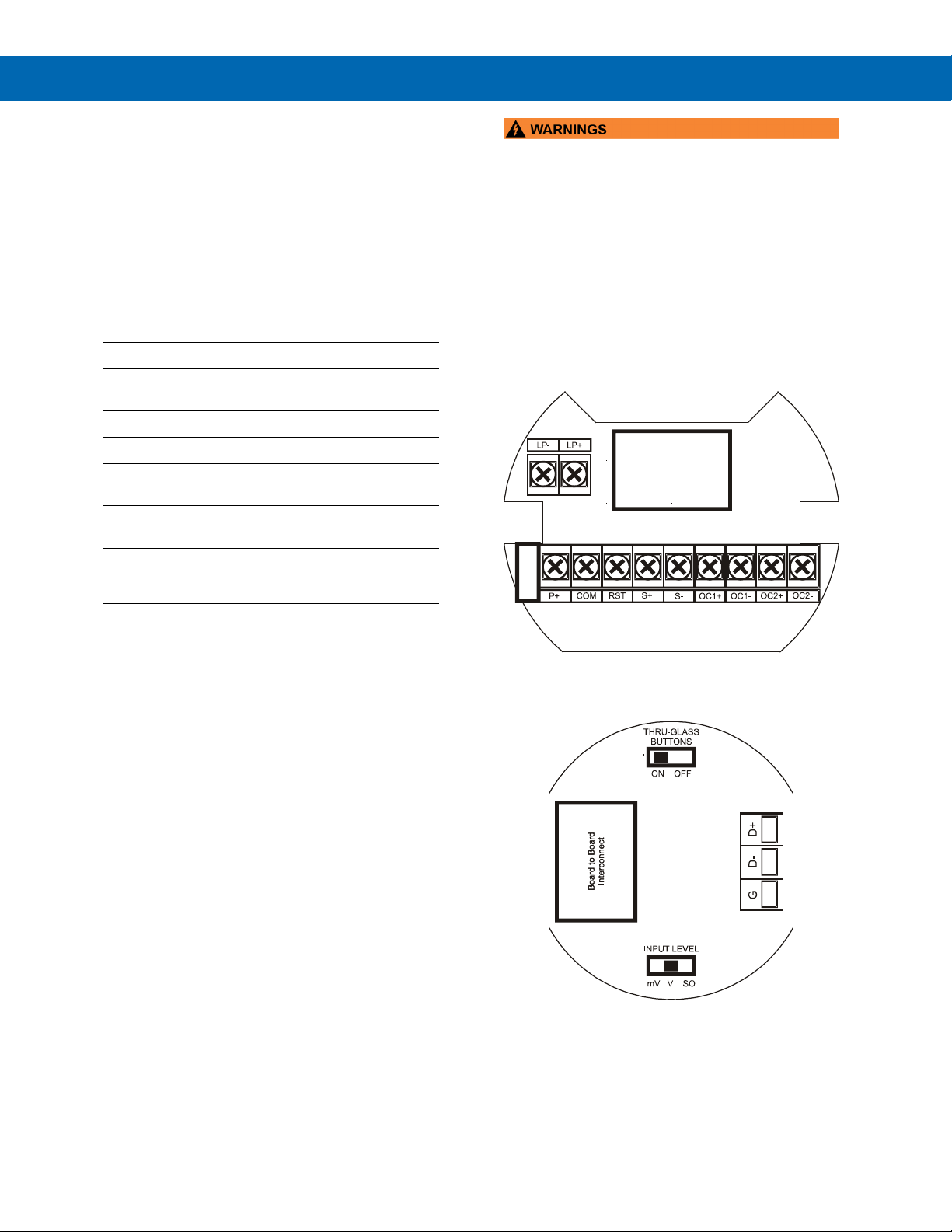

Figure 3. Connector Board Mounted in Base of Enclosure .......................... 12

Figure 4. Connectors & Switches on Rear of Display Module ...................... 12

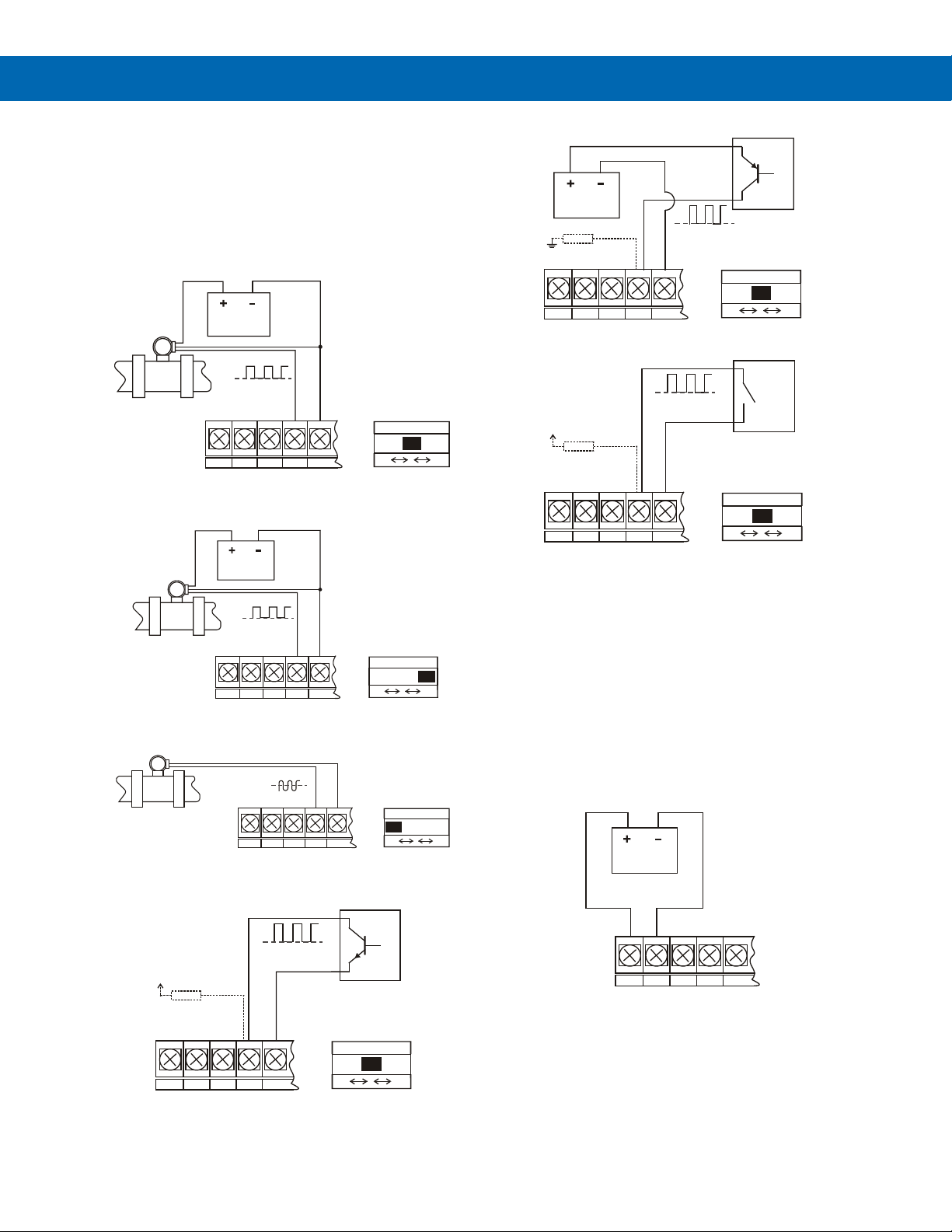

Figure 5. Flowmeter Powered by External Supply (Active)........................... 13

Figure 6. Isolated Flowmeter Powered by External Supply (ISO) ................. 13

Figure 7. Self-Powered Magnetic Pickup Coil Flowmeter (Coil) ................... 13

Figure 8. NPN Open Collector Input ................................................................ 13

Figure 9. PNP Sensor with External Power .................................................... 13

Figure 10. Switch Contact Input (Reed) .......................................................... 13

Figure 11. DC Power Connections .................................................................. 13

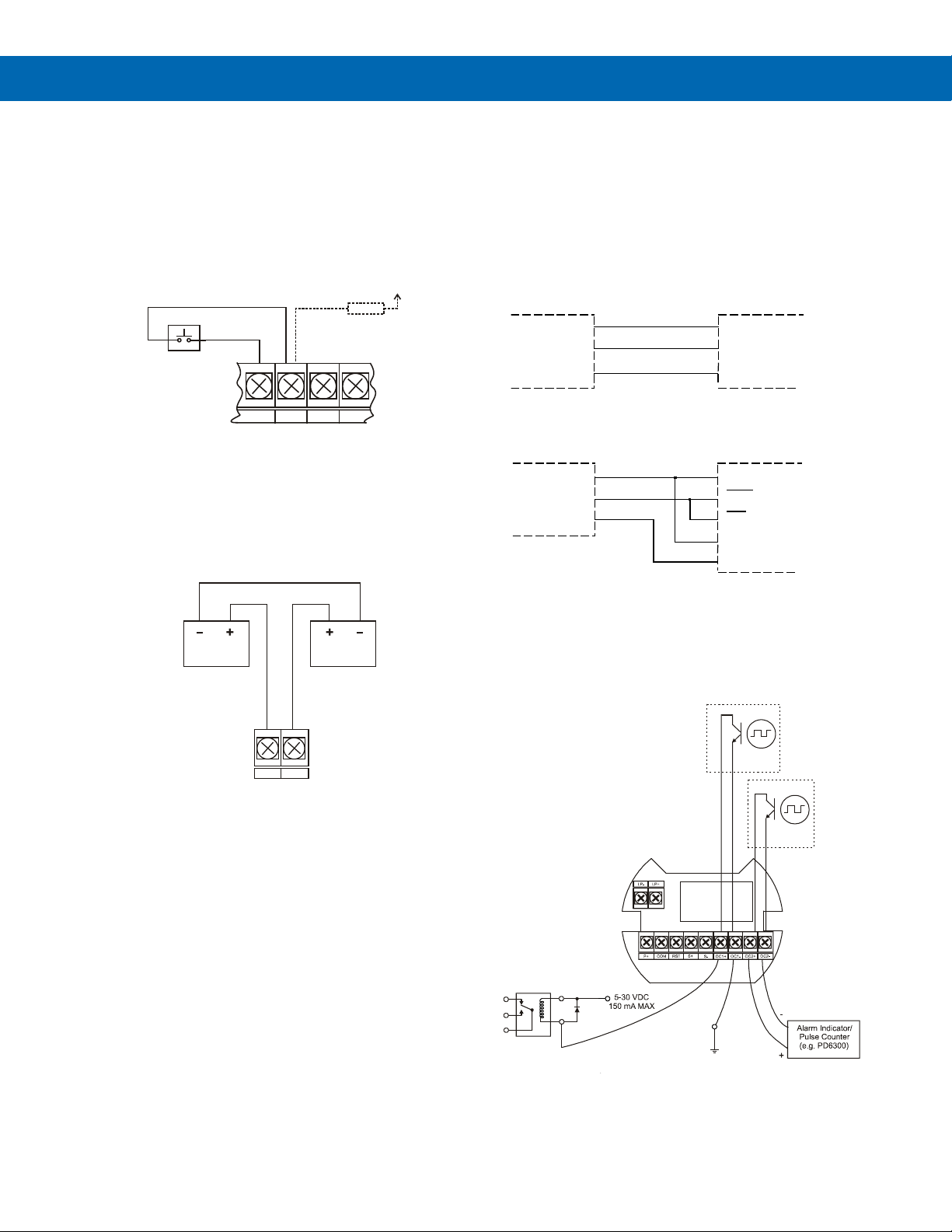

Figure 12. Reset Connections ......................................................................... 14

Figure 13. 4-20 mA Output Connections ........................................................ 14

Figure 14. RS-485 2 Wire Serial Connections ................................................ 14

Figure 15. RS-485 4 Wire Serial Connections ................................................ 14

Figure 16. Open Collector Output Connections ............................................. 14

Figure 17. Battery Orientation ......................................................................... 15

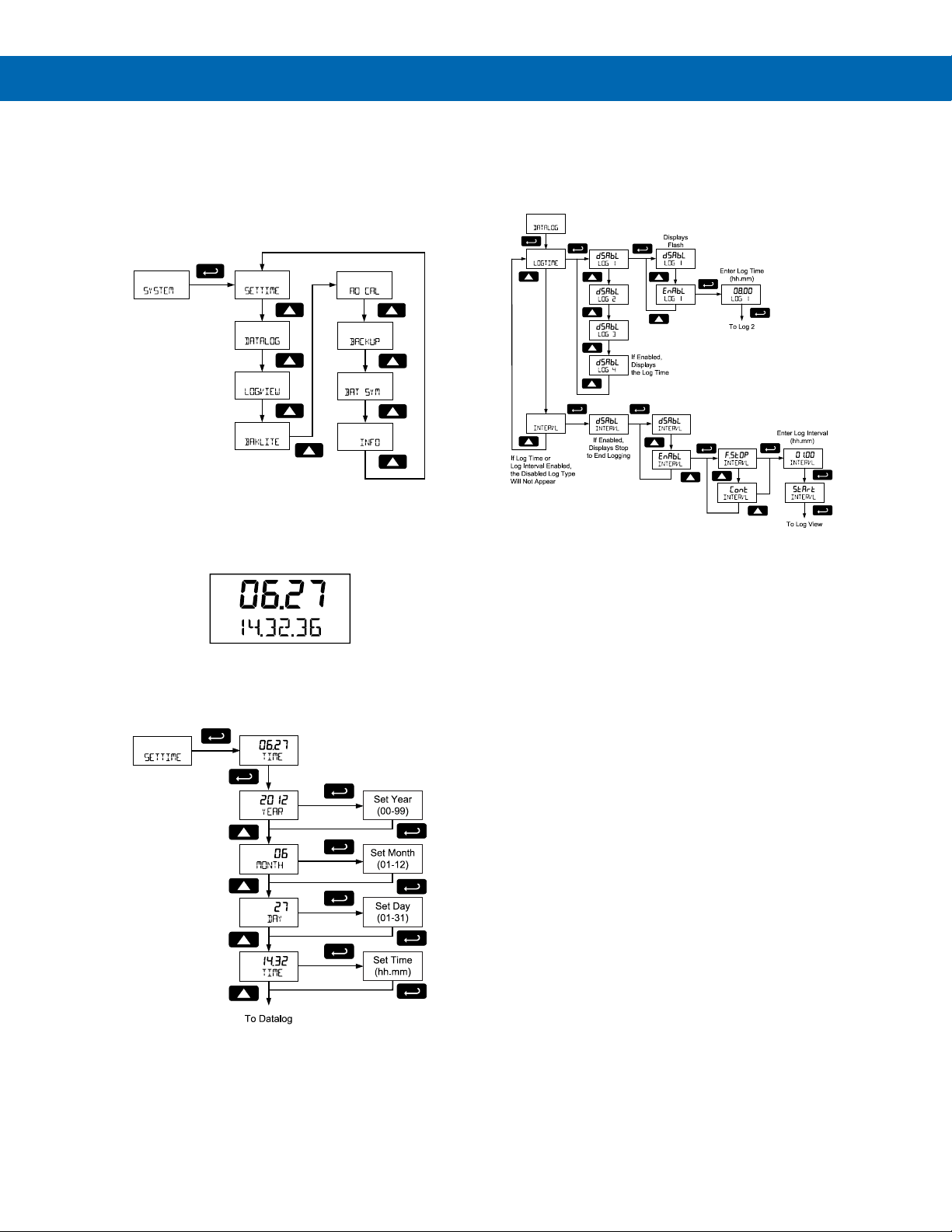

Figure 18. Date Display Example .................................................................... 41

Page 6

PD6730 Field-Mount Pulse Input Rate/Totalizer

Display

Top

Five digits, (0-99999),

automatic lead zero blanking.

Bottom

Seven alphanumeric characters,

automatic lead zero blanking.

Symbols

Total, grand total, battery power/low battery, high alarm, low

mode/disable, password lock

Display

Top Display: Rate or total

total, grand total, units, and custom tag

Backlight

White; it can be disabled/enabled in the

automatically turned off below -20°C.

Alarm Indication

Flashing display plus HI/LO (rate) or SET (total) indicators

Display Orientation

Display may be mounted at 90° increments up to 270° from default orientation.

Display

Ambient > -20°C: 1 update/second

settings.

Overrange

Display flashes 99999

Programming

Four SafeTouch through-window buttons

Free MeterView EX software.

Recalibration

Recalibration is recommended at least every 12 months.

Max/Min

Max/Min readings reached by the process

power to the meter is turned off.

Password

Three programmable password selections

settings with a specific password.

Power Options

9-30 VDC Powered, 2.2 W max

4-20 mA Output Powered, 30 VDC max

Battery Power

9-30 VDC Powered with Battery Backup

4-20 mA Output Powered with Battery Backup

Battery

3.6 V Primary Lithium (Li-SOCl2), non-rechargeable Model PDABAT36C

Expected Service Life & Recommended Replacement Interval

Operating

Estimated

Life

Suggested

Interval

Open

use

<2 kHz

use

<5 kHz

use

Data Logging

Up to 1024 records, recorded 4/day at

grand total, and log number.

Isolation

All Models:

500 V opto-isolated

enabled

PD6730-BTA:

500 V input-to-output

PD6730-APA:

500 V

separate output supply

Environmental

Operating temperature range: -40 to 75°C

Printed circuit boards are conformally coated.

Non-Volatile

All programmed settings and total reading

minimum of ten years if power is lost.

Specifications

Except where noted all specifications apply to operation at +25°C.

General

0.7" (17.8 mm) high, 7- segment,

0.4" (10.2 mm) high, 14-segment,

Condition

collector outputs off, SafeTouch buttons off, minimal backlight

Instruction Manual

Service

7.5 years 5.5 years

Replacement

Assignment

Update Rate

Method

Display

Menu Options

Bottom Display: Combinations of rate,

Advanced - System menu. The backlight is

Ambient < -20°C: 1 update/10 seconds

Note: Update is dependent on gate

when cover is installed. Four internal pushbuttons when cover is removed.

are stored until reset by the user or until

can be used for the following: restrict modification of settings, prevent resetting the total or grand total without the password, or permanently lock out the ability to change or reset the grand total or any grand total related settings (making a non-resettable grand total). Pass: Restricts modifications of programmed settings to require re-entering the password to make changes. Pass T: Restricts the reset of total to require re-entering the password. Disables the manual mode reset contact. Pass GT: Restricts the reset of grand total to require re-entering the password. May enable a non-resettable grand total and permanent lockout of grand total-related

alarm, SafeTouch button sleep

Memory

<100 Hz open collector outputs, minimal SafeTouch button or backlight

open collector outputs, minimal SafeTouch button or backlight

Backup power only

specific times or at defined time intervals. Record contains date, time, rate, total,

Storage temperature range: -40 to 75°C Backlight deactivated below temperatures ≈ -20°C Relative humidity: 0 to 90% non-condensing

are stored in non-volatile memory for a

5.5 years 4 years

2.5 years 2 years

1.3 years 1 year

N/A 10 years

input-to-power/output with isolated input

input/power-to-output

Note: Requires

Page 7

PD6730 Field-Mount Pulse Input Rate/Totalizer

Connections

Screw terminals accept 12 to 22 AWG wire

Enclosure

NEMA 4X, IP66 plastic field enclosure,

Two ¾" NPT plastic conduit plugs included.

Tag or Tamper Seal Loop

Loops molded into base and cover of enclosure for tamper wire or tags.

Mounting

May be mounted directly to conduit. Two

See Dimensions on page 11.

Overall Dimensions

5.67" x 5.25" x 4.18" (W x H x D) (144 mm x 133 mm x 106 mm)

Weight

1.65 lbs (26.4 oz, 0.75 kg)

Warranty

3 years parts and labor. See Warranty

www.predig.com for complete details.

Pulse/Transistor/

Field selectable; Sourcing or sinking

Maximum Frequency: 64 kHz Threshold Setting Low (V) High (V)

Normal

1.2

2.0

Low

0.2

1.2

Opto-Isolated

Sourcing pulse or square wave 0-5 V,

Maximum Frequency: 20 kHz

Low Voltage Mag

Sensitivity: 20 mVp-p to 24 Vp-p

Minimum Input

0.0001 Hz. Minimum frequency is

Input Impedance

Accuracy

±0.03% of calibrated span ±1 count

Temperature Drift

Rate display is not affected by changes

Low-Flow Cutoff

0.1 to 99,999 or disable. Point below at

Decimal Point

Up to four decimal places or none:

Calibration

May be calibrated using K-Factor, scale

K-Factor

input pulses to rate in engineering units.

Calibration Range

Input 1 signal must be ≥ 1 Hz; input 2

Input Contact

Time Base

Second, minute, hour, or day

Gate

Low gate: 1-99 seconds;

Display

The Top display is assigned to rate or

be off (blank).

Rate Display

Gallons, liters, imperial gallons, cubic

beer barrels, hectoliters, or custom.

Rate Display

Rate display may be calculated in

hour, or day.

Total & Grand

Gallons, liters, imperial gallons, cubic

Setting is independent for each.

Total & Grand

x1, x100 (h), x1000 (k), or x1,000,000

is independent for each.

Total & Grand

Up to six decimal places or none:

6.666666, 55.55555, 444.4444, 3333.333,

independent of rate decimal point.

Totalizers

Calculates total and grand total based

different conversion factors and resets.

polycarbonate with UV stabilizer. Color: grey. Window: Clear polycarbonate with UV stabilizer. Three ¾" NPT threaded conduit openings.

slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting.

Information and Terms & Conditions on

Debounce Filter

Instruction Manual

without signal source, or by applying an external calibration signal.

Field programmable K-Factor converts

May be programmed from 0.000001 to 9,999,999 pulses/unit.

signal may be set anywhere above input 1 setting. Minimum input span is 1 Hz. An Error message will appear if the input 1 and input 2 signals are too close together.

Programmable contact debounce filter. Input signal frequency speed selections of Hi (no filter), Med (250 Hz max input, 2 ms pulse width), and Low (100 Hz max input, 5 ms minimum pulse width).

Rate Input

Contact Closure Input

Input

Pickup Input

Frequency

pulse or square wave 0-5 V, 0-12 V, or 0-24 V; TTL; NPN or PNP

transistor; Open collector 100 kΩ

pull-up to 3 V; Switch contact 100 kΩ pull-up to 3 V; PNP transistor 100 kΩ pull-down to ground (COM) Active input 100 kΩ to battery level, 10 kΩ to power

Minimum Pulse Width: 5 µs

0-12 V, or 0-24 V; Logic High: 2-24 V, Logic Low: < 1 V

Minimum Pulse Width: 20 µs Input Current: 1 mA @ 5 V,

2.5 mA @ 12 V, 5 mA @ 24 V

Maximum Frequency: 6 kHz

dependent on high gate setting (rate display).

Pulse input: Greater than 75 kΩ @ 1 kHz. Open collector/switch input: 100 kΩ pull-up to 3 V.

High gate: 2-9,999 seconds

Rate/Totalizer

Assignment

Units

Time Base

Total Display Units

Total Display Unit Multiplier

Total Decimal Point

total. The Bottom display is programmable to display total; total and units; total and tag; total, total units, and rate units; grand total; grand total and grand total units; grand total and tag; grand total, grand total units, and rate units; rate units; rate; rate and total units; rate and rate units; rate and tag; rate units; total units; a custom tag; or

meters, barrels, bushels, cubic yards, cubic feet, cubic inches, liquid barrels,

terms of units per second, minute,

meters, barrels, bushels, cubic yards, cubic feet, cubic inches, liquid barrels, beer barrels, hectoliters, or custom.

(M) multiplier (and prefix) applied to total or grand total display units. Setting

22222.22, 111111.1 or 0000000 Total and grand total decimal points are independently programmed, and are

in temperature.

which the display always shows zero.

33.333, 222.22, 1111.1, or 00000

4.4444,

on rate and field programmable multiplier to display total in engineering units. Time base must be selected according to the time units in which the rate is displayed. The total and grand total utilize the same time base, with

Page 8

PD6730 Field-Mount Pulse Input Rate/Totalizer

Totalizer Reset

Via SafeTouch RESET button,

independently.

Total Overflow

The total can display up to

symbol .

Grand Total

The grand total can display up to

indicate grand total overflow, and the six

flashing overflow symbol .

External Total

External total reset connections are

32 ms debounce.

Output Source

Rate/process, total, grand total, or disabled

Scaling Range

4.000 to 20.000 mA for any display range.

Disable

If disabled, the output will output 3.2 mA

Calibration

Factory Calibrated:

0.0 to 1000.0 = 4- 20 mA output

Underrange

Output Underrange: 3.8 mA

Overrange

Display Overrange: 20.5 mA

Output Overrange: 20.5 mA

Accuracy

± 0.05% of calibrated span ± 0.004 mA

Temperature Drift

0.08 µA/°C max from -40 to 75°C ambient

External Loop Power Supply

30 VDC maximum

Output Loop

Power

Supply

Minimum

Maximum

24 VDC

10 Ω

750 Ω

30 VDC

100 Ω

1100 Ω

Note: loop-powered backlight subtracts

from maximum resistance figures

above.

Output

Two open collector pulse outputs Out 1

total,

(requires Out 1 and Out 2); or off.

Rating

Isolated open collector, sinking NPN 24 VDC @ 150 mA max.

Alarm Output

Assign to rate for high or low alarm trip

grand total alarms.

Alarm Deadband

0-100% FS, user selectable

Alarm Acknowledge

Front panel ENTER button resets output and screen indication.

Pulse Output

The InvK-Factor (

) is programma-

and grand total pulses are generated for

output speed.

Pulse Output

Unless otherwise stated, pulses are

falling edge of every input pulse.

Pulse Output

5 kHz, pulse width at 50% duty cycle. If

pUlse

Quadrature

Output set to quadrature will lag the

Minimum 1 Hz

Timer Output

Programmable On and Off time,

open collector stays on.

Protocol

Modbus® RTU

Meter Address/ Slave Id

1 - 247

Baud Rate

1,200; 4,800; 9,600; 19,200; 38,400; 57,600; or 115,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Parity/Stop Bit

Even, odd, none with 1 stop bit, or none with 2 stop bits

Byte-To-Byte Timeout

Max of 1.5 character times or 750 μs

Note: Refer to Modbus Register Tables at www.predig.com for details.

mechanical button (cover off), external contact closure (total only), automatically via user selectable preset value and time delay (1 – 99,999 sec). Manual reset may be disabled or protected by password for the total and grand total. Total and grand total reset

Open Collector Output

Assignment

and Out 2. Individually programmable for rate, or grand total alarms; rate, total, or grand total pulse outputs; or retransmitting of pulse inputs; constant timed pulse output; quadrature outputs

Instruction Manual

and Rollover

Overflow and Rollover

Reset

9,999,999,999,999. Up to 9,999,999 can be displayed on the lower display normally. An overflow display will toggle between the first six digits and last seven digits (999999 <> 9999999) for a 13-digit total. The total will rollover beyond thirteen digits. The T indicator on the display will flash to indicate total overflow, and the six most significant digits (first six numbers of the total) are indicated with the flashing overflow

9,999,999,999,999. Up to 9,999,999 can be displayed on the lower display normally. An overflow display will toggle between the first six digits and last seven digits (999999 <> 9999999) for a 13-digit total. The grand total will rollover beyond thirteen digits. The GT indicator on the display will flash to

most significant digits (first six numbers of the grand total) are indicated with the

made between RST and COM. Logic High: 1.4 V, 3.3V max; Logic Low: < 0.8 V.

4-20 mA Transmitter Output

(Count)

InvK-Factor = Volume/Pulse

Pulse Width

Maximum Frequency

Output

point. Assign to total or grand total for total or

couNT

ble from 0.000001 to 9999999. Total

every total or grand total increment selected. (e.g. InvK-Factor = 100 gal/p will generate one pulse every time the total is incremented by 100 gallons). Rate pulses are generated as a scaled output of the input frequency with one output pulse per InvK-Factor (count). Rate retransmission outputs one pulse per one input pulse, up to the maximum

50% duty cycle for required frequency. A pulse rate retransmit output will

generate 100 to 130 μs pulses at the

the programming of the outputs would exceed 5 kHz, the meter will display

OVERRNG

other pulse output by 90° (1/4 duty cycle) at output frequency.

Resistance

150 Ω

repeating cycle. Minimum On time: 0.01 second, maximum On time: 10,000 seconds. Minimum Off time (Delay Period): 0.1 second, maximum Off time (Delay Period): 100,000 seconds.Ýelay Period: Countdown time delay (Off) after start is pressed.Ðn Time: Time the

Serial Communications

Page 9

PD6730 Field-Mount Pulse Input Rate/Totalizer

System Requirements

Windows® 7/8/10 (Windows 32-bit or 64-bit operating systems).

Communications

PDA8068 Meter-to-USB Adapter,

Converter (Cable not included).

Protocol

Modbus RTU

Meter Address

1-247

Baud Rate

1200 bps to 115,200 bps

Configuration

Configure one meter at a time.

Printing: Configuration can be printed.

Data Logging Report

Saved as “.csv” file format.

MeterView EX Programming Software

PDA7485-I RS-232 to RS-485 Isolated Converter (Cable not included), PDA8485-I USB to RS-485 Isolated

File format: Saved as “.mve".

Instruction Manual

For detailed programming software instructions or to download MeterView EX software, visit

predig.com/meterview-ex

Page 10

PD6730 Field-Mount Pulse Input Rate/Totalizer

Safety Information

• Read complete instructions prior to installation and operation of the meter.

• Installation and service should be performed only by trained service personnel. Service requiring replacement of internal components (not including battery, if equipped) must be performed at the factory.

• If the meter is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead.

Tag and Tamper Seal Loop

Instruction Manual

PDA-SSTAG Stainless Steel Tag

The PDA-SSTAG is a laser etched stainless steel tag that can be customized with three lines of text. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need.

Dimensions

The PD6730 comes with tag and tamper seal loops molded into the plastic enclosure. One loop is located on the cover of the enclosure and the other one is on the base of the enclosure. These are used for inserting a stainless steel wire through the holes and attaching a lead seal to prevent unauthorized removal of the enclosure cover. A custom stainless steel tag (PDASSTAG) can also be attached to the wire.

Ordering Guide

PDA-SSTAG

When ordering custom tags, enter your custom text in the available form located at predig.com/PDA-SSTAG or click here to download the Stainless Steel Tag

Order Form.

Custom Stainless Steel Tag (see website for convenient ordering form)

Page 11

PD6730 Field-Mount Pulse Input Rate/Totalizer

5.25 (133.3)

(144.0)

5.67

(85.1)

3.35

(57.2)2.25

0.33 (8.3)

(106.1)

4.18

3.34

(84.9)

Instruction Manual

Installation

• Hazardous voltages may exist within enclosure.

• Installation and service should be performed only

by trained service personnel.

Wiring connectors are accessed by opening the enclosure. To access electrical connectors, remove the two captive screws, then disconnect the ribbon cable from the display module and set the display module aside.

Unpacking

Remove the meter and conduit plug from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Conduit Plugs

The PD6730 is supplied with two IP68 rated conduit plugs for installations that require the use of only one conduit entry. The conduit/stopping plugs have 1.29" wrenching flats and a screwdriver slot.

Battery Activation Pull Tab

PD6730 models with battery or battery backup power will include a battery activation pull-tab. This tab assures the meter is not operational during shipment or storage and is located with the battery. Remove this tab during installation of the meter.

Dimensions

All units: Inches (mm)

Figure 1. Enclosure Dimensions – Front View

Mounting

The PD6730 has two slotted mounting flanges that may be used for pipe mounting or wall mounting. Alternatively, the unit may be supported by the conduit using the conduit holes provided.

Refer to Figure 1 and Figure 2.

• Do not attempt to loosen or remove flange bolts while the meter is in service.

Figure 2. Enclosure Dimensions –

Side Cross Section View

Page 12

PD6730 Field-Mount Pulse Input Rate/Totalizer

Board to Board

Interco nnect

Battery (if ordered)

Connections

To access the connectors, remove the enclosure cover and unscrew the two captive screws that fasten the display module into the enclosure. Disconnect the ribbon cable and remove the display module.

RS-485 serial connections are made to a removable terminal block on the back of the display module. Power and signal connections are made to a screw terminal connector in the base of the enclosure.

S+ Input signal positive terminal connection

S- Input signal negative terminal connection

COM DC power supply input return/negative,

reset contact closure common

RST Contact closure reset pull-up to 1.8 VDC

P+ DC Power positive terminal connection

LP+ 4-20 mA transmitter DC power positive

terminal connection.

LP- 4-20 mA transmitter regulated current

output terminal connection

OC1+ Open collector output 1 positive terminal

OC1- Open collector output 1 negative terminal

Instruction Manual

• Observe all safety regulations. Electrical wiring should be performed in accordance with all agency requirements and applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

• Static electricity can damage sensitive components.

• Observe safe handling precautions for static-sensitive components.

• If the meter is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead or terminal.

OC2+ Open collector output 2 positive terminal

OC2- Open collector output 2 negative terminal

Refer to Figure 3 and Figure 4 for terminal positions.

Figure 3. Connector Board Mounted in Base of

Enclosure

Figure 4. Connectors & Switches on Rear of Display

Module

Page 13

PD6730 Field-Mount Pulse Input Rate/Totalizer

Flowmeter

(Pulse Output)

Power Supply

COM

RST

P+

S+ S-

INPUT LEVEL

mV V ISO

Flowmeter

(Pulse Output)

Power

Supply

COM RST

P+

S+ S-

INPUT LEVEL

mV V

ISO

Flowmeter

(Magnetic Pickup Coil)

COM

RST

P+

S+ S-

INPUT LEVEL

mV V

ISO

+3.0 V

100 kOhm

Internal Pullup

NPN

SENSOR

COM

RST

P+

S+ S-

INPUT LEVEL

mV V

ISO

100 kOhm

Internal Pull-Down

PNP

SENSOR

Power Supply

COM

RST

P+

S+ S-

INPUT LEVEL

mV V ISO

+3.0 V

100 kOhm

Internal Pullup

SWITCH

CONTACT

COM

RST

P+

S+ S-

INPUT LEVEL

mV V

ISO

Power Supply

COM

RST

P+

S+ S-

Wiring Diagrams

Input Signal Connections

Signal connections are made to a barrier terminal mounted in the base of the enclosure. Input level and type are configured using the slide switches on the bottom of the display module as shown in the lower right of the following figures.

Instruction Manual

Figure 5. Flowmeter Powered by External Supply

(Active)

Figure 6. Isolated Flowmeter Powered by External

Supply (ISO)

Figure 9. PNP Sensor with External Power

Figure 10. Switch Contact Input (Reed)

DC Power Connection

Models configured for DC power (PD6730-A) are provided with a terminal labeled P+ and are wired as shown in Figure 11. Models configured for battery power (PD6730-B) may optionally be connected to DC power and the battery will function as backup power when DC is lost. The same power supply may be used to power other circuits including a PNP-type sensor, however, to maintain input isolation, a separate power supply must be used to power the isolated 4-20 mA transmitter as shown in Figure 13 and/or to power the Opto-Isolated Flowmeter as shown in Figure 6.

Figure 7. Self-Powered Magnetic Pickup Coil Flowmeter

(Coil)

Figure 8. NPN Open Collector Input

Figure 11. DC Power Connections

Page 14

PD6730 Field-Mount Pulse Input Rate/Totalizer

COM RST+

S+

S-

+3.0 V

100 kOhm

Internal Pullup

LP- LP+

Power Supply

4-20 mA Input

Device

Vantageview

RS-485 DEVICE

D+ DG

ProtEX

GND

RS-485 DEVICE

D+ DG

External Total Reset Connection

External total reset connections are made between RST and COM. Connect to a contact closure source such as a relay or a pushbutton as shown in Figure 12. Avoid extended contact closure to preserve battery life. The total is reset when the button is pressed. The meter will start to totalize immediately. Holding down the button has no effect on the total.

Figure 12. Reset Connections

4-20 mA Transmitter Output Connections

Output connections are made to two terminals labeled LP+ and LP-. Connect to an input device such as a remote display or chart recorder as shown in Figure 13.

Instruction Manual

RS-485 Serial Connections

The meter may include an optional RS-485 two-wire serial connection. The cabling used for an RS-485 serial communications network should always be a high quality cable such as Belden 8162 or Alpha 6203C. A two-wire system requires two twisted pairs, and a four-wire system requires three twisted pairs (the extra twisted pair is needed for the signal ground).

Figure 14. RS-485 2 Wire Serial Connections

Figure 15. RS-485 4 Wire Serial Connections

Open Collector Output Connections

Open collector output 1 and 2 connections are made to terminals labeled OC1+ and OC1-, and OC2+ and OC2-. Connect the alarm or pulse input device as shown in Figure 16.

Figure 13. 4-20 mA Output Connections

Figure 16. Open Collector Output Connections

Page 15

PD6730 Field-Mount Pulse Input Rate/Totalizer

PDA

36C

Battery Replacement

Battery-equipped models have a battery charge monitor. When the battery is nearing the end of its capacity the screen will periodically flash the message LO BATTERY and the BAT indicator on the screen will flash. The recommended replacement interval for models using the battery as a primary power source is determined by the power and feature use, as shown on

6. The battery should be replaced when the low

page battery indication is on the screen.

The total is backed up in non-volatile memory when the low battery monitor is tripped. It is recommended that an updated reading be manually backed up prior to changing out the battery.

• Fire, explosion, and burns may result if not handled properly. Do not recharge, short circuit, crush, disassemble, heat above 100°C (212°F), incinerate, or expose contents to water.

• Battery disposal should be in accordance with applicable regulations, which vary by location. In many locations trashing of used batteries is forbidden and disposal is done through local battery disposal facilities. Spent batteries should be packaged in such a way as to prevent short circuits during handling and transport.

NOTICE: Battery may only be replaced with an original Model PDABAT36C recharge battery. Do not replace with used battery.

• Remove cover and display module and disconnect display module ribbon cable.

• Carefully cut and remove the cable ties supplied for shipping (if present).

• Remove the spent battery and prepare it for disposal.

• Install new PDABAT36C into battery clip with polarity as shown in Figure 17.

• Reconnect and fasten display module. Install enclosure cover.

• Resume operation.

supplied by Precision Digital. Do not

Instruction Manual

Setup and Programming

There is no need to recalibrate the meter for frequency in Hz when first received from the factory.

The meter is factory calibrated for Hz prior to shipment. The calibration equipment is traceable to NIST standards.

Overview

Setup and programming is done through the infrared through-window SafeTouch buttons, using the mechanical buttons when uncovered, or with MeterView EX programming software. There are two slide switches located on the display module. One is used to configure the input and the other is to lock or unlock the SafeTouch Buttons.

MeterView EX Programming Software

The fastest and easiest way to program the meter is using the free Meterview EX programming software. This software greatly simplifies the programming process and allows the user to save configuration files for later use.

The MeterView EX software requires the PDA8068 USB Serial Adapter, PDA7485-I RS-232 to RS-485

Isolated Converter, or the PDA8485-I USB to RS-485

Isolated Converter to connect the PC to the meter.

Figure 17. Battery Orientation

To download the MeterView EX programming software, visit predig.com/meterview-ex.

Page 16

PD6730 Field-Mount Pulse Input Rate/Totalizer

SafeTouch Buttons

The PD6730 is equipped with four sensors that operate as through-window buttons so that it can be programmed and operated without removing the cover (and exposing the electronics). These buttons can be disabled for security by setting the THRU-GLASS BUTTONS switch located on the back of the display module to OFF.

SafeTouch Button Operation

To actuate a button, press and remove one finger to the window directly over the marked button area. Remove finger to at least 4 inches away from the window in between button activations. SafeTouch and mechanical buttons may be held to cycle through menus or digits in place of repeatedly pushing a button.

SafeTouch Power Save Mode

SafeTouch buttons enter a power saving mode after three minutes of inactivity. This mode is

indicated by the SafeTouch power symbol ( ) appearing in the lower right of the display. Only the MENU button is monitored in this mode. To activate the SafeTouch buttons, press and hold the menu button for up to five seconds. The display will read AWAKE, and the SafeTouch buttons will be fully enabled.

SafeTouch Disabled Mode When the cover is removed, the four mechanical

buttons located next to the sensors may be used. The sensors are disabled when a mechanical button is pressed and will automatically be reenabled after 60 seconds of inactivity. The

SafeTouch power symbol ( ) will blink in the lower right of the display if the buttons are disabled due to a mechanical pushbutton being pressed.

• SafeTouch will not work if two or more buttons are detected as being pressed simultaneously. Be careful to avoid triggering multiple buttons or reaching across one button location to press another.

Instruction Manual

SafeTouch Button Tips and Troubleshooting

The SafeTouch Buttons are designed to filter normal levels of ambient interference and to protect against false triggering, however it is recommended that the SafeTouch Buttons be turned off (slide THRU-GLASS BUTTONS switch located on the back of the display module to OFF) if there is an infrared interference source in line-of-sight to the display or if the buttons are not needed.

SafeTouch Button Tips:

• To the extent possible, install the display facing away from sunlight, windows, reflective objects and any sources of infrared interference.

• Keep the window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

• If the cover has not been installed and secured

tightly, it may take a moment for the SafeTouch buttons to properly self-calibrate when the cover is tightened.

After all connections have been completed and verified, connect the ribbon cable to the display module, fasten the display module to the base, install enclosure cover, and then apply power.

SafeTouch Button Equalize Delay

The SafeTouch buttons are designed to constantly recalibrate for ambient conditions. When the cover position is changed, the cover is removed, or an object is removed that was placed over the front window, it may take a moment for the SafeTouch buttons to recalibrate to the change in conditions.

Allow up to 2 minutes for the SafeTouch buttons to recalibrate to new conditions in these cases where the cover position was changed, or the front window is being unblocked.

Page 17

Button Symbol

Menu /

Awake

Settings

SafeTouch

Total Display

Grand Total 13 Digit Total

Flashing: Low

ENTER

DI SPL AYRESET

ENTER

DISPLAY

RESET

PD6730 Field-Mount Pulse Input Rate/Totalizer

Buttons and Display

Description

SafeTouch

Right Arrow / Reset

Up Arrow /

Display

Enter / Alarm

Ack

Symbol Status

HI High Alarm

LO Low Alarm

SET Total Alarm

Lockout Password Enabled

Power Save/Disable.

Flashing: Temporarily Disabled Due to Mechanical Button

Flashing: Total

Overflow Indication

Display

Flashing: Total Overflow Indication

Overflow, 6 Most Significant Digits

Battery Indicator

BAT

Steady: Powered by Battery Backup

Instruction Manual

Menu Button

• Hold the Menu SafeTouch button when in power save mode (display will show ) to

awaken SafeTouch buttons.

• Press the Menu button to enter Programming Mode.

• Press the Menu button during Programming Mode to return to the previous menu selections.

• Hold the Menu button for 1.5 seconds at any time to exit Programming Mode and return to Run Mode.

• Press and hold the Menu button for 3 seconds to access the Advanced Features of the meter.

Right / Reset Button

• Press the Right arrow button to move to the next digit or decimal position during programming.

• Press Right to go forward through most selection menus.

• Press Reset to reset the total, or values displayed in the bottom display (grand total, max, or min). Press Enter after Reset to confirm the reset.

Up / Display Button

• Press Display when in Run Mode to display the grand total, again to display the maximum, and again to display the minimum reading since last reset. These displays will time out in 12 seconds, or press Display until total is displayed in the lower display. Press Enter to lock this display, and disable the 12 second time out.

• Press the Up arrow button to scroll forward through the menus, decimal point, or to increment the value of a digit.

Enter Button

• Press the Enter button to access a menu or to accept a setting.

• Press Enter to lock display of grand total, Max or Min readings (disables 10 second timeout).

• Press Enter while the grand total, max, or min reading is locked on the lower display to return to run mode.

• Press Enter to acknowledge alarm (if enabled).

Page 18

PD6730 Field-Mount Pulse Input Rate/Totalizer

Setting Numeric Values

Main Menu

Instruction Manual

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit.

The digit being changed blinks. Press the Enter button, at any time, to accept a set-

ting or Menu button to exit without saving changes. The decimal point is set using the Right or Up arrow

button in the Setup, Decimal Point menu.

Setting Alphanumeric Labels (

LABEL)

Fully alphanumeric values are set using the Right but- ton to select the digit, the Up and Right arrow buttons to select the digit reading, and the Enter button to confirm and select the next digit.

Menus using this entering method will display LABEL in the upper display. After selecting the digit, and using the Up and Right arrows to modify the digit, the display will read CHAR. Using Enter to confirm the new digit will return the display to reading LABEL.

The digit being changed blinks. Press the Menu button to exit without saving changes.

The main menu separates the most commonly used functions in the Setup menu, and more complex fea- tures in the Advanced Features menu.

Press Menu button to enter Programming Mode then press the Up arrow button to scroll through the main menu.

• Press Menu, at any time, to return to the previous menu selection. Press and hold the Menu button for 1.5 seconds at any time to return to Run Mode.

• Changes to the settings are saved to memory only after pressing Enter.

• The display moves to the next menu every time a setting is accepted by pressing Enter.

Page 19

PD6730 Field-Mount Pulse Input Rate/Totalizer

P/LiBBL

P/HECtL

Setup Menu Display Functions & Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Parameter Action/Setting

SETUP

Input

Activ

npn

pnp

Reed

COIl

iso

ActlO

npnlO

pnplO

Factr

FUNIT

P/GAL

P/L

P/IGAL

P/M3

P/BBL

P/BUSH

P/cuyD

P/cuFt

P/cuIn

P/BBBL

Setup Enter Setup menu

Input Enter Input type selection

Active Set active input type

NPN Set NPN input type

PNP Set PNP input type

Reed Set reed switch input type

Coil Set coil input type

Isolated Set isolated input type

Active low

NPN low Set NPN input type with

PNP low

K-Factor Enter the K-Factor menu

K-Factor units Enter the K-Factor units

Pulses/gallon

Pulses/liter Set K-Factor in pulses per

Pulses/imp gallon

Pulses/meter3 Set K-Factor in pulses per

Pulses/barrel

Pulses/bushel Set K-Factor in pulses per

Pulses/cubic yard

Pulses/cubic feet

Pulses/cubic inch

Pulses/liquid barrel

Pulses/beer barrels

Set active input type with low threshold

low threshold

Set PNP input type with low threshold

Set K-Factor in pulses per gallon

liter

Set K-Factor in pulses per imperial gallon

meter cubed

Set K-Factor in pulses per barrel

bushel

Set K-Factor in pulses per cubic yard

Set K-Factor in pulses per cubic foot

Set K-Factor in pulses per cubic inch

Set K-Factor in pulses per liquid barrel

Set K-Factor in pulses per beer barrel

Display Parameter Action/Setting

Pulses/hectoliter Set K-Factor in pulses per

P/CUST

Dec.pT

FAcTR

Unit``s

TbASE

seC

min

hour

day

RateU

GAL

IGAL

BBL

BUSH

cuyD

cuFt

cuIn

LiBBL

BBBL

HECtL

CUSt

USER

LABEL

CHAR

ratCF

Tot U

Nmult

X100 h

Pulses/custom Set K-Factor custom unit

K-Factor decimal point

K-Factor value Set the K-Factor for

Units Select standard units or

Rate time base Enter the Time Base

Second Units per second

Minute Units per minute

Hour Units per hour

Day Units per day

Rate units Select rate display units

Gallons Set units as gallons

Liters Set units as liters

Imperial gallons Set units as imperial

Meters cubed Set units as cubic meters

Barrels Set units as barrels

Bushels Set units as bushels

Cubic yards Set units as cubic yards

Cubic feet Set units as cubic feet

Cubic inches Set units as cubic inches

Liquid barrels Set units as liquid barrels

Beer barrels Set units as beer barrels

Hectoliter Set units as hectoliters

Custom unit Use a custom unit

User Set a custom unit

Label

Character Set a character in a

Rate conversion factor

Total units Select total display units

Total multiplier Select the total units

x1 (no multiplier)

x100 (h) Select x100 multiplier with

Instruction Manual

hectoliter

Set the number of decimal points in the K-Factor

custom units

custom unit/tag

gallons

Select a custom unit label character

custom unit label

Enter the Rate Conversion Factor menu

multiplier

Select no multiplier

h unit prefix

Page 20

PD6730 Field-Mount Pulse Input Rate/Totalizer

X1000 k TOTAL+U`````````````````

TOT+TAG

GrTOT+U`````````

GT+U+RU RaTe+TU

RaTe+RU

RAT+TAG

Display Parameter Action/Setting

X1.0e6 M

TotCF

GToTU

Nmult

GrtCF

Dec..pt

Rate

total

Grtot

Dsply

tOp

Rate

Total

BOtnm

Total

TOgle

T+U+RU

Grtot

GT+TAG

rate

x1000 (k) Select x1,000 multiplier

x1.0*106 (M) Select x1,000,000

Total conversion factor

Grand total units Select grand total display

Grand total multiplier

Grand total conversion factor

Decimal point Enter Decimal Point

Rate decimal

Total decimal Set total display decimal

Grant total

Display Set the function of the top

Top

Rate Display rate

Total Display total

Bottom

Total Display total

Toggle Toggle between the

Total & units Display total and units

Total & Tag Display the total and

Total & units & rate units

Grand total Display grand total

Grand total & units

Grand total & tag

Grand total & units & rate units

Rate Display the rate

Rate & total units

with k unit prefix

multiplier with M prefix

Enter the Total Conversion Factor menu

units

Select the grand total units multiplier

Enter the Grand Total Conversion Factor menu for custom units

Set rate display decimal point

point

Set grand total display decimal point

and bottom displays

Set the function of the top display

Set the function of the bottom display

values shown in the bottom display

custom tag

Display the total, total units, and rate units

Display grand total and units

Display the grand total and custom tag

Display the grand total, grand total units, and rate units

Display the rate and total units

Display Parameter Action/Setting

Rate & units Display the rate and rate

Rate & tag Display the rate and

RUnit

TotUn

TAG

Off

Tag

TIME

Unit

TIME

Rate

TIME

Rate unit Display the rate units

Total units Display the total units

Custom tag Enter the custom tag to

Off

Tag Time Set time to display

Unit Time

Rate Unit Time Set time to display rate

Instruction Manual

units

custom tag

be displayed

Turn off the bottom display

custom tag

Set time to display lower display unit

unit

Setting Up the Meter (SETUP)

The Setup menu is used to select:

1. Input type selection (INPuT)

2. K-Factor number and units (FActr)

3. Display rate, total, and grand total units (Units)

4. Rate and total decimal point position (dec.pt)

5. Select what will appear on the lower display (DSPLY)

Press the Enter button to access any menu or press

Up arrow button to scroll through choices. Press the Menu button to back out of a menu, or hold the Menu

button to exit at any time.

Page 21

PD6730 Field-Mount Pulse Input Rate/Totalizer

INPUT LEVEL

mV V ISO

Selecting Input Type (Input)

Seven input types may be set. See Rate Input specifications on page 7 for electrical specifications of the inputs.

The following input types may be selected:

Active (activ)

Active square wave pulse inputs

NPN (NPN)

Internal pull-up resistor on S+ for NPN inputs

PNP (PNP)

Internal pull-down resistor on S+ for PNP inputs

Reed (reed)

Internal pull-up resistor on S+ for switch inputs

Coil (COIL)

Magnetic coil flowmeter inputs (input selector switch must be set to mV)

Isolated active input (iso)

Active square wave isolated pulse inputs (input selector switch must be set to ISO)

Active with low threshold (acTLO)

Active square wave pulse inputs with a low threshold

NPN with low threshold (NPNLO)

Internal pull-up resistor on S+ for NPN inputs with a low threshold

PNP with low threshold (PNPLO)

Internal pull-down resistor on S+ for PNP inputs with a low threshold

Instruction Manual

Input Level Selection Switch

In addition to programming theInput parameter, the input selector switch shown below must also be set. Input voltage level selections include mV, V and isolated inputs.

See Rate Input specifications on page 7 for

electrical specifications of the inputs.

See Input Signal Connections on page 13 for

details on wiring the input types.

Page 22

PD6730 Field-Mount Pulse Input Rate/Totalizer

Units

Unit

Description

Cubic yards

Set units as cubic yards

Entering the K-Factor (Factr)

The meter may be scaled using the K-Factor, or conversion factor, function. Most flowmeter manufacturers provide this information with the device. Enter the K-Factor (Factr) menu and select the units defined with the K-Factor (example: pulses/gal), the decimal point with highest resolution possible, and program the K-Factor value. The meter will automatically calculate the flow rate using the K-Factor and the units and time base selected.

• Performing a K-Factor operation will override any scaling or calibration programming. Refer to Scaling & Calibration (SCALCAL) on page 34 for more information on these programming methods.

Instruction Manual

Display Units (Units)

The Units menu is used to select the display rate units and time (example: Gal/s) and the display units for total and grand total.

• The units selected in this menu are the desired display units only. The units defined by the KFactor of a flow meter are entered in the K-Factor menu as part of the Factor Unit menu programming. See K-Factor Units (FuNiT) on page 22 for details.

• This allows the display units to be different than the units defined by the flow meter, or be changed easily after initial programming. Unit conversions for rates and totals are performed automatically by the meter. See Automatic Unit Conversions on page 25 for details.

K-Factor Units (FuNiT)

Select the units defined with the K-Factor (example: pulses/gal). This is usually provided by the flowmeter manufacturer. This does not set the rate display units, and only relates to entering the K-Factor. To set or change the rate display units, see Setting the Rate Display Units (rateU) on page 23.

The K-Factor unit may be a custom unit (CUST). Automatic unit conversions are not performed when

the K-Factor unit is set to custom. See page 25 for information on the Automatic Unit Conversions feature.

K-Factor Decimal Point (dec.pt)

Set the number of decimal places necessary to enter the K-Factor value. The decimal point may be set with up to six decimal places or with no decimal point at all.

Pressing the Right arrow moves the decimal point one place to the right (including no decimal point). Pressing the Up arrow moves the decimal point one place to the left.

K-Factor Value (factr)

Enter the K-Factor value. This value is entered in Pulses/Unit as defined by the K-Factor Units parameter. Most flowmeter manufacturers provide this information with the device.

The following units may be selected as the base units for rate, total, and grand total. Time base for rate and a multiplier for total and grand total units may also be selected separately.

GAL L IGAL

M3 BBL BUSH cuyD cuFt cuIn LiBBL BBBL HECtL CUSt

Gallons Set units as gallons Liters Set units as liters

Imperial gallons

Meters cubed Set units as cubic meters Barrels Set units as barrels Bushels Set units as bushels

Cubic feet Set units as cubic feet Cubic inches Set units as cubic inches Liquid barrels Set units as liquid barrels Beer barrels Set units as beer barrels Hectoliter Set units as hectoliters Custom unit Use a custom unit

Set units as imperial gallons

Page 23

PD6730 Field-Mount Pulse Input Rate/Totalizer

Setting the Time Base (tbase)

The meter calculates rate based on rate time base and rate display units. The time base is the unit of time used to calculate the rate, and can be set as units per second, minute, hour, or day.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Instruction Manual

Setting the Rate Display Units (rateU)

Rate is displayed in terms of a unit of volume, and a time base. The unit selected will be used with the time base to establish the rate unit (example: GAL/S when Units is GAL, and time base is seconds).

The custom unit selection (CUST) will require the custom unit to be entered by the user. See Custom Units Rate Conversion Factor (ratCF) on page 25.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Page 24

PD6730 Field-Mount Pulse Input Rate/Totalizer

Total Units (tot U)

This menu is used to select the display units for the total. The base unit and a multiplier prefix are selected. If total and units are selected to display, the multiplier prefix will appear before the total unit (example: MGAL, kL).

Multipliers will convert the total for 1, 100, 1000, or 1 million units. The meter will calculate the total appropriately for display with the programmed multiplier and units.

A custom unit may be selected (CUST), and no multiplier menu will be required. In this case, use the total conversion factor as defined in Custom Units Total Conversion Factor (totCF) on page 25.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Instruction Manual

Grand Total Units (GtotU)

This menu is used to select the display units for the grand total. The base unit and a multiplier prefix are selected. If grand total and units are selected to display, the multiplier prefix will appear before the total unit (example: MGAL, kL).

Multipliers will convert the total for 1, 100, 1000, or 1 million units. The meter will calculate the total appropriately for display with the programmed multiplier and units.

A custom unit may be selected (CUST), and no multiplier menu will be required. In this case, use the grand total conversion factor as defined in Custom Units Grand Total Conversion Factor (GrtCF) on page 25.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Page 25

PD6730 Field-Mount Pulse Input Rate/Totalizer

Automatic Unit Conversions

When switching from any standard unit of rate, total, or grand total to any other standard unit, automatic unit conversions are performed by the meter.

No unit conversions will be performed when the K-Factor Units (FuNiT) menu is set to custom (CUST).

A total or grand total unit conversion will automatically change the displayed total and grand total to the equivalent volume of the newly selected unit.

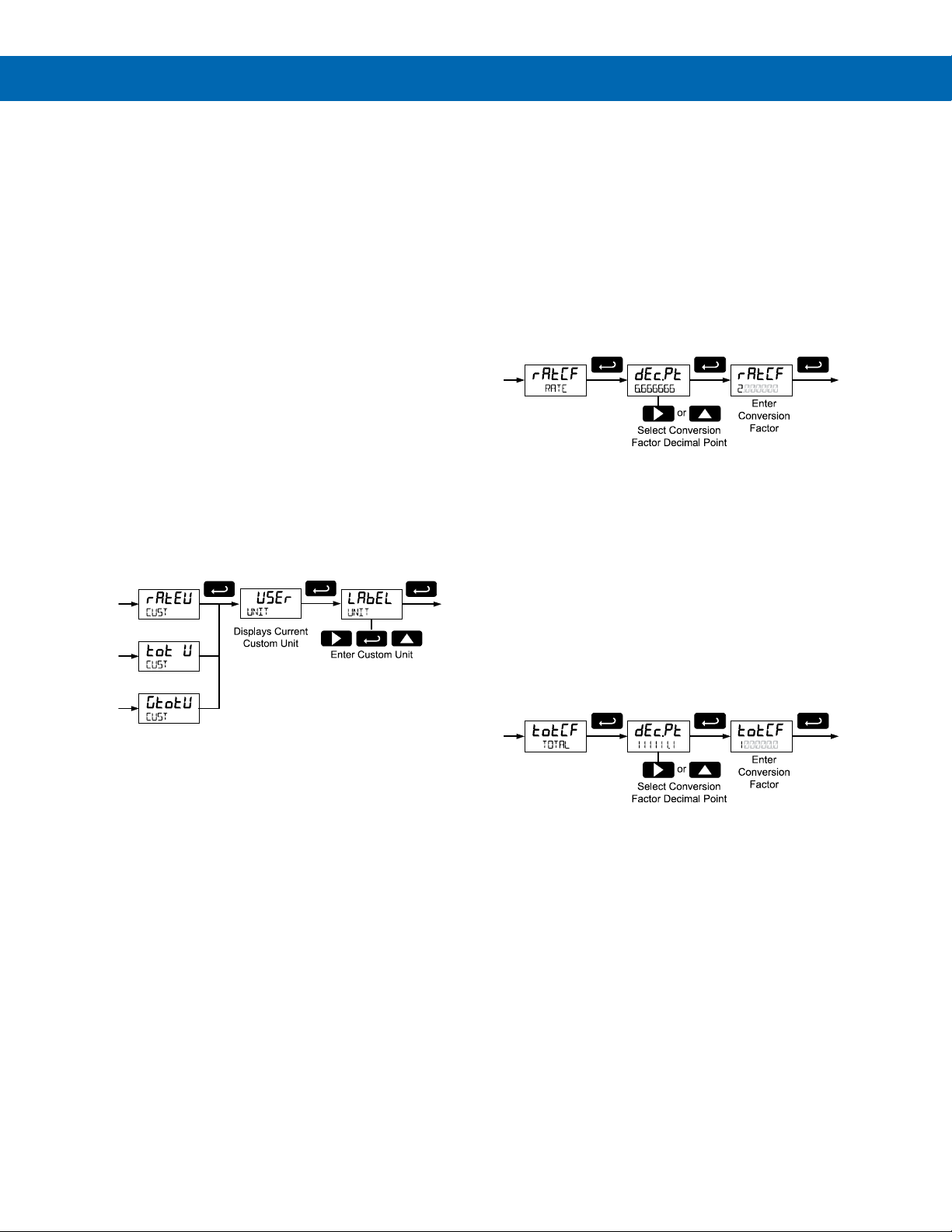

Custom Units Entry (USER)

When a custom unit is selected for rate, total, or grand total, a User menu allows for entry of the custom unit.

Any 5-digit 14-segment unit may be entered for a custom rate unit (example: mL).

Any 7-digit 14-segment unit may be entered for a custom total or grand total unit (examples: GALLONS, BOTTLES, DRUMS).

When selected for total or grand total, a custom unit will not allow a multiplier prefix. A custom total or grand total unit will allow a total or grand total conversion factor to be entered to define the unit. See Custom Units Total Conversion Factor (totCF) on page 25 for details.

Instruction Manual

Custom Units Rate Conversion Factor (ratCF)

The rate conversion factor is only used when the Units for rate have been set to custom (CUST). This menu will not appear if standard display units are selected for the rate unit.

Rate Conversion Factor is used to convert to a custom unit of rate display. For example, to display rate as quantity of 2.5 gallon containers when the K-Factor units are set to gallons, enter a conversion factor of 2.500.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Custom Units Total Conversion Factor (totCF)

The total conversion factor is only used when the Units for total have been set to custom (CUST). This menu will not appear if standard display units are selected for total.

Total Conversion Factor is used to convert to a custom unit of total display. For example, to display total as quantity of 2.5 gallon containers when the K-Factor units are set to gallons, enter a conversion factor of

2.500.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Fully alphanumeric values are set using the Right button to select the digit to be changed. Press the Up button to begin editing the digit, then the Up and Right arrow buttons to select the next or previous alphanumeric character. Press the Enter button to confirm and select the next digit to change.

For details on setting alphanumeric labels, refer to Setting Alphanumeric Labels (LABEL) on page 18.

Press Menu button to exit this menu without saving changes.

Custom Units Grand Total Conversion Factor (GrtCF)

The grand total conversion factor is only used when the Units for grand total have been set to custom (CUST). This menu will not appear if standard display units are selected for grand total.

Grand Total Conversion Factor is used to convert to a custom unit of total display. For example, to display grand total as quantity of 2.5 gallon containers when K-Factor units are set to gallons, enter a conversion factor of 2.500.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Page 26

PD6730 Field-Mount Pulse Input Rate/Totalizer

Setting the Decimal Point (dec.PT)

Rate decimal point may be set with up to four decimal places or with no decimal point at all. Total decimal point may be set with up to six decimal places or with no decimal point at all. Grand total decimal point may be set with up to six decimal places or with no decimal point at all. Rate decimal, total decimal, and grand total decimal are programmed individually.

Pressing the Right arrow moves the decimal point one place to the right (including no decimal point). Pressing the Up arrow moves the decimal point one place to the left.

Instruction Manual

Page 27

PD6730 Field-Mount Pulse Input Rate/Totalizer

1. Total

8. Alternating grant

10.

11.

12.

13.

14.

15.

16. Off (blank)

Configuring the Display (Dsply)

The top and bottom displays can be independently programmed to display selected information.

Top Display (TOp)

The top display can be programmed to display rate or total. When displaying total, the top display will only show the 5 least significant digits, with no overflow display, for a total from 0 to 99999. The total rolls over at 99999 to 0 when on the top display. For a full 7-digit total with 13-digit total overflow display function, use the bottom display for total.

Bottom Display (bOtm)

The bottom display can be programmed to display the following information.

2. Alternating total and total units

3. Alternating total and custom tag

4. Alternating total, total units, and rate units

5. Grand total

6. Alternating grand total and grand total units

7. Alternating grand total and custom tag

total, grand total units, and rate units

Rate

Alternating rate and

total units

Alternating rate and

rate units

Alternating rate and

custom tag Rate units Total units Custom tag

Instruction Manual

Custom Tag (TAG)

When the bottom display selected includes a custom tag, a User menu will then allow a custom tag to be programmed.

Any 7-digit 14-segment label may be entered for a custom tag (examples: RATe, LINE 3, WaTER).

Fully alphanumeric values are set using the Right button to select the digit, the Up and Right arrow buttons to select the character, and the Enter button to confirm and select the next digit.

For details on setting alphanumeric labels, refer to Setting Alphanumeric Labels (LABEL) on page 18.

Setting the Toggle Time (TIME)

If the bottom display is programmed to toggle (TOGLE), the meter will prompt for a toggle time. In addition, it may require a tag be entered, as shown in the example below.

Enter the time in seconds for the unit or tag to display in the bottom window every 10 seconds. The unit may be programmed to display for 1 to 5 seconds.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Page 28

PD6730 Field-Mount Pulse Input Rate/Totalizer

Display

Parameter

Action/Setting

Advanced

Enter Advanced menu

Setup open collector outputs Out 1 and Out 2

Assign function of open collector output 1

Assign function of open collector output 2

Set Out 1 or Out 2 for pulse output mode

Rate

Assign pulse output to rate

Total

Assign pulse output to total

Grand total

Assign pulse output to grand total

Decimal point

Set K-Factor decimal point

Count

Set K-factor

Assign pulse output to retransmit

Assign pulse output to quadrature

Assign pulse output to test mode

Alarm

Assign Out 1 or Out 2 for alarm output mode

Rate

Assign alarm output to rate

Set point

Set rate alarm set point

Reset point

Set rate alarm reset point

Assign alarm output to total

Grand total

Assign alarm output to grand total

Set point

Set total or grand total alarm set point

Set output to on state

Off

Set output to off state

Set Out 1 or Out 2 for timed pulse output mode

Activate timed pulse output

Set the time of one period (seconds)

Set the active low pulse width

Off

Set Out 1 or Out 2 as off

Analog Output

Enter Analog Output menu

variable

Set total as output variable

output

variable

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu. Access the Advanced features menu by pressing Enter at the Advance menu in the Main Menu defined on page 18.

The Advanced Features menu is used to select:

1. Open collector output configuration (OUTPUT)

2. Analog output configuration (A OUT)

3. Gate function for low speed inputs (GATE)

4. Set the input filter (FILTER)

5. Set low flow cutoff (CUTOFF)

6. Scale or live calibrate the meter and override K-Factor (SCALCAL)

7. Select method of total and grand total reset (T RESET)

8. Set passwords (PASSWRD)

9. Reconfigure the Main menu structure (CUSTOM)

10. Enter the System menu for meter settings and data logging (SYSTEM)

11. Configure serial communication settings (COMM) – if applicable

12. Enter low-power Standby Mode (STANDBY) on battery powered models

Instruction Manual

Advanced Features Menu & Display Messages

The following table shows the Advanced features menu functions and messages in the order they appear in the menu.

ADVANCE

OUTPUT

OUT 1

OUT 2

PuLSE

rate

total

Grtot

dec.pt

count

Retr

quad

Test

Output

Output 1

Output 2

Pulse

Retransmit

Quadrature

Test

Advanced menus A OUT displayed only for meters with the analog output option, COMM displayed only for meters with the serial communications option, and STANDBY only for meters with battery or battery backup power.

Press the Enter button to access any menu or press the Up arrow button to scroll through choices. Press the Menu button to back out of a menu, or hold the Menu button to exit at any time.

ALrnm

rate

Set reset

total

Total

Grtot

Set

On Off

Tnmer

Start

Delay

Timer

Start

Delay

OFF

A OUT

Rate

total

Grtot

Rate output Set rate as output

Total output

Grand total

Set grand total as output

Page 29

PD6730 Field-Mount Pulse Input Rate/Totalizer

Display

Parameter

Action/Setting

Display 1

Output display 1 value

Output 1

Output 1 value

Display 2

Output display 2 value

Output 2

Output 2 value

Save

Save entered analog parameters

Disable

Turn off the analog output

Enter

Low gate

Set Low Gate

High gate

Set High Gate

Filter

Enter Filter menu

High speed filter

Set high speed filter

Medium speed filter

Set medium speed filter Low speed filter

Set low speed filter

Low-flow cutoff

Enter Low-Low Cutoff menu

K-Factor

Scale

Enter the Scale menu

Calibrate

Enter the Calibrate menu

Undo the

input

programming

Undo the scaling and

programming

Do not undo other programming

Yes

Undo other programming

Number of

Enter the number of

points

Input 1

Calibrate or scale input 1 value

Display 1

Program display 1 value

Input 2

Calibrate or scale input 2 value

Display 2

Program display 2 value

Save entered calibration or scale parameters

Enter the menu

Total reset

Select the Total Reset method

Manual

Manual total reset

Enable

Enable manual reset

Disable

Disable manual reset

Automatic

Automatic total reset

T DELAY

Time delay

Automatic reset time delay

simple batch operations.

Enter the time of day to

midnight)

Set Clock

Message indicates that

Set Time

Grand total reset

Select the Grand Total Reset method

Password

Enter the Password menu

Password

Program password to lock meter parameters

prevent total reset

Enter password to

parameters and reset

Unlock

Password has been unlocked

Lock

Password has been locked

lock meter

Enter password to unlock meter

Custom

Enter Custom menu

Position 1

Set menu position 1 (1-8)

Position 8

Set menu position 8

System

Enter System menu

Set time

Set real-time clock date and time

Year

Set the year

Month

Set the month

January

Set month as January

February

Set month as February

March

Set month as March

April

Set month as April

May

Set month as May

June

Set month as June

July

Set month as July

August

Set month as August

September

Set month as September

October

Set month as October

November

Set month as November

December

Set month as December

Day

Set the day

Time

Set the hour and minute

Data log

Enter Data Log menu

Log time

Set daily data log times

(1-4)

Disable log number

Set interval log time

Start

Begin interval logging

Dsp 1 OUt 1 Dsp 2 OUt 2 Save?

time

Set CLOCK

Total Reset Time

Instruction Manual

reset the total hh.mm (Default: 00.00

the clock must be set. Go to Advance – System –

dsabl

GATE

LO HI

FILTER

nmed

CUTOFF

SCALCAL

sCalE Cal

Undo?

KFACTOR

Undo?

SCALCAL

No?

Yes?

Nopts

Inp 1

Dsp 1 Inp 2

DsP 2 Save?

T RESET

T rST

man Enabl dsabl Auto

Gate

Scale & calibrate

Undo K-factor

Undo scaling & calibration

points

Save

Total reset

Gate

Enter the Scale & Calibrate menu to

program without using a

K-Factor

calibration input

scaling or calibration

Total Reset

Note: This setting is activated when the total reaches an output set point, it can be used for

GTrST

PASSWRD

Pass

Pass T

Pass GT

Password total Program password to

Password grand total

permanently lock out

grand total related

UnLOC

LOCd

UNLOCKD

LOCKED

Unlocked Program password to

Locked

CUSTOM

POS 1 POS 8

SYSTEM

SETTIME

YEAR MONTH

01 02 03 04 05 06 07 08 09 10 11 12

DAY TIME

DATALOG

LOGTIME

LOG 1

DsAbL

INTERVL

Log 1 Set first daily log time

Disable

Interval

STArT

Page 30

PD6730 Field-Mount Pulse Input Rate/Totalizer

View data log

View all data log points

Log number

Go to specific log number

Erase all logs

Erase?

Confirm to erase all logs

Backlight

Enable or disable backlight

Disable

Disable backlight

Enable

Enable backlight

Analog output calibration

Enter Analog Output Calibration menu

Backup

Enter Backup menu

to backup restore

Load parameters from backup restore

Restore factory default parameter settings

DFALTS?

Confirm factory reset

Battery symbol

Enter Battery Symbol menu

Disable

Disable battery symbol

Enable

Enable battery symbol

Info

Enter Info menu

Software

Display software ID number

Version

Display software version number

Model

Display model number

Enter

Enter Modbus communications menu

Slave ID

Set Modbus slave ID

Baud rate

Set baud rate

Transmit delay

Set transmit delay time

Parity

Set parity and stop bits

Standby

Enter standby mode (battery powered only)

Yes

Confirm standby mode

LOGVIEW

ALL LOGVIEW

LOG NUM

ALL

ERASE Erase?

BAKLITE

DsabL EnAbL

AO CAL

BACKUP

SAvE?

Log view

All log view

All erase

Save? Save current parameters

Instruction Manual

LOad?

DEFLT

RESET

Load?

Default

Reset defaults

Bat syM

DsabL EnAbL

INFO

SOFT

ver

nmodL

COMM

mbus

Communications

Modbus

SlvID BaUd Tdely Party

STANDBY

Yes?

Communications

Page 31

PD6730 Field-Mount Pulse Input Rate/Totalizer

Example:

Open Collector Outputs (OUTPUT)

The meter is equipped with two NPN open collector outputs that may be set up for pulse outputs, alarms, timed pulses, or turned off.

Pulse outputs are based on rate, total or grand total counts, or one-for-one retransmit for input pulses. Both outputs may be used to generate a quadrature output based on any output type. An output test mode can be used to generate pulses at a constant programmable frequency.

Alarms are available based on the rate, total, or grand total. The alarm status will show on the display even if the output is not wired. The outputs may also be forced on or off.

A timed pulse output generates constant pulses at a specified frequency and on time.

A total reset output generates a pulse whenever the selected total or grand total is reset, regardless of the reset method used. The On time is programmable between 0.10 and 99,999.99 sec.

The output may be disabled by selecting Off.

Instruction Manual

Output 1 and 2 Setup (OUT 1, OUT 2)

The function of open collector output 1 and 2 is configured using the Off, Pulse, Alarm, Timer, and Total Reset menus detailed below.

Pulse Output (PUlse)

Pulse outputs may be assigned to rate, total, grand total, retransmit, quadrature, or test.

Rate Pulse Output (rate)

A rate based pulse output is a factor of the input frequency and the Count (InvK-Factor). The rate display is a factor of the input pulses, time base, and the input K-Factor. The rate of output pulses over one time base (seconds, minutes, hours, days) is defined below in terms of input pulses, the input K-Factor, and the Count (InvK-Factor) parameters.

Input = 1000 pulses/sec K-Factor = 10 pulses/gallon Rate = 100 gallons/sec

Count (InvK-Factor) = 100 gallons/pulse (Inverse K-Factor = Volume units/pulse) Pulse Output = 1 pulse/sec

Page 32

PD6730 Field-Mount Pulse Input Rate/Totalizer

Total & Grand Total Pulse Output (Total, Grtot)

A total and grand total based pulse output is a factor of the associated total and count (output InvK-Factor). A pulse will be generated for every total accumulation amount equal to the count.

If the maximum output frequency is exceeded, the meter displays the message pUlse OVERRNG alternat- ing on the display.

Retransmit Output (retr) The retransmitting pulse output will send an output

pulse for every input pulse, essentially duplicating the input signal. The output will generate a pulse at the falling edge of every input pulse.

No additional programming is required for a retransmitting pulse output.

If the maximum output frequency is exceeded, the meter displays the message pUlse OVERRNG alternat- ing on the display.

Quadrature Output (quad) The pulse output set to quadrature will duplicate the

other open collector output, but lag by ¼ duty cycle (90 degrees out of phase). For example, Out 1 will follow Out 2, if Out 1 is set to quad. Only one output should be set to quad. If both outputs are set to quad, both outputs will be disabled. The other output should be programmed as desired for the quadrature output function, and must be a pulse ( selection.

Test Output (test) The test output setting programs the output to gener-

ate pulses at a programmed constant frequency. Set the frequency decimal point location in the DECPT menu, and then enter the desired output frequency in Hz in the PULSE menu.

PUlse

) output

Instruction Manual

Alarm Output (alrm)

Alarm outputs may be assigned to rate, total, or grand total; or be forced on or off.

Rate Alarm (rate)

Program the rate set point to trigger the alarm. Rate alarm deadband is determined by the difference between set and reset points. Minimum deadband is one display count. If set and reset points are programmed the same, output will reset one count below set point.

Total or Grand Total Alarm (Total, Grtot) Program total or grand total set point. A pulse alarm is

generated when the set value is reached by the total or grand total.

If the total/grand total is set for manual reset, this alarm will remain until the total/grand total is reset to 0.

If automatic total/grand total reset is enabled, the output will generate an alarm for a period of time programmed in ADVANCE  T RESET  Auto T DELAY. After this time delay, the total/grand total will reset to 0 and the alarm will clear.

If Out 1 and Out 2 are set for total or grand total alarm, the auto reset will be triggered on the highest of the two alarm set points.

For details on setting the total or grand total automatic reset time delay, see Total Reset (T Reset) on page 36.

Force On State (On)

This alarm mode forces the output to be active, or on. This mode is primarily used to test alarm systems.

Force Off State (OFF)

This alarm mode forces the output to be inactive, or off. This mode is primarily used to test alarm systems.

Page 33

PD6730 Field-Mount Pulse Input Rate/Totalizer

Timer Output (tmer)

The timer output produces a constant width pulse at a constant rate. Program the Delay Period from 0.1 to

999999.9 seconds (time from the start of one pulse to the start of the next pulse). Program the On Time for the active low pulse from .01 to 99999.99 seconds (pulse width). The on time must be less than the delay time. Select Start to begin outputting the constant timed pulse. Select Stop to end outputting the constant timed pulse.

Total Reset Output (t rst)

A total reset output generates a pulse whenever the selected total or grand total is reset, regardless of the reset method used. Program the On Time from 0.10 to 99,999.99 seconds. This is the amount of time the open collector output will remain on after the total or grand total has been reset.

Scaling the 4-20 mA Analog Output (Aout)

The Analog Output menu is used to program the 4-20 mA output based on display values.

The 4-20 mA analog output (if equipped) can be scaled to provide a 4-20 mA signal for any display range selected for either the rate, total, or grand total. The output may be disabled (DSABL) and will only output the minimum signal.

No equipment is needed to scale the analog output; simply program two display values and corresponding mA output signals.

• Please note that when power is removed from the meter, the analog output will drop below 1 mA.

• Take this effect into consideration when designing any system using the 4-20 mA output.

Instruction Manual

Gate Function (GATE)

The gate function is used for displaying slow pulse rates. Using the programmable gate, the meter can display pulse rates as slow as 1 pulse every 9,999 seconds (0.0001 Hz). The gate function can also be used to obtain a steady display reading with a fluctuating input signal.

There are two settings for the Gate, low gate (LO) and high gate (HI).

Low Gate (LO GaTe)

For most applications, low gate setting should be left at 1 second. Increase low gate setting to obtain a steadier rate display. The rate display will update in accordance with the low gate setting, for example if low gate is set at 10, the display will update every 10 seconds; changes in rate between updates will not be reflected until next display update.

High Gate (HI GaTE)

Set the high gate value to correspond to the highest expected pulse period (lowest pulse rate). For instance if the meter must display a rate when there is 1 pulse coming into the meter every 10 seconds, set the high gate to 11 seconds. When the signal is removed from the meter, the display will show the last reading for 11 seconds; then it will read zero.

Contact Debounce Filter (FILTER)

The filter function (FILTER) can be used for applications where the meter is set up to count pulses generated by switch contacts. There are three settings, HI (high speed), nmed (medium speed), and LO (low speed). High speed disables the contact debounce filter and allows any pulse of the minimum specified width for the selected input type. Press ENTER when nmeD or LO is displayed to enable the filter function.

The medium filter ignored signals faster than 250 Hz max, or pulse widths less than 2 ms at 50% duty cycle. The low filter ignores signals higher than 100 Hz, or pulse widths less than 5 ms at 50% duty cycle.

Low-Flow Cutoff (CUTOFF)

The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a transmitter at low flow rates, always displays zero on the meter.

The cutoff value may be programmed from 0.1 to 99,999. Below the cutoff value, the meter will display zero. Programming the cutoff value to zero disables the cutoff feature.

Page 34

PD6730 Field-Mount Pulse Input Rate/Totalizer

Scaling & Calibration (SCALCAL)

It is very important to read the following information, before proceeding to program the meter:

• There is no need to recalibrate the meter for frequency in Hz when first received from the factory.

• The meter is factory calibrated for Hz prior to shipment. The calibration equipment is traceable to NIST standards.

• Performing a scaling or calibration operation will override any K-Factor programming. Similarly, completing the K-Factor menu will override any scaling or calibration performed on the meter. Verify the method of programming required, use the password protection feature to secure the meter if necessary.

There are three methods of programming the display to show the correct engineering units based on input pulses.

1. Use the Factor menu to enter a K-Factor.

2. Use the Scale menu to enter the scaling without a signal source.

3. Use the Calibrate menu to apply a signal from a calibrator or a flowmeter.

The K-Factor, scale, and calibrate functions are exclusive of each other. The meter uses the last function programmed. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in Scale and Calibrate accordingly under the Number of Points (nopts) menu selection prior to scaling and calibration of the meter, see page 34 for details.

This menu is used to scale and calibrate the meter. For information on using a K-Factor for programming the input, refer to Entering the K-Factor (Factr) on page 22.

Undoing K-Factor, Scale, and Calibration (Undo?)

Whenever the input programming is being changed from using K-Factor to scaling or calibration; or from scaling or calibration to K-Factor, a confirmation menu appears. This prevents accidental changing of the input programming.

The example below shows a meter programmed with a K-Factor being reprogrammed to utilize input scaling.

Instruction Manual

Scaling the Meter (SCale)

The pulse input can be scaled to display the process variable in engineering units. A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

A programmed scaled input will work with Automatic Unit Conversions as described on page 25. The units for the display values that must be entered are a combination of the programmed Rate Unit and the time unit (Time UNIT) entered in the Scale menu.

For example, if the Rate Unit is gallons, and the time unit (Time UNIT) is seconds, the units for the display values entered in the Scale menu are gallons/second.

For instructions on how to program numeric values see Setting Numeric Values, page 18.

Multi-Point Linearization (nopts)

Up to 32 linearization points can be selected under the nopts function. The multi-point linearization can be used to linearize the display for non-linear inputs.

Number of Points (nopts)

Enter number of linearization points. The default value is 2 points. For linear inputs requiring only 2 scale points, the number of points can be left at 2.

Scale Units (SCALE UNITS)

Enter the units associated with the desired scale values. Selecting the scale display units allows the meter to perform automatic unit conversions.

Page 35

PD6730 Field-Mount Pulse Input Rate/Totalizer

Pulse Input Time Unit (Time UNIT)

This is the time component for the engineering units of the display values being entered. Enter the appropriate units/second, units/minute, units/hour, or units/day that corresponds to the values being entered at the display 1-32 ( dsp) menus.

For example, if the display values are being entered in gallons/second the time unit would be set to seconds.

Scale Input and Display (INPUT, DSPLY)

Each scale input point is defined by an input frequency and a corresponding display value.

The frequency inputs may be entered with up to three decimal places. To access the decimal location digits when entering a frequency, use the Right button to scroll to the three decimal location digits.

Manual Multi-point Entry (INP, DSP)

Manual entry of the linearization data is done once the number of points has been selected (NO PTS). Input signal levels (InP 1-32) for up to 32 points, along with the desired/corresponding meter reading (dSP 1-32), should be entered for each linearization point. Each scale point (1-32) has an input value and a display value. The input value is the number of pulses/sec (frequency), and the display value is the corresponding display value for that input in the time unit selected (example: gallons per minute, or GAL/M)

• Save (save?) After entering the last display value, the calibration entries must be saved (SAUE?) before they will be put into effect. However, you may move past this selection using the Up arrow key if you need to go back and correct and earlier entry. Once confident in the entries however, the user must navigate back to the Save menu screen (SAUE?) and press the Enter key to save the changes.

Calibrating the Meter (CaL)

To scale the meter without a signal source refer to

Entering the K-Factor (Factr) on page 22 or Scaling the Meter (SCale) on page 34.

The pulse input can be calibrated to display the process in engineering units by applying the appropriate input signal and following the calibration procedure. The use of a calibrated signal source is strongly recommended. A calibrated input will work with Automatic Unit Con- versions as described on page 25. The units for the display values that must be entered are a combination of the programmed Rate Unit and the time unit (Time UNIT) entered in the Calibrate menu. For example, if the Rate Unit is gallons, and the time unit (Time UNIT) is seconds, the units for the display values entered in the Calibrate menu are gallons / second.

The multi-point linearization feature (nopts) can be used to linearize the display for non-linear signals. For instructions on how to utilize this feature, see Multi-Point Linearization (nopts), page 36.

For instructions on how to program numeric values see Setting Numeric Values, page 18.

1. Press the Up arrow button to scroll to the Calibration menu (CAL) and press Enter.

2. The meter displays nopts. For a linear signal, press Up arrow. For a non-linear signal, refer to Multi-Point Linearization (nopts), page 34.

3. The meter displays CAL UNITS. Press Enter to select the input units/pulse. The menu will read FuNiT.

4. Use the Up arrow to select the time unit. If entering display values in units/second, press Enter. Otherwise, select the time unit. Refer to Pulse Input Time Unit (Time UNIT) on page 35.

5. The meter displays inp 1. Apply a known signal and press Enter. The display will flash while accepting the signal.

6. After the signal is accepted, the meter displays dsp 1 Press Enter. Enter a corresponding display value for the signal input, and press Enter to accept.

7. The meter displays inp 2. Apply a known signal and press Enter. The display will flash while accepting the signal.

8. After the signal is accepted, the meter displays dsp 2. Press Enter. Enter a corresponding display value for the signal input and press Enter to accept.

9. After completing calibration the save? display will need to be acknowledged using the Enter key before calibration will take effect.

Instruction Manual

Page 36

PD6730 Field-Mount Pulse Input Rate/Totalizer

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the meter reverts to input 2 during calibration or scaling, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Minimum input span requirements not maintained.

3. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum allowed input span is 1 Hz, which is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Multi-Point Linearization (nopts)

Up to 32 linearization points can be selected under the nopts function. The multi-point linearization can be used to linearize the display for non-linear inputs. Linearization data can be entered using a known accurate signal source (InP 1-32) and then entering the desired/corresponding meter reading (dSP 1-32) for that input signal level. These points are established via direct entry (SCALE) or with an external calibration signal (CAL).

Calibration Units (CAL UNITS)

Enter the units associated with the desired scale values. Selecting the units allows the meter to perform automatic unit conversions.

Pulse Input Time Unit (Time UNIT)

This is the time component to be used when calibrating a number of input pulses per time unit to equal a certain display value.

For example, if the inputs being entered in pulses/second the time unit would be set to seconds.

Instruction Manual

Manual or Automatic Total Reset Function (t rST)

For manual reset, select T RESET  t rst  man and then select whether manual reset will be enabled (Enabl) or disabled (dsabl) using the Up arrow key. Press the Enter button to accept. Disabling reset will avoid inadvertent resets of the total via the front reset button or external reset contact.

For automatic reset, select T RESET  t rst  Auto T DELAY and enter reset delay time in seconds. The automatic total reset works together with an open collector alarm assigned to trigger on a total set point. Once the output alarm total set point is reached, the meter waits for a programmed amount of time (T DELAY) and then resets the total to zero.

This feature can be used for automatic batch control applications.

Time of Day Total Reset

For timed reset, select T RESET  t rst  Time T RESET and enter the time of day at which the total

should be reset. The total value will be reset every day at the specified time.

Press the Enter button, at any time, to accept a setting; otherwise press the Menu button to exit without saving changes.

Total Reset (T Reset)

This menu is used to select the ways the total and grand total may be reset.

Automatic Total Reset & Total Alarm

The T DELAY parameter is used by the NPN open collector outputs when they are programmed as total alarms. If total reset (t rst) is programmed to Auto the time delay (T DELAY) is the length of the associated Out 1 or Out 2 total alarm prior to the total being reset to 0.

For information on programming the NPN open collector pulse outputs as total alarms, see Alarm Output (alrm) programming on page 32.

Page 37

PD6730 Field-Mount Pulse Input Rate/Totalizer

Manual or Automatic Grand Total Reset Function (GtrST)

For manual reset, select T RESET  Gtrst  man and then select whether manual reset will be enabled (Enabl) or disabled (dsabl) using the Up arrow key. Press the Enter button to accept. Disabling reset will avoid inadvertent resets of the total via the front reset button.

For automatic reset, select T RESET  Gtrst  Auto T DELAY and enter reset delay time in seconds.

The automatic grand total reset works together with an open collector alarm assigned to trigger on a grand total set point.

Once the grand alarm output grand total set point is reached, the meter waits for a programmed amount of time (T DELAY) and then resets the grand total to zero.

Time of Day Grand Total Reset

For timed reset, select T RESET  t rst  Time T RESET and enter the time of day at which the total

should be reset. The total value will be reset every day at the specified time.

Press the Enter button, at any time, to accept a setting; otherwise press the Menu button to exit without saving changes.

Instruction Manual

Grand Total Automatic Reset & Grand Total Alarm

The T DELAY parameter is used by the NPN open collector outputs when they are programmed as grand total alarms. If grand total reset (Gtrst) is programmed to Auto,the time delay (T DELAY) is the length of the associated Out 1 or Out 2 grand total alarm prior to the grand total being reset to 0.

For information on programming the NPN open collector pulse outputs as grand total alarms, see Alarm Output (alrm)programming on page 32.

Press the Enter button, at any time, to accept a setting; otherwise press the Menu button to exit without saving changes.

Page 38

PD6730 Field-Mount Pulse Input Rate/Totalizer

Setting Up Passwords (PASSWRD)

The Password menu is used to program a five-digit password to prevent unauthorized changes to the programmed parameter settings, to restrict the ability to reset the total and grand total, and to permanently lockout the ability to reset the grand total and any grand total related parameters.

The lock symbol is displayed to indicate that settings are password protected.

Record all passwords for future reference. If appropriate, it may be recorded in the space provided.

Model:

Serial Number:

Setting Lockout Password (PASS): __ __ __ __ __

Total Reset Password (PASS T): __ __ __ __ __

Grand Total Reset Password (PASS GT) __ __ __ __ __

Locking Meter Setup Parameters

Enter the Password menu, select Pass, and program a five-digit password. The meter will return to Run Mode after locking any of the passwords.

For instructions programming numeric values see Setting Numeric Values, page 18.

Instruction Manual

Password Restricting Total & Grand Total Reset

To restrict resetting of the total, enter the Password menu, select Pass T, and program a five-digit password. This will deactivate the remote reset connections. Total will only be able to be reset through the SafeTouch Buttons or mechanical pushbuttons if the appropriate password is entered.

To restrict resetting of the grand total, enter the Password menu, select Pass GT, and program a five-digit password.

Resetting Total & Grand Total on a Password Protected Meter

If the meter is password protected for total or grand total reset, the meter will display the message PASS T or PASS GT when an attempt is made to enter the password protected total or grand total Reset menus. Input the password and press the Enter button to reset the total or grand total.

The password requirement may be disabled by entering the password in the Password menu for total (Pass T) or grand total (Pass GT).

Disabling Password Protection

To disable the password protection, access the Password menu, select the type of password to be disabled, and enter the correct password as shown below. That password is now disabled (set to 00000) until a new password is entered.

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message PASS LOCKED when an attempt is made to enter the Setup menu or Advanced menu.

Press the Enter button while the message is being displayed and input the correct password followed by the Enter button to gain access to the menu. After exiting the programming mode, the meter returns to its password protected condition.

If the correct five-digit password is entered, the meter displays the message UnlOC (unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the meter displays the message PASS LOCKED, allowing the user to try again. If Enter is not pressed within 3 seconds, the meter returns to Run Mode.

Did you forget the passwords?

The password may be disabled by entering a master password. If you are authorized to make changes, enter the master settings lockout (PASS) password 50865, the master total reset (PASS T) password 80034, or the master grand total reset (PASS GT) password 80034 to unlock the meter.

Page 39

PD6730 Field-Mount Pulse Input Rate/Totalizer

parameter

Non-Resettable Grand Total

The grand total may be configured to be a nonresettable grand total. This is a permanent setting. Configuring the grand total as a non-resettable grand total locks out all setup parameters that could be used to reset the grand total or change the setup of the grand total, including input selection, rate scaling, and conversion factors.

To configure the meter for non-resettable grand total mode, enter the non-resettable grand total password listed below, into the Pass GT parameter in the Password menu.

The non-resettable grand total permanently locks the following setup menus and parameters from being changed: input selection, K-Factor, K-Factor units, grand total units, grand total conversion factor, grand total decimal point, scaling, calibration, grand total alarms, pulse input filter, and cutoff.

• Locking the meter into a non-resettable grand total is not reversible. It is a permanent meter configuration. Doing so will permanently prevent most input parameters from being altered. This should be the last step after verifying all setup parameters.

Non-resettable grand total password: 50873

Instruction Manual

Non-Resettable Grand Total

Locked Menus & Parameters

Display

Input

GtotU

GrtCF

Grtot

DECIMAL

Factr

sCalE

Cal

GTrST

Pass GT

Grtot

ALARM

FILTER

CUTOFF

Parameter/Me nu

Input All Input type selection

Grand total units

Grand total conversion factor

Grand total decimal point

K-Factor All K-Factor menu

Scale All Scale menu parameters

Calibrate All Calibrate menu

Grand total reset

Password grand total

Grand total alarm

Filter Enter Filter parameter

Low-flow cutoff Enter Low-Flow Cutoff

Action/Setting Locked

menu parameters

Set grand total units

Enter the Grand Total Conversion Factor menu

Enter the grand total display decimal point

parameters

All the Grand Total Reset menu parameters

Enter the grand total reset password

All grand total alarm output menu parameters

The above menus remain accessible; however the parameters listed above within the menus are locked and may not be changed.

Page 40

PD6730 Field-Mount Pulse Input Rate/Totalizer

Display

Parameter/Menu

Action

None

Set no menu position display

Input

Set to show Input menu

Select standard units or custom unit/tag

Decimal

Set to show Decimal menu

Display

Set to show Display menu

Analog out

Set to show Analog Output menu

Rate decimal Point

Set to show Rate Decimal Point menu

TOTAL.DP

point

Point menu

GRTOT.DP

decimal point

Decimal Point menu

Scale

Set to show Scale menu

Calibrate

Set to show Calibrate menu

Time base

Set to show Time Base menu

Total conversion factor

Set to show Total Conversion Factor menu

Total reset

Set to show Total Reset menu

Grand total conversion factor

Set to show Grand Total Conversion Factor menu

Reset menu

Program password to lock meter parameters

Program password to prevent total reset

Program password to

parameters and reset

Output

Set to show Output menu

Assign function of pulse output 1

Assign function of pulse output 2

Data Log

Enter Data Log menu

Log Time

Set daily data log times

Interval

Set interval log times

Log View

Enter Log View menu

Password

Set to show Password menu

Setup

Set to show Setup menu

Advance

Set to show Advanced menu

System

Set to show System menu

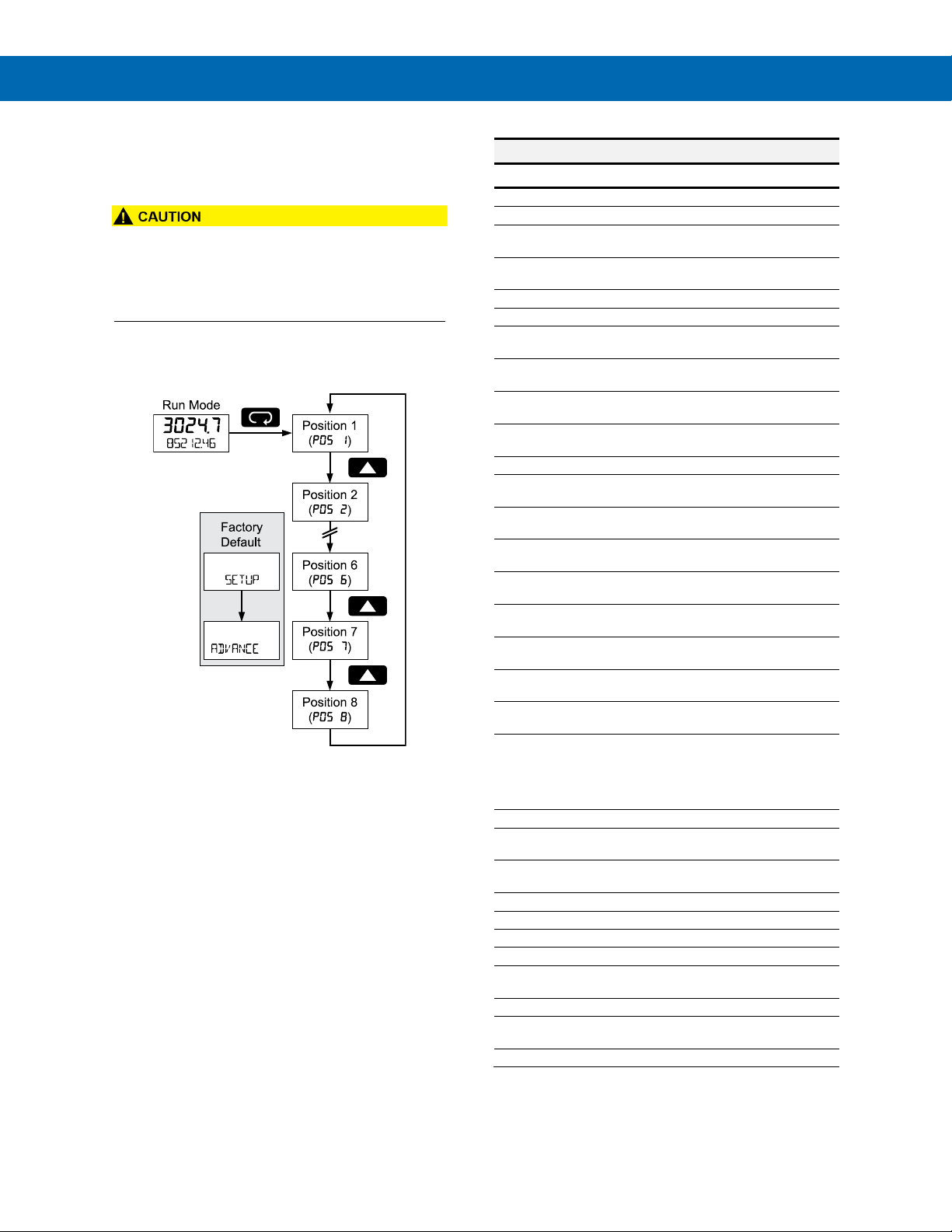

Custom Menu (CUSTOM)

The Custom menu is used to modify the initial programming menus that appear in the Main Menu when the Menu button is pressed in Run Mode.

• Changing the default menu setup with the Custom menu feature may change the setup and operation procedures described in this manual. Only operators familiar with the programming and operation of this unit should use this feature.

Eight menu positions are available. Menu positions 6 and 7 are factory programmed for Setup and Advanced.

NONE INPUT KFACTOR

UNITs

DECIMAL DISPLAY A OUT

RATE.DP

Instruction Manual

Custom Menu Parameters

K-Factor Set to show K-Factor

Units

Total decimal

Set to show Total Decimal

To add a menu or parameter to the menu structure, or change the default menus, press Enter at the desired menu in the position (POS) to be edited and use the Up or Right arrows to select the desired menu item for that position. See the following table for a complete list of the available menu selections for each position.

SCALE CAL

T BASE

T FACTR

T RESET

GTFACTR

GTRESET

PASS

PASS T

PASS GT

OUTPUT OUT 1

OUT 2

Grand total

Grand total reset Set to show Grand Total

Password

Total password

Grand total password

Out 1

Out 2

Set to show Grand Total

prevent grand total reset. May permanently lock out grand total related

DATALOG LOGTIME INTERVL LOGVIEW PASSWRD

SETUP ADVANCE

SYSTEM

Page 41

PD6730 Field-Mount Pulse Input Rate/Totalizer

System (SYSTEM)

The system function is used to set the real time clock, set the data logger times, enable/disable the backlight, access analog output controls used in troubleshooting, store, restore, and backup restore feature, enable / disable the battery power alert symbol on the display, and review basic system information.

Set Real Time Clock (SETTIME)

The real time clock is used to trigger data log events and is recorded at every logged data point. The menu displays the date and time.

Figure 18. Date Display Example

The above display example shows the date to be June 27, at 14 hours, 32 minutes, and 36 seconds. The display date will toggle with the year.

The year, month, day, hour, and minute may all be set by the user. The real time clock will need to be reset if external power and battery power are lost.

Changing the time (hours and minutes) will reset the seconds clock to 0.

Instruction Manual

Data Log Setup (DATALOG)

The Data Log menu is used to setup and enable the data log functions. The meter may contain up to 1024 records, each containing date, time, rate, total, grand total, and log number.

There are two ways to configure the time when a data log is recorded. The Log Time feature allows up to 4 data logs to be recorded each day, at specific times. The Log Interval feature allows a data log to be recorded each time a time interval has passed. Only the Log Time or Log Interval may be active at once. While one type of data logging has been enabled, the other menu will be inaccessible.

Log Time Setup (LOGTIME)

The Log Time menu contains four log points (LOG 1 to LOG 4). Each log time is configured separately. For

each daily log time desired, enable a log, and set the log time for the hours and minutes the log is to be recorded. The time is set in real-time, based on the real time clock setup. The Log Time feature will roll-over, deleting the oldest data logs (in blocks of 8) when the log is full and new logs must be recorded. This makes it the most useful for long-term data logging.

Interval Setup (INTERVL)

The Interval menu sets the time interval for data logging. Every time interval, one data point will be recorded. To enable interval data logging, enable the feature, and set the interval time for the hours and minutes between each log. If set to F.STOP, the Log Interval feature will not delete old data, and data logging will stop when the log is full. This makes it the most useful for short periods and logging specific functions. If set to Cont, the Log Interval feature will delete the old data when full and continue logging data. The Log Interval feature will roll-over, deleting the oldest data logs (in blocks of 8) when the log is full and new logs must be recorded. This makes it the most useful for long-term data logging.

Page 42

PD6730 Field-Mount Pulse Input Rate/Totalizer

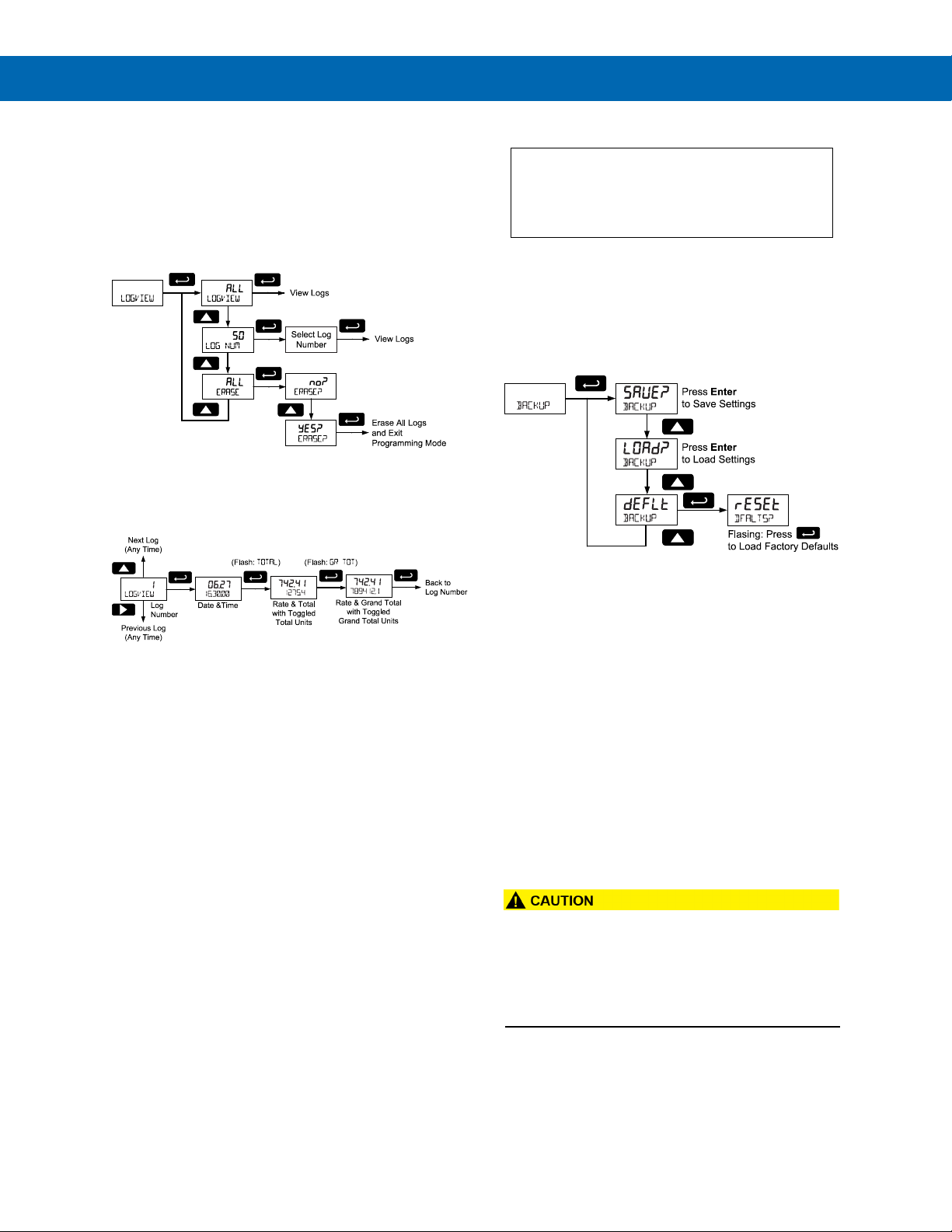

View Data Log (LOGVIEW)

The Log View menu allows on-screen browsing of the data log points stored in the meter. Data points may be navigated by viewing the log number, date and time, total, or grand total amounts. A known log may be jumped to immediately, avoiding a lengthy search for data. All logs may be deleted with the ERASE command, requiring confirmation.

Once the log records are displayed, use the Up and Right arrows to change the log entry being viewed. The Enter key changes the displayed information for the same log.

Instruction Manual

Backup & Restore (BACKUP)

The meter saves all parameter settings, and no reprogramming is necessary when power is lost and restored to the meter. The total and grand totals are saved during a power loss. Only the maximum and minimum displays are reset when power is lost

The features are used to save and restore programmed settings. Programming can be restored to a known saved good configuration, or to factory defaults. This is useful to restore meters whose programming has been altered in unknown ways, or to quickly restore known good settings if mistakes are made during reprogramming.

Backlight (BAKLITE)

The Backlight menu is used to enable or disable the backlight. This feature is particularly important for the battery-powered models with momentary backlight. This feature is not available for models with a loop output powered backlight.

Analog Output Calibration (AO CAL)

This feature is only used at the factory for calibration of the 4-20 mA analog output, if the meter has this option. It is not recommended to access this menu without instruction from technical support.

The save feature (SAvE?) saves all current parameter settings into the memory of the backup restore. The backup restore feature is loaded with factory default settings until a new configuration is saved.

The Load Backup feature (load?) restores all parameters to the programmed values stored in backup restore memory. The Load Backup feature will not affect the current password settings or allow the editing of permanently locked parameters due to the enabling of the non-resettable grand total feature. See Non-Resettable Grand Total described on page 39.

The Reset Defaults feature (deflt) restores all parameters to the factory default values. Factory default reset does not change the saved backup restore settings, override passwords, or edit parameters locked by a permanent non-resettable grand total. See Non-Resettable Grand Total, as described on page 39.

• Once meter parameters have been saved to memory by the backup restore feature there is no recovering of the previously saved settings.

• Once parameters have been loaded into the meter from the backup restore feature there is no recovering of the previously programmed settings.

Page 43

PD6730 Field-Mount Pulse Input Rate/Totalizer

Battery Power Symbol Alert (BAT SYM)

The Battery Power Symbol Alert menu is used to enable or disable the battery alert symbol on the display. This is a useful way to be aware of a power failure to a model with battery backup.

When enabled, the battery symbol will appear whenever the meter is powered as a battery backup. This is detected when the meter being powered from DC or loop-power experiences power loss, subsequently switching over to battery power.

The indicator will not appear if the meter is powered on via battery power, only when there is applied power to the DC or loop-power lines, followed by power loss. This prevents the battery indicator from appearing at all times for a primarily battery powered application.

The battery symbol will flash in a low battery condition regardless of the setting of this parameter.

Information (INFO)

The Information menu is part of the System features menu. It shows software identification number, version number, and extended model number. To view this information:

Go to the Information menu (INFO) and press Enter button.

Continue pressing Enter to scroll through the displays.

Following the information display, the meter will exit the Advanced features menu and return to Run Mode.

Instruction Manual

Serial Communications (COMM)

The Communications menu is used to setup serial communications parameters necessary for communication via Modbus.

The Modbus communications uses a 2-wire plus ground RS-485 connection with the Modbus RTU option.

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The meter address (Slave ID) may be programmed between 1 and 247. The baud rate may be set to 1,200; 2,400; 4,800; 9,600; 19,200; 38,400; 57,600; or 115,200 bps. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

Refer to the ProtEX Modbus Register Tables located at www.predig.com

for details.

Standby Mode (STANDBY)

Standby mode is available on battery powered and battery backup models only.

The Standby menu is used to enter a power-saving standby mode that will turn off the display and activate a low power mode for the through-window buttons. Signal processing operations will continue to run. This mode may be used to reduce power consumption and increase battery life when the meter is not in use.

It may take up to 3 seconds for the meter to enter standby mode after confirming the flashing display with the Enter button.

Wakeup the Meter (WAKEUP?)

To bring the meter out of standby mode, press any button and Wakeup (WAKEUP?) will flash. If using SafeTouch buttons, it may be required to hold the button for several seconds.

Confirm that the meter should awaken to Run Mode by pressing the Enter key while WAKEUP? is flashing. The meter will return to the normal Run Mode.

Page 44

PD6730 Field-Mount Pulse Input Rate/Totalizer

Symbol

Description

ENTER

DISPLAY

RESET

Operation

Front Panel Buttons Operation

• Hold the Menu SafeTouch button when in power save mode (display will show

) to awaken SafeTouch buttons.

• Press the Menu button to enter Programming Mode.

• Press the Menu button during Programming Mode to return to the previous menu selections.

• Hold the Menu button for 1.5 seconds at any time to exit Programming Mode and return to Run Mode.

• Press and hold the Menu button for 3 seconds to access the Advanced Features of the meter.

• Press the Right arrow button to move to the next digit or decimal position during programming.

• Press Right to go backward through most selection menus.

• Press Reset to reset the total, or values displayed in the bottom display (grand total, max, or min). Press Enter after Reset to confirm the reset.

• Press the Up arrow button to scroll forward through the menus, decimal point, or to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

• Press Enter to lock the grand total, maximum, or minimum value on the lower display, and disable the 12 second time out.

• Press Enter while the grand total, max, or min reading is locked on the lower display to return to Run Mode.

• Press Enter to acknowledge alarm (if enabled). Press Enter to lock display of grand total, Max or Min readings (disables 10 second timeout).

The following SafeTouch button information is reprinted from SafeTouch Button Operation on page 16.

Instruction Manual

SafeTouch Button Operation

SafeTouch Power Save Mode

SafeTouch buttons enter a power saving mode after three minutes of inactivity. This mode is indicated by the

SafeTouch power symbol ( ) appearing in the lower right of the display. Only the MENU button is monitored in this mode. To activate the SafeTouch buttons, press and hold the menu button for up to five seconds. The display will read AWAKE, and the SafeTouch buttons will be fully enabled.

SafeTouch Disabled Mode

When the cover is removed, the four mechanical buttons located next to the sensors may be used. The sensors are disabled when a mechanical button is pressed and will automatically be re-enabled after 60 seconds of inactivity.

The SafeTouch power symbol ( ) will blink in the lower right of the display if the buttons are disabled due to a mechanical pushbutton being pressed.

SafeTouch Button Tips and Troubleshooting

SafeTouch Button Tips:

• To the extent possible, install the display facing

away from sunlight, windows, reflective objects and any sources of infrared interference.

• Keep the window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

• If the cover has not been installed and secured

tightly, it may take a moment for the SafeTouch buttons to properly self-calibrate when the cover is tightened.

After all connections have been completed and verified, connect the ribbon cable to the display module, fasten the display module to the base, install enclosure cover, and then apply power.

Page 45

PD6730 Field-Mount Pulse Input Rate/Totalizer

SafeTouch Button Equalize Delay

Allow up to 2 minutes for the SafeTouch buttons to recalibrate to new conditions in these cases where the cover position was changed, or the front window is being unblocked.

Grand Total Reading (GrTOTAL)

Instruction Manual

The grand total is a separate total that is not reset when the total is reset. This allows the complete total to be tracked by the grand total, while individual batch, or daily totals are reset regularly.

To display the grand total, press the Up/Display button. The display will read GRTOTAL, and the GT symbol will appear indicating the grand total is being displayed on the bottom display. After 10 seconds, the bottom display will return to showing total. To lock the grand total on the display, press Enter. Pressing

Menu at any time will return to normal Run Mode.

Note: If the Display menu has been setup to display the

grand total on the bottom display, pressing the Up/Display button will display the maximum and minimum readings followed by the total.

Previous Total & Grand Total

The previous total and grand total values, prior to being reset, are stored in memory. These values can be viewed using the Up/Display button.

Display Max, Min & Previous Totals

The maximum and minimum (peak & valley) readings reached by the rate are stored in the meter since the last reset or power-up. The meter shows MAXIMUM or MINIMUM to differentiate between Run Mode and max/min display.

To display the maximum and minimum readings and the previous total and grand total use Up/Display button to cycle the bottom display. Maximum and minimum are displayed after the grand total.

Press the Enter button to remain in Max / Min / Previous display mode. If Enter is not pressed, the Max / Min / Previous display readings will time out after ten seconds. The meter will return to display the actual reading. Pressing Menu at any time will return to normal Run Mode.

Resetting the Total (RESET TOTAL?)

If manual Total Reset is enabled in the Advanced menu, the total may be reset by pressing the Reset button and using the Enter button to confirm the reset.

Additionally if programmed for manual reset, the total may be reset using a normally open pushbutton connected across the terminals RST and COM.

Note: The total is cleared immediately when Enter button is pressed. Totalization will then continue, even if the Enter button or external reset button continues to be held down/triggered.

Resetting the Grand Total (

RESET GrTOT?)

If manual Grand Total Reset is enabled in the Advanced menu, the grand total may be reset using

the Reset button.

To reset the grand total, display the grand total by pressing the Up/Display button. While grand total is being displayed, press the Reset button. Confirm the reset with the Enter button.

Resetting Max/Min Readings

RESET MAXIMUM, MINIMUM)

(

The maximum and minimum readings may be reset by pressing the Reset button while displaying either the maximum or minimum. The display will show RESET to verify the reset of maximum or minimum value.

The maximum and minimum must be reset individually.

Page 46

PD6730 Field-Mount Pulse Input Rate/Totalizer

Parameter

Display

Default

User

Input Type

INPUT

Active

K-Factor units

Pulses/ Gallon

K-Factor

1.0000

Rate Time Base

Tbase

Second

Rate Unit

RateU

Gallons/ second

Total Unit

Tot U

Gallons

Total Multiplier

Nmult

x1 Grand Total Unit

GtotU

Gallons

Grand Total Multiplier

Nmult

Rate

Point

1111.1

1 place

Total

Point

111111.1

1 place

Grand Total

Point

111111.1

1 place

Total

N/A (Only

units)

Grand Total

N/A (Only

units)

Parameter

Display

Default

User

Top Display

Rate

Bottom Display

Advanced Features

Total Reset

Manual Enabled

Grand Total Reset

Manual Enabled

Analog Out Value

Output Display 1

Output 1

4.000

Output Display 2

Output 2

20.000

Scale Enable

No – Use K-Factor

Scale/Cal # Points

Pulses/Gall on (N/A)

Scale Unit Time Base

Second (N/A)

Scale/Cal Input 1

Scale/Cal Display 1

0000.0 (N/A)

Scale/Cal Input 2

Scale/Cal Display 1

1000.0 (N/A)

Parameter

Password

Total Reset Password

00000 (unlocked)

Grand Total

Password

Output 1

Off Output 2

Off Low Gate

1 High Gate

2 Filter

High Speed

Cutoff

0 (disabled)

Battery Symbol

Modbus Slave ID

Baud Rate

9,600 bps

Time Delay

10 ms

Parity

Even

Additional Parameters & Notes

Reset Meter to Factory Defaults

Reset to factory defaults will restore most meter parameters to their factory default setting.

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Factory default reset does not change the saved backup restore settings, override passwords, or edit parameters locked by a permanent non-resettable grand total. See Non-Resettable Grand Total, as de- scribed on page 39.

Instructions to load factory defaults can be found in the Backup & Restore (BACKUP) menu on page 42.

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may record the new setting for the particular application.

Model: _________________________ S/N: ___________________________ Date: __________________________

Setting

FuNiT

Factr

Setting

Scale Unit Funit

Lock

Reset

Setting

TOP BOTNm Total

T rst

A out Rate

Dspl1 0000.0

Out 1 Dspl2 1000.0

Out 2

SCALE

nopts

time

Inpt1 00000 (N/A)

dspl1

Inpt2 1000 (N/A)

Dspl2

PASS

PASS T

PASS GT

OUT 1 OUT 2 LO GATE HI GATE FILTER CUTOFF

BaT SYM Disabled

2 (N/A)

00000 (unlocked)

Instruction Manual

Setting

Decimal

Conversion Factor

TotCF

grtCF

valid with custom

sLvID 247

baud Tdely Party

Page 47

PD6730 Field-Mount Pulse Input Rate/Totalizer

Check power connection.

If is displayed, hold Menu SafeTouch button to leave power save mode.

Meter displays error message during calibration (

)

Display stuck displaying

Instruction Manual

Troubleshooting

Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. See Reset Meter to Factory Defaults on page 46 for details on resetting the meter to factory defaults. In addition, for best results, we recommend using the free MeterView EX software for all programming needs.

Troubleshooting Tips

Symptom Check/Action

No display or faint display

SafeTouch Buttons do not respond

Rate display unsteady Increase low gate setting in Advanced menu.

eRROR Span

Meter flashes 99999 Check input signal is within scaled range of 99999.

MAXIMUM

Display response is too slow Check if gate settings can be lowered.

If the display locks up or the meter does not respond

Backlight does not appear.

Other symptoms Call Technical Support for assistance.

MINIMUM

Press and hold Menu key for 5 seconds to check for Standby mode. If “WAKEUP?” is displayed, press the Enter key to awaken the meter from Standby mode.

If is flashing, wait 60 seconds to leave mechanical pushbutton lockout mode. If the cover was recently tightly secured, you may need to wait up to 2 minutes for buttons to self-calibrate to the new cover position due to window reflection.

Verify the THRU-GLASS BUTTONS switch located on the back of the display module is in ON position.

Sunlight can interfere with the sensors. It is recommended to shield the window while operating the buttons by standing so as to block direct sunlight.

Verify minimum input span requirements

Press Enter (Unlock) to exit Max/Min display

Perform hard reset by removing the display module or by removing external loop or DC power.

Backlight is intended for viewing assistance in dim lighting. It may not be noticeable under good lighting conditions. Battery powered models turn off the backlight after ten seconds of button inactivity.

Page 48

PD6730 Field-Mount Pulse Input Rate/Totalizer

ENTER

DISPLAY

RESET

Quick User Interface Reference

Pushbutton Function

Go to Programming mode, back out one level of programming. Hold to enter Advanced Features mode. Leave grand total/max/min mode.

Move to next digit or decimal point position. Go to reset menu.

Return to last programming menu.

Move to next selection or increment digit.

Enter Grand Total/Max/Min display mode.

Accept selection/value and move to next selection. Acknowledge Alarm.

Instruction Manual

Cycle Rate, Total, Grand Total, Max/Min, Previous Totals on Lower Display

While in Run Mode, pressing Display will cycle the rate, total, grand total, max/min, previous total & grand total display.

In this mode, the display will show the rate, total, grand total, maximum, or minimum values since last reset when they are not selected as the top or bottom display. The grand total, max, min, previous total & grand total will display for 10 seconds.

Press Enter while displaying the rate, total, grand total, max, min, previous total & grand total to disable the 10 second time-out and continuously display the selected parameter.

Press Enter again to disable this display lock.

Page 49

PD6730 Field-Mount Pulse Input Rate/Totalizer

PRECISION DIGITAL CORPORATION

www.predig.com

Contact Precision Digital

Technical Support

Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]

Sales Support

Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990

Instruction Manual

Email: [email protected]

Place Orders

Email: [email protected]

For the latest version of this manual please visit

www.predig.com

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

SFT050 Ver 3.200 & up

LIM6730_E

06/21
