Page 1

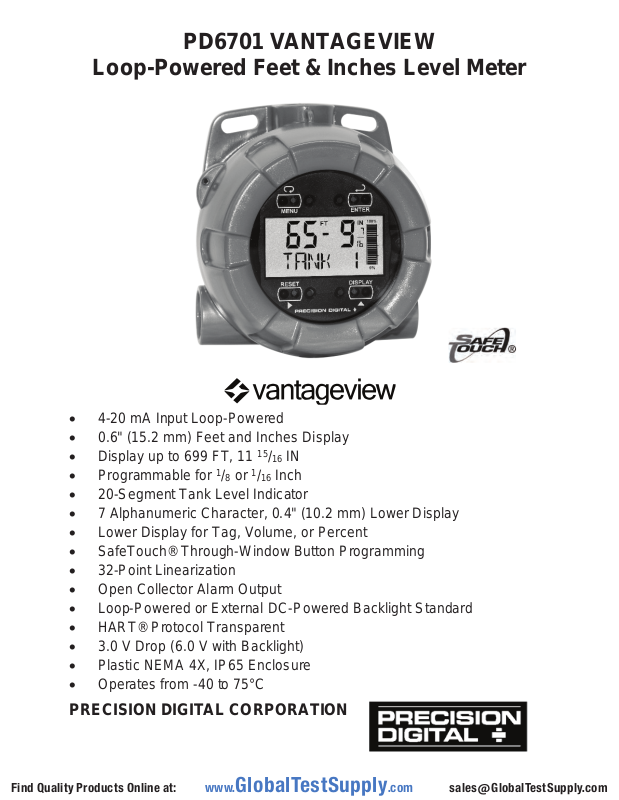

PD6701 VANTAGEVIEW
Loop-Powered Feet & Inches Level Meter
x 4-20 mA Input Loop-Powered
x 0.6" (15.2 mm) Feet and Inches Display
15
x Display up to 699 FT, 11
1
x Programmable for
x 20-Segment Tank Level Indicator
x 7 Alphanumeric Character, 0.4" (10.2 mm) Lower Display
x Lower Display for Tag, Volume, or Percent
x SafeTouch® Through-Window Button Programming
x 32-Point Linearization
x Open Collector Alarm Output
x Loop-Powered or External DC-Powered Back light Standard
x HART® Protocol Transparent
x 3.0 V Drop (6.0 V with Backlight)
x Plastic NEMA 4X, IP65 Enclosure
x Operates from -40 to 75°C
/8 or 1/16 Inch
/16 IN
PRECISION DIGITAL CORPORATION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
PD6701 Loop-Powered Level Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change without notice.
Precision Digital makes no representations or warranties with respect to the contents
hereof; and specifically disclaims any implied warranties of merchantability or fitness
for a particular purpose.
!
CAUTION: Read complete
instructions prior to installation
and operation of the meter.
WARNING: Risk of
electric shock or
personal injury.
Warning
• This product is not recommended for life support applications or applications
where malfunctioning could result in personal injury or property loss. Anyone
using this product for such applications does so at his/her own risk. Precision
Digital Corporation shall not be held liable for damages resulting from such
improper use.
• Failure to follow installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.
Limited Warranty
Precision Digital Corporation
workmanship for the specified period under “Specifications” from the date of
shipment from the factory. Precision Digital’s liability under this limited warranty shall
not exceed the purchase value, repair, or replacement of the defective unit.
warrants this product against defects in material or
Registered Trademarks
All trademarks mentioned in this document are the property of their respective
owners.
© 2013-2015 Precision Digital Corporation. All rights reserved.
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
PD6701 Loop-Powered Level Meter Instruction Manual
INTRODUCTION
The Vantageview PD6701 is a plastic field mounted loop-powered indicator
specifically designed for level applications in the harshest environmental conditions.
The meter displays level in easy to read and understand feet, inches, and fractions of
an inch; and a 20-segment tank level indicator. The lower display can show a custom
unit or tag, percent full, or a second scale for the 4-20 mA input used to indicate
volume.
The meter derives all of its power from the 4-20 mA loop. It is programmed using the
four SafeTouch
scaled with or without a calibration signal. The upper display will read up to
699 ft. – 11 15/16 inches. The alphanumeric volume/tag display will read up to
9,999,999. The alphanumeric display can also be programmed to show any
combination of numbers and letters up to seven characters long for use as
engineering units and/or the process identification tag. The backlight lets you see the
display under any lighting condition and can be powered from either the 4-20 mA
loop or from a separate DC power supply.
The enclosure is provided with two threaded conduit holes and integrated pipe or wall
mounting slotted flanges.
®
through-window buttons, without removing the cover, and can be
ORDERING INFORMATION
Model Description
PD6701-0K1 Loop-Powered Feet & Inches Level Meter
Accessories
Model Description
PDAPLUG75P 3/4" NPT Plastic Conduit Plug
PDA6846
PDA6846-SS
Pipe Mounting Kit. Includes zinc-plated u-bolt for 2" pipe, (2)
washers, and (2) nuts.
Pipe Mounting Kit. Includes stainless steel u-bolt for 2" pipe,
(2) washers, and (2) nuts.
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
PD6701 Loop-Powered Level Meter Instruction Manual
SETUP
ADVANCE
Table of Contents
INTRODUCTION ---------------------------------------------------------------------- 3
ORDERING INFORMATION ------------------------------------------------------- 3
SPECIFICATIONS -------------------------------------------------------------------- 6
General ------------------------------------------------------------------------------------------- 6
Input ----------------------------------------------------------------------------------------------- 7
Open Collector Output ---------------------------------------------------------------------- 7
SAFETY INFORMATION -------------------------------------------------------------------- 8
INSTALLATION ----------------------------------------------------------------------- 9
Unpacking --------------------------------------------------------------------------------------- 9
Conduit/Stopping Plug ---------------------------------------------------------------------- 9
Mounting --------------------------------------------------------------------------------------- 10
Connections ---------------------------------------------------------------------------------- 10
Input Signal & Backlight Connections ........................................................ 12
External Acknowledge Connection ............................................................ 13
Open Collector Output Connections .......................................................... 14
SETUP AND PROGRAMMING -------------------------------------------------- 15

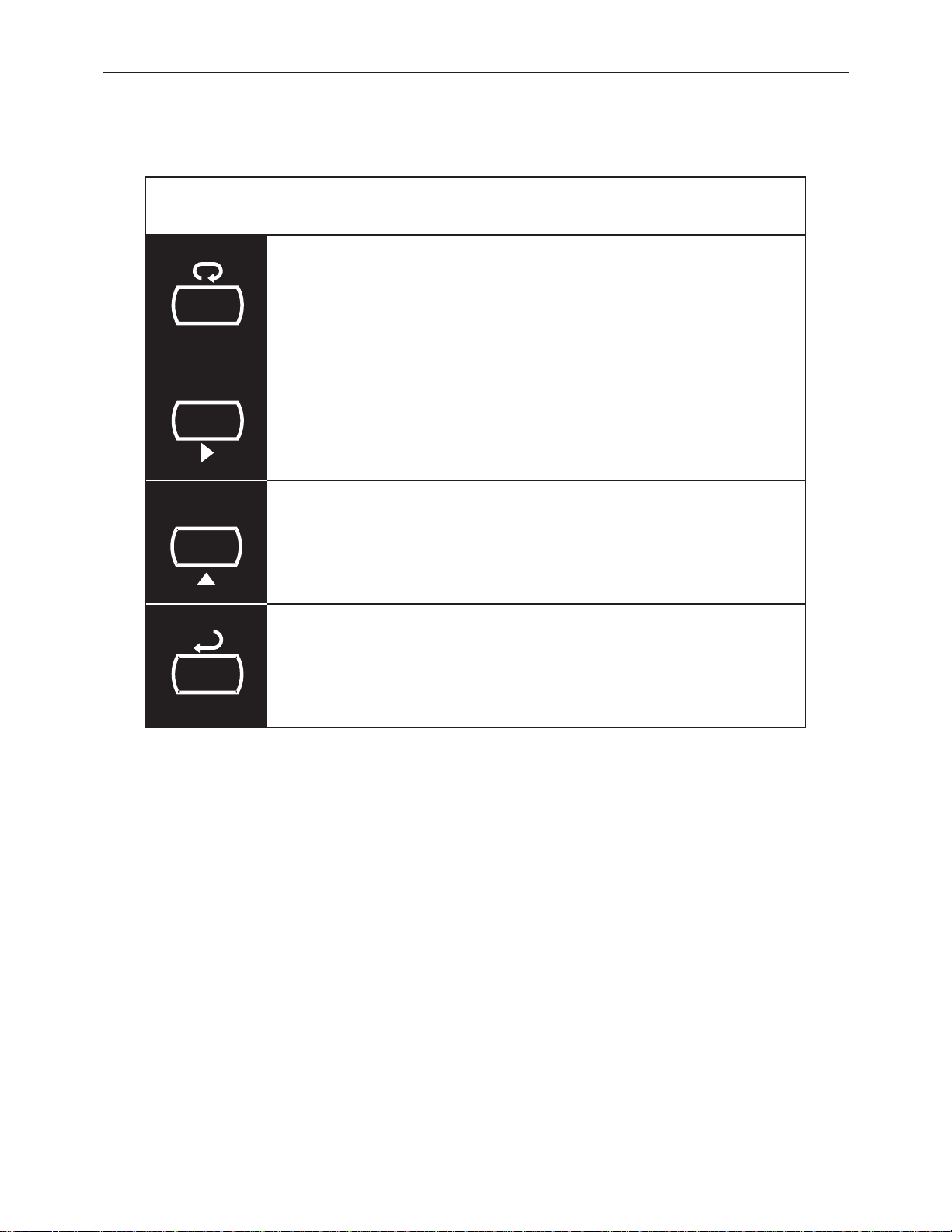

SafeTouch® Buttons ----------------------------------------------------------------------- 16
SafeTouch Button Operation ..................................................................... 16
SafeTouch® Button Tips and Troubleshooting ........................................... 16

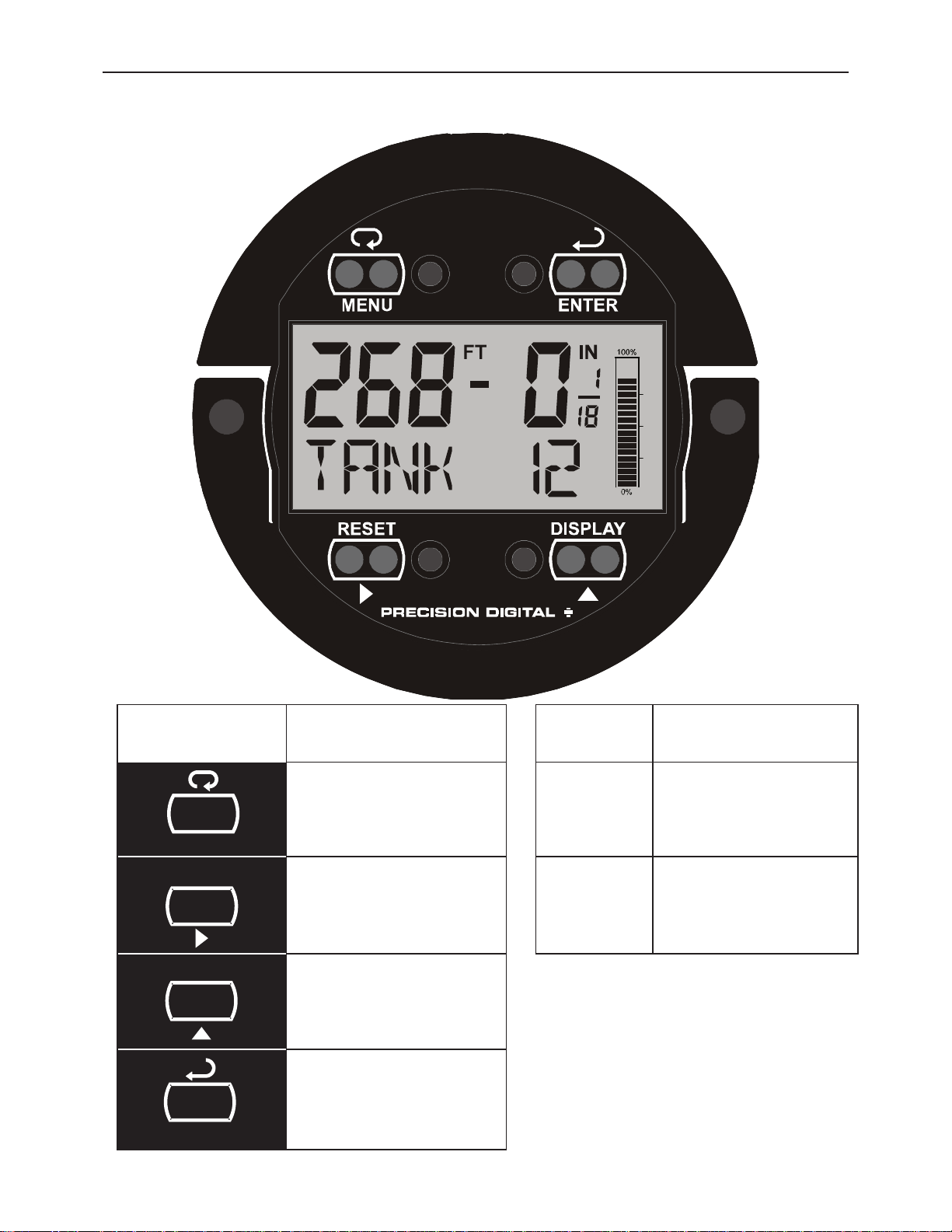

Buttons and Display ----------------------------------------------------------------------- 17

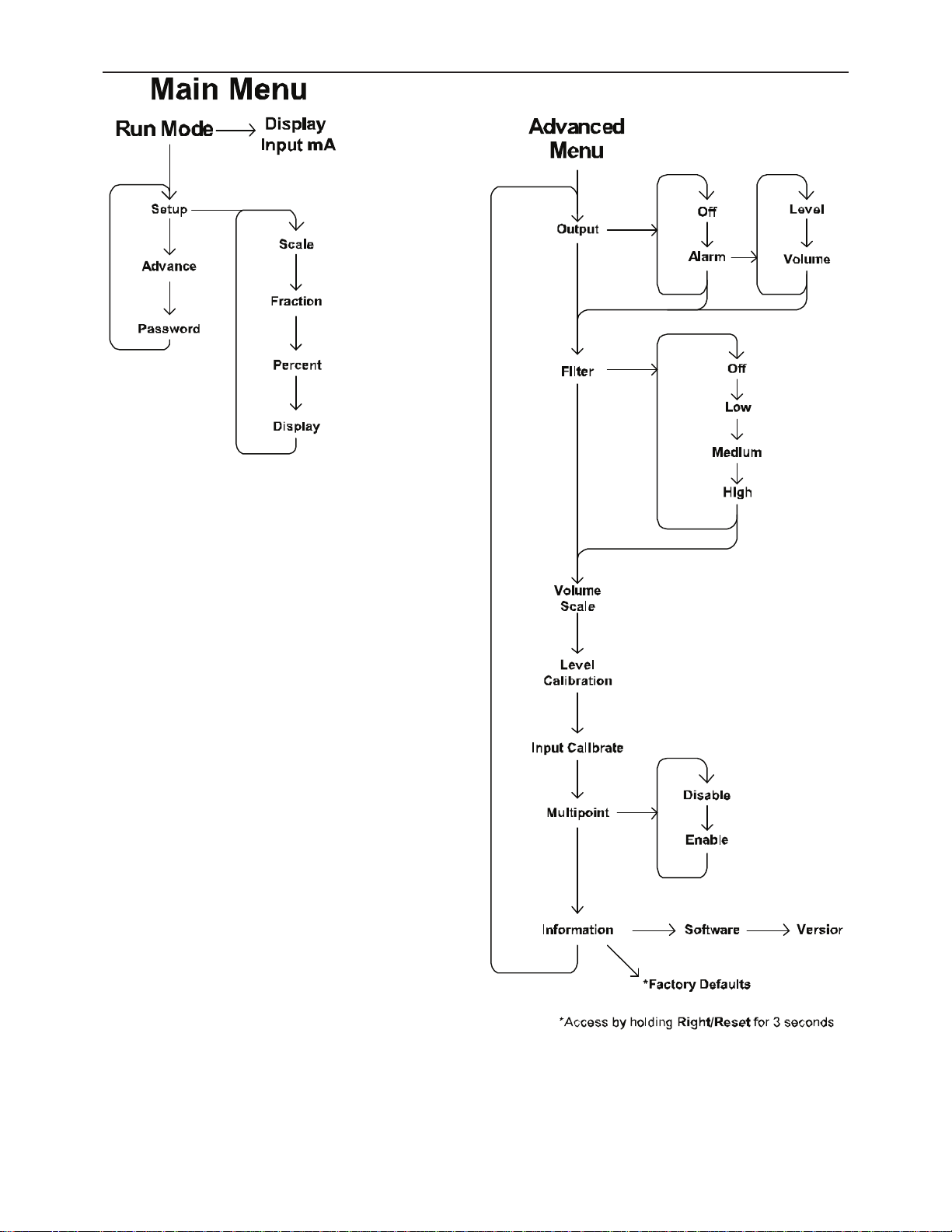

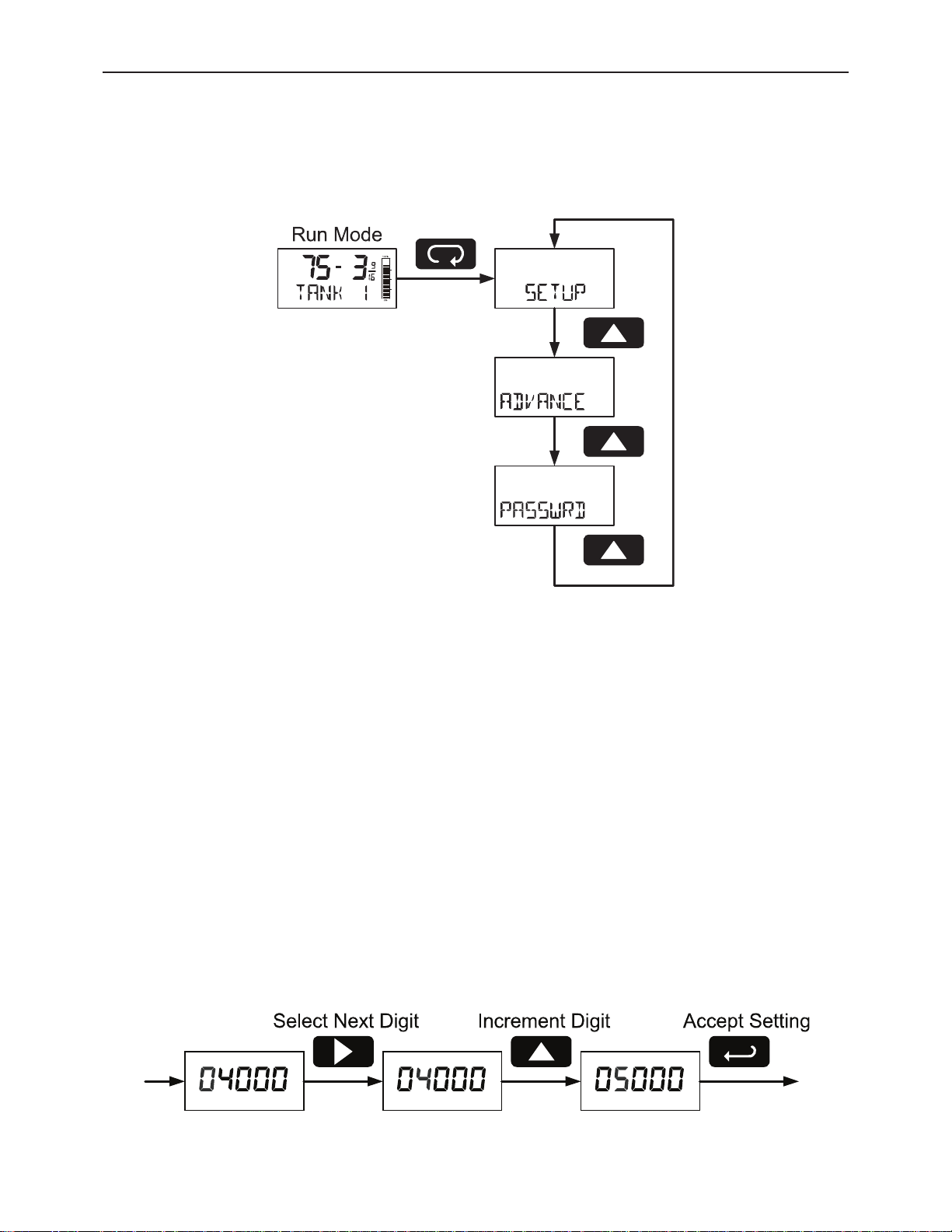

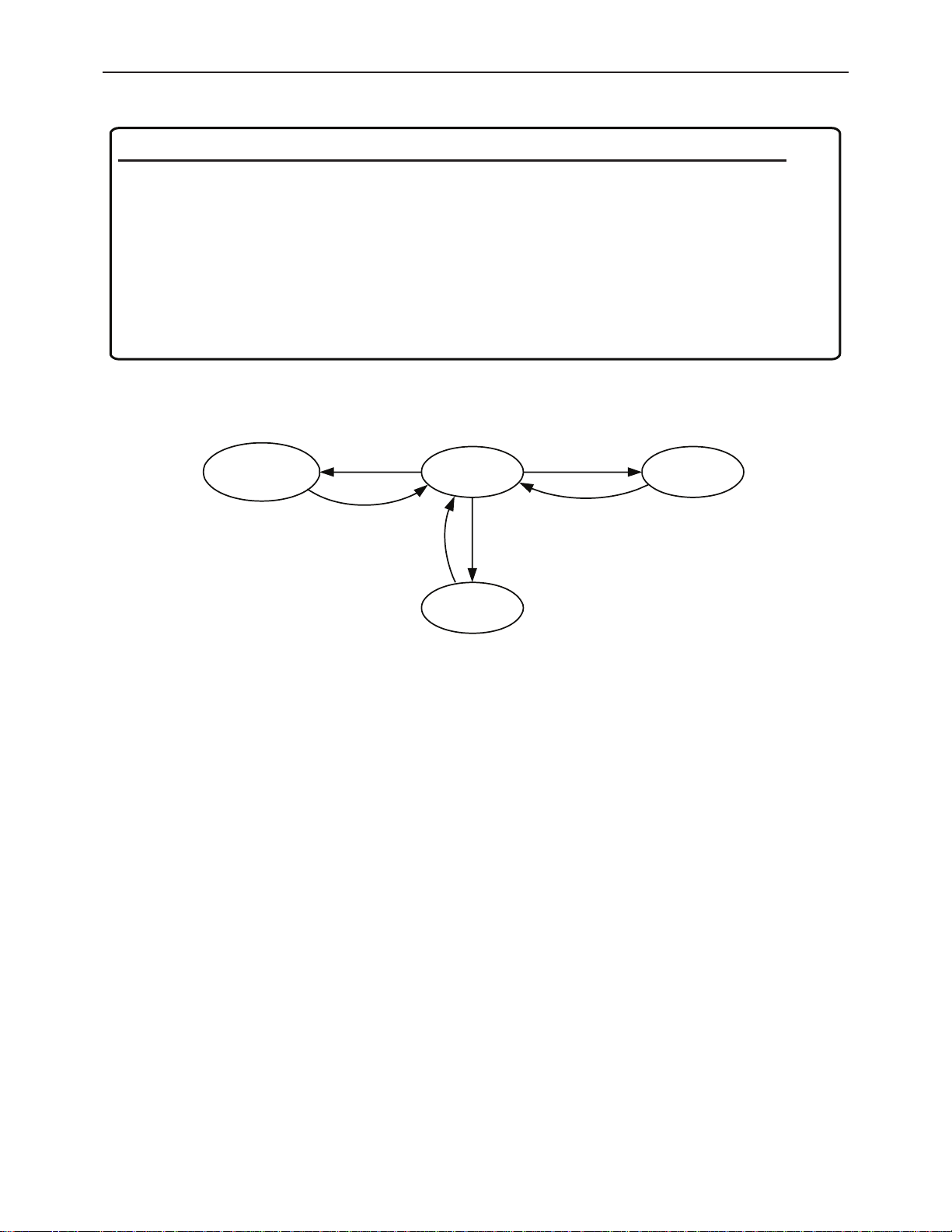

Main Menu ------------------------------------------------------------------------------------- 19
Setting Numeric Values ............................................................................. 19

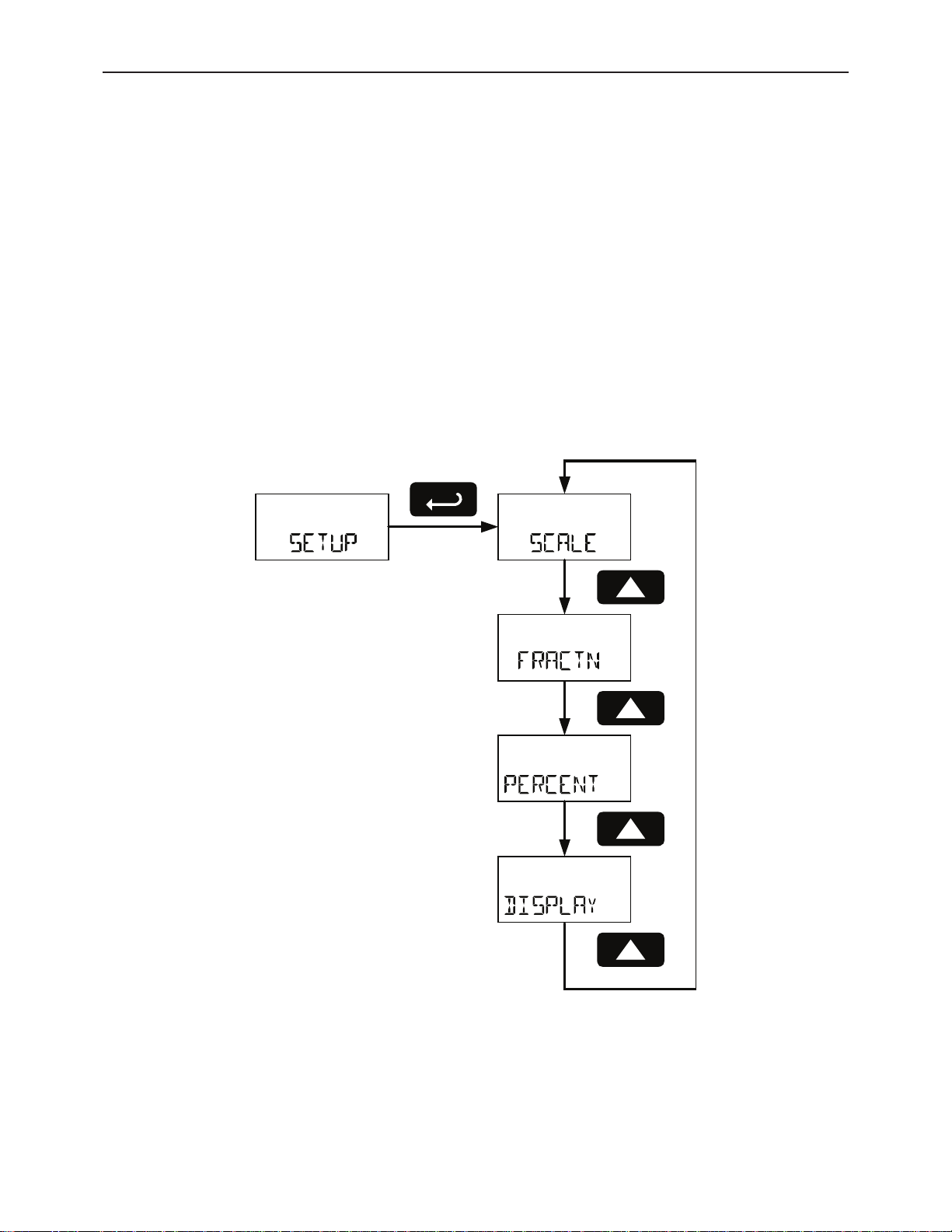

Setting Up the Meter (
Setup Menu Display Functions & Messages ............................................. 21

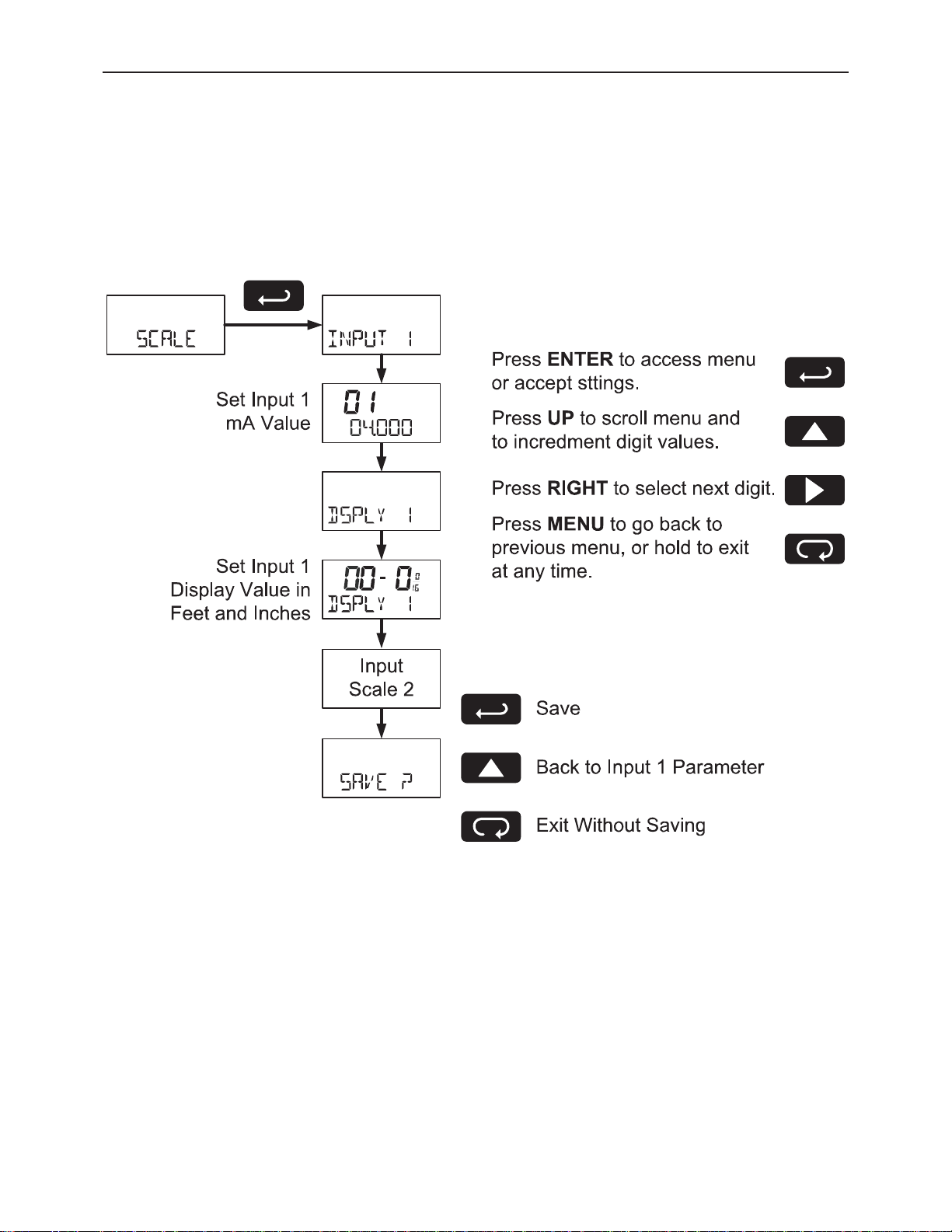

Scaling the Meter (SCaLe) ......................................................................... 22

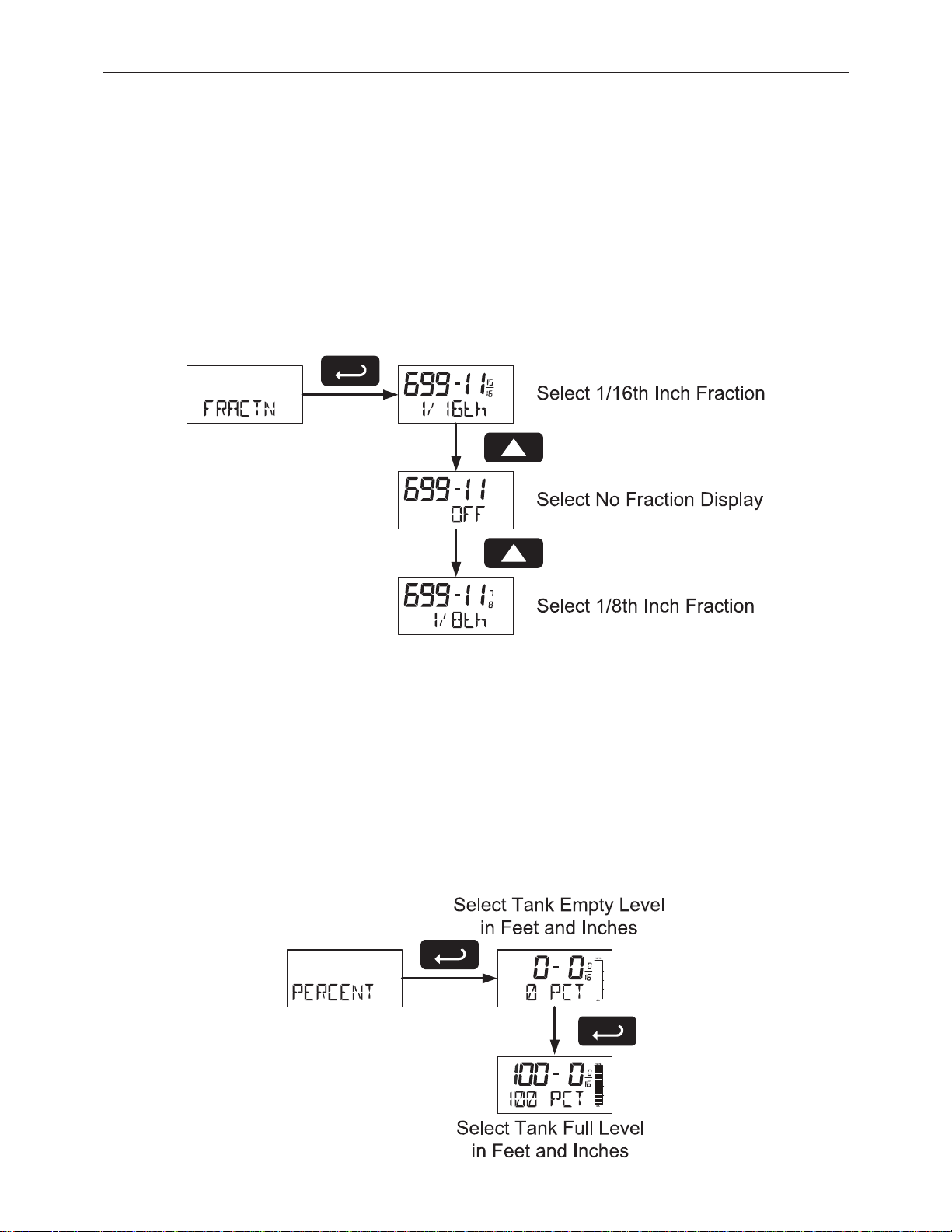

Selecting Inch Fraction Display Mode (FRACTN) ........................................ 23
Scaling the Tank Level Indicator (PERCENT) .............................................. 23

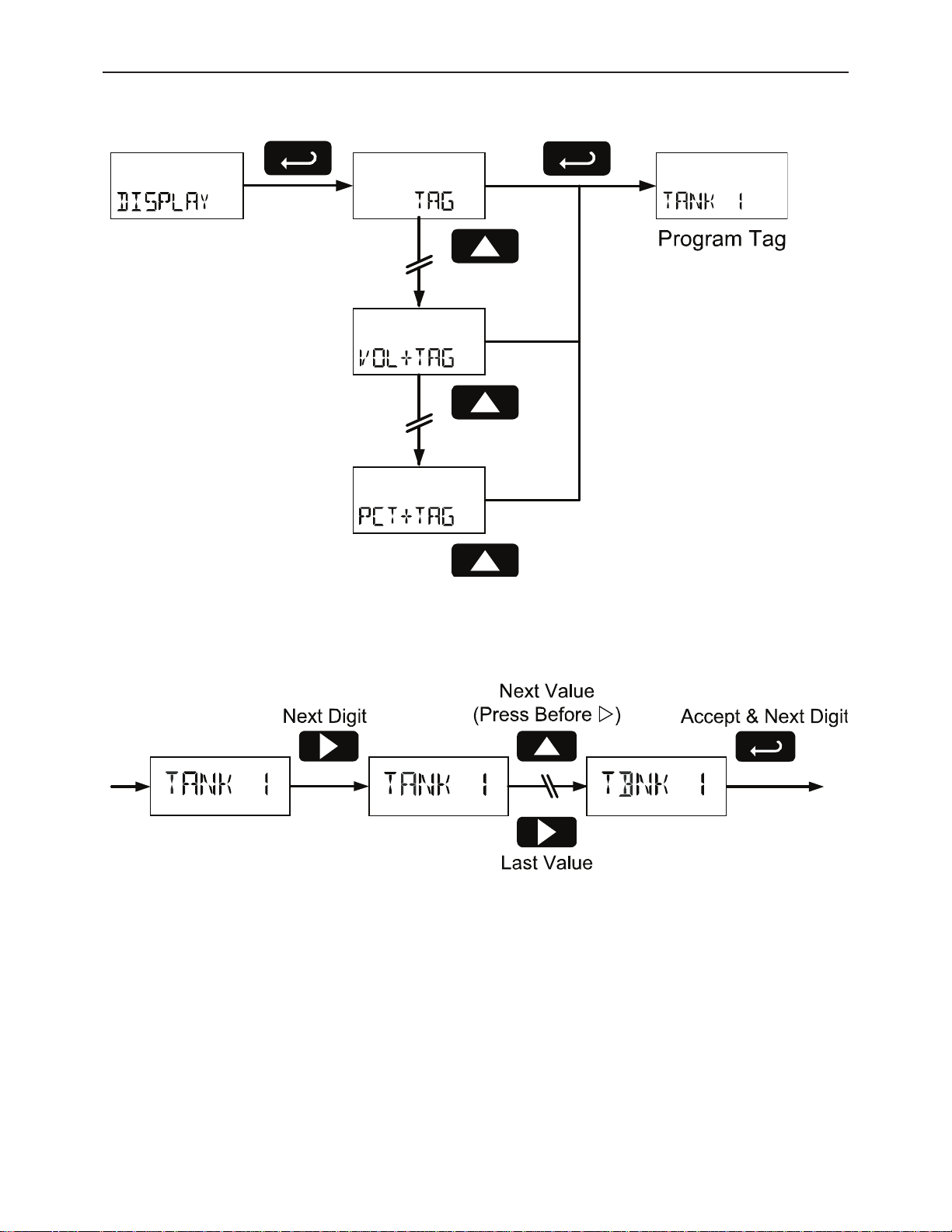

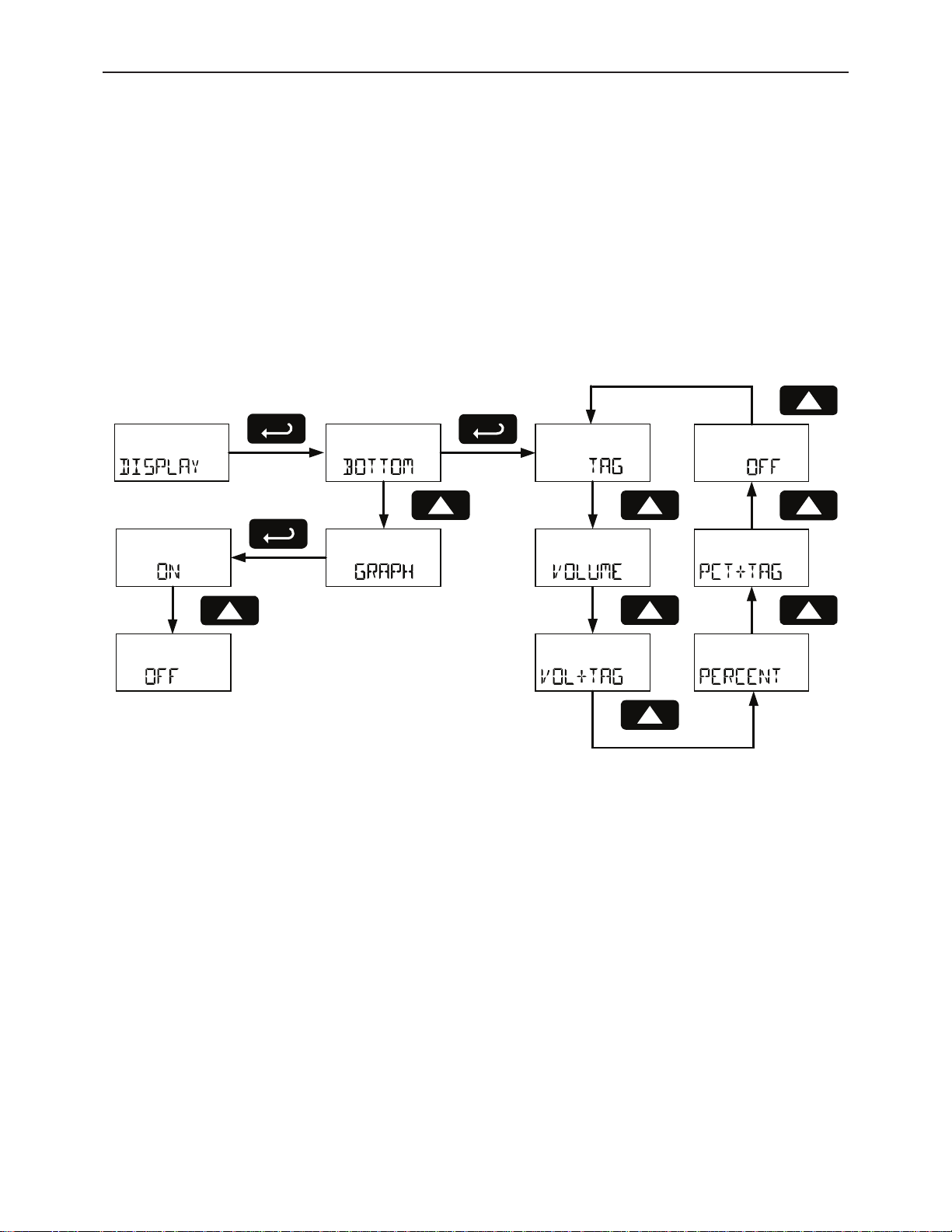

Configuring the Lower Display (DISPLAY) ................................................. 24
Advanced Features Menu (

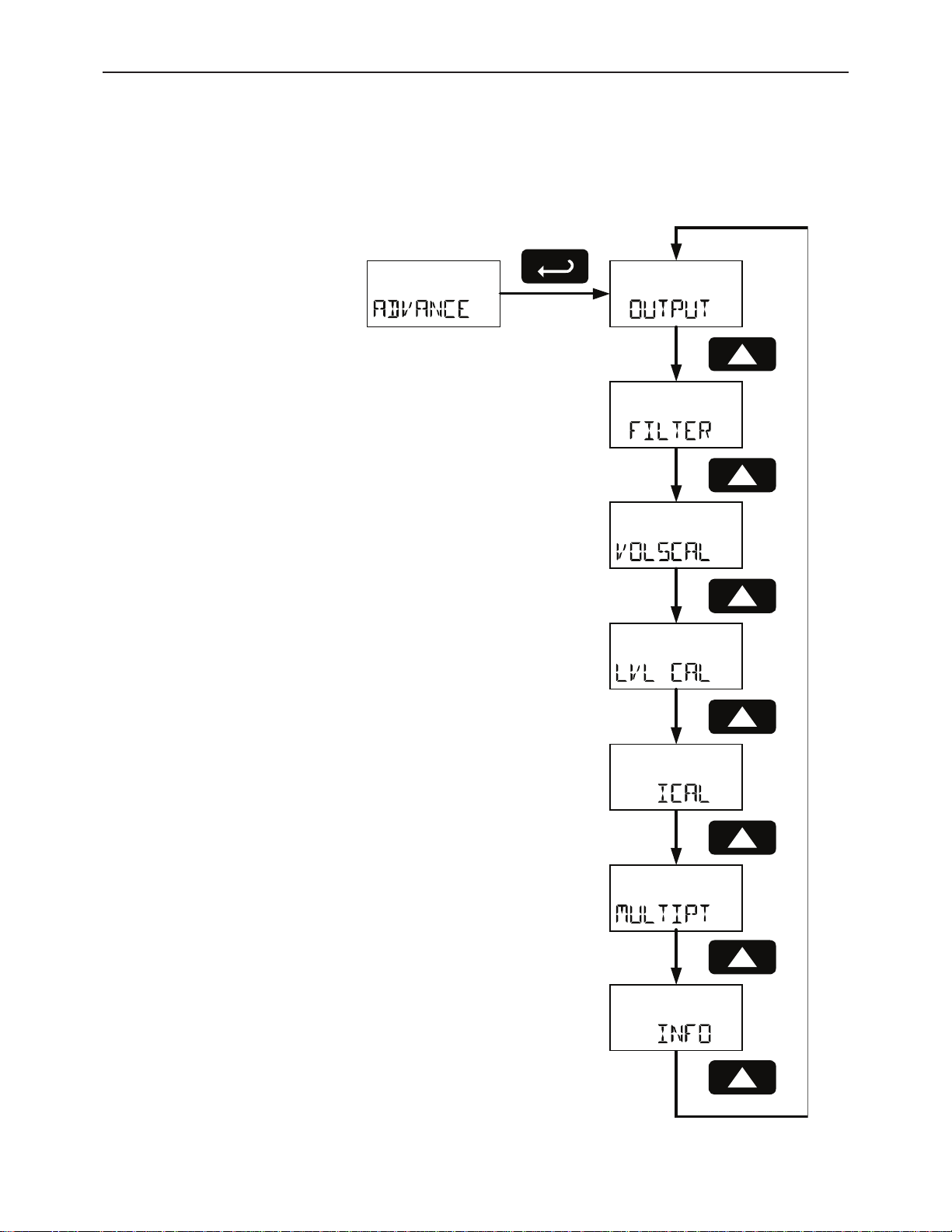

Advanced Features Menu & Display Messages ........................................ 27

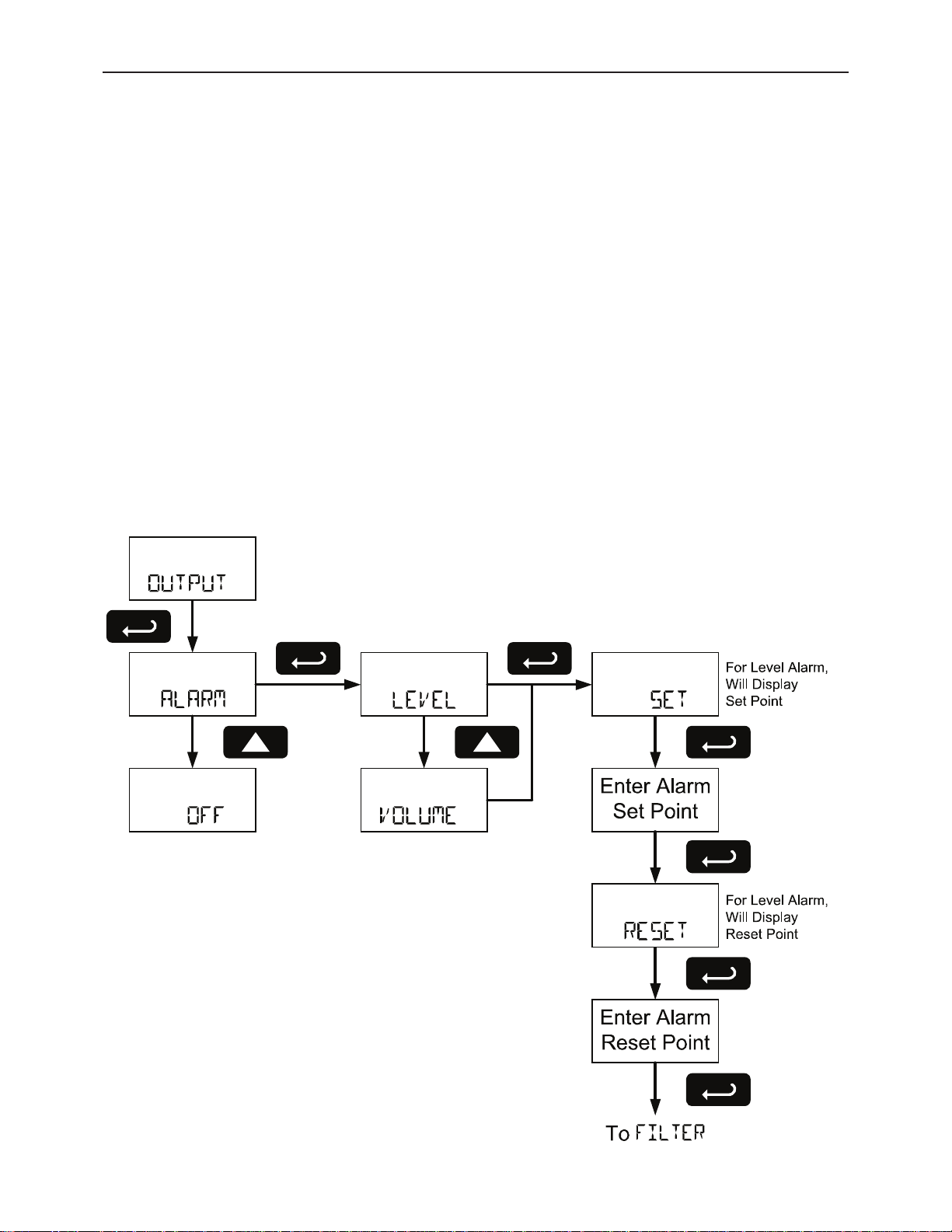

Alarm Output (OUTPUT) .............................................................................. 29
Input Signal Filter (FILTER) ....................................................................... 30

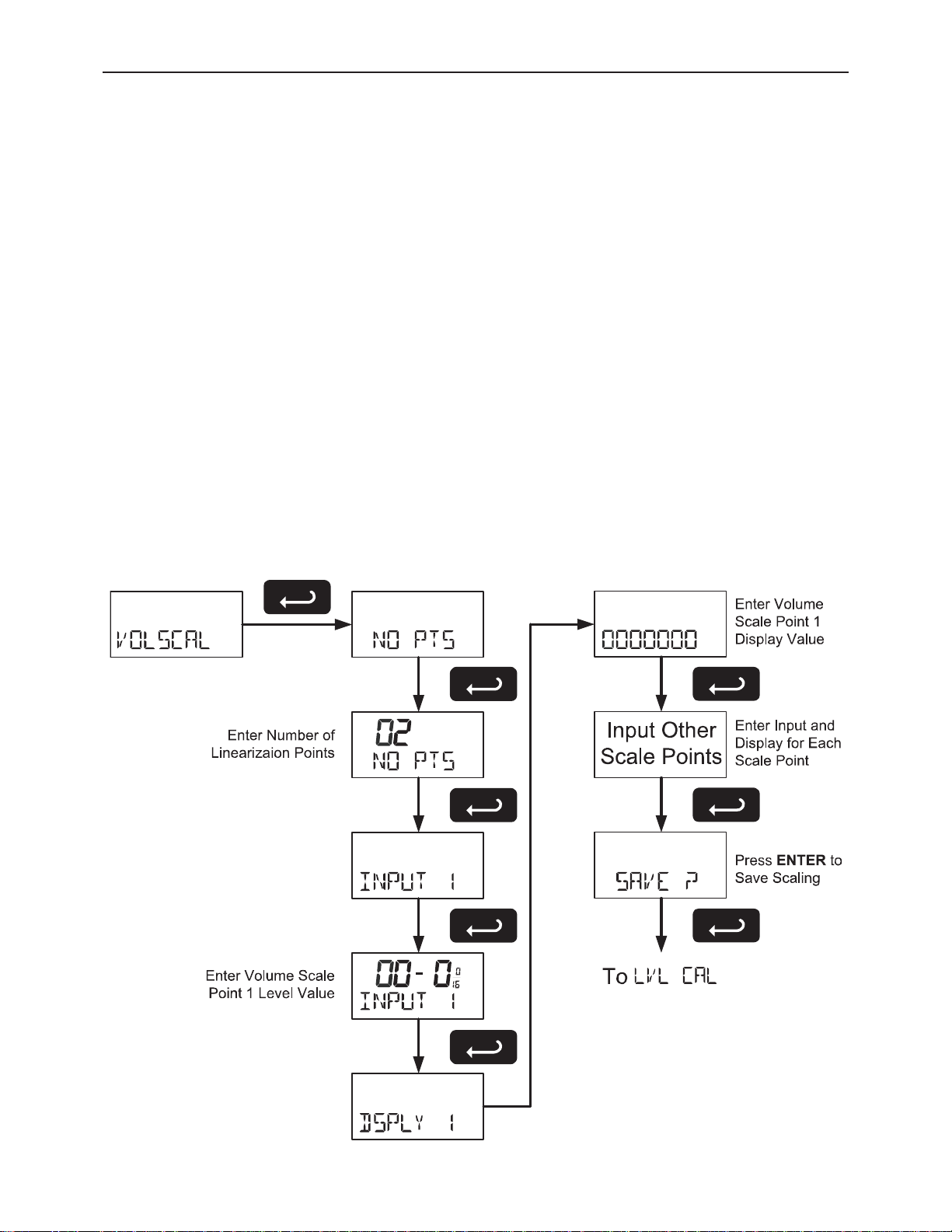

Volume Display Scaling (VOLSCAL) ............................................................ 30

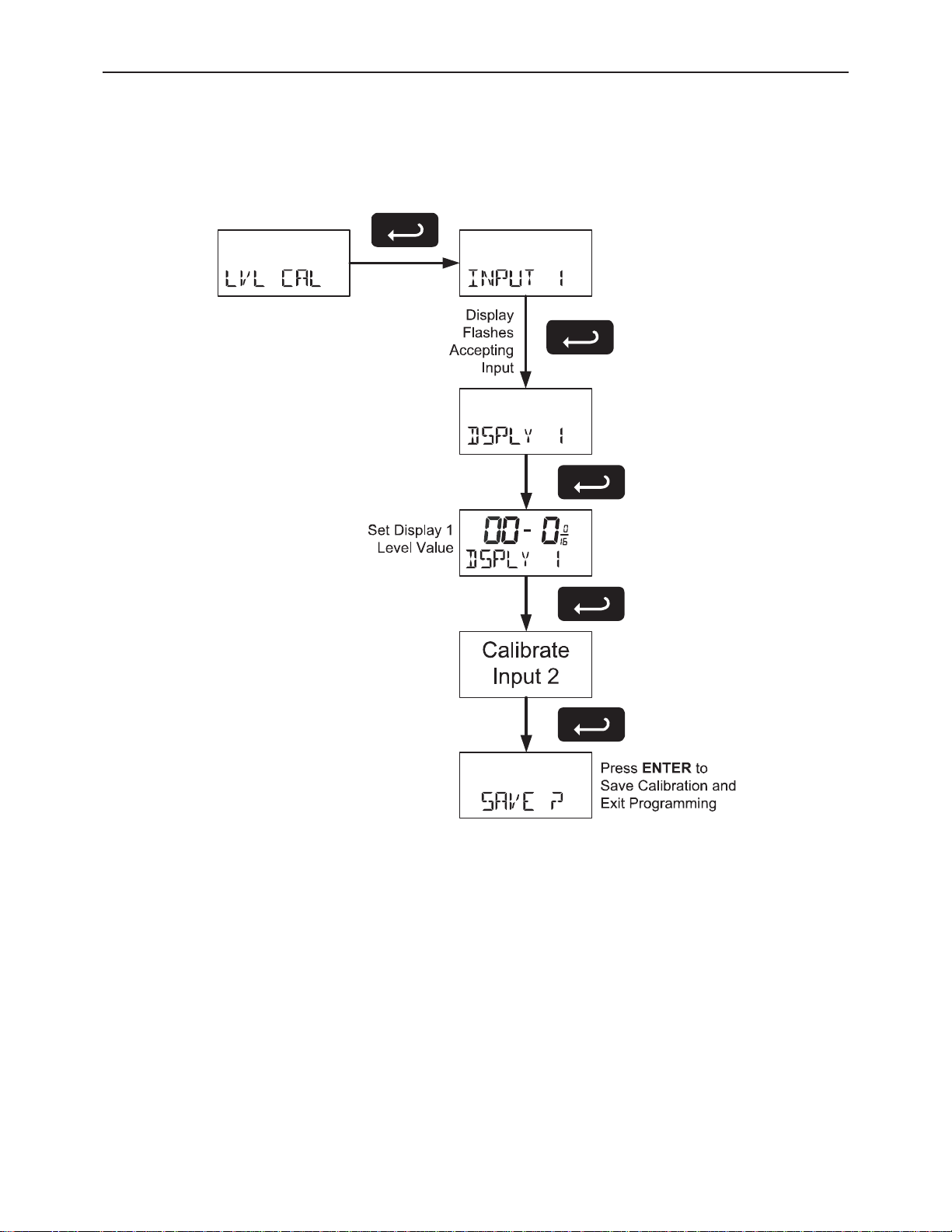

Level Input Live Signal Calibration (LVL CAL) ........................................... 31
Internal Calibration (ICAL) ......................................................................... 32
Level Input Multipoint Linearization (MULTIPT) .......................................... 33
Information (INFO) ..................................................................................... 33

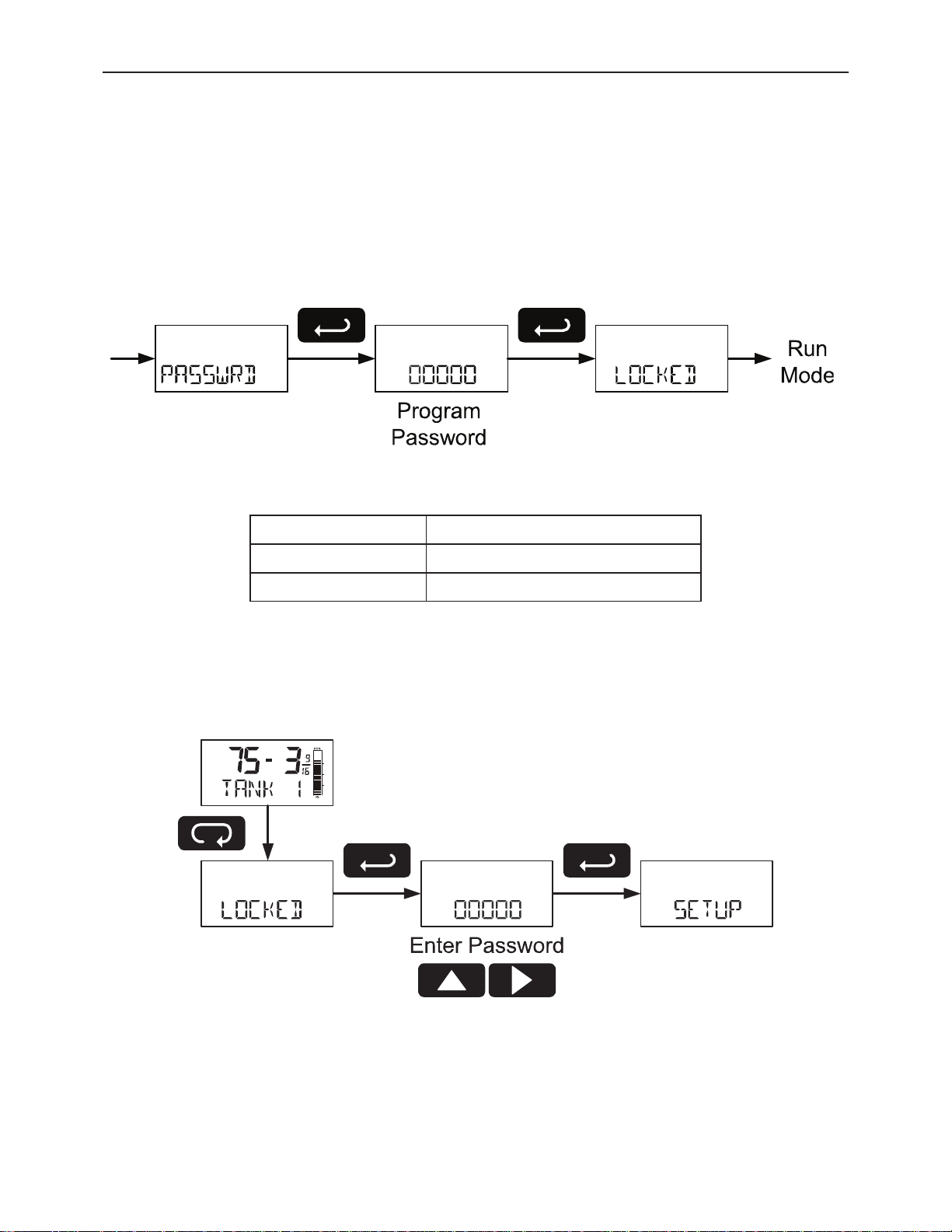

Setting Up the Password (PASSWRD) .......................................................... 34
Locking the Meter ................................................................................. 34

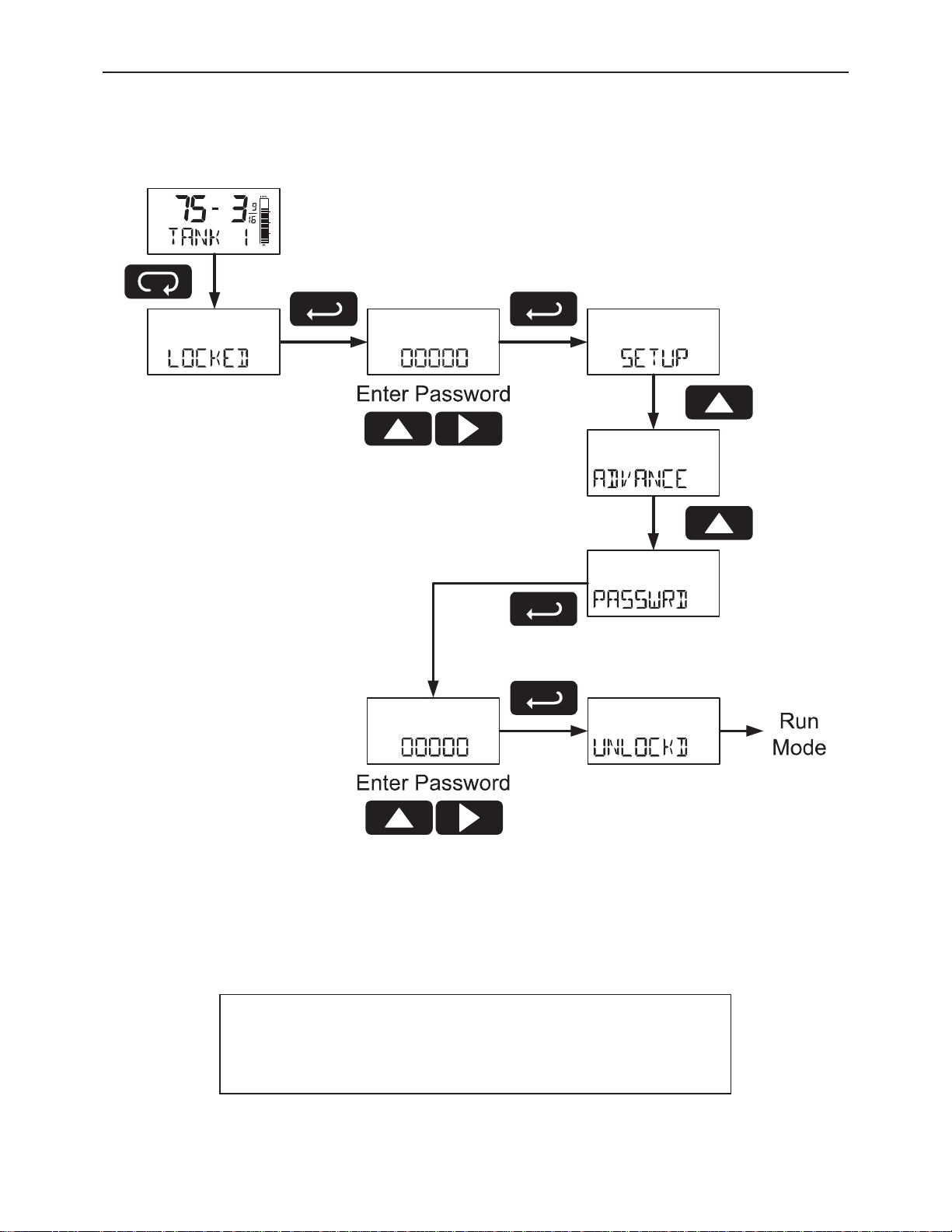

Making Changes to a Password Protected Meter ..................................... 34
Disabling Password Protection .................................................................. 35
) ------------------------------------------------------------ 20
) ------------------------------------------------- 26
OPERATION -------------------------------------------------------------------------- 36
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
PD6701 Loop-Powered Level Meter Instruction Manual
Front Panel Buttons Operation -------------------------------------------------------- 36

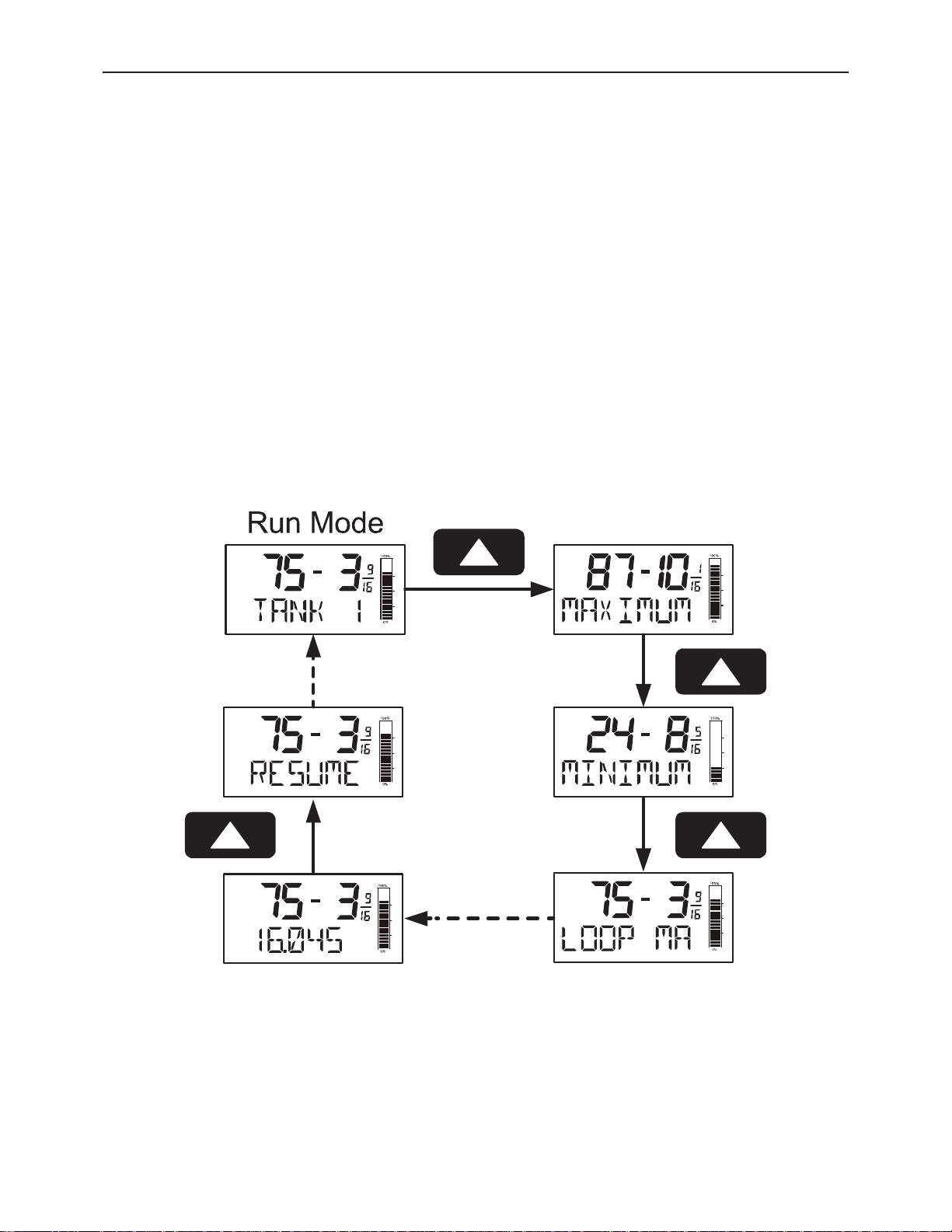

Display Maximum, Minimum, and Input Current --------------------------------- 37

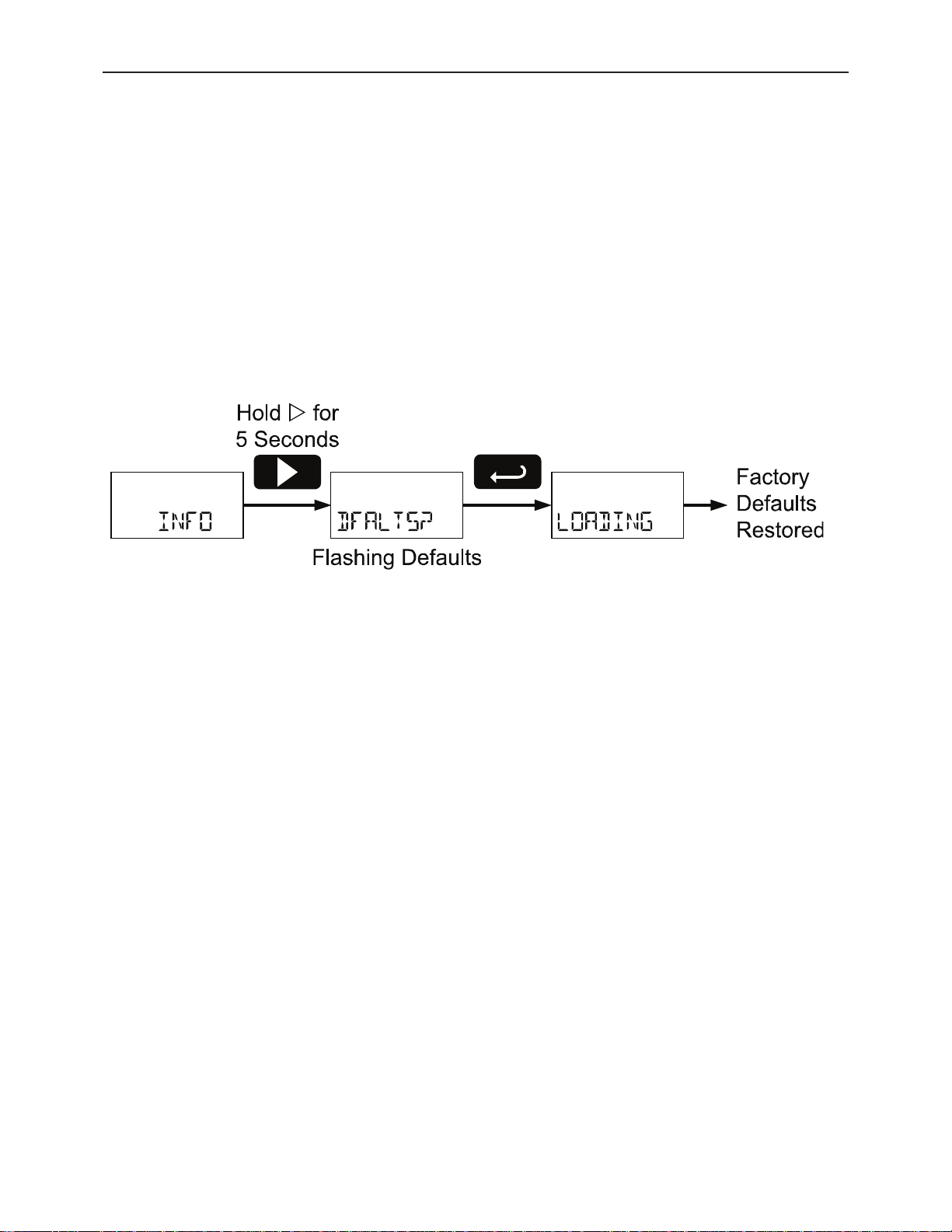

Reset Meter to Factory Defaults ------------------------------------------------------- 38
TROUBLESHOOTING ------------------------------------------------------------- 40
Troubleshooting Tips ---------------------------------------------------------------------- 40
MOUNTING DIMENSIONS -------------------------------------------------------- 41
QUICK USER INTERFACE REFERENCE ------------------------------------ 42
Table of Figures

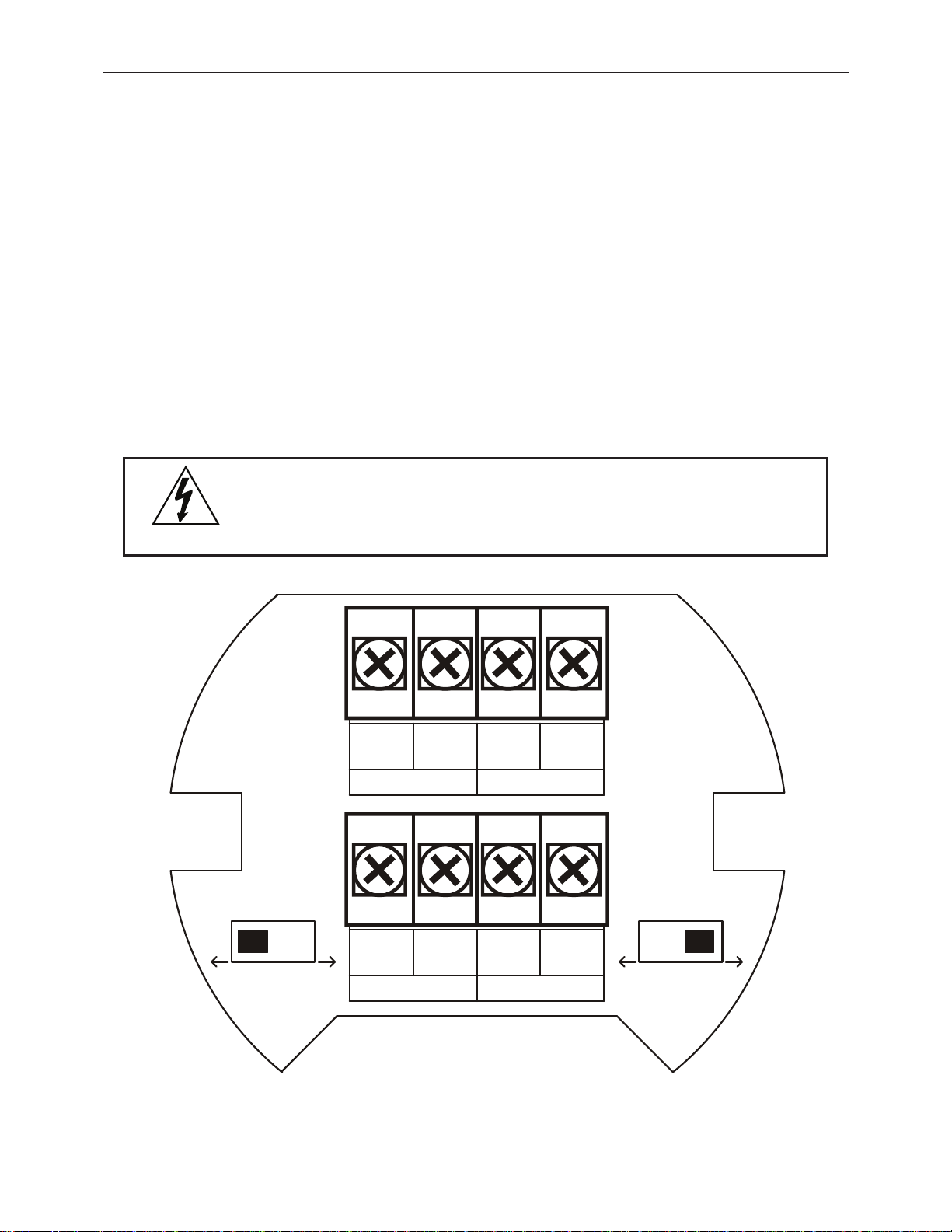

Figure 1. Connector Board ................................................................ 11

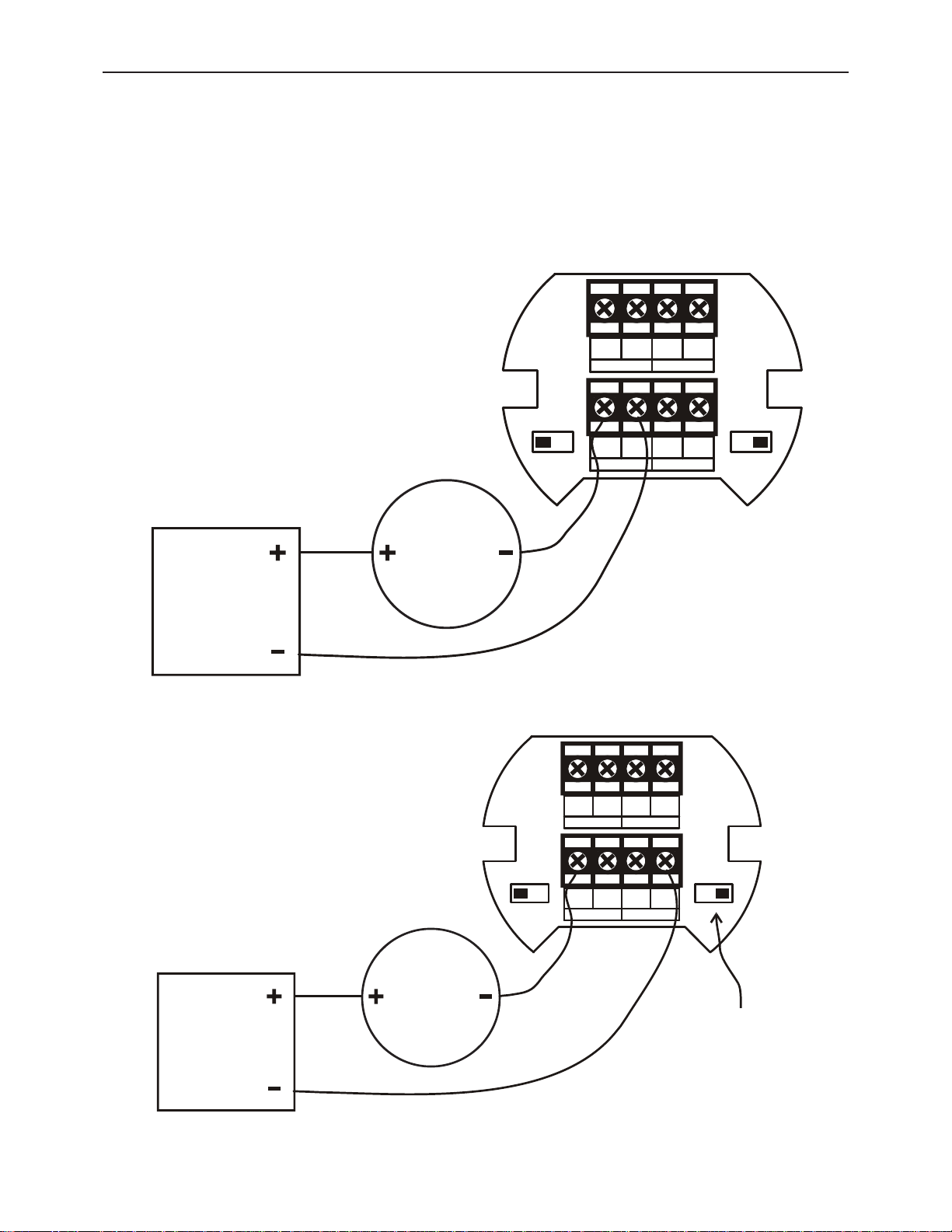

Figure 2. Input Connections without Backlight ............................... 12
Figure 3. Input Connections with Loop-Powered Backlight ........... 12

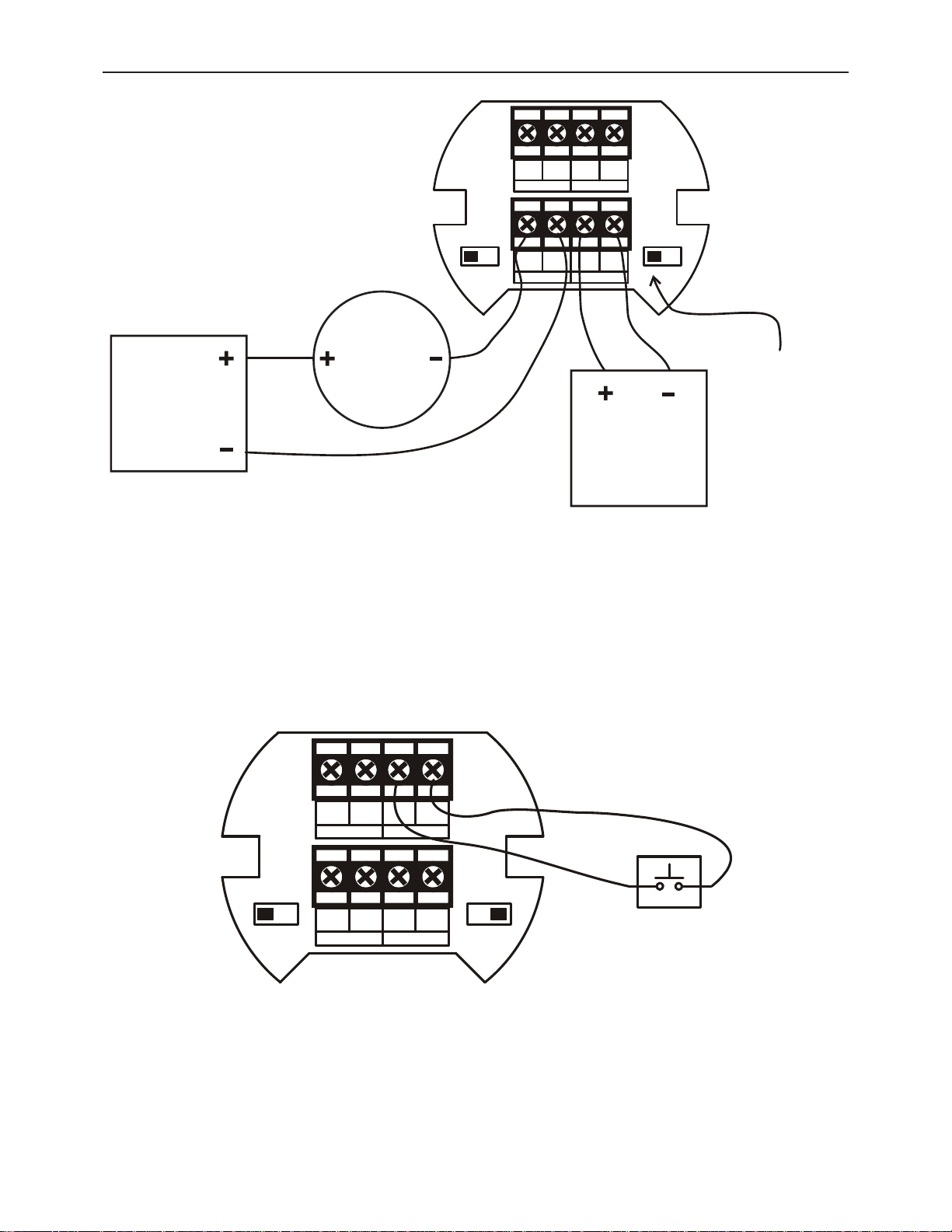

Figure 4. Input Connections with Externally-Powered Backlight ... 13
Figure 5. External Alarm Reset/Acknowledge Connections ........... 13

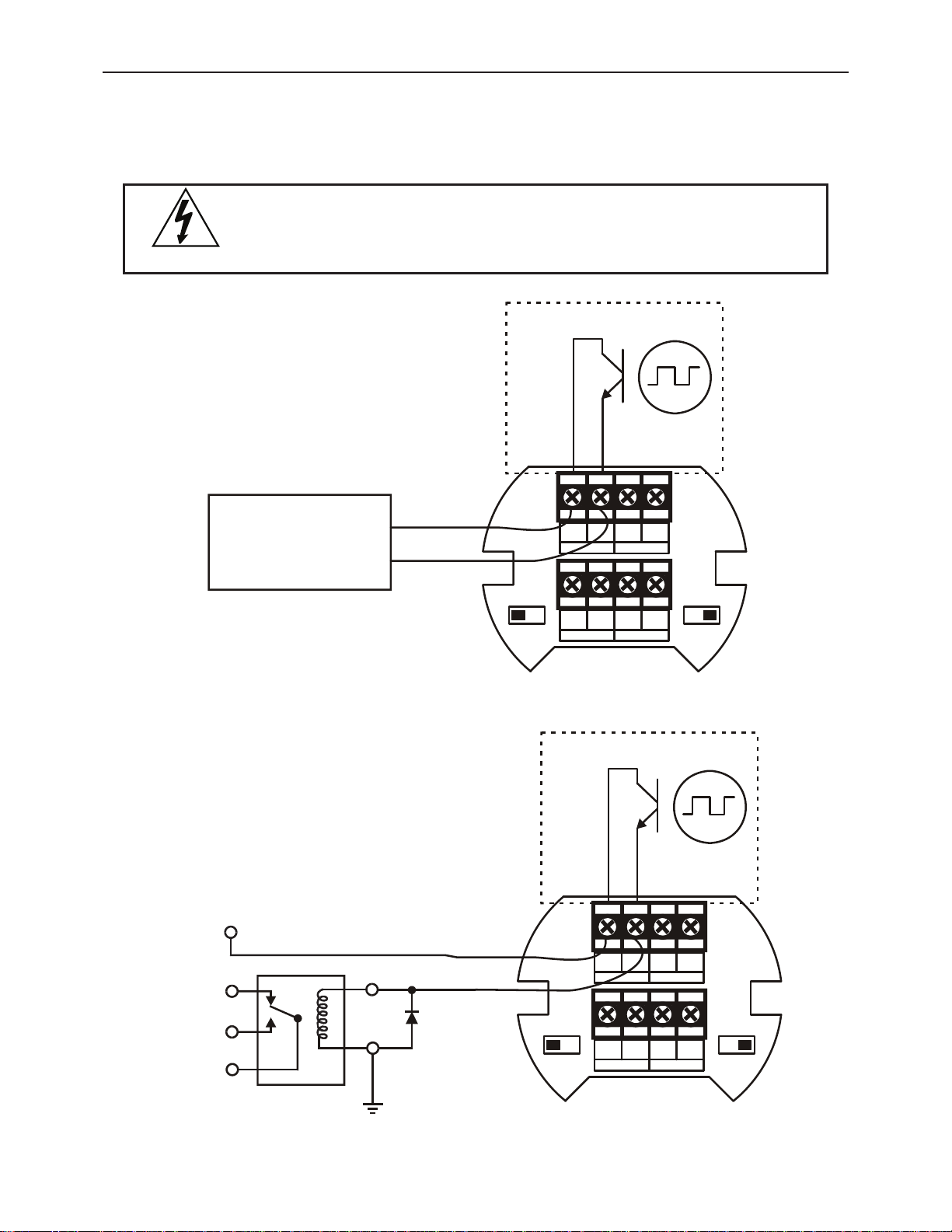

Figure 6. Connection to Device with Internal Pull-Up ..................... 14
Figure 7. Output Connections ........................................................... 14

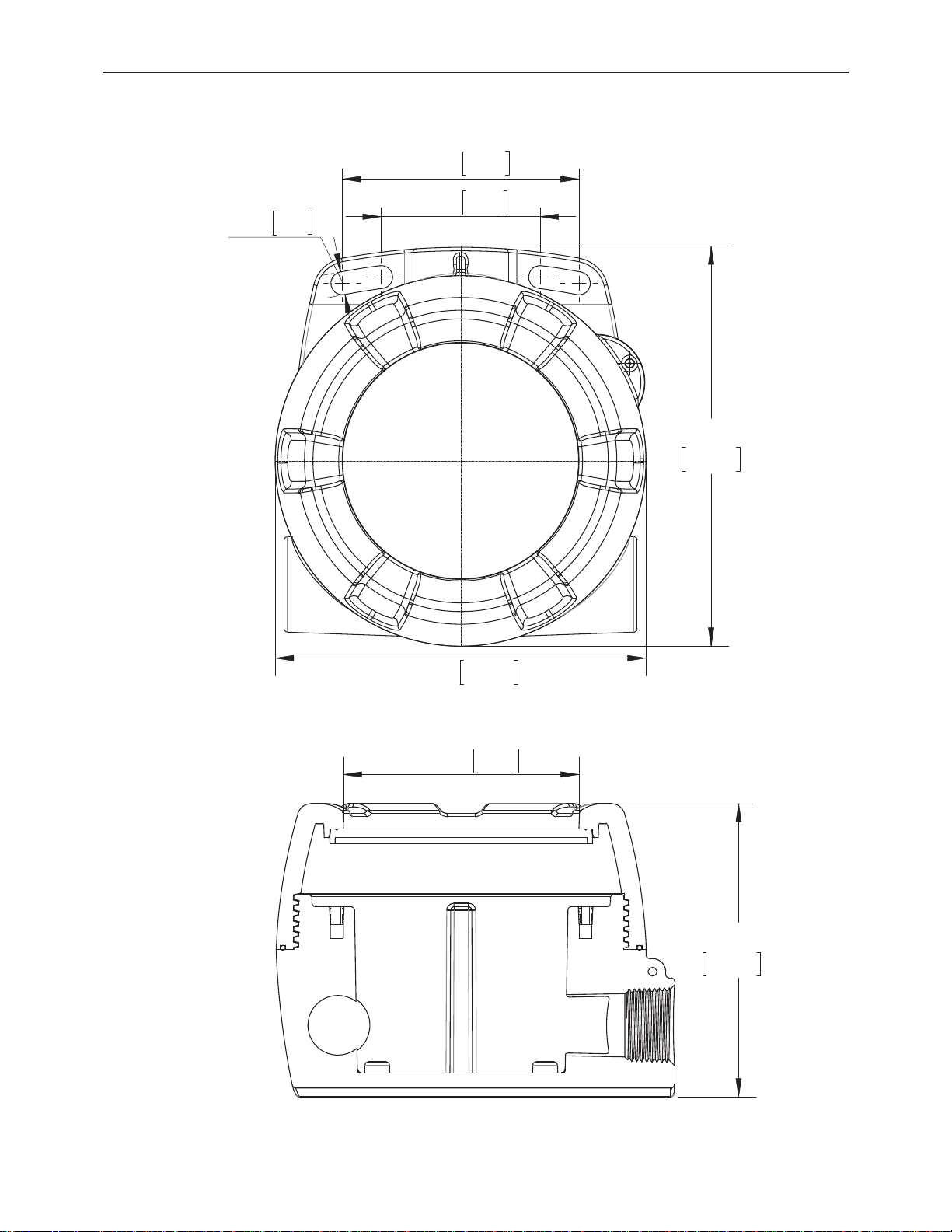

Figure 8. Enclosure Dimensions – Front View ................................ 41
Figure 9. Enclosure Dimensions – Side Cross Section View ......... 41
5
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
PD6701 Loop-Powered Level Meter Instruction Manual
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY Feet & Inches 0.60" (15.2 mm) high
0 to 699
FT
1115/16
IN
7-segment, programmable 1/16 or 1/8
fraction display
Seven characters
(Tag &/or Volume)
0.4" (10.2 mm) high
14-segment, 7-digits
Tank Level Indicator 20-segments
Backlight White
DISPLAY
ASSIGNMENT
DISPLAY
UPDATE RATE
OVERRANGE AND
UNDERRANGE
Lower display may be assigned to custom unit or tag, volume,
volume and tag, percent height, percent height and tag, or off.
Ambient > -25°C: 2 Updates/Second
Ambient < -25°C: 1 Update/5 Seconds
Level display flashes to 699FT 1115/16
IN
Volume display flashes 9999999 if overrange, -999999 if
underrange.
PROGRAMMING
METHOD
Four SafeTouch® through- window buttons when cover is
installed. Four internal pushbuttons when cover is removed.
NOISE FILTER
Programmable low (LO), medium (MED), high (HI), or off (OFF)
RECALIBRATION Recalibration is recommended at least every 12 months.
PASSWORD Programmable password restricts modification of
programmed settings.
NON-VOLATILE
MEMORY
NORMAL MODE
All programmed settings are stored in non-volatile memory for
a minimum of ten years if power is lost.
64 dB at 50/60 Hz
REJECTION
ENVIRONMENTAL Operating temperature range: -40 to 75°C
Storage temperature range: -40 to 75°C
Relative humidity: 0 to 90% non-condensing
CONNECTIONS Screw terminals accept 12 to 22 AWG wire
ENCLOSURE NEMA 4X, IP65 plastic field enclosure.
Color: grey.
Three ¾" NPT threaded conduit openings. One ¾" NPT
plastic conduit plug, with 1.29" wrenching flats and a
screwdriver slot, is included.
6
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 7
PD6701 Loop-Powered Level Meter Instruction Manual
MOUNTING May be mounted directly to conduit. Two slotted flanges for
wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe
mounting. See Mounting Dimensions on page 41.
OVERALL
DIMENSIONS
WEIGHT 1.65 lbs (26.4 oz, 0.75 kg)
WARRANTY 3 years parts and labor
5.67" x 5.25" x 4.18" (W x H x D)
(144 mm x 133 mm x 106 mm)
Input
ACCURACY
Input Range
MULTI-POINT
LINEARIZATION
TEMPERATURE
DRIFT
CALIBRATION
RANGE
±0.03% of calibrated span ±1 count
3 to 24 mA
2 to 32 points, level and volume independently programmed.
50 PPM/qC from -40 to 75qC ambient
An Error message will appear if input 1 and input 2 signals
are too close together.
Input Range: 4-20 mA
Input 1 & 2 Minimum Span: 0.10 mA
MAXIMUM
VOLTAGE DROP
EQUIVALENT
RESISTANCE
EXTERNALLY
POWERED
BACKLIGHT
INPUT OVERLOAD
Without Backlight or with Externally-Powered (DC Powered)
Backlight: 3.0 VDC @ 20 mA
With Loop-Powered Backlight: 6.0 VDC @ 20 mA
150 ȍ @ 20 mA without loop-powered backlight. 300 ȍ @ 20
mA with loop-powered backlight.
Voltage Range: 9-36 VDC
Supply Voltage
Maximum Power
Over current protection to 2 A max.
9 VDC 12 VDC 24 VDC 36 VDC
0.2 W 0.25 W 0.5 W 0.75 W
Open Collector Output
RATING
ALAR M OUT PUT Assign to level or volume for high or low alarm trip point.
DEADBAND 0-100% FS, user selectable
Isolated open collector, 30 VDC @ 150 mA max.
ACKNOWLEDGE Front panel ENTER button and external RESET terminals
resets output and screen indication.
7
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 8
PD6701 Loop-Powered Level Meter Instruction Manual
SAFETY INFORMATION
WARNINGS
x Read complete instructions prior to installation and operation of the meter.
x Installation and service should be performed only by trained service
personnel. Service requiring replacement of internal components must be
performed at the factory.
x Disconnect from supply before opening enclosure. Keep cover tight while
circuits are alive.
x If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead
8
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
PD6701 Loop-Powered Level Meter Instruction Manual
INSTALLATION
Hazardous voltages may exist within enclosure.
Installation and service should be performed only by trained
WARNING
Wiring connectors are accessed by opening the enclosure. To access electrical
connectors, remove the 2 captive screws, then disconnect the ribbon cable from the
display module and set the display module aside.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report
damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your supplier or the
factory for assistance.
Conduit/Stopping Plug
service personnel.
The PD6701 is provided with three ¾" NPT threaded conduit openings and one IP68
rated ¾" NPT plastic conduit plug.
The conduit/stopping plug included has 1.29" wrenching flats and a screwdriver slot.
9
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
PD6701 Loop-Powered Level Meter Instruction Manual
Mounting
The PD6701 has two slotted mounting flanges that may be used for pipe mounting or
wall mounting. Alternatively, the unit may be supported by the conduit using the
conduit holes provided.
Refer to Mounting Dimensions, page 41 for details.
Do not attempt to loosen or remove flange bolts while the meter is
in service.
WARNING
Connections
WARNINGS
x Static electricity can damage sensitive components.
x Observe safe handling precautions for static-sensitive components.
x Use proper grounding procedures/codes.
x If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead or
terminal.
To access the connectors, remove the enclosure cover and unscrew the two captive
screws that fasten the display module. Disconnect the ribbon cable and remove the
display module. Signal connections are made to a four-terminal connector in the base
of the enclosure.
10
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 11
PD6701 Loop-Powered Level Meter Instruction Manual
Connections (continued)
SIGNAL + 4-20 mA signal input positive terminal connection
SIGNAL - 4-20 mA signal return/negative terminal connection when not
using loop powered backlight.
BACKLIGHT +
+9-30 VDC when powering backlight from external supply.
BACKLIGHT - 4-20 mA signal return/negative terminal wh
loop powered backlight or ground/negative when powering
backlight from external supply.
OUTPUT+
OUTPUTRESET + Contact closure alarm acknowledge pull up to 3 VDC
RESET-
Refer to Figure 1 for terminal positions.
WARNING
NPN open collector output positive.
NPN open collector output negative.
Contact closure alarm acknowledge ground/negative.
Observe all safety regulations. Electrical wiring should be
performed in accordance with all agency requirements and
applicable national, state, and local codes to prevent damage to
the meter and ensure personnel safety.
en using the installed
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
+
+
Figure 1. Co
-
OUTPUT RESET
-
SIGNAL BACKLIGHT
nnector Board
11
+
+
-
-
BACKLIGHT
POWER
9-36 VDC
LOOP
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 12
PD6701 Loop-Powered Level Meter Instruction Manual
Input Signal & Backlight Connections
Signal and backlight connections are made to a four-terminal connector mounted in
the base of the enclosure. For installations without backlight, only the two signal
terminals are connected. The 4-20 mA input with no backlight has a maximum
voltage drop of 3 V and is wired as shown in Figure 2. The loop-powered backlight
configuration requires a total maximum voltage drop of 6 V. The backlight is
recommended for dim lighting conditions and is enabled when wired as shown in
Figure 3 or Figure 4.
Power
Supply
-
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
+
OUTPUT RESET
+
SIGNAL BACKLIGHT
+
-
+
4-20 mA
Transmitter
Figure 2. Input Connections without Backlight
-
BACKLIGHT
POWER
-
9-36 VDC
LOOP
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
-
+
OUTPUT RESET
-
+
SIGNAL BACKLIGHT
+
+
-
BACKLIGHT
POWER
-
9-36 VDC
LOOP
4-20 mA
Power
Supply
Transmitter
Slide Switch to
LOOP
Figure 3. Input Connections with Loop-Powered Backlight
12
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 13
PD6701 Loop-Powered Level Meter Instruction Manual
o
Power
4-20 mA
Transmitter
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
-
+
OUTPUT RESET
-
+
SIGNAL BACKLIGHT
+
+
-
BACKLIGHT
POWER
-
9-36 VDC
LOOP
Slide Switch t
9-36 VDC
Supply
Power
Supply
Figure 4. Input Connections with Externally-Powered Backlight
It is possible to use the same transmitter (signal loop) power supply for the externally
powered backlight. The backlight circuit will draw 25 mA in addition to the loop circuit.
External Acknowledge Connection
External acknowledge connections are made to two terminals labeled RESET. Connect
to a contact closure source such as a relay or a pushbutton as shown in Figure 5.
-
+
OUTPUT RESET
SAFE-TOUCH
BUTTONS
-
UNLOCK LOCK
+
SIGNAL BACKLIGHT
Figure 5. External Alarm Reset/Acknowledge Connections
+
+
-
BACKLIGHT
POWER
-
9-36 VDC
LOOP
13
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 14
PD6701 Loop-Powered Level Meter Instruction Manual
Open Collector Output Connections
Output connections are made to two terminals labeled OUTPUT. Connect to an input
device such as alarm indicator as shown in Figure 6, or drive a relay as shown in
Figure 7.
To avoid damaging the PD6701’s amplifying components, use
care not to wire incorrectly or exceed output ratings. A diode, such
WARNING
as 1N4000 series, will provide protection from relay transients.
Alarm Recorder
or Annunciator
(e.g. PD8-158)
Figure 6. Connection to Device with Internal Pull-Up
5-30 VDC
150 mA MAX
+
-
+
OUTPUT RESET
+
-
-
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
-
+
SIGNAL BACKLIGHT
+
-
+
OUTPUT RESET
BACKLIGHT
POWER
-
9-36 VDC
LOOP
-
+
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
-
+
SIGNAL BACKLIGHT
+
BACKLIGHT
POWER
-
9-36 VDC
LOOP
Figure 7. Output Connections
14
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 15
PD6701 Loop-Powered Level Meter Instruction Manual
SETUP AND PROGRAMMING
There is no need to recalibrate the meter when first
received from the factory. The meter is factory calibrated
prior to shipment. The calibration equipment is certified to
NIST standards
Overview
Setup and programming is done through the infrared through-window SafeTouch®
buttons, or using the mechanical buttons when uncovered. There are two slide
switches located on the connector board. One is used to select backlight power (if
equipped) and the other is to lock or unlock the SafeTouch
After all connections have been completed and verified, connect the ribbon cable to
the display module, fasten the display module to the base, install enclosure cover,
and then apply power.
®
Buttons.
15
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 16
PD6701 Loop-Powered Level Meter Instruction Manual
SafeTouch® Buttons
The PD6701 is equipped with four sensors that operate as through-window buttons
so that it can be programmed and operated without removing the cover. These
buttons can be disabled for security by selecting the LOCK setting on the SAFETOUCH BUTTONS switch located on the connector board in the base of the
enclosure.
SafeTouch Button Operation
To actuate a button, press and remove one finger to the window directly over the
marked button area. Remove finger to at least 4 inches away from the window in
between button activations. SafeTouch and mechanical buttons may be held to cycle
through menus or digits in place of repeatedly pushing a button.
The sensors are disabled when a mechanical button is pressed and will automatically
be re-enabled after 60 seconds of inactivity.
SafeTouch® Button Tips and Troubleshooting
The SafeTouch Buttons are designed to filter normal levels of ambient interference
and to protect against false triggering, however it is recommended that the
SafeTouch
there is an infrared interference source in line-of-sight to the display or if the buttons
are not needed.
SafeTouch
®
Buttons be turned off (slide SAFE-TOUCH BUTTONS switch to OFF) if
®
Button Tips:
x To the extent possible, install the display facing away from sunlight, windows,
reflective objects and any sources of infrared interference.
x Keep the window clean.
x Tighten the cover securely.
x Use a password to prevent tampering.
x If the cover has not been installed and secured tightly, it may take a moment
for the SafeTouch buttons to properly self-calibrate when the cover is tightened.
SafeTouch buttons will not work if two or more buttons are
detected as being pressed simultaneously. As a result, be careful
to avoid triggering multiple buttons or reaching across one button
IMPORTANT
location to press another.
16
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 17
PD6701 Loop-Powered Level Meter Instruction Manual
U
Buttons and Display
Button
Symbol
MEN
RESET
DISPLAY
ENTER
Description Symbol Description
Menu FT Feet
Right Arrow/
Reset
IN
Inches and
Fractional Inches
Up Arrow/
Display
Enter/
Alarm Acknowledge
17
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 18
PD6701 Loop-Powered Level Meter Instruction Manual
Menu Button
x Press the Menu button to enter Programming Mode.
x Press the Menu button during Programming Mode to return to the previous
menu selection.
x Hold the Menu button for 1.5 seconds at any time to exit Programming Mode
and return to Run Mode.
x Press and hold the Menu button for 3 seconds to access the Advanced Fea-
tures of the meter.
Right / Reset Button
x Press the Right arrow button to reset the maximum or minimum value while it
is being displayed (see Up / Display Button below).
x Press the Right arrow button to move to the next digit or decimal position
during programming.
x Press Right to go backward through most selection menus.
Up / Display Button
x Press Display when in Run Mode to cycle through displaying the maximum
value, minimum value, and the loop input value in mA. The display will time
out in 12 seconds. Press Display again to resume normal lower display operation (lower display will read RESUME).
x Press the Up arrow button to scroll forward through the menus, decimal point,
or to increment the value of a digit.
Enter Button
x Press the Enter button to access a menu or to accept a setting.
x Press Enter to acknowledge alarm (if enabled).
18
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 19
PD6701 Loop-Powered Level Meter Instruction Manual
Main Menu
The main menu consists of the most commonly used functions: Setup, Advanced,
and Password.
Press MENU button to enter Programming Mode then press the Up Arrow button to
scroll through the main menu.
FT IN
Hold MENU, at any time, to exit and return to Run Mode. Changes made to settings
prior to pressing ENTER are not saved.
Press the MENU button during Programming Mode to return to the previous menu
selection.
Changes to the settings are saved to memory only after pressing ENTER.
The display moves to the next menu every time a setting is accepted by
pressing ENTER.
Setting Numeric Values
The numeric values are set using the RIGHT and UP arrow buttons. Press RIGHT
arrow to select next digit and UP arrow to increment digit.
The digit being changed blinks.
Press the ENTER button, at any time, to accept a setting.
Hold MENU, at any time, to exit and return to Run Mode. Changes made to settings
prior to pressing ENTER are not saved.
Press the MENU button during Programming Mode to return to the previous menu
selection.
19
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 20
PD6701 Loop-Powered Level Meter Instruction Manual
SETUP
Setting Up the Meter (
The Setup menu is used to select:
1. Feet and inches display scale
2. Inch fraction display mode
3. Tank indicator full value
4. Bottom display selection
Press the ENTER button to access any menu or press UP arrow button to scroll
through choices.
Hold MENU, at any time, to exit and return to Run Mode. Changes made to settings
prior to pressing ENTER are not saved.
Press the MENU button during Programming Mode to return to the previous menu
selection.
)
20
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 21
PD6701 Loop-Powered Level Meter Instruction Manual
Setup Menu Display Functions & Messages
The meter displays various functions and messages during setup, programming, and
operation. The following table shows the Setup menu functions and messages in the
order they appear in the menu.
Display Parameter Action/Setting
SETUP
SCALE
INPUT 1
DSPLY 1
INPUT 1
DSPLY 1
SAVE ?
SPN ERR
FRACTN
1/16th
OFF
1/8th
PERCENT
Setup
Scale
Input 1
Display 1
Input 2
Display 2
Save
Span Error
Fraction
th
1/16
Off
th
1/8
Percent
Enter Setup menu
Enter the Scale menu for feet and inches
Set input 1 value in mA
Set display 1 feet and inches
Set input 2 value in mA
Set display 2 feet and inches
Save entered scale parameters
Scale point 1 and 2 span error
Enter the Program menu
th
Set display for 1/16
Turn off inch fraction display
Set display for 1/8
Scale the tank indicator full and empty values
inch fractions
th
inch fractions
0 PCT
100 PCT
DISPLAY
TAG
VOLUME
VOL+TAG
PCT HT
PCT+TAG
0 Percent
100 Percent
Display
Tag
Volume
Volume + Tag
Percent Height
Percent Height
+ Tag
For instructions on how to program numeric values,
see Setting Numeric Values on page 19.
Set the tank empty value
Set the tank full value
Enter Bottom Display menu
Display a custom unit or tag
Display volume
Display volume and custom tag
Display percent height
Display percent height and custom tag
21
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 22
PD6701 Loop-Powered Level Meter Instruction Manual
SCaLe
Scaling the Meter (
The 4-20 mA input is scaled to display the process in feet and inches. To scale the
meter, enter the values in milliamps (mA) for input 1, and then the corresponding feet
and inches display value. Do the same for input 2.
After entering the display 2 value, confirm the new scale by pressing ENTER at the
Save menu.
A signal source is not needed to scale the meter; simply program the inputs and
corresponding display values.
)
FT IN
For instructions on using multipoint scaling, see Level Input Multipoint Linearization
(MULTIPT) on page 33.
For instructions on how to program numeric values see Setting Numeric Values,
page 19.
22
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 23
PD6701 Loop-Powered Level Meter Instruction Manual
SPN ERR
FRACTN
PERCENT
Minimum Input Span
The minimum input span is the minimum difference between input 1 and input 2
signals required to complete the calibration or scaling of the meter. The minimum
span is 0.100 mA.
Scale Error Message (
)
If the minimum span is not maintained, the meter will show a span error (SPN ERR)
and revert to input 2, allowing the appropriate input signals to be applied.
Selecting Inch Fraction Display Mode (
)
The display may be programmed to display fractions in 1/8th or 1/16th increments, or
to show no fraction.
FT IN
FT IN
FT IN
Scaling the Tank Level Indicator (
)
The display includes a 20-segment tank height indicator. This menu sets full and
empty values, in feet and inches, for the tank height indicator.
This value may differ from the 20 mA full-scale and 4 mA empty-scale values
programmed in the Scale menu. This is ideal for level transmitters that output less
than 20 mA at the maximum height of the tank or pit or more than 4 mA at the
minimum height.
As an example, when using a level transmitter that outputs 20 mA at 250 feet, the
tank height indicator may be set for 100 feet, 0 inches. At 100 feet 0 inches on the
display, the tank height indicator will show as full, even though the input is not 20 mA.
FT IN
FT IN
23
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 24
PD6701 Loop-Powered Level Meter Instruction Manual
DISPLAY
Configuring the Lower Display (
The lower display may be configured to display a custom tag (TAG), volume (VOLUME),
volume and tag (VOL+TAG), percent of full height (PCT HT), or percent of full height
and tag (PCT+TAG), or be blank (OFF).
A custom tag may be up to seven alphanumeric characters programmed for
identification (e.g. TANK 3) or for engineering units (e.g. GALLONS).
Volume is a separate, second scale of the input process variable. This is configured
in Volume Display Scaling (VOLSCAL) on page 30.
Percent full height shows the percent full of the tank height level indicator
programmed in the Scaling the Tank Level Indicator (PERCENT) menu, on page 23.
The tank level indicator (GRAPH) may also be turned on or off from the display menu.
)
24
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 25
PD6701 Loop-Powered Level Meter Instruction Manual
TAG
Setting the TAG (
Any bottom display setting that includes a tag will require the tag to be entered.
)
The fully alphanumeric values for the tag are set using the RIGHT button to select the
digit, the UP and RIGHT arrow buttons to select the digit reading, and the ENTER
button to confirm and select the next digit.
25
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 26
PD6701 Loop-Powered Level Meter Instruction Manual
ADVANCE
Advanced Features Menu (
To simplify the setup process, functions not needed for most applications are located
in the Advanced Features menu. Access the Advanced features menu by pressing
ENTER at the ADVANCE menu in the Main Menu defined on page 19.
The Advanced menu is used to select:
1. Open collector output
configuration (OUTPUT)
2. Input filter (FILTER)
3. Volume display scale
(VOLSCAL)
4. Live signal level
display calibration
(LVL CAL)
5.
Internal Calibration
(ICAL)
6.
Multipoint linearization
for level (MULTIPT)
)
7.
Meter s
information display
(INFO)
ystem
26
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 27
PD6701 Loop-Powered Level Meter Instruction Manual
Advanced Features Menu & Display Messages
The following table shows the Advanced features menu functions and messages in
the order they appear in the menu.
Display Parameter Action/Setting
OUTPUT
OFF
ALARM
LEVEL
SET
RESET
VOLUME
FILTER
LO
MED
HI
OFF
VOLSCAL
Output
Off
Alarm Output
Level Alarm
Set Point
Reset Point
Volume Alarm
Filter
Filter Low
Filter Medium
Filter High
Filter Off
Volume Scale
Enter output menu
Disable output
Enter alarm output menu
Assign alarm output to level
Set alarm set point
Set alarm reset point
Assign alarm output to volume
Set noise filter
Set noise filter to low setting
Set noise filter to medium setting
Set noise filter to high setting
Disable noise filter
Scale the volume display
NO PTS
INPUT 1
DSPLY 1
INPUT 2
DSPLY 2
SAVE ?
LVL CAL
INPUT 1
DSPLY 1
INPUT 2
DSPLY 2
SAVE ?
ICAL
Number of Points
Input 1
Display 1
Input 2
Display 2
Save
Level Calibration
Input 1
Display 1
Input 2
Display 2
Save
Internal Calibration
Set the number of points for volume scaling
Set volume input 1 on the level display
Set volume display 1
Set volume input 2 on the level display
Set volume display 2
Save entered volume scale parameters
Calibrate the level display
Calibrate input 1 value
Set display 1 feet and inches
Calibrate input 2 value
Set display 2 feet and inches
Save entered calibration parameters
Enter internal reference calibration
27
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 28
PD6701 Loop-Powered Level Meter Instruction Manual
Display Parameter Action/Setting
4mA
20mA
ERRSPAN
MULTIPT
DISABLE
ENABLE
INFO
SOFT
VERSION
DFALTS?
4 mA
20 mA
Error Span
Multipoint
Disable
Enable
Meter
Information
Software
Software Version
Reset Defaults
For instructions on how to program numeric values,
see Setting Numeric Values on page 19.
Calibrate input at 4 mA
Calibrate input at 20 mA
Error with calibration point 1 and 2 span
Set level display multipoint linearization
Disable multipoint linearization
Enable multipoint linearization
Show software number and version, or reset to
factory defaults
Software number
Software version
Restore factory default parameter settings
28
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 29
PD6701 Loop-Powered Level Meter Instruction Manual
OUTPUT
Alarm Output (
The PD6701 is equipped with an NPN open collector output that may be set up for
high or low alarm trip point based on the feet and inches level display (LEVEL) or the
volume scale (VOLUME). The output may be disabled by selecting OFF.
When the alarm is enabled for level and the alarm set point has been reached, the
level display will flash, accompanied by the bottom display alternating between
normal display and ALARM. A tank height indicator segment will flash at the level the
alarm is set to while the level indicator is at or above the alarm point.
When the alarm is enabled for volume and the alarm set point has been reached, the
bottom display will flash, alternating between its normal display and ALARM.
To set a high alarm, program the set point value to be greater than the reset point.
To set a low alarm, program the set point value to be less than the reset point.
To acknowledge an alarm, press the ENTER button once for acknowledge prompt
and a second time to confirm. Acknowledging an alarm will turn off the alarm output
and stop the display from flashing. The bottom display will continue to alternate
between its normal display and ALARM until the alarm condition is cleared.
The alarm status will show on the display even if the output is not wired.
)
29
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 30
PD6701 Loop-Powered Level Meter Instruction Manual
FILTER
VOLSCAL
Input Signal Filter (
The noise filter is available for unusually noisy signals that cause an unstable
process variable display. The noise filter averages the input signal over a certain
period. The filter level can be set to low (LO), medium (MED), high (HI), or off (OFF).
The higher the filter setting, the longer the averaging time and so the longer the
display may take to find its final value.
The filter contains a noise filter bypass feature so that while small variations in the
signal will be filtered out, large, abrupt changes to the input signal are displayed
immediately.
Volume Display Scaling (
Volume may be scaled as a function of the feet and inches level display. It may use
up to 32-point linearization. The multi-point linearization can be used to linearize the
display for non-linear signals such as those from level transmitters used to measure
volume in odd-shaped tanks.
To display the volume, select a bottom display including the volume display in the
Display menu as shown in Configuring the Lower Display (DISPLAY) on page 24.
To scale the volume display, enter the level in feet and inches for input 1, and then
the corresponding volume display value. Do the same for input 2.
)
)
After entering the display 2 value, confirm the new volume scale by pressing ENTER
at the Save menu.
FT IN
FT IN
30
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 31
PD6701 Loop-Powered Level Meter Instruction Manual
LVL CAL
Level Input Live Signal Calibration (
The meter can be calibrated using a current source instead of scaling. This process
will override previously programmed scaling of the feet and inches display.
The use of a calibrated signal source is strongly recommended.
FT INFT IN
)
31
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 32
PD6701 Loop-Powered Level Meter Instruction Manual
ICAL
ERRSPAN
Internal Calibration (
There is no need to recalibrate the meter when first received
from the factory. The meter is factory calibrated prior to
shipment. The calibration equipment is certified to NIST standards
The internal calibration is the meter’s master calibration that makes scaling the meter
without a signal source possible. Use of a calibrated signal source is necessary to
perform an internal calibration of the meter. Check calibration of the meter at least
every 12 months. Incorrect calibration will affect the ability of the meter to properly
read, scale, and display the input.
Notes:
The signal source must have a full-scale accuracy of 0.002% or
better between 4 and 20 mA in order to maintain the specified
accuracy of the meter.
Allow the meter to warm up for at least 15 minutes before
performing the calibration procedure.
)
Press and hold the MENU button for 5 seconds to enter the Advanced Features
menu. Press the UP arrow button to scroll to the Internal Calibration menu (ICAL)
and press ENTER.
The meter displays 4 mA. Apply a 4.000 mA signal and press ENTER. The display
flashes for a moment while the meter is accepting the signal.
After the signal is accepted, the meter displays 20 mA. Apply a 20.000 mA signal and
press ENTER. The display flashes for a moment while the meter is accepting the
signal.
Calibration Error Message (
An error message indicates that the calibration process was not successful. After the
error message is displayed, the meter will revert to the 4 mA calibration menu. The
error message might be caused by inadvertently leaving the signal at the previous
level or not maintaining the minimum span. Press the MENU button to cancel the
current calibration process if necessary.
)
32
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 33
PD6701 Loop-Powered Level Meter Instruction Manual
MULTIPT
INFO
Level Input Multipoint Linearization (
This menu enables multipoint linearization for scaling and calibrating of the level
display.
Setting MULTIPT to ENABLE will alter the level display Scaling (See Scaling the Meter
(SCaLe) on page 22) and Level Calibration (See Level Input Live Signal Calibration
(LVL CAL) on page 31) menus to include a Number of Points (NO PTS) parameter
before entering Input 1.
32-point linearization can be used to linearize the display for non
Information (
The Information menu shows the software identification number and version number.
To determine the software version of a meter:
Go to the Information menu (INFO) and press ENTER button.
Continue pressing ENTER to scroll through the software release number and
software version.
Following the information display, the meter will exit the Advanced Features menu
and return to run mode.
)
)
-linear signals.
33
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 34
PD6701 Loop-Powered Level Meter Instruction Manual
PASSWRD
Setting Up the Password (
The Password menu is used to program a five-digit password to prevent
unauthorized changes to the programmed parameter settings. A password protected
meter will display LOCKED when the MENU button is pressed.
)
Locking the Mete r
Enter the Password menu and program a five-digit password.
For instructions on how to program numeric values see Setting Numeric Values,
page 19.
Record the password for future reference. If appropriate, it may be
recorded in the space provided.
Model:
Serial Number:
Password: __ __ __ __ __
Making Changes to a Password Protected Meter
If the meter is password protected, the meter will display the message LOCKED when
the Menu button is pressed. Press the Enter button while the message is being
displayed and enter the correct password to gain access to the menu. After exiting
the programming mode, the meter returns to its password protected condition.
FT IN
34
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 35
PD6701 Loop-Powered Level Meter Instruction Manual
Disabling Password Protection
To disable the password protection, access the Password menu and enter the correct
password, as shown below.
FT IN
If the correct five-digit password is entered, the meter displays the message UNLOCKD
(unlocked) and the protection is disabled until a new password is programmed.
If the password entered is incorrect, the meter displays the message LOCKED and
returns to Run Mode. To try again, repeat the above procedure.
Did you forget the password?
The password may be disabled by entering a master
password. If you are authorized to make changes, enter
the master password 50865 to unlock the meter.
35
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 36
PD6701 Loop-Powered Level Meter Instruction Manual
U
OPERATION
Front Panel Buttons Operation
Button
Symbol
MEN
RESET
DISPLAY
Description
Press to Enter or Exit Programming Mode
Used to Reset Maximum and Minimum Values
Press to Cycle Displaying Maximum Value,
Minimum Value, and Input Current in mA
Press to Resume Run Mode in Lower Display
Press to Acknowledge Alarm (if Enabled)
ENTER
36
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 37
PD6701 Loop-Powered Level Meter Instruction Manual
Display Maximum, Minimum, and Input Current
The maximum and minimum values and the measured input loop current may be
displayed temporarily on the lower display. To display these values, press the
DISPLAY button. The meter will display the word MAXIMUM on the bottom display and
the maximum value reached (since the last maximum reset) on the top display. Press
the DISPLAY button again and the meter will display the word MINIMUM on the
bottom display and the minimum value reached on the top display. Pressing the
RESET button while either of these values is displayed will reset that value to the
current display value.
Press the DISPLAY button a third time and the meter will display LOOP MA on the
bottom display, followed by the measured input current in milliamps (mA). The
current display will remain for 10 seconds and then the lower display will return to
normal run mode as programmed in Configuring the Lower Display (DISPLAY) on
page 24. Press the DISPLAY button a fourth time to return to the normal operation.
The meter will display RESUME followed by the run mode lower display.
FT IN
FT IN
FT IN
FT IN
FT IN
FT IN
37
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 38
PD6701 Loop-Powered Level Meter Instruction Manual
Reset Meter to Factory Defaults
When the parameters have been changed in a way that is difficult to determine
what’s happening, it might be better to start the setup process from the factory
defaults.
Instructions to load factory defaults:
Enter the Advanced features menu.
Press and hold RESET button when INFO is shown. For information on navigating to
the Information menu, refer to Advanced Features Menu on page 26.
Press ENTER when DFALTS? prompt is flashing.
Note: If ENTER is not pressed within three seconds, the prompt will stop flashing
return to run mode.
38
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 39
PD6701 Loop-Powered Level Meter Instruction Manual
Factory Defaults & User Settings
The following table shows the factory setting for most of the programmable
parameters on the meter. Next to the factory setting, the user may record the new
setting for the particular application.
Model: S/N: Date:
Parameter Display Default Setting User Setting
Basic Setup
Input 1
Display 1
Input 2
Display 2
Fraction
Tank Indicator 0%
Tank Indicator 100%
Display
Bar Graph
Tag
Advanced Features
Output
Filter
Volume Scale
Number of Points
INPUT 1
DSPLY 1
INPUT 2
DSPLY 2
FRACTN
0 PCT
100 PCT
DISPLAY
GRAPH
TAG
OUTPUT
FILTER
NO PTS
4.000 mA
00ft 00in 0/16
20.00 mA
100ft 00in 0/16
1/16th
0ft 00in 0/16
100ft 00in 0/16
Tag
On
TANK 1
Off
Low
02
Volume Scale Input 1
Volume Display 1
Volume Scale Input 2
Volume Display 2
Multipoint
Password
Password
Find Quality Products Online at: [email protected]
INPUT 1
DSPLY 1
INPUT 2
DSPLY 2
MULTIPT
PASSWRD
www.GlobalTestSupply.com
00ft 00in 0/16
0
100ft 00in 0/16
100,000
Disable
00000 (unlocked)
39
Page 40
PD6701 Loop-Powered Level Meter Instruction Manual
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should make it
unusual for the installer or operator to refer to this section of the manual. If the meter
is not working as expected, refer to the recommendations below.
Troubleshooting Tips
Symptom Check/Action
No display or faint display Check input signal connections.
Perform hard reset by shorting S+ and S-
terminals.
Level display unsteady Increase filter setting in Advanced menu.
Meter displays error message during
calibration (eRROR)
Lever display flashing 699ft 11in. Check input signal and scaling within
Meter flashes
9999999 or -999999
Display response is too slow Check filter setting to see if it can be
If the display locks up or the meter
does not respond at all
Backlight does not appear. Backlight is intended for viewing
Other symptoms not described above Call Technical Support for
Check signal connections.
Verify minimum input span requirements
range of 699
Check level display within volume scale
range of 9999999 and -999999.
lowered to LO or OFF.
Perform hard reset by shorting S+ and S-
terminals.
assistance in dim lighting conditions. It
may not be noticeable under good lighting
conditions.
Check connections are as shown in Figure
3 or Figure 4 on page 12.
assistance.
ft
11in.
SafeTouch® buttons do not respond Mechanical buttons may have been
pushed. The SafeTouch® buttons will be
re-enabled automatically 60 seconds after
the last button push.
If slide switch on connector board is in
Lock position, switch to Unlock.
Sunlight can interfere with the sensors. It
is recommended to shield the window
from sunlight while operating the buttons
by standing so as to block direct sunlight.
40
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 41
PD6701 Loop-Powered Level Meter Instruction Manual
MOUNTING DIMENSIONS
All units: inches [mm]
0.33
8.3
3.35
2.25
85.1
57.2
5.67
144.0
5.25 133.3
Figure 8. Enclosure Dimensions – Front View
Ø
3.34
84.9
4.18
106.1
Figure 9. Enclosure Dimensions – Side Cross Section View
41
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 42
PD6701 Loop-Powered Level Meter Instruction Manual
A
QUICK USER INTERFACE REFERENCE
Pushbutton Function
MENU Go to programming mode or leave programming. Hold for 5
seconds to enter Advanced Features menu directly.
RIGHT Arrow Move to next digit. Go to previous menu or alphanumeric char-
acter selection. Reset max or min while displayed.
UP Arrow Move to next selection or increment digit. Cycle through maxi-
mum, minimum, and mA display mode.
ENTER Accept selection/value and move to next selection.
Acknowledge alarms.
Hold MENU
Advanced
Features
for 5 seconds
Operational Modes
Run
UP
rrow
mA Display
MENU
UP Arrow
MENUMENU
Setup
42
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 43
PD6701 Loop-Powered Level Meter Instruction Manual
43
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 44
PD6701 Loop-Powered Level Meter Instruction Manual
LIM6701_C
SFT087 Ver 1.300 & up
04/15
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
