Page 1

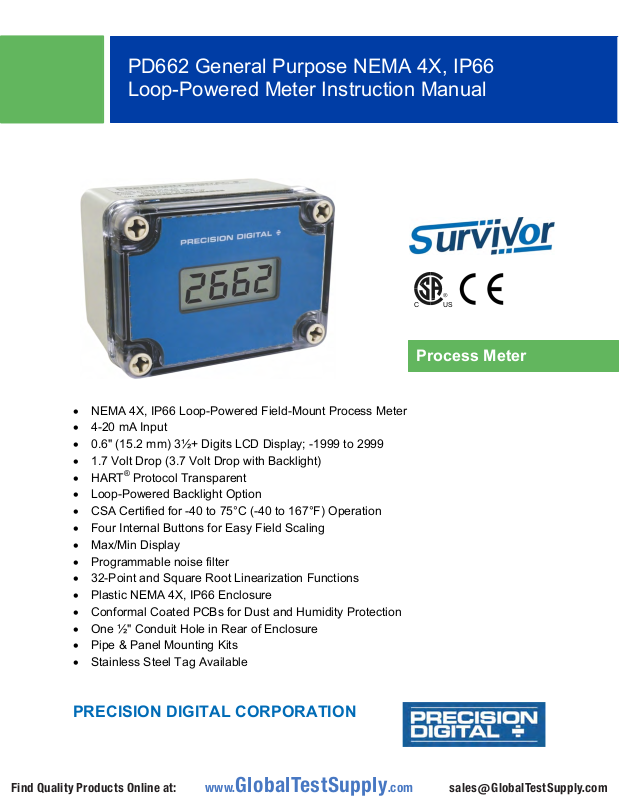

PD662 General Purpose NEMA 4X, IP66
Process Meter
C US
Loop-Powered Meter Instruction Manual
• NEMA 4X, IP66 Loop-Powered Field-Mount Process Meter
• 4-20 mA Input
• 0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
• 1.7 Volt Drop (3.7 Volt Drop with Backlight)
• HART® Protocol Transparent
• Loop-Powered Backlight Option
• CSA Certified for -40 to 75°C (-40 to 167°F) Operation
• Four Internal Buttons for Easy Field Scaling
• Max/Min Display
• Programmable noise filter
• 32-Point and Square Root Linearization Functions
• Plastic NEMA 4X, IP66 Enclosure
• Conformal Coated PCBs for Dust and Humidity Protection
• One ½" Conduit Hole in Rear of Enclosure
• Pipe & Panel Mounting Kits
• Stainless Steel Tag Available
PRECISION DIGITAL CORPORATION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
2
Disclaimer
The information contained in this document is
subject to change without notice. Precision
Digital makes no representations or warranties
with respect to the contents hereof; and
specifically disclaims any implied warranties of
merchantability or fitness for a particular
purpose.
CAUTION: Read complete
instructions prior to installation and
operation of the meter.
WARNING: Risk of electric shock
or personal injury
Warnings
• This product is not recommended for life
support applications or applications where
malfunctioning could result in personal injury
or property loss. Anyone using this product
for such applications does so at his/her own
risk. Precision Digital Corporation shall not
be held liable for damages resulting from
such improper use.
• Cancer and Reproductive Harm
www.P65Warnings.ca.gov. For California
Proposition 65 details please visit our
website www.predig.com
Limited Warranty
Precision Digital Corporation warrants this
product against defects in material or
workmanship for the specified period under
“Specifications” from the date of shipment from
the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase
value, repair, or replacement of the defective
unit.
Registered Trademarks
All trademarks mentioned in this document are
the property of their respective owners.
© 2018 Precision Digital Corporation. All rights
reserved.
www.predig.com
Introduction
The PD662 NEMA 4X, CSA Certified loop-powered
meter is perfect for applications where a simple,
inexpensive display is required and AC power is
not available. The PD662 derives all its power
from the 4-20 mA loop, including its optional
backlight feature. It can be easily scaled in the
field using four push buttons; with or without
applying an actual calibration signal. The
PD662’s display will read up to 2999; we call this
3½+ digits! The PD662 is housed in a rugged
NEMA 4X enclosure and is provided with one ½"
NPT pipe conduit hole.
Ordering information
Model
Options Installed
PD662-0L0-00*
None
PD662-0K0-00
Loop-Powered Backlight
* Quick Shipment Program product typically shipped
within 2 working days
Accessories
Model
Description
PDA1024-01
24 VDC Power Supply for DIN Rail
PDA6624
Panel Mounting Kit
PDA6845
2" Pipe Mounting Kit
PDA-SSTAG
Stainless Steel Tag
!
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual
3
Table of Contents
INTRODUCTION ---------------------------- 2!
ORDERING INFORMATION ------------- 2!
SPECIFICATIONS -------------------------- 4!
General ------------------------------------------------------- 4
Input ----------------------------------------------------------- 4
COMPLIANCE INFORMATION --------- 4!
Safety --------------------------------------------------------- 4
Electromagnetic Compatibility ----------------------- 5
SAFETY INFORMATION ------------------ 5!
INSTALLATION ----------------------------- 5!
Unpacking --------------------------------------------------- 5
Mounting ---------------------------------------------------- 5
PD662 Connections -------------------------------------- 6

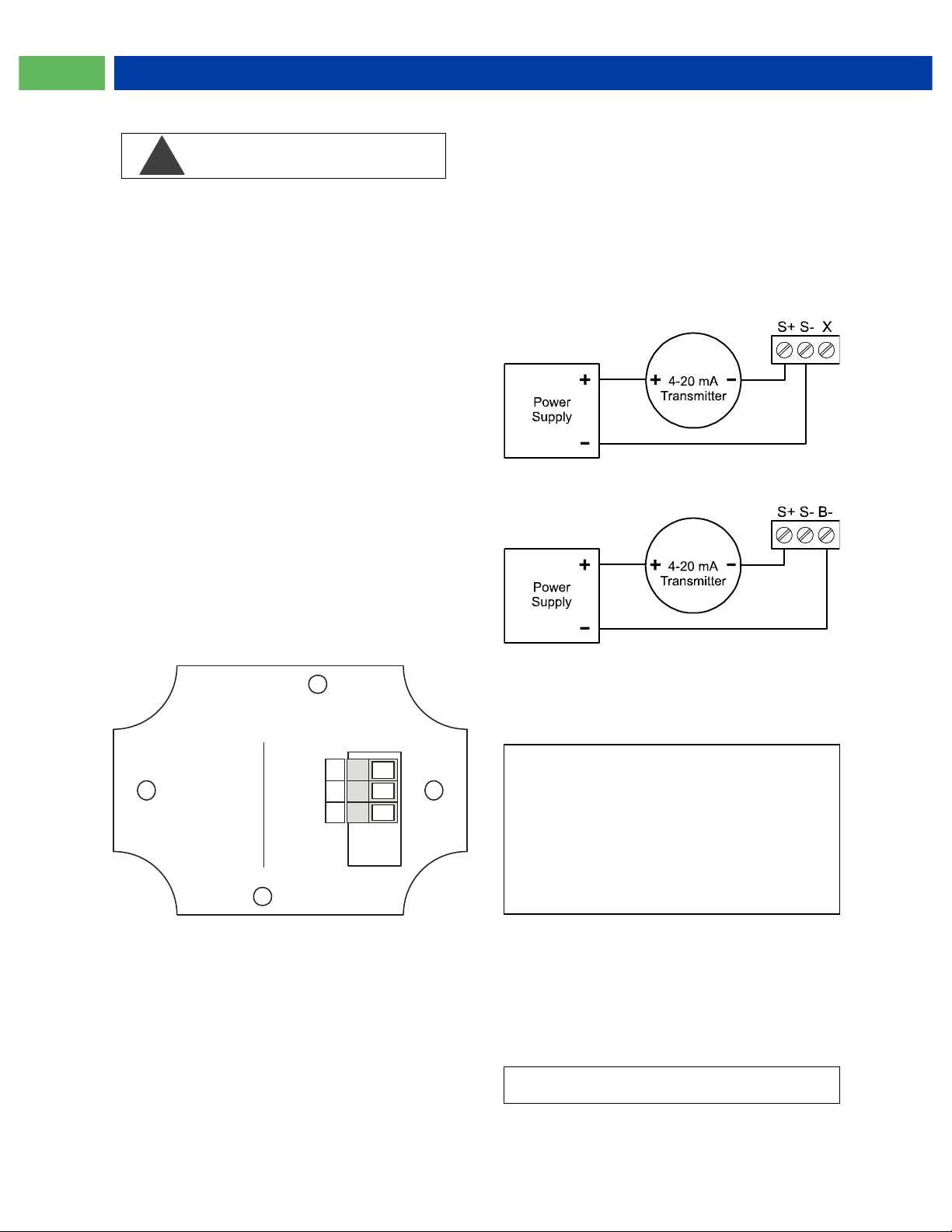

Connection & Wiring Diagrams --------------------- 6
SETUP AND PROGRAMMING ---------- 6!

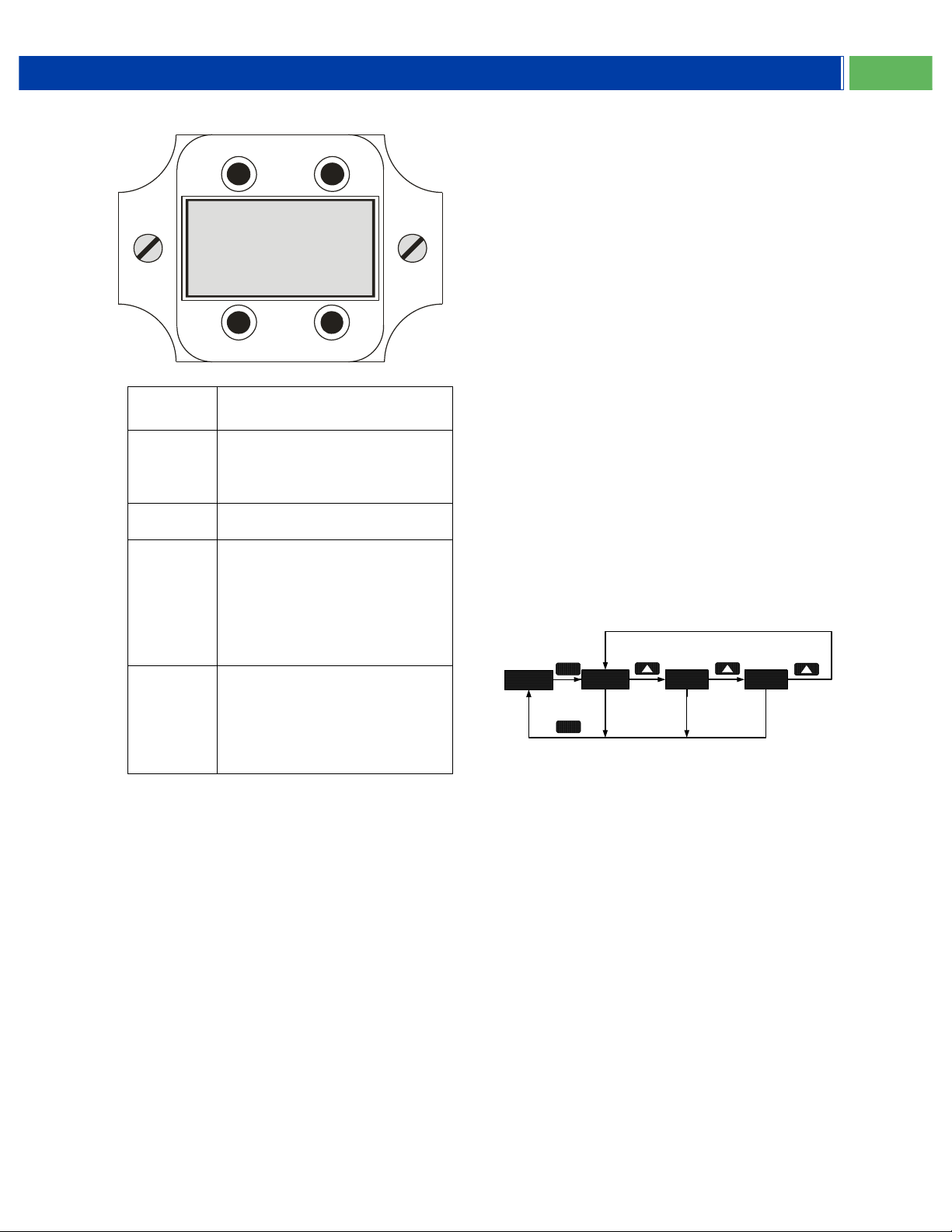

Front Panel Buttons ------------------------------------- 6
Setting Numeric Values -------------------------------- 7
Programming the Meter -------------------------------- 7
Main Menu -------------------------------------------------- 7
Main Menu Display Functions & Messages ------ 8
Setting the Decimal Point (dP) ---------------------- 8
Scaling the Meter (SCL) ------------------------------- 8
Calibrating the Meter (Cal) --------------------------- 9
Recalibrating the Internal Calibration Reference
(Ical) ------------------------------------------------------ 9
Advanced Features Menu ------------------------------ 9
Advanced Features Menu & Display Messages 9
Signal Input Conditioning Function (Fnc) ------- 10
Information Menu (info) --------------------------- 10
Input Signal Filter (FIL) ----------------------------- 10
Internal Calibration (ICal) -------------------------- 11
OPERATION -------------------------------- 11!
Front Panel Buttons Operation -------------------- 11
Maximum & Minimum Readings (
HI
&
LO
) ----- 12
Reset Meter to Factory Defaults ------------------- 12
Factory Defaults & User Settings ----------------- 13
MOUNTING DIMENSIONS ------------- 13!
TROUBLESHOOTING ------------------- 14!
Troubleshooting Tips --------------------------------- 14

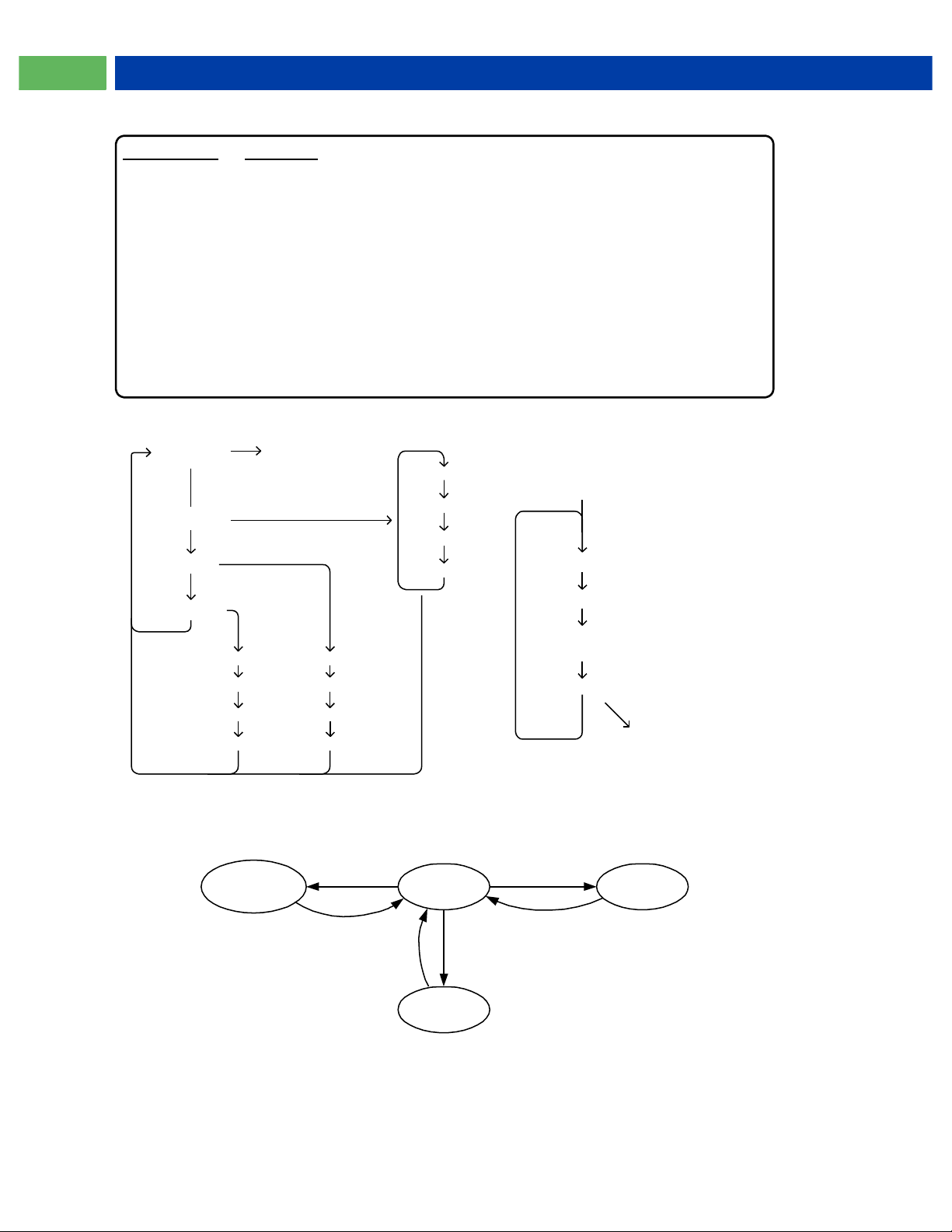

QUICK USER INTERFACE
REFERENCE GUIDE --------------------- 15!
EU DECLARATION OF
CONFORMITY ----------------------------- 17!
Table of Figures
Figure 1. PD662 Mounting Board Rear View .......... 6
Figure 2. PD662 Input Connections without
Backlight ........................................................... 6
Figure 3. PD662 Input Connections with
Backlight ........................................................... 6

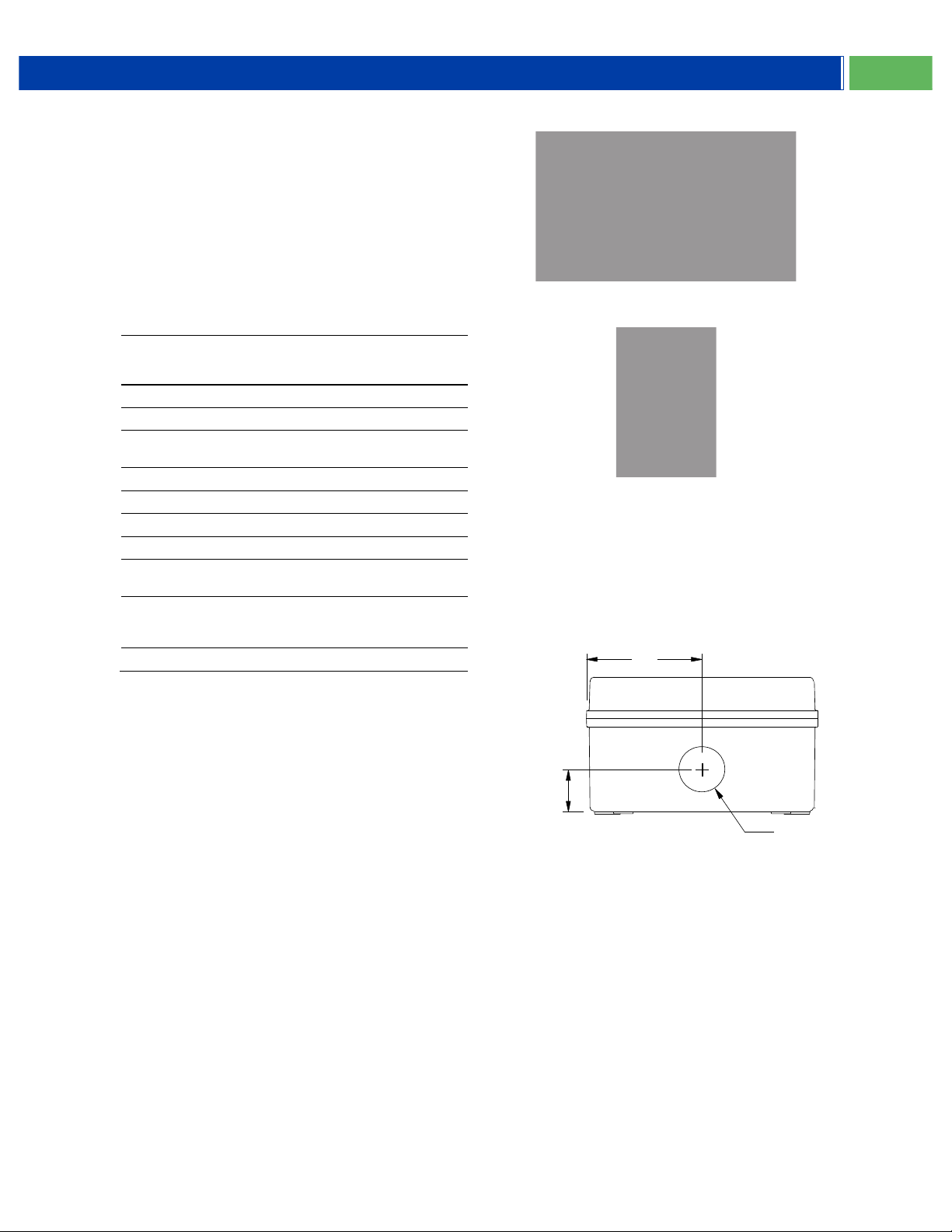

Figure 4. Case Dimensions – Front View ............. 13
Figure 5. Case Dimensions – Side View ............... 13
Figure 6. Case Dimensions – Bottom View .......... 13
Figure 7. PDA6845 Pipe Mounting Kit .................. 14
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
4
Specifications
Except where noted all specifications apply to
operation at +25
General
DISPLAY
0.6" (15.2 mm) LCD, 3½+ digits;
-1999 to 2999
DISPLAY
UPDATE RATE
2 Updates/Second
OVERRANGE
Display flashes 2999
UNDERRANGE
Display flashes -1999
PROGRAMMING
METHOD
Four internal pushbuttons
NOISE FILTER
Programmable HI, LO, or
OFF
RECALIBRATION
Recalibration is recommended at least
every 12 months.
MAX/MIN
DISPLAY
Max/Min readings reached by the process
are stored until reset by the user or until
power to the meter is turned off.
NON-VOLATILE
MEMORY
All programmed settings are stored in nonvolatile memory for a minimum of ten years
if power is lost.
NORMAL MODE
REJECTION
64 dB at 50/60 Hz
ENVIRONMENTAL
Operating temperature for CSA certification:
-40 to 75°C
Functional temperature range: -40 to 85°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% noncondensing
CONNECTIONS
Removable screw terminals accept 12 to
22 AWG wire
ENCLOSURE
Impact resistant polyester plastic, body
gray, cover clear with blue faceplate;
NEMA 4X, IP66; ½" conduit hole provided
at base.
MOUNTING
½" NPT pipe (0.865 in, 12.7 mm) conduit
hole on bottom of enclosure. 0.166 in (4.2
mm) wall mounting holes located behind
front cover screws.
TIGHTENING
TORQUE
Screw terminal connectors: 4.5 lb-in
(0.5 Nm)
OVERALL
DIMENSIONS
4.33" x 3.15" x 2.76"
(110 mm x 80 mm x 70 mm)
WEIGHT
10.4 oz (295 g)
WARRANTY
3 years parts and labor
Input
ACCURACY
±1 count
FUNCTION
Linear (2 to 32 points) or square root
TEMPERATURE
DRIFT
50 PPM/°C from -40 to 85°C ambient
DECIMAL POINT
User selectable decimal point
MINIMUM SPAN
Input 1 & Input 2: 0.40 mA
CALIBRATION
RANGE
An Error message will appear if input 1 and
input 2 signals are too close together.
Input
Range
Minimum Span
Input 1 & Input 2
4-20 mA
0.40 mA
MAXIMUM
VOLTAGE DROP
Without Backlight
With Backlight
1.7 VDC @ 20 mA
3.7 VDC @ 20 mA
EQUIVALENT
RESISTANCE
85 Ω @ 20 mA
185 Ω @ 20 mA
INPUT
OVERLOAD
Over current protection to 2 A max.
Compliance Information
Safety
CSA
Certified
U.S. & Canada
2252 05 – Process Control
Equipment
2252 85 – Process Control
Equipment, U.S. Standards
CSA File
Number
157123
CSA
Applicable
Requirements
CAN/CSA C22.2 No. 610101-04 Safety Requirements for
Electrical Equipment for
Measurement, Control, and
Laboratory Use – Part 1:
General Requirements
UL 61010-1:2004, 2
nd
Edition
Safety Requirements for
Electrical Equipment for
Measurement, Control, and
Laboratory Use – Part 1:
General Requirements
Low Voltage
Directive
EN 61010-1:2010
Safety requirements for
measurement, control, and
laboratory use
IEC 61010-1:2010
Safety requirements for
measurement, control, and
laboratory use
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual
5
Electromagnetic Compatibility
EMC
Emissions
& Immunity
EN 61326-1:2013
EMC requirements for
Electrical equipment for
measurement, control and
laboratory use – Industrial
Safety Information
CAUTION:
Read complete instructions prior to
installation and operation of the meter.
The equipment shall be installed by qualified
personnel in accordance with applicable local
and national regulations (e.g. CEC, NEC, FCC,
SCC, etc).
Follow all safety and operation guidelines in this
manual. If the meter is used in a manner not recommended by the manufacturer, the overall
safety will be impaired.
Installation and service should be performed
only by trained service personnel.
This unit is not suitable for hazardous locations
such as potentially explosive zones or locations.
No user replaceable part inside. All service shall
be performed at the factory.
Do not disconnect and reconnect cables during
a lightning storm.
Suitable surge suppressor (e.g. lightning protection) shall be provided in end application installation.
Installation
All pushbuttons and wiring connectors are
accessed by opening the NEMA 4X enclosure by removing the 4 captive screws that
secure the cover.
Unpacking
Remove the meter from box. Inspect the
packaging and contents for damage. Report
damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your supplier or the
factory for assistance.
Mounting
The PD662 can be wall mounted using the
mounting holes beneath the cover screws. A
½” NPT pipe conduit hole is provided. It can
be panel mounted with the addition of the
PDA6624 panel mount kit. It can also be
pipe mounted by using the PDA6845 pipe
mount kit.
Refer to Mounting Dimensions, page 13 for
details on wall or panel space requirements.
The unit shall be installed in a
way that will prevent any
accidental contact of the internal
meter circuits and power supply
lines.
Cable suitable for outdoor use
and a CSA Approved gland rated
4X, or a suitable conduit and a
CSA Approved connector rated
4X, is intended to be used in final
installation.
Metallic conduit shall be reliably
bonded to protective
earth/ground without creating
any ground loop.
!
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
6
Connections
Disconnect power before
opening the unit.
To access the connectors, remove the enclosure
cover and unscrew the two captive stainlesssteel screws on the rear mounting board. Remove the meter assembly from the enclosure.
Signal connections are made to a three-terminal
removable connector. The signal wiring terminal
block is on the rear of the meter assembly.
S+
4-20 mA signal input positive terminal
connection
S-
4-20 mA signal return/negative terminal
connection
X
Not connected (no backlight option)
B-
4-20 mA signal return/negative terminal
when using the installed loop powered
backlight option
Refer to Figure 1 for terminal positions on the
rear of the mounting board inside the meter
enclosure.
P+
24 VDC power positive terminal
connection
P-
24 VDC power negative terminal
connection
WIRING INSTRUCTIONS
Connect signal positive to terminal S+.
Connect signal negative to terminal S-.
If backlight installed, connect
signal negative to terminal B-, not S-.
S+ S- B-
S+ S- B-
Figure 1. PD662 Mounting Board Rear View
Connection & Wiring Diagrams
Signal input connections are made to a threeterminal connector labeled S+|S-|X for models
without a backlight and S+|S-|B- for models with
a backlight. The 4-20 mA input with no backlight
has a maximum voltage drop of 1.7 V and is
wired as shown in
Figure 2. The loop-powered backlight configuration requires a total maximum voltage drop of
3.7 V. The backlight is recommended for dim
lighting conditions and is enabled when wired as
shown in Figure 3.
Figure 2. PD662 Input Connections without
Backlight
Figure 3. PD662 Input Connections with
Backlight
Setup and Programming
• There is no need to recalibrate the
meter for milliamps when first received
from the factory.
• Th
e meter is factory calibrated for
milliamps prior to shipment. The
calibration equipment is certified to NIST
standards.
Overview
There are no jumpers involved in the setup
process of the meter. Setup and programming is
done through the front panel buttons. After all
connections have been completed and verified,
apply power to the loop.
For a Quick User Interface Reference Guide
go to page 15
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 7
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual
7
Front Panel Buttons
2662
MENU
ENTER
u p
Button/
Symbol
Description
MENU
Menu button to enter programming mode. Press and hold for
5 seconds to access the Ad-
vanced features of the meter.
ENTER
Enter button to access a menu
or accept a setting.
u
Right arrow to scroll through
the menus or move to the next
digit or decimal position during
programming.
Displays the Max then Min display values when pressed during normal run mode.
p
Up arrow to scroll through the
menus, decimal point, or to increment the value of a digit.
Resets the Max and Min display value when pressed during normal run mode.
Setting Numeric Values
The numeric values are set using the Right and
Up arrow buttons. Press Right arrow to select
next digit and Up arrow to increment digit. The
two left-most digits on the display are set as a
single digit, able to display -19 to 29.
The digit being changed blinks.
Press the Enter button, at any time, to accept a
setting or Menu button to exit without saving
changes.
The decimal point is set using the Right or Up
arrow button in the Setup-decimal point menu.
Programming the Meter
It is very important to read the following
information, before proceeding to program the
meter:
• There is no need to recalibrate the meter
for milliamps when first received from t
he
factory.
• Th
e meter is factory calibrated for
milliamps prior to shipment. The calibration
equipment is certified to NIST standards.
• Use the Scale (SCL) menu to enter scale
parameters without applying a live signal.
• Alternatively, use the Calibrate (CAL) menu
to apply a signal from a calibrator or a 4-
20
mA transmitter to calibrate the meter.
In
puts may be calibrated or scaled to any
display within the range of the meter.
Additional parameters, not needed for most
applications, are viewed and programmed with
the Advanced Features menu, see Advanced
Features Menu on page 9.

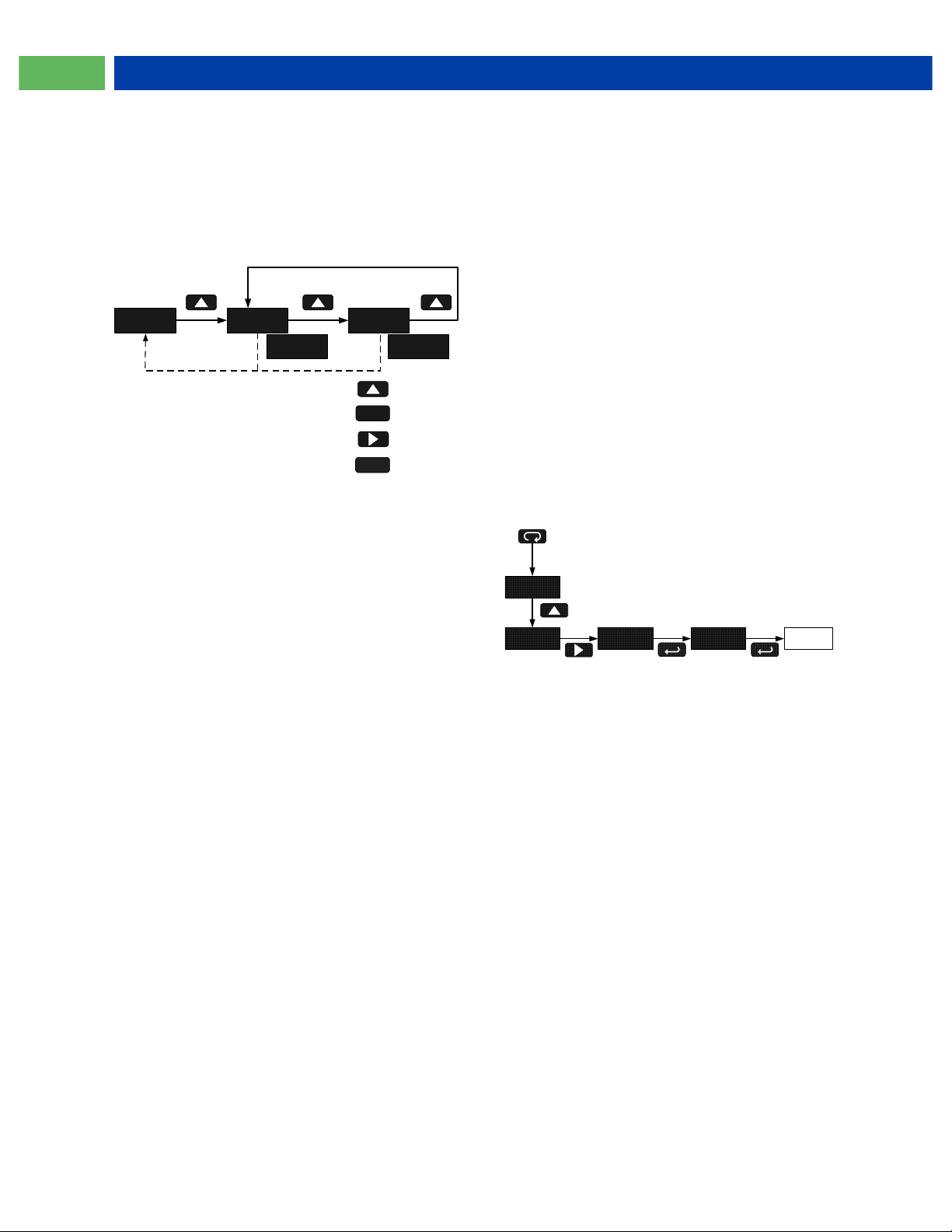

Main Menu
The main menu consists of the most commonly
used functions: Decimal Point Location, Scale,
and Calibration.
26.62
MENU
dP SCl CAL
Run
Mode
MENU
• Press Menu button to enter Programming
Mode then press th
e Up arrow button to
scroll main menu.
• Pr
ess Menu, at any time, to exit and return
to Run Mode. Changes made to settings
prior to pressing Enter are not saved.
• Changes to the settings are saved to
memory only after pressing Enter.
• The display moves to the next menu every
time a setting is
accepted by pressing Enter.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 8
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
8

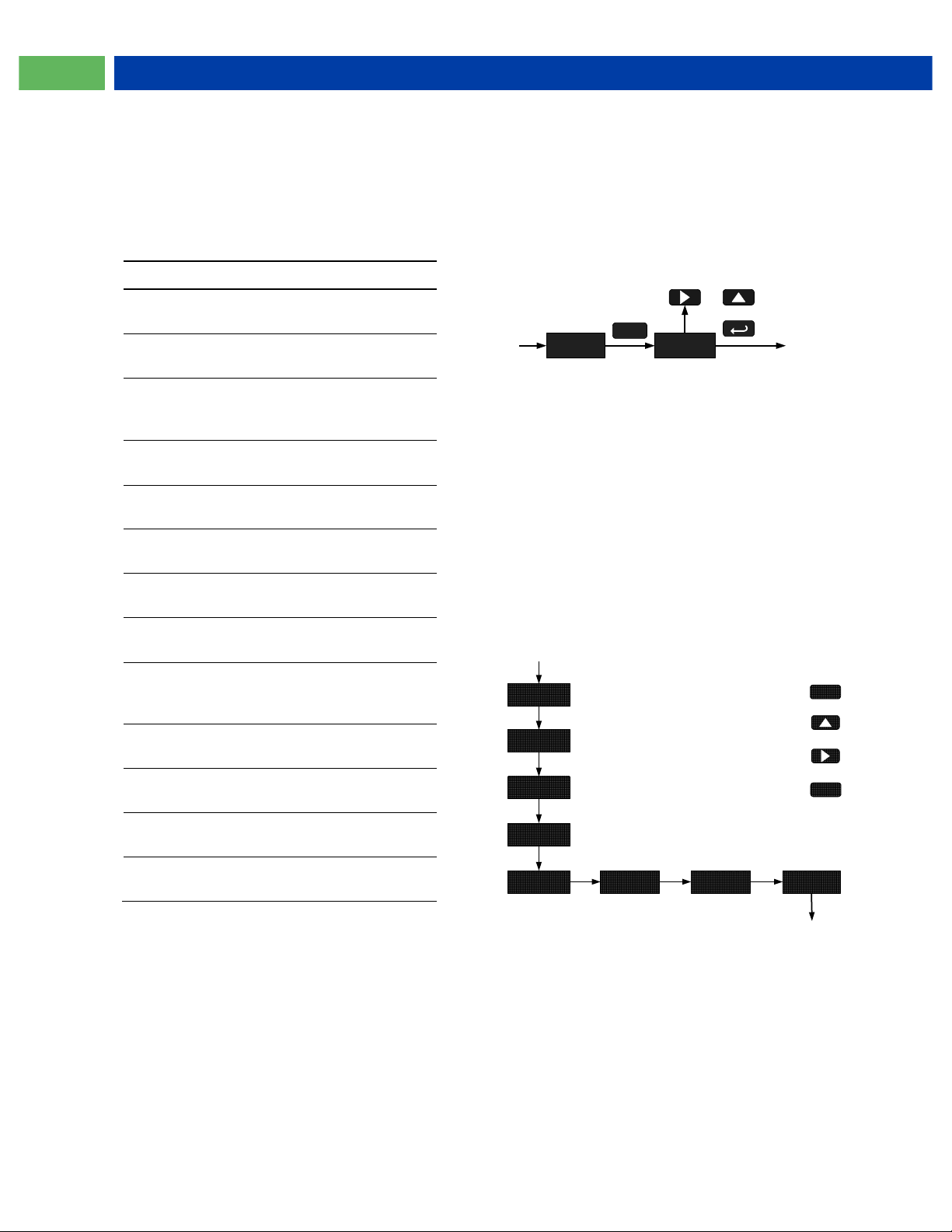

Main Menu Display Functions &
Messages
The meter displays various functions and
messages during setup, programming, and
operation. The following table shows the main
menu functions and messages in the order they
appear in the menu.
Display
Parameter
Action/Setting
dp
Decimal
point
Set decimal
point
SCL
Scale
Enter the Scale
menu
Npt
Number of
Points
Set number of
linearization
points
in1
Scale
Input 1
Input signal 1
value (mA)
D1
Scale
Display 1
Scaled value for
input 1
in2
Scale
Input 2
Input signal 2
value (mA)
D2
Scale
Display 2
Scaled value for
input 2
CAL
Calibrate
Enter the
Calibrate menu
Npt
Number of
Points
Set number of
linearization
points
in1
Calibrate
Input 1
Read input
signal 1
D1
Calibrate
Display 1
Enter value for
input 1
in2
Calibrate
Input 2
Read input
signal 2
D2
Calibrate
Display 2
Enter value for
input 2
Setting the Decimal Point (dP)
Decimal point may be set with up to three
decimal places or with no decimal point at all.
Pressing the Right or Up arrow moves the
decimal point one place to the right until no
decimal point is displayed, then it moves to the
left most position.
ENTER
dP dd.dd
or
Select Decimal Point
Next
Scaling the Meter (
SCL
)
The 4-20 mA input can be scaled to display the
process in engineering units.
A signal source is not needed to scale the
meter; simply program the inputs and
corresponding display values.
If using linear signal input conditioning, enter the
number of scale points (2-32), followed by the
input values and display values. If using square
root signal input conditioning, the number of
points input menu will not be present.
Number of Points (
npt
)
Set the number of linearization points used in
the Scale menu. 2 to 32 points may be used.
The Scale menu is entered after entering the
number of points
d1
Press Enter to
Accept Setting
in2
Scale
Input 2
in1
Set Input 1
Value
SCL
ENTER
04.00
Set Display 1
Value
Press Up to
Set Digit Value
Press Right to
Select Next Digit
Press Menu to
Exit at any Time
000.0
MENU
npt
002
Number of Points menu
not displayed for square
root input conditioning.
Set Number of
Scale Points
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual
9
Minimum Input Span
The minimum input span is the minimum
difference between input 1 and input 2 signals
required to complete the calibration or scaling of
the meter. The minimum span is 0.40 mA.
If the minimum span is not maintained, the
meter reverts to input 2, allowing the appropriate
input signals to be applied.
Calibrating the Meter (
Cal
)
To scale the meter without a signal source,
refer to Scaling the Meter (SCL), page 8.
The meter can be calibrated to display the
process in engineering units by applying the
appropriate input signal. The use of a calibrated
signal source is strongly recommended.
1. Press the Up arrow button to scroll to t
he
Calibration me
nu (CAL) and press Enter.
2. If using linear signal input conditioning, enter
the number of calibration points (2-32).
3. The meter displays in1. Apply a known
signal and press Enter. The display will
flash while accepting the signal.
4. When the meter displays d1, press Enter
.
Ent
er a corresponding display value for the
signal input, and press En
ter to accept.
5. The meter displays in2. Apply a known
signal and press Enter. The display will
flash while accepting the signal.
6. When the meter displays d2, press Enter.
Enter a corresponding display value for the
si
gnal input, and press Enter to accept.
Recalibrating the Internal Calibration
Reference (
Ical
)
The Internal Calibration (ICAL) menu, located in
the Advanced Features menu, is used to
recalibrate the internal calibration reference.
Recalibration is recommended at least every
twelve months. Refer to Internal Calibration
(ICal), page 11 for instructions.

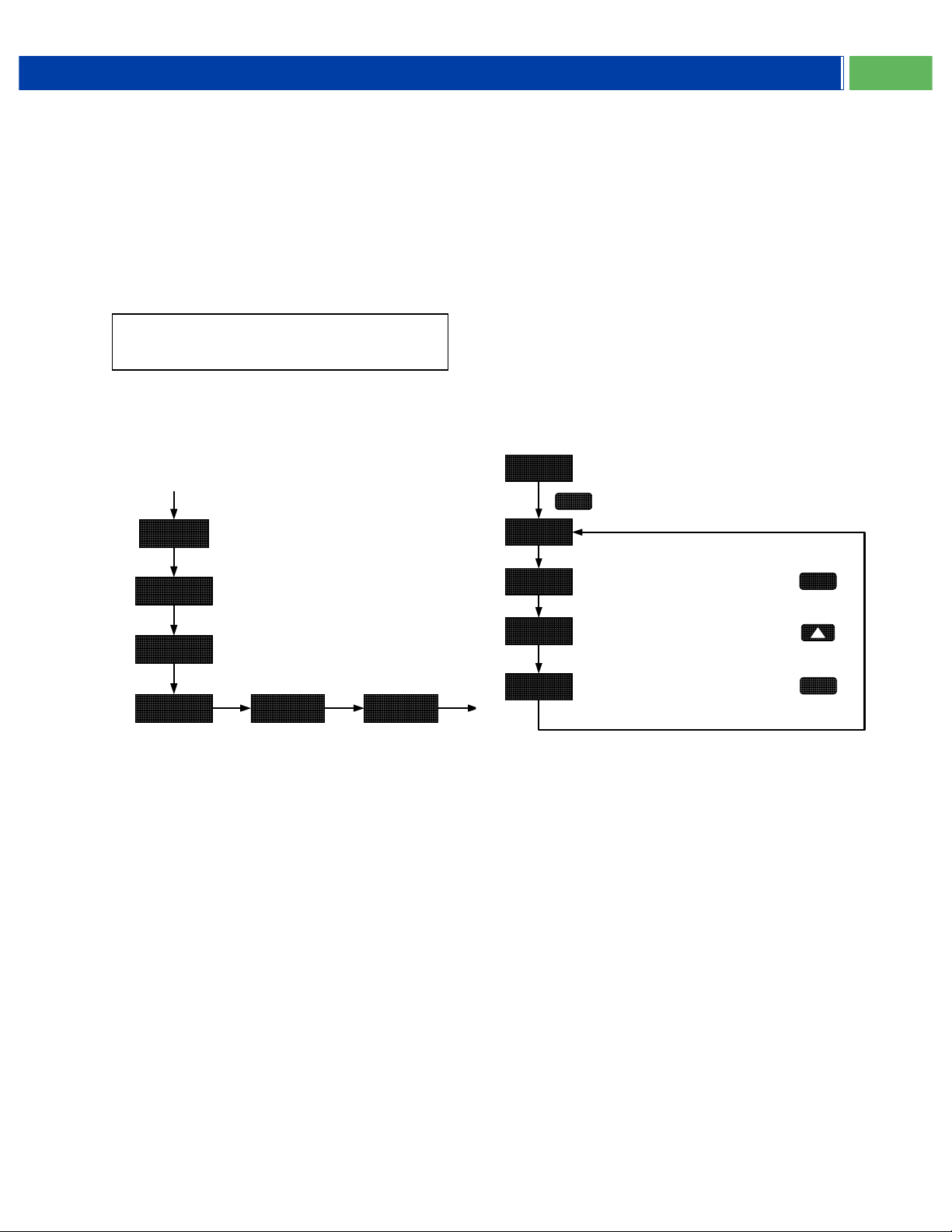

Advanced Features Menu
To simplify the setup process, functions not
needed for most applications are located in the
Advanced Features menu. Press and hold the
MENU button for five seconds to access the
Advanced Features menu
d1
Press Enter to
Accept Setting
in2
Calibrate
Input 2
in1
ENTER
Set Display 1
Value
Press Up to
Set Digit Value
Press Right to
Select Next Digit
Press Menu to
Exit at any Time
000.0
MENU
npt
002
Number of Points menu
not displayed for square
root input conditioni ng.
Set Number of
Scale Points
Cal
Display Flashes
Accepting Input
Press Enter to Access Menu
or to Accept Setting
ICAL
FIL
ENTER
MENU
Press Up to Scroll Menu and
to Increment Digit Value
Press Menu to Exit at any Time
inFo
MENU
Press and hold for five seconds
26.62
Run Mode
fnc
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
10
Advanced Features Menu & Display
Messages
The following table shows the Advanced
features menu functions and messages in the
order they appear in the menu.
Display
Parameter
Action/Setting
Fnc
Input
Function
Set linear or
square root input
conditioning
function
Lnr
Linear
Set linear scaling
Sqr
Square
Root
Set square root
input conditioning function
info
Information
Enter the
Information
menu
Sft
Software
Information
Software release
number
ver
Version
Meter firmware
version
*C
Calibration
Temp (°C)
Temperature at
time of Icalibration (°C)
*F
Calibration
Temp (°F)
Temperature at
time of Icalibration (°F)
FIL
Filter
Set filter function
level
ICAL
I-Calibration
Internal master
factory
calibration
rst
Reset
Defaults
Restore factory
default
parameter
settings
Signal Input Conditioning Function
(
Fnc
)
The PD662 provides linear and square root
signal input conditioning functions for inputs
from linear and non-linear transmitters.
Linear (
Lnr
)
Meters are set up at the factory for linear function using two-point linearization. Multi-point linearization with up to 32 points may be used. The
linear function provides a display that is linear
with respect to the input signal between each set
of input points.
Square Root (
sqr
)
The square root function is used to linearize the
signal from a differential pressure transmitter
and display flow rate in engineering units.
Information Menu (
info
)
The Information menu is located in the
Advanced Features menu, to access Information
menu see Advanced
Features Menu on page 9.
It shows software identification number, version
number, and calibration temperatures. To
determine the software version of a meter:
1. Go to the Information menu (info) and
press Enter button.
2. The meter will automatically scroll
through the software release number
and software version. The meter
temperatures at the time of last interna
l
calibration in °C
and °F are displayed for
calibration troubleshooting. Pressing the
ENTER, RIGHT, or UP buttons will
progress the information display.
3. Following the information display, the
meter will exit the Advanced Features
menu and return to run mode.
Input Signal Filter (
FIL
)
The noise filter is available for unusually noisy
signals that cause an unstable process variable
display. The noise filter averages the input
signal over a certain period. The filter level can
be set to low (LO), high (HI), or off (OFF). The
higher the filter setting, the longer the averaging
time and so the longer the display may take to
find its final value.
The filter contains a noise filter bypass feature
so that while small variations in the signal will be
filtered out, large, abrupt changes to the input
signal are displayed immediately.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 11
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual
11
Internal Calibration (
ICal
)
• There is no need to recalibrate the
meter for milliamps when first received
from the factory.
• Th
e meter is factory calibrated for
milliamps prior to shipment. The
calibration equipment is certified to NIST
standards.
The internal calibration allows the user to scale
the meter without applying a signal. The use of a
calibrated signal source is necessary to perform
the internal calibration of the meter. Check
calibration of the meter at least every
12 months.
Notes:
• The signal source must have a fullscale accuracy of 0.01% or better
between 4 and 20 mA in order to
maintain the specified accuracy of
th
e meter.
• Allow the meter to warm up for at
least 15 minutes before performing
the internal calibration procedure.
The Internal calibration menu is part of the
Advanced Features menu.
1. Press and hold the MENU button for 5
seconds to enter the Ad
vanced Features
menu.
2. Press the Up arrow button to scroll to the
Internal Cal
ibration menu (ICAL) and press
Enter.
3. The meter displays 4.00 mA. Apply a 4.00
mA signal and press Enter. The display
flashes for a moment while the meter is
accepting the signal.
4. After the signal is accepted, the meter
displays 20.00 mA. Apply a 20.00 mA signal
and press Enter. The display flashes for a
moment while the meter is accepting the
signal.
Error Message (
Err
)
An error message indicates that the calibration
process was not successful. After the error
message is displayed, the meter will revert to
input 2 calibration settings. The error message
might be caused by inadvertently leaving the
signal at the previous level or not maintaining a
0.40 mA minimum span. Press the Menu button
to cancel the current calibration process if
necessary.
Operation
Front Panel Buttons Operation
Button
Symbol
Description
MENU
Press to enter or exit
Programming Mode or exit
Max/Min readings
u
Press to reset Max/Min readings
p
Press to display Max/Min readings
alternately
ENTER
Press to display Max or Min
reading
indefinitely while displaying Max or
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 12
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
12
Maximum & Minimum Readings
(
HI
&
LO
)
The maximum and minimum (peak & valley)
readings reached by the process are stored in the
meter since the last reset or power-up. The meter
flashes HI or LO to differentiate between run
mode and max/min display.
Press Up to Display and to
Toggle Between Max & Min
10 Sec Time Out
16.62
Run Mode
HI <LO
ENTER
MENU
Press Enter to hold Max/Min
Press Right to Reset Max/Min
Press Menu to Exit Max/Min
19.45 5.34
1. Press Up arrow button to display maximum
reading since the last reset/power-up.
2. Press Up arrow again to display the
minimum reading si
nce the last reset/power-
up.
3. Press Enter to continue to display the Max
or Min display reading by disabling the
Max/Min timeout. The
meter will continue to
track new Max/Min readings. Pr
ess MENU
to exit the Max/Min reading.
4. If Enter is not pressed, the Max/Min display
reading will continue to flash and time out
after ten seconds. The meter will return to
display the actual reading.
5. Pr
ess Right arrow button while in Max/Min
Mode to reset both Max and Min. Max/Min
display readings are reset to the current
reading.
Reset Meter to Factory Defaults
When the parameters have been changed in a
way that is difficult to determine what’s
happening, it might be better to start the setup
process from the factory defaults.
Instructions to load factory defaults:
1. Enter the Advanced features menu. See
Advanced
Features Menu, page 9.
2. Press Up arrow button to display info
menu.
3. Pr
ess RIGHT arrow button when info is
shown.
4. Press ENTER button when rSt is shown.
Press Enter again when display flashes
rSt.
Note: If Enter is not pressed a second time
within three seconds, rSt will stop flashing
and the last ENTER press cancelled.
5. The meter goes through an initialization
sequence (same as on power-up), and loads
the factory default settings.
rSt
info
Press and Hold for 5 Sec
Meter Re-
Initializes
Flashing
Display
rSt
FNc
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 13
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual
13
Factory Defaults & User
Settings
The following table shows the factory setting for
most of the programmable parameters on the
meter. Next to the factory setting, the user may
record the new setting for the particular
application.
Model: ___________________
S/N: ___________________
Date: ___________________
Parameter
Display
Default
Setting
User
Setting
Decimal point
Dd.dd
2 places
Scale
SCL
Number of
Points
NPT
2
Input 1
in1
4.00 mA
Display 1
D1
4.00
Input 2
in2
20.00 mA
Display 2
D2
20.00
Advanced
Features
Input
Conditioning
Function
Fnc
Linear
Filter
FIL
Off
Mounting Dimensions
Figure 4. Case Dimensions – Front View
Figure 5. Case Dimensions – Side View
A: 3.15 in
(80 mm)
B: 4.33 in
(110 mm)
C: 2.44 in
(62 mm)
D: 3.62 in
(92 mm)
E: 2.76 in
(70 mm)
F: 0.79 in
(20 mm)
G
H
I
Figure 6. Case Dimensions – Bottom View
G: 0.87 in
(22 mm)
H: 0.80 in
(20 mm)
I: 2.17 in
(55 mm)
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 14
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
14
Figure 7. PDA6845 Pipe Mounting Kit
The PDA6845 pipe mounting kit may be used to
mount a PD662 to a 2" pipe. The kit includes an
8.20 in (208 mm) x 4.10 in (104 mm) mounting
panel with a 2" U-bolt and all necessary
mounting hardware.
Troubleshooting
Due to the many features and functions of the
meter, it’s possible that the setup of the meter
does not agree with what an operator expects to
see. If the meter is not working as expected,
refer to the recommendations described below.
Troubleshooting Tips
Symptom
Check/Action
No display or faint
display
1. Check
connections.
2. Perform hard
reset by
temporarily
shorting S+ and
S- terminals for a
few seconds.
Rate display
unsteady
Increase filter setting
in Advanced menu.
Meter displays error
message during
calibration (err)
Check:
1. Signal
connections
2. Minimum input
span
requirements
Meter flashes
• 2999
• -1999
Check:
1. Input signal
within scaled
range of 2999
and -1999.
Display stuck flashing
a number and HI or
LO
Press Menu to exit
Max/Min
display readings.
Display response is
too slow
Check filter setting to
see if it can be
lowered to LO or OFF.
If the display locks up
or the meter does not
respond at all
Perform hard reset by
temporarily shorting
S+ and S- terminals
for a few seconds
and then removing
short.
Backlight does not
appear.
Check:
1. Meter has a
backlight
installed.
2. Signal
connections are
as shown i
n
Figure 3 on
page
6.
Other symptoms not
described above
Call Technical
Support for
assistance.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 15
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
15
Quick User Interface Reference Guide
Scale
Run Mode
Calibrate
Display
Max/Min
dd.dd
in2
d1
in1
ddd.d
dddd
d.ddd
Pushbutton Function
Menu Go to Programming Mode, leave Programming Mode, and Max/Min
Mode. Hold for 5 seconds to access Advanced Features.
Right Arrow Move to next digit or decimal point position. Reset Min/Max.
Up Arrow Move to next selection or increment digit. Go to Max/Min Mode.
Enter Accept selection/value and move to next selection.
Max/Min Mode
While in Run Mode, pressing Up Arrow will initiate Max/Min Mode. Up Arrow toggles
between Max & Min displays, and Right Arrow resets the Max/Min to the current
value. Press Menu or wait 10 seconds to return to Run Mode. Pressing Enter will
disable the 10 second timeout and continuously flash Max or Min.
Decimal
d2
Program
Run
Max &
Min
Advanced
Features
Up Arrow
Menu
Menu
Menu
Menu
Operational Modes
in2
d1
in1
d2
*Access by pressing Right arrow twice
Press & hold Menu for 5
seconds to access Advanced
Features Menu
Filter
Initial
Calibrate
Information
*Factory
Defaults
Hold
Menu
Function
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 16
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
16
This page intentionally left blank
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 17
EU Declaration of Conformity
Issued in accordance with ISO/IEC 17050-1:2004.
We,
Precision Digital Corporation
233 South Street
Hopkinton, MA 01748 USA
as the manufacturer, declare under our sole responsibility that the product(s),
Model PD662 Survivor Series Loop Powered Meter
to which this declaration relates, is in conformity with the European Union Directives
shown below:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
This conformity is based on compliance with the application of harmonized or applicable
technical standards and, when applicable or required, a European Union notified body
certification.
Standards:
EN 61010-1:2001
EN 61326:2006
The standards EN 61010-1:2001, and EN 61326:2006 are no longer harmonized.
The requirements of these standards have been checked against the harmonized
standards EN 61010-1:2010, and EN 61326:2013 and there were no major technical
changes affecting the latest technical knowledge for the products listed above.
Product Markings:
Signed for and on behalf of Precision Digital Corporation:
Name: Jeffrey Peters
Company: Precision Digital Corporation
Title: President
Date: 04/20/2016
Document No: DoC PD662 {042016}
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 18
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual
PRECISION DIGITAL CORPORATION
LIM662_I
SFT054 Ver 1.800 & up
12/18
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
