Precision Digital PD6701 User guide

Download
Page 1

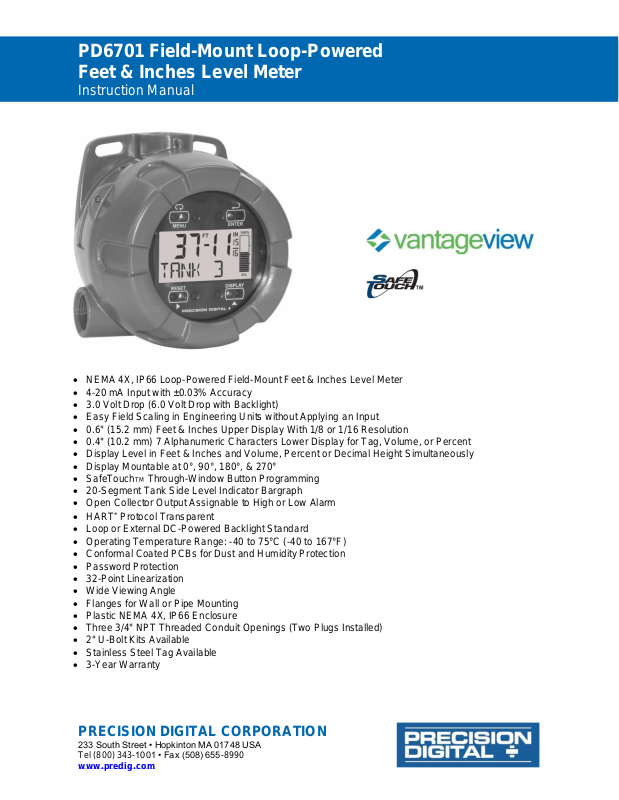

PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
PRECISION DIGITAL CORPORATION
www.predig.com
• NEMA 4X, IP66 Loop-Powered Field-Mount Feet & Inches Level Meter
• 4-20 mA Input with ±0.03% Accuracy
• 3.0 Volt Drop (6.0 Volt Drop with Backlight)
• Easy Field Scaling in Engineering Units without Applying an Input
• 0.6" (15.2 mm) Feet & Inches Upper Display With 1/8 or 1/16 Resolution
• 0.4" (10.2 mm) 7 Alphanumeric Characters Lower Display for Tag, Volume, or Percent
• Display Level in Feet & Inches and Volume, Percent or Decimal Height Simultaneously
• Display Mountable at 0°, 90°, 180°, & 270°
• SafeTouchTM Through-Window Button Programming
• 20-Segment Tank Side Level Indicator Bargraph
• Open Collector Output Assignable to High or Low Alarm
• HART® Protocol Transparent
• Loop or External DC-Powered Backlight Standard
• Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Conformal Coated PCBs for Dust and Humidity Protection
• Password Protection
• 32-Point Linearization
• Wide Viewing Angle
• Flanges for Wall or Pipe Mounting
• Plastic NEMA 4X, IP66 Enclosure
• Three 3/4" NPT Threaded Conduit Openings (Two Plugs Installed)
• 2" U-Bolt Kits Available
• Stainless Steel Tag Available
• 3-Year Warranty
Page 2
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
2
Disclaimer
The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof; and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
• Read complete instructions prior to installation and operation of the meter.
• Risk of electric shock or personal injury.
• This product is not recommended for life support
applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.
• Failure to follow installation guidelines could result in death or serious injury. Make sure only qualified personnel perform the installation.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Limited Warranty
Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under
“Specifications” from the date of shipment from the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. See Warranty Information and Terms & Conditions on www.predig.com for complete details.
© 2020 Precision Digital Corporation. All rights reserved.

Introduction

The PD6701 is a rugged, field-mount, loop-powered indicator specifically designed for level applications in harsh environmental conditions. The meter displays level in easy to read and understand feet, inches, and fractions of an inch; and a 20-segment tank level indicator. The lower display can show a custom unit or tag, percent full, or a second scale for the 4-20 mA input used to indicate volume.
The meter derives all of its power from the 4-20 mA loop. It is programmed using the four SafeTouch through-window buttons, without removing the cover, and can be scaled with or without a calibration signal. The upper display will read up to 699 ft. – 11 15/16 inches. The alphanumeric volume/tag display will read up to 9,999,999. The alphanumeric display can also be programmed to show any combination of numbers and letters up to seven characters long for use as engineering units and/or the process identification tag. The backlight lets you see the display under any lighting condition and can be powered from either the 4-20 mA loop or from a separate DC power supply.
The enclosure is provided with three threaded conduit holes and integrated pipe or wall mounting slotted flanges.

Ordering Information

Model
Description
PD6701-0K1
Explosion-Proof Loop-Powered Feet & Inches Level Meter with backlight
Accessories
Model
Description
PDAPLUG75P
3/4" NPT Plastic Conduit Plug
PDA1024-01
24 VDC Power Supply for DIN Rail
PDA6846
Steel 2" U-Bolt Kit. All Material: Zinc Plated Steel; (1) U-Bolt for 2" Pipe with (2 each) Washers, Lock Washers, and Nuts.
PDA6846-SS
Stainless Steel 2" U-Bolt Kit. All Material: Stainless Steel; (1) U-Bolt for 2" Pipe with (2 each) Washers, Lock Washers, and Nuts.
PDA-SSTAG
Custom Stainless Steel Tag (see website for convenient ordering form)
Page 3
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
3

Table of Contents

Introduction .......................................................................................................... 2
Ordering Information ........................................................................................... 2
Table of Contents................................................................................................. 3
Specifications....................................................................................................... 5
General ............................................................................................................. 5
Input .................................................................................................................. 5
Open Collector Output .................................................................................... 5
Safety Information ............................................................................................... 6
Installation ............................................................................................................ 6
Unpacking ........................................................................................................ 6
Pre-Installed Conduit Plug .............................................................................. 6
Mounting .......................................................................................................... 6
Dimensions ...................................................................................................... 6
Connections ..................................................................................................... 7
Wiring Diagrams .............................................................................................. 8
External Acknowledge Connection................................................................ 8
Open Collector Output Connections.............................................................. 8
Setup and Programming ..................................................................................... 9
Overview ........................................................................................................... 9
SafeTouch Buttons .......................................................................................... 9
SafeTouch Button Operation ......................................................................... 9
SafeTouch Button Tips and Troubleshooting ................................................ 9
Buttons and Display ...................................................................................... 10
Main Menu Display Functions & Messages ................................................ 11
Main Menu ...................................................................................................... 11
Setting Up the Meter (SETUP) ........................................................................ 12
Setting Numeric Values ............................................................................... 12
Scaling the Meter (SCaLe) ........................................................................... 13
Selecting Inch Fraction Display Mode (FRACTN) .......................................... 13
Scaling the Tank Level Indicator (PERCENT) ................................................ 13
Configuring the Lower Display (DISPLAY) ................................................... 14
Setting the Tag (TAG)................................................................................... 14
Advanced Features Menu (ADVANCE) ........................................................... 15
Advanced Features Menu & Display Messages.......................................... 15
Alarm Output (OUTPUT) ................................................................................ 17
Input Signal Filter (FILTER) ......................................................................... 17
Volume Display Scaling (VOLSCAL) ............................................................. 17
Level Input Live Signal Calibration (LVL CAL) ............................................. 18
Internal Calibration (ICAL) ........................................................................... 18
Level Input Multipoint Linearization (MULTIPT) ............................................ 18
Information (INFO) ....................................................................................... 18
Setting Up the Password (PASSWRD) ............................................................ 19
Locking the Meter ........................................................................................ 19
Making Changes to a Password Protected Meter ....................................... 19
Disabling Password Protection.................................................................... 19
Operation ............................................................................................................ 20
Front Panel Buttons Operation .................................................................... 20
Display Maximum, Minimum, and Input Current ........................................ 20
Reset Meter to Factory Defaults ................................................................... 20
Factory Defaults & User Settings ................................................................. 21
Troubleshooting................................................................................................. 21
Troubleshooting Tips .................................................................................... 21
Quick User Interface Reference........................................................................ 22
Page 4
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
4
Table of Figures
Figure 1. Enclosure Dimensions – Front View .................................................... 6
Figure 2. Enclosure Dimensions – Side Cross Section View ............................ 6
Figure 3. Connector Board.................................................................................... 7
Figure 4. Connections without Backlight ............................................................ 8
Figure 5. Connections with Loop-Powered Backlight ........................................ 8
Figure 6. Connections with Externally-Powered Backlight.................................. 8
Figure 7. External Alarm Reset/Acknowledge Connections ............................. 8
Figure 8. Connection to Device with Internal Pull-Up ........................................ 8
Figure 9. Output Connections .............................................................................. 8
Page 5
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
5

Specifications

Except where noted all specifications apply to operation at +25°C.

General

Display
Feet & Inches
0.60" (15.2 mm) high 0 to 699FT 1115/16 IN 7-segment, programmable 1/16 or 1/8 fraction display
Seven characters (Tag &/or Volume)
0.4" (10.2 mm) high 14-segment, 7-digits Tank Level Indicator
20-segments
Display Orientation
Display may be mounted at 90° increments up to 270° from default orientation.
Display Assignment
Upper display: Feet & inches Lower display may be assigned to custom unit
or tag, volume, volume and tag, percent height, percent height and tag, or off.
Display Update Rate
Ambient > -25°C: 2 Updates/Second Ambient < -25°C: 1 Update/5 Seconds
Backlight
White; Loop-powered or externally powered. Backlight can be enabled or disabled via alternative wiring of terminal block. Loop­powered backlight brightness will increase as the input signal current increases. Externally powered backlight has consistent brightness.
Externally Powered Backlight
Voltage Range:
Maximum Power
9-36 VDC
9 VDC
12 VDC
24 VDC
36 VDC
0.2 W 0.25 W
0.5 W 0.75 W
Overrange And Underrange
Level display flashes to 699FT 1115/16 IN Volume display flashes 9999999 if overrange,
-999999 if underrange.
Programming Method
Four SafeTouch through-window buttons when cover is installed. Four internal pushbuttons when cover is removed.
Noise Filter
Programmable low (LO), medium (MED), high (HI), or off (OFF)
Recalibration
Recalibration is recommended at least every 12 months.
Max/Min Display
Max/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
Password
Programmable password restricts modification of programmed settings.
Non-Volatile Memory
All programmed settings are stored in non­volatile memory for a minimum of ten years if power is lost.
Normal Mode Rejection
64 dB at 50/60 Hz
Environmental
Operating temperature range: -40 to 75°C Storage temperature range: -40 to 75°C Relative humidity: 0 to 90% non-condensing
Connections
Screw terminals accept 12 to 22 AWG wire
Enclosure
NEMA 4X, IP65 plastic field enclosure Color: grey Three ¾" NPT threaded conduit openings. Two ¾" NPT plastic conduit/stopping plug with
1.29" wrenching flats and screwdriver slot.
Mounting
May be mounted directly to conduit. Two slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting. See Dimensions on page 6.
Overall Dimensions
5.67" x 5.25" x 4.18" (W x H x D) (144 mm x 133 mm x 106 mm)
Weight
1.65 lbs (26.4 oz, 0.75 kg)
Warranty
3 years parts and labor. See Warranty Information and Terms & Conditions on
www.predig.com for complete details.

Input

Input
4-20 mA
Accuracy
±0.03% of calibrated span ±1 count
Maximum Voltage Drop & Equivalent Resistance
Without Backlight or with Externally Powered Backlight
With Loop-Powered Backlight
3.0 VDC @ 20 mA
6.0 VDC @ 20 mA
150 Ω @ 20 mA
300 Ω @ 20 mA
Temperature Drift
50 PPM/C from -40 to 75C ambient
Multi-Point Linearization
2 to 32 points, level and volume independently programmed.
Minimum Span
Input 1 & Input 2: 0.10 mA
Calibration Range
An Error message will appear if input 1 and input 2 signals are too close together.
Input Range
Minimum Span Input 1 & Input 2
4-20 mA
0.10 mA
Input Overload
Over current protection to 2 A max.
HART Transparency
The meter does not interfere with existing HART communications; it displays the 4-20 mA primary variable and it allows the HART communications to pass through without interruption. The meter is not affected if a HART communicator is connected to the loop. The meter does not display secondary HART variables.

Open Collector Output

Rating
Isolated open collector, sinking NPN 30 VDC @ 150 mA max.
Alarm Output
Assign to level or volume for high or low alarm trip point.
Deadband
0-100% FS, user selectable
Acknowledge
Front panel ENTER button and external RESET terminals resets output and screen indication.
Page 6
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
6

Safety Information

• Read complete instructions prior to installation and operation of the meter.
• Installation and service should be performed only by trained service personnel. Service requiring replacement of internal components must be performed at the factory.
• If the meter is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead.

Installation

Wiring connectors are accessed by opening the enclosure. To access electrical connectors, remove the 2 captive screws, then disconnect the ribbon cable from the display module and set the display module aside.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Pre-Installed Conduit Plug

The PD6701 is supplied with two pre-installed conduit plugs for installations that do not require the use of all three conduit entries.
• In hazardous areas, conduit and conduit/stopping plugs require the application of non-setting (solvent free) thread sealant. It is critical that all relevant hazardous area guidelines be followed for the installation or replacement of conduit or plugs.

Mounting

The PD6701 has two slotted mounting flanges that may be used for pipe mounting or wall mounting. Alternatively, the unit may be supported by the conduit using the conduit holes provided.
Refer to Figure 1 and Figure 2.
• Do not attempt to loosen or remove flange bolts while the meter is in service.

Dimensions

All units: inches [mm]
Figure 1. Enclosure Dimensions – Front View
Figure 2. Enclosure Dimensions –
Side Cross Section View
Page 7
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
7

Connections

To access the connectors, remove the enclosure cover and unscrew the two captive screws that fasten the display module. Disconnect the ribbon cable and remove the display module. Signal connections are made to a four-terminal connector in the base of the enclosure.
SIGNAL +
4-20 mA signal input positive terminal connection
SIGNAL -
4-20 mA signal return/negative terminal connection when not using loop powered backlight.
BACKLIGHT +
+9-30 VDC when powering backlight from external supply.
BACKLIGHT -
4-20 mA signal return/negative terminal when using the installed loop powered backlight or ground/negative when powering backlight from external supply.
OUTPUT+
NPN open collector output positive.
OUTPUT-
NPN open collector output negative.
RESET +
Contact closure alarm acknowledge pull up to 3 VDC.
RESET-
Contact closure alarm acknowledge ground/negative.
Refer to Figure 3 for terminal positions.
• Observe all safety regulations. Electrical wiring should be performed in accordance with all agency requirements and applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.
• Static electricity can damage sensitive components.
• Observe safe handling precautions for static-sensitive components.
• Use proper grounding procedures/codes.
• If the meter is installed in a high voltage
environment and a fault or installation error occurs, high voltage may be present on any lead or terminal.

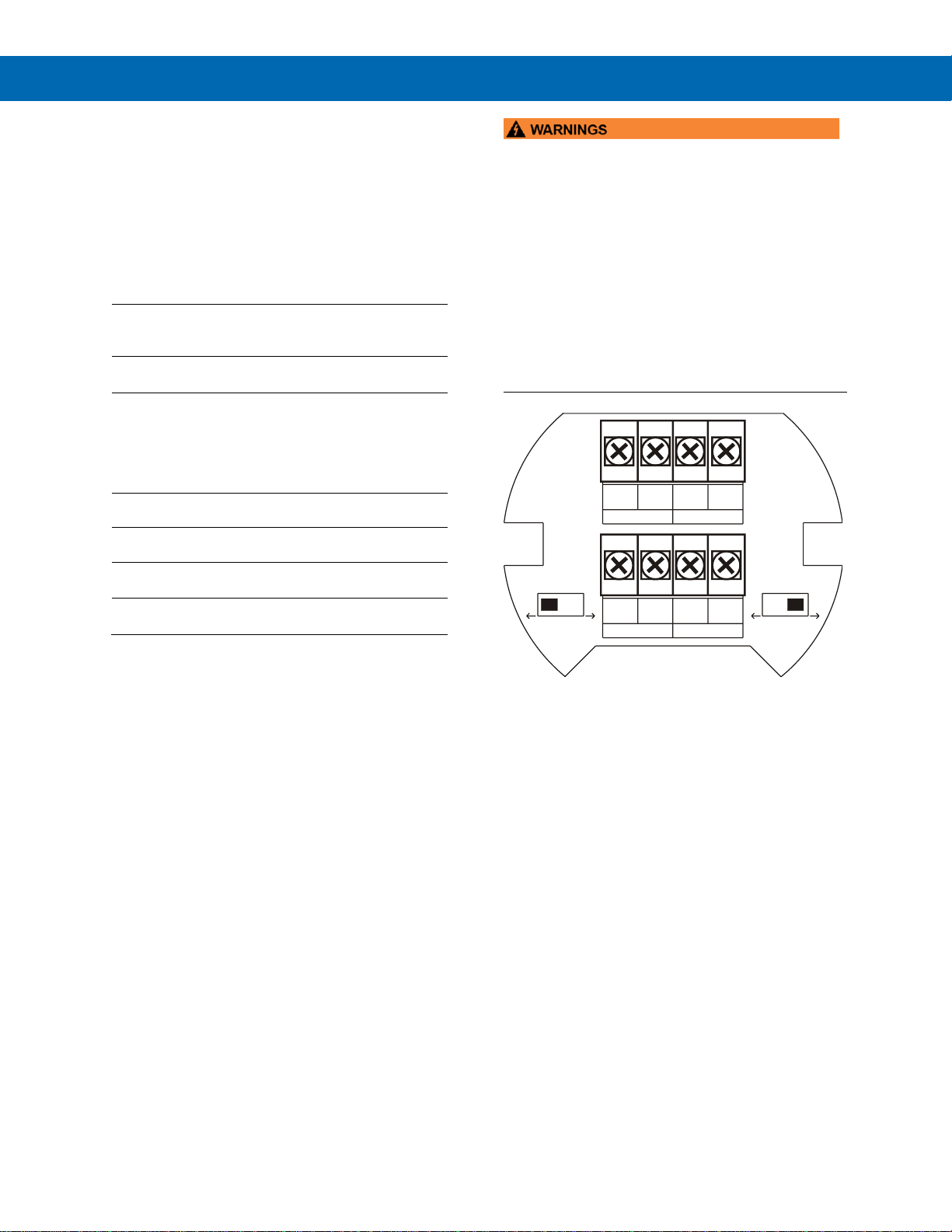

Figure 3. Connector Board
SAFE-TOUCH
BUTTONS
BACKLIGHT
POWER
UNLOCK LOCK
LOOP
9-36 VDC
+
-
+
-
SIGNAL BACKLIGHT
+
-
+
-
OUTPUT RESET
Page 8
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
8

Wiring Diagrams

Signal connections are made to a four-terminal connector mounted in the base of the enclosure per Figure 3. Connector Board. The enclosure also provides one internal and one external earth grounding screw.
For installations that don’t use the backlight, the
maximum voltage drop is 3 V and connections are made per Figure 4.
For installations that use the backlight powered from the meter, the maximum voltage drop is 6 V and connections are made per Figure 5. For installations that use the backlight powered from an external source, the maximum voltage drop is 3 V and connections are made per Figure 6.

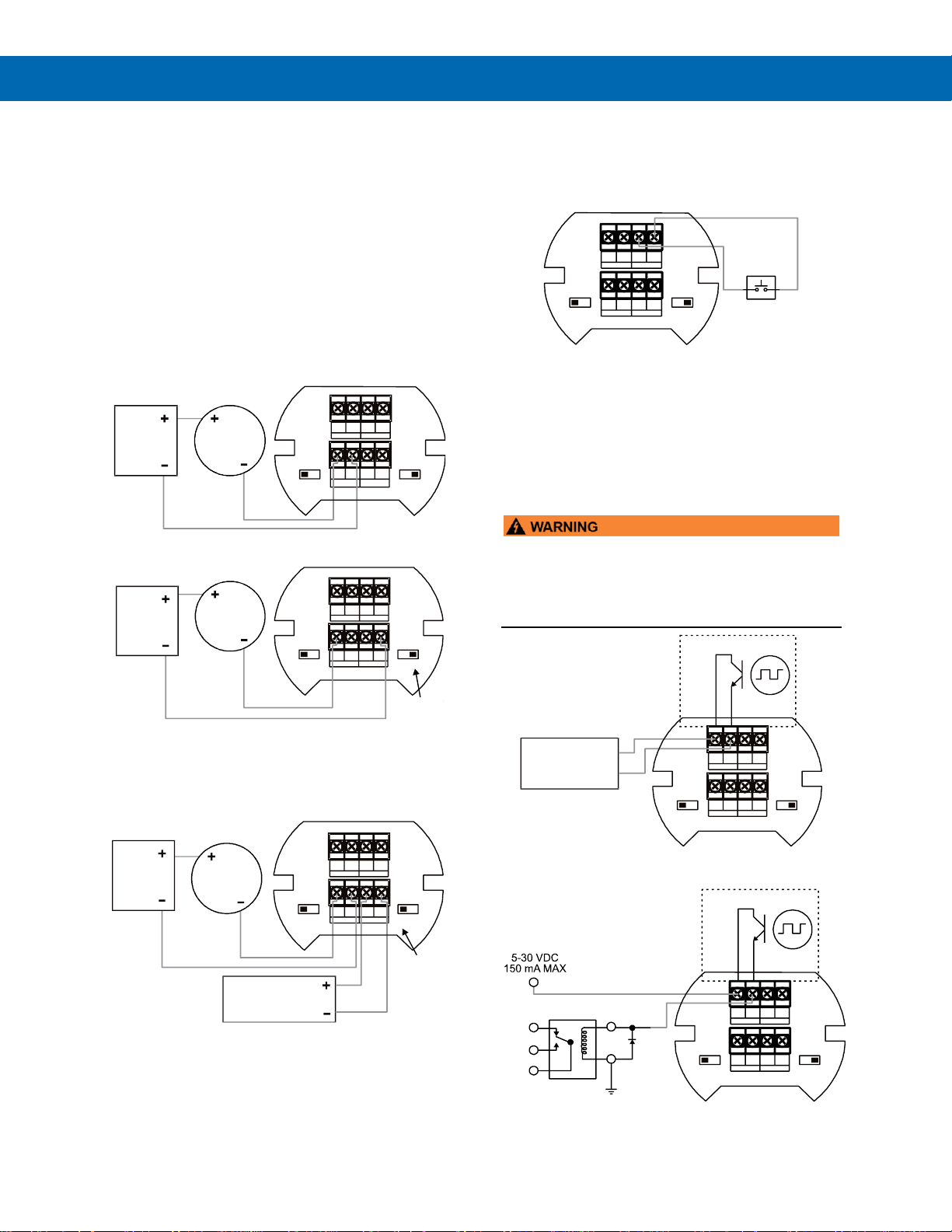

Figure 4. Connections without Backlight
Figure 5. Connections with Loop-Powered Backlight
Loop-powered backlight brightness will increase as the input signal current increases. If constant backlight brightness is desired, the backlight should be powered by an external source.
Figure 6. Connections with Externally-Powered Backlight
It is possible to use the same transmitter (signal loop) power supply for the externally powered backlight. The backlight circuit will draw 25 mA in addition to the loop circuit.

External Acknowledge Connection

External acknowledge connections are made to two terminals labeled RESET. Connect to a contact closure source such as a relay or a pushbutton as shown in Figure 7.
Figure 7. External Alarm Reset/Acknowledge
Connections

Open Collector Output Connections

Output connections are made to two terminals labeled OUTPUT. Connect to an input device such as alarm indicator as shown in Figure 8 or drive a relay as shown in Figure 9.
• To avoid damaging the PD6701’s amplifying components, use care not to wire incorrectly or exceed output ratings. A diode, such as 1N4000 series, will provide protection from relay transients.
Figure 8. Connection to Device with Internal Pull-Up
Figure 9. Output Connections
4-20 mA
Transmitter
+
-
+
-
SIG NAL BACKLIG HT
Power
Supply
UNLOCK LOCK
SAFE -TO UCH
BUTTONS
LOOP9-36
VDC
BACKLIG HT
POW ER
+
-
+
-
OU TPUT RESET
UNLOCK LOCK
SAFE-TO UCH
BUTTONS
LOOP9-36
VDC
BACKLIG HT
POW ER
4-20 mA
Transmitter
+
-
+
-
SIGN AL BAC KLIGHT
Slide Switch to
LOOP
Power Supply
+
-
+
-
OU TPUT RESET
4-20 mA
Transmitter
+-+
-
SIGN AL BACKLIGHT
Slide Switch to
9-36 VDC
Power Supply
Power Supply
+
-
+
-
OU TPUT RESET
UNLOCK LOCK
SAFE-TO UCH
BUTTONS
LOOP9-36
VDC
BACKLIG HT
POW ER
+
-
+
-
SIGNAL BACKL IGHT
+
-
+
-
OU TPUT RESET
UNLOCK LOCK
SAFE-TO UCH
BUTTONS
LOOP9-36
VDC
BACKLIGHT
POW ER
+
-
+
-
SIGNAL BAC KLIGHT
+
-
+
-
OUT PUT RESET
+
Alarm Recorder or Annunciator (e.g. PD8-158)
-
UNLOCK LOCK
SAFE-TOUCH
BUTTONS
LOOP9-36
VDC
BACKLIG HT
POW ER
+-+
-
SIGNAL BAC KLIGHT
+-+
-
OU TPUT RESET
UNLOCK LOCK
SAFE-TO UCH
BUTTONS
LOOP9-36
VDC
BACKLIG HT
POW ER
Page 9
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
9

Setup and Programming

There is no need to recalibrate the meter for milliamps when first received from the factory.
The meter is factory calibrated for milliamps prior to shipment. The calibration equipment is traceable to NIST standards.

Overview

Setup and programming is done through the infrared through-window SafeTouch buttons or using the mechanical buttons when uncovered. There are two slide switches located on the connector board. One is used to select backlight power and the other is to lock or unlock the SafeTouch Buttons.
After all connections have been completed and verified, connect the ribbon cable to the display module, fasten the display module to the base, install enclosure cover, and then apply power.

SafeTouch Buttons

The PD6701 is equipped with four sensors that operate as through-window buttons so that it can be programmed and operated without removing the cover and exposing the electronics to the environment. These buttons can be disabled for security by selecting the LOCK setting on the SAFE­TOUCH BUTTONS switch located on the connector board in the base of the enclosure.

SafeTouch Button Operation

To actuate a button, press and remove one finger to the window directly over the marked button area. Remove finger to at least 4 inches away from the window in between button activations. SafeTouch and mechanical buttons may be held to cycle through menus or digits in place of repeatedly pushing a button. The sensors are disabled when a mechanical button is pressed and will automatically be re-enabled after 60 seconds of inactivity.

SafeTouch Button Tips and Troubleshooting

The SafeTouch buttons are designed to filter normal levels of ambient interference and to protect against false triggering, however, it is recommended that the SafeTouch buttons be disabled (slide switch to LOCK) if there is an infrared interference source in line-of­sight to the display.
SafeTouch Button Tips:
• To the extent possible, install the display facing away from sunlight, windows, reflective objects and any sources of infrared interference.
• Keep the window clean.
• Tighten the cover securely.
• Use a password to prevent tampering.
• If the cover has not been installed and secured
tightly, it may take a moment for the SafeTouch buttons to properly self-calibrate when the cover is tightened.
• SafeTouch buttons will not work if two or more buttons are detected as being pressed simultaneously. As a result, be careful to avoid triggering multiple buttons or reaching across one button location to press another.
Page 10
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
10

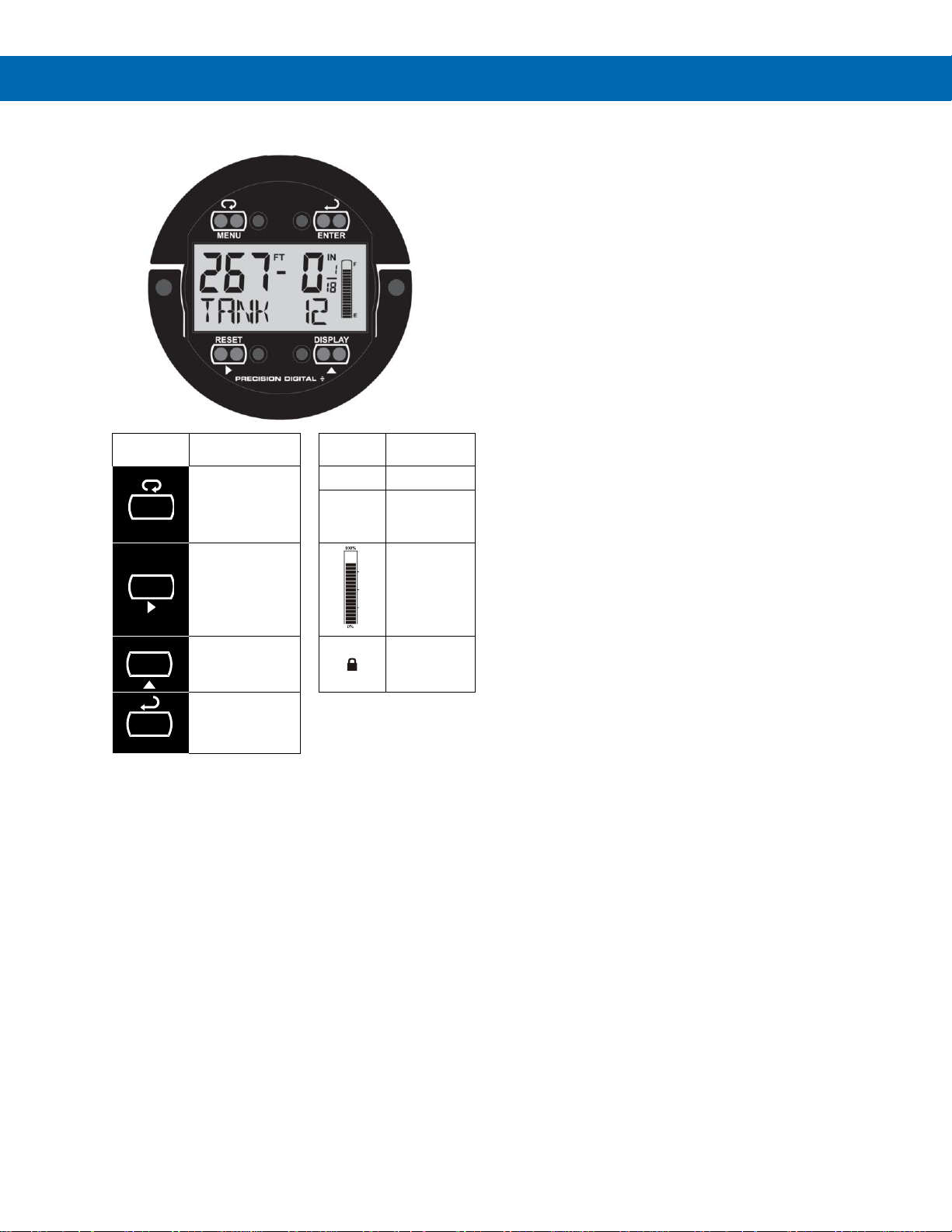

Buttons and Display

Button Symbol
Description
Symbol
Status
Menu
FT
Feet
IN
Inches and Fractional Inches
Right arrow/ Reset
20-Segment Tank Level Indicator Bargraph
Up arrow/ Display
Password Enabled
Enter/ Alarm Acknowledge
Menu Button
• Press the Menu button to enter Programming
Mode.
• Press the Menu button during Programming
Mode to return to the previous menu selections.
• Hold the Menu button for 1.5 seconds at any
time to exit Programming Mode and return to Run Mode.
• Press and hold the Menu button for 5 seconds
to access the Advanced Features of the meter.
Right / Reset Button
• Press the Right arrow button to reset the
maximum or minimum value while it is being displayed (see Up / Display Button below).
• Press the Right arrow button to move to the
next digit or decimal position during programming.
• Press Right to go backward through most
selection menus.
Up / Display Button

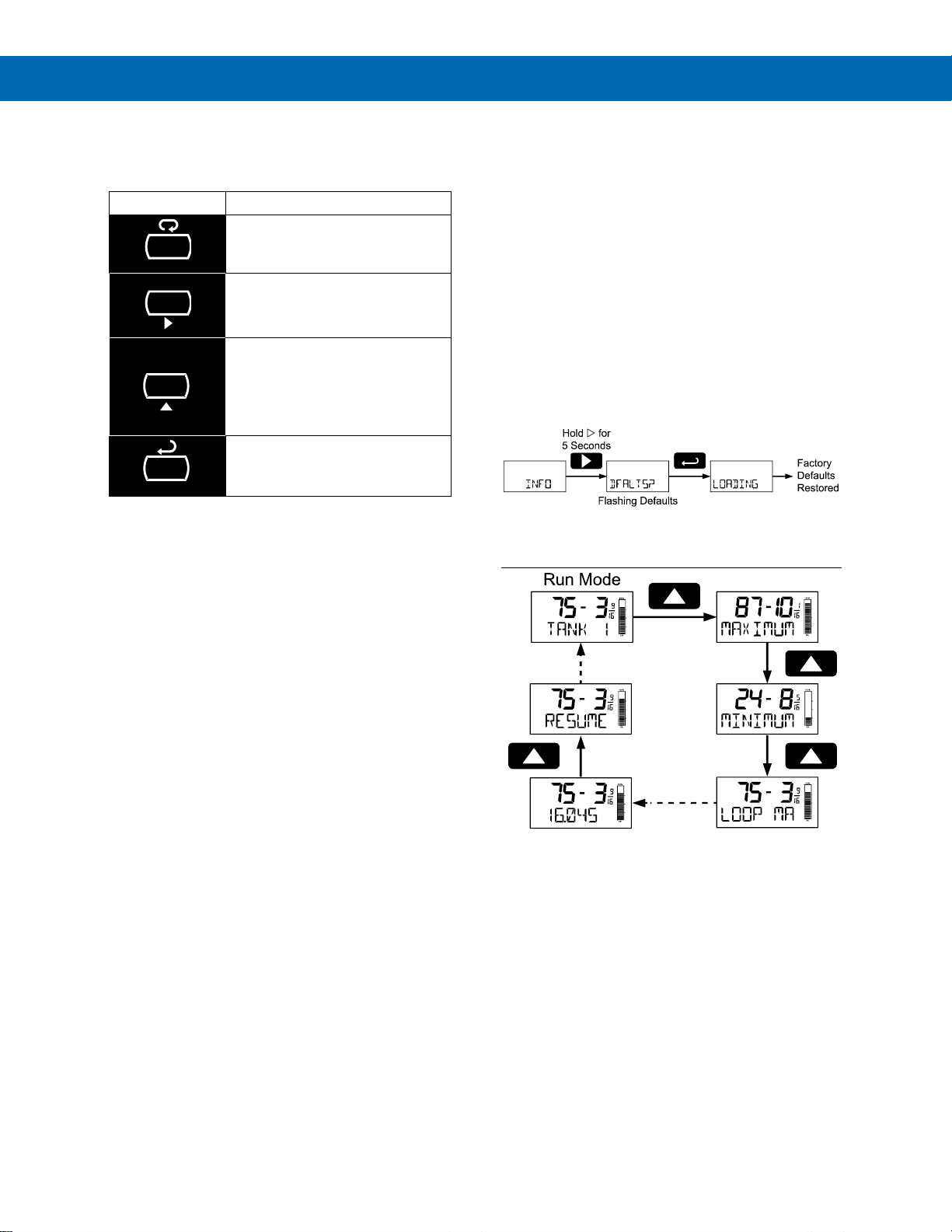

• Press Display when in Run Mode to cycle
through displaying the maximum value, minimum value, and the loop input value in mA. The display will time out in 12 seconds. Press Display again to resume normal lower display operation (lower display will read RESUME).
• Press the Up arrow button to scroll forward
through the menus, decimal point, or to increment the value of a digit.
Enter Button
• Press the Enter button to access a menu or to
accept a setting.
• Press Enter to acknowledge alarm (if enabled).
MENU
RESET
DISPLAY
ENTER
Page 11
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
11

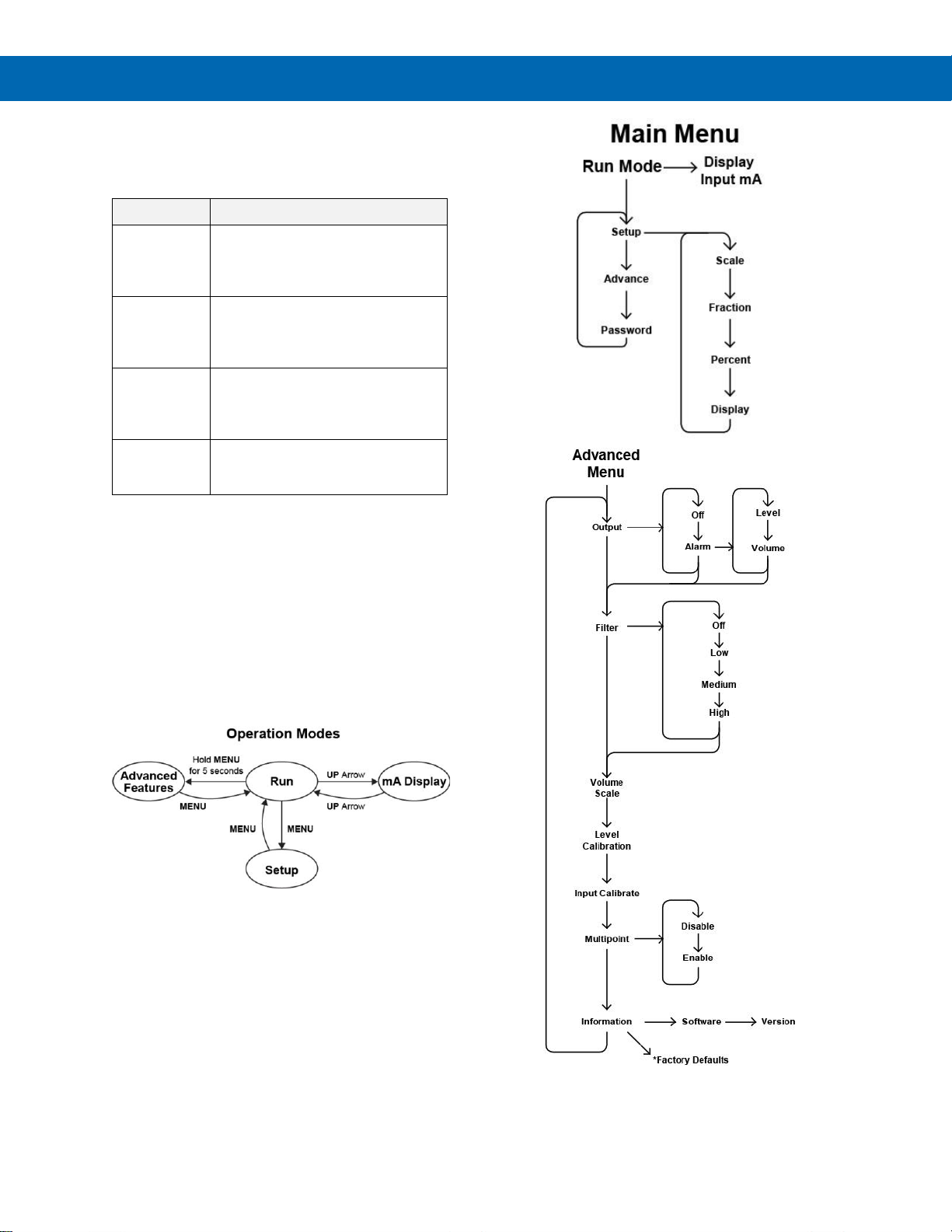

Main Menu Display Functions & Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.
Display
Parameter
Action/Setting
SETUP
Setup
Enter Setup menu
SCALE
Scale
Enter the Scale menu for feet and inches
INPUT 1
Input 1
Set input 1 value in mA
DSPLY 1
Display 1
Set display 1 feet and inches
INPUT 2
Input 2
Set input 2 value in mA
DSPLY 2
Display 2
Set display 2 feet and inches
SAVE ?
Save
Save entered scale parameters
SPN ERR
Span Error
Scale point 1 and 2 span error
FRACTN
Fraction
Enter the Program menu
1/16th
1/16th
Set display for 1/16th inch fractions
OFF
Off
Turn off inch fraction display
1/8th
1/8th
Set display for 1/8th inch fractions
PERCENT
Percent
Scale the tank indicator full and empty values
0 PCT
0 Percent
Set the tank empty value
100 PCT
100 Percent
Set the tank full value
DISPLAY
Display
Enter Lower Display menu
TAG
Tag
Display a custom unit or tag
VOLUME
Volume
Display volume
VOL+TAG
Volume + Tag
Display volume and custom tag
PCT HT
Percent Height
Display percent height
PCT+TAG
Percent Height + Tag
Display percent height and custom tag

Main Menu

The main menu consists of the most commonly used functions: Setup, Advanced, and Password.

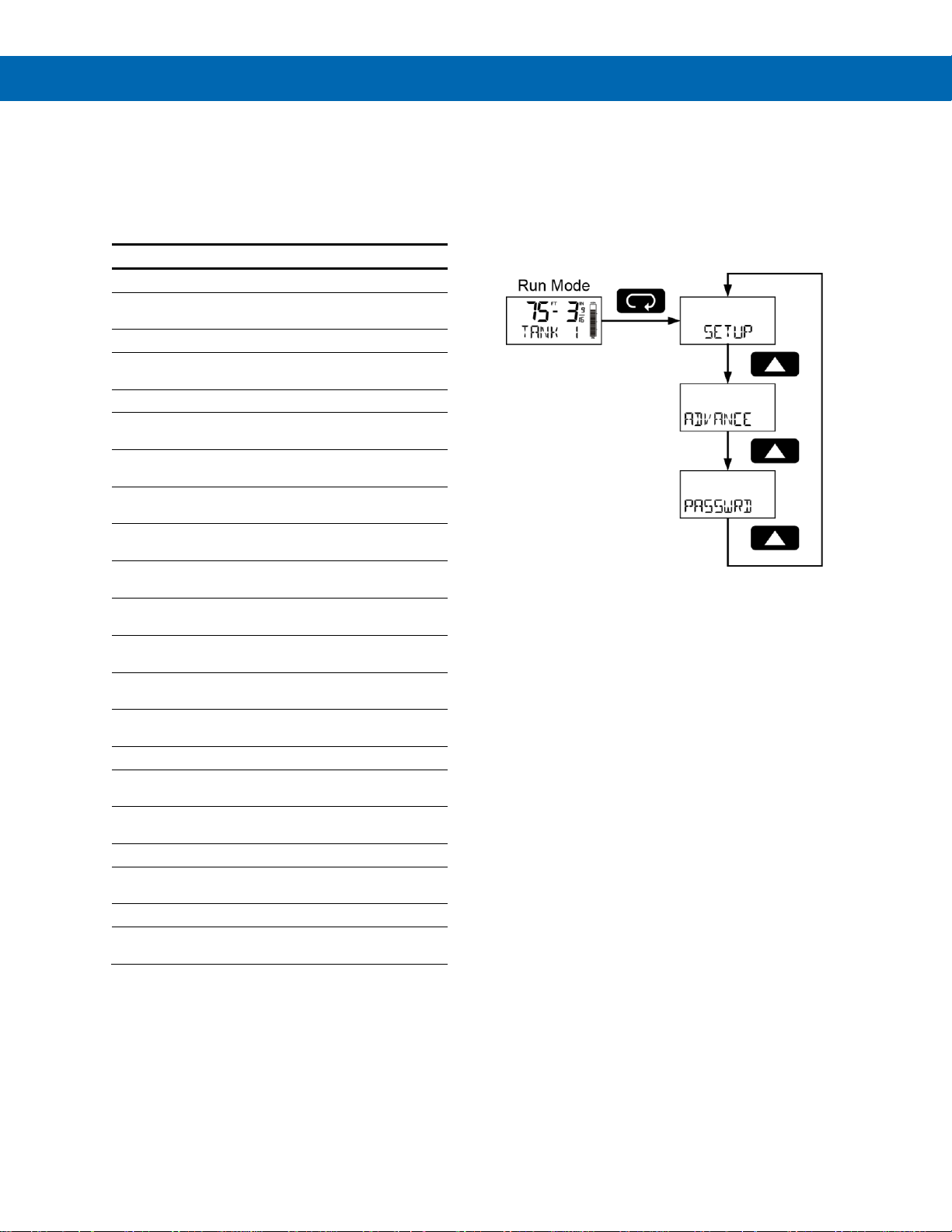

Press MENU button to enter Programming Mode then press the Up Arrow button to scroll through the main menu.
Hold MENU, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing ENTER are not saved.
Press the MENU button during Programming Mode to return to the previous menu selections.
Changes to the settings are saved to memory only after pressing ENTER.
The display moves to the next menu every time a setting is accepted by pressing ENTER.
Page 12
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
12

Setting Up the Meter (SETUP)

The Setup menu is used to select:
1. Feet and inches display scale
2. Inch fraction display mode
3. Tank indicator full value
4. Lower display selection

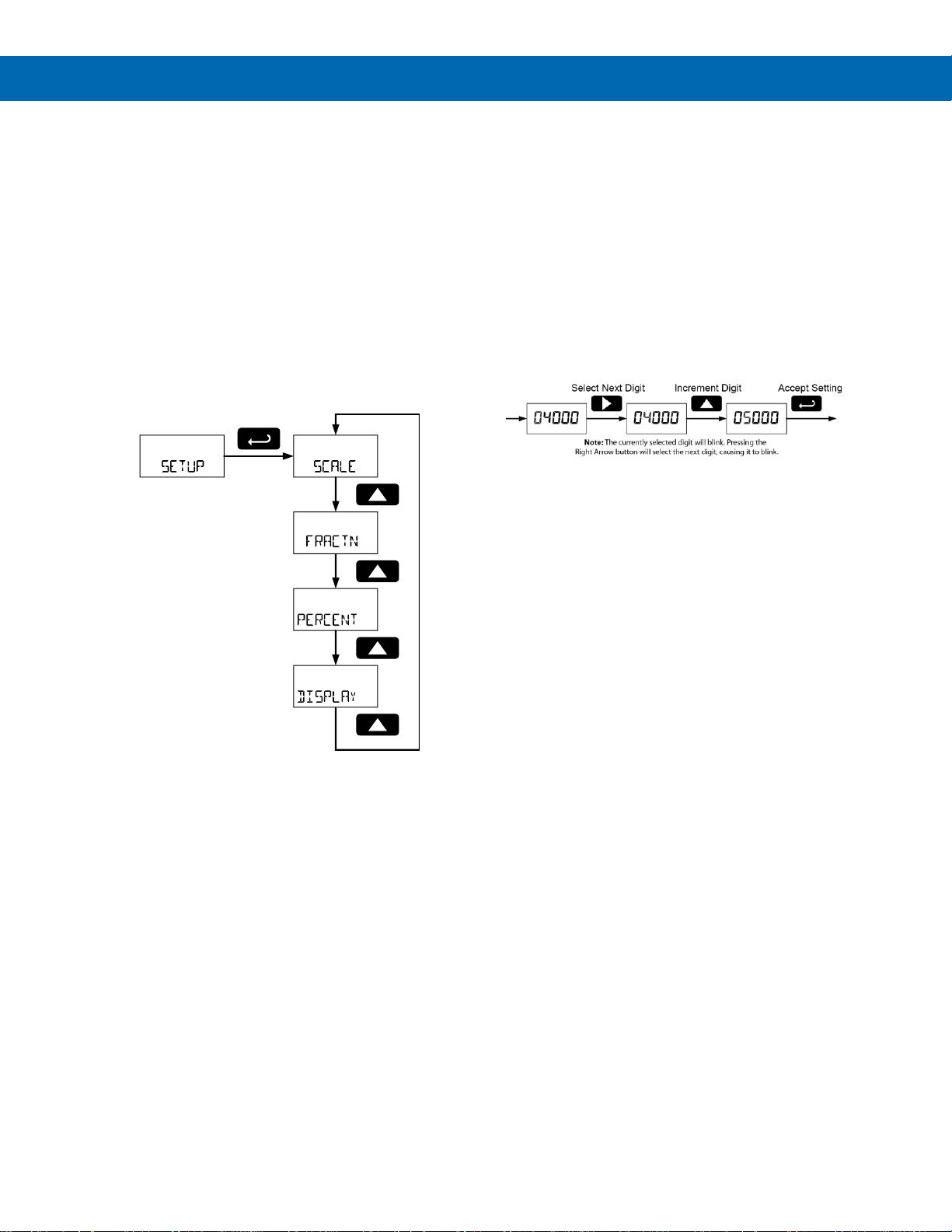

Press the ENTER button to access any menu or press UP arrow button to scroll through choices.
Hold MENU, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing ENTER are not saved.
Press the MENU button during Programming Mode to return to the previous menu selections.

Setting Numeric Values

The numeric values are set using the RIGHT and UP arrow buttons. Press RIGHT arrow to select next digit and UP arrow to increment digit.
The digit being changed blinks. Press the ENTER button, at any time, to accept a
setting. Hold MENU, at any time, to exit and return to Run
Mode. Changes made to settings prior to pressing ENTER are not saved.
Press the MENU button during Programming Mode to return to return to the previous menu selections.
Page 13
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
13

Scaling the Meter (SCaLe)

The 4-20 mA input can be scaled to display the process in engineering units. To scale the meter, enter the value in milliamps (mA) for input 1, and then the corresponding engineering units display value. Do the same for input 2.
After entering the display 2 value, confirm the new scale by pressing ENTER at the Save menu.
A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.
For instructions on using multipoint scaling, see Level Input Multipoint Linearization (MULTIPT), page 18.
For instructions on how to program numeric values see Setting Numeric Values on page 12.
Minimum Input Span
The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter. The minimum span is 0.10 mA.
Scale Error Message (SPN ERR)
If the minimum span is not maintained, the meter will show a span error (SPN ERR) and revert to input 2, allowing the appropriate input signals to be applied.

Selecting Inch Fraction Display Mode (FRACTN)

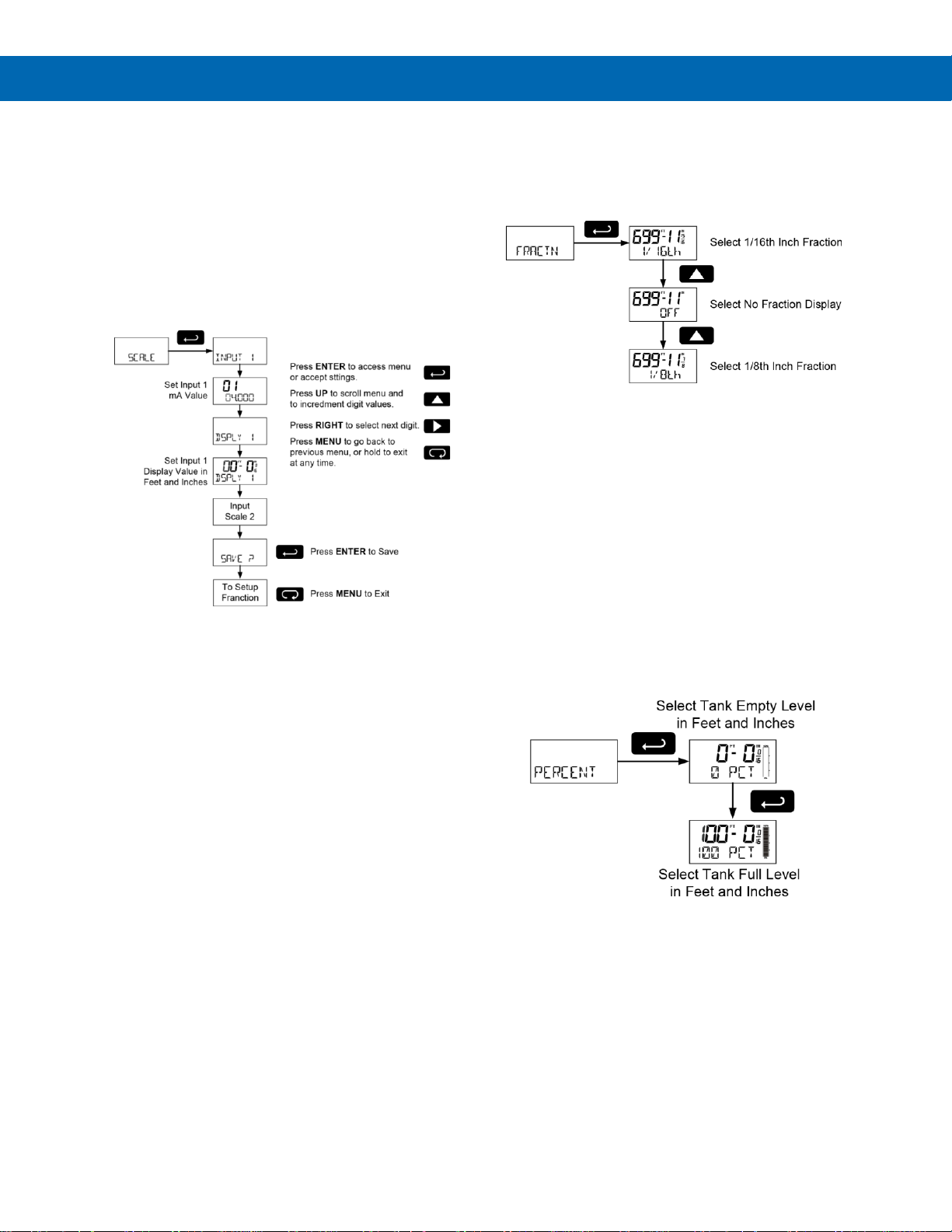

The display may be programmed to display fractions of an in 1/8th or 1/16th increments, or to show no fraction.

Scaling the Tank Level Indicator (PERCENT)

The display includes a 20-segment tank height indicator. This menu sets full and empty values, in feet and inches, for the tank height indicator.
This value may differ from the 20 mA full-scale and 4 mA empty-scale values programmed in the Scale menu. This is ideal for level transmitters that output less than 20 mA at the maximum height of the tank or pit or more than 4 mA at the minimum height.
As an example, when using a level transmitter that outputs 20 mA at 250 feet, the tank height indicator may be set for 100 feet, 0 inches. At 100 feet 0 inches on the display, the tank height indicator will show as full, even though the input is not 20 mA.
Page 14
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
14

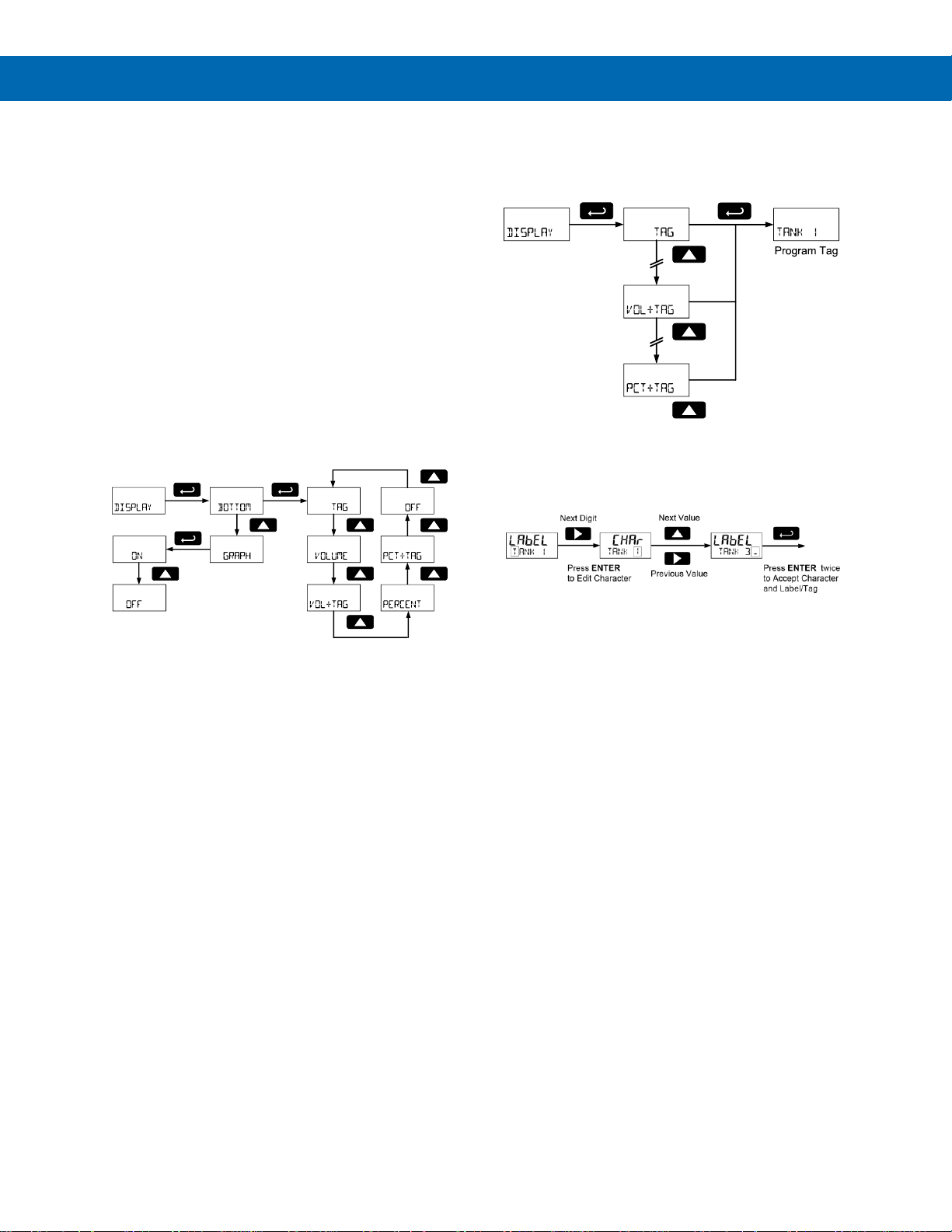

Configuring the Lower Display (DISPLAY)

The lower display may be configured to display a custom tag (TAG), volume (VOLUME), volume and tag (VOL+TAG), percent of full height (PCT HT), or percent of full height and tag (PCT+TAG) or be blank (OFF).
A custom tag may be up to seven alphanumeric characters programmed for identification (e.g. TANK
3) or for engineering units (e.g. GALLONS). Volume is a separate, second scale of the input
process variable. This is configured in Volume Display Scaling (VOLSCAL) on page 17.
Percent full height shows the percent full of the tank height level indicator programmed in the Scaling the Tank Level Indicator (PERCENT) menu, on page 13.
The tank level indicator (GRAPH) may also be turned on or off from the display menu.

Setting the Tag (TAG)

Any lower display setting that includes a tag will require the tag to be entered.
The fully alphanumeric values for the tag are set using the RIGHT button to select the digit, the UP and RIGHT arrow buttons to select the digit reading, and the ENTER button to confirm and select the next digit.
Page 15
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
15

Advanced Features Menu (ADVANCE)

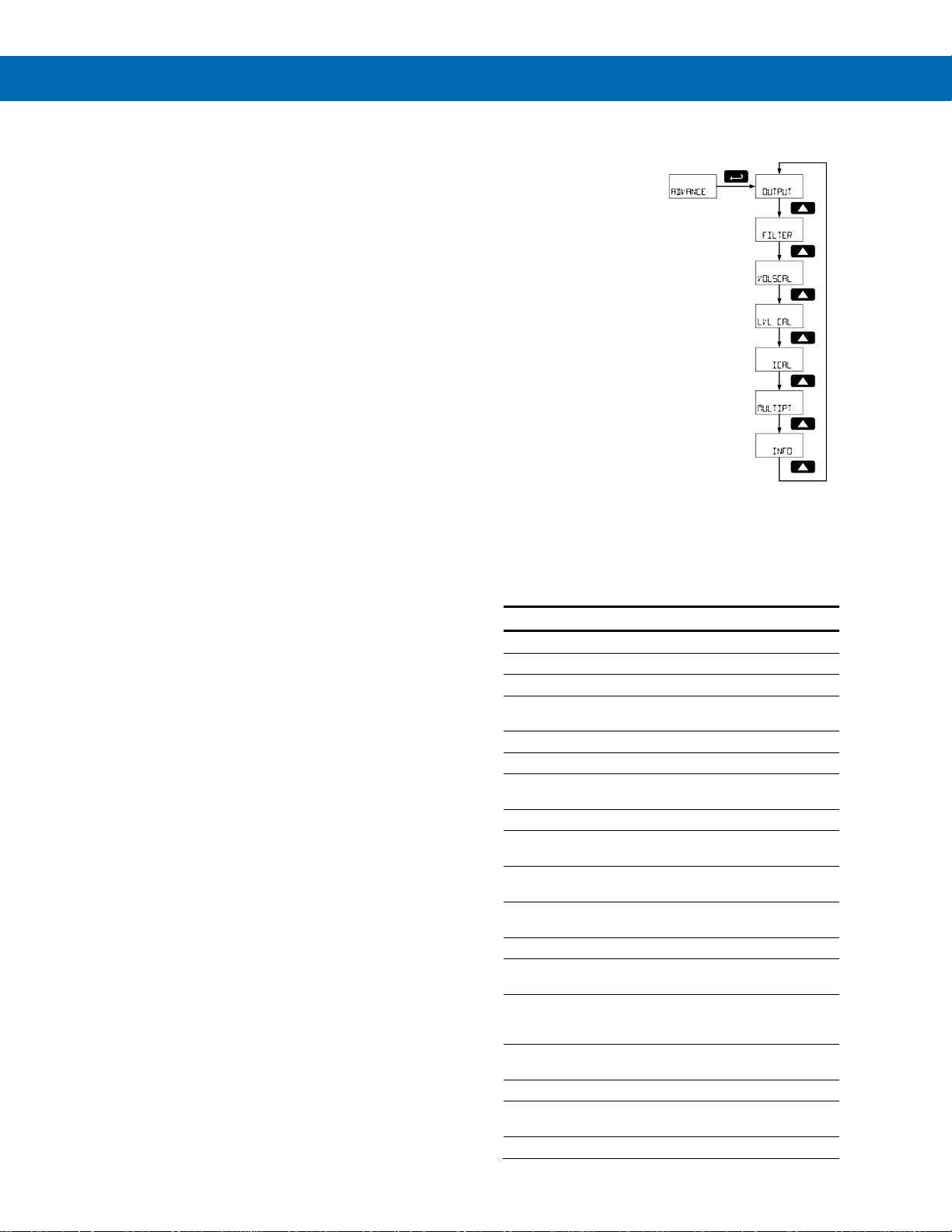

To simplify the setup process, functions not needed for most applications are located in the Advanced Features Menu. Access the Advanced Features Menu by pressing ENTER at the ADVANCE menu in the
Main Menu defined on page 11. The Advanced Features Menu is used to select:
1. Open collector
output configuration (OUTPUT)
2. Input filter (FILTER)
3. Volume display
scale (VOLSCAL)
4. Live signal level
display calibration (LVL CAL)
5. Internal Calibration
(ICAL)
6. Multipoint
linearization for level (MULTIPT)
7. Meter system
information display (INFO)

Advanced Features Menu & Display Messages

The following table shows the Advanced features menu functions and messages in the order they appear in the menu.
Display
Parameter
Action/Setting
OUTPUT
Output
Enter output menu
OFF
Off
Disable output
ALARM
Alarm Output
Enter alarm output menu
LEVEL
Level Alarm
Assign alarm output to level
SET
Set Point
Set alarm set point
RESET
Reset Point
Set alarm reset point
VOLUME
Volume Alarm
Assign alarm output to volume
FILTER
Filter
Set noise filter
LO
Filter Low
Set noise filter to low setting
MED
Filter Medium
Set noise filter to medium setting
HI
Filter High
Set noise filter to high setting
OFF
Filter Off
Disable noise filter
VOLSCAL
Volume Scale
Scale the volume display
NO PTS
Number of Points
Set the number of points for volume scaling
INPUT 1
Input 1
Set volume input 1 on the level display
DSPLY 1
Display 1
Set volume display 1
INPUT 2
Input 2
Set volume input 2 on the level display
DSPLY 2
Display 2
Set volume display 2
Page 16
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
16
Display
Parameter
Action/Setting
SAVE ?
Save
Save entered volume scale parameters
LVL CAL
Level Calibration
Calibrate the level display
INPUT 1
Input 1
Calibrate input 1 value
DSPLY 1
Display 1
Set display 1 feet and inches
INPUT 2
Input 2
Calibrate input 2 value
DSPLY 2
Display 2
Set display 2 feet and inches
SAVE ?
Save
Save entered calibration parameters
ICAL
Internal Calibration
Enter internal reference calibration
4mA
4 mA
Calibrate input at 4 mA
20mA
20 mA
Calibrate input at 20 mA
ERRSPAN
Error Span
Error with calibration point 1 and 2 span
MULTIPT
Multipoint
Set level display multipoint linearization
DISABLE
Disable
Disable multipoint linearization
ENABLE
Enable
Enable multipoint linearization
INFO
Meter Information
Show software number and version, or reset to factory defaults
SOFT
Software
Software number
VERSION
Software Version
Software version
For instructions on how to program numeric
values, see Setting Numeric Values on page 12.
Page 17
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
17

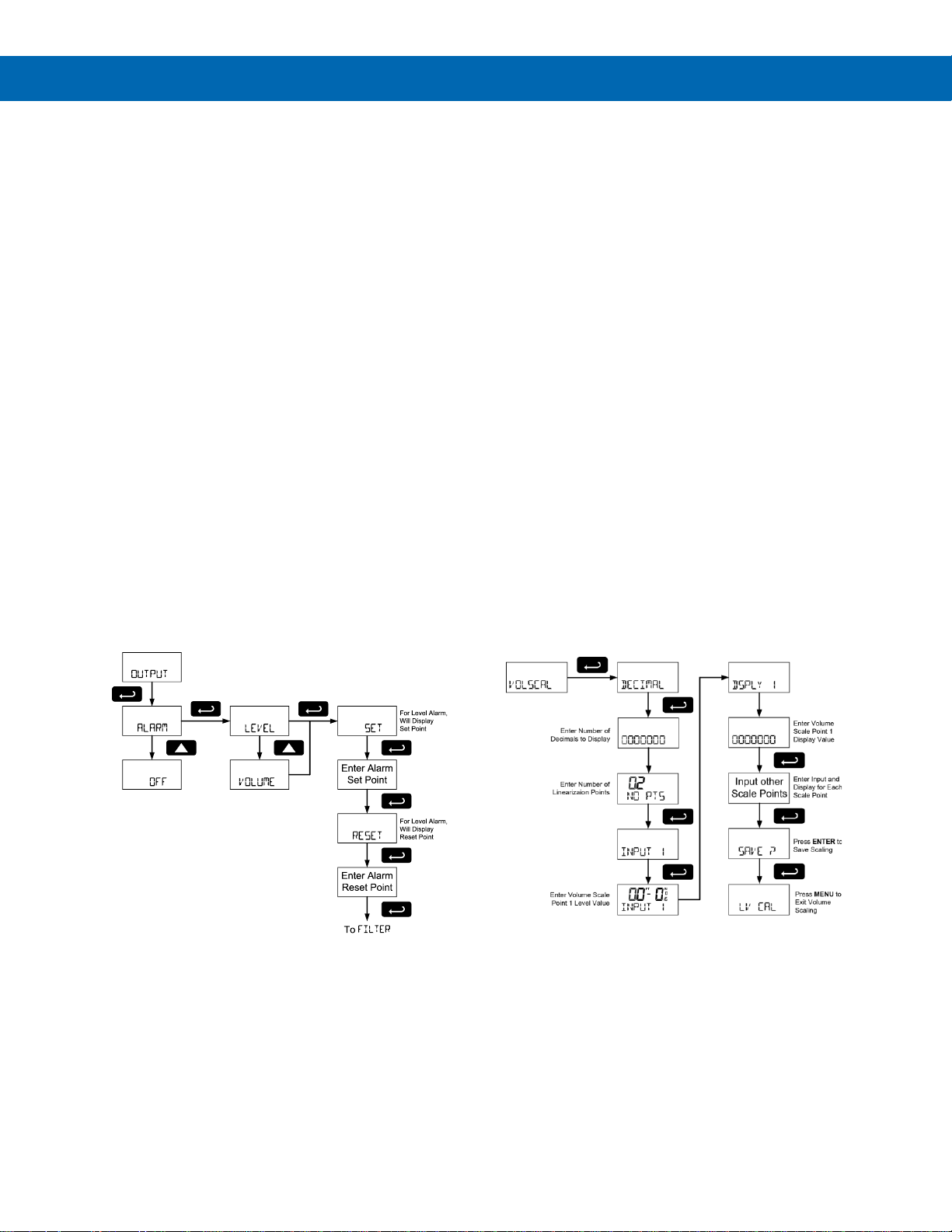

Alarm Output (OUTPUT)

The PD6701 is equipped with an NPN open collector output that may be set up for high or low alarm trip point based on the level display (LEVEL) or the volume scale (VOLUME). The output may be disabled by selecting OFF.
When the alarm is enabled for level and the alarm set point has been reached, the level display will flash, accompanied by the lower display alternating between normal display and ALARM. A tank height indicator segment will flash at the level the alarm is set to while the level indicator is at or above the alarm point.
When the alarm is enabled for volume and the alarm set point has been reached, the lower display will flash, alternating between its normal display and ALARM.
To set a high alarm, program the set point value to be greater than the reset point.
To set a low alarm, program the set point value to be less than the reset point.
To acknowledge an alarm, press the ENTER button once for acknowledge prompt and a second time to confirm. Acknowledging an alarm will turn off the alarm output and stop the display from flashing. The lower display will continue to alternate between its normal display and ALARM until the alarm condition is cleared.
The alarm status will show on the display even if the output is not wired.

Input Signal Filter (FILTER)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level can be set to low (LO), medium (MED), high (HI), or off (OFF). The higher the filter setting, the longer the averaging time and so the longer the display may take to find its final value.
The filter contains a noise filter bypass feature so that while small variations in the signal will be filtered out, large, abrupt changes to the input signal are displayed immediately.

Volume Display Scaling (VOLSCAL)

Volume may be scaled as a function of the feet and inches level display. It may use up to 32-point linearization. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks.
To display the volume, select a lower display including the volume display in the Display menu as shown in Configuring the Lower Display (DISPLAY) on page 14.
To scale the volume display, enter the level in feet and inches for input 1, and then the corresponding volume display value. Do the same for input 2.
After entering the display 2 value, confirm the new volume scale by pressing ENTER at the Save menu.
Page 18
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
18

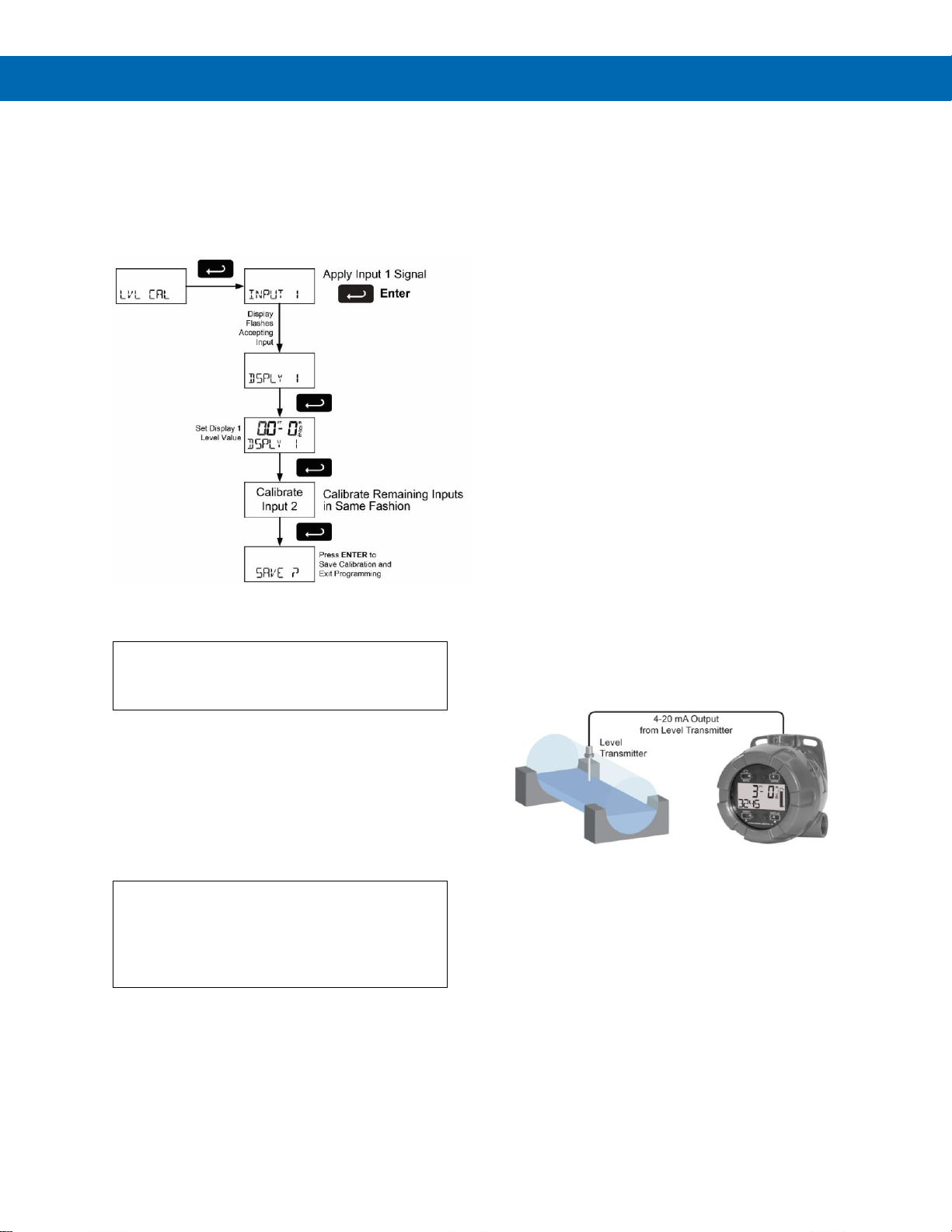

Level Input Live Signal Calibration (LVL CAL)

The meter can be calibrated using a current source instead of scaling. This process will override previously programmed scaling of the level display.
The use of a calibrated signal source is strongly recommended.

Internal Calibration (ICAL)

There is no need to recalibrate the meter when first received from the factory. The meter is factory calibrated prior to shipment. The calibration equipment is traceable to NIST standards
The internal calibration is the meter’s master calibration that makes scaling the meter without a signal source possible. Use of a calibrated signal source is necessary to perform an internal calibration of the meter. Check calibration of the meter at least every 12 months. Incorrect calibration will affect the ability of the meter to properly read, scale, and display the input.
Notes:
The signal source must have a full-scale accuracy of 0.002% or better between 4 and 20 mA in order to maintain the specified accuracy of the meter.
Allow the meter to warm up for at least 15 minutes before performing the calibration procedure.
Press and hold the MENU button for 5 seconds to enter the Advanced Features menu. Press the UP arrow button to scroll to the Internal Calibration menu (ICAL) and press ENTER.
The meter displays 4 mA. Apply a 4.000 mA signal and press ENTER. The display flashes for a moment while the meter is accepting the signal.
After the signal is accepted, the meter displays 20 mA. Apply a 20.000 mA signal and press ENTER. The display flashes for a moment while the meter is accepting the signal.
Calibration Error Message (SPN ERR)
An error message indicates that the calibration process was not successful. After the error message is displayed, the meter will revert to the 4 mA calibration menu. The error message might be caused by inadvertently leaving the signal at the previous level or not maintaining the minimum span. Press the MENU button to cancel the current calibration process if necessary.

Level Input Multipoint Linearization (MULTIPT)

This menu enables multipoint linearization for scaling and calibrating of the level display.
Setting MULTIPT to ENABLE allows the level display to be scaled or calibrated using up to 32 points. See
Scaling the Meter (SCaLe) on page 13 and Level Input Live Signal Calibration (LVL CAL) on page 18, to
include a Number of Points (NO PTS) parameter before entering Input 1.
32-point linearization can be used to linearize the display for non-linear signals.
PD6701 Displaying Height in Feet and Inches and
Volume (Using Multi-Point Linearization Feature) in
Gallons in a Round Horizontal Tank.

Information (INFO)

The Information menu shows the software identification number and version number.
To determine the software version of a meter: Go to the Information menu (INFO) and press ENTER
button. Continue pressing ENTER to scroll through the
software release number and software version. Following the information display, the meter will exit
the Advanced Features menu and return to run mode.
Page 19
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
19

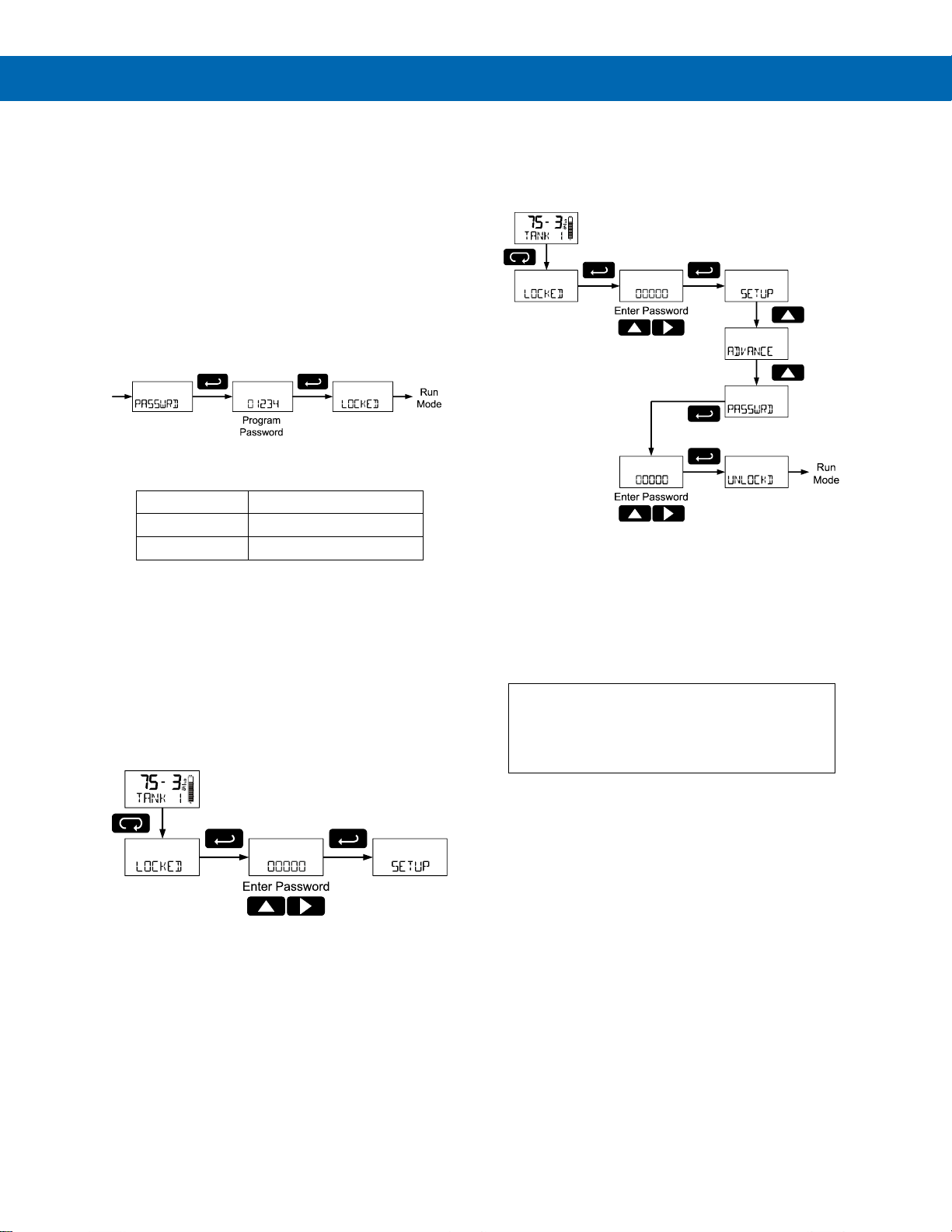

Setting Up the Password (PASSWRD)

The Password menu is used to program a five-digit password to prevent unauthorized changes to the programmed parameter settings. A password protected meter will display LOCKED when the MENU button is pressed.

Locking the Meter

Enter the Password menu and program a five-digit password.
For instructions on how to program numeric values see Setting Numeric Values, page 12.
Record the password for future reference. If appropriate, it may be recorded in the space provided.
Model:
Serial Number:
Password:
__ __ __ __ __

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message LOCKED when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access to the menu. After exiting the programming mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password, as shown below.
If the correct five-digit password is entered, the meter displays the message UNLOCKD (unlocked) and the protection is disabled until a new password is programmed.
If the password entered is incorrect, the meter displays the message LOCKED and returns to Run Mode. To try again, repeat the above procedure.
Did you forget the password?
The password may be disabled by entering a master password. If you are authorized to make changes, enter the master password 50865 to unlock the meter.
FT IN
FT IN
Page 20
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
20

Operation

Front Panel Buttons Operation

Button Symbol
Description
Press to Enter or Exit Programming Mode
Used to Reset Maximum and Minimum Values
Press to Cycle Displaying Maximum Value, Minimum Value, and Input Current in mA
Press to Resume Run Mode in Lower Display
Press to Acknowledge Alarm (if Enabled)

Display Maximum, Minimum, and Input Current

The maximum and minimum values and the measured input loop current may be displayed temporarily on the lower display. To display these values, press the DISPLAY button. The meter will display the word MAXIMUM on the lower display and the maximum value reached (since the last maximum reset) on the upper display. Press the DISPLAY button again and the meter will display the word MINIMUM on the lower display and the minimum value reached on the upper display. Pressing the RESET button while either of these values is displayed will reset that value to the current display value.
Press the DISPLAY button a third time and the meter will display LOOP MA on the lower display, followed by the measured input current in milliamps (mA). The current display will remain for 10 seconds and then the lower display will return to normal run mode as programmed in Configuring the Lower Display (DISPLAY) on page 14. Press the DISPLAY button a fourth time to return to the normal operation. The meter will display RESUME followed by the run mode lower display.

Reset Meter to Factory Defaults

When the parameters have been changed in a way
that is difficult to determine what’s happening, it might
be better to start the setup process from the factory defaults.
Instructions to load factory defaults: Enter the Advanced features menu. Press and hold RESET button when INFO is shown.
For information on navigating to the Information menu, refer to Advanced Features Menu (ADVANCE) on page 15.
Press ENTER when DFALTS? prompt is flashing. Note: If ENTER is not pressed within three seconds,
the prompt will stop flashing return to run mode.
MENU
RESET
FT IN
FT IN
FT IN
FT IN
FT IN
FT IN
DISPLAY
ENTER
Page 21
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
21

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may record the new setting for the particular application.
Model: _____________________________________ S/N: _______________________________________ Date: ______________________________________
Parameter
Display
Default Setting
User
Setting
Basic Setup
Input 1
INPUT 1
4.000 mA
Display 1
DSPLY 1
00ft 00in 0/16
Input 2
INPUT 2
20.00 mA
Display 2
DSPLY 2
100ft 00in 0/16
Fraction
FRACTN
1/16th
Tank Indicator 0%
0 PCT
0ft 00in 0/16
Tank Indicator 100%
100 PCT
100ft 00in 0/16
Display
DISPLAY
Tag
Bar Graph
GRAPH
On
Tag
TAG
TANK 1
Advanced Features
Output
OUTPUT
Off Filter
FILTER
Low
Volume Scale Number of Points
NO PTS
02
Volume Scale Input 1
INPUT 1
00ft 00in 0/16
Volume Display 1
DSPLY 1
0
Volume Scale Input 2
INPUT 2
100ft 00in 0/16
Volume Display 2
DSPLY 2
100,000
Multipoint
MULTIPT
Disable
Password
Password
PASSWRD
00000 (unlocked)

Troubleshooting

Due to the many features and functions of the meter,
it’s possible that the setup of the meter does not
agree with what an operator expects to see. If the meter is not working as expected, refer to the Diagnostics menu and consult the recommendations described below.

Troubleshooting Tips

Symptom
Check/Action
No display or faint display
Check input signal connections. Perform hard reset by shorting S+ and S- terminals.
Level display unsteady
Increase filter setting in Advanced menu.
Meter displays error message during calibration (eRROR)
Check signal connections. Verify minimum input span requirements
Level display flashing 699ft 11in.
Check input signal and scaling within range of 699ft 11in.
Meter flashes 9999999 or
-999999
Check level display within volume scale range of 9999999 and
-999999.
Display response is too slow
Check filter setting to see if it can be lowered to LO or OFF.
If the display locks up or the meter does not respond at all
Perform hard reset by shorting S+ and S- terminals.
Backlight does not appear.
Backlight may not be noticeable under good lighting conditions. Check connections are as shown in Figure 5. Connections with
Loop-Powered Backlight or Figure
6. Connections with Externally­Powered Backlight on page 8.
SafeTouch buttons do not respond
Mechanical buttons may have been pushed. The SafeTouch buttons will be re-enabled automatically 60 seconds after the last button push. If slide switch on connector board is in Lock position, switch to Unlock. Sunlight can interfere with the sensors. It is recommended to shield the window from sunlight while operating the buttons by standing so as to block direct sunlight.
Other symptoms not described above
Call Technical Support for assistance.
Page 22
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
22

Quick User Interface Reference

Pushbutton
Function
MENU
Go to programming mode or leave programming. Hold for 5 seconds to enter Advanced Features menu directly.
RIGHT
Arrow
Move to next digit. Go to previous menu or alphanumeric character selection. Reset max or min while displayed.
UP
Arrow
Move to next selection or increment digit. Cycle through maximum, minimum, and mA display mode.
ENTER
Accept selection/value and move to next selection. Acknowledge alarms.
To enter the Advanced Features Menu, hold the
Menu button for 5 seconds. Max/Min Mode
While in Run Mode, pressing Up Arrow will initiate MAX/MIN Mode. Up Arrow toggles between MAX & MIN displays, and Right Arrow resets the MAX/MIN to the current value. Press Menu or wait 10 seconds to return to Run Mode. Pressing Enter/Ack will disable the 10 second timeout and continuously display Max or Min.
*Access by holding Right/Reset for 3 seconds
Page 23
PD6701 Field-Mount Loop-Powered Feet & Inches Level Meter
Instruction Manual
PRECISION DIGITAL CORPORATION
www.predig.com
LIM6701_E
SFT087 Ver 1.300 & up
07/20
Contact Precision Digital
Technical Support
Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]
Sales Support
Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]
Place Orders
Email: [email protected]
For the latest version of this manual please visit
www.predig.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
