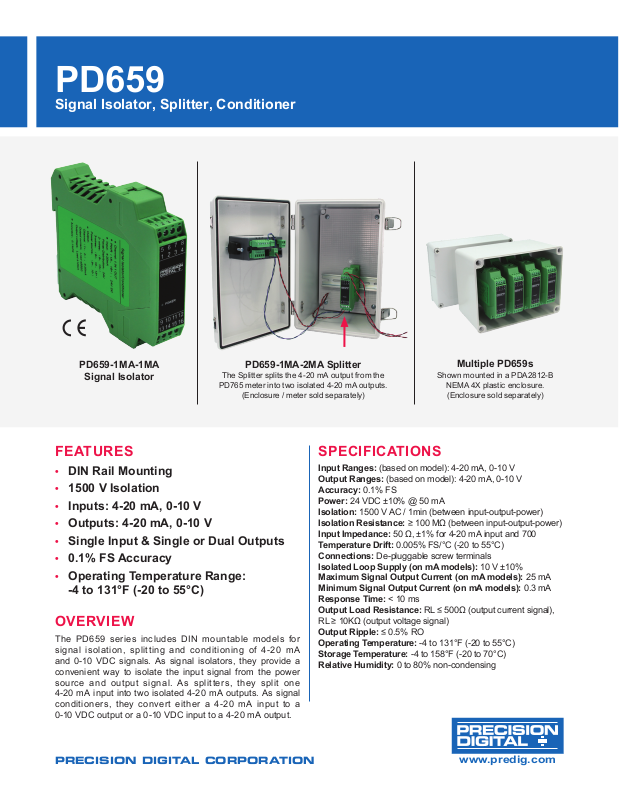

PD659

Signal Isolator, Splitter, Conditioner

PD659-1MA-1MA

Signal Isolator

PD659-1MA-2MA Splitter

The Splitter splits the 4-20 mA output from the

PD765 meter into two isolated 4-20 mA outputs.

(Enclosure / meter sold separately)

FEATURES

• DIN Rail Mounting

• 1500 V Isolation

• Inputs: 4-20 mA, 0-10 V

• Outputs: 4-20 mA, 0-10 V

• Single Input & Single or Dual Outputs

• 0.1% FS Accuracy

• Operating Temperature Range:

-4 to 131°F (-20 to 55°C)

OVERVIEW

The PD659 series includes DIN mountable models for
signal isolation, splitting and conditioning of 4-20 mA
and 0-10 VDC signals. As signal isolators, they provide a
convenient way to isolate the input signal from the power
source and output signal. As splitters, they split one
4-20 mA input into two isolated 4-20 mA outputs. As signal
conditioners, they convert either a 4-20 mA input to a
0-10 VDC output or a 0-10 VDC input to a 4-20 mA output.

Multiple PD659s

Shown mounted in a PDA2812-B

NEMA 4X plastic enclosure.

(Enclosure sold separately)

SPECIFICATIONS

Input Ranges: (based on model): 4-20 mA, 0-10 V
Output Ranges: (based on model): 4-20 mA, 0-10 V
Accuracy: 0.1% FS
Power: 24 VDC ±10% @ 50 mA
Isolation: 1500 V AC / 1min (between input-output-power)
Isolation Resistance: ≥ 100 MΩ (between input-output-power)
Input Impedance: 50 Ω, ±1% for 4-20 mA input and 700
Temperature Drift: 0.005% FS/°C (-20 to 55°C)
Connections: De-pluggable screw terminals
Isolated Loop Supply (on mA models): 10 V ±10%
Maximum Signal Output Current (on mA models): 25 mA
Minimum Signal Output Current (on mA models): 0.3 mA
Response Time: < 10 ms
Output Load Resistance: RL ≤ 500Ω (output current signal),

RL ≥ 10KΩ (output voltage signal)

Output Ripple: ≤ 0.5% RO
Operating Temperature: -4 to 131°F (-20 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Relative Humidity: 0 to 80% non-condensing

PRECISION DIGITAL CORPORATION

www.predig.com

PD659 Signal Isolator, Splitter, Conditioner

(1) 4-20 mA Input to (1) 4-20 mA Output

(1) 4-20 mA Input to (2) 4-20 mA Outputs

(1) 4-20 mA Input to (1) 0-10 V Output

(1) 4-20 mA Input to (1) 4-20 mA Output using External Power Supply

(1) 4-20 mA Input to (2) 4-20 mA Outputs

(1) 4-20 mA Input to (1) 0-10 V Output

CONNECTIONS

PD659-1MA-1MA SIGNAL ISOLATOR

(One 4-20 mA Input and One 4-20 mA Output)

Input:

4-20 mA

2-Wire Transmitter

Signal Isolator powering 2-wire transmitter input External power supply powering 2-wire transmitter input

Input:

4-20 mA

2-Wire Transmitter

Signal Splitter powering 2-wire transmitter input External power supply powering 2-wire transmitter input

13

13

9

9

13 14 15 16

5 6 7 8
1 2 3 4

9 10 11 12

13 14 15 16

5 6 7 8
1 2 3 4

9 10 11 12

1

2

Output:

4-20 mA

24 V External
Power Supply

16

15

24 V

Power Supply

Input:

4-20 mA

2-Wire Transmitter

PD659-1MA-2MA SIGNAL SPLITTER

(One 4-20 mA Input and Two 4-20 mA Outputs)

1

2

3

4

16

15

Output:

4-20 mA

Output:

4-20 mA

24 V

Power Supply

24 V External

Power Supply

Input:

4-20 mA

2-Wire Transmitter

9

10

10

9

5 6 7 8
1 2 3 4

9 10 11 12

13 14 15 16

5 6 7 8
1 2 3 4

9 10 11 12

13 14 15 16

1

2

16

15

1

2

3

4

16

15

Output:

4-20 mA

24 V

Power Supply

Output:

4-20 mA

Output:

4-20 mA

24 V

Power Supply

PD659-1MA-1V SIGNAL CONDITIONER

(One 4-20 mA Input and One 0-10 VDC Output)

1

5 6 7 8

2

1 2 3 4

9 10 11 12

13

9

13 14 15 16

16

15

Input:

4-20 mA

2-Wire Transmitter

Signal Conditioner powering 2-wire transmitter input External power supply powering 2-wire transmitter input

Output:

0-10 VDC

24 V

Power Supply

24 V External

Power Supply

4-20 mA

2-Wire Transmitter

2

Input:

9

10

5 6 7 8
1 2 3 4

9 10 11 12

13 14 15 16

1

2

16

15

Output:

0-10 VDC

24 V

Power Supply

www.predig.com

PD659 Signal Isolator, Splitter, Conditioner

(1) 0-10 V Input to (1) 4-20 mA Output

10

10

CONNECTIONS (continued)

PD659-1V-1MA SIGNAL CONDITIONER

(One 0-10 VDC Input and One 4-20 mA Output)

1

5 6 7 8

2

1 2 3 4

9 10 11 12

9

13 14 15 16

Input:

0-10 VDC

10

16

15

Signal Conditioner with voltage input

Three-Wire Transmitter Connections

5 6 7 8
1 2 3 4

9 10 11 12

13 14 15 16

Input:

4-20 mA

3-Wire Transmitter

Signal Isolator/Splitter/Conditioner powering 3-wire transmitter input

24 V External
Power Supply

13

9S

5 6 7 8
1 2 3 4

Output:

4-20 mA

24 V

Power Supply

DIMENSIONS

Units: Inches (mm)

3.9 (99)

0.9 (23)

4.5

(115)

1.4 (35)

ORDERING INFORMATION

PD659 Signal Conditioner

Model Description

PD659-1MA-1MA

PD659-1MA-2MA

PD659-1V-1MA

PD659-1MA-1V

Enclosure Series Description

PDA2300 Economical NEMA 4X Plastic

PDA2500 NEMA 4X Plastic

PDA2600 NEMA 4X Stainless Steel

PDA2700 NEMA 4X Steel

PDA2800 Smallest Footprint NEMA 4X Plastic

PDA3400 Internally Mounted NEMA 4X Plastic

Signal Isolator with One 4-20 mA Input and
One 4-20 mA Output

Signal Splitter with One 4-20 mA Input and
Two 4-20 mA Outputs

Signal Conditioner with One 0-10 VDC
Input and One 4-20 mA Output

Signal Conditioner with One 4-20 mA Input
and One 0-10 VDC Output

Enclosures

3.9

(100)

9 10 11 12

Input:

4-20 mA

3-Wire Transmitter

9S

13 14 15 16

Model Description

PDA1002

External power supply powering 3-wire transmitter input

PDA1003

Disclaimer

The info rmatio n contai ned in this documen t is subjec t to chang e without notice. Precision
Digital Corporation makes no representations or warranties with respect to the contents

hereof, and specically disclaims any implied warranties of merchantabilit y or tness for

a particular purpose.

©2020 Precision Digital Corporation. All rights reserved.

PDA1024-01 24 VDC Transmitter Power Supply

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA • Tel [phone]

Accessories

6" DIN Rail Mounting Kit
(for mounting on enclosure back plates)

7" DIN Rail Mounting Kit
(for mounting in PDA2811/PDA2812)

LIM659_B 02/20
