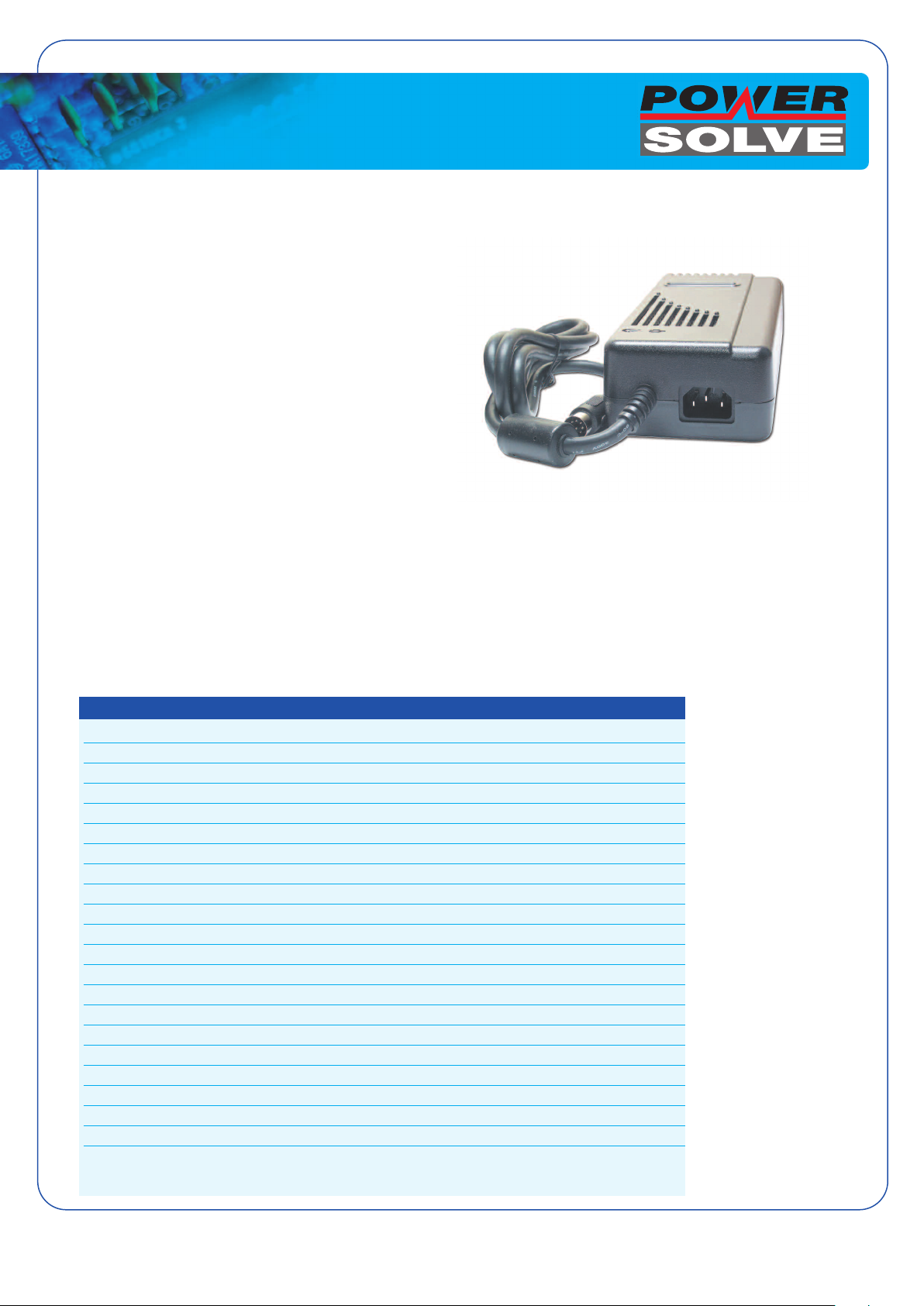

Powersolve PSE130 User Manual

Desk Top Power Supplies

PSE130 Series

83-130 Watts Switch Mode

Universal AC Input

The PSE130 series of AC/DC switching power supplies

offer up to 130 Watts of continuous output power from a

universal AC input.

All models meet CISPR class ‘B’ and FCC class ‘B’

emission limits and car

TUV(EN60950) safety approvals.

Features

• Single & dual output versions

• Optional output connectors

• 100% burn in

• Wide input voltage range of 90-264VAC

• Input Surge Current Protection

• Overvoltage Protection

• Overcurrent Protection

• Input conforms with EN1000-3-2 Power Factor Correction

ry full UL, cUL &

www.powersolve.co.uk

Specification

Input Voltage: 90-264 VAC

Input Frequency: 47-63 Hz

Input Current: 3.2A 115VAC, 1.7A 230VAC

th Leakage Current: 0.5mA typical, 0.75mA max

Ear

Output V

Output Current: See table

Output Power:

Ripple & Noise: 0.5% typical, 1% max pk-pk

Line Regulation: 0.5% typical, 1% max

Load Regulation: 3% typical, 5% max

Over Voltage Protection: 112-132% nominal current

Over Current Protection: 110-150% nominal current

Efficiency: 75-88% depending on model

T

Transient Response: 4mS 50-100% load change

Hold Up T

Operating Temperature: 0° to +70° C, derate linearly from 100% at 40° C to 50% at 70° C

Storage Temperature: -40° to +85° C

Relative Humidity:

Safety Approvals: UL, cUL, EN60950, CB & CE

EMC: Conform to EN55022’B’, FCC Part 15’B’ and CISPR 22 class ‘B’

oltage:

emperature Coefficient: All outputs ±0.04%/degree C maximum

ime:

See table

See table

16mS @ 100V

5 to 95%

AC input & full load

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:[phone] Fax: [phone] Email: [e-mail]

196.0 ±1.0

0.88 ± 0.1

5.12

0.92

AC INPUT
IEC 320 INLET

Desk Top Power Supplies

www.powersolve.co.uk

Output Voltage/Current Rating Chart - PSE130 Series

Model Output Voltage Output Current Total Regulation Max Output Power

PSE130-35-RM* 3.5VDC 28.57A 7% 100W

PSE130-05 5VDC 23A 7% 100W

PSE130-09 9VDC 14.44A 5% 130W

PSE130-12 12VDC 10.83A 5% 130W

PSE130-15 15VDC 8.67A 5% 130W

PSE130-18 18VDC 7.22A 5% 130W

PSE130-24 24VDC 5.42A 5% 130W

PSE130-48 48VDC 2.71A 5% 130W

Standard models fitted with 1.8 metre output lead fitted with 5 pin 180° din connector, except voltage below 9V which are fitted with an
8 pin din connector.

*PSE130-35-RM is fitted with remote sense on output connector

Options: Alternative output connectors available, consult sales office with your requirements.

Any voltage available within the range of 3V to 55V DC.
Some options subject to minimum order quantities.

Model Output 1 Output 2 Max Output Power

Vnom Imin Imax Total Reg. Vnom Imin Imax Total Reg.

PSE130-3312 +3.3V 4A 20A 10% +12V 0.2A 2A 5% 90W

PSE130-512 +5V 4A 20A 5% +12V 0.2A 2A 5% 120W

PSE130-515 +5V 4A 20A 5% +15V 0.2A 2A 5% 120W

PSE130-524 +5V 4A 20A 5% +24V 0.1A 2A 5% 120W

PSE130-512H +5V 2A 10A 5% +12V 1A 5A 10% 110W

Standard output connector 8 pin din connector.

Alternative connectors available, consult sales office.
