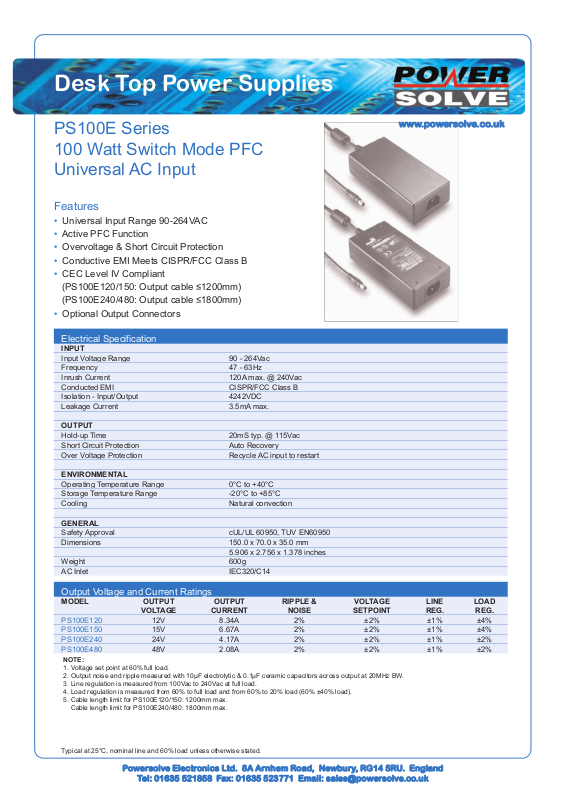

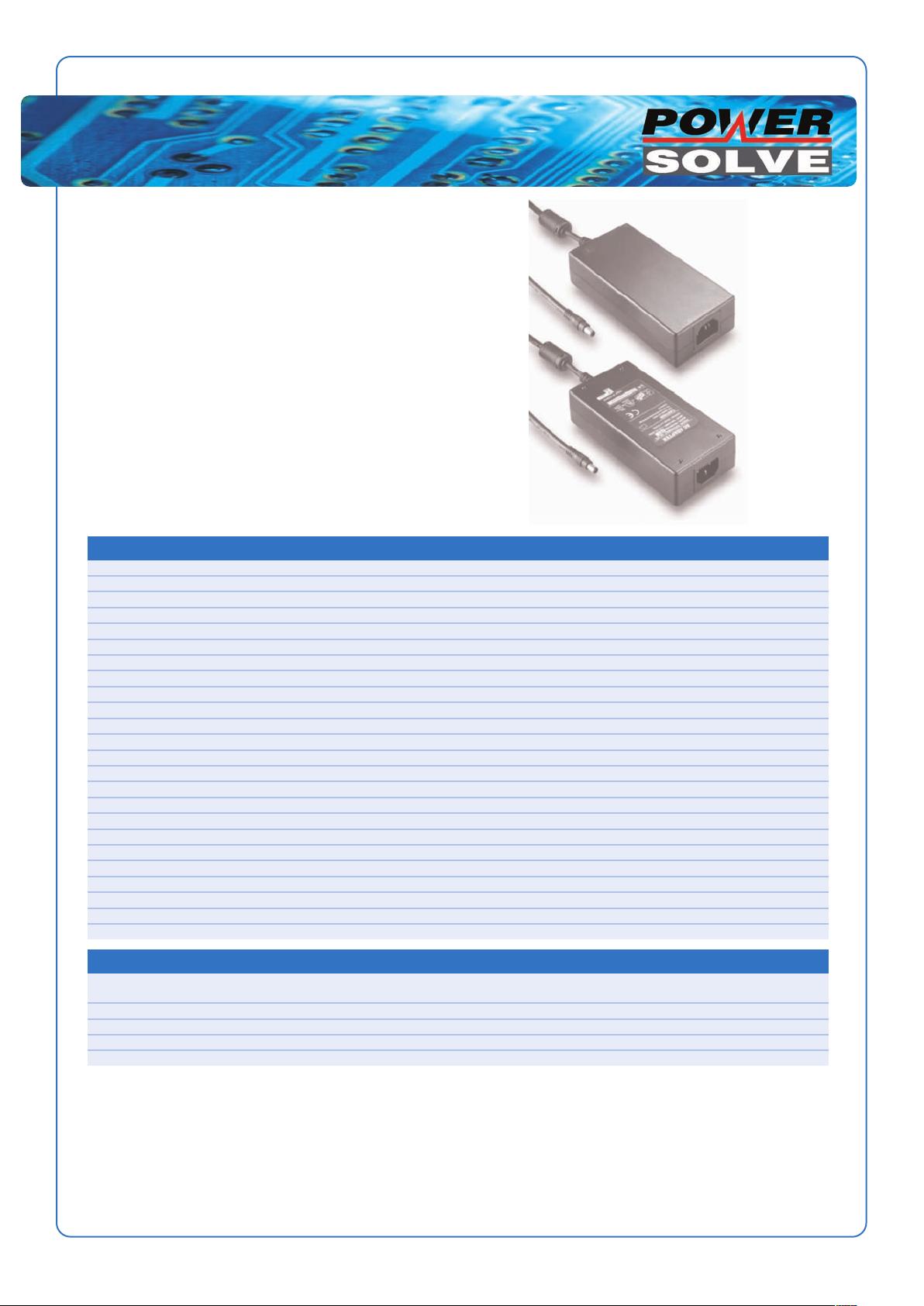

Desk Top Power Supplies
PS100E Series
100 Watt Switch Mode PFC
Universal AC Input
Features
• Universal Input Range 90-264VAC
• Active PFC Function
• Overvoltage & Short Circuit Protection
• Conductive EMI Meets CISPR/FCC Class B
• CEC Level IV Compliant
(PS100E120/150: Output cable ≤1200mm)
(PS100E240/480: Output cable ≤1800mm)
• Optional Output Connectors
Electrical Specification
INPUT
Input Voltage Range 90 - 264Vac
Frequency 47 - 63Hz
Inrush Current 120A max. @ 240Vac
Conducted EMI CISPR/FCC Class B
Isolation - Input/Output 4242VDC
Leakage Current 3.5mA max.
www.powersolve.co.uk
OUTPUT
Hold-up Time 20mS typ. @ 115Vac
Short Circuit Protection Auto Recovery
Over Voltage Protection Recycle AC input to restart
ENVIRONMENTAL
Operating Temperature Range 0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approval cUL/UL 60950, TUV EN60950
Dimensions 150.0 x 70.0 x 35.0 mm
5.906 x 2.756 x 1.378 inches
Weight 600g
AC Inlet IEC320/C14
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT RIPPLE & VOLTAGE LINE LOAD
PS100E120 12V 8.34A 2% ±2% ±1% ±4%
PS100E150 15V 6.67A 2% ±2% ±1% ±4%
PS100E240 24V 4.17A 2% ±2% ±1% ±2%
PS100E480 48V 2.08A 2% ±2% ±1% ±2%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
5. Cable length limit for PS100E120/150: 1200mm max.
Cable length limit for PS100E240/480: 1800mm max.
VOLTAGE CURRENT NOISE SETPOINT REG. REG.
Typical at 25°C, nominal line and 60% load unless otherwise stated.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
Desk Top Power Supplies

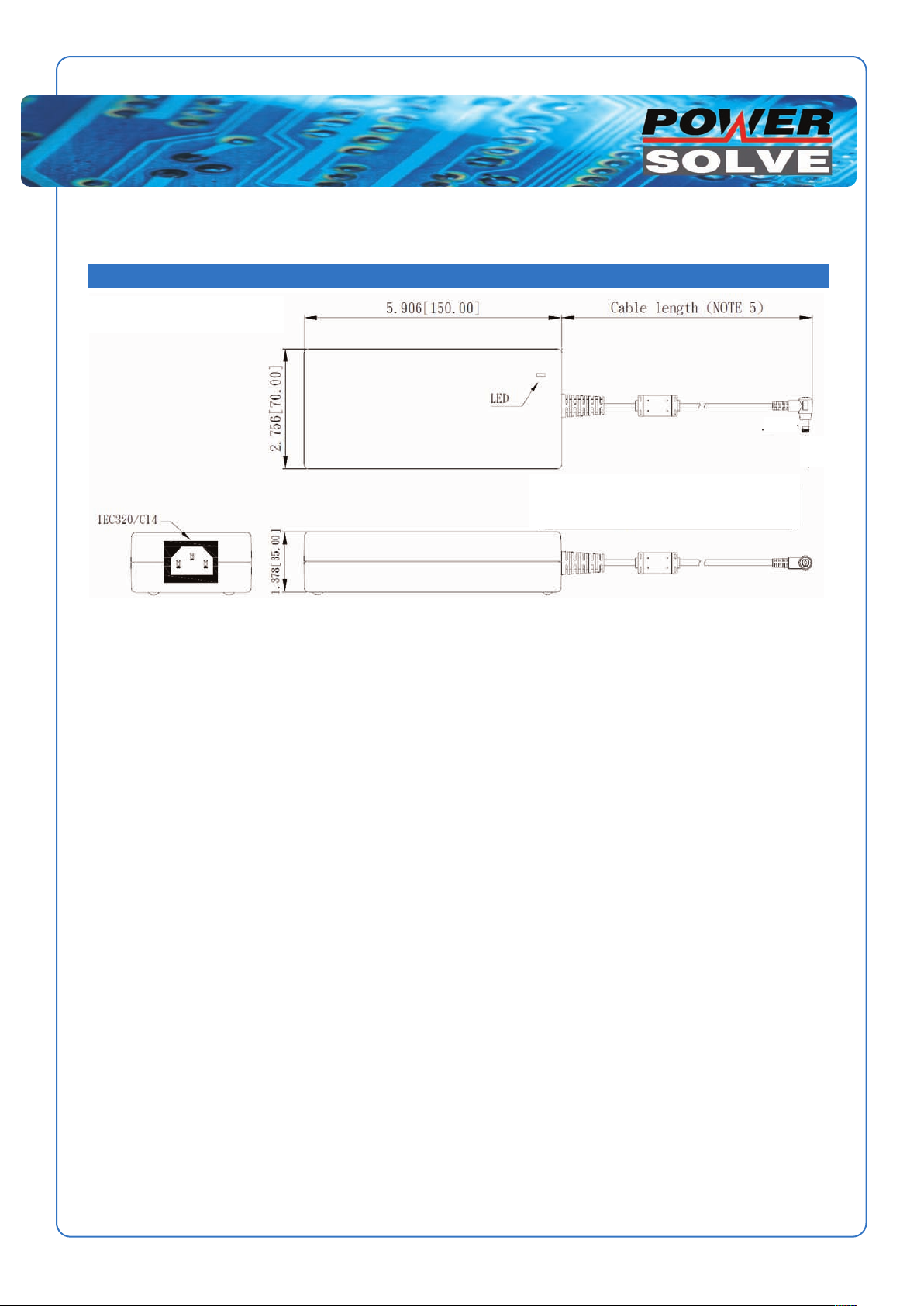

Mechanical Details
All dimensions in inches (mm)
Tolerances: Inches x.xxx ±0.02
Millimeters x.xx ±0.5
www.powersolve.co.uk
Options: Consult Sales Office for details
Alternative output connectors available
In-line ferrite core on output cable
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
