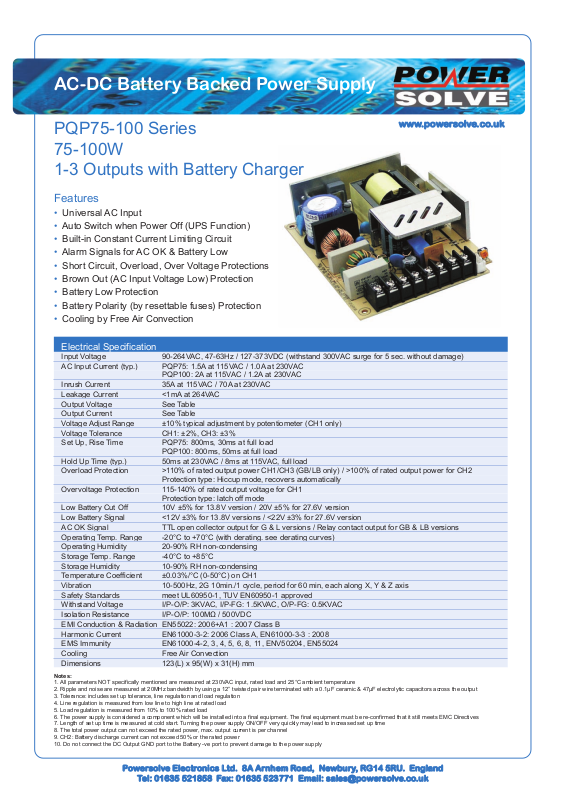

Powersolve PQP100 User Manual

AC-DC Battery Backed Power Supply

PQP75-100 Series

www.powersolve.co.uk

75-100W
1-3 Outputs with Battery Charger

Features

• Universal AC Input

• Auto Switch when Power Off (UPS Function)

• Built-in Constant Current Limiting Circuit

• Alarm Signals for AC OK & Battery Low

• Short Circuit, Overload, Over Voltage Protections

• Brown Out (AC Input Voltage Low) Protection

• Battery Low Protection

• Battery Polarity (by resettable fuses) Protection

• Cooling by Free Air Convection

Electrical Specification

Input Voltage 90-264VAC, 47-63Hz / 127-373VDC (withstand 300VAC surge for 5 sec. without damage)
AC Input Current (typ.) PQP75: 1.5A at 115VAC / 1.0A at 230VAC

Inrush Current 35A at 115VAC / 70A at 230VAC
Leakage Current <1mA at 264VAC
Output Voltage See Table
Output Current See Table
Voltage Adjust Range ±10% typical adjustment by potentiometer (CH1 only)
Voltage Tolerance CH1: ±2%, CH3: ±3%
Set Up, Rise Time PQP75: 800ms, 30ms at full load

Hold Up Time (typ.) 50ms at 230VAC / 8ms at 115VAC, full load
Overload Protection >110% of rated output power CH1/CH3 (GB/LB only) / >100% of rated output power for CH2

Overvoltage Protection 115-140% of rated output voltage for CH1

Low Battery Cut Off 10V ±5% for 13.8V version / 20V ±5% for 27.6V version
Low Battery Signal <12V ±3% for 13.8V versions / <22V ±3% for 27.6V version
AC OK Signal TTL open collector output for G & L versions / Relay contact output for GB & LB versions
Operating Temp. Range -20°C to +70°C (with derating. see derating curves)
Operating Humidity 20-90% RH non-condensing
Storage Temp. Range -40°C to +85°C
Storage Humidity 10-90% RH non-condensing
Temperature Coefficient ±0.03%/°C (0-50°C) on CH1
Vibration 10-500Hz, 2G 10min./1 cycle, period for 60 min, each along X, Y & Z axis
Safety Standards meet UL60950-1, TUV EN60950-1 approved
Withstand Voltage I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P: 100MΩ / 500VDC
EMI Conduction & Radiation EN55022: 2006+A1 : 2007 Class B
Harmonic Current EN61000-3-2: 2006 Class A, EN61000-3-3 : 2008
EMS Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024
Cooling Free Air Convection
Dimensions 123(L) x 95(W) x 31(H) mm

Notes:

1. All parameters NOT specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature

2. Ripple and noise are measured at 20MHz bandwidth by using a 12” twisted pair wire terminated with a 0.1µF ceramic & 47µF electrolytic capacitors across the output

3. Tolerance: includes set up tolerance, line regulation and load regulation

4. Line regulation is measured from low line to high line at rated load

5. Load regulation is measured from 10% to 100% rated load

6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC Directives

7. Length of set up time is measured at cold start. Turning the power supply ON/OFF very quickly may lead to increased set up time

8. The total power output can not exceed the rated power, max. output current is per channel

9. CH2: Battery discharge current can not exceed 50% or the rated power

10. Do not connect the DC Output GND port to the Battery -ve port to prevent damage to the power supply

PQP100: 2A at 115VAC / 1.2A at 230VAC

PQP100: 800ms, 50ms at full load

Protection type: Hiccup mode, recovers automatically

Protection type: latch off mode

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Battery Backed Power Supply

www.powersolve.co.uk

Output Voltage and Current Ratings

MODEL OUTPUT OUTPUT CURRENT RIPPLE & LINE LOAD POWER EFF.

PQP75-G

PQP75-GB

PQP75-L

PQP75-LB

PQP100-G

PQP100-GB

PQP100-L

PQP100-LB

VOLTAGE RATED MAX. (8) NOISE (2) REG. (4) REG. (5) Max.

CH1 13.8V 3.7A 5.5A 100mV p-p ±0.5% ±0.5%
CH2 13.8V 1.8A 2.07A 150mV p-p
CH1 13.8V 2.6A 4.4A 100mV p-p ±0.5% ±0.5%
CH2 13.8V 1.8A 2.07A 150mV p-p
CH3 5.0V 3A 3.0A 100mV p-p ±0.5% ±1.5%
CH1 27.6V 1.75A 2.75A 100mV p-p ±0.5% ±0.5%
CH2 27.6V 1.0A 1.15A 150mV p-p
CH1 27.6V 1.2A 2.2A 100mV p-p ±0.5% ±0.5%
CH2 27.6V 1.0A 1.15A 150mV p-p
CH3 5.0V 3.0A 3.0A 100mV p-p ±0.5% ±1.5%
CH1 13.8V 4.8A 7.3A 100mV p-p ±0.5% ±0.5%
CH2 13.8V 2.5A 2.875A 150mV p-p
CH1 13.8V 3.7A 6.2A 100mV p-p ±0.5% ±0.5%
CH2 13.8V 2.5A 2.875A 150mV p-p
CH3 5.0V 3.0A 3.0A 100mV p-p ±0.5% ±1.5%
CH1 27.6V 2.15A 3.65A 100mV p-p ±0.5% ±0.5%
CH2 27.6V 1.5A 1.725A 150mV p-p
CH1 27.6V 1.6A 3.1A 100mV p-p ±0.5% ±0.5%
CH2 27.6V 1.5A 1.725A 150mV p-p
CH3 5.0V 3A 3.0A 100mV p-p ±0.5% ±1.5%

75.9W 86%

75.72W 85%

75.9W 88%

75.72W 87%

100.74W 86%

100.56W 85%

100.74W 87%

100.56W 85%

Mechanical & Connection Details

Input/Output (CN1)

Pin Function
1 Live
2 Neutral
3 Earth
4 DC O/P GND
5 DC O/P V+
6 Battery +ve
7 Battery -ve
8 +5V (GB/LB only)

Alarm Output (CN2) G/L versions

1 AC OK
2 BAT Low

3

Mating connector: JST XHP-3 or equivalent
Terminals: JST SXH-001T-P0.6 or equivalent

G (13.8V/20mA)
L (27.6V/20mA)

Alarm Output (CN2) GB/LB versions

1 & 2 AC OK (relay contacts)
3 & 4 BAT Low (relay contacts)

Mating connector: JST XHP-4 or equivalent
Terminals: SXH-001T-P0.6 or equivalent

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Battery Backed Power Supply

Derating Curves

Block Diagram and Alarm Signals (G & L versions)

www.powersolve.co.uk

Alarm Signals for AC OK and Battery Low

• These signals are open collector transistors and therefore an external voltage source and pull-up resistors are required

• The maximum applied external voltage is 50V and the maximum sink current is 30mA

Function Description Output of alarm

AC OK

BAT. LOW

Signal is ‘LOW’ when the power supply turns on. Low (0.3V max. at 30mA)

Signal is ‘HIGH’ when the power supply turns off High or open (externally applied voltage 30mA max.)

Signal is ‘LOW’ when battery voltage is under G:12V, L:22V Low (0.3V max. at 30mA)

Signal is ‘HIGH’ when battery voltage is above G:12V, L:22V High or open (externally applied voltage 30mA max.)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Battery Backed Power Supply

Block Diagram and Alarm Signals (GB & LB versions)

Alarm Signals for AC OK and Battery Low

• These signals are volt free relay contacts and therefore an external voltage source is required

• The maximum applied external voltage is 30V and the maximum sink current is 1A

www.powersolve.co.uk

Function Description Output of alarm

AC OK

BAT. LOW

Signal is ‘LOW’ when the power supply turns on. Low or short

Signal is ‘HIGH’ when the power supply turns off High or open (externally applied voltage 1A max.)

Signal is ‘LOW’ when battery voltage is under G:12V, L:22V Low or short

Signal is ‘HIGH’ when battery voltage is above G:12V, L:22V High or open (externally applied voltage 1A max.)

Internal circuit of AC OK (Battery Low)

External voltage source (V) and resistor (R).
Maximum applied voltage is 30V and maximum sink current is 1A
