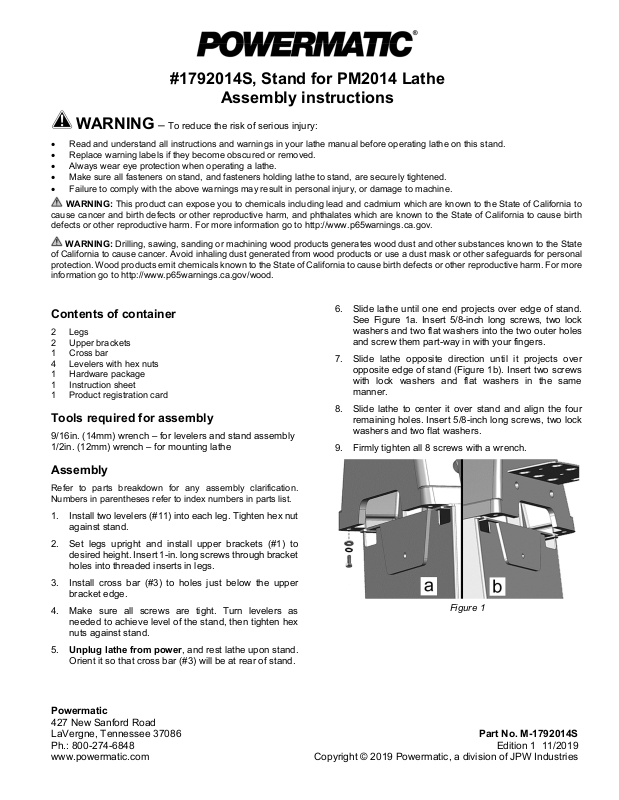

#1792014S, Stand for PM2014 Lathe
Assembly instructions
WARNING – To reduce the risk of serious injury:
Read and understand all instructions and warnings in your lathe manual before operating lathe on this stand.
Replace warning labels if they become obscured or removed.
Always wear eye protection when operating a lathe.
Make sure all fasteners on stand, and fasteners holding lathe to stand, are securely tightened.
Failure to comply with the above warnings may result in personal injury, or damage to machine.
WARNING: This product can expose you to chemicals including lead and cadmium which are known to the State of California to
cause cancer and birth defects or other reproductive harm, and phthalates which are known to the State of California to cause birth
defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other substances known to the State
of California to cause cancer. Avoid inhaling dust generated from wood products or use a dust mask or other safeguards for personal
protection. Wood products emit chemicals known to the State of California to cause birth defects or other reproductive harm. For more
information go to http://www.p65warnings.ca.gov/wood.
Contents of container
2 Legs
2 Upper brackets
1 Cross bar
4 Levelers with hex nuts
1 Hardware package
1 Instruction sheet
1 Product registration card
Tools required for assembly
9/16in. (14mm) wrench – for levelers and stand assembly
1/2in. (12mm) wrench – for mounting lathe
6. Slide lathe until one end projects over edge of stand.
See Figure 1a. Insert 5/8-inch long screws, two lock
washers and two flat washers into the two outer holes
and screw them part-way in with your fingers.
7. Slide lathe opposite direction until it projects over
opposite edge of stand (Figure 1b). Insert two screws
with lock washers and flat washers in the same
manner.
8. Slide lathe to center it over stand and align the four
remaining holes. Insert 5/8-inch long screws, two lock
washers and two flat washers.
9. Firmly tighten all 8 screws with a wrench.
Assembly
Refer to parts breakdown for any assembly clarification.
Numbers in parentheses refer to index numbers in parts list.
1. Install two levelers (#11) into each leg. Tighten hex nut
against stand.
2. Set legs upright and install upper brackets (#1) to
desired height. Insert 1-in. long screws through bracket
holes into threaded inserts in legs.
3. Install cross bar (#3) to holes just below the upper
bracket edge.
4. Make sure all screws are tight. Turn levelers as
needed to achieve level of the stand, then tighten hex
nuts against stand.
5. Unplug lathe from power, and rest lathe upon stand.
Orient it so that cross bar (#3) will be at rear of stand.
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-1792014S
Ph.: 800-274-6848 Edition 1 11/2019
www.powermatic.com Copyright © 2019 Powermatic, a division of JPW Industries
Figure 1
Page 2
Parts Breakdown for 1792014S Stand
Index No. Part No. Description Size Qty
.................. 1792014S .................. Stand Assembly ....................................................... ...................................... 1
1 ................ PM2014-401 .............. Upper Bracket .......................................................... ...................................... 2
2 ................ PM2014-402 .............. Leg ........................................................................... ...................................... 2
3 ................ PM2014-403 .............. Cross Bar ................................................................. ...................................... 1
4 ................ JWL1221VSS-103 ..... Cover ....................................................................... ...................................... 4
5 ................ TS-0051021 ............... Hex Cap Screw * ..................................................... 5/16"-18x5/8" ................ 8
6 ................ .................................. Threaded Insert ....................................................... 3/8"-16 ......................... 14
7 ................ TS-0060051 ............... Hex Cap Screw * ..................................................... 3/8"-16x1" ................... 12
9 ................ TS-0720091 ............... Lock Washer * ......................................................... 3/8" .............................. 12
10 .............. TS-0680042 ............... Flat Washer * ........................................................... 3/8" .............................. 12
11 .............. JWL1642-206 ............ Leveler ..................................................................... ...................................... 4
12 .............. TS-0570031 ............... Hex Nut .................................................................... 3/8"-16 ........................... 4
13 .............. TS-0720081 ............... Lock Washer * ......................................................... 5/16" .............................. 8
14 .............. TS-0680031 ............... Flat Washer * ........................................................... 5/16” ............................ 14
.................. 1792014S-HP ............ Hardware package (items with *) ............................. ........................................
Some parts are shown for reference only, and may not be available individually.
Specifications
Stock number .................................................................................................................................................. 1792014S
Main material ................................................................................................................................. steel plate and tubing
Net weight .................................................................................................................................................. 25 kg (55 lbs.)
Shipping weight ...................................................................................................................................... 29 kg (63.8 lbs.)
Specifications were current at time of publication, but because of our policy of continuous improvement, Powermatic reserves
the right to change specifications at any time and without prior notice, without incurring obligation.
