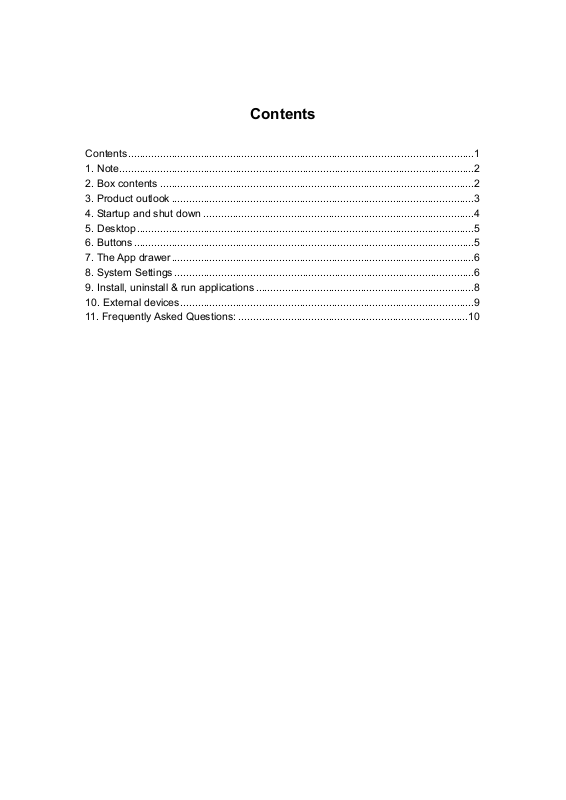

Contents
Contents ....................................................................................................................... 1
1. Note .......................................................................................................................... 2
2. Box contents ............................................................................................................ 2
3. Product outlook ........................................................................................................ 3
4. Startup and shut down ............................................................................................. 4
5. Desktop .................................................................................................................... 5
6. Buttons ..................................................................................................................... 5
7. The App drawer ........................................................................................................ 6
8. System Settings ....................................................................................................... 6
9. Install, uninstall & run applications ........................................................................... 8
10. External devices ..................................................................................................... 9
11. Frequently Asked Questions: ............................................................................... 10
English Point of View Android 2.3 Tablet - User’s Manual
ProTab 2XXL
1. Note
·This product is a highly advanced product, do not disassemble yourself.
·Protect the product from strong shocks such as dropping.
· Avoid using this product the following conditions: high and low temperatures,
moist, dusty, magnetic fields strong environments or long-term exposure to
sunlight.
· Please use only a slightly moist cotton cloth to clean the product shell, do not
use any chemical cleaning solution. This product should not be exposed to
liquids.
· Using headphones at high volumes to long periods of time can cause
hearing damage.
· Avoid active use of this device while in traffic, especially when using
headphones.
· Please only use the permitted batteries, chargers and accessories. Any
other products can violate the warranty regulations and may be dangerous.
· Please follow the relevant local environmental regulations to deal with
obsolete machines and accessories.
· The manufacturer takes no responsibility for loss of data caused by either
hardware or software. The user is responsible for performing backups and
saving of important data.
2. Box contents
Tablet PC
5V 2A Dc charge
Instruction manual
USB cable
1pc
1pc
1pc
1pc
- 2 -
Point of View Android 2.3 Tablet - User’s Manual English
ProTab 2XXL
3. Product outlook
1
2
3
4
5
6
1 Back button 2 USB 2.0 Host
3 Micro SD card reader 4 Mini USB
5 Microphone 6 Power jack
7 Mini HDMI 8 Headphone
9 Webcam 10 Power
11 Home button/Volume – (hold) 12 Menu button/Volume + (hold)
7 8 9 10 11
12
- 3 -
English Point of View Android 2.3 Tablet - User’s Manual
ProTab 2XXL
4. Startup and shut down
· Boot: Press and hold the power button to turn on the device:
The system is now been turned on and the Android system is being loaded:
After the startup sequence, the basic Android default home interface is shown.
· Shutdown: Press the power button, a pop-up appears, select “Shut Down” to shut
down the tablet PC:
· Sleep: Short press the power button to allow the tablet to go in hibernation (power
saving) mod. Short press the power button again and the tablet will be re-activated.
- 4 -
Point of View Android 2.3 Tablet - User’s Manual English
ProTab 2XXL
5. Desktop
The default desktop contains the following interactive objects: Status Bar (top), Quick
navigation buttons (right side). Also, there may be some pre-installed shortcut icons
and/or widgets on the desktop itself.
The status bar shows relevant system information such as network, battery status and
the system time.
Press the App drawer button (dotted button in the middle of the Quick Navigation
menu) to open you App drawer. This displays all the installed applications on the
device.
The world icon at the top of the quick navigation menu opens the web browser. The
icon at the button links directly to the Android settings menu.
6. Buttons
The tablets’ buttons have the following functions:
Power key: Turn on, shut down or hibernate on/off.
Menu button: Open the menu options (if available)/ Volume + (hold button)
Home button: Return to the home screen/ Volume – (hold button)
Return: Go back to the previous screen
- 5 -
English Point of View Android 2.3 Tablet - User’s Manual
ProTab 2XXL
7. The App drawer
By pushing the App drawer button on the desktop you will enter the Android App
drawer. Here you will find all installed applications of this device. The house icon
allows you to return to the desktop.
8. System Settings
The "Settings" icon opens the system settings interface, as shown below:
- 6 -
Point of View Android 2.3 Tablet - User’s Manual English
ProTab 2XXL
WIFI Wireless Connection:
In the "Settings" menu, click on "Wireless & networks" to open the WiFi settings
interface. Check the option "WIFI" to quickly enable or disable the WIFI feature. In the
“Wi-Fi settings” you can view and edit the wireless network of your choice.
The "Network Notification" option enables the tablet to pop up a notification when a
new wireless network is available. Under the “Wi-Fi networks” a list of the available
networks will appear. Select the network of choice and enter the appropriate
password if needed.
- 7 -
English Point of View Android 2.3 Tablet - User’s Manual
ProTab 2XXL
9. Install, uninstall & run applications
You can install applications using different methods such as ‘App market‘ applications
or special .APK apps. This manual instructs how to manually install Android
installation files (.APK) through the “Manager”.
First make sure that in the menu “Settings” / “Applications” the option “Unknown
sources” is checked.
For this action, the .apk files needs to be first copied to either the micro SD card or the
tablet’s internal NAND memory. Through the “File Manager” you can select the
correct .APK file to start the installation.
- 8 -
Point of View Android 2.3 Tablet - User’s Manual English
ProTab 2XXL
·Uninstall applications:
Select "Settings" / "Application" / "Management Applications" and select the
appropriate application to view the programs’ information. Here you can select
uninstall and other operations.
10. External devices
10.1 USB connection
To access the contents of the inserted micro SD card or internal storage of the tablet,
connect the device through a mini USB cable to your computer. In the status bar the
option “USB connected” will appear. Select this and press the “Turn on USB storage”
the micro SD and internal storage will be mounted as an external USB drive in your
computer.
- 9 -
English Point of View Android 2.3 Tablet - User’s Manual
ProTab 2XXL
11. Frequently Asked Questions:
1: What is Android?
A: Android is Google’s mobile operating system based on Linux. It is used on
numerous mobile phones, tablets and other mobile devices.
2: What is APK?
A: APK is the file extension of Android installation packages.
3: How to obtain the APK?
A: You can download through one the many Android App download websites (i.e.
www.androidpit.com, www.slide.me etc). Often you are able to download and install a
special market app just by visiting their website on your tablet.
4: Which Android version is used on this tablet?
A: This device uses Android 2.3 and features built-in hardware 3D acceleration to run
almost all applications available.
5: Can the tablet charge through USB?
A: yes, however it will charge quite slow due to the limited power the USB port
(500mAh) can supply. The charger can supply up to 2A and will charge much faster.
Pictures for reference only, product appearance, functionality are subject to
change without notice.
- 10 -
