Plantronics CS70 Series Setup Manual

5 Easy Steps

The fastest way to setup your

CS70 Headset System

CS70 Series Setup Guide

Base Power
Adaptor

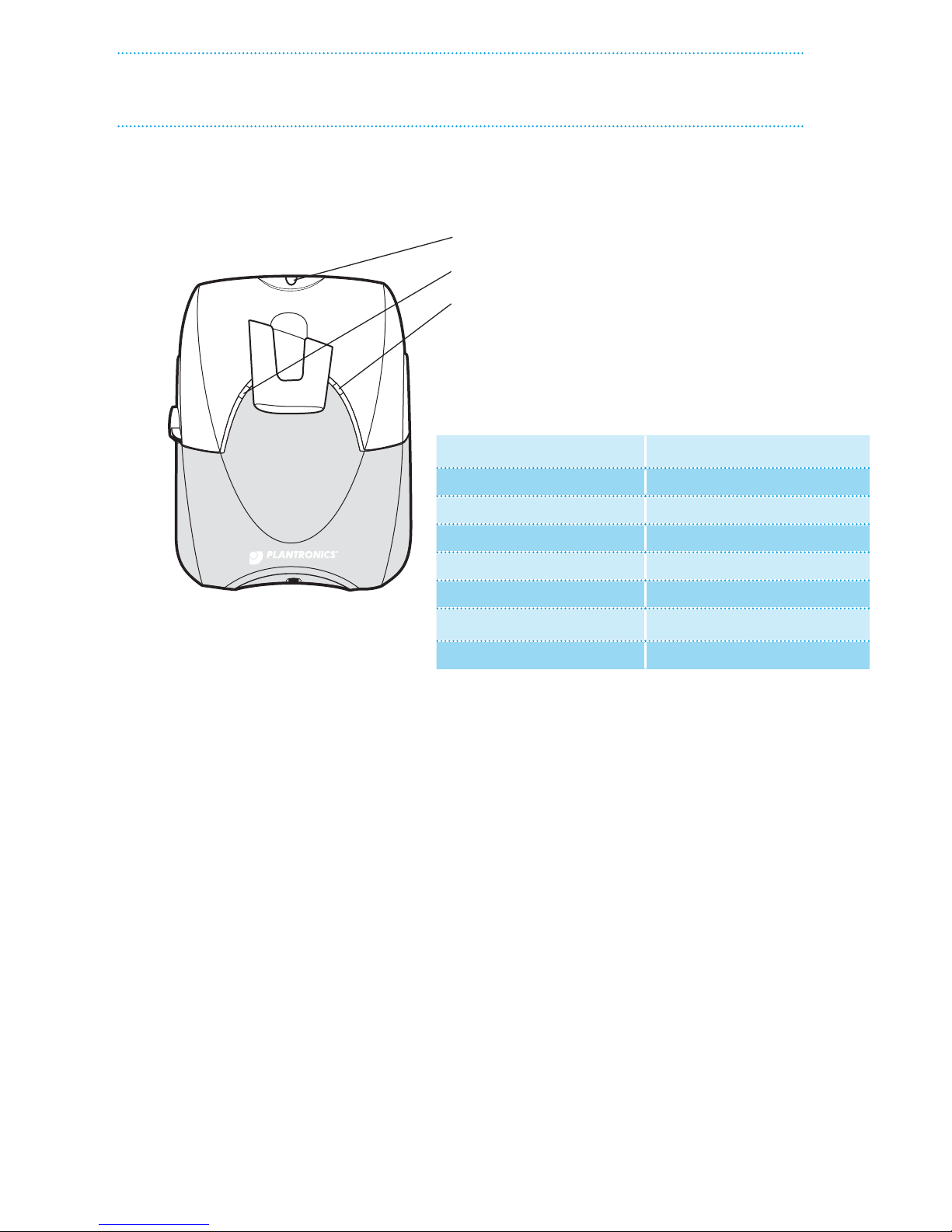

CS70
Headset Base

CS70 Headset
with Ear Tip

HL10
Automatic
Handset Lifter*

*Not included in all congurations

2

Plantronics CS70 Setup Guide

Headset

Headset Base with Pre­installed Phone Cable

Ear Tips

Base Power Adapter

Setup Guide

HL10 Automatic
Handset Lifter

HL10
User Guide

CS70 PaCkage ContentS

CS70 With Handset Lifter* Adds:

HL10 Additional Parts Kit (if needed)

Extender

Arm

Ringer
Microphone

Adapter for

Nortel i2004
Phones

Please refer to the separate Safety Instructions sheet for important product safety
information prior to installation or use of the product.

*Automatic Handset Lifter is bundled with certain CS70 congurations and also available separately.

3

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

InStall ear tIP & adjuSt fIt

S T E P

Fit the Headset

Slide the headset over and behind your ear, then press gently toward your ear. Rotate the

microphone boom until it is pointed toward your mouth. If the ear tip is uncomfortable,
install a dierent ear tip. See below.

To Convert for Wearing on Left Ear

A. Rotate microphone
boom up

B. Turn microphone
boom around

C. Rotate microphone
boom down

1

For your safety and comfort, the ear tip should never be inserted into the ear canal.

Choose the style and size of Ear
Tip that ts most comfortably.
Align Ear Tip tabs with notches
in headset.

Push in rmly and
twist counter
clockwise.

To Install a Dierent Ear Tip

Remove the pre-installed ear tip by
pushing in and turning the ear tip

clockwise, then pull rmly.

To view an interactive set-up guide online, visit www.plantronics.com/cs70setup and click on Adjusting Fit.

4

Plantronics CS70 Setup Guide

S T E P

2

ConneCt BaSe to deSk Phone

Use Conguration A if:

You will use the Automatic Handset Lifter

or…

Your phone has NO built-in headset functionality (no Headset button).

Conguration A

2. Plug the short black Phone Cable that

is pre-installed on the Headset Base into
the now-open handset port [A] on the
desk phone.

1. Unplug the handset coil

cord from the desk phone
handset port [A], then plug it
into the green labeled handset
port [B] on the Headset Base.

A

A

Handset
Coil Cord

Handset

Headset Base
(bottom view)

B

5

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

Use Conguration B if:

You will NOT use the Automatic Handset Lifter

and…

Your phone has built-in headset functionality (a Headset button).

1. Plug the short BLACK Phone
Cable that is pre-installed on
the Headset Base into the Heaset
port [C] on the desk phone.

Conrm there is
a “HEADSET” button
on your phone

Conguration B

HANDSET port or HEADSET port?

You should only use the headset port if you will not be using the Automatic Handset
Lifter and you have a pre-programmed Headset button on your phone.

In this conguration you must press both the Headset button on your phone
and the Call Control Button on the headset to answer/end calls.

C

Headset Base
(bottom view)
