Planet IKVM-17160 Quick Installation Manual

IKVM-17080
IKVM-17160

PLANET Technology Corporation

Tel: [phone] Fax: [phone]
Email: [e-mail] www.planet.com.tw

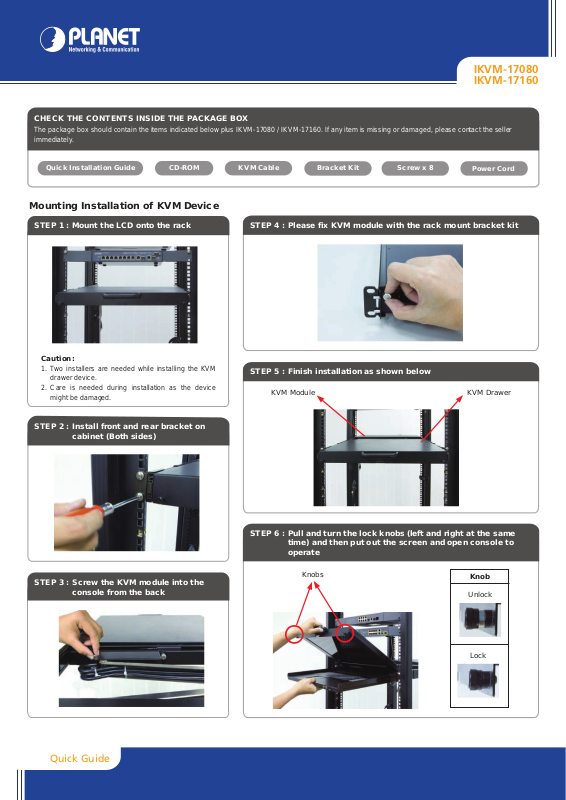

STEP 1 : Mount the LCD to the rack

Screw x 8

CD-RO M KVM Cable

Quick Installation Guide

Power Cord

STEP 2 : Install front and rear bracket on
cabinet (Both sides)

STEP 3 : Screw the KVM module into the

console from the back

STEP 4 : Please fix KVM module with the rack mount bracket kit

CHECK THE CONTENTS INSIDE THE PACKAGE BOX

The package box should contain the items indicated below plus IKVM-17080 / IKVM-17160. If any item is missing or damaged, please contact the seller
immediately.

Bracket Kit

Caution:

1. Two installers are needed while installing the KVM
drawer device.

2. Care is needed during installation as the device
might be damaged.

STEP 6 : Pull and turn the lock knobs (left and right at the same

time) and then put out the screen and open console to
operate

STEP 5 : Finish installation as shown below

Knobs

Unlock

Lock

Knob

STEP 1 : Mount the LCD onto the rack

KVM Module

KVM Drawer

Mounting Installation of KVM Device

Quick GuideQuick Guide

IKVM-17080
IKVM-17160

2011-F00290-001

PLANET Technology Corporation

Tel: [phone] Fax: [phone]
Email: [e-mail] www.planet.com.tw

11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2013 PLANET Technology Corp. All rights reserved.

Web Management

OSD (On Screen Display)

Press the “NumLock” on the keyboard twice or simultaneously press Push Buttons 1 and 2 of the Port Selection Switch on the KVM panel to start the OSD.
Use the Up, Down and Enter keys on the keyboard to switch or directly move the mouse to the target PC, and then double click the left button.

If you have installed the IP-KVM on a network that enables DHCP, you can use the “PSetup” to find out the IP-KVM’s IP.

1. Run "psetup_1.1.0.exe" from the CD.

2. Please click on Refresh button to find your IKVM-17080 / IKVM-17160 in the network. You
can find the MAC address labeled on the bottom side of the IP-KVM module. MAC
address is detected as connection from computer and IP-KVM is valid through USB or
network.

3. [DHCP server available in the Network] Launch Web Browser and key in the IP address of
the IKVM-17080 / IKVM-17160. Please configure your PC to the same IP subnet as well.

4. [DHCP server not available in the Network] Launch Web Browser and key in the default IP
address of the IKVM-17080 / IKVM-17160. If there is no DHCP server in the network,
your IKVM-17080 / IKVM-17160 will use IP address 192.168.0.20 as its default. Please
configure your PC to the same IP subnet as well.

5. As soon as the Web browser starts up, IKVM-17080 / IKVM-17160 will prompt for User Name and Password. Please key in "super" and "pass".

6. You may now start to configure your IKVM-17080 / IKVM-17160 such as Remote Control, Network Configuration, and so on.

For more about your configuration, please also refer to the CD-ROM manual.

PORT 16 PORT 15 PORT 14 PORT 13 PORT 12 PORT 11 PORT 10 PORT 9

PORT 8 PORT 7 PORT 6 PORT 5 PORT 4 PORT 3 PORT 2 PORT 1

100~240V AC 50-60Hz

Remote Console

Switch

Internet

Local Console

PCs PCs
