Pioneer VSX-421-K Operating Instruction

Download

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

Operating Instructions

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

VSX-421

-K

IMPORTANT

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 40 cm at top, 20 cm at rear, and 20 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows;

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

D3-4-2-1-2-2*_A2_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

Information for users on collection and disposal of old equipment and used batteries

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*_A1_En

Symbol for

equipment

Symbol examples

for batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

Contents

Before you start

Checking what’s in the box . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Flow of settings on the receiver

01 Controls and displays

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Loading the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operating range of remote control . . . . . . . . . . . . . . . . . 9

02 Connecting your equipment

Placing the speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Hints on the speaker placement. . . . . . . . . . . . . . . . . . 10

Connecting the speakers. . . . . . . . . . . . . . . . . . . . . . . . . 11

Connect the surround back speakers. . . . . . . . . . . . . . 11

Making cable connections . . . . . . . . . . . . . . . . . . . . . . . 12

HDMI cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

About HDMI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Analog audio cables. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Digital audio cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Video cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

About video outputs connection . . . . . . . . . . . . . . . . . . . 13

Connecting a TV and playback components . . . . . . . . . . 14

Connecting using HDMI . . . . . . . . . . . . . . . . . . . . . . . 14

Connecting your component with no HDMI terminal Connecting a satellite receiver or other digital

set-top box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Connecting an HDD/DVD recorder, Blu-ray Disc

recorder and other video sources . . . . . . . . . . . . . . . . . .15

Connecting other audio components . . . . . . . . . . . . . . . 15

Using the component video jacks . . . . . . . . . . . . . . . . . . 16

Connecting antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using external antennas . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting to the front panel audio mini jack. . . . . . . . . 17

Plugging in the receiver . . . . . . . . . . . . . . . . . . . . . . . . . 17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . 5

. . . 14

03 Basic playback

Canceling the demo display . . . . . . . . . . . . . . . . . . . . . . 18

Playing a source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting the audio input signal . . . . . . . . . . . . . . . . . 18

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Improving FM sound . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Saving station presets . . . . . . . . . . . . . . . . . . . . . . . . . 20

Listening to station presets . . . . . . . . . . . . . . . . . . . . . 20

Naming preset stations . . . . . . . . . . . . . . . . . . . . . . . . 20

An introduction to RDS . . . . . . . . . . . . . . . . . . . . . . . . . 20

Searching for RDS programs . . . . . . . . . . . . . . . . . . . 21

Displaying RDS information . . . . . . . . . . . . . . . . . . . . 21

Making an audio or a video recording. . . . . . . . . . . . . . . 21

04 Listening to your system

Choosing the listening mode . . . . . . . . . . . . . . . . . . . . . 22

Auto playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Listening in surround sound . . . . . . . . . . . . . . . . . . . . 22

Using the Advanced surround . . . . . . . . . . . . . . . . . . 23

Using Stream Direct . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Sound Retriever . . . . . . . . . . . . . . . . . . . . . . . 23

Better sound using Phase Control . . . . . . . . . . . . . . . . . 23

Using surround back channel processing . . . . . . . . . . . 24

Setting the Up Mix function . . . . . . . . . . . . . . . . . . . . . . 24

Setting the Audio options . . . . . . . . . . . . . . . . . . . . . . . . 24

05 The System Setup menu

Using the System Setup menu . . . . . . . . . . . . . . . . . . . . 26

The Speaker Setup menu . . . . . . . . . . . . . . . . . . . . . . . . 26

Speaker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Crossover Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Channel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Speaker Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

The Input Assign menu. . . . . . . . . . . . . . . . . . . . . . . . . . 27

The Auto Power Down menu . . . . . . . . . . . . . . . . . . . . . 28

The FL Demo Mode menu. . . . . . . . . . . . . . . . . . . . . . . . 28

06 Control with HDMI function

Making Control with HDMI connections . . . . . . . . . . . . 29

HDMI Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Before using synchronization. . . . . . . . . . . . . . . . . . . . . 30

About synchronized operations . . . . . . . . . . . . . . . . . . . 30

About connections with a product of a different brand

that supports the Control with HDMI function . . . . . . 30

Cautions on the Control with HDMI function . . . . . . . . . 30

07 Additional information

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Important information regarding the HDMI

connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Resetting the main unit . . . . . . . . . . . . . . . . . . . . . . . . . 32

Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Before you start

Checking what’s in the box

Please check that you’ve received the following supplied accessories:

• Remote control

• AAA size IEC R03 dry cell batteries (to confirm system operation) x2

• AM loop antenna

• FM wire antenna

•Power cord

• Warranty card

• Quick start guide

• These operating instructions (CD-ROM)

Installing the receiver

• When installing this unit, make sure to put it on a level and stable surface.

Don’t install it on the following places: – on a color TV (the screen may distort) – near a cassette deck (or close to a device that gives off a

magnetic field). This may interfere with the sound. – in direct sunlight – in damp or wet areas – in extremely hot or cold areas – in places where there is vibration or other movement – in places that are very dusty – in places that have hot fumes or oils (such as a kitchen)

Flow of settings on the receiver

The unit is a full-fledged AV receiver equipped with an abundance of functions and terminals. It can be used easily after following the procedure below to make the connections and settings.

The colors of the steps indicate the following:

Required setting item

Setting to be made as necessary

Connecting the speakers

Where you place the speakers will have a big effect on the sound.

• Placing the speakers (page 10)

• Connecting the speakers (page 11)



Connecting the components

For surround sound, you’ll want to hook up using a digital connection from the Blu-ray Disc/DVD player to the receiver.

• About video outputs connection (page 13)

• Connecting a TV and playback components (page 14)

• Connecting antennas (page 16)

• Plugging in the receiver (page 17)



Power On

Make sure you’ve set the video input on your TV to this receiver. Check the manual that came with the TV if you don’t know how to do this.



The FL Demo Mode menu (page 28)

(When you don’t want the demo display to show on the front panel display.)

The Input Assign menu (page 27)

(When using connections other than the recommended connections.)

Using the Audio Return Channel function (page 29)

(When the connected TV supports the HDMI Audio Return Channel function.)



Playing a source (page 18)

• Selecting the audio input signal (page 18)

• Choosing the listening mode (page 22)



Adjusting the sound as desired

• Using the Sound Retriever (page 23)

• Better sound using Phase Control (page 23)

• Using surround back channel processing (page 24)

• Setting the Up Mix function (page 24)

• Setting the Audio options (page 24)

• The Speaker Setup menu (page 26)

Controls and displays

AUDIO/VIDEO MULTI- CHANNEL RECEIVER

MASTER VOLUME

STANDBY/ON

INPUT SELECTOR

STEREO

SOUND

RETRIEVER

ADVANCED SURROUND

PHONES

PORTABLE

SPEAKERS DIMMER DISPLAY BAND TUNER EDIT TUNE PRESET ENTER

HDMI

VSX

-421

ALC/

STANDARD SURR

AUTO SURROUND

STREAM DIRECT

1 34

8 9 1110 12

6275

13 14 15 16 17 15

20 21 22 23 23 2524

Chapter 1:

Controls and displays

Front panel

1 INPUT SELECTOR dial

Selects an input source (page 18).

2 Receiver control buttons

SPEAKERS – Use to change the speaker system on or off.

When the SP OFF is selected, no sound is output from the speakers connected to this receiver.

DIMMER – Dims or brightens the display. The brightness can be controlled in four steps.

DISPLAY – Switches the display of this unit. The listening mode, sound volume or input name can be checked by selecting an input source.

3 Character display

See Display on page 7.

4 Tuner control buttons

BAND – Switches between AM, FM ST (stereo) and FM

MONO radio bands (page 19).

TUNER EDIT – Use with TUNE /, PRESET / and ENTER to memorize and name stations for recall

(page 19).

TUNE / – Used to find radio frequencies (page 19). PRESET / – Use to select preset radio stations

(page 20).

5 Remote sensor

Receives the signals from the remote control (see Operating range of remote control on page 9).

6 HDMI indicator

Blinks when connecting an HDMI-equipped component; lights when the component is connected (page 14).

7 MASTER VOLUME dial

 STANDBY/ON

9 PHONES jack

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers. The listening mode when the sound is heard from the headphone can be selected only from PHONES SURR, STEREO or

STEREO ALC mode.

10 Listening mode buttons

AUTO SURROUND/STREAM DIRECT – Switches

between Auto surround mode (page 22) and Stream Direct playback (page 23).

ALC/STANDARD SURR – Press for standard decoding and to switch between the modes of 2 Pro Logic II, 2 Pro Logic IIx and NEO:6, and the Auto level control stereo mode (page 22).

ADVANCED SURROUND – Switches between the various surround modes (page 23).

STEREO – Press to select stereo playback (page 22).

Controls and displays

11 SOUND RETRIEVER

Press to restore CD quality sound to compressed audio sources (page 23).

12 PORTABLE jack

Use to connect an auxiliary component using a stereo minijack cable (page 17).

Display

13 PHASE

Lights when the Phase Control is switched on (page 23).

14 AUTO

Lights when the Auto Surround feature is switched on (page 22).

15 Tuner indicators

RDS – Lights when an RDS broadcast is received

(page 20). ST – Lights when a stereo FM broadcast is being received

in auto stereo mode (page 19).

TUNE – Lights when a normal broadcast channel. PRESET – Shows when a preset radio station is registered

or called.

MEM – Blinks when a radio station is registered. kHz/MHz – Lights when the character display is showing

the currently received AM/FM broadcast frequency.

16 Speaker indicators

Shows if the speaker system is on or not (page 6).

SPA means the speakers are switched on. SP means the speakers are switched off.

17 Sleep timer indicator

Lights when the receiver is in sleep mode (page 8).

18 PRESET information or input signal indicator

Shows the preset number of the tuner or the input signal type, etc.

19 Character display

Displays various system information.

20 DTS indicators

DTS – Lights when a source with DTS encoded audio

signals is detected.

HD – Lights when a source with DTS-EXPRESS or DTSHD encoded audio signals is detected.

ES – Lights to indicate DTS-ES decoding. 96/24 – Lights when a source with DTS 96/24 encoded

audio signals is detected. NEO:6 – When one of the NEO:6 modes of the receiver is

on, this lights to indicate NEO:6 processing (page 22).

21 Dolby Digital indicators

2D – Lights when a Dolby Digital encoded signal is detected.

2D+ – Lights when a source with Dolby Digital Plus encoded audio signals is detected.

2HD – Lights when a source with Dolby TrueHD encoded audio signals is detected.

EX – Lights to indicate Dolby Digital EX decoding. 2PLII(x) – Lights to indicate 2 Pro Logic II/2 Pro Logic

IIx decoding (see Listening in surround sound on page 22 for more on this).

22 ADV.S.

Lights when one of the Advanced Surround modes has been selected (see Using the Advanced surround on page 23 for more on this).

23 SIGNAL SELECT indicators

DIGITAL – Lights when a digital audio signal is selected.

Blinks when a digital audio signal is selected and selected audio input is not provided.

HDMI – Lights when an HDMI signal is selected. Blinks when an HDMI signal is selected and selected HDMI input is not provided.

24 Up Mix/DIMMER indicator

Lights when the Up Mix function is set to ON (page 24). Also, lights when DIMMER is set to off.

25 DIR.

Lights when the DIRECT or PURE DIRECT mode is switched on (page 23).

Controls and displays

BD DVD

INPUT SELECT

SOURCESLEEP

CONTROL

DIMMER

INPUT

MIDNIGHT

HDD

RECEIVER

DVR/BDRCDCD-R

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

BD MENU

ENTER

ADV SURR

AUTO/

DIRECT

VOL

SPEAKERS

LEV

SB CH

DISP

CLR

TEST TONE

DVD

ENTER

CH SELECT

VCR

SHIFT

MUTE

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

MASTER VOLUME

BAND

HOME MENU

SETUP

PTY SEARCH

TRE

BASS

TOP MENU

RECEIVER

RECEIVER DTV/TV

ALC/

STANDARD

STEREO

3 4

RECEIVER

Remote control

As for operating other devices, the remote control codes for the Pioneer products are preset. The settings cannot be changed.

1 SLEEP

Press to change the amount of time before the receiver switches into standby (30 min – 60 min – 90 min – Off). You can check the remaining sleep time at any time by pressing

SLEEP once.

 RECEIVER

Switches the receiver between standby and on.

Switches the remote to control the receiver (used to select the white commands above the number buttons (MIDNIGHT, etc)). Also use this button to set up surround sound (page 26) or Audio parameters (page 24).

4 INPUT SELECT

Use to select the input source (page 18).

5 Input function buttons

Use to select the input source to this receiver (page 18). This will enable you to control other Pioneer components with the remote control.

• ADAPTER button is not used with this receiver.

6 Receiver control buttons

PHASE – Press to switch on/off Phase Control (page 23). S.RETRIEVER – Press to restore CD quality sound to

compressed audio sources (page 23). SIGNAL SEL – Press to select the audio input signal of the

component to play back (page 18).

7 Listening mode buttons

AUTO/DIRECT – Switches between Auto surround mode

(page 22) and Stream Direct playback (page 23).

STEREO – Press to select stereo playback (page 22). ALC/STANDARD SURR – Press for standard decoding

and to switch between the modes of 2 Pro Logic II, 2 Pro Logic IIx and NEO:6, and the Auto level control stereo mode (page 22).

ADV SURR – Switches between the various surround modes (page 23).

Press BD first to access:

BD MENU* – Displays the disc menu of Blu-ray Discs.

8 System Setup and component control buttons

The following button controls can be accessed after you have selected the corresponding input function button (BD, DVD, etc.).

RECEIVER

Press first to access:

AUDIO PARAMETER – Use to access the Audio options (page 24).

SETUP – Press to access the System Setup menu (page 26).

RETURN – Confirm and exit the current menu screen.

Press BD, DVD or DVR/BDR first to access:

TOP MENU – Displays the disc ‘top’ menu of a Blu-ray Disc/DVD.

HOME MENU – Displays the HOME MENU screen. RETURN – Confirm and exit the current menu screen. MENU – Displays the TOOLS menu of Blu-ray Disc player.

Press TUNER first to access:

TUNER EDIT – Memorizes stations for recall (page 19),

also used to change the name (page 20). BAND – Switches between AM, FM ST (stereo) and FM

MONO radio bands (page 19). PTY SEARCH – Use to search for RDS program types

(page 20).

///

Use the arrow buttons when setting up your surround sound system (page 26). Also used to control Blu-ray Disc/DVD menus/options. Use TUNE / can be used to find radio frequencies and PRESET / can be used to select preset radio stations (page 20).

10 Component control buttons

The main buttons (, , etc.) are used to control a component after you have selected it using the input function buttons.

The controls above these buttons can be accessed after you have selected the corresponding input function button (BD, DVD, DVR/BDR and CD). These buttons also function as described below.

(TUNE

/

, PRESET

/

), ENTER

Controls and displays

CAUTION

RECEIVER

30°

7 m

30°

Press first to access:

BASS –/+, TRE –/+ – Use to adjust Bass or Treble.

• These controls are disabled when the listening mode is

set to DIRECT or PURE DIRECT.

• When the front speaker is set at SMALL in the Speaker

Setting and the Crossover Network is set above 150 Hz, the subwoofer channel level will be adjusted by pressing BASS –/+ (page 27).

11 Number buttons and other component controls

Use the number buttons to directly select a radio frequency (page 19) or the tracks on a CD, etc. There are other buttons that can be accessed after is pressed. (For example MIDNIGHT, etc.)

HDD*, DVD*, VCR* – These buttons switch between the hard disk, DVD and VCR controls for HDD/DVD/VCR recorders.

SB CH – Press to select ON, AUTO or OFF the surround back channel (page 24).

CH SELECT – Press repeatedly to select a channel, then use LEV +/– to adjust the level (page 27).

LEV +/– – Use to adjust the channel level. MIDNIGHT – Switches to Midnight or Loudness listening

(page 24). SPEAKERS – Use to change the speaker system on or off.

When the SP OFF is selected, no sound is output from the speakers connected to this receiver.

DIMMER – Dims or brightens the display. The brightness can be controlled in four steps.

 SOURCE

Turns on or off the power of the Pioneer DVD/DVR units when BD, DVD, DVR/BDR or CD is selected using the input function buttons.

13 TV CONTROL buttons

These buttons can control only be used with Pioneer TVs.

 – Use to turn on/off the power of the TV.

INPUT – Use to select the TV input signal. CH +/– – Use to select channels. VOL +/– – Use to adjust the volume on your TV. DTV/TV* – Switches between the DTV and analog TV

input modes for Pioneer TVs.

14 MASTER VOLUME +/–

Use to set the listening volume.

15 MUTE

Mutes/unmutes the sound.

16 DISP

Switches the display of this unit. The listening mode, sound volume or input name can be checked by selecting an input source.

17 SHIFT

Press to access the ‘boxed’ commands (above the buttons) on the remote. These buttons are marked with an asterisk (*) in this section.

Loading the batteries

The batteries included with the unit are to check initial operations; they may not last over a long period. We recommend using alkaline batteries that have a longer life.

• Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

Never use new and old batteries together.

Insert the plus and minus sides of the batteries properly according to the marks in the battery case.

Batteries with the same shape may have different voltages. Do not use different batteries together.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Operating range of remote control

The remote control may not work properly if:

• There are obstacles between the remote control and the receiver’s remote sensor.

• Direct sunlight or fluorescent light is shining onto the remote sensor.

• The receiver is located near a device that is emitting infrared rays.

• The receiver is operated simultaneously with another infrared remote control unit.

Connecting your equipment

CAUTION

Important

120

SBL

SBR

5.1 channel surround system:

7.1 channel surround system:

6.1 channel surround system:

Chapter 2:

Connecting your equipment

Placing the speakers

By connecting the left and right front speakers (L/R), the center speaker (C), the left and right surround speakers ( Further, by using an external amplifier, you can connect the left and right surround back speakers (SBL/SBR) to boost your system up to a 7.1 ch surround system.

• You can also connect one surround back speaker (SB) and enjoy a 6.1 ch surround system.

To achieve the best possible surround sound, install your speakers as shown below.

SL/SR

), and the subwoofer (SW), a 5.1 ch surround system can be enjoyed.

a. This layout is available only when the additional amplifier is connected to the unit and the

surround back speakers are connected to the amplifier. For details, see Connect the surround back speakers on page 11.

Hints on the speaker placement

Where you put your speakers in the room has a big effect on the quality of the sound. The following guidelines should help you to get the best sound from your system.

• The subwoofer can be placed on the floor. Ideally, the other speakers should be at about ear-level when you’re listening to them. Putting the speakers on the floor (except the subwoofer), or mounting them very high on a wall is not recommended.

• For the best stereo effect, place the front speakers 2 m to 3 m apart, at equal distance from the TV.

• If you’re going to place speakers around your CRT TV, use shielded speakers or place the speakers at a sufficient distance from your CRT TV.

• If you’re using a center speaker, place the front speakers at a wider angle. If not, place them at a narrower angle.

• Place the center speaker above or below the TV so that the sound of the center channel is localized at the TV screen. Also, make sure the center speaker does not cross the line formed by the leading edge of the front left and right speakers.

• It is best to angle the speakers towards the listening position. The angle depends on the size of the room. Use less of an angle for bigger rooms.

• Surround and surround back speakers should be positioned 60 cm to 90 cm higher than your ears and titled slight downward. Make sure the speakers don’t face each other. For DVD-Audio, the speakers should be more directly behind the listener than for home theater playback.

• If the surround speakers cannot be set directly to the side of the listening position with a

7.1-channel system, the surround effect can be enhanced by turning off the Up Mix function (see Setting the Up Mix function on page 24).

• Try not to place the surround speakers farther away from the listening position than the front and center speakers. Doing so can weaken the surround sound effect.

• Make sure that all speakers are securely installed. This not only improves sound quality, but also reduces the risk of damage or injury resulting from speakers being knocked over or falling in the event of external shocks such as earthquakes.

• To connect the surround back speakers, an additional amplifier is required. Connect the additional amplifier to the PRE OUT SURR BACK outputs of this unit and connect the surround back speakers to the additional amplifier (see Connect the surround back speakers on page 11).

Connecting your equipment

CAUTION

12 3

10 mm

LINE LEVEL

INPUT

ANALOG

AUDIO IN

SPEAKER R SPEAKER L

Center

Surround right

Front right

Front left

Subwoofer

Surround left

Surround back

right

Surround back

left

Surround back channel amplifier

Connecting the speakers

The receiver will work with just two stereo speakers (the front speakers in the diagram) but using at least three speakers is recommended, and a complete setup is best for surround sound.

Make sure you connect the speaker on the right to the right (R) terminal and the speaker on the left to the left (L) terminal. Also make sure the positive and negative (+/–) terminals on the receiver match those on the speakers.

Be sure to complete all connections before connecting this unit to the AC power source.

Bare wire connections

Front speaker terminals:

Twist exposed wire strands together.

Loosen terminal and insert exposed wire.

Tighten terminal.

Center and surround speaker terminals:

Twist exposed wire strands together.

Push open the tabs and insert exposed

wire.

Release the tabs.

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric

shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

12 3

HDMI

DVR/BDR IN

VIDEO

MONITOR

OUT

DVR/ BDR

OUTINDVD IN

(

)

DVD

ASSIGNABLE

(

DVR/

)

BDR

MONITOR OUT

COMPONENT VIDEO

DVD IN

TV/SATINBD

BPR

BD IN

AUDIO

DVR/BDR

OUT

IN IN

TV/SAT

CD-R/TAPE

SURR BACK

DVD

OUT

(

Single

PRE OUT

)

FM UNBAL 75

SUBWOOFER

PRE OUT

COAXIAL

(CD)

ASSIGNABLE

ANTENNA

AM LOOP

OPTICAL

(

)

(

TV/SAT

CD-R/TAPE

FRONT

SPEAKERS

ASSIGNABLE

)

CENTER

SURROUND

Connect the surround back speakers

Connect the PRE OUT SURR BACK outputs of the unit and additional amplifier to add a surround back speaker.

• You can use the additional amplifier on the surround back channel pre-outs for a single speaker as well. In this case plug the amplifier into the left (L (Single)) terminal only.

Connecting your equipment

Important

Note

HDMI

Making cable connections

Make sure not to bend the cables over the top of this unit (as shown in the illustration). If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

• Before making or changing connections, switch off the

power and disconnect the power cord from the AC outlet.

• Before unplugging the power cord, switch the power into

standby.

HDMI cables

Both video and sound signals can be transmitted simultaneously with one cable. If connecting the player and the TV via this receiver, for both connections, use HDMI cables.

Be careful to connect the terminal in the proper direction.

• Set the HDMI parameter in Setting the Audio options on

page 24 to THRU (THROUGH) and set the input signal in Selecting the audio input signal on page 18 to HDMI, if you want to hear HDMI audio output from your TV (no sound will be heard from this receiver).

• If the video signal does not appear on your TV, try adjusting the resolution settings on your component or display. Note that some components (such as video game units) have resolutions that may not be displayed. In this case, use a (analog) composite connection.

• When the video signal from the HDMI is 480i, 480p, 576i or 576p, Multi Ch PCM sound and HD sound cannot be received.

About HDMI

The HDMI connection transfers uncompressed digital video, as well as almost every kind of digital audio that the connected component is compatible with, including DVDVideo, DVD-Audio, SACD, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio (see below for limitations), Video CD/ Super VCD and CD. This receiver incorporates High-Definition Multimedia Interface (HDMI

This receiver supports the functions described below through HDMI connections.

• Digital transfer of uncompressed video (contents protected by HDCP (1080p/24, 1080p/60, etc.))

•3D signal transfer

• Deep Color signal transfer

• x.v.Color signal transfer

• Audio Return Channel

• Input of multi-channel linear PCM digital audio signals (192 kHz or less) for up to 8 channels

• Input of the following digital audio formats: – Dolby Digital, Dolby Digital Plus, DTS, High bitrate audio (Dolby TrueHD, DTS-HD Master Audio), DVDAudio, CD, SACD (DSD 2 ch only), Video CD, Super VCD

• Synchronized operation with components using the

Control with HDMI function (see Control with HDMI function on page 29)

) technology.

• Use a High Speed HDMI® cable. If HDMI cable other than a High Speed HDMI properly.

• When an HDMI cable with a built-in equalizer is connected, it may not operate properly.

• 3D, Deep Color, x.v.Color signal transfer and Audio Return Channel are only possible when connected to a compatible component.

• HDMI format digital audio tr ansmissions require a longer time to be recognized. Due to this, interruption in the audio may occur when switching between audio formats or beginning playback.

• Turning on/off the device connected to this unit’s HDMI OUT terminal during playback, or disconnecting/ connecting the HDMI cable during playback, may cause noise or interrupted audio.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

“x.v.Color” and are trademarks of Sony Corporation.

cable is used, it may not work

Connecting your equipment

Note

AUDIO

White (Left)

Red (Right)

COAXIAL

OPTICAL

Coaxial digital

audio cable

Optical cable

Yellow

COMPONENT VIDEO

Green (Y)

Red (PR)

Blue (PB)

VIDEO

HDMI

COMPONENT VIDEO

MONITOR OUT

YPBP

MONITOR

OUT

COMPONENT VIDEO

YPBP

HDMI

OUT

Terminal for connection with source device

Terminal for connection with TV monitor

Playback

component

Video signals can be output.

Analog audio cables

Use stereo RCA phono cables to connect analog audio components. These cables are typically red and white, and you should connect the red plugs to R (right) terminals and white plugs to L (left) terminals.

Digital audio cables

Commercially available coaxial digital audio cables or optical cables should be used to connect digital components to this receiver.

• When connecting optical cables, be careful when inserting the plug not to damage the shutter protecting the optical socket.

• When storing optical cable, coil loosely. The cable may be damaged if bent around sharp corners.

• You can also use a standard RCA video cable for coaxial digital connections.

Video cables

Standard RCA video cables

These cables are the most common type of video connection and are used to connect to the composite video terminals. The yellow plugs distinguish them from cables for audio.

VIDEO

Component video cables

Use component video cables to get the best possible color reproduction of your video source. The color signal of the TV is divided into the luminance (Y) signal and the color (P

R) signals and then output. In this way, interference between

the signals is avoided.

B and

About video outputs connection

This receiver is not loaded with a video converter. When you use component video cables or HDMI cables for connecting to the input device, the same cables should be used for connecting to the TV.

The signals input from the analog (composite and component) video inputs of this unit will not be output from the HDMI OUT.

Connecting your equipment

Note

VIDEO

MONITOR

OUT

HDMI IN

HDMI OUT

DIGITAL AUDIO OUTANALOG AUDIO OUT

OPTICAL

Select one

HDMI/DVI-

compatible TV

HDMI/DVI-compatible

Blu-ray Disc player

If the TV does not support the HDMI Audio Return Channel function, this connection is required to listen to the TV sound over the receiver.

DIGITAL AUDIO OUT ANALOG AUDIO OUT

OPTICAL

DIGITAL AUDIO OUTANALOG AUDIO OUT

OPTICAL COAXIAL

VIDEO IN

VIDEO OUT

Select one

DVD player

Select one

This connection is required in order to listen to the sound of the TV over the receiver.

Connecting a TV and playback components

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray Disc player, etc.), you can connect it to this receiver using a commercially available HDMI cable. If the TV and playback components support the Control with HDMI feature, the convenient Control with HDMI functions can be used (see Control with HDMI function on page 29).

• The following connection/setting is required to listen to the sound of the TV over this

receiver.

If the TV does not support the HDMI Audio Return Channel function, connect the receiver and TV with audio cables (as shown).

If the TV supports the HDMI Audio Return Channel function, the sound of the TV is input to the receiver via the HDMI terminal, so there is no need to connect an audio cable. In this case, set ARC at HDMI SET to ON (see HDMI Setup on page 29).

HDMI

DVD IN

DVR/BDR IN

VIDEO

DVR/ BDR

(

DVD

ASSIGNABLE

(

DVR/ BDR

MONITOR OUT

BD IN

AUDIO

DVR/BDR

MONITOR

TV/SATINBD

OUT

OUTINDVD IN

)

COMPONENT VIDEO

CD-R/TAPE

OUT

IN IN

BPR

TV/SAT

OUT

SURR BACK

(

)

Single

PRE OUT

FM UNBAL

SUBWOOFER

DVD

PRE OUT

COAXIAL

(CD)

ASSIGNABLE

ANTENNA

AM LOOP

(

)

(

TV/SAT

CD-R/TAPE

FRONT

SPEAKERS

OPTICAL

ASSIGNABLE

)

Connecting your component with no HDMI terminal

This diagram shows connections of a TV and DVD player (or other playback component) with no HDMI terminal to the receiver.

• If both TV and player has a component video jacks, you can connect these too. See Using the component video jacks on page 16 for more on this.

COAXIAL

AUDIO

SURR BACK

DVR/BDR

CD-R/TAPE

OUT

IN IN

TV/SAT

DVD

OUT

(

PRE OUT

Single

(CD)

)

FM UNBAL 75

SUBWOOFER

PRE OUT

ASSIGNABLE

ANTENNA

AM LOOP

OPTICAL

ASSIGNABLE

(

)

(

TV/SAT

CD-R/TAPE

FRONT

SPEAKERS

)

CEN

DVD IN

DVR/BDR IN

HDMI

VIDEO

DVR/ BDR

(

DVD

ASSIGNABLE

(

DVR/ BDR

MONITOR OUT

MONITOR

TV/SATINBD

OUT

OUTINDVD IN

)

BPR

COMPONENT VIDEO

BD IN

• In order to listen to the audio from the DVD player that is connected to this receiver using an optical cable or a coaxial cable, first, switch to the DVD input, then press SIGNAL SEL to choose the audio signal O2 (OPTICAL2) or C1 (COAXIAL1) (see Selecting the audio input signal on page 18).

Connecting your equipment

Note

DIGITAL AUDIO OUTANALOG AUDIO OUT

OPTICALCOAXIAL

VIDEO OUT

Select one

Set-top box, etc.

DIGITAL AUDIO OUT

ANALOG AUDIO OUT

ANALOG AUDIO IN

OPTICAL

VIDEO IN

VIDEO OUT

Select one

HDD/DVD recorder, Blu-ray Disc recorder, etc.

REC

DIGITAL AUDIO OUTANALOG AUDIO OUT

ANALOG AUDIO IN

OPTICALCOAXIAL

Select one

CD-R, MD, DAT, Tape recorder, etc.

Connecting a satellite receiver or other digital set-top box

Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top boxes’.

• If the set-top box or video component also has an HDMI or a component video output, you can connect this too. See Connecting using HDMI on page 14 or Using the component video jacks on page 16 for more on this.

COAXIAL

DVD IN

DVR/BDR IN

VIDEO

DVR/ BDR

(

DVD

ASSIGNABLE

(

DVR/ BDR

MONITOR OUT

• In order to listen to the audio from the source component that is connected to this receiver using a coaxial cable, first, switch to the TV/SAT, then press SIGNAL SEL to choose the audio signal C1 (COAXIAL1) (see Selecting the audio input signal on page 18).

MONITOR

TV/SATINBD

OUT

OUTINDVD IN

)

BPR

COMPONENT VIDEO

BD IN

AUDIO

DVR/BDR

OUT

(CD)

SURR BACK

CD-R/TAPE

(

)

Single

PRE OUT

FM UNBAL

IN IN

TV/SAT

AM LOOP

SUBWOOFER

DVD

PRE OUT

ASSIGNABLE

ANTENNA

(

)

(

TV/SAT

CD-R/TAPE

FRONT

SPEAKERS

OPTICAL

ASSIGNABLE

Connecting an HDD/DVD recorder, Blu-ray Disc recorder and other video sources

This receiver has audio/video inputs and outputs suitable for connecting analog or digital video recorders, including HDD/ DVD recorders and Blu-ray Disc recorders.

• Only the signals that are input to the VIDEO IN terminal can be output from the VIDEO OUT terminal.

• Audio signals that are input through the digital terminal will not be output from the analog terminal.

COAXIAL

AUDIO

SURR BACK

DVR/BDR

CD-R/TAPE

OUT

IN IN

TV/SAT

DVD

OUT

(

PRE OUT

Single

)

FM UNBAL 75

SUBWOOFER

PRE OUT

(CD)

AM LOOP

ASSIGNABLE

ANTENNA

OPTICAL

(

)

(

TV/SAT

CD-R/TAPE

FRONT

SPEAKERS

ASSIGNABLE

DVD IN

DVR/BDR IN

)

CEN

HDMI

VIDEO

DVR/ BDR

(

DVD

ASSIGNABLE

(

DVR/

BDR

MONITOR OUT

• In order to listen to the audio from the source component that is connected to this receiver using an optical cable, first, switch to the DVR/BDR input, then press SIGNAL SEL to choose the audio signal O2 (OPTICAL2) (see Selecting the audio input signal on page 18).

MONITOR

TV/SATINBD

OUT

OUTINDVD IN

)

BPR

COMPONENT VIDEO

BD IN

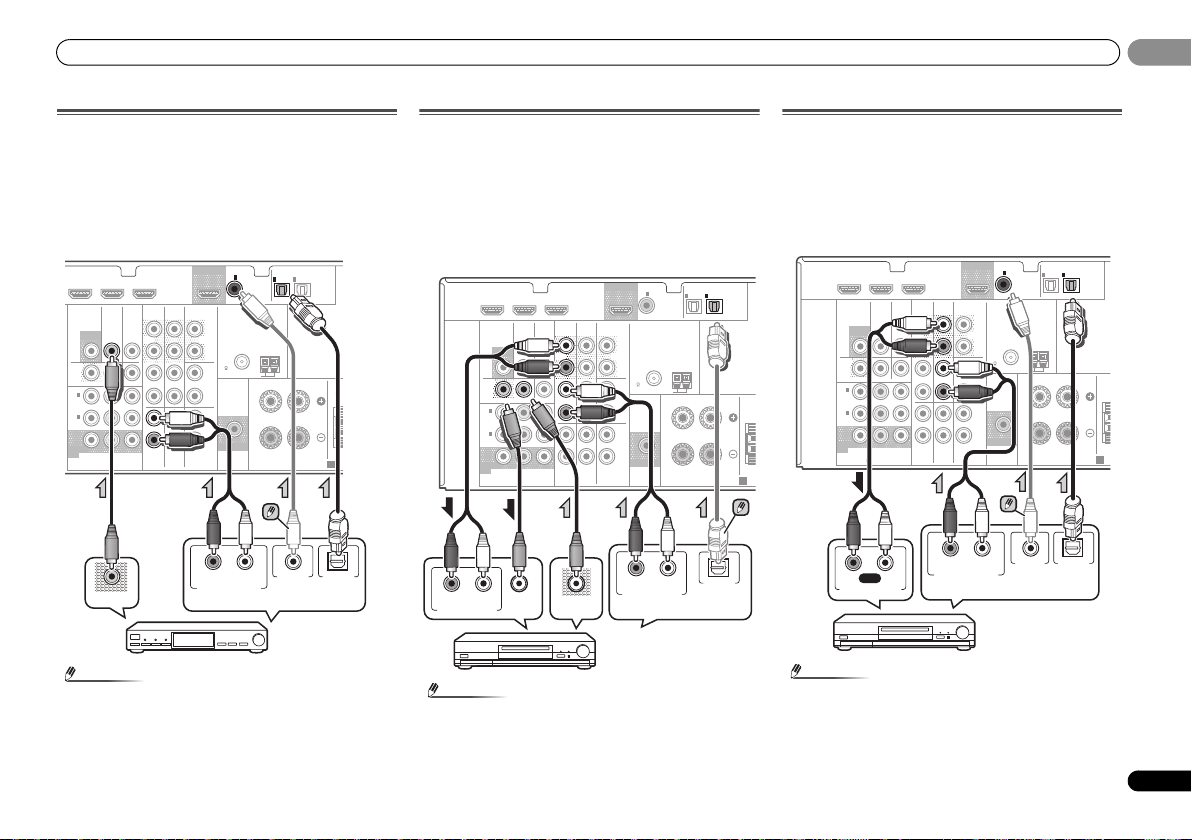

Connecting other audio components

The number and kind of connections depends on the kind of component you’re connecting. Follow the steps below to connect a CD-R, MD, DAT, tape recorder or other audio component.

• Note that you must connect digital components to ana log audio jacks if you want to record to/from digital components (like an MD) to/from analog components.

AUDIO

SURR BACK

DVR/BDR

CD-R/TAPE

OUT

IN IN

TV/SAT

DVD

OUT

(

PRE OUT

Single

)

FM UNBAL 75

SUBWOOFER

PRE OUT

DVD IN

DVR/BDR IN

HDMI

)

CEN

VIDEO

DVR/ BDR

(

DVD

ASSIGNABLE

(

DVR/

BDR

MONITOR OUT

MONITOR

TV/SATINBD

OUT

OUTINDVD IN

)

BPR

COMPONENT VIDEO

BD IN

• In order to listen to the audio from the CD player that is connected to this receiver using a coaxial cable, first, switch to the CD-R input, then press SIGNAL SEL to choose the audio signal C1 (COAXIAL1) (see Selecting the audio input signal on page 18).

COAXIAL

(CD)

ASSIGNABLE

ANTENNA

AM LOOP

OPTICAL

ASSIGNABLE

(

)

(

TV/SAT

CD-R/TAPE

FRONT

SPEAKERS

)

Connecting your equipment

Important

COMPONENT VIDEO IN

COMPONENT VIDEO OUT

DVD player

fig. a

fig. b

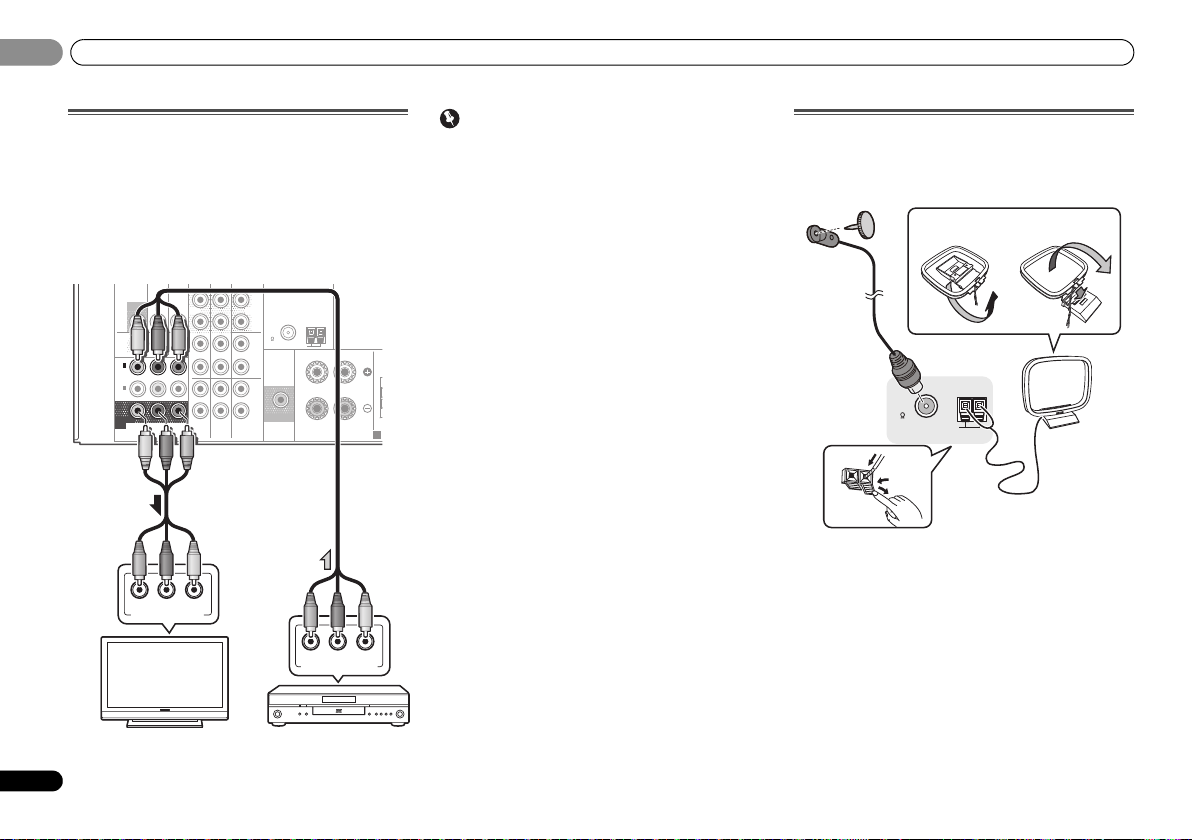

Using the component video jacks

Component video should deliver superior picture quality when compared to composite video. A further advantage (if your source and TV are both compatible) is progressive-scan video, which delivers a very stable, flicker-free picture. See the manuals that came with your TV and source component to check whether they are compatible with progressive-scan video.

• For the audio connection, refer to Connecting your component with no HDMI terminal on page 14.

MONITOR

DVR/ BDR

(

)

DVD

ASSIGNABLE

(

DVR/

)

BDR

MONITOR OUT

COMPONENT VIDEO

TV/SATINBD

OUT

OUTINDVD IN

BPR

DVR/BDR

OUT

IN IN

TV/SAT

D-R/TAPE

SURR BACK

(

Single

PRE OUT

DVD

)

FM UNBAL 75

SUBWOOFER

PRE OUT

ANTENNA

AM LOOP

FRONT

SPEAKERS

• If you connect any source component to the receiver using a component video input, you must also have your TV connected to this receiver’s COMPONENT VIDEO MONITOR OUT jacks.

• If necessary, assign the component video inputs to the input source you’ve connected. This only needs to be done if you didn’t connect according to the following defaults:

COMPONENT VIDEO IN 1: DVD

COMPONENT VIDEO IN 2: DVR/BDR

See The Input Assign menu on page 27 for more on this.

Connecting antennas

Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Using external antennas below).

ANTENNA

FM UNBAL 75

AM LOOP

Push open the tabs, then insert one wire fully into each terminal, then release the tabs to secure the AM antenna wires.

Fix the AM loop antenna to the attached stand.

To fix the stand to the antenna, bend in the direction indicated by the arrow (fig. a) then clip the loop onto the stand (fig. b).

Place the AM antenna on a flat surface and in a direction giving the best reception.

Connect the FM wire antenna into the FM antenna socket.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.

Connecting your equipment

CAUTION

Note

One-touch

PAL connector

75 Ω coaxial cable

ANTENNA

AM LOOP

Outdoor antenna

5 m to 6 m

Indoor antenna

(vinyl-coated wire)

This receiver

Digital audio player, etc.

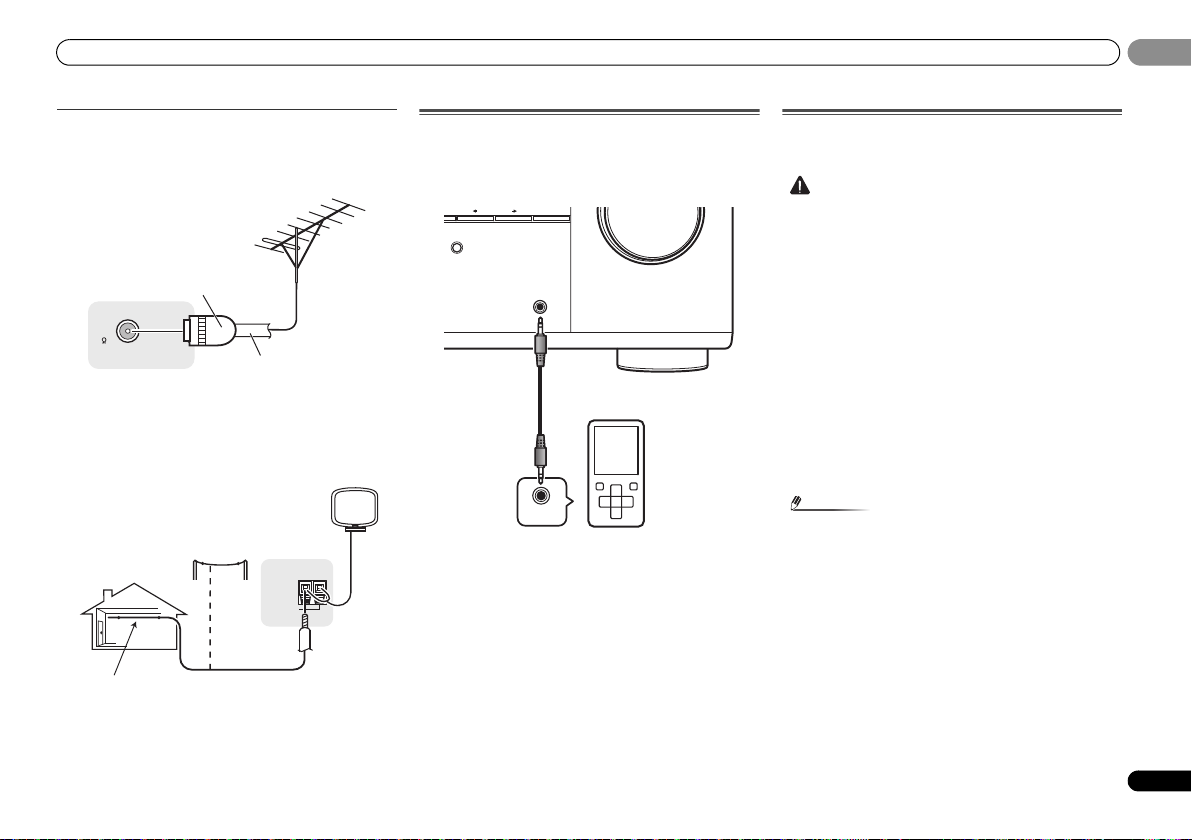

Using external antennas

To improve FM reception

Use a PAL connector (not supplied) to connect an external FM antenna.

ANTENNA

FM UNBAL 75

To improve AM reception

Connect a 5 m to 6 m length of vinyl-coated wire to the AM antenna terminal without disconnecting the supplied AM loop antenna. For the best possible reception, suspend horizontally outdoors.

Connecting to the front panel audio mini jack

Front audio connections are accessed via the front panel using the INPUT SELECTOR or PORTABLE button on the remote control. Use a stereo mini-jack cable to connect a digital audio player, etc.

SOUND

RETRIEVER

PRESET ENTER

PORTABLE

AUDIO OUT

MASTER VOLUME

Plugging in the receiver

Only plug in after you have connected all your components to this receiver, including the speakers.

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.

• Do not use any power cord other than the one supplied with this unit.

• Do not use the supplied power cord for any purpose other than that described below.

• The receiver should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g., when on vacation.

• After this receiver is connected to an AC outlet, a 2 second to 10 second HDMI initialization process begins. You cannot carry out any operations during this process. The HDMI indicator in the front panel display blinks during this process, and you can turn on this receiver once it has stopped blinking. When you set the Control with HDMI to OFF, you can skip this process. For details about the Control with HDMI feature, see Control with HDMI function on page 29.

Plug the supplied power cord into the AC IN socket on

the back of the receiver.

Plug the other end into a power outlet.

Note

INPUT SELECT

SOURCESLEEP

CONTROL

INPUT

RECEIVER

BD DVD TV

DVR/BDRCDCD-R

ADAPTER

TUNER

PORTABLE

DTV/TV

ENTER

ADV SURR

AUTO/

DIRECT

MUTE

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

MASTER VOLUME

BAND

MENU TOP MENU

BD MENU

HOME MENU

SETUP

PTY SEARCH

ALC/

STANDARD

STEREO

RECEIVER

Basic playback

Chapter 3:

Basic playback

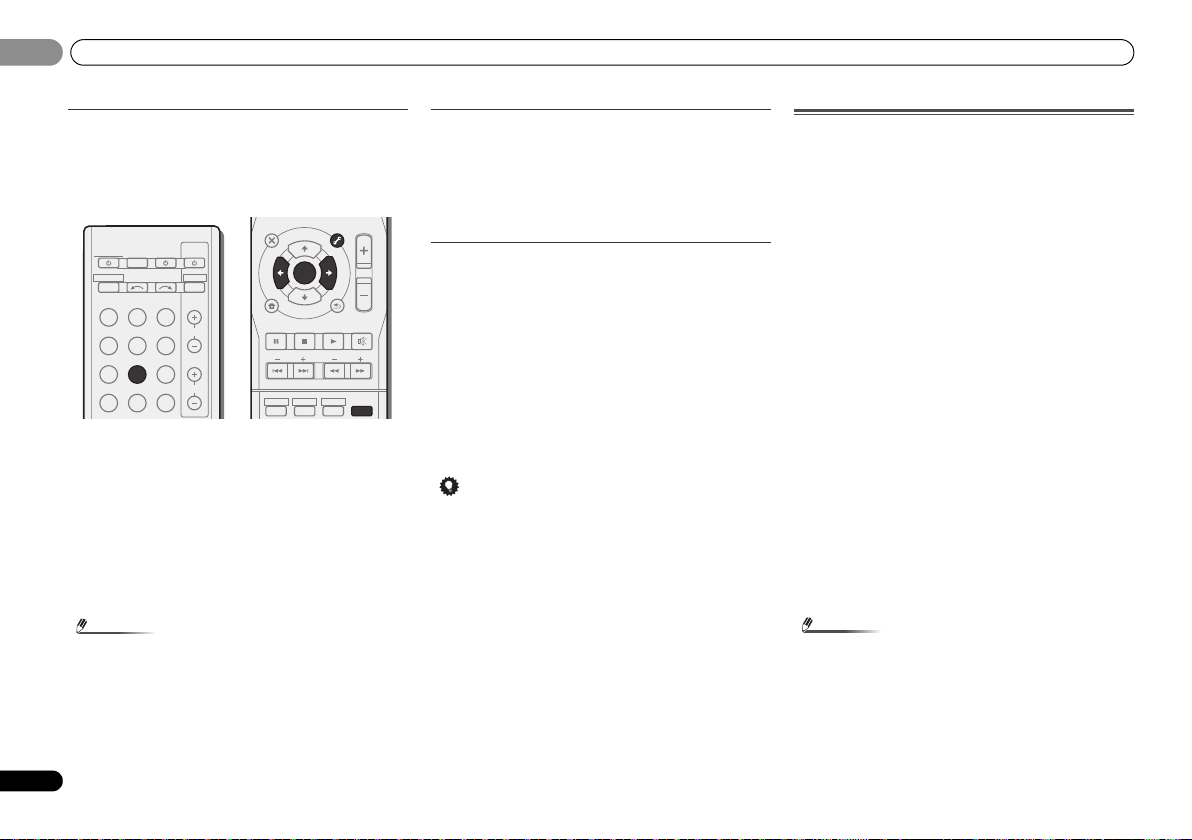

Canceling the demo display

The display on the front panel shows various information (demo displays) when the receiver is not operating. You can turn off the demo display. For details, see The FL Demo Mode menu on page 28.

Playing a source

Here are the basic instructions for playing a source (such as a DVD disc) with your home theater system.

Switch on your system components and receiver.

Start by switching on the playback component (for example a DVD player), your TV and subwoofer (if you have one), then the receiver (press  RECEIVER).

Switch the TV input to the input that connects this

receiver.

For example, if you connected this receiver to the VIDEO jacks on your TV, make sure that the VIDEO input is now selected.

Press input function buttons to select the input function

you want to play.

• The input of the receiver will switch over, and you will be able to operate other components using the remote control. To operate the receiver, first press on the remote control, then press the appropriate button to operate.

• The input source can also be selected by using INPUT SELECT buttons on the remote control, or by using the front panel INPUT SELECTOR dial. In this case, the remote control won’t switch operational modes.

If you selected the proper input source and there is still no sound, select the audio input signal for playback (see Selecting the audio input signal below).

Press AUTO/DIRECT to select ‘AUTO SURROUND’ and

start playback of the source.

If you’re playing a Dolby Digital or DTS surround sound DVD disc, with a digital audio connection, you should hear surround sound. If you’re playing a stereo source or if the connection is an analog audio connection, you will only hear sound from the front left/right speakers in the default listening mode.

It is possible to check on the front panel display whether or not surround sound playback is being performed properly. When using a surround back speaker, 2D+PLIIx is displayed when playing Dolby Digital 5.1-channel signals, and DTS+NEO:6 is displayed when playing DTS 5.1-channel signals.

When not using a surround back speaker, 2D is displayed when playing Dolby Digital signals.

If the display does not correspond to the input signal and listening mode, check the connections and settings.

• You may need to check the digital audio output settings on your DVD player or digital satellite receiver. It should be set to output Dolby Digital, DTS and 88.2 kHz/96 kHz PCM (2 channel) audio, and if there is an MPEG audio option, set this to convert the MPEG audio to PCM.

• Depending on your DVD player or source discs, you may only get digital 2 channel stereo and analog sound. In this case, the receiver must be set to a multichannel listening mode if you want multichannel surround sound.

Use MASTER VOLUME to adjust the volume level.

Turn down the volume of your TV so that all sound is coming from the speakers connected to this receiver.

Selecting the audio input signal

The audio input signal can be selected for each input source. Once it is set, the audio input that was selected will be applied whenever you select the input source using the input function buttons.

DVR/BDRCDCD-R

TUNER

ADAPTER

PHASE



Press SIGNAL SEL to select the audio input signal

corresponding to the source component.

Each press cycles through the following:

• H – Selects an HDMI signal. H can be selected for BD, DVD or DVR/BDR input. For other inputs, H cannot be selected.

When the HDMI option in Setting the Audio options on page 24 is set to THRU, the sound will be heard t hrough your TV, not from this receiver.

• A – Selects the analog inputs.

• C1/O1/O2 – Selects the digital input. The coaxial 1 input is selected for C1, and the optical 1 or 2 audio input is selected for O1 or O2.

When H (HDMI) or C1/O1/O2 (digital) is selected and the selected audio input is not provided, A (analog) is automatically selected.

•For the TV/SAT input, only A (analog) or C1/O1/O2 (digital) can be selected. However, if the ARC at HDMI SET is set to ON, the input is fixed to H (HDMI) and cannot be changed.

• When set to H (HDMI) or C1/O1/O2 (digital), 2 lights when a Dolby Digital signal is input, and DTS lights when a DTS signal is input.

• When the H (HDMI) is selected, the A and DIGITAL indicators are off (see page 7).

PORTABLE

SIGNAL SELS.RETRIEVER

VOL

Basic playback

VOL

DVR/BDRCDCD-R

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

ENTER

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

MASTER VOLUME

BAND

MENU TOP MENU

E S

HOME MENU

SETUP

PTY SEARCH

Tip

HDMI

VIDEO

COMPONENT VIDEO

DVR/ BDR

B PR

COAXIAL

AUDIO

ANTENNA

OPTICAL

ASSIGNABLE

DVR/BDR

OUT

CD-R/TAPE

SURR BACK

PRE OUT

(

Single

)

(CD)

IN IN

TV/SATINBD

OUT

IN DVD IN

TV/SAT

DVD

(

DVD

)

(

DVR/ BDR

)

DVR/BDR IN DV D IN BD IN

(

TV/SAT

)

(

CD-R/TAPE

)

FM UNBAL 75

AM LOOP

OUT

MONITOR

OUT

MONITOR OUT

DVD BD

CD-R

TUNER

DVR/BDR

TV BD

DVR/BDR

DVD

DVR/BDR

DVD

CD-R CD

DVR/BDR

BD DVDTV

SIGNAL SEL

Audio

Other than CD input

Audio

Video/Audio

Video

Other than TV/SAT input

Other than CD-R input

(CD input)

(TV/SAT input)

(CD-R input)

Reassignable

(page 27)

(HDMI)

• When digital input (optical or coaxial) is selected, this receiver can only play back Dolby Digital, PCM (32 kHz to 96 kHz) and DTS (including DTS 96 kHz/24 bit) digital signal formats. The compatible signals via the HDMI terminals are: Dolby Digital, DTS, SACD (DSD 2 ch only), PCM (32 kHz to 192 kHz sampling frequencies), Dolby TrueHD, Dolby Digital Plus, DTS-EXPRESS, DTS-HD Master Audio and DVD Audio (including 192 kHz). With other digital signal formats, set to A (analog).

• In order to enjoy the picture and/or sound from devices connected to each terminal, select the input by doing the following.

• You may get digital noise when a LD or CD player compatible with DTS is playing an analog signal. To prevent noise, make the proper digital connections (page 13) and set the signal input to C1/O1/O2 (digital).

• Some DVD players don’t output DTS signals. For more details, refer to the instruction manual supplied with your DVD player.

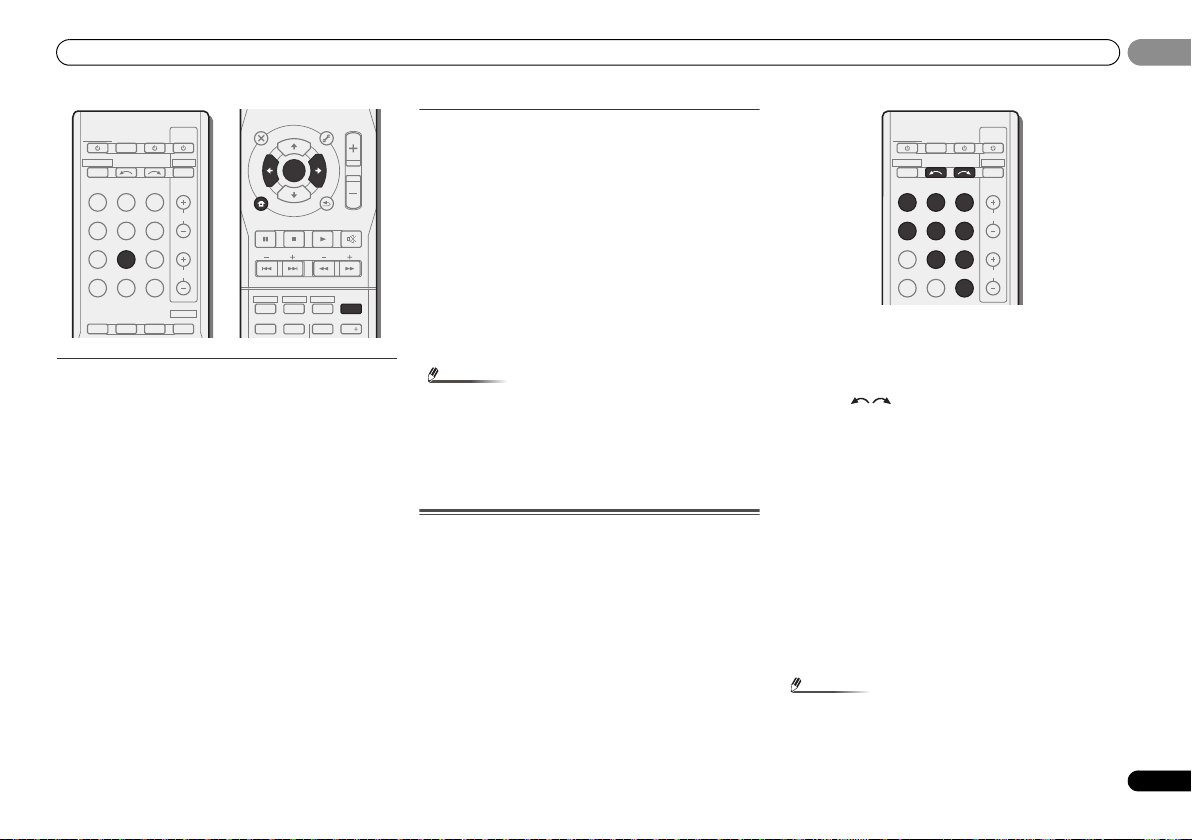

Listening to the radio

The following steps show you how to tune in to FM and AM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

Press TUNER to select the tuner.

Use BAND to change the band (FM or AM), if necessary.

Each press switches the band between FM (stereo or mono) and AM.

Tune to a station.

There are three ways to do this:

Automatic tuning

To search for stations in the currently selected band, press and hold TUNE / for about a second. The receiver will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning

To change the frequency one step at a time, press

TUNE /.

High speed tuning

Press and hold TUNE / for high speed tuning. Release the button at the frequency you want.

Improving FM sound

If the TUNE or ST indicators don’t light when tuning to an FM station because the signal is weak, set the receiver to the mono reception mode.



Press BAND to select FM MONO.

This should improve the sound quality and allow you to enjoy the broadcast.

Note

Tip

Note

INPUT SELECT

SOURCESLEEP

CONTROL

INPUT

RECEIVER

VOL

RECEIVER

BD DVD TV

DVR/BDRCDCD-R

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

DTV/TV

ENTER

DISP

MUTE

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

MASTER

VOLUME

BAND

TRE

BASS

TOP MENU

E S

HDD DVD VCR

HOME MENU

SETUP

PTY SEARCH

Basic playback

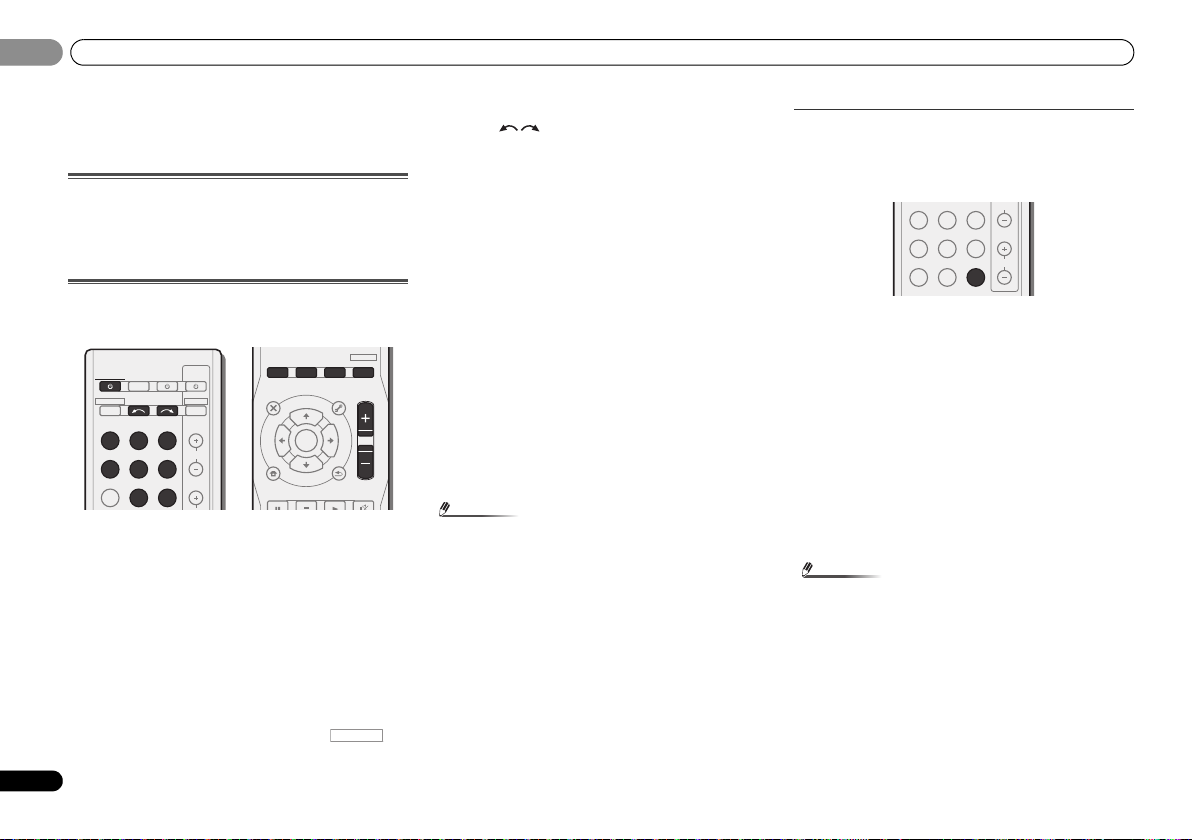

Saving station presets

If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station. This saves the effort of manually tuning in each time. This unit can memorize up to 30 stations.

Tune to a station you want to memorize.

See Listening to the radio on page 19 for more on this.

Press TUNER EDIT.

The display shows PRESET, then a blinking MEM and station preset.

Press PRESET

want.

You can also use the number buttons.

Press ENTER.

The preset number stop blinking and the receiver stores the station.

• If the receiver is left disconnected from the AC power outlet for over a month, the station memories will be lost and will have to be reprogrammed.

• Stations are stored in stereo. When the station is stored in the FM MONO mode, it shows as ST when recalled.

/

to select the station preset you

Listening to station presets

You will need to have some presets stored to do this. See Saving station presets above if you haven’t done this already.



Press PRESET

want.

• You can also use the number buttons on the remote control to recall the station preset.

/

to select the station preset you

Naming preset stations

For easier identification, you can name all of your preset stations.

Choose the station preset you want to name.

See Listening to station presets above for how to do this.

Press TUNER EDIT twice.

The cursor at the first character position is blinking on the display.

Input the name you want.

Choose a name up to eight characters long.

•Use PRESET / to select character position.

•Use TUNE / to select characters.

• The name is stored when ENTER is pressed.

• To erase a station name, follow steps 1 and 2, and press ENTER while the display is blank. Press TUNER EDIT while the display is blank, to keep the previous name.

• Once you have named a station preset, Press DISP to show the name. When you want to return to the frequency display, press DISP several times to show the frequency.

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.

You can search the following program types:

NEWS – News AFFAIRS – Current Affairs INFO – General Information SPORT – Sport EDUCATE – Educational DRAMA – Radio plays, etc. CULTURE – National or

regional culture, theater, etc. SCIENCE – Science and technology VARIED – Usually talk-based material, such as quiz shows or interviews.

POP M – Pop music ROCK M – Rock music EASY M – Easy listening LIGHT M – ‘Light’ classical

music CLASSICS – ‘Serious’ classical music OTHER M – Music not fitting above categories WEATHER – Weather reports

• In addition, there are three other program types, ALARM, ALARMTST, and NO TYPE. ALARM and ALARMTST are used for emergency announcements. NO TYPE appears when a program type cannot be found.

FINANCE – Stock market reports, commerce, trading, etc. CHILDREN – Programs for children

SOCIAL – Social affairs RELIGION – Programs

concerning religion PHONE IN – Public expressing their views by phone TRAVEL – Holiday-type travel rather than traffic announcements LEISURE – Leisure interests and hobbies

JAZZ – Jazz COUNTRY – Country music NATION M – Popular music in

a language other than English OLDIES – Popular music from the ’50s and ’60s

FOLK M – Folk music DOCUMENT – Documentary

Basic playback

Note

INPUT SELECT

SOURCESLEEP

CONTROL

INPUT

RECEIVER

ADV SURR

VOL

RECEIVER

BD MENU

BD DVD TV

DVR/BDRCDCD-R

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

DTV/TV

ENTER

SB CH

DISP

CH SELECT

MUTE

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

MASTER VOLUME

BAND

TRE

BASS

TOP MENU

E S

HDD DVD VCR

TEST TONE

HOME MENU

SETUP

PTY SEARCH

AUTO/

DIRECT

ALC/

STANDARD

STEREO

INPUT SELECT

SOURCESLEEP

CONTROL

INPUT

RECEIVER

VOL

RECEIVER

BD DVD TV

DVR/BDRCDCD-R

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

DTV/TV

Searching for RDS programs

You can search for a program type listed above.

Press TUNER then press BAND to select the FM band.

• RDS is only possible in the FM band.

Press PTY SEARCH.

SEARCH shows in the display.

Press PRESET

want to hear.

Press ENTER to search for the program type.

The system starts searching through the station presets for a match, stopping when it was found one. Repeat to search for other stations.

If NO PTY is displayed it means the tuner couldn’t find that program type at the time of the search.

• RDS searches station presets only. If no stations have been preset, or if the program type could not be found among the station presets NO PTY is displayed. FINISH means the search is complete.

/

to select the program type you

Displaying RDS information

Use the DISP button to display the different types of RDS information available.



Press DISP for RDS information.

Each press changes the display as follows:

• Listening mode

•Master volume

• Radio Text (RT) – Messages sent by the radio station. For

example, a talk radio station may provide a phone number as RT.

• Program Service Name (PS) – The name of the radio

station.

•Program Type (PTY) – This indicates the kind of program

currently being broadcast.

• Current tuner frequency (FREQ)

• If any noise is picked up while displaying the RT scroll, some characters may be displayed incorrectly.

• If you see NO TEXT in the RT display, it means no RT data is sent from the broadcast station. The display will automatically switch to the PS data display (if no PS data, NO NAME is displayed).

• In the PTY display, NO PTY may be shown.

Making an audio or a video recording

You can make an audio or a video recording from the built-in tuner, or from an audio or video source connected to the receiver (such as a CD player or TV).

Only video signals that were input to this receiver through a composite video cable or analog audio inputs can be recorded. Signals that were input through an HDMI cable, component video cable or digital audio cable (optical / coaxial) cannot be recorded (see Connecting other audio components on page 15 for more on connections).

Press input function buttons to select the input function

you want to record.

The input of the receiver will switch over, and you will be able to operate other components using the remote control.

• The input source can also be selected by using INPUT SELECT buttons on the remote control, or by using the front panel INPUT SELECTOR dial.

Select the audio input signal (if necessary).

Press SIGNAL SEL and select the analog inputs (A) for the source component of which you want to record (see page 18 for more on this).

Prepare the source you want to record.

Tune to the radio station, load the CD, video, DVD etc.

Prepare the recorder.

Insert a blank tape, MD, video etc. into the recording device and set the recording levels. Refer to the instructions that came with the recorder if you are unsure how to do this. Most video recorders set the audio recording level automatically—check the component’s instruction manual if you’re unsure.

Start recording, then start playback of the source

component.

• The receiver’s volume, balance, tone (bass, treble, loudness), and surround effects have no effect on the recorded signal.

• Some video sources are copy-protected. These cannot be recorded.

Listening to your system

Important

Note

SOUND

RETRIEVER

STEREO

ADVANCED SURROUND

DISPLAY BAND TUNER EDIT TUNE

ALC/

STANDARD SURR

AUTO SURROUND

STREAM DIRECT

AUTO/

DIRECT

AUTO SURROUND

STREAM DIRECT

ALC/

STANDARD

ALC/

STANDARD SURR

Chapter 4:

Listening to your system

Choosing the listening mode

This receiver offers a variety of listening modes to accommodate playback of various audio formats. Choose one according to your speaker environment or the source.



While listening to a source, press the listening mode

button repeatedly to select a listening mode you want.

• The listening mode is shown on the display on the front panel.

• The listening modes and many features described in this section may not be available depending on the current source, settings and status of the receiver.

Auto playback

The simplest, most direct listening option is the AUTO SURROUND feature. With this, the receiver automatically

detects what kind of source you’re playing and selects multichannel or stereo playback as necessary.

• Press AUTO/DIRECT repeatedly until AUTO SURROUND shows briefly in the display (it will then show the decoding or playback format). Check the digital format indicators in the display to see how the source is being processed.

AUTO/

DIRECT

AUDIO

PARAMETER

STEREO

ALC/

STANDARD

TUNER EDIT

TOOLS

BD MENU

ADV SURR

MASTER VOLUME

• Stereo surround (matrix) formats are decoded

accordingly using NEO:6 CINEMA or DOLBY PLIIx MOVIE (see Listening in surround sound below for more on these decoding formats).

Listening in surround sound

Using this receiver, you can listen to any source in surround sound. However, the options available will depend on your speaker setup and the type of source you’re listening to.

• If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display.

When you select STEREO ALC (Auto Level Control stereo mode), this unit equalizes playback sound levels if each sound level varies with the music source recorded in a portable audio player.

When you select STEREO, you will hear the source through just the front left and right speakers (and possibly your subwoofer depending on your speaker settings). Dolby Digital and DTS multichannel sources are downmixed to stereo. The following modes provide basic surround sound for stereo and multichannel sources.

Explanatory notes No: No connected / Yes: Connected / Two: Two speakers are

connected / –: Whether connected or no

Type of surround modes

Suitable sources

Two channel sources

STEREO ALC See above. – DOLBY PLIIx MOVIE Movie

DOLBY PLII MOVIE No

DOLBY PLIIx MUSIC

DOLBY PLII MUSIC

Music

DOLBY PLIIx GAME Video games

DOLBY PLII GAME No

Surround back speaker(s)

Yes

Type of surround modes

NEO:6 CINEMA

NEO:6 MUSIC

Suitable sources

Movie –

Music –

Surround back speaker(s)

DOLBY PRO LOGIC Old movies –

Straight Decode

STEREO

No additional effects –

See above. –

Multichannel sources

STEREO ALC See above. – DOLBY PLIIx MOVIE Movie

Two

DOLBY PLII MOVIE No

DOLBY PLIIx MUSIC

DOLBY PLII MUSIC

Music

Two

DOLBY DIGITAL EX Movie/Music Yes DTS-ES Movie/Music Yes DTS NEO:6 Movie/Music Yes

Straight Decode

STEREO

a. If surround back channel processing (page 24) is switched off,

or the surround back speakers are set to NO, DOLBY PLIIx becomes DOLBY PLII (5.1 channel sound).

b. You can also adjust the C.WIDTH, DIMEN., and PNRM. effect

(see Setting the Audio options on page 24).

c. You can also adjust the C.IMG effect (see Setting the Audio

options on page 24).

d. This mode can only be selected when surround back channel

processing (page 24) is switched off.

e. • You can choose the STEREO mode by using STEREO button.

• The audio is heard with your surround settings and you can still use the Midnight, Loudness, Phase Control, Sound Retriever and Tone functions.

• In modes that give 6.1 channel sound, the same signal is heard from both surround back speakers.

No additional effects –

See above. –

Listening to your system

Note

BD MENU

ADV SURR

ADVANCED SURROUND

Front left

speaker

Front right

speaker

VOL

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

VOL

ADAPTER

TUNER

PORTABLE

PHASE

SIGNAL SELS.RETRIEVER

Using the Advanced surround

The Advanced surround feature creates a variety of surround effects. Try different modes with various soundtracks to see which you like.

ACTION Designed for action movies with dynamic

DRAMA Designed for movies with lots of dialog.

ENT.SHOW Suitable for musical sources.

ADVANCED GAME Suitable for video games.

SPORTS Suitable for sports programs.

CLASSICAL Gives a large concert hall-type sound

ROCK/POP Creates a live concert sound for rock and/or

UNPLUGGED Suitable for acoustic music sources.

EXT.STEREO Gives multichannel sound to a stereo

F.S.S.ADVANCE

(Front Stage Surround ADVANCE)

PHONES SURR When listening through headphones, you

soundtracks.

pop music.

source, using all of your speakers

Allows you to create natural surround sound effects using just the front sp eakers and the subwoofer. Use to provide a rich surround sound effect directed to the center of where the front left and right speakers sound projection area converges.

can still get the effect of overall surround.

AUTO SURROUND

STREAM DIRECT

Using Stream Direct

Use the Stream Direct modes when you want to hear the truest possible reproduction of a source. All unnecessary signal processing is bypassed.

AUTO/

DIRECT

AUTO SURROUND See Auto playback on page 22.

DIRECT Sources are heard according to the settings

PURE DIRECT Analog and PCM sources are heard without

made in the Speaker Setup (speaker setting, channel level, speaker distance), as well as with dual mono settings. You will hear sources according to the number of channels in the signal. Phase Control, Sound Delay, Auto Delay, LFE Attenuate and Center image functions are available.

any digital processing.

Using the Sound Retriever

When audio data is removed during the compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.



Press S.RETRIEVER to switch the S.RTV (Sound Retriever)

ON or OFF.

• The Sound Retriever is only applicable to 2-channel sources.

Better sound using Phase Control

This receiver’s Phase Control feature uses phase correction measures to make sure your sound source arrives at the listening position in phase, preventing unwanted distortion and/or coloring of the sound.

Phase Control technology provides coherent sound reproduction through the use of phase matching for an optimal sound image at your listening position. The default setting is on and we recommend leaving Phase Control switched on for all sound sources.



Press PHASE to switch the P.CTL (Phase Control) ON or

OFF.

• Phase matching is a very important factor in achieving proper sound reproduction. If two waveforms are ‘in phase’, they crest and trough together, resulting in increased amplitude, clarity and presence of the sound signal. If a crest of a wave meets a trough, then the sound will be ‘out of phase’ and an unreliable sound image will be produced.

• If your subwoofer has a phase control switch, set it to the plus (+) sign (or 0°). However, the effect you can actually feel when Phase Control is set to ON on this receiver depends on the type of your subwoofer. Set your subwoofer to maximize the effect. It is also recommended you try changing the orientation or the place of your subwoofer.

• Set the built-in lowpass filter switch of your subwoofer to OFF. If this cannot be done on your subwoofer, set the cutoff frequency to a higher value.

• If the speaker distance is not properly set, you may not have a maximized Phase Control effect.

• The Phase Control mode cannot be set to ON in the following cases:

When the PURE DIRECT mode is switched on.

When the headphones are connected.

Listening to your system

Note

Important

RECEIVER

INPUT SELECT

SOURCESLEEP

CONTROL

INPUT

RECEIVER

BD DVD TV

DTV/TV

ENTER

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

MASTER VOLUME

BAND

MENU TOP MENU

E S

HOME MENU

SETUP

Using surround back channel processing

You can have the receiver automatically use 6.1 or 7.1 decoding for 6.1 encoded sources (for example, Dolby Digital EX or DTS-ES), or you can choose to always use 6.1 or 7.1 decoding (for example, with 5.1 encoded material). With 5.1 encoded sources, a surround back channel will be generated, but the material may sound better in the 5.1 format for which it was originally encoded (in which case, you can simply switch surround back channel processing off).

• With a 7.1-channel surround system, audio signals that have undergone matrix decoding processing through surround back channel processing to which the Up Mix function is added are output from the surround back speakers.

HDD DVD VCR

SOURCESLEEP

INPUT SELECT

CONTROL

DTV/TV

INPUT

TEST TONE

MIDNIGHT

RECEIVER



Press , then press SB CH repeatedly to cycle

the surround back channel options.

Each press cycles through the options as follows:

• SB ON – Matrix decoding processing for generating the surround back component from the surround component is turned on.

• SB AUTO – Matrix decoding processing for generating the surround back component from the surround component is switched automatically. Matrix decoding processing is only performed when surround back channel signals are detected in the input signals.

• SB OFF – Matrix decoding processing for generating the surround back component from the surround component is turned off.

SB CH

CH SELECT

SPEAKERS

LEV

Setting the Up Mix function

In a 7.1-channel surround system with surround speakers placed directly at the sides of the listening position, the surround sound of 5.1-channel sources is heard from the side. The Up Mix function mixes the sound of the surround speakers with the surround back speakers so that the surround sound is heard from diagonally to the rear as it should be.

• Using the Up Mix function is effective when the speakers in the 7.1-channel surround system are set up as recommended in the example on page 10.

• Depending on the positions of the speakers and the sound source, in some cases it may not be possible to achieve good results. In this case, set the setting to OFF.

DISP

UP MIX OFF UP MIX ON

L R

SL SR

L R

SL SR

SBL SBR SBL SBR

Switch the receiver into standby.

While holding down PRESET on the front panel, and

hold the

 STANDBY/ON

UP MIX: OFF appears and the Up Mix function turns off. If

you want to turn this function on, perform steps 1 and 2 again.

• When set to ON, the (Up Mix) indicator on the front panel lights.

•Set to ON regardless of this setting when playing DTS-HD signals.

• May automatically be set to OFF even when set to ON, depending on the input signal and listening mode.

for about two seconds.

Setting the Audio options

There are a number of additional sound settings you can make using the AUDIO PARAMETER menu. The defaults, if not stated, are listed in bold.

• Note that if a setting doesn’t appear in the AUDIO PARAMETER menu, it is unavailable due to the current source, settings and status of the receiver.

RECEIVER

Press , then press AUDIO PARAMETER button.

Use

/

Depending on the current status/mode of the receiver, certain options may not be able to be selected. Check the table below for notes on this.

See the table below for the options available for each setting.

Setting/What it does Option(s)

S.DELAY (Sound Delay)

Some monitors have a slight delay when showing video, so the soundtrack will be slightly out of sync with the picture. By adding a bit of delay, you can adjust the sound to match the presentation of the video.

MIDNIGHT/LOUDNESS The MIDNIGHT allows you to hear effective surround sound of movies at low volumes. The LOUDNESS is used to get good bass and treble from music sources at low volumes.

to select the setting you want to adjust.

Use

/

to set it as necessary.

Press RETURN to confirm and exit the menu.

1 second = 25

frames (PAL)

0.0 to 9.0 (frames)

Default: 0.0

M/L OFF

MIDNIGHT

LOUDNESS

Listening to your system

Setting/What it does Option(s)

S.RTV (Sound Retriever)

DUAL MONO

Specifies how dual mono encoded Dolby Digital soundtracks should be played.

F.PCM (Fixed PCM) This is useful if you find there is a slight delay before OFF recognizes the PCM signal on a CD, for instance. When ON is selected, noise may be output during playback of non-PCM sources. Please select another input signal if this is a problem.

DRC (Dynamic Range Control) Adjusts the level of dynamic range for movie soundtracks optimized for Dolby Digital, DTS, Dolby Digital Plus, Dolby TrueHD, DTS-HD and DTS-HD Master Audio (you may need to use this feature when listening to surround sound at low volumes).

OFF

CH1 – Channel 1

is heard only

CH2 – Channel 2

is heard only

CH1 CH2 – Both

channels heard

from front

speakers

OFF

AUTO

MAX

MID

OFF

Setting/What it does Option(s)

LFE ATT (LFE Attenuate)

Some Dolby Digital and DTS audio sources include ultra-low bass tones. Set the LFE attenuator as necessary to prevent the ultralow bass tones from distorting the sound from the speakers. The LFE is not limited when set to 0 dB, which is the recommended value. When set to –15 dB, the LFE is limited by the respective degree. When OFF is selected, no sound is output from the LFE channel.

SACD G. (SACD Gain) Brings out detail in SACDs by maximizing the dynamic range (during digital processing).

HDMI (HDMI Audio) Specifies the routing of the HDMI audio signal out of this receiver (AMP) or through to a TV (THRU). When THRU is selected, no sound is output from this receiver.

A.DLY (Auto Delay) This feature automatically corrects the audioto-video delay between components connected with an HDMI cable. The audio delay time is set depending on the operational status of the display connected with an HDMI

cable. The video delay time is automatically adjusted according to the audio delay time.

C.WIDTH (Center Width) (Applicable only when using a center speaker) Spreads the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings).

DIMEN (Dimension) Adjusts the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings).

0 (0 dB)

5 (–5 dB)

10 (–10 dB)

15 (–15 dB)

20 (–20 dB)

** (OFF)

0 (0 dB)

+6 (+6 dB)

AMP

THRU

OFF

0 to 7

Default: 3

–3 to +3

Default: 0

Setting/What it does Option(s)

PNRM. (Panorama)

Extends the front stereo image to include surround speakers for a ‘wraparound’ effect.

C.IMG (Center Image) (Applicable only when using a center speaker) Adjust the center image to create a wider stereo effect with vocals. Adjust the effect from 0 (all center channel sent to front right and left speakers) to 10 (center channel sent to the center speaker only).

a. You can change the MIDNIGHT/LOUDNESS options at any

time by using MIDNIGHT button.

b. You can change the Sound Retriever feature at any time by

using S.RETRIEVER button.

c. This setting works only with dual mono encoded Dolby Digital

and DTS soundtracks.

d. The initial set AUTO is only available for Dolby TrueHD signals.

Select MAX or MID for signals other than Dolby TrueHD.

e. You shouldn’t have a ny problems using this with most SACD

discs, but if the sound distorts, it is best to switch the gain setting back to 0 dB.

f. This feature is only available when the connected display

supports the automatic audio/video synchronizing capability (‘lip-sync’) for HDMI. If you find the automatically set delay time unsuitable, set A.DLY to OFF and adjust the delay time manually. For more details about the lip-sync feature of your display, contact the manufacturer directly.

g. Only available with 2-channel sources in DOLBY PLII MUSIC

mode.

h. Only when listening to 2-channel sources in NEO:6 CINEMA

and NEO:6 MUSIC mode.

OFF

0 to 10

Default: 3

(NEO:6 MUSIC),

10 (NEO:6

CINEMA)

The System Setup menu

Important

Note

INPUT SELECT

SOURCESLEEP

CONTROL

INPUT

RECEIVER

BD DVD TV

DTV/TV

ENTER

MUTE

RETURN

PARAMETER

TOOLS

VOLUME

BAND

MENU TOP MENU

E S

HOME

SETUP

PTY SEARCH

Chapter 5:

The System Setup menu

Using the System Setup menu

The following section shows you how to make detailed settings to specify how you’re using the receiver, and also explains how to fine-tune individual speaker system settings to your liking.

• If headphones are connected to the receiver, disconnect them.

Press RECEIVER to switch the receiver on.

RECEIVER

Press , then press SETUP.

The System Setup menu appears on the front panel display. Use /// and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to confirm and exit the current menu.

• Press SETUP at any time to exit the System Setup menu.

Select the setting you want to adjust.

• SP SETUP

SP SET – Specify the size and number of speakers you’ve connected (see below).

X.OVER – Specify which frequencies will be sent to the subwoofer (page 27).

CH LEVEL – Adjust the overall balance of your speaker system (page 27).

SP DISTN – Specify the distance of your speakers from

the listening position (page 27).

• IN ASSIG – Specify what you’ve connected to the component video inputs (see The Input Assign menu on page 27).

• HDMI SET – Sets synchronized operations when connected to a device/TV that supports the Control with HDMI function (see HDMI Setup on page 29).

• APD – Sets to automatically turn off the power when the receiver has not operated for several hours (see The Auto Power Down menu on page 28).

• FL DEMO – Sets the demo display on the front panel display (see The FL Demo Mode menu on page 28).

The Speaker Setup menu

This receiver allows you to make detailed settings to optimize the surround sound performance. You only need to make these settings once (unless you change the placement of your current speaker system or add new speakers).

Speaker Setting

Use this setting to specify your speaker configuration (size, number of speakers).

Use

/

menu, then press ENTER.

then press ENTER.

set then select a speaker size.

Use / to select the size (and number) of each of the following speakers:

• F (Front) – Select LARGE if your front speakers reproduce

• C (Center) – Select LARGE if your center speaker

• S (Surround) – Select LARGE if your surround speakers

to select ‘SP SETUP’ from the System Setup

Use

/

to select ‘SP SET’ from the SP SETUP menu,

Use

/

to select the set of speakers that you want to

bass frequencies effectively, or if you didn’t connect a subwoofer. Select SMALL to send the bass frequencies to the subwoofer.

reproduces bass frequencies effectively, or select SMALL to send bass frequencies to the other speakers or subwoofer. If you didn’t connect a center speaker, choose NO (the center channel is sent to the other speakers).

reproduce bass frequencies effectively. Select SMALL to send bass frequencies to the other speakers or subwoofer. If you didn’t connect surround speakers choose NO (the sound of the surround channels is sent to the other speakers).

• SB (Surround Back) – Select the number of surround back speakers you have (one (X1), two (X2) or none). Select L (LARGE) if your surround back speakers reproduce bass frequencies effectively. Select S (SMALL) to send bass frequencies to the other speakers or subwoofer. If you didn’t connect surround back speakers choose NO.

If you select one surround back speaker only, make sure that additional amplifier is hooked up to the PRE OUT L (Single) terminal.

• SW (Subwoofer) – LFE signals and bass frequencies of channels set to SMALL are output from the subwoofer when YES is selected (see notes below). Choose the PLUS setting if you want the subwoofer to output bass sound continuously or you want deeper bass (the bass frequencies that would normally come out the front and center speakers are also routed to the subwoofer). If you did not connect a subwoofer choose NO (the bass frequencies are output from other speakers).

When you’re finished, press RETURN.

You return to the Speaker Setup menu.

• If you select SMALL for the front speakers, the subwoofer will automatically be fixed to YES. Also, the center, surround and surround back speakers can’t be set to LARGE (L) if the front speakers are set to SMALL. In this case, all bass frequencies are sent to the subwoofer.

• If the surround speakers are set to NO, the surround back speakers will automatically be set to NO.

• If you have a subwoofer and like lots of bass, it may seem logical to select LARGE for your front speakers and PLUS for the subwoofer. This may not, however, yield the best bass results. Depending on the speaker placement of your room you may actually experience a decrease in the amount of bass due to low frequency cancellations. In this case, try changing the position or direction of speakers. If you can’t get good results, listen to the bass response with it set to PLUS and YES or the front speakers set to LARGE and SMALL alternatively and let your ears judge which sounds best. If you’re having problems, the easiest option is to route all the bass sounds to the subwoofer by selecting SMALL for the front speakers.

The System Setup menu

CAUTION

Note

Tip

Important

RECEIVER

Crossover Network

• Default setting: 100Hz

This setting decides the cutoff between bass sounds playing back from the speakers selected as LARGE, or the subwoofer, and bass sounds playing back from those selected as SMALL. It also decides where the cutoff will be for bass sounds in the LFE channel.

• For more on selecting the speaker sizes, see Speaker Setting on page 26.

Use

/

menu, then press ENTER.

then press ENTER.

Frequencies below the cutoff point will be sent to the subwoofer (or LARGE speakers).

You return to the Speaker Setup menu.

Channel Level

Using the channel level settings, you can adjust the overall balance of your speaker system, an important factor when setting up a home theater system.

• The test tones used in the System Setup are output at

menu, then press ENTER.

then press ENTER.

• T. TONE M – Move the test tone manually from speaker

• T. TONE A – Adjust channel levels as the test tone moves

The test tones will start after you press ENTER. After the volume increases to the reference level, test tones will be output.

to select ‘SP SETUP’ from the System Setup

Use

/

to select ‘X.OVER’ from the SP SETUP menu,

Use

/

to select the frequency cutoff point.

When you’re finished, press RETURN.

high volume.

Use

/

to select ‘SP SETUP’ from the System Setup

Use

/

to select ‘CH LEVEL’ from the SP SETUP menu,

Use

/

to select a setup option.

to speaker and adjust individual channel levels.

from speaker to speaker automatically.

Confirm your selected setup option.

Use

/

If you selected T. TONE M, use / to switch speakers. The T. TONE A setup outputs test tones in the following order

(depends on speaker settings):

Adjust the level of each speaker as the test tone is emitted.

• If you are using a Sound Pressure Level (SPL) meter, take

• The subwoofer test tone is output at low volumes. You

You return to the Speaker Setup menu.

• You can change the channel levels at any time by press

to adjust the level of each channel.

L  C  R  SR  SBR  SBL  SL  SW

the readings from your main listening position and adjust the level of each speaker to 75 dB SPL (C-weighting/slow reading).

may need to adjust the level after testing with an actual soundtrack.

When you’re finished, press RETURN.

, then press CH SELECT and LEV +/– on the

remote control. You can also press CH SELECT and use / to select the channel, and then use / to adjust the channel levels.

Speaker Distance

For good sound depth and separation from your system, you need to specify the distance of your speakers from the listening position. The receiver can then add the proper delay needed for effective surround sound.

Use

/

menu, then press ENTER.

then press ENTER.

the distance.

Use / to adjust the distance of each speaker in 0.1 m increments.

You return to the Speaker Setup menu.

to select ‘SP SETUP’ from the System Setup

Use

/

to select ‘SP DISTN’ from the SP SETUP menu,

Use

/

to choose the speaker that you want then set

When you’re finished, press RETURN.

The Input Assign menu

You only need to make settings in the Input Assign menu if you didn’t hook up your equipment according to the default settings for the component video inputs.

• Default settings:

COMP 1: DVD

COMP 2: DVR (DVR/BDR)

• If you connect any source component to the receiver using a component video input, you should also have your TV connected to this receiver’s COMPONENT VIDEO MONITOR OUT output (down converting component video is not possible after assigning an input).

If you didn’t make component video connections according to the defaults above, you must assign the numbered input to the component you’ve connected (or else you may see the video signal of a different component). For more on this, see Using the component video jacks on page 16.

Use

/

menu, then press ENTER.

ENTER.

input to which you’ve connected your video component.

The numbers correspond with the numbers beside the inputs on the rear of the receiver.

you connected to that input. Select between BD, DVD, TV (TV/SAT), DVR (DVR/BDR) or OFF.

•Use / and ENTER to do this.

• If you assign a component input t o a certain function, any

• Make sure you have connected the audio from the

You return to the Input Assign menu.

to select ‘IN ASSIG’ from the System Setup

Select ‘COMP. IN’ from the IN ASSIG menu, then press

Use

/

to select the number of the component video

Select the component that corresponds with the one

component inputs previously assigned to that function will automatically be switched off.

component to the corresponding inputs on the rear of the receiver.

When you’re finished, press RETURN.

The System Setup menu

• For the assignment of the digital signal inputs, see

Selecting the audio input signal on page 18.

The Auto Power Down menu

Set to automatically turn off the receiver after a specified time has passed (when the power has been on with no operation for several hours.

• Default setting: OFF

Use

/

then press ENTER.

is turned off (when there has been no operation).

•Use / to select 2, 4 or 6 hours, or OFF (if no automatic

You return to the System Setup menu.

to select ‘APD’ from the System Setup menu,

Specify the amount of time to allow before the power

shutoff is desired).

When you’re finished, press RETURN.

The FL Demo Mode menu

Set whether or not various demos are to be shown on the front panel display.

• Default setting: ON

Use

/

menu, then press ENTER.

2 3

You return to the System Setup menu.

to select ‘FL DEMO’ from the System Setup

Use

/

to choose ON or OFF for the demo display.

When you’re finished, press RETURN.

Control with HDMI function

Important

RECEIVER

Chapter 6:

Control with HDMI function

Synchronized operations below with a Control with HDMIcompatible Pioneer TV or Blu-ray Disc player or with a component of another make that supports the Control with HDMI functions are possible when the component is connected to the receiver using an HDMI cable.

• Synchronized amp mode

The receiver’s volume can be set and the sound can be muted using the TV’s remote control.

• Power synchronization with TV

• Automatic switching of inputs

The receiver’s input switches over automatically when the TV’s input is changed or a Control with HDMI-compatible component is played.

• With Pioneer devices, the Control with HDMI functions

are referred to as “KURO LINK”.

• You cannot use this function with components that do not

support Control with HDMI.

• We only guarantee this receiver will work with Pioneer

made Control with HDMI-compatible components and components of other makes that support the Control with HDMI function. However, we do not guarantee that all synchronized operations will work with components of other makes that support the Control with HDMI function.

• Use a High Speed HD MI

Control with HDMI function. The Control with HDMI function may not work properly if a different type of HDMI cable is used.

• For details about concrete operations, settings, etc., refer to also the operating instructions for each component.

cable when you want to use the

Making Control with HDMI connections

You can use synchronized operation for a connected TV and up to four other components.

• Be sure to connect the TV’s audio cable to the audio in put of this unit. When the TV and receiver are connected by HDMI connections, if the TV supports the HDMI Audio Return Channel function, the sound of the TV is input to the receiver via the HDMI terminal, so there is no need to connect an audio cable. In this case, set ARC at HDMI SET to ON (see HDMI Setup below).

For details, see Connecting using HDMI on page 14.

• When connecting this system or changing connections, be sure to switch the power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cords to the wall socket.

• After this receiver is connected to an AC outlet, a 2 second to 10 second HDMI initialization process begins. You cannot carry out any operations during initialization. The HDMI indicator on the display unit blinks during initialization, and you can turn this receiver on once it has stopped blinking.

• To get the most out of this function, we recommend that you connect your HDMI component not to a TV but rather directly to the HDMI terminal on this receiver.

• While the receiver is equipped with three HDMI inputs, the Control with HDMI function can only be used with up to three DVD or Blu-ray Disc players or up to three DVD or Blu-ray Disc recorders.

HDMI Setup

You must adjust the settings of this receiver as well as the connected Control with HDMI-compatible components in order to make use of the Control with HDMI function. For more information see the operating instructions for each component.

Press

 RECEIVER

Press , then press SETUP.

• Press SETUP at any time to exit the System Setup menu.

Use

/

menu, then press ENTER.

Use

/

Choose whether to set this unit’s Control with HDMI function ON or OFF. You will need to set it to ON to use the Control with HDMI function.

When using a component that does not support the Control with HDMI function, set this to OFF.

• ON – Enables the Control with HDMI function. When this

unit’s power is turned off and you have a supported source begin playback while using the Control with HDMI function, the audio and video outputs from the HDMI connection are output from the TV.

• OFF – The Control with HDMI is disabled. Synchronized

operations cannot be used. When this unit’s power is turned off, audio and video of sources connected via HDMI are not output.

Use

/

‘ARC’ setting you want.

When a TV supporting the HDMI Audio Return Channel function is connected to the receiver, the sound of the TV can be input via the HDMI terminal.

• ON – The TV’s sound is input via the HDMI terminal. This can only be selected when CTRL is set to ON.

• OFF – The TV’s sound is input from the audio input terminals other than HDMI inputs.

When you’re finished, press RETURN.

You return to the System Setup menu.

to switch the receiver on.

to select ‘HDMI SET’ from the System Setup

to choose the ‘CTRL’ setting you want.

to select ‘ARC’, then use

/

to choose the

Control with HDMI function

Before using synchronization

Once you have finished all connections and settings, you must:

Put all components into standby mode.

Turn the power on for all components, with the power

for the TV being turned on last.

Choose the HDMI input to which the TV is connected to this receiver, and see if video output from connected components displays properly on the screen or not.

Check whether the components connected to all HDMI inputs are properly displayed.

About synchronized operations

The Control with HDMI-compatible component connected to the receiver operates in sync as described below.

• Synchronized amp mode

From the menu screen of the Control with HDMIcompatible TV, set audio to be played through this receiver, and the receiver will switch to the synchronized amp mode.

When in the synchronized amp mode, the synchronized amp mode is canceled when the receiver’s power is tu rne d off . To tur n th e sy nch roni zed amp mod e ba ck o n, set audio to be played through the receiver from the TV’s menu screen, etc. This receiver will power up and switch to the synchronized amp mode.

When in the synchronized amp mode, the synchronized amp mode is canceled if an operation that produces sound from the TV is performed from the TV’s menu screen, etc.

When the synchronized amp mode is canceled, the receiver’s power turns off if you were viewing an HDMI input or a TV program on the TV.

• Power synchronization with TV

When the TV’s power is set to standby, the receiver’s power is also set to standby. (Only when the input for a component connected to the receiver by HDMI connection is selected or when watching the TV.)

• Automatic switching of inputs

The receiver’s input switches automatically when the Control with HDMI-compatible component is played.

The receiver’s input switches automatically when the TV’s input is switched.

The synchronized amp mode remains in effect even if the receiver’s input is switched to a component other than one connected by HDMI.

About connections with a product of a different brand that supports the Control with HDMI function

The synchronized operations below can be used when the receiver’s Control with HDMI function is connected to a TV of a brand other than Pioneer that supports the Control with HDMI function. (Depending on the TV, however, some of the Control with HDMI functions may not work.)

• When the TV’s power is set to standby, the receiver’s power is also set to standby. (Only when the input for a component connected to the receiver by HDMI connection is selected or when watching the TV)

• The sound of TV programs or an external input connected to the TV can also be output from the speakers connected to the receiver. (If the TV does not support the HDMI Audio Return Channel function, this requires connection of an optical digital cable, etc., in addition to the HDMI cable.)

The synchronized operations below can be used when the receiver’s Control with HDMI function is connected to a player or recorder of a brand other than Pioneer that supports the Control with HDMI function.

• When playback starts on the player or recorder, the receiver’s input switches to the HDMI input to which that component is connected.

See the Pioneer website for the latest information on the models of non-Pioneer brands and products that support the Control with HDMI function.

Cautions on the Control with HDMI function

• Connect the TV and components (Blu-ray Disc player, etc.) directly to this receiver. Interrupting a direct connection with other amps or an AV converter (such as an HDMI switch) can cause operational errors.

• When the receiver’s CTRL is turned ON, even if the receiver’s power is in the standby mode, it is possible to output the audio and video signals from a player via HDMI to the TV without producing sound from the receiver, but only when a Control with HDMI-compatible component (Blu-ray Disc player, etc.) and compatible TV are connected. In this case, the receiver’s power turns on and the power and HDMI indicators light.

Additional information

Chapter 7:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Take a look at the other components and electrical appliances being used, because sometimes the problem may lie there. If the trouble isn’t sorted out even after going through the checks below, ask your nearest Pioneer authorized independent service company to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General

The power does not turn on.

 Disconnect the power plug from the outlet, and insert again.  Make sure there are no loose strands of speaker wire touching

the rear panel. This could cause the receiver to shut off automatically.

The receiver suddenly switches off.

 When the Auto Power Down function is working, the power

will automatically turn off if the receiver has not operated for several hours. Check the setting for the Auto Power Down function (see The Auto Power Down menu on page 28).

 After about a minute (you won’t be able to switch the unit on

during this time), switch the receiver back on. If the message persists, call a Pioneer authorized independent service company.

The power suddenly turns on or off, or the input suddenly changes (When the Control with HDMI is ON).

 This happens because of the synchronized operation due to

the Control with HDMI function. If synchronized operations are not needed, set the Control with HDMI to OFF (see HDMI Setup on page 29).

OVERHEAT shows in the display and the power turns off.

 The temperature within the unit has exceeded the allowable

value. Try moving the unit for better ventilation (see page 2).

 Lower the volume level.

TEMP shows in the display and the volume level drops.

 The temperature within the unit has exceeded the allowable

value. Try moving the unit for better ventilation (see page 2).

 Lower the volume level.

No sound is output when an input function is selected.

 Use MASTER VOLUME to turn up the volume.  Press MUTE on the remote control to turn muting off.  Set the SIGNAL SEL to H (HDMI), C1/O1/O2 (digital) or A

(analog) according to the type of connections made (refer to page 18).

 Make sure the component is connected correctly (refer to

Connecting your equipment on page 10).

 Check the audio output settings of the source component.  Refer to the instruction manual supplied with the source

component.

No image is output when an input function is selected.

 Make sure the component is connected correctly (refer to

Connecting your equipment on page 10).

 Use the same type of video cables for the source component

and TV to connect to this receiver (see About video outputs connection on page 13).

 Check The Input Assign menu on page 27 to make sure you’re

assigned the correct input.

 The video input selected on the TV monitor is incorrect. Refer

to the instruction manual supplied with the TV.

No sound from subwoofer.

 Make sure the subwoofer is switched on.  If the subwoofer has a volume knob, make sure it’s turned up.  The Dolby Digital or DTS source you are listening to may not

have an LFE channel.

 Switch the subwoofer setting in Speaker Setting on page 26 to

YES or PLUS.

 Switch the LFE ATT (LFE Attenuate) on page 25 to LFEATT 0 or

LFEATT 5.

No sound from surround or center speakers.

 Connect the speakers properly (refer to page 11).  Refer to Speaker Setting on page 26 to check the speaker

settings.

 Refer to Channel Level on page 27 to check the speaker levels.

The Phase Control feature doesn’t seem to have an audible effect.

 If applicable, check that the lowpass filter switch on your

subwoofer is off, or the lowpass cutoff is set to the highest frequency setting. If there is a PHASE setting on your subwoofer, set it to 0º (or depending on the subwoofer, the

setting where you think it has the best overall effect on the sound).

 Make sure the speaker distance setting is correct for all

speakers (see Speaker Distance on page 27).

Considerable noise in radio broadcasts.

 Connect the antenna (page 16) and adjust the position for

best reception.

 Route any loose cables away from the antenna terminals and

wires.

 Fully extend the FM wire antenna, position for best reception,

and secure to a wall (or connect an outdoor FM antenna).

 Connect an additional internal or external AM antenna

(page 17).

 Turn off equipment causing interference or move it away from

the receiver (or move antennas farther away from equipment causing noise).

Broadcast stations cannot be selected automatically.

 Connect an outdoor antenna (refer to page 17).

Noise during playback of a cassette deck.

 Move the cassette deck away from your receiver, until the

noise disappears.

No sound is output or a noise is output when software with DTS is played back.

 Make sure the player’s settings are correct and/or the DTS

signal out is on. Refer to the instruction manual supplied with the DVD player.

Can’t operate the remote control.

 Replace the batteries (refer to page 9).  Operate within 7 m, 30º of the remote sensor (refer to page 9).  Remove the obstacle or operate from another position.  Avoid exposing the remote sensor on the front panel to direct

light.

The display is dark or off.

 Press DIMMER on the remote control repeatedly to return to

the default.

The front panel display switches over for no apparent reason to various different displays.

 This happens because the demo display is in operation. To

turn off the demo display, press any button to go back to the original display, or set the FL DEMO to OFF (see The FL Demo Mode menu on page 28).

Additional information

Note

Important

HDMI

No picture or sound.

 If the problem still persists when connecting your HDMI

component directly to your monitor, please consult the component or monitor manual or contact the manufacturer for support.

No picture.

 Video signals that are input from the analog video terminal

will not output from the HDMI terminal. Signals that are input from the HDMI terminal will not output from the analog video terminal. Be consistent with the type of cable between input and output.

 Depending in the output settings of the source component, it

may be outputting a video format that can’t be displayed. Change the output settings of the source, or connect using the component or composite jacks.

 This receiver is HDCP-compatible. Check that the components

you are connecting are also HDCP-compatible. If they are not, please connect them using the component or composite video jacks.

 Depending on the connected source component, it’s possible

that it will not work with this receiver (even if it is HDCPcompatible). In this case, connect using the component or composite video jacks between source and receiver.

 If video images do not appear on your TV, try adjusting the

resolution, Deep Color or other setting for your component.

 To output signals in Deep Color, use an HDMI cable (High

Speed HDMI® Cable) to connect this receiver to a component or TV with the Deep Color feature.

No sound, or sound suddenly ceases.  Check that the Audio Parameter setting is set to HDMI AMP/

THRU (refer to page 24).

 If the component is a DVI device, use a separate connection

for the audio.

 HDMI format digital audio transmissions require a longer time

to be recognized. Due to this, interruption in the audio may occur when switching between audio formats or beginning playback.

 Turning on/off the device connected to this unit’s HDMI OUT

terminal during playback, or disconnecting/connecting the HDMI cable during playback, may cause noise or interrupted audio.

Synchronized operation not possible using Control with HDMI function.

 Check the HDMI connections.  The cable may be damag ed.  Select ON for the Control with HDMI setting (see HDMI Setup

on page 29).

 Turn the TV’s power on before turning on this receiver’s power.  Set the TV side Control with HDMI setting to on (see TV’s

operating instructions).

Important information regarding the HDMI connection

There are cases where you may not be able to route HDMI signals through this receiver (this depends on the HDMI equipped component you are connecting-check with the manufacturer for HDMI compatibility information).

If you aren’t receiving HDMI signals properly through this receiver (from your component), please try the following configuration when connecting up.

Configuration

Connect your HDMI-equipped component directly to the display using an HDMI cable. Then use the most convenient connection (digital is recommended) for sending audio to the receiver. See the operating instructions for more on audio connections. Set the display volume to minimum when using this configuration.

• Depending on the component, audio output may be limited to the number of channels available from the connected display unit (for example audio output is reduced to 2 channels for a monitor with stereo audio limitations).

• If you want to switch the input source, you’ll have to switch functions on both the receiver and your display unit.

• Since the sound is muted on the display when using the HDMI connection, you must adjust the volume on the display every time you switch input sources.

Resetting the main unit

Use this procedure to reset all the receiver’s settings to the factory default. Use the front panel controls to do this.

Switch the receiver into standby.

While holding down BAND, press and hold

 STANDBY/ON

When you see RESET? appear in the display, press AUTO SURROUND/STREAM DIRECT. OK? shows in the display.

Press ALC/STANDARD SURR to confirm. OK appears in the display to indicate that the receiver has

been reset to the factory default settings.

•If the Control with HDMI function is set to ON, you may

not be able to reset the unit. In this case, reset either by

turning OFF the Control with HDMI function, or by

putting the unit into standby mode by turning off the

power of all the connected devices, and resetting after the

HDMI indicator on the front panel turns off.

for about two seconds.

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.

• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.

• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

Additional information

Note

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “Surround EX”, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Specifications

Audio section

Rated power output

Front, Center, Surround

. . . . . . . . . . . . . . . . . . 130 W per channel (1 kHz, 6

. . . . . . . .100 W per channel (20 Hz to 20 kHz, 8

Total Harmonic Distortion

. . . . . . . . . . . . . . . . 0.06 % (20 Hz to 20 kHz, 8

Frequency response (LINE Pure Direct mode)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hz to 100 kHz dB

Guaranteed speaker impedance. . . . . . . . . . . . . . .6

Input (Sensitivity/Impedance)

LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mV/47 kΩ

Output (Level/Impedance)

REC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mV/2.2 kΩ

Signal-to-Noise Ratio (IHF, short circuited, A network)

LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 dB

Video section

Signal level

Composite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)

Component Video. . . . . . . . . . . . . . . . . . . Y: 1.0 Vp-p (75 Ω)

Corresponding maximum resolution

Component Video. . . . . . . . . . . . . . . . . . . . . . 1080p (1125p)

Tuner section

Frequency Range (FM). . . . . . . . . . . . . .87.5 MHz to 108 MHz

Antenna Input (FM) . . . . . . . . . . . . . . . . . . . 75 Ω unbalanced

Frequency Range (AM) . . . . . . . . . . . . . .531 kHz to 1602 kHz

Antenna (AM) . . . . . . . . . . . . . . . . . . . . . . . . . . . Loop antenna

Digital In/Out section

HDMI terminal . . . . . . . . . . . . . . . . . . . . . . . . . Type A (19-pin)

HDMI output type . . . . . . . . . . . . . . . . . . . . . . . . . .5 V, 100 mA

PB, PR: 0.7 Vp-p (75 Ω)

, 0.09 %)

, 50 W/ch)

to 16

Miscellaneous

Power Requirements . . . . . . . AC 220 V to 230 V, 50 Hz/60 Hz

Power Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . 415 W

In standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.45 W

Dimensions . . . . . 435 mm (W) x 168 mm (H) x 362.5 mm (D)

, 1 %)

Weight (without package) . . . . . . . . . . . . . . . . . . . . . . . . 9.0 kg

Furnished Parts

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Dry cell batteries (AAA size IEC R03) . . . . . . . . . . . . . . . . . . .2

AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

FM wire antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Power cord Quick start guide These operating instructions

• The specifications are applicable when the power supply is 230 V.

• Specifications and the design are subject to possible modifications without notice, due to improvements.

(Control with HDMI function: OFF)

<6517-00000-014-0S>

http://www.pioneer.co.uk

http://www.pioneer.eu

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: 1-877-283-5901, 905-479-4411

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270

K002_B4_En

Pioneer VSX-421-K Operating Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
