Pioneer PDP-5000EX User Manual [en, de, es, fr, it]

PLASMA DISPLAY ÉCRAN PLASMA PLASMA-DISPLAY DISPLAY A PLASMA PLASMASCHERM PANTALLA DE PLASMA

PDP-5000EX

Discover the benefits of registering your product online at www.pioneer.co.uk (or www.pioneer-eur.com).

Decouvrez les nombreux avantages offerts en enregistrant votre produit en ligne maintenant sur www.pioneer.fr (ou www.pioneer-eur.com).

Bitte nutzen Sie die Möglichkeit zur Registrierung Ihres Produktes unter www.pioneer.de (oder www.pioneer-eur.com)

Registra il tuo prodotto su www.pioneer.it (o www.pioneer-eur.com) e scopri subito quali vantaggi puoi ottenere!

Ontdek nu de voordelen van online registratie! Registreer uw Pioneer product via www.pioneer.nl - www.pioneer.be (of www.pioneer-eur.com)

Registre su producto en www.pioneer.es (o en www.pioneer-eur.com) Descubra los beneficios de registrarse on-line:

Operating Instructions Mode d’emploi Bedienungsanleitung Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING : THIS APPARATUS MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green & Yellow : Earth Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows ;

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured GREEN or GREEN-AND-YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the

letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the

letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

D3-4-2-1-2-1_B_En

English

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

This product complies with the Low Voltage Directive (73/23/EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC).

D3-4-2-1-3_A_En

WARNING

Before plugging in for the first time, read the following

section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4_A_En

WARNING

This apparatus must be earthed.

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A_En

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 16.

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

CAUTION

The POWER switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-1-7a_A_En

D3-4-2-2-2a_A_En

STANDBY/ON Button STANDBY:

When placed into the standby mode, the main power flow is cut and the unit is no longer fully

operational.

STANDBY/ON Indicator

The indicator is lit red when the unit is in the standby mode and is lit blue when it is in the power-on mode.

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

01 Important User Guidance Information

02 Safety Precautions

03 Optional line (sold separately)

04 Supplied Accessories

05 Part Names

Main unit ...................................................13

Remote control unit .................................14

Connection panel .....................................15

06 Preparation

Installing the Plasma Display .................16

Preventing the Plasma Display from

Falling Over ...............................................17

Connecting the power cord .....................18

How to route cables .................................19

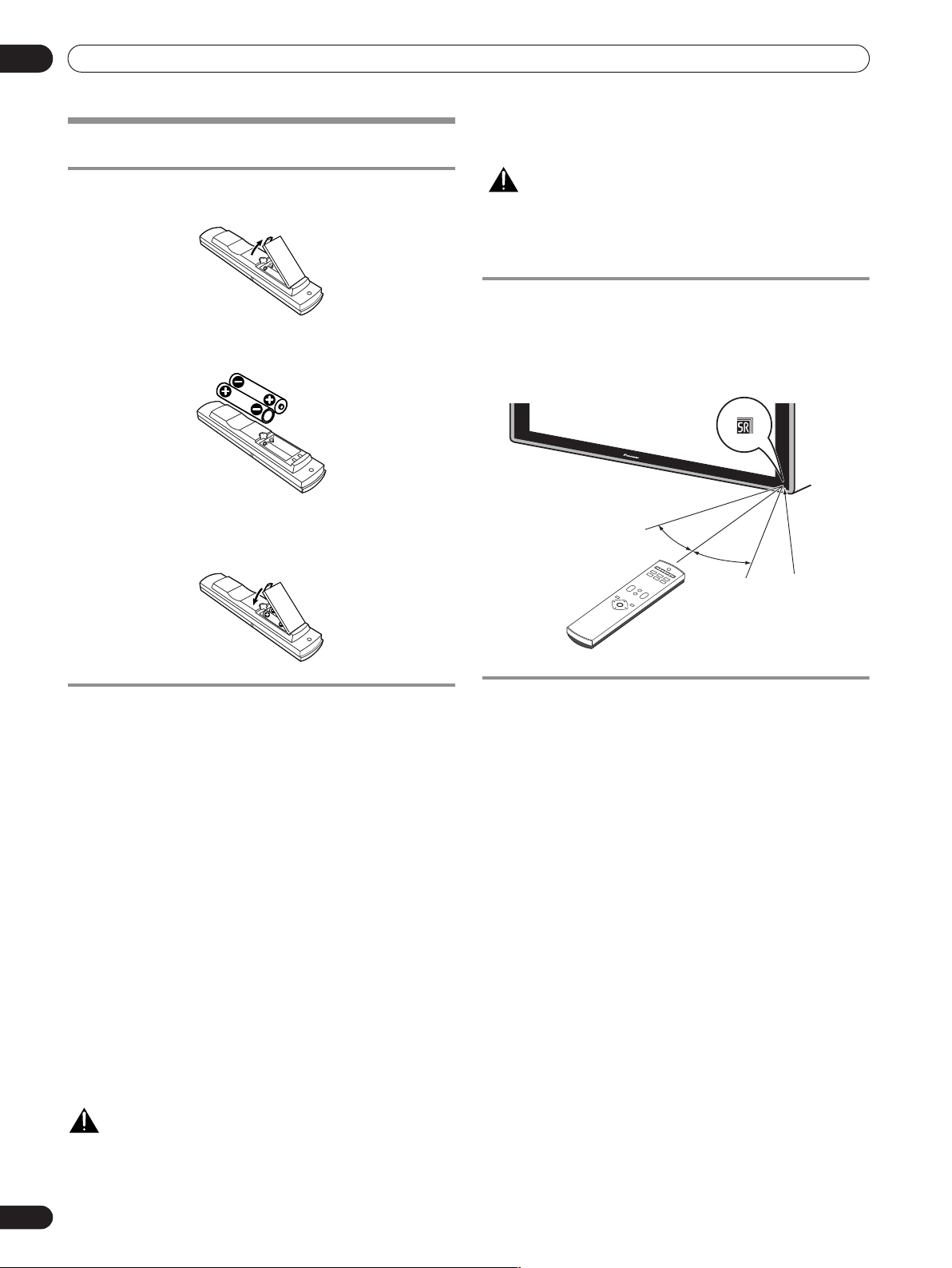

Preparing the remote control unit ..........20

Inserting batteries ................................20

Cautions regarding batteries ..............20

Allowed operation range of the remote

control unit ............................................20

Cautions regarding the remote control

unit .........................................................20

07 Operation

Plasma Display status indicators ...........21

Changing the volume and sound ...........21

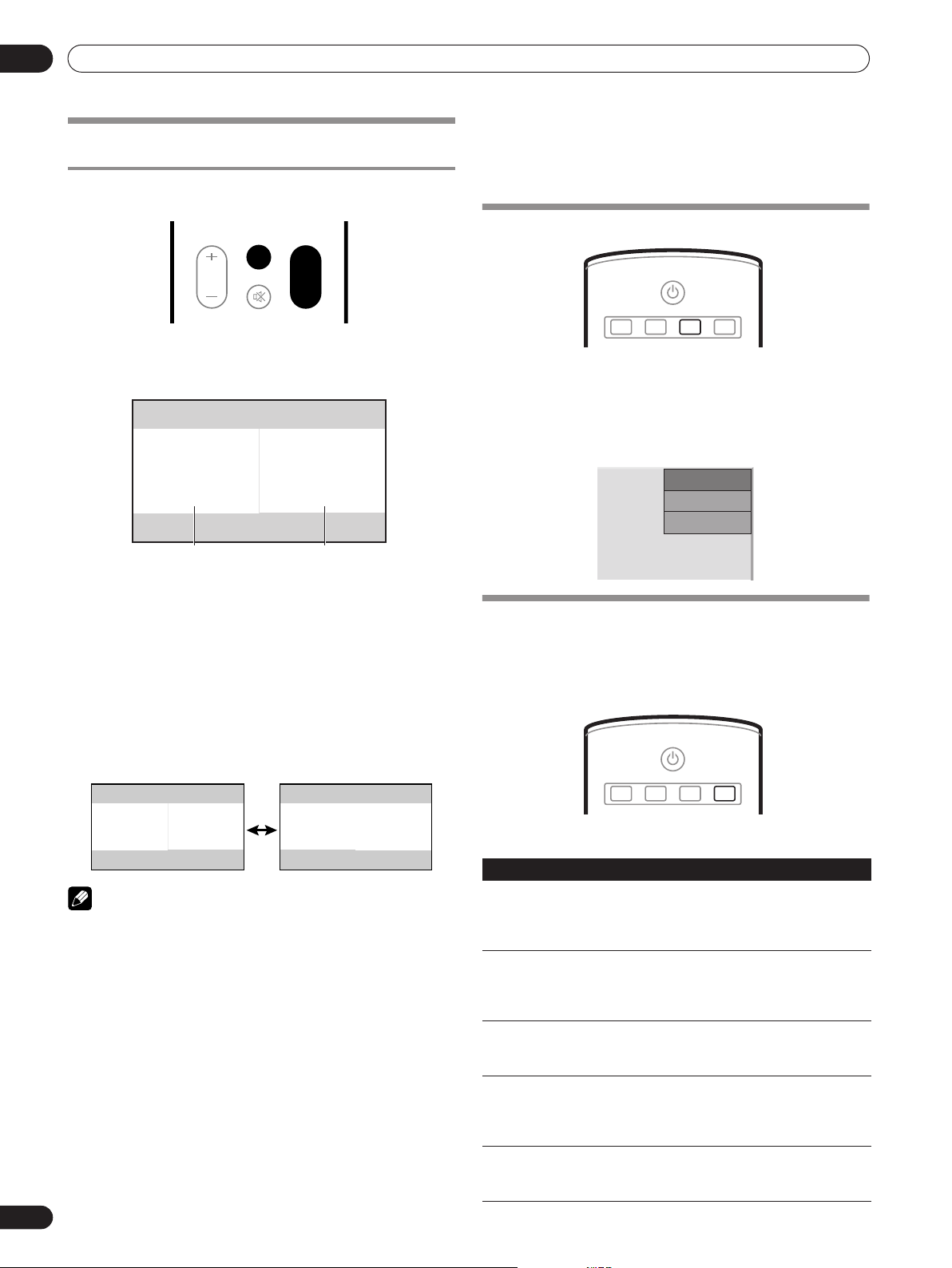

Use the multiscreen functions ...............22

Splitting the screen ..............................22

Confirming current status .......................22

AV Selection .............................................22

Selecting a screen size manually ...........23

09 Basic Adjustment Settings

Language setting .....................................25

Basic picture adjustments ......................25

Advanced picture adjustments ...............25

Using PureCinema ...............................25

Using Color Temp .................................26

Using CTI ...............................................26

Using Color Management ...................26

Reducing the noise in images ............27

Using the Dynamic Range Expander

(DRE) functions ....................................27

Using the 3DYC and I-P Mode .............27

Sound adjustments ..................................28

FOCUS ...................................................28

Front Surround .....................................28

Power Control ...........................................29

10 Useful Adjustment Settings

Switching the vertical drive frequency

(AV mode only) .........................................30

Adjusting image positions

(AV mode only) .........................................30

Adjusting image positions and clock

automatically (PC mode only) .................30

Adjusting image positions and clock

manually (PC mode only) ........................30

Selecting an input signal type ................31

Color system setting ................................31

Selecting a screen size automatically

(AV mode only) .........................................32

Selecting a screen size for received 4:3 aspect ratio signals (AV mode only) ...32

08 Menu Setup

Using the menu .......................................24

AV mode menus ...................................24

PC mode menus ...................................24

Menu operations ..................................24

Contents

11 Enjoying through External Equipment

Watching a decoder or VCR image ....... 33

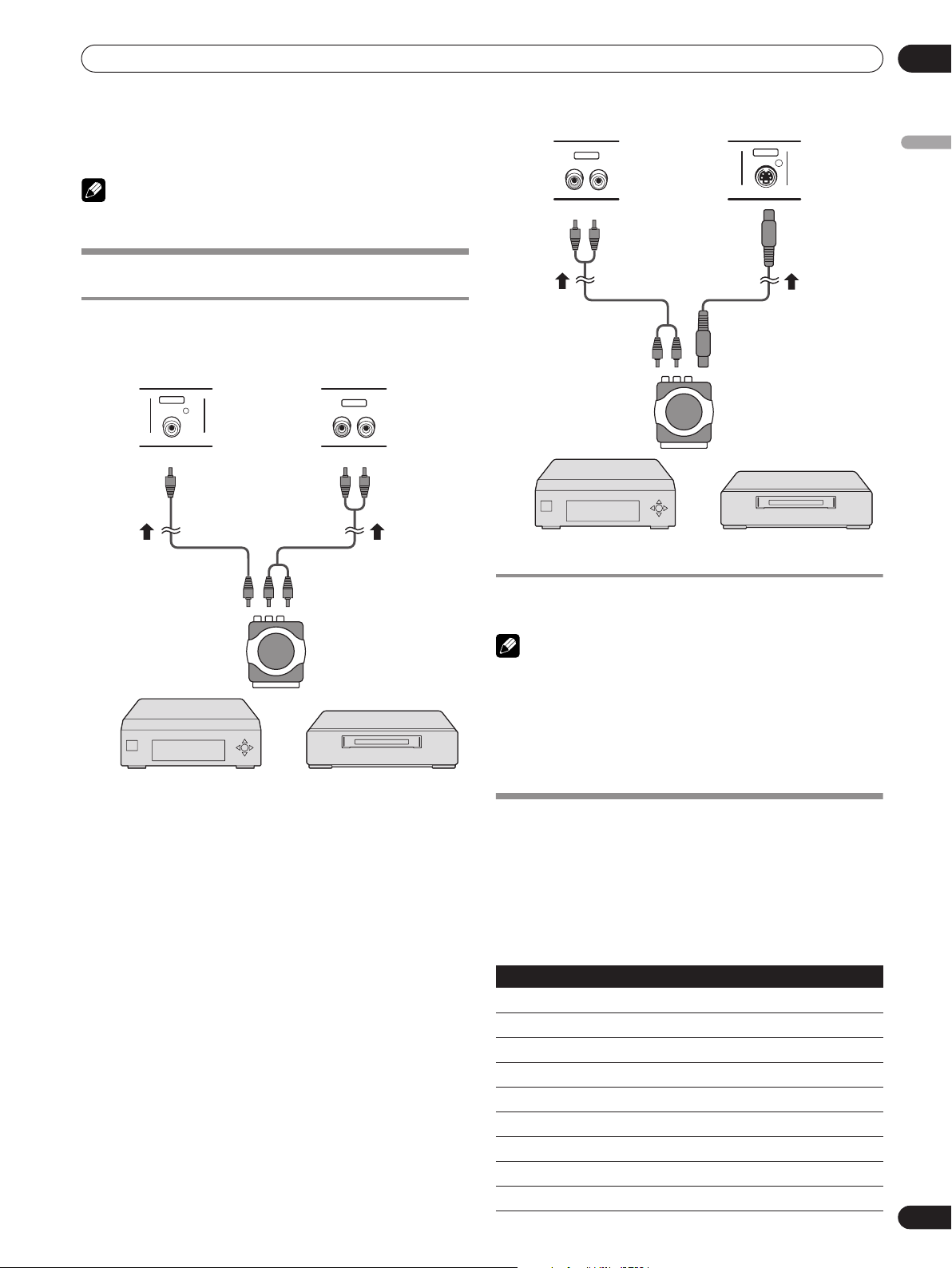

Connecting a decoder or VCR ............ 33

Displaying a decoder or VCR image .. 33

Using HDMI Input ................................... 33

Connecting HDMI equipment ............ 34

Using DVI Input ....................................... 35

Connecting DVI equipment ................ 35

Watching a DVD image .......................... 35

Connecting a DVD player ................... 35

Displaying a DVD image ..................... 36

Enjoying a game console or watching

camcorder images .................................. 36

Connecting a game console or

camcorder ............................................ 36

Displaying an image from the game

console or camcorder ......................... 36

Watching an image from a personal

computer .................................................. 36

Connecting a personal computer ...... 36

Displaying an image from a personal

computer .............................................. 36

Computer compatibility chart ............ 37

Connecting control cords ....................... 37

About SR+ ........................................... 37

English

12 Appendix

Troubleshooting ...................................... 38

Specifications .......................................... 39

NOTE

Important User Guidance Information

In order to obtain maximum enjoyment from this Pioneer PureVision PDP-5000EX Plasma Display, please first read this information carefully.

With the Pioneer PureVision PDP-5000EX, you can be assured of a high quality Plasma Display with long-life and high reliability. To achieve images of exceptional quality, this Pioneer Plasma Display incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

The Pioneer PureVision PDP-5000EX incorporates the latest in color filter technology color/picture reproduction of these models as compared to previous models. It also eliminates the need for a physical glass panel to be placed in front of the plasma panel, which furthers Pioneer’s continued goal of reducing environmental waste in consumer electronics, now during the manufacturing process and in the future during the recycling process.

Over the course of its lifetime, the luminosity of the Pioneer PDP-5000EX Plasma Display will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer Plasma Display for a long time, please carefully read and follow the usage guidances below:

Direct Color Filter. This improves the

—

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma Display’s are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).

• Avoid viewing the On Screen Display for extended periods, from a decoder, DVD player, VCR and all other components.

• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.

• Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.

• When playing a game, the “GAME” mode setting within “AV Selection” is strongly recommended. However, please limit its use to less than 2 hours at a time.

• After playing a game, or displaying a PC image or any still image, it is best to view a normal moving picture in the “WIDE” or “FULL” screen setting for more than 3 times the length of the previous still moving image.

• After using the Plasma Display, always switch the display to “STANDBY” mode.

This product should be installed by using only parts and accessories designed by PIONEER. Use of accessories other than the PIONEER stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see page 16.

• Do not fit the unit inside narrow spaces where ventilation is poor.

• Do not cover with a cloth, etc.

• Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.

• Do not place the product on a carpet or blanket.

• Do not reverse the product.

Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences.

Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, PIONEER cannot be held responsible for such accidents or malfunction.

The following are typical effects and characteristics of a phosphor-based matrix display and as such, are not covered by the manufacturer’s limited warranties:

• Permanent residual images upon the phosphors of the panel.

• The existence of a minute number of inactive light cells.

• Panel generated sounds, examples: Fan motor noise, and electrical circuit humming / glass panel buzzing

Installation guidelines

The Pioneer PureVision PDP-5000EX Plasma Display incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the Plasma Display, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

Important User Guidance Information

CAUTION

PIONEER bears no responsibility for any damage arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Plasma Display protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the Plasma Display automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Information of cell defect

Plasma screens display information using cells. Pioneer Plasma Display panels contain a very large number of cells. (Depending on the panel size; over 6.2 million cells.) All Pioneer display panels are manufactured using a very high level of ultra-precision technology and undergo individual quality control.

In rare cases, some cells can be permanently switched off, or on, resulting in either a black or colored cell permanently fixed on the screen.

This effect is common to all Plasma Displays because it is a consequence of the technology.

If the defective cells are visible at a normal viewing distance of between 2.5 and 3.5 meters whilst viewing a normal broadcast (i.e. not a test card, still image or single color display) please contact the supplying dealer.

If, however, they can only be seen close up or during single color displays then this is considered normal for this technology.

Infrared rays

The Plasma Display releases infrared rays because of its characteristics. Depending on how the Plasma Display is in use, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Plasma Display driving sound

The screen of the Plasma Display is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may make you hear buzz sound or electrical circuit hamming from the Plasma Display.

Do not attach such items as labels and tape to the product

• This may result in the discolouration or scratch of the

cabinet.

When not using the product for a long period of time

• If you do not use the product for a long period of time, the

functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation

• Condensation may take place on the surface or inside of the

product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the surface of the screen and the glossy surface of the front cabinet

• When cleaning the surface of the screen or the glossy

surface of the front cabinet, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the screen hard, the surface of the product will be scratched.

• If you clean the surface of the screen with a wet cloth, water

droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet

• When cleaning the cabinet of this product, gently wipe it

with a clean soft cloth (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the cabinet hard, the surface of the cabinet will be scratched.

• The cabinet of this product is mostly composed of plastic. Do

not use chemicals such as benzene or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.

• Do not expose the product to volatile gas or fluid such as

pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.

• If you clean the surface of the cabinet with a wet cloth, water

droplets on the surface may enter into the product, resulting in malfunction.

Handles at the rear of the Plasma Display

• Do not remove the handles from the rear of the Plasma

Display.

• When moving the Plasma Display, ask another person for

help and use the handles attached to the rear of the Plasma Display. Do not move the Plasma Display by holding only a single handle. Use the handles as shown.

• Do not use the handles to hang the product when installing

or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

English

Important User Guidance Information

CAUTION

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1 After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2 After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time.

This includes those images displayed in the following screen modes: multiscreen function, screen size 4:3, screen size FULL 14:9, screen size CINEMA 14:9, screen size Dot by Dot (except when the input size is 1920x1080), and images with black bands at top/bottom or right/left.

If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

• The energy save function can be set to help prevent damage from screen burning (see page 29).

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please contact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Safety Precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be

read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and

operating instructions must be kept in a safe place for future reference.

3. Observe warnings — All warnings on the product and in

the instructions must be observed closely.

4. Follow instructions — All operating instructions must be

followed.

5. Cleaning — Unplug the power cord from the AC outlet

before cleaning the product. To clean the product, use the supplied cleaning cloth or other soft clothes (e.g., cotton, flannel). Do not use liquid cleaners or aerosol cleaners.

6. Attachments — Do not use attachments not

recommended by the manufacturer. Use of inadequate attachments can result in accidents.

7. Water and moisture — Do not use the product near water,

such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.

8. Stand — Do not place the product on an unstable cart,

stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

9. When relocating the product placed on a cart, it must be

moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

10. Ventilation — The vents and other openings in the cabinet

are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

11. Power source — This product must operate on a power

source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Power cord protection — The power cords must be routed

properly to prevent people from stepping on them or

objects from resting on them. Check the cords at the plugs and product.

13. The Plasma Display used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the Plasma Display breaks.

14. Overloading — Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

15. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

16. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

17. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when

objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as

described in the operating instructions.

Do not touch the controls other than those described in

the operating instructions. Improper adjustment of

controls not described in the instructions can cause

damage, which often requires extensive adjustment

work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any

noticeable abnormality in the product indicates that the

product needs servicing.

18. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

19. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

20. Wall or ceiling mounting — When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

21. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heatgenerating products (including amplifiers).

22. Unplug the power cord from the AC outlet before installing the speakers.

23. Never expose the screen of the Plasma Display to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.

24. Do not expose the Plasma Display to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discolouration or warp.

25. The Plasma Display weighs about 39.8 kg. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

English

CAUTION

Safety Precautions

Installation using the optional PIONEER stand or installation bracket

• Please be sure to request installation or mounting of this unit or the installation bracket by an installation specialist or the dealer where purchased.

• When installing, be sure to use the bolts provided with the stand or installation bracket.

• For details concerning installation, please refer to the instruction manual provided with the stand or installation bracket.

IInstallation using accessories other than the PIONEER stand or installation bracket (sold separately)

• When possible, please install using parts and accessories manufactured by PIONEER. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.

• For custom installation, please consult the dealer where the unit was purchased, or a qualified installer.

Wall-mount installation of the unit

This unit has been designed with bolt holes for wall-mount installation, etc. The installation holes provided are shown in the accompanying illustration.

• Be sure to attach in 4 or more locations above and below, left and right of the center line.

• Use bolts that are long enough to be inserted 12 mm to 18 mm into the main unit from the attaching surface. Refer to the side view diagram in the accompanying illustration.

• As this unit is constructed with glass, be sure to install it on a flat, unwarped surface.

To avoid malfunction, overheating of this unit, and possible fire hazard, make sure that the vents on the main unit are not blocked when installing. Also, as hot air is expelled from the air vents, be careful of deterioration and dirt build up on rear surface wall, etc.

Please be sure to use an M8 (Pitch = 1.25 mm) bolt. (Only this size bolt can be used.)

This display unit weighs at least 30 kg and has little front-toback depth, making it very unstable when stood on edge. As a result, two or more persons should cooperate when unpacking, moving, or installing the display.

This unit incorporates a thin design. To ensure safety if vibrated or shaken, please be sure to take measures to prevent the unit from tipping over.

Safety Precautions

CAUTION

• Handles should not be removed or reattached by anyone

other than the professional installation technician or service personnel.

• If handles must be removed due to specific installation

conditions, the mounting screws should be stored carefully together with the handles. To ensure safety, the mounting screws should be tightened to a minimum torque of 2N·m (20 kgf·cm) when reattaching the handles.

• When moving the display, it should always be carried by two

persons holding the rear handles in the manner shown.

Air vents (fan)

a hole a hole

NO!

• Never attempt to move the Plasma Display by holding only one of the handles.

• When installing the Plasma Display, do not use the handles as means of hanging the display; also do not use them as devices to prevent tipping over (see illustration).

Attaching surface

Installation bracket, etc.

Main unit

Center line

a hole

Bolt

English

Center line

Rear view diagram Side view diagram

12 mm to 18 mm

Optional line (sold separately)

• For details, please consult the dealer where this unit was purchased.

1 Table top stand (PDK-TS23):

PDP-5000EX display stand.

2 Wall installation unit:

Wall installation bracket designed as a wall interface for securing the unit.

Supplied Accessories

Power cord

(For Europe, except UK

and Eire)

Only the power cord that is appropriate in your country or region is supplied.

Remote control unit

(For UK and Eire)

This product includes FontAvenue® fonts licensed by NEC Corporation.

FontAvenue is a registered trademark of NEC Corporation.

Speed clamps (x 2)

Bead bands (x 2)

AA (R6) batteries (x 2)

Cleaning cloth

Ferrite core

BNC/Pin conversion adaptor (x 3)

•

These Operating Instructions

•

Warranty

Part Names

Main unit

Operation panel on the main unit

English

123

Main unit

1 MAIN POWER 2ON

indicator

3 STANDBY

Remote control sensor

Handles

switch

indicator

POWER ON STANDBY

Operation panel on the main unit

6 7 INPUT 8 HOME MENU

9 ADJUST (///) 10 VOLUME +/– 11 ENTER/DISP. 12 RETURN 13 SCREEN SIZE

Note

The unit’s operating panel will become inoperable if connected speakers are installed too near the main unit.



STANDBY/ON

button

buttons

button

Part Names

Remote control unit

STANDBY/ON

1 2

3 4

SCREEN

AUTO

SIZE

SETUP

INPUT

1 2 3

4 5 6

SPLIT

VOLUME

MUTING

RETURN

ENTER

HOME MENU

AXD1535

SELECTIONDISPLAY

SUB

INPUT

SWAP

1 STANDBY/ON

Press to put the unit in operation or standby mode (page 21).

2 SCREEN SIZE

8 9

Press to select the screen size (page 23).

3 PC AUTO SET UP

When using computer signal input, automatically sets the “Position”, “Clock” and “Phase” to optimum values (page 30).

4 INPUT 1

Press to select the input (page 31).

to 6 buttons

5 VOLUME (+/–)

Use to adjust the volume (page 21).

10 11

6 MUTING

Press to mute the volume (page 21).

7 RETURN

Restores the previous menu screen (pages 24 to 27).

button

8 AV SELECTION

Use to select the AV function (page 22).

14 15

9 DISPLAY

Press to view the unit’s current input and setup mode (page 22).

10 SPLIT

button

Press to switch to multi-screen display (page 22).

11 SUB INPUT

During multi-screen display, use this button to change inputs to subscreens (page 22).

12 SWAP

During multi-screen display, use this button to switch between main screen and subscreen (page 22).

button

13 HOME MENU

Press to open and close the on-screen menu (pages 24 to 37).

14 ADJUST (///

Use to navigate menu screens and to adjust various settings on the unit (pages 24 to 37).

15 ENTER

Press to adjust or enter various settings on the unit (pages 24 to 37).

button

buttons

button

) buttons

When handling the remote control unit

• Do not drop the remote control unit or expose it to moisture.

• Do not use the remote control unit in a location subject to direct sunlight, heat radiation from a heater, or in a place subject to excessive humidity.

• When the remote control unit’s batteries begin to wear out, the operable distance will gradually become shorter. When this occurs, replace all batteries with new ones as soon as possible.

Part Names

Connection panel

SPEAKER 8Ω ~16Ω

+ –

SERVICE ONLY

CONTROL

IN OUT

INPUT1

DVI-D

HDMI

INPUT2

HDMI

English

INPUT3

1 2 4 5 6

INPUT4 COMPONENT VIDEO / ANAROG RGB

Pb/CbY

Pr/Cr

7 8 9 10

1 SPEAKER (R)

For connection of an external right speaker. Connect a speaker that has an impedance of 8 Ω to16 Ω.

terminals

2 Terminal for Service Adjustments

for factory setup)

Never connect any component to these connectors without first consulting your Pioneer installation technician.

These connectors are used for Plasma Display setup adjustments.

3 CONTROL IN/OUT 4 INPUT1 5 INPUT2 6 INPUT3 7 INPUT4

terminal (DVI-D) terminal (HDMI) terminal (HDMI) terminals

terminals

(COMPONENT VIDEO: Y, Pb/Cb, Pr/Cr, ANALOG RGB : G, B, R ,HD, VD)

(used

INPUT5

INPUT6 AUDIO

VIDEO

S-VIDEO

8 INPUT5 9 INPUT6 10 AUDIO INPUT

Audio input connectors corresponding to INPUT1 to INPUT6 video input connectors.

11 AC IN

Use to connect the supplied power cord to an AC outlet.

12 SPEAKER (L)

For connection of an external left speaker. Connect a speaker that has an impedance of 8 Ω to 16 Ω.

INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 INPUT6

RL RL RL RL RL RL

AC IN

SPEAKER 8Ω ~16Ω

+ –

1211

terminal (S-VIDEO) terminal (VIDEO)

terminals

CAUTION

Preparation

Installing the Plasma Display

Over 50 cm

Over 10 cm

Location

• Avoid direct sunlight. Maintain adequate ventilation.

• Because the Plasma Display is heavy, be sure to have someone help you when moving it.

Using the optional PIONEER stand

• For details on installation, refer to the instruction manual supplied with the stand.

Operating Environment

Operating environment temperature and humidity: +0 ˚C to +40 ˚C; less than 85 % RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

NOTE

• Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit.

POWER ON STANDBY

The lower left section of the display unit shown in the illustration above is the location of the MAIN POWER switch and certain parts required for display, and the contour involves a raised projection.

As a result, when transporting and installing the unit, take adequate precautions not to subject this area to impact or unreasonable force, since damage to the parts may result.

Preparation

NOTE

Preventing the Plasma Display from Falling Over

After installing the stand, be sure to take special care to ensure that the Plasma Display will not fall over.

English

Stabilizing on a table or floor

Stabilize the Plasma Display as shown in the diagram using screws that are available on the market.

NOTE

To stabilize the Plasma Display on a table or on the floor, use screws that have a nominal diameter of 6 mm and that are at least 20 mm long.

6 mm

20 mm min.

9 mm to 15 mm

Using a wall for stabilization

1. Attach falling prevention bolts (hooks) to the Plasma Display.

2. Use strong cords or chains to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

• Perform this work in the same way on the left and right sides.

Use hooks, ropes, chains, and fittings that are available on the market. Recommended hook: Nominal diameter 8 mm Length 12 mm to 15 mm

12 mm to 15 mm

CAUTION

A table or an area of the floor with adequate strength should always be used to support the Plasma Display. Failure to do so could result in personal injury and physical damage. When installing the Plasma Display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents. If you do not take these precautions, the Plasma Display could fall down and cause injury. The screws, hooks, chains and other fittings that you use to secure the Plasma Display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached. Select the appropriate screws, hooks, chains, and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Cord or chain

Fitting

Hook

Preparation

Connecting the power cord

AC IN

SPEAKER 8Ω ~16Ω

+ –

Attaching the ferrite core

To help prevent noise, attach the supplied ferrite core to the connector end of the power cord as shown. Use the supplied cable tie to prevent the ferrite core from slipping on the cable.

Europe, except UK

and Eire

Ferrite core

Cable tie

To power outlet

AC power cord

UK and Eire

NOTE

• When not using this unit for extended periods, disconnect the power cord from its outlet.

Connecting the speakers

This unit is equipped with speaker output terminals. Consult the accompanying illustration when connecting your own speakers.

12 mm

Twist exposed wire strands together.

Push tab to the open position, and insert the wire. Then, close tab firmly to secure the wire in place.

NOTE

• When connecting speakers, be sure to connect the speaker’s positive (+) and negative (–) terminals to the same terminals on this unit. Proper sound will not be produced if the (+) and (–) polarities are not connected correctly.

• This unit supports the use of speakers with 8 Ω to 16 Ω impedance.

To AC IN

As close as possible

Preparation

NOTE

How to route cables

Speed clamps and bead bands are included with this unit for bunching cables together. Once components are connected, follow the following steps to route cables.

English

* As viewed from the rear of the display.

1. Organize cables together using the

provided speed clamps.

Insert ➀ into an appropriate hole on the rear of the unit, then snap ➁ into the back of ➀ to fix the clamp.

Speed clamps are designed to be difficult to undo once in place. Please attach carefully.

To attach the speed clamps to the main unit

Connect the speed clamps using the 6 holes marked with “o” below, depending on the situation.

To remove speed clamps

Using pliers, twist the clamp 90° and pull it outward. In some cases the clamp may have deteriorated over time and

may get damaged when removed.

2. Bunch separated cables together and secure them with the provided bead bands.

Do not allow excessive stress to be placed on the ends of cables.

• Cables can be routed to the right or left.

* As viewed from the rear of the display.

CAUTION

Preparation

Preparing the remote control unit

Inserting batteries

1 Open the battery cover.

2 Load the supplied two AA size batteries while inserting

their respective negative polarity (–) ends first.

overheat, explode or catch fire. It can also reduce the life or performance of batteries.

• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTRUCTION’S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Allowed operation range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor () located at the bottom right of the front panel of the Plasma Display. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

• Place batteries with their terminals corresponding to the (+) and (–) indicators in the battery compartment.

3 Close the battery cover.

Cautions regarding batteries

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• When you replace the batteries, use manganese or alkaline ones.

• Place the batteries with their terminals corresponding to the (+) and (–) indicators.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not use the remote control unit for an extendedperiod of time, remove the batteries from it.

WARNING

• Do not use or store betteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak,

30º

7 m

30º

Remote control sensor

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote control sensor of the Plasma Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Plasma Display, or operate the remote control unit closer to the remote control sensor.

• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.

• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.

• The Plasma Display emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the Plasma Display.

• Depending on the installation surroundings, this unit’s remote control unit may be influenced by the infrared rays discharged from the Plasma Display, hampering reception of its rays or limiting its operational distance. The strength of infrared rays discharged from the screen will differ according to the picture displayed.

Operation

STANDBY indicator

POWER ON indicator

MAIN POWER

switch

Operation

Plasma Display status indicators

The table below shows the operational status of the Plasma Display. You can check the current status of the Plasma Display with the indicators on the Plasma Display.

Indicator Status Plasma Display Status

POWER ON STANDBY

The power cord of the Plasma Display has been disconnected. Or, the power cord of the Plasma Display has been connected but the MAIN POWER switch of the Plasma Display is off.

Power to the Plasma Display is on.

The Plasma Display is in the standby mode.

POWER ON STANDBY

English

With the Power Management function (page 29) set to “On”, no signal was

Flashing

(Repeatedly lights 1 second, then goes out 1 second)

Flashing

(The indicator will light 1 second, then go out for 1 second; after several repeats, the indicator will go out for 2.5 seconds, and then the cycle will repeat.)

Flashing

(The indicator will light 1 second, then go out for 1 second; after several repeats, the indicator will go out for 2.5 seconds, and then the cycle will repeat.)

detected, with the result that the unit switched to the standby mode. The unit will turn back ON, under one of the following conditions:

• The main unit’s INPUT is pressed;

• One of the remote control unit’s INPUT 1 to INPUT 6 is pressed;

• An input signal is detected once again.

The unit’s protection circuit may have operated. Press the MAIN POWER switch to turn the unit off, then wait one minute before turning the unit on again.

Power to the Plasma Display is off. Or the power cord of the Plasma Display has been disconnected.

For other than the above, see Troubleshooting on page 38.

Changing the volume and sound

Using VOLUME +/–

• To increase the volume, press VOLUME +.

• To decrease the volume, press VOLUME –.

VOLUME

SPLIT

MUTING

SUB

INPUT

Using MUTING on the remote control unit

MUTING mutes the current sound output.

1 Press MUTING.

• MUTING appears on the screen.

2 Press MUTING again to cancel the mute mode.

• Pressing VOLUME + also cancels the mute mode.

Volume adjustment

Muting

Operation

Use the multiscreen functions

Splitting the screen

Use the following procedure to select 2-screen mode.

SPLIT

VOLUME

MUTING

1 Press the remote control unit’s SPLIT.

The main screen is displayed on the left and the subscreen on the right.

Main screen Sub screen

2 Press the remote control unit’s SUB INPUT to select the

subscreen input source.

SUB

INPUT

SWAP

Confirming current status

STANDBY/ON

SCREEN

SIZE

AUTO SETUP

DISPLAY

SELECTION

1 Press the remote control unit’s DISPLAY.

The currently selected input source and settings will be displayed.

Display example: Under normal conditions (with video signal input)

INPUT2

1080i

STANDARD

FULL

AV Selection

Select from the five viewing options, depending on the current environment (e.g., room brightness), the type of images input from external equipment.

Each time the remote control unit’s AV SELECTION is pressed, the AV function alternates.

To exchange the main screen and subscreen inputs

Press the remote control unit’s SWAP. The right and left sides of the display will switch; what was

previously the main screen will now show the subscreen, and vice versa.

NOTE

• The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears.

• The multiscreen function cannot display images from INPUT2 and INPUT3 simultaneously. If you make such an attempt, a warning message appears.

• When you press HOME MENU the single-screen mode is restored and the corresponding menu is displayed.

• When in the 2-screen mode, images displayed on the right screen may look less fine, depending on the images.

• If you select 1920*1080p@24 Hz for the main screen in the 2screen mode, video images may not be displayed properly because of the Plasma Display’s capability.

• PAL 60 signals are not suited for image display on the Sub screen.

• If the multiscreen function is used continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials.

STANDBY/ON

SCREEN

SIZE

AUTO SETUP

DISPLAY

SELECTION

For AV source

Item Description

STANDARD For a highly deﬁned image in a normally bright

DYNAMIC For a very sharp image with the maximum

MOVIE For a movie

GAME Lowers image brightness for easier viewing

USER Allows the user to customize settings as

room You can set the mode for each input source.

contrast This mode does not allow manual image quality adjustment.

You can set the mode for each input source.

desired. You can set the mode for each input source.

Operation

NOTE

For PC source

Item Description

STANDARD For a highly deﬁned image in a normally bright

USER Allows the user to customize settings as

room

desired. You can set the mode for each input source.

NOTE

• If you have selected “DYNAMIC”, you cannot select

“Contrast”, “Brightness”, “Color”, “Tint”, “Sharpness”, “Pro Adjust”, and “Reset”; these menu items are dimmed.

Selecting a screen size manually

Press SCREEN SIZE to switch among the screen size options selectable for the type of video signals currently received.

• Each time you press SCREEN SIZE, the selection is switched.

• The selectable screen sizes differ depending on the types of

input signals.

AV mode

Item Description

4:3

FULL 14:9 For 14:9 squeeze pictures. A thin side mask appears

CINEMA 14:9 For 14:9 letterbox pictures. A thin side mask appears

WIDE In this mode the picture is progressively stretched

FULL For 16:9 squeeze pictures.

ZOOM For 16:9 letterbox pictures. Bars may appear on the

CINEMA For 14:9 letterbox pictures. Bars may appear on the

Dot by Dot Matches input signal with same number of screen

“standard” pictures. A side mask appears on

For 4:3 each side.

on each side.

on each side, and you may also see bars on the top and bottom with some programmes.

toward each side of the screen.

top and bottom with some programmes.

top and bottom on some programmes.

pixels. Enabled only when input source size is 1920x1080.

• The Plasma Display’s imaging characteristics may deteriorate if the following screen sizes are displayed for a prolonged period: 4:3, FULL 14:9, CINEMA 14:9, Dot by Dot (except when the input size is 1920x1080).

If the above screen sizes are displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials.

Unless doing so would infringe copyright restrictions, it is strongly recommended to choose a screen size that does not produce black bands at top/bottom or right/left of the screen.

• When using the Plasma Display in a profit-making activity, or when exhibiting images publicly, using the screen size function to compress or stretch the image may result in infringement of the copyrights of the image owners.

AV mode

Dot by Dot

CINEMA

ZOOM

FULL

4:3

FULL 14:9

CINEMA 14:9

WIDE

PC mode

English

PC mode

Item Description

4:3 Fills the screen without altering the input signal

aspect ratio.

FULL Full 16:9 screen display

Dot by Dot Matches input signal with same number of screen

pixels.

Dot by Dot

4:3

FULL

NOTE

Menu Setup

Using the menu

AV mode menus

Home Menu Item Page

Picture Contrast 25

Brightness 25 Color 25 Tint 25 Sharpness 25 Pro Adjust 25 Reset 25

Sound Treble 28

Bass 28 Balance 28 Front Surround 28 FOCUS 28 Reset 28

Power Control Energy Save 29

No Signal off 29 Power Management 29

Option Position 30

Auto Size 32 4:3 Mode 32 Drive Mode 30

Setup Language 25

SR+ 37 INPUT1 31, 35 INPUT2 33, 34 INPUT3 33, 34 INPUT4 31 INPUT5 31, 33 INPUT6 31, 33

PC mode menus

Home Menu Item Page

Picture Contrast 25

Brightness 25 Red 25 Green 25 Blue 25 Reset 25

Sound Treble 28

Bass 28 Balance 28 Front Surround 28 FOCUS 28 Reset 28

Power Control Energy Save 29

No Signal Off 29 Power Management 29

Option Manual Setup 30

Setup Language 25

SR+ 37 INPUT1 31, 35 INPUT2 33, 34 INPUT3 33, 34 INPUT4 31 INPUT5 31, 33 INPUT6 31, 33

Menu operations

The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describes individual functions.

• Items within parentheses ( ) indicate notations for the main unit buttons when they differ from those on the remote control unit.

HOME MENU

ENTER

HOME MENU

AXD1509

RETURN

1 Press HOME MENU. 2 Press / to select a menu item, and then press ENTER

(ENTER/DISP.).

3 Repeat step 2 until you access the desired submenu item.

• The number of menu layers differs depending on the menu items.

4 Press / to select an option (or parameter), and then

press ENTER (ENTER/DISP.).

• For some menu items, press / instead of / .

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

• You can return to the upper menu levels by pressing RETURN.

Basic Adjustment Settings

NOTE

Basic Adjustment Settings

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 15 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish and Japanese.

1 Press HOME MENU. 2 Select “Setup” ( / then ENTER (ENTER/DISP.)). 3 Select “Language” ( / ). 4 Select a language ( / ).

Setup

Language

SR+

English

Off

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

Basic picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select an item to be adjusted ( / then ENTER (ENTER/

DISP.)).

Picture MOVIE

Contrast

Brightness

Color

Tint

Sharpness

Pro Adjust

Reset

For PC source or Home Gallery, the following screen appears.

Picture STANDARD

Contrast

Brightness

Red

Green

Blue

Reset

4 Select the desired level ( / ).

Contrast

• When an adjustment screen is in display, you can also change the item to be adjusted, by pressing / .

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

For AV source

Item

Contrast For less contrast For more contrast

Brightness For less brightness For more brightness

Color For less color intensity For more color intensity

Tint Skin tones become

Sharpness For less sharpness For more sharpness

button button

purplish

Skin tones become greenish

For PC source

Item

Contrast For less contrast For more contrast

Brightness For less brightness For more brightness

Red For weaker red For stronger red

Green For weaker green For stronger green

Blue For weaker blue For stronger blue

• To perform advanced picture adjustments, select “Pro Adjust” in step 3 and then press ENTER (ENTER/DISP.). For the subsequent procedures, see “Advanced picture adjustments”.

• To restore the factory defaults for all items, press / to select “Reset” in step 3, and then press ENTER (ENTER/ DISP.).

A confirmation screen appears. Press / to select “Yes”, and then press ENTER (ENTER/DISP.).

button button

English

Advanced picture adjustments

The Plasma Display provides various advanced functions for optimising the picture quality. For details on these functions, see the tables.

Several functions are not available when 1080p@50 Hz or 1080p@60 Hz signals are input.

Using PureCinema

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select “Pro Adjust” ( / then ENTER (ENTER/DISP.)). 4 Select “PureCinema” ( / then ENTER (ENTER/DISP.)). 5 Select the desired parameter ( / then ENTER (ENTER/

DISP.)).

• For the selectable parameters, see the table.

PureCinema

Automatically detects a ﬁlm-based source (originally encoded at 24 frames/second), analyses it, then recreates each still ﬁlm frame for highdeﬁnition picture quality.

Basic Adjustment Settings

PureCinema

Selections Off Deactivates the PureCinema.

Standard Produces smooth and vivid moving

Advanced Produces smooth and quality moving

images (ﬁlm speciﬁc) by automatically detecting recorded image information when displaying DVD or high-deﬁnition images (e.g., movies) having 24 frames per second.

images (as shown on theatre screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second.

NOTE

• “Standard” is not selectable when 480p or 720p@60 Hz signals are input.

• “Advanced” is not selectable when PAL, SECAM, 576i, or 1080i@50 Hz signals are input.

• Neither “Standard” nor “Advanced” is selectable when 576p, 1080p or 720p@ 50 Hz signals are input.

Using Color Temp

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select “Pro Adjust” ( / then ENTER (ENTER/DISP.)). 4 Select “Color Detail” ( / then ENTER (ENTER/DISP.)). 5 Select “Color Temp” ( / then ENTER (ENTER/DISP.)). 6 Select the desired parameter ( / then ENTER (ENTER/

DISP.)).

• If you have selected a desired parameter in this step, skip steps 7 and 8.

• You may rather want to perform fine adjustment. To do this, select “Manual” first and then press and hold ENTER (ENTER/DISP.) for more than three seconds. The manual adjustment screen appears. Then go to step 7.

Color Temp

Adjusts the color temperature, resulting in a better white balance.

Selections High White with bluish tone

Mid-High Intermediate tone between High and Mid

Mid Natural tone

Mid-Low Intermediate tone between Mid and Low

Low White with reddish tone

Manual Color temperature adjusted to your

preference

7 Select an item to be adjusted ( / then ENTER (ENTER/

DISP.)).

8 Select the desired level ( / ).

Item

R High Fine adjustment

G High For weaker green For stronger green

B High For weaker blue For stronger blue

for bright portions

button button

For weaker red For stronger red

Item

R Low Fine adjustment

G Low For weaker green For stronger green

B Low For weaker blue For stronger blue

for dark portions

button button

For weaker red For stronger red

• To perform adjustment for another item, press RETURN, and then repeat steps 7 and 8.

• You may press / to immediately change an item to be adjusted.

9 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

Using CTI

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select “Pro Adjust” ( / then ENTER (ENTER/DISP.)). 4 Select “Color Detail” ( / then ENTER (ENTER/DISP.)). 5 Select “CTI” ( / then ENTER (ENTER/DISP.)). 6 Select the desired parameter ( / then ENTER (ENTER/

DISP.)).

CTI

Provides images with clearer color contours. The CTI stands for Color Transient Improvement.

Selections Off Deactivates the CTI.

On Activates the CTI.

7 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

Using Color Management

DISP.)).

6 Select an item to be adjusted ( / then ENTER (ENTER/

DISP.)).

Color Management

7 Select the desired level ( / ).

Basic Adjustment Settings

Item

R Closer to magenta Closer to yellow

Y Closer to red Closer to green

G Closer to yellow Closer to cyan

C Closer to green Closer to blue

B Closer to cyan Closer to magenta

M Closer to blue Closer to red

button button

• To perform adjustment for another item, press RETURN, and then repeat steps 6 and 7.

• You may press / to immediately change an item to be adjusted.

8 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

Reducing the noise in images

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select “Pro Adjust” ( / then ENTER (ENTER/DISP.)). 4 Select “NR” ( / then ENTER (ENTER/DISP.)). 5 Select an item to be adjusted ( / then ENTER (ENTER/

DISP.)).

• You can select “DNR” or “MPEG NR”.

6 Select the desired parameter ( / then ENTER (ENTER/

DISP.)).

DNR

Reduces video noise for clean crisp images. The DNR stands for Digital Noise Reduction.

Selections Off Deactivates the DNR.

High Enhanced DNR

Mid Standard DNR

Low Moderate DNR

• You can select “Dynamic Contrast”, “Black Level”, “ACL” or “Gamma”.

6 Select the desired parameter ( / then ENTER (ENTER/

DISP.)).

Dynamic Contrast

Emphasises the contrast on images so that the difference between brightness and darkness becomes more distinct.

Selections Off Deactivates the Dynamic Contrast.

High Enhanced Dynamic Contrast

Mid Standard Dynamic Contrast

Low Moderate Dynamic Contrast

Black Level

Emphasises dark portion on images so that the difference between brightness and darkness becomes more distinct.

Selections Off Deactivates the Black Level.

On Activates the Black Level.

ACL

Performs such compensation that results in the optimum contrast characteristics for images.

Selections Off Deactivates the ACL.

On Activates the ACL.

Gamma

Adjusts the gamma characteristics (image gradation characteristics).

Selections 1 Selects gamma characteristics 1.

2 Selects gamma characteristics 2.

3 Selects gamma characteristics 3.

7 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

English

MPEG NR

Reduces mosquito noise from video image when a digital TV channel is watched or a DVD is played, resulting in noise-free images.

Selections Off Deactivates the MPEG NR.

High Enhanced MPEG NR

Mid Standard MPEG NR

Low Moderate MPEG NR

7 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

Using the Dynamic Range Expander (DRE) functions

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select “Pro Adjust” ( / then ENTER (ENTER/DISP.)). 4 Select “DRE” ( / then ENTER (ENTER/DISP.)). 5 Select an item to be adjusted ( / then ENTER (ENTER/

DISP.)).

Using the 3DYC and I-P Mode

1 Press HOME MENU. 2 Select “Picture” ( / then ENTER (ENTER/DISP.)). 3 Select “Pro Adjust” ( / then ENTER (ENTER/DISP.)). 4 Select “Others” ( / then ENTER (ENTER/DISP.)). 5 Select an item to be adjusted ( / then ENTER (ENTER/

DISP.)).

• You can select “3DYC” or “I-P Mode”.

6 Select the desired parameter ( / then ENTER (ENTER/

DISP.)).

3DYC

Optimises characteristics for separating brightness signals and color signals. This works for both video and still images.

Selections Off Deactivates the 3DYC.

High Enhanced 3DYC

Mid Standard 3DYC

Low Moderate 3DYC

NOTE

FOCUS

Front Surround

Off

Reset

Basic Adjustment Settings

I-P Mode

Perform optimum conversion from interlace signals to progressive signals. This works for both video and still images.

Selections 1 Optimum for video images

2 Standard setting

3 Optimum for still images

7 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

NOTE

Can be set only when a video signal is input. However, this setting is not supported if either of the following conditions apply:

• Conditions for setting “3DYC”: NTSC signal input and PAL signal input from INPUT6.

• Signals for which “I-P Mode” is not settable: 480p, 720p, 576p, 1080p.

Sound adjustments

You can adjust the sound quality to your preference with the following settings.

Adjust the sound to your preference for the chosen AV Selection option. See page 22.

1 Press HOME MENU. 2 Select “Sound” ( / then ENTER (ENTER/DISP.)). 3 Select an item to be adjusted ( / ). 4 Select the desired level ( / ).

Sound STANDARD

Treble

Bass

Balance

FOCUS

Front Surround

Reset

Off

FOCUS

This shifts the sound coming direction (sound images) upward and produces clear sound contours.

1 Press HOME MENU. 2 Select “Sound” ( / then ENTER (ENTER/DISP.)). 3 Select “FOCUS” ( / ). 4 Select the desired parameter ( / ).

Item Description

Off Deactivates the FOCUS.

On Activates the FOCUS.

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

• The effect of this function differs depending on signals.

Front Surround

This provides three-dimensional sound effects and/or deep, rich bass.

1 Press HOME MENU. 2 Select “Sound” ( / then ENTER (ENTER/DISP.)). 3 Select “Front Surround” ( / ). 4 Select the desired parameter ( / ).

Item Description

Off Deactivates both the SRS and TruBass.

SRS Reproduces highly effective three-dimensional

sound.

TruBass Provides deep, rich bass using a new

technology.

TruBass + SRS Provides both TruBass and SRS effects.

Item

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decreases audio from the

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

• To restore the factory defaults for all items, press / to select “Reset” in step 3, and then press ENTER (ENTER/

DISP.). A confirmation screen appears. Press / to select “Yes”, and then press ENTER (ENTER/DISP.).

the menu.

NOTE

button button

right speaker.

Decreases audio from the left speaker.

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

• (WOW) designates a status where the FOCUS is on and TruBass + SRS has been selected for Front Surround.

• is a trademark of SRS Labs, Inc.

• WOW technology is incorporated under license from SRS Labs, Inc.

• The effect of this function differs depending on signals.

Basic Adjustment Settings

NOTE

Power Control

Power Control provides convenient functions for power saving.

Energy Save

You may use one of the two Energy Save modes to save power consumption.

1 Press HOME MENU. 2 Select “Power Control” ( / then ENTER (ENTER/DISP.)). 3 Select “Energy Save” ( / ). 4 Select “Save 1” or ”Save 2” ( / ).

Item Description

Standard Does not decrease the picture brightness.

Save1 Slightly lowers power consumption while

slightly suppressing the brightness drop level.

Save2 Decreases the picture brightness and lowers

power consumption.

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

No Signal off

The Plasma Display will be automatically placed into the standby mode if no signal is received for 8 minutes.

1 Press HOME MENU. 2 Select “Power Control” ( / then ENTER (ENTER/DISP.). 3 Select “No Signal off” ( / ). 4 Select ”Enable” ( / ).

Power Management

The Plasma Display will be automatically placed into the standby mode when no signal is received.

1 Press HOME MENU. 2 Select “Power Control” ( / then ENTER (ENTER/DISP.)). 3 Select “Power Management” ( / ). 4 Select “Enable” ( / ).

Item Description

Disable No power management

Enable If no input signal is detected for one minute or

more, the unit automatically enters the standby mode. If a signal is subsequently detected, the unit automatically turns ON.

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

• INPUT1 and INPUT4 only are enabled. However, when

“Signal Type” is set to “AV”, they are disabled.

• Operation is disabled during display of the HOME MENU.

English

Item Description

Disable Does not place the Plasma Display into the

Enable Places the Plasma Display into the standby

standby mode.

mode if no signal is received for 8 minutes.

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

NOTE

• INPUT1 to INPUT6 are enabled. INPUT1 and 4 are disabled, however, when they have “Signal Type” set to “PC.”

• Operation is disabled during display of the HOME MENU.

•A message will be displayed immediately before the Plasma Display enters standby mode.

NOTE

Manual Setup

H/V Position Adjust

Clock

Phase

Reset

Useful Adjustment Settings

Switching the vertical drive frequency (AV mode only)

You can switch the vertical drive frequency for screen display between 75 Hz and 100 Hz. Choose the drive frequency that better suits your input signals.

1 Press HOME MENU. 2 Select “Option” ( / then ENTER (ENTER/DISP.)). 3 Select “Drive Mode” ( / ). 4 Select “75Hz” or “100Hz” ( / ).

Option

Position

Auto Size

4:3 Mode

Drive Mode

Off

75Hz

5 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

NOTE

• This setting can be made for each input source separately.

• This setting is disabled when 480i, 480p, 1080i@60 Hz, 720p@60 Hz, 1080p@24 Hz, 1080p@60 Hz, 4.43 NTSC signals, or NTSC signals are input.

Adjusting image positions (AV mode only)

Adjust the horizontal and vertical positions of images on the Plasma Display.

1 Press HOME MENU. 2 Select “Option” ( / then ENTER (ENTER/DISP.)). 3 Select “Position” ( / then ENTER (ENTER/DISP.)). 4 Select “H/V Position Adjust” ( / then ENTER (ENTER/

DISP.)).

Adjusting image positions and clock automatically (PC mode only)

Use Auto Setup to automatically adjust the positions and clock of images coming from a personal computer.

1 Press PC AUTO SET UP on the remote control unit.

• Auto Setup starts.

2 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

• When Auto Setup is finished, “Auto Setup completed.” appears.

• Even when “Auto Setup completed” appears, Auto Setup may have failed, depending on conditions.

• Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.

• Be sure to connect the computer to the unit and switch it on before starting Auto Setup.

Adjusting image positions and clock manually (PC mode only)

Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimise the positions and clock of images when necessary.

1 Press HOME MENU. 2 Select “Option” ( / then ENTER (ENTER/DISP.)). 3 Select “Manual Setup” ( / then ENTER (ENTER/DISP.)). 4 Select the item to be adjusted ( / then ENTER (ENTER/

DISP.)).

Position

H/V Position Adjust

Reset

5 Adjust the vertical position ( / ) or the horizontal

position ( / ).

6 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

NOTE

• To restore the factory defaults for all items, press / to select “Reset” in step 4, and then press ENTER (ENTER/

DISP.). A confirmation screen appears. Press / to select “Yes”, and then press ENTER (ENTER/DISP.).

• Adjustments are stored separately according to input source.

• When using he INPUT1 terminal, this function is not available.

5 Perform adjustment ( / and / ).

With “Clock” or “Phase” selected, you can change the parameter using / .

6 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit

the menu.

• To restore the factory defaults for all the items, press / to select “Reset” in step 4, and then press ENTER (ENTER/DISP.).

A confirmation screen appears. Press / to select “Yes”, and then press ENTER (ENTER/DISP.).

+ 200 hidden pages
