Pioneer PDK-50HW3 User Manual

TECHNICAL MANUAL (Ver. 1.0)

HANDWRITING DEVICE: PDK-50HW3

Supported plasma displays: PDP-504CMX

PDP-503CMX PDP-50MXE1 PDP-50MXE1-S PDP-503MXE

This manual provides precautions and information for installation, preparation, and handling of the handwriting device.

Before installation and preparatory work, choose a safe and appropriate site after thorough consideration of

construction, materials used, strength, and surroundings. If adequate safeguards are not in place, immediately halt the

installation process and discontinue marketing activities.

PRECAUTIONS:

• We accept no responsibility for losses resulting from the use of parts other than those supplied by us.

• We guarantee the performance of our products only when they are assembled and adjusted as described in this

manual.

• The specifications and external designs shown in this manual are subject to change without notice.

CAUTION

Exclamation marks placed within triangles are intended to alert users to the presence of important safety

information. Be sure to read instructions indicated by this symbol.

ABOUT MOUNTING/INSTALLATION

÷ This product is sold under the assumption that

installation will be performed by experienced,

qualified experts. Refer all mounting and installation

work to qualified personnel, or consult the nearest

PIONEER dealer for assistance.

÷ We accept no responsibility for accident or loss

resulting from failure to select an appropriate

installation site, or for those occurring during

assembly, installation, mounting, or operation of this

product, or resulting from modifications made to this

product, or from natural disasters.

Changes from PDK-50HW2A to PDK-50HW3

Scan device changes

a) The Pioneer badge need no longer be removed during installation.

¶ In this manual, the frame of the handwriting device that houses the sensor is referred to as a scan device.

b) Instead of a 3 m RS-232C cable, a 1.4 m hard-wired USB cable is supplied.

1. The cable exit has been modified. ] See page 10.

¶ An RS-232C connector is no longer provided.

¶ The absence of connectors on the rear panel makes it possible to use fittings for installation on sloping surfaces.

2. Power is supplied through USB bus power.

¶ The scan device is not provided with a power switch or a DC connector.

¶ An AC adapter and a power cable are not provided.

¶ Power consumption has been reduced from 6 V, 1 A to 5 V, 0.5 A (max.).

c) New design

]

PDK-50HW2A PDK-50HW3

1. The front panel has a rounded appearance while the side panels have a two-tone finish in silver and black.

¶ The vertical and horizontal dimensions are the same.

¶ The silver finish is somewhat brighter than in the previous model.

Changes from PDK-50HW2A to PDK-50HW3

2. Device depth has been reduced for a slimmer look.

(excluding screw heads)

]

PDK-50HW2A PDK-50HW3

d) USB cable clip location

A clip for securing two USB cables is provided on the rear panel to ensure that cables are neatly routed.

] See page 22.

e) A power indicator makes it possible to check plasma display operating status.

]

PDK-50HW2A PDK-50HW3

f) The flash pattern of the power indicator has changed.

] See page 21.

g) The location of the PEN-NORMAL mode selector switch has changed.

PEN

Side panel

NORMAL

]

PDK-50HW2A PDK-50HW3

PEN

Rear panel

NORMAL

Changes from PDK-50HW2A to PDK-50HW3

Pen stand modifications

a) The pen stand has been modified.

The fitting is now more durable, but it is attached to the same location.

]

PDK-50HW2A PDK-50HW3

Changes made to the pen

a) The width of pen strokes is now thinner and more closely resembles those of a white board marker.

b) The pen tip is now round.

Changes in the driver

a) New driver (CBdrv = CBdrvU)

b) New icon

]

CBdrv CBdrvU

c) Menu changes

• Current Resolution • Current Resolution

• Calibration • Calibration

• Disable COM port

• Properties • Properties

• Test Mode Test indication • Hardware Information Test Mode

• Help • Help Rotation Mode 0°

• About • About Disable CBdrvU 90°

• Exit • Exit 180°

CBdrv CBdrvU

d) “SelfTest” information (service information) is now provided.

] See page 38.

270°

e) SXGA (1280 x 1024) 4:3 preset values have been added.

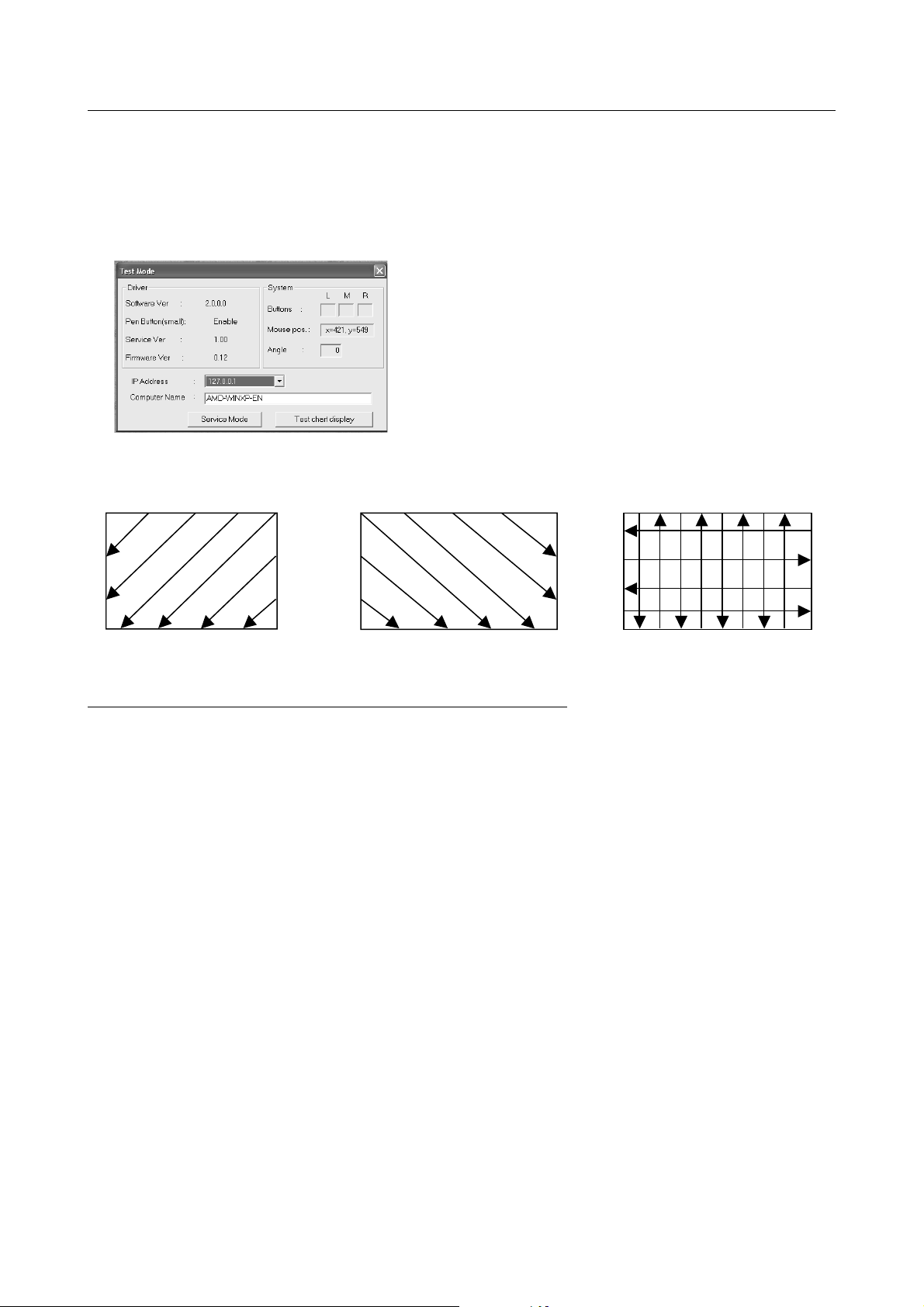

f) Test Mode indication has been changed.

]

PDK-50HW2A PDK-50HW3

g) Middle button (3-button emulation) is supported.

] See page 32.

Changes in service

a) Service Mode has been improved.

Fixed low scan mode

]

PDK-50HW2A PDK-50HW3

Fixed low scan mode

Fixed ultra low scan mode

Changes from PDK-50HW2A to PDK-50HW3

b) Internal DIP switch settings have been changed (4-bit = 8-bit setting).

]

PDK-50HW2A PDK-50HW3

] See page 42.

Contents

1. Specifications ............................................................ 7

1.1 Specifications ................................................................. 7

1.2 Accessories .................................................................... 8

1.2.1 Plasma display monitor

(PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S) .....

1.2.2 Handwriting device (PDK-50HW3) ...................... 8

1.3 Outline Drawing ............................................................. 9

1.4 Name and Function of Parts & Pin Layout ................... 11

1.4.1 Plasma display monitor

(PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S) ...

1.4.2 Handwriting device (PDK-50HW3) .................... 11

2. Installation Site ....................................................... 12

2.1 Installation Site ............................................................. 12

2.2 Installation Conditions .................................................. 12

2.2.1 List showing compatibility of standard metal

fittings ............................................................... 12

2.2.2 Special installations ........................................... 13

2.2.3 Installation precautions ..................................... 14

3. Installation Procedures .......................................... 15

3.1 Unpacking .................................................................... 15

3.1.1 Plasma display monitor

(PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S) ...

3.1.2 Handwriting device (PDK-50HW3) .................... 16

3.2 Assembly and Connections .......................................... 17

3.2.1 Installing the handwriting device

(PDK-50HW3) .................................................... 17

3.2.2 Changing the pen battery ................................. 18

3.2.3 Connecting the plasma display to a computer ... 19

3.3 Computer Setup Example ............................................ 19

3.3.1 Check ................................................................ 19

3.3.2 Precautions regarding computer setup ............. 19

3.4 Adjusting the Plasma Display ....................................... 20

3.4.1 Procedures for setting the plasma display ........ 20

3.4.2 Screen burning .................................................. 21

3.5 Installing the Driver ...................................................... 21

3.6 Connecting a Scan Device to a Computer ................... 21

3.7 How to Use Cable Clip ................................................. 22

3.8 Sensor Operation Check .............................................. 22

3.9 Final Check ................................................................... 24

4. Installing and Using Software ............................... 25

4.1 Installing the CBdrvU (Ver. 2.0) Driver .......................... 25

4.1.1 Operating environment ..................................... 25

4.1.2 Installation procedures ...................................... 25

4.1.3 Uninstall procedures ......................................... 26

4.1.4 Changes from CBdrv Ver. 1.4 to

CBdrvU Ver. 2.0 ................................................ 26

4.2 Using the Driver ........................................................... 26

4.2.1 CBdrvU operations ............................................ 26

4.2.2 Select Calibration dialog .................................... 28

4.2.3 Property screen ................................................ 31

4.2.4 Test Mode ........................................................ 33

4.2.5 Disabling CBdrvU .............................................. 34

4.2.6 About CBdrvU ................................................... 34

4.2.7 Exit .................................................................... 34

4.3 Rotate ........................................................................... 35

4.3.1 CBdrvU operation ............................................. 35

4.4 Precautions .................................................................. 36

4.5 Using Driver and Service Mode .................................... 38

4.5.1 Service Mode display ........................................ 38

5. Maintenance and Cleaning .................................... 40

6. Internal DIP Switch Settings ................................. 42

7. Q & A ....................................................................... 43

7.1 Hardware-Related Q&A ................................................ 43

7.2 Driver Software-Related Q&A ...................................... 45

8. Troubleshooting ..................................................... 47

8.1 Plasma Display

(PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S) ...............

8.2 Handwriting Device (PDK-50HW3) ............................... 49

9. Capabilities of the Handwriting Device ................ 50

9.1 IR Scanning System ..................................................... 50

9.2 Resolution .................................................................... 50

1. Specifications

1.1 Specifications

System (plasma display and handwriting device) specifications

Screen size 50 inches Aspect ratio 16:9 Power supply

Plasma display (PDP-504CMX)

AC 100 V (50/60 Hz)

Handwriting device

USB bus power

Power consumption

Plasma display (PDP-504CMX)

360 W (see Note 1) (Standby: 0.8 W)

Handwriting device

2.5 W max.

External dimensions (excluding pen stand)

1258 (W) x 758 (H) x 115 (D) mm

Weight

Plasma display (PDP-504CMX)

41.0 kg

Handwriting device (PDK-50HW3)

7.4 kg

Dimensions of packaging

Plasma display (PDP-504CMX)

1341 (W) x 846 (H) x 424 (D) mm

Handwriting device

1360 (W) x 900 (H) x 220 (D) mm

Weight when packaged

Plasma display (PDP-504CMX)

55.0 kg

Handwriting device

12.7 kg Operating temperature: 0° to 40°C (see Note 2) Operating humidity: 20 to 80% Operating atmospheric pressure:

760 to 1100 hpa

Storage conditions (when set up)

Operating temperature: –20° to 60°C Operating humidity: 20 to 90% Operating atmospheric pressure:

670 to 1500 hpa

Storage conditions (when packed in box)

Operating temperature range:

–30° to 60°C

Operating humidity range:

20 to 90%

Operating atmospheric pressure:

670 to 1500 hpa

Separate plasma display (PDP-504CMX) specifications

Refer to “Specifications” in the Technical Manual of the PDP-504CMX plasma display.

Separate handwriting device (PDK-50HW3) specifications

Scan device Scanning system Infrared scanning Power indicator LED Current consumption (DC 5 V)

0.5 A max. External dimensions (not including plasma display and pen stand)

1258 (W) x 758 (H) x 74 (D) mm Weight (Not including plasma display, but including 0.6 kg pen stand)

7.4 kg Pen Transmission Ultrasonic wave Operation switches Pen tip (x1), body (x2) Power AAA (LR03) alkaline battery

(x1) External dimensions 18.5 (W) x 186 (L) mm Weight (excluding battery) 43 g

Accessories

Pen .................................................................................. 1

AAA (LR03) alkaline batteries .......................................... 2

Replacement tips ............................................................ 2

Allen bolt ......................................................................... 1

Pen stand ........................................................................ 1

Operating Instructions..................................................... 1

CD-ROM (Device driver disc) .......................................... 1

Driver Installation Guide .................................................. 1

¶ Specifications and appearance may change without

notice.

¶ Information regarding plasma displays in this Technical

Manual is limited to the PDP-504CMX.

Note 1

Allow for 400 W 400 VA of power consumption per plasma display unit.

Note 2

The correct operating temperature may vary, depending on the installation method. (Refer to “Installation Site Requirements”

in the Technical Manual of the plasma display.)

1. Specifications

1.2 Accessories

1.2.1 Plasma display monitor (PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S)

Check that the following accessories were supplied.

Power cord

Remote control unit

AA (R6) batteries x 2

Cleaning cloth (for wiping front panel)

Speed clamp x 2

Ferrite core (PDP-50MXE1/PDP-50MXE1-S only)

Bead band x 2

Display stand x 2

Washer x 2

Hex hole bolt x 2

Remote control unit case x 1

Use as a holder for the remote control unit. When attaching to the rear of the main unit, be careful not to cover the vents.

1.2.2 Handwriting device (PDK-50HW3)

Pen x 1

AAA (LR03) alkaline batteries x 2

Replacement tips x 2

Operating Instructions

Allen bolt x 1

Pen stand x 1

Operating Instructions

CD-ROM (Device driver disc)

Driver Installation Guide

1.3 Outline Drawing

System weight: 48.4 kg (plasma display (PDP-504CMX) 41.0 kg plus handwriting device 7.4 kg)

Materials: Front panel (frame) ............................ Aluminum

Corner sections ................................. Resin

Base shield, corner reinforcement .... Metal plate

Finish: Front panel (frame) ............................ Painting (Pioneer original color)

Base shield, corner reinforcement .... Plating

115

1258

(excluding screw

plasma display)

758

heads and

1. Specifications

Plasma display indicator

R10

44948

Remote control

sensor

120220

Display operation panel

Rear panel of

(From center of

plasma display

screen)

149

95 135

plasma display

Unit : mm

(excluding screw

heads and

plasma display)

1. Specifications

PEN

NORMAL

278

758

344

PEN-NORMAL mode selector switch (in lower left corner as seen from rear)

PEN

NORMAL

278 278

1258

Plasma display

side panel

1466

PEN

NORMAL

PEN-NORMAL mode selector switch

(in lower left corner as seen from rear)

3 33

Cable clip

USB cable exit

USB cable, 5 mm in diameter (approx. 1.4 m long)

Bottom panel of plasma display

2 17

Dimensions from right edge of

6 115 14

PDK-50HW3 as seen from rear

PDK-50HW3 center line

USB cable exit

1. Specifications

1.4 Name and Function of Parts & Pin Layout

1.4.1 Plasma display monitor (PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S)

For information on the plasma display, refer to “Name and Function of Parts” in the Technical Manual supplied with the

PDP-504CMX.

1.4.2 Handwriting device (PDK-50HW3)

a) Scan device

Power indicator (Lights green when ON)

IR transmitting filter

PEN

NORMAL

Rear side of unit

When the power switch is first turned on, the power indicator will flash orange; while the indicator is flashing, do not touch the screen, since the unit is initializing its internal settings

Mode selector switch

Set the mode switch in accordance with whether you will use the special pen or other device to input characters and lines on the screen.

PEN Mode:

In this mode, the special accessory pen can be used to write on the screen. Using the special pen allows the drawing of more clearly delineated characters and lines.

NORMAL Mode:

In this mode, your finger or other object can be used to write on the screen. This mode will produce lower screen definition, however, compared to drawing with the dedicated input pen.

Note:

b) Special pen

¶ Name and function of parts

Holes in rear end of pen

LED indicator

Tip

Cap

Small button

(The function corresponding to middle mouse button can be assigned using the driver software.)

Pen tip

(corresponds to left mouse button)

¶ External dimension drawing

Battery cover

Large button

(corresponds to right mouse button)

186

If pen operation becomes difficult:

The pen may fail to operate properly if the holes in rear

end of pen are blocked. Also, the pen may begin

operating erratically when the battery becomes depleted.

In this event, change the battery at your earliest

opportunity.

Confirming Battery Life:

When the small button is depressed fully, an LED

indicator will light. If the indicator fails to light, or lights

only dimly, the battery is depleted and should be

replaced.

ø18.5

2. Installation Site

2.1 Installation Site

The installation site precautions for the handwriting device are the same as those for the PDP-504CMX/PDP-50MXE1/

PDP-50MXE1-S. For details, refer to “Installation Site Requirements” in the Technical Manual of the PDP-504CMX/PDP-

50MXE1/PDP-50MXE1-S.

2.2 Installation Conditions

For information on calculation of heat generation and heat dissipation, installation site and installation on uneven

surfaces, refer to “Installation Conditions” in the Technical Manual of the plasma display.

2.2.1 List showing compatibility of standard metal fittings

Model No.

PDK-5001

PDK-TS01

PDK-5002 PDK-5012 PDK-5005 PDK-5006 PDK-5011 PDK-5013 PDK-WM01 PDK-WM02 PDK-5008

PDK-5009 PDK-5014 PDK-MC01 PDP-S03-LR PDP-S05-LR PDP-S15-LR

Product

TABLE TOP STAND

CEILING MOUNT UNIT

PDP BRACKET HUNG ON WALL UNIT

MOBILE CART

SPEAKER SYSTEM

Compatible

Requirements

Not possible since the handwriting device will be in contact with the base. Installation is physically possible, but not recommended since the table top may not be sturdy enough to offer good support during pen input. Possible.

Possible. Difficult for wall mounting. Possible.

Installation is physically possible, but not recommended since the table top may not be too unstable to offer good support during pen input. Possible. Recommended standard product.

The handwriting device, if installed, blocks access for speaker installation brackets.

2. Installation Site

2.2.2 Special installations

Special installation conditions for the handwriting device are the same as for the plasma display. Refer to “Special

Installation” in the Technical Manual of the plasma display.

¶ Calculate the distance between the monitor and surroundings (wall, etc.) based on the maximum dimensions of the

scan device.

¶ The handwriting device can be tilted in the range between horizontal, upward-facing position and the 25° downward-

facing position. The following cautions are required in its installation.

Facing upward

¶ When the handwriting device is installed horizontally so that it faces upward, the user may tend to rest a hand on or

lean against the handwriting device frame. As imposing a weight on the frame may deform it, cause malfunction or

damage it, it is required to prevent it using a guard, etc. If you install a guard, however, you need to take ventilation of

the plasma display monitor in consideration.

¶ When the handwriting device is tilted, the user should watch the screen obliquely and, in this case, the position of the

pen tip and that of the displayed pointer may look deviated. Note that the calibration in the detailed setting mode of

the driver cannot be adjusted correctly unless it is performed from the actual direction of the user’s view. The

adjustment may sometimes be easier when it is performed in simplified setting rather than in the detailed setting

mode.

¶ When the handwriting device is installed horizontally so that it faces upward, the risk of causing damage or

malfunction by dropping a foreign object on the screen increases. The foreign object may for example include a liquid

(juice, coffee, detergent, etc.) spilt on it, the hem of the user’s necktie or shirt in contact with it, and dust that may

cause sensor malfunction. Also, someone may use the horizontal screen in place of a table. Always take their

prevention in consideration when installing the handwriting device horizontally.

2. Installation Site

2.2.3 Installation precautions

a) Installation of multiple systems

Since the dedicated handwriting pen of the system is designed to function as a switch by emitting ultrasound waves,

mutual interference may occur when more than one system is installed in proximity (the interference may also be

observed even when the areas are separated with a simple tool such as partitions). In this case, it is required to use the

systems in NORMAL mode.

Some of the installation examples in which mutual interference is expected are shown below.

¶ Adjacent installation

¶ Adjacent booths delimited with simple partitions

¶ Back-to-back installation across a simple partition

b) Exposure to direct sunlight

Normal lighting is not a problem, but installation in a location exposed to strong lighting and intense direct sunlight will make the plasma display difficult to view and make toucth screen device operation unstable. Installation in such a location will also make remote control operation erratic. Note that whereas normal fluorescent lighting does not emit infrared radiation, incandescent lamps emit a large amount of infrared radiation. When the system malfunctions due to the presence of strong lighting, move the light source away or change its orientation to prevent malfunction. Also, when equipment generating IR rays (electric stove, IR LAN, etc.) is located near the handwriting device, its operation is usually normal but may sometimes be rendered unstable under certain installation conditions. This needs to be checked in individual installations.

c) Ultrasonic waves

When equipment using ultrasonic waves (ultrasonic humidifier, ultrasonic-sensor door, ultrasonic eyeglass cleaner, etc.) is used near the handwriting device, its operation is usually normal but may be rendered unstable under certain installation conditions. This needs to be checked in individual installations.

3. Installation Procedures

3.1 Unpacking

3.1.1 Plasma display monitor (PDP-504CMX/PDP-50MXE1/PDP-50MXE1-S)

¶ Any transportation of the unopened unit in its packaging should be done by two or more persons. To avoid injury or

damage, do not lift the package by its packing bands.

¶ When transporting or storing the unit, always position it vertically - never horizontally. Horizontal transportation or

storage invalidates the product warranty.

¶ In transportation or storage of products in original packing, never stack more than four units high. This warning is also

indicated on the upper face of the carton.

¶ For transportation or storage, observe the warnings and instructions on the upper face of the carton.

¶ Plasma display monitor is mode off grass. Please take precations to prevent it from being dameged.

Packing specifications: 1341 (W) × 846 (H) × 424 (D) mm, 55 kg

No. Description

1. Upper face of the carton

2. Lower face of the carton

3. Pad

4. Miller mat 5 Front sheet

6. Power cord case

7. Accessory case

8. Power cord

9. Conversion plug for Japan

10. Remote control unit

11. Battery cover

12. AAA batteries (R6P, AA)

13. Remote control holder

14. Display stand

15. Binder assembly (speed clamp x 2, bead band x 2)

16. Wiping cloth (for screen)

17. Ground connection label

18. Cable tie

19. Screw set

20. Washer

21. Hex hole bolt

22. Operating instructions (Japanese/ English/French)

23. Warranty card

24. Polyethylene bag for warranty card

25. Polyethylene bag

26. Bag for catalog

27. Caution sheet

28. Screen burn caution sheet

29. Plasma caution sheet

30. Plasma caution sheet

31. Plasma caution sheet

32. Caution sheet

33. Precautions sheet

34. Warranty card

35. Image caution sheet

36. Installation site precautions

28 30

29 31

3. Installation Procedures

3.1.2 Handwriting device (PDK-50HW3)

Transportation precautions

¶ Do not stack more than four boxes on top of each other. Strictly observe the instructions on the outside of the box.

Packing specifications: 1360 (W) × 900 (H) × 220 (D) mm, 12.7 kg

Air Cap Bag 1 (200 x 75)

Mirror Mat (350 x 550)

Warranty Card

Mirror Mat (1400 x 1800)

vinyl tie

Air Cap Sheet (150 x 100)

No. Description 1 Pen 2 AAA (LR03) alkaline batteries 3 Replacement Tips 4 Allen Bolt 5 Pen Stand 6 Operating Instructions 7 CD-ROM (Device driver disc) 8 Driver Installation Guide 9 Packing Set

Pink Pad

vinyl tie

White Pad

PDK-50HW3

Air Cap Sheet (150 x 100)

Air Cap Bag 2 (75 x 100)

+ 36 hidden pages
