Pioneer KEH-P6900R, KEH-P6910R Service Manual

Page 1
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 1999
K-ZZS. NOV. 1999 Printed in Japan
ORDER NO.
CRT2429
KEH-P6900R
X1N/EW
KEH-P6900R/X1N/EW
- This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-1011 CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
KEH-P6900R-B X1N/EW KEH-P6910R X
1N/EE
NOTE:
- Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14

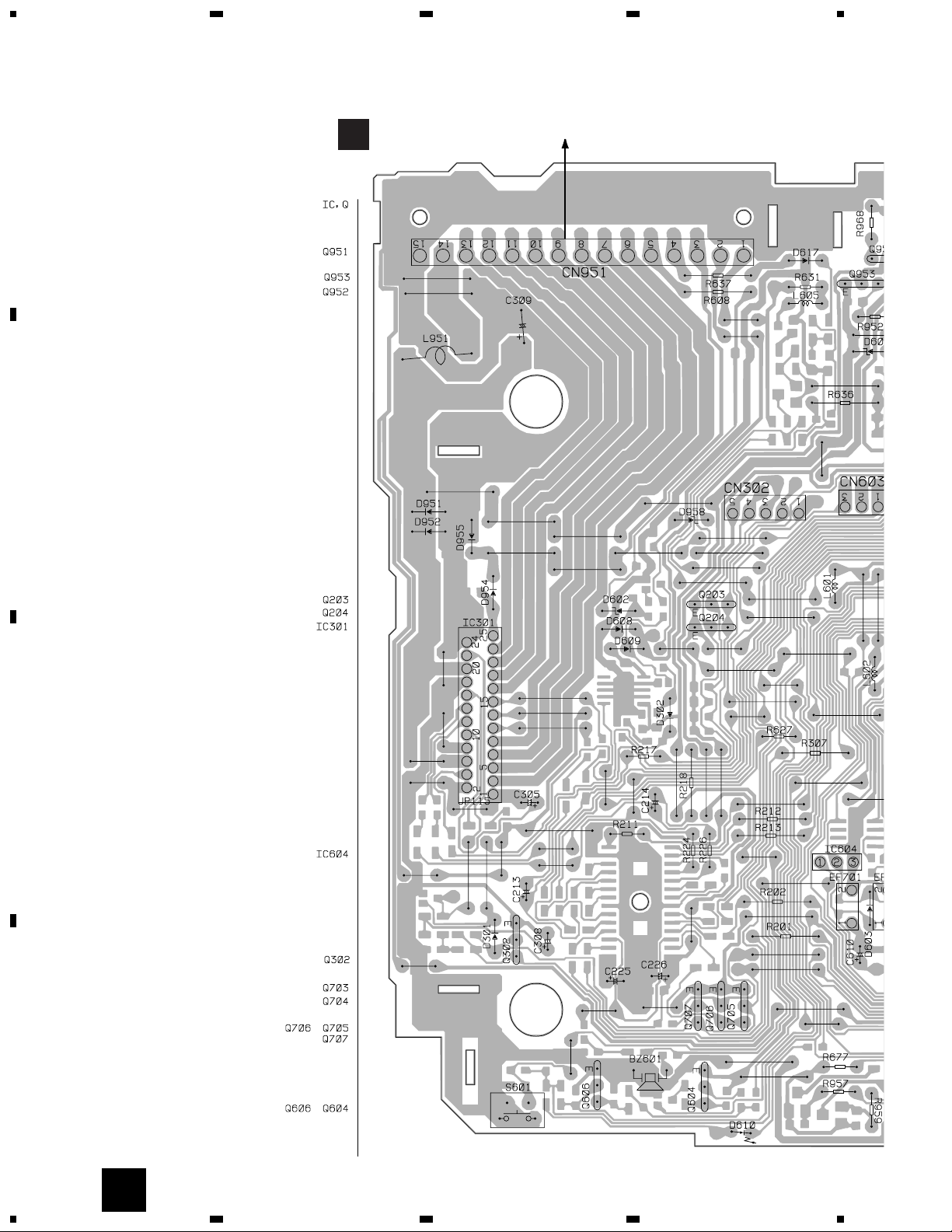

4. PCB CONNECTION DIAGRAM ................................40
5. ELECTRICAL PARTS LIST ........................................54
6. ADJUSTMENT..........................................................65
7. GENERAL INFORMATION .......................................66
7.1 DIAGNOSIS ........................................................66
7.1.1 TEST MODE ..............................................66
7.1.2 DISASSEMBLY .........................................69
7.2 PARTS .................................................................70
7.2.1 IC................................................................70
7.2.2 DISPLAY....................................................74
8. OPERATIONS AND SPECIFICATIONS.....................75
Page 2
2
KEH-P6900R,P6900R-B,P6910R
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
14
8
5
4
6
3
2
7
11
12
13
1
9
- KEH-P6900R,P6900R-B
Page 3
3
KEH-P6900R,P6900R-B,P6910R
1 Cord Assy CDE6118 2 Accessory Assy CEA1917 3 Screw CBA1304 4 Handle CNC5395 5 Bush CNV3930
* 6 Polyethylene Bag E36-615
7 Polyethylene Bag CEG-162 8 Case Assy CXB3520 9 Carton
See Contrast table(2)
10 Contain Box See Contrast table(2)
11 Protector CHP2251 12 Protector CHP2252
13 Inner Box CHW1754 14-1 Owner’s Manual CRD3106 14-2 Owner’s Manual CRD3107
14-3 Owner’s Manual CRD3108 14-4 Installation Manual CRD3109
* 14-5 Passport CRY1013 * 14-6 Warranty Card CRY1157
14-7 Polyethylene Bag CEG1116
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to mark on the product are used for disassembly.
Part No.
Mark No. Symbol and Description KEH-P6900R/X1N/EW KEH-P6900R-B/X1N/EW
9 Carton CHG3942 CHG3946
10 Contain Box CHL3942 CHL3946
(2) CONTRAST TABLE
KEH-P6900R/X1N/EW and KEH-P6900R-B/X1N/EW are constructed the same except for the following:
- Owner's Manual, Installation Manual
Model Part No. Language KEH-P6900R/X1N/EW CRD3106 English, Spanish KEH-P6900R-B/X1N/EW CRD3107 French, German
CRD3108 Italian, Dutch CRD3109 English, French, German,
Spanish, Italian, Dutch
Page 4
4
KEH-P6900R,P6900R-B,P6910R
10
14
8
5
4
6
3
2
7
11
12
13
9
1
- KEH-P6910R
Page 5
5
KEH-P6900R,P6900R-B,P6910R
Mark No. Description Part No. Mark No. Description Part No.
- PACKING SECTION PARTS LIST
1 Cord Assy CDE6120 2 Accessory Assy CEA1917 3 Screw CBA1304 4 Handle CNC5395 5 Bush CNV3930
* 6 Polyethylene Bag E36-615
7 Polyethylene Bag CEG-162 8 Case Assy CXB3520 9 Carton CHG3943
10 Contain Box CHL3943
11 Protector CHP2251 12 Protector CHP2252
13 Inner Box CHW1754 14-1 Owners Manual CRD3115 14-2 Installation Manual CRD3116
* 14-3 Warranty Card CRY1157
14-4 Polyethylene Bag CEG1116
- Owner's Manual, Installation Manual
Model Part No. Language
KEH-P6910R/X1N/EE CRD3115 English, Russian
CRD3116 English, Russian
Page 6
6
KEH-P6900R,P6900R-B,P6910R
2.2 EXTERIOR
- KEH-P6900R,P6900R-B
Page 7
7
KEH-P6900R,P6900R-B,P6910R
1 Screw BMZ30P040FZK 2 Screw BSZ26P050FMC 3 Screw BSZ30P050FMC 4 Screw BSZ30P200FMC 5 Cord CDE5801
6 Cord Assy CDE6118 7 Fuse(10A) CEK1136 8 Plug CKM1314 9 Case CNB2350
10 Holder CNC6798
11 Holder CNC8357 12 Spacer CNM4913 13 Insulator CNM6530 14 Panel CNS5992 15 Tuner Amp Unit
See Contrast table(2)
16 Screw BPZ26P060FMC 17 Screw BSZ26P060FMC 18 Screw BSZ26P160FMC 19 Clamper CEF1005 20 Pin Jack(CN301) CKB1028
21 Terminal(CN403) CKF1059 22 Plug(CN952) CKM1288 23 Connector(CN751) CKS3408 24 Plug(CN601) CKS3537 25 Connector(CN602) CKS3568
26 Connector(CN603) CKS3597 27 Antenna Jack(CN401) CKX1056 28 Panel CNB2356 29 Holder CNC6845 30 Holder CNC7533
31 Holder CNC7996 32 Insulator CNM5967 33 Heat Sink CNR1505 34 FM/AM Tuner Unit CWE1500 35 Holder CNC7532
36 Transistor(Q951) 2SD2396 37 Chassis Unit
See Contrast table(2)
38 Button(EJECT) CAC6327 39 Door CAT2109 40 Screw(M2x2) CBA1176
41 Washer CBF1038 42 Spring CBH1838 43 Spring CBH2310 44 Spring CBH2311 45 Spring CBH2312
46 Spring CBH2313 47 Spring CBL1492 48 Holder CNC8560 49 Cushion CNM5486 50 Panel CNS5728
51 Arm CNV5991 52 Arm CNV5992 53 Arm CNV5993 54 Lever CNV5994 55 Gear CNV5995
56 Gear CNV5996 57 Gear CNV5997 58 Pin CNV6027 59 Panel PCB Unit CWM6720 60 Socket(CN605) CKS3550
61 Connector(CN604) CKS4206 62 Damper Unit CXB5070 63 Holder Unit CXB5736 64 Holder Unit CXB5737 65 Screw IMS20P045FZK
66 Detach Grille Assy
See Contrast table(2)
67 Screw BPZ20P100FZK 68 Knob CAA1525 69 Button(SOURCE) CAC6331 70 Button(OPEN) CAC6333
71 Button(FUNC,AUDIO) CAC6337 72 Button(DISP,TA) CAC6339 73 Button(BAND) CAC6343 74 Spring CBH2316 75 Spring CBH2320
76 Cushion CNM6542 77 Spacer CNM6808 78 Cover CNS5737 79 Holder CNV6177 80 Keyboard Unit
See Contrast table(2)
81 LCD(LCD901) See Contrast table(2) 82 Connector(CN901) CKS4205 83 Holder CNC8562 84 Spacer CNM6710 85 Spacer CNM6711
86 Spacer CNM6733 87 Spacer CNM6734 88 Sheet
See Contrast table(2)
89 Connector CNV5990 90 Lighting Conductor CNV6001
91 Grille Unit
See Contrast table(2)
92 Knob Unit(VOL) CXB5350 93 Screw ISS26P055FUC 94 IC(IC301) PAL005A 95
Cassette Mechanism Module EXK4015
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
Page 8
8
KEH-P6900R,P6900R-B,P6910R
Part No.
Mark No. Symbol and Description KEH-P6900R/X1N/EW KEH-P6900R-B/X1N/EW
15 Tuner Amp Unit CWM6704 CWM6705 37 Chassis Unit CXB4684 CXB4828 66 Detach Grille Assy CXB5352 CXB5353 80 Keyboard Unit CWM6714 CWM6715 81 LCD(LCD901) CAW1566 CAW1596
88 Sheet Not used CNM6796 91 Grille Unit CXB5342 CXB5343
(2) CONTRAST TABLE
KEH-P6900R/X1N/EW and KEH-P6900R-B/X1N/EW are constructed the same except for the following:
Page 9
9
KEH-P6900R,P6900R-B,P6910R
Page 10
10
KEH-P6900R,P6900R-B,P6910R
- KEH-P6910R
Page 11
11
KEH-P6900R,P6900R-B,P6910R
1 Screw BMZ30P040FZK 2 Screw BSZ26P050FMC 3 Screw BSZ30P050FMC 4 Screw BSZ30P200FMC 5 Cord Assy CDE6120
6 Fuse(10A) CEK1136 7 ••••• 8 Screw ISS26P055FUC 9 Case CNB2350
10 Holder CNC6798
11 Holder CNC8357 12 Spacer CNM4913 13 Insulator CNM6530 14 Panel CNS5992 15 •••••
16 Tuner Amp Unit CWM6706 17 Screw BPZ26P060FMC 18 Screw BSZ26P060FMC 19 Screw BSZ26P160FMC 20 Pin Jack(CN301) CKB1028
21 Terminal(CN403) CKF1059 22 Plug(CN951) CKM1231 23 Connector(CN751) CKS3408 24 Plug(CN601) CKS3537 25 Connector(CN602) CKS3568
26 ••••• 27 Antenna Jack(CN401) CKX1056 28 Panel CNB2360 29 Holder CNC6845 30 Holder CNC7533
31 Holder CNC7996 32 Insulator CNM5967 33 Heat Sink CNR1505 34 FM/AM Tuner Unit CWE1504 35 Holder CNC7532
36 ••••• 37 ••••• 38 Chassis Unit CXB4693 39 Button(EJECT) CAC6327 40 Door CAT2109
41 Screw(M2x2) CBA1176 42 Washer CBF1038 43 Spring CBH1838 44 Spring CBH2310 45 Spring CBH2311
46 Spring CBH2312 47 Spring CBH2313 48 Spring CBL1492 49 Holder CNC8560 50 Cushion CNM5486
51 Panel CNS5728
52 Arm CNV5991
53 Arm CNV5992
54 Arm CNV5993
55 Lever CNV5994
56 Gear CNV5995
57 Gear CNV5996
58 Gear CNV5997
59 Pin CNV6027
60 Panel PCB Unit CWM6720
61 Socket(CN605) CKS3550
62 Connector(CN604) CKS4206
63 Damper Unit CXB5070
64 Holder Unit CXB5736
65 Holder Unit CXB5737
66 Screw IMS20P045FZK
67 Detach Grille Assy CXB5355
68 Screw BPZ20P100FZK
69 Knob(EQ) CAA1525
70 Button(SOURCE) CAC6331
71 Button(OPEN) CAC6333
72 Button(FUNC,AUDIO) CAC6337
73 Button(DISP,TA) CAC6339
74 Button(BAND) CAC6343
75 Spring CBH2316
76 Spring CBH2320
77 Cushion CNM6542
78 Cover CNS5737
79 Holder CNV6177
80 Keyboard Unit CWM6715
81 LCD(LCD901) CAW1596
82 Connector(CN901) CKS4205
83 Holder CNC8562
84 Spacer CNM6710
85 Spacer CNM6711
86 Spacer CNM6733
87 Spacer CNM6734
88 •••••
89 Connector CNV5990
90 Lighting Conductor CNV6001
91 Grille Unit CXB5345
92 Knob Unit(VOL) CXB5350
93 IC(IC301) PAL005A
94 Transistor(Q951) 2SD2396
95
Cassette Mechanism ModuleEXK4015
96 Spacer CNM6808
- EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.
Mark No. Description Part No.
Page 12
12
KEH-P6900R,P6900R-B,P6910R
2.3 CASSETTE MECHANISM MODULE
Page 13
13
KEH-P6900R,P6900R-B,P6910R
1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBG1003 4 Screw EBA1028 5 Screw CBA1037
6 Spring EBH1531 7 Spring EBH1624 8 Spring EBH1625 9 Spring EBH1626
10 Spring EBH1627
11 Spring EBH1629 12 Cord EDD1024 13 Photo-reflector(EGN1) EGN1004 14 Arm ENC1526 15 Lever ENC1530
16 Lever ENC1531 17 Arm ENC1532 18 Frame ENC1533 19 Holder ENC1534 20 Gear ENC1535
21 Arm ENC1536 22 Roller ENR1040 23 Belt ENT1027 24 Collar ENV1508 25 Arm ENV1539
26 Arm ENV1540 27 Gear ENV1544 28 Gear ENV1547 29 Gear ENV1548 30 Worm Wheel ENV1550
31 Lever ENV1551 32 Flywheel ENV1554 33 Gathering PCB ENX1054 34 Switch(S1,S2,S3) ESG1007 35 Deck Unit EWM1024
36 Plug(CN251) CKS3540
37 Gathering PCB ENX1053
38 Motor Unit(M1) EXA1490
39 Motor EXM1027
40 Head Assy(HD1) EXA1589
41 Motor Unit(M2) EXA1580
42 Screw BMZ20P022FMC
43 Bracket ENC1528
44 Chassis Unit EXA1582
45 Pinch Holder Unit EXA1584
46 Pinch Roller ENV1518
47 Pinch Holder Unit EXA1583
48 Pinch Roller ENV1518
49 Reel Unit EXA1585
50 Head Base Unit EXA1586
51 Lever Unit EXA1587
52 Gear Unit EXA1588
53 Motor Unit(Service) EXX1055
54 Washer HBF-179
55 Screw CBA1250
56 Bracket ENC1542
57 Arm ENC1537
Mark No. Description Part No. Mark No. Description Part No.
- CASSETTE MECHANISM MODULE SECTION PARTS LIST
Page 14
14
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
TUNER Lch
Q707
Q702
Q703
Q705
LDET
TMUTE
B.U
VDD
Q952
SYSPW
TMUTE
SYSPW
VDD
AVDD
45
51 82
19
SYSTEM
CONTROLLER
PE5083A
IC601(1/2)
TUN-L
TUN-L
ELECTRONIC VOLUME
PML003AM
IC201
11
10
2 5
6 4
BUS-L1 BUS-L2
TAPE-L
RL
FL
PEE
Q205
Q201
MUTE
MUTE
POWER AMP
PAL005A
IC301
12
14
MUTE
STBY
FL
RL
FL+
FL-
RL+
RL-
22 4
5
3
21 23
SYSPW
B.U
B.U
SYSPW
Q302
Q951
Q959
Q301
Q953
Q601
Q602
MUTE
8V
REGULATOR
RESET
IC604
S-80734AN
VCC
VDD
1
2
8
5
6
B.U
TX
TX
RX
RX
ASENBO
ASENBO
IP-BUS DRIVER
IC751
HA12187FP
BUSL+
BUSL­BUS­BUS+
Q751
Q752
8
1
5
11
7
86 85 47
100
33
11
1
2
92 93
16
15
42
65
55
64
MUTE
PEE
RESET
BSENS
ASENS
SWVDD
DPDT
KYDT
ILMPW
DSENS
ASEMBO
RIMUTE
STBY
MTL LOADSW
X1
X2
TELIN
SYSTEM
CONTROLLER
IC601(2/2)
PE5083A
X601
Q954
BSENS
ASENS
ACC
FUSE
10A
TEL MUTE
Q611
B.U
STBY
B.U
MUTE
MTL
LOAD
69
44
25 95
96
46
VDD
Q957
Q958
ILMPW
DSENSE
Q609
SWVDD
VDD
SW5V
ILL1
KYDT
DPDT
SW5V
VDD SWITCH
5
1
4
2 1
3
4
11
9
20
19
8
3
4
11
9
20
19
8
7
2
11
8
1
8
13
A
TUNER AMP UNIT
E
DECK UNIT
212
11
10
10 5
6
8
LCD DRIVER
IC901
PD6279A
DPDT KYDT
VDD
LCDB
XO
XI
REM
IN
REMOTE CONTROL
SENSOR
IC902
RS-140
X901
53
52
50
10
4
1
60
57
58
IC251
CXA2560Q
IC351
PA2020A
EQ
MOTOR
DRIVER
CN251
CN252
CN254
CN255
CN253
7
5
TAPE+B
Lch
17
18
FWD L-ch
REV L-ch
37 36 39
18
19
17
3
15 6
8
7
10
CN256
3
15 6
S1
LOAD
S2
MODE
EGN1
REEL
SENSE
M
M
M2
SUB
MOTOR
M1
MAIN
MOTOR
5 2
1
F
REEL SENSE PCB
CN602
CN751
IP-BUS
CN301
CN952
CN603
CN601
CN1901
VCK/VDT/VST
ACC
BACK UP
FL+ FL-
RL­RL+
TEL MUTE
B.REMOTE
3
1
VCC
LOUT
RIMUTE
LDSW
MTL
STBY
B7
B5
B6
B8
A4
A7
KEY MATRIX
LCD
ANT1 TV
ANT2 TV
RF TV
IC 3
BR9010FV
AM 2ND IF 450kHz
CN401
B
FM/AM TUNER UNIT
28
FM FRONT END
Q3
Q201 Q204
AM RF
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51 CF52 CF53
MIXER.IF AMP DET
IC 1
PML002A
38 39 42 44 46 63
32 19
46
6
21
18
LDET
COMP
34 33 41 44 11 12 13
69
70
54
78
65
71
75746157554533
35
22
2225 10 14 12 15 16 8 13 2 3 4
CF202
VDD
LOCL
VCC
Q401
VCC
VDDT
DI/DO
CE2CKCE1
SDBLSLFMSD
TUNPCE2
TUNPCK
TUNPCE
SDBW
SL
SD
PDIO
NL1
NL2
EEPROM
5
6
4
3
IC 2 PM4008A
FM MPX
25 24
NL
Q202
32
LDET
88
RDS
DECODER
IC 701
PM4009A
20
11 12
24
X701
Q701
VDD
fm/AM
FM/AM
1
78
NL
SD
SL
SDBW
TUNPCE
TUNPCK
TUNPCE2
LOCL
31
75
22
99
97
52
49
4
4
S3
70µS
S601
212
11
10
38
7
5
C
PANEL PCB UNIT
BZ601
ALARM
BUZZER
25
TUNPDI,O
94,98
ANTENNA
27
D
KEYBOARD UNIT
IC951
Q952
VDD
B.U
S-81250PGPD
VDDT
1
3
28
- KEH-P6900R,P6900R-B
Page 15
15
KEH-P6900R,P6900R-B,P6910R
1
2
34
1
2
34
D
C
B
A
- KEH-P6910R
TUNER Lch
Q707
Q702
Q703
Q705
LDET
TMUTE
B.U
VDD
Q952
SYSPW
TMUTE
SYSPW
VDD
AVDD
45
51 82
19
SYSTEM
CONTROLLER
PE5083A
IC601(1/2)
TUN-L
TUN-L
ELECTRONIC VOLUME
PML003AM
IC201
11
10
2 5
6 4
BUS-L1 BUS-L2
TAPE-L
RL
FL
PEE
Q205
Q201
MUTE
MUTE
POWER AMP
PAL005A
IC301
11
15
MUTE
STBY
FL
RL
FL+
FL-
RL+
RL-
22 4
SYSPW
B.U
B.U
SYSPW
Q302
Q951
Q959
Q301
Q953
Q601
Q602
MUTE
8V
REGULATOR
RESET
IC604
S-80734AN
VCC
VDD
1
2
8
5
6
B.U
TX
TX
RX
RX
ASENBO
ASENBO
IP-BUS DRIVER
IC751
HA12187FP
BUSL+
BUSL­BUS-
BUS+
Q751
Q752
8
1
5
11
7
86 85 47
100
33
11
1
2
92 93
16
15
65
55
64
MUTE
PEE
RESET
BSENS
ASENS
SWVDD
DPDT
KYDT
ILMPW
DSENS
ASEMBO
RIMUTE
STBY
MTL LOADSW
X1
X2
SYSTEM
CONTROLLER
IC601(2/2)
PE5083A
X601
Q954
BSENS
ASENS
ACC
B.U
STBY
B.U
MUTE
MTL
LOAD
69
44
25 95
96
46
VDD
Q957
Q958
ILMPW
DSENSE
Q609
SWVDD
VDD
SW5V
ILL1
KYDT
DPDT
SW5V
VDD SWITCH
5
1
4
2 1
3
4
11
9
20
19
8
3
4
11
9
20
19
8
A
TUNER AMP UNIT
E
DECK UNIT
212
11
10
10 5
6
8
LCD DRIVER
IC901
PD6279A
DPDT KYDT
VDD
LCDB
XO
XI
REM
IN
REMOTE CONTROL
SENSOR
IC902
RS-140
X901
53
52
50
10
4
1
60
57
58
IC251
CXA2560Q
IC351
PA2020A
EQ
MOTOR
DRIVER
CN251
CN252
CN254
CN255
CN253
7
5
TAPE+B
Lch
17
18
FWD L-ch
REV L-ch
37 36 39
18
19
17
3
15 6
8
7
10
CN256
3
15 6
S1
LOAD
S2
MODE
EGN1
REEL
SENSE
M
M
M2
SUB
MOTOR
M1
MAIN
MOTOR
5 2
1
F
REEL SENSE PCB
CN602
CN751
IP-BUS
CN301
CN601
CN1901
VCK/VDT/VST
VCC
LOUT
RIMUTE
LDSW
MTL
STBY
KEY MATRIX
LCD
ANT1 TV
ANT2 TV
RF TV
IC 3
BR9010FV
AM 2ND IF 450kHz
ANTENNA
CN401
B
FM/AM TUNER UNIT
28
FM FRONT END
Q3
Q201 Q204
AM RF
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51 CF52 CF53
MIXER.IF AMP DET
IC 1
PML002A
38 39 42 44 46 63
32 19
46
6
21
18
LDET
COMP
34 33 41 44 11 12 13
69
70
54
78
65
71
75746157554533
35
22
2225 10 14 12 15 16 8 13 2 3 4
CF202
VDD
LOCL
VCC
Q401
VCC
VDDT
DI/DO
CE2CKCE1
SDBLSLFMSD
TUNPCE2
TUNPCK
TUNPCE
SDBW
SL
SD
PDIO
NL1
NL2
EEPROM
5
6
4
3
IC 2 PM4008A
FM MPX
25 24
NL
Q202
32
LDET
88
RDS
DECODER
IC 701
PM4009A
20
11 12
24
X701
Q701
VDD
fm/AM
FM/AM
1
78
NL
SD
SL
SDBW
TUNPCE
TUNPCK
TUNPCE2
TUNPDI,O LOCL
31
75
22
99
97
52
94,98
49
4
4
S3
70µS
S601
212
11
10
38
7
5
C
PANEL PCB UNIT
BZ601
ALARM
BUZZER
9
7
19 17
FUSE
10A
11
9
5
8
10
14
CN951
ACC
BACK UP
FL+ FL-
RL­RL+
B.REMOTE
3
25
11
9
5
8
10
14
3
27
D
KEYBOARD UNIT
Q952
VDD
B.U
S-81250PGPD
VDDT
1
3
28
Page 16
16
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(KEH-P6900R)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-aA-a
A-b A-b
A-b A-b
A-a A-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
KEYBOARD
AM:-26dBs FM:-26dBs
TAPE:-9dBs
ANTENNA
D
E F
B
D
Page 17
17
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
A-b
D
10A
PANEL
UNIT
PCB UNIT
TAPE:22.1dBs AM:25.1dBs FM:23.1dBs CD:36.3dBs
TAPE:-8.9dBs AM:-5.9dBs FM:-7.9dBs CD:5.3dBs
ELECTRONIC VOLUME
POWER AMP
ACC SENSE
ILM SENSE
BACKUP SENSE
RESET
8V REGULATOR
5V REGULATOR
A
C
CA
Page 18
18
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
AM:-26dBs
FM:-26dBs
TAPE:-9dBs
ANTENNA
B
A-a
A-a
A-b
1
2
3
4
5
6
8
7
Page 19
19
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
PAN
KEYBOARD UNIT
PCB
C
D
E F
A-a
A-a
A-b
9
10
D
C
Page 20
20
1
23
4
1234
D
C
B
A
10A
TAPE:22.1dBs
AM:25.1dBs
FM:23.1dBs
CD:36.3dBs
TAPE:-8.9dBs
AM:-5.9dBs
FM:-7.9dBs
CD:5.3dBs
ELECTRONIC VOLUME
POWER AMP
RESET
8V REGULATOR
5V REGULATOR
A
A-a
A-b
A-b
1
2
3
4
5
6
8
7
KEH-P6900R,P6900R-
Page 21
21
5
6
78
5
6
78
D
C
B
A
PANEL
PCB UNIT
ACC SENSE
ILM SENSE
BACKUP SENSE
A-b
A-a
A-b
9
10
KEH-P6900R,P6900R-B,P6910R
C
Page 22
22
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
3.3 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(KEH-P6900R-B)
A
D
A-a
KEYBOARD
AM:-26dBs FM:-26dBs
TAPE:-9dBs
ANTENNA
D
E F
B
Page 23
23
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
D
CA
A-b
10A
PANEL
UNIT
PCB UNIT
TAPE:22.1dBs AM:25.1dBs FM:23.1dBs CD:36.3dBs
TAPE:-8.9dBs AM:-5.9dBs FM:-7.9dBs CD:5.3dBs
ELECTRONIC VOLUME
POWER AMP
ACC SENSE
ILM SENSE
BACKUP SENSE
RESET
8V REGULATOR
5V REGULATOR
A
C
Page 24
24
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
AM:-26dBs
FM:-26dBs
TAPE:-9dBs
ANTENNA
B
A-a
A-a
A-b
1
2
3
4
5
6
8
7
Page 25
25
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
PANE
KEYBOARD UNIT
PCB
C
D
E F
A-a
A-a
A-b
9
10
D
C
Page 26
26
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
10A
TAPE:22.1dBs
AM:25.1dBs
FM:23.1dBs
CD:36.3dBs
TAPE:-8.9dBs
AM:-5.9dBs
FM:-7.9dBs
CD:5.3dBs
ELECTRONIC VOLUME
POWER AMP
RESET
8V REGULATOR
5V REGULATOR
A
A-a
A-b
A-b
1
2
3
4
5
6
8
7
Page 27
27
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
PANEL
PCB UNIT
ACC SENSE
ILM SENSE
BACKUP SENSE
C
A-b
A-a
A-b
C
9
10
Page 28
28
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
3.4 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(KEH-P6910R)
A
A-a
KEYBOARD
AM:-30dBs FM:-30dBs
TAPE:-9dBs
ANTENNA
D
E F
B
D
Page 29
29
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
A-b
D
PANEL
UNIT
PCB UNIT
TAPE:22.1dBs AM:21.1dBs FM:21.1dBs CD:36.3dBs
TAPE:-8.9dBs AM:-9.9dBs FM:-9.9dBs CD:5.3dBs
ELECTRONIC VOLUME
POWER AMP
ACC SENSE
ILM SENSE
BACKUP SENSE
RESET
8V REGULATOR
5V REGULATOR
A
C
CA
Page 30
30
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
AM:-30dBs
FM:-30dBs
TAPE:-9dBs
ANTENNA
B
A-a
A-a
A-b
1
2
3
4
5
6
8
7
Page 31
31
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
PAN
KEYBOARD UNIT
PCB
C
D
E F
A-a
A-a
A-b
D
C
9
10
Page 32
32
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
TAPE:22.1dBs
AM:21.1dBs
FM:21.1dBs
CD:36.3dBs
TAPE:-8.9dBs
AM:-9.9dBs
FM:-9.9dBs
CD:5.3dBs
ELECTRONIC VOLUME
POWER AMP
RESET
8V REGULATOR
5V REGULATOR
A
A-a
A-b
A-b
1
2
3
4
5
6
8
7
Page 33
33
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
PANEL
PCB UNIT
ACC SENSE
ILM SENSE
BACKUP SENSE
C
A-b
A-a
A-b
9
10
C
Page 34
34
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
B
KV1410(23)
KV1410(23)
Mark None F0 F65 F125 A0 A74 A125
Band – FM FM FM AM AM AM
Input Level – 0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ
DAN217U
DAN217U
3.5 FM/AM TUNER UNIT(KEH-P6900R,P6900R-B)
B
A
FM/AM TUNER UNIT
Page 35
35
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
KV1410(23)
B
Page 36
36
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
B
KV1410(23)
Mark None F0 F65 F125 A0 A74 A125
Band
FM FM FM AM AM AM
Input Level
0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ
DAN217U
DAN217U
C29
C26
4700P
4700P
0R0
C30
12P
R23
D7
1SS390
R5 470
C34
C27
4700P
4700P
D8
1SS390
R5 470
R24 470
C13
27P
C925
4700P
D901
1SS390
C903
27P
R901
4R7K
4P
0R0
C9
22P
0R0
C33
1
56P
3.6 FM/AM TUNER UNIT(KEH-P6910R)
B
A
FM/AM TUNER UNIT
Page 37
37
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
KV1410(23)
C925
4700P
D901
1SS390
C903
27P
7K
R910
0R0
B
Page 38
38
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
DECK UNIT
MUTE
CXA2560Q
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
292827
26
252423
22
21
1
234
5
678
9
10
R256
220
R287
0R0
C273
22/16
R283 0R0
R284 0R0
R282 0R0
C253 330P
C254 330P
C252 330P
C251 330P
R281 0R0
R255 220
C256
R01
R258
1K
R301
18K
R273 1K
R274 1K
R271 1K
R272 1K
R290
C403
R403 C402 3900P
C401
R33
R
R 4
R323 0R0
R257
1K
C255
R01
C272
R1
C313 100P
R286 0R0
R285 0R0
HD1 HEAD ASSY EXA1589
TEST TAPE NCT-150 (400Hz, 200nWb/m)
RL
RR
FR
FL
C302
R1
C301
R1
VR302
33K(B)
-6dBs(388mV)±1dB
Fwd-R
Fwd-L
Rev-R
Rev-L
PBFB2
PBRIN2 PBGND PBFIN2 VCT
PBREF
PBFIN1
PBGND PBRIN1
PBFB1
PBTC1
PBOUT1
OUTREF1
TAPEIN1
VCC
LINEOUT1
TCH1
MSLPF
MSMODE
DRSW
TAPESW
MUTESW
MSOUT
MSTC
G1FB G2FB
PBTC2
PBOUT2
OUTREF2
TAPEIN2
GND
DIREF
LINEOUT2
TCH2
MSSW
CN252
CN251
IC251
VR301
33K(B)
C310
R1
C309
R1
R322 1K
NRSW
CCP1280
CCP1280
EQ AMP,
DOLBY B NR
E
3.7 CASSETTE MECHANISM MODULE
E
A
CN602
Page 39
E
39
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
REEL SENSE
PCB
SWITCHES: REEL SENSE PCB
S1:LOAD SWITCH..........EJECT-PLAY
S2:MODE SWITCH............ON-OFF
S3:70µs SWITCH...............ON-OFF
The underlined indicates the switch position.
R290 0R0
C403 R068
R403 82K
C402
3900P
C401
R33
R402
18K
R401 4R7K
R351 1K
R352 1K
R353 1K
R354 1K
R373 0R0
R355
270K
C352
3900P
R362 300
C351 R22
C353 R01
C354 R01
R374 0R0
C356 R01
C355 R1
D352 1SS355
M1 MOTOR UNIT (MAIN MOTOR) EXA1490
S1
LOAD
ESG1007x3
S2
MODE
REEL SENSE
EGN1 EGN1004
M2 MOTOR UNIT (SUB MOTOR) EXA1580
RS3
RS2
RS1
SC2
SC1
TAB
MC
CE
VCC2
NC
VCC
MCS
RRS
FRS
RSB
C
TAB
MS2
NC
NC
MM
SM1
RSB
GND RS
mtl
MCS
load
CN255
CN253
CN256
CN254
IC351 PA2020A
R375 0R0
S3
70µs
MECHANISM
DRIVER
F
F
Page 40
40
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
CORD ASSY
CORD
DSENSE
4. PCB CONNECTION DIAGRAM
4.1 TUNER AMP UNIT(KEH-P6900R,P6900R-B)
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia­gram.
2. Viewpoint of PCB diagrams
A
A
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
TUNER AMP UNIT
Page 41
41
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
A
IP BUS IN
PRE OUT
ANTENNA JACK
CN605
C
CN251
B
E
SIDE A
Page 42
42
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
A
A
TUNER AMP UNIT
Page 43
43
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
A
SIDE B
Page 44
44
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
4.2 TUNER AMP UNIT(KEH-P6910R)
CORD ASSY
DSENSE
A
A
TUNER AMP UNIT
Page 45
45
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
A
IP BUS IN
PRE OUT
ANTENNA JACK
CN605
C
CN251
B
E
SIDE A
Page 46
46
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
A
A
TUNER AMP UNIT
Page 47
47
KEH-P6900R,P6900R-B,P6910R
5
6
78
5
6
78
D
C
B
A
A
SIDE B
Page 48
48
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
4.3 FM/AM TUNER UNIT
SIDE A
FM/AM TUNER UNIT
A
B
B
Page 49
49
KEH-P6900R,P6900R-B,P6910R
1
2
34
1
2
34
D
C
B
A
SIDE B
FM/AM TUNER UNIT
B
B
Page 50
50
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
4.4 KEYBOARD UNIT
D
D
SIDE A
KEYBOARD UNIT
Page 51
51
KEH-P6900R,P6900R-B,P6910R
1
2
34
1
2
34
D
C
B
A
CN604
C
D
D
SIDE B
KEYBOARD UNIT
Page 52
52
KEH-P6900R,P6900R-B,P6910R
1
23
4
1234
D
C
B
A
IC,Q
IC251
Q351 Q352
ADJ VR302
VR301
IC253
CN252
CN254
CN253
CN255
M1
M2
HEAD ASSY
CN256
21
22
DECK UNIT
CN602
4.5 DECK UNIT,REEL SENSE PCB,PANEL PCB UNIT
D
DECK UNIT
D
A
E
SIDE A
SIDE B
D
Page 53
53
KEH-P6900R,P6900R-B,P6910R
1
2
34
1
2
34
D
C
B
A
1
2
3
4
5
6
S3 70µs SW
S1
LOAD SW
S2
MODE SW
CN256
EGN1
REEL SENSE
REEL SENSE PCB
CN253
E
D
E
CN901
D
EJECT
CN601
A
PANEL PCB UNIT
C
PANEL PCB UNIT
C
SIDE B
SIDE A
C
Page 54
54
KEH-P6900R,P6900R-B,P6910R
5. ELECTRICAL PARTS LIST
NOTES:
- Parts whose parts numbers are omitted are subject to being not supplied.
- The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Unit Number : CWE1500
: (KEH-P6900R,P6900R-B)
Unit Name : FM/AM Tuner Unit
MISCELLANEOUS
IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU
Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081
D 1 Diode KV1410(23) D 2 Diode 1SV248 D 4 Diode KV1410(23) D 6 Diode KV1410(23) D 101 Diode 1SS355
D 201 Diode DAN217U D 202 Diode DAN217U D 903 Diode KV1410(23) D 904 Diode SVC253 L 1 Coil CTC1155
L 2 Coil CTC1155 L 3 Inductor LCTB100K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330M1608 L 202 Inductor CTF1287
L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 L 904 Inductor LCTBR47M1608 L 905 Inductor LCTBR47M1608
T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 202 Ceramic Filter CTF1348
X 901 Crystal Resonator 10.250MHz CSS1432
RESISTORS
R 1 RS1/16S153J R 2 RS1/16S103J R 6 RS1/16S103J R 7 RS1/16S273J R 8 RS1/16S473J
R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S104J
R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J R 20 RS1/16S470J
R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J R 55 RS1/16S331J
R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J R 60 RS1/16S133J
R 61 RS1/16S433J R 62 RS1/16S562J R 101 RS1/16S333J R 102 RS1/16S103J R 103 RS1/16S333J
R 104 RS1/16S562J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 110 RS1/16S154J R 111 RS1/16S273J
R 112 RS1/16S223J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J R 116 RS1/16S473J
R 117 RS1/16S333J R 118 RS1/16S223J R 122 RS1/16S0R0J R 202 RS1/16S472J R 203 RS1/16S225J
R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J R 209 RS1/16S104J
R 210 RS1/16S563J R 213 RS1/16S223J R 251 RS1/16S225J R 902 RS1/16S103J R 904 RS1/16S473J
R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J R 914 RS1/16S562J
CAPACITORS
C 1 CCSQCH5R0C50 C 2 CCSRCH5R0C50 C 4 CCSRCJ3R0C50 C 6 CKSQYB105K10 C 8 CKSRYB222K50
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
B
Page 55
KEH-P6900R,P6900R-B,P6910R
C 10 CCSRCH220J50 C 11 CCSRCH150J50 C 12 CCSRCH8R0D50 C 14 CCSRCJ3R0C50 C 15 CKSRYB103K50
C 16 CKSRYB222K50 C 17 CKSRYB222K50 C 18 CCSRCJ3R0C50 C 19 CKSRYB103K50 C 20 CKSRYB103K50
C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 31 CKSRYB222K50 C 32 CCSRCH470J50 C 35 CKSRYB103K50
C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50 C 55 CKSRYB104K16
C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 59 CKSRYB223K25 C 60 CKSRYB104K16 C 101 CEALNP100M10
C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEAL2R2M50 C 107 CKSRYB103K50
C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 C 111 CKSRYB104K16 C 112 CKSRYB104K16
C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50 C 117 CKSRYB102K50
C 120 CKSRYB153K25 C 121 CKSRYB332K50 C 122 CKSRYB682K25 C 123 CKSRYB681K50 C 125 CKSRYB103K50
C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50 C 202 CCSRCH100D50
C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16 C 207 CKSRYB473K16
C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50 C 212 CCSRCH101J50
C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 C 219 CKSQYB105K10 C 220 CKSRYB104K16
C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16 C 225 CKSRYB272K50
C 226 CKSRYB682K25 C 902 CCSRCH270J50 C 904 CKSRYB223K25 C 905 CKSRYB103K50 C 906 CCSRTH100D50
C 907 CCSRTH150J50 C 909 CCSRTH100D50 C 910 CKSRYB332K50 C 912 CKSQYB474K16 C 913 CKSRYB223K25
C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16 C 917 CKSYB475K10 C 918 CKSRYB223K25
C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50 C 922 CKSYB105K16 C 923 CKSRYB103K50
Unit Number : CWE1504(KEH-P6910R) Unit Name : FM/AM Tuner Unit
MISCELLANEOUS
IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU
Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081
D 1 Diode KV1410(23) D 2 Diode 1SV248 D 6 Diode KV1410(23) D 7 Diode 1SS390 D 8 Diode 1SS390
D 101 Diode 1SS355 D 201 Diode DAN217U D 202 Diode DAN217U D 901 Diode 1SS390 D 903 Diode KV1410(23)
D 904 Diode SVC253 L 1 Coil CTC1155 L 3 Inductor LCTB1R5K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330M1608
L 202 Inductor CTF1287 L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 L 904 Inductor LCTBR47M1608
L 905 Inductor LCTBR47M1608 T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442
CF 202 Ceramic Filter CTF1348 X 901 Crystal Resonator 10.250MHz CSS1432
RESISTORS
R 1 RS1/16S183J R 2 RS1/16S103J R 5 RS1/16S471J R 7 RS1/16S273J R 8 RS1/16S473J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
55
B
Page 56
56
KEH-P6900R,P6900R-B,P6910R
R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S0R0J
R 15 RS1/16S471J R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J
R 20 RS1/16S470J R 21 RS1/16S103J R 22 RS1/16S103J R 23 RS1/16S0R0J R 24 RS1/16S471J
R 31 RS1/16S0R0J R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J
R 55 RS1/16S331J R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J
R 60 RS1/16S133J R 61 RS1/16S433J R 62 RS1/16S562J R 101 RS1/16S333J R 102 RS1/16S103J
R 103 RS1/16S333J R 104 RS1/16S562J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 110 RS1/16S154J
R 111 RS1/16S273J R 112 RS1/16S223J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J
R 116 RS1/16S473J R 117 RS1/16S333J R 118 RS1/16S223J R 122 RS1/16S0R0J R 202 RS1/16S472J
R 203 RS1/16S225J R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J
R 209 RS1/16S104J R 210 RS1/16S563J R 213 RS1/16S223J R 251 RS1/16S225J R 901 RS1/16S472J
R 902 RS1/16S103J R 904 RS1/16S473J R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J
R 910 RS1/16S0R0J
CAPACITORS
C 1 CCSQCH4R0C50 C 3 CCSRCH270J50 C 6 CKSQYB105K10 C 8 CKSRYB222K50 C 9 CCSRCH220J50
C 12 CCSRCH4R0C50 C 13 CCSRCH270J50 C 15 CKSRYB103K50 C 16 CCSRCH100D50 C 17 CKSRYB222K50
C 19 CKSRYB103K50 C 20 CKSRYB103K50 C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 26 CKSRYB472K50
C 27 CKSRYB472K50 C 29 CKSRYB472K50 C 30 CCSRCH120J50 C 33 CCSRCK1R0C50 C 34 CKSRYB472K50
C 35 CKSRYB103K50 C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50
C 55 CKSRYB104K16 C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 59 CKSRYB223K25 C 60 CKSRYB104K16
C 101 CEALNP100M10 C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEAL2R2M50
C 107 CKSRYB103K50 C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 C 111 CKSRYB104K16
C 112 CKSRYB104K16 C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50
C 117 CKSRYB102K50 C 120 CKSRYB153K25 C 121 CKSRYB332K50 C 122 CKSRYB682K25 C 123 CKSRYB681K50
C 125 CKSRYB103K50 C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50
C 202 CCSRCH100D50 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16
C 207 CKSRYB473K16 C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50
C 212 CCSRCH101J50 C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 C 219 CKSQYB105K10
C 220 CKSRYB104K16 C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Page 57
KEH-P6900R,P6900R-B,P6910R
C 225 CKSRYB272K50 C 226 CKSRYB682K25 C 902 CCSRCH560J50 C 903 CCSRCH270J50 C 904 CKSRYB223K25
C 905 CKSRYB103K50 C 906 CCSRTH8R0D50 C 907 CCSRTH8R0D50 C 909 CCSRTH100D50 C 910 CKSRYB332K50
C 912 CKSQYB474K16 C 913 CKSRYB223K25 C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16
C 917 CKSYB475K10 C 918 CKSRYB223K25 C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50
C 922 CKSYB105K16 C 923 CKSRYB103K50 C 925 CKSRYB472K50
Unit Number : CWM6704(KEH-P6900R)
: CWM6705(KEH-P6900R-B)
Unit Name : Tuner Amp Unit
MISCELLANEOUS
IC 201 IC PML003AM IC 301 IC PAL005A IC 601 IC PE5083A IC 604 IC S-80734AN IC 701 IC PM4009A
IC 751 IC HA12187FP IC 951 IC S-81250PGPD Q 201 Transistor DTC143TU Q 202 Transistor DTC143TU Q 205 Transistor DTA124EU
Q 301 Transistor DTC124EU Q 302 Transistor 2SC1740S Q 401 Transistor 2SC4081 Q 601 Transistor 2SC4081 Q 602 Transistor 2SC4081
Q 603 Transistor DTA114EU Q 609 Transistor 2SA1037K Q 610 Transistor 2SC4081 Q 611 Transistor 2SA1037K Q 613 Transistor DTC143EU
Q 701 Transistor DTA124EU Q 702 Transistor 2SC2412K Q 703 Transistor 2SD1468S Q 704 Transistor 2SD1468S Q 705 Transistor DTC143TS
Q 706 Transistor DTC143TS Q 707 Transistor DTC114ES Q 708 Transistor 2SC4081 Q 751 Transistor 2SA1037K Q 752 Transistor DTC114EU
Q 951 Transistor 2SD2396 Q 952 Transistor 2SD1864 Q 953 Transistor 2SB1238 Q 954 Transistor DTC114EU Q 955 Transistor 2SA1037K
Q 956 Transistor DTC114EU Q 957 Transistor 2SB710A Q 958 Transistor DTC114EU Q 959 Transistor 2SC4081 Q 960 Transistor IMD2A
D 301 Diode 1SS270 D 302 Diode 1SS270 D 601 Diode HZS7L(C2) D 602 Diode HZS7L(A1) D 603 Diode 1SS270
D 604 Diode DAN202U D 605 Diode 1SS270 D 611 Diode Network DA204U D 612 Diode Network DA204U D 613 Diode Network DA204U
D 614 Diode Network DA204U D 615 Diode Network DA204U D 616 Diode HZS7L(A1) D 617 Diode ERA15-02VH D 640 Diode Network DA204U
D 951 Diode ERA15-02VH D 952 Diode ERA15-02VH D 953 Diode ERA15-02VH D 954 Diode ERA15-02VH D 955 Diode ERA15-02VH
D 956 Diode HZS6L(B2) D 957 Diode HZS9L(B3) D 958 Diode HZS9L(A2) D 959 Diode HZS16(2) L 401 Ferri-Inductor LAU1R0M
L 402 Ferri-Inductor LAU4R7K L 403 Ferri-Inductor LAU1R0M L 601 Ferri-Inductor LAU2R2M L 602 Ferri-Inductor LAU101K L 603 Ferri-Inductor LAU2R2M
L 604 Ferri-Inductor LAU2R2M L 605 Ferri-Inductor LAU2R2M L 701 Ferri-Inductor LAU101K L 702 Inductor LAU100K L 751 Ferri-Inductor LAU2R2M
L 951 Coil 600µH CTH1219 X 601 Radiator 12.58291MHz CSS1402 X 701 Crystal Resonator 3.648MHz CSS1447 S 601 Switch(DSENSE) CSN1039
FM/AM Tuner Unit CWE1500
EF 601 Filter CTF1071 EF 701 Filter CTF1071 EF 702 Filter CTF1071 BZ 601 Buzzer CPV1050 AR 401 DSP-201M
RESISTORS
R 201 RD1/4PU102J R 202 RD1/4PU102J R 205 RD1/4PU821J R 206 RD1/4PU821J R 207 RD1/4PU102J
R 208 RD1/4PU102J R 209 RD1/4PU223J R 210 RD1/4PU223J R 211 RD1/4PU0R0J R 212 RD1/4PU222J
R 213 RD1/4PU222J R 214 RS1/10S562J R 215 RS1/10S821J R 216 RD1/4PU821J R 219 RS1/10S473J
R 220 RS1/10S473J R 223 RS1/10S0R0J R 224 RD1/4PU0R0J R 225 RS1/10S0R0J R 226 RD1/4PU0R0J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
57
A
Page 58
58
KEH-P6900R,P6900R-B,P6910R
R 301 RS1/10S103J R 302 RS1/10S221J R 303 RS1/10S153J R 304 RS1/10S103J R 305 RS1/10S152J
R 306 RS1/10S101J R 307 RD1/4PU223J R 401 RS1/10S272J R 402 RS1/10S272J R 403 RS1/10S162J
R 404 RS1/10S162J R 407 RD1/4PU222J R 408 RD1/4PU222J R 409 RS1/10S681J R 410 RS1/10S473J
R 411 RS1/10S681J R 412 RD1/4PU473J R 413 RS1/10S681J R 414 RD1/4PU472J R 415 RS1/10S103J
R 416 RS1/10S393J R 417 RD1/4PU681J R 418 RS1/10S473J R 419 RS1/10S102J R 420 RS1/10S681J
R 421 RS1/10S473J R 422 RS1/10S681J R 423 RS1/10S473J R 424 RS1/10S473J R 601 RS1/10S473J
R 602 RS1/10S473J R 603 RS1/10S104J R 604 RS1/10S223J R 605 RS1/10S473J R 606 RS1/10S473J
R 607 RS1/10S472J R 608 RD1/4PU102J R 628 RS1/10S472J R 629 RS1/10S472J R 630 RS1/10S102J
R 631 RD1/4PU153J R 632 RS1/10S104J R 633 RS1/10S103J R 634 RS1/10S103J R 635 RS1/10S473J
R 636 RD1/4PU473J R 637 RD1/4PU102J R 638 RS1/10S822J R 639 RD1/4PU102J R 640 RS1/10S223J
R 641 RD1/4PU222J R 642 RS1/10S222J R 643 RD1/4PU103J R 644 RD1/4PU222J R 645 RS1/10S222J
R 646 RS1/10S222J R 647 RS1/10S103J R 648 RS1/10S222J R 649 RS1/10S222J R 650 RS1/10S222J
R 651 RS1/10S222J R 652 RS1/10S222J R 653 RS1/10S222J R 654 RS1/10S222J R 655 RS1/10S222J
R 656 RS1/10S473J R 657 RS1/10S473J R 658 RS1/10S473J R 659 RS1/10S473J R 660 RS1/10S103J
R 661 RS1/10S392J R 662 RS1/10S102J R 664 RS1/10S222J R 665 RD1/4PU473J R 666 RS1/10S473J
R 667 (KEH-P6900R-B) RS1/10S473J R 668 RS1/10S473J R 673 RS1/10S473J R 674 RD1/4PU473J R 675 RS1/10S0R0J
R 676 RS1/10S473J R 677 RD1/4PU102J R 678 RS1/10S222J R 679 RD1/4PU222J R 680 RD1/4PU102J
R 681 RD1/4PU102J R 682 RD1/4PU102J R 683 RD1/4PU222J R 684 RS1/10S473J R 685 RS1/10S102J
R 686 RS1/10S473J R 690 RS1/10S473J R 691 RD1/4PU222J R 692 RD1/4PU222J R 693 RD1/4PU222J
R 694 RS1/10S222J R 695 RD1/4PU222J R 696 RS1/8S473J R 697 RS1/8S0R0J R 699 RS1/10S0R0J
R 701 RD1/4PU102J R 702 RD1/4PU102J R 703 RD1/4PU102J R 704 RD1/4PU681J R 705 RD1/4PU0R0J
R 706 RS1/10S225J R 708 RS1/8S102J R 710 RD1/4PU473J R 711 RD1/4PU681J R 712 RS1/10S224J
R 713 RS1/10S224J R 714 RS1/10S224J R 715 RS1/10S223J R 716 RS1/10S223J R 717 RS1/10S222J
R 718 RS1/10S222J R 719 RS1/10S103J R 720 RS1/10S474J R 721 RS1/10S681J R 722 RS1/10S153J
R 723 RS1/10S681J R 724 RS1/10S473J R 725 RD1/4PU681J R 728 RS1/10S0R0J R 729 RS1/8S0R0J
R 751 RD1/4PU222J R 752 RS1/10S223J R 753 RS1/10S472J R 754 RS1/10S102J R 755 RS1/10S102J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Page 59
59
KEH-P6900R,P6900R-B,P6910R
R 756 RS1/10S473J R 757 RS1/10S473J R 758 RS1/10S102J R 759 RD1/4PU101J R 760 RS1/10S620J
R 761 RD1/4PU101J R 777 RS1/10S0R0J R 951 RS1/10S223J R 952 RD1/4PU272J R 953 RS1/10S122J
R 954 RS1/10S0R0J R 955 RS1/10S103J R 956 RS1/10S473J R 957 RD1/4PU152J R 958 RS1/10S473J
R 959 RD1/4PU272J R 960 RS2PMF330J R 962 RS1/10S1R0J R 963 RS1/10S223J R 964 RS1/10S472J
R 965 RS1/10S103J R 966 RD1/4PU151J R 967 RD1/4PU152J R 968 RD1/4PU221J
CAPACITORS
C 201 CKSQYB224K16 C 202 CKSQYB224K16 C 203 CKSQYB224K16 C 204 CKSQYB224K16 C 205 CKSQYB105K16
C 206 CKSQYB105K16 C 207 CKSQYB105K16 C 208 CKSQYB105K16 C 209 CKSQYB105K16 C 210 CKSQYB105K16
C 211 CKSQYB153K50 C 212 CKSQYB153K50 C 215 CEAL2R2M50 C 216 CEAL2R2M50 C 219 CKSQYB221K50
C 220 CKSQYB221K50 C 221 CKSQYB221K50 C 222 CKSQYB221K50 C 225 CEAL100M16 C 226 CEJA470M10
C 227 CKSQYB104K50 C 301 CKSQYB474K16 C 302 CKSQYB474K16 C 303 CKSQYB474K16 C 304 CKSQYB474K16
C 305 CEHAS100M16 C 306 CKSYB225K16 C 307 CKSQYB103K50 C 308 CEJA330M10 C 309 4700µF/16V CCH1361
C 310 CKSQYB104K50 C 311 CKSYB474K16 C 312 CKSYB474K16 C 313 CKSYB474K16 C 314 CKSYB474K16
C 315 CKSQYB225K10 C 401 CKSQYB123K50 C 402 CKSQYB123K50 C 403 CKSQYB103K50 C 404 CKSQYB473K50
C 405 CEJA101M6R3 C 406 CEJA220M10 C 408 CKSQYB223K50 C 409 CKSQYB223K50 C 410 CKSQYB472K50
C 411 CKSQYB103K50 C 412 CKSQYB103K50 C 416 CKSQYB473K50 C 610 CEAL2R2M50 C 611 CKSQYB104K50
C 612 CCSQCH200J50 C 613 CCSQCH200J50 C 614 CKSQYB103K50 C 615 CEAL4R7M35 C 616 CCSQCH101J50
C 619 CCSQCH101J50 C 620 CEJA100M16 C 621 CEJA220M10 C 623 CKSQYB102K50 C 624 CKSQYB105K16
C 641 CKSQYB103K50 C 690 CKSQYB473K50 C 698 CKSQYB473K50 C 701 CEJA220M6R3 C 702 CKSQYB104K50
C 703 CCSQCH270J50 C 704 CCSQCH270J50 C 705 CEJA220M6R3 C 706 CKSQYB104K50 C 707 CKSQYB471K50
C 708 CKSQYB471K50 C 709 CKSQYB104K50 C 710 CKSQYB223K50 C 711 CEAL2R2M50 C 712 CEAL2R2M50
C 713 CKSQYB472K50 C 714 CKSQYB182K50 C 751 CKSQYB104K50 C 752 CKSQYB102K50 C 951 470µF/16V CCH1183
C 952 CEJA470M10 C 953 CEJA101M10 C 954 CKSQYB103K50 C 955 CKSQYB105K16 C 956 CKSQYB103K50
C 957 CCSQCH101J50 C 958 CEJA101M10
Unit Number : CWM6706(KEH-P6910R) Unit Name : Tuner Amp Unit
MISCELLANEOUS
IC 201 IC PML003AM IC 301 IC PAL005A IC 601 IC PE5083A IC 604 IC S-80734AN IC 701 IC PM4009A
IC 751 IC HA12187FP IC 951 IC S-81250PGPD Q 201 Transistor DTC143TU Q 202 Transistor DTC143TU Q 205 Transistor DTA124EU
Q 301 Transistor DTC124EU Q 302 Transistor 2SC1740S Q 401 Transistor 2SC4081 Q 601 Transistor 2SC4081 Q 602 Transistor 2SC4081
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
A
Page 60
60
KEH-P6900R,P6900R-B,P6910R
Q 603 Transistor DTA114EU Q 609 Transistor 2SA1037K Q 610 Transistor 2SC4081 Q 611 Transistor 2SA1037K Q 613 Transistor DTC143EU
Q 701 Transistor DTA124EU Q 702 Transistor 2SC2412K Q 703 Transistor 2SD1468S Q 704 Transistor 2SD1468S Q 705 Transistor DTC143TS
Q 706 Transistor DTC143TS Q 707 Transistor DTC114ES Q 708 Transistor 2SC4081 Q 751 Transistor 2SA1037K Q 752 Transistor DTC114EU
Q 951 Transistor 2SD2396 Q 952 Transistor 2SD1864 Q 953 Transistor 2SB1238 Q 954 Transistor DTC114EU Q 955 Transistor 2SA1037K
Q 956 Transistor DTC114EU Q 957 Transistor 2SB710A Q 958 Transistor DTC114EU Q 959 Transistor 2SC4081 Q 960 Transistor IMD2A
D 301 Diode 1SS270 D 302 Diode 1SS270 D 601 Diode HZS7L(C2) D 602 Diode HZS7L(A1) D 603 Diode 1SS270
D 604 Diode DAN202U D 605 Diode 1SS270 D 611 Diode Network DA204U D 612 Diode Network DA204U D 613 Diode Network DA204U
D 614 Diode Network DA204U D 615 Diode Network DA204U D 616 Diode HZS7L(A1) D 617 Diode ERA15-02VH D 640 Diode Network DA204U
D 951 Diode ERA15-02VH D 952 Diode ERA15-02VH D 953 Diode ERA15-02VH D 954 Diode ERA15-02VH D 955 Diode ERA15-02VH
D 956 Diode HZS6L(B2) D 957 Diode HZS9L(B3) D 958 Diode HZS9L(A2) D 959 Diode HZS16(2) L 401 Ferri-Inductor LAU1R0M
L 402 Ferri-Inductor LAU4R7K L 403 Ferri-Inductor LAU1R0M L 601 Ferri-Inductor LAU2R2M L 602 Ferri-Inductor LAU101K L 603 Ferri-Inductor LAU2R2M
L 604 Ferri-Inductor LAU2R2M L 605 Ferri-Inductor LAU2R2M L 701 Ferri-Inductor LAU101K L 702 Inductor LAU100K L 751 Ferri-Inductor LAU2R2M
L 951 Choke Coil 600µH CTH1171 X 601 Radiator 12.58291MHz CSS1402 X 701 Crystal Resonator 3.648MHz CSS1447 S 601 Switch(DSENSE) CSN1039
FM/AM Tuner Unit CWE1504
EF 601 Filter CTF1071 EF 701 Filter CTF1071 EF 702 Filter CTF1071 BZ 601 Buzzer CPV1050 AR 401 DSP-201M
RESISTORS
R 201 RD1/4PU102J R 202 RD1/4PU102J R 205 RD1/4PU821J R 206 RD1/4PU821J R 207 RD1/4PU102J
R 208 RD1/4PU102J R 209 RD1/4PU223J R 210 RD1/4PU223J R 211 RD1/4PU0R0J R 212 RD1/4PU222J
R 213 RD1/4PU222J R 214 RS1/10S562J R 215 RS1/10S821J R 216 RD1/4PU821J R 219 RS1/10S473J
R 220 RS1/10S473J R 223 RS1/10S0R0J R 224 RD1/4PU0R0J R 225 RS1/10S0R0J R 226 RD1/4PU0R0J
R 301 RS1/10S103J R 302 RS1/10S221J R 303 RS1/10S153J R 304 RS1/10S103J R 305 RS1/10S152J
R 306 RS1/10S101J R 307 RD1/4PU223J R 401 RS1/10S272J R 402 RS1/10S272J R 403 RS1/10S162J
R 404 RS1/10S162J R 407 RD1/4PU222J R 408 RD1/4PU222J R 409 RS1/10S681J R 410 RS1/10S473J
R 411 RS1/10S681J R 412 RD1/4PU473J R 413 RS1/10S681J R 414 RD1/4PU472J R 415 RS1/10S103J
R 416 RS1/10S393J R 417 RD1/4PU681J R 418 RS1/10S473J R 419 RS1/10S102J R 420 RS1/10S681J
R 421 RS1/10S473J R 422 RS1/10S681J R 423 RS1/10S473J R 424 RS1/10S473J R 601 RS1/10S473J
R 602 RS1/10S473J R 603 RS1/10S104J R 604 RS1/10S223J R 605 RS1/10S473J R 606 RS1/10S473J
R 607 RS1/10S472J R 608 RD1/4PU102J R 628 RS1/10S472J R 629 RS1/10S472J R 630 RS1/10S102J
R 631 RD1/4PU153J R 632 RS1/10S104J R 633 RS1/10S103J R 634 RS1/10S103J R 635 RS1/10S473J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Page 61
61
KEH-P6900R,P6900R-B,P6910R
R 636 RD1/4PU473J R 637 RD1/4PU102J R 638 RS1/10S822J R 639 RD1/4PU102J R 640 RS1/10S223J
R 641 RD1/4PU222J R 642 RS1/10S222J R 643 RD1/4PU103J R 644 RD1/4PU222J R 645 RS1/10S222J
R 646 RS1/10S222J R 647 RS1/10S103J R 648 RS1/10S222J R 649 RS1/10S222J R 650 RS1/10S222J
R 651 RS1/10S222J R 652 RS1/10S222J R 653 RS1/10S222J R 654 RS1/10S222J R 655 RS1/10S222J
R 656 RS1/10S473J R 657 RS1/10S473J R 658 RS1/10S473J R 659 RS1/10S473J R 660 RS1/10S103J
R 661 RS1/10S392J R 662 RS1/10S102J R 664 RS1/10S222J R 665 RD1/4PU473J R 667 RS1/10S473J
R 668 RS1/10S473J R 673 RS1/10S473J R 674 RD1/4PU473J R 676 RS1/10S473J R 677 RD1/4PU102J
R 678 RS1/10S222J R 679 RD1/4PU222J R 680 RD1/4PU102J R 681 RD1/4PU102J R 682 RD1/4PU102J
R 683 RD1/4PU222J R 684 RS1/10S473J R 685 RS1/10S102J R 686 RS1/10S473J R 690 RS1/10S473J
R 691 RD1/4PU222J R 692 RD1/4PU222J R 693 RD1/4PU222J R 694 RS1/10S222J R 695 RD1/4PU222J
R 696 RS1/8S473J R 697 RS1/8S0R0J R 699 RS1/10S0R0J R 701 RD1/4PU102J R 702 RD1/4PU102J
R 703 RD1/4PU102J R 704 RD1/4PU681J R 705 RD1/4PU0R0J R 706 RS1/10S225J R 708 RS1/8S102J
R 710 RD1/4PU473J R 711 RD1/4PU681J R 712 RS1/10S224J R 713 RS1/10S224J R 714 RS1/10S224J
R 715 RS1/10S223J R 716 RS1/10S223J R 717 RS1/10S222J R 718 RS1/10S222J R 719 RS1/10S103J
R 720 RS1/10S474J R 721 RS1/10S681J R 722 RS1/10S153J R 723 RS1/10S681J R 724 RS1/10S473J
R 725 RD1/4PU681J R 728 RS1/10S0R0J R 729 RS1/8S0R0J R 751 RD1/4PU222J R 752 RS1/10S223J
R 753 RS1/10S472J R 754 RS1/10S102J R 755 RS1/10S102J R 756 RS1/10S473J R 757 RS1/10S473J
R 758 RS1/10S102J R 759 RD1/4PU101J R 760 RS1/10S620J R 761 RD1/4PU101J R 777 RS1/10S0R0J
R 951 RS1/10S223J R 952 RD1/4PU272J R 953 RS1/10S122J R 954 RS1/10S0R0J R 955 RS1/10S103J
R 956 RS1/10S473J R 957 RD1/4PU152J R 958 RS1/10S473J R 959 RD1/4PU272J R 960 RS2PMF330J
R 962 RS1/10S1R0J R 963 RS1/10S223J R 964 RS1/10S472J R 965 RS1/10S103J R 966 RD1/4PU151J
R 967 RD1/4PU152J R 968 RD1/4PU221J
CAPACITORS
C 201 CKSQYB224K16 C 202 CKSQYB224K16 C 203 CKSQYB224K16 C 204 CKSQYB224K16 C 205 CKSQYB105K16
C 206 CKSQYB105K16 C 207 CKSQYB105K16 C 208 CKSQYB105K16 C 209 CKSQYB105K16 C 210 CKSQYB105K16
C 211 CKSQYB153K50 C 212 CKSQYB153K50 C 215 CEAL2R2M50 C 216 CEAL2R2M50 C 219 CKSQYB221K50
C 220 CKSQYB221K50 C 221 CKSQYB221K50 C 222 CKSQYB221K50 C 225 CEAL100M16 C 226 CEJA470M10
C 227 CKSQYB104K50 C 301 CKSQYB474K16 C 302 CKSQYB474K16 C 303 CKSQYB474K16 C 304 CKSQYB474K16
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Page 62
62
KEH-P6900R,P6900R-B,P6910R
C 305 CEHAS100M16 C 306 CKSYB225K16 C 307 CKSQYB103K50 C 308 CEJA330M10 C 309 4700µF/16V CCH1362
C 310 CKSQYB104K50 C 311 CKSYB474K16 C 312 CKSYB474K16 C 313 CKSYB474K16 C 314 CKSYB474K16
C 315 CKSQYB225K10 C 401 CKSQYB123K50 C 402 CKSQYB123K50 C 403 CKSQYB103K50 C 404 CKSQYB473K50
C 405 CEJA101M6R3 C 406 CEJA220M10 C 408 CKSQYB223K50 C 409 CKSQYB223K50 C 410 CKSQYB472K50
C 411 CKSQYB103K50 C 412 CKSQYB103K50 C 416 CKSQYB473K50 C 610 CEAL2R2M50 C 611 CKSQYB104K50
C 612 CCSQCH200J50 C 613 CCSQCH200J50 C 614 CKSQYB103K50 C 615 CEAL4R7M35 C 616 CCSQCH101J50
C 619 CCSQCH101J50 C 620 CEJA100M16 C 621 CEJA220M10 C 623 CKSQYB102K50 C 624 CKSQYB105K16
C 641 CKSQYB103K50 C 690 CKSQYB473K50 C 698 CKSQYB473K50 C 701 CEJA220M6R3 C 702 CKSQYB104K50
C 703 CCSQCH270J50 C 704 CCSQCH270J50 C 705 CEJA220M6R3 C 706 CKSQYB104K50 C 707 CKSQYB471K50
C 708 CKSQYB471K50 C 709 CKSQYB104K50 C 710 CKSQYB223K50 C 711 CEAL2R2M50 C 712 CEAL2R2M50
C 713 CKSQYB472K50 C 714 CKSQYB182K50 C 751 CKSQYB104K50 C 752 CKSQYB102K50 C 951 470µF/16V CCH1183
C 952 CEJA470M10 C 953 CEJA101M10 C 954 CKSQYB103K50 C 955 CKSQYB105K16 C 956 CKSQYB103K50
C 957 CCSQCH101J50 C 958 CEJA101M10
Unit Number : CWM6714
: (KEH-P6900R,P6910R)
Unit Name : Keyboard Unit
MISCELLANEOUS
IC 901 IC PD6279A IC 902 HIC Module RS-140 Q 901 Transistor 2SB710A Q 902 Transistor DTC114EU Q 903 Transistor 2SB710A
Q 904 Transistor DTC114EU Q 905 Transistor DTC114EU Q 906 Transistor DTC114EU D 901 Diode DAN202U D 902 Diode DAP202U
D 903 LED CL170UBX D 904 LED CL170UBX D 907 LED CL170PGCD(AB) D 908 LED CL170DCD D 909 LED NSSW440-9159
D 910 LED NSSW440-9159 D 911 LED NSSW440-9159 D 912 LED NSSW440-9159 L 901 Inductor LCTA101J3225 X 901 Radiator 5.00MHz CSS1423
S 902 Switch CSG1113 S 903 Switch CSG1113 S 904 Spring Switch CSN1052 S 905 Spring Switch CSN1051 S 906 Switch CSG1113
S 907 Switch CSG1113 S 908 Switch CSG1113 S 909 Switch CSG1113 S 910 Switch CSG1113 S 911 Switch CSG1113
S 912 Switch CSG1113 S 913 Switch CSG1113 S 914 Switch CSG1113 S 915 Switch CSG1113 S 916 Switch CSG1113
S 917 Switch CSG1113 S 918 Switch CSG1113 S 919 Switch CSG1113 S 920 Switch CSG1113 S 921 Switch CSG1113
S 922 Switch CSD1040 LCD 901 LCD CAW1566
RESISTORS
R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S472J R 904 RS1/10S121J R 905 RS1/10S2R2J
R 906 RS1/10S470J R 907 RS1/10S470J R 908 RS1/10S472J R 909 RS1/8S751J R 910 RS1/8S751J
R 911 RS1/8S561J R 912 RS1/8S561J R 913 RS1/8S561J R 914 RS1/8S561J R 915 RS1/8S561J
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
D
Page 63
63
KEH-P6900R,P6900R-B,P6910R
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
R 916 RS1/8S561J R 917 RS1/8S561J R 918 RS1/8S561J R 919 RS1/8S561J R 920 RS1/8S561J
R 921 RS1/8S561J R 922 RS1/8S561J R 924 RS1/10S473J R 925 RS1/10S272J R 926 RS1/10S473J
R 927 RS1/10S272J R 931 RS1/8S821J R 932 RS1/8S821J R 933 RS1/8S821J R 934 RS1/8S821J
R 935 RS1/8S152J R 936 RS1/8S152J R 937 RS1/8S152J R 938 RS1/10S431J R 939 RS1/10S431J
CAPACITORS
C 901 CSZSR100M16 C 902 CKSQYB104K50 C 903 CSZSR100M16 C 904 CKSQYB103K50 C 905 CKSQYB103K50
C 906 CKSQYB103K50 C 907 CKSQYB104K50 C 908 CKSQYB104K50 C 909 CKSQYB104K50 C 910 CKSQYB104K50
C 913 CKSQYB104K50 C 914 CKSQYB104K50
Unit Number : CWM6715(KEH-P6900R-B) Unit Name : Keyboard Unit
MISCELLANEOUS
IC 901 IC PD6279A IC 902 HIC Module RS-140 Q 906 Transistor DTC114EU D 901 Diode DAN202U D 902 Diode DAP202U
D 903 LED CL170UBX D 904 LED CL170UBX D 908 LED CL170SRCD D 909 LED NSSW440-9159 D 910 LED NSSW440-9159
D 911 LED NSSW440-9159 D 912 LED NSSW440-9159 L 901 Inductor LCTA101J3225 X 901 Radiator 5.00MHz CSS1423 S 902 Switch CSG1135
S 903 Switch CSG1135 S 904 Spring Switch CSN1052 S 905 Spring Switch CSN1051 S 906 Switch CSG1135 S 907 Switch CSG1135
S 908 Switch CSG1135 S 909 Switch CSG1135 S 910 Switch CSG1135 S 911 Switch CSG1135 S 912 Switch CSG1135
S 913 Switch CSG1135 S 914 Switch CSG1135 S 915 Switch CSG1135 S 916 Switch CSG1135 S 917 Switch CSG1135
S 918 Switch CSG1135 S 919 Switch CSG1135 S 920 Switch CSG1135 S 921 Switch CSG1135 S 922 Switch CSD1040
LCD 901 LCD CAW1596
RESISTORS
R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S472J R 904 RS1/10S121J R 905 RS1/10S2R2J
R 906 RS1/10S470J R 907 RS1/10S470J R 909 RS1/8S751J R 910 RS1/8S751J R 911 RS1/8S561J
R 912 RS1/8S561J R 913 RS1/8S561J R 914 RS1/8S561J R 915 RS1/8S561J R 916 RS1/8S561J
R 917 RS1/8S561J R 918 RS1/8S561J R 919 RS1/8S561J R 920 RS1/8S561J R 921 RS1/8S561J
R 922 RS1/8S561J R 928 RS1/8S0R0J R 931 RS1/8S821J R 932 RS1/8S821J R 933 RS1/8S821J
R 934 RS1/8S821J R 935 RS1/8S152J R 936 RS1/8S152J R 937 RS1/8S152J R 938 RS1/10S431J
R 939 RS1/10S431J
CAPACITORS
C 901 CSZSR100M16 C 902 CKSQYB104K50 C 903 CSZSR100M16 C 904 CKSQYB103K50 C 905 CKSQYB103K50
C 906 CKSQYB103K50 C 907 CKSQYB104K50 C 908 CKSQYB104K50 C 909 CKSQYB104K50 C 910 CKSQYB104K50
C 913 CKSQYB104K50 C 914 CKSQYB104K50
Unit Number : CWM6720 Unit Name : Panel PCB Unit
S 602 Switch(EJECT) CSG1112
D
C
Page 64
64
KEH-P6900R,P6900R-B,P6910R
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Unit Number : EWM1024 Unit Name : Deck Unit
MISCELLANEOUS
IC 251 IC CXA2560Q IC 351 IC PA2020A D 352 Diode 1SS355 VR 301 Semi-fixed 33k(B) CCP1280 VR 302 Semi-fixed 33k(B) CCP1280
RESISTORS
R 255 RS1/16S221J R 256 RS1/16S221J R 257 RS1/16S102J R 258 RS1/16S102J R 271 RS1/16S102J
R 272 RS1/16S102J R 273 RS1/16S102J R 274 RS1/16S102J R 281 RS1/8S0R0J R 282 RS1/8S0R0J
R 283 RS1/8S0R0J R 284 RS1/8S0R0J R 285 RS1/16S0R0J R 286 RS1/16S0R0J R 287 RS1/8S0R0J
R 290 RS1/8S0R0J R 301 RS1/16S183J R 322 RS1/16S102J R 323 RS1/8S0R0J R 351 RS1/16S102J
R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/10S274J R 362 RS1/8S301J
R 373 RS1/8S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S472J R 402 RS1/16S183J
R 403 RS1/16S823J
CAPACITORS
C 251 CKSRYB331K50 C 252 CKSRYB331K50 C 253 CKSRYB331K50 C 254 CKSRYB331K50 C 255 CKSRYB103K50
C 256 CKSRYB103K50 C 272 CKSRYB104K16 C 273 CEJA220M16 C 301 CKSRYB104K16 C 302 CKSRYB104K16
C 309 CKSRYB104K16 C 310 CKSRYB104K16 C 313 CCSRCH101J50 C 351 CKSYB224K25 C 352 CKSRYB392K50
C 353 CKSRYB103K50 C 354 CKSRYB103K50 C 355 CKSYB104K50 C 356 CKSRYB103K50 C 401 CKSQYB334K16
C 402 CKSRYB392K50 C 403 CKSRYB683K16
Unit Number : Unit Name : REEL SENSE PCB
S 1 Switch(LOAD) ESG1007 S 2 Switch(MODE) ESG1007 S 3 Switch(70µs) ESG1007 EGN 1 Photo-reflector EGN1004
Miscellaneous Parts List
M 1 Motor Unit(MAIN) EXA1490 M 2 Motor Unit(SUB) EXA1580 HD 1 Head Assy EXA1589
E F
Page 65
65
KEH-P6900R,P6900R-B,P6910R
6. ADJUSTMENT
DOLBY B NR ADJUSTMENT
No. Test Tape Adjustment Point Adjustment Method
(Switch Position)
1 NCT-150 VR301(Lch),VR302(Rch) mV Meter(2) : –6dBm(388mV)±1dB
(400Hz,200nwb/m) (DOLBY NR Switch : OFF)
Page 66
66
KEH-P6900R,P6900R-B,P6910R
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 TEST MODE
<Power OFF>
TRK
TRK
TRK
TRK
TRK
TRK
TRK
TRK
TRK
46
00"00'
Display
00"00'
Display Display
6
91"91' 91
81"81'
Display
6
<Tracking closed >
AGC NO
56"02'
1
<CD multi player selected>
BAND
<Power OFF>
00"00'
Display
BAND
SOURCE
BAND
<Power ON>
<Focus closed>
<Tracking closed > AGC YES
3
Display
2
1
Display example
<Focus mode select>
TRK
00
*1
81
ACC, Back-up ON
During regulator off, press the 6
6
<New test mode in>
1
<Tracking closed >
00"00'
FF
<Carriage shifted outwards while this key is pressed>
key and the system will be put into the new test mode.
REV
<Carriage shifted inwards while this key is pressed>
3FFREV
*2
<Auto adjustment display>
<Carriage shifted outwards while this key is pressed>
<Carriage shifted inwards while this key is pressed>
BAND
<Power OFF>
<Carriage MOVE or T.jump>
BAND
<Power OFF>
< Mechanism test mode in >
3
*6 *9*8*7
<ELV,TRAY select>
*1 Normal focus close S curve check Focus EQ check
*2 Normal display Focus cancel Tracking balance
*3 100 TRK jump and carriage MOVE continue only while the keys are released
*4 SINGLE
*5 Normal display Focus gain Tracking gain Focus bias
00"00'00 01"01'01 02"02'02
Display
81 8685848382
4TRK 10TRK 32TRK 100TRK C.MOVE
Display
FF REV
*3 <Carriage MOVE or T.jump>
<Tracking open >
1
Display
6
<Operation mode select >
Tracking offset
*3 *4
<T.jump mode change>
2
72
00"00'
FF
<Shift > <Shift >
(Close spindle-rough)
REV BAND
6
1
<AGC display select>
*5
32
<AGC >
Display
00"00'
Display
<Mechanism test mode out >
*6 ELV motor select
8ms pulse drive
*7
48ms pulse drive
ELV select : ELV dowm (Disc 1 6)
*8
TRAY select : TRAY out
*9 ELV select : ELV up (Disc 6 1)
TRAY select : TRAY in
0X"00'72
00"00'72 01"00'72 02"00'72
00"10'72
TRAY motor select
Display
24ms pulse drive DC drive
Display
100ms pulse drive DC drive
Display
<Tracking open>
00"00'
0X"10'72
01"10'72 02"10'72
Page 67
67
KEH-P6900R,P6900R-B,P6910R
- New Test Mode(aging operation and setup analysis)
The single CD player plays in normal mode. After being set up, it will display FOK (focus), LOCK (spindle), subcode, sound skip, protection against a mechanical error or the like, occurrence of an error, cause and time of an expiry, if any, (and disc number) During the setup, the CD software operation status (internal RAM and C-point)is displayed.
(1) How to enter NEW TEST Mode
See the test mode flow chart Page 66.
(2) Relations of keys between TEST and NEW TEST Modes
Keys Test Mode New Test Mode
Regulator OFF Regulator ON PLAY in progress Error Occurred,
Protection Activated
BAND Regulator ON Regulator OFF Time of occurrence/
cause of error select FF FWD-Kick FF/TRACK+ REV REV-Kick REV/TRACK- 1 Tracking close SCAN 2 Tracking open MODE 3 Focus close  6 To New Test Jump Mode AUTO/MANU TRACK No./
Mode Select time of occurrence select
Operations,such as EJECT, CD ON/OFF, etc. are performed normally
(3) Error Cause (Error Number) Code
Error Code Classification Mode Description Cause/Detail
40 ELECTRIC PLAY FOK=L Put out of focus
100ms Scratch,
41 ELECTRIC PLAY LOCK=L Spindle unlock Stain,
100ms Vibration,
42 ELECTRIC PLAY Subcode Failed to read subcode Servo defect,
unacceptable 500ms etc...
43 ELECTRIC PLAY Sound skipped Last address memory
operated
(4) Indicating an Operation Status During Setup
Status No. Description Protection operation 01 Carriage home mode started None 02 Carriage moving inwards 10-second time out, Home switch failed 03 Carriage moving outwards 10-second time out, Home switch failed 05 Carriage moving outwards None 11 Setup started None 12 Spindle turn/Focus search started None 13 Waiting for focus closure (XSI=L) Failure to close focus 10,14 Waiting for focus closure (FOK=H) Failure to close focus 15, 16, 17 Focus closed, Tracking open Focus disrupted 18 During focus AGC Focus disrupted 19 During tracking AGC Disrupted focus 20 Waiting for MIRR, LOCK or subcode read Focus disrupted, MIRR NG, Failure to lock,
Carriage closed, SPINDLE=ADAPTIVE failed to read subcode
Page 68
68
KEH-P6900R,P6900R-B,P6910R
(5) Example of Display.
SET UP in progress 8 digits display LCD
Operation (PLAY, SEARCH, etc.) in progress perfectly identical with that in the normal mode.
Protection/Error upon occurrence(8 digits display LCD)
(a) Error number indicated
Select the display with the BAND key.
(b) Track number and
absolute time indicated
ERROR–xx
TNo.10Min40Sec
05
- Error Number Indication
If the CD should fail to operate or if an error has taken place during operation the player will enter into the error mode, and the cause of the error will be numerically indicated. This is aimed at assisting in analysis or repair.
(1) Basic Means of Display
Examples of Display ERROR-xx
(2) Error Codes
Error Classification Description Cause/Detail Code 10 ELECTRIC Carriage home failure Carriage doesn't move to or from the innermost position
Home switch failed and/or carriage immobile
11 ELECTRIC Focus failure Focus failed
Defects, disc upside-down, severe vibration
12 ELECTRIC SETUP failure Spindle failed to lock or subcode unreadable
Subcode failure Spindle defective, defect, severe vibration
14 ELECTRIC Mirror failure Unrecorded CD-R
The disc is upside-down, defects, vibration
17 ELECTRIC Set up failure AGC protect failed
Defects, disc upside-down, severe vibration
19 ELECTRIC Set up failure Tracking error waveform is too unbalanced (>50%) or
level is too small The pickup unit or tracking error circuitry is N.G.
30 ELECTRIC Search time out Failed to reach target address
Carriage/tracking defective and/or defects
A0 SYSTEM Power failure Power overvoltage or short circuit detected
Switching transistor defective and/or power abnormal
A1 SYSTEM Mechanism power Mechanism elevation reference voltage is out of
failure prescription
EREF adjustment VR and/or power abnormal
50 MECHANISM An error upon ejection MAG switch release time has time out
Elevation time out when eject
60 MECHANISM An error while putting in Tray in / out time has time out
and out the tray Tray is caught when put in 70 MECHANISM An error upon elevation Elevation time has time out 80 MECHANISM An error with an empty No disc is available
magazine inserted
* Setup means a series of operations after focusing up to sound output.
TNo.11Min11Sec
11
Page 69
69
KEH-P6900R,P6900R-B,P6910R
7.1.2 DISASSEMBLY
- Remove the Tuner Amp Unit(Fig.2)
Remove the two screws.
Remove the three screws.
Remove the screw.
Disconnect the connector.
(KEH-P6900R,P6900R-B)
Unbend the tabs at two locations indicated by arrow until straight. Remove the Tuner Amp Unit.
-
Remove the Case(not shown)
1.Remove the two screws.
2.Remove the Case.
- Remove the Cassette Mechanism Module
(not shown)
1.Remove the four screws.
2.Disconnect the connector, and then remove the Cassette Mechanism Module.
- Remove the Panel Unit(Fig.1)
Remove the two screws.
Disengage the stopper at two locations indi­cated by arrow.
Remove the Panel Unit.
Fig.1
Fig.2
Panel Unit
Tuner Amp Unit
Cassette Mechanism Module
Page 70
70
KEH-P6900R,P6900R-B,P6910R
7.2 PARTS
7.2.1 IC
- Pin Functions (PE5083A)
Pin No. Pin Name I/O Function and Operation
1 fm/AM O RDS decoder power select output 2 NC Not used 3 csens I Flap close sense input 4 NC Not used 5 TESTIN I Test program mode input 6 NC Not used 7 drst O Reset output 8 NL2DT I RDS:Noise lebel input
9 KEYIN2 I Encoder input 2 10 KEYIN1 I Encoder input 1 11 reset I Reset input 12 XT2 Clock terminal(Open) 13 XT1 Clock terminal(VSS) 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF VDD 18 REGC VDD 19 VDD Power supply 20 NC Not used 21 adpw O A/D converter power 22 SDBW O SDBW inout 23 rdslk I RDS LK signal input 24 RDT I RDS demodulation data input 25 ILMPW O Illumination power supply control output 26 LCDPW O LCD back light power supply control output 27 isens I Illumination sense input 28 ROMDATA O ROM correction data output 29 ROMCLK O ROM correction clock output 30 ROMCS O ROM correction chip select output 31 SD I SD input 32 st I FM stereo input 33 mute O Mute output 34 VST O Strobe pulse output for electronic volume 35 VDT O Data output for electronic volume 36 VCK O Clock output for electronic volume 37 dled O Alarm LED output 38 DRSENS I Door open/close sense input 39 DRSYS O Door system select output 40 VSS GND 41 VDD Power supply 42 TELIN I Telephone mute input 43 DRELAY O External relay output 44 dsens I Grille detach sense 45 tmute O Tuner mute output 46 swvdd O Grille power supply control output 47 ASENBO O Slave power supply control output 48 IPPW O Power supply control output for IP BUS interface IC 49 LOCL O LOC L output 50 LOCH O LOC H output 51 SYSPWR O System power control 52 tunpce2 O EEPROM chip enable 53 DALMON O Power save control 54 currq O Tuner voltage FIX output 55 stby O Drive IC control output
Page 71
71
KEH-P6900R,P6900R-B,P6910R
IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction.
*PE5083A
Pin No. Pin Name I/O Function and Operation
56 CM O Cassette mechanism capstan motor control output 57 SC1 O Cassette mechanism sub motor control output 58 SC2 O Cassette mechanism sub motor control output 59 NES I Cassette mechanism forward end sense input 60 RES I Cassette mechanism reverse end sense input 61 POS I Cassette mechanism position sense input 62 PCL O Clock adjustment output 63 NR O Dolby NR ON/OFF select output 64 mtlsw I Metal sense input 65 RIMUTE O RI mute output 66 PLAY O MS gain select output 67 DIRO O Head F/R select output 68 MSIN I Cassette mechanism MS sense input 69 loadsw I Tape loading input 70 RECIVE O During RDS data reception output
71,72 NC Not used
73 TEST I Test terminal 74 SEL I Select input for the destination 75 SL I SD level input from tuner 76 NC O Open 77 CL I Not used 78 NL I Noise level input 79 FLPILM O Inside of flap illumination output 80 EJECTS I EJECT input 81 NC Not used
82,83 VDD Power supply
84 GND GND 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88 ldet I PLL lock sense input 89 rck I RDS demodulation clock input 90 RDS57K I 57kHzBP-OUT sense input 91 NC Not used 92 bsens I Back up power sense input 93 asens I ACC power sense input 94 TUNPDI I PLL IC data input 95 KEYDT I Display data input 96 DPDT O Display data output 97 TUNPCK O PLL IC clock 98 TUNPDO O PLL IC data output 99 TUNPCE O PLL IC chip enable
100 PEE O Beep tone output
30
31
50
51
1
80
100
81
Page 72
72
KEH-P6900R,P6900R-B,P6910R
BR9010FV
NC
VCC
CS
SK
WC
GND
DO
DI
1
2
3
4
8
7
6
5
CS SK DI DO WC
: Chip select input : Serial data clock input : Serial data input : Serial data output : Write control input
- Pin Functions (PD6279A)
Pin No. Pin Name I/O Function and Operation
1-42 SEG41-0 O LCD segment output 43-46 COM3-0 O LCD common output 47-49 V1-3 I LCD bias power supply
50 VCC Power supply 51 LED Open 52 SO O Serial data output 53 SI I Serial data input 54 MODE0 Connect to GND 55 MODE1 Connect to GND 56 rst I Reset 57 X0 Crystal oscillator connection pin 58 X1 Crystal oscillator connection pin 59 VSS GND 60 REMIN I Remote control reception 61 dim O Dimmer select output
62 GRN/amb O Green/Amber select output 63-66 KDT4-1 I Key data input (analogue input) 67-72 KST6-1 O Key strobe output 73-82 NC Not used
83-100 SEG59-42 O LCD segment output
*PD6279A
30
31
50
51
1
100
81
80
Page 73
73
KEH-P6900R,P6900R-B,P6910R
PM4009A
PAL005A
1 2
3 4 5
6
7
Mute
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
Mute
Mute
Mute
STBY
Protector
Amp2
Amp1
Amp3
Amp4
TAB
P-GND2
OUT2-
OUT2+
STBY
VCC
OUT1-
OUT1+
P-GND1
P-GND3
P-GND4
Switch_out
MUTE
OUT4+
OUT4-
SVR
IN1
IN2
IN4
S-GND
IN3
Ac_gnd
OUT3+
OUT3-
VCC
Page 74
74
KEH-P6900R,P6900R-B,P6910R
COM.3A
COM.0A
COM.3B
COM.1A
COM.2
COM.1B
COM.0B
NC
SEG.59
SEG.58
SEG.1
SEG.2
SEG.3
SEG.4
NC
SEG.5
SEG.6
SEG.8
SEG.9
SEG.10
SEG.11
SEG.12
SEG.0
SEG.13
SEG.14
SEG.15
SEG.16
SEG.17
SEG.18
SEG.19
SEG.20
SEG.21
SEG.22
SEG.23
SEG.24
SEG.25
SEG.26
SEG.27
SEG.28
SEG.29
SEG.30
SEG.31
SEG.32
SEG.33
SEG.34
SEG.35
SEG.36
SEG.37
SEG.38
SEG.39
SEG.40
SEG.41
SEG.42
SEG.43
SEG.44
SEG.45
SEG.46
SEG.47
SEG.48
SEG.49
SEG.50
SEG.51
SEG.52
SEG.53
SEG.54
SEG.55
SEG.56
SEG.57
COMMON
SEGMENT
7.2.2 DISPLAY
- CAW1566(KEH-P6900R),CAW1596(KEH-P6900R-B,P6910R)
Page 75
75
KEH-P6900R,P6900R-B,P6910R
8. OPERATIONS AND SPECIFICATIONS
8.1 OPERATIONS(KEH-P6900R)
Head Unit
Steering Remote Controller (CD-SR77)
The steering remote controller (CD-SR77) enabling remote control of the head unit is sold separately. Operation is the same as when using buttons on the head unit.
+/– button Raise or lower the volume.
AUDIO button
2/3 buttons
BAND button
FUNCTION button
SOURCE/OFF button
ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level.
5/ buttons
FUNCTION button
OPEN button
BAND/ESC button
Buttons 1–6
5//2/3 buttons
DISPLAY button
TA button
VOLUME
EQ selector
AUDIO button
PTY button
PGM button
SOURCE/OFF button
Page 76
76
KEH-P6900R,P6900R-B,P6910R
To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a cassette in this product.
1. Select the desired source. (e.g. Tuner)
Each press of the SOURCE/OFF button selects the desired source in the following order:
Tuner = Tape = Multi-CD player = External Unit = AUX
Note:
• External Unit refers to a Pioneer product (such as one available in the future) that, although incom-
patible as a source, enables control of basic functions by this product. Only one External Unit can
be controlled by this product.
• In the following cases, the sound source will not change:
* When a product corresponding to each source is not connected to this product.
* When no tape is set in this product.
* When no magazine is set in the Multi-CD player.
* When the AUX (external input) is set to OFF.
• When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal,
the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna,
switch the source OFF.
2. Extend the VOLUME forward.
When you press the VOLUME, it extends forward so that it becomes easier to roll. To
retract the VOLUME, press it again.
Each press changes the Source ...
3. Raise or lower the volume.
Rolling the VOLUME changes the volume level.
Note:
• Roll clockwise to raise the volume level.
• Roll counterclockwise to lower the volume level.
4. Turn the source OFF.
Hold for 1 second
Page 77
77
KEH-P6900R,P6900R-B,P6910R
Basic Operation of Cassette Player
Note:
• Be sure to close the front panel after loading or ejecting a cassette.
Note:
• “METAL” appears on the display for 4 seconds when a
metal or chrome tape is inserted. Nothing is displayed
for a normal tape.
Play Time Indicator
Note:
• The continuous playback time count starts at 00’00” at
the following times.
* When a tape is inserted.
* When the tape direction is changed.
* When you rewind the tape side currently playing
back to the beginning.
• The continuous playback time count is halted when
fast-forwarding/rewinding and while the Music Search
function is operating.
Eject
Note:
• The Tape function can be
turned ON/OFF with the
cassette tape remaining in this
product.
Open
Note:
• Use to open the front panel when loading or ejecting a cassette.
(The illustration on the right shows the front panel open.)
Fast Forward/Rewind and Music Search
• Each press of the 3 button selects Fast Forward or Forward-
Music Search.
FF (Fast Forward) = F-MS (Forward-Music Search) = Normal Playback
• Each press of the 2 button selects Rewind or Rewind-Music
Search.
REW (Rewind) = R-MS (Rewind-Music Search) = Normal Playback
Note:
• Fast Forward/Rewind and Music Search can be canceled by pressing the BAND but-
ton.
Direction Change
Direction Indicator
Cassette Loading Slot
Page 78
78
KEH-P6900R,P6900R-B,P6910R
Basic Operation of Tuner
This product’s AF function can be switched ON and OFF. AF should be switched OFF for
normal tuning operations.
Manual and Seek Tuning
• You can select the tuning method by changing the length of
time you press the 2/3 button.
Manual Tuning (step by step) 0.5 seconds or less
Seek Tuning 0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can skip
broadcasting stations. Seek Tuning starts as soon as you release the button.
• Stereo indicator “” lights when a stereo station is selected.
Preset Tuning
• You can memorize broadcast stations in buttons
1 through 6 for easy, one-touch station recall.
Preset station recall 2 seconds or less
Broadcast station preset memory 2 seconds or more
Note:
• Up to 18 FM stations (6 in F1 (FM1), F2 (FM2) and F3
(FM3)) and 6 MW/LW stations can be stored in memory.
• You can also use the 5 or buttons to recall broadcast sta-
tions memorized in buttons 1 through 6.
Preset Number Indicator
Band
F1 (FM1) = F2 (FM2)
= F3 (FM3) = MW/LW
Band Indicator
Frequency Indicator
Basic Operation of Multi-CD Player
This product can control a Multi-CD player (sold separately).
Track Search and Fast Forward/Reverse
• You can select between Track Search or Fast
Forward/Reverse by pressing the 2/3 button
for a different length of time.
Track Search 0.5 seconds or less
Fast Forward/Reverse Continue pressing
Play Time Indicator
Track Number Indicator
Disc Search
Disc Number Indicator
Disc Number Search (for 6-Disc, 12-Disc types)
• You can select discs directly with the 1 to 6 buttons. Just press the num-
ber corresponding to the disc you want to listen to.
Note:
• When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the
1 to 6 buttons for 2 seconds or longer.
Note:
• The Multi-CD player may perform a preparatory operation, such as verifying the presence of
a disc or reading disc information, when the power is turned ON or a new disc is selected for
playback. “READY” is displayed.
• If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is
displayed. Refer to the Multi-CD player owner’s manual.
• If there are no discs in the Multi-CD player magazine, “NO DISC” is displayed.
Page 79
79
KEH-P6900R,P6900R-B,P6910R
Connecting the Units
22.Front
23.Rear
1. This Product
3. Antenna jack
8. To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
15. Blue/white
12.To vehicle (metal) body.
11.Black (ground)
7. Red
9. Yellow
14.Fuse
24.White
25.White/black
26.Gray
27.Gray/black
28.Green
29.Green/black
30.Violet
31.Violet/black
21.Right speaker
20.Left speaker
13.Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If
not, keep the Audio Mute lead free of any
connections.
22.Front
23.Rear
4. Multi-CD player
(sold separately)
17.Connecting cords
with RCA pin plugs
(sold separately)
16.To system control terminal of
the power amp or Auto-antenna
relay control terminal.
(Max. 300 mA 12 V DC.)
2. Rear output
18.System remote control
23.Rear 23.Rear
19.Power amp
(sold separately)
6. To light switch terminal.
5. Orange
10.To terminal always supplied
with power regardless of ignition
+
+
+
+
+
+
32.With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
33.Perform these connections when using
a different amp (sold separately).
Page 80
KEH-P6900R,P6900R-B,P6910R
8.2 SPECIFICATIONS
General
Power source .......... 14.4 V DC (10.8 – 15.1 V allowable)
Grounding system ........................................ Negative type
Max. current consumption ...................................... 10.0 A
Dimensions
(mounting size) ...... 178 (W) × 50 (H) × 155 (D) mm
(front face) .............. 188 (W) × 58 (H) × 19 (D) mm
Weight ...................................................................... 1.3 kg
Amplifier
Maximum power output ...................................... 45 W × 4
Continuous power output .................................... 27 W × 4
(DIN45324, +B = 14.4 V)
Load impedance .......................... 4 (4 – 8 allowable)
Preout maximum output level/output
impedance ................................................ 2.2 V/1 k
Equalizer (3-Band Parametric Equalizer)
(Low) .......................... Frequency: 40/80/100/160 Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
(Mid) .......................... Frequency: 200/500/1k/2k Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
(High) ................ Frequency: 3.15k/8k/10k/12.5k Hz
Q Factor: 0.35/0.59/0.95/1.15
(+6 dB when boosted)
Level: ±12 dB
Loudness contour
(Low) .................. +3,5 dB (100 Hz), +3 dB (10 kHz)
(Mid) ................ +10 dB (100 Hz), +6,5 dB (10 kHz)
(High) ................ +11 dB (100 Hz), +11 dB (10 kHz)
(volume: –30 dB)
Cassette player
Tape ........................ Compact cassette tape (C-30 – C-90)
Tape speed ...... 4.76 cm/sec. (+0.14cm/sec.,-0.05cm/sec.)
Fast forward/rewinding time .... Approx. 100 sec. for C-60
Wow & flutter .......................................... 0.09% (WRMS)
Frequency response .......... Metal: 30 – 19,000 Hz (±3 dB)
Stereo separation ...................................................... 45 dB
Signal-to-noise ratio
...... Metal: Dolby B NR IN: 67 dB (IEC-A network)
Dolby NR OUT: 61 dB (IEC-A network)
FM tuner(KEH-P6900R,P6900R-B)
Frequency range ...................................... 87.5 – 108 MHz
Usable sensitivity...................................................... 11 dBf
(1.0 µV/75 , mono, S/N: 30 dB)
50 dB quieting sensitivity ........................................ 16 dBf
(1.7 µV/75 , mono)
Signal-to-noise ratio ...................... 70 dB (IEC-A network)
Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo)
Frequency response ...................... 30 – 15,000 Hz (±3 dB)
Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz)
FM tuner(KEH-P6910R)
Frequency range ............................................ 65 – 74 MHz
87.5 – 108 MHz
Usable sensitivity ......................................................11 dBf
(1.0 µV/75 , mono, S/N: 30 dB)
50 dB quieting sensitivity ........................................ 16 dBf
(1.7 µV/75 , mono)
Signal-to-noise ratio ...................... 70 dB (IEC-A network)
Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo)
Frequency response ...................... 30 – 15,000 Hz (±3 dB)
Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz)
MW tuner
Frequency range ........................ 531 – 1,602 kHz (9 kHz)
Usable sensitivity .............................. 18 µV (S/N: 20 dB)
Selectivity .................................................. 50 dB (±9 kHz)
LW tuner
Frequency range ........................................ 153 – 281 kHz
Usable sensitivity .............................. 30 µV (S/N: 20 dB)
Selectivity .................................................. 50 dB (±9 kHz)
Note:
• Specifications and the design are subject to possi-
ble modification without notice due to improve­ments.
Loading...
