Pioneer DRM-1004V40 User Manual

R OM

100-DISC DVD-ROM AUTOCHANGER

DRM-1004V40

Pioneer's DVD-ROM Optical Database System Supports

Pioneer's DVD-ROM Optical Database System Supports

Advanced Data Management

Advanced Data Management

with Faster Access Plus up to 850 Huge Storage Capacity

with Faster Access Plus up to 850 Huge Storage Capacity

As office networking environments continue to expand, there
is a rapidly increasing need for reliable and efficient sys­tems that handle larger volumes of data. The launch of the
DVD-ROM helps to meet this need by providing an optical
disc medium that allows up to 4.7 GB of data to be stored on
a 12 cm single layer disc (or 8.5 GB in the case of a dual
layer disc). To allow users to take advantage of this exciting
new development, Pioneer has launched the DRM-1004V40,
a 100-disc jukebox-style autochanger featuring a 2.6X speed
DVD-ROM read-only drive that enables rapid access to as
much as 470 GB (single layer DVD)/850 GB (dual layer
DVD)of data. For extra flexibility, the DRM-1004V40 also
reads data from the latest DVD-R discs which can be written
using Pioneer's DVR-S101 DVD-R drive. This system is also
read compatible with conventional CD-ROM and CD-R discs
at 20 times the standard speed, so there's no need to
abandon your current data library in order to upgrade to
DVD-ROM. Furthermore, to complement this versatility,
Pioneer has equipped the DRM-1004V40 with an extremely
durable mechanism that ensures the highest levels of
operational reliability.

Two Separate 50-Disc Magazines

The DRM-1004V40's magazine system
can accommodate as many as 100
DVD-ROM/DVD-R or CD-ROM/CD-R
discs on two separate, removable 50-disc
magazines. This arrangement allows the
user to load and unload discs easily and
conveniently.

High-Speed Disc Exchange

Pioneer's leading-edge servo technology
enhances the data access efficiency of the
DRM-1004V40 by automatically
exchanging discs in just 6 seconds.

User-Friendly Keypad Display
and Disc Mailslot

The DRM-1004V40 is equipped
with an ergonomically designed
keypad display for simplified
operation. A convenient mailslot
allows users to insert and
retrieve individual discs on
command, thereby eliminating
the need to open the jukebox door.

Super-Fast 2.6X DVD-ROM Drive

Pioneer has designed the DRM-1004V40 to read out data from DVD-ROM
discs at a speed of 3.5 MB/s, or 2.6 times the standard DVD-ROM rate. In
addition, this autochanger is capable of reading CD-ROM discs at a
sustained data transfer rate of 3 MB/s, which is a full 20 times the standard
CD-ROM rate.

Rugged Reliability and Amazing Versatility

Designed to ensure reliable operation in heavy-use environments, the DRM­1004V40 has achieved an MSBF rating of 2.5 million disc swaps.
Furthermore, the drive is read compatible with all current DVD-ROM and
CD-ROM discs.

Simultaneous Multi-Drive Access

For high-demand data library and archive situations, Pioneer offers DRM­1004V40 models with up to four disc drives, this allows several users to
access the database at the same time.

Versatile Server/Network Compatibility

Using third-party software, the DRM-1004V40 can be easily integrated into
all popular network environments including Windows NT, SUN, HP and SGI
servers to support wide-ranging data retrieval, imaging and archival
applications.

Automatic Disc Inventory

The DRM-1004V40 incorporates a built-in non-volatile memory which
automatically inventories each magazine. The feature eliminates the risk of
inserting discs into an occupied slot,therefore preventing the risk of disc
damage.

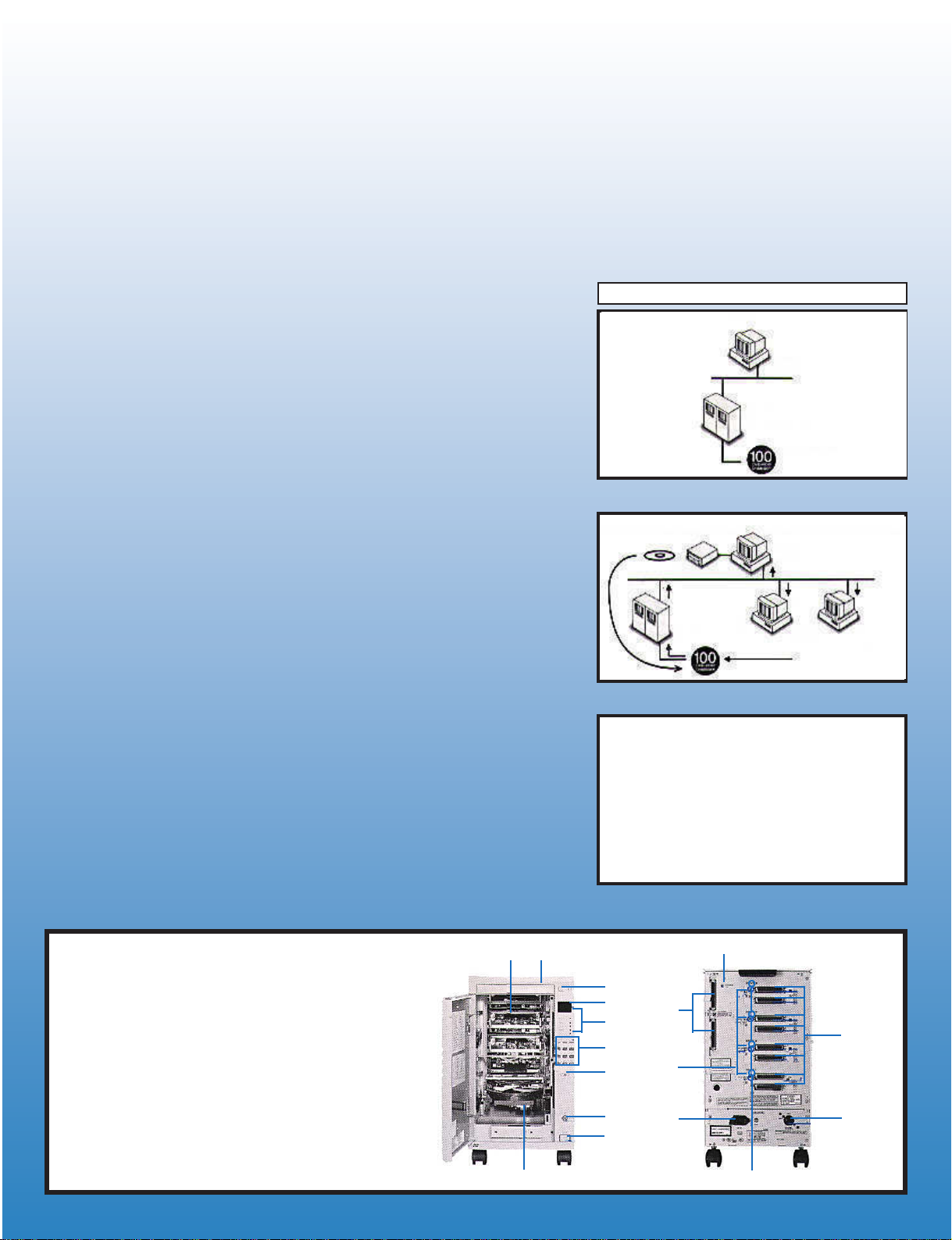

Application Example

Network Connectivity

Client

Server
(Main, Dedicated)

DRM-1004V40

DRM-1004V40:Reader only Example Configuration

Client

DVD-R

Server
(Main, Dedicated)

DRM-1004V40

Example Application Environments

-Document Imaging

-General Archiving

-Pre-Press, Printing

-Photo, Image Data Storage

-Medical Data Archiving

-CAD Data Archiving

Using the DRM-1004V40 as optical library for storage &
retrieval/archival in a network environment, data-whether created
in-house or obtained from an external source-can be accessed/
archived by network clients in transparent manner, combined with
the benefits of a centralized control.

-Data Distribution

Client

Externally provided
DVD-ROM, DVD-R

Client

Configuration & Functions

1 DVD-ROM Drive
2 Mail Slot(Tray Bezel)
3 Open/Close Button
4 Mode Indicator
5 Disc Indicator
6 Operation Key
7 Door Open Button
8 Key Switch
9 Power on/off Button
10 Elevator

11 AC Inlet

SCSI(Selector)

12

Setting Switch for Drive
SCSI Connector for

13

Changer
SCSI ID(Selector)

14

Setting for Changer
SCSI Connector for

15

Drive

16 Voltage Selector

Audio Out Terminal

17

for Drive

2

1

14

3
4

5
6
7

8

13

12

11

15

16

9

10

17

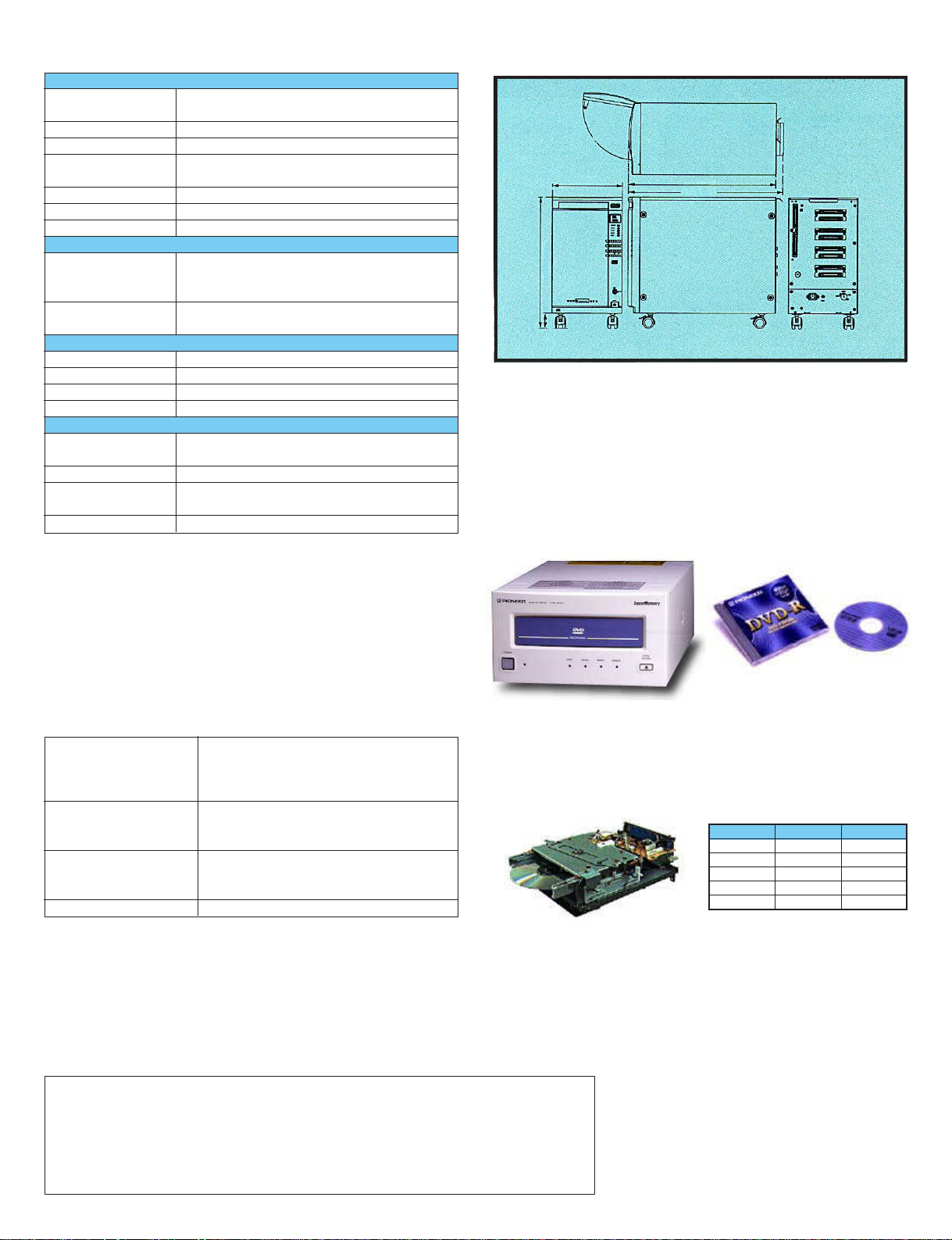

DRM-1004V40 SPECIFICATIONS DIMENSIONS

General

Number of Discs Up to 100 DVD-ROM and/or CD-ROM discs

(2 removable 50-disc magazines)
Configurations Up to four read
Interface SCSI-2
SCSI ID Individually set for each drive

and for jukebox robotics control
Disc Change Time 6 seconds
Disc Load Time Less than 3 seconds
Safety Regulations UL,CSA,TÜV,CE,FCC,VCCI,FA,DOC

Reliability

Changer Mechanism(MSBF)
Disc Change 2,500,000 times*
Mail-slot Open/Close 100,000 times
Reader Drive
MTBF 100,000 POH(Duty 20%)

Physical Characteristics

Dimensions (W x H x D) 10-3/8" x 19-1/16" x 23-1/8" (263 x 484 x 588 mm)
Weight (Net) 74 lbs. (33.6 kg)
Operating Voltage AC100V,120V, 230V
Power Consumption 70W

Environmental Conditions

Operating Temperature 41°F to 95°F degrees

5°C to 35°C degrees
Operating Humidity 5 to 80%RH
Storage Temperature -40°F to 140°F degrees

-40°C to 60°C degrees

Storage Humidity 10 to 90%RH

*Apart from consumable parts.

DVD-R Drive DVR-S101

•Maximum Recording of 3.95 Gbytes/Side Plus High Reliability
To further expand the DRM-1004V40's functionality, the DVR-S101 is capable of
writing data onto the DVD-R discs sold by Pioneer and other makers.

DVR-S101

10-3/8(263)

19-1/16(484)

2-3/16(56)

22(558.2)

23-1/8(588)

Unit: inch (mm)

INTERNAL DVD-ROM DRIVE SPECIFICATIONS

Media Type DVD-Single & Dual Layer,DVD-R,CD-ROM Mode 1,

CD-ROM XA Mode 2(form 1& 2),
CD-DA,CD-R,CD-RW,CD-Extra,Video-CD

Notes:DVD-RAM...not supported
Data Transfer Rate
DVD-ROM(single) 2,8 MB/s - 3.5 MB/s
CD-ROM(Mode 1) 1,4 MB/s - 3.0 MB/s
Random Access Time(Average)
DVD-ROM(single) 150 msec
CD-ROM(Mode 1) 120 msec
Audio Output Terminal Stereo mini jack x 1

Internal DVD-ROM Drive DVD-D302

Pioneer's DRM-1004X40 and 1004XR21 100-disc CD-ROM autochanger models
can be upgraded for DVD use by replacing their CD-ROM drive units with the
DVD-D302 DVD-ROM drive. However, upgrading is not possible in the case of
older models.(For the specifications of DVD-D302,please refer to the chart on the left.)

•For more details,contact one of the addresses below.

•Design and specifications are subject to change without notice.

•All other product names and company names are registered trademarks of their respective owners.

CONTACT

•

Pioneer Electronic Corporation (JAPAN) – URL:http://www.pioneer.co.jp/

•

Pioneer New Media Technologies (USA), Inc. – URL:http://www.pioneerusa.com/

•

Pioneer Electronics (Europe) N.V. – URL:http://www.pioneer-eur.com/

•

Pioneer Electronics Asiacentre (ASEAN) PTE.LTD.– URL:http://www.pioneer.com.sg/

DVD-R Disc
DVS-V3950S

Model Drive Speed Upgradable
DRM-1004X40 12X Yes
DRM-1004XR21 12X Yes
DRM-1004X-2 4.4X No
DRM-1004X-4 4.4X No
DRM-1004XR 4.4X No
