Operation Manual Manual de instrucciones

Multi-CD control DSP High power CD/MP3/WMA/ AAC player with RDS tuner

Reproductor de CD/MP3/WMA/AAC de alta potencia con sintonizador de RDS, DSP y control de CD múltiple

DEH-P88RS

English Español

Page 2

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man-

ual in a safe place for future reference.

Before You Start

About this unit 6 About this manual 6 In case of trouble 6 Features 7 About WMA 7 About AAC 8 Product registration 8 Protecting your unit from theft 8

– Removing the front panel 8 – Attaching the front panel 9

Resetting the microprocessor 9 Switching the DSP setting mode 9 About the demo mode 10

– Reverse mode 10 – Feature demo mode 10

Use and care of the remote control 10

– Installing the battery 10 – Using the remote control 11 – FUNCTION button and AUDIO

button 11

What’s What

Head unit 12 Remote control 12

Basic Operations

Turning the unit on 14 Selecting a source 14 Loading a disc 14 Adjusting the volume 15 Turning the unit off 15

Tuner

Listening to the radio 16 Introduction of advanced tuner

operation 17

Storing broadcast frequencies 17

Storing the strongest broadcast

frequencies 18

Selecting stations from the preset channel

list 18

Tuning in strong signals 18

RDS

Introduction of RDS operation 19 Selecting alternative frequencies 20

– Using PI Seek 20 – Using Auto PI Seek for preset

stations 20

– Limiting stations to regional

programming 20 Receiving traffic announcements 21 Using PTY functions 21

– Searching for an RDS station by PTY

information 21

– Using news program interruption 22 – Receiving PTY alarm broadcasts 22

Using radio text 22

– Displaying radio text 22 – Storing and recalling radio text 23

PTY list 24

Built-in CD Player

Playing a CD 25 Selecting a track directly 25 Introduction of advanced built-in CD player

operation 26 Repeating play 26 Playing tracks in random order 26 Scanning tracks of a CD 27 Pausing CD playback 27 Selecting the search method 27 Searching every 10 tracks in the current

disc 27 Using disc title functions 28

– Entering disc titles 28

Page 3

Contents

English

– Displaying disc titles 29

Using CD TEXT functions 29

– Displaying text information on CD TEXT

discs 29

– Scrolling text information in the

display 29

– Selecting tracks from the track title

list 29

MP3/WMA/AAC/WAV Player

Playing MP3/WMA/AAC/WAV files 30 Selecting a track directly in the current

folder 31

Introduction of advanced built-in CD player

(MP3/WMA/AAC/WAV) operation 32 Repeating play 32 Playing tracks in random order 32 Scanning folders and tracks 33 Pausing MP3/WMA/AAC/WAV playback 33 Selecting the search method 33 Searching every 10 tracks in the current

folder 33 Displaying text information on MP3/WMA/

AAC/WAV disc 34

– When playing back an MP3/WMA/AAC

disc 34

– When playing back a WAV disc 34 Scrolling text information in the display 34 Selecting tracks from the file name list 35

Multi-CD Player

Playing a CD 36 Selecting a track directly 36 50-disc multi-CD player 37 Introduction of advanced multi-CD player

operation 37 Repeating play 38 Playing tracks in random order 38 Scanning CDs and tracks 38

Pausing CD playback 39 Using ITS playlists 39

– Creating a playlist with ITS

programming 39

– Playback from your ITS playlist 39 – Erasing a track from your ITS

playlist 40

– Erasing a CD from your ITS playlist 40

Using disc title functions 40

– Entering disc titles 40 – Displaying disc titles 41 – Selecting discs from the disc title

list 41

Using CD TEXT functions 41

– Displaying text information on CD TEXT

discs 42

– Scrolling text information in the

display 42

– Selecting tracks from the track title

list 42

Playing songs on iPod

Listening to songs on your iPod 43 Browsing for a song 43

– Searching for a song 43 – Selecting a playlist 44

Displaying text information on iPod 44 Introduction of advanced iPod adapter

operation 45

Repeating play 45 Playing songs in a random order

(shuffle) 45

Pausing a song 46

TV tuner

Watching the television 47 Introduction of advanced TV tuner

operation 48

Storing broadcast stations 48

Page 4

Contents

Storing the strongest broadcast stations

sequentially 48

Selecting stations from the preset channel

list 49

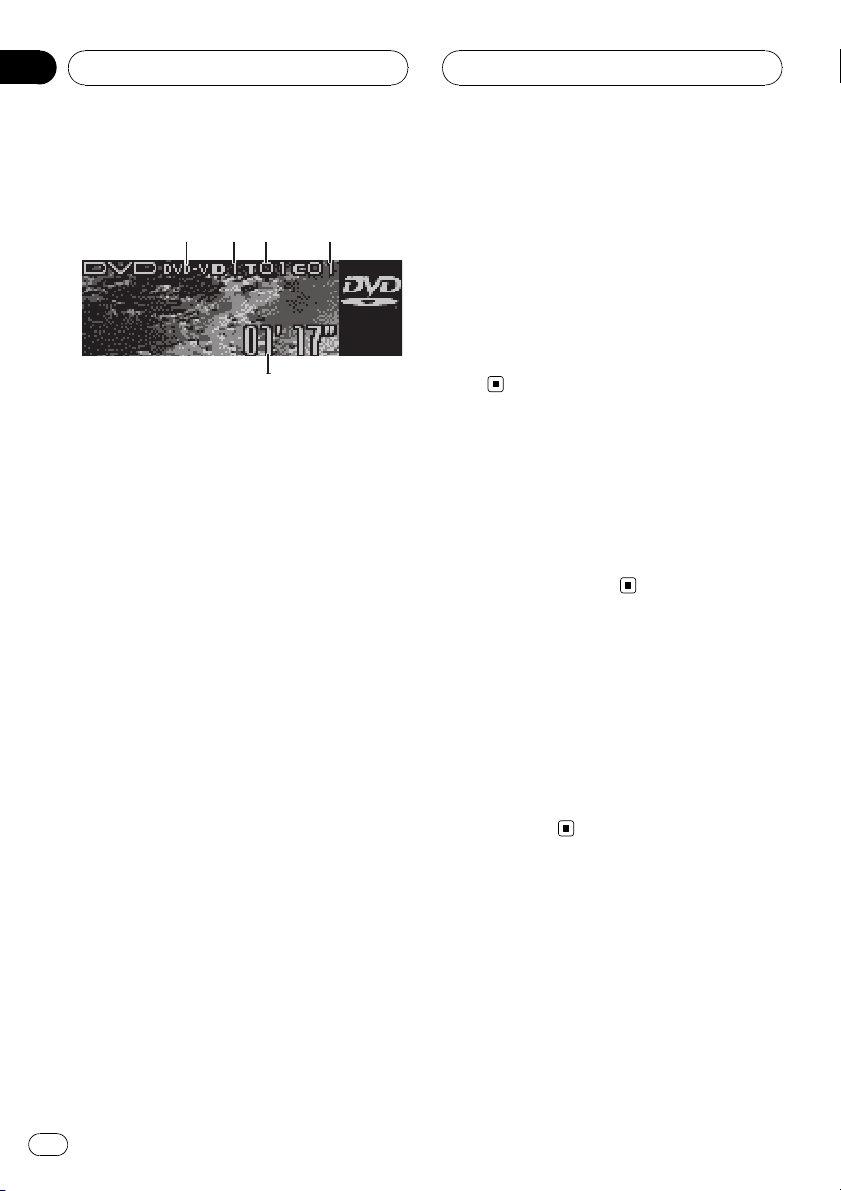

DVD Player

Playing a disc 50 Selecting a disc 50 Selecting a folder 50 Introduction of advanced DVD player

operation 51 Repeating play 51 Pausing disc playback 52 Playing tracks in random order 52 Scanning tracks of a CD/MP3/WMA 52 Using ITS playlist and disc title functions 52 Using disc title functions 52

– Entering disc titles 53

Audio Adjustments Operation modes 54

– Operation mode marks 54

3-way network mode

– Adjusting the audio easily 54 – Adjusting the audio finely 54

Standard mode

– Adjusting the audio easily 54 – Adjusting the audio finely 54

Extra functions 55 Introduction of audio adjustments 55 Switching left and right channel 56 Using the position selector 57 Using balance adjustment Using balance adjustment Using the time alignment 57

– Adjusting the time alignment 58

About the network function

– Adjustable parameters 59

57 57

– Points concerning network

adjustments 59

– Muting the speaker unit (filter) 60 – Adjusting network 60

Using subwoofer output

– Using subwoofer output 61 – Adjusting subwoofer settings 62 – Adjusting low pass filter attenuation

slope 62

Using the high pass filter

– Muting the speaker units (filters) 62 – Setting the high pass filter for front

speakers 63

– Setting the high pass filter for rear

speakers 63 Using BBE sound 64 Using BMX and compression 64 Using the auto-equalizer 64 Recalling equalizer curves 65 Adjusting equalizer curves 65 Adjusting 16-band graphic equalizer 65 Adjusting loudness 66 Using automatic sound levelizer 66 Adjusting source levels 66 Auto TA and EQ (auto-time alignment and

auto-equalizing) 67

– Before operating the auto TA and EQ

function 67

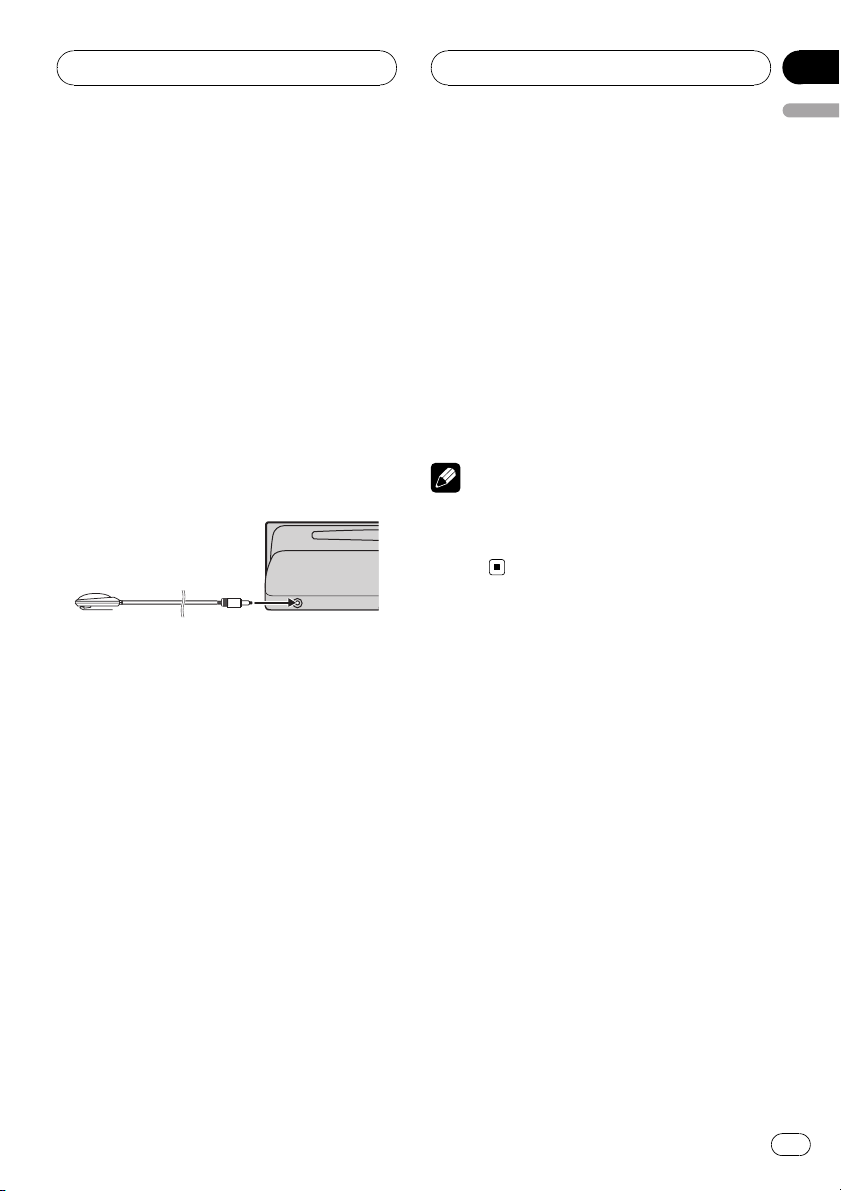

– Carrying out auto TA and EQ 68

Initial Settings

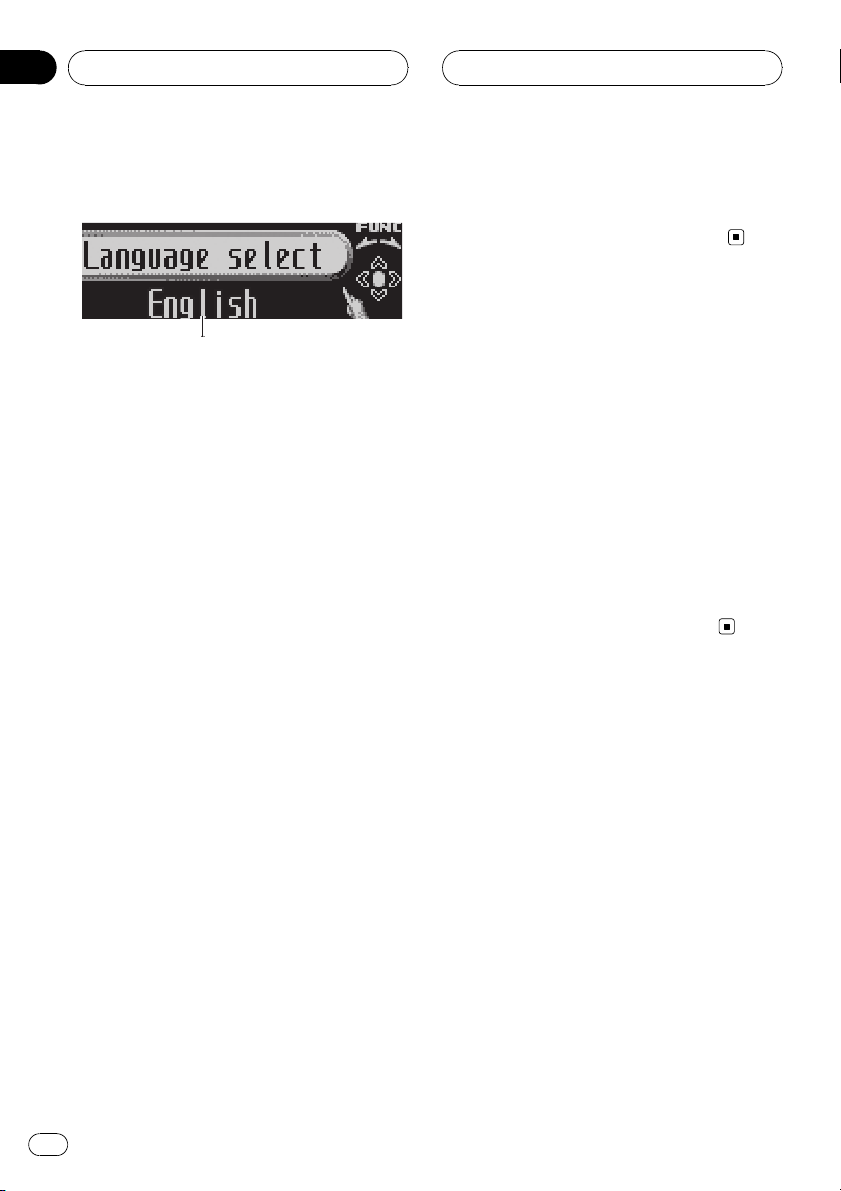

Adjusting initial settings 70 Selecting the display language 70 Setting the clock 70 Turning the off clock display on or off 71 Setting the FM tuning step 71 Switching Auto PI Seek 71 Switching the warning tone 72 Switching the face auto open 72

Page 5

Contents

Switching the auxiliary setting 72 Switching the dimmer setting 72 Adjusting the brightness 72 Correcting distorted sound 73 Resetting the audio functions 73 Switching the sound muting/attenuation 73 Setting the internal power amplifier 73 Switching the feature demo 74 Switching the reverse mode 74 Switching the Ever Scroll 74

Other Functions Using the AUX source 75

– About AUX1 and AUX2 75 – Selecting AUX as the source 75 – Setting the AUX title 75

Using different entertainment displays 76 Using the PGM button 77

English

Additional Information

Understanding built-in CD player error

messages 78

Understanding auto TA and EQ error

messages 78 CD player and care 79 CD-R/CD-RW discs 79 MP3, WMA, AAC and WAV files 80

– MP3 additional information 80 – WMA additional information 81 – AAC additional information 81 – WAVadditional information 81

About folders and MP3/WMA/AAC/WAV

files 81 Terms 83 Specifications 85

Page 6

Section

Before You Start

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please contact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

About this unit

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function operates only in areas with FM stations broadcasting RDS signals.

CAUTION

! Do not allow this unit to come into contact

with liquids. Electrical shock could result. Also, this unit damage, smoke, and overheat could result from contact with liquids.

! “CLASS 1 LASER PRODUCT”

! This product contains a laser diode of higher

class than 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

! The Pioneer CarStereo-Pass is for use only in

Germany.

! Keep this manual handy as a reference for op-

erating procedures and precautions.

! Always keep the volume low enough so that

you can hear sounds from outside the vehicle.

! Protect this unit from moisture. ! If the battery is disconnected or discharged,

the preset memory will be erased and must be reprogrammed.

About this manual

This unit features a number of sophisticated functions ensuring superior reception and operation. All the functions have been designed for the easiest possible use, but many are not self-explanatory. This operation manual will help you benefit fully from this unit’s potential and to maximize your listening enjoyment. We recommend that you familiarize yourself with the functions and their operation by reading through the manual before you begin using this unit. It is especially important that you read and observe WARNINGs and CAU- TIONs in this manual.

In case of trouble

Should this product fail to operate properly, contact your dealer or nearest authorized Pioneer Service Station.

Page 7

Before You Start

Section

English

Features

CD playback

Music CD/CD-R/CD-RW playback is possible.

MP3 file playback

You can play back MP3 files recorded on CDROM/CD-R/CD-RW (ISO9660 Level 1/Level 2 standard recordings). ! Supply of this product only conveys a li-

cense for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue-generating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

WMA file playback

You can play back WMA files recorded on CDROM/CD-R/CD-RW (ISO9660 Level 1/Level 2 standard recordings).

High quality sound

This unit features high performance DSP system to output the clear and realistic sound.

Multiple IP-BUS control

This unit can control any Pioneer source unit with IP-BUS, such as Multi-CD player, DVD player and TV tuner. ! Some Pioneer source units may not be fully

controlled with this unit. For more details, please consult your nearest dealer.

iPod compatibility

When you use this unit with a Pioneer iPod adapter (CD-IB100), you can control an iPod with Dock Connector. ! iPod is a trademark of Apple Computer,

Inc., registered in the U.S. and other countries.

About WMA

AAC file playback

You can play back AAC files recorded on CDROM/CD-R/CD-RW (ISO9660 Level 1/Level 2 standard recordings).

WAV file playback

You can play back WAV files recorded on CD ROM/CD-R/CD-RW (Linear PCM (LPCM)/MS ADPCM recordings).

RDS (radio data system) receiver

This unit’s RDS tuner receives the radio data broadcast service.

The Windows Media™ logo printed on the box indicates that this unit can play back WMA data. WMA is short for Windows Media Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 7 or later. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Page 8

Section

Before You Start

Notes

! This unit may not operate correctly depending

on the application used to encode WMA files.

! Depending on the version of Windows Media

Player used to encode WMA files, album names and other text information may not be correctly displayed.

About AAC

AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG 2 and MPEG 4. Several applications can be used to encode AAC files, but file formats and extensions differ depending on the application which is used to encode. This unit plays back AAC files encoded by

iTunes

version 4.8 and earlier.

iTunes

is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

Product registration

Visit us at the following site:

Protecting your unit from theft

The front panel can be detached from the head unit and stored in the provided protective case to prevent thef t. ! If the front panel is not detached from the

head unit within five seconds of turning off the ignition, a warning tone will sound and the front panel will open.

! You can turn off the warning tone. See

Switching the warning tone on page 72.

! You can turn off the face auto open. See

Switching the face auto open on page 72.

Important

! Never use force or grip the display and the

buttons too tightly when removing or attaching.

! Avoid subjecting the front panel to excessive

shocks.

! Keep the front panel out of direct sunlight and

high temperatures.

! A few seconds after turning the ignition

switch to on or off, the front panel automatically moves. When this happens, your fingers may become jammed in the panel, so keep your hands away from it.

! When removing the front panel, be sure to

hold the corrugated release button on the rear of the front panel while pulling.

! Register your product. We will keep the de-

tails of your purchase on file to help you refer to this information in the event of an insurance claim such as loss or theft.

Removing the front panel

1 Press EJECT to open the front panel.

If a disc has been inserted to this unit, pressing and holding EJECT enable to open the front panel without ejecting a disc.

Page 9

Before You Start

2 Press the release button, slide and remove the front panel toward you.

Take care not to grip it too tightly or to drop the front panel and protect it from contact with water or other fluids to prevent permanent damage.

Section

English

Resetting the microprocessor

The microprocessor must be reset under the following conditions: ! Prior to using this unit for the first time

after installation

! If the unit fails to operate properly ! When strange or incorrect messages ap-

pear on the display

% Press RESET with a pen tip or other pointed instrument.

Release button

3 Put the front panel into provided protective case for safe keeping.

Attaching the front panel

1 Make sure the inner cover is closed.

2 Replace the front panel by clipping it into place.

RESET button

Switching the DSP setting mode

This unit features two operation modes: the 3way network mode (NW) and the standard mode (STD). You can switch between modes as desired. Initially, the DSP setting is set to the standard mode (STD). ! After switching, reset the microprocessor.

WARNING

Do not use the unit in standard mode when a speaker system for 3-way network mode is connected to this unit. This may cause damage to the speakers.

Page 10

Section

Before You Start

% Use a thin standard tip screwdriver to switch the DSP switch on the side of this unit.

Note

Even when the battery is disconnected or the microprocessor is reset, this unit’s audio setting remains in the memory for at least one day. If you want to reset the audio setting, refer to Resetting the audio functions on page 73.

About the demo mode

This unit features two demonstration modes. One is the reverse mode, the other is the feature demo mode.

Important

The red lead (ACC) of this unit should be connected to a terminal coupled with ignition switch on/off operations. If this is not done, the vehicle battery may be drained.

g the reverse mode . For more details, see Switching the reverse mode on page 74.

Feature demo mode

The feature demo automatically starts when power to this unit is turned off while the ignition switch is set to ACC or ON. Pressing DISPLAY during feature demo operation cancels the feature demo mode. Press DISPLAY again to start the feature demo mode. Remember that if the feature demo continues operating when the car engine is turned off, it may drain battery power. ! You can also perform the same operation

from Switching the feature demo on Initial

Settings. For more details, see Switching the feature demo on page 74.

Use and care of the remote control

Installing the battery

Slide the tray out on the back of the remote control and insert the battery with the plus (+) and minus (–) poles pointing in the proper direction. ! When using for the first time, pull out the

film protruding from the tray.

Reverse mode

If you do not perform an operation within about 30 seconds, screen indications start to reverse, and then continue reversing every 10 seconds. Pressing BAND when power to this unit is turned off while the ignition switch is set to ACC or ON cancels the reverse mode. Press BAND again to start the reverse mode. ! You can also perform the same operation

from Switching the reverse mode on Initial

WARNING

Keep the battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

Page 11

Before You Start

Section

English

CAUTION

! Use only one CR2025 (3 V) lithium battery. ! Remove the battery if the remote control is not

used for a month or longer.

! Do not recharge, disassemble, heat or dispose

of the battery in fire.

! Do not handle the battery with metallic tools. ! Do not store the battery with metallic materi-

als.

! In the event of battery leakage, wipe the re-

mote control completely clean and install a new battery.

! When disposing of used batteries, please

comply with governmental regulations or environmental public institutions’ rules that apply in your country/area.

Using the remote control

Point the remote control in the direction of the front panel to operate. ! The remote control may not function prop-

erly in direct sunlight.

Important

! Do not store the remote control in high tem-

peratures or direct sunlight.

! Do not let the remote control fall onto the

floor, where it may become jammed under the brake or accelerator pedal.

FUNCTION button and AUDIO button

You can also select the desired mode by FUNCTION button and AUDIO button on the remote control. But operation of FUNCTION button and AUDIO button on the remote control differs from the operation of MULTI-CONTROL on the head unit. When operating the remote control, switch through the modes as described below to select the mode.

FUNCTION button operation

% Press FUNCTION to select the desired mode (e.g., built-in CD player).

Press FUNCTION repeatedly to switch between the following modes: Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)—Search mode (search method)—TitleInput "A" (disc title input)

Note

Refer to Introduction of advanced built-in CD player operation on page 26.

AUDIO button operation

% Press AUDIO to select the desired mode.

Press AUDIO repeatedly to switch between the following modes: Standard mode F/B (balance adjustment)—POSI (position selector)—TA1 (time alignment setting)—TA 2 (time alignment adjusting)—LOUD (loudness) —EQ 1 (graphic equalizer)—EQ 2 (16-band graphic equalizer)—SW 1 (subwoofer on/off) —SW 2 (subwoofer cut-off frequency)—SW 3 (subwoofer slope)—F.HPF 1 (front high pass filter slope)—F.HPF 2 (front high pass filter cut-off frequency)—R.HPF 1 (rear high pass filter slope)—R.HPF 2 (rear high pass filter cutoff frequency)—BBE (BBE)—BMX (BMX and compression)—A.EQ (auto-equalizer on/off)— ASL (automatic sound levelizer)—SLA (source level adjustment)

Note

Refer to Introduction of audio adjustments on page 55.

Page 12

143

56789

Section

What’s What

Head unit

1 EQ button

Press to select various equalizer curves.

2 Display off indicator

Lights up when the display is turned off.

3 EJECT button

Press to eject a CD from your built-in CD player. Press and hold to open or close the front panel.

4 BAND button

Press to select among three FM bands and MW/LW bands and to cancel the control mode of functions.

5 DISPLAY button

Press to select different displays.

6 MULTI-CONTROL

Move to perform manual seek tuning, fast forward, reverse and track search controls. Also used for controlling functions. Turn to display the disc title list, track title list, folder list, file list or preset channel list depending on the source.

7 RESET button

Press to reset the microprocessor.

8 SOURCE button, VOLUME

This unit is turned on by selecting a source. Press to cycle through all the available sources. Rotate it to increase or decrease the volume.

9 TA button

Press to turn TA function on or off. Press and hold to turn NEWS function on or off.

Remote control

Operation is the same as when using the buttons on the head unit.

9 VOLUME buttons

Press to increase or decrease the volume.

a FUNCTION button

Press to select functions.

b Joystick

Move to perform manual seek tuning, fast forward, reverse and track search controls. Also used for controlling functions. Press to display the disc title list, track title list, folder list, file list or preset channel list depending on the source.

Page 13

93a

What’s What

c DIRECT button

Press to directly select the desired track.

Section

English

i AUDIO button

Press to select various sound quality controls.

d CLEAR button

Press to cancel the input number when 0–9 are used.

e 0–9 buttons

Press to directly select the desired track, preset tuning or disc. Buttons 1–6 can operate the preset tuning for the tuner or disc number search for the multi-CD player.

f PGM button

Press to operate the preprogrammed functions for each source. (Refer to Using the PGM button on page 77.)

g ATT button

Press to quickly lower the volume level, by about 90%. Press once more to return to the original volume level.

h ENTERTAINMENT button

Press to change to the entertainment display.

Page 14

Section

Basic Operations

Turning the unit on

% Press SOURCE to turn the unit on.

When you select a source, the unit is turned on.

Selecting a source

You can select a source you want to listen to. To switch to the built-in CD player, load a disc in the unit (refer to page 25).

% Press SOURCE to select a source.

Press SOURCE repeatedly to switch between the following sources:

Tuner—Television—DVD player/MultiDVD player—Built-in CD player—MultiCD player—iPod—External unit 1—External unit 2—AUX1—AUX2

Notes

! In the following cases, the sound source will

not change: — When there is no unit corresponding to the

selected source connected to this unit.

— When there is no disc in the unit. — When there is no disc in the DVD player. — When there is no magazine in the multi-

CD player.

— When there is no magazine in the multi-

DVD player.

— When the AUX (auxiliary input) is set to off

(refer to page 72).

! External unit refers to a Pioneer product (such

as one available in the future) that, although incompatible as a source, enables control of basic functions by this unit. Two external units can be controlled by this unit. When two external units are connected, the allocation of them to external unit 1 or external unit 2 is automatically set by this unit.

! When this unit’s blue/white lead is connected

to the vehicle’s auto-antenna relay control

terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off.

Loading a disc

1 Press EJECT to open the front panel.

CD loading slot appears.

# After a CD has been inserted, press SOURCE to select the built-in CD player.

2 Insert a CD into the CD loading slot.

Front panel is closed automatically, and playback will start.

CD loading slot

# You can eject a CD by pressing EJECT.

Notes

! The built-in CD player plays one standard, 12-

cm or 8-cm CD at a time. Do not use an adapter when playing 8-cm CDs.

! Do not insert anything other than a CD into

the CD loading slot.

! There is sometimes a delay between starting

up CD playback and the sound being issued. When being read, Format read is displayed.

! If you cannot insert a disc completely or if

after you insert a disc the disc does not play, check that the label side of the disc is up. Press EJECT to eject the disc, and check the disc for damage before inserting it again.

Page 15

Basic Operations

! When the CD loading or ejecting function

does not operate properly, you can eject the CD by pressing and holding EJECT while opening the front panel.

! If an error message such as ERROR-11 is dis-

played, refer to Understanding built-in CD player error messages on page 78.

Adjusting the volume

% Use VOLUME to adjust the sound level.

With the head unit, rotate VOLUME to increase or decrease the volume. With the remote control, press VOLUME to increase or decrease the volume.

Turning the unit off

% Press SOURCE and hold until the unit turns off.

Section

English

Page 16

12354

Section

Tuner

Listening to the radio

These are the basic steps necessary to operate the radio. More advanced tuner operation is explained starting on the next page. This unit’s AF (alternative frequencies search) function can be turned on and off. AF should be off for normal tuning operation (refer to page 20).

1 Band indicator

Shows which band the radio is tuned to, MW/LWor FM.

2 Stereo (5) indicator

Shows when the selected frequency is being broadcast in stereo.

2 Press BAND to select a band.

Press BAND until the desired band is displayed, FM-1, FM-2, FM-3 for FM or MW/LW.

3 To perform manual tuning, push MULTI-CONTROL left or right.

The frequencies move up or down step by step.

4 To perform seek tuning, push and hold MULTI-CONTROL left or right for about one second and release.

The tuner will scan the frequencies until a broadcast strong enough for good reception is found.

# You can cancel seek tuning by pushing MULTI-CONTROL left or right. # If you push and hold MULTI-CONTROL left or right you can skip stations. Seek tuning starts as soon as you release MULTI-CONTROL.

3 Preset number indicator

Shows which preset has been selected.

4 LOC indicator

Shows when local seek tuning is on.

5 Signal level indicator

Shows the radio wave strength.

6 Frequency indicator

Shows the frequency to which the tuner is tuned.

1 Press SOURCE to select the tuner. Press SOURCE until you see Tuner displayed.

Page 17

Tuner

Section

English

Introduction of advanced tuner operation

1 Function display

Shows the function status.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order: BSM (best stations memory)—Regional (regional)—Local (local seek tuning)—

PTY Search (program type selection)— Traffic ANNOUNCE (traffic announcement

standby)—Alternative FREQ (alternative frequencies search)—News Interrupt (news program interruption)

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise. # To return to the frequency display, press BAND. # If MW/LW band is selected, you can only select BSM or Local.

Note

If you do not operate the function within about 30 seconds, the display is automatically returned to the frequency display.

Storing broadcast frequencies

You can easily store up to six broadcast frequencies for later recall.

1 When you find a station that you want to store in memory, turn MULTI-CONTROL to switch to the preset channel list mode.

2 Use MULTI-CONTROL to store the selected station in memory.

Turn to change the preset number; press and hold to store. The number you have selected will flash in the preset number list and then remain lit. The selected radio station frequency has been stored in memory.

# If you do not operate the list within about 30 seconds, the preset channel list mode is canceled automatically.

Notes

! Program service name is not displayed unless

the radio receives the frequency.

! Up to 18 FM stations, six for each of the three

FM bands, and six MW/LW stations can be stored in memory.

! You can also store a broadcast frequency in

memory pressing 1–6 on the remote control.

Page 18

Section

Tuner

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies under preset tuning buttons 1–6. Once stored you can tune in to those frequencies with the touch of button.

1 Use MULTI-CONTROL to select BSM. BSM appears in the display.

2 Press MULTI-CONTROL to turn BSM on. Searching is displayed. While Searching is

displayed, the six strongest broadcast frequencies will be stored under preset tuning numbers 1–6 in the order of their signal strength. When finished, the preset channel list appears.

# To cancel the storage process, press

MULTI-CONTROL.

3 Use MULTI-CONTROL to select the desired station.

Turn to change the station; press to select.

# You can also change the station by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the preset channel list mode is canceled automatically.

Note

Storing broadcast frequencies with BSM may replace broadcast frequencies you have saved using buttons 1–6.

Selecting stations from the preset channel list

The preset channel list lets you see the list of preset stations and select one of them to receive.

1 Turn MULTI-CONTROL to switch to the preset channel list mode.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select the desired station.

Turn to change the station; press to select.

# You can also change the station by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the preset channel list mode is canceled automatically.

Notes

! You can also recall stations assigned to preset

tuning numbers by pushing MULTI-CONTROL up or down during the channel display.

! You can also recall stations assigned to preset

tuning numbers 1–6 by pressing one of the preset tuning buttons 1–6 on the remote control.

Tuning in strong signals

Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception.

1 Use MULTI-CONTROL to select Local. Local appears in the display.

2 Press MULTI-CONTROL to turn local seek tuning on.

Local seek sensitivity (e.g., Level 2) appears in the display.

# To turn local seek tuning off, press

MULTI-CONTROL again.

3 Push MULTI-CONTROL left or right to set the sensitivity.

There are four levels of sensitivity for FM and two levels for MW/LW: FM: Level 1—Level 2—Level 3—Level 4 MW/LW: Level 1—Level 2 The Level 4 setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

Page 19

12354

RDS

Section

English

Introduction of RDS operation

RDS (radio data system) is a system for providing information along with FM broadcasts. This inaudible information provides such features as program service name, program type, traffic announcement standby and automatic tuning, and is intended to aid radio listeners in finding and tuning in to a desired station.

1 Band indicator

Shows which band the radio is tuned to, MW/LWor FM.

2 Stereo (5) indicator

Shows when the selected frequency is being broadcast in stereo.

3 Preset number indicator

Shows which preset has been selected.

4 LOC indicator

Shows when local seek tuning is on.

5 Signal level indicator

Shows the radio wave strength.

6 TEXT indicator

Shows when the radio text is received.

7 PTY (program type ID code) information

Shows the PTY (program type ID code) information

! PTY (program type ID code) information

is listed on page 24.

! If a PTY code of zero is received from a

station, display is blank. This indicates that the station has not defined its program contents.

! If the signal is too weak for this unit to

pick up the PTY code, the PTY information display is blank.

8 Program service name

Shows the name of broadcast program.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order: BSM (best stations memory)—Regional (regional)—Local (local seek tuning)—

PTY Search (program type selection)— Traffic ANNOUNCE (traffic announcement

standby)—Alternative FREQ (alternative frequencies search)—News Interrupt (news program interruption)

Page 20

Section

RDS

Notes

! If you do not operate the function within about

30 seconds, the display is automatically returned to the frequency display.

! RDS service may not be provided by all sta-

tions.

! RDS functions such as AF and TA are only ac-

tive when your radio is tuned to an RDS station.

Selecting alternative frequencies

If you are listening to a broadcast and the reception becomes weak or there are other problems, the unit will automatically search for a different station in the same network which is broadcasting a stronger signal. ! The default setting for AF is on.

1 Use MULTI-CONTROL to select Alternative FREQ. Alternative FREQ appears in the display.

2 Press MULTI-CONTROL to turn AF on. AF ON appears in the display.

# To turn AF off, press MULTI-CONTROL again.

Notes

! Only RDS stations are tuned in during seek

tuning or BSM when AF is on.

! When you recall a preset station, the tuner

may update the preset station with a new frequency from the station’s AF list. No preset number appears on the display if the RDS data for the station received differs from that of the originally stored station.

! Sound may be temporarily interrupted by an-

other program during an AF frequency search.

! AF can be turned on or off independently for

each FM band.

Using PI Seek

If the unit fails to find a suitable alternative frequency, or if you are listening to a broadcast and the reception becomes weak, the unit will automatically search for a different station with the same programming. During the search, PI SEEK is displayed and the output is muted. The muting is discontinued after completion of the PI Seek, whether or not a different station is found.

Using Auto PI Seek for preset stations

When preset stations cannot be recalled, as when travelling long distances, the unit can be set to perform PI Seek during preset recall. ! The default setting for Auto PI Seek is off.

See Switching Auto PI Seek on page 71.

Limiting stations to regional programming

When AF is used to automatically retune frequencies, the regional function limits the selection to stations broadcasting regional programs.

1 Use MULTI-CONTROL to select Regional. Regional appears in the display.

2 Press MULTI-CONTROL to turn the regional function on. ON appears in the display.

# To turn the regional function off, press

MULTI-CONTROL again.

Page 21

RDS

Section

English

Notes

! Regional programming and regional networks

are organized differently depending on the country (i.e., they may change according to the hour, state or broadcast area).

! The preset number may disappear on the dis-

play if the tuner tunes in a regional station which differs from the originally set station.

! The regional function can be turned on or off

independently for each FM band.

Receiving traffic announcements

TA (traffic announcement standby) lets you receive traffic announcements automatically, no matter what source you are listening to. TA can be activated for both a TP station (a station that broadcasts traffic information) or an enhanced other network’s TP station (a station carrying information which cross-references TP stations).

1 Tune in a TP or enhanced other network’s TP station.

2 Press TA to turn traffic announcement standby on.

Press TA and TA ON appears in the display. The tuner will stand-by for traffic announcements.

# To turn traffic announcements standby off, press TA again.

3 Use MULTI-CONTROL to adjust the TA volume when a traffic announcement begins.

Rotate it to increase or decrease the volume. The newly set volume is stored in memory and recalled for subsequent traffic announcements.

4 Press TA while a traffic announcement is being received to cancel the announcement.

The tuner returns to the original source but remains in the standby mode until TA is pressed again.

# You can also cancel the announcement by pressing SOURCE, BAND or MULTI-CONTROL while a traffic announcement is being received.

Notes

! When a traffic announcement is received, traf-

fic announcement interruption screen is displayed.

! You can also turn the TA function on or off in

the menu that appears by using MULTI-CONTROL.

! The system switches back to the original

source following traffic announcement reception.

! Only TP and enhanced other network’s TP sta-

tions are tuned in during seek tuning or BSM when TA is on.

Using PTY functions

You can tune in a station by using PTY (program type) information.

Searching for an RDS station by PTY information

You can search for general types of broadcasting programs, such as those listed on page

24.

1 Use MULTI-CONTROL to select PTY Search. PTY Search appears in the display.

Page 22

Section

RDS

2 Push MULTI-CONTROL left or right to select a program type.

There are four program types:

News&Inf—Popular—Classics—Others

3 Press MULTI-CONTROL to begin the search.

When you press MULTI-CONTROL the program type name in the display begins to flash. The unit searches for a station broadcasting that program type.

# To cancel the search, press MULTI-CONTROL again.

Notes

! The program of some stations may differ from

that indicated by the transmitted PTY.

! If no station is broadcasting the type of pro-

gram you searched for, Not Found is displayed for about two seconds and then the tuner returns to the original station.

Using news program interruption

When a news program is broadcast from a PTY code news station, the unit can switch from any station to the news broadcast station. When the news program ends, reception of the previous program resumes.

% Press TA and hold to turn on news program interruption.

Press TA until NEWS ON appears in the display.

# To turn off news program interruption, press TA and hold until NEWS OFF appears in the dis- play. # A news program can be canceled by pressing TA. # You can also cancel the news program by pressing SOURCE, BAND or MULTI-CONTROL while a news program is being received.

Notes

! When a news program is received, news pro-

gram interruption screen is displayed.

! You can also turn on or off news program in

the menu that appears by using MULTI-CONTROL.

Receiving PTY alarm broadcasts

PTY alarm is a special PTY code for announcements regarding emergencies such as natural disasters. When the tuner receives the radio alarm code, ALARM appears on the display and the volume adjusts to the TA volume. When the station stops broadcasting the emergency announcement, the system returns to the previous source. ! An emergency announcement can be can-

celed by pressing TA.

! You can also cancel an emergency an-

nouncement by pressing SOURCE, BAND or MULTI-CONTROL.

Using radio text

This tuner can display radio text data transmitted by RDS stations, such as station information, the name of the currently broadcast song and the name of the artist. ! The tuner automatically memorizes the

three latest radio text broadcasts received, replacing text from the least recent reception with new text when it is received.

Displaying radio text

You can display the currently received radio text and the three most recent radio texts.

Page 23

RDS

1 Press DISPLAY and hold to display radio text.

Radio text for the currently broadcasting station is displayed.

# You can cancel radio text display by pressing DISPLAY or BAND. # When no radio text is received, No text ap- pears in the display.

2 Push MULTI-CONTROL left or right to recall the three most recent radio texts.

Pushing MULTI-CONTROL left or right switches between the current and the three radio text data displays.

# If there is no radio text data in memory the display will not change.

3 Push MULTI-CONTROL up or down to scroll.

Push MULTI-CONTROL up to go to the begin- ning. Push MULTI-CONTROL down to scroll the radio text data.

Section

English

Storing and recalling radio text

Only the remote control can operate this function.

You can store data from up to six radio text transmissions for buttons 1–6.

1 Display the radio text you want to store in memory.

Refer to Displaying radio text on the previous page.

2 Press and hold any buttons 1–6 on the remote control to store the selected radio text.

The memory number will display and the selected radio text will be stored in memory. The next time you press the same button on the remote control in the radio text display the stored text is recalled from memory.

Page 24

Section

RDS

PTY list

General Specific Type of program

News&Inf News News

Affairs Current affairs

Info General information and advice

Sport Sports

Weather Weather reports/meteorological information

Finance Stock market reports, commerce, trading, etc.

Popular Pop Mus Popular music

Rock Mus Contemporary modern music

Easy Mus Easy listening music

Oth Mus Non-categorized music

Jazz Jazz

Country Country music

Nat Mus National music

Oldies Oldies, golden oldies

Folk mus Folk music

Classics L. Class Light classical music

Classic Classical music

Others Educate Educational programs

Drama Radio plays and serials

Culture National or regional culture

Science Nature, science and technology

Varied Light entertainment

Children Children’s

Social Social affairs

Religion Religious affairs or services

Phone In Phone in

Touring Travel programs; not for traffic announcements

Leisure Hobbies and recreational activities

Document Documentaries

Page 25

Built-in CD Player

Section

English

Playing a CD

These are the basic steps necessary to play a CD with your built-in CD player. More advanced CD operation is explained starting on the next page.

1 Track number indicator

Shows the track number currently playing.

2 Play time indicator

Shows the elapsed playing time of the current track.

1 Press SOURCE to select the built-in CD player.

Press SOURCE until you see Compact Disc displayed.

# If no disc is loaded in the unit, you cannot select Compact Disc (built-in CD player). Insert a disc in the unit. (Refer to page 14.)

2 To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

# If you select Rough search, pushing and hold- ing MULTI-CONTROL left or right enables you to search every 10 tracks in the current disc. (Refer to Selecting the search method on page 27.)

of the current track. Pushing again will skip to the previous track.

Note

When a CD TEXT disc is inserted, the disc title automatically begins to scroll in the display. When Ever Scroll is set to ON at the initial setting, the disc title scrolls continuously. Refer to Switch- ing the Ever Scroll on page 74.

Selecting a track directly

When using the remote control, you can select a track directly by entering the desired track number.

1 Press DIRECT.

Track number input display appears.

2 Press 0–9 buttons to enter the desired track number.

# You can cancel the input number by pressing

CLEAR.

3 Press DIRECT.

The track of entered number will play.

Note

After entering the number input mode, if you do not perform an operation within about eight seconds, the mode is automatically canceled.

3 To skip back or forward to another track, push MULTI-CONTROL left or right.

Pushing MULTI-CONTROL right skips to the start of the next track. Pushing MULTI-CONTROL left once skips to the start

Page 26

Section

Built-in CD Player

Introduction of advanced built-in CD player operation

1 Function display

Shows the function status.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order: Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)—Search mode (search method)—TitleInput "A" (disc title input)

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise. # To return to the playback display, press BAND.

Notes

! If you do not operate the function within about

30 seconds, the display is automatically returned to the playback display.

! TitleInput "A" (disc title input) function is

not canceled automatically.

Repeating play

There are two repeat play ranges for the builtin CD player: Disc repeat (disc repeat) and

Track repeat (one-track repeat).

1 Use MULTI-CONTROL to select Play mode. Play mode appears in the display.

2 Press MULTI-CONTROL to select the repeat range.

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! Disc repeat – Repeat the current disc ! Track repeat – Repeat just the current

track

Note

If you perform track search or fast forward/reverse during Track repeat, the repeat play range changes to Disc repeat.

Playing tracks in random order

Random play lets you play back tracks on the CD in a random order.

1 Use MULTI-CONTROL to select Random mode. Random mode appears in the display.

2 Press MULTI-CONTROL to turn random play on.

Tracks will play in a random order.

# To turn random play off, press MULTI-CONTROL again.

Page 27

Built-in CD Player

Section

English

Scanning tracks of a CD

Scan play lets you hear the first 10 seconds of each track on the CD.

1 Use MULTI-CONTROL to select Scan mode. Scan mode appears in the display.

2 Press MULTI-CONTROL to turn scan play on.

The first 10 seconds of each track is played.

3 When you find the desired track press MULTI-CONTROL to turn scan play off.

The track will continue to play.

# If the display has automatically returned to the playback display, select Scan mode again by using MULTI-CONTROL.

Note

After scanning of a CD is finished, normal playback of the tracks will begin again.

Pausing CD playback

Pause lets you temporarily stop playback of the CD.

1 Use MULTI-CONTROL to select Pause. Pause appears in the display.

2 Press MULTI-CONTROL to turn pause on.

Playback of the current track pauses.

# To turn pause off, press MULTI-CONTROL again.

Selecting the search method

You can switch the search method between fast forward/reverse and searching every 10 tracks.

1 Use MULTI-CONTROL to select Search mode. Search mode appears in the display.

2 Press MULTI-CONTROL to select the search method.

Press MULTI-CONTROL until the desired search method appears in the display.

! FF/REV – Fast forward and reverse ! Rough search – Searching every 10

tracks

Searching every 10 tracks in the current disc

If a disc contains over 10 tracks, you can search every 10 tracks. When a disc contains many tracks, you can roughly search for the track you want to play.

1 Select the search method Rough search.

Refer to Selecting the search method on this page.

2 Push and hold MULTI-CONTROL left or right to search every 10 tracks on a disc.

# If a disc contains less than 10 tracks, pushing and holding MULTI-CONTROL right recalls the last track of the disc. Also, if the remaining number of tracks after searching every 10 tracks is less than 10, pushing and holding MULTI-CONTROL right recalls the last track of the disc.

Page 28

Section

Built-in CD Player

# If a disc contains less than 10 tracks, pushing and holding MULTI-CONTROL left recalls the first track of the disc. Also, if the remaining number of tracks after searching every 10 tracks is less than 10, pushing and holding MULTI-CONTROL left re- calls the first track of the disc.

Using disc title functions

You can input CD titles and display the title. The next time you insert a CD for which you have entered a title, the title of that CD will be displayed. Use the disc title input feature to store up to 48 CD titles in the unit. Each title can be up to 10 characters long. ! When playing a CD TEXT disc, you cannot

switch to disc title input display. The disc title will have already been recorded on a CD TEXT disc.

Entering disc titles

You can display the text information of any disc that has had a disc title entered.

1 Play the CD that you want to enter a title for.

2 Use MULTI-CONTROL to select TitleInput "A". TitleInput "A" appears in the display.

3 Press DISPLAY to select the desired character type.

Press DISPLAY repeatedly to switch between the following character types: Alphabet (upper case), numbers and symbols —Alphabet (lower case)—European letters, such as those with accents (e.g. á, à, ä, ç)— Numbers and symbols

4 Push MULTI-CONTROL up or down to select a letter of the alphabet.

Each time MULTI-CONTROL is pushed up, letters of the alphabet are displayed in A B C ... X

YZorder, numbers and symbols in 1 2 3 ... @ #<order. Each time MULTI-CONTROL is pushed down, letters are displayed in Z Y X ... CBAorder.

5 Push MULTI-CONTROL right to move the cursor to the next character position.

When the letter you want is displayed, push MULTI-CONTROL right to move the cursor to the next position and then select the next letter. Push MULTI-CONTROL left to move backwards in the display.

6 Move the cursor to the last position by pushing MULTI-CONTROL right after entering the title.

When you push MULTI-CONTROL right one more time, the entered title is stored in memory.

7 Press BAND to return to the playback display.

Notes

! Titles remain in memory, even after the disc

has been removed from the unit, and are recalled when the disc is reinserted.

! After data for 48 discs has been stored in

memory, data for a new disc will overwrite the oldest one.

! If you connect a multi-CD player, you can

input disc titles for up to 100 discs.

Page 29

Built-in CD Player

Section

English

Displaying disc titles

You can display the text information of any disc that has had a disc title entered.

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time—

: disc title and play time

Using CD TEXT functions

Some discs have certain information encoded on the disc during manufacture. These discs may contain such information as the CD title, track title, artist’s name and playback time and are called CD TEXT discs. Only these specially encoded CD TEXT discs support the functions listed below.

Displaying text information on CD TEXT discs

You can display the text information of any disc that has had a disc title entered.

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time— disc artist name and play time— and play time— time—

—

: track title and : track artist name

# If specific information has not been recorded on a CD TEXT disc, title or name is not displayed.

: disc title and play time— :

: track title

: track artist name and play

: disc title and : disc artist name

tist name. When the text information is longer than 14 letters, you can scroll the text information as follows.

% Press DISPLAY and hold until the text information begins to scroll through the display.

Note

When Ever Scroll is set to ON at the initial setting, CD text information scrolls continuously in the display. If you want to display the first 14 characters of text information temporarily and scroll from the beginning, press and hold DISPLAY. Refer to Switching the Ever Scroll on page 74.

Selecting tracks from the track title list

Track title list lets you see the list of track titles on a CD TEXT disc and select one of them to play back.

1 Turn MULTI-CONTROL to switch to the track title list mode.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select the desired track title.

Turn to change the track title; press to play.

# You can also change the track title by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the track title list mode is canceled automatically.

Scrolling text information in the display

This unit can display the first 14 letters of disc title, disc artist name, track title and track ar-

Page 30

123

Section

MP3/WMA/AAC/WAV Player

Playing MP3/WMA/AAC/ WAV files

These are the basic steps necessary to play an MP3/WMA/AAC/WAV with your built-in CD player. More advanced MP3/WMA/AAC/WAV operation is explained starting on page 32.

1 MP3/WMA/AAC/WAV indicator

Shows the type of file currently playing.

2 Folder number indicator

Shows the folder number currently playing.

3 Track number indicator

Shows the track (file) number currently playing.

4 Play time indicator

Shows the elapsed playing time of the current track (file).

5 Bit rate/sampling frequency indicator

Shows the bit rate or sampling frequency of the current track (file). ! When playing back MP3 files recorded

as VBR (variable bit rate) files, the bit rate value is not displayed even after switching to bit rate. (VBR will be displayed.)

! When playing back WMA files recorded

as VBR (variable bit rate) files, the average bit rate value is displayed.

! You can only play back WAV files in the

frequencies 16, 22.05, 24, 32, 44.1 and 48 kHz (LPCM), or 22.05 and 44.1 kHz (MS ADPCM). The sampling frequency shown in the display may be rounded.

1 Press SOURCE to select the built-in CD player.

Press SOURCE until you see Compact Disc displayed.

# If no disc is loaded in the unit, you cannot select Compact Disc (built-in CD player). Insert a disc in the unit. (Refer to page 14.)

2 Push MULTI-CONTROL up or down to select a folder.

# You cannot select a folder that does not have an MP3/WMA/AAC/WAV file recorded in it. # To return to folder 01 (ROOT), press and hold BAND. However, if folder 01 (ROOT) contains no files, playback commences with folder 02.

3 To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

# If you select Rough search, pushing and hold- ing MULTI-CONTROL left or right enables you to search every 10 tracks in the current folder. (Refer to Selecting the search method on page 33.)

4 To skip back or forward to another track, push MULTI-CONTROL left or right.

Pushing MULTI-CONTROL right skips to the start of the next track. Pushing MULTI-CONTROL left once skips to the start of the current track. Pushing again will skip to the previous track.

Page 31

MP3/WMA/AAC/WAV Player

Section

English

Notes

! When playing discs with MP3/WMA/AAC/

WAV files and audio data (CD-DA) such as CD-EXTRA and MIXED-MODE CDs, both types can be played only by switching mode between MP3/WMA/AAC/WAVand CD-DA with BAND.

! If you have switched between playback of

MP3/WMA/AAC/WAV files and audio data (CD-DA), playback starts at the first track on the disc.

! The built-in CD player can play back an MP3/

WMA/AAC/WAV file recorded on CD-ROM. (Refer to page 80 for files that can be played back.)

! Playback is carried out in order of file number.

Folders are skipped if they contain no files. (If folder 01 (ROOT) contains no files, playback commences with folder 02.)

! When playing back files recorded as VBR

(variable bit rate) files, the play time will not be correctly displayed if fast forward or reverse operations are used.

! There is no sound on fast forward or reverse. ! When the display setting is switched to the

text information by pressing DISPLAY, folder name and file name automatically begin to scroll in the display. When Ever Scroll is set to ON at the initial setting, folder and file name scroll continuously. About Ever Scroll, refer to Switching the Ever Scroll on page 74.

2 Press 0–9 buttons to enter the desired track number.

# You can cancel the input number by pressing

CLEAR.

3 Press DIRECT.

The track of entered number will play.

Note

After entering the number input mode, if you do not perform an operation within about eight seconds, the mode is automatically canceled.

Selecting a track directly in the current folder

When using the remote control, you can select a track directly by entering the desired track number.

1 Press DIRECT.

Track number input display appears.

Page 32

Section

MP3/WMA/AAC/WAV Player

Introduction of advanced built-in CD player (MP3/ WMA/AAC/WAV) operation

1 Function display

Shows the function status.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise. # To return to the playback display, press BAND.

Repeating play

For MP3/WMA/AAC/WAV playback, there are three repeat play ranges: Folder repeat (folder repeat), Track repeat (one-track repeat) and

Disc repeat (repeat all tracks).

1 Use MULTI-CONTROL to select Play mode. Play mode appears in the display.

2 Press MULTI-CONTROL to select the repeat range.

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! Folder repeat – Repeat the current folder ! Track repeat – Repeat just the current

track

! Disc repeat – Repeat all tracks

Notes

! If you select another folder during repeat play,

the repeat play range changes to Disc repeat.

! If you perform track search or fast forward/re-

verse during Track repeat, the repeat play range changes to Folder repeat.

! When Folder repeat is selected, it is not pos-

sible to play back a subfolder of that folder.

Playing tracks in random order

Random play lets you play back tracks in a random order within the repeat range,

Folder repeat and Disc repeat.

1 Select the repeat range.

Refer to Repeating play on this page.

Note

If you do not operate the function within about 30 seconds, the display is automatically returned to the playback display.

2 Use MULTI-CONTROL to select Random mode. Random mode appears in the display.

Page 33

MP3/WMA/AAC/WAV Player

Section

English

3 Press MULTI-CONTROL to turn random play on.

Tracks will play in a random order within the previously selected Folder repeat or Disc repeat ranges.

# To turn random play off, press MULTI-CONTROL again.

Scanning folders and tracks

While you are using Folder repeat, the beginning of each track in the selected folder plays for about 10 seconds. When you are using Disc repeat, the beginning of the first track of each folder is played for about 10 seconds.

1 Select the repeat range.

Refer to Repeating play on the previous page.

2 Use MULTI-CONTROL to select Scan mode. Scan mode appears in the display.

3 Press MULTI-CONTROL to turn scan play on.

The first 10 seconds of each track of the current folder (or the first track of each folder) is played.

4 When you find the desired track (or folder) press MULTI-CONTROL to turn scan play off.

The track (or folder) will continue to play.

# If the display has automatically returned to the playback display, select Scan mode again by using MULTI-CONTROL.

Note

After track or folder scanning is finished, normal playback of the tracks will begin again.

Pausing MP3/WMA/AAC/ WAV playback

Pause lets you temporarily stop playback of the MP3/WMA/AAC/WAV.

1 Use MULTI-CONTROL to select Pause. Pause appears in the display.

2 Press MULTI-CONTROL to turn pause on.

Playback of the current track pauses.

# To turn pause off, press MULTI-CONTROL again.

Selecting the search method

You can switch the search method between fast forward/reverse and searching every 10 tracks.

1 Use MULTI-CONTROL to select Search mode. Search mode appears in the display.

2 Press MULTI-CONTROL to select the search method.

Press MULTI-CONTROL until the desired search method appears in the display.

! FF/REV – Fast forward and reverse ! Rough search – Searching every 10

tracks

Searching every 10 tracks in the current folder

If the current folder contains over 10 tracks, you can search every 10 tracks. When one folder contains a lot of tracks, you can roughly search for the track you want to play.

Page 34

Section

MP3/WMA/AAC/WAV Player

1 Select the search method Rough search.

Refer to Selecting the search method on the previous page.

2 Push and hold MULTI-CONTROL left or right to search every 10 tracks in the current folder.

# If the current folder contains less than 10 tracks, pushing and holding MULTI-CONTROL right recalls the last track of the folder. Also, if the remaining number of tracks after searching every 10 tracks is less than 10, pushing and holding MULTI-CONTROL right recalls the last track of the folder. # If the current folder contains less than 10 tracks, pushing and holding MULTI-CONTROL left recalls the first track of the folder. Also, if the remaining number of tracks after searching every 10 tracks is less than 10, pushing and holding MULTI-CONTROL left recalls the first track of the folder.

Displaying text information on MP3/WMA/AAC/WAV disc

Text information recorded on an MP3/WMA/ AAC/WAV disc can be displayed.

When playing back an MP3/ WMA/AAC disc

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time— : file name and play time— : folder name and album title—

—

: comment and play time

# If specific information has not been recorded on an MP3/WMA/AAC disc, title or name is not displayed.

: folder name and play time—

: file name— : artist name and :

: artist name and : track title

# Depending on the version of iTunes write MP3 files onto a disc, comment information may not be correctly displayed. # Depending on the version of Windows Media Player used to encode WMA files, album names and other text information may not be correctly displayed.

used to

When playing back a WAV disc

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time— : file name and play time— : folder name and

: folder name and play time—

: file name

Scrolling text information in the display

This unit can display the first 14 letters only of folder name, file name, track title, artist name, album title and comment. When the recorded information is longer than 14 letters, you can scroll the text to the left so that the rest of the text information can be seen.

% Press DISPLAY and hold until the text information begins to scroll through the display.

The text information scrolls.

Notes

! Unlike MP3, WMA and AAC file format, WAV

files display only the folder name and the file name.

Page 35

MP3/WMA/AAC/WAV Player

! When Ever Scroll is set to ON at the initial set-

ting, CD text information scrolls continuously in the display. If you want to display the first 14 characters of text information temporarily and scroll from the beginning, press and hold DISPLAY. Refer to Switching the Ever Scroll on page 74.

Selecting tracks from the file name list

File name list lets you see the list of file names (or folder names) and select one of them to playback.

1 Turn MULTI-CONTROL to switch to the file name list mode.

# You can also perform this operation by pressing joystick on the remote control.

Section

English

2 Use MULTI-CONTROL to select the desired file name (or folder name).

Turn to change the name of file or folder; press to play; push right to see a list of the files (or folders) in the selected folder.

# You can also change the name of file or folder by pushing MULTI-CONTROL up or down. # To return to the previous list (the folder one level higher), push MULTI-CONTROL left. # If the folder/file number is more than 100, last 2-digit of the folder/file number is displayed. # Number of the folders/files in the currently selected folder will be indicated on the right side of the display. # If you do not operate the list within about 30 seconds, the file name list mode is canceled automatically.

Page 36

Section

Multi-CD Player

Playing a CD

You can use this unit to control a multi-CD player, which is sold separately.

These are the basic steps necessary to play a CD with your multi-CD player. More advanced CD operation is explained starting on the next page.

1 Disc number indicator

Shows the disc number currently playing.

2 Track number indicator

Shows the track number currently playing.

3 Play time indicator

Shows the elapsed playing time of the current track.

3 To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

4 To skip back or forward to another track, push MULTI-CONTROL left or right.

Pushing MULTI-CONTROL right skips to the start of the next track. Pushing MULTI-CONTROL left once skips to the start of the current track. Pushing again will skip to the previous track.

Notes

! When the multi-CD player performs the pre-

paratory operations, Ready is displayed.

! If an error message such as ERROR-11 is dis-

played, refer to the multi-CD player owner’s manual.

! If there are no discs in the multi-CD player ma-

gazine, No Disc is displayed.

! When you select a CD TEXT disc on a CD TEXT

compatible multi-CD player, the disc and track titles automatically begin to scroll in the display. Ever Scroll function is ON at the initial setting, the disc and track titles scroll continuously. About Ever Scroll, refer to Switching the Ever Scroll on page 74.

1 Press SOURCE to select the multi-CD player.

Press SOURCE until you see Multi-CD displayed.

2 Push MULTI-CONTROL up or down to select a disc you want to listen to.

# You can also select a disc by using 1–6 but- tons on the remote control.

! For discs 1 to 6, press the corresponding

button number.

! For discs 7 to 12, press and hold the corre-

sponding numbers, such as 1 for disc 7, until the disc number appears in the display.

Selecting a track directly

When using the remote control, you can select a track directly by entering the desired track number.

1 Press DIRECT.

Track number input display appears.

2 Press 0–9 buttons to enter the desired track number.

# You can cancel the input number by pressing

CLEAR.

3 Press DIRECT.

The track of entered number will play.

Page 37

Multi-CD Player

Section

English

Note

After entering the number input mode, if you do not perform an operation within about eight seconds, the mode is automatically canceled.

50-disc multi-CD player

Only those functions described in this manual are supported by 50-disc multi-CD players. This unit is not designed to operate disc title list functions with a 50-disc multi-CD player. About the disc title list functions, please refer to Selecting discs fr om the disc title list on page 41.

Introduction of advanced multi-CD player operation

1 Function display

Shows the function status.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order: Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)—

Pause (pause)—ITS play mode (ITS play)— ITS memo (ITS programming)— TitleInput "A" (disc title input)

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise. # To return to the playback display, press BAND.

Page 38

Section

Multi-CD Player

Notes

! When playing a CD TEXT disc on a CD TEXT

compatible multi-CD player, you cannot switch to disc title input. The disc title will have already been recorded on a CD TEXT disc.

! If you do not operate the function within about

30 seconds, the display is automatically returned to the playback display.

Repeating play

There are three repeat play ranges for the multi-CD player: M-CD repeat (multi-CD player repeat), Track repeat (one-track repeat) and Disc repeat (disc repeat).

1 Use MULTI-CONTROL to select Play mode. Play mode appears in the display.

2 Press MULTI-CONTROL to select the repeat range.

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! M-CD repeat – Repeat all discs in the

multi-CD player

! Track repeat – Repeat just the current

track

! Disc repeat – Repeat the current disc

Notes

! If you select other discs during repeat play,

the repeat play range changes to M-CD repeat.

! If you perform track search or fast forward/re-

verse during Track repeat, the repeat play range changes to Disc repeat.

Playing tracks in random order

Random play lets you play back tracks in random order within the repeat range,

M-CD repeat and Disc repeat.

1 Select the repeat range.

Refer to Repeating play on this page.

2 Use MULTI-CONTROL to select Random mode. Random mode appears in the display.

3 Press MULTI-CONTROL to turn random play on.

Tracks will play in a random order within the previously selected M-CD repeat or Disc repeat ranges.

# To turn random play off, press MULTI-CONTROL again.

Scanning CDs and tracks

While you are using Disc repeat, the beginning of each track on the selected disc plays for about 10 seconds. When you are using M-CD repeat, the beginning of the first track of each disc is played for about 10 seconds.

1 Select the repeat range.

Refer to Repeating play on this page.

2 Use MULTI-CONTROL to select Scan mode. Scan mode appears in the display.

3 Press MULTI-CONTROL to turn scan play on.

The first 10 seconds of each track of the current disc (or the first track of each disc) is played.

Page 39

Multi-CD Player

Section

English

4 When you find the desired track (or disc) press MULTI-CONTROL to turn scan play off.

The track (or disc) will continue to play.

# If the display has automatically returned to the playback display, select Scan mode again by using MULTI-CONTROL.

Note

After track or disc scanning is finished, normal playback of the tracks will begin again.

Pausing CD playback

Pause lets you temporarily stop playback of the CD.

1 Use MULTI-CONTROL to select Pause. Pause appears in the display.

2 Press MULTI-CONTROL to turn pause on.

Playback of the current track pauses.

# To turn pause off, press MULTI-CONTROL again.

Using ITS playlists

ITS (instant track selection) lets you make a playlist of favorite tracks from those in the multi-CD player magazine. After you have added your favorite tracks to the playlist you can turn on ITS play and play just those selections.

Creating a playlist with ITS programming

You can use ITS to enter and play back up to 99 tracks per disc from up to 100 discs (with the disc titles). (With multi-CD players sold before the CDX-P1250 and CDX-P650, up to 24 tracks can be stored in the playlist.)

1 Play a CD that you want to program.

Push MULTI-CONTROL up or down to select the CD.

2 Use MULTI-CONTROL to select ITS memo. ITS memo appears in the display.

3 Select the desired track by pushing MULTI-CONTROL left or right.

4 Push MULTI-CONTROL up to store the currently playing track in the playlist. Memory complete is displayed and the cur-

rently playing selection is added to your playlist.

5 Press BAND to return to the playback display.

Note

After data for 100 discs has been stored in memory, data for a new disc will overwrite the oldest one.

Playback from your ITS playlist

ITS play lets you listen to the tracks that you have entered into your ITS playlist. When you turn on ITS play, tracks from your ITS playlist in the multi-CD player will begin to play.

1 Select the repeat range.

Refer to Repeating play on the previous page.

2 Use MULTI-CONTROL to select ITS play mode. ITS play mode appears in the display.

3 Press MULTI-CONTROL to turn ITS play on. ITS play mode appears in the display. Play-

back begins of those tracks from your playlist within the previously selected M-CD repeat or Disc repeat ranges.

Page 40

Section

Multi-CD Player

# If no tracks in the current range are programmed for ITS play, then ITS empty is displayed. # To turn ITS play off, press MULTI-CONTROL again.

Erasing a track from your ITS playlist

You can delete a track from your ITS playlist if ITS play is on. If ITS play is already on, skip to step 2. If ITS play is not already on, use MULTI-CONTROL.

1 Play the CD with the track you want to delete from your ITS playlist, and turn ITS play on.

Refer to Playback from your ITS playlist on the previous page.

2 Use MULTI-CONTROL to select ITS memo. ITS memo appears in the display.

3 Select the desired track by pushing MULTI-CONTROL left or right.

4 Push MULTI-CONTROL down to erase the track from your ITS playlist.

The currently playing selection is erased from your ITS playlist and playback of the next track from your ITS playlist begins.

# If there are no tracks from your playlist in the current range, ITS empty is displayed and normal play resumes.

5 Press BAND to return to the playback display.

Erasing a CD from your ITS playlist

You can delete all tracks of a CD from your ITS playlist if ITS play is off.

1 Play the CD that you want to delete.

Push MULTI-CONTROL up or down to select the CD.

2 Use MULTI-CONTROL to select ITS memo. ITS memo appears in the display.

3 Push MULTI-CONTROL down to erase all tracks on the currently playing CD from your ITS playlist.

All tracks on the currently playing CD are erased from your playlist and

Memory deleted is displayed.

4 Press BAND to return to the playback display.

Using disc title functions

You can input CD titles and display the titles. Then you can easily search for and play a desired disc.

Entering disc titles

Use the disc title input feature to store up to 100 CD titles (with ITS playlist) into the multiCD player. Each title can be up to 10 characters long.

1 Play the CD that you want to enter a title for.

Push MULTI-CONTROL up or down to select the CD.

2 Use MULTI-CONTROL to select TitleInput "A". TitleInput "A" appears in the display.

3 Press DISPLAY to select the desired character type.

Press DISPLAY repeatedly to switch between the following character types:

Page 41

Multi-CD Player

Section

English

Alphabet (upper case), numbers and symbols —Alphabet (lower case)—European letters, such as those with accents (e.g. á, à, ä, ç)— Numbers and symbols

4 Push MULTI-CONTROL up or down to select a letter of the alphabet.

Each time MULTI-CONTROL is pushed up, letters of the alphabet are displayed in A B C ... X

YZorder, numbers and symbols in 1 2 3 ... @ #<order. Each time MULTI-CONTROL is pushed down, letters are displayed in Z Y X ... CBAorder.

5 Push MULTI-CONTROL right to move the cursor to the next character position.

When the letter you want is displayed, push MULTI-CONTROL right to move the cursor to the next position and then select the next letter. Push MULTI-CONTROL left to move backwards in the display.

6 Move the cursor to the last position by pushing MULTI-CONTROL right after entering the title.

When you push MULTI-CONTROL right one more time, the entered title is stored in memory.

7 Press BAND to return to the playback display.

Notes

! Titles remain in memory, even after the disc

has been removed from the magazine, and are recalled when the disc is reinserted.

! After data for 100 discs has been stored in

memory, data for a new disc will overwrite the oldest one.

Displaying disc titles

You can display the text information of any disc that has had a disc title entered.

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time—

: disc title and play time

Selecting discs from the disc title list

Disc title list lets you see the list of disc titles that have been entered into the multi-CD player and select one of them to play back.

1 Turn MULTI-CONTROL to switch to the disc title list mode.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select the desired disc title.

Turn to change the disc title; press to play.

# You can also change the disc title by pushing MULTI-CONTROL up or down. # If no title has been entered for a disc, No D.Title will be displayed. # No Disc is displayed next to the disc number when there is no disc in the magazine.

Using CD TEXT functions

You can use these functions only with a CD TEXT compatible multi-CD player.

Page 42

Section

Multi-CD Player

Displaying text information on CD TEXT discs

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time— disc artist name and play time— and play time— time—

—

: track title and : track artist name

# If specific information has not been recorded on a CD TEXT disc, title or name is not displayed.

: disc title and play time— :

: track title

: track artist name and play

: disc title and : disc artist name

Scrolling text information in the display

This unit can display the first 14 letters of disc title, disc artist name, track title and track artist name. When the text information is longer than 14 letters, you can scroll the text information as follows.

% Press DISPLAY and hold until the text information begins to scroll through the display.

Note

1 Turn MULTI-CONTROL to switch to the disc title list mode.

# You can also perform this operation by pressing joystick on the remote control. # If you want to display the track title list of the currently playing disc, push MULTI-CONTROL right.

2 Use MULTI-CONTROL to select the desired disc title of CD TEXT.

Turn to change the disc title; press to play.

3 Push MULTI-CONTROL right to switch to the track title list.

# Push MULTI-CONTROL left to return to the disc title list.

4 Use MULTI-CONTROL to select the desired track title.

Turn to change the track title; press to play.

# You can also change the track title by pushing MULTI-CONTROL up or down.

Selecting tracks from the track title list

Track title list lets you see the list of track titles on a CD TEXT disc and select one of them to play back.

Page 43

Playing songs on iPod

Section

English

Listening to songs on your iPod

You can use this unit to control an iPod adapter, which is sold separately.

These are the basic steps necessary to operate an iPod adapter. More advanced iPod adapter operation is explained starting on Introduction of advanced iPod adapter operation on page 45.

1 Song number indicator

Shows the number of song played in the selected list.

2 Play time indicator

Shows the elapsed playing time of the current song.

1 Press SOURCE to select the iPod. Press SOURCE until you see iPod displayed.

2 To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

3 To skip back or forward to another song, push MULTI-CONTROL left or right.

Pushing MULTI-CONTROL right skips to the start of the next song. Pushing MULTI-CONTROL left once skips to the start of the current song. Pushing again will skip to the previous song.

Browsing for a song

The operation of this unit to control an iPod is designed to be as close to the operation of the iPod as possible for easy operation and song search.

1 Turn MULTI-CONTROL to switch to the top menu of the list search.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select a category.

Turn to change the category; press to select.

Playlists (playlists)—Artists (artists)— Albums (albums)—Songs (songs)—Genres

(genres) List from the selected category is displayed.

# You can start playback throughout the selected category by pressing and holding MULTI-CONTROL. # You can also change the category by pushing MULTI-CONTROL up or down. # You can also select the category by pushing MULTI-CONTROL right. # To return to the previous list, push MULTI-CONTROL left. # To go to the top menu of the list search, push and hold MULTI-CONTROL left. # If you do not operate the list within about 30 seconds, the list search is cancelled automatically.

Searching for a song

1 Turn MULTI-CONTROL to switch to the top menu of the list search.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select a Genres, Artists, Albums or Songs from among the categories.

Turn to change the category; press to select.

Page 44

Section

Playing songs on iPod

List from the selected category is displayed.

3 Use MULTI-CONTROL to select a song, album, artist or genre.

Turn to change the item; press to select. List from the selected item is displayed.

# If you select Songs (songs), playback starts in- stantly from the selected one.

4 Repeat step 3 to find a song you want to listen to.

Selecting a playlist

You can select a playlist from your iPod playlist.

1 Turn MULTI-CONTROL to switch to the top menu of the list search.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select a Playlists from among the categories.

Turn to change the category; press to select. List from Playlists (playlists) is displayed.

3 Use MULTI-CONTROL to select a playlist.

Turn to change the playlist; press to select. Song list from the selected playlist is displayed.

# You can start playback throughout the selected playlist by pressing and holding MULTI-CONTROL.

Displaying text information on iPod

Text information recorded on the iPod can be displayed.

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings: Play time— song title and play time— play time—

—

: song title and : album title

# If the characters recorded on the iPod are not compatible with this unit, those characters will not be displayed.

Notes

! You can scroll to the left the text information

by pressing and holding DISPLAY.

! When Ever Scroll is set to ON at the initial set-

ting, text information scrolls continuously in the display. If you want to display the first 14 characters of text information temporarily and scroll from the beginning, press and hold DISPLAY. Refer to Switching the Ever Scroll on page 74.

: album title and play time— :

: artist name and

: artist name and : album title

4 Use MULTI-CONTROL to select a song from the selected playlist.

Turn to change the song; press to play.

# If no songs have been stored in playlist, STOP is displayed and playback stops.

Page 45

Playing songs on iPod

Section

English

Introduction of advanced iPod adapter operation

1 Function display

Shows the function status.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order: Play mode (repeat play)—Shuffle mode (random play)—Pause (pause)

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise. # To return to the playback display, press BAND.

Note

If you do not operate the function within about 30 seconds, the display is automatically returned to the playback display.

Repeating play

For playback of the songs on the iPod, there are two repeat play ranges: Repeat One (repeat one song) and Repeat All (repeat all songs in the list). ! While Play mode is set to Repeat One,

you cannot select the other songs.

1 Use MULTI-CONTROL to select Play mode. Play mode appears in the display.

2 Press MULTI-CONTROL to select the repeat range.

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! Repeat One – Repeat just the current song ! Repeat All – Repeat all songs in the se-

lected list

Playing songs in a random order (shuffle)

For playback of the songs on the iPod, there are two random play methods: Shuffle Songs (play back songs in a random order) and Shuffle Albums (play back albums in a random order).

1 Use MULTI-CONTROL to select Shuffle mode. Shuffle mode appears in the display.

2 Press MULTI-CONTROL to select your favorite setting.

Press MULTI-CONTROL repeatedly until the desired setting appears in the display.

! Shuffle Songs – Play back songs in a ran-

dom order within the selected list

! Shuffle Albums – Select an album ran-

domly, and then play back all the songs in it in order

! Shuffle OFF – Cancel the random play

Page 46

Section

Playing songs on iPod

Pausing a song

Pause lets you temporarily stop playback of a song.

1 Use MULTI-CONTROL to select Pause. Pause appears in the display.

2 Press MULTI-CONTROL to turn pause on.

Playback of the current song pauses.

# To turn pause off, press MULTI-CONTROL again.

Page 47

TV tuner

Section

English

Watching the television

You can use this unit to control a TV tuner, which is sold separately.

For details concerning operation, refer to the TV tuner ’s operation manual. This section provides information on TV operations with this unit which differs from that described in the TV tuner ’s operation manual.

1 Band indicator

Shows which band the TV tuner is tuned to.

2 Preset number indicator

Shows which preset has been selected.

3 Channel indicator

Shows which channel the TV tuner is tuned.

4 To perform seek tuning, push and hold MULTI-CONTROL left or right for about one second and release.

The tuner will scan the channels until a broadcast strong enough for good reception is found.

# You can cancel seek tuning by pushing MULTI-CONTROL left or right. # If you push and hold MULTI-CONTROL left or right, you can skip broadcasting channels. Seek tuning starts as soon as you release

MULTI-CONTROL.

1 Press SOURCE to select the TV.

Press SOURCE until you see Television dis- played.

2 Press BAND to select a band.

Press BAND until the desired band is displayed, TV-1 or TV-2.

3 To perform manual tuning, push MULTI-CONTROL left or right.

The channels move up or down step by step.

Page 48

Section

TV tuner

Introduction of advanced TV tuner operation

1 Function display

Shows the function names.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION. BSSM appears on the display.

# To return to the channel display, press BAND.

Note

If you do not operate the function within about 30 seconds, the display is automatically returned to the channel display.

Storing broadcast stations

You can easily store up to 12 broadcast stations for later recall.

1 When you find a station that you want to store in memory, turn MULTI-CONTROL to switch to the preset channel list mode.

2 Use MULTI-CONTROL to store the selected station in memory.

Turn to change the preset number; press and hold to store.

The preset number you have selected will flash and then remain lit. The selected station has been stored in memory.

# If you do not operate the list within about 30 seconds, the preset channel list mode is canceled automatically.

Notes

! Up to 24 stations, 12 for each of two TV bands,

can be stored in memory.

! You can also store stations assigned to preset

tuning numbers 1–6 by pressing and holding one of the preset tuning buttons 1–6 on the remote control.

Storing the strongest broadcast stations sequentially

1 Use MULTI-CONTROL and select FUNCTION to display BSSM.

2 Press MULTI-CONTROL to turn BSSM on. Searching is displayed. While Searching is

displayed, the 12 strongest broadcast stations will be stored in order from the lowest channel up. When finished, the preset channel list appears.

# To cancel the storage process, press

MULTI-CONTROL.

3 Use MULTI-CONTROL to select the desired station.

Turn to change the station; press to select.

# You can also change the station by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the preset channel list mode is canceled automatically.

Page 49

TV tuner

Note

Storing broadcast stations with BSSM may replace broadcast stations you have saved using P01—P12.

Selecting stations from the preset channel list

The preset channel list lets you see the list of preset stations and select one of them to receive.

1 Turn MULTI-CONTROL to switch to the preset channel list mode.

# You can also perform this operation by pressing joystick on the remote control.

2 Use MULTI-CONTROL to select the desired station.

Turn to change the station; press to select.

# You can also change the station by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the preset channel list mode is canceled automatically.

Section

English

Notes

! You can also recall stations assigned to preset

tuning numbers by pushing MULTI-CONTROL up or down during the channel display.

! You can also recall stations assigned to preset

tuning numbers 1–6 by pressing one of the preset tuning buttons 1–6 on the remote control.

Page 50

134

Section

DVD Player

Playing a disc

You can use this unit to control a DVD player or multi-DVD player, which is sold separately.

For details concerning operation, refer to the DVD player’s or multi-DVD player’s operation manual. This section provides information on DVD operations with this unit which differs from that described in the DVD player’sor multi-DVD player’s operation manual. These are the basic steps necessary to play a DVD video with your DVD player. More advanced DVD video operation is explained starting on the next page.

1 DVD-V/VCD/CD/MP3/WMA indicator

Shows the type of disc currently playing.

2 Disc number indicator

Shows the disc number currently playing when using a multi-DVD player.

3 Title/Folder number indicator

Shows the title (when playing DVD video) or folder (when playing MP3 or WMA) of the selection currently playing.

1 Press SOURCE to select the DVD player/ multi-DVD player. Press SOURCE until you see DVD displayed.

2 To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

3 To skip back or forward to another chapter/track, push MULTI-CONTROL left or right.

Selecting a disc

! You can operate this function only when a

multi-DVD player is connected to this unit.

% Push MULTI-CONTROL up or down to select the desired disc.

Selecting a folder

! You can operate this function only when a

DVD player which is corresponding to MP3/WMA playback is connected to this unit.

% Push MULTI-CONTROL up or down to select a folder.

4 Chapter/track number indicator

Shows the chapter (when playing DVD video) or track (when playing video CD, CD, MP3 or WMA) currently playing.

5 Play time indicator

Shows the elapsed playing time of the current track.

Page 51

DVD Player

Section

English

Introduction of advanced DVD player operation

1 Function display

Shows the function names.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option; press to select. The function name appears on the display.

3 Turn MULTI-CONTROL to select the function.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order:

During DVD video or Video CD playback

Play mode (repeat play)—Pause (pause)

During CD playback

Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)—

Pause (pause)—ITS play mode (ITS play)— ITS memo (ITS input)—TitleInput "A" (disc

title input)

During MP3/WMA playback

Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise.

# To return to the playback display, press BAND.

Note

When using this unit with multi-DVD player, you can switch to ITS play mode, ITS memo and disc title input.

Repeating play

! During PBC playback of Video CDs, this

function cannot be operated.

1 Use MULTI-CONTROL to select Play mode. Play mode appears in the display.

2 Press MULTI-CONTROL to select the repeat range.

During DVD video playback

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! Disc repeat – Repeat the current disc ! Chapter repeat – Repeat just the current

chapter

! Title repeat – Repeat just the current title

During Video CD or CD playback

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! Disc repeat – Repeat the current disc ! Track repeat – Repeat just the current

track

During MP3/WMA playback

Press MULTI-CONTROL repeatedly until the desired repeat range appears in the display.

! Disc repeat – Repeat the current disc ! Folder repeat – Repeat the current folder ! Track repeat – Repeat just the current

track

Notes

! If you select other discs during repeat play,

the repeat play range changes to Disc repeat.

Page 52

Section

DVD Player

! During video CD or CD playback, if you per-

form track search or fast forward/reverse during Track repeat, the repeat play range changes to Disc repeat.

! During MP3/WMA playback, if you select an-

other folder during repeat play, the repeat play range changes to Disc repeat.

! During MP3/WMA playback, if you perform

track search or fast forward/reverse during Track repeat, the repeat play range changes to Folder repeat.

Pausing disc playback

1 Use MULTI-CONTROL to select Pause. Pause appears in the display.

2 Press MULTI-CONTROL to turn pause on.

Playback of the current track pauses.

# To turn pause off, press MULTI-CONTROL again.

Playing tracks in random order

! You can operate this function during CD/

MP3/WMA playback.

1 Use MULTI-CONTROL to select Random mode. Random mode appears in the display.

Scanning tracks of a CD/ MP3/WMA

! You can operate this function during CD/

MP3/WMA playback.

1 Use MULTI-CONTROL to select Scan mode. Scan mode appears in the display.

2 Press MULTI-CONTROL to turn scan play on.

The first 10 seconds of each track is played.

3 When you find the desired track press MULTI-CONTROL to turn scan play off.

The track will continue to play.

# If the display has automatically returned to the playback display, select Scan mode again by using MULTI-CONTROL.

Using ITS playlist and disc title functions

! You can operate these functions only when

a multi-DVD player is connected to this unit.

! This function differs slightly from ITS play-

back with a multi-CD player. With multiDVD player, ITS playback applies only to the CD playing. For details, refer to Using ITS playlists on page 39.

2 Press MULTI-CONTROL to turn random play on.

Tracks will play in a random order.

# To turn random play off, press MULTI-CONTROL again.

Using disc title functions

You can input CD titles and display the titles. Then you can easily search for and play a desired disc. ! You can operate this function during CD

playback.

Page 53

DVD Player

Entering disc titles

Disc title input lets you input CD titles up to 10 letters long into the DVD player. For details concerning operation, refer to Entering disc ti- tles on page 40. ! You can operate this function only when a

DVD player is connected to this unit.

! When playing a CD TEXT disc on a CD TEXT

compatible DVD player, you cannot switch to disc title input. The disc title will have already been recorded on a CD TEXT disc.

Section

English

Page 54

Section

Audio Adjustments

Operation modes

ate a 3-way multi-amp, multi-speaker system with separate speakers for reproduction of high, middle and low frequencies (bands), each driven by a dedicated power amp. The 3-way network mode provides network and time alignment functions, two functions essential for a multiamp, multi-speaker system, to enable precise control over settings for each frequency range.

! The standard mode (STD) lets you create a

4-speaker system with front and rear speakers, or a 6-speaker system with front and rear speakers and subwoofers.

Important

Operation mode marks

This manual uses the following marks to make the description clear.

: This mark indicates a function only in

NW mode or an operation in NW mode.

: This mark indicates a function available only in STD mode or an operation in STD mode. ! The functions and operations which do not

carry either mark are commonly used in the NW and STD modes.

3-way network mode

Adjusting the audio easily

By carrying out the following settings/adjustments in the order shown, you can create a finely-tuned sound field effortlessly.

1 Using the position selector (POSI) 2 Auto TA and EQ (auto-time alignment and auto-

equalizing)

3 Using balance adjustment 4 Recalling equalizer curves

(BAL)

Adjusting the audio finely

By carrying out the following settings/adjustments in the order shown, you can create a finely-tuned sound field effortlessly.

1 Adjusting the time alignment (Low-Lch) 2 Adjusting network (NW 1, NW 2, NW 3) 3 Adjusting equalizer curves (EQ 1) 4 Adjusting 16-band graphic equalizer (EQ 2)

Standard mode

Adjusting the audio easily

The following functions let you easily adjust your audio system to match the car interior acoustic characteristics, which vary depending on the type of car.

1 Using the position selector (POSI) 2 Auto TA and EQ (auto-time alignment and auto-

equalizing)

3 Using balance adjustment 4 Recalling equalizer curves

Adjusting the audio finely

By carrying out the following settings/adjustments in the order shown, you can create a finely-tuned sound field effortlessly.

1 Using subwoofer output (SW 1) 2 Adjusting subwoofer settings (SW 2)

(F/B)

Page 55

Audio Adjustments

Section

English

3 Adjusting low pass filter attenuation slope

(SW 3)

4 Setting the high pass filter for front speakers

(F.HPF 1, F.HPF 2)

5 Setting the high pass filter for rear speakers

(R.HPF 1, R.HPF 2)

6 Adjusting equalizer curves (EQ 1) 7 Adjusting 16-band graphic equalizer (EQ 2)

Extra functions

These functions are helpful in adjusting the sound to suit your system or your personal preferences.

! Using BBE sound (BBE) ! Adjusting loudness (LOUD) ! Using automatic sound levelizer (ASL) ! Adjusting source levels (SLA) ! Using BMX and compression (BMX)

Introduction of audio adjustments

1 Audio display

Shows the audio adjustment status.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select AUDIO.

Turn to change the menu option; press to select. The audio function name appears on the display.

3 Turn MULTI-CONTROL to select the audio function.

Turn MULTI-CONTROL clockwise to switch between the audio functions in the following order:

BAL (balance adjustment)— NW 1 (network adjustment 1)—NW 2 (network adjustment 2) —NW 3 (network adjustment 3)—NW 4 (net- work adjustment 4)—POSI (position selector) —TA1 (time alignment setting)—TA2 (time alignment adjusting)—LOUD (loudness)— EQ 1 (graphic equalizer)—EQ 2 (16-band graphic equalizer)—BBE (BBE)—BMX (BMX and compression)—A.EQ (auto-equalizer on/off)— ASL (automatic sound levelizer)—SLA (source level adjustment)

Page 56

Section

Audio Adjustments

F/B (balance adjustment)—POSI (position selector)—TA1 (time alignment setting)—TA 2 (time alignment adjusting)—LOUD (loudness) —EQ 1 (graphic equalizer)—EQ 2 (16-band graphic equalizer)—SW 1 (subwoofer on/off) —SW 2 (subwoofer cut-off frequency)—SW 3 (subwoofer slope)—F.HPF 1 (front high pass filter slope)—F.HPF 2 (front high pass filter cut-off frequency)—R.HPF 1 (rear high pass filter slope)—R.HPF 2 (rear high pass filter cutoff frequency)—BBE (BBE)—BMX (BMX and compression)—A.EQ (auto-equalizer on/off)— ASL (automatic sound levelizer)—SLA (source level adjustment)

# You can also switch between the audio functions in reverse order by turning MULTI-CONTROL counterclockwise. # When tuner, television or AUX is selected as a source, you cannot select BMX. # When selecting the FM tuner as the source, you cannot switch to SLA. # When selecting OFF in TA1, you cannot switch to TA2. # You can select SW 2 and SW 3 only when sub- woofer output output is turned on in SW 1. # To return to the display of each source, press BAND.

Switching left and right channel

You can adjust following functions for left and right channel independently or commonly.

3-way network mode

! Adjusting network (NW 1, NW 2, NW 3) ! Adjusting 16-band graphic equalizer (EQ 2)

Standard mode

! Adjusting subwoofer settings (SW 2) ! Adjusting low pass filter attenuation slope

(SW 3)

! Setting the high pass filter for front speakers

(F.HPF 1, F.HPF 2)

! Setting the high pass filter for rear speakers

(R.HPF 1, R.HPF 2)

! Adjusting 16-band graphic equalizer (EQ 2)

1 Use MULTI-CONTROL to select the audio function described above.

2 Press MULTI-CONTROL and hold to switch between left/right independent mode and left/right common mode.

Each pressing and holding MULTI-CONTROL selects left/right independent mode and left/ right common mode.

Notes

! If you do not operate the audio function within

about 30 seconds, the display is automatically returned to the source display.

! EQ 2 (16-band graphic equalizer), TA2 (time

alignment adjusting), NW 1 (network adjustment 1), NW 2 (network adjustment 2), NW 3 (network adjustment 3) and NW 4 (network adjustment 4) functions are not canceled automatically.

3 Press MULTI-CONTROL to select left channel or right channel when left/right independent mode has been selected.

Each pressing MULTI-CONTROL selects left channel and right channel.

4 Adjust these functions as desired.

Page 57

Audio Adjustments

Section

English

Using the position selector

One way to assure a more natural sound is to clearly position the stereo image, putting you right in the center of the sound field. The position selector function lets you automatically adjust the speakers’ output levels and inserts a delay time to match the number and position of occupied seats.

1 Use MULTI-CONTROL to select POSI. POSI appears in the display.

2 Push MULTI-CONTROL left, right, up or down to select a listening position.

Direction Display Position

Left Front Left Front seat left

Right Front Right Front seat right

Up Front Front seats

Down All All seats

# To cancel the selected listening position, push MULTI-CONTROL in the same direction again.

Using balance adjustment

You can select a balance setting that provides an ideal listening environment in all occupied seats.

1 Use MULTI-CONTROL to select BAL. BAL appears in the display.

2 Push MULTI-CONTROL left or right to adjust left/right speaker balance.

Each time MULTI-CONTROL is pushed left or right, the left/right speaker balance moves towards the left or right. Left 25 to Right 25 is displayed as the left/ right speaker balance moves from left to right.

Using balance adjustment

You can change the fader/balance setting so that it can provide you an ideal listening environment in all occupied seats.

1 Use MULTI-CONTROL to select F/B. F/B appears in the display.

2 Push MULTI-CONTROL up or down to adjust front/rear speaker balance.

Each time MULTI-CONTROL is pushed up or down, the front/rear speaker balance moves towards the front or rear. Front 25 to Rear 25 is displayed as the front/ rear speaker balance moves from front to rear.

# F/R 00 is the proper setting when only two speakers are used.

3 Push MULTI-CONTROL left or right to adjust left/right speaker balance.

Using the time alignment

The time alignment lets you adjust the distance between each speaker and the listening position.

1 Use MULTI-CONTROL to select TA1. TA1 appears in the display.

2 Push MULTI-CONTROL left or right to select the time alignment.

Each time MULTI-CONTROL is pushed left or right, time alignment is selected in the following order:

Page 58

Section

Audio Adjustments

Initial (initial)—Custom (custom)—AutoTA (auto-time alignment)—OFF (off)

! Initial is the factory supplied time align-

ment.

! Custom is an adjusted time alignment that

you can create for yourself.

! AutoTA is the time alignment created by

auto TA and EQ. (Refer to Auto TA and EQ

(auto-time alignment and auto-equalizing)

on page 67.) # Please set Auto TA appears. This indicates that you cannot select AutoTA if auto TA and EQ has not been carried out.

Hi L (high-range left)—Hi R (high-range right) —Mid L (middle-range left)—Mid R (middle-

range right)—Low L (low-range left)—Low R (low-range right)

Front L (front left)—Front R (front right)— Rear R (rear right)—Rear L (rear left)— SubW. L (subwoofer left)—SubW. R (subwoo-

fer right)

# You cannot select SubW. L and SubW. R when the subwoofer output is off.

Adjusting the time alignment

You can adjust the distance between each speaker and the selected position. ! An adjusted time alignment is memorized

in Custom.

1 Use MULTI-CONTROL to select TA 1. TA1 appears in the display.

2 Press MULTI-CONTROL to select a unit of distance.

Each press of MULTI-CONTROL selects the unit of distance in the following order:

(cm) (centimeter)—(inch) (inch)

3 Use MULTI-CONTROL to select TA2. TA2 appears in the display.

# Can't Adjust TA. Set POS FL/FR appears when neither Front Left nor Front Right is selected in the position selector mode (POSI). # When selecting OFF in TA1, you cannot switch to TA2.

4 Push MULTI-CONTROL left or right to select the speaker to be adjusted.

Each time MULTI-CONTROL is pushed left or right, the speaker is selected in the following order:

5 Push MULTI-CONTROL up or down to adjust the distance between the selected speaker and the listening position.

Each time MULTI-CONTROL is pushed up or down, the distance increases or decreases.

400.0cm to 0.0cm is displayed as the distance is increased or decreased, if you have selected centimeters ((cm)). 160inch to 0inch is displayed as the distance is increased or decreased, if you have selected inches ((inch)).

# You can adjust the distance for the other speakers in the same way.

6 Press BAND to cancel the time alignment mode.

About the network function

The network function lets you divide the audio signal into different frequency bands, and then reproduce each of them through separate speaker units.

Page 59

Audio Adjustments

Section

English

You can then make precise adjustments to the reproduced frequency band (with a low-pass filter or high-pass filter), level, phase and other parameters to match the characteristics of each speaker unit.

Adjustable parameters

The network function enables adjustment of the following parameters. Make adjustments in line with the reproduced frequency band and characteristics of each connected speaker unit.

Level

(dB)

Reproduced frequency band

Pass

Level

Cut-off frequency of HPF

Reproduced frequency band

Adjusting the HPF (high-pass filter) or LPF (low-pass filter) cut-off frequency lets you set the reproduced frequency band for each speaker unit. ! The HPF cuts frequencies (low) below the

set frequency, letting high frequencies through.

! The LPF cuts frequencies (high) above the

set frequency, letting low frequencies through.

Level

The difference in reproduced levels between speaker units can be corrected.

Slope (dB/oct.)

Frequency

(Hz)

Cut-off frequency of LPF

Slope

Adjusting the HPF/LPF slope (filter attenuation slope) lets you adjust the continuity of sound between speaker units. ! The slope indicates the number of decibels

(dB) the signal is attenuated when the frequency is one octave higher (lower) (Unit: dB/oct.). The steeper the slope, the more the signal is attenuated.

Phase

You can switch phase (normal, reverse) for each speaker unit’s input signal. When the continuity of sound between speakers is imprecise, try switching phase. This may improve the continuity of sound between speakers.

Points concerning network adjustments

Cut-off frequency adjustment

! With the low-range speaker installed in the

rear tray, if you set Low LPF cut-off frequency high, bass sound is separated so that it appears to come from the rear. You are recommended to set Low LPF cut-off frequency to 100 Hz or lower.

! The maximum input power setting for mid-

dle- and high-range speakers is usually lower than that for low-range speakers. Remember that if Mid HPF or HighHPF cutoff frequency is set lower than required, strong bass signal input may damage the speaker.

Level adjustment

The basic frequencies of many musical instruments are in the middle range. First perform middle-range level adjustment, followed by high-range and then low-range level adjustment in that order.

Page 60

Section

Audio Adjustments

Slope adjustment

! If you set a small absolute value for the

slope (for a gentle slope), interference between adjacent speaker units can easily result in degraded frequency response.

! If you set a large absolute value for the

slope (for a steep slope), continuity of sound between speaker units is degraded, and sounds appear to be separated.

! If you set the slope to 0 dB/oct. (Pass), the

audio signal bypasses the filter, so the filter does not have an effect.

Phase adjustment

When the cross-over point value for filters on both sides is set to –12 dB/oct., the phase is reversed 180 degrees at the filter cut-off frequency. In this case, reversing the phase assures improved sound continuity.

Normal phase

Reverse phase

Crossover point

Muting the speaker unit (filter)

You can mute each speaker unit (filter). When a speaker unit (filter) is muted, no sound is outputted from that speaker. ! If you mute the selected speaker unit (fil-

ter), MUTE blinks and no adjustments are possible.

! Even if any speaker unit (filter) is muted,

you can adjust the parameters for other speaker units (filters).

1 Use MULTI-CONTROL to select NW 1. NW 1 appears in the display.

2 Push MULTI-CONTROL left or right to select the speaker unit (filter) to be adjusted.

Each time MULTI-CONTROL is pushed left or right, the speaker unit (filter) is selected in the following order: Low LPF (low-range speaker LPF)—Mid HPF (middle-range speaker HPF)—Mid LPF (middle-range speaker LPF)—HighHPF (high-range speaker HPF)

3 Push and hold MULTI-CONTROL down to mute the selected speaker unit (filter). MUTE blinks in the display.

# To cancel the muting, push MULTI-CONTROL up.

Adjusting network

1 Use MULTI-CONTROL to select NW 1. NW 1 appears in the display.

2 Push MULTI-CONTROL left or right to select the speaker unit (filter) to be adjusted.

3 Turn MULTI-CONTROL to select NW 2. NW 2 appears in the display.

4 Push MULTI-CONTROL left or right to select the cut-off frequency (crossover frequency) of the selected speaker unit (filter).

Each time MULTI-CONTROL is pushed left or right, cut-off frequencies (crossover frequencies) are selected in the following order:

Page 61

Audio Adjustments

Section

English

Low LPF: 25—31.5—40—50—63—80—100 —125—160—200—250 (Hz) Mid HPF: 25—31.5—40—50—63—80—100 —125—160—200—250 (Hz)

Mid LPF: 1.25k—1.6k—2k—2.5k—3.15k— 4k—5k—6.3k—8k—10k—12.5k (Hz) HighHPF: 1.25k—1.6k—2k—2.5k—3.15k— 4k—5k—6.3k—8k—10k—12.5k (Hz)

5 Push MULTI-CONTROL up or down to adjust the level of the selected speaker unit (filter).

Each time MULTI-CONTROL is pushed up or down, the level of the selected speaker unit (filter) increases or decreases. ±0dB to –24dB is displayed as the level is increased or decreased. +6dB to –24dB is displayed as the level is increased or decreased, only if you have selected Low LPF.

6 Turn MULTI-CONTROL to select NW 3. NW 3 appears in the display.

7 Push MULTI-CONTROL left or right to select the slope of the selected speaker unit (filter).

Each time MULTI-CONTROL is pushed left or right, slopes are selected in the following order: Low LPF: –36— –30— –24— –18— –12 (dB/ oct.) Mid HPF: –24— –18— –12— –6—Pass (0) (dB/oct.) Mid LPF: –24— –18— –12— –6—Pass (0) (dB/oct.)

HighHPF: –24— –18— –12— –6 (dB/oct.)

8 Push MULTI-CONTROL up or down to switch the phase of the selected speaker unit (filter).

Push MULTI-CONTROL up selects normal phase and NOR appears in the display. Push MULTI-CONTROL down selects reverse phase and REV appears in the display.

# You can adjust the parameters for other speaker units (filters) in the same way.

9 Turn MULTI-CONTROL to select NW 4. NW 4 appears in the display.

10 Push MULTI-CONTROL left or right to select stereo or monaural.

Push MULTI-CONTROL left to select monaural and MONO appears in the display. Push

MULTI-CONTROL right to select stereo and Stereo appears in the display.

# You can operate this procedure only when

Low LPF is selected.

11 Press BAND to cancel the network adjustment mode.

Using subwoofer output

This unit is equipped with a subwoofer output which can be turned on or off. When a subwoofer is connected to this unit, turn the subwoofer output on. The subwoofer output phase can be switched between normal and reverse.

1 Use MULTI-CONTROL to select SW 1. SW 1 appears in the display.

2 Press MULTI-CONTROL to turn subwoofer output on. ON appears in the display. Subwoofer output

is now on.

# To turn subwoofer output off, press MULTI-CONTROL again.

Page 62

Section

Audio Adjustments

3 Push MULTI-CONTROL left or right to select stereo or monaural.

Push MULTI-CONTROL left to select monaural and MONO appears in the display. Push

MULTI-CONTROL right to select stereo and Stereo appears in the display.

Adjusting subwoofer settings

When the subwoofer output is on, you can adjust the cut-off frequency and the output level of the subwoofer.

1 Use MULTI-CONTROL to select SW 2. SW 2 appears in the display.

# When the subwoofer output is on, you can select SW 2.

2 Push MULTI-CONTROL left or right to select cut-off frequency.

Each time MULTI-CONTROL is pushed left or right, cut-off frequencies are selected in the following order: 50—63—80—100—125—160—200 (Hz) Only frequencies lower than those in the selected range are outputted from the subwoofer.

3 Push MULTI-CONTROL up or down to adjust the output level of the subwoofer.

Each time MULTI-CONTROL is pushed up or down, subwoofer level increases or decreases. +6 to –24 is displayed as the level is increased or decreased.

# When the subwoofer output is on, you can select SW 3.

2 Push MULTI-CONTROL up or down to select the phase of subwoofer output.

Push MULTI-CONTROL up to select normal phase and NOR appears in the display. Push MULTI-CONTROL down to select reverse phase and REV appears in the display.

3 Push MULTI-CONTROL left or right to select slope.

Each time MULTI-CONTROL is pushed left or right, slopes are selected in the following order: –18— –12— –6 (dB/oct.)

Note

When slope of subwoofer and high pass filter are

-12dB, and same cut-off frequency, the phase is reversed 180 degrees at the cut-off frequency. In this case, reversing the phase assures improved sound continuity.

Using the high pass filter

When you do not want low sounds from the subwoofer output frequency range to play from the front or rear speakers, turn on the HPF (high pass filter). Only frequencies higher than those in the selected range are outputted from the front or rear speakers.

Adjusting low pass filter attenuation slope

When the subwoofer output is on, you can adjust the continuity of sound between speaker units.

1 Use MULTI-CONTROL to select SW 3. SW 3 appears in the display.

Muting the speaker units (filters)

You can mute front and rear speaker units (filters) separately. When speaker units (filters) are muted, no sound is outputted from those speakers.

Page 63

Audio Adjustments

Section

English

! Even if the speaker unit (filter) is muted,

you can adjust the muted speaker units (filters). However, mute is automatically canceled when the level is adjusted.

1 Use MULTI-CONTROL to select F.HPF 1 (or R.HPF 1). F.HPF 1 (or R.HPF 1) appears in the display.

2 Push and hold MULTI-CONTROL down to mute the selected speaker unit (filter). MUTE is displayed.

# To cancel the muting, push MULTI-CONTROL up.

Setting the high pass filter for front speakers

1 Use MULTI-CONTROL to select F.HPF 1. F.HPF 1 appears in the display.

2 Push MULTI-CONTROL left or right to select slope.

Each time MULTI-CONTROL is pushed left or right, slopes are selected in the following order: –12— –6—Pass (0) (dB/oct.)

# If you set the slope to 0 dB/oct. (Pass), the audio signal bypasses the filter, so the filter does not have an effect.

3 Turn MULTI-CONTROL to select F.HPF 2. F.HPF 2 appears in the display.

4 Push MULTI-CONTROL left or right to select cut-off frequency.

Each time MULTI-CONTROL is pushed left or right, cut-off frequencies are selected in the following order: 50—63—80—100—125—160—200 (Hz) Only frequencies higher than those in the selected range are output from the front speakers.

5 Push MULTI-CONTROL up or down to adjust the output level of the front speakers.

Each time MULTI-CONTROL is pushed up or down, the level of the front speakers increases or decreases. ±0 to –24 is displayed as the level is increased or decreased.

Setting the high pass filter for rear speakers

1 Use MULTI-CONTROL to select R.HPF 1. R.HPF 1 appears in the display.

2 Push MULTI-CONTROL left or right to select slope.

Each time MULTI-CONTROL is pushed left or right, slopes are selected in the following order: –12— –6—Pass (0) (dB/oct.)

# If you set the slope to 0 dB/oct. (Pass), the audio signal bypasses the filter, so the filter does not have an effect.

3 Turn MULTI-CONTROL to select R.HPF 2. R.HPF 2 appears in the display.

4 Push MULTI-CONTROL left or right to select cut-off frequency.

5 Push MULTI-CONTROL up or down to adjust the output level of the rear speakers.

Each time MULTI-CONTROL is pushed up or down, the level of the rear speakers increases or decreases. ±0 to –24 is displayed as the level is increased or decreased.

Page 64

Section

Audio Adjustments

Using BBE sound

With BBE, playback very close to the original sound can be obtained by correction with a combination of phase compensation and high-range boost for the delay of the high-frequency components and the amplitude deviation occurring during playback. This function makes it possible to reproduce the dynamic sound field as if you are listening to a live performance. With BBE sound processing technology, you can adjust the level of BBE.

1 Use MULTI-CONTROL to select BBE. BBE appears in the display.

2 Press MULTI-CONTROL to turn BBE on.

# To turn BBE off, press MULTI-CONTROL again.

3 Push MULTI-CONTROL up or down to adjust the level of BBE.

Each time MULTI-CONTROL is pushed up or down, the level of BBE increases or decreases. +4 to –4 is displayed as the level is increased or decreased.

Note

Manufactured under license from BBE Sound, Inc. The mark BBE is a trademark of BBE Sound, Inc.

you are listening to. The COMP function balances the output of louder and softer sounds at higher volumes.

1 Use MULTI-CONTROL to select BMX. BMX appears in the display.

2 Press MULTI-CONTROL to turn BMX on.

# To turn BMX off, press MULTI-CONTROL again.

3 Push MULTI-CONTROL left or right to select the desired setting.

Each time MULTI-CONTROL is pushed left or right, settings are selected in the following order:

COMP 1—COMP 2—BMX 1—BMX 2

Using the auto-equalizer

The auto-equalizer is the equalizer curve created by auto TA and EQ (refer to Auto TA and

EQ (auto-time alignment and auto-equalizing)

on page 67). You can turn the auto-equalizer on or off.

1 Use MULTI-CONTROL to select A.EQ. A.EQ appears in the display.

# If auto TA and EQ has not been carried out,

Please set Auto EQ appears. This indicates that you cannot turn this function on.

Using BMX and compression

Using the BMX and COMP (compression) functions let you adjust the sound playback quality of this unit. Each of the functions has a two-step adjustment. BMX controls sound reverberations to give playback a fuller sound. Listen to each of the effects as you select through them and use the one that best enhances the playback of the track or CD that

2 Press MULTI-CONTROL to turn the autoequalizer on. Auto EQ ON appears in the display.

# To turn auto-equalizer off, press

MULTI-CONTROL again.

Page 65

Audio Adjustments

Section

English

Recalling equalizer curves

The equalizer lets you adjust the equalization to match car interior acoustic characteristics as desired. There are seven stored equalizer curves which you can easily recall at any time. Here is a list of the equalizer curves:

Display Equalizer curve

Powerful Powerful

Natural Natural

Vocal Vocal

Flat Flat

Custom 1 Custom 1

Custom 2 Custom 2

Super Bass Super bass

! Custom 1 and Custom 2 are adjusted

equalizer curves that you create. Adjustments can be made with a 16-band graphic equalizer.

! When Flat is selected no supplement or

correction is made to the sound. This is useful to check the effect of the equalizer curves by switching alternatively between Flat and a set equalizer curve.

% Press EQ to select the equalizer.

Press EQ repeatedly to switch between the following equalizers:

Super Bass—Powerful—Natural—Vocal— Flat—Custom 1—Custom 2

Adjusting equalizer curves

The factory supplied equalizer curves, with the exception of Flat, can be adjusted to a fine degree (nuance control).

1 Use MULTI-CONTROL to select EQ 1. EQ 1 appears in the display.

2 Push MULTI-CONTROL left or right to select an equalizer curve.

3 Push MULTI-CONTROL up or down to adjust the equalizer curve.

Each time MULTI-CONTROL is pushed up or down, the equalizer curve increases or decreases respectively. +6 to –6 is displayed as the equalizer curve is increased or decreased.

# The actual range of the adjustments are different depending on which equalizer curve is selected. # The equalizer curve with all frequencies set to 0 cannot be adjusted.

Adjusting 16-band graphic equalizer

For Custom 1 and Custom 2 equalizer curves, you can adjust the level of each band. ! A separate Custom 1 curve can be created

for each source. (The built-in CD player and the multi-CD player are set to the same equalizer adjustment setting automatically.) If you make adjustments when a curve other than Custom 2 is selected, the equalizer curve settings will be memorized in Custom 1.

! A Custom 2 curve can be created common

to all sources. If you make adjustments when the Custom 2 curve is selected, the

Custom 2 curve will be updated.

1 Recall the equalizer curve you want to adjust.

See Recalling equalizer cur ves on this page.

2 Use MULTI-CONTROL to select EQ 2. EQ 2 appears in the display.

Page 66

Section

Audio Adjustments

3 Push MULTI-CONTROL left or right to select the equalizer band to adjust.

Each time MULTI-CONTROL is pushed left or right, equalizer bands are selected in the following order:

20—31.5—50—80—125—200—315—500— 800—1.25k—2k—3.15k—5k—8k—12.5k— 20k (Hz)

4 Push MULTI-CONTROL up or down to adjust the level of the equalizer band.

Each time MULTI-CONTROL is pushed up or down, the level of the equalization band increases or decreases. +6 to –6 is displayed as the level is increased or decreased.

# You can then select another band and adjust the level.

5 Press BAND to cancel the 16-band graphic equalizer adjustment.

Adjusting loudness

Loudness compensates for deficiencies in the low- and high-sound ranges at low volume.

monitors such var ying noise and automatically increases the volume level, if this noise becomes greater. The sensitivity (variation of volume level to noise level) of ASL can be set to one of five levels.

1 Use MULTI-CONTROL to select ASL. ASL appears in the display.

2 Press MULTI-CONTROL to turn ASL on. ASL level (e.g., Mid-L) appears in the display.

# To turn ASL off, press MULTI-CONTROL again.

3 Push MULTI-CONTROL left or right to select the desired ASL level.

Each time MULTI-CONTROL is pushed left or right, ASL level is selected in the following order:

Low (low)—Mid-L (mid-low)—Mid (mid)— Mid-H (mid-high)—High (high)

Note

When the ASL mode is turned on and exited, ASL appears on the display of each source.

1 Use MULTI-CONTROL to select LOUD. LOUD appears in the display.

2 Press MULTI-CONTROL to turn loudness on.

# To turn loudness off, press MULTI-CONTROL again.

Using automatic sound levelizer

During driving, noise in the car changes according to the driving speed and road conditions. The automatic sound levelizer (ASL)

Adjusting source levels

SLA (source level adjustment) lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. ! Settings are based on the FM tuner volume

level, which remains unchanged.

1 Compare the FM tuner volume level with the level of the source you wish to adjust.

2 Use MULTI-CONTROL to select SLA. SLA appears in the display.

Page 67

Audio Adjustments

Section

English

3 Push MULTI-CONTROL up or down to adjust the source volume.

Each time MULTI-CONTROL is pushed up or down, source volume increases or decreases. SLA +4 to SLA –4 is displayed as the source volume is increased or decreased.

Notes

! The MW/LW tuner volume level can also be

adjusted with source level adjustments.

! The built-in CD player and the multi-CD player

are set to the same source level adjustment volume automatically.

! External unit 1 and external unit 2 are set to

the same source level adjustment volume automatically.

Auto TA and EQ (auto-time alignment and autoequalizing)

The auto-time alignment is automatically adjusted for the distance between each speaker and the listening position. The auto-equalizer automatically measures the car interior acoustic characteristics, and then creates the auto -equalizer curve based on that information.

WARNING

To prevent accidents, never carry out auto TA and EQ while driving. When this function measures the car interior acoustic characteristics to create an auto-equalizer curve, a loud measurement tone (noise) may be outputted from the speakers.

CAUTION

! Carrying out auto TA and EQ under the follow-

ing conditions may damage the speakers. Be

sure to check the conditions thoroughly before carrying out auto TA and EQ. — When speakers are incorrectly connected.

(e.g., When a rear speaker is connected to a subwoofer output.)

— When a speaker is connected to a power

amp delivering output higher than the speaker’s maximum input power capability.

! If the microphone is placed in an unsuitable

position the measurement tone may become loud and measurement may take a long time, resulting in a drain on battery power. Be sure to place the microphone in the specified location.

Before operating the auto TA and EQ function

! Carry out auto TA and EQ in as quiet a

place as possible, with the car engine and air conditioning switched off. Also cut power to car phones or portable telephones in the car, or remove them from the car before carrying out auto TA and EQ. Sounds other than the measurement tone (surrounding sounds, engine sound, telephones ringing etc.) may prevent correct measurement of the car interior acoustic characteristics.

! Be sure to carry out auto TA and EQ using

the supplied microphone. Using another microphone may prevent measurement, or result in incorrect measurement of the car interior acoustic characteristics.

! When front speaker is not connected, auto

TA and EQ cannot be carried out.

! When muting the front speaker units, auto

TA and EQ cannot be carried out. (Refer to page 62.)

Page 68

Section

Audio Adjustments

! When this unit is connected to a power

amp with input level control, auto TA and EQ may not be possible if you lower power amp input level. Set the power amp’s input level to the standard position.

! When this unit is connected to a power

amp with an LPF, turn off the LPF on the power amp before carrying out auto TA and EQ. In addition, the cut-off frequency for built-in LPF of an active subwoofer should be set to the highest frequency.

! The time alignment value calculated by

auto TA and EQ may differ from the actual distance in the following circumstances. However, the distance has been calculated by computer to be the optimum delay to give accurate results for the circumstances, so please continue to use this value. — When the reflected sound within a vehi-

cle is strong and delays occur.

— When delays occur for low sounds due

to the influence of the LPF on active subwoofers or external amps.

! Auto TA and EQ changes the audio settings

as below: — The fader/balance settings return to the

center position. (Refer to page 57.)

— The graphic equalizer curve switches to

Flat. (Refer to page 65.)

— When a subwoofer is connected to this

unit, it will be adjusted automatically to both subwoofer output and high pass filter setting for rear speaker.

! If you carry out auto TA and EQ when a pre-

vious setting of this already exists, the setting will be replaced.

! When connecting tweeters, please confirm

the tweeter’s usable frequency range. When you set the cut-off frequency, set higher than the lowest usable frequency of the tweeter.

! Auto TA uses higher range than 10 kHz for

measurement. Therefore, using the tweeter that cannot reproduce 10 kHz frequency

range may damage the tweeter. When Auto TA&EQ is operated, be sure to set the appropriate cut-off frequency. Also, use the tweeter that can reproduce 10 kHz at the lowest usable frequency.

Carrying out auto TA and EQ

1 Stop the car in a place that is as quiet as possible, close all doors, windows and the sun roof, and then turn the engine off.

# If the engine is left running, engine noise may prevent correct auto TA and EQ.

2 Fix the supplied microphone in the center of the headrest of the driver’s seat, facing forward, using the belt (sold separately).

# The auto TA and EQ may differ depending on where you place the microphone. If desired, place the microphone on the front passenger seat to carry out auto TA and EQ.

3 Turn the ignition switch to ON or ACC.

# If the car’s air conditioner or heater is turned on, turn it off. Noise from the fan in the air conditioner or heater may prevent correct auto TA and EQ. # Press SOURCE to turn the source on if this unit is turned off.

Page 69

Audio Adjustments

Section

English

4 Select the position for the seat on which the microphone is placed.

Refer to Using the position selector on page

57.

# If no position is selected before you start auto TA and EQ, Front Left is selected automatically.

5 Press SOURCE and hold until the unit turns off.

6 Press and hold EQ to enter the auto TA and EQ measurement mode.

The front panel opens automatically.

7 Plug the microphone into the microphone input jack on this unit.

8 Press MULTI-CONTROL to start the auto TA and EQ.

9 Get out of the car and close the door within 10 seconds when the 10-second count-down starts.

The measurement tone (noise) is outputted from the speakers, and auto TA and EQ begins.

# When all speakers are connected, auto TA and EQ is completed in about six minutes. # To stop auto TA and EQ, press MULTI-CONTROL again. # To cancel auto TA and EQ part way through, press BAND.

standing auto TA and EQ error messages on page 78.)

11 Press BAND to cancel the auto TA and EQ mode.

12 Store the microphone carefully in the glove compartment.

Store the microphone carefully in the glove compartment or any other safe place. If the microphone is subjected to direct sunlight for an extended period, high temperatures may cause distortion, color change or malfunction.

Note

Make sure you have disconnected the microphone before pressing EJECT to open or close the panel (an alert sounds if the mic is still connected).

10 When auto TA and EQ is completed, Complete is displayed.

When correct measurement of car interior acoustic characteristics is not possible, an error message is displayed. (Refer to Under-

Page 70

Section

Initial Settings

Adjusting initial settings

Using the initial settings, you can customize various system settings to achieve optimal performance from this unit.

1 Function display

Shows the function status.

1 Press SOURCE and hold until the unit turns off.

2 Press MULTI-CONTROL and hold until Language select appears in the display.

3 Turn MULTI-CONTROL to select one of the initial settings.

Turn MULTI-CONTROL clockwise to switch between the functions in the following order: Language select (language selection)—Clock (clock)—Off Clock (off clock)—FM step (FM tuning step)—Auto PI seek (auto PI seek)—

Warning tone (warning tone)— Face auto open (face auto open)—AUX1 (auxiliary input 1)— AUX2 (auxiliary input 2)— Dimmer (dimmer)—Brightness (brightness) —Digital ATT (digital attenuator)— Audio Reset (audio reset)—Mute (sound

muting/attenuation)—Internal AMP (power amp setting)—Demonstration (feature demo) —Reverse mode (reverse mode)—Ever-scroll (ever scroll) Use the following instructions to operate each particular setting.

# You can also switch between the functions in reverse order by turning MULTI-CONTROL coun- terclockwise. # To cancel initial settings, press BAND.

Selecting the display language

For your convenience, this unit equips multiple language display. You can select the language best suited to your first language.

1 Use MULTI-CONTROL to select Language select. Language select appears in the display.

2 Press MULTI-CONTROL to select the language.

Each press of MULTI-CONTROL selects languages in the following order:

English—Français—Italiano—Español— Deutsch—Nederlands—РУССКИЙ

Setting the clock

Use these instructions to set the clock.

1 Use MULTI-CONTROL to select Clock. Clock appears in the display.

2 Push MULTI-CONTROL left or right to select the segment of the clock display you wish to set.

Pushing MULTI-CONTROL left or right will se- lect one segment of the clock display: Hour—Minute As you select segments of the clock display the segment selected will blink.

Page 71

Initial Settings

3 Push MULTI-CONTROL up or down to set the clock.

Pushing MULTI-CONTROL up will increase the selected hour or minute. Pushing MULTI-CONTROL down will decrease the selected hour or minute.

Note

You can match the clock to a time signal by pressing MULTI-CONTROL. ! If the minute is 00 to 29, the minutes are

rounded down. (e.g., 10:18 becomes 10:00.)

! If the minute is 30 to 59, the minutes are

rounded up. (e.g., 10:36 becomes 11:00.)

Section

English

Setting the FM tuning step

Normally the FM tuning step employed by seek tuning is 50 kHz. When AF or TA is on, the tuning step automatically changes to 100 kHz. It may be preferable to set the tuning step to 50 kHz when AF is on.

1 Use MULTI-CONTROL to select FM step. FM step appears in the display.

2 Press MULTI-CONTROL to select the FM tuning step.

Pressing MULTI-CONTROL repeatedly will switch the FM tuning step between 50 kHz and 100 kHz while AF or TA is on. The selected FM tuning step will appear in the display.

Note

The tuning step remains at 50 kHz during manual tuning.

Turning the off clock display on or off

If the off clock display is turned on, when the sources and the feature demo are off, the clock display appears on the display.

1 Use MULTI-CONTROL to select Off Clock. Off Clock appears in the display.

2 Press MULTI-CONTROL to turn the off clock display on. ON appears in the display.

# To turn the off clock display off, press

MULTI-CONTROL again.

Switching Auto PI Seek

The unit can automatically search for a different station with the same programming, even during preset recall.

1 Use MULTI-CONTROL to select Auto PI seek. Auto PI seek appears in the display.

2 Press MULTI-CONTROL to turn Auto PI seek on. ON appears in the display.

# To turn Auto PI seek off, press

MULTI-CONTROL again.

Page 72

Section

Initial Settings

Switching the warning tone

If the front panel is not detached from the head unit within four seconds of turning off the ignition, a warning tone will sound. You can turn off the warning tone.

1 Use MULTI-CONTROL to select Warning tone. Warning tone appears in the display.

2 Press MULTI-CONTROL to turn warning tone on. ON appears in the display.

# To turn warning tone off, press

MULTI-CONTROL again.

Switching the face auto open

For theft protection, the front panel opens automatically and easily detaches. Face auto open is on as a default.

1 Use MULTI-CONTROL to select Face auto open. Face auto open appears in the display.

2 Press MULTI-CONTROL to turn the face auto open on. ON appears in the display.

# To turn the face auto open off, press

MULTI-CONTROL again.

Switching the auxiliary setting

Auxiliary equipments connected to this unit can be activated individually. Set each AUX source to ON when using. About connecting or using auxiliar y equipments, refer to Using the AUX source on page 75.

1 Use MULTI-CONTROL to select AUX1/ AUX2. AUX1/AUX2 appears in the display.

2 Press MULTI-CONTROL to turn AUX1/ AUX2 on. ON appears in the display.

# To turn AUX off, press MULTI-CONTROL again.

Switching the dimmer setting

To prevent the display from being too bright at night, the display is automatically dimmed when the car’s headlights are turned on. You can turn the dimmer on or off.

1 Use MULTI-CONTROL to select Dimmer. Dimmer appears in the display.

2 Press MULTI-CONTROL to turn dimmer on. ON appears in the display.

# To turn dimmer off, press MULTI-CONTROL again.

Adjusting the brightness

You can adjust the display brightness. Initially this mode is set to 12.

1 Use MULTI-CONTROL to select Brightness. Brightness appears in the display.

2 Push MULTI-CONTROL left or right to adjust the brightness level.

Each time MULTI-CONTROL is pushed left or right, brightness level increases or decreases. 00 to 15 is displayed as the level is increased or decreased.

# When dimmer is functioning, the brightness level can be adjusted 00 to 10.

Page 73

Initial Settings

Section

English

Correcting distorted sound

When listening to a CD or other source on which the recording level is high, setting the equalizer curve level to high may result in distortion. You can switch the digital attenuator to low to reduce distortion. ! Sound quality is better at the high setting

so this setting is usually used.

1 Use MULTI-CONTROL to select Digital ATT. Digital ATT appears in the display.

2 Press MULTI-CONTROL to select the digital attenuator level.

Pressing MULTI-CONTROL repeatedly will switch between High (high) and Low (low) and that status will be displayed.

Resetting the audio functions

You can reset all audio functions.

1 Use MULTI-CONTROL to select Audio Reset. Reset OK! appears in the display.

2 Press MULTI-CONTROL. Does it RESET? appears in the display.

3 Push MULTI-CONTROL right. Are you sure? appears in the display.

4 Press MULTI-CONTROL to reset audio functions. Complete appears in the display and audio

functions are reset.

# To cancel this function on the way, press BAND.

Switching the sound muting/attenuation

Sound from this system is muted or attenuated automatically when the signal from the equipment with mute function is received. ! The sound is muted or attenuated, MUTE

or ATT are displayed and no audio adjustment is possible.

! Sound from this system returns to normal

when the muting or attenuation is canceled.

1 Use MULTI-CONTROL to select Mute. Mute appears in the display.

2 Press MULTI-CONTROL to select the desired setting.

Press MULTI-CONTROL repeatedly to switch between the following settings:

! 10dB ATT – Attenuation ! 20dB ATT – Attenuation (20dB ATT has a

stronger effect than 10dB ATT)

! TEL mute – Muting

Setting the internal power amplifier

This unit features high power amplifier. However, in particular system, external amplifiers are used instead of internal amplifier. If you use external amplifiers in order to establish a multi-amp system, and don't use internal amplifier, it is recommended to turn off the internal amplifier. Turning off internal amplifier reduces the noise that comes from the behavior of internal amplifier and fan.

1 Use MULTI-CONTROL to select Internal AMP. Internal AMP appears in the display.

Page 74

Section

Initial Settings

2 Press MULTI-CONTROL to turn the internal power amplifier on. ON appears in the display.

# To turn the internal power amplifier off, press

MULTI-CONTROL again.

Switching the feature demo

The feature demo automatically starts when power to this unit is turned off while the ignition switch is set to ACC or ON.

1 Use MULTI-CONTROL to select Demonstration. Demonstration appears in the display.

2 Press MULTI-CONTROL to turn the feature demo on. ON appears in the display.

# To turn the feature demo off, press

MULTI-CONTROL again.

Notes

! Remember that if the feature demo continues

operating when the car engine is turned off, it may drain battery power.

! You can also turn on or off feature demo by

pressing DISPLAY while this unit is turned off. For more details, see Feature demo mode on page 10.

2 Press MULTI-CONTROL to turn the reverse mode on. ON appears in the display.

# To turn the reverse mode off, press

MULTI-CONTROL again.

Note

You can also turn on or off reverse mode by pressing BAND while this unit is turned off. For more details, see Reverse mode on page 10.

Switching the Ever Scroll

When Ever Scroll is set to ON, text information recorded on CD or iPod scrolls continuously in the display. Set to OFF if you prefer the information to scroll just once.

1 Use MULTI-CONTROL to select Ever-scroll. Ever-scroll appears in the display.

2 Press MULTI-CONTROL to turn the Ever Scroll on. ON appears in the display.

# To turn the Ever Scroll off, press

MULTI-CONTROL again.

Switching the reverse mode

If you do not perform an operation within about 30 seconds, screen indications start to reverse, and then continue reversing every 10 seconds.

1 Use MULTI-CONTROL to select Reverse mode. Reverse mode appears in the display.

Page 75

Other Functions

Section

English

Using the AUX source

This unit can control up to two auxiliary equipments such as VCR or portable devices (sold separately). When connected, auxiliary equipments are automatically read in as AUX sources and assigned to AUX1 or AUX2. The relationship between AUX1 and AUX2 sources is explained below.

About AUX1 and AUX2

You have two methods to connect auxiliary equipments to this unit.

AUX1 source:

When connecting auxiliary equipment using a stereo mini plug cable

% Insert the stereo mini plug into the input jack on this unit.

For more details, refer to the installation manual. The allocation of this auxiliary equipment is automatically set to AUX1.

AUX2 source:

When connecting auxiliary equipment using an IP-BUS-RCA Interconnector (sold separately)

% Use an IP-BUS-RCA Interconnector such as the CD-RB20/CD-RB10 (sold separetely) to connect this unit to auxiliary equipment featuring RCA output.

For more details, refer to the IP-BUS-RCA Interconnector owner’s manual. The allocation of this auxiliary equipment is automatically set to AUX2.

# You can only make this type of connection if the auxiliary equipment has RCA outputs.

Selecting AUX as the source

% Press SOURCE to select AUX as the source.

Press SOURCE until AUX appears in the display.

# If the auxiliary setting is not turned on, AUX cannot be selected. For more details, see Switch- ing the auxiliary setting on page 72.

Setting the AUX title

The title displayed for each AUX1 or AUX2 source can be changed.

1 After you have selected AUX as the source, use MULTI-CONTROL and select FUNCTION to display TitleInput "A".

2 Press DISPLAY to select the desired character type.

3 Push MULTI-CONTROL up or down to select a letter of the alphabet.

Each time MULTI-CONTROL is pushed up, letters of the alphabet are displayed in A B C ... X

YZorder, numbers and symbols in 1 2 3 ... @ #<order. Each time MULTI-CONTROL is pushed down, letters are displayed in Z Y X ... CBAorder.

Page 76

Section

Other Functions

4 Push MULTI-CONTROL right to move the cursor to the next character position.

When the letter you want is displayed, push MULTI-CONTROL right to move the cursor to the next position and then select the next letter. Push MULTI-CONTROL left to move backwards in the display.

5 Move the cursor to the last position by pushing MULTI-CONTROL right after entering the title.

When you push MULTI-CONTROL right one more time, the entered title is stored in memory.

6 Press BAND to return to the playback display.

Using different entertainment displays

You can enjoy entertainment displays while listening to each sound source.

1 Press MULTI-CONTROL to display the main menu. FUNCTION, AUDIO and ENTERTAINMENT

appear on the display.

2 Use MULTI-CONTROL to select ENTERTAINMENT.

Turn to change the menu option; press to select.

3 Use MULTI-CONTROL to change the display.

Turn to change the menu option; press to select. ENT. OFF (entertainment off)—BGV-1 (background visual 1)—BGV-2 (background visual

2)—BGV-3 (background visual 3)—BGV-4 (background visual 4)—BGP-1 (background picture 1)—BGP-2 (background picture 2)—

BGP-3 (background picture 3)—BGP-4 (background picture 4)—SPECTRUM ANALYZER-1 (spectrum analyzer 1)— SPECTRUM ANALYZER-2 (spectrum analyzer

2)—LEVEL METER (level meter)—

LEVEL INDICATOR (level indicator)— BATTERY VOLTAGE (voltage indicator)— ENT CLOCK (entertainment clock)—MOVIE (movie screen)—DISPLAY OFF (display off)

# Voltage indicator may differ from the actual voltage level. # Selecting DISPLAY OFF reduces the noise that comes from display. While the display indicator is turning off, display off indicator lights up. # You can also switch between the displays in reverse order by turning MULTI-CONTROL coun- terclockwise. # You can also switch between the display by pressing ENTERTAINMENT on the remote con- trol.

# To return to the playback display, press BAND.

4 Use MULTI-CONTROL to select the display form.

Push MULTI-CONTROL up or down to select the menu option; press to select.

Display Form 1—Display Form 2— Display Form 3

# Display form can be changed when entertainment off (ENT. OFF), background visual (BGV-1, BGV-2, BGV-3, BGV-4) or background picture (BGP-1, BGP-2, BGP-3, BGP-4) is selected. # If Display Form 2 is selected in the following sources, play time and title information are not displayed simultaneously.

! Built-in CD Player ! Multi-CD Player ! DVD player/multi-DVD player ! iPod

# If Display Form 3 is selected in the following

sources, display information cannot be changed.

! Tuner ! Built-in CD Player ! Multi-CD Player ! DVD player/multi-DVD player

Page 77

Other Functions

! iPod

Using the PGM button

You can operate the preprogrammed functions for each source by using PGM on the remote control.

% Press PGM to turn pause on when selecting the following sources:

! CD – Built-in CD player ! Multi-CD – Multi-CD player ! iPod – iPod ! DVD – DVD player/multi-DVD player

# To turn pause off, press PGM again.

% Press PGM and hold to turn BSM on

when selecting tuner as the source. Press PGM and hold until the BSM turns on.

# To cancel the storage process, press PGM again.

Section

English

% Press PGM and hold to turn BSSM on when selecting television as the source. Press PGM and hold until the BSSM turns on.

# To cancel the storage process, press PGM again.

Page 78

Appendix

Additional Information

Understanding built-in CD player error messages

When you contact your dealer or your nearest Pioneer Service Center, be sure to record the error message.

Message Cause Action

ERROR-11, 12, 17, 30

ERROR-10, 11, 12, 15, 17, 30, A0

ERROR-15 The inserted disc

ERROR-23 The CD format

No Audio The inserted disc

TRK SKIPPED The inserted disc

PROTECT All the files on

Dirty disc Clean disc.

Scratched disc Replace disc.

Electrical or mechanical

does not contain any data

cannot be played back

does not contain any files that can be played back

contains WMA files that are protected by DRM

the inserted disc are secured by DRM

Turn the ignition ON and OFF, or switch to a different source, then back to the CD player.

Replace disc.

pears, refer to the table below to see what the problem is and the suggested method of correcting the problem. Af ter checking, try again.

Message Cause Action

ERR:MIC check Microphone is

ERR:Front Speaker, ERR: Front-Lch, ERR:Front-Rch, ERR:Rear-Lch, ERR:Rear-Rch, ERR:SubWLch, ERR: SubW-Rch, ERR:SubWoofer

ERR:Outside Noise

not connected.

The microphone cannot pick up the measuring tone of a speaker.

The surrounding noise level is too high.

Plug the supplied microphone securely into the jack.

! Confirm that the speakers are connected correctly. ! Cancel muting the front speaker units. ! Correct the input level setting of the power amp connected to the speakers. ! Set the microphone correctly.

! Stop your car in a place that is as quiet as possible, and switch off the engine, air conditioner or heater. ! Set the microphone correctly.

Understanding auto TA and EQ error messages

When correct measurement of car interior acoustic characteristics is not possible using the auto TA and EQ, an error message may appear on the display. If an error message ap-

Page 79

Additional Information

Appendix

English

CD player and care

! Use only CDs that have either of the two

Compact Disc Digital Audio marks as shown below.

! Use only normal, round CDs. If you insert ir-

regular, non-round, shaped CDs they may jam in the CD player or not play properly.

! Check all CDs for cracks, scratches or

warping before playing. CDs that have cracks, scratches or are warped may not play properly. Do not use such discs.

! Avoid touching the recorded (non-printed)

surface when handling the disc.

! Store discs in their cases when not in use. ! Keep discs out of direct sunlight and do

not expose the discs to high temperatures.

! Do not attach labels, write on or apply che-

micals to the surface of the discs.

! To clean a CD, wipe the disc with a soft

cloth outward from the center.

player for an hour or so to allow it to dry out and wipe any damp discs with a soft cloth to remove the moisture.

! Road shocks may interrupt CD playback.

CD-R/CD-RW discs

! When CD-R/CD-RW discs are used, play-

back is possible only for discs which have been finalized.

! It may not be possible to play back CD-R/

CD-RW discs recorded on a music CD recorder or a personal computer because of disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc., on the lens of this unit.

! Playback of discs recorded on a personal

computer may not be possible, depending on the application settings and the environment. Please record with the correct format. (For details, contact the manufacturer of the application.)

! Playback of CD-R/CD-RW discs may be-

come impossible in case of direct exposure to sunlight, high temperatures, or the storage conditions in the vehicle.

! Titles and other text information recorded

on a CD-R/CD-RW disc may not be displayed by this unit (in the case of audio data (CD-DA)).

! Read the precautions with CD-R/CD-RW

discs before using them.

! If the heater is used in cold weather, moist-

ure may form on components inside the CD player. Condensation may cause the CD player to malfunction. If you think that condensation is a problem turn off the CD

Page 80

Appendix

Additional Information

MP3, WMA, AAC and WAV files

! MP3 is short for MPEG Audio Layer 3 and

refers to an audio compression technology standard.

! WMA is short for Windows Media™ Audio

and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 7 or later.

! AAC is short for Advanced Audio Coding

and refers to an audio compression technology standard.

! WAV is short for waveform. It is a standard

audio file format for Windows

! This unit may not operate correctly depend-

ing on the application used to encode WMA files.

! Depending on the version of Windows

Media Player used to encode WMA files, album names and other text information may not be correctly displayed.

! There may be a slight delay when starting

playback of WMA/AAC files encoded with image data.

! This unit allows playback of MP3/WMA/

AAC/WAV files on CD-ROM, CD-R and CDRW discs. Disc recordings compatible with level 1 and level 2 of ISO9660 and with the Romeo and Joliet file system can be played back.

! It is possible to play back multi-session

compatible recorded discs.

! MP3/WMA/AAC/WAV files are not compati-

ble with packet write data transfer.

! The maximum number of characters which

can be displayed for a file name, including the extension (.mp3, .wma, .m4a or .wav), is 32, from the first character.

! The maximum number of characters which

can be displayed for a folder name is 32.

! In case of files recorded according to the

Romeo file system, only the first 32 characters can be displayed.

! When playing discs with MP3/WMA/AAC/

WAV files and audio data (CD-DA) such as CD-EXTRA and MIXED-MODE CDs, both types can be played only by switching mode between MP3/WMA/AAC/WAV and CD-DA.

! The folder selection sequence for playback

and other operations becomes the writing sequence used by the writing software. For this reason, the expected sequence at the time of playback may not coincide with the actual playback sequence. However, there also is some writing software which permits setting of the playback order.

! Some audio CDs contain tracks that merge

into one another without a pause. When these discs are converted to MP3/WMA/ AAC/WAV files and burned to a CD-R/CDRW/CD-ROM, the files will be played back on this player with a short pause between each one, regardless of the length of the pause between tracks on the original audio CD.

Important

! When naming an MP3/WMA/AAC/WAV file,

add the corresponding filename extension (.mp3, .wma, .m4a or .wav).

! This unit plays back files with the filename ex-

tension (.mp3, .wma, m4a or .wav) as an MP3/ WMA/AAC/WAV file. To prevent noise and malfunctions, do not use these extensions for files other than MP3/WMA/AAC/WAV files.

MP3 additional information

! Files are compatible with the ID3 Tag Ver.

1.0, 1.1, 2.2, 2.3 and 2.4 formats for display of album (disc title), track (track title), artist (track artist) and comments. Ver. 2.x of ID3 Tag is given priority when both Ver. 1.x and Ver. 2.x exist.

Page 81

Additional Information

Appendix

English

! The emphasis function is valid only when

MP3 files of 32, 44.1 and 48 kHz frequencies are played back. (16, 22.05, 24, 32,

44.1, 48 kHz sampling frequencies can be played back.)

! There is no m3u playlist compatibility. ! There is no compatibility with the MP3i

(MP3 interactive) or mp3 PRO formats.

! The sound quality of MP3 files generally be-

comes better with an increased bit rate. This unit can play recordings with bit rates from 8 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using only discs recorded with a bit rate of at least 128 kbps.

WMA additional information

! This unit plays back WMA files encoded by

Windows Media Player version 7, 7.1, 8, 9 and 10.

! You can only play back WMA files in the fre-

quencies 32, 44.1 and 48 kHz.

! The sound quality of WMA files generally

becomes better with an increased bit rate. This unit can play recordings with bit rates from 48 kbps to 320 kbps (CBR) or from 48 kbps to 384 kbps (VBR), but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher bit rate.

! This unit doesn’t support the following for-

mats. — Windows Media Audio 9 Professional

(5.1ch)

— Windows Media Audio 9 Lossless — Windows Media Audio 9 Voice

AAC additional information

! This unit plays back AAC files encoded by

iTunes

version 4.8 and earlier.

! This unit plays back AAC files in the sam-

pling frequencies 11.025, 16, 22.05, 24, 32,

44.1 and 48 kHz.

! The sound quality of AAC files generally be-

comes better with an increased transmission rate. This unit can play recordings with transmission rates from 16 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher transmission rate.

! This unit doesn’t support the following for-

mats. — Apple Lossless

WAV additional information

! This unit plays back WAV files encoded in

Linear PCM (LPCM) format or MS ADPCM format.

! You can only play back WAV files in the fre-

quencies 16, 22.05, 24, 32, 44.1 and 48 kHz (LPCM), or 22.05 and 44.1 kHz (MS ADPCM). The sampling frequency shown in the display may be rounded.

! The sound quality of WAV files generally be-

comes better with a larger number of quantization bits. This unit can play recordings with 8 and 16 (LPCM) or 4 (MS ADPCM) quantization bits, but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with the larger number of quantization bits.

About folders and MP3/ WMA/AAC/WAV files

! An outline of a CD-ROM with MP3/WMA/

AAC/WAV files on it is shown below. Subfolders are shown as folders in the folder currently selected.

Page 82

Appendix

Additional Information

mend creating discs with no more than 2 tiers.

! It is possible to play back up to 99 folders on

one disc.

1 First level

2 Second level

3 Third level

Notes

! This unit assigns folder numbers. The user

cannot assign folder numbers.

! It is not possible to check folders that do not

include MP3/WMA/AAC/WAV files. (These folders will be skipped without displaying the folder number.)

! MP3/WMA/AAC/WAV files in up to 8 tiers of

folders can be played back. However, there is a delay in the start of playback on discs with numerous tiers. For this reason we recom-

Page 83

Additional Information

Appendix

English

Terms

AAC

AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG 2 and MPEG 4.

Bit rate

This expresses data volume per second, or bps (bits per second) units. The higher the rate, the more information is available to reproduce the sound. Using the same encoding method (such as MP3), the higher the rate, the better the sound.

ID3 tag

This is a method of embedding track-related information in an MP3 file. This embedded information can include the track title, the artist’s name, the album title, the music genre, the year of production, comments and other data. The contents can be freely edited using software with ID3 Tag editing functions. Although the tags are restricted as to the number of characters, the information can be viewed when the track is played back.

ISO9660 format

This is the international standard for the format logic of CD-ROM folders and files. For the ISO9660 format, there are regulations for the following two levels.

Level 1:

The file name is in 8.3 format (the name consists of up to 8 characters, half-byte English capital letters and half-byte numerals and the “_” sign, with a file-extension of three characters).

Level 2:

The file name can have up to 31 characters (including the separation mark “.” and a file extension). Each folder contains less than 8 hierarchies.

Extended formats

Joliet: File names can have up to 64 characters. Romeo: File names can have up to 128 characters.

Linear PCM (LPCM)/Pulse code modulation

This stands for linear pulse code modulation, which is the signal recording system used for music CDs and DVDs.

m3u

Playlists created using the “WINAMP” software have a playlist file extension (.m3u).

MP3

MP3 is short for MPEG Audio Layer 3. It is an audio compression standard set by a working group (MPEG) of the ISO (International Standards Organization). MP3 is able to compress audio data to about 1/10th the level of a conventional disc.

MS ADPCM

This stands for Microsoft adaptive differential pulse code modulation, which is the signal recording system used for the multimedia software of Microsoft Corporation.

Multi-session

Multi-session is a recording method that allows additional data to be recorded later. When recording data on a CD-ROM, CD-R or CD-RW, etc., all data from beginning to end is treated as a single unit or session. Multi-session is a method of recording more than 2 sessions on one disc.

Page 84

Appendix

Additional Information

Number of quantization bits

The number of quantization bits is one factor in the overall sound quality; the higher the “bit-depth”, the better the sound quality. However, increasing the bit-depth also increases the amount of data and therefore storage space required.

Packet write

This is a general term for a method of writing on CD-R, etc., at the time required for a file, just as is done with files on floppy or hard discs.

VBR

VBR is short for variable bit rate. Generally speaking CBR (constant bit rate) is more widely used. But by flexibly adjusting the bit rate according to the needs of audio compression, it is possible to achieve compressionpriority sound quality.

WAV

WAV is short for waveform. It is a standard audio file format for Windows

WMA

WMA is short for Windows Media™ Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 7 or later. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Page 85

Additional Information

Appendix

English

Specifications

General

Power source ............................. 14.4 V DC (10.8 V to 15.1 V

allowable)

Grounding system ...................Negative type

Max. current consumption

..................................................... 10.0 A

Dimensions (W × H × D):

DIN

Chassis ..................... 178 × 50 × 159 mm

Nose ...........................188 × 58 × 30 mm

Chassis ..................... 178 × 50 × 164 mm

Nose ...........................170 × 45 × 25 mm

Weight .......................................... 1.6 kg

Audio/DSP

Maximum power output ....... 50 W × 4

Continuous power output ...27 W × 4 (DIN 45324,

+B=14.4 V)

Load impedance ...................... 4 W (4 W to 8 W allowable)

Preout max output level/output impedance

..................................................... 5.0 V/100W

Loudness contour ................... +10 dB (100 Hz), +6.5 dB

(10 kHz) (volume: –30 dB) Equalizer (Left/Right independent 16-Band Graphic Equalizer):

Frequency .......................... 20/31.5/50/80/125/200/315/

500/800/1.25k/2k/3.15k/5k/

8k/12.5k/20k Hz

Equalization range ........ ±12 dB (2 dB step)

Auto equalizer:

(Front & rear & subwoofer/High & mid & low)

Frequency .......................... 20/31.5/50/80/125/200/315/

500/800/1.25k/2k/3.15k/5k/

8k/12.5k/20k Hz

Equalization range ........ +6 to –12 dB (2 dB step)

Network (standard mode):

HPF (Front/rear):

Frequency ................ 50/63/80/100/125/160/200

Slope .......................... 0 (Pass)/–6/–12 dB/oct

Gain ............................ 0 to –24 dB/Mute (1 dB

step)

Subwoofer (stereo/mono):

Frequency ................ 50/63/80/100/125/160/200

Slope .......................... –6/–12/–18 dB/oct

Gain ............................ +6 to –24 dB/Mute (1 dB

step)

Phase ........................ Normal/Reverse

Network (3-way network mode):

High HPF:

Frequency ................ 1.25/1.6/2/2.5/3.15/4/5/ 6.3/8/

Slope .......................... –6/–12/–18/–24 dB/oct

Gain ............................ 0 to –24 dB/Mute (1 dB

Phase ........................ Normal/Reverse

Mid HPF/LPF:

Frequency (LPF) ...1.25/1.6/2/2.5/3.15/4/5/6.3/8/

Frequency (HPF)

................................. 25/31.5/40/50/63/80/100/125/

Slope (LPF) ............. 0 (Pass)/–6/–12/–18/–24 dB/

Slope (HPF) ............ 0 (Pass)/–6/–12/–18/–24 dB/

Gain ............................ 0 to –24 dB/Mute (1 dB

Phase ........................ Normal/Reverse

Low LPF (stereo/mono):

Frequency ................ 25/31.5/40/50/63/80/100/125/

Slope .......................... –12/–18/–24/–30/–36 dB/oct

Gain ............................ +6 to –24 dB/Mute (1 dB

Phase ........................ Normal/Reverse

10/12.5 kHz

step)

10/12.5 kHz

160/200/250 Hz

oct

step)

160/200/250 Hz

step)

CD player

System .......................................... Compact disc audio system

Usable discs .............................. Compact disc

Signal format:

Sampling frequency ..... 44.1 kHz

Number of quantization bits

........................................... 16; linear

Frequency characteristics ... 5 Hz to 20000 Hz (±1 dB)

Signal-to-noise ratio ............... 105 dB (1 kHz) (IEC-A net-

Dynamic range ......................... 100 dB (1 kHz)

Number of channels .............. 2 (stereo)

MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3

WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10 (2ch

AAC decoding format ............ MPEG-4 AAC (iTunes

WAV signal format .................. Linear PCM & MS ADPCM

work)

audio) (Windows Media Player)

coded only)

en-

FM tuner

Frequency range ...................... 87.5 MHz to 108.0 MHz

Page 86

Appendix

Additional Information

Usable sensitivity ..................... 8 dBf (0.7 µV/75 W, mono,

50 dB quieting sensitivity ..... 10 dBf (0.9 µV/75 W, mono)

Signal-to-noise ratio ............... 75 dB (IEC-A network)

Distortion .....................................0.3 % (at 65 dBf, 1 kHz,

Frequency response ............... 30 Hz to 15 000 Hz (±3 dB)

Stereo separation .................... 45 dB (at 65 dBf, 1 kHz)

Selectivity .................................... 80 dB (±200 kHz)

S/N: 30 dB)

stereo)

0.05 % (at 65 dBf, 1 kHz, mono)

MW tuner

Frequency range ...................... 531 kHz to 1 602 kHz (9 kHz)

Usable sensitivity ..................... 18 µV (S/N: 20 dB)

Signal-to-noise ratio ............... 67 dB (IEC-A network)

LW tuner

Frequency range ...................... 153 kHz to 281 kHz

Usable sensitivity ..................... 30 µV (S/N: 20 dB)

Signal-to-noise ratio ............... 67 dB (IEC-A network)

Note

Specifications and the design are subject to possible modifications without notice due to improvements.

Page 87

Contenido

Gracias por haber comprado este producto Pioneer.

Se ruega leer estas instrucciones de funcionamiento para conocer cómo utilizar correctamente su modelo. Tras leer las instrucciones, guarde este manual en un

lugar seguro para consultarlo en el futuro.

Español

Antes de comenzar

Acerca de esta unidad 91 Acerca de este manual 91 En caso de problemas 92 Características 92 Acerca de WMA 93 Acerca de AAC 93 Registro del producto 93 Protección del producto contra robo 93

– Extracción de la carátula 94 – Colocación de la carátula 94

Reinicialización del microprocesador 94 Cambio del modo de ajuste del DSP 95 Acerca del modo demo 95

– Modo inverso 95 – Modo de demostración de

características 96

Uso y cuidado del mando a distancia 96

– Instalación de la batería 96 – Uso del mando a distancia 96 – Botones FUNCTION y AUDIO 97

Qué es cada cosa

Unidad principal 98 Mando a distancia 98

Funciones básicas

Encendido de la unidad 100 Selección de una fuente 100 Carga de discos 100 Ajuste del volumen 101 Apagado de la unidad 101

Sintonizador

Para escuchar la radio 102 Introducción a las funciones avanzadas del

sintonizador 103

Almacenamiento de frecuencias 103 Almacenamiento de las frecuencias de radio

más fuertes 104

Selección de emisoras de la lista de canales

presintonizados 104

Sintonización de señales fuertes 105

RDS

Introducción a la operación RDS 106 Selección de frecuencias alternativas 107

– Uso de la búsqueda PI 107 – Uso de la búsqueda PI automática para

emisoras presintonizadas 107

– Limitación de las emisoras para

programación regional 108 Recepción de anuncios de tráfico 108 Uso de las funciones PTY 109

– Búsqueda de una emisora RDS por

información PTY 109

– Uso de la interrupción por programa de

noticias 109

– Recepción de transmisiones de alarma

PTY 110 Uso del radio texto 110

– Visualización de radio texto 110 – Almacenamiento y recuperación de

radio texto 110 Lista PTY 111

Reproductor de CD incorporado

Reproducción de un CD 112 Selección directa de una pista 112 Introducción a las funciones avanzadas del

reproductor de CD incorporado 113

Repetición de reproducción 113 Reproducción de las pistas en orden

aleatorio 113 Exploración de las pistas de un CD 114 Pausa de la reproducción de un CD 114 Selección del método de búsqueda 114 Búsqueda cada 10 pistas en el disco

actual 115 Uso de las funciones de títulos de

discos 115

– Ingreso de títulos de discos 115 – Visualización de los títulos 116

Uso de las funciones CD TEXT 116

Page 88

Contenido

– Visualización de información de texto

de discos CD TEXT 116

– Desplazamiento de información de

texto en el display 116

– Selección de pistas de la lista de títulos

de las pistas 117

Reproductor de MP3/WMA/AAC/WAV

Reproducción de ficheros MP3/WMA/AAC/

WAV 118

Selección directa de una pista en la carpeta

actual 119

Introducción a las funciones avanzadas del

reproductor de CD incorporado (MP3/ WMA/AAC/WAV) 120

Repetición de reproducción 120 Reproducción de las pistas en orden

aleatorio 121

Exploración de carpetas y pistas 121 Pausa de la reproducción de MP3/WMA/

AAC/WAV 121

Selección del método de búsqueda 122 Búsqueda cada 10 pistas en la carpeta

actual 122

Visualización de la información de texto de

un disco MP3/WMA/AAC/WAV 122

– Al reproducir un disco MP3/WMA/

AAC 122

– Al reproducir un disco WAV 123

Desplazamiento de información de texto en

el display 123

Selección de pistas de la lista de nombres de

ficheros 123

Reproductor de CD múltiple

Reproducción de un CD 124 Selección directa de una pista 125 Reproductor de CD múltiple de 50

discos 125

Introducción a las funciones avanzadas del

reproductor de CD múltiple 125

Repetición de reproducción 126

Reproducción de las pistas en orden

aleatorio 126 Exploración de CD y pistas 126 Pausa de la reproducción de un CD 127 Uso de listas de reproducción ITS 127

– Creación de una lista de reproducción

con la programación ITS 127

– Reproducción de la lista de

reproducción ITS 128

– Borrado de una pista de la lista de

reproducción ITS 128

– Borrado de un CD de la lista de

reproducción ITS 128

Uso de las funciones de títulos de

discos 129

– Ingreso de títulos de discos 129 – Visualización de los títulos 130 – Selección de discos de la lista de

títulos de los discos 130

Uso de las funciones CD TEXT 130

– Visualización de información de texto

de discos CD TEXT 130

– Desplazamiento de información de

texto en el display 130

– Selección de pistas de la lista de títulos

de las pistas 131

Para reproducir canciones en el iPod

Para escuchar canciones en su iPod 132 Para buscar una canción 132

– Para buscar una canción 132 – Selección de una lista de

reproducción 133

Visualización de información de texto en el

iPod 133 Introducción a las funciones avanzadas del

adaptador de iPod 134 Repetición de reproducción 134 Reproducción de las canciones en un orden

aleatorio (selección aleatoria) 134 Para poner en pausa una canción 135

Page 89

Contenido

Español

Sintonizador de TV

Uso del televisor 136 Introducción a las funciones avanzadas del

sintonizador de TV 137

Almacenamiento de emisoras 137 Almacenamiento consecutivo de las

emisoras con las señales más fuertes 137

Selección de emisoras de la lista de canales

presintonizados 138

Reproductor de DVD

Reproducción de un disco 139 Selección de un disco 139 Selección de una carpeta 139 Introducción a las funciones avanzadas del

reproductor de DVD 140 Repetición de reproducción 140 Pausa de la reproducción de un disco 141 Reproducción de las pistas en orden

aleatorio 141 Exploración de las pistas de un CD/MP3/

WMA 141 Uso de la lista de reproducción ITS y las

funciones de títulos de discos 142 Uso de las funciones de títulos de

discos 142

– Ingreso de títulos de discos 142

Ajustes de audio Modos de funcionamiento 143

– Indicaciones de los modos de

funcionamiento 143

Modo de red de 3 vías

– Ajuste sencillo del sistema de

audio 143

– Ajuste de precisión del sistema de

audio 143

Modo Estándar

– Ajuste sencillo del sistema de

audio 144

143

144

– Ajuste de precisión del sistema de

audio 144 Funciones adicionales 144 Introducción a los ajustes de audio 145 Cambio al canal izquierdo y derecho 146 Uso del selector de posición 146 Uso del ajuste del balance Uso del ajuste del balance Uso de la alineación temporal 147

– Ajuste de la alineación temporal 148

Acerca de la función de red

– Parámetros ajustables 149 – Puntos a tener en cuenta con respecto

a los ajustes de red 149

– Silenciamiento del altavoz (filtro) 150 – Ajuste de red 150

Uso de la salida de subgraves

– Uso de la salida de subgraves 151 – Configuración de los ajustes de

subgraves 152

– Ajuste de la pendiente de atenuación

del filtro de paso bajo 152 Uso del filtro de paso alto

– Silenciamiento de altavoces

(filtros) 153

– Ajuste del filtro de paso alto para los

altavoces delanteros 153

– Ajuste del filtro de paso alto para los

altavoces traseros 154 Uso del sonido BBE 154 Uso de BMX y la compresión 155 Uso del autoecualizador 155 Recuperación de las curvas de

ecualización 155

Ajuste de las curvas de ecualización 156 Ajuste del ecualizador gráfico de 16

bandas 156 Ajuste de la sonoridad 157 Uso del nivelador automático de sonido 157 Ajuste de los niveles de la fuente 157

146 147

148

151

153

Page 90

Contenido

TA y EQ automáticos (alineación temporal y

ecualización automáticas) 158

– Antes de utilizar las funciones TA y EQ

automáticas 158

– Para realizar los ajustes TA y EQ

automáticos 159

Ajustes iniciales

Configuración de los ajustes iniciales 162 Selección del idioma de visualización 162 Ajuste del reloj 163 Activación y desactivación de la visualización

del reloj de apagado 163 Ajuste del paso de sintonía de FM 163 Cambio de la búsqueda PI automática 164 Cambio del tono de advertencia 164 Cambio de la apertura automática de la

cara 164 Cambio del ajuste de un equipo

auxiliar 164 Cambio del ajuste del atenuador de luz 165 Ajuste del brillo 165 Corrección de distorsiones del sonido 165 Restablecimiento de las funciones de

audio 165 Cambio del silenciamiento/atenuación del

sonido 166 Ajuste del amplificador de potencia

interno 166 Cambio de la demostración de

características 166 Cambio del modo inverso 167 Cambio del desplazamiento continuo 167

Otras funciones Uso de la fuente AUX 168

– Acerca de AUX1 y AUX2 168 – Selección de AUX como la fuente 168 – Ajuste del título del equipo

auxiliar 168

Uso de diferentes visualizaciones de

entretenimiento 169

Uso del botón PGM 170

Información adicional

Comprensión de los mensajes de error del

reproductor de CD incorporado 171

Comprensión de los mensajes de error de los

ajustes TA y EQ automáticos 171 Reproductor de CD y cuidados 172 Discos CD-R/CD-RW 172 Ficheros MP3, WMA, AAC y WAV 173

– Información adicional sobre MP3 174 – Información adicional sobre

WMA 174

– Información adicional sobre AAC 174 – Información adicional sobre WAV 174

Acerca de las carpetas y los ficheros MP3/

WMA/AAC/WAV 175 Glosario 176 Especificaciones 178

Page 91

Antes de comenzar

Si desea deshacerse de este producto, no lo mezcle con los residuos generales de su hogar. De conformidad con la legislación vigente, existe un sistema de recogida distinto para los productos electrónicos que requieren un procedimiento adecuado de tratamiento, recuperación y reciclado.

Las viviendas privadas en los 25 estados miembros de la UE, en Suiza y Noruega pueden devolver gratuitamente sus productos electrónicos usados en las instalaciones de recolección previstas o bien en las instalaciones de minoristas (si adquieren un producto similar nuevo). En el caso de los países que no se han mencionado en el párrafo anterior, póngase en contacto con sus autoridades locales a fin de conocer el método de eliminación correcto. Al actuar siguiendo estas instrucciones, se asegurará de que el producto de desecho se somete a los procesos de tratamiento, recuperación y reciclaje necesarios, con lo que se previenen los efectos negativos potenciales para el entorno y la salud humana.

PRECAUCIÓN

! No permita que este equipo entre en contacto

con líquidos. Se pueden producir descargas eléctricas. Además, el contacto con líquidos puede causar daños en la unidad, humo y recalentamiento.

! “PRODUCTO LÁSER DE CLASE 1” ! Este producto contiene un diodo de láser de

clase superior a 1. Para garantizar la seguridad continua, no extraiga ninguna tapa ni intente acceder a la parte interna del producto. Solicite a personal calificado que realice el servicio técnico.

! El CarStereo-Pass Pioneer es para usarse sólo

en Alemania.

! Conserve este manual a mano para que

pueda consultar los procedimientos de operación y las precauciones cuando sea necesario.

! Mantenga siempre el volumen lo suficiente-

mente bajo como para que pueda escuchar los sonidos que provienen del exterior del vehículo.

! Proteja esta unidad de la humedad. ! Si se desconecta o se descarga la batería, la

memoria preajustada se borrará y se debe reprogramarla.

Sección

Español

Acerca de esta unidad

Las frecuencias del sintonizador de esta unidad están asignadas para su uso en Europa Occidental, Asia, Medio Oriente, África y Oceanía. El uso en otras áreas puede causar una recepción deficiente. La función RDS (sistema de datos de radio) opera sólo en áreas con emisoras de FM que trasmiten señales de RDS.

Acerca de este manual

Este equipo incluye varias opciones sofisticadas que garantizar una recepción y un funcionamiento de la máxima calidad. Todas las funciones se han diseñado para facilitar el uso lo máximo posible, aunque algunas funciones requieren una descripción más detallada. Este manual de funcionamiento le permitirá beneficiarse totalmente del potencial del equipo y disfrutar al máximo de la escucha.

Page 92

Sección

Antes de comenzar

Recomendamos que se familiarice con las funciones y su operación, leyendo el manual antes de comenzar a usar esta unidad. Es particularmente importante que lea y tenga en cuenta los mensajes de ADVERTENCIA y PRECAUCIÓN en este manual.

En caso de problemas

En caso de que este producto no funcione correctamente, comuníquese con su concesionario o el Servicio técnico oficial Pioneer más próximo a su domicilio.

Características

Reproducción de CD

Se pueden reproducir CD de música, CD-R y CD-RW.

Reproducción de ficheros MP3

Se pueden reproducir ficheros MP3 grabados en CD-ROM/CD-R/CD-RW (grabaciones según la norma ISO9660 Nivel 1/Nivel 2). ! La venta de este producto sólo otorga una

licencia para su uso privado, no comercial. No otorga ninguna licencia ni concede ningún derecho a utilizar este producto en transmisiones comerciales (es decir, lucrativas) en tiempo real (terrestres, vía satélite, por cable y/o por cualquier otro medio), transmisiones/streaming por internet, intranets y/u otras redes o en otros sistemas de distribución de contenido electrónico, como por ejemplo, aplicaciones de pago por escucha (pay-audio) o audio bajo demanda (audio-on-demand). Se necesita una licencia independiente para su uso comercial. Para obtener más información, visite la página web http://www.mp3licensing.com.

Reproducción de ficheros WMA

Se pueden reproducir ficheros WMA grabados en CD-ROM/CD-R/CD-RW (grabaciones según la norma ISO9660 Nivel 1/Nivel 2).

Reproducción de ficheros AAC

Se pueden reproducir ficheros AAC grabados en CD-ROM/CD-R/CD-RW (grabaciones según la norma ISO9660 Nivel 1/Nivel 2).

Reproducción de ficheros WAV

Se pueden reproducir ficheros WAV grabados en CD-ROM/CD-R/CD-RW (grabaciones en formatos LPCM (PCM lineal) o MS ADPCM).

Receptor RDS (sistema de datos de radio)

El sintonizador RDS de esta unidad recibe el servicio de transmisión de datos de radio.

Sonido de alta calidad

Esta unidad incorpora un sistema DSP de alto rendimiento para producir un sonido transparente y realista.

Control de IP-BUS múltiple

Esta unidad puede controlar cualquier fuente Pioneer con IP-BUS, como un reproductor de CD múltiple, un reproductor de DVD y un sintonizador de TV. ! Algunas unidades de fuente Pioneer no se

pueden controlar completamente con esta unidad. Para obtener más detalles, consulte al concesionario más próximo a su domicilio.

Compatibilidad con iPod

Cuando usa esta unidad con un adaptador Pioneer para iPod (CD-IB100), puede controlar un iPod con un conector del Dock. ! iPod es una marca comercial de Apple

Computer, Inc., registrada en los EE.UU. y otros países.

Page 93

Antes de comenzar

Sección

Acerca de WMA

El logo de Windows Media ™ impreso en la caja indica que esta unidad puede reproducir datos WMA. WMA es la abreviatura de Windows Media Audio, y se refiere a la tecnología de compresión de audio desarrollada por Microsoft Corporation. Los datos WMA se pueden cifrar con la versión 7 o posterior del Windows Media Player. Windows Media y el logo de Windows son marcas comerciales o registradas de Microsoft Corporation en los EE.UU. y/o en otros países.

Notas

! Esta unidad puede no funcionar correctamen-

te, dependiendo de la aplicación utilizada para codificar ficheros WMA.

! Según la versión del Windows Media Player

utilizada para codificar los ficheros WMA, es posible que no se visualicen correctamente los nombres de álbumes y demás información de texto.

Acerca de AAC

AAC es la abreviatura de “Advanced Audio Coding” y alude a una norma de tecnología de compresión de audio usada con MPEG 2 y MPEG 4. Es posible usar varias aplicaciones para codificar ficheros AAC, pero los formatos y extensiones de los ficheros varían según la aplicación utilizada para la codificación.

Esta unidad reproduce ficheros AAC codificados con iTunes

iTunes Computer, Inc., registrada en los EE.UU. y otros países.

versión 4.8 y anteriores.

es una marca comercial de Apple

Registro del producto

Visítenos en el siguiente sitio:

! Registre su producto. Conservaremos los

datos de su compra archivados para que pueda consultar esta información en caso de que deba efectuar un reclamo a la compañía de seguros por pérdida o robo.

Protección del producto contra robo

La carátula puede extraerse de la unidad principal y almacenarse en la carcasa protectora provista para evitar robos. ! Si no se extrae la carátula de la unidad

principal dentro de los cinco segundos después de desconectar la llave de encendido del automóvil, se emitirá un tono de advertencia y se abrirá la carátula.

! Se puede desactivar el tono de advertencia.

Consulte Cambio del tono de advertencia en la página 164.

! Se puede desactivar la apertura automática

de la cara. Consulte Cambio de la apertura automática de la cara en la página 164.

Español

Page 94

Sección

Antes de comenzar

Importante

! Nunca pulse ni sujete el display ni los botones

con fuerza excesiva al extraer o colocar la carátula.

! Evite someter la carátula a impactos excesi-

vos.

! Mantenga la carátula fuera del alcance de la

luz solar directa y no la exponga a altas temperaturas.

! Unos segundos después de conectar o desco-

nectar la llave de encendido del automóvil, la carátula se mueve automáticamente. Cuando esto sucede, corre el riesgo de apretarse los dedos. Para evitarlo, mantenga las manos alejadas de la carátula.

! Al extraer la carátula, mantenga pulsado el

botón de liberación ubicado en la parte posterior de la carátula mientras la mueve.

Extracción de la carátula

1 Pulse EJECT para abrir la carátula.

Si se ha insertado un disco en esta unidad, mantenga pulsado EJECT para abrir la carátula sin expulsar el disco.

Botón de liberación

3 Coloque la carátula en la carcasa protectora provista para guardarla de manera segura.

Colocación de la carátula

1 Asegúrese de que la cubierta interna esté cerrada.

2 Vuelva a colocar la carátula; para ello, hágala encajar en su lugar.

2 Pulse el botón de liberación, deslice la carátula hacia usted y retírela.

No sujete la carátula con fuerza ni permita que caiga. Evite que entre en contacto con agua u otros líquidos para que no sufra daños permanentes.

Reinicialización del microprocesador

Se debe reinicializar el microprocesador si se presentan las siguientes condiciones: ! Antes de utilizar esta unidad por primera

vez después de su instalación

! Si la unidad no funciona correctamente ! Cuando aparecen mensajes extraños o in-

correctos en el display

Page 95

Antes de comenzar

Sección

% Pulse RESET con la punta de un lapicero u otro instrumento con punta.

Botón RESET

Cambio del modo de ajuste del DSP

Esta unidad ofrece dos modos de funcionamiento: el modo de red de 3 vías (NW) y el modo estándar (STD). Se puede cambiar entre los modos según se desee. El DSP viene ajustado en el modo estándar (STD). ! Después de realizar el cambio, reinicialice

el microprocesador.

ADVERTENCIA

No utilice la unidad en el modo estándar si está conectada a un sistema de altavoces para el modo de red de 3 vías, ya que al hacerlo, pueden dañarse los altavoces.

% Utilice un destornillador de punta fina estándar para cambiar el ajuste del conmutador DSP ubicado en uno de los lados de la unidad.

Nota

Incluso si la batería está desconectada o se reinicializa el microprocesador, el ajuste de audio de esta unidad permanecerá en la memoria durante al menos un día. Si desea restablecer el ajuste de audio, consulteRestablecimiento de las funciones de audio en la página 165.

Acerca del modo demo

Esta unidad ofrece dos modos de demostración. Uno es el modo inverso y el otro es la característica de modo demo.

Importante

El cable rojo (ACC) de esta unidad se debe conectar al terminal acoplado con las funciones de activación/desactivación de la llave de encendido del automóvil. En caso contrario, se puede descargar la batería del vehículo.

Modo inverso

Si no se realiza ninguna operación en unos 30 segundos, las indicaciones de la pantalla comienzan a invertirse y siguen haciéndolo cada 10 segundos. Al pulsar el botón BAND cuando se apaga la unidad mientras la llave de encendido está en ACC u ON, se cancelará el modo inverso. Vuelva a pulsar BAND para iniciar el modo inverso. ! También puede realizar la misma operación

desde Cambio del modo inverso en Ajustes iniciales. Para obtener más detalles, consulte Cambio del modo inverso en la página

167.

Español

Page 96

Sección

Antes de comenzar

Modo de demostración de características

La demostración de características se inicia automáticamente cuando se apaga la unidad mientras la llave de encendido está en ACC u ON. Al pulsar el botón DISPLAY durante la demostración de características, se cancelará este modo de demostración. Vuelva a pulsar el botón DISPLAY para iniciar el modo de demostración de características. Recuerde que si este modo de demostración sigue funcionando cuando el motor del vehículo está apagado, se puede descargar la batería. ! También puede realizar la misma operación

desde Cambio de la demostración de carac- terísticas en Ajustes iniciales. Para obtener más detalles, consulte Cambio de la demos- tración de características en la página

166.

Uso y cuidado del mando a distancia

Instalación de la batería

Deslice y extraiga la bandeja de la parte posterior del mando a distancia y coloque la batería con los polos positivo (+) y negativo (–)enla dirección correcta. ! Al utilizar el mando a distancia por primera

vez, extraiga la película que sobresale de la bandeja.

ADVERTENCIA

Mantenga la batería fuera del alcance de los niños. En caso de ingestión accidental, consulte a un médico de inmediato.

PRECAUCIÓN

! Utilice una sola batería de litio CR2025 (3 V). ! Extraiga la batería si no piensa utilizar el

mando a distancia durante un mes o más tiempo.

! No recargue, desarme, caliente ni arroje la ba-

tería al fuego.

! No manipule la batería con herramientas me-

tálicas.

! No guarde la batería con materiales metáli-

cos.

! En el caso de que se produzca una fuga de

fluido de la batería, limpie completamente el mando a distancia e instale una batería nueva.

! Para deshacerse de las baterías usadas, cum-

pla con los reglamentos gubernamentales o las normas de las instituciones públicas ambientales pertinentes, aplicables en su país/ zona.

Uso del mando a distancia

Apunte el mando a distancia hacia la carátula para utilizarlo. ! Es posible que el mando a distancia no

funcione correctamente si lo expone a la luz solar directa.

Importante

! No guarde el mando a distancia en lugares ex-

puestos a altas temperaturas o a la luz solar directa.

! No deje caer el mando a distancia al piso, ya

que puede quedar atascado debajo del freno o del acelerador.

Page 97

Antes de comenzar

Sección

Botones FUNCTION y AUDIO

También se puede seleccionar el modo deseado con los botones FUNCTION y AUDIO en el mando a distancia. Debe tenerse en cuenta los botones FUNCTION y AUDIO no se utilizan de la misma manera que MULTI-CONTROL de la unidad principal. Al utilizar el mando a distancia, seleccione los modos según se explica a continuación.

Operación del botón FUNCTION

% Pulse FUNCTION para seleccionar el modo deseado (p. ej., reproductor de CD incorporado).

Pulse FUNCTION repetidamente para cambiar entre los siguientes modos:

Play mode (repetición de reproducción)— Random mode (reproducción aleatoria)— Scan mode (reproducción con exploración)— Pause (pausa)—Search mode (método de

búsqueda)—TitleInput "A" (ingreso de títulos de discos)

Nota

Consulte Introducción a las funciones avanzadas del reproductor de CD incorporado en la página

113.

(pendiente del filtro de paso alto delantero)— F.HPF 2 (frecuencia de corte del filtro de paso alto delantero)—R.HPF 1 (pendiente del filtro de paso alto trasero)—R.HPF 2 (frecuencia de corte del filtro de paso alto trasero)—BBE (BBE)—BMX (compresión y BMX)—A.EQ (autoecualizador activado/desactivado)—ASL (nivelador automático de sonido)—SLA (ajuste del nivel de fuente)

Nota

Consulte Introducción a los ajustes de audio en la página 145.

Español

Operación del botón AUDIO

% Pulse AUDIO para seleccionar el modo deseado.

Pulse AUDIO repetidamente para cambiar entre los siguientes modos: Modo Estándar F/B (ajuste del balance)—POSI (selector de posición)—TA1 (alineación temporal)—TA2 (ajuste de la alineación temporal)—LOUD (sonoridad)—EQ 1 (ecualizador gráfico)—EQ 2 (ecualizador gráfico de 16 bandas)—SW 1 (altavoz de subgraves activado/desactivado)—

SW 2 (frecuencia de corte de subgraves)— SW 3 (pendiente de subgraves)—F.HPF 1

Page 98

143

56789

Sección

Qué es cada cosa

Unidad principal

1 Botón EQ

Pulse este botón para seleccionar las diversas curvas de ecualización.

2 Indicador de display apagado

Se ilumina cuando el display está apagado.

3 Botón EJECT

Pulse este botón para expulsar un CD del reproductor de CD incorporado. Mantenga pulsado este botón para abrir o cerrar la carátula.

4 Botón BAND

Pulse este botón para seleccionar entre tres bandas FM y las bandas MW/LW, y para cancelar el modo de control de funciones.

5 Botón DISPLAY

Pulse este botón para seleccionar las diferentes visualizaciones.

6 MULTI-CONTROL

Muévalo para utilizar los controles de sintonización por búsqueda manual, avance rápido, retroceso y búsqueda de pista. También se usa para controlar las funciones. Gírelo para visualizar la lista de títulos de los discos, la de títulos de las pistas, la de

carpetas o la de canales presintonizados, según la fuente de que se trate.

7 Botón RESET

Pulse este botón para reinicializar el microprocesador.

8 Botón SOURCE, VOLUME

Esta unidad se enciende al seleccionar una fuente. Pulse este botón para visualizar todas las fuentes disponibles. Haga girar el control para aumentar o disminuir el volumen.

9 Botón TA

Pulse para activar o desactivar la función TA. Mantenga pulsado este botón para activar o desactivar la función NEWS.

Mando a distancia

Las funciones se utilizan de la misma manera que al usar los botones de la unidad principal.

9 Botones VOLUME

Pulse este botón para aumentar o disminuir el volumen.

Page 99

93a

Qué es cada cosa

a Botón FUNCTION

Pulse este botón para seleccionar las funciones.

b Joystick

Muévalo para utilizar los controles de sintonización por búsqueda manual, avance rápido, retroceso y búsqueda de pista. También se usa para controlar las funciones. Pulse este botón para visualizar la lista de títulos de los discos, la de títulos de las pistas, la de carpetas o la de canales presintonizados, según la fuente de que se trate.

e Botones 0–9

Pulse estos botones para seleccionar directamente la pista, el ajuste de presintonías o el disco deseado. Los botones 1–6 se pueden utilizar para el ajuste de presintonías del sintonizador o para realizar la búsqueda por número de disco en el reproductor de CD múltiple.

f Botón PGM

Pulse este botón para utilizar las funciones preprogramadas de cada fuente. (Consulte Uso del botón PGM en la página 170.)

g Botón ATT

Pulse este botón para bajar rápidamente el nivel de volumen, aproximadamente el 90%. Pulse una vez más para volver al nivel volumen original.

h Botón ENTERTAINMENT

Pulse este botón para cambiar a la visualización de entretenimiento.

i Botón AUDIO

Pulse este botón para seleccionar los diversos controles de calidad del sonido.

Sección

Español

c Botón DIRECT

d Botón CLEAR

Pulse este botón para seleccionar directamente la pista deseada.

Pulse este botón para cancelar el número ingresado cuando se utilizan los botones 0–9.

Page 100

Sección

Funciones básicas

Encendido de la unidad

% Pulse SOURCE para encender la unidad.

Cuando se selecciona una fuente, la unidad se enciende.

Selección de una fuente

Puede seleccionar una fuente que desee escuchar. Para cambiar al reproductor de CD incorporado, cargue un disco en la unidad (consulte la página 112).

% Pulse SOURCE para seleccionar una fuente.

Pulse SOURCE repetidamente para cambiar entre las siguientes fuentes:

Sintonizador—Televisor—Reproductor de DVD/Reproductor de DVD múltiple—Reproductor de CD incorporado—Reproductor de CD múltiple—iPod—Unidad externa 1—Unidad externa 2—AUX1— AUX2

Notas

! En los siguientes casos, la fuente sonora no

cambiará: — Cuando la fuente seleccionada no está co-

nectada a esta unidad.

— Cuando no hay un disco cargado en la uni-

dad.

— Cuando no hay un disco cargado en el re-

productor de DVD.

— Cuando no hay un cargador en el repro-

ductor de CD múltiple.

— Cuando no hay un cargador en el repro-

ductor de DVD múltiple.

— Cuando AUX (entrada auxiliar) está desac-

tivada (consulte la página 164).

! Por unidad externa se entiende un producto

Pioneer (como el que pueda estar disponible en el futuro) que, si bien es incompatible como fuente, permite que este sistema con-

trole funciones básicas. Dos unidades externas se pueden controlar con este sistema. Cuando se conectan dos unidades externas, la asignación a la unidad externa 1 o la unidad externa 2 la fija automáticamente este sistema.

! Si el cable azul/blanco de esta unidad está co-

nectado al control del terminal de antena del vehículo, la antena se extiende cuando se enciende el equipo. Para retraer la antena, apague la fuente.

Carga de discos

1 Pulse EJECT para abrir la carátula.

Aparece la ranura de carga de CD.

# Después de colocar un CD, pulse SOURCE para seleccionar el reproductor de CD incorporado.

2 Introduzca un CD por la ranura de carga de CD.

La carátula se cierra automáticamente y comienza la reproducción.

Ranura de carga de CD

# Se puede expulsar un CD pulsando EJECT.

Notas

! El reproductor de CD incorporado reproduce

un CD estándar de 12 cm u 8 cm. No utilice un adaptador cuando reproduzca un CD de 8 cm.

! No coloque ningún otro elemento que no sea

un CD en la ranura de carga de CD.

100

Pioneer DEH-P88RS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
