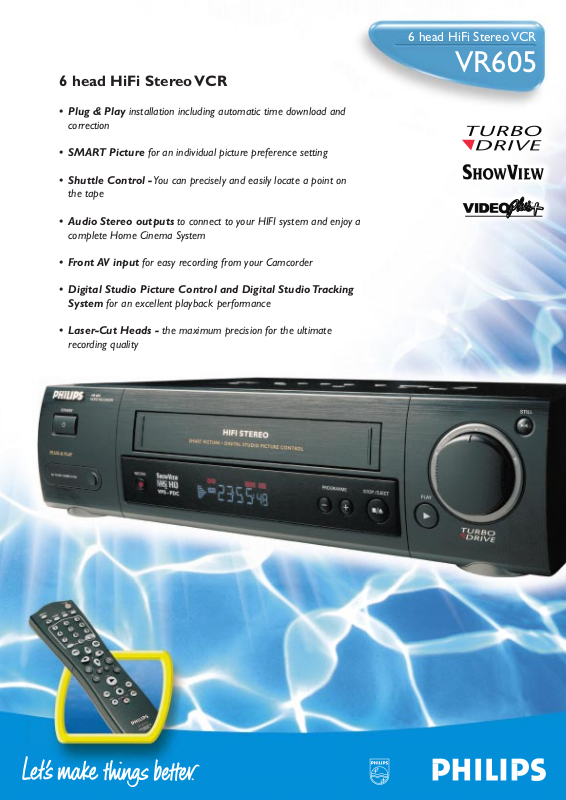

Philips VR605 User Manual

6 head HiFi Stereo VCR
• Plug & Play installation including automatic time download and correction
• SMART Picture for an individual picture preference setting
• Shuttle Control -You can precisely and easily locate a point on
the tape
• Audio Stereo outputs to connect to your HIFI system and enjoy a complete Home Cinema System
• Digital Studio Picture Control and Digital Studio Tracking System for an excellent playback performance
• Laser-Cut Heads - the maximum precision for the ultimate
recording quality
6 head HiFi Stereo VCR
VR605
6 head HiFi Stereo VCR
VR605
Subject to modification without notice
ShowView and VideoPlus are Trademarks of Gemstar Development Group
Product Highlights
• Plug & Play
Let the VCR guide you through the installation steps and within short your videorecorder will be installed without the need of the user manual. Installing a VCR has never been easier!
• Automatic Time download
The Teletext contains an extremely precise time information.Your videorecorder knows that and during the installation, it automatically reads out this precious information.You can then use your VCR as the clock reference in your home, as the time is readjusted every day.You even don't have to worry about changing from summer to winter time!
• Automatic Satellite Recording
All you need to do is connect your Satellite Tuner to SCART 2 and programme what you want to record on your VCR.When time has come, the Satellite Tuner wakes the VCR up and starts the recording.
• SMART Picture
With this unique feature, you can adapt the picture to your own preference: you can exaggerate the contours on this cartoon or suppress the noise from that rental tape. We offer you the possibility to play your tapes the way you like to see them.
• Digital Studio Picture Control
Thanks to a digitally controlled Noise-Reduction Circuit, you are sure to obtain the best picture quality with any kind of tape.
• Digital Studio Tracking System
Studio Tracking System controls the tape speed so that the video and audio heads read the recorded signal exactly from one track. The heads move accurately along the track to avoid crosstalk from neighbouring tracks.
• TURBO DRIVE
Enjoy the ease of use and the comfort of one of the fastest VCR decks in the world.
Product Information
Reception
• Tuner: Full (UHF + VHF + Hyperband) Tuner
• Tuning: PLL, CH - FREQ entry, 99 presets
• Tuning/Install Features: Manual Search/Store, Plug & Play
User Interface
• Time and Date Download: PDC ,Text (Time)
• Special Features: Child Lock
• Picture Improvement System: Digital Studio Picture Control,
SMART Picture, Edge Noise Canceller
• Additional Playback Standard: NTSC
• Audio Recording System: FM Audio, Linear
• Audio Recording Level: Automatic
• TV Related Functions: Follow TV, Direct Record
Programming
• Number of Events: 6/month
• Programming Mode: OTR, Remote
• Record Control & Transmitter Identification: PDC,VPS
• Automatic Sat. Recording: From Ext. 2
• Record Speed: Long Play, Standard Play
Tape Deck
• Number of Video / FM Audio / Flying Erase Heads: 4 / 2 / 0
• Play: +1, -1, Repeat
• Additional Playback Features: Perfect Still, Multiple Search Speeds,Variable Slow Motion Speed
• Index Related Functions: Blank Tape Search, Next/Previous index search
• Tape Length Recognition: Automatic
• Tape Counter: Linear relative,Time left
• Automatic Functions at Tape End: Rewind after Play -
Eject after Record
• Winding / Rewinding Time (E180): 100 sec .
• Head Cleaning Mode: Automatic , Manual
Connectors Rear
• EXT1: Black, Euro CVBS in/out
• EXT2: Blue, Euro Decoder, RGB loop through
• Audio Connector Rear: Cinch stereo out
• Terrestrial Antenna In & Out: 75 Ohms (IECtype)
• Mains Connector: Standard (IECtype)
Connectors Front
• Audio/Video Connectors Front: Cinch CVBS in, Cinch stereo in
General
• Voltage / Frequency: 198-264 V / 50Hz
• Backup Presets: 1yr
• Backup Clock,Timer Events & Calendar: 7hrs
• Power Cons. in Play / Std-By / Low Power Std By: 16W / 9,5W /
<6W
• Remote Control - Code Emission: TV-Multicode All,TV-RC5,
VCR1-RC5,VCR2-RC5
• Equipment Supplied: Aerial cable, Mains cord, Remote Control,
Batteries
• Weight incl. / excl. package in kg: 5,5 / 3,6
• Set Size - W x D x H (mm): 380 x 260 x 93
• Packaging - W x D x H (mm): 450 x 382 x 180
/02 /07 /13 /16 /39 /58
TV System Off Air PAL B/G PAL I PAL B/G PAL B/G PAL B/G, PAL I, PAL B/G, PAL D/K,
SECAM B/G, SECAM SECAM B/G, SECAM
L/L1 D/K
Sound System Off Air Mono, German Stereo Mono, NICAM Mono, German Stereo, Mono, German Stereo, Mono, German Stereo, Mono, German Stereo,
NICAM NICAM NICAM NICAM
Modulator System Pal G Pal I Pal G Pal G Splitter Pal GK (switchable)
Modulator Features --- Auto Seek --- --- --- ---
Modulator Range Ch 21 - Ch 55 Ch 21 - Ch 55 Ch 21 - Ch 55 Ch 21 - Ch 55 --- Ch 21 - Ch 55
Modulator Preadjustment 591.25 MHz (Ch 36) 583.25 MHz (Ch 35) 591.25 MHz (Ch 36) 591.25 MHz (Ch 36) --- 591.25 MHz (Ch 36)
OSD Menu Languages Dutch, French, English Danish, English, Dutch, French, Dutch, French, Czech, English,
Finnish, Norwegian, Hungarian, Polish,
German, Italian Swedish Portugese, Spanish German, Italian Russian Cyrillic
Delivery Menu Language German English English Dutch French English
Record/Playback Standard PAL PAL PAL PAL MESECAM, PAL, SECAM MESECAM, PAL
Programming System Daily/Weekly, Daily/Weekly, Daily/Weekly, Daily/Weekly, Daily/Weekly, Daily/Weekly,
Showview VideoPlus+ Showview Showview Showview Showview
Remote Control RT194 /101 /101 /101 /101 /104 /101
