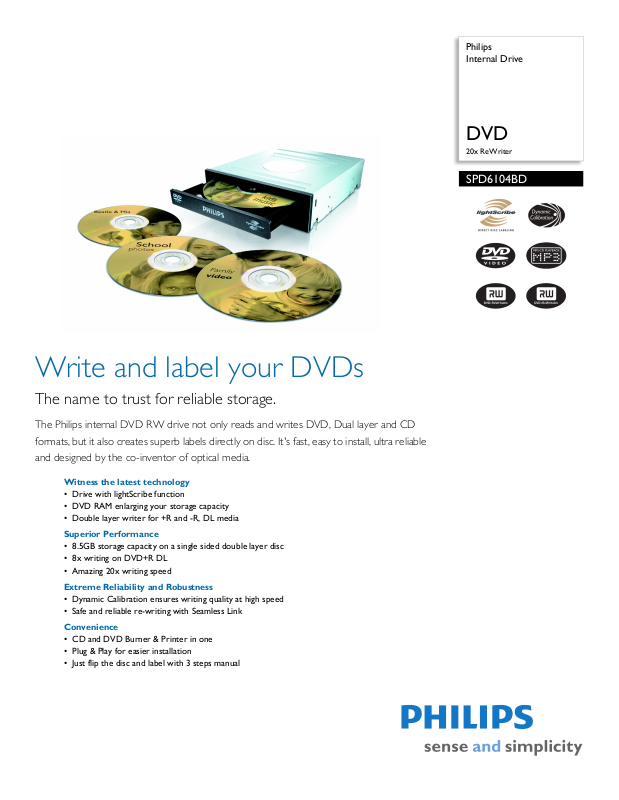

Philips Internal Drive

DVD

20x ReWriter

SPD6104BD

Write and label your DVDs

The name to trust for reliable storage.

The Philips internal DVD RW drive not only reads and writes DVD, Dual layer and CD formats, but it also creates superb labels directly on disc. It 's fast, easy to install, ultra reliable and designed by the co-inventor of optical media.

Witness the latest technology

• Drive with lightScribe function

• DVD RAM enlarging your storage capacity

• Double layer writer for +R and -R, DL media

Superior Performance

• 8.5GB storage capacity on a single sided double layer disc

• 8x writing on DVD+R DL

• Amazing 20x writing speed

Extreme Reliability and Robustness

• Dynamic Calibration ensures writing quality at high speed

• Safe and reliable re-writing with Seamless Link

Convenience

• CD and DVD Burner & Printer in one

• Plug & Play for easier installation

• Just flip the disc and label with 3 steps manual

Internal Drive

DVD 20x ReWriter

SPD6104BD/17

Specifications Product highlights

Writing Speed

• CD-R: 48X (7200KB/sec)

• DVD+R: 20X (27000KB/sec)

• DVD+R DL: 16X (21600KB/sec)

• DVD-R: 20X (27000KB/sec)

• DVD-R DL: 12X (16200KB/sec)

• DVD-RAM: 12X (16200KB/sec)

Rewriting Speed

• CD-RW: 24X (3600KB/sec) by CAV

• DVD+RW: 8X (10800KB/sec) by CLV

• DVD-RW: 6X (8100KB/sec) by CLV

Reading Speed

• Access time: 160ms

• Buffer size: 2MB

• CD-R: 48X (7200KB/sec) by CAV

• DVD ROM: 16X (21600KB/sec) by CAV

• RAM: 5X (6750KB/sec) by PCAV

Connectivity

• Interface: SATA

• Other connections: Master/Slave select jumper

Convenience

• Ease of Use: How to manual, step by step

Accessories

• Included Accessories: 4 mounting screws, CD-

ROM with software + manual, Quick install guide, User Manual

System Requirements

• Hard disk space: 650MB

• PC OS: Windows® Vista, XP, 2000 SP4, ME, NT, 98 SE

• Processor: Pentium 4 1.3GHz or Higher CPU

• RAM memory: 128MB

Technical specifications

• Humidity: 15 - 80 %RH (no condensation)

• Operating temperature range: 5 - 50 °C

• Safety standards: EN60950, EN60825,UL1950

• EMC standards: EN55022, EMS55024,FCC Part 15

• Storage temperature range: -40 - 65 °C

Outer Carton

• Gross weight: 9.72 kg

• Outer carton (L x W x H): 48 x 47 x 22 cm

• Nett weight: 8.82 kg

• Tare weight: .9 kg

Packaging dimensions

• Packaging dimensions (W x H x D):

22.8

x 20.5 x 9.1 cm

• Gross weight: 1.097 kg

• Nett weight: .882 kg

• Tare weight: .215 kg

•

LightScribe

LightScribe Direct Disc Labeling makes messy marker pens and awkward stick-on labels a thing of the past! Simply flip over your specially coated recordable/rewritable CD or DV D, r e-i nse rt it i n the d riv e and 'burn' fantastic labels with the look and quality of professional silk-screened labels. You can mix text and personalized graphics using the software provided and even add to the label at a later date. It makes finding your archived movies, music, photos and data files easier than ever before.

Dynamic Calibration

Dynamic Calibration optimizes DVD writing quality of highspeed DVD+RW drives.

8.5GB storage capacity

Single sided double layer disc with 8.5 GB storage capacity

Burner & Printer in one

LightScribe technology adds the label printing function to your Cd and DVD burner.

Plug & Play

Plug & Play gives you the ability to install or add a new component and have it work without having to perform any complex installation procedure or technical analysis.

DVD RAM

DVD RAM format supported which makes this drive a Multi drive supporting CD, DVD Rom, DVD RAM.

20x writing speed

Wi th th e l atest technolgy t hi s d ri ve reached maximum 2 0x writing speed. This creates the fastest drive in the world with speed and stability.

Dual format writer on +/- DL

New drive enabling writing on both +R and -R 8.5 GB double layer media

Issue date 2008-08-19

Version: 1.0.2

12 NC: 8670 000 34263 UPC: 6 09585 14341 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
