Philips SL-0723-61-02 User Manual
DVP 5166K
DVD Video Player
Types of Video Quality
Composite Video CVBS
(Good Quality)
Component Video
(Better Quality)
Cable not supplied
1
Connect
Video
x
Audio
x
Power
Basic Audio/Video Connections
OR
Composite Video CVBS
Component Video
Audio
x
Power
Video
x
Cable not supplied
What’s in the box?
DVD Video Player
Remote Control
and 2 AAA batteries
User
Manual
Quick Start
Guide
Composite
Audio/Video Cables

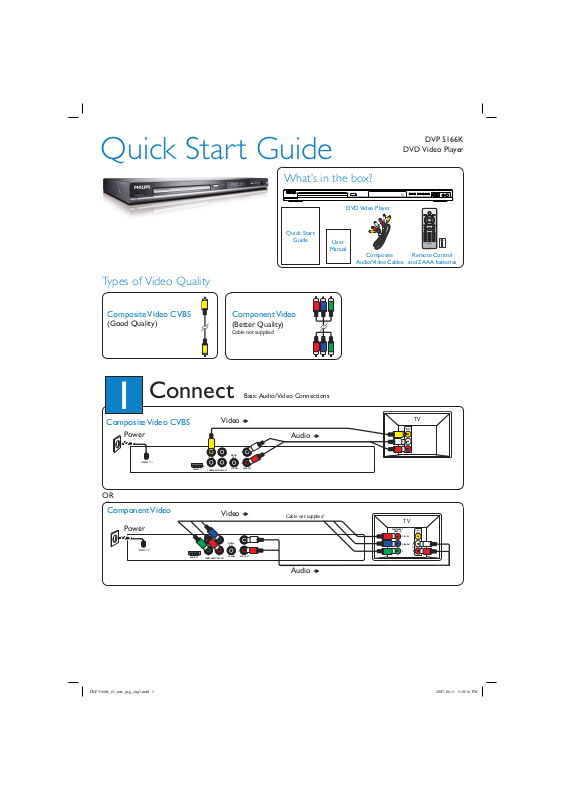

Quick Start Guide
TV OUT
HDMI OUT
COMPONENT VIDEO OUT
DIGITAL
OUT
COAXIAL
AUDIO OUT
TV
VIDEO IN
(CVBS)
DVP5166K_61_new_qsg_eng1.indd 1DVP5166K_61_new_qsg_eng1.indd 1 2007-06-11 5:10:16 PM2007-06-11 5:10:16 PM
DIGITAL
OUT
COAXIAL
AUDIO OUT
HDMI OUT
TV OUT
COMPONENT VIDEO OUT
COMPONENT
VIDEO IN
TV
V (Pr/Cr)
U (Pb/Cb)
Y
VIDEO IN
(CVBS)
3
Enjoy
2
Set up
A
Finding the viewing channel
A Press 2 (STANDBY-ON) on this unit to turn it on.
STANDBY-ON
B Turn on the TV. Use the TVs remote control to
select the correct viewing channel.
Note To search for the correct viewing channel,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT,
° button) until
you see the Video In channel.
B
Select the display language on the
screen
A Press SETUP.
The { General Setup Page } appears.
Disc Lock
OSD Language
ENGLISH
Sleep
DivX(r) VOD Code
General Setup Page
B Press T to select { OSD Language } and press X.
C Use ST keys to select a language option in the
menu and press OK to confirm.
D Press SETUP to exit.
Note The language set here is only for the menus
that are shown on the TV while operating this unit, not
for the DVD disc menu.
There are various setup options (Audio Setup, Video
Setup, Preference Setup) available on this unit. Refer to
the user manual for more information.
A
Start disc playback
A Playback may start automatically when a disc has
been loaded in the disc tray.
Note If a disc menu appears on the TV, use
STW X keys to navigate in the DVD menu.
B Press PLAY/PAUSE
u
to start playback.
C To stop playback, press
STOP Ç.
Troubleshooting
For more troubleshooting tips, see the user
manual.
No power
• Check if the AC power cord is properly connected.
• Press the STANDBY-ON on the top panel of this
unit to turn on the power.
No picture
• Check connection to TV and ensure the plugs are
rmly in place.
No sound or distorted sound
• Check audio connections and make sure that the
connected audio device is turned on.
Remote control does not work
• Check the batteries are loaded correctly or replace
the batteries with new ones.
• Reduce the distance between the remote control
and this unit.
• Point the remote control directly toward the IR
sensor.
Need help?
User Manual
For more product information refer to the user manual of the DVD player.
Online
Go to www.philips.com/welcome
2007 © Koninklijke Philips N.V.
All rights reserved.
www.philips.com
SL/0723/61_02
DVP5166K_61_new_qsg_eng1.indd 2DVP5166K_61_new_qsg_eng1.indd 2 2007-06-11 5:10:18 PM2007-06-11 5:10:18 PM
