English
Introduction
Go to www.philips.com/welcome to register your product and to read the
detailed user manual.
Display of the parent unit (Fig. 1)
1 Signal strength indicator
2 Night dim mode symbol
3 Cry alert indicator
4 Mute symbol
5 Battery status indicator
6 Navigation arrow
7 Temperature symbol
8 Microphone sensitivity indicator
9 Nightlight symbol
10 Lullaby symbol
11 Projector symbol
12 Timer or timer repeat symbol
13 Soothing menu screen
Preparing for use
IMPORTANT: Read the safety instructions carefully before you use the
baby monitor and keep them for future reference.
English
7
Baby unit
Parent unit
We advise you to use the baby unit connected to the mains. To guarantee
automatic power backup in case of mains failure, you can insert four 1.5V AA
alkaline batteries (not included).
Do not use rechargeable batteries. The baby unit does not have a charging
function and rechargeable batteries discharge slowly when they are not in
use.
The parent unit runs on a battery pack that is supplied with the baby
monitor. Charge the parent unit before you use it for the first time and when
the batteries are low.
Please note that for the SCD730, you have to charge the parent unit for
the full 10 hours to have a cordless operating time of 18 hours.
Note: When you start using the baby monitor, it takes 4 charge and
discharge cycles before the battery pack reached its full capacity.
8
English
Using the baby monitor
Positioning the baby monitor
Keep the baby unit out of the reach of the baby. Never place the
baby unit inside the baby’s bed or playpen.
-
Because the cord of the baby unit presents a potential strangulation
hazard, make sure that the baby unit and its cord are at least 1 metre/3.5
feet away from your baby.
-
To prevent a high-pitched sound from one or both units, make sure that
the parent unit is at least 1 metre/3.5 feet away from the baby unit.
Linking parent unit and baby unit
1 Press and hold the button on the baby unit for 2 seconds until the
power-on light goes on.
2 Press and hold the button on the parent unit for 2 seconds until the
display lights up. The 'link' light on the parent unit starts flashing red and
the message 'I AM LINKING' appears on the display.
When the parent unit and baby unit are linked, the 'link' light turns solid
green. The signal strength indicator and the message 'LINKED' appear on
the display.
If no connection is established, the message 'NOT LINKED' is displayed
and the parent unit starts and the parent unit starts to beep.
What to do if no link is established
-
If the parent unit is out of range, place it closer to the baby unit, but not
closer than 1 metre/3.5 feet.
-
If the baby or parent unit is too close, <2 m/6.5 ft away from another
DECT appliance (e.g. a cordless phone), switch off this appliance or move
the unit away from this appliance.
-
If the baby unit is switched off, switch it on.
Operating range
-
The operating range is 330 metres/1000 feet outdoors and up to 50
metres/150 feet indoors.
-
The operating range of the baby monitor varies depending on the
surroundings and factors that cause interference. Wet and moist
materials cause so much interference that the range loss is up to 100%.
For interference from dry materials, see the table below.
Dry materials Material thickness Loss of range
Wood, plaster, cardboard,
glass (without metal, wires
or lead)
Brick, plywood < 30 cm (12 in) 5-35 %
Reinforced concrete < 30 cm (12 in) 30-100 %
< 30 cm (12 in) 0-10 %
Dry materials Material thickness Loss of range
Metal grilles or bars < 1 cm (0.4 in) 90-100 %
Metal or aluminium sheets < 1 cm (0.4 in) 100 %
Functions and feedback on the baby unit
Nightlight
The nightlight produces a soft glow that comforts your baby.
1 Press the button on the baby unit to switch the nightlight on or off.
Lullaby function
1 Press the button on the baby unit to play the last selected lullaby. The
selected lullaby repeats for the set time.
English
9
Projector
2 Press the button to select another lullaby from the list.
3 To adjust the sound level of the lullaby, press the volume + or the volume
– button the baby unit.
Note: You can only set the loudspeaker volume on the baby unit when a
lullaby is playing. If you set the volume for the lullaby higher, the sound
will also be louder when you use the talk function on the parent unit.
4 To stop lullaby playing, press the button on the baby unit.
You can soothe your baby with coloured light patterns projected on the
ceiling by switching on the projector.
>2.5m/8.2ft
10
English
1 Press the projector on/off button to switch on the projector. The
projector symbol appears on the display of the parent unit.
2 There are six different patterns. The first pattern fades in to full intensity
in 2 seconds. It is projected for 8 seconds and then fades out for 2
seconds while the next pattern fades in. Each pattern is projected for 10
seconds. The patterns are repeated for the set time.
3 To switch off the projector, press the projector on/off button again.
Paging the parent unit
If you have lost the parent unit, you can use the FIND button on the baby
unit to locate the parent unit. This function only works when the parent unit
is switched on.
1 Press FIND on the baby unit. The parent unit produces a paging alert
tone.
2 To stop the paging alert tone, press FIND on the baby unit again or press
any button on the parent unit. The paging alert tone stops automatically
after 2 minutes.
Battery status light
1 The battery status light is solid green when the baby unit is operating on
battery power and the batteries contain enough energy.
2 The battery status light flashes red quickly when the batteries run low
while the baby unit is operating on battery power. Replace the batteries
when they run low.
Functions and feedback on the parent unit
Soothing menu
The parent unit has a separate soothing menu for all soothing features:
nightlight, lullaby and projector. To open the soothing menu, press the
English
soothing button. This screen allows you to operate the nightlight, the
lullabies and the projector on the baby unit remotely.
1 To open the soothing menu, press the soothing button.
2 Use the + and - buttons to point the arrow to a soothing feature.
3 To switch on a soothing feature when it is off or to switch it off when it is
on, press OK. When the feature is on, there is a tick above the symbol of
the feature. When the feature is off, there is a cross above the symbol of
the feature.
11
4 To open the menu with options for the feature, move the arrow over the
options field and press OK. Use the - and + buttons to select items in the
options field.
5 To leave the soothing menu, press the soothing button.
Nightlight
This soothing feature allows you to switch the nightlight on or off and to set
the nightlight timer.
1 Select the nightlight feature and open the menu with nightlight options.
12
English
2 You can set the nightlight timer for 5 to 20 minutes or you can switch on
the nightlight continuously. Press OK to confirm. The nightlight symbol
appears on the display.
If you set the nightlight timer, the nightlight switches off automatically. If
you switch on the nightlight continuously, switch it off in the soothing
menu or by pressing the button on the baby unit.
Lullaby
This soothing feature allows you to select the lullaby playing options and set
the lullaby timer.
1 Select the lullaby feature and open the menu with lullaby options.
2 In the lullaby options menu, you can select a lullaby from the list of pre-
stored lullabies. You can also select 'Play all' to play all pre-stored
lullabies.
3 You can set the lullaby timer for 5 to 20 minutes or you can choose to
play lullabies continuously. Press OK to confirm the timer setting. The
lullaby symbol and the lullaby played are shown on the display.
If you set the timer, the lullaby function switches off after the time set. If
you choose play continuously, switch off the lullaby function in the
soothing menu or by pressing the button on the baby unit.
Projector
This soothing feature allows you to switch on the projector on the baby unit
and to program the duration of projection.
1 Select the projector feature and open the menu with projector options.
2 To access the projector options, point the arrow at the options field and
press OK.
Volume

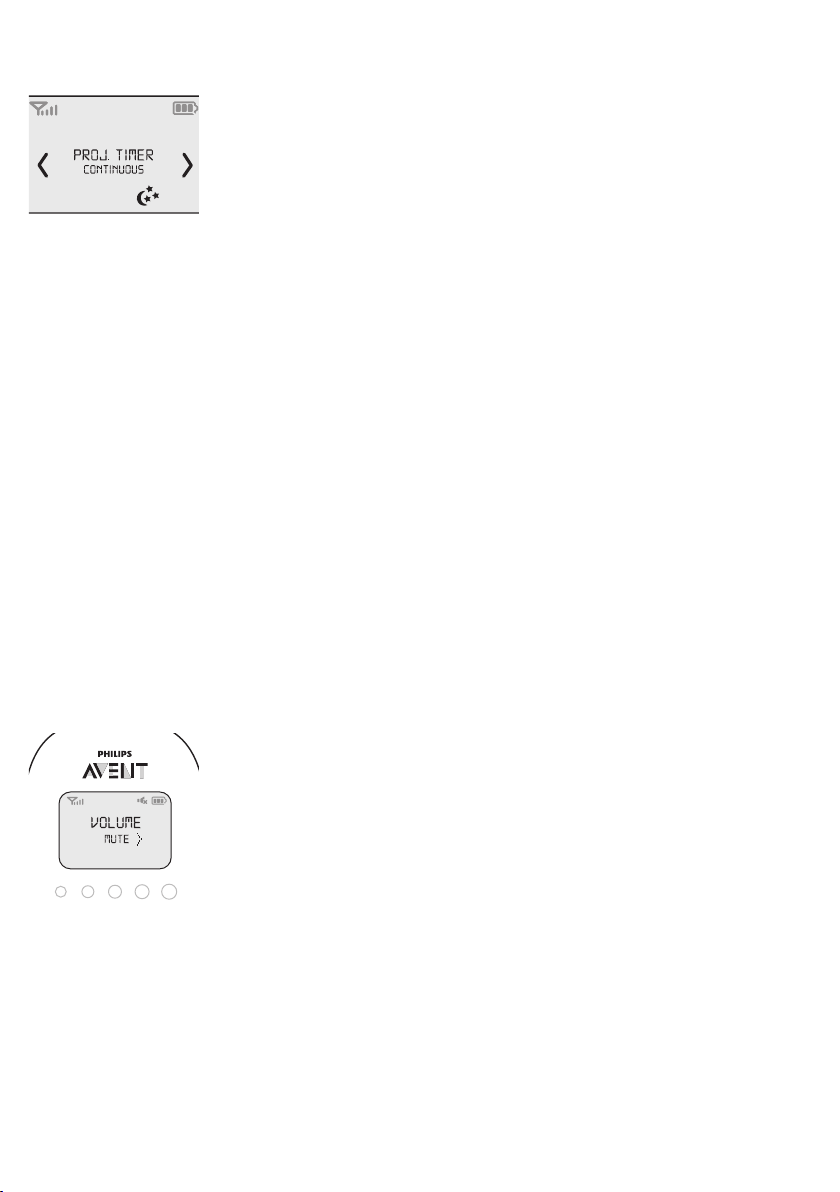

3 You can set the projector timer for 5 to 20 minutes or you can switch on
the projector continuously. Press OK to confirm. The projector symbol
appears on the display.
If you set the projector timer, the projector switches off automatically. If
you switch on the projector continuously, switch off the projector in the
soothing menu or by pressing the projector button on the baby unit.
The volume can be set if the menu is not active. There are seven volume
levels and a 'volume off' setting.
Setting the volume level
1 Press the + button or the - button once.
Talk function
English
The current volume level appears on the display.
2 Press the + button to increase the volume or press the - button to
decrease the volume.
If no button is pressed for more than 2 seconds, the volume level
indication disappears from the display and the volume setting is saved.
13
Volume off
Below the lowest volume setting, there is a 'volume off' setting.
1 Press the + button or the - button once.
The current volume level appears on the display.
2 Press and hold the - button for more than 2 seconds to set the volume to
off.
The message 'MUTE' and the mute symbol appear on the display. Only
the sound level lights show that the baby produces sounds.
1 If you want to comfort your baby, press TALK on the parent unit and talk
clearly into the microphone on the front from a distance of 15-30cm
(0.5-1ft).
Note: If you have set the volume of the lullaby higher on the baby unit,
the sound will also be louder when you use the talk function on the
parent unit.
2 Release TALK when you have finished talking.
Night dim mode
In night dim mode, the light intensity of the lights and the display is reduced
and the volume of alert sounds is decreased.
1 Press the button to switch on the night dim mode.
2 Press the button again to switch back to normal operating mode.
14
English
Baby unit battery low alert
1 When the baby unit runs on battery power and its batteries are low, the
parent unit beeps and the text 'BABY UNIT CHANGE BATTERIES' appears
on the display.
2 If you do not replace the batteries in time, the link with the baby unit will
be lost.
Battery status indications
Battery low
When the battery is low, 'BATTERY LOW' appears on the display, the status
indicator is empty and flashes, and the parent unit beeps. The remaining
operating time is at least 30 minutes.
Battery empty
1 If the battery is almost empty, the battery status light flashes red quickly.
2 If you do not connect the parent unit to the mains, it switches off.
Menu of the parent unit
Navigating the menu
Note: Some menu functions only work when the baby unit and the parent
unit are linked.
1 Press the MENU button to open the menu and to make the first menu
option appear.
Sensitivity
English
2 Use the + button to go to the next option or the - button to go to the
previous option. The arrow on the display indicates in which direction
you can navigate.
3 Press OK to confirm your selection.
Note: Press the MENU button if you want to leave the menu without making
any changes. If there is no input in the menu for more than 20 seconds, the
menu closes automatically.
This option in the parent unit menu allows you to set the microphone
sensitivity of the baby unit.
The microphone sensitivity determines what noise level the baby unit picks
up, e.g. you will want to hear when your baby cries, but you may be less
interested in its babbling.
1 Select ‘Sensitivity’ in the menu with the + and - buttons and press OK to
confirm.
2 Use the + and - buttons to increase or decrease the microphone
sensitivity. The number of filled segments shows the sensitivity level
selected. Press OK to confirm the setting.
15
Sensitivity levels and indications
Icon Sensitivity Description
highest Hear everything from your baby.
The speaker of the parent unit is
continuously on.
high Hear all sounds from soft
babbling and louder. If your
baby does not make any sound,
the speaker of the parent unit is
off.
medium Hear sounds from soft cries and
louder. If your baby makes softer
sounds, the speaker of the
parent unit does not go on.
16
English
Smart Eco
Feed timer
low The speaker of the parent unit
only goes on if the baby makes
loud sounds, for instance
because it is crying.
Smart Eco is a standard feature on this baby monitor. It automatically
reduces the DECT signal from the baby unit to save energy.
You can set the feed timer to alert you that it is time to feed your baby. The
timer can be set from 1 minute to 23 hours and 59 minutes.
1 To open the feed timer submenu, select 'Feed Timer' in the menu. Press
OK to confirm.
2 Select 'Set Timer' in the feed timer submenu. Press OK to start setting the
timer.
3 Set the hour and the minutes and press OK to confirm.

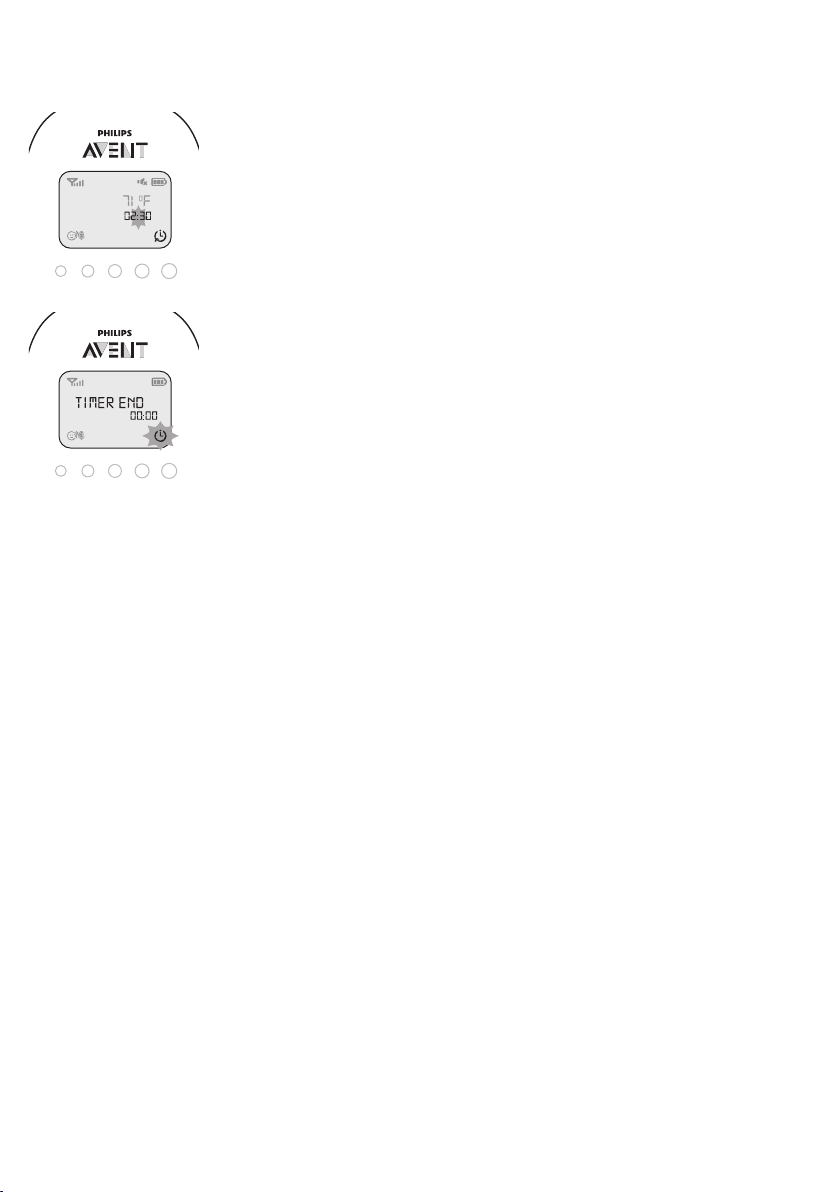

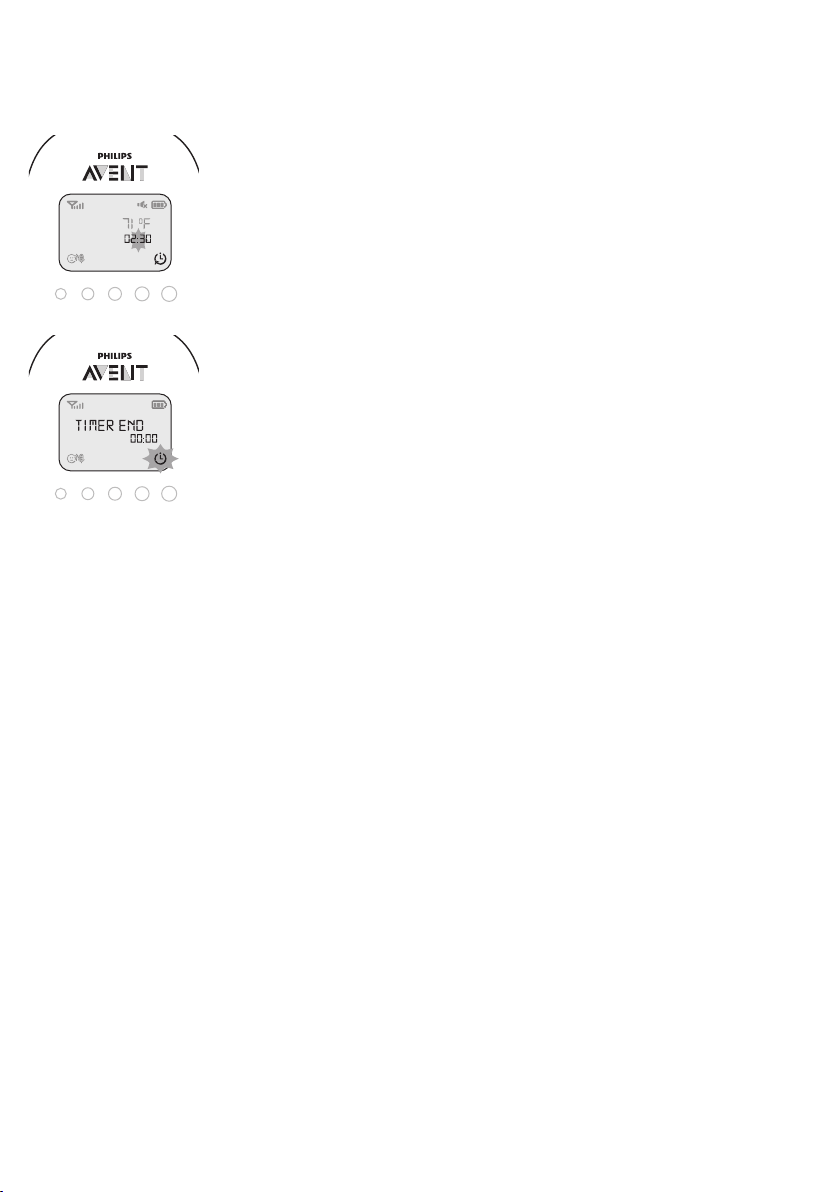

4 To start the feed timer, select 'xx:xx Start' in the feed timer submenu.
Press OK to confirm. The timer symbol appears on the display and the
timer starts counting down.
5 When the timer has reached 00:00, the feed timer alert goes off, the
timer symbol starts flashing on the display and the message 'TIMER END'
scrolls across the display.
6 To stop the timer, select 'Stop & Reset' in the feed timer submenu and
press OK to confirm.
Setting the feed timer repeat
1 To make the feed timer go off after the same set time, select ‘Timer
repeat’ in the feed timer submenu after you have set the timer. Press OK
to confirm.
2 Choose ‘Repeat ON’ or ‘Repeat OFF’ and press OK to confirm. The timer
repeat symbol appears on the display.
3 If ‘Repeat ON’ is set, the feed timer starts counting down again after you
stop the alert.
Setting a feed timer alert
1 To set an alert, select 'Timer Alert' in the feed timer submenu. Press OK to
confirm.
2 Choose one of the alert options. The options available are sound only,
sound and vibration and vibration only.
3 Press any key to stop the alert or the alert stops automatically after 2
minutes.
4 To stop the timer, select 'Stop & Reset' in the feed timer submenu and
Room temperature
A baby sleeps comfortably at a temperature between 16°C/61°F and
20°C/68°F. You can set a minimum and a maximum temperature range
and an alert.
1 To open the temperature submenu, select 'Temperature' in the menu.
2 Select 'Temp Range' in the temperature submenu and press OK to
3 Use the + and - buttons to set the minimum temperature range between
4 Select 'Alert' in the temperature submenu. Press OK to confirm.
5 Choose one of the alert options. The options available are sound only,
6 Select 'Temp Scale' in the temperature submenu. Press OK to confirm.
7 Select 'Celsius' or 'Fahrenheit' and press OK to confirm. The temperature
English
press OK to confirm.
Press OK to confirm.
confirm.
10°C/50°F and 19°C/66°F and the maximum temperature range
between 22°C/72°F and 37°C/99°F. Press OK to confirm.
sound and vibration,vibration only and display only. Press OK to confirm.
The temperature alert symbol appears on the display.
in the set scale appears on the display.
If the temperature is within the set range, the temperature alert symbol
has two segments.

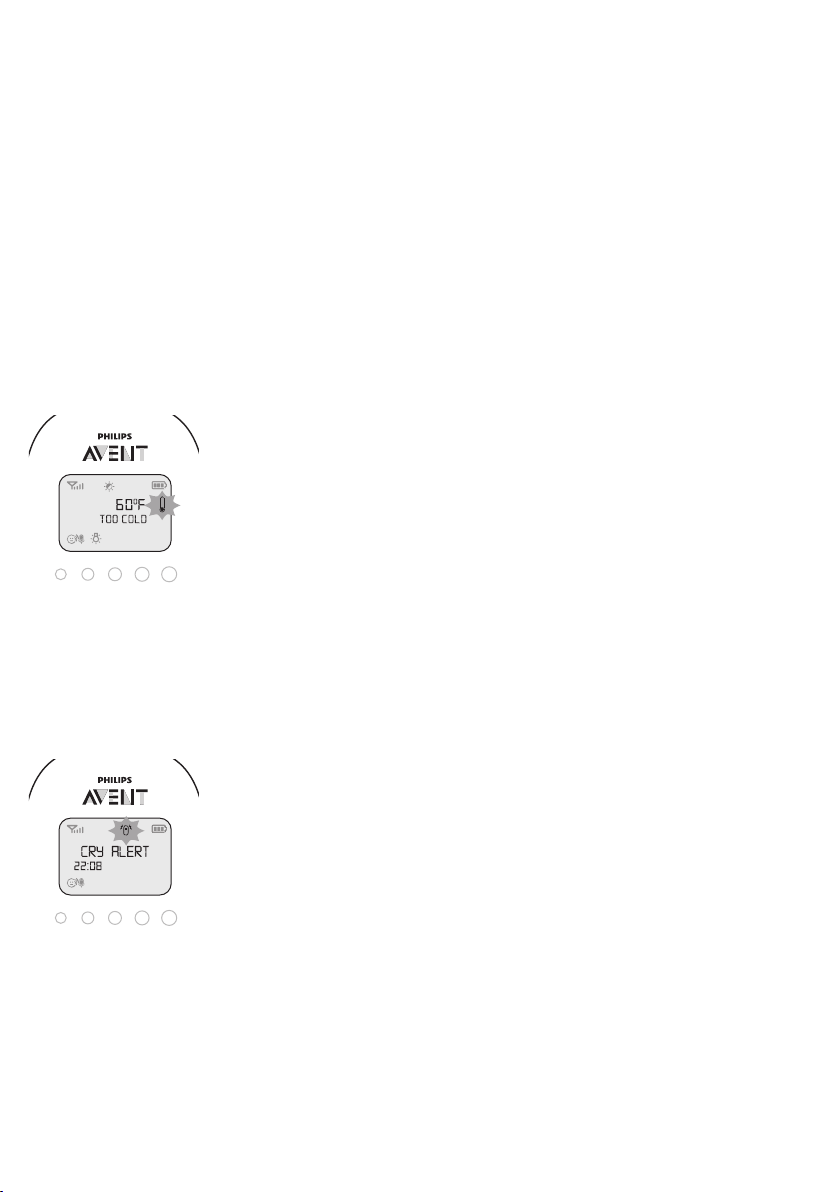

If the temperature is below or above the set range, the temperature alert
symbol on the display has only one segment and flashes. The message
'TOO COLD' or 'TOO HOT' appears on the display.
17
Cry alert
You can set a cry alert to warn you that the baby is crying.
1 Select 'Cry alert' in the menu with the + and - buttons. Press OK to
confirm.
2 When the display shows 'Vibration ON', press OK to confirm. The cry alert
indicator appears on the display.
The cry alert goes off when the sound in the baby room is loud enough to
make the fourth sound level light go on. The parent unit vibrates and the
message 'Cry alert' appears on the display for 4 seconds. The cry alert
repeats every 8 seconds until the sound becomes less loud or you
deactivate the cry alert.
3 To deactivate the cry alert, select 'Cry alert' in the menu. When the
display shows 'Vibration OFF', press OK to confirm.
18
English
Clock
Language
Key lock
The default setting for the clock is hidden. You can choose to show the clock
and set the clock time in the menu of the parent unit.
1 Select 'Set clock' in the menu with the + and - buttons. Press OK to
confirm.
2 Select 'Show Time' and press OK to confirm.
3 Select 'Set the time' and press OK to confirm.
4 Set the hour and the minutes and press OK to confirm.
The clock time alternates with other indications in the message field of
the display.
You can use this menu option to change the language setting.
1 Select ‘Set language’ in the menu with the + and - buttons. Press OK to
confirm.
2 Use the + and - buttons to select your language and press OK to confirm.
You can activate the key lock to prevent the buttons from being pressed
accidentally while you carry the parent unit around.
1 To activate the key lock, press OK.
2 Press the + button within 2 seconds.
Note: If you do not press the + button within 2 seconds, the instruction
remains on the display.
3 After you have pressed the + button, the message 'Keys locked' appears
on the display.
4 To deactivate the key lock, press OK. When the display shows the
instruction message, press the + button within 2 seconds.
Notes:
-
When you press a button other than OK while the key lock is active, the
display goes on and the second line on the display tells you how to
deactivate the key lock.
-
When you press OK while the key lock is active, the second line on the
display tells you what second step is necessary to unlock the buttons.
Warranty and support
If you need information or support, please visit www.philips.com/support or
read the international warranty leaflet.
Loading...
