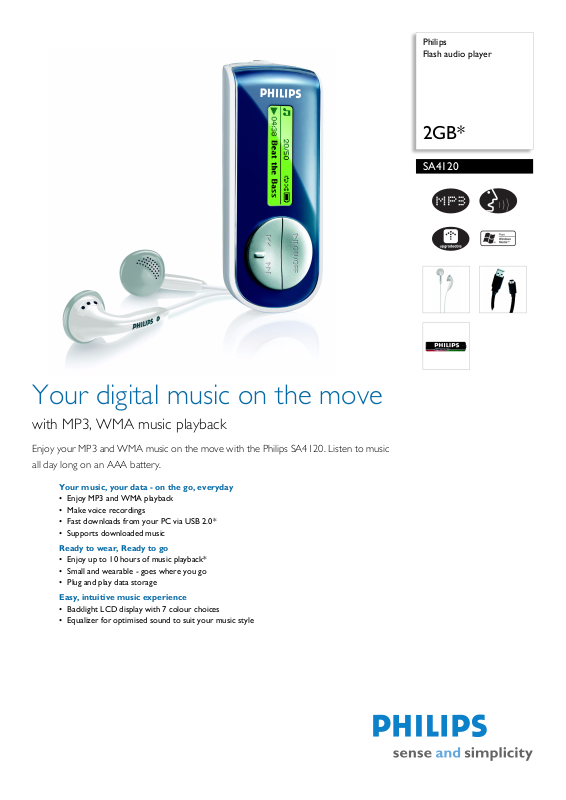

Philips SA4120 User Manual 2

Philips Flash audio player

2GB*

SA4120

Your digital music on the move

with MP3, WMA music playback

Enjoy your MP3 and WMA music on the move with the Philips SA4120. Listen to music all day long on an AAA battery.

Your music, your data - on the go, everyday

• Enjoy MP3 and WMA playback

• Make voice recordings

• Fast downloads from your PC via USB 2.0*

• Supports downloaded music

Ready to wear, Ready to go

• Enjoy up to 10 hours of music playback*

• Small and wearable - goes where you go

• Plug and play data storage

Easy, intuitive music experience

• Backlight LCD display with 7 colour choices

• Equalizer for optimised sound to suit your music style

Flash audio player

2GB*

SA4120/02

Specifications Product highlights

Picture/Display

• Backlight: yes, 7 colour backlight

• Lines of text: 2

• Resolution: 32 x 128

• Type: LCD

Sound

• Channel separation: 45 dB

• Equalizer settings: Classic, Jazz, Pop, Rock

• Frequency response: 30 - 18 000 Hz

• Output power (RMS): 2 x 3 mW

• Signal to noise ratio: > 85 dB

Audio Playback

• Compression format: MP3, WAV, Windows Media™ Audio

• ID3 Tag support: Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

• WMA bit rates: 5-192 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32,

• DRM: Version 10

kHz

44.1, 48 kHz

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 2 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, WMA: Up to 920 tracks*

Connectivity

• Headphone: 3.5 mm

• USB: High-speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

Accessories

• Batteries: AAA Alkaline

• Headphones: AY3812

• USB cable: AY3930

•User Guide on CD-ROM

Software

• Device manager: Device Manager to restore and upgrade

• Windows Media Player 10

• PlaysForSure: Audio Download, Audio Subscription

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• PC OS: Windows XP (SP2 or above)

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 135 x 38 x 195 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 31.5 X 23 X 77.8 mm

Power

•Batteries included

• Battery type: AAA / LR03 Alkaline

• Playtime on external battery: Up to 10 hours

•

Enjoy MP3 and WMA playback

Make voice recordings

Sing, dictate, record notes directly to WAV via the built-in microphone

LCD display with colour choices

Issue date 2008-03-13

Version: 3.0.7

12 NC: 8670 000 29832 EAN: 87 12581 33378 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
