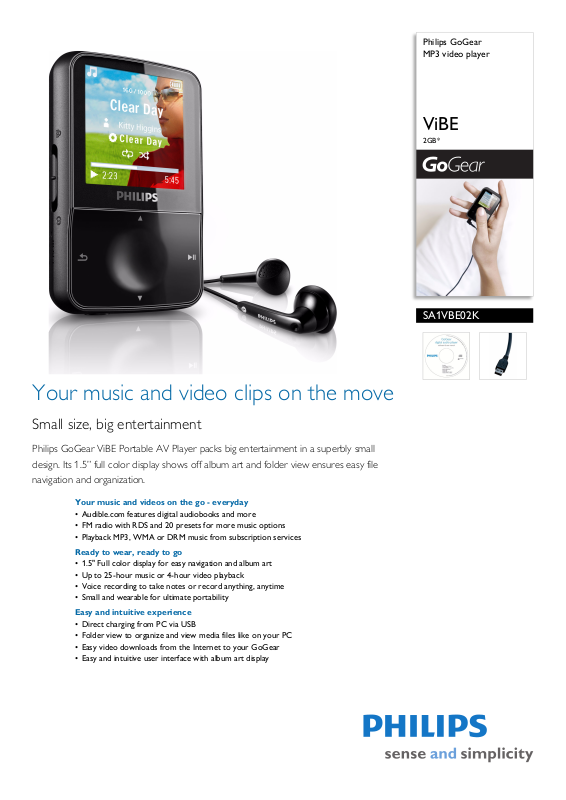

Philips SA1VBE02K-97 User Manual

Philips GoGear MP3 video player

ViBE

2GB*

SA1VBE02K

Your music and video clips on the move

Small size, big entertainment

Philips GoGear ViBE Portable AV Player packs big entertainment in a superbly small design. Its 1.5” full color display shows off album art and folder view ensures easy file navigation and organization.

Your music and videos on the go - everyday

• Audible.com features digital audiobooks and more

• FM radio with RDS and 20 presets for more music options

• Playback MP3, WMA or DRM music from subscription services

Ready to wear, ready to go

• 1.5" Full color display for easy navigation and album art

• Up to 25-hour music or 4-hour video playback

• Voice recording to take notes or record anything, anytime

• Small and wearable for ultimate portability

Easy and intuitive experience

• Direct charging from PC via USB

• Folder view to organize and view media files like on your PC

• Easy video downloads from the Internet to your GoGear

• Easy and intuitive user interface with album art display

MP3 video player

ViBE 2GB*

SA1VBE02K/97

Specifications

Picture/Display

•Backlight

• Diagonal screen size (inch): 1.5 inch

•Lines of text: 5

•Type: LCD

• Resolution: 128 x 128 pixels

Sound

• Equalizer customizable

• Frequency response: 20 - 18k Hz

• Equalizer settings: Funk, Hip Hop, Jazz, Rock, echno, Classical

• Output Power: 2 x 2.4mW

• Signal to noise ratio: > 84 dB

• THD: 0.05% at 1kHz

• Channel separation: 45 dB

Audio Playback

• Compression format: MP3, WMA

• ID3 Tag support: Song title, artist, album

• MP3 bit rates: 8-320 kbps and VBR

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050,

, 8 kHz

• Digital Rights Management

for Portable Devices, Supports download & subscription music services

Still Picture Playback

• Picture Compression Format: JPEG, BMP

•Slide show

Storage Media

• Built-in memory type: NAND Flash

• Built-in memory capacity: 2 GB

• Mass storage class compliant

• Music memory capacity, MP3: Up to 450 tracks*

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

: Windows Media DRM

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media converter & Windows Media Player

• Headphones: AY3816

• USB cable: AY3930

•Quick start guide

Software

• Device manager: to restore and upgrade

• Media Converter for Philips: WMV (.wmv.avi

ntainers);MPEG-4 SP(.avi container only);MPEG-

co 4 ASP(.avi); H.264 (MPEG-4 Part10) (.mp4); Other codec/container combinations supported based on installion of relevant Directshow codecs

• Windows Media Player 11

Green Specifications

• Lead-free soldered product

System Requirements

• PC OS: Windows XP (SP2) or Windows Vista

• Internet connection: Yes (for access to updated

upport documents, manuals, future firmware and

s PC software upgrades)

•CD-ROM drive

• USB: Free USB port

Power

• Battery capacity: 290 mAh

• Playtime on internal battery: Up or 4 hours video

•Battery Type: LI-Polymer

• Rechargeable: Yes, via USB

to 25 hours audio

Dimensions

• Blister dimensions (WxDxH): 30 x 87 x 135 mm

• Product dimensions (WxDxH): 66 x 42 x 11.6 mm

• Packaging type: D-box

• Product weight: 0.034 kg

Tuner/Reception/Transmission

•Tuner Bands: FM

• Station presets: 20

Highlights

1.5" Full color display

1.5" full color screen allows you to navigate easily within the control menu or the music files of your GoGear player. Plus, you can flip through your photo collection while enjoying your music on the go.

Album art in full color

GoGear’s easy and intuitive user interface is powered by an advanced navigation technology. It not only helps to ensure quick and smooth navigation but also an enjoyable multimedia experience that doesn’t take long to master. Smart features like Album Art – which displays album artwork embedded in music files – enables you to have a richer experience, just like in the good old days when you would view the cover of a CD or LP while enjoying your music.

Internet video download

Convenience

• Function: Keypad lock

•Superscroll

•Volume control

• Firmware upgradeable

• Battery charging indication: On user interface

Issue date 2009-12-01

Version: 3.0.6

12 NC: 8670 000 50689 EAN: 87 12581 47127 9

Video Playback

• SMV: 128 x 128, 24 fps

Audio Capturing

• Built-in microphone: mono

• Voice recording

• FM radio recording

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

View videos on the go with Internet Video Download, an easy-to-use feature that lets you download videos from video sharing sites (YouTube, MySpace or Google Video) to your GoGear. Install the PC application provided, connect your GoGear to your PC and use Internet Explorer to visit your favorite video sharing site. Choose a video and click the Download button that appears when you hover the mouse cursor over the video. No need to wait, just move on to other videos and start downloading more.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration. * 1GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.
