9000 series
S95XX / S93XX
2
3
4
5
6
7
8
9
10
11
13
12
14
15
22
23
24
25
26
17
16
18
19
20 21
1
empty page before TOC
English 6
Português do Brasil 34
English
6
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains
information about the features of this shaver as
well as some tips to make shaving easier and more
enjoyable.
General description (Fig. 1)
1 Comb for beard styler attachment
2 Click-on beard styler attachment
3 Click-on trimmer attachment
4 Click-on shaving unit
5 On/off button
6 Socket for small plug
7 Exclamation mark
8 Replacement reminder
9 Battery charge indicator
10 Travel lock symbol
11 Cleaning reminder
12 Personal comfort settings bar
13 + and - buttons for personal comfort settings
14 SmartClean system
15 Cap of SmartClean system
16 On/off button
17 Replacement symbol
18 Cleaning symbol
19 Drying symbol
20 Ready symbol
21 Charge symbol
22 Cleaning cartridge for SmartClean system
23 Supply unit
24 Small plug
25 Retaining ring holder
26 Pouch
English
The accessories supplied may vary for different
products. The box shows the accessories that have
been supplied with your appliance.
Important safety information
Read this important information carefully before
you use the appliance and its accessories and
save it for future reference. The accessories
supplied may vary for different products.
Danger
- Keep the supply unit dry.
Warning
- To charge the battery, only use the detachable
supply unit (type HQ8505) provided with the
appliance.
- The supply unit contains a transformer. Do not
cut off the supply unit to replace it with another
plug, as this causes a hazardous situation.
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
- Always unplug the shaver before you clean it
under the tap.
English
7
English
8
Caution
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as
this may cause injury. Always replace a
damaged part with one of the original type.
- Do not open the appliance to replace the
rechargeable battery.
- Never immerse the cleaning system or the
charging stand in water and do not rinse it
under the tap.
- Never use water hotter than 80°C to rinse the
shaver.
- Only use this appliance for its intended purpose
as shown in the user manual.
- For hygienic reasons, the appliance should only
be used by one person.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the
appliance.
- If your shaver comes with a cleaning system,
always use the original Philips cleaning fluid
(cartridge or bottle, depending on the type of
cleaning system).
- Always place the cleaning system on a stable,
level and horizontal surface to prevent leakage.
- If your cleaning system uses a cleaning
cartridge, always make sure the cartridge
compartment is closed before you use the
cleaning system to clean or charge the shaver.
- When the cleaning system is ready for use, do
not move it to prevent leakage of cleaning fluid.
- Water may drip from the socket at the bottom
of the shaver when you rinse it. This is normal
and not dangerous because all electronics are
enclosed in a sealed power unit inside the
shaver.
- Do not use the supply unit in or near wall
sockets that contain an electric air freshener to
prevent irreparable damage to the supply unit.
Electromagnetic fields (EMF)
- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic fields.
General
- This shaver is waterproof. It is suitable for use in
the bath or shower and for cleaning under the
tap. For safety reasons, the shaver can
therefore only be used without cord.
- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
The display
Note: Before you use the shaver for the first time,
remove the protective foil from the display.
Personal comfort settings
The appliance has a feature that allows you to
personalise your settings. You can choose
between three settings depending on your
personal shaving needs: comfort, dynamic or
efficiency. When you press the - or + button, the
segment of the personal comfort settings bar that
lights up shows the currently selected setting. You
can press the + or - button to select a different
setting.
English
9
English
10
Charging
Quick charge: When you connect the shaver to the
wall socket, the lights of the battery charge
indicator light up one after another repeatedly.
When the shaver contains enough energy for one
shave, the bottom light of the battery charge
indicator starts to flash slowly.
While the shaver continues to charge, first the
bottom light of the battery charge indicator flashes
and then lights up continuously. Then the second
light flashes and lights up continuously, and so on
until the shaver is fully charged.
Battery fully charged
When the battery is fully charged, all lights of the
battery charge indicator light up white
continuously.
Note: This appliance can only be used without
cord. When you press the on/off button during or
after charging, you hear a sound to indicate that
the shaver is still connected to the wall socket.
Note: When the battery is full, the display switches
off automatically after 30 minutes.
Battery low
When the battery is almost empty, the bottom light
of the battery charge indicator flashes orange and
you hear a sound.
Remaining battery charge
The remaining battery charge is shown by the
lights of the battery charge indicator that light up
continuously.
Cleaning reminder
Clean the shaver after every shave for optimal
performance. When you switch off the appliance,
the cleaning reminder flashes to remind you to
clean the appliance.
Travel lock
You can lock the appliance when you are going to
travel. The travel lock prevents the appliance from
being switched on by accident.
Activating the travel lock
1 Press the on/off button for 3 seconds to enter
Deactivating the travel lock
1 Press the on/off button for 3 seconds.
Note: You can also deactivate the travel lock by
connecting the appliance to the wall socket.
English
the travel lock mode.
While you activate the travel lock, the travel
lock symbol lights up white continuously. When
the travel lock is activated, the appliance
produces a sound and the travel lock symbol
flashes.
The travel lock symbol flashes and then lights
up continuously. The appliance is now ready for
use again.
11
English
12
Replacement reminder
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
The appliance is equipped with a replacement
reminder which reminds you to replace the
shaving heads. The shaving unit symbol lights up
white continuously, the arrows flash white and the
appliance beeps to indicate that you have to
replace the shaving heads.
Note: After replacing the shaving heads, you need
to reset the replacement reminder by pressing the
on/off button for 7 seconds.
Exclamation mark
Overheating
If the appliance overheats during charging, the
exclamation mark flashes orange. When this
happens, the shaver switches off automatically.
Charging continues once the temperature of the
appliance has decreased to the normal level.
Blocked shaving heads
If the shaving heads are blocked, the exclamation
mark lights up orange continuously. The
replacement reminder and the cleaning reminder
flash white alternately and you hear a sound. In
this case, the motor cannot run because the
shaving heads are soiled or damaged.
If the shaving heads are soiled, you have to clean
them. If the shaving heads are damaged, you have
to replace them.
Charging
Charge the shaver before you use it for the first
time and when the display indicates that the
1
2
English
battery is almost empty. The battery charge is
indicated by the lights of the battery charge
indicator on the display.
When you connect the shaver to the wall socket,
you hear a sound.
Charging takes approx. 1 hour. A fully charged
shaver has a shaving time of up to 50 minutes.
Note: You cannot use the appliance while it is
charging.
Charging with the supply unit
1 Make sure the appliance is switched off.
2 Put the supply unit in the wall socket and put
the small plug in the appliance.
3 After charging, remove the supply unit from the
wall socket and pull the small plug out of the
appliance.
Charging in the SmartClean system (specific types only)
1 Put the small plug in the back of the
SmartClean system.
2 Put the supply unit in the wall socket.
3 Press the top cap to be able to place the shaver
in the holder ('click').
13
4 Hold the shaver upside down above the holder.
Make sure the front of the shaver points
towards the SmartClean system.
1
2
3
English
14
5 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver (‘click’) (3).
Note: The battery symbol starts to flash to indicate
that the appliance is charging. When the battery is
fully charged, the battery symbol lights up
continuously.
Using the appliance
Note: This appliance can only be used without
cord.
Switching the appliance on and off
- To switch on the appliance, press the on/off
button once.
The display lights up for a few seconds.
- To switch off the appliance, press the on/off
button once.
The display lights up for a few seconds and
shows the remaining battery charge.
Shaving
Skin adaptation period
Your first shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. To allow
your skin to adapt to this new appliance, we advise
you to shave regularly (at least 3 times a week)
and exclusively with this appliance for a period of
3 weeks.
Shaving tips
- Select your personal comfort settings (see ‘The
display’).
English
- To ensure the best result, we advise you to pretrim your beard if you have not shaved for 3
days or longer.
Dry shaving
1 Switch on the appliance.
The display lights up for a few seconds.
2 Move the shaving heads over your skin in
circular movements.
Note: Circular movements provide better
shaving results than straight movements.
3 Clean the appliance after use (see 'Cleaning
and maintenance').
Wet shaving
You can also use this appliance on a wet face with
shaving foam or shaving gel.
To shave with shaving foam or shaving gel, follow
the steps below:
1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
15
English
16
3 Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4 Switch on the appliance.
5 Move the shaving heads over your skin in
circular movements.
Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your
skin.
6 Dry your face.
7 Clean the appliance after use (see 'Cleaning
and maintenance').
Note: Make sure you rinse all foam or shaving
gel off the appliance.
Using the click-on attachments
Note: The accessories supplied may vary for
different products. The box shows the accessories
that have been supplied with your appliance.

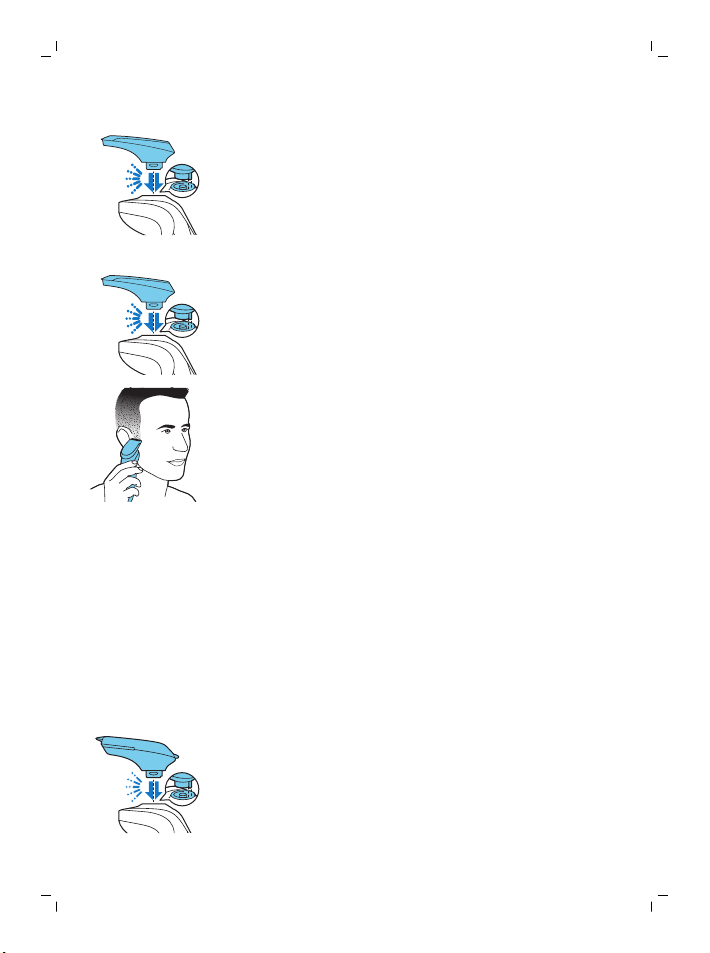

Removing or attaching the click-on attachments
1 Make sure the appliance is switched off.
2 Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you
pull it off the appliance.
English
3 Insert the lug of the attachment into the slot in
the top of the appliance. Then press down the
attachment to attach it to the appliance (‘click’).
Using the trimmer attachment
You can use the trimmer attachment to groom
your sideburns and moustache.
1 Attach the attachment to the appliance (‘click’).
2 Switch on the appliance.
The display lights up for a few seconds.
3 Hold the trimmer attachment perpendicular to
the skin and move the appliance downwards
while you exert gentle pressure.
4 Clean the attachment after use (see 'Cleaning
and maintenance').
Using the beard styler attachment with comb
You can use the beard styler attachment with the
comb attached to style your beard at one fixed
setting, but also at different length settings. You
can also use it to pre-trim any long hairs before
shaving for a more comfortable shave.
The length settings on the beard styler attachment
correspond to the remaining hair length after
cutting and range from 1 to 5mm.
1 Attach the attachment to the appliance ('click').
17
2
1
18
English
2 Slide the comb straight into the guiding grooves
on both sides of the beard styler attachment
(‘click’).
3 Press the length selector and then push it to the
left or right to select the desired hair length
setting.
4 Switch on the appliance.
5 Move the appliance upwards while you exert
gentle pressure. Make sure the front of the
comb is in full contact with the skin.
6 Clean the attachment after use (see 'Cleaning
and maintenance').
Using the beard styler attachment without comb
You can use the beard styler attachment without
the comb to contour your beard, moustache,
sideburns or neckline to a length of 0.5mm.
1 Pull the comb off the beard styler attachment.
Note: Grab the comb in the center to pull it off
the beard styler attachment. Do not pull at the
sides of the comb.
2 Switch on the appliance.
3 Hold the beard styler attachment perpendicular
to the skin and move the appliance downwards
while you exert gentle pressure.
4 Clean the attachment after use (see 'Cleaning
and maintenance').
2
1
English
Cleaning and maintenance
The accessories supplied may vary for different
products. The box shows the accessories that have
been supplied with your appliance.
Cleaning the shaver in the SmartClean system
SmartClean system Plus has two phases: the
rinsing phase and the drying phase.
Preparing the SmartClean system for use
Caution: Do not tilt the SmartClean system to
prevent leakage.
Note: Hold the SmartClean system while you
prepare it for use.
Note: If you clean the shaver in the SmartClean
system once a week, the SmartClean cartridge
lasts approximately three months.
1 Put the small plug in the back of the
SmartClean system.
2 Put the supply unit in the wall socket.
3 Press the button on the side of the SmartClean
system (1) and lift the top part of the
SmartClean system (2).
19
4 Pull the seal off the cleaning cartridge.
20
English
5 Place the cleaning cartridge in the SmartClean
system.
6 Push the top part of the SmartClean system
back down (‘click’).
Using the SmartClean system
Caution: Always shake excess water off the
shaver before you place it in the SmartClean
system.
1 Press the top cap to be able to place the shaver
in the holder ('click').
2 Hold the shaver upside down above the holder.
Make sure the front of the shaver points
towards the SmartClean system.
1
2
3
English
21
3 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver ('click') (3).
The battery symbol starts to flash, which
indicates that the shaver is charging.
4 Press the on/off button on the SmartClean
system to start the cleaning program.
During the rinsing phase, the rinsing symbol
flashes. When the rinsing phase is done (after
approx. 10 minutes), the rinsing symbol lights up
continuously.
After the rinsing phase, the drying phase starts
automatically. During this phase, the drying
symbol flashes. When the drying phase is done
(after approx. 4 hours), the drying symbol lights up
continuously.
When the cleaning program is done, the ready
symbol lights up continuously.
30 minutes after the cleaning program and
charging are done, the SmartClean system
switches off automatically.
The battery symbol lights up continuously to
indicate that the shaver is fully charged. Charging
takes approx. 1 hour.
Note: If you press the on/off button of the
SmartClean system during the cleaning program,
the program aborts. In this case, the rinsing or
drying symbol goes out.
Note: If you remove the supply unit from the wall
socket during the cleaning program, the program
aborts.
Loading...
