Philips P89LPC933, P89LPC934, P89LPC935, P89LPC936 User Guide

Download

UM10116

P89LPC933/934/935/936 User manual

Rev. 01 — 4 March 2005 User manual

Document information

Info Content

Keywords P89LPC933/934/935/936

Abstract Technical information for the P89LPC933/934/935/936 devices.

Philips Semiconductors

Revision history

Rev Date Description

01 20050304 Initial version

UM10116

P89LPC933/934/935/936 User manual

User manual Rev. 01 — 4 March 2005 2 of 147

Philips Semiconductors

1. Introduction

The P89LPC933/934/935/936 are single-chip microcontrollers designed for applications demanding high-integration, low cost solutions over a wide range of performance requirements. The P89LPC933/934/935/936 are based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system-level functions have been incorporated into the P89LPC933/934/935/936 in order to reduce component count, board space, and system cost.

1.1 Product comparison overview

Ta bl e 1 highlights the differences between the four devices.

Table 1: Product comparison overview

Device Flash memory Sector size ADC1 ADC0 CCU Data EEPROM

P89LPC933 4 kB 1 kB X - - -

P89LPC934 8 kB 1 kB X - - -

P89LPC935 8 kB 1 kB X X X X

P89LPC936 16 kB 2 kB X X X X

UM10116

P89LPC933/934/935/936 User manual

1.2 Pin configuration

P2.0/DAC0

P0.0/CMP2/KBI0

P3.1/XTAL1

P3.0/XTAL2/CLKOUT

P1.3/INT0/SDA

P1.2/T0/SCL

Fig 1. P89LPC933/934 TSSOP28 pin configuration.

P2.1

P1.7

P1.6

P1.5/RST

P1.4/INT1

P2.2/MOSI

P2.3/MISO

P89LPC933FDH

P89LPC934FDH

002aab071

P2.7

P2.6

P0.1/CIN2B/KBI1/AD10

P0.2/CIN2A/KBI2/AD11

P0.3/CIN1B/KBI3/AD12

P0.4/CIN1A/KBI4/DAC1/AD13

P0.5/CMPREF/KBI5

P0.6/CMP1/KBI6

P0.7/T1/KBI7

P1.0/TXD

P1.1/RXD

P2.5/SPICLK

P2.4/SS

User manual Rev. 01 — 4 March 2005 3 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

P2.0/ICB/DAC0/AD03

P2.1/OCD/AD02

P0.0/CMP2/KBI0/AD01

P1.7/OCC/AD00

P1.6/OCB

P1.5/RST

P3.1/XTAL1

P3.0/XTAL2/CLKOUT

P1.4/INT1

P1.3/INT0/SDA

P1.2/T0/SCL

P2.2/MOSI

P2.3/MISO

P89LPC935FDH

P89LPC936FDH

002aab072

Fig 2. P89LPC935/936 TSSOP28 pin configuration.

P2.7/ICA

P2.6/OCA

P0.1/CIN2B/KBI1/AD10

P0.2/CIN2A/KBI2/AD11

P0.3/CIN1B/KBI3/AD12

P0.4/CIN1A/KBI4/DAC1/AD13

P0.5/CMPREF/KBI5

P0.6/CMP1/KBI6

P0.7/T1/KBI7

P1.0/TXD

P1.1/RXD

P2.5/SPICLK

P2.4/SS

P1.7/OCC/AD00

P0.0/CMP2/KBI0/AD01

P2.1/OCD/AD02

P2.0/ICB/DAC0/AD03

P1.6/OCB

P1.5/RST

P3.1/XTAL1

P3.0/XTAL2/CLKOUT

P1.4/INT1

P1.3/INT0/SDA

P89LPC935FA

121314

P1.2/T0/SCL

P2.4/SS

P2.2/MOSI

P2.3/MISO

Fig 3. P89LPC935 PLCC28 pin configuration.

P2.7/ICA

P2.6/OCA

P0.1/CIN2B/KBI1/AD10

161718

P2.5/SPICLK

P1.0/TXD

P1.1/RXD

002aab074

P0.2/CIN2A/KBI2/AD11

P0.3/CIN1B/KBI3/AD12

P0.4/CIN1A/KBI4/DAC1/AD13

P0.5/CMPREF/KBI5

P0.6/CMP1/KBI6

P0.7/T1/KBI7

User manual Rev. 01 — 4 March 2005 4 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

terminal 1

index area

P1.6/OCB

P1.5/RST

P3.1/XTAL1

P3.0/XTAL2/CLKOUT

P1.4/INT1

P1.3/INT0/SDA

P1.7/OCC/AD00

P0.0/CMP2/KBI0/AD01

28272625242322

1 21

2 20

4 18

P89LPC935FHN

5 17

6 16

7 15

P2.2/MOSI

P1.2/T0/SCL

Transparent top view

P2.7/ICA

P2.1/OCD/AD02

P2.0/ICB/DAC0/AD03

P2.6/OCA

P0.1/CIN2B/KBI1/AD10

1011121314

P2.4/SS

P2.3/MISO

P1.0/TXD

P1.1/RXD

P2.5/SPICLK

P0.2/CIN2A/KBI2/AD11

P0.3/CIN1B/KBI3/AD12

P0.4/CIN1A/KBI4/DAC1/AD13

P0.5/CMPREF/KBI5

P0.6/CMP1/KBI6

P0.7/T1/KBI7

002aab076

Fig 4. P89LPC935/936 HVQFN28 pin configuration.

1.2.1

Table 2: Pin description

Symbol Pin Typ e Description

TSSOP28,

HVQFN28

PLCC28

P0.0 to P0.7 I/O Port 0: Port 0 is an 8-bit I/O port with a user-configurable output type.

During reset Port 0 latches are configured in the input only mode with the internal pull-up disabled. The operation of Port 0 pins as inputs and outputs depends upon the port configuration selected. Each port pin is configured independently. Refer to Section 5.1

for details.

The Keypad Interrupt feature operates with Port 0 pins.

All pins have Schmitt trigger inputs.

Port 0 also provides various special functions as described below:

P0.0/CMP2/ KBI0/AD01

327I/OP0.0 — Port 0 bit 0.

O CMP2 — Comparator 2 output.

I KBI0 — Keyboard input 0.

I AD01 — ADC0 channel 1 analog input. (P89LPC935/936)

P0.1/CIN2B/ KBI1/AD10

26 22 I/O P0.1 — Port 0 bit 1.

I CIN2B — Comparator 2 positive input B.

I KBI1 — Keyboard input 1.

I AD10 — ADC1 channel 0 analog input.

User manual Rev. 01 — 4 March 2005 5 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 2: Pin description

Symbol Pin Typ e Description

TSSOP28, PLCC28

P0.2/CIN2A/ KBI2/AD11

P0.3/CIN1B/ KBI3/AD12

P0.4/CIN1A/ KBI4/DAC1

P0.5/ CMPREF/ KBI5

P0.6/CMP1/ KBI6

P0.7/T1/ KBI7

P1.0 to P1.7 I/O, I

P1.0/TXD 18 14 I/O P1.0 — Port 1 bit 0.

P1.1/RXD 17 13 I/O P1.1 — Port 1 bit 1.

P1.2/T0/SCL 12 8 I/O P1.2 — Port 1 bit 2 (open-drain when used as output).

25 21 I/O P0.2 — Port 0 bit 2.

24 20 I/O P0.3 — Port 0 bit 3.

23 19 I/O P0.4 — Port 0 bit 4.

22 18 I/O P0.5 — Port 0 bit 5.

20 16 I/O P0.6 — Port 0 bit 6.

19 15 I/O P0.7 — Port 0 bit 7.

…continued

HVQFN28

I CIN2A — Comparator 2 positive input A.

I KBI2 — Keyboard input 2.

I AD11 — ADC1 channel 1 analog input.

I CIN1B — Comparator 1 positive input B.

I KBI3 — Keyboard input 3.

I AD12 — ADC1 channel 2 analog input.

I CIN1A — Comparator 1 positive input A.

I KBI4 — Keyboard input 4.

O DAC1 — Digital-to-analog converter output 1.

I AD13 — ADC1 channel 3 analog input.

I CMPREF — Comparator reference (negative) input.

I KBI5 — Keyboard input 5.

O CMP1 — Comparator 1 output.

I KBI6 — Keyboard input 6.

I/O T1 — Timer/counter 1 external count input or overflow output.

I KBI7 — Keyboard input 7.

[1]

Port 1: Port 1 is an 8-bit I/O port with a user-configurable output type, except for three pins as noted below. During reset Port 1 latches are configured in the input only mode with the internal pull-up disabled. The operation of the configurable Port 1 pins as inputs and outputs depends upon the port configuration selected. Each of the configurable port pins are programmed independently. Refer to Section 5.1 P1.3 are open drain when used as outputs. P1.5 is input only.

All pins have Schmitt trigger inputs.

Port 1 also provides various special functions as described below:

O TXD — Transmitter output for the serial port.

I RXD — Receiver input for the serial port.

I/O T0 — Timer/counter 0 external count input or overflow output (open-drain

when used as output).

I/O SCL — I

C serial clock input/output.

for details. P1.2 and

User manual Rev. 01 — 4 March 2005 6 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 2: Pin description

Symbol Pin Typ e Description

TSSOP28, PLCC28

P1.3/INT0/ SDA

P1.4/INT1

P1.5/RST

P1.6/OCB 5 1 I/O P1.6 — Port 1 bit 6.

P1.7/OCC/ AD00

11 7 I/O P1.3 — Port 1 bit 3 (open-drain when used as output).

10 6 I P1.4 — Port 1 bit 4.

62IP1.5 — Port 1 bit 5 (input only).

428I/OP1.7 — Port 1 bit 7.

…continued

HVQFN28

I INT0

I/O SDA — I

I INT1

I RST

O OCB — Output Compare B. (P89LPC935/936)

O OCC — Output Compare C. (P89LPC935/936)

I AD00 — ADC0 channel 0 analog input. (P89LPC935/936)

— External interrupt 0 input.

C serial data input/output.

— External interrupt 1 input.t

— External Reset input during power-on or if selected via UCFG1.

When functioning as a reset input, a LOW on this pin resets the microcontroller, causing I/O ports and peripherals to take on their default states, and the processor begins execution at address 0. Also used during a power-on sequence to force ISP mode. When using an oscillator

frequency above 12 MHz, the reset input function of P1.5 must be enabled. An external circuit is required to hold the device in reset at power-up until V power is removed VDD will fall below the minimum specified operating voltage. When using an oscillator frequency above 12 MHz, in some applications, an external brownout detect circuit may be required to hold the device in reset when V minimum specified operating voltage.

has reached its specified level. When system

falls below the

User manual Rev. 01 — 4 March 2005 7 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 2: Pin description

Symbol Pin Typ e Description

TSSOP28, PLCC28

P2.0 to P2.7 I/O Port 2: Port 2 is an 8-bit I/O port with a user-configurable output type.

P2.0/ICB/ DAC0/AD03

P2.1/OCD/ AD02

P2.2/MOSI 13 9 I/O P2.2 — Port 2 bit 2.

P2.3/MISO 14 10 I/O P2.3 — Port 2 bit 3.

P2.4/SS

P2.5/SPICLK 16 12 I/O P2.5 — Port 2 bit 5.

P2.6/OCA 27 23 I/O P2.6 — Port 2 bit 6.

P2.7/ICA 28 24 I/O P2.7 — Port 2 bit 7.

125I/OP2.0 — Port 2 bit 0.

226I/OP2.1 — Port 2 bit 1.

15 11 I/O P2.4 — Port 2 bit 4.

…continued

HVQFN28

During reset Port 2 latches are configured in the input only mode with the internal pull-up disabled. The operation of Port 2 pins as inputs and outputs depends upon the port configuration selected. Each port pin is configured independently. Refer to Section 5.1

All pins have Schmitt trigger inputs.

Port 2 also provides various special functions as described below:

I ICB — Input Capture B. (P89LPC935/936)

I DAC0 — Digital-to-analog converter output.

I AD03 — ADC0 channel 3 analog input. (P89LPC935/936)

O OCD — Output Compare D. (P89LPC935/936)

I AD02 — ADC0 channel 2 analog input. (P89LPC935/936)

I/O MOSI — SPI master out slave in. When configured as master, this pin is

output; when configured as slave, this pin is input.

I/O MISO — When configured as master, this pin is input, when configured as

slave, this pin is output.

I SS

I/O SPICLK — SPI clock. When configured as master, this pin is output; when

configured as slave, this pin is input.

O OCA — Output Compare A. (P89LPC935/936)

I ICA — Input Capture A. (P89LPC935/936)

— SPI Slave select.

for details.

User manual Rev. 01 — 4 March 2005 8 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 2: Pin description

Symbol Pin Typ e Description

TSSOP28, PLCC28

P3.0 to P3.1 I/O Port 3: Port 3 is a 2-bit I/O port with a user-configurable output type.

P3.0/XTAL2/ CLKOUT

P3.1/XTAL 8 4 I/O P3.1 — Port 3 bit 1.

95I/OP3.0 — Port 3 bit 0.

73IGround: 0 V reference.

21 17 I Power Supply: This is the power supply voltage for normal operation as

…continued

HVQFN28

During reset Port 3 latches are configured in the input only mode with the internal pull-up disabled. The operation of Port 3 pins as inputs and outputs depends upon the port configuration selected. Each port pin is configured independently. Refer to Section 5.1

All pins have Schmitt trigger inputs.

Port 3 also provides various special functions as described below:

O XTAL2 — Output from the oscillator amplifier (when a crystal oscillator

option is selected via the FLASH configuration.

O CLKOUT — CPU clock divided by 2 when enabled via SFR bit (ENCLK -

TRIM.6). It can be used if the CPU clock is the internal RC oscillator, watchdog oscillator or external clock input, except when XTAL1/XTAL2 are used to generate clock source for the RTC/system timer.

I XTAL1 — Input to the oscillator circuit and internal clock generator circuits

(when selected via the FLASH configuration). It can be a port pin if internal RC oscillator or watchdog oscillator is used as the CPU clock source, and if XTAL1/XTAL2 are not used to generate the clock for the RTC/system timer.

for details.

well as Idle and Power-down modes.

[1] Input/Output for P1.0 to P1.4, P1.6, P1.7. Input for P1.5.

User manual Rev. 01 — 4 March 2005 9 of 147

Philips Semiconductors

1.2.2 Logic symbols

UM10116

P89LPC933/934/935/936 User manual

KBI0 KBI1 KBI2 KBI3 KBI4 KBI5 KBI6 KBI7

CLKOUT

DAC1

AD10 AD11 AD12 AD13

Fig 5. P89LPC933/934 logic symbol.

CMP2 CIN2B CIN2A CIN1B CIN1A

CMPREF

CMP1

XTAL2

XTAL1

DAC1

AD01 AD10 AD11 AD12 AD13

KBI0 KBI1 KBI2 KBI3 KBI4 KBI5 KBI6 KBI7

CLKOUT

CMP2 CIN2B CIN2A CIN1B CIN1A

CMPREF

CMP1

XTAL2

XTAL1

PORT 0

PORT 3

PORT 0

PORT 3

P89LPC935 P89LPC936

P89LPC933 P89LPC934

002aab077

002aab078

PORT 1

PORT 2

PORT 1

PORT 2

TXD RXD T0 INT0 INT1 RST

OCB OCC

ICB OCD MOSI MISO SS SPICLK OCA ICA

TXD RXD T0 INT0 INT1 RST

DAC0 MOSI MISO SS SPICLK

SCL SDA

AD00

AD03 AD02

SCL SDA

DAC0

Fig 6. P89LPC935/936 logic symbol.

User manual Rev. 01 — 4 March 2005 10 of 147

Philips Semiconductors

1.2.3 Block diagram

P89LPC933/934/935/936

UM10116

P89LPC933/934/935/936 User manual

ACCELERATED 2-CLOCK 80C51 CPU

P3[1:0]

P2[7:0]

P1[7:0]

P0[7:0]

4 kb/8 kB/16 kB

CODE FLASH

256-BYTE

DATA RAM

512-BYTE

AUXILIARY RAM

512-BYTE

DATA EEPROM

(P89LPC935/936)

PORT 3

CONFIGURABLE I/Os

PORT 2

CONFIGURABLE I/Os

PORT 1

CONFIGURABLE I/Os

PORT 0

CONFIGURABLE I/Os

KEYPAD

INTERRUPT

WATCHDOG TIMER

AND OSCILLATOR

PROGRAMMABLE

OSCILLATOR DIVIDER

internal bus

CPU clock

UART

I2C-BUS

SPI

REAL-TIME CLOCK/

SYSTEM TIMER

TIMER 0 TIMER 1

ANALOG

COMPARATORS

CCU (CAPTURE/ COMPARE UNIT) (P89LPC935/936)

ADC1/DAC1

ADC0/DAC0

(P89LPC935/936)

TXD RXD

SCL SDA

SPICLK MOSI MISO SS

T0 T1

CMP2 CIN2B CIN2A CMP1 CIN1A CIN1B

OCA OCB OCC OCD ICA ICB

AD10 AD11 AD12 AD13 DAC1

AD00 AD01 AD02 AD03 DAC1

CRYSTAL

RESONATOR

CONFIGURABLE

OSCILLATOR

ON-CHIP

OSCILLATOR

POWER MONITOR (POWER-ON RESET, BROWNOUT RESET)

002aab070

Fig 7. Block diagram.

User manual Rev. 01 — 4 March 2005 11 of 147

Philips Semiconductors

1.3 Special function registers

Remark: SFR accesses are restricted in the following ways:

• User must not attempt to access any SFR locations not defined.

• Accesses to any defined SFR locations must be strictly for the functions for the SFRs.

• SFR bits labeled ‘-’, logic 0 or logic 1 can only be written and read as follows:

– ‘-’ Unless otherwise specified, must be written with logic 0, but can return any

– Logic 0 must be written with logic 0, and will return a logic 0 when read.

– Logic 1 must be written with logic 1, and will return a logic 1 when read.

UM10116

P89LPC933/934/935/936 User manual

value when read (even if it was written with logic 0). It is a reserved bit and may be used in future derivatives.

User manual Rev. 01 — 4 March 2005 12 of 147

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx x x x xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xx xx xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxx x x xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxx

User manual Rev. 01 — 4 March 2005 13 of 147

Table 3: Special function registers - P89LPC933/934

* indicates SFRs that are bit addressable.

Name Description SFR

ACC* Accumulator E0H 00 00000000

ADCON0A/D control register0 8EH-----ENADC0--0000000000

ADCON1 A/D control register 1 97H ENBI1 ENADCI1TMM1 EDGE1 ADCI1 ENADC1 ADCS11 ADCS10 00 00000000

ADINSA/D input select A3HADI13ADI12ADI11ADI10----0000000000

ADMODA A/D mode register A C0H BNDI1 BURST1 SCC1 SCAN1 ----0000000000

ADMODB A/D mode register B A1H CLK2 CLK1 CLK0 - ENDAC1 ENDAC0 BSA1 - 00 000x0000

AD0DAT3 A/D_0 data register 3 F4H 00 00000000

AD1BH A/D_1 boundary high register C4H FF 11111111

AD1BL A/D_1 boundary low register BCH 00 00000000

AD1DAT0 A/D_1 data register 0 D5H 00 00000000

AD1DAT1 A/D_1 data register 1 D6H 00 00000000

AD1DAT2 A/D_1 data register 2 D7H 00 00000000

AD1DAT3 A/D_1 data register 3 F5H 00 00000000

AUXR1 Auxiliary function register A2H CLKLP EBRR ENT1 ENT0 SRST 0 - DPS 00 000000x0

B* B register F0H 00 00000000

BRGR0

BRGR1

BRGCONBaud rate generator controlBDH------SBRGSBRGEN00

CMP1 Comparator 1 control register ACH - - CE1 CP1 CN1 OE1 CO1 CMF1 00

CMP2 Comparator 2 control register ADH - - CE2 CP2 CN2 OE2 CO2 CMF2 00

DIVM CPU clock divide-by-M control 95H 00 00000000

DPTR Data pointer (2 bytes)

DPH Data pointer high 83H 00 00000000

DPL Data pointer low 82H 00 00000000

FMADRH Program Flash address high E7H 00 00000000

FMADRL Program Flash address low E6H 00 00000000

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Bit functions and addresses Reset value

addr.

Bit address E7 E6 E5 E4 E3 E2 E1 E0

MSB LSB Hex Binary

Bit address F7 F6 F5 F4 F3 F2 F1 F0

[2]

Baud rate generator rate low BEH 00 00000000

[2]

Baud rate generator rate high BFH 00 00000000

[2]

[1]

xxxxxx00

xx000000

Philips Semiconductors

P89LPC933/934/935/936 User manual

UM10116

User manual Rev. 01 — 4 March 2005 14 of 147

Table 3: Special function registers - P89LPC933/934

* indicates SFRs that are bit addressable.

Name Description SFR

FMCON Program Flash control (Read) E4H BUSY - - - HVA HVE SV OI 70 01110000

FMDATA Program Flash data E5H 00 00000000

I2ADR I

I2CON* I

I2DAT I

I2SCLH Serial clock generator/SCL

I2SCLL Serial clock generator/SCL

I2STAT I

ICRAH Input capture A register high ABH 00 00000000

ICRAL Input capture A register low AAH 00 00000000

ICRBH Input capture B register high AFH 00 00000000

ICRBL Input capture B register low AEH 00 00000000

IEN0* Interrupt enable 0 A8H EA EWDRT EBO ES/ESR ET1 EX1 ET0 EX0 00 00000000

IEN1* Interrupt enable 1 E8H EAD EST - - ESPI EC EKBI EI2C 00

IP0* Interrupt priority 0 B8H - PWDRT PBO PS/PSR PT1 PX1 PT0 PX0 00

IP0H Interrupt priority 0 high B7H - PWDRTHPBOH PSH/

IP1* Interrupt priority 1 F8H PAD PST - - PSPI PC PKBI PI2C 00

IP1H Interrupt priority 1 high F7H PADH PSTH - - PSPIH PCH PKBIH PI2CH 00

KBCON Keypad control register 94H ------PATN

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

…continued

Bit functions and addresses Reset value

addr.

Program Flash control (Write) E4H FMCMD.7FMCMD.6FMCMD.5FMCMD.4FMCMD.3FMCMD.2FMCMD.1FMCMD.

C slave address register DBH I2ADR.6 I2ADR.5 I2ADR.4 I2ADR.3 I2ADR.2 I2ADR.1 I2ADR.0 GC 00 00000000

Bit address DF DE DD DC DB DA D9 D8

C control register D8H - I2EN STA STO SI AA - CRSEL 00 x00000x0

C data register DAH

DDH 00 00000000

duty cycle register high

DCH 00 00000000

duty cycle register low

C status register D9H STA.4 STA.3 STA.2 STA.1 STA.0 0 0 0 F8 11111000

Bit address AF AE AD AC AB AA A9 A8

Bit address EF EE ED EC EB EA E9 E8

Bit address BF BE BD BC BB BA B9 B8

Bit address FF FE FD FC FB FA F9 F8

MSB LSB Hex Binary

[1]

PT1H PX1H PT0H PX0H 00

PSRH

KBIF 00

_SEL

[1]

Philips Semiconductors

P89LPC933/934/935/936 User manual

00x00000

x0000000

UM10116

00x00000

xxxxxx00

User manual Rev. 01 — 4 March 2005 15 of 147

Table 3: Special function registers - P89LPC933/934 …continued

* indicates SFRs that are bit addressable.

Name Description SFR

KBMASK Keypad interrupt mask

KBPATN Keypad pattern register 93H FF 11111111

P0* Port 0 80H T1/KB7 CMP1

P1* Port 1 90H - - RST

P2* Port 2 A0H - - SPICLK SS

P3*Port3 B0H------XTAL1XTAL2

P0M1 Port 0 output mode 1 84H (P0M1.7) (P0M1.6) (P0M1.5) (P0M1.4) (P0M1.3) (P0M1.2) (P0M1.1) (P0M1.0) FF

P0M2 Port 0 output mode 2 85H (P0M2.7) (P0M2.6) (P0M2.5) (P0M2.4) (P0M2.3) (P0M2.2) (P0M2.1) (P0M2.0) 00

P1M1 Port 1 output mode 1 91H (P1M1.7) (P1M1.6) - (P1M1.4) (P1M1.3) (P1M1.2) (P1M1.1) (P1M1.0) D3

P1M2 Port 1 output mode 2 92H (P1M2.7) (P1M2.6) - (P1M2.4) (P1M2.3) (P1M2.2) (P1M2.1) (P1M2.0) 00

P2M1 Port 2 output mode 1 A4H (P2M1.7) (P2M1.6) (P2M1.5) (P2M1.4) (P2M1.3) (P2M1.2) (P2M1.1) (P2M1.0) FF

P2M2 Port 2 output mode 2 A5H (P2M2.7) (P2M2.6) (P2M2.5) (P2M2.4) (P2M2.3) (P2M2.2) (P2M2.1) (P2M2.0) 00

P3M1Port3 output mode1 B1H------(P3M1.1)(P3M1.0)03

P3M2Port3 output mode2 B2H------(P3M2.1)(P3M2.0)00

PCON Power control register 87H SMOD1 SMOD0 BOPD BOI GF1 GF0 PMOD1 PMOD0 00 00000000

PCONA Power control register A B5H RTCPD - VCPD ADPD I2PD SPPD SPD - 00

PSW* Program status word D0H CY AC F0 RS1 RS0 OV F1 P 00 00000000

PT0AD Port 0 digital input disable F6H - - PT0AD.5 PT0AD.4 PT0AD.3 PT0AD.2 PT0AD.1 - 00 xx00000x

RSTSRC Reset source register DFH - - BOF POF R_BK R_WD R_SF R_EX

RTCCON Real-time clock control D1H RTCF RTCS1 RTCS0 - - - ERTC RTCEN 60

RTCH Real-time clock register high D2H 00

RTCL Real-time clock register low D3H 00

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Bit functions and addresses Reset value

addr.

86H 00 00000000

Bit address 87 86 85 84 83 82 81 80

Bit address 97 96 95 94 93 92 91 90

Bit address A7 A6 A5 A4 A3 A2 A1 A0

Bit address B7 B6 B5 B4 B3 B2 B1 B0

Bit address D7 D6 D5 D4 D3 D2 D1 D0

MSB LSB Hex Binary

/KB6

CMPREF

/KB5

CIN1A

/KB4

INT1 INT0/

CIN1B

/KB3

SDA

MISO MOSI - -

CIN2A

/KB2

T0/SCL RXD TXD

CIN2B

/KB1

CMP2

/KB0

[1]

[1][6]

[6]

[1]

11111111

00000000

11x1xx11

00x0xx00

11111111

00000000

xxxxxx11

xxxxxx00

00000000

[3]

011xxx00

00000000

Philips Semiconductors

P89LPC933/934/935/936 User manual

UM10116

User manual Rev. 01 — 4 March 2005 16 of 147

Table 3: Special function registers - P89LPC933/934 …continued

* indicates SFRs that are bit addressable.

Name Description SFR

SADDR Serial port address register A9H 00 00000000

SADEN Serial port address enable B9H 00 00000000

SBUF Serial Port data buffer register 99H xx xxxxxxxx

SCON* Serial port control 98H SM0/FE SM1 SM2 REN TB8 RB8 TI RI 00 00000000

SSTAT Serial port extended status

SP Stack pointer 81H 07 00000111

SPCTL SPI control register E2H SSIG SPEN DORD MSTR CPOL CPHA SPR1 SPR0 04 00000100

SPSTAT SPI status register E1H SPIF WCOL ------0000xxxxxx

SPDAT SPI data register E3H 00 00000000

TAMOD Timer 0 and 1 auxiliary mode 8FH - - - T1M2 - - - T0M2 00 xxx0xxx0

TCON* Timer 0 and 1 control 88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00 00000000

TH0 Timer 0 high 8CH 00 00000000

TH1 Timer 1 high 8DH 00 00000000

TL0 Timer 0 low 8AH 00 00000000

TL1 Timer 1 low 8BH 00 00000000

TMOD Timer 0 and 1 mode 89H T1GATE T1C/T T1M1 T1M0 T0GATE T0C/T T0M1 T0M0 00 00000000

TRIM Internal oscillator trim register 96H RCCLK ENCLK TRIM.5 TRIM.4 TRIM.3 TRIM.2 TRIM.1 TRIM.0

WDCON Watchdog control register A7H PRE2 PRE1 PRE0 - - WDRUN WDTOF WDCLK

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Bit functions and addresses Reset value

addr.

Bit address 9F 9E 9D 9C 9B 9A 99 98

BAH DBMOD INTLO CIDIS DBISEL FE BR OE STINT 00 00000000

Bit address 8F 8E 8D 8C 8B 8A 89 88

MSB LSB Hex Binary

Philips Semiconductors

P89LPC933/934/935/936 User manual

[5] [6]

[4] [6]

UM10116

User manual Rev. 01 — 4 March 2005 17 of 147

Table 3: Special function registers - P89LPC933/934

* indicates SFRs that are bit addressable.

Name Description SFR

WDL Watchdog load C1H FF 11111111

WFEED1 Watchdog feed 1 C2H

WFEED2 Watchdog feed 2 C3H

[1] All ports are in input only (high-impedance) state after power-up.

[2] BRGR1 and BRGR0 must only be written if BRGEN in BRGCON SFR is logic 0. If any are written while BRGEN = 1, the result is unpredictable.

[3] The RSTSRC register reflects the cause of the UM10116 reset. Upon a power-up reset, all reset source flags are cleared except POF and BOF; the power-on reset value is

[4] After reset, the value is 111001x1, i.e., PRE2 to PRE0 are all logic 1, WDRUN = 1 and WDCLK = 1. WDTOF bit is logic 1 after watchdog reset and is logic 0 after power-on reset.

[5] On power-on reset, the TRIM SFR is initialized with a factory preprogrammed value. Other resets will not cause initialization of the TRIM register.

[6] The only reset source that affects these SFRs is power-on reset.

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Bit functions and addresses Reset value

addr.

xx110000.

Other resets will not affect WDTOF.

MSB LSB Hex Binary

…continued

Philips Semiconductors

P89LPC933/934/935/936 User manual

UM10116

User manual Rev. 01 — 4 March 2005 18 of 147

Table 4: Special function registers - P89LPC935/936

* indicates SFRs that are bit addressable.

Name Description SFR

ACC* Accumulator E0H 00 00000000

ADCON0 A/D control register 0 8EH ENBI0 ENADCI0TMM0 EDGE0 ADCI0 ENADC0 ADCS01 ADCS00 00 00000000

ADCON1 A/D control register 1 97H ENBI1 ENADCI1TMM1 EDGE1 ADCI1 ENADC1 ADCS11 ADCS10 00 00000000

ADINS A/D input select A3H ADI13 ADI12 ADI11 ADI10 ADI03 ADI02 ADI01 ADI00 00 00000000

ADMODA A/D mode register A C0H BNDI1 BURST1 SCC1 SCAN1 BNDI0 BURST0 SCC0 SCAN0 00 00000000

ADMODB A/D mode register B A1H CLK2 CLK1 CLK0 - ENDAC1 ENDAC0 BSA1 BSA0 00 000x0000

AD0BH A/D_0 boundary high register BBH FF 11111111

AD0BL A/D_0 boundary low register A6H 00 00000000

AD0DAT0 A/D_0 data register 0 C5H 00 00000000

AD0DAT1 A/D_0 data register 1 C6H 00 00000000

AD0DAT2 A/D_0 data register 2 C7H 00 00000000

AD0DAT3 A/D_0 data register 3 F4H 00 00000000

AD1BH A/D_1 boundary high register C4H FF 11111111

AD1BL A/D_1 boundary low register BCH 00 00000000

AD1DAT0 A/D_1 data register 0 D5H 00 00000000

AD1DAT1 A/D_1 data register 1 D6H 00 00000000

AD1DAT2 A/D_1 data register 2 D7H 00 00000000

AD1DAT3 A/D_1 data register 3 F5H 00 00000000

AUXR1 Auxiliary function register A2H CLKLP EBRR ENT1 ENT0 SRST 0 - DPS 00 000000x0

B* B register F0H 00 00000000

BRGR0

BRGR1

BRGCONBaud rate generator controlBDH------SBRGSBRGEN00

CCCRA Capture compare A control

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Bit functions and addresses Reset value

addr.

Bit address E7 E6 E5 E4 E3 E2 E1 E0

MSB LSB Hex Binary

Bit address F7 F6 F5 F4 F3 F2 F1 F0

[2]

Baud rate generator rate low BEH 00 00000000

[2]

Baud rate generator rate high BFH 00 00000000

[2]

EAH ICECA2 ICECA1 ICECA0 ICESA ICNFA FCOA OCMA1 OCMA0 00 00000000

Philips Semiconductors

P89LPC933/934/935/936 User manual

UM10116

xxxxxx00

User manual Rev. 01 — 4 March 2005 19 of 147

Table 4: Special function registers - P89LPC935/936

* indicates SFRs that are bit addressable.

Name Description SFR

CCCRB Capture compare B control

CCCRC Capture compare C control

CCCRD Capture compare D control

CMP1 Comparator 1 control register ACH - - CE1 CP1 CN1 OE1 CO1 CMF1 00

CMP2 Comparator 2 control register ADH - - CE2 CP2 CN2 OE2 CO2 CMF2 00

DEECON Data EEPROM control

DEEDAT Data EEPROM data register F2H 00 00000000

DEEADR Data EEPROM address

DIVM CPU clock divide-by-M control 95H 00 00000000

DPTR Data pointer (2 bytes)

DPH Data pointer high 83H 00 00000000

DPL Data pointer low 82H 00 00000000

FMADRH Program Flash address high E7H 00 00000000

FMADRL Program Flash address low E6H 00 00000000

FMCON Program Flash control (Read) E4H BUSY - - - HVA HVE SV OI 70 01110000

FMDATA Program Flash data E5H 00 00000000

I2ADR I

I2CON* I

I2DAT I

I2SCLH Serial clock generator/SCL

I2SCLL Serial clock generator/SCL

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

…continued

Bit functions and addresses Reset value

addr.

EBH ICECB2 ICECB1 ICECB0 ICESB ICNFB FCOB OCMB1 OCMB0 00 00000000

ECH-----FCOCOCMC1OCMC000xxxxx000

EDH-----FCODOCMD1OCMD000xxxxx000

F1H EEIF HVERR ECTL1 ECTL0 - - - EADR8 0E 00001110

F3H 00 00000000

MSB LSB Hex Binary

[1]

Program Flash control (Write) E4H FMCMD.7FMCMD.6FMCMD.5FMCMD.4FMCMD.3FMCMD.2FMCMD.1FMCMD.

C slave address register DBH I2ADR.6 I2ADR.5 I2ADR.4 I2ADR.3 I2ADR.2 I2ADR.1 I2ADR.0 GC 00 00000000

Bit address DF DE DD DC DB DA D9 D8

C control register D8H - I2EN STA STO SI AA - CRSEL 00 x00000x0

C data register DAH

DDH 00 00000000

duty cycle register high

DCH 00 00000000

duty cycle register low

Philips Semiconductors

xx000000

P89LPC933/934/935/936 User manual

UM10116

User manual Rev. 01 — 4 March 2005 20 of 147

Table 4: Special function registers - P89LPC935/936

* indicates SFRs that are bit addressable.

Name Description SFR

I2STAT I2C status register D9H STA.4 STA.3 STA.2 STA.1 STA.0 0 0 0 F8 11111000

ICRAH Input capture A register high ABH 00 00000000

ICRAL Input capture A register low AAH 00 00000000

ICRBH Input capture B register high AFH 00 00000000

ICRBL Input capture B register low AEH 00 00000000

IEN0* Interrupt enable 0 A8H EA EWDRT EBO ES/ESR ET1 EX1 ET0 EX0 00 00000000

IEN1* Interrupt enable 1 E8H EADEE EST - ECCU ESPI EC EKBI EI2C 00

IP0* Interrupt priority 0 B8H - PWDRT PBO PS/PSR PT1 PX1 PT0 PX0 00

IP0H Interrupt priority 0 high B7H - PWDRTHPBOH PSH/

IP1* Interrupt priority 1 F8H PADEE PST - PCCU PSPI PC PKBI PI2C 00

IP1H Interrupt priority 1 high F7H PAEEH PSTH - PCCUH PSPIH PCH PKBIH PI2CH 00

KBCON Keypad control register 94H ------PATN

KBMASK Keypad interrupt mask

KBPATN Keypad pattern register 93H FF 11111111

OCRAH Output compare A register

OCRAL Output compare A register

OCRBH Output compare B register

OCRBL Output compare B register

OCRCH Output compare C register

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

…continued

Bit functions and addresses Reset value

addr.

Bit address AF AE AD AC AB AA A9 A8

Bit address EF EE ED EC EB EA E9 E8

Bit address BF BE BD BC BB BA B9 B8

Bit address FF FE FD FC FB FA F9 F8

86H 00 00000000

EFH 00 00000000

high

EEH 00 00000000

low

FBH 00 00000000

high

FAH 00 00000000

low

FDH 00 00000000

high

MSB LSB Hex Binary

PSRH

PT1H PX1H PT0H PX0H 00

KBIF 00

_SEL

[1]

Philips Semiconductors

00x00000

x0000000

00x00000

xxxxxx00

P89LPC933/934/935/936 User manual

UM10116

User manual Rev. 01 — 4 March 2005 21 of 147

Table 4: Special function registers - P89LPC935/936 …continued

* indicates SFRs that are bit addressable.

Name Description SFR

OCRCL Output compare C register

OCRDH Output compare D register

OCRDL Output compare D register

P0* Port 0 80H T1/KB7 CMP1

P1* Port 1 90H OCC OCB RST

P2* Port 2 A0H ICA OCA SPICLK SS

P3*Port3 B0H------XTAL1XTAL2

P0M1 Port 0 output mode 1 84H (P0M1.7) (P0M1.6) (P0M1.5) (P0M1.4) (P0M1.3) (P0M1.2) (P0M1.1) (P0M1.0) FF

P0M2 Port 0 output mode 2 85H (P0M2.7) (P0M2.6) (P0M2.5) (P0M2.4) (P0M2.3) (P0M2.2) (P0M2.1) (P0M2.0) 00

P1M1 Port 1 output mode 1 91H (P1M1.7) (P1M1.6) - (P1M1.4) (P1M1.3) (P1M1.2) (P1M1.1) (P1M1.0) D3

P1M2 Port 1 output mode 2 92H (P1M2.7) (P1M2.6) - (P1M2.4) (P1M2.3) (P1M2.2) (P1M2.1) (P1M2.0) 00

P2M1 Port 2 output mode 1 A4H (P2M1.7) (P2M1.6) (P2M1.5) (P2M1.4) (P2M1.3) (P2M1.2) (P2M1.1) (P2M1.0) FF

P2M2 Port 2 output mode 2 A5H (P2M2.7) (P2M2.6) (P2M2.5) (P2M2.4) (P2M2.3) (P2M2.2) (P2M2.1) (P2M2.0) 00

P3M1Port3 output mode1 B1H------(P3M1.1)(P3M1.0)03

P3M2Port3 output mode2 B2H------(P3M2.1)(P3M2.0)00

PCON Power control register 87H SMOD1 SMOD0 BOPD BOI GF1 GF0 PMOD1 PMOD0 00 00000000

PCONA Power control register A B5H RTCPD DEEPD VCPD ADPD I2PD SPPD SPD CCUPD 00

PSW* Program status word D0H CY AC F0 RS1 RS0 OV F1 P 00 00000000

PT0AD Port 0 digital input disable F6H - - PT0AD.5 PT0AD.4 PT0AD.3 PT0AD.2 PT0AD.1 - 00 xx00000x

RSTSRC Reset source register DFH - - BOF POF R_BK R_WD R_SF R_EX

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Bit functions and addresses Reset value

addr.

FCH 00 00000000

low

FFH 00 00000000

high

FEH 00 00000000

low

Bit address 87 86 85 84 83 82 81 80

Bit address 97 96 95 94 93 92 91 90

Bit address A7 A6 A5 A4 A3 A2 A1 A0

Bit address B7 B6 B5 B4 B3 B2 B1 B0

Bit address D7 D6 D5 D4 D3 D2 D1 D0

MSB LSB Hex Binary

/KB6

CMPREF

/KB5

CIN1A

/KB4

INT1 INT0/

CIN1B

/KB3

SDA

MISO MOSI OCD ICB

CIN2A

/KB2

T0/SCL RXD TXD

CIN2B

/KB1

CMP2

/KB0

[1]

11111111

00000000

11x1xx11

00x0xx00

11111111

00000000

xxxxxx11

xxxxxx00

00000000

[3]

Philips Semiconductors

P89LPC933/934/935/936 User manual

UM10116

User manual Rev. 01 — 4 March 2005 22 of 147

Table 4: Special function registers - P89LPC935/936

* indicates SFRs that are bit addressable.

Name Description SFR

RTCCON Real-time clock control D1H RTCF RTCS1 RTCS0 - - - ERTC RTCEN 60

RTCH Real-time clock register high D2H 00

RTCL Real-time clock register low D3H 00

SADDR Serial port address register A9H 00 00000000

SADEN Serial port address enable B9H 00 00000000

SBUF Serial Port data buffer register 99H xx xxxxxxxx

SCON* Serial port control 98H SM0/FE SM1 SM2 REN TB8 RB8 TI RI 00 00000000

SSTAT Serial port extended status

SP Stack pointer 81H 07 00000111

SPCTL SPI control register E2H SSIG SPEN DORD MSTR CPOL CPHA SPR1 SPR0 04 00000100

SPSTAT SPI status register E1H SPIF WCOL ------0000xxxxxx

SPDAT SPI data register E3H 00 00000000

TAMOD Timer 0 and 1 auxiliary mode 8FH - - - T1M2 - - - T0M2 00 xxx0xxx0

TCON* Timer 0 and 1 control 88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00 00000000

TCR20* CCU control register 0 C8H PLEEN HLTRN HLTEN ALTCD ALTAB TDIR2 TMOD21 TMOD20 00 00000000

TCR21 CCU control register 1 F9H TCOU2 - - - PLLDV.3 PLLDV.2 PLLDV.1 PLLDV.0 00 0xxx0000

TH0 Timer 0 high 8CH 00 00000000

TH1 Timer 1 high 8DH 00 00000000

TH2 CCU timer high CDH 00 00000000

TICR2 CCU interrupt control register C9H TOIE2 TOCIE2DTOCIE2CTOCIE2B TOCIE2A - TICIE2B TICIE2A 00 00000x00

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

…continued

Bit functions and addresses Reset value

addr.

Bit address 9F 9E 9D 9C 9B 9A 99 98

BAH DBMOD INTLO CIDIS DBISEL FE BR OE STINT 00 00000000

Bit address 8F 8E 8D 8C 8B 8A 89 88

MSB LSB Hex Binary

[1][6]

[6]

Philips Semiconductors

011xxx00

00000000

P89LPC933/934/935/936 User manual

TIFR2 CCU interrupt flag register E9H TOIF2 TOCF2D TOCF2C TOCF2B TOCF2A - TICF2B TICF2A 00 00000x00

TISE2 CCU interrupt status encode

TL0 Timer 0 low 8AH 00 00000000

TL1 Timer 1 low 8BH 00 00000000

TL2 CCU timer low CCH 00 00000000

DEH-----ENCINT.

ENCINT.1ENCINT.000 xxxxx000

UM10116

User manual Rev. 01 — 4 March 2005 23 of 147

Table 4: Special function registers - P89LPC935/936

* indicates SFRs that are bit addressable.

Name Description SFR

TMOD Timer 0 and 1 mode 89H T1GATE T1C/T T1M1 T1M0 T0GATE T0C/T T0M1 T0M0 00 00000000

TOR2H CCU reload register high CFH 00 00000000

TOR2L CCU reload register low CEH 00 00000000

TPCR2HPrescaler control register highCBH------TPCR2H.

TPCR2L Prescaler control register low CAH TPCR2L.7TPCR2L.6TPCR2L.5TPCR2L.4TPCR2L.3TPCR2L.2TPCR2L.1TPCR2L.000 00000000

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

addr.

…continued

Bit functions and addresses Reset value

MSB LSB Hex Binary

TPCR2H.000 xxxxxx00

Philips Semiconductors

TRIM Internal oscillator trim register 96H RCCLK ENCLK TRIM.5 TRIM.4 TRIM.3 TRIM.2 TRIM.1 TRIM.0

WDCON Watchdog control register A7H PRE2 PRE1 PRE0 - - WDRUN WDTOF WDCLK

WDL Watchdog load C1H FF 11111111

WFEED1 Watchdog feed 1 C2H

WFEED2 Watchdog feed 2 C3H

[1] All ports are in input only (high-impedance) state after power-up.

[2] BRGR1 and BRGR0 must only be written if BRGEN in BRGCON SFR is logic 0. If any are written while BRGEN = 1, the result is unpredictable.

[3] The RSTSRC register reflects the cause of the UM10116 reset. Upon a power-up reset, all reset source flags are cleared except POF and BOF; the power-on reset value is

xx110000.

[4] After reset, the value is 111001x1, i.e., PRE2 to PRE0 are all logic 1, WDRUN = 1 and WDCLK = 1. WDTOF bit is logic 1 after watchdog reset and is logic 0 after power-on reset.

Other resets will not affect WDTOF.

[5] On power-on reset, the TRIM SFR is initialized with a factory preprogrammed value. Other resets will not cause initialization of the TRIM register.

[6] The only reset source that affects these SFRs is power-on reset.

[5] [6]

[4] [6]

P89LPC933/934/935/936 User manual

UM10116

Philips Semiconductors

1.4 Memory organization

FF00h

FFEFh

1FFFh

1E00h

1C00h 1BFFh

1800h 17FFh

1400h 13FFh

1000h

0FFFh

0C00h 0BFFh

0800h 07FFh

0400h 03FFh

0000h

IAP entry-

points

ISP CODE

(1)

(512B)

SECTOR 7

SECTOR 6

SECTOR 5

SECTOR 4

SECTOR 3

SECTOR 2

SECTOR 1

SECTOR 0

read-protected

IAP calls only

IDATA routines

entry points for:

-51 ASM. code

-C code

ISP serial loader

entry points for:

-UART (auto-baud)

-I2C, SPI, etc.

UM10116

P89LPC933/934/935/936 User manual

FFEFh

FF1Fh

FF00h

1FFFh

(1)

1E00h

entry points

SPECIAL FUNCTION

REGISTERS

(DIRECTLY ADDRESSABLE)

IDATA (incl. DATA)

128 BYTES ON-CHIP

DATA MEMORY (STACK

AND INDIR. ADDR.)

DATA

128 BYTES ON-CHIP

DATA MEMORY (STACK,

DIRECT AND INDIR. ADDR.)

4 REG. BANKS R[7:0]

data memory

(DATA, IDATA)

002aab228

(1) ISP code located in Sector 3 for the P89LPC933 device.

Fig 8. P89LPC933/934/935/936 memory map.

1.5 Memory organization

The various P89LPC933/934/935/936 memory spaces are as follows:

• DATA

128 bytes of internal data memory space (00H:7FH) accessed via direct or indirect addressing, using instructions other than MOVX and MOVC. All or part of the Stack may be in this area.

• IDATA

Indirect Data. 256 bytes of internal data memory space (00H:FFH) accessed via indirect addressing using instructions other than MOVX and MOVC. All or part of the Stack may be in this area. This area includes the DATA area and the 128 bytes immediately above it.

• SFR

Selected CPU registers and peripheral control and status registers, accessible only via direct addressing.

• XDATA (P89LPC935/936)

‘External’ Data or Auxiliary RAM. Duplicates the classic 80C51 64 kB memory space addressed via the MOVX instruction using the SPTR, R0, or R1. All or part of this space could be implemented on-chip. The P89LPC935/936 has 512 bytes of on-chip XDATA memory.

User manual Rev. 01 — 4 March 2005 24 of 147

Philips Semiconductors

• CODE

64 kB of Code memory space, accessed as part of program execution and via the MOVC instruction. The UM10116 have 4 KB/8 kB/16 kB of on-chip Code memory.

The P89LPC935/936 also has 512 bytes of on-chip Data EEPROM that is accessed via SFRs (see Section 18 “

2. Clocks

2.1 Enhanced CPU

The P89LPC933/934/935/936 uses an enhanced 80C51 CPU which runs at six times the speed of standard 80C51 devices. A machine cycle consists of two CPU clock cycles, and most instructions execute in one or two machine cycles.

2.2 Clock definitions

The P89LPC933/934/935/936 device has several internal clocks as defined below:

UM10116

P89LPC933/934/935/936 User manual

Data EEPROM (P89LPC935/936)”).

OSCCLK — Input to the DIVM clock divider. OSCCLK is selected from one of four clock sources and can also be optionally divided to a slower frequency (see Figure 10

Section 2.8 “

OSCCLK frequency.

CCLK — CPU clock; output of the DIVM clock divider. There are two CCLK cycles per machine cycle, and most instructions are executed in one to two machine cycles (two or four CCLK cycles).

RCCLK — The internal 7.373 MHz RC oscillator output.

PCLK — Clock for the various peripheral devices and is

2.2.1 Oscillator Clock (OSCCLK)

The P89LPC933/934/935/936 provides several user-selectable oscillator options. This allows optimization for a range of needs from high precision to lowest possible cost. These options are configured when the FLASH is programmed and include an on-chip watchdog oscillator, an on-chip RC oscillator, an oscillator using an external crystal, or an external clock source. The crystal oscillator can be optimized for low, medium, or high frequency crystals covering a range from 20 kHz to 18 MHz.

2.2.2 Low speed oscillator option

This option supports an external crystal in the range of 20 kHz to 100 kHz. Ceramic resonators are also supported in this configuration.

CPU Clock (CCLK) modification: DIVM register”). Note: f

CCLK

⁄2.

and

is defined as the

osc

2.2.3 Medium speed oscillator option

This option supports an external crystal in the range of 100 kHz to 4 MHz. Ceramic resonators are also supported in this configuration.

2.2.4 High speed oscillator option

This option supports an external crystal in the range of 4 MHz to 18 MHz. Ceramic resonators are also supported in this configuration. When using an oscillator frequency

above 12 MHz, the reset input function of P1.5 must be enabled. An external circuit

User manual Rev. 01 — 4 March 2005 25 of 147

Philips Semiconductors

is required to hold the device in reset at power-up until VDD has reached its specified level. When system power is removed V specified operating voltage. When using an oscillator frequency above 12 MHz, in some applications, an external brownout detect circuit may be required to hold the device in reset when V

2.3 Clock output

The P89LPC933/934/935/936 supports a user-selectable clock output function on the XTAL2 / CLKOUT pin when the crystal oscillator is not being used. This condition occurs if a different clock source has been selected (on-chip RC oscillator, watchdog oscillator, external clock input on X1) and if the Real-time Clock is not using the crystal oscillator as its clock source. This allows external devices to synchronize to the P89LPC933/934/935/936. This output is enabled by the ENCLK bit in the TRIM register

UM10116

P89LPC933/934/935/936 User manual

will fall below the minimum

falls below the minimum specified operating voltage.

The frequency of this clock output is in Idle mode, it may be turned off prior to entering Idle, saving additional power. Note: on reset, the TRIM SFR is initialized with a factory preprogrammed value. Therefore when setting or clearing the ENCLK bit, the user should retain the contents of other bits of the TRIM register. This can be done by reading the contents of the TRIM register (into the ACC for example), modifying bit 6, and writing this result back into the TRIM register. Alternatively, the ‘ANL direct’ or ‘ORL direct’ instructions can be used to clear or set bit 6 of the TRIM register.

⁄2 that of the CCLK. If the clock output is not needed

2.4 On-chip RC oscillator option

The P89LPC933/934/935/936 has a TRIM register that can be used to tune the frequency of the RC oscillator. During reset, the TRIM value is initialized to a factory pre-programmed value to adjust the oscillator frequency to 7.373 MHz, ± 1 %. (Note: the initial value is better than 1 %; please refer to the P89LPC933/934/935/936 data sheet for behavior over temperature). End user applications can write to the TRIM register to adjust the on-chip RC oscillator to other frequencies. Increasing the TRIM value will decrease the oscillator frequency.

Table 5: On-chip RC oscillator trim register (TRIM - address 96h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol RCCLK ENCLK TRIM.5 TRIM.4 TRIM.3 TRIM.2 TRIM.1 TRIM.0

Reset 0 0 Bits 5:0 loaded with factory stored value during reset.

User manual Rev. 01 — 4 March 2005 26 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 6: On-chip RC oscillator trim register (TRIM - address 96h) bit description

Bit Symbol Description

0 TRIM.0 Trim value. Determines the frequency of the internal RC oscillator. During reset,

1TRIM.1

2TRIM.2

3TRIM.3

4TRIM.4

5TRIM.5

6 ENCLK when = 1,

7 RCCLK when = 1, selects the RC Oscillator output as the CPU clock (CCLK). This allows for

these bits are loaded with a stored factory calibration value. When writing to either bit 6 or bit 7 of this register, care should be taken to preserve the current TRIM value by reading this register, modifying bits 6 or 7 as required, and writing the result to this register.

CCLK

⁄2 is output on the XTAL2 pin provided the crystal oscillator is not

being used.

fast switching between any clock source and the internal RC oscillator without needing to go through a reset cycle.

2.5 Watchdog oscillator option

The watchdog has a separate oscillator which has a frequency of 400 kHz. This oscillator can be used to save power when a high clock frequency is not needed.

2.6 External clock input option

In this configuration, the processor clock is derived from an external source driving the XTAL1 / P3.1 pin. The rate may be from 0 Hz up to 18 MHz. The XTAL2 / P3.0 pin may be used as a standard port pin or a clock output. When using an oscillator frequency

above 12 MHz, the reset input function of P1.5 must be enabled. An external circuit is required to hold the device in reset at power-up until V specified level. When system power is removed V specified operating voltage. When using an oscillator frequency above 12 MHz, in some applications, an external brownout detect circuit may be required to hold the device in reset when V

has reached its

will fall below the minimum

falls below the minimum specified operating voltage.

quartz crystal or

ceramic resonator

P89LPC93x

XTAL1

(1)

XTAL2

002aab22

Note: The oscillator must be configured in one of the following modes: Low frequency crystal, medium frequency crystal, or high frequency crystal.

(1) A series resistor may be required to limit crystal drive levels. This is especially important for low

frequency crystals.

Fig 9. Using the crystal oscillator.

User manual Rev. 01 — 4 March 2005 27 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

XTAL1

XTAL2

(7.3728 MHz ±1 %)

(400 kHz +30 % −20 %)

Fig 10. Block diagram of oscillator control.

HIGH FREQUENCY

MEDIUM FREQUENCY

LOW FREQUENCY

OSCILLATOR

WATCHDOG

OSCILLATOR

RCCLK

TIMER 0 AND

TIMER 1

OSCCLK

I2C-BUS

PCLK

DIVM

SPI

CCLK

PCLK

÷2

UART

ADC1

ADC0

(P89LPC935/936)

2.7 Oscillator Clock (OSCCLK) wake-up delay

The P89LPC933/934/935/936 has an internal wake-up timer that delays the clock until it stabilizes depending to the clock source used. If the clock source is any of the three crystal selections, the delay is 992 OSCCLK cycles plus 60 µs to 100 µs. If the clock source is either the internal RC oscillator or the Watchdog oscillator, the delay is 224 OSCCLK cycles plus 60 µs to 100 µs.

RTC

CPU

WDT

32 × PLL

CCU

002aab079

2.8 CPU Clock (CCLK) modification: DIVM register

The OSCCLK frequency can be divided down, by an integer, up to 510 times by configuring a dividing register, DIVM, to provide CCLK. This produces the CCLK frequency using the following formula:

CCLK frequency = f

Where: f

is the frequency of OSCCLK, N is the value of DIVM.

osc

Since N ranges from 0 to 255, the CCLK frequency can be in the range of f (for N = 0, CCLK = f

This feature makes it possible to temporarily run the CPU at a lower rate, reducing power consumption. By dividing the clock, the CPU can retain the ability to respond to events other than those that can cause interrupts (i.e. events that allow exiting the Idle mode) by executing its normal program at a lower rate. This can often result in lower power consumption than in Idle mode. This can allow bypassing the oscillator start-up time in cases where Power-down mode would otherwise be used. The value of DIVM may be changed by the program at any time without interrupting code execution.

User manual Rev. 01 — 4 March 2005 28 of 147

osc

/ (2N)

osc

to f

osc

/510.

Philips Semiconductors

2.9 Low power select

The P89LPC933/934/935/936 is designed to run at 12 MHz (CCLK) maximum. However, if CCLK is 8 MHz or slower, the CLKLP SFR bit (AUXR1.7) can be set to a logic 1 to lower the power consumption further. On any reset, CLKLP is logic 0 allowing highest performance. This bit can then be set in software if CCLK is running at 8 MHz or slower.

3. A/D converter

3.1

The P89LPC935/936 have two 8-bit, 4-channel multiplexed successive approximation analog-to-digital converter modules sharing common control logic. The P89LPC933/934 have a single 8-bit, 4-channel multiplexed analog-to-digital converter (ADC1) and an additional DAC module (DAC0). A block diagram of the A/D converter is shown in

Figure 11

circuit providing an input signal to one of two comparator inputs. The control logic in combination with the SAR drives a digital-to-analog converter which provides the other input to the comparator. The output of the comparator is fed to the SAR.

UM10116

P89LPC933/934/935/936 User manual

. Each A/D consists of a 4-input multiplexer which feeds a sample-and-hold

3.2 A/D features

• Two (P89LPC935/936) 8-bit, 4-channel multiplexed input, successive approximation

A/D converters with common control logic (one A/D on the P89LPC933/934).

• Four result registers for each A/D.

• Six operating modes

– Fixed channel, single conversion mode

– Fixed channel, continuous conversion mode

– Auto scan, single conversion mode

– Auto scan, continuous conversion mode

– Dual channel, continuous conversion mode

– Single step mode

• Four conversion start modes

– Timer triggered start

– Start immediately

– Edge triggered

– Dual start immediately (P89LPC935/936)

• 8-bit conversion time of ≥3.9 µs at an A/D clock of 3.3 MHz

• Interrupt or polled operation

• Boundary limits interrupt

• DAC output to a port pin with high output impedance

• Clock divider

• Power down mode

User manual Rev. 01 — 4 March 2005 29 of 147

Philips Semiconductors

3.2.1 A/D operating modes

3.2.1.1 Fixed channel, single conversion mode

A single input channel can be selected for conversion. A single conversion will be performed and the result placed in the result register which corresponds to the selected input channel (see Ta bl e 7 completes. The input channel is selected in the ADINS register. This mode is selected by setting the SCANx bit in the ADMODA register.

INPUT

MUX

UM10116

P89LPC933/934/935/936 User manual

). An interrupt, if enabled, will be generated after the conversion

comp

–

SAR

INPUT

MUX

DAC1

comp

–

SAR

CONTROL

LOGIC

DAC0

CCLK

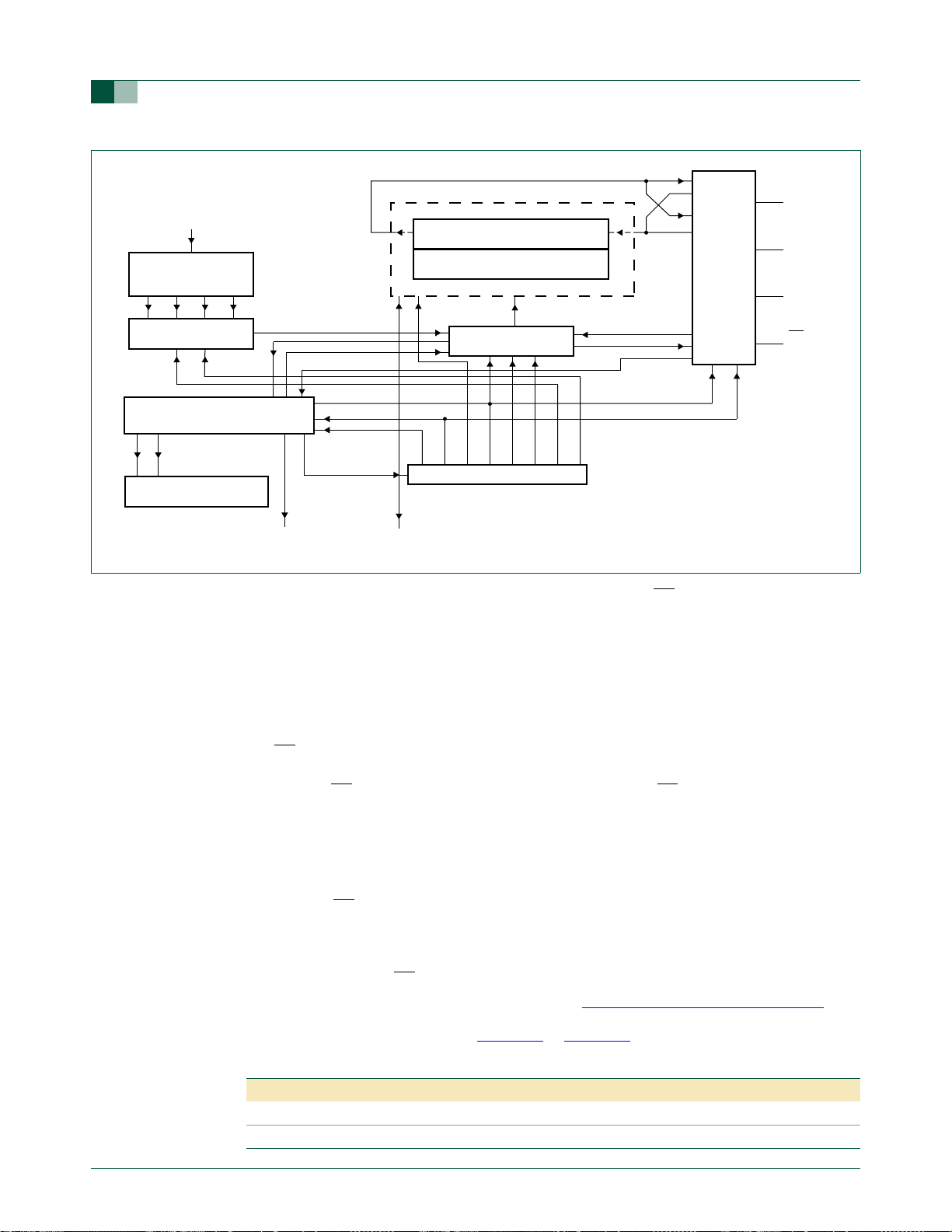

Fig 11. ADC block diagram.

Table 7: Input channels and result registers for fixed channel single, auto scan single, and

auto scan continuous conversion modes

Result register Input channel Result register Input channel

AD0DAT0 AD00 AD1DAT0 AD10

AD0DAT1 AD01 AD1DAT1 AD11

AD0DAT2 AD02 AD1DAT2 AD12

AD0DAT3 AD03 AD1DAT3 AD13

002aab08

3.2.1.2 Fixed channel, continuous conversion mode

A single input channel can be selected for continuous conversion. The results of the conversions will be sequentially placed in the four result registers (see Tab le 8

). An interrupt, if enabled, will be generated after every four conversions. Additional conversion results will again cycle through the four result registers, overwriting the previous results. Continuous conversions continue until terminated by the user. This mode is selected by setting the SCCx bit in the ADMODA register.

User manual Rev. 01 — 4 March 2005 30 of 147

Philips Semiconductors

Table 8: Result registers and conversion results for fixed channel, continuous conversion

Result register Contains

ADxDAT0 Selected channel, first conversion result

ADxDAT1 Selected channel, second conversion result

ADxDAT2 Selected channel, third conversion result

ADxDAT3 Selected channel, fourth conversion result

3.2.1.3 Auto scan, single conversion mode

Any combination of the four input channels can be selected for conversion by setting a channel’s respective bit in the ADINS register. The channels are converted from LSB to MSB order (in ADINS). A single conversion of each selected input will be performed and the result placed in the result register which corresponds to the selected input channel (See Ta bl e 7 been converted. If only a single channel is selected this is equivalent to single channel, single conversion mode.This mode is selected by setting the SCANx bit in the ADMODA register.

UM10116

P89LPC933/934/935/936 User manual

mode

). An interrupt, if enabled, will be generated after all selected channels have

3.2.1.4 Auto scan, continuous conversion mode

Ta bl e 7

converted. The process will repeat starting with the first selected channel. Additional conversion results will again cycle through the result registers of the selected channels, overwriting the previous results.Continuous conversions continue until terminated by the user.This mode is selected by setting the BURSTx bit in the ADMODA register.

3.2.1.5 Dual channel, continuous conversion mode

The co.Any combination of two of the four input channels can be selected for conversion. The result of the conversion of the first channel is placed in the first result register. The result of the conversion of the second channel is placed in the second result register.The first channel is again converted and its result stored in the third result register. The second channel is again converted and its result placed in the fourth result register (See Ta bl e 9 An interrupt is generated, if enabled, after every set of four conversions (two conversions per channel).This mode is selected by setting the SCCx bit in the ADMODA register.

Table 9: Result registers and conversion results for dual channel, continuous conversion

). An interrupt, if enabled, will be generated after all selected channels have been

mode

Result register Contains

ADxDAT0 First channel, first conversion result

ADxDAT1 Second channel, first conversion result

ADxDAT2 First channel, second conversion result

ADxDAT3 Second channel, second conversion result

User manual Rev. 01 — 4 March 2005 31 of 147

Philips Semiconductors

3.2.1.6 Single step mode

This special mode allows “single-stepping” in an auto scan conversion mode. Any combination of the four input channels can be selected for conversion. After each channel is converted, an interrupt is generated, if enabled, and the A/D waits for the next start condition. The result of each channel is placed in the result register which corresponds to the selected input channel (See Tab l e 7 mode is selected by clearing the BURSTx, SCCx, and SCANx bits in the ADMODA register which correspond to the ADC in use.

3.2.2 Conversion mode selection bits

Each A/D uses three bits in ADMODA to select the conversion mode for that A/D. These mode bits are summarized in Ta bl e 1 0 the combinations shown, are undefined.

Table 10: Conversion mode bits

Burst1 SCC1 Scan1 ADC1 conversion

0 0 0 Single step 0 0 0 Single step

0 0 1 Fixed channel,

0 1 0 Fixed channel,

011Auto scan,

UM10116

P89LPC933/934/935/936 User manual

). May be used with any of the start modes. This

,below. Combinations of the three bits, other than

Burst0 SCC0 Scan0 ADC0 conversion

mode

0 0 1 Fixed channel,

single

Auto scan, single Auto scan, single

0 1 0 Fixed channel,

continuous

Dual channel, continuous

0 1 1 Auto scan,

continuous

mode

single

continuous

Dual channel, continuous

continuous

3.2.3 Conversion start modes

3.2.3.1 Timer triggered start

An A/D conversion is started by the overflow of Timer 0. Once a conversion has started, additional Timer 0 triggers are ignored until the conversion has completed. The Timer triggered start mode is available in all A/D operating modes.This mode is selected by the TMMx bit and the ADCSx1 and ADCSx0 bits (See Tab le 1 2

3.2.3.2 Start immediately

Programming this mode immediately starts a conversion.This start mode is available in all A/D operating modes.This mode is selected by setting the ADCSx1 and ADCSx0 bits in the ADCONx register (See Tab le 1 2

3.2.3.3 Edge triggered

An A/D conversion is started by rising or falling edge of P1.4. Once a conversion has started, additional edge triggers are ignored until the conversion has completed. The edge triggered start mode is available in all A/D operating modes.This mode is selected by setting the ADCSx1 and ADCSx0 bits in the ADCONx register (See Tab le 1 2

Ta bl e 1 4

User manual Rev. 01 — 4 March 2005 32 of 147

and Ta bl e 1 4).

and

Philips Semiconductors

3.2.3.4 Dual start immediately (P89LPC935/936)

Programming this mode starts a synchronized conversion of both A/D converters.This start mode is available in all A/D operating modes. Both A/D converters must be in the same operating mode. In the autoscan single conversion modes, both A/D converters must select an identical number of channels. Writing a 11 to the ADCSx1, ADCSx0 bits in either ADCONx register will start a simultaneous conversion of both A/Ds. Both A/Ds must be enabled.

3.2.4 Boundary limits interrupt

Each of the A/D converters has both a high and low boundary limit register. After the four MSBs have been converted, these four bits are compared with the four MSBs of the boundary high and low registers. If the four MSBs of the conversion are outside the limit an interrupt will be generated, if enabled. If the conversion result is within the limits, the boundary limits will again be compared after all 8 bits have been converted. An interrupt will be generated, if enabled, if the result is outside the boundary limits. The boundary limit may be disabled by clearing the boundary limit interrupt enable.

3.2.5 DAC output to a port pin with high output impedance

UM10116

P89LPC933/934/935/936 User manual

Each A/D converter’s DAC block can be output to a port pin. In this mode, the ADxDAT3 register is used to hold the value fed to the DAC. After a value has been written to the DAC (written to ADxDAT3), the DAC output will appear on the channel 3 pin. The DAC output is enabled by the ENDAC1 and ENDAC0 bits in the ADMODB register (See Tab l e 1 8

3.2.6 Clock divider

The A/D converter requires that its internal clock source be in the range of 500kHz to

3.3MHz to maintain accuracy. A programmable clock divider that divides the clock from 1 to 8 is provided for this purpose (See Tab l e 1 8

3.2.7 I/O pins used with ADC functions

The analog input pins maybe be used as either digital I/O or as inputs to A/D and thus have a digital input and output function. In order to give the best analog performance, pins that are being used with the ADC should have their digital outputs and inputs disabled and have the 5V tolerance disconnected. Digital outputs are disabled by putting the port pins into the input-only mode as described in the Port Configurations section (see Ta bl e 2 4 Digital inputs will be disconnected automatically from these pins when the pin has been selected by setting its corresponding bit in the ADINS register and its corresponding A/D has been enabled

When used as digital I/O these pins are 5 V tolerant. If selected as input signals in ADINS, these pins will be 3V tolerant if the corresponding A/D is enabled and the device is not in power down. Otherwise the pin will remain 5V tolerant. Please refer to the P89LPC933/934/935/936 data sheet for specifications.

3.2.8 Power-down and Idle mode

In Idle mode the A/C converter, if enabled, will continue to function and can cause the device to exit Idle mode when the conversion is completed if the A/D interrupt is enabled. In Power-down mode or Total Power-down mode, the A/D does not function. If the A/D is enabled, it will consume power. Power can be reduced by disabling the A/D.

User manual Rev. 01 — 4 March 2005 33 of 147

Philips Semiconductors

P89LPC933/934/935/936 User manual

Table 11: A/D Control register 0 (ADCON0 - address 8Eh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol ENBI0 ENADCI0 TMM0 EDGE0 ADCI0 ENADC0 ADCS01 ADCS00

Reset00000000

Table 12: A/D Control register 0 (ADCON0 - address 8Eh) bit description

Bit Symbol Description

1:0 ADCS01,ADCS00 A/D start mode bits, see below.(P89LPC935/936)

00 — Timer Trigger Mode when TMM0 = 1. Conversions starts on overflow of Timer

0. When TMM0 =0, no start occurs (stop mode).

01 — Immediate Start Mode. Conversion starts immediately.

10 — Edge Trigger Mode. Conversion starts when edge condition defined by bit

EDGE0 occurs.

11 — Dual Immediate Start Mode. Both ADC’s start a conversion immediately.

2 ENADC0 Enable A/D channel 0. When set = 1, enables ADC0. Must also be set for D/A

operation of this channel.

3 ADCI0 A/D Conversion complete Interrupt 0. Set when any conversion or set of multiple

conversions has completed. Cleared by software.(P89LPC935/936)

4 EDGE0 When = 0, an Edge conversion start is triggered by a falling edge on P1.4 When = 1,

an Edge conversion start is triggered by a rising edge on P1.4. (P89LPC935/936)

5 TMM0 Timer Trigger Mode 0. Selects either stop mode (TMM0 = 0) or timer trigger mode

(TMM0 = 1) when the ADCS01 and ADCS00 bits = 00. (P89LPC935/936)

6 ENADCI0 Enable A/D Conversion complete Interrupt 0. When set, will cause an interrupt if the

ADCI0 flag is set and the A/D interrupt is enabled. (P89LPC935/936)

7 ENBI0 Enable A/D boundary interrupt 0. When set, will cause and interrupt if the boundary

interrupt 0 flag, BNDI0, is set and the A/D interrupt is enabled. (P89LPC935/936)

UM10116

Table 13: A/D Control register 1(ADCON1 - address 97h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol ENBI1 ENADCI1 TMM1 EDGE1 ADCI1 ENADC1 ADCS11 ADCS10

Reset00000000

Table 14: A/D Control register 1(ADCON1 - address 97h) bit description

Bit Symbol Description

1:0 ADCS11,ADCS10 A/D start mode bits, see below.

00 — Timer Trigger Mode when TMM1 = 1. Conversions starts on overflow of Timer

0. When TMM1 =0, no start occurs (stop mode).

01 — Immediate Start Mode. Conversion starts immediately.

10 — Edge Trigger Mode. Conversion starts when edge condition defined by bit

EDGE1 occurs.

11 — Dual Immediate Start Mode. Both ADC’s start a conversion immediately (P89LPC935/936).

2 ENADC1 Enable A/D channel 1. When set = 1, enables ADC1. Must also be set for D/A

operation of this channel.

3 ADCI1 A/D Conversion complete Interrupt 1. Set when any conversion or set of multiple

conversions has completed. Cleared by software.(P89LPC935/936)

User manual Rev. 01 — 4 March 2005 34 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 14: A/D Control register 1(ADCON1 - address 97h) bit description

Bit Symbol Description

4 EDGE1 When = 0, an Edge conversion start is triggered by a falling edge on P1.4 When = 1,

an Edge conversion start is triggered by a rising edge on P1.4. (P89LPC935/936)

5 TMM1 Timer Trigger Mode 1. Selects either stop mode (TMM1 = 0) or timer trigger mode

(TMM1 = 1) when the ADCS11 and ADCS10 bits = 00. (P89LPC935/936)

6 ENADCI1 Enable A/D Conversion complete Interrupt 1. When set, will cause an interrupt if the

ADCI1 flag is set and the A/D interrupt is enabled. (P89LPC935/936)

7 ENBI1 Enable A/D boundary interrupt 1. When set, will cause and interrupt if the boundary

interrupt 1flag, BNDI1, is set and the A/D interrupt is enabled. (P89LPC935/936)

Table 15: A/D Mode register A (ADMODA - address 0C0h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol BNDI1 BURST1 SCC1 SCAN1 BNDI0 BURST0 SCC0 SCAN0

Reset00000000

Table 16: A/D Mode register A (ADMODA - address 0C0h) bit description

Bit Symbol Description

0 SCAN0 When = 1, selects single conversion mode (auto scan or fixed channel) for ADC0

(P89LPC935/936).

1 SCC0 When = 1, selects fixed channel, continuous conversion mode for ADC0

(P89LPC935/936).

2 BURST0 When = 1, selects auto scan, continuous conversion mode for ADC0

(P89LPC935/936).

3 BNDI0 ADC0 boundary interrupt flag. When set, indicates that the converted result is

outside of the range defined by the ADC0 boundary registers (P89LPC935/936).

4 SCAN1 When = 1, selects single conversion mode (auto scan or fixed channel) for ADC1.

5 SCC1 When = 1, selects fixed channel, continuous conversion mode for ADC1.

6 BURST1 When = 1, selects auto scan, continuous conversion mode for ADC1.

7 BNDI1 ADC1 boundary interrupt flag. When set, indicates that the converted result is

outside of the range defined by the ADC1 boundary registers.

…continued

Table 17: A/D Mode register B (ADMODB - address A1h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol CLK2 CLK1 CLK0 - ENDAC1 ENDAC0 BSA1 BSA0

Reset00000000

Table 18: A/D Mode register B (ADMODB - address A1h) bit description

Bit Symbol Description

0 BSA0 ADC0 Boundary Select All. When =1, BNDI0 will be set if any ADC0 input exceeds

the boundary limits. When = 0, BNDI0 will be set only if the AD00 input exceeded the boundary limits.(P89LPC935)

1 BSA1 ADC1 Boundary Select All. When =1, BNDI1 will be set if any ADC1 input exceeds

the boundary limits. When = 0, BNDI1 will be set only if the AD10 input exceeded the boundary limits.

2 ENDAC0 When =1 selects DAC mode for ADC0; when = 0 selects ADC mode. (Note: This bit

must

User manual Rev. 01 — 4 March 2005 35 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 18: A/D Mode register B (ADMODB - address A1h) bit description

Bit Symbol Description

3 ENDAC1 When =1 selects DAC mode for ADC1; when = 0 selects ADC mode.

4- reserved

7:5 CLK2,CLK1,CLK0 Clock divider to produce the ADC clock. Divides CCLK by the value indicated below.

The resulting ADC clock should be 3.3MHz or less. A minimum of 0.5MHz is required to maintain A/D accuracy.

CLK2:0 — Divisor

000 — 1

001 — 2

010 — 3

011 — 4

011 — 5

011 — 6

011 — 7

011 — 8

Table 19: A/D Input select (ADINS - address A3h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol AIN13 AIN12 AIN11 AIN10 AIN03 AIN02 AIN01 AIN00

Reset00000000

…continued

Table 20: A/D Input select (ADINS - address A3h) bit description

Bit Symbol Description

0 AIN00 When set, enables the AD00 pin for sampling and conversion (P89LPC935/936).

1 AIN01 When set, enables the AD01 pin for sampling and conversion (P89LPC935/936).

2 AIN02 When set, enables the AD02 pin for sampling and conversion (P89LPC935/936).

3 AIN03 When set, enables the AD03 pin for sampling and conversion (P89LPC935/936).

4 AIN10 When set, enables the AD10 pin for sampling and conversion.

5 AIN11 When set, enables the AD11 pin for sampling and conversion.

6 AIN12 When set, enables the AD12 pin for sampling and conversion.

7 AIN13 When set, enables the AD13 pin for sampling and conversion.

4. Interrupts

The P89LPC933/934/935/936 uses a four priority level interrupt structure. This allows great flexibility in controlling the handling of the P89LPC933/934/935/936’s 15 interrupt sources.

Each interrupt source can be individually enabled or disabled by setting or clearing a bit in the interrupt enable registers IEN0 or IEN1. The IEN0 register also contains a global enable bit, EA, which enables all interrupts.

Each interrupt source can be individually programmed to one of four priority levels by setting or clearing bits in the interrupt priority registers IP0, IP0H, IP1, and IP1H. An interrupt service routine in progress can be interrupted by a higher priority interrupt, but

User manual Rev. 01 — 4 March 2005 36 of 147

Philips Semiconductors

not by another interrupt of the same or lower priority. The highest priority interrupt service cannot be interrupted by any other interrupt source. If two requests of different priority levels are received simultaneously, the request of higher priority level is serviced.

If requests of the same priority level are pending at the start of an instruction cycle, an internal polling sequence determines which request is serviced. This is called the arbitration ranking. Note that the arbitration ranking is only used for pending requests of the same priority level. Ta bl e 2 2 addresses, enable bits, priority bits, arbitration ranking, and whether each interrupt may wake-up the CPU from a Power-down mode.

4.1 Interrupt priority structure

Table 21: Interrupt priority level

Priority bits

IPxH IPx Interrupt priority level

0 0 Level 0 (lowest priority)

01Level 1

10Level 2

11Level 3

UM10116

P89LPC933/934/935/936 User manual

summarizes the interrupt sources, flag bits, vector

There are four SFRs associated with the four interrupt levels: IP0, IP0H, IP1, IP1H. Every interrupt has two bits in IPx and IPxH (x = 0, 1) and can therefore be assigned to one of four levels, as shown in Ta bl e 2 2

The P89LPC933/934/935/936 has two external interrupt inputs in addition to the Keypad Interrupt function. The two interrupt inputs are identical to those present on the standard 80C51 microcontrollers.

These external interrupts can be programmed to be level-triggered or edge-triggered by clearing or setting bit IT1 or IT0 in Register TCON. If ITn = 0, external interrupt n is triggered by a low level detected at the INTn triggered. In this mode if consecutive samples of the INTn cycle and a low level in the next cycle, interrupt request flag IEn in TCON is set, causing an interrupt request.

Since the external interrupt pins are sampled once each machine cycle, an input high or low level should be held for at least one machine cycle to ensure proper sampling. If the external interrupt is edge-triggered, the external source has to hold the request pin high for at least one machine cycle, and then hold it low for at least one machine cycle. This is to ensure that the transition is detected and that interrupt request flag IEn is set. IEn is automatically cleared by the CPU when the service routine is called.

If the external interrupt is level-triggered, the external source must hold the request active until the requested interrupt is generated. If the external interrupt is still asserted when the interrupt service routine is completed, another interrupt will be generated. It is not necessary to clear the interrupt flag IEn when the interrupt is level sensitive, it simply tracks the input pin level.

pin. If ITn = 1, external interrupt n is edge

pin show a high level in one

User manual Rev. 01 — 4 March 2005 37 of 147

Philips Semiconductors

P89LPC933/934/935/936 User manual

If an external interrupt has been programmed as level-triggered and is enabled when the P89LPC933/934/935/936 is put into Power-down mode or Idle mode, the interrupt occurrence will cause the processor to wake-up and resume operation. Refer to Section

6.3 “Power reduction modes” for details. Note: the external interrupt must be programmed

as level-triggered to wake-up from Power-down mode.

UM10116

4.2 External Interrupt pin glitch suppression

Most of the P89LPC933/934/935/936 pins have glitch suppression circuits to reject short glitches (please refer to the P89LPC933/934/935/936 data sheet, Dynamic characteristics for glitch filter specifications). However, pins SDA/INT0 the glitch suppression circuits. Therefore, INT1 not.

Table 22: Summary of interrupts

Description Interrupt flag

bit(s)

External interrupt 0 IE0 0003h EX0 (IEN0.0) IP0H.0, IP0.0 1 (highest) Yes

Timer 0 interrupt TF0 000Bh ET0 (IEN0.1) IP0H.1, IP0.1 4 No

External interrupt 1 IE1 0013h EX1 (IEN0.2) IP0H.2, IP0.2 7 Yes

Timer 1 interrupt TF1 001Bh ET1 (IEN0.3) IP0H.3, IP0.3 10 No

Serial port Tx and Rx TI and RI 0023h ES/ESR (IEN0.4) IP0H.4, IP0.4 13 No

Serial port Rx RI

Brownout detect BOF 002Bh EBO (IEN0.5) IP0H.5, IP0.5 2 Yes

Watchdog timer/Real-time clock

C interrupt SI 0033h EI2C (IEN1.0) IP0H.0, IP0.0 5 No

KBI interrupt KBIF 003Bh EKBI (IEN1.1) IP0H.0, IP0.0 8 Yes

Comparators 1 and 2 interrupts

SPI interrupt SPIF 004Bh ESPI (IEN1.3) IP1H.3, IP1.3 14 No

Capture/Compare Unit 005Bh ECCU(IEN1.4) IP1H.4, IP1.4 6 No

Serial port Tx TI 006Bh EST (IEN1.6) IP0H.0, IP0.0 12 No

ADC, Data EEPROMwrite complete (P89LPC935/936)

WDOVF/RTCF 0053h EWDRT (IEN0.6) IP0H.6, IP0.6 3 Yes

CMF1/CMF2 0043h EC (IEN1.2) IP0H.0, IP0.0 11 Yes

ADCI1, BNDI1 0073h EAD (IEN1.7) IP1H.7, IP1.7 15 (lowest) No

Vector address

Interrupt enable bit(s)

has glitch suppression while INT0 does

/P1.3 and SCL/T0/P1.2 do not have

Interrupt priority

Arbitration ranking

Powerdown wake-up

User manual Rev. 01 — 4 March 2005 38 of 147

Philips Semiconductors

RTCF

ERTC

(RTCCON.1)

WDOVF

any CCU interrupt

(2)

EEIF

ADCI0

ENADCI1

ADCI1

ENBI0 BNDI0

ENBI1 BNDI1

(2)

ENADCI0

EADEE (P89LPC935)

EAD (P89LPC933/934)

IE0

EX0

IE1

EX1

BOF EBO

KBIF

EKBI

EWDRT

CMF2 CMF1

EA (IE0.7)

TF0

ET0

TF1

ET1

TI & RI/RI

ES/ESR

EST

EI2C

SPIF

ESPI

ECCU

UM10116

P89LPC933/934/935/936 User manual

wake-up (if in power-down)

(1)

interrupt to CPU

002aab081

(1) See Section 10 “Capture/Compare Unit (CCU)”

(2) P89LPC935/936

Fig 12. Interrupt sources, interrupt enables, and power-down wake-up sources.

5. I/O ports

The P89LPC933/934/935/936 has four I/O ports: Port 0, Port 1, Port 2, and Port 3. Ports 0, 1, and 2 are 8-bit ports and Port 3 is a 2-bit port. The exact number of I/O pins available depends upon the clock and reset options chosen (see Ta bl e 2 3

User manual Rev. 01 — 4 March 2005 39 of 147

Philips Semiconductors

Table 23: Number of I/O pins available

Clock source Reset option Number of I/O

On-chip oscillator or watchdog oscillator

External clock input No external reset (except during power up) 25

Low/medium/high speed oscillator (external crystal or resonator)

[1] required for operation above 12 MHz.

5.1 Port configurations

All but three I/O port pins on the P89LPC933/934/935/936 may be configured by software to one of four types on a pin-by-pin basis, as shown in Tab le 2 4 quasi-bidirectional (standard 80C51 port outputs), push-pull, open drain, and input-only. Two configuration registers for each port select the output type for each port pin.

UM10116

P89LPC933/934/935/936 User manual

pins

No external reset (except during power up) 26

External RST pin supported 25

External RST

No external reset (except during power up) 24

External RST

pin supported

[1]

. These are:

P1.5 (RST

P1.2 (SCL/T0) and P1.3 (SDA/INT0 open drain.

Table 24: Port output configuration settings

PxM1.y PxM2.y Port output mode

0 0 Quasi-bidirectional

0 1 Push-pull

1 0 Input only (high-impedance)

1 1 Open drain

) can only be an input and cannot be configured.

) may only be configured to be either input-only or

5.2 Quasi-bidirectional output configuration

Quasi-bidirectional outputs can be used both as an input and output without the need to reconfigure the port. This is possible because when the port outputs a logic high, it is weakly driven, allowing an external device to pull the pin low. When the pin is driven low, it is driven strongly and able to sink a large current. There are three pull-up transistors in the quasi-bidirectional output that serve different purposes.

One of these pull-ups, called the ‘very weak’ pull-up, is turned on whenever the port latch for the pin contains a logic 1. This very weak pull-up sources a very small current that will pull the pin high if it is left floating.

A second pull-up, called the ‘weak’ pull-up, is turned on when the port latch for the pin contains a logic 1 and the pin itself is also at a logic 1 level. This pull-up provides the primary source current for a quasi-bidirectional pin that is outputting a 1. If this pin is pulled low by an external device, the weak pull-up turns off, and only the very weak pull-up remains on. In order to pull the pin low under these conditions, the external device has to sink enough current to overpower the weak pull-up and pull the port pin below its input threshold voltage.

User manual Rev. 01 — 4 March 2005 40 of 147

Philips Semiconductors

The third pull-up is referred to as the ‘strong’ pull-up. This pull-up is used to speed up low-to-high transitions on a quasi-bidirectional port pin when the port latch changes from a logic 0 to a logic 1. When this occurs, the strong pull-up turns on for two CPU clocks quickly pulling the port pin high.

UM10116

P89LPC933/934/935/936 User manual

port latch

data

The quasi-bidirectional port configuration is shown in Figure 13

Although the P89LPC933/934/935/936 is a 3 V device most of the pins are 5 V-tolerant. If 5 V is applied to a pin configured in quasi-bidirectional mode, there will be a current flowing from the pin to V

causing extra power consumption. Therefore, applying 5 V to

pins configured in quasi-bidirectional mode is discouraged.

A quasi-bidirectional port pin has a Schmitt-triggered input that also has a glitch suppression circuit

(Please refer to the P89LPC933/934/935/936 data sheet, Dynamic characteristics for glitch filter specifications).

2 CPU

CLOCK DELAY

PP P

very

weak

weakstrong

PORT

input

data

glitch rejection

002aaa914

Fig 13. Quasi-bidirectional output.

5.3 Open drain output configuration

The open drain output configuration turns off all pull-ups and only drives the pull-down transistor of the port pin when the port latch contains a logic 0. To be used as a logic output, a port configured in this manner must have an external pull-up, typically a resistor tied to V

The open drain port configuration is shown in Figure 14

An open drain port pin has a Schmitt-triggered input that also has a glitch suppression circuit.

Please refer to the P89LPC933/934/935/936 data sheet, Dynamic characteristics for glitch filter specifications.

User manual Rev. 01 — 4 March 2005 41 of 147

. The pull-down for this mode is the same as for the quasi-bidirectional mode.

Philips Semiconductors

Fig 14. Open drain output.

5.4 Input-only configuration

The input port configuration is shown in Figure 15. It is a Schmitt-triggered input that also has a glitch suppression circuit.

port latch

data

UM10116

P89LPC933/934/935/936 User manual

PORT

input

data

glitch rejection

002aaa915

(Please refer to the P89LPC933/934/935/936 data sheet, Dynamic characteristics for glitch filter specifications).

Fig 15. Input only.

input

data

glitch rejection

PORT

002aaa916

5.5 Push-pull output configuration

The push-pull output configuration has the same pull-down structure as both the open drain and the quasi-bidirectional output modes, but provides a continuous strong pull-up when the port latch contains a logic 1. The push-pull mode may be used when more source current is needed from a port output.

The push-pull port configuration is shown in Figure 16

A push-pull port pin has a Schmitt-triggered input that also has a glitch suppression circuit.

(Please refer to the P89LPC933/934/935/936 data sheet, Dynamic characteristics for glitch filter specifications).

User manual Rev. 01 — 4 March 2005 42 of 147

Philips Semiconductors

Fig 16. Push-pull output.

port latch

data

input

data

UM10116

P89LPC933/934/935/936 User manual

strong

PORT

glitch rejection

002aaa917

5.6 Port 0 and Analog Comparator functions

The P89LPC933/934/935/936 incorporates two Analog Comparators. In order to give the best analog performance and minimize power consumption, pins that are being used for analog functions must have both the digital outputs and digital inputs disabled.

Digital outputs are disabled by putting the port pins into the input-only mode as described in the Port Configurations section (see Figure 15

Digital inputs on Port 0 may be disabled through the use of the PT0AD register. Bits 1 through 5 in this register correspond to pins P0.1 through P0.5 of Port 0, respectively. Setting the corresponding bit in PT0AD disables that pin’s digital input. Port bits that have their digital inputs disabled will be read as 0 by any instruction that accesses the port.

On any reset, PT0AD bits 1 through 5 default to logic 0s to enable the digital functions.

5.7 Additional port features

After power-up, all pins are in Input-only mode. Please note that this is different from the LPC76x series of devices.

• After power-up, all I/O pins except P1.5, may be configured by software.

• Pin P1.5 is input only. Pins P1.2 and P1.3 are configurable for either input-only or

open drain.

Every output on the P89LPC933/934/935/936 has been designed to sink typical LED drive current. However, there is a maximum total output current for all ports which must not be exceeded. Please refer to the P89LPC933/934/935/936 data sheet for detailed specifications.

All ports pins that can function as an output have slew rate controlled outputs to limit noise generated by quickly switching output signals. The slew rate is factory-set to approximately 10 ns rise and fall times.

User manual Rev. 01 — 4 March 2005 43 of 147

Philips Semiconductors

Table 25: Port output configuration

Port pin Configuration SFR bits

P0.0 P0M1.0 P0M2.0 KBIO, CMP2, AD01

P0.1 P0M1.1 P0M2.1 KBI1, CIN2B, AD10 Refer to Section 5.6 “

P0.2 P0M1.2 P0M2.2 KBI2, CIN2A, AD11

P0.3 P0M1.3 P0M2.3 KBI3, CIN1B, AD12

P0.4 P0M1.4 P0M2.4 KBI4, CIN1A, AD13,

P0.5 P0M1.5 P0M2.5 KBI5, CMPREF

P0.6 P0M1.6 P0M2.6 KBI6, CMP1

P0.7 P0M1.7 P0M2.7 KBI7, T1

P1.0 P1M1.0 P1M2.0 TxD

P1.1 P1M1.1 P1M2.1 RxD

P1.2 P1M1.2 P1M2.2 T0, SCL Input-only or open-drain

P1.3 P1M1.3 P1M2.3 INTO

P1.4 P1M1.4 P1M2.4 INT1

P1.5 P1M1.5 P1M2.5 RST

P1.6 P1M1.6 P1M2.6 OCB

P1.7 P1M1.7 P1M2.7 OCC, AD00

P2.0 P2M1.0 P1M2.0 ICB, AD03, DAC0

P2.1 P2M1.1 P1M2.1 OCD, AD02

P2.2 P2M1.2 P1M2.2 MOSI

P2.3 P2M1.3 P1M2.3 MISO

P2.4 P2M1.4 P1M2.4 SS

P2.5 P2M1.5 P1M2.5 SPICLK

P2.6 P2M1.6 P1M2.6 OCA

P2.7 P2M1.7 P1M2.7 ICA

P3.0 P3M1.0 P3M2.0 CLKOUT, XTAL2

P3.1 P3M1.1 P3M2.1 XTAL1

UM10116

P89LPC933/934/935/936 User manual

PxM1.y PxM2.y Alternate usage Notes

Port 0 and Analog Comparator functions” for

usage as analog inputs.

DAC1

, SDA input-only or open-drain

6. Power monitoring functions

The P89LPC933/934/935/936 incorporates power monitoring functions designed to prevent incorrect operation during initial power-on and power loss or reduction during operation. This is accomplished with two hardware functions: Power-on Detect and Brownout Detect.

6.1 Brownout detection

The Brownout Detect function determines if the power supply voltage drops below a certain level. The default operation for a Brownout Detection is to cause a processor reset. However, it may alternatively be configured to generate an interrupt by setting the BOI (PCON.4) bit and the EBO (IEN0.5) bit.

User manual Rev. 01 — 4 March 2005 44 of 147

Philips Semiconductors

Enabling and disabling of Brownout Detection is done via the BOPD (PCON.5) bit, bit field PMOD1/PMOD0 (PCON[1:0]) and user configuration bit BOE (UCFG1.5). If BOE is in an unprogrammed state, brownout is disabled regardless of PMOD1/PMOD0 and BOPD. If BOE is in a programmed state, PMOD1/PMOD0 and BOPD will be used to determine whether Brownout Detect will be disabled or enabled. PMOD1/PMOD0 is used to select the power reduction mode. If PMOD1/PMOD0 = ‘11’, the circuitry for the Brownout Detection is disabled for lowest power consumption. BOPD defaults to logic 0, indicating brownout detection is enabled on power-on if BOE is programmed.

UM10116

P89LPC933/934/935/936 User manual

If Brownout Detection is enabled the brownout condition occurs when V Brownout trip voltage, VBO (see P89LPC933/934/935/936 data sheet, Static characteristics), and is negated when V P89LPC933/934/935/936 device is to operate with a power supply that can be below

2.7 V, BOE should be left in the unprogrammed state so that the device can operate at

2.4 V, otherwise continuous brownout reset may prevent the device from operating.

If Brownout Detect is enabled (BOE programmed, PMOD1/PMOD0 ≠ ‘11’, BOPD = 0), BOF (RSTSRC.5) will be set when a brownout is detected, regardless of whether a reset or an interrupt is enabled. BOF will stay set until it is cleared in software by writing a logic 0 to the bit. Note that if BOE is unprogrammed, BOF is meaningless. If BOE is programmed, and a initial power-on occurs, BOF will be set in addition to the power-on flag (POF - RSTSRC.4).

For correct activation of Brownout Detect, certain V observed. Please see the data sheet for specifications.

rises above VBO. If the

rise and fall times must be

falls below the

User manual Rev. 01 — 4 March 2005 45 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 26: Brownout options

BOE (UCFG1.5)

0 (erased) XX X X X X Brownout disabled. V

1(program med)

PMOD1/ PMOD0 (PCON[1:0])

11 (total power-down)

≠ 11 (any mode other than total power-down)

[1]

BOPD (PCON.5)

XXXX

1 (brownout detect power-down)

0 (brownout detect active)

BOI (PCON.4)

X X X Brownout disabled. V

0 (brownout detect generates reset)

1 (brownout detect generates an interrupt)

EBO (IEN0.5)

X X Brownout reset enabled. V

1 (enable brownout interrupt)

0 X Both brownout reset and

EA (IEN0.7) Description

1 (global interrupt enable)

operating range is 2.4 V to 3.6 V.

operating range is 2.4 V to 3.6 V. However, BOPD is default to logic 0 upon power-up.

operating range is 2.7 V to 3.6 V. Upon a brownout reset, BOF (RSTSRC.5) will be set to indicate the reset source. BOF can be cleared by writing a logic 0 to the bit.

Brownout interrupt enabled. V operating range is 2.7 V to 3.6 V. Upon a brownout interrupt, BOF (RSTSRC.5) will be set. BOF can be cleared by writing a logic 0 to the bit.

interrupt disabled. V range is 2.4 V to 3.6 V. However, BOF (RSTSRC.5) will be set when V Detection trip point. BOF can be cleared by writing a logic 0 to the bit.

falls to the Brownout

operating

[1] Cannot be used with operation above 12 MHz as this requires VDD of 3.0 V or above.

6.2 Power-on detection

The Power-On Detect has a function similar to the Brownout Detect, but is designed to work as power initially comes up, before the power supply voltage reaches a level where the Brownout Detect can function. The POF flag (RSTSRC.4) is set to indicate an initial power-on condition. The POF flag will remain set until cleared by software by writing a logic 0 to the bit. Note that if BOE (UCFG1.5) is programmed, BOF (RSTSRC.5) will be set when POF is set. If BOE is unprogrammed, BOF is meaningless.

6.3 Power reduction modes

The P89LPC933/934/935/936 supports three different power reduction modes as determined by SFR bits PCON[1:0] (see Ta bl e 2 7

User manual Rev. 01 — 4 March 2005 46 of 147

Philips Semiconductors

P89LPC933/934/935/936 User manual

Table 27: Power reduction modes

PMOD1 (PCON.1)

0 0 Normal mode (default) - no power reduction.

0 1 Idle mode. The Idle mode leaves peripherals running in order to allow them to activate the

1 0 Power-down mode:

PMOD0 (PCON.0)

Description

processor when an interrupt is generated. Any enabled interrupt source or reset may terminate Idle mode.

The Power-down mode stops the oscillator in order to minimize power consumption.

The P89LPC933/934/935/936 exits Power-down mode via any reset, or certain interrupts - external pins INT0/INT1, brownout Interrupt, keyboard, Real-time Clock/System Timer), watchdog, and comparator trips. Waking up by reset is only enabled if the corresponding reset is enabled, and waking up by interrupt is only enabled if the corresponding interrupt is enabled and the EA SFR bit (IEN0.7) is set. External interrupts should be programmed to level-triggered mode to be used to exit Power-down mode.

In Power-down mode the internal RC oscillator is disabled unless both the RC oscillator has been selected as the system clock AND the RTC is enabled.

In Power-down mode, the power supply voltage may be reduced to the RAM keep-alive voltage VRAM. This retains the RAM contents at the point where Power-down mode was entered. SFR contents are not guaranteed after V wake-up the processor via Reset in this situation. V before the Power-down mode is exited.

When the processor wakes up from Power-down mode, it will start the oscillator immediately and begin execution when the oscillator is stable. Oscillator stability is determined by counting 1024 CPU clocks after start-up when one of the crystal oscillator configurations is used, or 256 clocks after start-up for the internal RC or external clock input configurations.

Some chip functions continue to operate and draw power during Power-down mode, increasing the total power used during power-down. These include:

has been lowered to VRAM, therefore it is recommended to

must be raised to within the operating range

UM10116

• Brownout Detect

• Watchdog Timer if WDCLK (WDCON.0) is logic 1.

• Comparators (Note: Comparators can be powered down separately with PCONA.5 set to

logic 1 and comparators disabled);

• Real-time Clock/System Timer (and the crystal oscillator circuitry if this block is using it, unless

RTCPD, i.e., PCONA.7 is logic 1).

1 1 Total Power-down mode: This is the same as Power-down mode except that the Brownout

Detection circuitry and the voltage comparators are also disabled to conserve additional power. Note that a brownout reset or interrupt will not occur. Voltage comparator interrupts and Brownout interrupt cannot be used as a wake-up source. The internal RC oscillator is disabled unless both the RC oscillator has been selected as the system clock AND the RTC is enabled.

The following are the wake-up options supported:

• Watchdog Timer if WDCLK (WDCON.0) is logic 1. Could generate Interrupt or Reset, either

one can wake up the device

• External interrupts INTO/INT1 (when programmed to level-triggered mode).

• Keyboard Interrupt

• Real-time Clock/System Timer (and the crystal oscillator circuitry if this block is using it, unless

RTCPD, i.e., PCONA.7 is logic 1).

Note: Using the internal RC-oscillator to clock the RTC during power-down may result in relatively high power consumption. Lower power consumption can be achieved by using an external low frequency clock when the Real-time Clock is running during power-down.

User manual Rev. 01 — 4 March 2005 47 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 28: Power Control register (PCON - address 87h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol SMOD1 SMOD0 BOPD BOI GF1 GF0 PMOD1 PMOD0

Reset00000000

Table 29: Power Control register (PCON - address 87h) bit description

Bit Symbol Description

0 PMOD0 Power Reduction Mode (see Section 6.3

1PMOD1

2 GF0 General Purpose Flag 0. May be read or written by user software, but has no effect

on operation

3 GF1 General Purpose Flag 1. May be read or written by user software, but has no effect

on operation

4 BOI Brownout Detect Interrupt Enable. When logic 1, Brownout Detection will generate a

interrupt. When logic 0, Brownout Detection will cause a reset

5 BOPD Brownout Detect power-down. When logic 1, Brownout Detect is powered down and

therefore disabled. When logic 0, Brownout Detect is enabled. (Note: BOPD must be logic 0 before any programming or erasing commands can be issued. Otherwise these commands will be aborted.)

6 SMOD0 Framing Error Location:

)

• When logic 0, bit 7 of SCON is accessed as SM0 for the UART.

• When logic 1, bit 7 of SCON is accessed as the framing error status (FE) for the

UART

7 SMOD1 Double Baud Rate bit for the serial port (UART) when Timer 1 is used as the baud

rate source. When logic 1, the Timer 1 overflow rate is supplied to the UART. When logic 0, the Timer 1 overflow rate is divided by two before being supplied to the UART. (See Section 11

)

Table 30: Power Control register A (PCONA - address B5h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol RTCPD DEEPD VCPD ADPD I2PD SPPD SPD CCUPD

Reset00000000

Table 31: Power Control register A (PCONA - address B5h) bit description

Bit Symbol Description

0 CCUPD Compare/Capture Unit (CCU) power-down: When logic 1, the internal clock to the

CCU is disabled. Note that in either Power-down mode or Total Power-down mode, the CCU clock will be disabled regardless of this bit. (Note: This bit is overridden by the CCUDIS bit in FCFG1. If CCUDIS = 1, CCU is powered down.)

1 SPD Serial Port (UART) power-down: When logic 1, the internal clock to the UART is

disabled. Note that in either Power-down mode or Total Power-down mode, the UART clock will be disabled regardless of this bit.

2 SPPD SPI power-down: When logic 1, the internal clock to the SPI is disabled. Note that in

either Power-down mode or Total Power-down mode, the SPI clock will be disabled regardless of this bit.

3I2PDI

User manual Rev. 01 — 4 March 2005 48 of 147

C power-down: When logic 1, the internal clock to the I2C-bus is disabled. Note that in either Power-down mode or Total Power-down mode, the I disabled regardless of this bit.

C clock will be

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 31: Power Control register A (PCONA - address B5h) bit description

Bit Symbol Description

4 ADPD A/D Converter Power down: When ‘1’, turns off the clock to the ADC. To fully

power-down the ADC, the user should also set the ENADC1 and ENADC0 bits in registers ADCON1 and ADCON0.

5 VCPD Analog Voltage Comparators power-down: When logic 1, the voltage comparators

are powered down. User must disable the voltage comparators prior to setting this bit.

6 DEEPD Data EEPROM power-down: When logic 1, the Data EEPROM is powered down.

Note that in either Power-down mode or Total Power-down mode, the Data EEPROM will be powered down regardless of this bit.

7 RTCPD Real-time Clock power-down: When logic 1, the internal clock to the Real-time

Clock is disabled.

…continued

7. Reset

The P1.5/RST pin can function as either an active low reset input or as a digital input, P1.5. The RPE (Reset Pin Enable) bit in UCFG1, when set to 1, enables the external reset input function on P1.5. When cleared, P1.5 may be used as an input pin.

Note: During a power-on sequence, The RPE selection is overridden and this pin will always functions as a reset input. An external circuit connected to this pin should not hold this pin low during a Power-on sequence as this will keep the device in reset. After power-on this input will function either as an external reset input or as a digital input as defined by the RPE bit. Only a power-on reset will temporarily override the selection defined by RPE bit. Other sources of reset will not override the RPE bit.

Note: During a power cycle, V sheet, Static characteristics) before power is reapplied, in order to ensure a power-on reset.

Note: When using an oscillator frequency above 12 MHz, the reset input function of P1.5 must be enabled. An external circuit is required to hold the device in reset at power-up until V below the minimum specified operating voltage. When using an oscillator frequency above 12 MHz, in some applications, an external brownout detect circuit may be required to hold the device in reset when V

Reset can be triggered from the following sources (see Figure 17

has reached its specified level. When system power is removed VDD will fall

must fall below V

falls below the minimum specified operating voltage.

(see P89LPC933/934/935/936 data

POR

• External reset pin (during power-on or if user configured via UCFG1);

• Power-on Detect;

• Brownout Detect;

• Watchdog Timer;

• Software reset;

• UART break detect reset.

For every reset source, there is a flag in the Reset Register, RSTSRC. The user can read this register to determine the most recent reset source. These flag bits can be cleared in software by writing a logic 0 to the corresponding bit. More than one flag bit may be set:

User manual Rev. 01 — 4 March 2005 49 of 147

Philips Semiconductors

• During a power-on reset, both POF and BOF are set but the other flag bits are

cleared.

• For any other reset, any previously set flag bits that have not been cleared will remain

set.

UM10116

P89LPC933/934/935/936 User manual

RPE (UCFG1.6)

RST pin

WDTE (UCFG1.7)

watchdog timer reset

software reset SRST (AUXR1.3)

power-on detect

UART break detect

EBRR (AUXR1.6)

brownout detect reset

BOPD (PCON.5)

Fig 17. Block diagram of reset.

Table 32: Reset Sources register (RSTSRC - address DFh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol - - BOF POF R_BK R_WD R_SF R_EX

[1]

Reset

[1] The value shown is for a power-on reset. Other reset sources will set their corresponding bits.

Table 33: Reset Sources register (RSTSRC - address DFh) bit description

Bit Symbol Description

0 R_EX external reset Flag. When this bit is logic 1, it indicates external pin reset. Cleared by software by writing a

1 R_SF software reset Flag. Cleared by software by writing a logic 0 to the bit or a Power-on reset

2 R_WD Watchdog Timer reset flag. Cleared by software by writing a logic 0 to the bit or a Power-on reset.(NOTE:

3 R_BK break detect reset. If a break detect occurs and EBRR (AUXR1.6) is set to logic 1, a system reset will occur.

4 POF Power-on Detect Flag. When Power-on Detect is activated, the POF flag is set to indicate an initial power-up

5 BOF Brownout Detect Flag. When Brownout Detect is activated, this bit is set. It will remain set until cleared by

6:7 - reserved

xx110000

logic 0 to the bit or a Power-on reset. If RST

UCFG1.7 must be = 1)

This bit is set to indicate that the system reset is caused by a break detect. Cleared by software by writing a logic 0 to the bit or on a Power-on reset.

condition. The POF flag will remain set until cleared by software by writing a logic 0 to the bit. (Note: On a Power-on reset, both BOF and this bit will be set while the other flag bits are cleared.)

software by writing a logic 0 to the bit. (Note: On a Power-on reset, both POF and this bit will be set while the other flag bits are cleared.)

is still asserted after the Power-on reset is over, R_EX will be set.

chip reset

002aaa91

User manual Rev. 01 — 4 March 2005 50 of 147

Philips Semiconductors

7.1 Reset vector

Following reset, the P89LPC933/934/935/936 will fetch instructions from either address 0000h or the Boot address. The Boot address is formed by using the Boot Vector as the high byte of the address and the low byte of the address = 00h. The Boot address will be used if a UART break reset occurs or the non-volatile Boot Status bit (BOOTSTAT.0) = 1, or the device has been forced into ISP mode. Otherwise, instructions will be fetched from address 0000H.

8. Timers 0 and 1

The P89LPC933/934/935/936 has two general-purpose counter/timers which are upward compatible with the 80C51 Timer 0 and Timer 1. Both can be configured to operate either as timers or event counters (see Ta bl e 35 upon timer overflow has been added.

In the ‘Timer’ function, the timer is incremented every PCLK.

In the ‘Counter’ function, the register is incremented in response to a 1-to-0 transition on its corresponding external input pin (T0 or T1). The external input is sampled once during every machine cycle. When the pin is high during one cycle and low in the next cycle, the count is incremented. The new count value appears in the register during the cycle following the one in which the transition was detected. Since it takes two machine cycles (four CPU clocks) to recognize a 1-to-0 transition, the maximum count rate is CPU clock frequency. There are no restrictions on the duty cycle of the external input signal, but to ensure that a given level is sampled at least once before it changes, it should be held for at least one full machine cycle.

UM10116

P89LPC933/934/935/936 User manual

). An option to automatically toggle the Tx pin

⁄4 of the

The ‘Timer’ or ‘Counter’ function is selected by control bits TnC/T and 1 respectively) in the Special Function Register TMOD. Timer 0 and Timer 1 have five operating modes (modes 0, 1, 2, 3 and 6), which are selected by bit-pairs (TnM1, TnM0) in TMOD and TnM2 in TAMOD. Modes 0, 1, 2 and 6 are the same for both Timers/Counters. Mode 3 is different. The operating modes are described later in this section.

Table 34: Timer/Counter Mode register (TMOD - address 89h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol T1GATE T1C/T

Reset00000000

Table 35: Timer/Counter Mode register (TMOD - address 89h) bit description

Bit Symbol Description

0 T0M0 Mode Select for Timer 0. These bits are used with the T0M2 bit in the TAMOD register to determine the

1T0M1

2T0C/T

3 T0GATE Gating control for Timer 0. When set, Timer/Counter is enabled only while the INT0

Timer 0 mode (see Ta b le 3 7

Timer or Counter selector for Timer 0. Cleared for Timer operation (input from CCLK). Set for Counter operation (input from T0 input pin).

control pin is set. When cleared, Timer 0 is enabled when the TR0 control bit is set.

T1M1 T1M0 T0GATE T0C/T T0M1 T0M0

(x = 0 and 1 for Timers 0

pin is high and the TR0

User manual Rev. 01 — 4 March 2005 51 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 35: Timer/Counter Mode register (TMOD - address 89h) bit description

Bit Symbol Description

4 T1M0 Mode Select for Timer 1. These bits are used with the T1M2 bit in the TAMOD register to determine the

5T1M1

6T1C/T

7 T1GATE Gating control for Timer 1. When set, Timer/Counter is enabled only while the INT1

Table 36: Timer/Counter Auxiliary Mode register (TAMOD - address 8Fh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol----T1M2---T0M2

Resetxxx0xxx0

Table 37: Timer/Counter Auxiliary Mode register (TAMOD - address 8Fh) bit description

Bit Symbol Description

0 T0M2 Mode Select for Timer 0. These bits are used with the T0M2 bit in the TAMOD register to determine the

1:3 - reserved

4 T1M2 Mode Select for Timer 1. These bits are used with the T1M2 bit in the TAMOD register to determine the

5:7 - reserved

Timer 1 mode (see Ta b le 3 7 ).

Timer or Counter Selector for Timer 1. Cleared for Timer operation (input from CCLK). Set for Counter operation (input from T1 input pin).

control pin is set. When cleared, Timer 1 is enabled when the TR1 control bit is set.

Timer 0 mode (see Ta b le 3 7

Timer 1 mode (see Ta b le 3 7

The following timer modes are selected by timer mode bits TnM[2:0]:

000 — 8048 Timer ‘TLn’ serves as 5-bit prescaler. (Mode 0)

001 — 16-bit Timer/Counter ‘THn’ and ‘TLn’ are cascaded; there is no prescaler.(Mode 1)

010 — 8-bit auto-reload Timer/Counter. THn holds a value which is loaded into TLn when it overflows.

(Mode 2)

011 — Timer 0 is a dual 8-bit Timer/Counter in this mode. TL0 is an 8-bit Timer/Counter controlled by the standard Timer 0 control bits. TH0 is an 8-bit timer only, controlled by the Timer 1 control bits (see text). Timer 1 in this mode is stopped. (Mode 3)

100 — Reserved. User must not configure to this mode.

101 — Reserved. User must not configure to this mode.

110 — PWM mode (see Section 8.5

111 — Reserved. User must not configure to this mode.

…continued

pin is high and the TR1

8.1 Mode 0

Putting either Timer into Mode 0 makes it look like an 8048 Timer, which is an 8-bit Counter with a divide-by-32 prescaler. Figure 18

In this mode, the Timer register is configured as a 13-bit register. As the count rolls over from all 1s to all 0s, it sets the Timer interrupt flag TFn. The count input is enabled to the Timer when TRn = 1 and either TnGATE = 0 or INTn Timer to be controlled by external input INTn TRn is a control bit in the Special Function Register TCON (Tab le 3 9 in the TMOD register.

User manual Rev. 01 — 4 March 2005 52 of 147

shows Mode 0 operation.

= 1. (Setting TnGATE = 1 allows the

, to facilitate pulse width measurements).

). The TnGATE bit is

Philips Semiconductors

The 13-bit register consists of all 8 bits of THn and the lower 5 bits of TLn. The upper 3 bits of TLn are indeterminate and should be ignored. Setting the run flag (TRn) does not clear the registers.

UM10116

P89LPC933/934/935/936 User manual

Mode 0 operation is the same for Timer 0 and Timer 1. See Figure 18 different GATE bits, one for Timer 1 (TMOD.7) and one for Timer 0 (TMOD.3).

. There are two

8.2 Mode 1

Mode 1 is the same as Mode 0, except that all 16 bits of the timer register (THn and TLn) are used. See Figure 19

8.3 Mode 2

Mode 2 configures the Timer register as an 8-bit Counter (TLn) with automatic reload, as shown in Figure 20 contents of THn, which must be preset by software. The reload leaves THn unchanged. Mode 2 operation is the same for Timer 0 and Timer 1.

. Overflow from TLn not only sets TFn, but also reloads TLn with the

8.4 Mode 3

When Timer 1 is in Mode 3 it is stopped. The effect is the same as setting TR1 = 0.

Timer 0 in Mode 3 establishes TL0 and TH0 as two separate 8-bit counters. The logic for Mode 3 on Timer 0 is shown in Figure 21 T0GATE, TR0, INT0 cycles) and takes over the use of TR1 and TF1 from Timer 1. Thus, TH0 now controls the ‘Timer 1’ interrupt.

, and TF0. TH0 is locked into a timer function (counting machine

. TL0 uses the Timer 0 control bits: T0C/T,

Mode 3 is provided for applications that require an extra 8-bit timer. With Timer 0 in Mode 3, an P89LPC933/934/935/936 device can look like it has three Timer/Counters.

Note: When Timer 0 is in Mode 3, Timer 1 can be turned on and off by switching it into and out of its own Mode 3. It can still be used by the serial port as a baud rate generator, or in any application not requiring an interrupt.

8.5 Mode 6

In this mode, the corresponding timer can be changed to a PWM with a full period of 256 timer clocks (see Figure 22

). Its structure is similar to mode 2, except that:

• TFn (n = 0 and 1 for Timers 0 and 1 respectively) is set and cleared in hardware;

• The low period of the TFn is in THn, and should be between 1 and 254, and;

• The high period of the TFn is always 256−THn.

• Loading THn with 00h will force the Tx pin high, loading THn with FFh will force the Tx

pin low.

Note that interrupt can still be enabled on the low to high transition of TFn, and that TFn can still be cleared in software like in any other modes.

User manual Rev. 01 — 4 March 2005 53 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 38: Timer/Counter Control register (TCON) - address 88h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0

Reset00000000

Table 39: Timer/Counter Control register (TCON - address 88h) bit description

Bit Symbol Description

0 IT0 Interrupt 0 Type control bit. Set/cleared by software to specify falling edge/low level triggered external

interrupts.

1 IE0 Interrupt 0 Edge flag. Set by hardware when external interrupt 0 edge is detected. Cleared by hardware

when the interrupt is processed, or by software.

2 IT1 Interrupt 1 Type control bit. Set/cleared by software to specify falling edge/low level triggered external

interrupts.

3 IE1 Interrupt 1 Edge flag. Set by hardware when external interrupt 1 edge is detected. Cleared by hardware

when the interrupt is processed, or by software.

4 TR0 Timer 0 Run control bit. Set/cleared by software to turn Timer/Counter 0 on/off.

5 TF0 Timer 0 overflow flag. Set by hardware on Timer/Counter overflow. Cleared by hardware when the processor

vectors to the interrupt routine, or by software. (except in mode 6, where it is cleared in hardware)

6 TR1 Timer 1 Run control bit. Set/cleared by software to turn Timer/Counter 1 on/off

7 TF1 Timer 1 overflow flag. Set by hardware on Timer/Counter overflow. Cleared by hardware when the interrupt

is processed, or by software (except in mode 6, see above, when it is cleared in hardware).

PCLK

Tn pin

TRn

gate

INTn pin

C/T = 0

C/T = 1

control

Fig 18. Timer/counter 0 or 1 in Mode 0 (13-bit counter).

PCLK

Tn pin

TRn

gate

INTn pin

C/T = 0

C/T = 1

control

TLn

(5-bits)

TLn

(8-bits)

THn

(8-bits)

THn

(8-bits)

toggle

overflow

toggle

overflow

TFn

ENTn

002aaa919

TFn

ENTn

002aaa920

interrupt

Tn pin

interrupt

Tn pin

Fig 19. Timer/counter 0 or 1 in mode 1 (16-bit counter).

User manual Rev. 01 — 4 March 2005 54 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

PCLK

Tn pin

TRn

gate

INTn pin

C/T = 0

C/T = 1

control

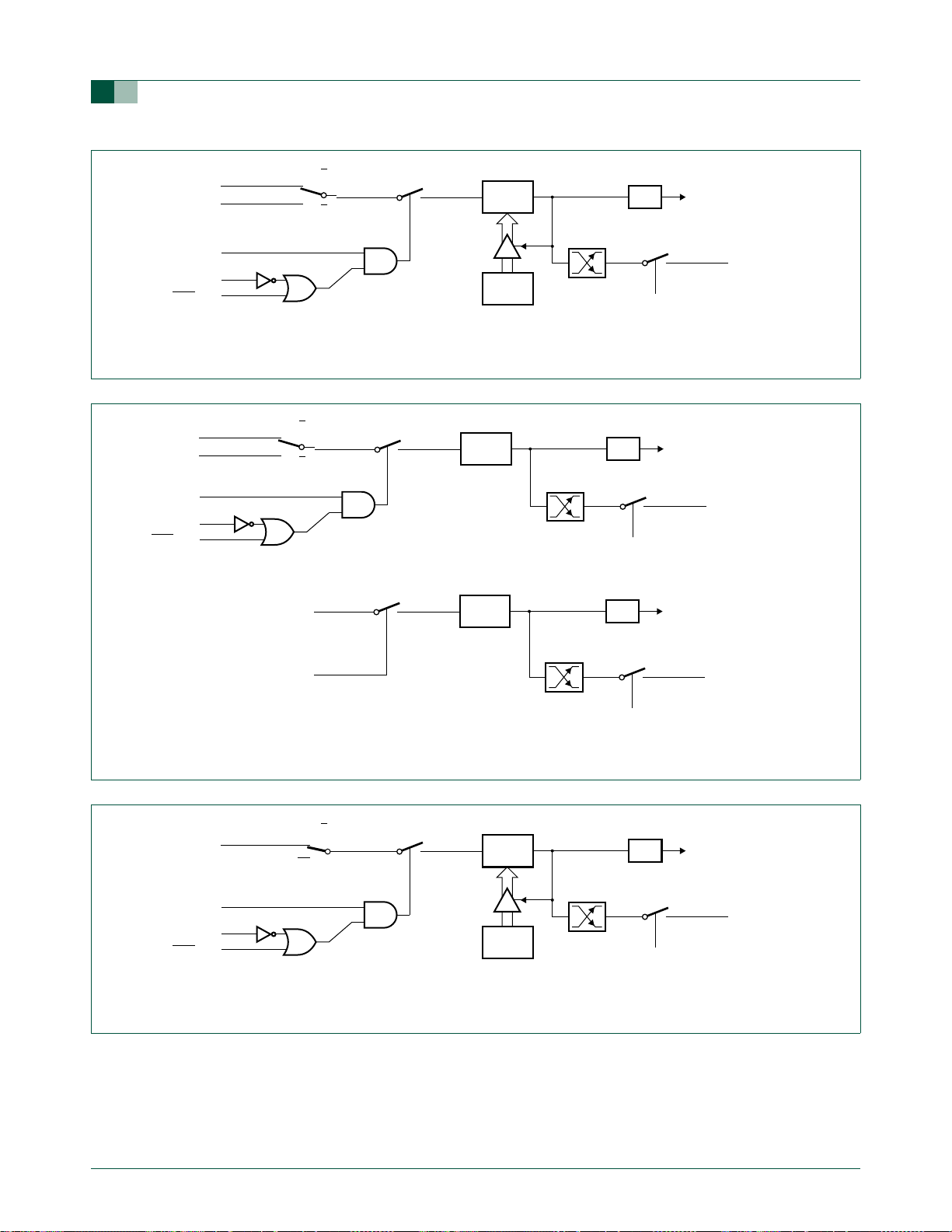

Fig 20. Timer/counter 0 or 1 in Mode 2 (8-bit auto-reload).

PCLK

T0 pin

TR0

gate

INT0 pin

C/T = 0

C/T = 1

osc/2

TR1

control

TL0

(8-bits)

TH0

(8-bits)

TLn

(8-bits)

THn

(8-bits)

reload

overflow

toggle

overflow

toggle

TFn

ENTn

002aaa921

TF0

ENT0

(AUXR1.4)

TF1

interrupt

Tn pin

interrupt

T0 pin

(P1.2 open drain)

interrupt

T1 pin (P0.7)

ENT1

(AUXR1.5)

002aaa922

Fig 21. Timer/counter 0 Mode 3 (two 8-bit counters).

PCLK

TRn

gate

INTn pin

C/T = 0

control

TLn

(8-bits)

THn

(8-bits)

overflow

reload THn on falling transition

and (256 − THn) on rising transition

toggle

TFn

ENTn

002aaa923

interrupt

Tn pin

Fig 22. Timer/counter 0 or 1 in mode 6 (PWM auto-reload).

8.6 Timer overflow toggle output

Timers 0 and 1 can be configured to automatically toggle a port output whenever a timer overflow occurs. The same device pins that are used for the T0 and T1 count inputs and PWM outputs are also used for the timer toggle outputs. This function is enabled by

User manual Rev. 01 — 4 March 2005 55 of 147

Philips Semiconductors

control bits ENT0 and ENT1 in the AUXR1 register, and apply to Timer 0 and Timer 1 respectively. The port outputs will be a logic 1 prior to the first timer overflow when this mode is turned on. In order for this mode to function, the C/T bit must be cleared selecting PCLK as the clock source for the timer.

9. Real-time clock system timer

The P89LPC933/934/935/936 has a simple Real-time Clock/System Timer that allows a user to continue running an accurate timer while the rest of the device is powered down. The Real-time Clock can be an interrupt or a wake-up source (see Figure 23

The Real-time Clock is a 23-bit down counter. The clock source for this counter can be either the CPU clock (CCLK) or the XTAL1-2 oscillator, provided that the XTAL1-2 oscillator is not being used as the CPU clock. If the XTAL1-2 oscillator is used as the CPU clock, then the RTC will use CCLK as its clock source regardless of the state of the RTCS1:0 in the RTCCON register. There are three SFRs used for the RTC:

RTCCON — Real-time Clock control.

RTCH — Real-time Clock counter reload high (bits 22 to 15).

RTCL — Real-time Clock counter reload low (bits 14 to 7).

UM10116

P89LPC933/934/935/936 User manual

The Real-time clock system timer can be enabled by setting the RTCEN (RTCCON.0) bit. The Real-time Clock is a 23-bit down counter (initialized to all 0’s when RTCEN = 0) that is comprised of a 7-bit prescaler and a 16-bit loadable down counter. When RTCEN is written with logic 1, the counter is first loaded with (RTCH, RTCL, ‘1111111’) and will count down. When it reaches all 0’s, the counter will be reloaded again with (RTCH, RTCL, ‘1111111’) and a flag - RTCF (RTCCON.7) - will be set.

RTCH RTCL RTC RESET

RELOAD ON UNDERFLOW

MSB LSB

23-BIT DOWN COUNTER

wake-up from power-down

Interrupt if enabled

(shared with WDT)

ERTC

RTCF

RTC underflow flag

power-on

reset

7-BIT PRESCALER

÷128

RTCEN

RTC enable

XTAL2 XTAL1

LOW FREQUENCY

MEDIUM FREQUENCY

HIGH FREQUENCY

CCLK

internal

oscillators

RTCS1 RTCS2

RTC clk select

002aaa924

Fig 23. Real-time clock/system timer block diagram.

User manual Rev. 01 — 4 March 2005 56 of 147

Philips Semiconductors

9.1 Real-time clock source

RTCS1/RTCS0 (RTCCON[6:5]) are used to select the clock source for the RTC if either the Internal RC oscillator or the internal WD oscillator is used as the CPU clock. If the internal crystal oscillator or the external clock input on XTAL1 is used as the CPU clock, then the RTC will use CCLK as its clock source.

9.2 Changing RTCS1/RTCS0

RTCS1/RTCS0 cannot be changed if the RTC is currently enabled (RTCCON.0 = 1). Setting RTCEN and updating RTCS1/RTCS0 may be done in a single write to RTCCON. However, if RTCEN = 1, this bit must first be cleared before updating RTCS1/RTCS0.

9.3 Real-time clock interrupt/wake-up

If ERTC (RTCCON.1), EWDRT (IEN1.0.6) and EA (IEN0.7) are set to logic 1, RTCF can be used as an interrupt source. This interrupt vector is shared with the watchdog timer. It can also be a source to wake-up the device.

9.4 Reset sources affecting the Real-time clock

UM10116

P89LPC933/934/935/936 User manual

Only power-on reset will reset the Real-time Clock and its associated SFRs to their default state.

Table 40: Real-time Clock/System Timer clock sources

FOSC2:0 RCCLK RTCS1:0 RTC clock source CPU clock source

000 0 00 High frequency crystal High frequency crystal

1 00 High frequency crystal Internal RC oscillator

001 0 00 Medium frequency crystal Medium frequency crystal

1 00 Medium frequency crystal Internal RC oscillator

11 High frequency crystal

/DIVM

11 Internal RC oscillator

11 Medium frequency crystal

/DIVM

11 Internal RC oscillator

/DIVM

User manual Rev. 01 — 4 March 2005 57 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 40: Real-time Clock/System Timer clock sources

FOSC2:0 RCCLK RTCS1:0 RTC clock source CPU clock source

010 0 00 Low frequency crystal Low frequency crystal

11 Low frequency crystal

/DIV

1 00 Low frequency crystal Internal RC oscillator

11 Internal RC oscillator

011 0 00 High frequency crystal Internal RC oscillator

01 Medium frequency crystal

10 Low frequency crystal

11 Internal RC oscillator

/DIVM

1 00 High frequency crystal Internal RC oscillator

01 Medium frequency crystal

10 Low frequency crystal

11 Internal RC oscillator

100 0 00 High frequency crystal Watchdog oscillator

01 Medium frequency crystal

10 Low frequency crystal

11 Watchdog oscillator /DIVM

1 00 High frequency crystal Internal RC oscillator

01 Medium frequency crystal

10 Low frequency crystal

11 Internal RC oscillator

101 x xx undefined undefined

110 x xx undefined undefined

111 0 00 External clock input External clock input

11 External clock input /DIVM

1 00 External clock input Internal RC oscillator

11 Internal RC oscillator

…continued

/DIVM

Table 41: Real-time Clock Control register (RTCCON - address D1h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol RTCF RTCS1 RTCS0 - - - ERTC RTCEN

Reset011xxx00

User manual Rev. 01 — 4 March 2005 58 of 147

Philips Semiconductors

Table 42: Real-time Clock Control register (RTCCON - address D1h) bit description

Bit Symbol Description

0 RTCEN Real-time Clock enable. The Real-time Clock will be enabled if this bit is logic 1.

Note that this bit will not power-down the Real-time Clock. The RTCPD bit (PCONA.7) if set, will power-down and disable this block regardless of RTCEN.

1 ERTC Real-time Clock interrupt enable. The Real-time Clock shares the same interrupt

as the watchdog timer. Note that if the user configuration bit WDTE (UCFG1.7) is logic 0, the watchdog timer can be enabled to generate an interrupt. Users can read the RTCF (RTCCON.7) bit to determine whether the Real-time Clock caused the interrupt.

2:4 - reserved

5 RTCS0 Real-time Clock source select (see Ta bl e 4 0

6RTCS1

7 RTCF Real-time Clock Flag. This bit is set to logic 1 when the 23-bit Real-time Clock

reaches a count of logic 0. It can be cleared in software.

10. Capture/Compare Unit (CCU)

UM10116

P89LPC933/934/935/936 User manual

This unit features:

• A 16-bit timer with 16-bit reload on overflow

• Selectable clock (CCUCLK), with a prescaler to divide the clock source by any integer

between 1 and 1024.

• Four Compare / PWM outputs with selectable polarity

• Symmetrical / Asymmetrical PWM selection

• Seven interrupts with common interrupt vector (one Overflow, 2xCapture,

4xCompare), safe 16-bit read/write via shadow registers.

• Two Capture inputs with event counter and digital noise rejection filter

10.1 CCU Clock (CCUCLK)

The CCU runs on the CCUCLK, which can be either PCLK in basic timer mode or the output of a PLL (see Figure 24

0.5 MHz to 1 MHz that is multiplied by 32 to produce a CCUCLK between 16 MHz and 32 MHz in PWM mode (asymmetrical or symmetrical). The PLL contains a 4-bit divider (PLLDV3:0 bits in the TCR21 register) to help divide PCLK into a frequency between

0.5 MHz and 1 MHz

10.2 CCU Clock prescaling

This CCUCLK can further be divided down by a prescaler. The prescaler is implemented as a 10-bit free-running counter with programmable reload at overflow. Writing a value to the prescaler will cause the prescaler to restart.

). The PLL is designed to use a clock source between

User manual Rev. 01 — 4 March 2005 59 of 147

Philips Semiconductors

16-BIT SHADOW REGISTER

TOR2H TO TOR2L

16-BIT TIMER RELOAD

16-BIT SHADOW REGISTER

OCRxH TO OCRxL

TIMER > COMPARE

UM10116

P89LPC933/934/935/936 User manual

16-BIT COMPARE

VALUE

OCD

OCC

OCB

OCA

OVERFLOW/

UNDERFLOW

16-BIT UP/DOWN TIMER

WITH RELOAD

10-BIT DIVIDER

4-BIT

DIVIDER

Fig 24. Capture Compare Unit block diagram.

32 × PLL

10.3 Basic timer operation

The Timer is a free-running up/down counter counting at the pace determined by the prescaler. The timer is started by setting the CCU Mode Select bits TMOD21 and TMOD20 in the CCU Control Register 0 (TCR20) as shown in the table in the TCR20 register description (Ta bl e 4 7

The CCU direction control bit, TDIR2, determines the direction of the count. TDIR2 = 0: Count up, TDIR2 = 1: Count down. If the timer counting direction is changed while the counter is running, the count sequence will be reversed in the CCUCLK cycle following the write of TDIR2. The timer can be written or read at any time and newly-written values will take effect when the prescaler overflows. The timer is accessible through two SFRs, TL2(low byte) and TH2(high byte). A third 16-bit SFR, TOR2H:TOR2L, determines the overflow reload value. TL2, TH2 and TOR2H, TOR2L will be 0 after a reset

COMPARE CHANNELS A TO D

16-BIT CAPTURE

COUNTER

INTERRUPT FLAG

TICF2x SET

FCOx

ICNFx

EVENT

CAPTURE CHANNELS A, B

NOISE

FILTER

ICESx

EDGE

SELECT

002aab009

ICB

ICA

Up-counting: When the timer contents are FFFFH, the next CCUCLK cycle will set the counter value to the contents of TOR2H:TOR2L.

Down-counting: When the timer contents are 0000H, the next CCUCLK cycle will set the counter value to the contents of TOR2H:TOR2L. During the CCUCLK cycle when the reload is performed, the CCU Timer Overflow Interrupt Flag (TOIF2) in the CCU Interrupt Flag Register (TIFR2) will be set, and, if the EA bit in the IEN0 register and ECCU bit in the IEN1 register (IEN1.4) are set, program execution will vector to the overflow interrupt. The user has to clear the interrupt flag in software by writing a logic 0 to it.

When writing to the reload registers, TOR2H and TOR2L, the values written are stored in two 8-bit shadow registers. In order to latch the contents of the shadow registers into TOR2H and TOR2L, the user must write a logic 1 to the CCU Timer Compare/Overflow Update bit TCOU2, in CCU Timer Control Register 1 (TCR21). The function of this bit

User manual Rev. 01 — 4 March 2005 60 of 147

Philips Semiconductors

depends on whether the timer is running in PWM mode or in basic timer mode. In basic timer mode, writing a one to TCOU2 will cause the values to be latched immediately and the value of TCOU2 will always read as zero. In PWM mode, writing a one to TCOU2 will cause the contents of the shadow registers to be updated on the next CCU Timer overflow. As long as the latch is pending, TCOU2 will read as one and will return to zero when the latching takes place. TCOU2 also controls the latching of the Output Compare registers OCR2A, OCR2B and OCR2C.

When writing to timer high byte, TH2, the value written is stored in a shadow register. When TL2 is written, the contents of TH2’s shadow register is transferred to TH2 at the same time that TL2 gets updated. Thus, TH2 should be written prior to writing to TL2. If a write to TL2 is followed by another write to TL2, without TH2 being written in between, the value of TH2 will be transferred directly to the high byte of the timer.

If the 16-bit CCU Timer is to be used as an 8-bit timer, the user can write FFh (for upcounting) or 00h (for downcounting) to TH2. When TL2 is written, FFh:TH2 (for upcounting) and 00h (for downcounting) will be loaded to CCU Timer. The user will not need to rewrite TH2 again for an 8-bit timer operation unless there is a change in count direction

UM10116

P89LPC933/934/935/936 User manual

When reading the timer, TL2 must be read first. When TL2 is read, the contents of the timer high byte are transferred to a shadow register in the same PCLK cycle as the read is performed. When TH2 is read, the contents of the shadow register are read instead. If a read from TL2 is followed by another read from TL2 without TH2 being read in between, the high byte of the timer will be transferred directly to TH2.

Table 43: CCU prescaler control register, high byte (TPCR2H - address CBh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol------TPCR2H.1TPCR2H.0

Resetxxxxxx00

Table 44: CCU prescaler control register, high byte (TPCR2H - address CBh) bit description

Bit Symbol Description

0 TPCR2H.0 Prescaler bit 8

1 TPCR2H.1 Prescaler bit 9

Table 45: CCU prescaler control register, low byte (TPCR2L - address CAh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol TPCR2L.7 TPCR2L.6 TPCR2L.5 TPCR2L.4 TPCR2L.3 TPCR2L.2 TPCR2L.1 TPCR2L.0

Reset00000000

Table 46: CCU prescaler control register, low byte (TPCR2L - address CAh) bit description

Bit Symbol Description

0 TPCR2L.0 Prescaler bit 0

1 TPCR2L.1 Prescaler bit 1

2 TPCR2L.2 Prescaler bit 2

3 TPCR2L.3 Prescaler bit 3

4 TPCR2L.4 Prescaler bit 4

User manual Rev. 01 — 4 March 2005 61 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 46: CCU prescaler control register, low byte (TPCR2L - address CAh) bit description

Bit Symbol Description

5 TPCR2L.5 Prescaler bit 5

6 TPCR2L.6 Prescaler bit 6

7 TPCR2L.7 Prescaler bit 7

Table 47: CCU control register 0 (TCR20 - address C8h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol PLLEN HLTRN HLTEN ALTCD ALTAB TDIR2 TMOD21 TMOD20

Reset00000000

Table 48: CCU control register 0 (TCR20 - address C8h) bit description

Bit Symbol Description

1:2 TMOD20/21 CCU Timer mode (TMOD21, TMOD20):

00 — Timer is stopped

01 — Basic timer function

10 — Asymmetrical PWM (uses PLL as clock source)

11 — Symmetrical PWM (uses PLL as clock source)

2 TDIR2 Count direction of the CCU Timer. When logic 0, count up, When logic 1, count down.

3 ALTAB PWM channel A/B alternately output enable. When this bit is set, the output of PWM channel A and B

are alternately gated on every counter cycle.

4 ALTCD PWM channel C/D alternately output enable. When this bit is set, the output of PWM channel C and D

are alternately gated on every counter cycle.

5 HLTEN PWM Halt Enable. When logic 1, a capture event as enabled for Input Capture A pin will immediately

stop all activity on the PWM pins and set them to a predetermined state.

6 HLTRN PWM Halt. When set indicates a halt took place. In order to re-activate the PWM, the user must clear

the HLTRN bit.

7 PLLEN Phase Locked Loop Enable. When set to logic 1, starts PLL operation. After the PLL is in lock this bit it

will read back a one.

10.4 Output compare

The four output compare channels A, B, C and D are controlled through four 16-bit SFRs, OCRAH:OCRAL, OCRBH:OCRBL, OCRCH:OCRCL, OCRDH: OCRDL. Each output compare channel needs to be enabled in order to operate. The channel is enabled by selecting a Compare Output Action by setting the OCMx1:0 bits in the Capture Compare x Control Register – CCCRx (x = A, B, C, D). When a compare channel is enabled, the user will have to set the associated I/O pin to the desired output mode to connect the pin. (Note: The SFR bits for port pins P2.6, P1.6, P1.7, P2.1 must be set to logic 1 in order for the compare channel outputs to be visible at the port pins.) When the contents of TH2:TL2 match that of OCRxH:OCRxL, the Timer Output Compare Interrupt Flag - TOCFx is set in TIFR2. This happens in the CCUCLK cycle after the compare takes place. If EA and the Timer Output Compare Interrupt Enable bit – TOCIE2x (in TICR2 register), as well as ECCU bit in IEN1 are all set, the program counter will be vectored to the corresponding interrupt. The user must manually clear the bit by writing a logic 0 to it.

Two bits in OCCRx, the Output Compare x Mode bits OCMx1 and OCMx0 select what action is taken when a compare match occurs. Enabled compare actions take place even if the interrupt is disabled.

User manual Rev. 01 — 4 March 2005 62 of 147

Philips Semiconductors

P89LPC933/934/935/936 User manual

In order for a Compare Output Action to occur, the compare values must be within the counting range of the CCU timer.

When the compare channel is enabled, the I/O pin (which must be configured as an output) will be connected to an internal latch controlled by the compare logic. The value of this latch is zero from reset and can be changed by invoking a forced compare. A forced compare is generated by writing a logic 1 to the Force Compare x Output bit – FCOx bit in OCCRx. Writing a one to this bit generates a transition on the corresponding I/O pin as set up by OCMx1/OCMx0 without causing an interrupt. In basic timer operating mode the FCOx bits always read zero. (Note: This bit has a different function in PWM mode.) When an output compare pin is enabled and connected to the compare latch, the state of the compare pin remains unchanged until a compare event or forced compare occurs.

Table 49: Capture compare control register (CCRx - address Exh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol ICECx2 ICECx1 ICECx0 ICESx ICNFx FCOx OCMx1 OCMx0

Reset00000000

Table 50: Capture compare control register (CCRx - address Exh) bit description

Bit Symbol Description

0 OCMx0 Output Compare x Mode. See

1OCMx1

2 FCOx Force Compare X Output Bit. When set, invoke a force compare.

3 ICNFx Input Capture x Noise Filter Enable Bit. When logic 1, the capture logic needs to see four consecutive

samples of the same value in order to recognize an edge as a capture event. The inputs are sampled every two CCLK periods regardless of the speed of the timer.

4 ICESx Input Capture x Edge Select Bit. When logic 0: Negative edge triggers a capture, When logic 1: Positive

edge triggers a capture.

5 ICECx0 Capture Delay Setting Bit 0. See Ta bl e 5 1

6 ICECx1 Capture Delay Setting Bit 1. See Ta bl e 5 1

7 ICECx2 Capture Delay Setting Bit 2. See Ta bl e 5 1

for details.

UM10116

When the user writes to change the output compare value, the values written to OCRH2x and OCRL2x are transferred to two 8-bit shadow registers. In order to latch the contents of the shadow registers into the capture compare register, the user must write a logic 1 to the CCU Timer Compare/Overflow Update bit TCOU2, in the CCU Control Register 1 TCR21. The function of this bit depends on whether the timer is running in PWM mode or in basic timer mode. In basic timer mode, writing a one to TCOU2 will cause the values to be latched immediately and the value of TCOU2 will always read as zero. In PWM mode, writing a one to TCOU2 will cause the contents of the shadow registers to be updated on the next CCU Timer overflow. As long as the latch is pending, TCOU2 will read as one and will return to zero when the latch takes place. TCOU2 also controls the latching of all the Output Compare registers as well as the Timer Overflow Reload registers - TOR2.

10.5 Input capture

Input capture is always enabled. Each time a capture event occurs on one of the two input capture pins, the contents of the timer is transferred to the corresponding 16-bit input capture register ICRAH:ICRAL or ICRBH:ICRBL. The capture event is defined by the

User manual Rev. 01 — 4 March 2005 63 of 147

Philips Semiconductors

Input Capture Edge Select – ICESx bit (x being A or B) in the CCCRx register. The user will have to configure the associated I/O pin as an input in order for an external event to trigger a capture.

A simple noise filter can be enabled on the input capture input. When the Input Capture Noise Filter ICNFx bit is set, the capture logic needs to see four consecutive samples of the same value in order to recognize an edge as a capture event. The inputs are sampled every two CCLK periods regardless of the speed of the timer.

An event counter can be set to delay a capture by a number of capture events. The three bits ICECx2, ICECx1 and ICECx0 in the CCCRx register determine the number of edges the capture logic has to see before an input capture occurs.

When a capture event is detected, the Timer Input Capture x (x is A or B) Interrupt Flag – TICF2x (TIFR2.1 or TIFR2.0) is set. If EA and the Timer Input Capture x Enable bit – TICIE2x (TICR2.1 or TICR2.0) is set as well as the ECCU (IEN1.4) bit is set, the program counter will be vectored to the corresponding interrupt. The interrupt flag must be cleared manually by writing a logic 0 to it.

When reading the input capture register, ICRxL must be read first. When ICRxL is read, the contents of the capture register high byte are transferred to a shadow register. When ICRxH is read, the contents of the shadow register are read instead. (If a read from ICRxL is followed by another read from ICRxL without ICRxH being read in between, the new value of the capture register high byte (from the last ICRxL read) will be in the shadow register).

UM10116

P89LPC933/934/935/936 User manual

Table 51: Event delay counter for input capture

ICECx2 ICECx1 ICECx0 Delay (numbers of edges)

0000

0011

0102

0113

1004

1015

1107

11115

10.6 PWM operation

PWM Operation has two main modes, asymmetrical and symmetrical. These modes of timer operation are selected by writing 10H or 11H to TMOD21:TMOD20 as shown in

Section 10.3 “

In asymmetrical PWM operation, the CCU Timer operates in downcounting mode regardless of the setting of TDIR2. In this case, TDIR2 will always read 1.

In symmetrical mode, the timer counts up/down alternately and the value of TDIR2 has no effect. The main difference from basic timer operation is the operation of the compare module, which in PWM mode is used for PWM waveform generation. Ta bl e 5 2 behavior of the compare pins in PWM mode.

Basic timer operation”.

shows the

User manual Rev. 01 — 4 March 2005 64 of 147

Philips Semiconductors

The user will have to configure the output compare pins as outputs in order to enable the PWM output. As with basic timer operation, when the PWM (compare) pins are connected to the compare logic, their logic state remains unchanged. However, since the bit FCO is used to hold the halt value, only a compare event can change the state of the pin.

Fig 25. Asymmetrical PWM, downcounting.

UM10116

P89LPC933/934/935/936 User manual

TOR2

compare value

timer value

0x0000

non-inverted

inverted

002aaa89

TOR2

compare value

timer value

non-inverted

inverted

Fig 26. Symmetrical PWM.

The CCU Timer Overflow interrupt flag is set when the counter changes direction at the top. For example, if TOR contains 01FFH, CCU Timer will count: …01FEH, 01FFH, 01FEH,… The flag is set in the counter cycle after the change from TOR to TOR-1.

When the timer changes direction at the bottom, in this example, it counts …,0001H, 0000H, 0001H,… The CCU Timer overflow interrupt flag is set in the counter CCUCLK cycle after the transition from 0001H to 0000H.

The status of the TDIR2 bit in TCR20 reflects the current counting direction. Writing to this bit while operating in symmetrical mode has no effect.

002aaa894

10.7 Alternating output mode

In asymmetrical mode, the user can program PWM channels A/B and C/D as alternating pairs for bridge drive control. By setting ALTAB or ALTCD bits in TCR20, the output of these PWM channels are alternately gated on every counter cycle. This is shown in the following figure:

User manual Rev. 01 — 4 March 2005 65 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

TOR2

compare value A (or C)

compare value B (or D)

PWM output A (or C) (P2.6)

PWM output B (or D) (P1.6)

Fig 27. Alternate output mode.

Table 52: Output compare pin behavior

OCMx1

0 0 Output compare disabled. On power-on, this is the default state, and pins

0 1 Set when compare in

1 0 Inverted PWM. Cleared

1 1 Toggles on compare

[1]

OCMx0

timer value

002aaa895

[1]

Output Compare pin behavior

Basic timer mode Asymmetrical PWM Symmetrical PWM

are configured as inputs.

operation. Cleared on compare match.

[2]

match

Non-Inverted PWM. Set on compare match. Cleared on CCU Timer underflow.

on compare match. Set on CCU Timer underflow.

[2]

Non-Inverted PWM. Cleared on compare match, upcounting. Set on compare match, downcounting.

Inverted PWM. Set on compare match, upcounting. Cleared on compare match, downcounting.

[2]

[1] x = A, B, C, D

[2] ‘ON’ means in the CCUCLK cycle after the event takes place.

10.8 Synchronized PWM register update

When the OCRx registers are written, a built in mechanism ensures that the value is not updated in the middle of a PWM pulse. This could result in an odd-length pulse. When the registers are written, the values are placed in two shadow registers, as is the case in basic timer operation mode. Writing to TCOU2 will cause the contents of the shadow registers to be updated on the next CCU Timer overflow. If OCRxH and/or OCRxL are read before the value is updated, the most currently written value is read.

10.9 HALT

Setting the HLTEN bit in TCR20 enables the PWM Halt Function. When halt function is enabled, a capture event as enabled for the Input Capture A pin will immediately stop all activity on the PWM pins and set them to a predetermined state defined by FCOx bit. In PWM Mode, the FCOx bits in the CCCRx register hold the value the pin is forced to during halt. The value of the setting can be read back. The capture function and the interrupt will still operate as normal even if it has this added functionality enabled. When the PWM unit

User manual Rev. 01 — 4 March 2005 66 of 147

Philips Semiconductors

is halted, the timer will still run as normal. The HLTRN bit in TCR20 will be set to indicate that a halt took place. In order to re-activate the PWM, the user must clear the HLTRN bit. The user can force the PWM unit into halt by writing a logic 1 to HLTRN bit.

10.10 PLL operation

The PWM module features a Phase Locked Loop that can be used to generate a CCUCLK frequency between 16 MHz and 32 MHz. At this frequency the PWM module provides ultrasonic PWM frequency with 10-bit resolution provided that the crystal frequency is 1 MHz or higher (The PWM resolution is programmable up to 16 bits by writing to TOR2H:TOR2L). The PLL is fed an input signal of 0.5 MHz to 1 MHz and generates an output signal of 32 times the input frequency. This signal is used to clock the timer. The user will have to set a divider that scales PCLK by a factor of 1 to 16. This divider is found in the SFR register TCR21. The PLL frequency can be expressed as follows:

PLL frequency = PCLK / (N+1)

Where: N is the value of PLLDV3:0.

UM10116

P89LPC933/934/935/936 User manual

Since N ranges in 0 to 15, the CCLK frequency can be in the range of PCLK to

Table 53: CCU control register 1 (TCR21 - address F9h) bit allocation

Bit 7 6 5 4 3 2 1 0

SymbolTCOU2---PLLDV.3PLLDV.2PLLDV.1PLLDV.0

Reset0xxx0000

Table 54: CCU control register 1 (TCR21 - address F9h) bit description

Bit Symbol Description

0:3 PLLDV.3:0 PLL frequency divider.

4:6 - Reserved.

7 TCOU2 In basic timer mode, writing a logic 1 to TCOU2 will cause the values to be latched immediately and the

value of TCOU2 will always read as logic 0. In PWM mode, writing a logic 1 to TCOU2 will cause the contents of the shadow registers to be updated on the next CCU Timer overflow. As long as the latch is pending, TCOU2 will read as logic 1 and will return to logic 0 when the latching takes place. TCOU2 also controls the latching of the Output Compare registers OCRAx, OCRBx and OCRCx.

Setting the PLLEN bit in TCR20 starts the PLL. When PLLEN is set, it will not read back a one until the PLL is in lock. At this time, the PWM unit is ready to operate and the timer can be enabled. The following start-up sequence is recommended:

1. Set up the PWM module without starting the timer.

2. Calculate the right division factor so that the PLL receives an input clock signal of 500 kHz - 1 MHz. Write this value to PLLDV.

3. Set PLLEN. Wait until the bit reads one

4. Start the timer by writing a value to bits TMOD21, TMOD20

PCLK

⁄16.

When the timer runs from the PLL, the timer operates asynchronously to the rest of the microcontroller. Some restrictions apply:

• The user is discouraged from writing or reading the timer in asynchronous mode. The

results may be unpredictable

User manual Rev. 01 — 4 March 2005 67 of 147

Philips Semiconductors

• Interrupts and flags are asynchronous. There will be delay as the event may not

actually be recognized until some CCLK cycles later (for interrupts and reads)

10.11 CCU interrupt structure

There are seven independent sources of interrupts in the CCU: timer overflow, captured input events on Input Capture blocks A/B, and compare match events on Output Compare blocks A through D. One common interrupt vector is used for the CCU service routine and interrupts can occur simultaneously in system usage. To resolve this situation, a priority encode function of the seven interrupt bits in TIFR2 SFR is implemented (after each bit is AND-ed with the corresponding interrupt enable bit in the TICR2 register). The order of priority is fixed as follows, from highest to lowest:

• TOIF2

• TICF2A

• TICF2B

• TOCF2A

• TOCF2B

• TOCF2C

• TOCF2D

UM10116

P89LPC933/934/935/936 User manual

An interrupt service routine for the CCU can be as follows:

1. Read the priority-encoded value from the TISE2 register to determine the interrupt source to be handled.

2. After the current (highest priority) event is serviced, write a logic 0 to the corresponding interrupt flag bit in the TIFR2 register to clear the flag.

3. Read the TISE2 register. If the priority-encoded interrupt source is ‘000’, all CCU interrupts are serviced and a return from interrupt can occur. Otherwise, return to step

for the next interrupt.

User manual Rev. 01 — 4 March 2005 68 of 147

Philips Semiconductors

EA (IEN0.7)

ECCU (IEN1.4)

TOIE2 (TICR2.7)

TOIF2 (TIFR2.7)

TICIE2A (TICR2.0)

TICF2A (TIFR2.0)

TICIE2B (TICR2.1)

TICF2B (TIFR2.1)

TOCIE2A (TICR2.3)

TOCF2A (TIFR2.3)

TOCIE2B (TICR2.4)

TOCF2B (TIFR2.4)

TOCIE2C (TICR2.5)

TOCF2C (TIFR2.5)

TOCIE2D (TICR2.6)

TOCF2D (TIFR2.6)

interrupt

sources

PRIORITY

ENCODER

UM10116

P89LPC933/934/935/936 User manual

interrupt to

other

CPU

ENCINT.0

ENCINT.1

ENCINT.2

002aaa896

Fig 28. Capture/compare unit interrupts.

Table 55: CCU interrupt status encode register (TISE2 - address DEh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol-----ENCINT.2ENCINT.1ENCINT.0

Resetxxxxx000

Table 56: CCU interrupt status encode register (TISE2 - address DEh) bit description

Bit Symbol Description

2:0 ENCINT.2:0 CCU Interrupt Encode output. When multiple interrupts happen, more than one interrupt flag is set in

CCU Interrupt Flag Register (TIFR2). The encoder output can be read to determine which interrupt is to be serviced. The user must write a logic 0 to clear the corresponding interrupt flag bit in the TIFR2 register after the corresponding interrupt has been serviced. Refer to Ta b le 5 8

000 — No interrupt pending.

001 — Output Compare Event D interrupt (lowest priority)

010 — Output Compare Event C interrupt.

011 — Output Compare Event B interrupt.

100 — Output Compare Event A interrupt.

101 — Input Capture Event B interrupt.

110 — Input Capture Event A interrupt.

111 — CCU Timer Overflow interrupt (highest priority).

3:7 - Reserved.

for TIFR2 description.

User manual Rev. 01 — 4 March 2005 69 of 147

Philips Semiconductors

P89LPC933/934/935/936 User manual

Table 57: CCU interrupt flag register (TIFR2 - address E9h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol TOIF2 TOCF2D TOCF2C TOCF2B TOCF2A - TICF2B TICF2A

Reset00000x00

Table 58: CCU interrupt flag register (TIFR2 - address E9h) bit description

Bit Symbol Description

0 TICF2A Input Capture Channel A Interrupt Flag Bit. Set by hardware when an input capture event is detected.

Cleared by software.

1 TICF2B Input Capture Channel B Interrupt Flag Bit. Set by hardware when an input capture event is detected.

Cleared by software.

2 - Reserved for future use. Should not be set to logic 1 by user program.

3 TOCF2A Output Compare Channel A Interrupt Flag Bit. Set by hardware when the contents of TH2:TL2 match that

of OCRHA:OCRLA. Compare channel A must be enabled in order to generate this interrupt. If EA bit in IEN0, ECCU bit in IEN1 and TOCIE2A bit are all set, the program counter will vectored to the corresponding interrupt. Cleared by software.

4 TOCF2B Output Compare Channel B Interrupt Flag Bit. Set by hardware when the contents of TH2:TL2 match that

of OCRHB:OCRLB. Compare channel B must be enabled in order to generate this interrupt. If EA bit in IEN0, ECCU bit in IEN1 and TOCIE2B bit are set, the program counter will vectored to the corresponding interrupt. Cleared by software.

5 TOCF2C Output Compare Channel C Interrupt Flag Bit. Set by hardware when the contents of TH2:TL2 match that

of OCRHC:OCRLC. Compare channel C must be enabled in order to generate this interrupt. If EA bit in IEN0, ECCU bit in IEN1 and TOCIE2C bit are all set, the program counter will vectored to the corresponding interrupt. Cleared by software.

6 TOCF2D Output Compare Channel D Interrupt Flag Bit. Set by hardware when the contents of TH2:TL2 match that

of OCRHD:OCRLD. Compare channel D must be enabled in order to generate this interrupt. If EA bit in IEN0, ECCU bit in IEN1 and TOCIE2D bit are all set, the program counter will vectored to the corresponding interrupt. Cleared by software.

7 TOIF2 CCU Timer Overflow Interrupt Flag bit. Set by hardware on CCU Timer overflow. Cleared by software.

UM10116

Table 59: CCU interrupt control register (TICR2 - address C9h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol TOIE2 TOCIE2D TOCIE2C TOCIE2B TOCIE2A - TICIE2B TICIE2A

Reset00000x00

Table 60: CCU interrupt control register (TICR2 - address C9h) bit description

Bit Symbol Description

0 TICIE2A Input Capture Channel A Interrupt Enable Bit. If EA bit and this bit all be set, when a capture event is

detected, the program counter will vectored to the corresponding interrupt.

1 TICIE2B Input Capture Channel B Interrupt Enable Bit. If EA bit and this bit all be set, when a capture event is

detected, the program counter will vectored to the corresponding interrupt.

2 - Reserved for future use. Should not be set to logic 1 by user program.

3 TOCIE2A Output Compare Channel A Interrupt Enable Bit. If EA bit and this bit are set to 1, when compare channel

is enabled and the contents of TH2:TL2 match that of OCRHA:OCRLA, the program counter will vectored to the corresponding interrupt.

4 TOCIE2B Output Compare Channel B Interrupt Enable Bit. If EA bit and this bit are set to 1, when compare channel

B is enabled and the contents of TH2:TL2 match that of OCRHB:OCRLB, the program counter will vectored to the corresponding interrupt.

User manual Rev. 01 — 4 March 2005 70 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 60: CCU interrupt control register (TICR2 - address C9h) bit description

Bit Symbol Description

5 TOCIE2C Output Compare Channel C Interrupt Enable Bit. If EA bit and this bit are set to 1, when compare channel

C is enabled and the contents of TH2:TL2 match that of OCRHC:OCRLC, the program counter will vectored to the corresponding interrupt.

6 TOCIE2D Output Compare Channel D Interrupt Enable Bit. If EA bit and this bit are set to 1, when compare channel

D is enabled and the contents of TH2:TL2 match that of OCRHD:OCRLD, the program counter will vectored to the corresponding interrupt.

7 TOIE2 CCU Timer Overflow Interrupt Enable bit.

…continued

11. UART

The P89LPC933/934/935/936 has an enhanced UART that is compatible with the conventional 80C51 UART except that Timer 2 overflow cannot be used as a baud rate source. The P89LPC933/934/935/936 does include an independent Baud Rate Generator. The baud rate can be selected from the oscillator (divided by a constant), Timer 1 overflow, or the independent Baud Rate Generator. In addition to the baud rate generation, enhancements over the standard 80C51 UART include Framing Error detection, break detect, automatic address recognition, selectable double buffering and several interrupt options.

The UART can be operated in 4 modes, as described in the following sections.

11.1 Mode 0

Serial data enters and exits through RxD. TxD outputs the shift clock. 8 bits are transmitted or received, LSB first. The baud rate is fixed at

11.2 Mode 1

10 bits are transmitted (through TxD) or received (through RxD): a start bit (logic 0), 8 data bits (LSB first), and a stop bit (logic 1). When data is received, the stop bit is stored in RB8 in Special Function Register SCON. The baud rate is variable and is determined by the Timer 1 overflow rate or the Baud Rate Generator (see Section 11.6 “

generator and selection” on page 72).

11.3 Mode 2

11 bits are transmitted (through TxD) or received (through RxD): start bit (logic 0), 8 data bits (LSB first), a programmable 9th data bit, and a stop bit (logic 1). When data is transmitted, the 9th data bit (TB8 in SCON) can be assigned the value of 0 or 1. Or, for example, the parity bit (P, in the PSW) could be moved into TB8. When data is received, the 9th data bit goes into RB8 in Special Function Register SCON and the stop bit is not saved. The baud rate is programmable to either determined by the SMOD1 bit in PCON.

⁄16 of the CPU clock frequency.

Baud Rate

⁄16 or 1⁄32 of the CCLK frequency, as

User manual Rev. 01 — 4 March 2005 71 of 147

Philips Semiconductors

11.4 Mode 3

11 bits are transmitted (through TxD) or received (through RxD): a start bit (logic 0), 8 data bits (LSB first), a programmable 9th data bit, and a stop bit (logic 1). Mode 3 is the same as Mode 2 in all respects except baud rate. The baud rate in Mode 3 is variable and is determined by the Timer 1 overflow rate or the Baud Rate Generator (see Section 11.6

“Baud Rate generator and selection” on page 72).

In all four modes, transmission is initiated by any instruction that uses SBUF as a destination register. Reception is initiated in Mode 0 by the condition RI = 0 and REN = 1. Reception is initiated in the other modes by the incoming start bit if REN = 1.

11.5 SFR space

The UART SFRs are at the following locations:

Table 61: UART SFR addresses

PCON Power Control 87H

SCON Serial Port (UART) Control 98H

SBUF Serial Port (UART) Data Buffer 99H

SADDR Serial Port (UART) Address A9H

SADEN Serial Port (UART) Address Enable B9H

SSTAT Serial Port (UART) Status BAH

BRGR1 Baud Rate Generator Rate High Byte BFH

BRGR0 Baud Rate Generator Rate Low Byte BEH

BRGCON Baud Rate Generator Control BDH

UM10116

P89LPC933/934/935/936 User manual

11.6 Baud Rate generator and selection

The P89LPC933/934/935/936 enhanced UART has an independent Baud Rate Generator. The baud rate is determined by a value programmed into the BRGR1 and BRGR0 SFRs. The UART can use either Timer 1 or the baud rate generator output as determined by BRGCON[2:1] (see Figure 29 the SMOD1 bit (PCON.7) is set. The independent Baud Rate Generator uses CCLK.

). Note that Timer T1 is further divided by 2 if

11.7 Updating the BRGR1 and BRGR0 SFRs

The baud rate SFRs, BRGR1 and BRGR0 must only be loaded when the Baud Rate Generator is disabled (the BRGEN bit in the BRGCON register is logic 0). This avoids the loading of an interim value to the baud rate generator. (CAUTION: If either BRGR0 or

BRGR1 is written when BRGEN = 1, the result is unpredictable.)

Table 62: UART baud rate generation

SCON.7 (SM0)

00XX

0100

User manual Rev. 01 — 4 March 2005 72 of 147

SCON.6 (SM1)

PCON.7 (SMOD1)

BRGCON.1 (SBRGS)

Receive/transmit baud rate for UART

CCLK

⁄

CCLK

⁄

(256−TH1)64

CCLK

⁄

(256−TH1)32

CCLK

⁄

((BRGR1, BRGR0)+16)

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 62: UART baud rate generation

SCON.7 (SM0)

100X

1100

Table 63: Baud Rate Generator Control register (BRGCON - address BDh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol-------SBRGSBRGEN

Resetxxxxxx0 0

Table 64: Baud Rate Generator Control register (BRGCON - address BDh) bit description

Bit Symbol Description

0 BRGEN Baud Rate Generator Enable. Enables the baud rate generator. BRGR1 and

1 SBRGS Select Baud Rate Generator as the source for baud rates to UART in modes 1 and

2:7 - reserved

SCON.6 (SM1)

BRGR0 can only be written when BRGEN = 0.

3 (see Ta bl e 6 2

PCON.7 (SMOD1)

for details)

…continued

BRGCON.1 (SBRGS)

Receive/transmit baud rate for UART

CCLK

⁄

CCLK

⁄

CCLK

⁄

(256−TH1)64

CCLK

⁄

(256−TH1)32

CCLK

⁄

((BRGR1, BRGR0)+16)

timer 1 overflow

(PCLK-based)

baud rate generator

(CCLK-based)

Fig 29. Baud rate generation for UART (Modes 1, 3).

11.8 Framing error

A Framing error occurs when the stop bit is sensed as a logic 0. A Framing error is reported in the status register (SSTAT). In addition, if SMOD0 (PCON.6) is 1, framing errors can be made available in SCON.7. If SMOD0 is 0, SCON.7 is SM0. It is recommended that SM0 and SM1 (SCON[7:6]) are programmed when SMOD0 is logic 0.

11.9 Break detect

A break detect is reported in the status register (SSTAT). A break is detected when any 11 consecutive bits are sensed low. Since a break condition also satisfies the requirements for a framing error, a break condition will also result in reporting a framing error. Once a break condition has been detected, the UART will go into an idle state and remain in this idle state until a stop bit has been received. The break detect can be used to reset the device and force the device into ISP mode by setting the EBRR bit (AUXR1.6)

÷2

SMOD1 = 1

SMOD1 = 0

SBRGS = 0

SBRGS = 1

baud rate modes 1 and 3

002aaa897

User manual Rev. 01 — 4 March 2005 73 of 147

Philips Semiconductors

Table 65: Serial Port Control register (SCON - address 98h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol SM0/FE SM1 SM2 REN TB8 RB8 TI RI

Resetxxxxxx00

Table 66: Serial Port Control register (SCON - address 98h) bit description

Bit Symbol Description

0 RI Receive interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or

1 TI Transmit interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or

2 RB8 The 9th data bit that was received in Modes 2 and 3. In Mode 1 (SM2 must be 0),

3 TB8 The 9th data bit that will be transmitted in Modes 2 and 3. Set or clear by software

4 REN Enables serial reception. Set by software to enable reception. Clear by software to

5 SM2 Enables the multiprocessor communication feature in Modes 2 and 3. In Mode 2 or

6 SM1 With SM0 defines the serial port mode, see Ta bl e 6 7

7 SM0/FE The use of this bit is determined by SMOD0 in the PCON register. If SMOD0 = 0,

UM10116

P89LPC933/934/935/936 User manual

approximately halfway through the stop bit time in Mode 1. For Mode 2 or Mode 3, if SMOD0, it is set near the middle of the 9th data bit (bit 8). If SMOD0 = 1, it is set near the middle of the stop bit (see SM2 - SCON.5 - for exceptions). Must be cleared by software.

at the stop bit (see description of INTLO bit in SSTAT register) in the other modes. Must be cleared by software.

RB8 is the stop bit that was received. In Mode 0, RB8 is undefined.

as desired.

disable reception.

3, if SM2 is set to 1, then Rl will not be activated if the received 9th data bit (RB8) is 0. In Mode 0, SM2 should be 0. In Mode 1, SM2 must be 0.

this bit is read and written as SM0, which with SM1, defines the serial port mode. If SMOD0 = 1, this bit is read and written as FE (Framing Error). FE is set by the receiver when an invalid stop bit is detected. Once set, this bit cannot be cleared by valid frames but is cleared by software. (Note: UART mode bits SM0 and SM1 should be programmed when SMOD0 is logic 0 - default mode on any reset.)

Table 67: Serial Port modes

SM0, SM1 UART mode UART baud rate

CCLK

00 Mode 0: shift register

01 Mode 1: 8-bit UART Variable (see Ta bl e 6 2

10 Mode 2: 9-bit UART

11 Mode 3: 9-bit UART Variable (see Tab l e 6 2 )

Table 68: Serial Port Status register (SSTAT - address BAh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol DBMOD INTLO CIDISDBISELFE BR OE STINT

Resetxxxxxx00

User manual Rev. 01 — 4 March 2005 74 of 147

⁄16 (default mode on any reset)

)

CCLK

⁄32 or

CCLK

⁄

Philips Semiconductors

Table 69: Serial Port Status register (SSTAT - address BAh) bit description

Bit Symbol Description

0 STINT Status Interrupt Enable. When set = 1, FE, BR, or OE can cause an interrupt. The

1 OE Overrun Error flag is set if a new character is received in the receiver buffer while it

2 BR Break Detect flag. A break is detected when any 11 consecutive bits are sensed

3 FE Framing error flag is set when the receiver fails to see a valid STOP bit at the end

4 DBISEL Double buffering transmit interrupt select. Used only if double buffering is enabled.

5 CIDIS Combined Interrupt Disable. When set = 1, Rx and Tx interrupts are separate.

6 INTLO Transmit interrupt position. When cleared = 0, the Tx interrupt is issued at the

7 DBMOD Double buffering mode. When set = 1 enables double buffering. Must be logic 0 for

UM10116

P89LPC933/934/935/936 User manual

interrupt used (vector address 0023h) is shared with RI (CIDIS = 1) or the combined TI/RI (CIDIS = 0). When cleared = 0, FE, BR, OE cannot cause an interrupt. (Note: FE, BR, or OE is often accompanied by a RI, which will generate an interrupt regardless of the state of STINT). Note that BR can cause a break detect reset if EBRR (AUXR1.6) is set to logic 1.

is still full (before the software has read the previous character from the buffer), i.e., when bit 8 of a new byte is received while RI in SCON is still set. Cleared by software.

low. Cleared by software.

of the frame. Cleared by software.

This bit controls the number of interrupts that can occur when double buffering is enabled. When set, one transmit interrupt is generated after each character written to SBUF, and there is also one more transmit interrupt generated at the beginning (INTLO = 0) or the end (INTLO = 1) of the STOP bit of the last character sent (i.e., no more data in buffer). This last interrupt can be used to indicate that all transmit operations are over. When cleared = 0, only one transmit interrupt is generated per character written to SBUF. Must be logic 0 when double buffering is disabled. Note that except for the first character written (when buffer is empty), the location of the transmit interrupt is determined by INTLO. When the first character is written, the transmit interrupt is generated immediately after SBUF is written.

When cleared = 0, the UART uses a combined Tx/Rx interrupt (like a conventional 80C51 UART). This bit is reset to logic 0 to select combined interrupts.

beginning of the stop bit. When set = 1, the Tx interrupt is issued at end of the stop bit. Must be logic 0 for mode 0. Note that in the case of single buffering, if the Tx interrupt occurs at the end of a STOP bit, a gap may exist before the next start bit.

UART mode 0. In order to be compatible with existing 80C51 devices, this bit is reset to logic 0 to disable double buffering.

11.10 More about UART Mode 0

In Mode 0, a write to SBUF will initiate a transmission. At the end of the transmission, TI (SCON.1) is set, which must be cleared in software. Double buffering must be disabled in this mode.

Reception is initiated by clearing RI (SCON.0). Synchronous serial transfer occurs and RI will be set again at the end of the transfer. When RI is cleared, the reception of the next character will begin. Refer to Figure 30

User manual Rev. 01 — 4 March 2005 75 of 147

Philips Semiconductors

write to

SBUF

shift

RXD (data out)

TXD (shift clock)

WRITE to SCON

(clear RI)

shift

RXD

(data in)

TxD (shift clock)

UM10116

P89LPC933/934/935/936 User manual

S1 ... S16 S1 ... S16 S1 ... S16 S1 ... S16S1 ... S16S1 ... S16 S1 ... S16 S1 ... S16 S1 ... S16 S1 ... S16S1 ... S16S1 ... S16 S1 ... S16

transmit

D0 D1 D5D2 D6D3 D4 D7

receive

D0 D1 D5D2 D6D3 D4 D7

002aaa925

Fig 30. Serial Port Mode 0 (double buffering must be disabled).

11.11 More about UART Mode 1

Reception is initiated by detecting a 1-to-0 transition on RxD. RxD is sampled at a rate 16 times the programmed baud rate. When a transition is detected, the divide-by-16 counter is immediately reset. Each bit time is thus divided into 16 counter states. At the 7th, 8th, and 9th counter states, the bit detector samples the value of RxD. The value accepted is the value that was seen in at least 2 of the 3 samples. This is done for noise rejection. If the value accepted during the first bit time is not 0, the receive circuits are reset and the receiver goes back to looking for another 1-to-0 transition. This provides rejection of false start bits. If the start bit proves valid, it is shifted into the input shift register, and reception of the rest of the frame will proceed.

The signal to load SBUF and RB8, and to set RI, will be generated if, and only if, the following conditions are met at the time the final shift pulse is generated: RI = 0 and either SM2 = 0 or the received stop bit = 1. If either of these two conditions is not met, the received frame is lost. If both conditions are met, the stop bit goes into RB8, the 8 data bits go into SBUF, and RI is activated.

User manual Rev. 01 — 4 March 2005 76 of 147

Philips Semiconductors

TX clock

write to

SBUF

shift

TxD

clock

RxD

shift

÷16 reset

Fig 31. Serial Port Mode 1 (only single transmit buffering case is shown).

start

bit

D0 D1 D5D2 D6D3 D4 D7

start

D0 D1 D5D2 D6D3 D4 D7

bit

UM10116

P89LPC933/934/935/936 User manual

transmit

stop bit

INTLO = 0

INTLO = 1

stop bit

receive

002aaa92

TX clock

write to

SBUF

shift

TxD

clock

RxD

shift

11.12 More about UART Modes 2 and 3

Reception is the same as in Mode 1.

The signal to load SBUF and RB8, and to set RI, will be generated if, and only if, the following conditions are met at the time the final shift pulse is generated. (a) RI = 0, and (b) Either SM2 = 0, or the received 9th data bit = 1. If either of these conditions is not met, the received frame is lost, and RI is not set. If both conditions are met, the received 9th data bit goes into RB8, and the first 8 data bits go into SBUF.

start

÷16 reset

D0 D1 D5D2 D6D3 D4 D7

bit

start

D0 D1 D5D2 D6D3 D4 D7

bit

TB8

stop bit

INTLO = 0 INTLO = 1

RB8

stop bit

SMOD0 = 0 SMOD0 = 1

transmit

receive

002aaa92

Fig 32. Serial Port Mode 2 or 3 (only single transmit buffering case is shown).

11.13 Framing error and RI in Modes 2 and 3 with SM2 = 1

If SM2 = 1 in modes 2 and 3, RI and FE behaves as in the following table.

User manual Rev. 01 — 4 March 2005 77 of 147

Philips Semiconductors

Table 70: FE and RI when SM2= 1 in Modes 2 and 3

Mode PCON.6

2 0 0 No RI when RB8 = 0 Occurs during STOP

3 1 0 No RI when RB8 = 0 Will NOT occur

11.14 Break detect

A break is detected when 11 consecutive bits are sensed low and is reported in the status register (SSTAT). For Mode 1, this consists of the start bit, 8 data bits, and two stop bit times. For Modes 2 and 3, this consists of the start bit, 9 data bits, and one stop bit. The break detect bit is cleared in software or by a reset. The break detect can be used to reset the device and force the device into ISP mode. This occurs if the UART is enabled and the the EBRR bit (AUXR1.6) is set and a break occurs.

(SMOD0)

P89LPC933/934/935/936 User manual

RB8 RI FE

bit

1 Similar to Figure 32

occurs during RB8, one bit before FE

[32]

1 Similar to

during STOP bit

, with SMOD0 = 1, RI occurs

, with SMOD0 = 0, RI

Occurs during STOP bit

UM10116

11.15 Double buffering

The UART has a transmit double buffer that allows buffering of the next character to be written to SBUF while the first character is being transmitted. Double buffering allows transmission of a string of characters with only one stop bit between any two characters, provided the next character is written between the start bit and the stop bit of the previous character.

Double buffering can be disabled. If disabled (DBMOD, i.e. SSTAT.7 = 0), the UART is compatible with the conventional 80C51 UART. If enabled, the UART allows writing to SnBUF while the previous data is being shifted out.

11.16 Double buffering in different modes

Double buffering is only allowed in Modes 1, 2 and 3. When operated in Mode 0, double buffering must be disabled (DBMOD = 0).

11.17 Transmit interrupts with double buffering enabled (Modes 1, 2, and 3)

Unlike the conventional UART, when double buffering is enabled, the Tx interrupt is generated when the double buffer is ready to receive new data. The following occurs during a transmission (assuming eight data bits):

1. The double buffer is empty initially.

2. The CPU writes to SBUF.

3. The SBUF data is loaded to the shift register and a Tx interrupt is generated immediately.

4. If there is more data, go to 6, else continue.

5. If there is no more data, then:

– If DBISEL is logic 0, no more interrupts will occur.

User manual Rev. 01 — 4 March 2005 78 of 147

Philips Semiconductors

– If DBISEL is logic 1 and INTLO is logic 0, a Tx interrupt will occur at the beginning

– If DBISEL is logic 1 and INTLO is logic 1, a Tx interrupt will occur at the end of the

– Note that if DBISEL is logic 1 and the CPU is writing to SBUF when the STOP bit of

6. If there is more data, the CPU writes to SBUF again. Then:

– If INTLO is logic 0, the new data will be loaded and a Tx interrupt will occur at the

– If INTLO is logic 1, the new data will be loaded and a Tx interrupt will occur at the

– Go to 3.

TxD

UM10116

P89LPC933/934/935/936 User manual

of the STOP bit of the data currently in the shifter (which is also the last data).

STOP bit of the data currently in the shifter (which is also the last data).

the last data is shifted out, there can be an uncertainty of whether a Tx interrupt is generated already with the UART not knowing whether there is any more data following.

beginning of the STOP bit of the data currently in the shifter.

end of the STOP bit of the data currently in the shifter.

write to

SBUF

Tx interrupt

single buffering (DBMOD/SSTAT.7 = 0), early interrupt (INTLO/SSTAT.6 = 0) is shown

TxD

write to

SBUF

Tx interrupt

double buffering (DBMOD/SSTAT.7 = 1), early interrupt (INTLO/SSTAT.6 = 0) is shown,

no ending Tx interrupt (DBISEL/SSTAT.4 = 0)

TxD

write to

SBUF

Tx interrupt

double buffering (DBMOD/SSTAT.7 = 1), early interrupt (INTLO/SSTAT.6 = 0) is shown,

with ending Tx interrupt (DBISEL/SSTAT.4 = 1)

Fig 33. Transmission with and without double buffering.

002aaa92

11.18 The 9th bit (bit 8) in double buffering (Modes 1, 2, and 3)

If double buffering is disabled (DBMOD, i.e. SSTAT.7 = 0), TB8 can be written before or after SBUF is written, provided TB8 is updated before that TB8 is shifted out. TB8 must not be changed again until after TB8 shifting has been completed, as indicated by the Tx interrupt.

User manual Rev. 01 — 4 March 2005 79 of 147

Philips Semiconductors

If double buffering is enabled, TB8 MUST be updated before SBUF is written, as TB8 will be double-buffered together with SBUF data. The operation described in the Section

11.17 “Transmit interrupts with double buffering enabled (Modes 1, 2, and 3)” on page 78

becomes as follows:

1. The double buffer is empty initially.

2. The CPU writes to TB8.

3. The CPU writes to SBUF.

4. The SBUF/TB8 data is loaded to the shift register and a Tx interrupt is generated immediately.

5. If there is more data, go to 7, else continue on 6.

6. If there is no more data, then:

– If DBISEL is logic 0, no more interrupt will occur.

– If DBISEL is logic 1 and INTLO is logic 0, a Tx interrupt will occur at the beginning

– If DBISEL is logic 1 and INTLO is logic 1, a Tx interrupt will occur at the end of the

7. If there is more data, the CPU writes to TB8 again.

8. The CPU writes to SBUF again. Then:

– If INTLO is logic 0, the new data will be loaded and a Tx interrupt will occur at the

– If INTLO is logic 1, the new data will be loaded and a Tx interrupt will occur at the

9. Go to 4.

10.Note that if DBISEL is logic 1 and the CPU is writing to SBUF when the STOP bit of the last data is shifted out, there can be an uncertainty of whether a Tx interrupt is generated already with the UART not knowing whether there is any more data following.

UM10116

P89LPC933/934/935/936 User manual

of the STOP bit of the data currently in the shifter (which is also the last data).

STOP bit of the data currently in the shifter (which is also the last data).

beginning of the STOP bit of the data currently in the shifter.

end of the STOP bit of the data currently in the shifter.

11.19 Multiprocessor communications

UART modes 2 and 3 have a special provision for multiprocessor communications. In these modes, 9 data bits are received or transmitted. When data is received, the 9th bit is stored in RB8. The UART can be programmed such that when the stop bit is received, the serial port interrupt will be activated only if RB8 = 1. This feature is enabled by setting bit SM2 in SCON. One way to use this feature in multiprocessor systems is as follows:

When the master processor wants to transmit a block of data to one of several slaves, it first sends out an address byte which identifies the target slave. An address byte differs from a data byte in that the 9th bit is 1 in an address byte and 0 in a data byte. With SM2 = 1, no slave will be interrupted by a data byte. An address byte, however, will interrupt all slaves, so that each slave can examine the received byte and see if it is being addressed. The addressed slave will clear its SM2 bit and prepare to receive the data bytes that follow. The slaves that weren’t being addressed leave their SM2 bits set and go on about their business, ignoring the subsequent data bytes.

Note that SM2 has no effect in Mode 0, and must be logic 0 in Mode 1.

User manual Rev. 01 — 4 March 2005 80 of 147

Philips Semiconductors

11.20 Automatic address recognition

Automatic address recognition is a feature which allows the UART to recognize certain addresses in the serial bit stream by using hardware to make the comparisons. This feature saves a great deal of software overhead by eliminating the need for the software to examine every serial address which passes by the serial port. This feature is enabled by setting the SM2 bit in SCON. In the 9 bit UART modes (mode 2 and mode 3), the Receive Interrupt flag (RI) will be automatically set when the received byte contains either the ‘Given’ address or the ‘Broadcast’ address. The 9 bit mode requires that the 9th information bit is a 1 to indicate that the received information is an address and not data.

Using the Automatic Address Recognition feature allows a master to selectively communicate with one or more slaves by invoking the Given slave address or addresses. All of the slaves may be contacted by using the Broadcast address. Two special Function Registers are used to define the slave’s address, SADDR, and the address mask, SADEN. SADEN is used to define which bits in the SADDR are to be used and which bits are ‘don’t care’. The SADEN mask can be logically ANDed with the SADDR to create the ‘Given’ address which the master will use for addressing each of the slaves. Use of the Given address allows multiple slaves to be recognized while excluding others. The following examples will help to show the versatility of this scheme:

UM10116

P89LPC933/934/935/936 User manual

Table 71: Slave 0/1 examples

Example 1 Example 2

Slave 0 SADDR = 1100 0000 Slave 1 SADDR = 1100 0000

SADEN = 1111 1101 SADEN = 1111 1110

Given = 1100 00X0 Given = 1100 000X

In the above example SADDR is the same and the SADEN data is used to differentiate between the two slaves. Slave 0 requires a 0 in bit 0 and it ignores bit 1. Slave 1 requires a 0 in bit 1 and bit 0 is ignored. A unique address for Slave 0 would be 1100 0010 since slave 1 requires a 0 in bit 1. A unique address for slave 1 would be 1100 0001 since a 1 in bit 0 will exclude slave 0. Both slaves can be selected at the same time by an address which has bit 0 = 0 (for slave 0) and bit 1 = 0 (for slave 1). Thus, both could be addressed with 1100 0000.

In a more complex system the following could be used to select slaves 1 and 2 while excluding slave 0:

Table 72: Slave 0/1/2 examples

Example 1 Example 2 Example 3

Slave 0 SADDR = 1100 0000 Slave 1 SADDR = 1110 0000 Slave 2 SADDR = 1100 0000

SADEN = 1111 1001 SADEN = 1111 1010 SADEN = 1111 1100

Given = 1100

0XX0

Given = 1110 0X0X Given = 1110 00XX

In the above example the differentiation among the 3 slaves is in the lower 3 address bits. Slave 0 requires that bit 0 = 0 and it can be uniquely addressed by 1110 0110. Slave 1 requires that bit 1 = 0 and it can be uniquely addressed by 1110 and 0101. Slave 2 requires that bit 2 = 0 and its unique address is 1110 0011. To select Slaves 0 and 1 and exclude Slave 2 use address 1110 0100, since it is necessary to make bit 2 = 1 to exclude slave 2. The Broadcast Address for each slave is created by taking the logical OR of SADDR and SADEN. Zeros in this result are treated as don’t-cares. In most cases,

User manual Rev. 01 — 4 March 2005 81 of 147

Philips Semiconductors

interpreting the don’t-cares as ones, the broadcast address will be FF hexadecimal. Upon reset SADDR and SADEN are loaded with 0s. This produces a given address of all ‘don’t cares’ as well as a Broadcast address of all ‘don’t cares’. This effectively disables the Automatic Addressing mode and allows the microcontroller to use standard UART drivers which do not make use of this feature.

12. I2C interface

The I2C-bus uses two wires, serial clock (SCL) and serial data (SDA) to transfer information between devices connected to the bus, and has the following features:

• Bidirectional data transfer between masters and slaves

• Multimaster bus (no central master)

• Arbitration between simultaneously transmitting masters without corruption of serial

data on the bus

• Serial clock synchronization allows devices with different bit rates to communicate via

one serial bus

• Serial clock synchronization can be used as a handshake mechanism to suspend and

resume serial transfer

• The I

P89LPC933/934/935/936 User manual

C-bus may be used for test and diagnostic purposes

UM10116

A typical I direction bit (R/W), two types of data transfers are possible on the I

C-bus configuration is shown in Figure 34. Depending on the state of the

C-bus:

• Data transfer from a master transmitter to a slave receiver. The first byte transmitted

by the master is the slave address. Next follows a number of data bytes. The slave returns an acknowledge bit after each received byte.

• Data transfer from a slave transmitter to a master receiver. The first byte (the slave

address) is transmitted by the master. The slave then returns an acknowledge bit. Next follows the data bytes transmitted by the slave to the master. The master returns an acknowledge bit after all received bytes other than the last byte. At the end of the last received byte, a ‘not acknowledge’ is returned. The master device generates all of the serial clock pulses and the START and STOP conditions. A transfer is ended with a STOP condition or with a repeated START condition. Since a repeated START condition is also the beginning of the next serial transfer, the I released.

The P89LPC933/934/935/936 device provides a byte-oriented I operation modes: Master Transmitter Mode, Master Receiver Mode, Slave Transmitter Mode and Slave Receiver Mode

C-bus will not be

C interface. It has four

User manual Rev. 01 — 4 March 2005 82 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

C-bus

Fig 34. I2C-bus configuration.

The P89LPC933/934/935/936 CPU interfaces with the I2C-bus through six Special Function Registers (SFRs): I2CON (I I2STAT (I

C Status Register), I2ADR (I2C Slave Address Register), I2SCLH (SCL Duty

Cycle Register High Byte), and I2SCLL (SCL Duty Cycle Register Low Byte).

12.1 I2C data register

I2DAT register contains the data to be transmitted or the data received. The CPU can read and write to this 8-bit register while it is not in the process of shifting a byte. Thus this register should only be accessed when the SI bit is set. Data in I2DAT remains stable as long as the SI bit is set. Data in I2DAT is always shifted from right to left: the first bit to be transmitted is the MSB (bit 7), and after a byte has been received, the first bit of received data is located at the MSB of I2DAT.

P1.3/SDA P1.2/SCL

P89LPC932A1

OTHER DEVICE

WITH I

INTERFACE

C Control Register), I2DAT (I2C Data Register),

C-BUS

SDA

SCL

OTHER DEVICE

C-BUS

WITH I

INTERFACE

002aaa898

Table 73: I2C data register (I2DAT - address DAh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol I2DAT.7 I2DAT.6 I2DAT.5 I2DAT.4 I2DAT.3 I2DAT.2 I2DAT.1 I2DAT.0

Reset00000000

12.2 I2C slave address register

I2ADR register is readable and writable, and is only used when the I2C interface is set to slave mode. In master mode, this register has no effect. The LSB of I2ADR is general call bit. When this bit is set, the general call address (00h) is recognized.

Table 74: I2C slave address register (I2ADR - address DBh) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol I2ADR.6 I2ADR.5 I2ADR.4 I2ADR.3 I2ADR.2 I2ADR.1 I2ADR.0 GC

Reset00000000

Table 75: I

Bit Symbol Description

0 GC General call bit. When set, the general call address (00H) is recognized,

1:7 I2ADR1:7 7 bit own slave address. When in master mode, the contents of this register has

C slave address register (I2ADR - address DBh) bit description

otherwise it is ignored.

no effect.

User manual Rev. 01 — 4 March 2005 83 of 147

Philips Semiconductors

12.3 I2C control register

The CPU can read and write this register. There are two bits are affected by hardware: the SI bit and the STO bit. The SI bit is set by hardware and the STO bit is cleared by hardware.

CRSEL determines the SCL source when the I this bit is ignored and the bus will automatically synchronize with any clock frequency up to 400 kHz from the master I Timer 1 overflow rate divided by 2 for the I by the user in 8 bit auto-reload mode (Mode 2).

UM10116

P89LPC933/934/935/936 User manual

C-bus is in master mode. In slave mode

C device. When CRSEL = 1, the I2C interface uses the

C clock rate. Timer 1 should be programmed

Data rate of I

If f

= 12 MHz, reload value is 0 to 255, so I2C data rate range is 11.72 Kbit/sec to

osc

C-bus = Timer overflow rate / 2 = PCLK / (2*(256-reload value)).

3000 Kbit/sec.

When CRSEL = 0, the I

C interface uses the internal clock generator based on the value

of I2SCLL and I2CSCLH register. The duty cycle does not need to be 50 %.

The STA bit is START flag. Setting this bit causes the I

C interface to enter master mode and attempt transmitting a START condition or transmitting a repeated START condition when it is already in master mode.

The STO bit is STOP flag. Setting this bit causes the I

C interface to transmit a STOP

condition in master mode, or recovering from an error condition in slave mode.

If the STA and STO are both set, then a STOP condition is transmitted to the I

C-bus if it is in master mode, and transmits a START condition afterwards. If it is in slave mode, an internal STOP condition will be generated, but it is not transmitted to the bus.

Table 76: I2C Control register (I2CON - address D8h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol - I2EN STA STO SI AA - CRSEL

Resetx00000x0

Table 77: I

Bit Symbol Description

0 CRSEL SCL clock selection. When set = 1, Timer 1 overflow generates SCL, when cleared

1- reserved

2 AA The Assert Acknowledge Flag. When set to 1, an acknowledge (low level to SDA)

C Control register (I2CON - address D8h) bit description

= 0, the internal SCL generator is used base on values of I2SCLH and I2SCLL.

will be returned during the acknowledge clock pulse on the SCL line on the following situations:

(1)The ‘own slave address’ has been received. (2)The general call address has been received while the general call bit (GC) in I2ADR is set. (3) A data byte has been received while the I byte has been received while the I Mode. When cleared to 0, an not acknowledge (high level to SDA) will be returned during the acknowledge clock pulse on the SCL line on the following situations: (1) A data byte has been received while the I Mode. (2) A data byte has been received while the I Slave Receiver Mode.

C interface is in the Master Receiver Mode. (4)A data

C interface is in the addressed Slave Receiver

C interface is in the Master Receiver

C interface is in the addressed

User manual Rev. 01 — 4 March 2005 84 of 147

Philips Semiconductors

Table 77: I

Bit Symbol Description

3SI I2C Interrupt Flag. This bit is set when one of the 25 possible I2C states is entered.

4 STO STOP Flag. STO = 1: In master mode, a STOP condition is transmitted to the

5 STA Start Flag. STA = 1: I

6I2EN I

7- reserved

UM10116

P89LPC933/934/935/936 User manual

C Control register (I2CON - address D8h) bit description …continued

When EA bit and EI2C (IEN1.0) bit are both set, an interrupt is requested when SI is set. Must be cleared by software by writing 0 to this bit.

C-bus. When the bus detects the STOP condition, it will clear STO bit

I automatically. In slave mode, setting this bit can recover from an error condition. In this case, no STOP condition is transmitted to the bus. The hardware behaves as if a STOP condition has been received and it switches to ‘not addressed’ Slave Receiver Mode. The STO flag is cleared by hardware automatically.

C-bus enters master mode, checks the bus and generates a START condition if the bus is free. If the bus is not free, it waits for a STOP condition (which will free the bus) and generates a START condition after a delay of a half clock period of the internal clock generator. When the I already in master mode and some data is transmitted or received, it transmits a repeated START condition. STA may be set at any time, it may also be set when

C interface is in an addressed slave mode. STA = 0: no START condition or

the I repeated START condition will be generated.

C Interface Enable. When set, enables the I2C interface. When clear, the I2C

function is disabled.

C interface is

12.4 I2C Status register

This is a read-only register. It contains the status code of the I2C interface. The least three bits are always 0. There are 26 possible status codes. When the code is F8H, there is no relevant information available and SI bit is not set. All other 25 status codes correspond to defined I

Ta bl e 8 3

Table 78: I2C Status register (I2STAT - address D9h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol STA.4 STA.3 STA.2 STA.1 STA.0 0 0 0

Reset00000000

Table 79: I

Bit Symbol Description

0:2 - Reserved, are always set to 0.

3:7 STA[0:4] I

C states. When any of these states entered, the SI bit will be set. Refer to

to Ta bl e 8 6 for details.

C Status register (I2STAT - address D9h) bit description

C Status code.

12.5 I2C SCL duty cycle registers I2SCLH and I2SCLL

When the internal SCL generator is selected for the I2C interface by setting CRSEL = 0 in the I2CON register, the user must set values for registers I2SCLL and I2SCLH to select the data rate. I2SCLH defines the number of PCLK cycles for SCL = high, I2SCLL defines the number of PCLK cycles for SCL = low. The frequency is determined by the following formula:

Bit Frequency = f

Where f

User manual Rev. 01 — 4 March 2005 85 of 147

is the frequency of PCLK.

PCLK

/ (2*(I2SCLH + I2SCLL))

PCLK

Philips Semiconductors

The values for I2SCLL and I2SCLH do not have to be the same; the user can give different duty cycles for SCL by setting these two registers. However, the value of the register must ensure that the data rate is in the I I2SCLL and I2SCLH have some restrictions and values for both registers greater than three PCLKs are recommended.

Table 80: I2C clock rates selection

I2SCLL+

I2SCLH

6 0 - 307 154 - -

7 0 - 263 132 - -

8 0 - 230 115 - 375

9 0 - 205 102 - 333

10 0 369 184 92 - 300

15 0 246 123 61 400 200

25 0 147 74 37 240 120

30 0 123 61 31 200 100

50 0 74 37 18 120 60

60 0 61 31 15 100 50

100 0 37 18 9 60 30

150 0 25 12 6 40 20

200 0 18 9 5 30 15

- 1 3.6 Kbps to

UM10116

P89LPC933/934/935/936 User manual

C data rate range of 0 to 400 kHz. Thus the values of

Bit data rate (Kbit/sec) at f

CRSEL 7.373 MHz 3.6865 MHz 1.8433 MHz 12 MHz 6 MHz

osc

922 Kbps Timer 1 in mode 2

1.8 Kbps to 461 Kbps Timer 1 in mode 2

0.9 Kbps to 230 Kbps Timer 1 in mode 2

5.86 Kbps to 1500 Kbps Timer 1 in mode 2

2.93 Kbps to 750 Kbps Timer 1 in mode 2

12.6 I2C operation modes

12.6.1 Master Transmitter mode

In this mode data is transmitted from master to slave. Before the Master Transmitter mode can be entered, I2CON must be initialized as follows:

Table 81: I2C Control register (I2CON - address D8h)

Bit 7 6 5 4 3 2 1 0

- I2EN STA STO SI AA - CRSEL

value- 1000x- bit rate

CRSEL defines the bit rate. I2EN must be set to 1 to enable the I is 0, it will not acknowledge its own slave address or the general call address in the event of another device becoming master of the bus and it can not enter slave mode. STA, STO, and SI bits must be cleared to 0.

User manual Rev. 01 — 4 March 2005 86 of 147

C function. If the AA bit

Philips Semiconductors

The first byte transmitted contains the slave address of the receiving device (7 bits) and the data direction bit. In this case, the data direction bit (R/W) will be logic 0 indicating a write. Data is transmitted 8 bits at a time. After each byte is transmitted, an acknowledge bit is received. START and STOP conditions are output to indicate the beginning and the end of a serial transfer.

The I

C-bus will enter Master Transmitter Mode by setting the STA bit. The I2C logic will send the START condition as soon as the bus is free. After the START condition is transmitted, the SI bit is set, and the status code in I2STAT should be 08h. This status code must be used to vector to an interrupt service routine where the user should load the slave address to I2DAT (Data Register) and data direction bit (SLA+W). The SI bit must be cleared before the data transfer can continue.

When the slave address and R/W bit have been transmitted and an acknowledgment bit has been received, the SI bit is set again, and the possible status codes are 18h, 20h, or 38h for the master mode or 68h, 78h, or 0B0h if the slave mode was enabled (setting AA = Logic 1). The appropriate action to be taken for each of these status codes is shown in Ta bl e 8 3

UM10116

P89LPC933/934/935/936 User manual

S R/W A DATA DATA

from master to slave from slave to master

Fig 35. Format in the Master Transmitter mode.

12.6.2 Master Receiver mode

In the Master Receiver Mode, data is received from a slave transmitter. The transfer started in the same manner as in the Master Transmitter Mode. When the START condition has been transmitted, the interrupt service routine must load the slave address and the data direction bit to I the data transfer can continue.

When the slave address and data direction bit have been transmitted and an acknowledge bit has been received, the SI bit is set, and the Status Register will show the status code. For master mode, the possible status codes are 40H, 48H, or 38H. For slave mode, the possible status codes are 68H, 78H, or B0H. Refer to Ta b le 8 5

A A/A Pslave address

logic 0 = write

logic 1 = read

C Data Register (I2DAT). The SI bit must be cleared before

data transferred

(n Bytes + acknowledge)

A = acknowledge (SDA LOW) A = not acknowledge (SDA HIGH) S = START condition P = STOP condition

002aaa929

for details.

User manual Rev. 01 — 4 March 2005 87 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

S R Aslave address

logic 0 = write

logic 1 = read

from master to slave from slave to master

Fig 36. Format of Master Receiver mode.

DATA DATA

A = acknowledge (SDA LOW) A = not acknowledge (SDA HIGH) S = START condition

A A P

data transferred

(n Bytes + acknowledge)

After a repeated START condition, I2C-bus may switch to the Master Transmitter Mode.

S R ASLA

logic 0 = write logic 1 = read

from master to slave from slave to master

Fig 37. A Master Receiver switches to Master Transmitter after sending Repeated Start.

DATA DATA

A W ASLA DATA A PA RS

data transferred

(n Bytes + acknowledge)

A = acknowledge (SDA LOW) A = not acknowledge (SDA HIGH) S = START condition P = STOP condition SLA = slave address RS = repeat START condition

002aaa93

002aaa931

12.6.3 Slave Receiver mode

In the Slave Receiver Mode, data bytes are received from a master transmitter. To initialize the Slave Receiver Mode, the user should write the slave address to the Slave Address Register (I2ADR) and the I follows:

Table 82: I2C Control register (I2CON - address D8h)

Bit 7 6 5 4 3 2 1 0

- I2EN STA STO SI AA - CRSEL

value- 10001- -

CRSEL is not used for slave mode. I2EN must be set = 1 to enable I must be set = 1 to acknowledge its own slave address or the general call address. STA, STO and SI are cleared to 0.

After I2ADR and I2CON are initialized, the interface waits until it is addressed by its own address or general address followed by the data direction bit which is 0(W). If the direction bit is 1(R), it will enter Slave Transmitter Mode. After the address and the direction bit have been received, the SI bit is set and a valid status code can be read from the Status Register(I2STAT). Refer to Ta bl e 8 6

C Control Register (I2CON) should be configured as

C function. AA bit

for the status codes and actions.

User manual Rev. 01 — 4 March 2005 88 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

S W Aslave address

from master to slave from slave to master

Fig 38. Format of Slave Receiver mode.

12.6.4 Slave Transmitter mode

The first byte is received and handled as in the Slave Receiver Mode. However, in this mode, the direction bit will indicate that the transfer direction is reversed. Serial data is transmitted via P1.3/SDA while the serial clock is input through P1.2/SCL. START and STOP conditions are recognized as the beginning and end of a serial transfer. In a given application, the I

C hardware looks for its own slave address and the general call address. If one of these addresses is detected, an interrupt is requested. When the microcontrollers wishes to become the bus master, the hardware waits until the bus is free before the master mode is entered so that a possible slave action is not interrupted. If bus arbitration is lost in the master mode, the I slave address in the same serial transfer.

C-bus may operate as a master and as a slave. In the slave mode, the

C-bus switches to the slave mode immediately and can detect its own

logic 0 = write logic 1 = read

DATA DATA

A = acknowledge (SDA LOW) A = not acknowledge (SDA HIGH) S = START condition P = STOP condition RS = repeated START condition

A A/A P/RS

data transferred

(n Bytes + acknowledge)

002aaa932

S R Aslave address

logic 0 = write

logic 1 = read

from master to slave from slave to master

Fig 39. Format of Slave Transmitter mode.

DATA DATA

A = acknowledge (SDA LOW) A = not acknowledge (SDA HIGH) S = START condition P = STOP condition

A A P

data transferred

(n Bytes + acknowledge)

002aaa933

User manual Rev. 01 — 4 March 2005 89 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

P1.3/SDA

P1.2/SCL

P1.3

INPUT

FILTER

OUTPUT

STAGE

INPUT

FILTER

OUTPUT

STAGE

P1.2

timer 1

overflow

I2CON

I2SCLH

I2SCLL

ADDRESS REGISTER

COMPARATOR

SHIFT REGISTER

BIT COUNTER /

ARBITRATION

AND SYNC LOGIC

CONTROL

SERIAL CLOCK

GENERATOR

CONTROL REGISTERS AND

SCL DUTY CYCLE REGISTERS

I2DAT

TIMING

AND

LOGIC

I2ADR

ACK

CCLK

interrupt

INTERNAL BUS

status bus

I2STAT

STATUS

DECODER

STATUS REGISTER

002aaa899

Fig 40. I2C serial interface block diagram.

User manual Rev. 01 — 4 March 2005 90 of 147

Philips Semiconductors

Table 83: Master Transmitter mode

Status code (I2STAT)

08H A START

10H A repeat START

18h SLA+W has been

20h SLA+W has been

28h Data byte in I2DAT

Status of the I2C hardware

condition has been transmitted

transmitted; ACK has been received

transmitted; NOT-ACK has been received

has been transmitted; ACK has been received

UM10116

P89LPC933/934/935/936 User manual

Application software response Next action taken by I2C

to/from I2DAT to I2CON

STA STO SI AA

Load SLA+W x 0 0 x SLA+W will be transmitted;

Load SLA+W or

Load SLA+R

Load data byte or000xData byte will be transmitted;

no I2DAT action or100xRepeated START will be

no I2DAT action or010xSTOP condition will be

no I2DAT action 110xSTOP condition followed by a

Load data byte or000x Data byte will be transmitted;

no I2DAT action or100xRepeated START will be

no I2DAT action or010xSTOP condition will be

no I2DAT action 110xSTOP condition followed by a

Load data byte or000x Data byte will be transmitted;

no I2DAT action or100xRepeated START will be

no I2DAT action or010xSTOP condition will be

no I2DAT action 110xSTOP condition followed by a

x 0 0 x As above; SLA+W will be

hardware

ACK bit will be received

transmitted; I to Master Receiver Mode

ACK bit will be received

transmitted;

STO flag will be reset

START condition will be transmitted; STO flag will be reset.

ACK bit will be received

transmitted;

transmitted; STO flag will be reset

START condition will be transmitted; STO flag will be reset

ACK bit will be received

transmitted;

transmitted; STO flag will be reset

START condition will be transmitted; STO flag will be reset

C-bus switches

User manual Rev. 01 — 4 March 2005 91 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 83: Master Transmitter mode

Status code (I2STAT)

30h Data byte in I2DAT

38H Arbitration lost in

Table 84: Master Receiver mode

Status code (I2STAT)

08H A START

10H A repeat START

38H Arbitration lost in

40h SLA+R has been

48h SLA+R has been

Status of the I2C hardware

has been transmitted, NOT ACK has been received

SLA+R/W or data bytes

Status of the I2C hardware

condition has been transmitted

NOT ACK bit

transmitted; ACK has been received

transmitted; NOT ACK has been received

…continued

Application software response Next action taken by I2C

to/from I2DAT to I2CON

STA STO SI AA

Load data byte or000x Data byte will be transmitted;

no I2DAT action or100xRepeated START will be

no I2DAT action or010xSTOP condition will be

no I2DAT action110x STOP condition followed by a

No I2DAT action or000xI

No I2DAT action 100xA START condition will be

Application software response Next action taken by I2C hardware

to/from I2DAT to I2CON

Load SLA+R x 0 0 x SLA+R will be transmitted; ACK bit

Load SLA+R or x 0 0 x As above

Load SLA+W SLA+W will be transmitted; I

no I2DAT action or 0 0 0 x I

no I2DAT action 1 0 0 x A START condition will be

no I2DAT action or 0 0 0 0 Data byte will be received; NOT ACK

no I2DAT action or 0 0 0 1 Data byte will be received; ACK bit

No I2DAT action or1 0 0 x Repeated START will be transmitted

no I2DAT action or 0 1 0 x STOP condition will be transmitted;

no I2DAT action or 1 1 0 x STOP condition followed by a START

STA STO SI STA

hardware

ACK bit will be received

transmitted;

transmitted; STO flag will be reset

START condition will be transmitted. STO flag will be reset.

C-bus will be released; not

addressed slave will be entered

transmitted when the bus becomes free.

will be received

C-bus will be switched to Master Transmitter Mode

C-bus will be released; it will enter a

slave mode

transmitted when the bus becomes free

bit will be returned

will be returned

STO flag will be reset

condition will be transmitted; STO flag will be reset

User manual Rev. 01 — 4 March 2005 92 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 84: Master Receiver mode

Status code (I2STAT)

50h Data byte has

58h Data byte has

Table 85: Slave Receiver mode

Status code (I2STAT)

60H Own SLA+W has

68H Arbitration lost in

70H General call

78H Arbitration lost in

80H Previously

Status of the I2C hardware

been received; ACK has been returned

been received; NACK has been returned

Status of the I2C hardware

been received; ACK has been received

SLA+R/Was master; Own SLA+W has been received, ACK returned

address(00H) has been received, ACK has been returned

SLA+R/W as master; General call address has been received, ACK bit has been returned

addressed with own SLA address; Data has been received; ACK has been returned

…continued

Application software response Next action taken by I2C hardware

to/from I2DAT to I2CON

STA STO SI STA

Read data byte 0 0 0 0 Data byte will be received; NOT ACK

bit will be returned

read data byte 0 0 0 1 Data byte will be received; ACK bit

will be returned

Read data byte or 1 0 0 x Repeated START will be transmitted;

read data byte or 0 1 0 x STOP condition will be transmitted;

STO flag will be reset

read data byte 1 1 0 x STOP condition followed by a START

condition will be transmitted; STO flag will be reset

Application software response Next action taken by I2C hardware

to/from I2DAT to I2CON

STA STO SI AA

no I2DAT action orx000Data byte will be received and NOT

ACK will be returned

no I2DAT action x001Data byte will be received and ACK

No I2DAT action orx000Data byte will be received and NOT

no I2DAT action x001Data byte will be received and ACK

No I2DAT action orx000Data byte will be received and NOT

no I2DAT action x001Data byte will be received and ACK

no I2DAT action orx000Data byte will be received and NOT

no I2DAT action x001Data byte will be received and ACK

Read data byte orx000Data byte will be received and NOT

read data bytex001Data byte will be received; ACK bit

will be returned

ACK will be returned

will be returned

ACK will be returned

will be returned

ACK will be returned

will be returned

ACK will be returned

will be returned

User manual Rev. 01 — 4 March 2005 93 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 85: Slave Receiver mode

Status code (I2STAT)

88H Previously

90H Previously

98H Previously

Status of the I2C hardware

addressed with own SLA address; Data has been received; NACK has been returned

addressed with General call; Data has been received; ACK has been returned

addressed with General call; Data has been received; NACK has been returned

…continued

Application software response Next action taken by I2C hardware

to/from I2DAT to I2CON

STA STO SI AA

Read data byte or0000Switched to not addressed SLA

mode; no recognition of own SLA or general address

read data byte

read data byte1001Switched to not addressed SLA

Read data byte orx000Data byte will be received and NOT

read data bytex001Data byte will be received and ACK

Read data byte0000Switched to not addressed SLA

read data byte0001Switched to not addressed SLA

read data byte1000Switched to not addressed SLA

read data byte1001Switched to not addressed SLA

0001Switched to not addressed SLA

mode; Own SLA will be recognized; general call address will be recognized if I2ADR.0 = 1

1000Switched to not addressed SLA

mode; no recognition of own SLA or General call address. A START condition will be transmitted when the bus becomes free

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1. A START condition will be transmitted when the bus becomes free.

ACK will be returned

will be returned

mode; no recognition of own SLA or General call address

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1.

mode; no recognition of own SLA or General call address. A START condition will be transmitted when the bus becomes free.

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1. A START condition will be transmitted when the bus becomes free.

User manual Rev. 01 — 4 March 2005 94 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 85: Slave Receiver mode

Status code (I2STAT)

A0H A STOP condition

Table 86: Slave Transmitter mode

Status code (I2STAT)

A8h Own SLA+R has

B0h Arbitration lost in

B8H Data byte in

Status of the I2C hardware

or repeated START condition has been received while still addressed as SLA/REC or SLA/TRX

Status of the I2C hardware

been received; ACK has been returned

SLA+R/W as master; Own SLA+R has been received, ACK has been returned

I2DAT has been transmitted; ACK has been received

…continued

Application software response Next action taken by I2C hardware

to/from I2DAT to I2CON

STA STO SI AA

No I2DAT action0000Switched to not addressed SLA

mode; no recognition of own SLA or General call address

no I2DAT action0001Switched to not addressed SLA

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1.

no I2DAT action1000Switched to not addressed SLA

mode; no recognition of own SLA or General call address. A START condition will be transmitted when the bus becomes free.

no I2DAT action1001Switched to not addressed SLA

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1. A START condition will be transmitted when the bus becomes free.

Application software response Next action taken by I2C

to/from I2DAT to I2CON

Load data byte orx000Last data byte will be transmitted

load data bytex001Data byte will be transmitted; ACK

Load data byte orx000Last data byte will be transmitted

load data bytex001Data byte will be transmitted; ACK

Load data byte orx000Last data byte will be transmitted

load data bytex001Data byte will be transmitted; ACK

STA STO SI AA

hardware

and ACK bit will be received

will be received

and ACK bit will be received

bit will be received

and ACK bit will be received

will be received

User manual Rev. 01 — 4 March 2005 95 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

Table 86: Slave Transmitter mode

Status code (I2STAT)

C0H Data byte in

C8H Last data byte in

Status of the I2C hardware

I2DAT has been transmitted; NACK has been received

I2DAT has been transmitted (AA = 0); ACK has been received

…continued

Application software response Next action taken by I2C

to/from I2DAT to I2CON

STA STO SI AA

No I2DAT action or0000Switched to not addressed SLA

no I2DAT action or0001Switched to not addressed SLA

no I2DAT action or1000Switched to not addressed SLA

no I2DAT action 1001Switched to not addressed SLA

No I2DAT action or0000Switched to not addressed SLA

no I2DAT action or0001Switched to not addressed SLA

no I2DAT action or1000Switched to not addressed SLA

no I2DAT action 1001Switched to not addressed SLA

hardware

mode; no recognition of own SLA or General call address.

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1.

mode; no recognition of own SLA or General call address. A START condition will be transmitted when the bus becomes free.

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1. A START condition will be transmitted when the bus becomes free.

mode; no recognition of own SLA or General call address.

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1.

mode; no recognition of own SLA or General call address. A START condition will be transmitted when the bus becomes free.

mode; Own slave address will be recognized; General call address will be recognized if I2ADR.0 = 1. A START condition will be transmitted when the bus becomes free.

13. Serial Peripheral Interface (SPI)

The P89LPC933/934/935/936 provides another high-speed serial communication interface, the SPI interface. SPI is a full-duplex, high-speed, synchronous communication bus with two operation modes: Master mode and Slave mode. Up to 3 Mbit/s can be supported in either Master or Slave mode. It has a Transfer Completion Flag and Write Collision Flag Protection.

User manual Rev. 01 — 4 March 2005 96 of 147

Philips Semiconductors

CPU clock

DIVIDER

BY 4, 16, 64, 128

SELECT

SPR1

SPR0

SPI CONTROL

SPIF

WCOL

SPI STATUS REGISTER

SPI clock (master)

MSTR SPEN

SPI

interrupt

request

8-BIT SHIFT REGISTER

READ DATA BUFFER

CLOCK LOGIC

SSIG

SPEN

DORD

MSTR

SPI CONTROL REGISTER

internal

data

bus

clock

CPHA

CPOL

UM10116

P89LPC933/934/935/936 User manual

S M

M S

CONTROL

LOGIC

S M

SPEN

MSTR

SPR1

SPR0

002aaa900

MISO P2.3

MOSI P2.2

SPICLK P2.5

SS P2.4

Fig 41. SPI block diagram.

The SPI interface has four pins: SPICLK, MOSI, MISO and SS:

• SPICLK, MOSI and MISO are typically tied together between two or more SPI

• SS is the optional slave select pin. In a typical configuration, an SPI master asserts

Note that even if the SPI is configured as a master (MSTR = 1), it can still be converted to a slave by driving the SS happen, the SPIF bit (SPSTAT.7) will be set (see Section 13.4 “

devices. Data flows from master to slave on the MOSI (Master Out Slave In) pin and flows from slave to master on the MISO (Master In Slave Out) pin. The SPICLK signal is output in the master mode and is input in the slave mode. If the SPI system is disabled, i.e. SPEN (SPCTL.6) = 0 (reset value), these pins are configured for port functions.

one of its port pins to select one SPI device as the current slave. An SPI slave device uses its SS following conditions are true:

– If the SPI system is disabled, i.e. SPEN (SPCTL.6) = 0 (reset value)

– If the SPI is configured as a master, i.e., MSTR (SPCTL.4) = 1, and P2.4 is

configured as an output (via the P2M1.4 and P2M2.4 SFR bits);

– If the SS

functions.

pin to determine whether it is selected. The SS is ignored if any of the

pin is ignored, i.e. SSIG (SPCTL.7) bit = 1, this pin is configured for port

pin low (if P2.4 is configured as input and SSIG = 0). Should this

Mode change on SS”)

Typical connections are shown in Figure 42

to Figure 44.

Table 87: SPI Control register (SPCTL - address E2h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol SSIG SPEN DORD MSTR CPOL CPHA SPR1 SPR0

Reset00000100

User manual Rev. 01 — 4 March 2005 97 of 147

Philips Semiconductors

Table 88: SPI Control register (SPCTL - address E2h) bit description

Bit Symbol Description

0 SPR0 SPI Clock Rate Select

1 SPR1

2 CPHA SPI Clock PHAse select (see Figure 45 to Figure 48):

3 CPOL SPI Clock POLarity (see Figure 45

4 MSTR Master/Slave mode Select (see Ta bl e 9 2 ).

5 DORD SPI Data ORDer.

6 SPEN SPI Enable.

7 SSIG SS IGnore.

UM10116

P89LPC933/934/935/936 User manual

SPR1, SPR0:

CCLK

00 —

01 —

10 —

11 —

1 — Data is driven on the leading edge of SPICLK, and is sampled on the trailing

edge.

0 — Data is driven when SS SPICLK, and is sampled on the leading edge. (Note: If SSIG = 1, the operation is not defined.

1 — SPICLK is high when idle. The leading edge of SPICLK is the falling edge and the trailing edge is the rising edge.

0 — SPICLK is low when idle. The leading edge of SPICLK is the rising edge and the trailing edge is the falling edge.

1 — The LSB of the data word is transmitted first.

0 — The MSB of the data word is transmitted first.

1 — The SPI is enabled.

0 — The SPI is disabled and all SPI pins will be port pins.

1 — MSTR (bit 4) decides whether the device is a master or slave.

0 — The SS

used as a port pin (see Tab l e 9 2

⁄

CCLK

⁄

CCLK

⁄

CCLK

⁄

128

is low (SSIG = 0) and changes on the trailing edge of

to Figure 48):

pin decides whether the device is master or slave. The SS pin can be

Table 89: SPI Status register (SPSTAT - address E1h) bit allocation

Bit 7 6 5 4 3 2 1 0

SymbolSPIFWCOL------

Reset00xxxxxx

Table 90: SPI Status register (SPSTAT - address E1h) bit description

Bit Symbol Description

0:5 - reserved

6 WCOL SPI Write Collision Flag. The WCOL bit is set if the SPI data register, SPDAT, is

written during a data transfer (see Section 13.5 “ is cleared in software by writing a logic 1 to this bit.

7 SPIF SPI Transfer Completion Flag. When a serial transfer finishes, the SPIF bit is set

and an interrupt is generated if both the ESPI (IEN1.3) bit and the EA bit are set. If

is an input and is driven low when SPI is in master mode, and SSIG = 0, this bit

SS will also be set (see Section 13.4 “ in software by writing a logic 1 to this bit.

User manual Rev. 01 — 4 March 2005 98 of 147

Mode change on SS”). The SPIF flag is cleared

Write collision”). The WCOL flag

Philips Semiconductors

Table 91: SPI Data register (SPDAT - address E3h) bit allocation

Bit 7 6 5 4 3 2 1 0

Symbol MSB LSB

Reset00000000

UM10116

P89LPC933/934/935/936 User manual

master slave

8-BIT SHIFT

SPI CLOCK

GENERATOR

MISO

MOSI

SPICLK

PORT

MISO

MOSI

SPICLK

8-BIT SHIFT

002aaa901

Fig 42. SPI single master single slave configuration.

In Figure 42, SSIG (SPCTL.7) for the slave is logic 0, and SS is used to select the slave. The SPI master can use any port pin (including P2.4/SS

master slave

8-BIT SHIFT

MISO

MOSI

) to drive the SS pin.

MISO

MOSI

8-BIT SHIFT

SPI CLOCK

GENERATOR

SPICLK

SPI CLOCK

GENERATOR

002aaa90

Fig 43. SPI dual device configuration, where either can be a master or a slave.

Figure 43

shows a case where two devices are connected to each other and either device can be a master or a slave. When no SPI operation is occurring, both can be configured as masters (MSTR = 1) with SSIG cleared to 0 and P2.4 (SS

) configured in quasi-bidirectional mode. When a device initiates a transfer, it can configure P2.4 as an output and drive it low, forcing a mode change in the other device (see Section 13.4 “

Mode

change on SS”) to slave.

User manual Rev. 01 — 4 March 2005 99 of 147

Philips Semiconductors

UM10116

P89LPC933/934/935/936 User manual

master slave

MISO

8-BIT SHIFT

SPI CLOCK

GENERATOR

Fig 44. SPI single master multiple slaves configuration.

In Figure 44, SSIG (SPCTL.7) bits for the slaves are logic 0, and the slaves are selected by the corresponding SS P2.4/SS

) to drive the SS pins.

MOSI

SPICLK

port

signals. The SPI master can use any port pin (including

MISO

MOSI

SPICLK

MISO

MOSI

SPICLK

8-BIT SHIFT

slave

8-BIT SHIFT

002aaa903

13.1 Configuring the SPI

Ta bl e 9 2 shows configuration for the master/slave modes as well as usages and directions

for the modes.

Table 92: SPI master and slave selection

SPEN SSIG SS Pin MSTR Master

or Slave Mode

[1]

0xP2.4

1 0 0 0 Slave output input input Selected as slave.

1 0 1 0 Slave Hi-Z input input Not selected. MISO is high-impedance to avoid

1001 (->

User manual Rev. 01 — 4 March 2005 100 of 147

xSPI

Disabled

[2]

Slave output input input P2.4/SS is configured as an input or

MISO MOSI SPICLK Remarks

P2.3

[1]

P2.2

[1]

P2.5

[1]

SPI disabled. P2.2, P2.3, P2.4, P2.5 are used as port pins.

bus contention.

quasi-bidirectional pin. SSIG is 0. Selected externally as slave if SS driven low. The MSTR bit will be cleared to logic 0 when SS

is selected and is

becomes low.

Philips P89LPC933, P89LPC934, P89LPC935, P89LPC936 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
