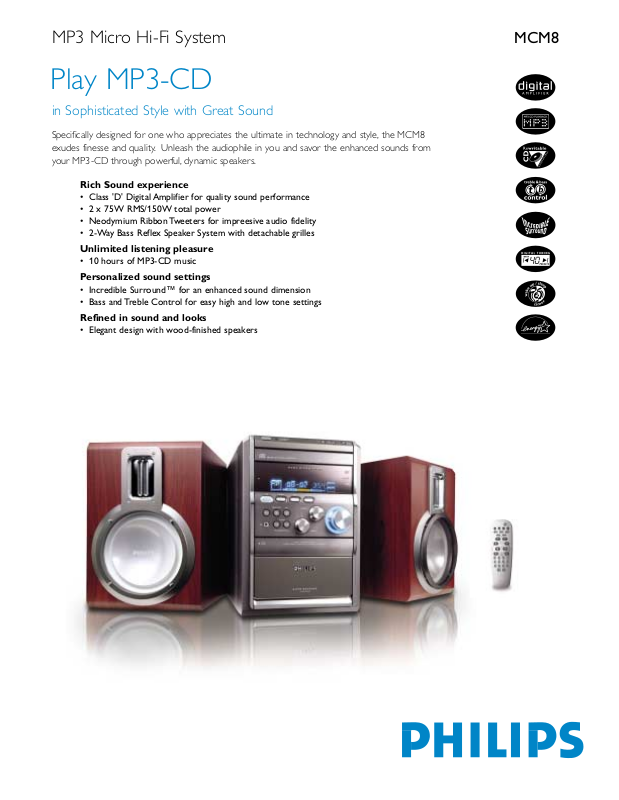

Philips MCM8-37 User Manual
MP3 Micro Hi-Fi System MCM8
Play MP3-CD
in Sophisticated Style with Great Sound
Specifically designed for one who appreciates the ultimate in technology and style, the MCM8
exudes finesse and quality. Unleash the audiophile in you and savor the enhanced sounds from
your MP3-CD through powerful, dynamic speakers.
Rich Sound experience
• Class 'D' Digital Amplifier for quality sound performance
• 2 x 75W RMS/150W total power
• Neodymium Ribbon Tweeters for impreesive audio fidelity
• 2-Way Bass Reflex Speaker System with detachable grilles
Unlimited listening pleasure
• 10 hours of MP3-CD music
Personalized sound settings
• Incredible Surround™ for an enhanced sound dimension
• Bass and Treble Control for easy high and low tone settings
Refined in sound and looks
• Elegant design with wood-finished speakers
MP3 Micro Hi-Fi System MCM8/37
Technical specifications Product highlights
Sound
• Output power:
2 x 75 watts RMS, 150 watts total power
• Sound enhancement technology:
Incredible Surround™,
Treble and Bass Control
Loudspeakers
• Main speaker:
2-Way Bass Reflex Speaker System,
5.25" Woofer, Ribbon tweeter,
Speaker grilles detachable
Audio Playback
• Disc playback media:
CD, CD-R, CD-RW, MP3-CD
• Disc playback mode:
Repeat one/disc/program, Shuffle play,
99-Track programmable
• Loader type: Tray, Motorized
• Cassette deck technology: Full logic
• Cassette playback mode:
Auto reverse, Electronic speed control,
Full auto stop,Tape counter
Audio Recording
• Recording media: Tape
• Tape recording enhancement:
Automatic recording level,
CD synchro start recording,
One-touch recording
Tuner / Reception
• Auto digital tuning
• Tuner band: FM, AM
• Tuner enhancement:
Autostore, Easy setup (Plug & Play)
Connectivity
• Audio input analog: Aux in (cinch)
• Headphone 3.5 mm
• Rear connections:
FM click-fit antenna
AM loop antenna
Convenience
• Alarm enhancement technology:
CD, radio, tape alarm timer, snooze,
Sleep timer
• Clock display
• Display type: FTD
• Indication: DIM mode
• Eco power standby: <0.5W
Accessories
• FM and AM antennas
• Remote control:
32 keys with 2 x AA batteries
• AC power cord
Dimensions
• Center unit dimensions (WxHxD):
6.9 x 9.9 x 13.8 inch
• Main speakers dimensions (WxHxD):
6.9 x 9.9 x 8.5 inch
• Packaging dimensions (WxHxD):
20.6 x 13.9 x 16.1 inch
• Weight incl packaging: 28.4 lbs
MP3-CD Playback
The MP3-CD format combines the advantages of MP3
digital audio compression with the affordable and widely
accepted CD storage format. The end result is that a tiny
8cm MP3-CD can hold over 3 hours of MP3 music, while
a normal 12cm disc can hold over 10 hours. Using
readily available software, you can rip music from your
audio CDs or download MP3 music legally from the
internet and burn it to a recordable or rewritable 12cm
or 8cm CD. The resulting MP3-CD can be played back as
though it were a normal audio CD.
Class ‘D’ Digital Amplifier
Class ‘D’ Digital Amplifier takes an analog signal, converts
it into a digital signal and then amplifies the signal
digitally. The signal then enters a demodulation filter to
give the final output. The amplified digital output delivers
all the advantages of digital audio, including improved
sound quality. In addition, Class ‘D’ Digital Amplifier has
greater than 90% efficiency compared to traditional AB
amplifiers. This high efficiency translates into a powerful
amplifier with a small footprint.
Neodymium Ribbon Tweeter for impressive,
audio fidelity
The Neodymium Ribbon Tweeter is a monopole tweeter
that produces dynamic and crisp sound from the front. It
is a feature commonly used in high-end audio systems to
reproduce sound with excellent fidelity. Conventional
cones and dome tweeters are based on a directional
moving coil principle whereas the monopole Neodymium
Ribbon Tweeter radiates high frequencies in a full 180degree radiation pattern. This dramatically increases the
width of the sound spectrum in the higher tones and
expands the sweet spot zone to deliver wide, crystal-clear,
and natural sound even from compact audio systems.
Treble and Bass Control for easy high and low
tone settings
Treble and bass are equalizer features that control the
high and low frequency sound levels of your audio
respectively. Treble specifically regulates the amplification
of the high tones in the music while bass controls the
amplification level of the low tones. Using the up and
down keys, the listener can conveniently place more or
less emphasis on the low and high tones, or leave treble
and bass flat to playback music according to its original
recorded setting. Treble and Bass Control lets you listen to
your music the way you like it.
UPC 0 37849 94792 0 (/37)
Printed in Hong Kong 2004-02-17
Specifications are subject to change without notice
2004 © Royal Philips Electronics - All rights reserved
www.philips.com
