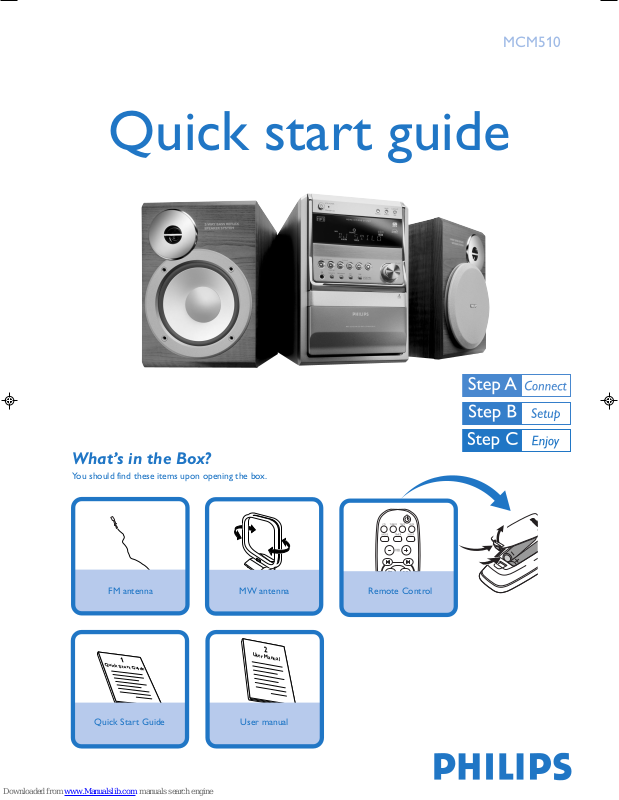

Quick start guide
MCM510
What’s in the Box?
You should find these items upon opening the box.
FM antenna MW antenna Remote Control
1
Quick Start Guide
Quick Start Guide
User Manual
User manual
2
Connect the supplied MW antenna and FM antenna to the respective terminals.
1
2
Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured
(marked) wire to "+" and black (unmarked) wire to "–".
3
Connect the AC power cord to the wall socket.
MW
1
Speaker
3
SetupSetup
Speaker
2
Setting the clock
In standby mode, press and hold CLOCK SET/RDS until clock digits
1
for the hours flash.
2
Adjust VOLUME to set the hours and then press CLOCK SET/RDS again
until the clock digits for the minutes flash.
3
Adjust VOLUME to set the minutes and finally press CLOCK SET/RDS to confirm the time.
ECO POWER
STANDBY-ON
MCM510 MICRO SYSTEM
iR
ALBUM
PRESET
/
TUNING
TIMER SET
PROGRAM
SOURCE
DBBDSC
INCREDIBLE
SURROUND
RECORD DISPLAY
CLOCK SETBAND
CLOCK SET
RDS
RDS
VOLUME
OPEN/
CLOSE
C
Enjoy
Playing a disc
Select CD source and press OPEN•CLOSE0 on the top of the system to open the CD compartment.
1
2
Insert a disc with the printed side facing up and press OPEN•CLOSE0 to close the CD door.
Press ÉÅ to start playback.
3
•
Press 9 to start playback.
4
OPEN CLOSE
ECO POWER
STANDBY-ON
MCM510 MICRO SYSTEM
iR
RECORD DISPLAY
CLOCK SETBAND
RDS
Tip
Detailed playback features and additional functions are described in
the accompany owner's manual.
Need help?
Online
Go to www.philips.com/support
