Contents
1 Important 2
Safety 2
Notice 4
2 Your DVD Micro Theater 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Connect 10
Place the unit 10
Connect speakers 10
Connect FM antenna 10

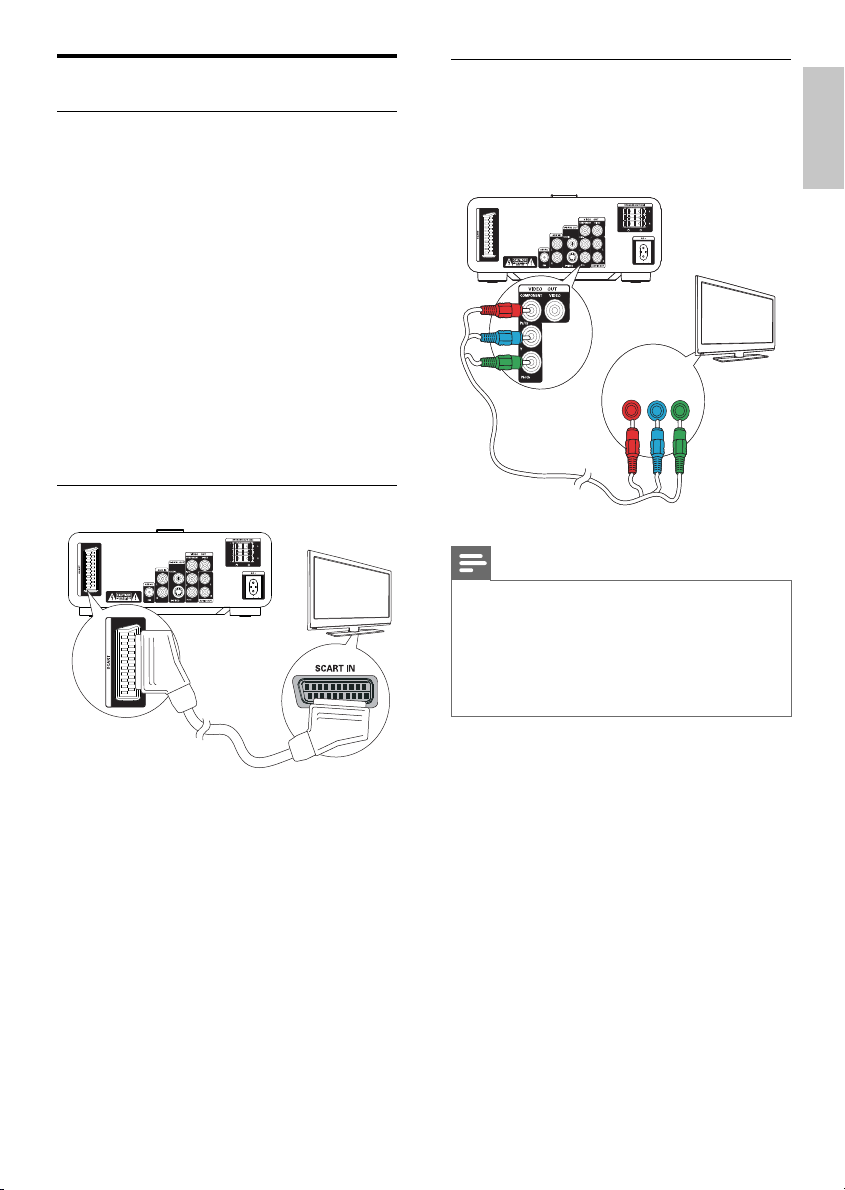

Connect TV 11
Connect power 12
4 Get started 13
Prepare the remote control 13
Set clock 13
Turn on 13
Find the correct viewing channel 14
Select the correct TV system 14
Change system menu language 14
Turn on Progressive Scan 14
7 Tune to FM radio stations 21
Program radio stations automatically 21
Program radio stations manually 21
Tune to a preset radio station 21
Set RDS clock 22
Show RDS information 22
8 Adjust volume level and sound effect 23
Adjust volume level 23
Select a sound effect 23
Mute sound 23
Listen through headphone 23
9 Other features 24
Activate demonstration mode 24
Adjust brightness of display panel 24
Set the alarm timer 24
Set the sleep timer 24
Connect other devices 24
10 Product information 26
Speci cations 26
Supported disc formats 27
USB playability information 27
RDS program types 28
English
5 Play 15
Play a disc 15
Play from USB 16
Play DivX video 16
Play MP3/WMA/picture les 16
Play control 17
Play options 17
Picture view options 18
6 Adjust settings 19
General setup 19
Audio setup 19
Video setup 19
Preferences 20
11 Troubleshooting 29
1EN
1 Important
Safety
This ‘bolt of lightning’ indicates uninsulated material
within your unit may cause an electrical shock. For
the safety of ever yone in your household, please do
not remove product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of re or
electric shock, this apparatus should not be
exposed to rain or moisture and objects lled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including ampli ers)
that produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
j Only use attachments/accessories
speci ed by the manufacturer.
k Use only with the cart, stand, tripod,
bracket, or table speci ed by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to quali ed service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
n Battery usage CAUTION – To prevent
battery leakage which may result in
bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - •
as marked on the unit.
Do not mix batteries (old and new •
or carbon and alkaline, etc.).
2 EN
Remove batteries when the unit is •
not used for a long time.
o Apparatus shall not be exposed to
dripping or splashing.
p Do not place any sources of danger on
the apparatus (e.g. liquid lled objects,
lighted candles).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. see Copyright Act 1956 and
The performer’s Protection Acts 1958 to
1972.
English
Safety-Important notes for users in
the U.K.
Mains plug
This apparatus is tted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
a Remove fuse cover and fuse.
b Fix new fuse which should be a BS1362 5
Amp, A.S.T. A. or BSI approved type.
c Re t the fuse cover.
If the tted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug tted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a
fuse is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed off
to avoid a possible shock hazard should it be
inser ted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N), brown
= live (L).
As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
Connect the blue wire to the terminal •
marked N or coloured black.
Connect the brown wire to the terminal •
marked L or coloured red.
Do not connect either wire to the earth •
terminal in the plug, marked E (or
coloured green (or green and yellow).
) or
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Warning
Where the MAINS plug or an appliance •
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this unit. •
Never lubricate any part of this unit. •
Place this unit on a at, hard and stable •
surface.
Never place this unit on other electrical •
equipment.
Only use this unit indoors. Keep this unit away •
from water, moisture and liquid- lled objects.
Keep this unit away from direct sunlight, naked •
ames or heat.
Never look into the laser beam inside the unit. •
3EN
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your •
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting. •
Slowly increase the sound until you can •
hear it comfor tably and clearly, without
distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traf c
hazard and is illegal in many areas.
Notice
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
Any changes or modi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment
and human health.
4 EN
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste. Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
The making of unauthorized copies of
copy-protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes this label:
English
Note
The type plate is located on the bottom of the •
apparatus.
‘DVD Video’ is a trademark of DVD Format/
Logo Licensing Corporation.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
5EN
2 Your DVD
You can play DVD discs with the following
region codes:
Micro Theater
Congratulations on your purchase, and
welcome to Philips! To fully bene t from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can:
watch video from DVD/VCD/SVCD or •
USB storage devices
enjoy audio from discs or USB storage •
devices
view pictures from discs or USB storage •
devices
Listen to FM radio•
You can enrich sound output with these
sound effects:
Digital Sound Control (DSC)•
Dynamic Bass Boost (DBB)•
The unit supports these media/disc formats:
DVD region code Countries
Russia, Ukraine
What’s in the box
Check and identify the contents of your
package:
Main unit•
2 speakers•
Remote control with battery•
Composite video cable (yellow)•
Power cord•
FM antenna•
User manual•
Quick start guide•
ReWritable
6 EN
Recordable
Overview of the main unit
lmno
lmno
a b c d fe g kh ij
a b c d fe g kh ij
English
a
Turn on the apparatus or switch to •
the Eco Power standby mode.
b VOLUME
c SOURCE
d Display panel
e
f Remote control sensor
g
/
/
Adjust volume.•
Adjust time.•
During timer setting, select a source.•
Select a source.•
Display current status.•
Open or close the disc tray.•
Skip to the previous/next track.•
Skip to the previous/next title or •
chapter.
Select a preset radio station.•
h DBB
Turn on or off dynamic bass •
enhancement.
i
Star t or pause play.•
j
Stop play.•
In demo mode, activate or deactivate •
demonstration.
k MODE
Select repeat play modes.•
Select shuf e play modes.•
l MP3-LINK
Jack for an external audio device.•
m
Headphone socket.•
n USB DIRECT
USB socket.•
o Disc tray
7EN
Overview of the remote
control
x
w
v
u
t
s
r
q
p
o
a
Turn on the apparatus or switch to •
the Eco Power standby mode.
b Source selection keys
Select a source.•
a
b
c
d
e
f
g
h
i
j
k
l
m
n
c DISPLAY/RDS
Display play information on a •
connected T V.
For selected FM radio stations: •
display RDS information.
d DISC MENU
For video discs: access or exit the •
disc menu.
For video discs with playback •
control(PBC): turn on/off PBC.
e AUDIO
For VCD, select stereo, mono-left or •
mono-right channel.
For DVD/DivX video, select an audio •
language.
f
/
Search within a track.•
Tune to a radio station.•
For menus, navigate left/right.•
Move an enlarged image left /right.•
Rotate or inver t pictures.•
g
SLOW / ZOOM
For menus, navigate up/down.•
Rotate or inver t pictures.•
( •
SLOW ) For video: select a slow
play mode.
( •
ZOOM ) For video: zoom in/out.
h LOUD/DBB
Turn on or off automatic loudness •
adjustment.
Turn on or off dynamic bass •
enhancement.
i VOL +/-
Adjust volume.•
Adjust time.•
j MUTE
Mute or restore volume.•
k CLOCK
Set the clock.•
l SLEEP/TIMER
Set the sleep timer.•
Set the alarm timer.•
8 EN
m SUBTITLE
Select a subtitle language.•
n GOTO
During disc play, specify a position to •
start play.
o ANGLE/PROG
Select a DVD camera angle.•
Program radio stations.•
p Numeric keypad
Select a title/chapter/track directly.•
q
Stop play.•
r
/
Skip to the previous/next track.•
Skip to the previous/next title or •
chapter.
Select a preset radio station.•
s
Star t or pause play.•
t DSC
Select a preset sound setting.•
u OK
Con rm a selection.•
v A-B
Repeat a speci c section within a •
track/disc.
w SYSTEM MENU
Access or exit the system setup •
menu.
x MODE/DIM
Select repeat play modes.•
Select shuf e play modes.•
Select a brightness level for the •
display screen.
English
9EN
3 Connect
Place the unit
1 Hold down the socket ap.
2 Insert the stripped part of the wire
completely.
Insert the right speaker wires to “ • R ”,
left speaker wires to “ L ”.
Insert the red wires to “ • + ”, black
wires to “ - ”.
3 Release the socket ap.
abc
1 Place the DVD micro theater near TV.
2 Place the left and right speakers at equal
distance from the T V and at an angle
of approximately 45 degrees from the
listening position.
Note
To avoid magnetic inter ference or unwanted •
noise, never place this apparatus and speakers
too close to any radiation devices.
Place this unit on top of a table or mount it on •
the wall.
Never place this unit in an enclosed cabinet. •
Install this unit near the AC outlet where the •
AC power plug can be easily reached.
Connect speakers
Note
Ensure that the colors of the speaker wires and •
terminals are matched.
For optimal sound, use the supplied speakers •
only.
Connect only speakers with impedance that is •
the same or higher than the supplied speakers.
Refer to the Speci cations section of this
manual.
Connect FM antenna
Tip
For optimal reception, fully extend and adjust •
the position of the antenna.
For better FM stereo reception, connect an •
outdoor FM antenna to the FM AERIAL jack.
The unit does not support MW radio •
reception.
1 Connect the supplied FM antenna to the
FM AERIAL socket on the unit.
10 EN
Connect TV
Connect video cables
With this connection, you can watch video
from the unit on the TV screen.
You can select the best video connection that
your TV supports.
Option 1: Connect through SCART •
(for a standard TV).
Option 2: connect through •
component video (for a standard TV
or Progressive Scan TV).
Option 3: connect through S-Video •
(for a standard TV).
Option 4: connect through •
composite video (CVBS) (for a
standard TV).
Option 2: Connect through
component video
Connect a progressive scan TV through
component video for higher quality video.
TV
TV
Pr/Cr Pb/Cb Y
Pr/Cr Pb/Cb Y
COMPONENTVIDEO IN PUT
COMPONENTVIDEO IN PUT
English
Option 1: Connect through SCART
TV
1 Connect a scar t cable (not supplied) to:
the • SCART socket on this unit.
the • SCART socket on the TV.
Note
The progressive scan video quality is only •
available when a progressive scan TV is
connec ted.
If your TV does not support progressive scan, •
you cannot view the pic ture.
For how to activate progressive scan on your •
TV, refer to the T V user manual.
Connect a progressive scan TV through
component video for higher quality video.
1 Connect component video cables (red/
blue/green - not supplied) to:
the • VIDEO OUT ( Pr/Cr Pb/Cb Y )
sockets on this unit.
the component input sockets on the •
TV.
11EN
Option 3: Connect through S-Video
Connect audio cables
TV
S-VIDEO IN
1 Connect an S-video cable (not supplied)
to:
the • S-Video socket on this unit.
the • S-Video socket on the TV.
Option 4: Connect through
composite video
TVTV
TV
L AUDIO OUT R
1 To play sound from the T V through this
unit, connect audio cables (red/white not supplied) to:
the • AUX IN L/R sockets on this unit.
the audio output sockets on the TV.•
Connect power
1 Connect the supplied composite video
cable to:
the • VIDEO OUT socket on this unit.
the video input socket on the TV.•
12 EN
Caution
Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the back or the underside
of the unit.
Before connec ting the AC power cord, ensure •
you have completed all other connections.
1 Connect the AC power cord to the wall
socket.
4 Get started
Set clock
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Prepare the remote control
Caution
Risk of explosion! Keep batteries away from •
heat, sunshine or re. Never discard batteries
in re.
1 In the Eco Power standby mode, press
and hold CLOCK to activate the clock
setting mode.
The hour digits are displayed and begin »
to blink.
If the hour digits are not displayed, »
press and hold
switch to standby mode, then repeat
step 1.
for 3 seconds to
2 Press + VOL - to set the hour, then press
CLOCK again.
The minute digits are displayed and »
begin to blink.
3 Press + VOL - to set the minute.
4 Press CLOCK to con rm the clock
setting.
Turn on
1 Press .
The unit switches to the last selected »
source.
English
For rst-time use:
1 Remove the protective tab to activate the
remote control battery.
To replace the remote control batteries:
1 Open the battery compartment.
2 Insert one lithium CR2025 battery with
correct polarity (+/-) as indicated.
3 Close the battery compar tment.
Note
Before you press any func tion button on the •
remote control, rst select the cor rect source
with the remote control.
If you are not going to use the remote control •
for a long time, remove the bat tery.
Switch to standby mode
1 Press to switch the unit to Eco Power
Standby mode.
The backlight on the display panel »
turns off.
The blue Eco Power indicator turns on. »
Tip
In the Eco Power mode, you can press •
CLOCK to switch to the standby mode and
view the clock (if set).
If the system remains in the standby mode for •
more than 90 seconds, it switches to the Eco
Power mode automatically.
•
13EN
Find the correct viewing
channel
Change system menu
language
1 Press to turn on the unit.
2 Press DISC to switch to disc mode.
3 Turn on the TV and switch to the correct
video-in channel in one of the following
ways:
Go to the lowest channel on your •
TV, then press the Channel Down
button until you see the blue screen.
Press the source button repeatedly •
on the remote control of your TV.
Tip
The video-in channel is between the lowest •
and highest channels and may be called
FRONT, A/V IN, VIDEO etc. See the TV user
manual on how to select the cor rect input on
the TV.
Select the correct TV system
Change this setting if the video does not appear
correctly. By default, this setting matches the
most common setting for TVs in your country.
1 Press SYSTEM MENU .
2 Select [Video Setup] .
3 Select [TV System] and then press .
4 Select a setting and then press OK .
• [NTSC] - For TV with NTSC color
system.
• [PAL] - For TV with PAL color
system.
• [Multi] - For TV that is compatible
with both PAL and NTSC.
5 To exit the menu, press SYSTEM MENU .
1 Press SYSTEM MENU .
2 Select [General Setup] .
3 Select [OSD language] and then press .
4 Select a setting and then press OK .
5 To exit the menu, press SYSTEM MENU .
Turn on Progressive Scan
Progressive scan displays twice the number of
frames per seconds than interlaced scanning
(ordinary TV system). With nearly double the
number of lines, progressive scan offers higher
picture resolution and quality.
Before you turn on this feature, ensure that:
The TV supports progressive scan •
signals.
You have connected this unit with •
the TV through component video.
1 Turn on the TV.
2 Ensure that the TV progressive scan
mode is deactivated (see the TV user
manual).
3 Switch the T V to the correct viewing
channel for this unit.
4 Press DISC .
5 Press SYSTEM MENU .
6 Press / to select [Video Setup] in the
menu, then press
.
7 Select [Component Video] , then press
.
8 Select [P-Scan] , then press OK .
The progressive setup is complete. »
14 EN
5 Play
Note
With some disc/ le types, play may differ. •
Play a disc
Caution
Never look at the laser beam inside the unit. •
Risk of produc t damage! Never play discs with •
accessories such as disc stabilizer rings or disc
treatment sheets.
Never put any objects other than discs into •
the disc compartment.
1 Press DISC to select the DISC source.
2 Press on the front panel.
The disc tray opens. »
3 Place a disc onto the tray and press .
Ensure that the label faces up. »
4 Play starts automatically.
To stop play, press •
To pause or resume play, press •
To skip to the previous/next title/•
chapter/track, press
If play does not start automatically:
Select a title/chapter/track and then press •
.
Tip
To play a locked DVD, enter the 4-digit •
parental control password.
.
/ .
Use the disc menu
When you load a DVD/(S)VCD disc, a menu
may be displayed on the TV screen.
To access or exit the menu manually:
English
1 Press DISC MENU .
For VCD with PlayBack Control (PBC)
feature (version 2.0 only):
With the PBC feature, you can play VCD
interactively according to the menu screen.
1 During play, press DISC MENU to
enable/disable PBC.
When PBC is enabled, the menu »
screen is displayed.
When PBC is disabled, normal play is »
resumed.
Select an audio language
You can select an audio language on DVDs or
DiVx video.
1 During disc play, press AUDIO .
The language options appear. If the »
selected audio channels is unavailable,
the default disc audio channel is used.
Note
.
For some DVDs, the language can only be •
changed from the disc menu. Press DISC
MENU to access the menu.
Select a subtitle language
You can select a subtitle language on DVDs or
DivX® Ultra discs.
During play, press • SUBTITLE .
Tip
For some DVDs, the language can only be •
changed from the disc menu. Press DISC
MENU to access the menu.
15EN
Play from USB
Note
To stop play, press • .
To pause or resume play, press •
To change a subtitle language, press •
SUBTITLE .
.
Ensure that the USB device contains playable •
music, pictures or video.
1 Insert the USB device.
2 Press USB to select the USB source.
3 Press / to select a folder, then press
OK to con rm.
4 Press / to select a le from the folder.
5 Press to start play.
To stop play, press •
To pause or resume play, press •
To skip to the previous/next le, •
press
/ .
To return to the upper-level menu, •
press DISC MENU , then press OK
to con rm.
Play DivX video
.
Note
You can only play DivX videos rented or •
purchased through the DivX registr ation code
of this unit.
Subtitle les with the following lename •
extensions (.sr t, .smi, .sub, .ssa , .ass) are
supported but do not appear on the le
navigation menu.
The subtitle lename has to be the same as •
the le name of the video.
Play MP3/WMA/picture les
You can play MP3/WMA/picture les copied
onto a CD-R/RW, recordable DVD or USB
device.
1 Insert a disc or connect a USB device.
2 Select a source:
For discs, press • DISC .
For USB devices, press • USB .
3 Press / to select a folder, then press
OK to con rm.
.
4 Press / to select a le from the folder.
5 Press to start play.
To stop play, press •
To pause or resume play, press •
To skip to the previous/next le, •
press
/ .
To return to the upper-level menu, •
press DISC MENU , then press OK
to con rm.
.
.
You can play DivX les copied onto a CD-R/
RW, recordable DVD or USB device.
1 Insert a disc or connect a USB device.
2 Select a source:
For discs, press • DISC .
For USB devices, press • USB .
3 Select a le to play and press .
16 EN
Play control
Select repeat/shuf e play options
1 During play, press MODE/DIM repeatedly
to select a repeat option or the shuf e
play mode.
To resume normal play, press •
MODE/DIM repeatedly until no
option is displayed.
Repeat A-B (DVD/VCD/CD/MP3/
WMA)
1 During music or video play, press A-B at
the star t point.
2 Press A-B at the end point.
The selected section starts to play »
repeatedly.
To cancel repeat play, press • A-B again.
Note
The section A and B can be set only within the •
same track/title.
Search forward/backward
1 During play, press / repeatedly to
select a search speed.
To resume play at normal speed, •
press
.
Search by time or chapter/track
number
1 During video/audio play, press GOTO
until a time eld or chapter/track eld is
displayed.
For the time eld, enter the play •
position in hours, minutes and
seconds.
For the chapter/track eld, enter the •
chapter/track.
Play star ts automatically at your •
selected point.
Resume video play from last stopped
point
Note
This feature is only available for DVD/VCD •
play.
1 In stop mode and when the disc has not
been removed, press
To cancel resume mode and stop play
completely:
.
1 In stop mode, press .
Play options
Display play information
1 During play, press DISPLAY/RDS
repeatedly to display play information.
Zoom in/out image
1 During video play, press ( ZOOM )
repeatedly to zoom in/out the image.
When the image is zoomed in, you •
can press
image.
/ to pan through the
Slow-motion play
1 During video play, press ( SLOW )
repeatedly to select a slow play option.
The sound is muted. »
To resume play at normal speed, press »
.
Change the audio channel
Note
This feature is only available for VCD/DivX •
play.
English
17EN
1 During play, press AUDIO repeatedly to
select an audio channel available on the
disc:
Mono Left•
Mono Right•
Stereo•
Select a camera angle
Note
This feature is only available for DVDs •
recorded with multiple camera angles.
1 During play, press ANGLE/PROG
repeatedly to select a camera angle.
Picture view options
Preview pictures
1 During play, press .
The pictures in current folder are »
displayed.
2 Press / to select a picture from the
folder.
A thumbnail of the selected picture is »
displayed in the right pane.
3 Press OK to start slideshow from the
selected picture.
Rotate picture
1 During play, press / / / to rotate
the picture anti-clockwise/clockwise.
18 EN
6 Adjust settings
1 Press SYSTEM MENU .
2 Select a setup page.
3 Select an option and then press .
4 Select a setting and then press OK .
To return to the previous menu, •
press
To exit the menu, press • SYSTEM MENU .
General setup
On the [General Setup] page, you can set the
following options:
[OSD language]
Select the preferred language for on-screen
display.
[DivX® VOD Code]
Display the DivX® registration code.
Tip
Enter this DivX registration code when you •
rent or purchase video from http://vod.divx.
com/. The DivX videos rented or purchased
through the DivX® VOD (Video On
Demand) service can be played only on the
device to which it is registered.
.
[Night Mode]
Make loud sound level softer and sof t sound level
louder so that you can watch the DVD movies at
a low volume, without disturbing others.
• [On] – enjoy quiet viewing at night
(DVDs only).
• [Off ] – enjoy surround sound with
its full dynamic range.
Video setup
On the [Video Setup] page, you can set the
following options:
[TV System]
Change this setting if the video does not appear
correctly. By default, this setting matches the
most common setting for TVs in your country.
• [NTSC] - For TV with NTSC color
system.
• [PAL] - For TV with PAL color
system.
• [Multi] - For TV that is compatible
with both PAL and NTSC.
[TV Display]
The TV format determines the aspect ratio of
display according to the type of TV you have
connected.
English
Audio setup
On the [Audio Setup] page, you can set the
following options:
[Digital Output]
Select audio formats suppor ted by the
connected device.
• [Off ] – Turn off the digital output.
• [PCM] – If the connected device
cannot decode multichannel audio,
select this option.
• [All] – If the connected device
supports multi-channel audio
formats, select this option.
4:3 Pan Scan (PS)
[Picture Setting]
Customize picture color settings.
4:3 Letter Box (LB)
• [4:3 Pan Scan] – For 4:3 screen TV:
full-height display with the trimmed
sides.
• [4:3 Letter Box] – For 4:3 screen TV:
wide-screen display with black bars
on the top and bottom of the screen.
• [Wide Screen] – For wide-screen
TV: display ratio 16:9.
16:9 (Wide Screen)
19EN
[Component Video]
Set the video output according to the video
connection. If the composite connection is
used, this setting is not required.
• [S-VIDEO] – If the S-Video
connection is used, select this option.
• [RGB] – If the SCART connection is
used, select this option.
• [Interlaced] – For ordinary T V: turn
on the interlace mode.
• [P-Scan] – For progressive scan TV:
turn on the progressive scan mode.
Preferences
On the [Preferences] page, you can set the
following options:
[Audio]
Select the preferred audio language for disc
play.
[Subtitle]
Select the preferred subtitle language for disc
play.
[Disc Menu]
Select the preferred disc menu language.
Note
If the language you have set is not available on •
the disc, the disc uses its own default language.
For some discs, the subtitle/audio language can •
only be changed from the disc menu.
[DivX Subtitle]
Select a character set that suppor ts the DivX
subtitle.
Note
Ensure that the subtitle le has the exact same •
le name as the movie le. If for example the
le name of the movie is ‘Movie.avi’, then you
will need to name the text le ‘Movie.sub’ or
‘Movie.srt’.
[Parental Control]
You can restrict access to discs that are not
suitable for children. These types of discs must
be recorded with ratings.
Press OK .
Select a rating level, then press OK .
Press the numeric keys to enter the
password.
Note
To view discs that are rated higher than the •
level you set in [Parental Control] , you need
enter a password.
The rating levels are country dependent. To •
allow all discs to play, select [8. Adult] .
Some discs have ratings printed on them but •
are not recorded with ratings. This func tion
has no ef fect on such discs.
[Password]
This setting allows you to change the
password for parental control. The default
password is 0000.
1) Press the numeric keys to enter ‘0000’ or
your last set password at [Old Password]
eld.
2) Enter the new password at [New
Password] eld.
3) Enter the new password again at [Con rm
new password] eld.
4) Press OK to exit the menu.
Note
If you forget the password, enter ‘0000’ before •
you set a new password.
[Version Info]
Display the software version of this apparatus.
[Default]
Reset all the settings to factor y default, except
for the password and parental settings.
20 EN
7 Tune to FM
radio stations
1 Ensure that you have connected and fully
extended the supplied FM antenna.
2 Press TUNER .
3 Press and hold / .
4 When the frequency indication star ts to
change, release the button.
The FM tuner tunes to a station with »
strong reception automatically.
5 Repeat steps 3-4 to tune to more
stations.
To tune to a weak station:
Press
reception.
/ repeatedly until you nd optimal
Program radio stations
manually
English
Note
You can program a maximum of 20 preset •
radio stations.
1 Tune to a radio station.
2 Press ANGLE/PROG to activate
programming.
3 Press / to allocate a number from
1 to 20 to this radio station, then press
ANGLE/PROG to con rm.
The preset number and the frequency »
of the preset station are displayed.
4 Repeat the above steps to program other
stations.
Note
Program radio stations
automatically
Note
You can program a maximum of 20 preset •
radio stations.
1 Press / to select a preset number to
star t programing.
2 Press and hold ANGLE/PROG for
2 seconds to activate automatic
programming.
» [AUTO] (auto) is displayed brie y.
All available stations are programmed »
in the order of waveband reception
strength.
The rst programed radio station is »
broadcast automatically.
To overwrite a programmed station, store •
another station in its place.
Tune to a preset radio station
1 Press / to select a preset number
that you want.
Tip
You can also use the numerical keypad to •
selec t a preset station directly.
21EN
Set RDS clock
You can use time signal broadcast together
with the RDS signal to set the clock of the unit
automatically.
1 Tune to a RDS radio station that
transmits time signals.
The unit reads the RDS time and sets »
the clock automatically.
Note
The accuracy of the transmitted time depends •
on the RDS station that transmits the time
signal.
Show RDS information
RDS (Radio Data System) is a service
that allows FM stations to show additional
information. If you tune to a RDS station, a RDS
icon and the station name are displayed.
When automatic programming is used, RDS
stations are programmed rst.
1 Tune to a RDS station.
2 Press DISPLAY/RDS repeatedly to scroll
through the following information (if
available):
Station name »
Program type such as » [NEWS] (news),
[SPORT] (spor t), [POP M] (pop
music)...
Frequency »
Note
See “Product information-RDS program •
types” for de nitions of RDS program types.
22 EN
8 Adjust volume
level and sound
effect
1 To turn on automatic loudness control,
press LOUD/DBB during play until the
loudness icon is displayed.
To turn off automatic loudness •
control, press LOUD/DBB until the
loudness icon disappears.
English
Adjust volume level
1 During play, press VOL +/- to increase/
decrease the volume level.
Select a sound effect
Note
You cannot use different sound effects at the •
same time.
Select a preset sound effect
1 During play, press DSC repeatedly to
select:
• [Classic]
• [Rock]
• [Jazz]
• [Pop]
• [FLAT] ( at)
Enhance bass
1 To turn on bass enhancement, press
LOUD/DBB repeatedly during play until
the DBB icon is displayed.
To turn off bass enhancement, press •
LOUD/DBB repeatedly until the
DBB icon disappears.
Mute sound
1 During play, press MUTE to mute/unmute
sound.
Listen through headphone
1 Plug a headphone into the socket on
the unit.
Select automatic loudness control
Automatic loudness control increases the
treble and bass effect at low volume levels
(the higher the volume, the lower the treble
and bass levels).
23EN
9 Other features
Activate demonstration mode
You can see an overview of all features.
1 In standby mode, press on the main
unit to activate the demonstration mode.
A demonstration of major available »
features starts.
To deactivate the demonstration mode:
1 Press on the main unit again.
Adjust brightness of display
panel
The unit turns on automatically at »
the set time and switches to the last
selected source.
To deactivate the alarm timer, select »
[OFF] (off) at step 6.
Set the sleep timer
1 When the unit is turned on, press SLEEP/
TIMER repeatedly to select a set period
of time (in minutes).
The unit turns off automatically after »
the set period of time.
Connect other devices
1 In standby mode, press MODE/DIM
repeatedly to select different levels of
brightness for the display panel.
Set the alarm timer
1 Ensure that you have set the clock
correctly.
2 In standby mode, press and hold SLEEP/
TIMER .
The hour digits are displayed and begin »
to blink.
3 Press + VOL - to set the hour, then press
SLEEP/TIMER again.
The minute digits are displayed and »
begin to blink.
4 Press + VOL - to set the minute.
5 Press SLEEP/TIMER to con rm.
» [OFF] (off) begins to blink.
6 To activate the wake-up timer, press +
VOL - to select [ON] (on) while [OFF]
(off) is blinking.
A clock icon appears on the display. »
Listen to an audio player
You can listen to audio player through this
unit.
1 Connect the audio player.
For audio players with red/white •
audio output sockets:
Connect a red/white audio cable
(not supplied) to the AUX IN L/R
sockets and to the audio output
sockets on the audio player.
24 EN
For audio players with headphone •
sockets:
Connect the supplied MP3 Link cable
to the MP3 LINK socket and to the
headphone socket on the audio
player.
2 Select the MP3 Link/AUX source.
3 Start play on the audio player.
Record to a digital recorder
You can record audio from this unit to a digital
recorder.
English
1 Connect a coaxial cable (not supplied) to:
the • COAXIAL socket
the digital input socket on the digital •
recorder
2 Play audio to be recorded.
3 Begin to record on the digital recorder
(see the digital recorder user manual).
25EN
10 Product
information
Note
Product information is subject to change •
without prior notice.
Speci cations
Ampli er
Rated Output Power 2X20W RMS
Frequency Response 20 -20000 Hz, ±3dB
Signal to Noise Ratio >67dB
Aux Input 1 V RMS 20kohm
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Video Decoding MPEG-1 / MPEG-2 /
DivX
Video DAC 12Bits
Signal System PAL / NTSC
Video Format 4:3 / 16:9
Video S/N >48dB
Audio DAC 24Bits / 96kHz
Total Harmonic
Distortion
Frequency
Response
S/N Ratio >67dBA
<1% (1 kHz)
4Hz - 20kHz (44.1kHz)
4Hz - 22kHz (48kHz)
4Hz - 24kHz (96kHz)
Tuner (FM)
Tuning Range 87.5 - 108MHz
Tuning g r id 50KHz
Sensitivity - Mono, 26dB
S/N Ratio
Sensitivity - Stereo, 46dB
S/N Ratio
Search Selectivity >2 8dBf
Total Harmonic
Distortion <3%
Signal to Noise Ratio >50dB
<22 dBf
>43 dBf
Speakers
Speaker Impedance 8ohm
Speaker Driver 4” Full range
Sensitivity >82dB/m/W
General information
AC power 170 - 280 V, 50
Hz
Operation Power
Consumption
Eco Standby Power
Consumption
Standby Power
Consumption
Composite Video Output 1.0Vp-p, 75ohm
Coaxial Output 0.5Vpp ± 0.1Vpp
Headphone Output 2X15mW 32ohm
USB Direct Version 2.0
Dimensions
- Main Unit (W x H x D)
- Speaker Box
(W x H x D)
Weight
- With Packing
- Main Unit
- Speaker Box
25W
0.8W
<6W
75ohm
220 x 90 x
240mm
140 x 220 x 160
mm
6 kg
1.65 kg
2 x 1.5 kg
26 EN
Supported disc formats
Digital Video Discs (DVDs)•
Video CDs (VCDs)•
Super Video CDs (SVCDs)•
Digital Video Discs + Rewritable •
(DVD+RW)
Compact Discs (CDs)•
Picture (Kodak, JPEG) les on CDR(W)•
DivX(R) disc on CD-R(W):•
DivX 3.11, 4.x and 5.x•
WMA•
Supported MP3-CD formats:
ISO 9660•
Max. title/album name: 12 characters•
Max. title number plus album: 255.•
Max. nested directory: 8 levels.•
Max. album number: 32.•
Max. MP3 track number: 999.•
Supported sampling frequencies for MP3 •
disc: 32 kHz, 44.1 kHz, 48 kHz.
Supported Bit-rates of MP3 disc are: 32, •
64, 96, 128, 192, 256 (kbps).
The following formats are not suppor ted:•
Files like *.VMA, *.A AC , *.DLF, •
*.M3U,
*.PLS, *.WAV•
Non-English Album/Title name•
Discs recorded in Joliet format•
MP3 Pro and MP3 with ID3 tag•
MP3 bit rate (data rate): 32-320 Kbps •
and variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum •
of 8 levels
Number of albums/ folders: •
maximum 99
Number of tracks/titles: maximum •
999
ID3 tag v2.0 or later•
File name in Unicode UTF8 •
(maximum length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an •
album that does not contain MP3/
WMA les, and is not be shown in
the display.
Unsupported le formats are •
skipped. For example, Word
documents (.doc) or MP3 les with
extension .dlf are ignored and not
played.
AAC, WAV, PCM audio les•
DRM protected WMA les (.wav, •
.m4a, .m4p, .mp4, .aac)
WMA les in Lossless format•
English
USB playability information
Compatible USB devices:
USB ash memor y (USB 2.0 or •
USB1.1)
USB ash players (USB 2.0 or •
USB1.1)
memory cards (requires an additional •
card reader to work with this
apparatus)
Supported formats:
USB or memory le format FAT12, •
FAT16, FAT32 (sector size: 512 by tes)
27EN
RDS program types
NO TYPE No RDS programme type
NEWS News services
AFFAIRS Politics and current affairs
INFO Special information
programs
SPORT Sports
EDUCATE Education and advanced
training
DRAMA Radio plays and literature
CULTURE Culture, religion and
society
SCIENCE Science
VAR I ED Entertainment programs
POP M Pop music
ROCK M Rock music
MOR M Light music
LIGHT M Light classical music
CLASSICS Classical music
OTHER M Special music programs
WEATHER Weather
FINANCE Finance
CHILDREN Children’s programs
SOCIAL Social Affairs
RELIGION Religion
PHONE IN Phone In
TRAVEL Tr avel
LEISURE Leisure
JAZZ Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES Oldies Music
FOLK M Folk Music
DOCUMENT Documentary
TES Alarm Test
ALARM Alarm
28 EN
11 Troubleshooting
Caution
Never remove the casing of this unit. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this unit,
check the following points before requesting
service. If the problem remains unsolved, go to
the Philips web site (www.philips.com/support).
When you contact Philips, ensure that your
unit is nearby and the model number and serial
number are available.
No power
Ensure that the AC cord of the apparatus •
is connected properly.
Ensure that there is power at the AC •
outlet.
As a power-saving feature, the system •
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
No disc detected
Insert a disc. •
Check if the disc is inser ted upside down. •
Wait until the moisture condensation at •
the lens has cleared.
Replace or clean the disc. •
Use a nalized CD or correct format disc. •
No picture
Check the video connection. •
Turn on the TV to the correct Video-In •
channel.
Progressive scan is activated but the TV •
does not suppor t progressive scan.
Black and white or distorted picture
The disc does not match the TV color •
system standard (PAL/NTSC).
Sometimes a slight picture distortion may •
appear. This is not a malfunction.
Clean the disc. •
A distorted picture may appear during •
progressive scan setup.
The aspect ratio of the TV screen cannot be
changed even though you have set the TV
display format.
The aspect ratio is xed on the loaded •
DVD disc.
The aspect ratio may not be changed for •
some TV systems.
No sound or poor sound
Adjust the volume. •
Disconnect the headphones. •
Check that the speakers are connected •
correctly.
Check if the stripped speaker wires are •
clamped.
Remote control does not work
Before you press any function button, •
rst select the correct source with the
remote control instead of the main unit.
Reduce the distance between the remote •
control and the unit.
Inser t the battery with its polarities (+/– •
signs) aligned as indicated.
Replace the batter y. •
Aim the remote control directly at the •
sensor on the front of the unit.
Disc does not play
Inser t a readable disc and ensure that the •
label side faces up.
Check the disc type, color system and •
regional code. Check for any scratches or
smudges on the disc.
Press •SYSTEM MENU to exit the system
setup menu.
Disable the password for parental control •
or change the rating level.
Moisture has condensed inside the •
system. Remove the disc and leave the
system turned on for about an hour.
Disconnect and reconnect the AC power
plug, and then turn on the system again.
As a power-saving feature, the system •
turns off automatically 15 minutes after
disc play reaches the end and no control
is operated.
Poor radio reception
Increase the distance between the unit •
and your TV or VCR .
English
29EN
Fully ex tend the FM antenna. •
Connect an outdoor FM antenna instead. •
Audio or subtitle languages cannot be set
The disc is not recorded with sound or •
subtitles in multiple languages.
The audio or subtitle language setting is •
prohibited on the disc.
Cannot display some les in USB device
The number of folders or les in the USB •
device has exceeded a cer tain limit. This
phenomenon is not a malfunction.
The formats of these les are not •
supported.
USB device not supported
The USB device is incompatible with the •
unit. Try another one.
Timer does not work
Set the clock correctly. •
Switch on the timer. •
Clock/timer setting erased
Power has been interrupted or the power •
cord has been disconnected.
Reset the clock /timer. •
30 EN
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
MCD122_UM_51_V1.0
