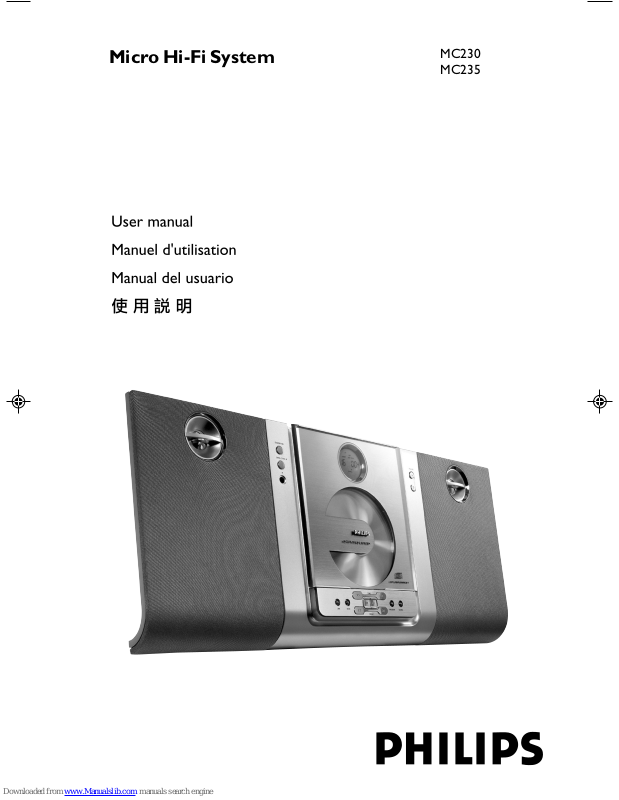

Micro Hi-Fi System
MC230
MC235
México
Es necesario que lea cuidadosamente su instructivo de
manejo.
PRECAUCIÓN - ADVERTENCIA
No abrir, riesgo de choque eléctrico
ATENCIÓN
Verifique que el voltaje de alimentación
sea el requerido para su aparato
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
Descripción: Microsistema de Audio
Modelo : MC230/ 21, MC235/ 21
Alimentación: 110–127 / 220–240V; ~50–60 Hz
Consumo: 15 W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6
Col. San Fernando La Herradura
Huixquilucan
Localidad y Tel: Edo. de México C.P. 52784
Tel.52 69 90 00
Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V. no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, inundaciones, incendios, descargas
eléctricas, rayos etc
terceros (choques asaltos, riñas
2
CAUTION
Use of controls or
adjustments or performance
of procedures other than
herein may result in
hazardous radiation
exposure or other unsafe
operation.
.o delitos causados por
, etc.).
1
!
7
@
0
8
%
*
3
5
#
$
&
^
(
)
1
3
4
6
7
8
9
2
5
!
0
3
3
4
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 18
Español --------------------------------------------- 32
-------------------------------------------------------- 45
English
Français
Español
5
Contents
English
General Information
Environmental information ................................ 7
Supplied accessories ............................................ 7
Safety information ................................................ 7
Preparations
Rear connections ............................................. 8–9
Optional connection ........................................... 9
Before using the remote control ...................... 9
Replacing battery (lithium CR2025) into the
remote control ..................................................... 9
Controls
Controls on the system and remote
control .................................................................. 10
Basic Functions
Switching the system on ................................... 11
Power-saving automatic standby ..................... 11
Adjusting volume and sound............................ 11
Radio Reception
Tuning to radio stations .................................... 14
Programming radio stations ............................. 14
Tuning to preset radio stations ....................... 14
Changing tuning grid .......................................... 14
Clock/Timer
Setting the clock ................................................. 15
Viewing the clock ............................................... 15
Setting the timer ................................................. 15
Activating and deactivating TIMER ................. 15
Activating and deactivating SLEEP .................. 15
Specifications ........................................... 16
Maintenance.............................................. 16
Troubleshooting .................................... 17
CD Operation
Playing a disc ........................................................ 12
Selecting a different track ................................. 12
Finding a passage within a track ...................... 12
Different play modes: Shuffle and Repeat ..... 13
Programming track numbers ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
6
General Information
IMPORTANT!
PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR OF
THIS SYSTEM IS PRESET AT 220V FROM
THE FACTORY. FOR COUNTRIES THAT
OPERATE AT 110V-127V, PLEASE ADJUST
TO 110V-127V BEFORE YOU SWITCH ON
THE SYSTEM.
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied accessories
–2 speaker boxes
– remote control (with battery)
– MW loop antenna
– FM wire antenna
– stand
– screw and plug assembly x2
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
English
7
Preparations
English
MW loop
antenna
Speakers
(right)
AC power cord
FM wire antenna
VOLTAGE
SELECTOR
110V127V
220V240V
NOT FOR ALL
VERSIONS
Speakers
(left)
Rear connections
The type plate is located at the rear of the
system.
A Power
Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
– If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.
WARNING!
–For optimal performance, use only the
original power cable.
–Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
B Antennas Connection
Connect the supplied MW loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
MW Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
8
Preparations
FM Antenna
● For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) terminal.
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", coloured (marked) wire to
"+" and black (unmarked) wire to "-".
● Fully inser t the stripped portion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Before using the remote control
1 Pull out the plastic protective sheet.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
3 Then select the desired function (for example
ÉÅ , í , ë).
plastic
protective
sheet
Replacing battery (lithium
CR2025) into the remote control
1 Pull out the knob A slightly to the left.
2 Pull out the battery compartment B .
3 Replace a new battery and fully insert the
battery compartment back to the original
position.
English
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV, VCR, Laser Disc player, DVD player or
CD Recorder to the AUX-IN terminals.
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX IN left terminal. Alternatively, you can use
a “single to double” cinch cable (the output sound
still remain mono).
CAUTION!
Batteries contain chemical substances, so
they should be disposed off properly.
9
Controls (illustrations on page 3)
English
Controls on the system and
remote control
1 STANDBY-ON
– switches the system on or to standby.
2 Display
– shows the status of the system.
3 OPEN • CLOSEç
– opens/ closes the CD door.
4 IR
– remote sensor
5 VOLUME (3 / 4 ) (+/-)
– adjusts the volume level.
6 CD Door
7 Mode Selection
SEARCH/ TUNE (à / á)
for TUNER ........ tunes to a station
for CD ................. fast searches back and forward
within a track/ CD.
STOP 9 ............ stops CD playback or erases a
CD programme.
PLAYÉÅ ...... star ts or interrupts playback.
PRESET (¡ / ™)
for TUNER ........ selects a preset radio station.
for CD ................. skips to the beginning of a
current track/ previous/
subsequent track
8 DBB (Dynamic Bass Boost)
– enhances the bass.
9 BAND
– selects a waveband.
0 PROGRAM
for CD ................. programmes tracks and reviews
the programme.
for TUNER ........ programmes tuner stations.
! SOURCE
– selects the respective sound source for CD/
TUNER/ AUX.
@ CLOCK SET
– sets the clock function.
– views the clock.
# TIMER
– activates/deactivates or sets the timer function.
$ SLEEP
– activates/deactivates or selects the sleeper time.
% DSC (Digital Sound Control)
– selects sound characteristics: ROCK/ JAZZ/
POP/ CLASSIC.
10
^ RDS.NEWS
– activates RDS news and Traffic Announcement
(not for all versions).
& MUTE
– interrupts and resumes sound reproduction.
* REPEAT
– repeats a track/ CD programme/ entire CD.
( SHUFFLE
–plays CD tracks in random order.
)
–connects headphones
Notes for remote control:
– First select the source you wish to
control by pressing one of the source select
keys on the remote control (for example
CD, TUNER).
– Then select the desired function (for
example ÉÅ, ¡ , ™).
Basic Functions
Adjusting volume and sound
IMPORTANT!
Before you operate the system, complete
the preparation procedures.
Switching the system on
● Press STANDBY-ON / 2.
➜ The system will switch to the last selected
source.
● Press SOURCE (or CD, TUNER or AUX on
the remote control).
➜ The system will switch to the selected source.
● Press OPEN • CLOSEç.
Press the VOLUME 3 / 4 (+/-) control to
1
decrease or increase the volume.
➜ Display shows the volume level VOL and a
number from MIN1, 2, ...30, 31 MAX.
2 Press DSC repeatedly to select the desired
sound effect: ROCK/ JAZZ/ POP/ CLASSIC.
3 Press DBB to switch bass enhancement on or
off.
➜ Display shows: DBB.
4 Press MUTE on the remote control to
interrupt sound reproduction instantly.
➜ Playback will continue without sound and the
display shows MUTE.
● To activate sound reproduction you can:
– press MUTE again;
– adjust the volume controls;
– change source.
English
To switch the system to standby mode
● Press STANDBY-ON / 2.
➜ The system enters the standby mode with
clock display.
● The volume level (up to a maximum volume
level of 20), interactive sound settings, source
and tuner presets will be retained in the player's
memory.
Power-saving automatic standby
As a power-saving feature, the system
automatically switches to standby 15 minutes
after a CD has reached the end and no control
is operated.
11
CD Operation
English
IMPORTANT!
The lens of the CD player should never be
touched.
Playing a disc
This CD player plays Audio Discs including CDRecordables and CD-Rewritables.
4 PressÉÅto start playback.
➜ Current track number and elapsed playing
time of the track are displayed during disc
playback.
5 To interrupt playback pressÉÅ. PressÉÅ
again to resume play.
6 To stop disc playback, press STOP 9.
Note: CD play will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source: TUNER, AUX or
standby.
Selecting a different track
● Press í or ë once or repeatedly until the
desired track number appears in the display.
● If you have selected a track number shortly after
loading a disc or in the PAUSE position, you will
need to pressÉÅto start playback.
Finding a passage within a track
● CD-ROM, CD-I, CDV, VCD, MP3, DVD or
computer CDs, however, are not possible.
1 Press SOURCE to select CD.
2 Press OPEN • CLOSEç on the front panel
of the system to open the CD compartment.
➜ OPEN is displayed when the compartment
cover slides up.
3 Insert a disc with the printed side facing up. Press
OPEN • CLOSEç again to close the
compartment.
➜ READING is displayed as the CD player scans
the contents of the disc.
➜ The total playing time and the total number
of tracks are displayed.
1 Press and hold à or á.
➜ The disc is played at high speed and low
volume.
2 When you recognise the passage you want,
release à or á.
➜ Normal playback continues.
12
CD Operation
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback. The play
modes can also be combined with
PROGRAMME.
SHUFFLE ......... tracks of the entire disc/
programme are played in
random order
SHUFFLE and REPEAT ALL…to repeat the
entire disc/ programme
continuously in random order
REPEAT ALL ... repeats the entire disc/
programme
REPEAT ............ plays the current track
continuously
1 To select your play mode, press the SHUFFLE
or REPEAT button before or during playback
until the display shows the desired function.
2 Press ÉÅ to start playback if in the STOP
position.
➜ If you have selected SHUFFLE, playback starts
automatically.
➜ The number of tracks programmed and the
total playing time of the programme are show
briefly, then the selected track and PROG.
4 Repeat steps 2-3 to select and store all desired
tracks.
➜ FULL is displayed if you attempt to
programme more than 40 tracks.
5 To start playback of your disc program, press
STOP 9 followed by ÉÅor press ÉÅdirectly.
Reviewing the programme
In STOP mode, press and hold down
PROGRAM for a while until the display shows
all your stored track numbers in sequence.
Erasing the programme
You can erase the programme by:
● pressing STOP 9 once in the STOP mode;
● pressing STOP 9 twice during playback;
● opening the CD compartment;
➜ PROGRAM disappears.
➜ CLEAR scrolls and then disappears from the
display.
English
3 To return to normal playback, press the
respective SHUFFLE or REPEAT button until
the various SHUFFLE/ REPEAT modes are no
longer displayed.
● You can also press STOP 9 to cancel your play
mode.
Programming track numbers
Programme in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
40 tracks can be stored in the memory.
1 Press PROGRAM to enter the programming
mode.
➜ A track number is shown and PROGRAM
flashes.
2 Use the í or ë to select your desired track
number.
3 Press PROGRAM to confirm the track number
to be stored.
13
Radio Reception
English
2 Press PROGRAM for more than 2 seconds to
activate programming.
➜ AUTO is displayed and available stations are
programmed in order of waveband reception
strength: FM followed by MW. The last preset
automatically stored will then be played.
Manual programming
1 Tune to your desired station (see Tuning to radio
stations).
2 Press PROGRAM to activate programming.
➜ PROGRAM flashes in the display.
3 Press PRESET ¡ or ™ to allocate a number
from 1 to 40 to this station.
Tuning to radio stations
1 Press SOURCE to select TUNER.
➜ TUNER is displayed briefly.
2 Press BAND (or TUNER on the remote
control) once or more to select your waveband.
(FM/ MW)
3 Press and hold TUNE à or á.
➜ The radio automatically tunes to a station
with sufficient reception. Display indication
during automatic tuning: SEARCH.
4 Repeat step 3 if necessary until you find the
desired station.
● To tune to a weak station, press TUNE à or
á briefly and repeatedly until you have found
optimal reception.
Programming radio stations
You can store up to a total of 40 radio stations
in the memory.
Automatic programming
Automatic programming will start with a chosen
preset number. From this preset number
upwards, former programmed radio stations will
be overridden. The system will only program
stations which are not in the memory already.
1 Press PRESET ¡ or ™ to select the preset
number where programming should start.
Note:
– If no preset number is selected, default is preset
(1) and all your presets will be overridden.
4 Press PROGRAM again to confirm the setting.
➜ PROGRAM disappears, the preset number and
the frequency of the preset station are shown.
5 Repeat the above four steps to store other
stations.
● You can override a preset station by storing
another frequency in its place.
Tuning to preset radio stations
● Press PRESET ¡ or ™ until the desired preset
station is displayed.
Changing tuning grid (not available for
all versions)
In North and South America, the frequency step
between adjacent channels in the MW band is
10 kHz (9 kHz in some areas). The preset
frequency step in the factory is 9 kHz.
Changing the tuning grid will erase all
previously stored preset radio stations.
1 Select TUNER source or in the tuner mode.
2 Press STOP on the set for at least 5 seconds.
➜ The display will show "GRID 9" or
"GRID10".
Notes:
– GRID 9 and GRID 10 indicate that the tuning
grid is in step of 9 kHz and 10 kHz respectively.
– The FM tuning grid also will be changed from
50 kHz to 100 kHz or vice versa.
14
Setting the clock
1 In standby mode or system on, press and hold
CLOCK SET on the remote control for more
than 3 seconds.
➜ SET CLOCK scrolls on the display.
➜ The clock digits for the hours flash.
2 Press VOLUME +/- to set the hours.
3 Press CLOCK SET again.
➜ The clock digits for the minutes flash.
4 Press VOLUME +/- to set the minutes.
5 Press CLOCK SET to confirm the time.
Viewing the clock
Press CLOCK SET .
➜ The clock time is displayed.
Setting the timer
● The system can be used as an alarm clock,
whereby the CD, TUNER is switched on at a set
time. The clock time needs to be set first before
the timer can be used.
● During setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
1 In standby mode or system on, press and hold
TIMER on the remote control for more than 3
seconds.
➜ SET TIMER and SELECT SOURCE scrolls
on the display.
Clock/Timer
2 Press SOURCE or VOLUME +/- to select
sound source.
➜ Display sequence shows CD, TUNER.
➜ flashes.
3 Press TIMER to confirm your desired mode.
4 Press VOLUME +/- to set the hours.
5 Press TIMER again.
➜ The clock digits for the minutes flash.
6 Press VOLUME +/- to set the minutes.
7 Press TIMER to confirm the time.
➜ The timer is now set and activated.
Activating and deactivating
TIMER
● Press TIMER on the remote to turn off the
timer or turn on to the last setting again.
➜ If activated, the timer information will display
for a few seconds, then the system resumes to
the last active source or stays in standby mode.
➜ If deactivated, “OFF” appears.
Note:
– The system will exit timer setting mode if no
button is pressed within 90 seconds.
Activating and deactivating
SLEEP
The sleep timer enables the system to switch off
by itself after a set period of time.
● Press SLEEP on the remote
control once or more.
➜ Display shows SLEEP and
one of the sleep time options
in sequence: 90, 75, 60,...,
45,30,15, OFF, 90. i f you have
selected a time.
● To deactivate, press SLEEP on the remote
control once or more until OFF is shown, or
press STANDBY-ON on the system or
remote control.
➜ SLEEP disappears.
English
15
Specifications
English
AMPLIFIER
Output power ......................................... 200W PMPO
........................................................................... 2 x 5 W RMS
Signal-to-noise ratio .......................... ≥ 62 dBA (IEC)
Frequency response ......... 63 – 16000 Hz, ± 3 dB
Input sensitivity AUX ....................... 0.5 V (max. 2 V)
Impedance loudspeakers ......................................... 4 Ω
Impedance headphones .................... 32 Ω -1000 Ω
(1) (4Ω, 60Hz - 12.5Hz, 10% THD)
CD PLAYER
Frequency range .................................. 30 – 16000 Hz
Signal-to-noise ratio ............................................ 75 dBA
TUNER
FM wave range ...................................87.5 – 108 MHz
MW wave range (9 kHz) ............. 531 – 1602 kHz
MW wave range (10 kHz)........... 530 – 1700 kHz
Tuning grid ............................................................ 9/10 kHz
Sensitivity at 75 Ω
– mono, 26 dB signal-to-noise ratio ............ 2.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. ≥ 28 dB
Total harmonic distor tion ..................................... ≤ 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio ...................................... ≥ 50 dBA
SPEAKERS
Bass reflex system
Dimensions (w x h x d) ....166 x 245 x 90 (mm)
GENERAL INFORMATION
AC Power
For Version /21x ........... 110 – 127 / 220 – 240 V;
....................................................... 50/60 Hz Switchable
For Version /30 ........................ 230 – 240 V; 50 Hz
Dimensions (w x h x d) ..... 250 x 245 x 96 (mm)
Weight (with/without speakers) ..................................
................................................................ approx. 4.1 /1.9 kg
Standby power consumption .......................... < 6 W
Subject to modification
Maintenance
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dir ty,
clean it with a cleaning cloth.
Wipe the disc from the center
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic
spray intended for analog records.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
16
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Problem Solution
CD OPERATION
“NO DISC” is displayed. – Insert a disc.
– Check if the disc is inserted upside down.
–Wait until the moisture condensation at the lens
has cleared.
– Replace or clean the disc, see “Maintenance”.
– Use a finalised CD-RW or CD-R.
RADIO RECEPTION
Radio reception is poor. – If the signal is too weak, adjust the antenna or
connect an external antenna for better reception.
– Increase the distance between the Micro HiFi
System and your TV or VCR.
English
GENERAL
The system does not react when buttons – Remove and reconnect the AC power plug and
are pressed. switch on the system again.
Sound cannot be heard or is of poor – Adjust the volume.
quality. – Disconnect the headphones.
– Check that the speakers are connected correctly.
– Check if the stripped speaker wire is clamped.
The left and right sound outputs are – Check the speaker connections and location.
reversed.
The remote control does not function – Select the source (CD or TUNER, for example)
properly. before pressing the function button (ÉÅ,í,
ë).
– Reduce the distance between the remote control
and the system.
– Insert the batteries with their polarities
(+/– signs) aligned as indicated.
–Replace the batteries.
–Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working. – Set the clock correctly.
– Press TIMER to switch on the timer.
The Clock/Timer setting is erased. –Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
17
Loading...
