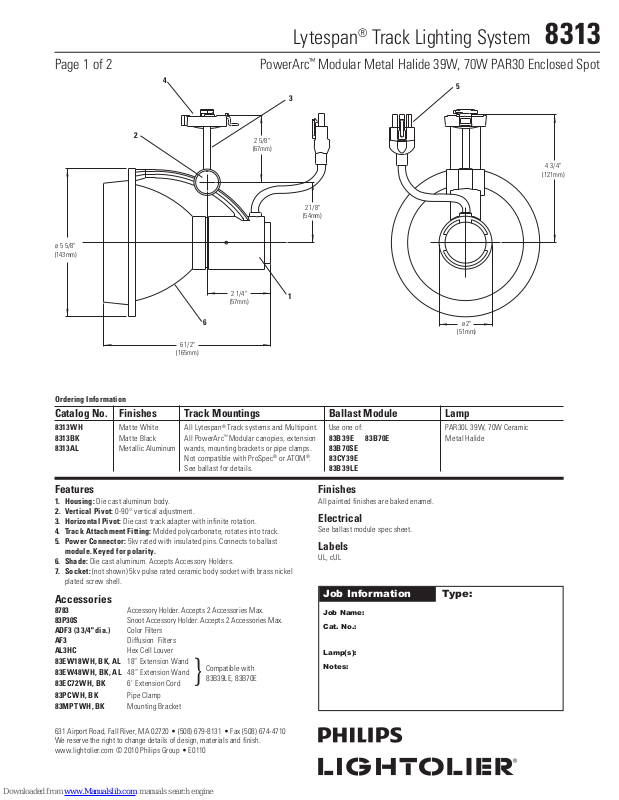

Philips Lytespan 8313, Lightolier Lytespan 8313 Specification

Lytespan

®

Track Lighting System  8313

Page 1 of 2 PowerArc™ Modular Metal Halide 39W, 70W PAR30 Enclosed Spot

4

3

5

2

ø 5 5/8"

(143mm)

6

6 1/2"

(165mm)

Orde ring Information

2 1/4"

(57mm)

2 5/8"

(67mm)

2 1/8"

(54mm)

1

ø 2"

(51mm)

Catalog No.  Finishes  Track Mountings  Ballast Module   Lamp

8313WH Matte White All Lytespan® Track systems and Multipoint. Use one of: PAR30L 39W, 70W Ceramic
8313BK Matte Black All PowerArc™ Modular canopies, extension 83B39E  83B70E    Metal Halide
8313AL Metallic Aluminum wands, mounting brackets or pipe clamps. 83B70SE

Not compatible with ProSpec® or ATOM®. 83CY39E
See ballast for details. 83B39LE

4 3/4"

(121mm)

Features

1.   Housing: Die cast aluminum body.

2.   Vertical Pivot: 0-90° vertical adjustment.

3.   Horizontal Pivot: Die cast track adapter with infinite rotation.

4.   Track Attachment Fitting: Molded polycarbonate, rotates into track.

5.   Power Connector : 5kv rated with insulated pins. Connects to ballast
  module. Keyed for polarity.

6.   Shade: Die cast aluminum. Accepts Accessory Holders.

7.   Socket: (not shown) 5kv pulse rated ceramic body socket with brass nickel

plated screw shell.

Accessories

8783     Accessory Holder. Accepts 2 Accessories Max.
83P30S    Snoot Accessory Holder. Accepts 2 Accessories Max.
ADF3 (3 3/4" dia.)     Color Filters
AF3     Diffusion Filters
AL3HC     Hex Cell Louver
83EW18WH, BK , AL 18” Extension Wand
83EW4 8WH, BK, AL 48” Extension Wand
83EC72WH, BK 6’ Ex tension Cord
83PCWH, BK Pipe Clamp
83MPT WH, BK Mounting Bracket

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • E0110

Compatible with

}

83B39LE, 83B70E

Finishes

All painted finishes are baked enamel.

Electrical

See ballast module spec sheet.

Labels

UL, cUL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan

FC

D

L

C

A

W

L

W

FC

D

FC

L

C

D

A

®

Track Lighting System  8313

Page 2 of 2 PowerArc™ Modular Metal Halide 39W, 70W PAR30 Enclosed Spot

Lighting Data
Aiming Angle  0°  30°, 45° o r 60° Horizontal  30°, 45° o r 60° Vertical

L  Beam Length
W  Beam Width
C Distance to center beam
D  Distance
A  Aiming Angle
FC  Footcandles

L and W are the outer points where the candle power

drops to 50% of the maximum. FC are the initial foot­candles at the center of the beam.

LAMP   0° AIMING ANGLE  A=30° AIMING ANGLE  A=45° AIMING ANGLE  A=60° AIMING ANGLE

*Lamps are MasterColor Metal Halide by Philips Lighting.
Correlated Color Temperature = 30 00K
Color Rendering Index = 83
