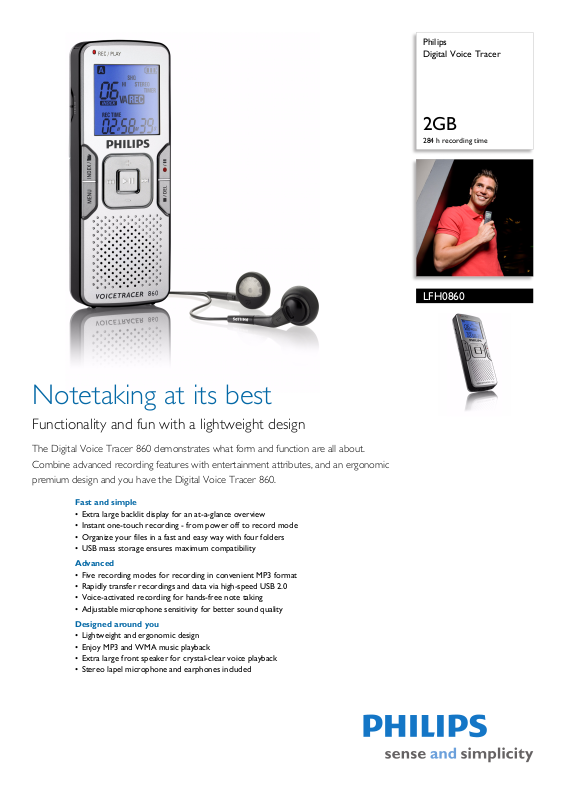

Philips LFH0860-00 User Manual

Philips
Digital Voice Tracer

2GB

284 h recording time

LFH0860

Notetaking at its best

Functionality and fun with a lightweight design

The Digital Voice Tracer 860 demonstrates what form and function are all about.
Combine advanced recording features with entertainment attributes, and an ergonomic
premium design and you have the Digital Voice Tracer 860.

Fast and simple

• Extra large backlit display for an at-a-glance overview

• Instant one-touch recording - from power off to record mode

• Organize your files in a fast and easy way with four folders

• USB mass storage ensures maximum compatibility

Advanced

• Five recording modes for recording in convenient MP3 format

• Rapidly transfer recordings and data via high-speed USB 2.0

• Voice-activated recording for hands-free note taking

• Adjustable microphone sensitivity for better sound quality

Designed around you

• Lightweight and ergonomic design

• Enjoy MP3 and WMA music playback

• Extra large front speaker for crystal-clear voice playback

• Stereo lapel microphone and earphones included

Digital Voice Tracer

2GB 284 h recording time

LFH0860/00

Specifications

Connectivity

• Headphone: 3.5 mm

• Microphone: Built-in microphone, Microphone
cket

so

• Line in: 3.5 mm

•USB: High-speed USB 2.0

Picture/Display

•Type: LCD

• Diagonal screen size: 3.5 cm / 1.5 inch

•Backlight

Storage Media

• Built-in memory capacity: 2 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

Audio Recording

• Recording formats: MPEG1 layer 3 (MP3)

• Recording modes: SHQ (MP3/stereo), HQ (MP3/

ereo), SP (MP3/mono), LP (MP3/mono), SLP

st
(MP3/mono)

• Bit rate: 128 kbps (SHQ mode), 64 kbps (HQ

e), 48 kbps (SP mode), 32 kbps (LP mode), 16

mod
kbps (SLP mode)

• Recording Time: 284 hours (SLP mode), 142 hours

P mode), 94.5 hours (SP mode), 71 hours (HQ

(L
mode), 35.5 hours (SHQ mode)

• Sample Rate: 44.1 kHz (SHQ mode), 22 kHz (HQ

de), 16 kHz (SP/LP/SLP mode)

mo

Audio Playback

• Compression format: MP3, WMA

• MP3 bit rates: 8-320 kbps

• WMA bit rates: 32-192 kbps

• Digital Rights Management: Not supported

Speaker

• Built-in speaker: 30 mm

• Speaker Type: Round dynamic speaker

• Output Power: 110 mW

Power

•Batteries included

• Battery type: AAA / LR03 Alkaline

• Battery lifetime: 50 hours (SLP mode)

System Requirements

• PC OS: Windows 2000 / XP / Vista, Mac OS X,
Linux

• USB: Free USB port

Green Specifications

• Lead-free soldered product

Accessories

• Included accessories: Stereo lapel microphone,
headphones, USB cable, neck strap, batteries, user
manual

• Optional accessories: Mic
combi, Plug-in Microphone LFH9171, Tie Clip
Microphone LFH9173, Stereo Headphones
LFH2236

rophone/earphone

Product dimensions

• Product dimensions (W x H x D):
4 x 11.8 x 1.8 cm

• Weight: 0.06 kg

•

Highlights

Voice-activated recording

Voice-activated recording is a convenience feature
for hands-free recording. When enabled, recording
will start automatically when you start speaking.
Recordings stop automatically after you stop
speaking and restart automatically when you start
speaking again.

Microphone sensitivity

The signal–to-noise (S/N) ratio of the high-sensitivity
microphone is far better than those of standard
microphones. Recording sensitivity is increased
(picks up more voice signal) without compromising
sound quality.

Stereo lapel microphone

A lightweight stereo headset designed for comfort
during extended use and an omni-directional stereo
lapel microphone accompany your Voice Tracer.
The microphone's high pick-up sensitivity provides
excellent recording quality while the stereo headset
delivers powerful sound.

Extra large backlit display

The large graphical display lets you view all important
file information at a glance, thanks to the backlit
display, even in poor lighting conditions.

Instant one-touch recording

Press and hold the record button for a moment to
switch the Digital Voice Tracer on and start
recording instantly.

Easy file organization

The VoiceTracer digital recorder supports up to 99
recordings in each of four available folders to
organize your files in a fast and easy way.

Issue date 2010-05-21

Version: 2.4.1

12 NC: 8735 086 00011
UPC: 0 37849 98353 9

Five recording modes

Choose among several recording modes, from two
high-quality stereo modes including SHQ and HQ, or
three monaural modes including SP, LP and SLP for
extended recording times.

Lightweight design

Small and lightweight, you'll hardly notice it's with
you. Pop it in your pocket or bag and take it
anywhere. The durable casing and attractive,
ergonomic design will make you want to carry it
everywhere you go.

USB mass storage device

As a USB mass storage device, the Voice Tracer
offers a convenient way to save, back up and move
files. The Voice Tracer connects to a computer using
a USB connection and does not require special
software to be installed. The Voice Tracer is
automatically displayed as a removable drive,
allowing you to simply drag and drop files to and
from the unit.
