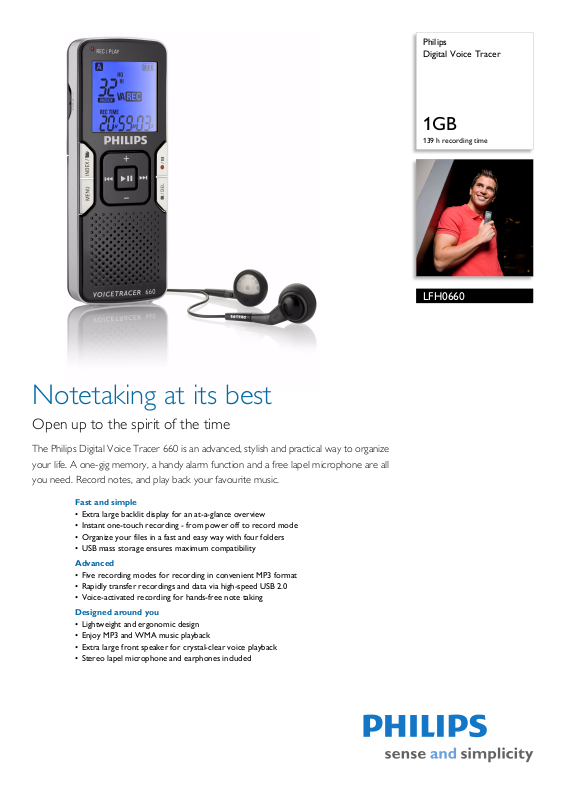

Philips LFH0660-00 User Manual

Philips Digital Voice Tracer

1GB

139 h recording time

LFH0660

Notetaking at its best

Open up to the spirit of the time

The Philips Digital Voice Tracer 660 is an advanced, stylish and practical way to organize your life. A one-gig memory, a handy alarm function and a free lapel microphone are all you need. Record notes, and play back your favourite music.

Fast and simple

• Extra large backlit display for an at-a-glance overview

• Instant one-touch recording - from power off to record mode

• Organize your files in a fast and easy way with four folders

• USB mass storage ensures maximum compatibility

Advanced

• Five recording modes for recording in convenient MP3 format

• Rapidly transfer recordings and data via high-speed USB 2.0

• Voice-activated recording for hands-free note taking

Designed around you

• Lightweight and ergonomic design

• Enjoy MP3 and WMA music playback

• Extra large front speaker for crystal-clear voice playback

• Stereo lapel microphone and earphones included

Digital Voice Tracer

1GB 139 h recording time

LFH0660/00

Specifications

Connectivity

• Headphone: 3.5 mm

• Microphone: Built-in microphone, Microphone cket

• Line in: 3.5 mm

•USB: High-speed USB 2.0

Picture/Display

•Type: LCD

• Diagonal screen size: 3.5 cm / 1.5 inch

•Backlight

Storage Media

• Built-in memory capacity: 1 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

Audio Recording

• Recording formats: MPEG1 layer 3 (MP3)

• Recording modes: SHQ (MP3/mono), HQ (MP3/

o), SP (MP3/mono), LP (MP3/mono), SLP

mon (MP3/mono)

• Bit rate: 128 kbps (SHQ mode), 64 kbps (HQ

e), 48 kbps (SP mode), 32 kbps (LP mode), 16

mod kbps (SLP mode)

• Recording Time: 139.5 hours (SLP mode), 69.5

urs (LP mode), 46.5 hours (SP mode), 35 hours

ho (HQ mode), 17.5 hours (SHQ mode)

• Sample Rate: 44.1 kHz (SHQ mode), 22 kHz (HQ

de), 16 kHz (SP/LP/SLP mode)

Audio Playback

• Compression format: MP3, WMA

• MP3 bit rates: 8-320 kbps

• WMA bit rates: 32-192 kbps

• Digital Rights Management: Not supported

Speaker

• Built-in speaker: 30 mm

• Speaker Type: Round dynamic speaker

• Output Power: 110 mW

Power

•Batteries included

• Battery type: AAA / LR03 Alkaline

• Battery lifetime: 50 hours (SLP mode)

System Requirements

• PC OS: Windows 2000 / XP / Vista, Mac OS X, Linux

• USB: Free USB port

Green Specifications

• Lead-free soldered product

Accessories

• Included accessories: Lapel microphone, headphones, USB cable, neck strap, batteries, user manual

• Optional accessories: Mic combi, Plug-in Microphone LFH9171, Tie Clip Microphone LFH9173, Stereo Headphones LFH2236

rophone/earphone

Product dimensions

• Product dimensions (W x H x D): 4 x 11.8 x 1.8 cm

• Weight: 0.06 kg

•

Highlights

Voice-activated recording

Voice-activated recording is a convenience feature for hands-free recording. When enabled, recording will start automatically when you start speaking. Recordings stop automatically after you stop speaking and restart automatically when you start speaking again.

Extra large backlit display

The large graphical display lets you view all important file information at a glance, thanks to the backlit display, even in poor lighting conditions.

Instant one-touch recording

Press and hold the record button for a moment to switch the Digital Voice Tracer on and start recording instantly.

Easy file organization

The VoiceTracer digital recorder supports up to 99 recordings in each of four available folders to organize your files in a fast and easy way.

Five recording modes

Choose among several recording modes, from two high-quality stereo modes including SHQ and HQ, or three monaural modes including SP, LP and SLP for extended recording times.

Lightweight design

Small and lightweight, you'll hardly notice it's with you. Pop it in your pocket or bag and take it anywhere. The durable casing and attractive, ergonomic design will make you want to carry it everywhere you go.

USB mass storage device

As a USB mass storage device, the Voice Tracer offers a convenient way to save, back up and move files. The Voice Tracer connects to a computer using a USB connection and does not require special software to be installed. The Voice Tracer is automatically displayed as a removable drive, allowing you to simply drag and drop files to and from the unit.

Issue date 2010-05-21

Version: 2.2.2

12 NC: 8735 066 00011 UPC: 0 37849 98354 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
