CE declaration Example

servicing, disconnect network & device power at circuit breakers or remove fuses.

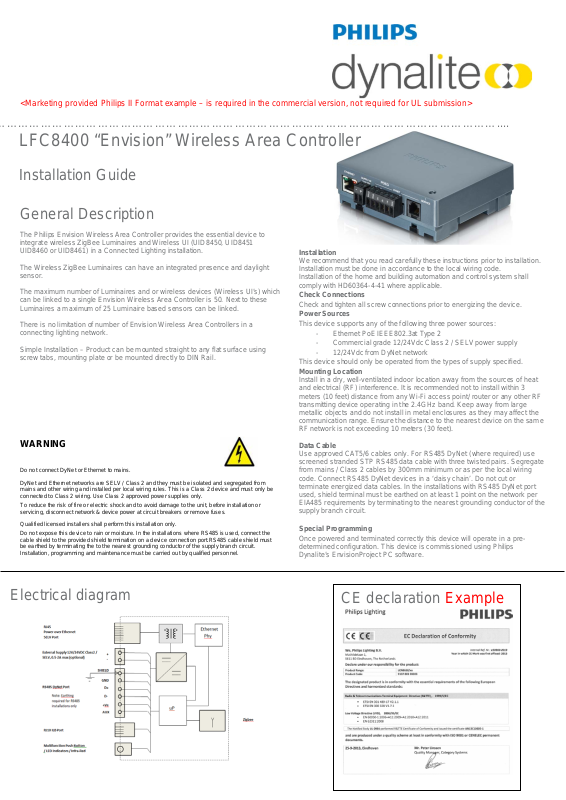

LFC8400 “Envision” Wireless A rea Controller

Electrical diagram

Installation

Dynalite’s EnvisionProject PC software.

General Description

<Marketing provided Philips II Format example – is required in the commercial version, not required for UL submission>

Installation Guide

The Philips Envision Wireless Area Contro ller provides the essential d ev ice to integrate wireless ZigBee Luminaires and Wireless UI (UID8450, UID8451 UID8460 or UID8461) in a Connected Lighting installation.

The Wireless ZigBee Luminaires can have an integrated presence and daylight sensor.

The maximum number of Luminaires and or wireless devices (Wireless UI’s) which can be linked to a single Envision Wirel ess Area Con t roller is 5 0. Next to these Luminaires a maximum of 25 Lumina ire based sensors can be linked.

There is n o limitation of number of Envisi on Wireles s Area Controllers in a
connecting lighting network.

Simple Installation – Product can be mount ed s traight to any flat surfac e using
screw tabs, mounting plate or be mounted directly to DIN Rail.

WARNING

Do not connect DyNet or Ethernet to mains.
DyNet and Ethernet networks are SELV / Class 2 and they must be isolated and segregated from

mains and other wiring and installed per local wiring rules. This is a Class 2 device and must only be
connected to Class 2 wiring. Use Class 2 approved power supplies only.

To reduce the risk of fire or electric shock and to avoid damage to the unit, before installation or

Qualified licensed installers shall perform this installation only.
Do not expose this device to rain or moisture. In the installations where RS485 is used, connect the

cable shield to the provided shield termination on a device connection port.RS485 cable shield must
be earthed by terminating the to the nearest grounding conductor of the supply branch circuit.
Installation, programming and maintenance must be carried out by qualified personnel.

We recommend that yo u read carefully these instructions prior to instal lation.
Installation must be done in accordance to the loc al wiring co de.
Installation of the home and building automation and control sys tem shall
comply with HD60364-4-41 where applicable.

Check Connections

Check and tighten all screw connections prior to energizing the device.
Power Sources
This device supports any of the following three power sources:

- Ethernet PoE IEEE802.3at Ty pe 2

- Commercial grade 12/24Vdc Class 2 / SELV power supply

- 12/24Vdc from DyNet network

This device shoul d only be oper ated from the types of su pply specified.

Mounting Location

Install in a dry, well-ventilated indoor location away from the sources of heat
and electrical (RF) interference. It is recommended not to install within 3
meters (10 fee t) di stance fro m any Wi-Fi access point/ ro uter or any ot her RF
transmitting device opera ting in the 2.4GHz band. Keep away from large
metall ic objects and do not inst all in metal enclosures as they m ay affect the
communication range. Ensure the dista nce to the ne arest device on the same
RF network is not exceeding 10 meters (30 feet).

Data Cable

Use approved CAT5/6 cables only. For RS485 DyNet (where required) use
screened stranded STP RS485 data cable with three twisted pairs. Segregate
from mains / Class 2 cables by 300mm minimum or as per the local wiring
code. Connect RS485 DyNet devices in a ‘daisy chain’. Do not cut or
terminate energized data cables. In the installations with RS485 DyNet port
used, shield terminal must be earthed on at least 1 point on the network per
EIA485 requirements by terminating to the nearest grou nding conductor of the
supply branch circuit.

Special Programming

Once powered and terminated correctly this device will operate in a pre­determi ned confi guration. This device is commissioned using Philips

Network connection

EWAC Rev F.docx. Specifications subject to change without notice.

Product specifications:

Supply options:

Option 1: PoE, IEEE 802.3at Clas s 0 Type 2, 37-57Vdc, 8W max

Installation steps

DyNet Network
12/24VDC Class 2 / SELV

Only qualified licensed installers shall perform this installation. Prior to commencing, ensure all power sources, power and data cables
are de-energized and isolated (touch safe)

1. Ensure mains supply input for DC power supply, PoE Ethernet network and DyNet network are all de-energized before terminating.

2. Select an appropriate mounting location indoors only following recommendations from the Mounting Location section. Mount the device and power supply as required by
local wiring rules. Use Philips EWAC mounting accessories as required for surface or rack installations. To mount the device on DIN rail or mounting plate, slide the two
DIN clips at the bottom of the device downwards with a screwdriver. Click the device onto the rail and slide the clips back into place. This device is approved for plenum
installation.

3. External PS and DyNet only:

Ensure wires are segregated and fully inserted with no exposed copper outside terminals to prevent shorts.

All Class 2 / SELV cables shall be segregated from Class 1 wiring per local wiring code.

To minimize noise coupling on long parallel cable runs, it’s recommended to provide at least 300mm (1 foot) separation between data and mains cables (except for
installations with steel conduits used).

4. Connect Ethernet, Supply and Data cables as required.

5. Energize supply and network and check for correct operation. If programming is required use a PC with EnvisionProject Software.

FCC/IC compliance statement
This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved
by Philips could void the user’s authority to operate this equipment. This product is intended for commercial use only.

DÉCLARATION DE CONFORMITÉ À LA FCC/IC
Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États‐ Unis et d'Industrie Canada (IC) exempts de licence RSS norme(s). Son fonctionnement est
assujetti aux deux conditions suivantes: (1) Ce dispositive ne doit pas provoquer de brouillage préjudiciable, et (2) il doit accepter tout brouillage reçu, y compris le brouillage pouvant entraîner un mauvais
fonctionnement. Tous les changements ou modifications non expressément approuvés par Philips, sont susceptibles d’annuler le droit de l’utilisateur à se servir de cet équipement. Ce produit est
exclusivement destiné à un usage commercial.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate
the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the
dealer or an experienced radio/TV technician for help.

a. Strip-off around 30 mm of cables outer insulation jacket
b. Neatly wrap the stripped area of cable with insulating tape leaving approximately 20mm of inner wires free for termination
c. External PS option only: Strip and terminate power supply Class 2 output wires to the SUPPLY IN terminals of EWAC. Ensure correct polarity.
d. Strip and terminate DyNet port wires as required. Ensure correct connection.
e. Where used, AUX dry contact input wiring cable length should be less than 10m (30 feet). Use of twisted pair wires is recommended to minimize noise

coupling

Option 2: Comm ercial grade Power Supply 12/24Vdc SELV/Class 2, 100mA max plus DyNet load

Transport and Storage Conditions

Communication Ports

Supported Ethernet Prot ocols

Supported ZigBee protocols

Input / Output Terminals

User Controls

Compliance

Operating Environment

Construction

Dimensions

Weight

Option 3: f rom DyNet network: 100mA max@12Vdc / 60mA ma x@24Vdc SELV/Class 2
Contribution to DyNet network: max. 120mA load @ 12Vdc (O ption 1) or

voltage equal to external Power Suppl y output (Option 2)
Allowed supply ripple (Option 2 & 3): 1Vpp max
Power consumption: max.2W (excludi ng D yNet and ILB)
10/100BaseT Ether net port, RS485 DyNet serial port, ILB port, Zigbee port, Infra-RED RC5
EnvisonIP/DyNet 2, TFTP, xCLIP, IPv6
ZHA/ZLO, Green Power
Ethernet PoE: RJ45
External Power Supply: 2-pole 5mm pluggable header, 1 x 2.5m msq conductor size
DyNet: 6-pole 5mm pluggable header, 1 x 2.5mmsq conductor size
ILB: RJ10
Service / Pairing Push Button, Multifunction status LED (RGB), RC5 IR receiver, 100/ 100BT status LED
CE, RCM, UL, FCC, ICES

-5C to +50C ( 23F to 122F) , 0-90% RH non-condensing

-25C to +70 C ( -13F to 158F), 0-90% RH non-condensing
Low Profile Din Rail Polycarbonate ( 6 unit), UL94-V0 rated
H 97mm x W 110mm x D 39mm (pluggable terminal connectors will add 9m m to the total height)
Packed weight 0.23kg

@12Vdc / 60mA max plus DyNet load @24Vdc

Philips Dynalite manufactured by WMGD Pty Ltd (ABN 33 097 246 921) Unit 6, 691 Gardeners Road, Mascot NSW 2020 Australia Tel: [phone] Fax: [phone]
