Philips L01H.2E Service Manual

Colour Television Chassis

L01H.2E

AA

Contents Page Contents Page

1. Technical Specifications, Connections and Chassis Overview 2

2. Safety & Maintenance Instructions, Warnings and Notes 4

3. Directions for Use 5

4. Mechanical Instructions 7

5. Service Modes, Error Codes and Faultfinding 8

Block Diagram, Testpoints, I2C And Supply

6.

Voltage Overview

Block Diagram 13 Wiring Diagram 14 Testpoint Overview 15

2

C And Supply Voltage Overview 16

I

7.

Electrical Diagrams and PWB’s Diagram PWB

Power Supply (Diagram A1) 17 29-34 Line Deflection (Diagram A2) 18 29-34 Frame Deflection (Diagram A3) 19 29-34 Tuner IF (Diagram A4) 20 29-34 Video IF and Sound IF (Diagram A5) 21 29-34 Synchronization (Diagram A6) 22 29-34 Control (Diagram A7) 23 29-34 Audio Amplifier (Diagram A8) 24 29-34 BTSC (Stereo/SAP) Decoder (Diagram A9) 25 29-34 Audio/Video Source Switching (Diagram A10) 26 29-34 Front I/O + Control, Headphon (Diagram A12) 27 29-34 Rear I/O SCART (Diagram A14) 28 29-34 CRT Panel (Diagram B) 35 36 EPS 4 External Power Supply (Diagram F) 37 38 Clock Panel (Diagram G) 39 39 UIR/LS/Vbat Panel (Diagram H) 40 41 SP/LS Panel (Diagram I) 42 41 Interface Panel (Diagram J) 43 44

8. Alignments 45

9. Circuit Description 50 List of Abbreviations 59

10 Spare Parts List 61

CL 16532138_035.eps

211201

©

Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by RB 0172 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 11640

EN 2 L01H.2E1.

Technical Specifications, Connections and Chassis Overview

1. Technical Specifications, Connections and Chassis Overview

Note: Described specifications are valid for the

range.

1.1 Technical Specifications

1.1.1 Reception

Tuning system : PLL Colour systems : PAL B/G, D/K, I

Sound systems : FM/AM mono

A/V connections : PAL BG

1.2 Connections

1.2.1 Front Connections and Front Control

whole

product

: SECAM B/G, L/L’

: FM stereo (2CS) :NICAM : FM radio (10.7 MHz)

:SECAM L/L’ : NTSC 3.58 (playback

only)

: NTSC 4.43 (playback

only)

Channel selections : 100 channels

: UVSH IF frequency : 38.9 MHz Aerial input : 75 Ω, Coax

1.1.2 Miscellaneous

Audio output (RMS) : 1 W mono

: 2 W mono

: 4 W mono

: 2 x 3 W stereo Mains voltage : 220 - 240 V (± 10 %) Mains frequency : 50 / 60 Hz (± 5 %) Ambient temperature : + 5 to + 45 deg. C Maximum humidity : 90 % Power consumption : 36 W (14”) to

:52 W (21”) Standby Power consumption : < 3 W

IR

RED

Audio / Video In

1-Headphone 3.5 mm (8 - 600 Ω / 4 mW) 

1.2.2 Rear Connections

TV SMART PLUG

AND PHONE JACK

75 Ohm

FM

EXTERNAL 1

CL 16532138_033.eps

Figure 1-2

V- C+C-V+

141201

Figure 1-1

Mono

R

L

Video

C+C-V+V-

2-Video CVBS (1 Vpp / 75 Ω)  3-Audio Mono (0.5 Vrms / 10 kΩ) 

Audio

CL 16532138_032.eps

201201

External 1: RGB/YUV in + CVBS in/out

121

CL96532137_056.eps

Figure 1-3

1-Audio R (0.5 Vrms / 1 kΩ)  2-Audio R (0.5 Vrms / 10 kΩ)  3-Audio L (0.5 Vrms / 1 kΩ)  4- GND , 5- GND , 6-Audio L (0.5 Vrms / 10 kΩ)  7-Blue / U (0.7 Vpp / 75 Ω)  8-CVBS-status 0 - 2.0 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3

202

171199

Technical Specifications, Connections and Chassis Overview

9- GND , 10 - 11 -Green / Y (0.7 Vpp / 75 Ω)  12 - 13 - GND , 14 - GND , 15 -Red / V (0.7 Vpp / 75 Ω)  16 -RGB-status 0 - 0.4 V: INT 1 - 3 V: EXT / 75 Ω 17 - GND , 18 - GND , 19 -CVBS (1 Vpp / 75 Ω)  20 -CVBS (1 Vpp / 75 Ω)  21 -Earth GND !

TV Aerial In

Aerial input : 75 Ω, coax (IEC-type)

FM Radio In

Aerial input : via ‘coax-to-3 pins’

adapter

: ‘cable’ or ‘wire’

antenna

32 PIN SMART CARD CONNECTOR

32

1 RESERVE 2 GROUND (POWER) 3 +12V 4 GROUND (IIC) 5 IR-DATA 6 POR 7 TV-CLOCK 8 DATA-IN 9 DATA-OUT 10 +5V 11 HORIZONTAL SYNC OUT 12 VERTICAL SYNC OUT 13 GROUND CVBS-IN 14 SCL 15 SDA 16 RESERVE

EN 3L01H.2E 1.

17

116

17 ANALOG BLUE IN 18 ANALOG GREEN IN 19 ANALOG RED IN 20 FAST BLANKING IN 21 GROUND CVBS-OUT 22 CVBS-OUT 23 AUDIO OUT MONO 24 RESERVE

25 AUDIO OUT MONO 26 GROUND AUDIO IN 27 RIGHT AUDIO OUT 28 LEFT AUDIO OUT 29 RIGHT AUDIO IN 30 LEFT AUDIO/MONO IN 31 CVBS/Y IN 32 "C" IN

CL16532138_028.eps

171201

TV SMART PLUG

PIN 6

PIN 1

RJ11 CONNECTOR

1 CLOCK 2 DATA IN 3 +5V 4 DATA OUT 5 GND 6 IR DATA

DESCRIPTION

Figure 1-4

1.3 Chassis Overview

CLOCK PANEL

G

SP/LS (SMART PLUG LOADER

I

+LOUDSPEAKER SOCKET )

UIR/LS/Vbat MODULE

H

INTERFACE

J

SMART CARD

PHONE JACK

FOR BATHROOM SPEAKER

1, 4 SPEAKER + 2 SPEAKER -

CL 16532138_011.eps

221101

Figure 1-5

1 4

2

MAIN

CHASSIS

PANEL

CRT PANEL

POWER SUPPLY

LINE DEFLECTION

FRAME DEFLECTION

TUNER IF

VIDEO + SOUND IF

SYNCHRONISATION

CONTROL (µP)

AUDIO AMPLIFIER

NICAM + 2CS + BTSC DECODER

A/V SWITCHING

HEADPHONE + FR. CONTROL

B

A1 A2 A3 A4 A5 A6 A7 A8

A9 A10 A12

Figure 1-6

REAR I/O SCART

EPS 4 (EXTERNAL

POWER SUPPLY)

A14

F

CL 16532138_034.eps

211201

EN 4 L01H.2E2.

Safety & Maintenance Instructions, Warnings, and Notes

2. Safety & Maintenance Instructions, Warnings, and Notes

2.1 Safety Instructions For Repairs

Safety regulations require that during a repair:

• Due to the ‘hot’ parts of this chassis, the set must be connected to the AC power via an isolation transformer.

• Safety components, indicated by the symbol , should be replaced by components identical to the original ones.

• When replacing the CRT, safety goggles must be worn.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay particular attention to the following points:

• General repair instruction: as a strict precaution, we advise you to re-solder the solder connections through which the horizontal deflection current is flowing, in particular:

– all pins of the line output transformer (LOT) – fly-back capacitor(s) – S-correction capacitor(s) – line output transistor – pins of the connector with wires to the deflection coil – other components through which the deflection current

flows. Note: This re-soldering is advised to prevent bad connections due to metal fatigue in solder connections and is therefore only necessary for television sets more than two years old.

• Route the wire trees and EHT cable correctly and secure

them with the mounted cable clamps.

• Check the insulation of the AC power cord for external

damage.

• Check the strain relief of the AC power cord for proper

function, to prevent the cord from touching the CRT, hot components, or heat sinks.

• Check the electrical DC resistance between the AC plug

and the secondary side (only for sets that have an isolated power supply). Do this as follows:

1. Unplug the AC power cord and connect a wire between the two pins of the AC plug.

2. Turn on the main power switch (keep the AC power cord unplugged!).

3. Measure the resistance value between the pins of the AC plug and the metal shielding of the tuner or the aerial connection of the set. The reading should be between 4.5 MΩ and 12 MΩ.

4. Switch the TV OFF and remove the wire between the two pins of the AC plug.

• Check the cabinet for defects, to prevent the possibility of the customer touching any internal parts.

2.3 Warnings

• In order to prevent damage to ICs and transistors, avoid all high voltage flashovers. In order to prevent damage to the picture tube, use the method shown in Fig. 2-1, to discharge the picture tube. Use a high voltage probe and a multi-meter (position VDC). Discharge until the meter reading is 0 V (after approx. 30 s).

V

CL 26532098/042

140792

Figure 2-1

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD)". Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this potential. Available ESD protection equipment: – Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable, and ground cable) 4822 310 10671.

– Wristband tester 4822 344 13999.

• Together with the deflection unit and any multi-pole unit,

flat square picture tubes form an integrated unit. The deflection and the multi-pole units are set optimally at the factory. Adjustment of this unit during repair is therefore not recommended.

• Be careful during measurements in the high voltage section and on the picture tube.

• Never replace modules or other components while the unit is switched ON.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

2.4 Notes

2.2 Maintenance Instructions

It is recommended to have a maintenance inspection carried out by qualified service personnel. The interval depends on the usage conditions:

• When the set is used under normal circumstances, for example in a living room, the recommended interval is three to five years.

• When the set is used in an environment with higher dust, grease or moisture levels, for example in a kitchen, the recommended interval is one year.

• The maintenance inspection includes the following actions:

1. Perform the 'general repair instruction' noted above.

2. Clean the power supply and deflection circuitry on the

chassis.

3. Clean the picture tube panel and the neck of the picture

tube.

• Measure the voltages and waveforms with regard to the

chassis (= tuner) ground (,), or hot ground (-), depending on the area of circuitry being tested.

• The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode (see chapter 5) with a color bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz (PAL) or 61.25 MHz (NTSC, channel 3).

• Where necessary, measure the waveforms and voltages with ()) and without (*) aerial signal. Measure the voltages in the power supply section both in normal operation (+) and in standby (/). These values are indicated by means of the appropriate symbols.

• The picture tube panel has printed spark gaps. Each spark gap is connected between an electrode of the picture tube and the Aquadag coating.

• The semiconductors indicated in the circuit diagram and in the parts lists are completely interchangeable per position with the semiconductors in the unit, irrespective of the type indication on these semiconductors.

3. Directions for Use

Input

The "Input" menu item selects the desired input

source that will be assigned to the program.

Possible values are Front End, AV1, AV2 and

AV2YC (internal interface for system televisions

only), and RADIO.

System

WEST EU (PAL/SECAM-BG) and EAST EU (PAL/

SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Manual Search

Digits can be entered for a frequency in MHz.

Right cursor starts an auto search; during

frequency entry the digits not yet entered are

displayed as dashes "-".

Enter “0” for frequencies below 100 MHz.

Program no.

The programme type can be selected with the

cursor left/right buttons. These buttons will toggle

between all available types: "TV", "INFO", "PAY-

TV" and "RADIO".

If the program number of a certain type is 0, the

corresponding type is not displayed.

In order to display a program number of the

above-mentioned types, always enter two

numbers, for example: “01” for TV1 or digit “1” and

up/down cursor.

Store

The present program information is stored after

pressing the cursor left/right button. Press Menu

to exit without storing.

Fine Tune

Using the "control left/right" commands starts fine-

tuning.

Protection

This function indicates whether the selected

program has a protection or not. With the cursor

left/right keys the protection can toggle between

"YES" and "NO".

Label

This menu item will be used to add a label/name

for each program. Pressing the left/right buttons

you may enter or exit the label field; pressing the

up/down cursor you may insert alphanumeric

characters.

Pressing M (Menu button) you may exit the Label

Menu item.

Teletext Language

This menu enables the user to select the Teletext

character set to be used for the selected channel.

With cursor left/right you can select a letter

corresponding to the different language clusters.

“W”: Pan European (Latin) / West option

“E”: Pan European (Latin) / East option

“G”: Greek

“A”: Arabic

“C”: Cyrillic

Video Blank

This item can change between "YES" and "NO" to

activate or deactivate picture mute.

Audio Mute

This item can change between "YES" and "NO" to

activate or deactivate sound mute.

Remarks

TELEVISION up/down, INFO up/down, PAY-TV

up/down and RADIO up/down are active in menu

mode and the television reacts the same way as

in TV mode.

• Clock set-up

The Clock set-up menu can be entered from this

menu item

The Menu items actually displayed depend on

whether a LED clock display is available or not.

Display (OSD only)

Defines whether the actual time is displayed on

the screen or not.

Display Standby (LED only)

This menu item will be used to set the intensity of

the clock display when the television is in standby

mode.

Display On (LED only)

This menu item will be used to set the intensity of

the clock when the television is in the ON mode.

Time Setting

This menu item will be used to set the time for the

clock.

Teletext Time Download

This menu item is used to activate or deactivate

the function for automatic time downloading by

means of Teletext.

Directions for Use

EN 5L01H.2E 3.

GB

PHILIPS Institutional TV - Instructions for use

control.

compartment making sure they are the right way

around.

appropriate screw into the hole of the battery

Installing the remote control

• Remove the cover at the back of the remote

• Insert the correct type and size batteries into the

cover.

• You can secure your batteries by fastening an

Note

Clock and wake-up alarm are not available on Pro-

Plus sets when television is switched off by mains

switch.

Accessing the Set-up Menu

The Language function is shown in the Menu as

"LANGUAGE", and its valid modes are "ENG-

When the set is in the High Security Mode, the Set-

up menu can be accessed only by a T374AH

Institutional Set-up Remote Control (RG4172BK).

When the set is in the Standard Security Mode the

Set-up Menu may be accessed with a guest remote

control (like the RC2882) by a sequence of com-

mands (3 1 9 7 5 3 MUTE).

Navigation

The current menu item can be selected by means of

the cursor up and cursor down keys.

Submenus can be accessed from menu items with a

“"” symbol pressing the cursor right key.

LISH", "DEUTSCH", "FRANCAIS" and

• Language

"ITALIANO".

This sub menu allows setting the number of

television, PAY-TV Radio and Info programs.

The overall maximum number of programs is 125.

When this menu is open, all the protections are

• No. of Programs

inactive. To exit any menu press Menu button.

• Installation

both sides and 10 cm from the top for sufficient

ventilation of the set.

such as newspapers, cloths, curtains, etc.

candles on the television.

Installing the television

Safety

• Place your television on a stable and strong base.

• Leave at least a minimum free space of 5 cm on

• Do not cover the ventilation openings with items

contact a qualified technician.

• Do not place any flame sources such as lighted

• Never try repairing the set by yourself; always

• Do not expose the television to moisture or

splashing and do not place any object filled with

liquids on top of the television.

Environmental

Your television contains material that can be

recycled and reused by specialised companies.

Please find out about local regulations on the

disposal of your old television set.

Pay particular attention to the disposal of exhausted

batteries.

Your television consumes energy in the stand-by

mode.

Energy consumption contributes to air and water

pollution.

We advise you to switch off your television overnight

instead of leaving it in stand-by mode.

Connecting the mains

Insert the mains plug into the wall socket and switch

on. Please refer to the label on the back of the

television for the correct operating voltage.

EN 6 L01H.2E3.

Enable/ disable automatic switching to external

• Auto Scart

Scart source.

Press cursor left/right to display Welcome

message entry menu:

• Welcome Message

Directions for Use

Welcome Message, Line 1, and Line 2.

With the cursor up/down you can set the message

characters.

This feature will enable/disable in a "list" or

"page", the program numbers with the associated

labels.

This menu function is shown as "REMINDER",

and its states are "YES": "NO".

The menu function "SECURITY" allows the user

to select one of two states "HIGH" or "STAND-

• Program Guide

• Reminder

• Security

ARD". The default is "STANDARD".

While the set is in the Security High Mode the set-

up menu can only be accessed by a T374AH

Institutional Set-up Remote Control

While the set is in the Security Standard Mode the

Set-up Menu may be accessed with a guest

remote control by a sequence of commands (3 1

9 7 5 3 MUTE).

Program Display values can be: Number, Label,

All, None.

In Commercial Mode, the Keyboard Lockout menu

function disables the television’s local keyboard

for volume and program control.

With this item all protected programs can be

freed. If "free protected programs" is set to "YES",

all programs are accessible for the user, if the

• Program Display

• Volume Bar

• Keyboard Lock

To display volume bar when adjusting volume,

select "YES". Select “NO” to hide the bar.

This item sets the limit for minimum volume

• Min Volume

• Free protected programs

allowed for the television set. Use right/left cursor

to adjust.

• Max Volume

item is "NO" protected programs are skipped. A

This item sets the limit for the maximum volume

allowed for the television set. Use right/left cursor

to adjust.

TV program can be selected by relevant digit but

with picture blanked and sound muted.

Energy Saving Programmability Mode (ESP)

controls the maximum continuous viewing time

allowed by the control system.

It allows the establishment to limit the time the

Television remains activated once a Guest has

checked-out.

The ESP Menu function is shown as "ESP", and

its valid values are 00 - 99 (in hours). 00 value

means OFF.

This item is only present in "system" sets and it is

• ESP

This item sets the television’s volume at switch

on. Use the right/left cursor to adjust.

This item sets the volume of the alarm buzzer.

Use the right/left cursor to adjust.

This item sets the television’s program at switch

• Switch on Volume

• Buzzer Volume

on

• Switch On Program

used to enable or disable communication with the

• Interface

The Power On menu function defines the

behaviour of the television whenever AC Power is

applied.

• Power On

The valid states are "FORCED", "STANDARD"

DCM (Data Communication Module).

The Audio/Video Mute menu function determines

whether the video should be blanked and the

audio should be muted if the currently tuned

• Audio / Video Mute

and “STANDBY”.

When “FORCED”, the television can only be

channel has no signal (Blue, Black, Off).

switched OFF by means of the main switch or a

set-up remote control or by ESP function (Energy

Saving Programmability controls the maximum

continuous viewing time allowed by the control

system).

When “STANDARD”, the television switches on

the previous status, ON or Stand-by.

When “STAND-BY”, the television always

switches on in Stand-by.

If YES, TV programs (1 to 9) are tuned immedi-

• Step Tuning (YES/NO)

ately when a digit is pressed.

If NO, tuning is performed only after the dash

disappears.

This is the time-out to enter the second digit for

TV program 10 onwards.

• Digit Time-out

set tunes to the selected program.

Teletext. When this item is selected the television

which to retrieve the correct time from the

This menu item is used to select the channel from

Download Program

Time Offset

location.

to represent the current time in the current

adjust the time received from the Teletext channel

This menu item is used to set the offset needed to

The brightness control contains 63 discrete values

from the minimum to maximum setting.

• Brightness

• Colour

The colour control contains 63 discrete values

from the minimum to maximum setting.

The contrast control contains 63 discrete values

from the minimum to maximum setting.

The sharpness control contains 63 discrete values

from the minimum to maximum setting.

This command is used to activate or deactivate

the stereo feature in stereo sets. Toggle YES, NO

• Contrast

• Sharpness

using the right/left cursor.

• Forced mono (for stereo televisions only)

To balance the output sound from TELEVISION’s

speakers left and right

To set the treble frequencies of sound output from

TELEVISION’s speakers.

To set the bass frequencies of sound output from

television’s speakers.

The Automatic Volume Leveller feature is shown

• Balance (for stereo televisions only)

• Treble (for stereo televisions only)

• Bass (for stereo televisions only)

as “AV L” in the menu and its valid states are

• AVL (Automatic Volume Leveller)

The valid toggle states are "YES" and "NO": if

YES, the volume is fixed at a certain volume, if

“YES”; “NO”.

NO, the volume contains 63 discrete values.

• Volume Fixed

4. Mechanical Instructions

Note: Figures below can deviate slightly from the actual

situation, due to the different set executions.

4.1 Rear Cover Removal

1. Remove all (seven) fixation screws of the rear cover: two at the top, two at each side and one near the mains cord holder.

2. Now pull the rear cover backward to remove it.

4.2 Service Position Main Panel

1. Disconnect the strain relief of the Mains cord.

2. Remove the main panel, by pushing the two centre clips outward [1]. At the same time, pull the panel away from the CRT [2].

3. Disconnect the degaussing coil by removing the cable from (red) connector 0201.

4. Move the panel somewhat to the left and flip it 90 degrees [3], with the components towards the CRT.

Mechanical Instructions

EN 7L01H.2E 4.

1

2

A

3

B

Figure 4-1

CL 16532016_006.eps

220501

4.3 Rear Cover Mounting

Before you mount the rear cover:

1. Place the mains cord correctly in its guiding brackets (strain relief).

2. Place all cables in their original position.

EN 8 L01H.2E5.

Service Modes, Error Codes and Fault Finding

5. Service Modes, Error Codes and Fault Finding

Index:

1. Test points.

2. Service Modes.

3. Problems and Solving Tips (related to CSM).

4. Error Buffer.

5. The Blinking LED Procedure.

6. Protections.

7. Repair Tips.

5.1 Test Points

The chassis is equipped with test points printed on the circuit board assemblies. These test points refer to the functional blocks:

Table 5-1

TEST POINT OVERVIEW L01

Test point Circuit Diagram

A1-A2-A3-.. Audio processing A8, A9 / A11 C1-C2-C3-.. Control A7 F1-F2-F3-.. Frame drive and output A3 I1-I2-I3-.. Tuner & IF A4 L1-L2-L3-. Line drive A2 P1-P2-P3-.. Power supply A1 S1-S2-S3-.. Synchronisation A6 V1-V2-V3-.. Video processing A5, B1

The numbering is in a logical sequence for diagnostics. Always start diagnosing within a functional block in the sequence of the relevant test points for that block.

Perform measurements under the following conditions:

• Service Default Alignment Mode.

• Video: colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

Service Default Alignment Mode (SDAM) offers several features for the service technician, while the Customer Service Mode (CSM) is used for communication between dealer and customer.

Table 5-2

SW Cluster Software name UOC type Diversity

1EU1 L01HE1 X.Y TDA9552 L01H.2E Abbreviations: H = Hotel, E = Europe, 1 = Basic, Basic Plus

and System, English, French, German and Italian

5.2.1 Service Default Alignment Mode (SDAM)

Purpose

• To change option settings.

• To create a predefined setting to get the same

measurement results as given in the manual.

• To display / clear the error code buffer when leaving SDAM with "STANDBY" key on remote control.

• To override SW protections.

• To perform alignments.

• To start the blinking LED procedure.

Specifications

• Tuning frequency:

– 475.25 MHz for PAL/SECAM (Europe and AP-PAL)

• Colour system: – PAL-M for LATAM BI/TRI/FOUR-NORMA. – SECAM L for France. – NTSC for NAFTA and AP-NTSC. – PAL-BG for Europe and AP-PAL.

• All picture settings at 50 % (brightness, colour contrast,

hue).

• Bass, treble and balance at 50 %; volume at 25 %.

• All service-unfriendly modes (if present) are disabled, like: – (sleep) timer, – child/parental lock, – blue mute, – hotel/hospitality mode – auto switch-off (when no 'IDENT' video signal is

received for 15 minutes),

– skip / blank of non-favorite presets / channels, – auto store of personal presets, – auto user menu time-out.

• Operation hours counter.

• Software version.

• Option settings.

• Error buffer reading and erasing.

• Software alignments.

How to Activate SDAM

Use one of the following methods:

• Use a System 7 remote control type T374AH (RCtransmitter RG4172BK) and key in the code '062596' directly followed by the 'M' (menu) button or

• Short circuit jumper wires 9631 and 9641 on the mono carrier (see fig. 8-1) and apply AC power. Then press the power button (remove the short circuit after start-up). Caution: Entering SDAM by short circuiting wires 9631 and 9641 will override the +8V-protection. Do this only for a short period. When doing this, the service-technician must know exactly what he is doing, as it could lead to damaging the set.

After activating SDAM, the following screen is visible, with S at the upper right side for recognition.

SDAM Menu

LLLL AAAABC X.Y S

ERR XX XX XX XX XX

OP XXX XXX XXX XXX XXX XXX XXX

OPTIONS >

DEFLECTION >

TUNER >

WHITE TONE >

GEOMETRY >

CL 16532138_014.eps

221101

Figure 5-1

1. LLLL This is the operation hours counter. It counts the normal operation hours, not the standby hours.

2. AAAABC-X.Y This is the software identification of the main micro controller:

– A = the project name (L01H). – B = the region: E= Europe, A= Asia Pacific, U= NAFTA,

L= LATAM.

– C = the feature and language:

Service Modes, Error Codes and Fault Finding

EN 9L01H.2E 5.

– (Europe: 1 = Basic, Basic Plus and System,

English, French, German and Italian)

– (AP: 1 = Z, R and Y System, English, Malay and

Simplified Chinese)

– (Latam: 1=H and S system) – X = the main software version number. – Y = the sub software version number.

3. S Indication of the actual mode.

S= SDAM= Service Default Alignment mode.

4. Error buffer

Five errors possible.

5. Option bytes

Seven codes possible.

6. Options

To set the Option Bytes. See chapter 8.3.1 for a detailed description.

7. Deflection

To set the deflection values. See chapter 8.3.2 for a detailed description.

8. Tuner

To align the Tuner. See chapter 8.3.3 for a detailed description.

9. White Tone

To align the White Tone. See chapter 8.3.4 for a detailed description.

10. Geometry

To align the Geometry. See chapter 8.3.5 for a detailed description.

How to Navigate

Use one of the following methods:

• In SDAM, select menu items with the CURSOR UP/DOWN key on the remote control transmitter. The selected item will be highlighted. When not all menu items fit on the screen, move the CURSOR UP/DOWN key to display the next / previous menu items.

• With the CURSOR LEFT/RIGHT keys, it is possible to: – Activate the selected menu item. – Change the value of the selected menu item. – Activate the selected submenu.

• When you press the MENU key in a submenu, you will

return to the previous menu.

How to Store Settings

To store settings first go back to the main menu (fig. 5-1) with "MENU" button on the remote control and then leave the SDAM with the "STANDBY" button on the remote control.

How to Exit

Switch the set to STANDBY by pressing the power button on the remote control transmitter. The error buffer is cleared. (If you switch the set 'off' by removing the AC power, the set will return in SDAM when AC power is re-applied and the error buffer will not be cleared.)

CSM Menu

1 AAAABC X.Y CSM 2 CODE XX XX XX XX XX 3 OP XXX XXX XXX XXX XXX XXX XXX 4 DETECTED SYSTEM DETECTED SOUND 5 NOT TUNED SKIPPED 6 TIMER 7 CO XX CL XX BR XX SH XX 8 VL XX BL XX 9 BS XX TR XX 10 COMMERCIAL/CONSUMER SMARTPORT ON/OFF 11 PROGRAM NO. XXX

CL 16532138_019.eps

141201

Figure 5-2

1. Software identification of the main micro controller (see paragraph 5.2.1 for an explanation).

2. Error code buffer (see paragraph 5.4 for more details). Displays the last five errors of the error code buffer.

3. In this line, the Option Bytes (OB) are visible. Each Option Byte is displayed as a decimal number between 0 and 255. The set may not work correctly when an incorrect option code is set. See chapter 8.3.1 for more information on the option settings.

4. Indicates which color and sound system is installed for the selected pre-set.

5. Indicates if the set is receiving an 'IDENT' signal on the selected source. It will display 'NOT TUNED' if not.

6. Shows “TIMER” if the sleep timer is activated, shows nothing when sleep timer is not activated.

7. Value indicates parameter levels at CSM entry. CO= CONTRAST, CL= COLOR, BR= BRIGHTNESS, SH= SHARPNESS

8. Value indicates parameter levels at CSM entry. VL= VOLUME LEVEL, BL= BALANCE LEVEL

9. Value indicates parameter levels at CSM entry (only for stereo sets). BS= BASS, TR= TREBLE

10. Mode Commercial = Hotel / Institutional mode or mode Consumer. Smartport. Indicates whether the Smart Port is selected or not.

11. Program NO. TV. Indicates to what channel the TV is tuned.

How to Exit

Use one of the following methods:

• Press any button of the remote control transmitter.

• Press RECALL on a System 7 remote control (the RC-

transmitter RG4172BK).

• Switch-off the TV set with the AC power switch.

5.3 Problems and Solving Tips (Related to CSM)

5.2.2 Customer Service Mode (CSM)

Purpose

When a customer is having problems with his TV-set, he can call his dealer. The service technician can then ask the customer to activate the CSM, in order to identify the status of the set. Now, the service technician can judge how severe the complaint is. In a lot of cases he can advise the customer how to solve the problem, or he can decide if it is necessary to visit the customer. The CSM is a read only mode, therefore modifications in this mode are not possible.

How to Activate

To activate the CSM press the RECALL button on the System 7 remote control RG4172BK.

After switching ON the Customer Service Mode, the following screen will appear:

5.3.1 Picture Problems

Note: Below described problems are all related to the TV

settings. The procedures to change the value (or status) of the different settings are described.

No Colours / Noise in Picture

Check CSM line 4. Wrong colour system installed. To change the setting:

1. Press the MENU button on the remote control.

2. Select the INSTALLATION sub menu.

3. Select and change the SYSTEM setting until picture and sound are correct.

4. Select the STORE menu item.

Colours Not Correct / Unstable Picture

Check CSM line 4. Wrong colour system installed. To change the setting:

1. Press the MENU button on the remote control.

EN 10 L01H.2E5.

Service Modes, Error Codes and Fault Finding

2. Select the INSTALLATION sub menu.

3. Select and change the SYSTEM setting until picture and sound are correct.

4. Select the STORE menu item.

Picture too Dark or too Bright

Increase / decrease the BRIGHTNESS and / or the CONTRAST value when:

• The picture improves after you have pressed the 'Smart Picture' button on the remote control.

• The picture improves after you have switched on the Customer Service Mode

The new 'Personal' preference value is automatically stored.

White Line Around Picture Elements and Text

Decrease the SHARPNESS value when:

• The picture improves after you have pressed the 'Smart Picture' button on the remote control.

The new 'Personal' preference value is automatically stored.

Snowy Picture

Check CSM line 5. If this line indicates 'Not Tuned', check the following:

• No or bad antenna signal. Connect a proper antenna signal.

• Antenna not connected. Connect the antenna.

• No channel / pre-set is stored at this program number. Go

to the INSTALL menu and store a proper channel at this program number.

• The tuner is faulty (in this case the CODES line will contain error number 10). Check the tuner and replace / repair if necessary.

Snowy Picture and/or Unstable Picture

• A scrambled or decoded signal is received.

Black and White Picture

Increase the COLOR value when:

• The picture improves after you have pressed the 'Smart Picture' button on the remote control.

The new 'Personal' preference value is automatically stored.

Menu Text Not Sharp Enough

Decrease the CONTRAST value when:

• The picture improves after you have pressed the 'Smart Picture' button on the remote control.

The new 'Personal' preference value is automatically stored.

5.3.2 Sound Problems

No Sound or Sound too Loud (After Channel Change / Switching On)

Increase / decrease the VOLUME level when the volume is OK after you switched on the CSM. The new 'Personal' preference value is automatically stored.

5.4 Error Buffer

The error code buffer contains all detected errors since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is written at the left side and all other errors shift one position to the right.

5.4.1 How to Read the Error Buffer

Use one of the following methods:

• On screen via the SDAM (only if the TV gives a picture). Examples:

– ERROR: 0 0 0 0 0 : No errors detected – ERROR: 6 0 0 0 0 : Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0 : Error code 6 was first detected and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See next paragraph.

5.4.2 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• When you exit SDAM with the STANDBY command on the remote control (when leaving SDAM, by disconnecting the set from AC power, the error buffer is not cleared).

• If the content of the error buffer has not changed for 50 hours, it resets the buffer automatically.

Error Codes

In case of non-intermittent faults, clear the error buffer before you begin the repair. This to ensure that old error codes are no longer present. If possible, check the entire contents of the error buffer. In some situations, an error code is only the result of another error code and not the actual cause (e.g., a fault in the protection detection circuitry can also lead to a protection).

Table 5-3

ERROR CODE TABLE

ERROR Device Error description Def. item Diagram

0 Not applicable No Error 1 Not applicable X-Ray Protection (USA) 2465, 7460 A2 2 Not applicable Horizontal Protection 7460, 7461, 7462, 7463, 6467 A2 3 TDA8359/TDA9302 Vertical Protection 7861, VloAux +13v A2, A3 4 MSP34X5/TDA9853 MAP I2C identification error 7831, 7861 A9 or A11 5 TDA95XX POR 3.3V / 8V Protection 7200, 7560, 7480 A1, A2. A5, A6, A7 6 I2C bus General I2C bus error 7200, 3624, 3625 A7 7 Not applicable - - 8 Not applicable E/W Protection (Large Screen) 7400, 3405, 3406, 3400 A2 9 M24C08 NVM I2C identification error 7602, 3611, 3603, 3604 A7 10 Tuner Tuner I2C identification error 1000, 7482 A2, A4 11 TDA6107/8 Black current loop protection 7330, RGB amps, CRT B1, B2 12 M65669 MAP I2C identification error (USA) 7803 P

Note: Error 7 is Not applicable, Due to ASD issue.

Service Modes, Error Codes and Fault Finding

EN 11L01H.2E 5.

5.5 The Blinking LED Procedure

Via this procedure, you can make the contents of the error buffer visible via the front LED. This is especially useful when there is no picture. Go into the SDAM menu with one of the following methods:

1. '062596 M' on a System 7 remote control (the RCtransmitter RG4172BK).

2. Short circuit wires 9631 and 9641 on the mono carrier and apply AC power. Then press the power button (remove the short circuit after start-up).

As soon as you are in SDAM the blinking LED procedure will start.

Error-codes are shown as follows:

1. n short blinks (the number of n indicates the error code number.),

2. a pause of 1.5 s,

3. n short blinks (for the next error),

4. when all the error-codes are displayed, the sequence finishes with a LED blink of 3 s,

5. the sequence starts again.

Example of error buffer: 12 9 6 0 0 After entering SDAM:

1. 12 short blinks followed by a pause of 1.5 s,

2. 9 short blinks followed by a pause of 1.5 s,

3. 6 short blinks followed by a pause of 1.5 s,

4. 1 long blink of 3 s to finish the sequence,

5. the sequence starts again.

• Set is non-stop in hiccup mode

Set is in over current mode; check the secondary sensing (opto coupler 7515) and the 'MainSupply' voltage. Signal 'Stdby_con' must be logic low under normal operation conditions and goes to high (3.3 V) under standby and fault conditions.

• Set turns on, but without picture and sound

The screen shows snow, but OSD and other menus are okay. Blinking LED procedure indicates error 11, so problem is expected in the tuner (pos. 1000). Check presence of supply voltages. As 'Vlotaux+5V' at pin 5 and 7 are okay, 'VT_supply' at pin 9 is missing. Conclusion: resistor 3460 is defective.

• Set turns on, but with a half screen at the bottom. Sound is okay

Blinking LED (set in SDAM mode) indicates error 3. Check 'Vlotaux+13V' and '+50V'. If they are okay, problem is expected in the vertical amplifier IC7471. Measure with a scope the waveform on pin 17 of the UOC. Measure also at pin 1 of IC7471. If here the signal is missing, a defective resistor R3244 causes the problem

5.6 Protections

If a fault situation is detected an error code will be generated and if necessary, the set will be put in the protection mode. Blinking of the red LED at a frequency of 3 Hz indicates the protection mode. In some error cases, the microprocessor does not put the set in the protection mode. The error codes of the error buffer can be read via the service menu (SDAM) or the blinking LED procedure.

To get a quick diagnosis the chassis has two service modes implemented:

• The Customer Service Mode (CSM).

• The Service Default Alignment Mode (SDAM). Start-up of

the set in a predefined way and adjustment of the set via a menu and with the help of test patterns.

5.7 Repair Tips

Below some failure symptoms are given, followed by a repair tip.

• Set is dead and makes hiccuping sound

'MainSupply' is available. Hiccuping stops when desoldering L5561, meaning that problem is in the 'MainSupply' line. No output voltages at LOT, no horizontal deflection. Reason: line transistor TS7460 is defective.

• Set is dead, and makes no sound

Check power supply IC7520. Result: voltage at pins 1, 3, 4, 5 and 6 are about 180 V and pin 8 is 0 V. The reason why the voltage on these pins is so high is because the output driver (pin 6) has an open load. That is why MOSFET TS7521 is not able to switch. Reason: feedback resistor 3523 is defective.Caution: be careful measuring on the gate of TS7521; circuitry is very high ohmic and can easily be damaged! (first connect measuring equipment to ground, then to the gate).

• Set is in hiccup mode and shuts down after 8 s.

Blinking LED (set in SDAM mode) indicates error 5. As it is unlikely that P 'POR' and '+8V protection' happen at the same time, measure the '+8V'. If this voltage is missing, check transistor TS7480.

EN 12 L01H.2E5.

Personal Notes:

Service Modes, Error Codes and Fault Finding

Block- and Wiring Diagram, Testpoints, I2C, and Supply Voltage Over-

13L01H.2E 6.

6. Block- and Wiring Diagram, Testpoints, I2C, and Supply Voltage Overview

Block Diagram

SP/LS (For PRO-BASIC and SYSTEM)

I

UIR/LS/Vbat (For PRO-PLUS)

H

U1

Clock

2

Data-in

3

+5V

4

Data-out

5

Ground

6

IR-Data

RJ11

1251

MAIN, AUX

1

TO

2

0251

A1

SUPPLY

A12

MONO

V

L

A4

STBY

3 4

FRONT I/O (optional)

STEREO

V

L

R

TUNER IF

Vbat

CVBS-FRONT-IN

A2

V

+5V

LOTAUX

0265

SDA

SCL

SEL-IF-LL-M-TRAP

POWER SUPPLY

0211

1

TV

3001

3000

0231

FM

A7

A1

150 - 250V SINGLE RANGE

90 - 276V FULL RANGE

INTERFACE

CIRCUITS

L-FRONT-IN

R-FRONT-IN

VT_SUPPLY

5001

1000 6, 7 9

2

ERR

10

I1

I2

7001 7002

SELECTION

Degaussing

Coil

MAINS

SWITCH

A10

A5

A10

FM-RADIO

TUNER

+

TV TUNER

5

4

FILTER

1

1500

T4E

3

A14

VT

FM

IF

AGC

1

0212

5500 : 5502

7520 TEA1507

CTRL

CONTROL

J6

OR

AUDIO/VIDEO / SOURCE SWITCHING

A10

SEL_MAIN_FRNT_RR

A7

SC2-CTRL

A9

L-FRONT-IN

A12

L1-IN

A14

SC1-LOUT

A9

R-FRONT-IN

A12

R1-IN

A14

SC1-R-OUT

A9

FM RADIO

VIDEO

IF

AGC

QSS

SOUND

IF + AGC

SOUND

DE-EMPH.

L1-IN

7580

ENERGIZING

CIRCUIT

5562

10

9

5560 5563 5561

13

12

7515 TCET1103

CR3

IC4

CR4

B

CR1 CR2

C

IC5

DR3

A

IC3

1

CLOCK

IR-OUT

+5V

1

R +t

6500 AC

P

2

1002 1003

1004

6502

+t

P2

SCART 1

0237

1259

1

2

3

4

5

6

7

8

9

21

20

2

1

3504

R

3

3503

6501

6503

7521 STP7NB60FP

G

3526

6520

2521

P3

AC

IC1

CONTROL

RF_AGC

3

TO

0240

A7

CONTROL

OR

CVBS1-IN

A5

FBL-1

STATUS 1

A7

L1-IN

A10 A5

A10

R1-IN

VIDEO IF, SOUND IF

A5

BR1

7209, 7210

7200-A TDA95XX

18

19

22

23

24

A14 A12

2

5520

1

2

3

5

6

7

3

4

T1

1

2 5 4

IC2

FM

VIF_1

VIF_2

SIF1

SIF2

P1

2503

D

S

N.C.

3519

HOT GROUND

DC

HOT COLD

PRE-AMPLIFIER

FM-DEMOD.

LF FRONT-IN

1515

43

1

2

SDA, SCL, +5V

DATA-OUT

DATA-IN

DCM_DISABLE

REAR I/O SCART

7101

V1-OUT

A5

V-OUT

A5

R-Y-IN

A5

G-Y-IN

A5

B-U-IN

A5

L1 - OUT

A10

R1 - OUT

A10

6001 BZX79-C33

I3

10

I4

11

1

2

3527

8

DRAIN

3523

6

DRIVE R

3525

5

SENSE

3522

4

DEMAG

3531

1

VCC

IC

EPS 4 (EXTERNAL POWER SUPPLY only for "SYSTEM" set)

F

0211

0213

HOT GROUND COLD GROUND

CLOCK

G

U1 U2

SDA

DRIVER LED

SCL

+5

7801 HEF4052BT

9

SWITCH

LOGIC

10

1

5

10

12

14

10

FMR

49

VIDEO

PLL

DEMOD.

QSS MIXER

AM DEMOD.

AUDIO

SWITCH

28 29

6560

6561

V

DEFL

V

LOTAUX

6562

6564

7561, 7562 7564

A2

7540, 6540

REFERENCE

7541, 7542

D4

AMPLIFIER

+13V

3564

2564

POWER

DOWN

CIRCUIT

STANDBY

CIRCUIT

DS

VIDEO

SOUND

AMPL.

+ AVL

2561

DISPLAY

BUZZER

7803

3

7804

13

3214

3558

7560

P5

3570

AUDIO SUPPLY GND

ERR

7

3543

3544

STDBY_CON

0228

5

4

3

2

1

SC1-LIN

L1-OUT

A14

SC1-R IN

R1-OUT

A14

V1-OUT

V10

38

33

48

P4

2567

POWER DOWN

P6

MAIN SUPPLY

A7

+3V3

GND

TO 0228

+12V

INTERFACE

GND

+5V

D2 D3

BZ1

A9

A14

+8V

7206

3230

MONO/AM_ MONO_SOUND

A8 A9

+3.9V

+3.3V

M_AUX MAIN AUX

95V

J

INTERFACE (only for "SYSTEMS" sets)

J

32 PIN SMART CARD CONNECTOR

INTERFACE

CIRCUITS

1259

9P

NICAM + 2CS (STEREO) DECODER

A9

QSS-AM-DEM-OUT

FMR

MONO/AM-MONO-SOUND

A11

SC1-L IN

SC1-R IN

SDA

A7

SCL

A7

AUDIO CARRIER

+8V

7201

3208

SYNCHRONISATION

EHT INFO SANDCASTLE

H FLYBK

POWER-DOWN

EHT INFO

EHT o

3834 2847

A5 A10 A10

QSS_AM_DEM_OUT

A6

A2

N.C.

A2

A6 A7

A1

A2

0251

TO 1251

1

H

2

UIR/LS/Vbat

3

OR TO 0251

4

J

INTERFACE

DATA-OUT/SDA

SDA SCL

25

24

31

30

4

51

52

2203

SY-CVBS-IN

CVBS1-IN

H V

DATA-IN

A10

A9

A8

5241

9

2nd LOOP

GEOMETRY

7834 7835

3833

3832

FILTERS

5201

1200

5.5MHz

1201

6MHz

3259

3242

3247

A7

A6

7241

7831 MSP34X5G

47

DEMODULATOR

44

41

42

8

7

2254

11

31

S1

34

VIDEO

A14

AUDIO

DATA

CONTROL

NICAM, 2CS,

AM, FM

INPUT

SWITCHING

ERR

4

3213

7200-D TDA95XX

VIDEO IDENT

H/V SYNC

SEPARATOR

H-OSC

+PLL

0237

V9

A10

A14

ERROR CODE LIST

Error Description 0 No error 1 X-Ray / over voltage protection (USA only) 2 High beam (BCI) protection 3 Vertical guard protection 4 I2C error while communicating with the sound processor 5 Power ON reset (POR bit) 3.3V protection / +8V protection 6 General I2C error 7 Power Down (over current) protection 8 EW protection (Large Screen only) 9 I2C error EEPROM error 10 I2C error PLL tuner 11 Black current loop instability protection

POR

CLOCK

SCL

NC

SUPPLY

MAIN-OUT-L

MAIN-OUT-R

MONO/AM-MONO-SOUND

SC1-L OUT 2X

SC1-R OUT

SC2-CTRL

1831 18M432

7200-C TDA95XX

40

44

42

+8V

H-DRIVE

H-SHIFT

TXT/OSD DISPLAY

V-DRIVE

+

EW

+

0240

1

2

3

0240

4

CONTROL

5

6

7

0251

TO 0251

SUPPLY

0228

TO 0228 EPS

A10 A10 A10

I/O

SWITCHING

VIDEO

FILTERS

VIDEO IDENT

S2

30

S3

17

S4

16

S5

15

TO

A7

A1

F

A5

Y-DELAY

PAL/NTSC

SECAM

DECODER

3251

H DRIVE

V DRIVE+

3244

V DRIVE-

3249

3250

47

N.C.

AUDIO AMPLIFIER

A8

MONO SETS ONLY

MONO/AM-

MONO-SOUND

A5

BASS-PANORAMA

A7

TREBLE-BUZZER-

HOSP-APP

A7

OR

VOLUME MUTE

A7

MAINAUX

A1

3220

R-Y

BASE BAND

B-Y

DELAY

R-V-IN

A14

G-Y-IN

A14

B-U-IN

A14

FBL-1

A14

LINE DEFLECTION

A2

FRAME DEFLECTION

A3

VDRIVE+

VDRIVE-

7941:7943

7901 AN7522N (STEREO)

7902 AN7523N (MONO)

OR

62 L+

8

4L-

9

10 R-

ERR

1

12 R+

7

HEADPHONE

A12

(optional)

L+

L-

R-

R+

A1

L1

L+

L-

R-

R+

V-OUT 2X

A14

RGB

MATRIX

RGB

INSERT

Y

BLACK

STRETCH

U

WHITE

V

STRETCH

51 52 53 50 54

V

+13V

LOTAUX

V

DEF

7403 7404

7401

DRIVER

STAGE

F1

3474

3479

TDA9302H

F2

MAIN-OUT-L

WITHOUT

A1

A2

A3

A4

OSD

RGB

R

CONTROL

G

OSD TEXT

B

INSERT

BLUE

STRETCH

WHITE-P.

ADJ

7204

EHT INFO

PROC.

M_AUX

6406 BAV70

3404

5444

HFLYBK

A6

VLOT AUX +13V

7471

7

1

3475

SIDE AV

+HP

0246

4

3

2

1

6471

2

+

OP. AMP

-

56

R

57

G

B

58

55

MAIN SUPPLY

L3

7402

BUT11APX

L2

2473

6

FLYBACK

GENERATOR

THERMAL

PROTECTION

4

-13V

L

R

L

R

3201

3202

3203

3204

95V

Spk-

Spk+

3235

A12

6692 TSOP1836

+3.3V

H

OR

I

1246

V5

V6

V7

V9

BLK

BLK-IN

A2

EHT INFO

LINE OUTPUT CIRCUIT

FRONT CONTROL

LOCAL

KEYBOARD

LS PART

1

2

0243 0245

1

2

3

4

5

6

A2

6409

0221 1

2

F5

3

F3

5

F4

IR IR

6691

LED

KEYBOARD

BATHROOM SPEAKER CONNECTION

U2

2

4

1

CRT

B

V11

1

2

3

4

BLKCURINFO

5

6

+160V

3416

VIDEOSUPPLY

5445

2

7

1

HOR. DEFL. COIL

ERR

3

V_GUARD

0222

3471

1

2

3471

A7

A14 A14

A1

POWER DOWN

KEYBOARD

7311:

V12

3347

V13

0244

0220

A2

VERT. DEFL. COIL

CONTROL

ERR

5

STATUS1

STATUS2

LED

-

7313

321

EHT

FOCUS VG2

8

5

4 N.C.

3

10

6410

9

6

6413

7200-B TDA95XX

67

1 2

69

5

80

MEMORY

CVBS

BL

COR

3316 3326

7321:

-

7323

FILAMENT

6402

3421

7408

6405

3428 3427

6423

3411

66 61 59

TRANSCEIVER

PORTS

ROM RAM

1/10

PAGES

TELE TEXT

SYNC

R G B

TELETEXT

3317

7331:

-

7333

ERR

11

3423

2419

+3.3V

I/O

IIC

BUS

I/O

OSD

DISPLAY

3336

5341

2417

R

7407

L7

3413

3412

56035602

PWM-

G

B

VST

DAC

CPU

3317

5604

H

V

+160V

3327

3337

V16

3422

L8

7406, 7409

7405

68 7

+3.9V

72

C4

71

C5

3

6

70

78

77

TREBLE-BUZZER-HOSP-APP

73

C1

63

1660

64

12MHz

C2

POR

65 74

DATA-OUT

75

DATA-IN

76

CLOCK

77

SERVICE COMPAIR

CONNECTION

V14

V15

7

5

3

3349

V

+13V

LOTAUX

3425

3431

L4

2422

L5

2410

L6

PROT

CIRCUIT

PROT

CIRCUIT

ERR

7602 M24C08

EEPROM

(NVM)

ERR

9

36063607

3625

SDA

3624

SCL

SEL-IF-LL-M-TRAP

STANDBY-CON

SEL-MAIN-FRONT-RR

BASS PANORAMA

VOLUME/MUTE

9641

9631

SDA SCL

R

G

B

3348

3350

ERR

2

EHT INFO

V

+13V

LOTAUX

V

+5V

LOTAUX

+8V

FILAMENT

-13V

VT_SUPPLY

V

GUARD

BLK-IN

EHT o

CL 16532138_026.eps

2

8 6 5

SDM

G2

V FOCUS

V

A6

ERR

A4

A3 A5

+3.3V

6

3611

36033604

SDA

SCL

0240

1 2 3 4 5 6 7

0217

1 2 3

A5 A6

A4 A7 A9

A4 A1 A10 A8 A8 A8

TO

0240

INTERFACE

OR TO

1259

SP / LS

CRT

25kV

EHT

211201

J

I

Block- and Wiring Diagram, Testpoints, I2C, and Supply Voltage Over-

Wiring Diagram

14L01H.2E 6.

4P 3P

0237

4P

1251

1246

12400259

5P

LEFT

RIGHT

0217

6P

0240

PRO-BASIC VERSION

7P

5P

0246

0251

2P

5P

0259

0211

2P

0228

5P

0251

4P

SP/LS MODULE

1251

3P

1246

3P

10P

0242

9P

1259

I

9P

1259

6P

0227

0237

0217

4P

5P

0259

0240

7P

4P

UIR/LS/Vbat MODULE

H

H J

(either is in or )

0242

7P 3P 3P

3P

0229

MONO CARRIER

0227 0236

A

mains cord.

2P

0213

0211

EPS4 MODULE

4P

J6(0237)

CLOCK MODULE

0228

5P

F

INTERFACE MODULE

J H

(either is in or )

G

CL 16532138_036.eps

J

211200

Block- and Wiring Diagram, Testpoints, I2C, and Supply Voltage Over-

Testpoint Overview

Main Panel Copper Track Side

AUDIO OUTPUT 7901 OR 7902

1

NICAM + 2CS + BTSC

7831

14

7520

85

SUPPLY

7521

D

CONTROL

SUPPLY

HOT GROUND

A1

CRT Panel Copper Track Side

5

4

3

2

12

11

9

10

6

7

8

5

6

7

8

9

A2

A3 - A4

S

G

2V / div DC

5us / div

2V / div DC

500us / div

2V / div DC

500us / div

7200

A6

2V / div DC 200us / div

A7

2V / div DC 200us / div

A11

1V / div DC 500us / div

TV-PROC.

7402

C

C1

C2

C4

E

LINE

B

1V / div DC

500us / div

1V / div DC

500us / div

2V / div DC

200us / div

15L01H.2E 6.

C5

2V / div DC

200us / div

F1

500mV / div DC

5ms / div

F2

500mV / div DC

5ms / div

7471

7

1

FRAME

F3

10V / div DC

5ms / div

F4

1V / div DC

5ms / div

F5

10V / div DC

5ms / div

A1 B3 A2 B3 A3 A3 A4 A3 A5 C1 A6 B1 A7 B1 A8 C2 A9 B2 A10 B3 A11 C2 A12 B2 A13 C3 C1 B4 C2 B4 C3 B5 C4 B5 C5 B5 C6 E1 F1 D6 F2 D6 F3 C6 F4 C6 I1 A6 I2 A6 I3 A6 I4 A6 L1 C4 L2 E5 L3 E5 L4 D5 L6 C5 L8 C6 L9 D5 P1 E3 P2 E3 P3 D3 P4 C4 P5 C4 P6 D5 S1 A4 S2 A4 S3 A5 S4 A5 S5 A4 V1 B6 V2 B6 V3 B5 V4 B4 V5 B4 V6 B4 V7 B4 V8 B4 V9 A4 V10 A4

I1

2V / div DC

200us / div

I2

2V / div DC

200us / div

I3

20mV / div DC

1ms / div

I4

500mV / div DC

250ns / div

L1

500mV / div DC

20us / div

L2

2V / div DC

20us / div

L4 = +13V L5 = +5V L6 = +8V L7 = -13V L8 = +34V L10 = +176V

L9

2V / div DC

20us / div

P1

50V / div DC

20us / div

P3

5V / div DC

50ms / div

P2 = +308V (317V) P4 = +3V3 P5 = +12V4 (+3V9) P6 = +95V

S1

2V / div DC

20us / div

S2

500mV / div DC

20us / div

S3

500mV / div DC

5ms / div

S4

500mV / div DC

5ms / div

V4

100mV / div DC

20us / div

V5

1V / div DC

20us / div

V6

1V / div DC

20us / div

V7

1V / div DC

20us / div

V8

2V / div DC

5ms / div

V9

500mV / div DC

10us / div

V10

1V / div DC 500us / div

V11

1V / div DC

20us / div

V12

1V / div DC

20us / div

V13

1V / div DC

20us / div

V14

50V / div DC

20us / div

V15

50V / div DC

20us / div

V16

50V / div DC

20us / div

CL 16532008_033.eps

240801

Block- and Wiring Diagram, Testpoints, I2C, and Supply Voltage Over-

I2C and Supply Voltage Diagram

POWER SUPPLY

A1

150 - 250V SINGLE RANGE

90 - 276V FULL RANGE

0211

0231

MAINS

SWITCH

I2C BUS INTERCONNECTION DIAGRAM

CONTROL

A7

7200-B

SET

PROCESSOR

PART OF

VIDEO-

PROCESSOR

ERR

5

UIR/LS/ Vbat (PRO-plus)

H

1240

DATA-OUT

1

DATA IN

2

CLOCK

3 4

SCL

5

+3.9V

3607 3606

C4

SDA

72

71

SCL

C5

68 7

74

DATA OUT / SDA

75

DATA IN

76

CLOCK

77

SCL

DATA-OUT

INTERFACE

DATA-IN

5500 : 5502

1500

T4E

7520 TEA1507

3

F

0211

0213

+3.9V

CLOCK

8

DRAIN

DRIVE R

SENSE

CTRL

DEMAG

VCC

CONTROL

IC

EPS 4 (EXTERNAL POWER SUPPLY only for "SYSTEM" sets)

HOT GROUND

3625

3624

3604

7602

M24C08

EEPROM

(NVM)

ERR

9

U1

4

RJ11

2

SMART PLUG

1

3603

65

6

5

4

1

3527

3523

3525

3522

3531

IC1

CONTROL

0240

2 3 4 6

AC

BR1

AC

6500

0237

DC

1 2

6502

P2

ERR

6

0217

1 2 3

6501

6503

7521 STP7NB60FP

G

3526

6520

2521

P3

FOR COMPAIR

OR

P1

2503

D

S

N.C.

3519

HOT GROUND

T1

1

2

5 4

IC2

HOT COLD

A4

SDA

SCL

5520

1

2

3

5

6

7

3

4

B

C

A

TUNER IF

I1 I2

INTERFACE

J

(only for "system" sets)

0240

DATA OUT/SDA

2

DATA IN

3

CLOCK

4

SCL

6

13

12

10

9

1

7515 TCET1103

2

COLD GROUND

CR3 CR4

D3

3001

3000 45

1000

TUNER

ERR

10

TC3

SCL

1

DATA IN

CLOCK

3549

IC4

IC5

SDA

SCL

+5V

3716

DATA OUT

/ SDA

5560 5563

6564

6562

5562

7540, 6540

REFERENCE

CIRCUIT

7541, 7542

STANDBY

CIRCUIT

D4

D5

NICAM, 2CS,

A9

BTSC DECODER

A7 A8

+5V

3717

3742

3715

3744

7701 7702

6560

6561

3564

2564

7561, 7562 7564

POWER

DOWN

CIRCUIT

+3V3

+12V

+5V

3833

MSP34X5G

AUDIO

DECODER

+5V

3729

DATA/OUT

2561

3543

3544

3832

78

7831

ERR

4

DATA IN

5561

140V MAIN SUPPLY

0228

5 4 3 2 1

1800

15

8

14

SCL

CLK

7

P6

MAIN SUPPLY

7560

3557

3558

MAIN AUX

32P CONN.

12V M_AUX

3537

POWER DOWN

P4

2567

STBY_CON

DATA OUT/

P5

AUDIO SUPPLY GND

16L01H.2E 6.

95V

MAIN AUX

V DEFL.

+3.3V

+3.9V

A7

0251

1

2

3

4

SDA

SCL

DATA

OUT/SDA

DATA IN

CLOCK

AUDIO AMPL.

A8

MAIN AUX

AUDIO SUPPLY GND

CONTROL

A7

+3.9V

(TO 3606 3607,3633)

INTERFACE (only for "SYSTEM" sets)

J

0228

1 2 3 4 5

0251

1 2

OR

3 4

SP / LS (For PRO-BASIC)

I

1251

1

OR

2

UIR/LS/Vbat (For PRO-PLUS)

H

1251

F1

13

2

OR

3

Vbat

4

0237

1

OR

2

OR

1259

1

OR

2

OR

3

+3.3V

5602

66

5603

61

5604

59

3611

8

+5V

1700

+12Veps

400mA

6701 3739

STDBY

140/95V

D2

R1

D1

R24

U4

R25

STDBY

LOAD

CIRCIUT

CLOCK

G

0247

1 2

SP/LS (For PRO-BASIC and SYSTEM)

I

1259

1 2 3

7901

AUDIO

1

OR

OUTPUT STEREO

7902

AUDIO

1

OR

OUTPUT

MONO

7200-B

uC

7602

EEPROM

(NVM)

SYNCHRONISATION

A6

+3.3V (TO 3256)

FRONT CONTROL

A12

+3.3V

4693

POR

+5V

0237

3

+5V

SDA

SCL

R2

R11

R12

Q1

V DEFL.

4011

+3.3V eps

+12V eps

+5V

+3V3A

+5V

4012

+8V

+5V

R13

LINE DEFLECTIONA2

MAIN SUPPLY

M_AUX VLOT AUX +13V

6467

H-DRIVE

0259

2

0259

2

1800

10

0217

4

1259

STDBY

6

8

0237

3

+5V

R14

15 14

R9

R7

R6

3487

2450

3404

LINE

OUTPUT

1 2

32P SMART

3

CARD CONN.

4

U1

DRIVER

DATA-OUT

DATA-IN

CLOCK

5451

6406

OR OR

5445

EHT FOCUS

LOT

2

U1

VG2

VIDEO

3416

6409

73

9

6405

6

6410

8

6402

5

VLOT AUX +5V

NICAM 2CS -

A9

DECODER

VLOT AUX +5V

5833

AUDIO VIDEO

A10

SOURCE SWITCHING

+8V

3801

REAR I/O SCART

A14

+8V

SP/LS (In "SYSTEM"

I

configuration)

1259 6

R33 +5V

8

CLOCK

G

J6 3

4

RJ11

2

SMART PLUG

1

+5V

7408

+8V

34116413

34286423

3421

34243423

+5VA

5832

+5V

to 2419

7407

6420

TO E-7406

+8V

U1

SUPPLY

FILAMENT

3412 3413

46

33

3

0220

2

1

-13V

3427

VT_SUPPLY

VLOT AUX +5V

TO C-6408 B-7409

3422

6419

+8V

VLOT AUX +5V

VLOT AUX +13V

3415

7831

AUDIO

DECODER

+6V8

RJ11 SMART PLUG

ERROR CODE LIST

Error Description 0 No error 1 X-Ray / over voltage protection 2 High beam (BCI) protection 3 Vertical guard protection 4 I2C error while communicating with the sound processor 5 Power ON reset (POR bit) 3.3V protection / +8V protection 6 General I2C error 7 Power Good (over current) protection 8 EW protection (Large Screen only) 9 I2C error EEPROM error 10 I2C error PLL tuner 11 Black current loop instability protection

B

CRT

EHT

ANODE CRT

FOCUS

FOCUS CRT

VG2

VG2 CRT

0244

160V

3

5341

2

1

TUNER IF

A4

VT_SUPPLY 33V

VLOT AUX +5V

FRAME DEFLECTION

A3

VLOT AUX +13V

POWER SUPPLY

A1

VIDEO IF

A5

SYNCHRONISATION

A6

+8V

A7

0217

4

AUDIO AMPLIFIER

A8

3349

3350

6001 BZX79

-/C33 5001

+8V (TO 3008)

-13V

VLOT AUX

VLOT AUX +13V TO DEGAUSSING CIRCUIT

VLOT AUX +5V (TO 2234)

+8V

5202

+8VA (TO 3248)

5241

CONTROL

VLOT AUX +5V (TO 3619)

+8

+8V (TO 3948, 3950) VLOT AUX +5V (TO 9904)

VIDEO OUTPUTS

3336

C-7332

3326

C-7322

3316

C-7312

TO CRT FILAMENT

1000

9

TUNER

6 7

7471

4

FRAME

OUTPUT

3

7200-A

VIDEO

39

+8VA

7200-D

SYNC

9

PROC.

CL 16532138_016.eps

IF

201201

7. Schematics and PWB’s

Mono Carrier: Power Supply

Schematics and PWB’s

17L01H.2E 7.

A

B

C

D

E

G

0211 B1 0212 B1 0213 C4 0231 B1 0251 E11

F

0282 F11 1500 B3 1515 A7 2500 B3 2501 B5

2502 B5 2503 B6 2504 B7 2505 B2 2506 B6

123

POWER SUPPLY

P1 P2 = +308V (317V)

50V / div DC

20us / div

DEGAUSSING COIL

0212

1

2

0211

2

1

MAINS

150 - 276 V SINGLE RANGE

90 - 276 V FULL RANGE

P3

22u

2521

2507 B7

2521 D1

2508 C7

2522 D6

2515 B7

2523 D7

2516 B7

2524 D6

2520 F2

2525 E6

P3

5V / div DC

50ms / div

9500

0231 SDDF

56

24

13

MAINS SWITCH

9501

2M2

3500

3501

4M7

3531

100R

6522

2528

470n

6520

BYD33D

22R

3521

2547 F9

2526 D6

2559 F10

2527 D7

2560 D8

2528 D2

2561 D9

2540 E9 2542 E9

2562 B8

P4 = +3V3 P5 = +12V4 (+3V9) P6 = +95V

2n2

2505

1500

T4E.250V

7520

TEA1507

16V8

(13V8)

1

Vcc

2

Gnd

BZX79-C20

INPUT

CONTROL

1V3

3

Ctrl

CIRCUIT

BURST

DETECTOR

10n

1K2

2520

3520

..V.. Normal Operation (..V..) Standy Mode

HOT GROUND

COLD GROUND

2500

FREQUENCY

CONTROL

2563 D8 2564 B9 2565 D8 2566 C9 2567 B10

470n

3506

220R

SUPPLY

MANAGEMENT

TEMPERATURE

PROTECTIOM

1

2

1

2

3507

DSP

VOLTAGE CONTRLLED OSCILLATOR

OVER

POWER-ON

RESET

2568 G8 2569 C8 2580 A9 3500 C2 3501 D2

+t

Rp

1

5500

DMF-2820

5501

DMF-2405

C914 31

3502 B4 3503 A4 3504 A4 3505 B4 3506 C3

3507 D3 3508 B4 3519 E7 3520 F2 3521 E2

3522 C5 3523 E6 3524 D6 3525 E5 3526 D6

3527 B6 3528 D6 3529 C5 3530 C5 3531 D2

3540 E8 3541 E8 3542 E9 3543 E10 3544 F10

3545 F9 3546 E8 3547 F9 3548 E9 3549 D10

3552 F8 3558 A9 3559 A9 3560 B9 3561 C8

3562 C8 3563 C9 3564 B9 3565 A9 3566 F8

3567 C9 3568 C10 3569 F8 3570 C10 3580 A8

5500 B4 5501 C4 5502 C4 5520 B7 5521 C7

5560 D8 5561 D10 5562 B8 5563 D9 6500 B5

6501 B6 6502 B5 6503 B6 6520 E1 6521 D7

6522 D2 6523 C5 6540 F9 6541 E8 6560 D8

6561 D8 6562 B8 6563 C8 6564 C8 6565 A10

6566 F10 6567 D8 6569 F8 6570 G7 6580 A8

6581 A8 7515 E7 7520 D2 7521 C6 7522 C6

7540 F9 7541 F8 7542 F8 7560 A10 7561 D9

7562 C9 7564 B10 7580 A8 9500 B2 9501 C2

9502 B4 9503 A7 9504 C10 9520 C7

4567891011

VlotAux+13V

3

Rs

4

3

4

3

46 5502

LOGIC CONTROL CIRCUIT

MAXIMUM

ON-TIME

PROTECTION

3504

2

3508

1M5

3505

V

+t

3503

CURRENT SOURCE

VALLEY

CURRENT SOURCE

OUTPUT DRIVER

ZPB

9502

3502

t

0213

2

1

START-UP

CURRENT SENSING

OVER

POWER

PROTECTION

2501

2502

B57237

For ITV

ONLY

2n2

Drain

HVS

Demag

Sense

Driver

6500

1N5062 (COL)

6502

1N5062 (COL)

3529

3530

3522

309V

(317V)

8

7

4

3525

5

1K

6

2V

6501

1N5062 (COL)

6503

1N5062 (COL)

47K

6523

1N4148

7522

4K7

BC847B

470K

(317V)

2522 100n

3524

56K

388V

P1

2n2

2503

2506

3527

2K2

P2

7521

STP7NB60FP

2V5

G

3528

10K

2524

1n

2526

3523

100R

2525

470p

220u

D

0V

S

1n

3526

2n2

2507

2504

9520 5521

308V

(317V)

2523

6521

0R22

TCET1103(G)

9503

EAR

47u

2508

470p

1n2

2527

470p

1N5062 (COL)

3519

270R

7515

G5P 1515

14

23

7580 BC857B

2516

1n5

2515

RES

5520 W8096

1

2

13

3

12

11

5

10

6

9

78

1V3

8V9

16V410V

6570

6581

BAS216

5562

2569

5560

2565

470p

3540

3546

10K

3569

7542 BC857B

3566

2K2

2568

BZX384-C6V8

0u47

6580

EGP20DL

3561

470p

6563

1K

3541

470R

100R

PDTC143ZT

9V

BAS216

2562

1n

6562

6564

SB340

100R

BAS216

BZX384-C4V7

BYW76

7541

3552

22K

BAS16

2560

1n

6560

6561

6541

6569

2563

100n 6567

3580

3562

10K

BZX79-C10

0V

220K

6540

3565

330R

2580

2564

3542

47u

5563

1K5

8V3

6V

BZX79

2m2

3560

3567

7540 BC547B

B6V2

-2V9

-V28

3548

2542

4V8

3K9

15K

1n5

3558

3564

0R33

68R

2566

47u

BC857B

2561

6V3

3547

0R22

2547

1m

7562

3563

8K2

330R

11V6

92V4

(95V)

1K

3559

L78L33ACZ

12V 3V3

3568

10K

+3.3V

3V3

7561 PDTC143ZT

47u

1n5

3543

2540

82K

3545

3544

6566

BAS16

7560

1

7564 BC858B

5561

470R

82K

6K8

2

27u

3549

+3.9V (3V9)

6565

A

BAV70

P4

3

2567

P5

+3.3V

(3V3)

47u

M_Aux

12V4 (3V9)

TO OF

AudioSupplyGnd

B

C

6R8

3570

9504

**

2559

100n

MainAux

POWER_DOWN

MainSupply

(95V)

P6

Vdef

0251

1

2

3

4

FOR ITV ONLY

0282

TO

MainSupplyGnd

Stdby_con

TO

0251

OF

TO 0283

OF

A7-11

A2-64

A7-5

Diversity Table A1

Item Description

0213 CON 2P 0251 4P Male 1515 RELAY 1P 12V 5A 2503 450V 100U 2504 1KV 2N2 2566 47uF 25V X X X X X 2568 1uF 50V X X X X XXXXXXX 2580 25V 47U 3502 NTC DC 4R7 3503 PTC DC 10R 3505 VDR DC 1MA/423V 3506 1/2W 220R 3508 1M5 3521 22R X X X X 3521 4R7 X X X X X X X 3523 100R X X X X 3523 47R X X X X X X X 3526 0.18R 1W X X X X 3526 0.15R 1W X X X X X X X 3546 Jumper X X X X XXXXXXX 355210K XXXXXXXXXXX 3558 330R 1W 35591K XXXXXXXXXXX 3560 47R X X X X X 3564 0.1R 2W X X X X X 3564 4.7R 2W XXXXXX 3565 330R 1W X X X X XXXXXXX 35662K2 XXXXXXXXXXX 3567 2K2 X X X X X 3568 8K2 X X X X X 35695K6 XXXXXXXXXXX 3570 10R 1W XXXXXX 3580 47K 5500 FIL MAINS 20MH 5502 FIL MAINS 5MH 1A 5520 TFM SMT LAYER S359B4-09 B X X X X X X X 5520 TFM SMT LAYER SS28010-06 B X X X X 5562 BEAD 100MHz X X X X 5562 BEAD 100MHz X X X X X X X 6561 BYW76-RAS15/10 X X X X X X X 6562 EGP20DL-5100 X X X X XXXXXXX 6564 SB340L-7024 6566 BAS316 X X X X XXXXXXX 6566 BAS216 X X X X XXXXXXX 6569 BAS316 X X X X XXXXXXX 6569 BAS216 X X X X XXXXXXX 6570 BZX284-C6V2 X X X X XXXXXXX 6580 DIO SIG SM BAS216 6581 DIO SIG SM BAS216 7521 STP6NC80ZFP X X X X X X X 7521 STP4NC80ZFP X X X X 7521 STP6NC80ZFP X X X X X X X 7521 STP4NC80ZFP X X X X 7541 PDTC114ET X X X X XXXXXXX 7542 BC857B X X X X XXXXXXX 7562 BC857B X X X X X 7564 BC857B X X X X X 7580 TRA SIG SM BC857B 9500 Wire 9501 Wire 9502Wire XXXXXXXXXXX 9503Wire XXXXXXXXXXX 9504 Wire X X X X X 9520 Wire

14" Mono 4Watt

14" Stereo

17" Mono

21" Stereo

21" Mono 4Watt

14" Mono 1Watt

37TA , 37TB .

20" Mono

21" Mono 1Watt

51TA , 51TB .

E

F

G

52TA , 52TB .

123456

CL 16532020_002.eps

050601

7891011

Mono Carrier: Line Deflection

Schematics and PWB’s

18L01H.2E 7.

A

B

C

D

1234567891011

LINE DEFLECTION

BC857B

4V5 2V1

*

6414

BZX79-B6V2

2418

10n

33K

7405

2422

6V2

3415

3426

2421

47n

3417

33K

470u

1K

1M

L4

L5

L6

L7

L8

3410

33K

EHTo

A6-23

VlotAux+13V

BLK-IN

A5-36

Vguard

A3-65

EHTinfo

A5-16 A6-16

VlotAux+13V

VlotAux+5V

+8V

VlotAux+13V

VlotAux-13V

VT_Supply

CL 16532020_003.eps

050601

A

B

C

D

E

F

3418

2412

1N4148

15K

33n

6413

6415

L9 L4 = +13V

2V / div DC

20us / div

3404

6R8

5V4

*

3406

7403 BC337

5V6

7404 BC636

2403

5V5

*

1V4

7401 PDTC143ZT

MainSupply

11V

2405

5V4 5V6

0V

*

L5 = +5V L6 = +8V L7 = -13V L8 = +34V L10 = +176V

*

+95V

L9

2411

5V4

*

2406

VlotAux+5V

9404

47u

6408

*

5401

*

BAS316

5406

2415

9403

*

5403

DC12

3402

3

*

1

SC10009-03

6416

*

3401

330K

18K

for sets

w/o quasi

diode

modulation

5444

3429

3K3

BAS316

6

L2

2404

*

7402 BUT11APX

0V

22R

3432

3430

15K

2400

4n7

for sets

with quasi

diode

modulation

0221

4

1

VH

*

2408

**

22n

L3

90V8

6404

6411

BD137

BYD33M

BYD33D

7435

3436

9401

5410

0V

HORIZONTAL DEFLECTION COIL

9408

5408

*

3403

22R

**

2407

*

9402

2424

6412

BYD33D

**

4R7

27u

2409

47u

2416

3435

100K

VideoSupply

BYD33D

*

1

7

2

6

9

10

3

4

5

FILAMENT

6409

5445 AT2078

0220

1

2

3

2413

10u

EHT

8

TO 0224 OF CRT PANEL

VideoSupply

L10

3R9

3416

TO PICTURE TUBE

TO CRT

VFOC

PANEL

VG2

12V4

6407

12V

L2

BAS216

3408

2V / div DC

20us / div

6406 BAV70

11V6

A1-64

VlotAux+13V

L1

500mV / div DC

20us / div

Vdef

M_Aux

*

E

A6-21

A6-18

Hdrive

Hflybk

L1

F

BAS216

2420

BYV27-200

3411

10R

3413

5K6

1u

3419

12V5

6402

6410

BYD33D

7408

BD135

6R8

VlotAux+5V

6405

BYD33D

6423

BYD33D

VlotAux+13V

12V4

BC857B 7406

7409 BC857B

3431

3425

2410

2414

8V7

2419

5V5

5V

*

12V4

470u

3421

33R

1m

6419

BZX79-C5V6

8V8V4

3424

100R

3428

39R

3412

*

3414

1u

4V5

3420

7407

BD135

5V8V5

5V7

3422

100R

3423

820R 6420

BZX79-C9V1

2417

1m

3427

12K

2423

10u

0220 F6 0221 A5 2400 F4 2403 D2 2404 A4 2405 D3 2406 D3 2407 D5 2408 B5 2409 C6 2410 D9 2411 D3 2412 C8 2413 A7 2414 D9 2415 D3 2416 D6 2417 F10 2418 B10 2419 A9 2420 B8 2421 B10 2422 D10 2423 F10 2424 D5 3401 C4 3402 C4 3403 B5 3404 C2 3406 D2 3408 D2 3410 B11 3411 A8 3412 A9 3413 A8 3414 A10 3415 A10 3416 A7 3417 B10 3418 A8 3419 B8 3420 B10 3421 D9 3422 D10 3423 E10 3424 E9 3425 C9 3426 B10 3427 F10 3428 F9 3429 E4 3430 E4 3431 C9 3432 D4 3435 E6 3436 E5 5401 B3 5403 B4 5406 B3 5408 B5 5410 F5 5444 D4 5445 B6 6402 C8 6404 D5 6405 E9 6406 C2 6407 D1 6408 E3 6409 A6 6410 D8 6411 D5 6412 D5 6413 A8 6414 A10 6415 A8

6416 F4 6419 D9 6420 E10 6423 F9 7401 E2 7402 D4 7403 D2 7404 D2 7405 A10 7406 B9 7407 D10 7408 E9 7409 B9 7435 E5 9401 F5 9402 D5 9403 A4 9404 B3 9408 B5

1234567891011

Mono Carrier: Frame Deflection

XXXXX

Schematics and PWB’s

19L01H.2E 7.

Diversity Table A2

Item Description

2401 50V 680P 2402 250V 680N 2403 capacitor 2404 560nF 250V X 2404 680nF 250V X 2404 390nF 250V X 2404 470nF 250V X X 2405 1N 50V X X X X X 2406 50V 330P 2407 9nF1 1.6kV X X X 2407 11nF 1.6kV X 2407 12nF 1.6kV X 2408 22nF 50V X X X X 2408 47nF 50V X 2415 capacitor 2416 220pF 2kV X X 2416 470pF 2kV X 2416 560pF 2kV X 2416 2.2nF 2kV X 2424 47N 100V XXXXX 3221 1/6W 560R 3222 1/6W 100R 3401 330K 3402 1/6W 18K 3403 22R XXXXX 3406 1/6W 10K XXXXX 3407 220R 3408 8K2 1/6W XXXXX 3412 39K XXXXX 3414 12K XXXXX 3425 12K X X X X 3425 18K X 3431 100R X 3431 1K X 3431 2K7 X 3431 4K7 X 3431 5K6 X 5401 68U 5403 10U X X X 5406 COI LINCOR DRUM X X 5406 COI LINCOR DRUM X 5408 22U X 5408 27U X X X X 5445 TFM 1142.5093D B XXXXX 6401 DIO SIG BAV21 6412 BYD33D XXXXX 7402 TRA POW BUT11APX 7407 TRA POW BD135-16 7408 TRA POW BD135-16 9402 Wire 9403 Wire X X 9404 Wire X X 9408 Wire

21"

20"

17"

14" Black matrix

14" Black line

A

B

C

D

0222 C6 2471 B3

2472 C3 2473 A4

2475 C2 2476 C4

2477 B2 3471 D5

3472 D5 3473 B1

3474 B2 3475 C1

123456

FRAME DEFLECTION

Vguard

A2-65

VlotAux+13V

3475

2K2

F3

3474

1K

3479

1K

10V / div DC

5ms / div

Vdrive+

A6-19

Vdrive-

A6-20

F1

500mV / div DC

5ms / div

3473

F2

500mV / div DC

5ms / div

3476 C4 3477 C5

2477

470p

2475

VlotAux-13V

F4

1V / div DC

5ms / div

3478 C5 3479 C2

F1

F2

2471

0V9

F5

10V / div DC

5ms / div

5471 B5 6471 A3

7471 TDA9302H

100n

IN+

7

IN-

1

6472 B5 6473 C5

6471

BYD33D

12V5

2

VSUP

POWER AMPLIFIER

GND

4

-13V4

2472

100n

7471 B3 9471 B5

F5

2473

100u

6

12V8

VSUPO

FLYBACK

GENERATOR

THERMAL

PROTECTION

-12V2

2476

220n

3

FLYB

OUT

Diversity Table A3

Item Description

2474 50V 220P 2478 50V 100N 3471 3R3 X X X 3471 4R7 X 3471 5R6 X 3472 3R9 X 3472 5R6 X X 3472 6R8 X X 5471 BEAD 6472 DIODE

220R

6473 DIODE 9471 Wire

F3

0222

1

2

*

6472

9471

*

0V

5

3476

*

1R5

5471

Bead

6473

*

3477

21"

14" Black line

20"

VERTICAL DEFLECTION COIL

17"

14" Black matrix

A

B

C

F4

3478

220R

3471

3472

CL 16532020_006.eps

050601

D

123456

Mono Carrier: Tuner IF

XXXXXXXXX

Schematics and PWB’s

20L01H.2E 7.

A

B

C

D

E

0265 A3 0283 B1

0285 B1 1000 A2

1002 D6 1003 E6

1004 E6 2001 C2

2002 C2 2003 D4

2004 B4 2005 A4

2006 B5 2007 B5

2008 C4 2009 C7

2010 A3 3000 C2

3001 C2 3002 C5

3003 B6 3004 C6

3005 C7 3006 D4

3007 D4 3008 D4

3009 D5 3010 D2

3011 D3 3012 A5

4001 C4 4002 E6

4003 E5 4004 E6

4005 D5 4006 D4

4007 B6 4011 F6

4012 F6 5001 A5

5002 C4 5003 F7

6001 A4 6002 B5

6003 C5 6004 D4

6005 D5 7001 E4

7002 E5 9001 D5

12345678

TUNER IF

FM-RADIO ANTENNA

0265

1

2

3

VT_Supply

VlotAux+5V

FOR ITV ONLY

Diversity Table A4

A

TO 0282

OF

A7-13

A7-14

A5-24

0285

FOR EMC ONLY

0283

SCL

SDA

FM

1000

12

13

14

15

3000

100R

3001

100R

3010

100R

TUNER

MT

AS SCL SDA

34567

4.3V

I2

RES

2002

3011

RES

1K

2001

+5V ADC

4.9V

I1

AGC

FM-ANT

+5V

FM

8

1n

2010

1

2

9

VT

10

11

IF

I4

2004

I3

5002

10n

2003

*

2K2

3006

*

4006

2005

47n

820n

4001

3007

6004

10u

2008

6K8

BA792

6001

3008

BZX79-C33

100u

+8V

2K2

4005

BAS216

6005

** **

SEL-IF-LL_M-TRAP

A7-3

5V

0V

7001 PDTC124ET

0V

7002 PDTC124ET

F

I1

I2

I3

I4

6002

6003

3002

10K

5001

2006

3009

BA792

5u6

470u

2K2

*

2007

9001

4003

3012

100n

33R

4007

3003

4K7

FOR ITV ONLY

4004

*

4011

*

3004

10

4002

*

4012

3005

680R

22K

1002

*

OFWG1984M

1

2

1003

*

OFWK6272K

SWI

1

IN

2

ING

GND

3

1004

*

OFWG1984M

1

2

Item Description

0265 3P X X X X X X 0285 1P 1000 TUN V+U PLL IEC BGDK X X X 1000 TUNER UR1316R/A I -3 X X X X X X 1002 OFWK3953M X X X

B

1003 OFWK6289K X X X X X X 1004 OFWK9656M X X X 2003 50V 10N X X X X X X X X X 2010 1N X X X X X X

RF_AGC

22n

2009

4

5

3

4

O1

5

O2

8

4

2u7

5003

5

3

VIF_1

VIF_2

SIF_1

SIF_2

A5-25

A5-27

A5-26

A5-28

A5-29

3002 10K X X X 3002 Jumper X X X X X X 3004 8K2 3010 330R X X X 3010 Jumper X X X

C

3011 330R X X X 4001 Jumper 4002 Jumper X X X X X X X X X 4003 Jumper X X X 4004 Jumper 4005 Jumper 4006 Jumper 4011 Jumper X X X 4012 Jumper 4608 Jumper X X X X X X

D

4609 Jumper X X X X X X 5003 1U8 X X X 6002 BAS316 X X X 6002 BAS216 X X X 6004 BA792 X X X X X X X X X 6005 BA792 9001 Wire

E

F

14", 21" Stereo 3W, PAL BG-I

14", 17", 21" Mono 4W, PAL BG-I

14", 21" Stereo 3W, PAL, SECAM L-L1

14", 17", 21" Mono 4W, PAL, SECAM L-L1

14", 21" Stereo 3W, East Europe

14", 17", 21" Mono 4W, East Europe

14", 20", 21" Mono 1W, PAL BG-I

14", 20", 21" Mono 1W, PAL, SECAM L-L1

14", 20", 21" Mono 1W, East Europe

*

2V / div DC

200us / div

2V / div DC

200us / div

20mV / div DC

1ms / div

500mV / div DC

250ns / div

CL 16532020_008.eps

050601

12345678

Mono Carrier: Video IF + Sound IF

1234567891011

VIDEO IF + SOUND IF

A

L1-IN

4213

A14-32

B

C

D

E

F

G

A10-37 A11-37

A14-38

A2-36

A14-35

A14-33

A14-34

A14-39

A2-16

SY_CVBS-IN

CVBS1-IN

BLK-IN

R_V-IN

G_Y-IN

B_U-IN

FBL-1

EHTinfo

3637

3638

V3

V1

V2

LFRONT-IN

A12-31

FOR ITV ONLY

0249

A14-30

FOR ITV ONLY

0248

FOR ITV ONLY

75R

*

* *

*

4212

2221

C-IN

22n

2202

100n

0276

2201 100n

CVBS

2203

3235

100R

2213

22n

4207 2214

22n

4205

2215

470n 4206

100n

3V7

1V5

3V3

3V8

28

29

45

44

42

40

41

43

2233

Schematics and PWB’s

2205

220n

7200-C TDA95XX

I/O SWITCHING

VIDEO FILTERS VIDEO IDENT

820p

3219

2K2

8

2V3

PAL/SECAM/NTSC DECODER

RES

3224

2210

1u

3220

100R

V4

47

2V9

LUMA DELAY PEAKING

BASE-BAND

DELAY LINE

6201

BAS216

2209

6206

UDZS-TE17-6.2B

220n

2219

10

5V

OSD/TEXT INSERT

BLUE STRETCH

WHITE-P. ADJ.

Y

RGB/YUV INSERT

U

BLACK STRETCH

V

WHITE STRETCH

2V5

4u7

3218

82K

OSD

2V5

RES

1V8

7204

BC857B

5051 52 53

0V

3223

2V5 56

57

58

54

55

3V5 46

1K

3226

3225

6202

BAS216

2V5

5V6

560R

+8V

3206

3217

3201

100R

3202

100R

3203

100R

3204

1K

100K

330K

2204

100n

2220

V5

V6

V7

470n

A4-24

R

G

B

V8

VlotAux+5V

FM

V4

100mV / div DC

20us / div

1

2

3

4

5

6

V9

0243

2238

1n

21L01H.2E 7.

2234

2206

TO 0245

OF

CRT

PANEL

100p

3240

100n

2239

V5

1V / div DC

20us / div

3213

3212

1V4

470R470R

220K

1n

+8V

3233

3V

7209 BFS20

0V7

3238

3228

3227

5.5Mhz

6.0Mhz

2K2

2240

2236

1K

V6

390K

2V6

7206 BC847B

2225

22n

3229

1K

9200

*

5201

*

#

I1O

G

2

1I3

O

G

2

3236

1n

1V / div DC

20us / div

*

1V1

3

*

1200

1201

100K

3231

2V

3230

3V7

680R

*

270R

3237

3239

4210

4211

*

2207

220p 3209

2K2

5V

7210 BFS20

0V3

330K

V7

1V / div DC

20us / div

5202

10u

2226

4204

2211

470n

7201

BC847B

#

2237

3n3

2222

1n

3200

2208

+8V

3208

22n

2217

7V9

2V5

22n

390R

V10

100n

#

1203

V8

2V / div DC

5ms / div

2216

3V2

I

1O3

G

3207

2

100u

1K

4209

7200-A

TDA95XX

3V2

38

2V9

49

2V6

33

3V5

48

3261

V9

500mV / div DC

AMPL. + AVL

2235

2223

330R

10us / div

VIDEO AMPL

SOUND

5V

0243 C6 0248 C2 0249 B2 0266 E11 0276 C2

9618

3214

100R

VIDEO

PLL DEMOD.

QSS MIXER AM DEMODULTOR

AUDIO SWITCH

2V5

35

VISION IF AGC/AFC

QSS SOUND

IF

AGC

SOUND PLL

DEEMPHASIS

7V8

39

25

0V

1V9

18

1V9

19

1V5

22

1V9

23

1V9

24

2V5

36

0V

32

1V7

26

V_OUT

V1-OUT

+8VA

QSS_AM_DEM_OUT

VIF_1

VIF_2

RF_AGC

SIF_1

SIF_2

A14-40

A14-41

A5-42 A9-42

A10-42 A11-42

A4-27

A4-26

A4-25

A4-28

A4-29

A

B

C

27

4214

*

3234

4216

V10

1V / div DC

500us / div

680R

1n

10p

2K2

3232

2227

2229

4n7

2228

820p

MONO|AM_MONO_SOUND

QSS_AM_DEM_OUT

FOR ITV ONLY

0266

FMR

4u7

2230

A8-43 A9-43 A11-43

A5-42

A7-44 A9-44

CL 16532020_009.eps

050601

D

E

F

G

1200 E7 1201 E7 1203 F8 2201 D2 2202 C2 2203 D2 2204 D5 2205 B3 2206 D6 2207 D8 2208 B8 2209 F4 2210 G3 2211 D8 2213 E2 2214 E2 2215 F2 2216 A8 2217 A8 2219 B4 2220 F5 2221 C2 2222 F8 2223 F9 2225 C7 2226 C8 2227 D10 2228 D11 2229 C11 2230 C11 2233 E2 2234 F6 2235 E9 2236 F7 2237 G8 2238 F6 2239 G6 2240 F7 3200 B8 3201 C5 3202 C5 3203 C5 3204 E5 3206 F5 3207 C8 3208 E8 3209 D8 3212 E6 3213 D6 3214 A9 3217 G5 3218 G4 3219 G3 3220 A4 3223 E5 3224 F3 3225 F5 3226 E5 3227 C7 3228 A7 3229 C7 3230 B7 3231 A7 3232 C10 3233 F7 3234 E10 3235 E2 3236 F7 3237 F8 3238 G7 3239 G8 3240 F6 3261 F9 3637 C1 3638 D1 4204 C8 4205 F2 4206 F2 4207 E2 4209 D9 4210 B8 4211 B8 4212 B2 4213 B2 4214 D10

4216 F9 5201 D7 5202 A8 6201 F4 6202 F5 6206 G4 7200-A B9 7200-C C3 7201 D8 7204 F5 7206 B7 7209 F7 7210 F8 9200 D7 9618 A9

1234567891011

Mono Carrier: Synchronisation

XXX

Diversity Table A5

Schematics and PWB’s

2241 D3 2242 D2

22L01H.2E 7.

2243 B3 2244 D4

2245 D4 2246 D6

2247 B6 2248 B6

2249 B2 2250 B2

2252 C6 2253 C6

2254 A2 3241 D3

3242 B2 3244 C6

3245 D4 3246 D4

3247 D6 3248 D6

3249 C6 3250 C6

3251 B6 3254 A4

3256 B6 3257 A3

3258 B2 3259 A2

5241 A6 5242 B6

6241 E4 7200-D B3

7241 E5

1234567

SYNCHRONISATION

S1

S2

S3

S4

Item Description

1200 Chrystal 5M5/5M74 X XXXXXXXXXXX 1201 Chrystal 5M5/5M7/6M5 X X X XXXXXXXXXXXX 1202 Chrystal 4MHZ5 1203 Chrystal 10MHz X X X 2202 100nF 25V X X X X X X X X XXXXXX 2207 68pF 50V X X X X XXXXXXXXXXXXXXXXXXXXXXX 2213 22N 50V X X X X XXXXXXXXXXXXXXXXXXXXXXX 2214 22N 50V XXXXXXXXXXXXXXXXXXXXXXXXXXX 2215 22N 50V XXXXXXXXXXXXXXXXXXXXXXXXXXX 2220 470nF 50V X X X X 2221 22nF 25V X X X X 2222 10nF 50V X X X 2223 10pF 50V X X X 2225 220nF 25V X X X X XXXXXXXX XXX XXXXXX 2226 3.9nF 50V X X X X X X X XXXXX XXX XXXXXX 2227 4.7nF 50V X X X X X X X XXXXX XXX XXXXXX 2228 820pF 50V X X X X X X X XXXXX XXX XXXXXX 2229 10uF 50V X X X X X X X XXXXX XXX XXXXXX 2230 4.7uF 50V X X X X X X XXXXXX 2234 100nF 25V X X X X X X X 2235 1nF 50V X X X 2238 1nF 50V X X X X X X X 2239 1nF 50V X X X X 2240 1nF 50V X X X X X X X 3208 150R X XXXXXXXXXXXXXX 3208 390R X X XXXXXXXXXX 3210 1/ 6W 4K7 3211 1/ 6W 4K7 3220 100R X X X X 3227 100K X X X X X X XXXXXX XXX XXXXXX 3228 100K X X X X X X XXXXXX XXX XXXXXX 3229 820R X X X 3230 1K X X XXXXXXXXXX XXX XXXXXX 3230 270R X X X 3231 560R X X X 3231 Jump er X X XXXXXXXXXX XXX XXXXXX 3232 2K2 X X XXXXXXXXXX XXX XXXXXX 3233 820R X X X X X X X 3234 680R X X X 3236 100K X X X 3236 150K X X X X 3237 1K2 X X X X 3237 330R X X X 3238 270R X X X 3238 560R X X X X 3239 270R X X X X 3239 330R X X X 3240 100K X X X X X X X 3261 330R X X X 4204 Jumpe r 4205 Jumpe r 4206 Jumpe r 4207 Jumpe r 4209 Jump er X X X 4210 Jump er X X X 4211 Jump er X X X X XXXXXXXX XXX XXXXXX 4212 Jump er X X X X X X X X 4213 Jump er X X X X XXXXXXXX XXX XXXXXX 4214 Jumpe r 4216 Jump er X X X X X XXXXX X XXX XXXXXX 5201 2U2 X X XXXXXXXXXXXXX 5201 4U7 X X X XXXXXXXXX 7200 TDA9551H/N1/3 X X X X X 7200 TDA9552H/N1/3 X X X X X X 7200 TDA9567H/N1/5 X X 7200 TDA9571H/N1/3 X X X X X 7200 TDA9572H/N1/3 X X X X 7200 TDA9561H/N1/5 X X X X X 7202 TRA SIG SM BC857B 7203 TRA SIG SM BC857B 7205 TRA SIG SM BC857B 7206 BC847C X X X X X X XXXXXXXXX XXX XXXXXX 7209 BFS20 X X X X X X X 7210 BFS20 X X X X X X X 9200 Wi re 9298 Wi re 9299 Wi re 9618 Wi re X X X X

21" Stereo, 1page txt, PAL, SECAM L-L1

21" Stereo, 2scarts

14" Mono, 1Watt, No txt, Headphone, PAL, SECAM L-L1

14" Mono, 1Watt, 1page txt, Headphone

14" Stereo, PAL, SECAM L-L1R

20" Mono, PAL, SECAM L-L1, 1page txt

37TA ., PAL, SECAM L-L1, 1page txt

51TA ., PAL, SECAM L-L1, 1page txt

52TA/TB ., PAL, SECAM L-L1, 1page txt

20" Mono, PAL, SECAM L-L1, no txt

37TA/TB ., PAL, SECAM L-L1, no txt

5XTA/TB ., PAL, SECAM L-L1, no txt

14" Mono, 4Watt

17" Mono, 4Watt

21" Mono, 4Watt

21" Stereo, 1 page txt, East Europe

21" Stereo, 1scart

21" Mono 1Watt

14" Mono, 1Watt, No txt, Headphone, East Europe

21" Mono 1Watt

14" Stereo, East Europe

14" Mono, 1Watt, 1page txt, No-Headphone

20" Mono, East Europe, 1page txt

21" Mono 1Watt

14" Mono, 1Watt, No txt, No-Headphone

A

20" Mono, East Europe, no txt

21" Mono 1Watt

B

C

D

E

2V / div DC

20us / div

EHTinfo

A2-16 A6-16

SANDCASTLE

A7-17

Hflybk

A2-18

500mV / div DC

20us / div

3259

470K

27K

3242

Diversity Table A6

Item Description

2246 4.7uF 50V XXXX 2254 100pF 50V X X X X 2254 Jumper X X 3254 1M

POWER_DOWN

A7-11

14" Mono

17" Mono

20" Mono

21" Mono

X

3258

2u2

14" Stereo

21" Stereo

500mV / div DC

5ms / div

2254

100p

330K

22n

2249

2250

S1

2242

500mV / div DC

5ms / div

3257

10M

7200-D

TDA95XX

3241

22K

1u

2n2

2243

VIDEO IDENT

H/V SYNC SEP.

H-OSC. + PLL

12

3V9

4n7

2241

4V

H

V

GEOMETRY

3V8

2244 100n

BZX284-C6V8

14

31

0V9

H-DRIVE

2nd LOOP

H-SHIFT

V-DRIVE

+

20

21

3V9

3245

6241

2V9

2V1

39K

11

34

3246

10K

3254

1M

TELETEXT/ODS

DISPLAY

EW

GEOMATRY

2245

1n

7V9

9

+8V

30

1V2

17

1V3

16

1V2

15

0V

13

0V

BC857B 7241

S2

S3

S4

S5

2247

3251

100R

3248

27K

3247

220K

100u

5241

10u

5242

10u

3244

820R

2252

1n

3249

820R

2253

1n

3250

100R 2246

4u7

2248

22n

3256

1K

+8V

+3.3V

Hdrive

A2-21

Vdrive+

A3-19

Vdrive-

A3-20

EWdrive|EWD_dyn

(FOR E/W ONLY)

+8VA

EHTinfo

EHTo

N.C.

A6-16

A2-23

A

B

C

D

E

CL 16532020_012.eps

050601

1234567

Mono Carrier: Control

X

XXX

X

Schematics and PWB’s

23L01H.2E 7.

A

B

C

D

E

F

G

12345

CONTROL

VlotAux+5V

STATUS2

A14-2

ITV_MSG

A14-75

SEL-IF-LL_M-TRAP

A4-3 A5-3

A12-4

A1-5

SEL-MAIN-FRNT-RR

A10-12

A8-7

A8-15

Treble_Buzzer_Hosp-app

A8-6

A7-14

A7-13

A5-44

A6-17

LED

+3.3V

Stdby_con

Bass_panorama

+3.3V

Volume|Mute

+3.3V

SDA

SCL

+8V

FMR

SANDCASTLE

FOR ITV ONLY

0250

FOR ITV ONLY

0287

9647

3605

2K2

FOR ITV ONLY

0261

4620

4604

10u

3617

4K7

3615

10K

3614

4K7

TO 0240

OF

3635

100R

3636

100R

2604

0240

3601

3612

3609

1K

3618

10K

SDM

9641

9631

0217

1

2

3

4

5

6

FOR ITV ONLY

POR

1

DATA-OUT

2

DATA-IN

3

CLOCK

4

GND

5

TREBLE-BUZZ

6

Bass_panorama

7

8K2

3623

4K7

FOR

COMPAIR

FOR ITV ONLY

8K2

3610

3619

TO 0217

OF

8K2

C1

1V / div DC

500us / div

FOR ITV ONLY

0273

C5

C4

C2

1V / div DC 500us / div

2616

7200-B TDA95XX

71

3V7

72

3V7

3

0V

5

3V2

6

3V3

70

5V

78

0V

79

73

0V

74

0V

75

0V

76

0V

77

0V

47n

SCL

SDA

R

G

B

BL

COR

C4

2V / div DC 200us / div

66

61

3V3

3V2

IIC-BUS

TRANSCEIVER

I/O

PORTS

VST PWM-DAC

ROM/RAM

OSD

TELETEXT

DISPLAY

7

4

3V2

59

C5

10n

2618

H

V

2V / div DC

200us / div

100n

2608

2611

100n

ENHANCED

80C51

CPU

TELETEXT

ACQUISITION

1/10 PAGES

MEMORY

6789

+3.3V

5602

5u6

2601

220n

5603

*

3606

4601

*

4602

*

4603

2K2

5u6

5604

5u6

1n

2615

1

0V

2

0V

67

3V3

68

0V

69

3V2

80

3V3

C3

60

0V

62

0V

63

1V5

64

0V

65

0V

C1

C2

Diversity Table A7

CVBS

SYNC

Item Description

0217 3P Male X X XXXXX X XX X XXX 0240 7P Male 1660 Chrystal 12MHz X X XXXXX X XX X XXX 3601 1/6W 8K2 3609 1K X X X 3610 8K2 X X X 3614 4K7 XXXX X XX X 3615 10K XXXX X XX X 3617 4K7 XXXX X XX X 3619 8K2 XXXX X XX X 3633 1R 3635 100R X X 3635 Wire XXXXX X XX X XXX 4601 Jumper 4602 Jumper 4603 Jumper 4604 Jumper 4618 Jumper 9647 Wire 9692 Wire XXXX X 9693 Wire XXXX X XX X XXX 9694 Wire 9696 Wire

21" Stereo, 10 page txt

21" Stereo, 1 page txt

14" Stereo

1X" Mono, 10 page txt

17" Mono, 10 page txt

3611

100R

#

7602

3V3

8

3V3

3607

7 4 3 2

2K2

6

5

M24C08

EEPROM

1

3625

100R

3624

100R

3634

100R

3626

4K7

3622

100R

3628

10K

2607

33p

1660

12MHZ

21" Mono, 10 page txt

33p

2609

14" Mono, Headphone

21" Mono, 1/no page txt,

Headphone

14" Mono, no headphone

3V7

3603

3604

2612

2619

2606

20" Mono

21" Mono, 1P-TXT/NO-TXT,

No-Headphone

37TA , 37TB .

51TA , 51TB .

100R

2613

22p

1u

1n

52TA , 52TB .

FOR ITV ONLY

0274

22p

3629

4K7

100p

2602

3630

2K2

PDTC143ZT

7606

3627

3608

100R

3633

3632

0217 F2 0240 A2 0250 B2 0261 D2

A

0273 A4 0274 B8 0287 B2 1660 E7 2601 A6

+3.3V

2602 D8 2604 D2 2606 E8 2607 D7 2608 A5 2609 E7 2611 B5 2612 C8 2613 B8

B

2615 A6 2616 A4 2618 B5 2619 D8 3601 B3 3603 A8 3604 B8 3605 C2 3606 B7 3607 B7 3608 D9

+3.9V SDA

SCL

+3.3V

A4-14 A7-14 A9-14 A11-14

A4-13 A7-13 A9-13 A11-13

3609 D2

C

3610 C3 3611 A7 3612 C3 3614 F2 3615 E2 3617 D2 3618 D2 3619 C3 3622 D7 3623 D3 3624 C7 3625 B7

4K7

STATUS1

A14-1

+3.3V

POWER_DOWN

A1-11

IR

A12-10

3626 C7

1R

*

1R

+3.9V

+3.3V

KEYBOARD_protn

A12-8

EW_protection

(FOR E/W ONLY)

N.C.

D

E

3627 C9 3628 D7 3629 B9 3630 D8 3632 D9 3633 D9 3634 C7 3635 B2 3636 B2 4601 A7 4602 A7 4603 B7 4604 G2 4620 G2 5602 A6 5603 A6 5604 A6 7200-B C4 7602 A7 7606 E9 9631 E2 9641 E2 9647 B2

F

G

CL 16532020_014.eps

050601

123

456789

Schematics and PWB’s

Mono Carrier: Audio Amplifier + Mono Sound Processing

1234567891011

AUDIO_AMPLIFIER + MONO_SOUND_PROCESSING

A

B

C

D

E

AUDIO AMPLIFIER

MainAux

VlotAux+5V

Main_OutL

A8-45 A9-45 A11-45

Main_OutR

A9-46 A11-46

Treble_Buzzer_Hosp-app

A7-6 A8-6

Volume|Mute

A7-15

FOR ITV ONLY

0271

A1

2V / div DC

1

2

3

4

5us / div

3921

330K

4901

4903

A2

2V / div DC

500us / div

*

* *

9921

4902

3903

*

4921

15K

3904

4904

*

3905

*

15K

3906

3922

330K

3923

330K

A3 A4

2V / div DC 500us / div

FOR ITV ONLY

10K

2V / div DC

500us / div

0275

3901

56K

2904

1u

2906

1u

3902

2905

2907

3907

220K

3n3

3K3

2903

2908

10u

6901

BAS216

24L01H.2E 7.

0246 B10 0271 B2 0275 B4 2901 A7 2902 A7 2903 B5 2904 B4 2905 B5 2906 C4 2907 C5 2908 E5 2941 F3 2942 F3 2943 G4 2944 G4 2945 G4 2946 G4 2947 C9 2948 C9 2949 C9 2950 C9 3901 B4 3902 B5 3903 B3 3904 B4 3905 C3 3906 C4 3907 E5 3921 D2 3922 D3 3923 D3 3941 F4 3942 F3 3943 F3 3944 F4 3945 G3 3946 G3 3947 G5 3948 F5 3949 G5 3950 F5 3951 G5 4901 B2 4902 B3 4903 C2 4904 C3 4921 A4 4941 F3 6901 B6 7901 B6 7902 D6 7941 G2 7942 H2 7943 G5 9901 B9 9902 C9 9921 B3

1V4

0V3

7901

*

AN7522N

CH1-IN6

CH2-IN8

VOL9

7902

*

AN7523N

CH1-IN6

VOL9

GNDINP

5

11V8

3V7

STB

VCC

GNDCH13GNDCH2

GNDINP

11

7

5

STB

VCC

NC

78

Diversity Table A8

2901

1

GNDCH1

RES

2902

CH1+

CH1-

CH2- 10

CH2+ 12

CH1+

CH1-

3

470u

2

4

2

4

5V2

AmpOutR+

AmpOutL+

A1

A2

AmpOutL_Neg

9901

*

9902

*

A3

AmpOutR_Pos

AmpOutR_Neg

A4

0246

*

With Side AV + HP

Without Side AV + HP

*

STEREO

MONO

2947

AmpOutL_Pos

2948

100p

2949

100p

To Of 0254

To Speaker

7901 7902

AN7522N

-

100p

2950

100p

AN7523N

0246

*

5

4

3

2

1

SPEAKER

2 X 5W

16 ohm

2 X 3W

2 X 1W

-

8 ohm

AmpOutL_Pos

AmpOutR_Neg

A12-70

A12-71

A12-73

A12-72

B

C

D

E

Diversity Table A8

A

F

G

H

MONO SOUND PROCESSING

MONO|AM_MONO_SOUND

A5-43

Bass_panorama

A7-7

Treble_Buzzer_Hosp-app

A8-6

12345678

2941

10u

7941 BC847B

7942 BC847B

3943

3946

2942

6n8

5K6

12K

3945

1K8

4941

*

3941

+8V

470R

3942

6K8

3944

2943

1K8

470n

2944

33n

2946

1u

2945

4n7

3948

3949

100K

33K

3950

3947

220R

(Mono sets only)

680R

7943 BC847B

Main_OutL

3951

390R

A8-45

Item Description

0246 3P Male X X X X X X X X X X X X X X X 0246 5P Male X X X 1831 Chrystal 18.432MHz X X X 2904 1uF 16V X X X X X X X X X X X X X X X 2904 470nF 16V X X X 2906 470nF 16V X X X 2907 1nF 50V X X X X X X 2941 1uF 50V X X X X X X X X 2941 10uF 50V X X X X X X X 2942 33nF 50V X X X X X X X X 2943 100nF 16V X X X X X X X X 2944 47nF 50V X X X X X X X X 2945 10nF 50V X X X X X X X X 2946 1uF 16V X X X X X X X X 3903 3K3 X X X 3903 8K2 X X X X X X X X X X X X X X X 3905 3K3 X X X 3906 10K X X X 3921 330K 3922 330K 3941 100R X X X X X X X X 3942 3K9 X X X X X X X X 3943 2K7 X X X X X X X X 3944 2K7 X X X X X X X X

1X" Mono, XWatt

17" Mono, 4Watt

21" Mono, 4Watt

14" Mono, 1Watt, No-Headphone, Smart Sound

20" Mono, 1Watt, No-Headphone

21" Mono, 1Watt, No-Headphone

14" Mono, 1Watt, Headphone

21" Mono, 1Watt, Headphone

14" Mono, 1Watt, No-Headphone, No-Smart Sound

37TA/TB ., Mono, 1Watt, No-Headphone

51TA/TB ., Mono, 1Watt, No-Headphone

52TA/TB ., Mono, 1Watt, No-Headphone

37TA/TB ., Mono, 1Watt, Headphone

51TA/TB ., Mono, 1Watt, Headphone

52TA/TB ., Mono, 1Watt, Headphone

21" Stereo, Side AV

Item Description

14" Stereo

21" Stereo, Non Side AV

3945 1K X X X X X X X X 3946 18K X X X X X X X X 3947 330R X X X X X X X X 3948 47K X X X X X X X X 3949 15K X X X X X X X X 3950 560R X X X X X X X X 3951 390R X X X X X X X X 4901 Jumper X X X X X X X X X X X X X X X X X X 4902 Jumper 4903 Jumper X X X 4904 Jumper 4921 Jumper 4941 Jumper X X X X X X X 7901 AN7522N X X X X X X 7902 AN7523N X X X X X X X X X X X X 7941 BC847B X X X X X X X X 7942 BC847B X X X X X X X X 7943 BC847B X X X X X X X X 9901 Wi re X X X X X X X X 9902 Wi re X X X X X X X X 9913 Wi re X X X 9914 Wi re X X X 9921 Wi re X X X X X X X X X X X X X X X X X X

1X" Mono, XWatt

17" Mono, 4Watt

21" Mono, 4Watt

14" Mono, 1Watt, No-Headphone, Smart Sound

20" Mono, 1Watt, No-Headphone

21" Mono, 1Watt, No-Headphone

14" Mono, 1Watt, Headphone

21" Mono, 1Watt, Headphone

14" Mono, 1Watt, No-Headphone, No-Smart Sound

37TA/TB ., Mono, 1Watt, No-Headphone

51TA/TB ., Mono, 1Watt, No-Headphone

CL 16532020_015.eps

52TA/TB ., Mono, 1Watt, No-Headphone

37TA/TB ., Mono, 1Watt, Headphone

51TA/TB ., Mono, 1Watt, Headphone

52TA/TB ., Mono, 1Watt, Headphone

21" Stereo, Side AV

010601

F

14" Stereo

21" Stereo, Non Side AV

G

H

91011

Schematics and PWB’s

Mono Carrier: NICAM + 2CS + BTSC (Stereo / SAP) Decoder

1 2 3 4 5 6 7 8 9 10

NICAM + 2CS + BTSC (STEREO/SAP) DECODER

A

+5VA

VlotAux+5V

5831

B

C

D

E

F

VlotAux+5V

MONO|AM_MONO_SOUND

A9-43

SC1_LIN

A10-47

SC1_RIN

A10-48

+5VA

QSS_AM_DEM_OUT

A5-42

2855

39p

4834

RES

A11

5835

2857

15u

220p

3843

3834

680R

100R

A13

RES

3835

2860

2856

12p

2896

12p

38403841

2847

330n 2848

1n

7835

4K7

BC847B

4V8

33K

4835

*

2844

4V9

4V1

3849

10u

2845

4V9

4V1

2858

470R

1n

6u8

100n

7834 BC847B

2834

1N4148

0V

6831

3831

47K

2897

330p

470p

2835

2833

47p

220p

2V6

1V5

3V8

2836

2837

43

47

48

44

41

42

39

40

1n5

10u

2841

6V2

CAPL_M

VREFTOP

SOUND IF

ANA_IN1+

ANA_IN1-

MONO

MONO-IN

SC1-IN-L

SCART 1

SC1-IN-R

SC2-IN-L

SCART 2

SC2-IN-R

2843

10u

2842

100n

10u

0V0V0V

DVSS

TESTEN

DEMODULATOR

DECODER

18 19

12

1617

DVS UP

& NICAM

25L01H.2E 7.

45 46

0V5V0V

3V8

AVS S

AGNDC

AVS UP

A/D

A/D SCART-R

SCART

21 22

2895 560p

2898

10n

2840

100n

29

3334 3536

0V0V5V5V0V

7V8

VREF1

AHVS S

AHVS UP

FM1/AM

LOUDSPEAKER L

FM2 NICAM A NICAM B

LOUDSPEAKER R

IDENT

DSP

SCART-L

Switching Facilities

NC

27 28

23

VREF2

SCART-L

SCART-R

20

RESETQ

32

STANDBYQ

2894

220p

550 51 52678

3V7

I2C_CL

I2C_DA

ADR_SEL

D/A

37 38

2V4

AUDIO PLL

DACM-L

LOUDSPEAKER

DACM-R

SC1-OUT-L

SC1-OUT-R

49

5832

6u8

7831 MSP34X5G

TP

SCART

1

1831 B8 2831 C8 2832 C8 2833 C4 2834 B4 2835 B4 2836 B4 2837 B4 2838 A9

Diversity Table A9

A

2838

A6

A7

1831

18M432 HC-49/U

1p5

2832

2831

A10

1V8

25

3837

100R

A8

A12

A9

1n

2852

1V8

24

2

0V

3

4

0V

9

10

11

13

14

15

26

3V

31

3V

30

3839

100R

1n

2854

1p5

2849

1n

2850

1n

4831

*

4833

RES

3832

100R 2839

RES

3833

100R

3836

3838

MONO|AM_MONO_SOUND

4832

7832

*

BC847B

2851

220n

1K

7833

*

BC847B

2853

220n

1K

SCL

SDA

+8V

Main_OutL

Main_OutR

SC2_CTRL

+8V

SC1_LOUT

+8V

SC1_ROUT

A7-13

A7-14

A8-45

A8-46

A10-50

A5-43 A9-43

A10-51

A10-49

Item Description

2831 1pF 50V X X X XXXX 2832 1pF 50V XXXXXXX 283347pF 50V XXXXXXX 2834470pF 50V XXXXXXX 2835220pF 50V XXXXXXX 2836 1nF5 50V XXXXXXX 2837 4.7uF 50V XXXXXXX 283847pF 50V XXXXXXX 283947pF 50V XXXXXXX 2840100nF 25V XXXXXXX 284110uF 50V XXXXXXX 2842100nF 25V XXXXXXX 284310uF 50V XXXXXXX 284410uF 50V XXXXXXX 2845100nF 25V XXXXXXX 2846100uF 25V XXXXXXX 2847 16V 1U 2849 1nF 50V XXXXXXX 2850 1nF 50V XXXXXXX 2851 4.7uF 10V XXXXXXX 2852 1nF 50V XXXXXXX 2853 4.7uF 10V XXXXX 2854 1nF 50V XXXXXXX 285527pF 50V XXXXXXX 285615pF 50V XXXXXXX 2857150pF 50V XXXXXXX 2858 1nF 50V X X X X X 2859 1nF 50V X X X X X 2860 56pF 50V X X X X 2860 82pF 50V X X X 2894220pF 50V XXXXXXX 2895560pF 50V XXXXXXX 2897390pF 50V XXXXXXX 289810nF 50V XXXXXXX 383147K XXXXXXX 3832 100R XXXXXXX 3833 100R X XXXXXX 3834 1/6W 100R 38361K XXXXXXX 3837 100R X XXXXXX 38381K XXXXXXX 3839 100R X XXXXXX 3840 4K7 X X X X X 3841 8K2 X X X X X 3842 1K X X X X X 3843 2K2 X X X X 3849 470R X X X X X 4831 Jumper 4832 Jumper 4833 Jumper 4835 Jumper X X 4836 Jumper 58316U8 XXXXXXX 58326U8 XXXXXXX 58336U8 XXXXXXX 5833 Wire X 5835 12U X X XXXXX 5861 10U 6831 1N4148 X X XXXXX 7831 MSP3415G-PO-B8 X X XXXXX 7832 BC847B X X XXXXX 7833 BC847B X X XXXXX 7834 BC847B X X X X X 7835 BC847B X X X X X 9852 Wire

14" Stereo, PBGIR

21" Stereo, Side AV, PSBIR, PSDKR

21" Stereo, No-Side AV, PSBI, PSDK

21" Stereo, No-Side AV, PSLL

21" Stereo, Side AV, PSLLR

14" Stereo, PSLLR

14" Stereo, PSDKR

Mono sets

B

C

D

E

F

2839 B9 2840 B6 2841 B5 2842 A5 2843 A5 2844 C3 2845 C3 2846 G1 2847 D3 2848 D3 2849 C8 2850 D8 2851 E9 2852 E8 2853 F10 2854 F8 2855 E1 2856 E2 2857 F2 2858 E3 2859 F1 2860 E2 2894 A7 2895 A6 2896 E2 2897 C4 2898 B6 3831 B4 3832 B9 3833 B9 3834 D2 3835 D2 3836 E9 3837 D8 3838 F9 3839 F8 3840 E3 3841 F3 3842 F4 3843 E2 3849 F3 4831 E8 4832 D9 4833 F8 4834 F1 4835 F3 4836 F3 5831 B3 5832 B7 5833 G2 5835 E2 6831 B4 7831 C7 7832 D9 7833 F9 7834 E4 7835 E3

G

A5-44

A5

3842

22K

A6

2V / div DC 200us / div

A7

2V / div DC 200us / div

A11

1V / div DC 500us / div

FMR

VlotAux+5V

2846

2859

1n

100u

5833

3u3

+5VA

4836

*

1 2 3 4 5 6 7 8 9 10

CL 16532020_016.eps

050601

G

Schematics and PWB’s

Mono Carrier: Audio / Video Source Switching

26L01H.2E 7.

A

B

C

D

E

1234567891011

AUDIO/VIDEO SOURCE SWITCHING

4809

*

2803

100n

3802

1K

+6V8

0V

2V4

1V8

0V

2V4

1V7

1V6

1

5

2

4

12

14

15

11

3V8

12

13

+6V8

916

8V

5V8

VDD

LOGIC

7801

HEF4052BT

LL

LH

HL

HH

LL

LH

HL

HH

VEE

VSS

7

8

7802-A

HEF4053BT

Y0

Y1

Vee

Vss

E

7

6

8

Vdd

5V8

To Micronas/BTSC/UOC

SC1_RIN

10

0V

LSBMSB

H

L

H

L

6

16

5V

S

11

1V6

Z

14

22u

2801

+6V8

2V4

100K

150K

100K

150K

5V8

1V7

5V8

1V7

7803 BC847B

3805

7804 BC847B

3808

2804

220n

* *

4801

4802

1K

2805

220n

1K

* *

4803

4804

3803

2V4

3

3804

+6V8

3806

2V4

13

3807

+6V8

2802

220n

SC1_LIN

Monitor Out/AV Out

L-OUT

R-OUT

Only Europe

(Scart2 Out)

L2-OUT

A9-48

A9-47

A13-60 A14-60

A13-61 A14-61

A14-62

From Micronas

SC2_CTRL

From MicroP

LFRONT-IN

L1-IN

L2-IN

RFRONT-IN

R1-IN

R2-IN

SC1_LOUT

SC1_ROUT

L1-OUT

R1-OUT

4806

3801

220R

4805

9801

+8V

A9-50

A7-12

A12-31

A13-32 A14-32

A13-52 A14-52

A12-53

A13-54 A14-54

A13-55 A14-55

A9-51

A9-49

A14-56

A14-57

F

SEL-MAIN-FRNT-RR

From Front/Rear I/O

From Micronas

Stereo Scart1 Out (RF Mode always)

Mono Scart1 out

(RF Mode always)

EU

Front In

Scart 1 in

Scart 2 in

R.F In

Scart1 Scart2 Monitor SC2_CTRLSEL-MAIN-FRNT-RR

RF Mode

Diversity Table A10

Item Description

2801 22uF 50V X X 2802 220nF 25V X 2803 4.7uF 10V X X 2804 4.7uF 10V X X 2805 4.7uF 10V X X 2806 10V 2U2 3801 220R X X 3802 1K X X 3803 100K X X 3804 82K X X 3805 1K X X 3806 100K X X 3807 82K X X 3808 1K X X 3809 150R X 4801 Jumper X X X X X X X X X X X 4802 Jumper 4803 Jumper X X X X X X X X X X X 4804 Jumper 4805 Jumper X X 4806 Jumper X X X X X X X X X 4807 Jumper X X X X 4808 Jumper 4809 Jumper 7801 HEF4052BT X X 7802 HEF4053BT X 7803 BC847B X X 7804 BC847B X X 9801 Wire X X 9819 Wire

Output

Front Mode Front Mode

Scart1 Mode

RF Mode

21" Stereo

Scart1 Mode

Scart2 Mode

RF Mode

14" Stereo

14" Mono, Headphone

17" Mono, Headphone

21" Mono, Headphone

MSB LSB

HEF Logic

00

0

1

14" Mono, No-Headphone

20" Mono, No-Headphone

21" Mono, No-Headphone

37TA , 37TB .

51TA , 51TB .

52TA , 52TB .

1

0

1

A

B

C

D

E

F

2801 B4 2802 F4 2803 D2 2804 C5 2805 E5 3801 A2 3802 A2 3803 C4 3804 C4 3805 D5 3806 D4 3807 E4 3808 E5 3809 H2 4801 C6 4802 C6 4803 E6 4804 E6 4805 E2 4806 F2 4807 H3 4808 H3 4809 C2 7801 C3 7802-A F3 7802-B F3 7802-C G3 7803 C5 7804 D5 9801 F2

G

H

QSS_AM_DEM_OUT

A5-42

CVBSFRONT-IN

A12-58

A13-59 A14-59

3809

150R

7802-B

HEF4053BT

3V8

Y0

2

1V6

Y1

1

Vss

8

7802-C

HEF4053BT

0V

Y0

5

0V

Y1

3

Vss

4807

*

8

4808

Vee

7

Vee

7

16

5V8

5V

Vdd

S

10

1V6

Z

15

E

6

16

5V8

5V

Vdd

S

9

0V

Z

4

E

6

R2-OUT

A14-63

G

SY_CVBS-INY_CVBS-IN

A5-37

H

CL 16532020_017.eps

010601

1234567891011

Schematics and PWB’s

e

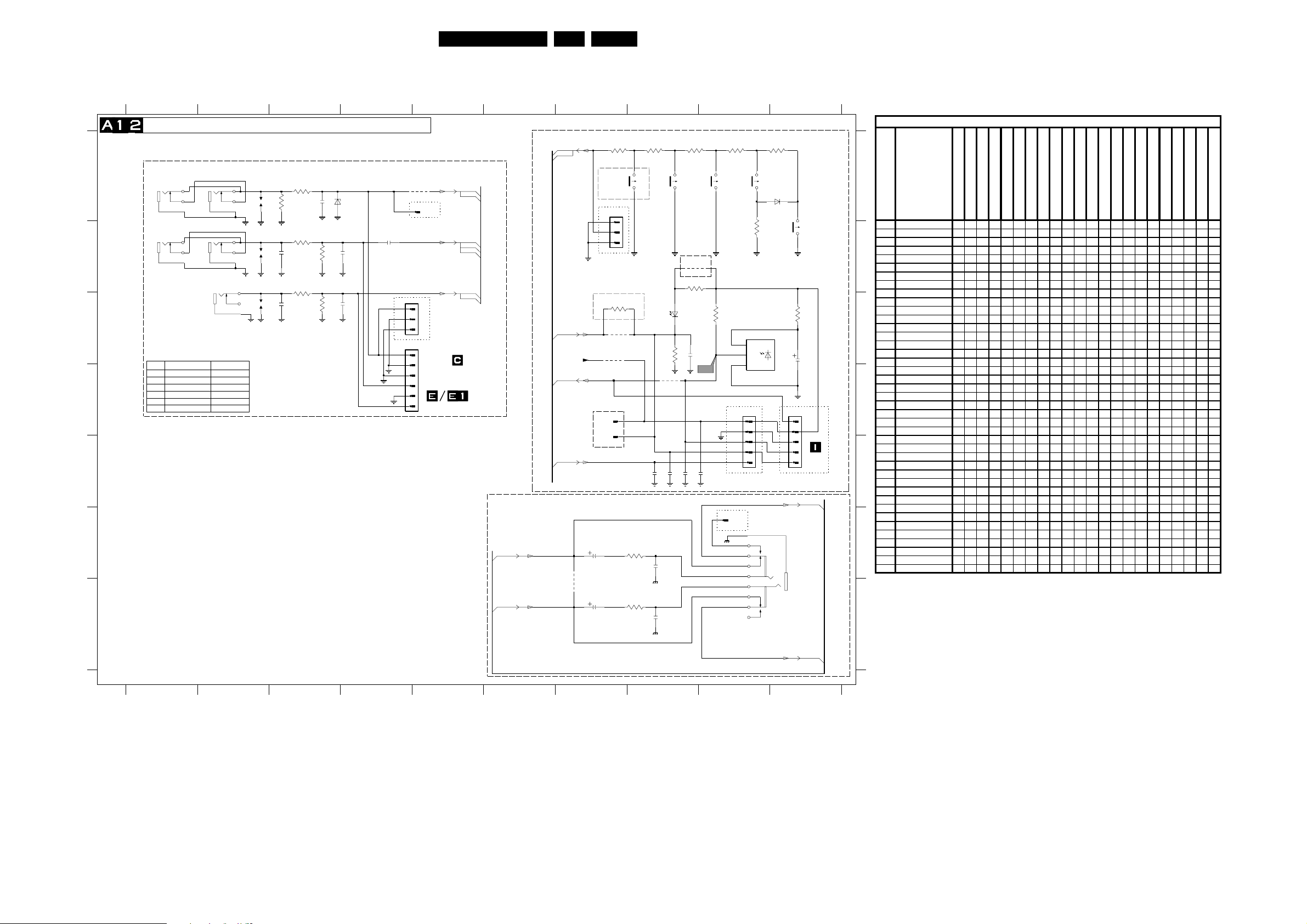

Mono Carrier: Front I/O + Front Control + Headphone

0214 D9

0218-A C2

0218-C A2

0215 C4

0218-B B2

0219 C4

0232 E5 0239 A7

12345678910

FRONT I/O + FRONT CONTROL + HEADPHONE

A

B

C

D

E

F

G

FRONT CINCH

MONO SET

V

0277-A

L

0277-B

R

ITEM PAINTER LEADER PAINTER PLUS

3681 470 ohm 270 ohm 3682 3.9k ohm 3.3k ohm 3683 270 ohm 390 ohm 3684 470 ohm 560 ohm 3685 560 ohm 560 ohm 3686 1.8k ohm 1.5k ohm

0259 D10 0270 A5

0218-C

0218-B

0218-A

0277-A A1 0277-B B1

2

3

1

5

6

4

8

9 7

1181

1182

1183

0278 D7 0286 E7

3181

2185

2186

0292 E4 1181 A2

75R

100p

3182

100R

3183

1K

3185

1K

1182 B2 1183 C2

2181

3184

3186

22p

47K

6181

2182

2183

1600 B10 1601 A9

RES

330p

1602 A9 1603 A8

2184

100n

1606 A7 2181 A3

9181

FOR ITV ONLY

0215

1

2

3

FOR ITV ONLY

0219

6

5

4

3

2

1

2182 B3 2183 C3

CVBSFRONT-IN

0270

LFRONT-IN

RFRONT-IN

TO 0251 OF

OR

TO 0251 & 0253 OF

2184 B4 2185 B3

A10-58 A11-58

A5-31 A10-31 A11-31

A10-53 A11-53

2692 C8

2186 C3 2691 C10

2693 E8

HEADPHONE

AmpOutL+

A8-71

AmpOutR+

A8-70

2694 E8

2696 E8

2695 E8

2981 E2

FRONT CONTROL

KEYBOARD_protn

A7-8

A12-8

LED

A7-4

+3.3V

IR

A7-10

KEYBOARD_protn

A12-8

2981

1u

9982

*

2983

1u

27L01H.2E 7.

2982 F3 2983 F2

3685

560R

POWER

RES

0239

1

2

3

FOR ITV ONLY

3695

100R

4692

4693

FOR ITV ONLY

0278

0286

1606

TS USA

2984 F3 3181 A3

3683

390R 560R

2693

3981

120R

2982

3982

120R

2984

3182 A3 3183 B3

channel+ channel- volume+

1603

FOR ITV ONLY

6691

LTL-10224WHCR

1K

3692

4691

3186 C3

3184 B3

3681 A9

3185 B3

3684 36823681

1602 1601

4695

3691

330R

4K7

3694

1u

2692

C6

270R

C6 = 0V

RES

+3.3VA

2695

100p

2694

100p

2696

0292

100p

470p

3682 A10 3683 A8

3

VS

1

OUT

2

GND

6692 TSOP1836

0214

1

2

3

4

5

1

6

5

4

2

3

7

8

9

3686

0232

1K5

3684 A8 3685 A7

3K3

6681

BAT85

3693

2691

FOR ITV ONLY

0259

1

2

3

4

5

AmpOutL_Pos

3686 B9 3691 B8

volume-

1600

220R

100u

TO 0259

OF

A8-73

3692 C8 3693 C10

3694 C9 3695 C7

3981 E3 3982 F3

4691 D8 4692 C7

4693 C7 4694 G1

4695 B8 6181 A3

6681 A10 6691 C8

6692 D9 9181 A5

9982 F2

Diversity Table A12

A

Item Description

0215 CON 3P 0218 SOC CINCH H 2P F X X X X X 0218 SOC CINCH H 3P F X X 0219 6P Male X X

B

0232 SOC PHONE H 1P F XXXXXXXX XXXX 0259 5P Male 1606 SWI TACT 2181 22pF 50V X XXXXXX 2182 390pF 50V X X XXXXX 2183 390pF 50V X X 2184 4.7uF 10V X X X XXXXXX 2185 390pF 50V X X X XXXX 2186 390pF 50V X X

C

2981 10uF 50V XXXXXXXX XXXX 2982 470pF 50V XXXXXXXX XXXX 2983 10uF 50V XXXXXXXX XXXX 2984 470pF 50V X XXXXXXX XXXX 3181 75R X XXXXXX 3182 100R X X XXXXX 3183 150R X X XXXXX 3184 47K X X X XXXX

D

3185 150R X X 3186 47K X X 3681 390R X X X X X X XXXX XXXX 3681 470R X X X XXXXX 3682 3K3 X X X XXXXXXX XXXX 3682 3K9 X X X XXXXX 3683 270R X X X X XXXX 3683 390R X X X XXXXXXX XXXX

E

3684 470R X X X X XXXX 3684 560R X X X X XXXXXX XXXX 3686 1K5 X X X X XXXXXX XXXX 3686 1K8 X X X X X X X X 3692 1K X X X XXXXXXXXXXXXXXXXXXX 3695 330R 3981 120R XXXXXXXX XXXX 3982 120R XXXXXXXX XXXX 4692 Jumper XXXXXXXXXXXXXXXXXXXXXX

F

4693 Jumper X XXXXXXXXXXXXXXXXXXXXX 9181 Wire X X XXXXXXX 9982 Wire X X X X X X X X X X

14" Mono, 1&10 page txt, Headphon

17" Mono

21" Mono, 1&10 page txt, no side av

14" Mono, no txt, headphone

21" Mono, no txt, headphone

14" Stereo

21" Stereo, no side av

21" Mono, 10 page txt, side av

21" Stereo, side av

37 Mono, 1page txt

51 Mono, 1page txt

52 Mono, 1page txt, headphone

37 Mono, no txt, headphone

14" Mono, 1page txt, no headphone

20" Mono, 1page txt

21" Mono, 10 page txt, no headphon

52 Mono, 1page txt, no headphone

14" Mono, no txt, no headphone

G

20" Mono, no txt

21" Mono, no txt

37 Mono, no txt, no headphone

51 Mono, no txt

AmpOutR_Pos

A8-72

12345678910

CL 16532020_019.eps

030901

Mono Carrier: Rear I/O SCART

V

X

1234567891011

REAR I/O SCART

SCART 1 SCART 2

A

Audio-R_out

Audio-R_in

Audio-L_out

Audio-L_in

B

RGB-B_in

Function_Sw

RGB-G_in

C

RGB-R_in

RGB-BL_in

Terr_CVBS_out

D

Diversity Table A14

Item Description

0235 SOC EURO H 21P F X 0235 21P Female X 0235 42P F X 0235 42P Female X

E

0236 3P Male 2109 4U7 10V X X 2139 4.7uF 10V X 2140 390pF 50V X 2142 4.7uF 10V X 2143 330pF 50V X 2144 330pF 50V X 2145 22pF 50V X 2147 22pF 50V X 2152 100n

F

2154 100n 3139 27K X 3140 6K8 X 3140 6K8 X 3142 100R X 3143 68R X 3144 1K X 3145 150R X 3146 10R X 4101 Jumper X 4102 Jumper X

G

4103 Jumper 4104 Jumper 4105 Jumper 4151 Jumper 4152 Jumper 7131 BC847B

0235-A

1A

2A

3A

4A

5A

6A

7A

8A

9A

10A

11A

12A

13A

1109

14A

15A

16A

17A

18A

19A

Video_in

20A

21A

Mono sets

21" Stereo

1234567891011

+8V

1107

Schematics and PWB’s

+8V

RESRES

4101

*

11021103 1101

RESRES

2107 2104 2101

4102

*

2110

2119

2161

RES

47u

6101

RES

6102

RES

6103

RES

6104

RES

6105

RES

3119

68R

3121

3122

100R

75R

1105 1104

1106

1111 1110 1108

1112

1113

3155

47R

3101

150R

3103

150R

3105

150R

3107

150R

3111

27K

21182120

22p

2102

2105

2108

2111

3109

3112

3115 3113

3117

3120

28L01H.2E 7.

TO 0227 0F

FOR ITV ONLY FOR ITV ONLY

0236

1

2

3

4103

*

330p

75R

6K8

75R

75R 75R

1K

3102

3104

3106

3108

2V9

2

3

7V6

220K

47K

220K

47K

3110

100R

3114

100R

3116

100R

3118

100R

7101 BC847B

FOR ITV ONLY

3V5

1

2113

2114

2116 2115

2117

7

TO 0262

OF

22p

330p

22p

22p 22p

5

6

TO 0242 OF

0262

2103

*

100n

2106

100n

4104

*

2109

*

100n

2112

100n

4

89

1

2

3

67

STATUS1

G_Y-IN

R_V-IN

FBL-1

V1-OUT

CVBS1-IN

1

2

3

FOR ITV ONLY

R1-OUT

R1-IN

L1-OUT

L1-IN

B_U-IN

4105

RES

0242

ITV_MSG

A10-57

A10-54

A10-56

A5-32 A10-32

A5-34

A7-1

A5-33

A5-35

A5-39

A5-41

A5-38

A7-75

A10-63

A10-55

A10-62

A10-52

A7-2

A5-30

A5-40

A10-59

A10-61

A10-60

TO 0227 0F

R2-OUT

R2-IN

L2-OUT

L2-IN

STATUS2

C-IN

V_OUT

Y_CVBS-IN

R-OUT

L-OUT

0227

1

FOR ITV ONLY

2

0229

3

2133

100n

2136

100n

2139

100n

2142

100n

2144

7131 BC847B

3

330p

3V5

2

TO 0242

OF

1

3142

100R

1

+8V

75R

3141

2V9

7V6

2

3

3144

* *

1K

4151

2152

100n

4152

2154

100n

Diversity Table A14

Item Description

2103 4.7uF 10

3131

150R

2132

3132

3134

3136

3138

3140

6131

RES

2147 2145

330p

220K

3133

47K

220K

47K

6K8

22p

150R

330p

2135

3135

150R

2138

330p

3137

150R

2141

3139

27K

2143

330p 330p

3143

68R

3146

10R

3145

3152

2151

220K

2153

3154

220K

1 SCART, In-cinch front, Headphone front

2 SCART, Side AV, MONO cinch

1 SCART, Headphone front

1 SCART

RESRESRESRES

2131

1131

2134

1132

2137

1133

2140

1134

1136

1139

1141

RES

2146

150R

330p

1142

3151

150R

1151

3153

150R

1152

1 SCART, Side AV, Headphone (side),

stereo cinch

1135

0235-B

1B

2B

3B

4B

5B

6B

7B

8B

9B

10B

11B

12B

1138

1140

13B

14B

15B

16B

17B

18B

19B

20B

21B

1137

MONITOR OUTPUT

1

4

0224-A

2

5

0224-B

Audio-R_out Audio-R_in Audio-L_out

Audio-L_in

Function_Sw

YC-C_in

CVBS_out Video/YC-Y_in

Audio-RIGHT

Audio-LEFT

CL 16532020_021.eps

050601

A

B

C

D

E

F

G

0224-A F11 0224-B F11 0227 A7 0229 E7 0235-A A1 0235-B A11 0236 A5 0242 F6 0262 G5 1101 A3 1102 B3 1103 B3 1104 C3 1105 C3 1106 D3 1107 C2 1108 D3 1109 C2 1110 E3 1111 E3 1112 F3 1113 F3 1131 A9 1132 B9 1133 B9 1134 C9 1135 B10 1136 C9 1137 C10 1138 C10 1139 D9 1140 C10 1141 D9 1142 E9 1151 F9 1152 F9 2101 A3 2102 A4 2103 A5 2104 B3 2105 B4 2106 B5 2107 B3 2108 B4 2109 B5 2110 C3 2111 C4 2112 C5 2113 C5 2114 D5 2115 D5 2116 E5 2117 E5 2118 F4 2119 F3 2120 F4 2131 A9 2132 A8 2133 A7 2134 B9 2135 B8 2136 B7 2137 B9 2138 B8 2139 B7 2140 C9 2141 C8 2142 C7 2143 C8 2144 D7 2145 D8 2146 E9 2147 E8 2151 F9 2152 E8 2153 F9 2154 F8 2161 G3 3101 A4 3102 A4 3103 B4 3104 B4 3105 B4 3106 B4 3107 C4 3108 C4 3109 C4 3110 C5 3111 D4 3112 D4 3113 D4 3114 D5 3115 E4 3116 E5

3117 E4 3118 E5 3119 F3 3120 F4 3121 F3 3122 F4 3131 A9 3132 A8 3133 B9 3134 B8 3135 B9 3136 B8 3137 C9 3138 C8 3139 C9 3140 C8 3141 D8 3142 D7 3143 D9 3144 D8 3145 E9 3146 E8 3151 E9 3152 F8 3153 F9 3154 F8 3155 G3 4101 A3 4102 B3 4103 A5 4104 B5 4105 E6 4151 E8 4152 F8 6101 C3 6102 D3 6103 D3 6104 E3 6105 E3 6131 D8 7101 E5 7131 D7

Layout Mono Carrier (Top View)

Schematics and PWB’s

29L01H.2E 7.

0211 A2

2903 D3

3832 D2 3833 D2 3834 C2 3836 C2 3837 C2 3839 C2 3981 B1 3982 B1 5001 E6 5002 E5 5201 E4 5202 E4 5241 E5 5242 E5 5401 B5 5403 B5 5406 B5 5408 A5 5410 C6 5444 C5 5445 A6 5471 C6 5500 B2 5501 B2 5502 B2 5505 B4 5520 A4 5521 A3 5560 A4 5561 B4 5562 B4 5563 A4 5602 D5 5603 D4 5604 D4 5831 D2 5832 C2 5833 C1 6001 E6 6402 B5 6404 B5 6405 B6 6409 A7 6410 B5 6411 B5 6412 B5 6413 A7 6414 B5 6419 C6 6420 C5 6423 C5 6471 B6 6472 C6 6473 C6 6500 A3 6501 B3 6502 B3 6503 B3 6520 B3 6521 A3 6523 B3 6540 B4 6541 B4 6560 A4 6561 A4 6562 B4 6564 B4 6681 D1 6691 A1 6692 B1 6831 D2 7402 A5 7403 C4 7404 C5 7407 C6 7408 C5 7435 A5 7471 B7 7515 B4 7520 B3 7521 A3 7540 B4 7560 C4 7602 D5 7831 D2 7901 D3 7902 D3 9001 E5 9171 D6 9172 D6 9173 D6 9174 D6 9175 D6 9176 D6 9177 D6 9178 D6 9179 D6 9181 C1 9182 C1 9183 C1 9191 B1 9192 B1 9193 B1 9200 E4 9201 E4 9202 D4 9203 D4 9401 C6 9402 B5 9403 B5 9404 B5 9408 A5 9420 B4 9421 A5 9425 C5 9426 C5 9427 B5 9428 C5 9430 C5 9431 B5 9432 C5 9433 B5 9434 B5 9435 B5 9471 C6 9500 A2 9501 A2 9502 B3 9503 B2 9504 C3 9505 C4 9506 C4 9507 C4

9508 C4 9509 B4 9510 C4 9511 C5 9512 B2 9513 A3 9514 B3 9517 B3 9520 A3 9521 A3 9522 B4 9523 C4 9524 C4 9610 E3 9611 C4 9612 C4 9613 D4 9614 E4 9615 D5 9616 D5 9617 D3 9618 D5 9619 D3 9620 D5 9622 C4 9623 D5 9624 D3 9625 E6 9626 D3 9627 D3 9628 E5 9629 D5 9630 C3 9631 D5 9632 E4 9633 D4 9634 D4 9635 D4 9636 C4 9637 E5 9638 D4 9639 E3 9640 D5 9641 D5 9642 D5 9643 D3 9644 E3 9645 E3 9647 D5 9648 E5 9650 E6 9653 C3 9654 C4 9655 C5 9656 C5 9657 D4 9658 C5 9659 C5 9660 C5 9661 D5 9662 D5 9663 D5 9664 C5 9665 C4 9666 C5 9668 C4 9669 C4 9670 C4 9672 C5 9673 C3 9674 C4 9675 C5 9676 C5 9678 C5 9679 C5 9680 D3 9682 C4 9683 D3 9684 D3 9685 D5 9686 D5 9687 D4 9688 D4 9689 D5 9690 D3 9691 E5 9692 C4 9693 C3 9695 E5 9696 E6 9697 D5 9698 D5 9699 C1 9801 D3 9811 C3 9812 D3 9813 D3 9814 D3 9815 D3 9816 C2 9817 C3 9818 C3 9820 C2 9821 C3 9822 D3 9824 C3 9825 C3 9826 C3 9827 D2 9828 D2 9829 D2 9830 C2 9832 C2 9833 D1 9901 D3 9902 E3 9911 D3 9912 D3 9913 E3 9914 E3 9915 E3 9916 D3 9917 D3 9921 D3 9982 B1 9991 B1 9993 E6 9994 E3 9995 D4 9996 E5 9997 E7 9998 E4

09m.eps

300501

CL 16532053_009.eps

160501

0212 B2 0213 B2 0214 B1 0215 B1 0217 E3 0218 C1 0219 B1 0220 A6 0221 A5 0222 C6 0224 E6 0227 C6 0229 D6 0231 A2 0232 B1 0235 D6 0236 C6 0239 C2 0240 D5 0242 D6 0243 D4 0246 E3 0248 E4 0249 D4 0250 C5 0251 C3 0259 B1 0261 D4 0262 D6 0265 E7 0266 E4 0270 B1 0271 E3 0273 D5 0274 C5 0275 D3 0276 D4 0277 B1 0282 C4 0283 E6 0285 E6 0286 C2 0287 D5 0292 B1 0293 C1 0294 E4 0295 E5 1000 E6 1002 E5 1003 E5 1004 E4 1200 E4 1201 E4 1203 E5 1500 A2 1515 C2 1600 C1 1601 C1 1602 D1 1603 D1 1606 A1 1660 D4 1831 C1 2005 E6 2006 E6 2008 E6 2161 D6 2209 D4 2210 D4 2216 E4 2220 D3 2229 E4 2230 E4 2235 E4 2244 E4 2246 E5 2247 E5 2250 E5 2400 B6 2404 A4 2407 B5 2408 A5 2409 B5 2410 C5 2411 B5 2412 B5 2413 A6 2414 B6 2416 A5 2417 B6 2419 B5 2420 C5 2422 C6 2423 C6 2424 B5 2471 B6 2472 B6 2473 B6 2476 C7 2500 A2 2501 B2 2502 B3 2503 A3 2504 A4 2505 B2 2506 B3 2507 A3 2508 A3 2515 A4 2516 B4 2521 B3 2523 A3 2560 A4 2561 A4 2562 B4 2563 B4 2564 B4 2565 A4 2566 B4 2567 C4 2568 B4 2580 C3 2604 D4 2691 A1 2801 D3 2837 D2 2841 C2 2843 C2 2844 C2 2846 C1 2855 C2 2902 D3

2908 E3 2941 E3 2981 B1 2983 B1 3000 E6 3001 E6 3005 E4 3012 E6 3101 C6 3103 C6 3105 C6 3107 C6 3109 D6 3110 D6 3111 D6 3113 D6 3114 D6 3115 D6 3116 D6 3117 D6 3118 D6 3119 D6 3121 D6 3122 D6 3131 C6 3133 C6 3135 C6 3137 C6 3139 D6 3141 D6 3142 D6 3143 D6 3145 D6 3146 D6 3151 E6 3153 D6 3155 D6 3181 B1 3182 B1 3183 C1 3185 C1 3200 E4 3201 D4 3202 D4 3203 D4 3204 D4 3207 E4 3214 D5 3220 D4 3228 E4 3235 D4 3244 E5 3249 E5 3250 E5 3251 E4 3401 B5 3402 C5 3403 A5 3404 B4 3406 B4 3408 C4 3411 B5 3412 B5 3414 B5 3415 C5 3416 A6 3417 B6 3421 C5 3424 C5 3425 B5 3427 C6 3428 C6 3429 B5 3430 B5 3432 B5 3435 A4 3436 A5 3471 C6 3472 C6 3473 C6 3474 C6 3475 C6 3476 C6 3477 C6 3478 C6 3479 B6 3500 A1 3501 B2 3502 B3 3503 B3 3504 C3 3505 B2 3506 A2 3507 B2 3508 B3 3519 B3 3521 B3 3523 B3 3526 B3 3527 B3 3543 B4 3544 B3 3547 A4 3549 B4 3550 C4 3558 C4 3560 B4 3561 B4 3564 B4 3565 C4 3570 C3 3601 D5 3603 D5 3604 D5 3606 D5 3607 D5 3608 D4 3609 D5 3610 D5 3612 E5 3614 D5 3615 D5 3617 D5 3618 D5 3619 D5 3624 D5 3625 D5 3634 D5 3635 D5 3801 D3 3802 D3 3808 C3

Schematics and PWB’s

Layout Mono Carrier (Overview Bottom View)

Part 1

CL 16532053_10a.eps

Part 3

CL 16532053_10c.eps

30L01H.2E 7.

2001 A6

2602 B4

3236 A6

4003 A5 4004 A5 4005 A5 4006 A5 4007 A6 4011 A5 4012 A5 4101 C6 4102 C6 4103 C6 4104 C6 4105 B6 4151 A6 4152 B6 4171 B6 4204 A4 4205 B4 4206 B4 4207 B4 4209 A4 4210 A4 4211 A4 4212 A4 4213 A4 4214 B3 4216 A3 4217 A4 4410 C5 4501 D4 4601 B5 4602 B5 4603 B4 4604 A3 4608 A7 4609 A7 4613 B4 4614 A3 4615 B5 4616 B4 4617 A5 4619 A4 4620 A3 4622 A5 4623 A5 4691 E1 4692 C2 4693 C2 4694 B1 4695 E1 4801 B3 4802 B3 4803 B3 4804 B3 4805 B3 4806 C3 4807 B3 4808 B3 4809 C3 4811 B3 4812 B3 4813 B2 4814 C2 4831 C2 4832 C2 4833 C2 4834 C2 4835 C2 4836 C1 4901 A3 4902 A3 4903 A3 4904 A3 4911 A3 4921 B3 4941 A3 4982 E1 4991 A6 5003 A4 5835 C2 6002 A6 6003 A6 6004 A5 6005 A5 6101 B6 6102 B6 6103 B6 6104 B6 6105 B6 6131 B6 6181 C1 6201 B4 6202 B4 6206 B4 6241 C4 6406 C4 6407 C4 6408 C5 6415 C5 6416 D5 6417 C5 6522 D3 6563 D4 6565 C4 6566 C3 6567 D4 6569 D4 6570 C3 6580 C2 6581 C2 6901 B3 7001 A5

7002 A5 7101 B6 7131 B6 7200 A4 7201 A4 7204 B4 7206 A4 7209 A6 7210 A6 7241 B4 7401 C4 7405 D5 7406 C5 7409 C5 7522 D3 7541 C3 7542 C3 7561 C4 7562 D4 7564 D4 7580 C2 7606 B5 7801 C3 7802 B3 7803 C3 7804 B3 7832 C2 7833 C2 7834 C1 7835 C2 7941 A3 7942 A3 7943 A3

Part 2

CL 16532053_10b.eps

Part 4

CL 16532053_10d.eps

CL 16532053_010.eps

160501

2002 A6 2003 A5 2004 A6 2007 A6 2009 A5 2010 A6 2101 C6 2102 C6 2103 C6 2104 C6 2105 C6 2106 C6 2107 C6 2108 C6 2109 C6 2110 C6 2111 C6 2112 C6 2113 B6 2114 B6 2115 B6 2116 B6 2117 B6 2118 B6 2119 B6 2120 B6 2131 C6 2132 C6 2133 C6 2134 C6 2135 C6 2136 C6 2137 C6 2138 C6 2139 C6 2140 C6 2141 B6 2142 B6 2143 B6 2144 B6 2145 B6 2146 B6 2147 B6 2151 A6 2152 A6 2153 B6 2154 B6 2181 D1 2182 C1 2183 C1 2184 C2 2185 D1 2186 C1 2201 A4 2202 B4 2203 A4 2204 B4 2205 A5 2206 A4 2207 A4 2208 A4 2211 A4 2213 B4 2214 B4 2215 B4 2217 A4 2219 A5 2221 B4 2222 A6 2223 A5 2225 A4 2226 A4 2227 A4 2228 A4 2233 B4 2234 A6 2236 A6 2237 A6 2238 A6 2239 A6 2240 A6 2241 A5 2242 A5 2243 A5 2245 A4 2248 A5 2249 A5 2252 A5 2253 A5 2254 A5 2403 C4 2405 D5 2406 C4 2415 C5 2418 C6 2421 C5 2475 D6 2477 C6 2520 D3 2522 D3 2524 D3 2525 D3 2526 D3 2527 D3 2528 D3 2540 C4 2542 D3 2559 C3 2569 D4 2601 B4

2606 B5 2607 B4 2608 B5 2609 B4 2611 B4 2612 B5 2613 B5 2615 B4 2616 B5 2618 B4 2619 B5 2692 E1 2693 D2 2694 D1 2695 D1 2696 D1 2802 C2 2803 C2 2804 B3 2805 B3 2831 B1 2832 B1 2833 B1 2834 B2 2835 B2 2836 B2 2838 B2 2839 B2 2840 B2 2842 B2 2845 B2 2847 C2 2848 B2 2849 B2 2850 B2 2851 B2 2852 C2 2853 B2 2854 C2 2856 C2 2857 C2 2858 C2 2859 C1 2860 C2 2887 B2 2894 B2 2895 B2 2896 C2 2897 B2 2898 B2 2901 B3 2904 B3 2905 B3 2906 A3 2907 A3 2942 A3 2943 A3 2944 A3 2945 A3 2946 A3 2947 A3 2948 B3 2949 B3 2950 B3 2982 D1 2984 D1 3002 A6 3003 A6 3004 A6 3006 A5 3007 A5 3008 A5 3009 A5 3010 A6 3011 A6 3102 C6 3104 C6 3106 C6 3108 C6 3112 B6 3120 B6 3132 C6 3134 C6 3136 C6 3138 C6 3140 B6 3144 B6 3152 A6 3154 B6 3184 C1 3186 C1 3206 B4 3208 A4 3209 A4 3212 A4 3213 A3 3217 B4 3218 B4 3219 B4 3223 B4 3224 B4 3225 B4 3226 B4 3227 A4 3229 A4 3230 A4 3231 A4 3232 A4 3233 A6 3234 A4

3237 A6 3238 A6 3239 A6 3240 A6 3241 A5 3242 A3 3245 A5 3246 A4 3247 C5 3248 A4 3254 A5 3256 C4 3257 A5 3258 A5 3259 B5 3261 A5 3410 D6 3413 D5 3418 C5 3419 C5 3420 C6 3422 C5 3423 C5 3426 C5 3431 D5 3520 D3 3522 D3 3524 D3 3525 D3 3528 D3 3529 D3 3530 D3 3531 D3 3540 D4 3541 D3 3542 D4 3545 D4 3546 C3 3548 C3 3552 C3 3559 C4 3562 D4 3563 C4 3566 C3 3567 D4 3568 D4 3569 C3 3580 C3 3605 C4 3611 B4 3622 B5 3623 B5 3626 B4 3627 B4 3628 B4 3629 B4 3630 B5 3632 B5 3633 B5 3636 A5 3637 B3 3638 B4 3681 B1 3682 C1 3683 C1 3684 B1 3685 C2 3686 B1 3691 E1 3692 E1 3693 E1 3694 E1 3695 C2 3803 B3 3804 C3 3805 B3 3806 C3 3807 C2 3809 B3 3831 B2 3835 C2 3838 C2 3840 C2 3841 C2 3842 C1 3843 C2 3849 C2 3901 B3 3902 B3 3903 A3 3904 A3 3905 A3 3906 A3 3907 A3 3921 A3 3922 A3 3923 A3 3941 A3 3942 A3 3943 A3 3944 A3 3945 A3 3946 A3 3947 A3 3948 A3 3949 A3 3950 A3 3951 A3 4001 A5 4002 A5

Schematics and PWB’s

Layout Mono Carrier (Part 1 Bottom View)

31L01H.2E 7.

Part 1

CL 16532053_10a.eps

160501

Schematics and PWB’s

Layout Mono Carrier (Part 2 Bottom View)

32L01H.2E 7.

Part 2

CL 16532053_10b.eps

160501

Schematics and PWB’s

Layout Mono Carrier (Part 3 Bottom View)

33L01H.2E 7.

Part 3

CL 16532053_10c.eps

170501

Schematics and PWB’s

Layout Mono Carrier (Part 4 Bottom View)

34L01H.2E 7.

Part 4

CL 16532053_10d.eps

170501

CRT Panel

X

VG2 F9

0244 G2

0165 A7

0245 C1

1 2 3 4 5 6 7 8 9 10 11

0254-A D7 1300-1 B7

2313 E3 2323 D3

2331 B3 2341 F5

2342 G2 2343 G2

Schematics and PWB’s

3313 F3 3314 E3

3316 D4 3317 C5

3311 F2 3312 F2

3321 D2 3322 D2

3323 D3 3324 C3

3326 B4 3327 C5

3331 B2 3332 B2

3333 B3 3334 A3

3336 A4 3337 B5

3341 E5 3347 F4

35L01H.2E 7.

3348 D5 3349 E6

3350 E6 5341 G2

5342 G2 6311 D4

6321 C4 6331 A4

6341 A4 6342 F3

6343 G4 7311 E3

7312 D4 7313 E4

7321 C3 7322 C4

7323 C4 7331 B3

7332 A4 7333 A4

9300 F3

G

127V

160V 160V

68R

3336

185V

7332 BF422

136V

7333 BF423

6V3

160V

68R

3326

185V

7322 BF422

136V

7323 BF423

6V3

160V

68R

3316

185V

7312 BF422

7313

BF423

6V3

OLDGND

6341

6331

6321

6311

BAV21

3347

6343

OLDGND

3337

1K5

3317

1K5

3327

1K5

3348

NEWGND

220R

BZX284-C8V2

1K5

3341

2341

1K5

2n2

V16

V14

V15

3349

V11

1V / div DC

20us / div

NEWGND

Blue

**

3350

NEWGND

V12

1300-1

3

4

5

6

7

8

9

1

0254-A

1

5 6

7

8

9

10

11

12

1V / div DC

20us / div

P1

P3

P4

P5

P6

P7

P8

P9

G3

G1

CG

G2

CR

H1

H2

CB

GND

V13

1V / div DC

20us / div

0165

GND

TO CRT SOCKET

AQUADAG WIRE

Blue

Green

Red

Ground

Heater

CRT 9 Pin 12 Pin

GND Pin 1 Pin 1 & 12

VG1 Pin 6 Pin 5

Green Pin 9 Pin 6

VG2 Pin 8 Pin 7

Red Pin 7 Pin 8 Heater Pin 5 Pin 9 Heater Pin 4 Pin 10

Blue Pin 3 Pin 11

V14

50V / div DC

20us / div

V15

50V / div DC

20us / div

VG1 VG2

TO CRT SOCKET

V16

50V / div DC

20us / div

VG2

FOCUS EHT

FROM MAIN CHASSIS LOT OF

CRT

CL 16532020_090.eps

050601

A

B

C

D

Diversity Table B

E

Item Description

0254 9P F CRT N-NECK X X X X 0254 9P F CRT M-NECK X X 2313 270P 50V X X 2313 220P 50V X X X X

F

2323 50V 390P X X X X X X 2331 50V 390P X X X X X X 3313 10R X X X X X X 3323 10R X X X X X X 3333 10R X X X X X X 3349 1R X 3349 1R5 X X X 3349 1R8 X X 3350 1R X 3350 1R5 X X X

G

3350 1R8 X X 5341 4U7 X 5341 22U X 5341 1U X 5341 15U X X 5341 12U

14"

17"

20"

21" Stereo, CRT A51EER133X72

21" Mono

21" Stereo

CRT PANEL

2331

3333

2323

3323

2313

3313

47n

160V

18K

3334

*

160V

18K

3324

*

160V

18K

3314

*

9300

RES

6342

1N4148

A

127V

7331

2V4

BF422

1V8

B

1K

3332

3331

0245

6

BLKCURINFO

5

TO 0243

C

OF

4

BLUE

3

GREEN

2

RED

1

OLDGND

D

OLDGND

V13

V12

V11

3321

OLDGND

E

3311

F

0244

TO

0220 OF

OLDGND

160V

3

2

1

2342

NEWGND

2V4

1K

2V4

1K

5341

*

47n

5342

100MHz

3322

3312

OLDGND

330R

127V

7321 BF422

330R

127V

7311 BF422

330R

2343

1V8

1 2 3 4 5 6 7 8 9 10 11

Schematics and PWB’s

36L01H.2E 7.

Layout CRT Panel (Top View)

VG2 A1

0165 A1

0244 A1

0245 A2

0254 A1

1300 A1

2341 A2

2342 A1

2343 A2

3314 A2

3316 A2

3317 A2

3324 A2

3326 A2

3327 A2

3334 A2

3336 A2

3337 A2

3341 A1

3347 A2

3348 A1

3349 A1

3350 A1

5341 A1

5342 A2

6311 A2

6321 A2

6331 A2

6341 A2

6342 A2

7311 A2

7312 A2

7313 A2

7321 A2

7322 A2

7323 A2

7331 A2

7332 A2

7333 A2

9300 A2

9301 A1

9302 A2

9303 A2

9304 A2

140501

CL 16532051_015.eps

Layout CRT Panel (Bottom View)

2313 A2

2323 A2

2331 A2

2344 A2

3311 A2

3312 A2

3313 A2

3321 A2

3322 A2

3323 A2

3331 A2

3332 A2

3333 A2

6343 A2

6344 A2

140501

CL 16532051_016.eps

EPS 4 (External Power Supply)

A

EPS 4 (External Power Supply)

Schematics and PWB’s

37L01H.2E 7.

H

1

F

To 0211

2

(Power Supply)

3

4

5

1A 600V

TOP233Y

1A/250V

5W 180V0.001UF /1KV

UU9.8 22MH UU9.8 22MH

0.1UF/275VAC

0.01UF/1KV

0.001UF/1KV

43R

330UF/ 25V

680UF/10V

470UF/ 10V

EE16

3A 100V

0.001UF/1KV

43R

5A 40V

0.001UF/1KV

43R

10A 30V

KA278R12

560R

1

5W 400V

33UF/450V

1A 600V1.5M(1/2W)

7.5M

2

3

To

KA278R05

DR6*8 16UH

510R

470UF/ 25V

470UF/ 10V

470UF/10V

0.1UF/ 50V

RH-3.5*0.8*9

220UF/10V

RH-3.5*0.8*9

100R(1/4W)

1A 100V

0228

J

(Interface)

To Ground Pin 0285

of

Chassis

Main

4

5

6

TLP721

250mA

22R

13K

7

A

RH3.5*0.8*4.7

0.1UF/50V

B C D E F G

200V

47UF/ 16V

0. 1UF/ 50V

22R

HOT Ground

0.22UF/50V

2K

AN1431

10K

470PF/ 250V

COLD Ground

3.3K

CL16532138_001.eps

121101

H

6

7

8

Schematics and PWB’s

Layout EPS 4 (External Power Supply)

38L01H.2E 7.

1

2

3

4

ABCDEF

1

2

3

4

CL16532138_002.eps

171101

211 F3 213 F4 228 A1 BR1 D4 C1 D3 C2 C1 C5 C4 C6 C1 C7 B3 C11 B3 C12 D2 C20 C1 C21 C1 C23 A3 C24 B3 C25 B3 C26 B2 C27 B2 C28 D3 C29 B2 C35 A3 C36 A2 C38 B2 C39 A2 CR1 B3 CR2 B3 CR3 B4 CR4 B4 D1 D3 D2 C2 D3 B2 D4 A1 D5 A2 F1 E3 G1 A2 IC1 C2 IC2 B2 IC3 B1 IC4 A4 IC5 A3 J1 A4 L1 D4 L2 D2 L6 C2 L7 A2 L8 A2 L9 B2 L10 B1 R1 C3 R2 C2 R3 C2 R4 D4 R11 C1 R12 C2 R13 B3

R13 B3 R14 B1 R16 B1 R23 B4 R25 B2 R26 B2 R27 B3 R28 B3 R29 B3 ZD1 D3 ZD2 C3

ABCDEF

Clock Display

CLOCK DISPLAY

G

TestLand1

1

J1

C1

+5V

TO

0247

H1

OR TO

0237

J

100nF

C2 10uF

TestLand2

1

J3

TestLand3

1

J5

Schematics and PWB’s

TestLand4

1

J2

TestLand5

1

J4

U1 PIC16C62A

1

MCLR/VPP

20

VDD

8

VSS

19

VSS1

9

OSC1

10

OSC2

15

RC4/SDA

14

RC3/SCL

LED-DRIVER

RB0 RB1 RB2

RB3 RB4 RB5 RB6 RB7

RC0 RC1 RC2 RC5 RC6 RC7

RA0 RA1 RA2 RA3 RA4 RA5

R13

10K R14

10K

D1

BAT54

Y1 12MHz

R7

10K

C3 100nF

+5V

1 2 3

J6

4

+5V

RB6

RB7

BZ1 +

BC847

R28 100R

3

Q6

2

BUZZER

-

2

Q7

3

Port0 Port1 Port2 Port3 Port4 Port5

RB6 RB7

Port6 Port6 Port7 Port8 Port9

Port10 Port11 Port12 Port13 Port14

+5V

R16 2K2

1

R25 47R

1

21 22 23 24 25 26 27 28

11 12 13 16 17 18

2 3 4 5 6 7

BC857B

R26 100R

R18

4K7

R27

10K

R12 100R

39L01H.2E 7.

R1 2K2

R3 2K2

R5 2K2

R8 2K2

R10 2K2

Q1

Q2

Q3

Q4

Q5

R18

100R

R20

100R

R22

100R

R24

100R

BC857B

U2 LTC4625G

NC

12

9

1

268

DGT1

DGT2

DGT3

DGT4

4NC10

DOTS

4-DIGIT, 6-SEGMENT LED

A14B16C13D3E5F11G15DP

7

Alarm Message

D2 RED LED

D3 YELLOW LED

Port6

Port7

Port4

Port5

Port8

Port9

Port14

Port0

Port1

Port2

Port3

Port10

Port11

Port12

Port13

+5V

R2

1K

+5V

R4

1K

+5V

R6

1K

+5V

R9

1K

+5V

R11

1K

R17

100R

R19

100R

R21

100R

R23

100R

BZ1

J6

+

U2

C2

+

41

J1J3J5J2J4

D3

15

Y1

D3

D2

Q4

R9 R8

Q3

R6

R2 R1

R5 R4

Q1

Q2

R3

Q5

R11

R19

R22

R24

D1

R10

R21

R7

R17

R20

R23

R14

C5R13

R18

C5 C4

Y1A

R12

R28

U1

R16

Q6

R15

C1

R27

R25Q7

R26

CL 16532139_005.eps

141201

UIR / LS / Vbat Module

12345678

H

UIR/LS/VBAT MODULE

A

T0 0251 OF

A1

POWER SUPPLY

B

C

D

E

F

G

Main AUX

Stdby V_bat

Fishhood

1

1251

1

Gnd

2 3 4

4-P (Black) Hor Conn

U1

Clock

Data_in

+5V

Data_out

Gnd

IR_data

RJ11

U2

J5

Phone Jack

Schematics and PWB’s

MP40

F1

+5V

R5 4K7

LED

1

IR_in

2

Mode

3

Status

4

Gnd

5

IR_out

6

D5

C6V8

2

4 1

D2

C6V8

D7

C22V

R17

100K

R22

47R

R24 15R

R25 15R

R26 3K3 (5W)

R27 82K

R28 82K

R29 10K

R6

R7

R8

R9

D4

D3

C6V8

BC847B

C5 2n2

D8

C22V

Q3

100R

1K0

C2

100nF

100R

+5V

Q1

BC857B

R18 100R

R21

1K

RT1 RXE 030

Q7

BC557B

Q2

BC847B

Q6 BF422

+5V

C3

100nF

16

14

15

4

11 10

9

+5V

R20

10K

TO TV SPK

1 2 3

3-P (Black) Ver

40L01H.2E 7.

U3 HEF4053

12 13

2 1

5 3

8 7 6

R19

100K

1246

U4 IM7805CT

13

C6 100nF

SpkSpk+

IN OUT

Gnd

2

R4 10K

R3

10K

R10

0R0

C7100nF

+5V

R2

10K

Q1

BC847B

+5V

R14

10K

+5V

+5V +5V

R15

10K

+5V

R33

0R0

+5V

10K

R11 10K

R16

0237

SDA

1

SCL

2

+5V

3

Gnd

4

4-P (White) Hor Conn

1240

Data_Out

1

Data_In

2

Clock

3

Gnd

4

Treble (SCL)

5

5-P (White) Hor Conn

0259

IR_in

1

+3.3V

2

Gnd

3

IR_out

4

LED

5

5-P (Black) Hor Conn

J4

1 2 3

F-pin Conn

T0 0237 OF

G

CLOCK

T0 0240 OF

A7

CONTROL

T0 0259 OF

A12

FRONT CONTROL

T0 0262 OF

A13

REAR I/O CINCH

CL 16532138_029.eps

211201

A

B

C

D

E

F

G

C2 D4 C3 C3 C5 G3 C6 A5 D2 D3 D3 D3 D4 D3 D5 F3 D7 G3 D8 G3 F1 A2 J4 G7 J5 G1 Q1 C6 Q1 E4 Q2 F4 Q6 B4 Q6 F4 Q7 B4 RT1 G4 R10 G5 R11 F6 R14 D6 R15 D6 R16 D6 R17 E3 R18 E4 R19 F5 R02 C6 R20 F4 R21 F4 R22 E3 R24 A3 R25 A3 R26 A3 R27 B3 R28 B3 R29 B3 R03 C5 R33 E6 R04 C5 R05 C3 R06 C3 R07 C3 R08 D3 R09 D3 U1 C3 U2 G2 U3 C3 U4 A5 0237 A7 0259 F7 1240 D7 1246 G4 1251 A2

12345678

Schematics and PWB’s

41L01H.2E 7.

Layout UIR / LS / Vbat Module (Top View)

U2

U1

JP23

WHITE

1

F1

JP12

1

3139 127 28111

VER. 3.1

0237

JP1

JP6

JP2

JP14

JP13

R27

R28

U4

Q9

1

R30

R31

JP3

BLACK

1251

Q10

JP11

JP7

R29

JP5 JP4

JP15

RT1

JP10

BLACK

1246

1

JP9

1

0262

BLUE

JP8

JP16

1

1240

1

0259

J5 GND

WHITE

BLACK

Layout UIR / LS / Vbat Module (Bottom View)

R13

R11

Q1

R2R3R4

R33

R12

R25

R26

Q4

R23

Q7

C7

R16C4

R17

Q2

R21R22

1816

U3

9

R32 R10

D8

R14 C2

R19

C3

C8

Q3

R15

Q5

R18

Q6

C6

D11

R6

R7 R5 R8

R9

R20

D3

D12

D4

D9

D6 D7

D5

Layout SP/LS Module (Top View)

D2

R1

U2

D1

JP4

JP1

JP7

313913727781

1

313912727321 313912727371

U1

REV. 3.0

JP2

CL 16532138_030.eps

191201

CL 16532138_031.eps

191201

Layout SP/LS Module (Bottom View)

11

1

1259

R33

C6

D12

D11

C1

JP6

JP5

R2

R13

RT1

1251 1246

R23

R12

R4

Q1

R3 R7

R6

JP3

1

J5

GND

R11

0262

Q6

R20

R24

D10

R9

R5

D3

D4

D6 D7

R22

R21

Q7

Q8

C5

D9

D5

CL 16532138_008.eps

201101

CL 16532138_009.eps

201101

SP/LS Module

I

A

B

C

D

E

F

Schematics and PWB’s

42L01H.2E 7.

12345678

T0 0251 OF

A1

POWER SUPPLY

T0 0240 OF

A7

CONTROL

T0 0259 OF

A12

FRONT CONTROL

A

B

C

D

SP / LS MODULE

U1

+5V

Gnd

1 2 3 4 5 6

Clock

Data_in

Data_out

IR_data

RJ11

+5V

R5 100R

D9

C6V8

D3

C6V8

D4

C6V8

R20

47R

D5

C6V8

R6 100R

R7

D6

C6V8

D7

C6V8

R9

Q6

BC847B

100R

R21

1K

Q7

BC847B

+5V

R22

10K

R4 10K

R3

10K

R23

100K

+5V

R2

10K

Q1

BC847B

+5V

C1

100uF

+5V

+5V +5V +5V

R11

10K

R12

10K

D2

1N4148

R13

10K

R33 0R0

D1

C5V6

R1

270R

1251

1

Main_aux

2

Gnd

3

Std_by

3-P (White) Ver

1259

Data_Out

1

Data_In

2

Clock

3

Gnd

4

IR_Out

5

+5V

6

Gnd

7

+5V

8

DCM_Disable

9

9-P (White) Ver

Fishhood

1

D10

LL4148

F-pin conn for chassis plug in

J5

1 23

0262

C5

100n

T0 0262 OF

R24

100k

U2

Phone Jack

Q8 BC847B

E

1246

2

4 1

D11

C22V

D12

C22V

RT1 RXE 030

C6 2n2

1

Spk-

2

Spk+

3

3-P (Black) Ver

TO TV SPK

F

A13

0262 F2 1246 F7 1251 A7 1259 C7 C1 A6 C5 E3 C6 F5 D1 A6 D10 E2 D11 F4 D12 F5 D2 A6 D3 C2 D4 C2 D5 C3 D6 B3 D7 C3 D9 D2 J5 F1 Q1 B5 Q6 D3 Q7 D4 Q8 E4 R11 C5 R12 C6 R13 C6 R2 B5 R20 D3 R21 D4 R22 D4 R23 D5 R24 E3 R3 B4 R33 C6 R4 B4 R5 B5 R6 B2 R7 B3 R9 C3 RT1 F6 U1 B1 U2 F3

G

REAR I/O CINCH

G

CL 16532138_007.eps

141201

12345678

Schematics and PWB’s

43L01H.2E 7.

Interface Panel

ABCDEFGH I

INTERFACE PANEL

J

+5V

1 1

2 2

3 3

4 4

5 5

6 6

TO 0242

A13

REAR I/O CINCH

7 7

A14

REAR I/O SCART

To EPS 0228

TO 0228 OF

+5Veps

GND

+12Veps

F

GND

EPS

+3.3Veps

TO CHASSIS CON 0251

TO 0251

Main Aux

GND

STDBY

A1

TO CHASSIS CON 0259

TO 0259 OF

(Black)

A12

To SP/UIR Connector

1259 & 1240 Data Out/SDA

TO 1259

(White)

I

SP/LS

Clock Disable

Data Out/SDA

(White)

TO CHASSIS CON 0217

(Yellow)

TO 0240 OF

To Clock Panel Con

G

0237

CLOCK

VIDEO OUT

Ext2Video/Y

140/95V

+5

GND

Data In

Clock GND

IR

STDBY

GND

5Vs

POR

Data In

Clock

GND SCL

GND

+8V

Sandcastle

GND

(White)

SDA SCL

+5V GND

G

GND

B R

FBL GND

GND

TREBLE

IR

C

POWER SUPPLY

FRONT CONTROL

TO 0240

TO CHASSIS CON 0240

A7

CONTROL

TO 0240 OF

A7

CONTROL

Europe & AP only

TO CHASSIS CON 0229 & 0242

0228 EH-B(5)

1 2 3

4 5

(Red)

0251

1 2 3

4

EH-B(4)

(Black)

0259 EH-B(5)

1 2

3 4

5

1259 EH-B(9)

1 2

3 4

5 6

7 8

9

0240 EH-B(7)

1 2

3 4

5 6

7

0217 EH-B(4)

1 2

3 4

0237 EH-B(4)

1 2

3 4

0242 EH-B(10)

1 2

3 4

5 6

7 8

9

10

(White)

+5V

AGND

EGND

6701

BYD33D

4011 0R0

+5V

2713

100n

USA ONLY

3740

220R-NL

1 2 3

3737 120K

3747 10K -NL

+5V

AGND

+5V

2703

6703

AGND AGND

BZX79-C5V1-NL

3739 6R8 (1.3W)

(Double footprint)

2704 1u

3738 6K8

4012 0R0

6704

AGND

+5V

3743

100R 3744 100R

2712

2711

100p

AGND

+

100u-NL

+12Veps

1700

1 2

400mA

3706 68K

6702

BAS216

+5V

3716 10K

NOT USED

6706

AGND

BZX284-C8V2

+5V

3717

10K

BC847B

1

3705 22K

3745 10K (1/6W)

+5V

3746 10K

BZX284-C8V2

3729 10K

7711

1

3

2

AGND

7716 BC847B

+8V

+5V

AGND

EUROPE & AP ONLY

3710 47K

3715 100R

3

7715

BC847B

2

3742 4K7-NL

BC847B

+8V

3

1

2

3741 1K

EGND

3704 4K7

3

2

BC847B

+5V

7708

3703 75R

1

7712

1

3718

3

2

3702

22K

3701 22K

+5V

3708 47K

3

7701

2

BC847B

AGND

2705

22p

10K

AGND

1

3731 820R

EGND

TO 0227 & 0225

To Chassis

A13

0227 & 0225

REAR I/O CINCH

A14

REAR I/O SCART

3719 5K6

+5V

1

3700 5K6

AGND

+5V

3

2

3

2

1

2701 100n

3707 10K

7700 BC847B

3720 10K

3721

7706 BC847B

VCC

USA ONLY

Audio_R_out Audio_L_out

GND EH-B(3)-NL

Audio_R_out Audio_L_out

GND

L2-in/mono

R2-in GND

2

Reset

GND

3

AGND

7705

BC857B

4K7

1002

1 2

3

0227

1 2

3 4

5 6

EP-B(6)

(Black)

5705 56u

7710 DS1813R-5

+5V

1

3722

4.7K

AGND

DGND

AGND

2

3

AGND

2702 1u

2700 1u

HSYNC

3749 10K

2714 2n2

AGND

2710 100n

2709 100n

3748 10K

7718

BC847B 1

+5V

3

2

DGND

2

3

7717A

74HCT74D

3733 47K

3734 47K

+5V

VCC14GND

D

CLK

7

CL1PR

4

AGND

Q

+5V

9020 JUMPER

AGND

+12Veps

EGND

5

6

EGND

DGND

EGND

3735 75R-NL

EGND

3736 75R

AGND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

1775

LV-NL

1800

32 PIN CONN

3.3Veps

GND_POWER

+12Veps

GND IIC

IR_data

POR

CLK

DATA_IN

DATA_OUT

5Veps

HSYNC_OUT

VSYNC_OUT

GND_CVBS_in

SCL

SDA

Reserved

B_in

G_in

R_in

FBL_in

GND_CVBS_out

CVBS_Out

NC

Reserved

NC

GND_Audio_in

F_R_aud_out

F_L_aud_out

R_audio_in

L_audio_in

Y_video_in

C_video_in

8 8

CL16532138_003.eps

171201

ABCDEFGH I J

Layout Interface Panel

Schematics and PWB’s

44L01H.2E 7.

0242

110

9005

17

9001

1800

0228

15

3740

Red

1

3739

9020

?

0251

1700

Black

+

2703

6703

-

41

9002

1259

91

3747

P / N: 90100-0101-11 Rev:1.1

White

16

31

1002

32

16

5705

6701

0217

9008

9004

White

3745

9007

9003

15

0259

Black

L01 Interface

0227

Black

9009

41

Yellow

9010

1

White

7

0240

9021

1

4

White

1776

1

PHILIPS

Personal Notes:

0237

CL 16532138_004.eps

171101

8. Alignments

Alignments

EN 45L01H.2E 8.

Index:

General Alignment Conditions Hardware Alignments Software Alignments and Settings

Note:

• The Service Default Alignment Mode (SDAM) is described in chapter 5.

• Menu navigation is done with the 'CURSOR UP, DOWN, LEFT or RIGHT' keys of the remote control transmitter.

• Figures can deviate slightly from the actual situation, due to different set executions or software versions.

8.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• AC voltage and frequency: according to country's standard.

• Connect the set to the AC power via an isolation transformer.

• Allow the set to warm up for approximately 20 minutes.

• Measure the voltages and waveforms in relation to chassis

ground (with the exception of the voltages on the primary side of the power supply). Never use the cooling fins / plates as ground.

• Test probe: Ri > 10 MΩ; Ci < 2.5 pF.

• Use an isolated trimmer / screwdriver to perform the

alignments.

8.2 Hardware Alignments

8.2.1 Vg2 Adjustment (AKB method)

1. Connect the RF output of a pattern generator to the antenna input. Test pattern is a 'black' picture (blank screen on CRT without any OSD info). Set TV to AV mode.

2. Activate the SDAM.

3. Select Options and set item "protection" to off.

4. Select Deflection menu.

– Set AKB to OFF (OFF=1 position, CCC loop disabled) – Set BRIGHTNESS to 75% – Set CONTRAST and BRIGHTNESS to zero.

5. Unplug the vertical deflection coil connector "0222" (one bright vertical line).

6. Adjust Vg2 until the vertical line just appears.

7. Connect back the deflection coil connector "0222"

8. Set AKB back to ON (=0).

9. Restore BRIGHTNESS and CONTRAST to normal picture setting.

10. Select Options and set item "protection" back to on.

11. Return to the SDAM (main menu) via the MENU key

12. Exit service mode

8.2.2 Focusing

1. Tune the set to a circle or crosshatch test pattern (use an external video pattern generator).

2. Choose picture mode NATURAL with the 'SMART PICTURE' button on the remote control transmitter.

3. Adjust the FOCUS potentiometer (see Fig. 8-1) until the vertical lines at 2/3 from east and west, at the height of the centreline, are of minimum width without visible haze.

8.3 Software Alignments and Settings

0217

1004

1002

1000 (TUNER)

Activate the Service Default Alignment Mode (see chapter 5).

0231

C

0212

0231

The SDAM menu will now appear on the screen. Select one of the following alignments:

1. OPTIONS

2. DEFLECTION

3. TUNER

4. WHITE TONE

5. GEOMETRY

D

9631

7602

A

9641

SDM

B

Focus

Screen

2403

5520

5445

LOT

VG2

16532138_010.eps

221101

Figure 8-1

EN 46 L01H.2E8.

Alignments

8.3.1 Options

Table 8-1

LLLL AAAABC X.Y S

ERR XX XX XX XX XX OP XXX XXX XXX XXX XXX

XXX XXX OB0 XXX OB1 XXX OB2 XXX OB3 XXX OB4 XXX OB5 XXX OB6 XXX LOAD DEFAULT > WATCHDOG ON / OFF PROTECTION ON / OFF SOUND NONE / 3415 / 3465 DEFAULT SOUND WEST-EU / UK / EAST-

QSS ON / OFF PIN2 NONE / UIR MSG PIN77 NONE / I2C CLOCK OSD / LED / NONE BUZZER NONE / INT / EXT EW ON / OFF WIDESCREEN ON / OFF TUNER NONE / APLS / PHILIPS LNA ON / OFF RADIO ON / OFF WSL NONE / 4136 / 1836 ACTIVE-OFF LED ON / OFF RGB ALWAYS / AV AV1 ON / OFF AV2 ON / OFF AV3 ON / OFF AV2YC ON / OFF NO IDENT STANDBY ON / OFF

EU / FRANCE

Table 8-2

Bit (value)

0 (1) OP10 OP20 OP30 OP40 OP50 OP60 OP70 1 (2) OP11 OP21 OP31 OP41 OP51 OP61 OP71 2 (4) OP12 OP22 OP32 OP42 OP52 OP62 OP72 3 (8) OP13 OP23 OP33 OP43 OP53 OP63 OP73 4 (16) OP14 OP24 OP34 OP44 OP54 OP64 OP74 5 (32) OP15 OP25 OP35 OP45 OP55 OP65 OP75 6 (64) OP16 OP26 OP36 OP46 OP56 OP66 OP76 7 (128) OP17 OP27 OP37 OP47 OP57 OP67 OP77 Total: Sum Sum Sum Sum Sum Sum Sum

OB1 OB2 OB3 OB4 OB5 OB6 OB7

Table 8-3

L01 ITV Europe Options

14HT3154/01 8 16 2 1 3 117 0 14HT3154/05 8 16 2 1 3 117 0 14HT3304/01 8 21 9 1 3 122 0 14HT3304/05 8 21 9 1 3 122 0 17HT3154/01 8 16 2 1 3 117 0 17HT3154/05 8 16 2 1 3 117 0 17HT3304/01 8 21 9 1 3 122 0 17HT3304/05 8 21 9 1 3 122 0 17HT5404/01Z 8 17 2 9 22 122 0 17HT5404/05Z 8 17 2 9 22 122 0 17HT5404/21R 8 17 2 9 22 122 0 17HT5404/25R 8 17 2 9 22 122 0 21HT3154/01 8 16 2 1 3 117 0 21HT3154/05 8 16 2 1 3 117 0 21HT3304/01 9 21 9 1 3 122 0 21HT3304/05 9 21 9 1 3 122 0 21HT5404/01Z 9 17 2 9 22 122 0 21HT5404/05Z 9 17 2 9 22 122 0 21HT5404/21R 9 17 2 9 22 122 0 21HT5404/25R 9 17 2 9 22 122 0

OB1 OB2 OB3 OB4 OB5 OB6 OB7

Note: Options are used to control the presence / absence of

certain features and hardware.

How to Change an Option Byte

An Option Byte represents a number of different options. Changing these bytes directly makes it possible to set all options very fast. All options are controlled via seven option bytes. Select the option byte (OB1.. OB7) with the MENU UP/ DOWN keys, and enter the new value.

Leaving the OPTION submenu and switching the set off with the standby button on the remote saves the changes in the Option Byte settings. Some changes will only take effect after the set has been switched OFF and ON with the AC power switch (cold start)

How to Calculate the Value of an Option Byte

Calculate an Option Byte value (OB1 .. OB7) in the following way:

1. Check the status of the single option bits (OP): are they enabled (1) or disabled (0).

2. When an option bit is enabled (1) it represents a certain value (see first column 'value between brackets' in first table below). When an option bit is disabled, its value is 0.

3. The total value of an Option Byte is formed by the sum of its eight option bits. See second table below for the correct Option Bytes per typenumber.

Alignments

Option Bit Assignment

Following are the option bit assignments for all L01 ITV software clusters.

Table 8-4

Options Bit Description Value

Byte 0 7 Multi-system 0 = Multi, 1 = Dual I-DK (TV System) 6

5 4 Default sound 1 = BG (or West EU), 2 =I (or UK), 3 = DK (or East EU), 4 = M, 5 = LL (or France) 3 2 1 Sound Board 0 = Mono (no sound board), 1 = MSP 3415G, 2 = MSP 3445G - (BTSC), 3 = MSP 3465G - AV stereo

0 Byte 1 7 Not Used (Pin Usage) 6 Not Used

5 Not Used

4 QSS 1 = UOC and chasis support QSS

3 Pin 2 0 = None (not used), 1 = UIR-Link Message Input

2

1 Pin 77 0 = None (not used), 1 = SPI I

0 Byte 2 7 Pin 78 0 = None (not used), 1 =Wide Screen, 2 = Rotation/Tilt (Devices) 6

5 EW 1 = Chasis supports East-West alignment

4 China 1 = Vision IF is set for China

3 Radio 1 = Tuner has FM radio feature and TV chasis support FM radio

2 LNA 1 = Tuner has LNA feature

1 Tuner 0 = None (no tuner), 1 = Philips (model), 2 = Alps (model)

0 Byte 3 7 Not Used (Devices) 6 Not Used

5 Not Used

4 US Region Code 1 = US Region code is used in SmartPort (except command 0x00)

3 SmartPort 1 = Chasis supports SmartPort (SPI or I

2 Active-Off LED 1 = LED ON

1 WSL 0 = None (no used), 1 =4136 (IR receiver model), 2 =1836 (IR receiver model)

0 Byte 4 7 Not Used (AV, Tuning)

Byte 5 7 Not Used (Feature) 6 Protection 1 = Protection (TV go to standby). 0 = No protection but errors are still logged.

Byte 6 7 Not Used

6 Not Used

5 Not Used

4 AVYC 1 = AV available

3 AV3 1 = AV available

2 AV2 1 = AV available

1 AV1 1 = AV available

0 RGB 0 = RGB input always allowed, 1 = RGB insertion allowed only when current input source is AV1

5 WatchDog 1 = Watchdog feature is enabled

4 No Ident Standby 1 = TV goes standby after 10mins of no RF signal.

3 Buzzer Type 0 = None (no buzzer), 1 = Internal (generated by TV microp), 2 = External (generated by I

2

1 Clock Type 0 = None (no clock), 1 = OSD, 2 = LED Module

0

6 Not Used

5 Not Used

4 Not Used

3 Not Used

2 Not Used

1 Not Used

0 Not Used

2

C (at 32-pin card interface)

2

C)

EN 47L01H.2E 8.

2

C device)

EN 48 L01H.2E8.

Alignments

8.3.2 Deflection

The Deflection Sub menu contains the following items:

• AKB, ON to enable, OFF to disable the 'black current loop' (AKB = Auto Kine Bias).

• Brightness, (set Brightness)

• Contrast, (set Contrast)

"See Vg2 alignment"

Deflection Menu

AK B ON/OFF BR IGHTNESS CONTRAST

CL 16532138_020.eps

Figure 8-2

8.3.3 Tuner

Note: Described alignments are only necessary when the NVM

(item 7602) is replaced.

Tuner Submenu

IFPLL XXX AG C XXX SL XXX CL XXX

CL 16532108_010.eps

Figure 8-3

The Tuner Sub menu contains the following items:

• Phase Locked Loop used for FST tuning systems. Adjust the IFPLL value (default value is 30) with the LEFT/RIGHT cursor keys.

• (AGC take over point) asis Emphasistype= 'Bold'>Set the external pattern generator to a colour bar video signal and connect the RF output to aerial input. Set amplitude to 10 mV and set frequency to 475.25 MHz (PAL/SECAM) or

61.25 MHz (NTSC). Connect a DC multimeter to pin 1 of the tuner (item 1000 on the main panel).

1. Activate the SDAM.

2. Go to the TUNER sub menu.

3. Select AGC with the UP/DOWN cursor keys.

4. Adjust the AGC-value (default value is 28) with the

LEFT/RIGHT cursor keys until the voltage at pin 1 of the tuner lies between 3.8 and 2.3 V.

5. Switch the set to STANDBY.

• Slicing level

Slicing level for the vertical sync. This adjustment is always set to 0 (for NTSC system only).

• CL (cathode drive level)

Adjust the CL value (default value is 4) with the LEFT/ RIGHT cursor keys.

141201

S

131201

8.3.4 White Tone

White Tone Menu

S

NORMAL RED XX

NORMAL GREEN XX NORMAL BLUE XX

DELTA DELTA C O O L G R E E N X X DELTA C O O L B L U E X X

In the WHITE TONE sub menu, the values of the black cut off level can be adjusted. Normally, no alignment is needed for the WHITE TONE. You can use the given default values. The colour temperature mode (NORMAL, COOL and WARM) and the colour (RED, GREEN, and BLUE) can be selected with the UP/DOWN RIGHT/LEFT cursor keys. The value can be changed with the LEFT/RIGHT cursor keys. First, select the values for the NORMAL colour temperature. Then select the values for the DELTA COOL and DELTA WARM mode. After alignment, switch the set to standby, in order to store the alignments.

Default settings:

• NORMAL (colour temperature = 11500 K): – NORMAL RED = 32 – NORMAL GREEN = 35 – NORMAL BLUE = 30

• DELTA COOL (colour temperature = 14000 K): – DELTA COOL RED = 0 – DELTA COOL GREEN = -5 – DELTA COOL BLUE = 5

• DELTA WARM (colour temperature = 8200 K): – DELTA WARM RED = 8 – DELTA WARM GREEN = -3 – DELTA WARM BLUE = 2

C O O L R E D X X

DELTA W A R M R E D X X DELTA W A R M G R E E N X X DELTA W A R M B L U E X X

CL 16532108_007.eps

Figure 8-4

131201

Alignments

EN 49L01H.2E 8.

8.3.5 Geometry

The geometry alignments menu contains several items to align the set, in order to obtain correct picture geometry.

Geometry

1

2

3

4

5

6

7

VERT. SLOPE

VERT. SHIFT

VERT. AMPLITUDE

V.S-CORRECTION

HOR. SHIFT

HOR. PARALLELOGRAM

HOR. BOW

CL 16532108_015.eps

310801

• Select Vertical Zoom to align the vertical linearity over the entire screen height (for 16 : 9 applications only).

• Set Trapezium Correction to align the lines at the vertical sides.

• Select East-West Width and align the picture width until the side castellations disappear.

• Select East-West Parabola / width and align the vertical sides until the sides are straightened.

• Select Upper Corner Parabola to straighten the top of the vertical lines at the sides.

• Select Lower Corner Parabola to straighten the bottom of the vertical lines at the sides.

• Repeat the last 5 steps if necessary.

Geometry alignments menu

Table 8-5

S SC XX SBL ON/OFF VS XX VSH XX VA XX HS XX HP XX HB XX

Figure 8-5

Connect an external video pattern generator to the aerial input of the TV-set and input a crosshatch test pattern. Set the generator amplitude to at least 1 mV and set frequency to

475.25 MHz (PAL/SECAM) or 61.25 MHz (NTSC).

1. Activate the SDAM menu (see chapter 5).

2. Go to the GEOMETRY sub menu.

Now you can perform the following alignments:

• Horizontal Parallelogram (HP)

Align straight vertical lines in the top and the bottom; vertical rotation around the centre.

• Horizontal Bow (HB)

Align straight horizontal lines in the top and the bottom; horizontal rotation around the centre.

• Horizontal Shift (HS)

Align the horizontal centre of the picture to the horizontal centre of the CRT.

• Vertical Slope (VS)

Align the vertical centre of the picture to the vertical centre of the CRT. This is the first of the vertical alignments to perform. For an easy alignment, set SBL to ON.

• Vertical Amplitude (VA)

Align the vertical amplitude so that the complete test pattern is visible.

• Vertical S-Correction (SC)

Align the vertical linearity, meaning that vertical intervals of a grid pattern must be equal over the entire screen height.

• Vertical Shift (VSH)

Align the vertical centring so that the test pattern is located vertically in the middle. Repeat the 'vertical amplitude' alignment if necessary.

• Service Blanking (SBL)

Switch the blanking of the lower half of the screen ON or OFF (to be used in combination with the vertical slope alignment).

For EW versions

• Set Horizontal Parallelogram to prevent the picture from slanting to one side.

• Set Horizontal Bow to prevent the top and bottom of picture from bending to the sides.

EN 50 L01H.2E9.

9. Circuit Description

Circuit Description

Index of this chapter:

1. Introduction

2. Audio Signal Processing

3. Video Signal Processing

4. Synchronisation

5. Deflection

6. Power Supply

7. Control

8. Abbreviations

Notes:

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the block diagram in chapter 6, or the electrical diagrams in chapter 7. Where necessary, you will find a separate drawing for clarification.

9.1 Introduction

The L01 chassis is a global TV chassis for the model year 2001 and is used for TV sets with screen sizes from 14” - 21” (small screen) to 21” - 32” (large screen). The standard architecture consists of a Main panel, a Picture Tube panel, a Side I/O panel (not al executions) and a Top Control panel. The Main panel consists primarily of conventional components with hardly any surface mounted devices.

The L01 is divided into 2 basic systems, i.e. mono and stereo sound. While the audio processing for the mono sound is done in the audio block of the UOC, an external audio processing IC is used for stereo sets.

The tuning system features 100 video channels with on-screen display. The main tuning system uses a tuner, a microcomputer, and a memory IC mounted on the main panel. Also, in some type numbers, an FM radio is implemented with 40 pre-set channels. The microcomputer communicates with the memory IC, the customer keyboard, remote receiver, tuner, signal processor IC and the audio output IC via the I the settings for favourite stations, customer-preferred settings, and service/factory data. The on-screen graphics and closed caption decoding are done within the microprocessor, and then sent to the signal processor IC to be added to the main signal.

The chassis uses a Switching Mode Power Supply (SMPS) for the main voltage source. The chassis has a ‘hot’ ground reference on the primary side and a cold ground reference on the secondary side of the power supply and the rest of the chassis.

2

C bus. The memory IC retains

9.2 Audio Signal Processing

9.2.1 Stereo

Figure 9-1

The functions for video processing, microprocessor (µP) and teletext (TXT) decoder are combined in one IC (TDA958xH), the so-called Ultimate One Chip (UOC). This chip is (surface) mounted on the copper side of the main panel.

In stereo sets, the signal goes via the SAW filter (position 1004 in case of QSS demodulation and 1003 in case of Intercarrier demodulation), to the audio demodulator part of the UOC IC7200. The stereo audio output on pin 33 goes, via TS7206, to the stereo decoder 7831. The switch inside the stereo decoder 7831 selects (via I either the internal decoder or an external source. The NICAM + 2CS AM/FM stereo decoder is an ITT MSP34X5. The output is fed to the to the audio amplifier (AN7522 at position 7901). The volume level is controlled at this IC (pin 9) by a control line (VolumeMute) from the microprocessor. The audio signal from 7901 is then sent to the speaker/headphone output panel.

2

C)

Figure 9-2

Circuit Description

EN 51L01H.2E 9.

FM ANT.

0265

RF ANT.

11

POWER SUPPLY

EXT. AUDIO

1000

TUNER

EXT. VIDEO

INPUT

1

INPUT

AUDIO SOURCE SELECTION

FM FMR

10

11

AGC

VIDEO SOURCE

SELECTION

V

BAT

AUDIO

12V

3.9V

3.3V

7801

7209 7210

FM IF

BUFFER

SAW

FILTER

SAW

FILTER

1200 : 1202

SOUND

TRAP

INT_CVBS EXT_CVBS

7802

7861 7831

CONTROL

AUDIO DECODING

AND

PROCESSING

SELECTION

47 24

MATR. SWITCH

7834

7200

SIF

23 24

VIF

18 19

22

38

40

42

VIDEO

SWITCH

33

SOUND

IF

DEMOD.

VISION

IF

DEMOD.

7835

µP

VIDEO

PROCESSING

SYNC

PROCESSING

16 17 15 30

I2C

25

RGB/YUV

PROCESSING

7901

AUDIO AMPL.

EXT. AUDIO OUT

68

50:53

56:58

H

EW

V+

V-

7602

7330

7460

7471

NVM

VIDEO AMPL.

HOR.

DEFL.

EW

VERT. DEFL.

EHT

+

EXT RGB/YUV INPUT

9.2.2 Mono

In mono sets, the signal goes via the SAW filter (position 1004 in case of QSS demodulation and 1003 in case of Intercarrier demodulation), to the audio demodulator part of the UOC

EXT. AUDIO

OUTPUT

FM IF

FM FMR

BUFFER

SAW

FILTER

SAW

FILTER

FM ANT.

0265

RF ANT.

1000

11

EXT. AUDIO

INPUT

TUNER

1

10

11

AGC

CL 16532008_039.eps

220501

Figure 9-3

IC7200. The audio output on pin 48 goes directly, via buffer 7943, to the audio amplifier (AN7523 at position 7902). The volume level is controlled at this IC (pin 9) by a ‘VolumeMute’ control line from the microprocessor. The audio signal from IC7902 is then sent to the speaker/ headphone output panel.

7941 7942 7943

SMART

SND

7200

SIF

23 24

18 19

22

SOUND

IF

DEMOD.

VIF

VISION

IF

DEMOD.

AUDIO SWITCH

µP

48

AVL

68

7902

AUDIO AMPL.

9

VOLUME MUTE

7602

NVM

Figure 9-4

CL 16532008_040.eps

220501

EN 52 L01H.2E9.

Circuit Description

9.2.3 FM radio (if present)

The FM radio uses the 10.7 MHz concept. This SIF frequency is available at pin 10 of the tuner. Via a pre-amplifier (TS7209 and TS7210), the signal is fed for demodulation to either the UOC (for mono FM radio) or by the Micronas MSP34X5 (for stereo FM radio).

9.3 Video Signal Processing

9.3.1 Introduction

The video signal-processing path consists of the following parts:

• RF signal processing.

• Video source selection.

• Video demodulation.

• Luminance/Chrominance signal processing.

• RGB control.

• RGB amplifier

The processing circuits listed above are all integrated in the UOC TV processor. The surrounding components are for the adaptation of the selected application. The I defining and controlling the signals.

9.3.2 RF Signal Processing

The incoming RF signal goes to the tuner (pos. 1000), where the 38.9 MHz IF signal is developed and amplified. The IF signals then exits the tuner from pin 11 to pass through the SAW filter (position 1002 in case of QSS demodulation and 1003 in case of Intercarrier demodulation). The shaped signal is then applied to the IF processor part of the UOC (pos. 7200). Tuner AGC (Automatic Gain Control) will reduce the tuner gain and thus the tuner output voltage when receiving strong RF signals. Adjust the AGC take-over point via the Service Alignment Mode (SAM). The tuner AGC starts working when the video-IF input reaches a certain input level and will adjust this level via the I

2

C bus. The tuner AGC signal goes to the tuner (pin 1) via the open collector output (pin 22) of the UOC. The IC also generates an Automatic Frequency Control (AFC) signal that goes to the tuning system via the I frequency correction when needed. The demodulated composite video signal is available at pin 38 and then buffered by transistor 7201.

9.3.3 Video Source Selection

The Composite Video Blanking Signal (CVBS) from buffer 7201 goes to the audio carrier trap filters (1200 and 1201) to remove the audio signal. The signal then goes to pin 40 of IC7200. The internal input switch selects the following input signals:

• Pin 40: terrestrial CVBS input

• Pin 42: external AV1 CVBS input

• Pin 44: external Side I/O CVBS or AV2 Luminance (Y)

input

• Pin 45: external AV2 Chrominance (C) input

2

C bus is for

2

C bus, to provide

7200

UOC

RGB/YUV INSERT

VIDEO PROC.

P

SOUND PROCES

AV1_CVBS1_1

CVBS_FRONT_IN

AV1_AUDIO_IN

FRONT_AUDIO_IN

INTERNAL_CVBS_IN

5, 14

1, 12

SEL-MAIN-FRNT-RR

SC2-CTRL

910

SC1-IN

41,423, 13

40

42

44

70

4

QSS_AM_DEM_OUT

477831

SOUND DEC

Figure 9-5

Once the signal source is selected, a chroma filter calibration is performed. The received colour burst sub-carrier frequency is used for this. Correspondingly, the chroma band pass filter for PAL processing or the cloche filter for SECAM processing is switched on. The selected luminance (Y) signal is supplied to the horizontal and vertical synchronisation processing circuit and to the luminance processing circuit. In the luminanceprocessing block, the luminance signal goes to the chroma trap filter. This trap is switched 'on' or 'off', depending on the colour burst detection of the chroma calibration circuit. The group delay correction part can be switched between the BG and a flat group delay characteristic. This has the advantage that in multi-standard receivers no compromise has to be made for the choice of the SAW filter.

9.3.4 Video Demodulation

The colour decoder circuit detects whether the signal is a PAL, NTSC or SECAM signal. The result is made known to the auto system manager. The PAL/NTSC decoder has an internal clock generator, which is stabilised to the required frequency by using the 12 MHz clock signal from the reference oscillator of the microcontroller/teletext decoder. The base-band delay line is used to obtain a good suppression of cross colour effects. The Y signal and the delay line outputs U and V are applied to the luminance/chroma signal processing part of the TV processor.

9.3.5 Luminance/Chrominance Signal Processing

The output of the YUV separator is fed to the internal YUV switch, which switches between the output of the YUV separator or the external YUV (for DVD or PIP) on pins 51-53. Pin 50 is the input for the insertion control signal called ‘FBL-1’. When this signal level becomes higher than 0.9 V (but less than 3 V), the RGB signals at pins 51, 52 and 53 are inserted into the picture by using the internal switches. Also some picture improvement features are implemented in this part:

• Black stretch This function corrects the black level of incoming signals, which have a difference between the black level and the blanking level. The amount of extension depends upon the difference between actual black level and the darkest part of the incoming video signal level. It is detected by means of an internal capacitor.

• White stretch This function adapts the transfer characteristic of the luminance amplifier in a non-linear way depending on the average picture content of the luminance

RGB 56 58

MAIN_OUT 24,25

CL 16532016_012.eps

CRT PANEL

7901

AUDIO AMPL.

120401

Circuit Description

EN 53L01H.2E 9.

signal. It operates in such a way that maximum stretching is obtained when signals with a low video level are received. For bright pictures, stretching is not active.

• Dynamic skin tone correction This circuit corrects (instantaneously and locally) the hue of those colours which are located in the area in the UV plane that matches the skin tone. The correction is dependent on the luminance, saturation and distance to the preferred axis.

The YUV signal is then fed to the colour matrix circuit, which converts it to R, G and B signals. The OSD/TXT signal from the microprocessor is mixed with the main signal at this point, before being output to the CRT board (pins 56, 57 and 58).

9.3.6 RGB Control

The RGB control circuit enables the picture parameters contrast, brightness and saturation to be adjusted, by using a combination of the user menus and the remote control. Additionally automatic gain control for the RGB signals via cutoff stabilisation is achieved in this functional block to obtain an accurate biasing of the picture tube. Therefor this block inserts the cut-off point measuring pulses into the RGB signals during the vertical retrace period.

The following additional controls are used:

• Black current calibration loop Because of the 2-point black current stabilisation circuit, both the black level and the amplitude of the RGB output signals depend on the drive characteristics of the picture tube. The system checks whether the returning measuring currents meet the requirements, and adapt the output level and gain of the circuit when necessary. After stabilisation of the loop, the RGB drive signals are switched on. The 2-point black level system adapts the drive voltage for each cathode in such a way that the two measuring currents have the right value. This is done with the measurement pulses during the frame flyback. During the first frame, three pulses with a current of 8 µA are generated to adjust the cut off voltage. During the second frame, three pulses with a current of 20 µA are generated to adjust the ‘white drive’. This has as a consequence, that a change in the gain of the output stage will be compensated by a gain change of the RGB control circuit. Pin 55 (BLKIN) of the UOC is used as the feedback input from the CRT base panel.

• Blue stretch This function increases the colour temperature of the bright scenes (amplitudes which exceed a value of 80% of the nominal amplitude). This effect is obtained by decreasing the small signal gain of the red and green channel signals, which exceed this 80% level.

• Beam current limiting A beam current limiting circuit inside the UOC handles the contrast and brightness control for the RGB signals. This prevents the CRT from being overdriven, which could otherwise cause serious damage in the line output stage. The reference used for this purpose is the DC voltage on pin 54 (BLCIN) of the TV processor. Contrast and brightness reduction of the RGB output signals is therefore proportional to the voltage present on this pin. Contrast reduction starts when the voltage on pin 54 is lower than 2.8 V. Brightness reduction starts when the voltage on pin 54 is less than 1.7 V. The voltage on pin 54 is normally 3.3 V (limiter not active). During set switch ‘off’, the black current control circuit generates a fixed beam current of 1 mA. This current ensures that the picture tube capacitance is discharged. During the switch-off period, the vertical deflection is placed in an over-scan position, so that the discharge is not visible on the screen.

9.3.7 RGB Amplifier

From outputs 56, 57 and 58 of IC7200, the RGB signals are applied to the analogue output amplifiers on the CRT panel. The R-signal is amplified by a circuit built around transistors TS7311, 7312 and 7313, which drives the picture tube cathodes. The supply voltage for the amplifier is +160 V and is derived from the line output stage.

9.4 Synchronisation

Inside IC7200 (part D), the vertical and horizontal sync-pulses are separated. These ‘H’ and ‘V’ signals are synchronised with the incoming CVBS signal. They are then fed to the H- and Vdrive circuits and to the OSD/TXT circuit for synchronisation of the On Screen Display and Teletext (or Closed Caption) information.

9.5 Deflection

9.5.1 Horizontal Drive

The horizontal drive signal is obtained from an internal VCO, which is running at twice the line frequency. This frequency is divided by two, to lock the first control loop to the incoming signal. When the IC is switched ‘on’, the ‘Hdrive’ signal is suppressed until the frequency is correct. The ‘Hdrive’ signal is available at pin 30. The ‘Hflybk’ signal is fed to pin 31 to phase lock the horizontal oscillator, so that TS7401 cannot switch ‘on’ during the flyback time. The ‘EWdrive’ signal for the E/W circuit (if present) is available on pin 15, where it drives transistor 7400 to make linearity corrections in the horizontal drive.

When the set is switched on, the ‘+8V’ voltage goes to pin 9 of IC7200. The horizontal drive starts up in a soft start mode. It starts with a very short T transistor. The T normal operation. The starting frequency during switch on is therefore about 2 times higher than the normal value. The ‘on’ time is slowly increased to the nominal value in 1175 ms. When the nominal value is reached, the PLL is closed in such a way that only very small phase corrections are necessary.

The ‘EHTinformation’ line on pin 11 is intended to be used as a ‘X-ray’ protection. When this protection is activated (when the voltage exceeds 6 V), the horizontal drive (pin 30) is switched 'off' immediately. If the ‘H-drive’ is stopped, pin 11 will become low again. Now the horizontal drive is again switched on via the slow start procedure. The ‘EHTinformation’ line (Aquadag) is also fed back to the UOC IC7200 pin 54, to adjust the picture level in order to compensate for changes in the beam current.

The filament voltage is monitored for ‘no’ or ‘excessive’ voltage. This voltage is rectified by diode 6413 and fed to the emitter of transistor 7405. If this voltage goes above 6.8 V, transistor 7405 will conduct, making the ‘EHT0’ line ‘high’. This will immediately switch off the horizontal drive (pin 30) via the slow stop procedure.

The horizontal drive signal exits IC7200 at pin 30 and goes to 7401, the horizontal driver transistor. The signal is amplified and coupled to the base circuit of 7402, the horizontal output transistor. This will drive the line output transformer (LOT) and associated circuit. The LOT provides the extra high voltage (EHT), the VG2 voltage and the focus and filament voltages for the CRT, while the line output circuit drives the horizontal deflection coil.

OFF

time of the horizontal output

ON

of the transistor is identical to the time in

EN 54 L01H.2E9.

9.5.2 Vertical Drive

A divider circuit performs the vertical synchronisation. The vertical ramp generator needs an external resistor (R3245, pin

20) and capacitor (C2244, pin 21). A differential output is available at pins 16 and 17, which are DC-coupled with the vertical output stage. To avoid damage of the picture tube when the vertical deflection fails, the ‘V_GUARD’ output is fed to the beam current limiting input. When a failure is detected, the RGBoutputs are blanked. When no vertical deflection output stage is connected, this guard circuit will also blank the output signals.

These ‘V_DRIVE+’ and ‘V_DRIVE-‘ signals are applied to the input pins 7 and 1 of IC7471 (vertical deflection amplifier). These are voltage driven differential inputs. As the driver device (IC7200) delivers output currents, R3474 and R3479 convert them to voltage. The differential input voltage is compared with the voltage across measuring resistor R3471 that provides internal feedback information. The voltage across this measuring resistor is proportional to the output current, which is available at pin 5 where it drives the vertical deflection coil (connector 0222). IC7471 is supplied by +/-13 V. The vertical flyback voltage is generated at pin 3.

9.6 Power Supply

V

LINE

V

IN

C

IN

V

CC

TEA1507

Vcc Drain

1

Gnd

2

Ctrl

3

Demag4

Driver

Sense

8

HVS

7

6

5

N

P

N

S

C

D

C

SS

R

SS

R

SENSE

N

Vcc

Circuit Description

V

OUT

1

V

CC

S1

2

GND

3

CTRL

2.5 V

TEA1507

M-level

burst detect

−1

MANAGEMENT

internal

supply

VOLTAGE

CONTROLLED

OSCILLATOR

FREQUENCY

CONTROL

TEMPERATURE

PROTECTION

POWER-ON

SUPPLY

UVLO start

OVER-

RESET

MAXIMUM

ON-TIME

PROTECTION

UVLO

LOGIC

SQ

R

START-UP

CURRENT SOURCE

VALLEY

Q

short

winding

100 mV

PROTECTION

DRIVER

LEB

blank

OCP

OVER-

VOLTAGE

0.75 V

clamp

OVERPOWER PROTECTION

Figure 9-7

9.6.1 Introduction

The supply is a Switching Mode Power Supply (SMPS). The frequency of operation varies with the circuit load. This ‘Quasi- Resonant Flyback’ behaviour has some important benefits compared to a ‘hard switching’ fixed frequency Flyback converter. The efficiency can be improved up to 90%, which results in lower power consumption. Moreover the supply runs cooler and safety is enhanced. The power supply starts operating when a DC voltage goes from the rectifier bridge via T5520, R3532 to pin 8. The operating voltage for the driver circuit is also taken from the ‘hot’ side of this transformer. The switching regulator IC7520 starts switching the FET ‘on’ and ‘off’, to control the current flow through the primary winding of transformer 5520. The energy stored in the primary winding during the ‘on’ time is delivered to the secondary windings during the ‘off’ time. The ‘MainSupply’ line is the reference voltage for the power supply. It is sampled by resistors 3543 and 3544 and fed to the input of the regulator 7540/6540. This regulator drives the feedback optocoupler 7515 to set the feedback control voltage on pin 3 of 7520. The power supply in the set is ‘on’ any time AC power goes to the set.

I

ss

0.5 V

soft

start

S2

CL 16532020_073.eps

060701

8

DRAIN

HVS

7

n.c.

4

DEM

6

DRIVER

5

I

sense

Figure 9-6

CL 16532020_074.eps

120401

Derived Voltages

The voltages supplied by the secondary windings of T5520 are:

•‘MainAux’ for the audio circuit (voltage depends on set execution, see table below),

• 3.3 V and 3.9 V for the microprocessor and

•‘MainSupply’ for the horizontal output (voltage depends on

set execution, see table below).

Other supply voltages are provided by the LOT. It supplies +50 V (only for large screen sets), +13 V, +8 V, +5 V and a +200 V source for the video drive. The secondary voltages of the LOT are monitored by the ‘EHTinformation’ lines. These lines are fed to the video processor part of the UOC IC7200 on pins 11 and 34. This circuit will shut ‘off’ the horizontal drive in case of overvoltage or excessive beam current.

Circuit Description

EN 55L01H.2E 9.

Mains AC Input

A1

Degaussing Control Circuit

A1

Main Power Supply

+3.9V +3.3V

Main Supply

Main Aux

3V3 Reg.

V

IN

C

EHT

A2

Focus VG2 VideoSupply Filament

Lot

VlotAux +13V

VlotAux -13V *VlotAux +50V

VlotAux +5V

+8V

VT_Supply

+6.8V

B1/B2

CRT Panel

A15

Tilt& Rotation

A1

Degaussing Circuit

A2

EW Correction

A2

Horizontal Deflection

A3

Frame Deflection

A4

Tuner

A7

uP

A5

Video Processing

A9

Sound Processing

A11

A8

Audio Amplifier

A10

Source Selection Switch

CL 16532008_004.eps

Vaux

+3.3V +3.9V

Vaux

250401

V

GATE

V

D

I

L

I

IN

V

GATE

L

P

D

C

OUT

n⋅V

OUT

V

D

C

D

n⋅V

OUT

Valley

V

IN

0

Magnetization

0

t

0

Demagneti-

zation

3

2

1

t

2

1

T

4

t

3

CL 16532020_084.eps

t

00

110401

Figure 9-8

6FUHHQ

9ROWDJH

6L]H

QDPH

´

  

´

  

´

´

$OO

 

RWKHUV

  

3RZHUVXSSO\YROWDJHV/

0HDV

SRLQW

9DOXH 5HPDUN

 

 

 

 

 

 











Figure 9-9

Degaussing

When the set is switched on, the degaussing relay 1515 is immediately activated as transistor 7580 is conducting. Due to the RC-time of R3580 and C2580, it will last about 3 to 4 seconds before transistor 7580 is switched off.

9.6.2 Basic IC Functionality

For a clear understanding of the Quasi-Resonant behaviour, it is possible to explain it by a simplified circuit diagram (see Figure below). In this circuit diagram, the secondary side is transferred to the primary side and the transformer is replaced by an inductance L the resonance capacitor C

. CD is the total drain capacitance including

P

, parasitic output capacitor C

R

the MOSFET and the winding capacitance C transformer. The turns ratio of the transformer is represented by n (N

P/NS

).

CL 16532008_063.pdf

of the

W

230501

OSS

of

Figure 9-10

In the Quasi-Resonant mode each period can be divided into four different time intervals, in chronological order:

• Interval 1: t0 < t < t1 primary stroke At the beginning of the first interval, the MOSFET is switched ‘on’ and energy is stored in the primary inductance (magnetisation). At the end, the MOSFET is switched ‘off’ and the second interval starts.

• Interval 2: t1 < t < t2 commutation time In the second interval, the drain voltage will rise from almost zero to V

+n•(V

IN

+VF). VF is the forward voltage drop of de

OUT

diode that will be omitted from the equations from now on. The current will change its positive derivative, corresponding to V corresponding to -n•V

, to a negative derivative,

IN/LP

/LP.

OUT

• Interval 3: t2 < t < t3 secondary stroke In the third interval, the stored energy is transferred to the output, so the diode starts to conduct and the inductive current I

will decrease.

L

In other words, the transformer will be demagnetised. When the inductive current has become zero the next interval begins.

• Interval 4: t3 < t < t00 resonance time In the fourth interval, the energy stored in the drain capacitor C resonate with the inductance L

. The voltage and current

P

will start to

D

waveforms are sinusoidal waveforms. The drain voltage will drop from V

IN

+n•V

to VIN-n•V

OUT

.

Frequency Behaviour

The frequency in the QR-mode is determined by the power stage and is not influenced by the controller (important parameters are L voltage V

IN

and CD). The frequency varies with the input

P

and the output power P

. If the required output

OUT

power increases, more energy has to be stored in the transformer. This leads to longer magnetising t demagnetising t

times, which will decrease the frequency.

SEC

PRIM

and

See the frequency versus output power characteristics below. The frequency characteristic is not only output power-, but also input voltage dependent. The higher the input voltage, the smaller t

, so the higher the frequency will be.

PRIM

EN 56 L01H.2E9.

switching frequency

f

MIN

P2

MAX

V

IN_MAX

V

IN_MIN

P

OUT_MIN

QR frequency characteristics at different input voltages

P

power

Circuit Description

OUT_MAX

CL 16532020_077.eps

Figure 9-11

Point P1 is the minimum frequency f

that occurs at the

MIN

specified minimum input voltage and maximum output power required by the application. Of course the minimum frequency has to be chosen above the audible limit (>20 kHz).

Start-up Sequence

When the rectified AC voltage VIN (via the centre tap connected to pin 8) reaches the Mains dependent operation level (Mlevel: between 60 and 100 V), the internal ‘Mlevel switch’ will be opened and the start-up current source is enabled to charge capacitor C2521 at the V The ‘soft start’ switch is closed when the V 7 V and the ‘soft start’ capacitor C

pin as shown below.

CC

(C2522, between pin 5

SS

reaches a level of

and the sense resistor R3526), is charged to 0.5 V. Once the V

(11 V), the IC starts driving the MOSFET. Both internal

start

capacitor is charged to the start-up voltage V

CC

current sources are switched ‘off’ after reaching this start-up voltage. Resistor R

(3524) will discharge the ‘soft start’

SS

capacitor, such that the peak current will slowly increase. This to prevent ‘transformer rattle’. During start-up, the V

capacitor will be discharged until the

CC

moment that the primary auxiliary winding takes over this voltage.

V

IN

I

V

CC

C

Vcc

in(Vcc)

1

Mlevel

0.5V

2

soft start

+

-

8

I

SS

V

R

SENSE

SS

5

C

SS

V

OCP

R

SENSE

Start-up sequence

V

CC

V

=11V

C

charged

Vcc

by current

V

SENSE

I

L

V

OUT

V

GATE

(start)

≈

7V

τ

= R

Charging of VCC capacitor taken over by the windin g

⋅

C

SS

CL 16532020_078.eps

Figure 9-12

P1

100401

I

L

110401

CC-

The moment that the voltage on pin 1 drops below the ‘under voltage lock out‘ level (UVLO = ± 9 V), the IC will stop switching and will enter a safe restart from the rectified mains voltage.

Operation

The supply can run in three different modes depending on the output power:

• Quasi-Resonant mode (QR) The QR mode, described above, is used during normal operation. This will give a high efficiency.

• Frequency Reduction mode (FR) The FR mode (also called VCO mode) is implemented to decrease the switching losses at low output loads. In this way the efficiency at low output powers is increased, which enables power consumption smaller than 3 W during stand-by. The voltage at the pin 3 (Ctrl) determines where the frequency reduction starts. An external Ctrl voltage of 1.425 V corresponds with an internal VCO level of 75 mV. This fixed VCO level is called V

. The frequency will be

VCO,start

reduced in relation to the VCO voltage between 75 mV and 50 mV (at levels larger than 75 mV, Ctrl voltage < 1.425V, the oscillator will run on maximum frequency f kHz typically). At 50 mV (V

) the frequency is

VCO,max

oscH

= 175

reduced to the minimum level of 6 kHz. Valley switching is still active in this mode.

• Minimum Frequency mode (MinF) At VCO levels below 50 mV, the minimum frequency will remain on 6 kHz, which is called the MinF mode. Because of this low frequency, it is possible to run at very low loads without having any output regulation problems.

V

VCO,start

frequency limit

P

power

CL 16532020_080.eps

OUT_MAX

= 175 kHz

f

oscH

kH

switching frequency

f

oscL

= 6 kHz

MinF FR QR

V

VCO,max

P

OUT_MIN

Multi mode operation

Figure 9-13

Safe-Restart Mode

This mode is introduced to prevent the components from being destroyed during eventual system fault conditions. It is also used for the Burst mode. The Safe-Restart mode will be entered if it is triggered by one of the following functions:

• Over voltage protection,

• Short winding protection,

• Maximum ‘on time’ protection,

reaching UVLO level (fold back during overload),

• V

CC

• Detecting a pulse for Burst mode,

• Over temperature protection.

When entering the Safe-Restart mode, the output driver is immediately disabled and latched. The V charge the V

capacitor anymore and the VCC voltage will

CC

drop until UVLO is reached. To recharge the V internal current source (I

(restart)(VCC)

winding will not

CC

capacitor, the

CC

) will be switched ‘on’ to initiate a new start-up sequence as described before. This Safe-Restart mode will persist until the controller detects no faults or burst triggers.

Standby

The set goes to Standby in the following cases:

• After pressing the ‘standby’ key on the remote control.

• When the set is in protection mode.

100401

R

1

R

2

D

V

CC

windi ng

I

(ovp)(demag)

I

(opp)(demag)

Demag4

Ctrl

Gn

d

Vcc Drain

HVS

Driver

Sens

3

2

1

5

6

7

8

configurat ion

A

B

0V

OUT

S

Vcc

V

N

⋅

IN

P

Vcc

V

N

⋅

Demagnetization

V

GATE

V

WINDING

Magnetization

V

demag

Comparator threshold V

demag

0.7V

0V

-0.25V

Circuit Description

EN 57L01H.2E 9.

In Standby, the power supply works in ‘burst mode’. Burst mode can be used to reduce the power consumption below 1 W at stand-by. During this mode, the controller is active (generating gate pulses) for only a short time and for a longer time inactive waiting for the next burst cycle. In the active period the energy is transferred to the secondary and stored in the buffer capacitor C

in front of the linear

STAB

stabiliser (see Figure below). During the inactive period, the load (e.g. microprocessor) discharges this capacitor. In this mode, the controller makes use of the Safe-Restart mode.

V

IN

V

CC

1

Vcc Drain

2

C

Vcc

Gnd

3

Ctrl

Demag4

Driver

Sense

8

7

HVS

6

5

V

STAB

Linear

C

STAB

stabilizer

Active/ inactive

I

L

V

STAB

V

CC

V

µ

C

t2

t1

t3

Burst mode waveforms

Figure 9-15

Soft start

V

µC

V

(start)

V

(UVLO)

CL 16532020_082.eps

100401

9.6.3 Protection Events

The SMPS IC7520 has the following protection features:

R

1

Current pulse generator

Burst-Mode stand-b y on/off from microprocessor

Demagnetisation sense

This feature guarantees discontinuous conduction mode operation in every situation. The oscillator will not start a new

Basic Burst mode configuration

CL 16532020_081.eps

100401

Figure 9-14

The system enters burst mode standby when the microprocessor activates the ‘Stdby_con’ line. When this line is pulled high, the base of TS7541 is allowed to go high. This is triggered by the current from collector TS7542. When TS7541 turns ‘on’, the opto-coupler (7515) is activated, sending a large current signal to pin 3 (Ctrl). In response to this signal, the IC stops switching and enters a ‘hiccup’ mode. This burst

primary stroke until the secondary stroke has ended. This is to ensure that FET 7521 will not turn on until the demagnetisation of transformer 5520 is completed. The function is an additional protection feature against:

• saturation of the transformer,

• damage of the components during initial start-up,

• an overload of the output.

The demag(netisation) sense is realised by an internal circuit that guards the voltage (Vdemag) at pin 4 that is connected to

winding by resistor R1 (R3522). The Figure below shows

V

CC

the circuit and the idealised waveforms across this winding.

activation signal should be present for longer than the ‘burst blank’ period (typically 30 µs): the blanking time prevents false burst triggering due to spikes. Burst mode standby operation continues until the

e

microcontroller pulls the ‘Stdby_con’ signal low again. The base of TS7541 is unable to go high, thus cannot turn ‘on’. This will disable the burst mode. The system then enters the startup sequence and begins normal switching behaviour.

For a more detailed description of one burst cycle, three time intervals are defined:

• t1: Discharge of V first interval, energy is transferred, which result in a rampup of the output voltage (V When enough energy is stored in the capacitor, the IC will be switched ‘off’ by a current pulse generated at the secondary side. This pulse is transferred to the primary side via the opto coupler. The controller will disable the output driver (safe restart mode) when the current pulse reaches a threshold level of 16 mA into the Ctrl pin. A resistor R

(R3519) is placed in series with the opto

1

coupler, to limit the current going into the Ctrl pin. Meanwhile the V above V

UVLO

• t2: Discharge of V second interval, the V voltage will decrease depending on the load.

• t3: Charge of V interval starts when the UVLO is reached. The internal current source charges the V start capacitor is recharged). Once the V charged to the start-up voltage, the driver is activated and a new burst cycle is started.

when gate drive is active During the

CC

) in front of the stabiliser.

STAB

capacitor is discharged but has to stay

CC

.

when gate drive is inactive During the

CC

is discharged to V

CC

when gate drive is inactive The third

CC

capacitor (also the soft

CC

UVLO

capacitor is

CC

. The output

Figure 9-16

Over Voltage Protection

The Over Voltage Protection ensures that the output voltage will remain below an adjustable level. This works by sensing the auxiliary voltage via the current flowing into pin 4 (DEM) during the secondary stroke. This voltage is a well-defined replica of the output voltage. Any voltage spikes are averaged by an internal filter. If the output voltage exceeds the OVP trip level, the OVP circuit switches the power MOSFET ‘off’. Next, the controller waits until the ‘under voltage lock out‘ level (UVLO = ± 9 V) is reached on pin 1 (V

). This is followed by a

CC

safe restart cycle, after which switching starts again. This process is repeated as long as the OVP condition exists. The output voltage, at which the OVP function trips, is set by the demagnetisation resistor R3522.

Over Current Protection

The internal OCP protection circuit limits the ‘sense’ voltage on pin 5 to an internal level.

EN 58 L01H.2E9.

Circuit Description

Over Power Protection

During the primary stroke, the rectified AC input voltage is measured by sensing the current drawn from pin 4 (DEM). This current is dependent on the voltage on pin 9 of transformer 5520 and the value of R3522. The current information is used to adjust the peak drain current, which is measured via pin

.

I

SENSE

Short Winding Protection

If the ‘sense’ voltage on pin 5 exceeds the short winding protection voltage (0.75 V), the converter will stop switching. Once V

drops below the UVLO level, capacitor C2521 will be

CC

recharged and the supply will start again. This cycle will be repeated until the short circuit is removed (safe restart mode). The short winding protection will also protect in case of a secondary diode short circuit. This protection circuit is activated after the leading edge blanking time (LEB).

LEB time

The LEB (Leading Edge Blanking) time is an internally fixed delay, preventing false triggering of the comparator due to current spikes. This delay determines the minimum ‘on’ time of the controller.

Over Temperature protection

When the junction temperature exceeds the thermal shutdown temperature (typ. 140º C), the IC will disable the driver. When the V

voltage drops to UVLO, the VCC capacitor will be

CC

recharged to the V

voltage will drop again to the UVLO level (Safe-Restart

the V

CC

level. If the temperature is still too high,

(start)

mode). This mode will persist until the junction temperature drops 8 degrees typically below the shutdown temperature.

Mains dependent operation enabling level

To prevent the supply from starting at a low input voltage, which could cause audible noise, a mains detection is implemented (Mlevel). This detection is provided via pin 8, that detects the minimum start-up voltage between 60 and 100 V. As previous mentioned, the controller is enabled between 60 and 100 V. An additional advantage of this function is the protection against a disconnected buffer capacitor (C

). In this case, the

IN

supply will not be able to start-up because the V will not be charged to the start-up voltage.

9.7 Control

User

Interface

Deflection

16:9

Sound

Amplifier

Processing

Tilt

ITV

or

Pip

Expansion

Slot

LED

IR KEYBOARD/

(EW protection

PANORAMA

VOLUME/ MUTE

TREBLE/Tilt

BASS

BUZZ

PANORAMA

ITV-DATA-OUT

ITV-DATA-IN

ITV-CLOCK

RESET

Signal

Processing

uP - Control

Figure 9-17

internal I2C Bus

STATUS 1

STATUS 2

SEL-MAIN-FRNT-RR

POWER_DOWN

STBY_CON

WRITE Enable

SEL-IF-LL/M-TRAP

I2C Bus

capacitor

CC

I/O

Power

Supply

NVM

Tuner / IF

CL 16532016_015.eps

220301

9.7.1 Introduction

The microprocessor part of the UOC has the complete control and teletext on board. User menu, Service Default Mode, Service Alignment Mode and Customer Service Mode are generated by the µP. Communication to other ICs is done via

2

C-bus.

the I

9.7.2 I

2

C-Bus

The main control system, which consists of the microprocessor part of the UOC (7200), is linked to the external devices (tuner, NVM, MSP, etc) by means of the I

2

C-bus. An internal I2C-bus is used to control other signal processing functions, like video processing, sound IF, vision IF, synchronisation, etc.

9.7.3 User Interface

There are two control signals, called ‘KEYBOARD_protn’ and ‘IR’. Users can interact either through the Remote Control

transmitter, or by activation of the appropriate keyboard buttons. The L01 uses a remote control with RC5 protocol. The incoming signal is connected to pin 67 of the UOC. The 'Top Control' keyboard, connected to UOC pin 80, can also control the set. Button recognition is done via a voltage divider. The ‘KEYBOARD_protn’ line, also serves to detect faults in the E/W circuit, which would require the µP to shut down the set (by forcing the power supply in standby mode).

The front LED (6691) is connected to an output control line of the microprocessor (pin 5). It is activated to provide the user information about whether or not the set is working correctly (e.g., responding to the remote control or fault condition)

9.7.4 Sound Interface

There are three control signals, called ‘Volume_Mute’, ‘Treble_Buzzer_Hosp_app’ and ‘Bass_panorama’.

The ‘Volume_Mute’ line controls the sound level output of the audio amplifier or to mute it in case of no video identification or from user command. This line also controls the volume level during set switch ‘on’ and ‘off’ (to prevent audio plop). The ‘Treble’ and ‘Bass’ lines have another functionality: – The ‘Bass_panorama’ line is used to switch the panorama

mode in widescreen sets (to fit 4:3 pictures into a 16:9 display, it is possible to apply a panoramic horizontal distortion, to make a screen-fitting picture without black sidebars or lost video).

– The ‘Treble_Buzzer_Hosp_app’ is used in ITV applications

for other feautures, and in widescreen sets to enable the ‘Tilt’ feature (via R3172 on diagram A8) in the deflection part.

9.7.5 In- and Output Selection

For the control of the input and output selections, there are three lines:

• STATUS1 This signal provides information to the

microprocessor on whether a video signal is available on the SCART1 AV input and output port.

– 0 to 2 V: INTERNAL 4:3 – 4.5 to 7 V: EXTERNAL 16:9 – 9.5 to 12 V: EXTERNAL 4:3

• STATUS2 This signal provides information to the

microprocessor on whether a video signal is available on the SCART2 AV input and output port (signal is low). For sets with an SVHS input, it provides the additional information if a Y/C or CVBS source is present (signal is high). The presence of an external Y/C source makes this line ‘high’ while a CVBS source makes the line ‘low’.

– 0 to 2 V: INTERNAL 4:3 – 4.5 to 7 V: EXTERNAL 16:9

Circuit Description

EN 59L01H.2E 9.

– 9.5 to 12 V: EXTERNAL 4:3

• SEL-MAIN-FRNT-RR This is the ‘source select control’

signal from the microprocessor. This control line is under user control or can be activated by the other two control lines.

9.7.6 Power Supply Control

The microprocessor part is supplied with 3.3 V and 3.9 V both derived from the ‘MainAux’ voltage via a 3V3 stabiliser (7560) and a diode. Two signals are used to control the power supply:

• Stdby_con This signal is generated by the microprocessor

when over-current takes place at the ‘MainAux’ line. This is done to enable the power supply into standby burst mode, and to enable this mode during a protection. This signal is ‘low’ under normal operation conditions and goes to ‘high’ (3.3 V) under ‘standby’ and ‘fault’ conditions.

• POWER_DOWN This signal is generated by the power

supply. Under normal operating conditions this signal is ‘high’ (3.3 V). During ‘standby’ mode, this signal is a pulse train of approx. 10 Hz and a ‘high’ duration of 5 ms. It is used to give information to the UOC about the fault condition in the Audio amplifier supply circuit. This information is generated by sensing the current on the ‘MainAux’ line (using voltage drop across R3564 to trigger TS7562). This signal goes ‘low’ when the DC-current on the ‘MainAux’ line exceeds 1.6 - 2.0 A. It is also used to give an early warning to the UOC about a power failure. Then the information is used to mute the sound amplifier to prevent a switch off noise and to solve the switch-off spot.

9.7.7 Tuner IF

Pin 3 of the UOC (SEL-IF-LL’_M-TRAP), is an output pin to switch the SAW-filter to the appropriate system.

• If UOC pin 3 is ‘low’, the selected system is: – West Europe: PAL B/G, I, SECAM L/L’ – East Europe: PAL B/G – Asia Pacific: NTSC M

• If UOC pin 3 is ‘high’, the selected system is: – West Europe: SECAM L’, L’-NICAM – East Europe: PAL D/K – Asia Pacific: PAL B/G, D/K, I

Note: For West Europe, two separate SAW filters (1002 and

1004) are used for video and audio (Quasi Split Sound

demodulation). For East Europe, one SAW filter (1003) is used for both (Intercarrier demodulation).

9.7.8 Protection Events

Several protection events are controlled by the UOC:

• BC protection, to protect the picture tube from a too high beam current. The UOC has the capability of measuring the normal back level current during the vertical flyback. So if for some reason the CRT circuit is malfunctioning (i.e. high beam current), the normal black current will be out of the 75 µA range, and the UOC will trigger the power supply to shut down. However, this is a high beam-current situation, the TV screen will be bright white before the set is shut down.

• I2C protection, to check whether all I functioning.

In case one of these protections is activated, the set will go into ‘standby’. The ‘on’ and ‘standby’ LEDs are controlled via the UOC.

2

C IC's are

9.8 Abbreviation list

2CS 2 Carrier (or Channel) Stereo ACI Automatic Channel Installation:

algorithm that installs TV sets directly from cable network by means of a

predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AFT Automatic Fine Tuning AGC Automatic Gain Control: algorithm that

controls the video input of the

featurebox AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ATS Automatic Tuning System AV External Audio Video AVL Automatic Volume Level BC-PROT Beam Current Protection BCL Beam Current Limitation B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BLC-INFORMATION Black current informationrmation BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue teletext CC Closed Caption ComPair Computer aided rePair CRT Cathode Ray Tube or picture tube CSM Customer Service Mode CTI Colour Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronisation DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DBX Dynamic Bass Expander D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFU Direction For Use: description for the

end user DNR Dynamic Noise Reduction DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for dealers to enter

e.g. service mode DVD Digital Versatile Disc EEPROM Electrically Erasable and

Programmable Read Only Memory EHT Extra High Tension EHT-INFORMATION Extra High Tension

informationrmation EU Europe EW East West, related to horizontal

deflection of the set EXT External (source), entering the set via

SCART or Cinch FBL Fast Blanking: DC signal

accompanying RGB signals FILAMENT Filament of CRT FLASH Flash memory FM Field Memory FM Frequency Modulation HA Horizontal Acquisition: horizontal sync

pulse coming out of the HIP

EN 60 L01H.2E9.

Circuit Description

HFB Horizontal Flyback Pulse: horizontal

sync pulse from large signal deflection HP Headphone Hue Colour phase control for NTSC (not

the same as ‘Tint’) I Monochrome TV system. Sound

carrier distance is 6.0 MHz I2C Integrated IC bus IF Intermediate Frequency IIC Integrated IC bus Interlaced Scan mode where two fields are used

to form one frame. Each field contains

half the number of the total amount of

lines. The fields are written in “pairs”,

causing line flicker. ITV Institutional TV LATAM Latin America LED Light Emitting Diode L/L’ Monochrome TV system. Sound

carrier distance is 6.5 MHz. L’ is Band

I, L is all bands except for Band I LNA Low Noise Amplifier LS Large Screen LS Loudspeaker LSP Large signal panel M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MSP Multistandard Sound Processor: ITT

sound decoder MUTE Mute-Line NC Not Connected NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe. NTSC National Television Standard

Committee. Colour system mainly

used in North America and Japan.

Colour carrier NTSC M/N = 3.579545

MHz, NTSC 4.43 = 4.433619 MHz

(this is a VCR norm, it is not

transmitted off-air) NVM Non Volatile Memory: IC containing

TV related data e.g. alignments OB Option Byte OC Open Circuit OSD On Screen Display PAL Phase Alternating Line. Colour system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier PAL M =

3.575612 MHz and PAL N = 3.582056

MHz) PCB Printed Circuit board PIP Picture In Picture PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency POR Power-On Reset Progressive Scan Scan mode where all scan lines are

displayed in one frame at the same

time, creating a double vertical

resolution. PTP Picture Tube Panel (or CRT-panel) RAM Random Access Memory RC Remote Control handset RC5 Remote Control system 5, signal from

the remote control receiver RGB Red Green Blue ROM Read Only Memory SAM Service Alignment Mode SAP Second Audio Program SC Sandcastle: pulse derived from sync

signals S/C Short Circuit SCAVEM Scan Velocity Modulation

SCL Serial Clock SDA Serial Data SDM Service Default Mode SECAM SEequence Couleur Avec Memoire.

Colour system mainly used in France and East Europe. Colour carriers =

4.406250 MHz and 4.250000 MHz SIF Sound Intermediate Frequency SS Small Screen STBY Standby SVHS Super Video Home System SW Software THD Total Harmonic Distortion TXT Teletext µP Microprocessor UOC Ultimate One Chip VA Vertical Acquisition VBAT Main supply voltage for the deflection

stage (mostly 141 V) V-chip Violence Chip VCR Video Cassette Recorder WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound XTAL Quartz crystal YC Luminance (Y) and Chrominance (C)

signal

10. Spare Parts List

Spare Parts List

EN 61L01H.2E 10.

Mono Carrier [A1-14]

Various

0127 4822 265 11253 FUSE HOLDER 0136 4822 492 70788 FIX IC 0138 4822 492 70788 FIX IC 0149 3104 311 02651 CABLE 9P 0152 3139 121 08841 CABLE 6P 0153 3104 301 09441 CABLE 3P 0154 3119 107 17611 CABLE 5P 0155 3119 107 17541 TREE ASSY SPEAKER 0157 3119 107 17461 CABLE 10P 0160 3119 107 17371 CABLE 6P/220/3P 0162 3119 107 17451 CABLE 7P/220/7P 0168 3119 107 17671 CABLE 4P/280/4P 0172 3104 311 03411 CABLE 0173 3104 311 04181 CABLE 5P/340/5P 0174 3119 107 17281 CABLE 6P/180/4P 0211 4822 265 20723 CABKE 2P3 0212 4822 267 10774 2P MALE 0217 2422 025 12482 CON 6P Male 0217 4822 267 10735 CON 0220 2422 025 04851 CON 3P 0221 4822 267 10966 CON 2P 0222 2422 025 10646 CON 2P Male 0227 2422 025 16383 CON 0229 4822 267 10735 B3B-EH-A 0231 2422 128 02972 SWITCH 0232 4822 267 31014 HEADPHONE SOCKET 0235 4822 267 60385 CON 21P 0236 2422 025 16382 CON 3P Male 0240 2422 025 11244 CON 7P Male 0242 2422 025 17042 CON 7P Male 0243 2422 025 04854 CON 6P Female 0246 4822 267 10734 B5B-EH-A 0246 4822 267 10735 B3B-EH-A 0251 4822 267 10565 4P 0259 2422 025 15848 CON 5P Male 0262 2422 025 16937 CON 3P Female 0265 4822 267 10748 3P 0285 4822 267 10676 1P 1000 2422 542 90111 TUN V+U PLL IEC 1000 3139 147 17401 TUNER UR1316R/A I -3 1002 4822 242 81436 OFWK3953M 1004 2422 549 44341 FILTER 38MHz

1200 4822 242 81712 TPWA04B 1203 4822 242 70665 SFE10,7MS3-A 1500 2422 086 10914 FUSE 4A 250V 1600 4822 276 13775 SWITCH 1601 4822 276 13775 SWITCH 1602 4822 276 13775 SWITCH 1603 4822 276 13775 SWITCH 1660 2422 543 01203 Chrystal 12MHz 1831 4822 242 10769 Christal 18.432MHz



2001 5322 122 32658 22pF 5% 50V 2002 5322 122 32658 22pF 5% 50V 2003 4822 122 33177 10nF 20% 50V 2004 4822 126 13751 47nF 10% 63V 2005 4822 124 40248 10µF 20% 63V 2006 4822 124 80791 470µF 20% 16V 2007 4822 126 14585 100nF 10% 50V 2008 4822 124 40207 100µF 20% 25V 2009 5322 122 32654 63V 22nF 2010 5322 126 10511 1nF 5% 50V 2101 4822 122 33172 390pF 5% 50V 2102 4822 122 33172 390pF 5% 50V 2103 2020 552 96305 4U7 20% 10V 2104 4822 122 33172 390pF 5% 50V 2105 4822 122 33172 390pF 5% 50V 2106 2020 552 96305 4U7 20% 10V 2107 4822 122 33172 390pF 5% 50V 2108 4822 122 33172 390pF 5% 50V 2109 2020 552 96305 4U7 20% 10V 2110 4822 122 33172 390pF 5% 50V 2111 4822 122 33172 390pF 5% 50V 2112 2020 552 96305 4U7 20% 10V 2113 5322 122 32658 22pF 5% 50V 2114 5322 122 32658 22pF 5% 50V 2115 5322 122 32658 22pF 5% 50V 2116 5322 122 32658 22pF 5% 50V 2117 5322 122 32658 22pF 5% 50V 2118 5322 122 32658 22pF 5% 50V 2120 5322 122 32658 22pF 5% 50V

OFWK9656M

2161 4822 124 12392 47µF 20% 16V 2201 4822 126 14585 100nF 10% 50V 2202 4822 126 14585 100nF 10% 50V 2203 4822 126 14585 100nF 10% 50V 2204 4822 126 14585 100nF 10% 50V 2205 4822 126 14076 220nF 25V 2206 4822 126 13693 56pF 1% 63V 2207 5322 126 10184 820P 5% 50V 2208 4822 126 14585 100nF 10% 50V 2209 4822 124 40769 4.7µF 20% 100V 2210 4822 124 41407 0.47µF 20% 63V 2211 4822 126 13482 470nF 20% 16V 2213 5322 122 32654 22nF 10% 63V 2214 5322 122 32654 22nF 10% 63V 2215 5322 122 32654 22nF 10% 63V 2216 4822 124 80791 470µF 20% 16V 2217 5322 122 32654 22nF 10% 63V 2219 4822 126 14076 220nF 25V 2221 4822 126 14585 100nF 10% 50V 2221 5322 122 32654 22nF 10% 63V 2222 4822 122 33177 10nF 20% 50V 2223 5322 122 32448 10pF 5% 63V 2225 4822 126 14076 220nF 25V 2226 5322 126 10465 3.9nF 10% 50V 2227 5322 126 10223 4.7nF 10% 63V 2228 5322 126 10184 820pF 5% 50V 2229 4822 124 40248 10µF 20% 63V 2230 4822 124 40769 4.7µF 20% 100V 2233 5322 126 10184 820pF 5% 50V 2234 4822 126 14585 100nF 10% 50V 2235 5322 122 32331 1nF 10% 100V 2238 5322 126 10511 1nF 5% 50V 2239 5322 126 10511 1nF 5% 50V 2240 5322 126 10511 1nF 5% 50V 2241 4822 126 13344 1.5nF 5% 63V 2242 4822 126 14043 1µF 20% 16V 2243 4822 122 33177 10nF 20% 50V 2244 5322 121 42386 100nF 5% 63V 2245 4822 126 14076 220nF 25V 2246 4822 124 40769 4.7µF 20% 100V 2247 4822 124 80791 470µF 20% 16V 2248 5322 122 32654 22nF 10% 63V 2249 5322 122 32654 22nF 10% 63V 2250 4822 124 22652 2.2µF 20% 50V 2252 5322 126 10511 1nF 5% 50V 2253 5322 126 10511 1nF 5% 50V 2254 4822 051 20008 JUMPER 2254 5322 122 32531 100pF 5% 50V 2400 4822 121 43901 4.7nF 5% 50V 2400 4822 121 51655 47nF 50V 2404 2022 333 00167 560nF 5% 250V 2404 4822 121 10518 390nF 5% 250V 2404 4822 121 10781 470nF 5% 250V 2405 5322 126 10511 1nF 5% 50V 2407 4822 121 70434 11nF 5% 1.6KV 2407 4822 121 70649 9.1nF 5% 1.6KV 2408 4822 122 30103 22nF 80% 63V 2408 4822 122 33449 47nF 30% 50V 2409 4822 124 11575 47µF 20% 160V 2410 2020 021 91577 470µF 20% 16V 2411 5322 121 10472 47µF 25V 2412 2222 347 90236 33nF 10% 100V 2413 4822 124 11565 10µF 20% 250V 2414 4822 124 81145 1000µF 20% 16V 2415 5322 122 32531 100pF 5% 50V 2416 4822 126 12239 560pF 10% 2KV 2416 4822 126 12263 220pF 10% 1KV 2416 4822 126 14237 470pF 10% 2KV 2417 4822 124 81145 1000µF 20% 16V 2418 4822 122 33177 10nF 20% 50V 2419 4822 124 22776 1µF 50V 2420 4822 124 21913 1µF 20% 63V 2421 4822 126 13751 47nF 10% 63V 2422 2020 021 91577 470µF 20% 16V 2423 4822 124 42127 10µF 20% 100V 2424 4822 121 43526 47nF 5% 250V 2424 5322 121 42465 68nF 5% 63V 2471 5322 121 42386 100nF 5% 63V 2472 5322 121 42386 100nF 5% 63V 2473 4822 124 40255 100µF 20% 63V 2475 5322 122 32268 470P 5% 63V 2476 4822 121 42408 220nF 5% 63V 2477 5322 122 32268 470P 5% 63V 2500 4822 126 13589 470nF 275V 2501 4822 126 14153 2.2nF 10% 1KV 2502 4822 126 14153 2.2nF 10% 1KV 2503 4822 124 12439 100µF 20% 400V 2505 4822 126 14153 2.2nF 10% 1KV 2506 4822 126 14153 2.2nF 10% 1KV

2508 4822 122 50116 470pF 10% 1KV 2515 4822 126 14049 1.5nF 20% 250V 2516 4822 126 13867 330P 20% 250V 2520 4822 126 14585 100nF 10% 50V 2521 4822 124 41751 47µF 20% 50V 2522 4822 126 14585 100nF 10% 50V 2523 4822 126 13862 1.5nF 10% 2KV 2525 5322 122 34099 470pF 10% 63V 2526 5322 122 31647 1nF 10% 63V 2527 5322 122 34099 470pF 10% 63V 2540 4822 126 13188 15nF 5% 63V 2560 4822 126 13449 1nF 10% 2KV 2561 4822 124 42336 47µF 20% 160V 2562 5322 122 32331 1nF 10% 100V 2563 5322 121 42386 100nF 5% 63V 2564 2020 012 93057 2200µF 20% 16V 2565 4822 122 50116 470pF 10% 1KV 2566 4822 124 40433 47µF 20% 25V 2567 4822 124 40433 47µF 20% 25V 2569 5322 122 34099 470pF 10% 63V 2601 4822 126 14076 220nF 25V 2602 5322 122 32531 100pF 5% 50V 2606 5322 126 10511 1nF 5% 50V 2607 5322 122 32659 33pF 5% 50V 2608 4822 126 14043 1µF 20% 16V 2609 5322 122 32659 33pF 5% 50V 2611 4822 126 14043 1µF 20% 16V 2612 4822 126 13694 68pF 1% 63V 2613 4822 126 13694 68pF 1% 63V 2615 5322 126 10511 1nF 5% 50V 2616 4822 126 13482 470nF 20% 16V 2618 4822 126 14043 1µF 20% 16V 2619 4822 126 14043 1µF 20% 16V 2691 4822 124 40207 100µF 20% 25V 2801 4822 124 81151 22µF 50V 2804 2020 552 96305 4U7 20% 10V 2805 2020 552 96305 4U7 20% 10V 2831 5322 122 32447 1pF 5% 63V 2832 5322 122 32447 1pF 5% 63V 2833 4822 126 13692 47pF 1% 63V 2834 5322 122 32268 63V 470P 5% 2835 4822 122 33575 220pF 5% 63V 2836 4822 126 13344 1.5nF 5% 63V 2837 4822 124 40769 4.7µF 20% 100V 2838 4822 126 13692 47pF 1% 63V 2839 4822 126 13692 47pF 1% 63V 2840 4822 126 14585 100nF 10% 50V 2841 4822 124 40248 10µF 20% 63V 2842 4822 126 14585 100nF 10% 50V 2843 4822 124 40248 10µF 20% 63V 2844 4822 124 40248 10µF 20% 63V 2845 4822 126 14585 100nF 10% 50V 2846 4822 124 40207 100µF 20% 25V 2849 5322 126 10511 1nF 5% 50V 2850 5322 126 10511 1nF 5% 50V 2851 2020 552 96305 4U7 20% 10V 2852 5322 126 10511 1nF 5% 50V 2853 2020 552 96305 4U7 20% 10V 2854 5322 126 10511 1nF 5% 50V 2855 4822 122 30045 27pF 2% 100V 2856 4822 126 13486 15pF 2% 63V 2857 5322 122 33538 150pF 2% 63V 2858 5322 126 10511 1nF 5% 50V 2859 5322 126 10511 1nF 5% 50V 2860 4822 126 13695 82pF 1% 63V 2887 4822 122 33177 10nF 20% 50V 2894 4822 122 33575 220pF 5% 63V 2895 5322 116 80853 560pF 5% 63V 2897 4822 122 33172 390pF 5% 50V 2898 4822 122 33177 10nF 20% 50V 2902 4822 124 81144 1000µF 16V 2903 4822 124 21913 1µF 20% 63V 2904 4822 126 13482 470nF 20% 16V 2904 4822 126 14043 1µF 20% 16V 2905 5322 126 10511 1nF 5% 50V 2906 4822 126 13482 470nF 20% 16V 2907 5322 126 10511 1nF 5% 50V 2908 4822 124 40248 10µF 20% 63V 2941 4822 124 40248 10µF 20% 63V 2950 5322 122 31863 330pF 5% 63V 2981 4822 124 40248 10µF 20% 63V 2982 5322 122 32268 470P 5% 63V 2983 4822 124 40248 10µF 20% 63V 2984 5322 122 32268 470P 5% 63V



3000 4822 116 52175 100Ω 5% 0.5W 3001 4822 116 52175 100Ω 5% 0.5W

EN 62 L01H.2E10.

Spare Parts List

3002 4822 117 10833 10k 1% 0.1W 3003 4822 117 11139 1k5 1% 0.1W 3005 4822 116 52175 100Ω 5% 0.5W 3006 4822 117 11449 2k2 5% 0.1W 3007 4822 117 11507 6k8 1% 0.1W 3008 4822 117 11449 2k2 5% 0.1W 3010 4822 051 20008 jumper 3010 4822 117 13577 330Ω 1% 1.25W 3011 4822 117 13577 330Ω 1% 1.25W 3101 4822 116 83868 150Ω 5% 0.5W 3102 3198 021 52240 220k 5% 3103 4822 116 83868 150Ω 5% 0.5W 3104 4822 117 10834 47k 1% 0.1W 3105 4822 116 83868 150Ω 5% 0.5W 3106 3198 021 52240 220k 5% 3107 4822 116 83868 150Ω 5% 0.5W 3108 4822 117 10834 47k 1% 0.1W 3109 4822 116 52201 75Ω 5% 0.5W 3110 4822 116 52228 680Ω 5% 0.5W 3111 4822 116 52264 27k 5% 0.5W 3112 4822 117 11507 6k8 1% 0.1W 3113 4822 116 52201 75Ω 5% 0.5W 3114 4822 116 52228 680Ω 5% 0.5W 3115 4822 116 52201 75Ω 5% 0.5W 3116 4822 116 52228 680Ω 5% 0.5W 3117 4822 116 52201 75Ω 5% 0.5W 3118 4822 116 52175 100Ω 5% 0.5W 3119 4822 116 52199 68Ω 5% 0.5W 3120 4822 051 10102 1k 2% 0.25W 3121 4822 116 52201 75Ω 5% 0.5W 3122 4822 116 52176 10Ω 5% 0.5W 3155 4822 116 52195 47Ω 5% 0.5W 3200 4822 116 83881 390Ω 5% 0.5W 3201 4822 116 52175 100Ω 5% 0.5W 3202 4822 116 52175 100Ω 5% 0.5W 3203 4822 116 52175 100Ω 5% 0.5W 3204 4822 050 21003 10k 1% 0.6W 3206 4822 117 10837 100k 1% 0.1W 3207 4822 050 11002 1k 1% 0.4W 3208 4822 117 11503 220Ω 1% 0.1W 3209 4822 117 12521 68Ω 1% 0.1W 3212 4822 051 20471 470Ω 5% 0.1W 3213 4822 051 20561 560Ω 5% 0.1W 3214 4822 116 52175 100Ω 5% 0.5W 3217 4822 051 20334 330k 5% 0.1W 3218 4822 117 11149 82k 1% 0.1W 3219 4822 117 11449 2k2 5% 0.1W 3223 4822 117 11373 100Ω 1% 3226 4822 051 20561 560Ω 5% 0.1W 3227 4822 117 10837 100k 1% 0.1W 3228 4822 116 52234 100k 5% 0.5W 3229 4822 117 11454 820Ω 1% 0.1W 3230 4822 051 10102 1k 2% 0.25W 3230 4822 117 11504 270Ω 1% 0.1W 3231 4822 051 20008 jumper 3231 4822 051 20561 560Ω 5% 0.1W 3232 4822 117 11449 2k2 5% 0.1W 3233 4822 117 11454 820Ω 1% 0.1W 3234 4822 117 10361 680Ω 1% 0.1W 3235 4822 116 52175 100Ω 5% 0.5W 3236 4822 051 20154 150k 5% 0.1W 3236 4822 117 10837 100k 1% 0.1W 3237 4822 051 20122 1k2 5% 0.1W 3237 4822 117 13577 330Ω 1% 1.25W 3238 4822 051 20561 560Ω 5% 0.1W 3238 4822 117 11504 270Ω 1% 0.1W 3239 4822 117 11504 270Ω 1% 0.1W 3239 4822 117 13577 330Ω 1% 1.25W 3240 4822 117 10837 100k 1% 0.1W 3241 4822 051 20223 22k 5% 0.1W 3242 4822 117 11383 12k 1% 0.1W 3244 4822 116 52231 820Ω 5% 0.5W 3245 4822 051 20393 39k 5% 0.1W 3246 4822 117 10833 10k 1% 0.1W 3247 3198 021 52240 220k 5% 3248 4822 051 20273 27k 5% 0.1W 3249 4822 116 52231 820Ω 5% 0.5W 3251 4822 116 52175 100Ω 5% 0.5W 3254 4822 051 20105 1M 5% 0.1W 3256 4822 051 10102 1k 2% 0.25W 3257 4822 051 20106 10M 5% 0.1W 3258 4822 051 20334 330k 5% 0.1W 3259 4822 051 20474 470k 5% 0.1W 3261 4822 117 13577 330Ω 1% 1.25W 3403 4822 053 12229 22Ω 5% 3W 3404 4822 052 10688 6Ω8 5% 0.33W 3405 4822 117 11824 2k2 5% 3406 4822 050 21003 10k 1% 0.6W 3408 4822 116 52303 8k2 5% 0.5W 3410 4822 051 20333 33k 5% 0.1W 3411 4822 052 10109 10Ω 5% 0.33W 3412 4822 050 23903 39k 1% 0.6W 3413 4822 117 10833 10k 1% 0.1W 3414 4822 050 21203 12k 1% 0.6W

3415 4822 050 11002 1k 1% 0.4W 3416 4822 052 11398 3Ω9 5% 0.5W 3417 4822 050 23303 33k 1% 0.6W 3418 4822 051 20333 33k 5% 0.1W 3419 4822 117 11507 6k8 1% 0.1W 3420 4822 051 20333 33k 5% 0.1W 3421 4822 053 11688 6Ω8 5% 2W 3422 4822 117 11373 100Ω 1% 3423 4822 117 11454 820Ω 1% 0.1W 3424 4822 116 52175 100Ω 5% 0.5W 3425 4822 116 52238 12k 5% 0.5W 3425 4822 116 52251 18k 5% 0.5W 3426 4822 051 20105 1M 5% 0.1W 3427 4822 116 52238 12k 5% 0.5W 3428 4822 052 11399 39Ω 5% 0.5W 3429 4822 116 52269 3k3 5% 0.5W 3430 4822 116 52244 15k 5% 0.5W 3431 4822 051 10102 1k 2% 0.25W 3431 4822 051 20562 5k6 5% 0.1W 3431 4822 117 11373 100Ω 1% 3432 4822 116 52186 22Ω 5% 0.5W 3435 4822 100 12159 100k 30% 3436 4822 052 10478 4Ω7 5% 0.33W 3471 4822 050 23308 3Ω3 1% 0.6W 3471 4822 050 23908 3Ω9 1% 0.6W 3471 4822 050 24708 4Ω7 1% 0.6W 3472 4822 050 23908 3Ω9 1% 0.6W 3472 4822 050 25608 5Ω6 1% 0.6W 3472 4822 050 26808 6Ω8 1% 0.6W 3473 4822 050 22202 2k2 1% 0.6W 3474 4822 050 11002 1k 1% 0.4W 3475 4822 050 22202 2k2 1% 0.6W 3476 4822 052 10158 1Ω5 5% 0.33W 3477 4822 116 83872 220Ω 5% 0.5W 3478 4822 116 83872 220Ω 5% 0.5W 3479 4822 050 11002 1k 1% 0.4W 3500 4822 053 21335 3M3 5% 0.5W 3501 4822 053 21335 3M3 5% 0.5W 3504 2120 660 90043 PTC 9Ω 200V 100R 3506 4822 116 83872 220Ω 5% 0.5W 3507 4822 252 11215 DSP301N-A21F 3519 4822 116 83876 270Ω 5% 0.5W 3520 4822 051 20122 1k2 5% 0.1W 3521 4822 050 24708 4Ω7 1% 0.6W 3521 4822 116 52186 22Ω 5% 0.5W 3522 4822 051 20334 330k 5% 0.1W 3523 4822 052 10101 100Ω 5% 0.33W 3523 4822 052 10479 47Ω 5% 0.33W 3524 4822 117 11148 56k 1% 0.1W 3525 4822 051 10102 1k 2% 0.25W 3526 2120 106 90636 MTL 1W 0Ω18 5% 3526 3198 012 11570 1W 0Ω15 5% 3527 4822 052 10222 2k2 5% 0.33W 3528 4822 117 10833 10k 1% 0.1W 3529 4822 117 10834 47k 1% 0.1W 3530 4822 051 20472 4k7 5% 0.1W 3531 4822 051 20008 jumper 3541 4822 051 20471 470Ω 5% 0.1W 3542 4822 117 11139 1k5 1% 0.1W 3543 4822 050 28203 82k 1% 0.6W 3544 4822 050 26802 6k8 1% 0.6W 3545 4822 117 11149 82k 1% 0.1W 3547 4822 117 11342 0Ω33 5% 2W 3548 4822 051 20822 8k2 5% 0.1W 3549 4822 116 83872 220Ω 5% 0.5W 3550 4822 053 12103 10k 5% 3W 3558 4822 053 10331 330Ω 5% 1W 3560 4822 116 52195 47Ω 5% 0.5W 3561 4822 116 83872 220Ω 5% 0.5W 3562 4822 117 10833 10k 1% 0.1W 3563 4822 051 20822 8k2 5% 0.1W 3564 3198 012 21070 2W 0Ω1 100% 3567 4822 117 11449 2k2 5% 0.1W 3568 4822 051 20822 8k2 5% 0.1W 3603 4822 116 52175 100Ω 5% 0.5W 3604 4822 116 52175 100Ω 5% 0.5W 3605 4822 051 20472 4k7 5% 0.1W 3606 4822 116 52256 2k2 5% 0.5W 3607 4822 116 52256 2k2 5% 0.5W 3608 4822 116 52175 100Ω 5% 0.5W 3609 4822 050 11002 1k 1% 0.4W 3610 4822 116 52303 8k2 5% 0.5W 3611 4822 117 11373 100Ω 1% 3612 4822 116 52303 8k2 5% 0.5W 3614 4822 116 52283 4k7 5% 0.5W 3615 4822 050 21003 10k 1% 0.6W 3618 4822 050 21003 10k 1% 0.6W 3622 4822 117 11373 100Ω 1% 3623 4822 051 20472 4k7 5% 0.1W 3624 4822 116 52175 100Ω 5% 0.5W 3625 4822 116 52175 100Ω 5% 0.5W 3626 4822 051 20472 4k7 5% 0.1W 3627 4822 051 20472 4k7 5% 0.1W 3628 4822 117 10833 10k 1% 0.1W

3630 4822 117 11449 2k2 5% 0.1W 3632 4822 051 20008 jumper 3634 4822 116 52175 100Ω 5% 0.5W 3636 4822 117 11373 100Ω 1% 3681 4822 051 20391 390Ω 5% 0.1W 3682 4822 051 20332 3k3 5% 0.1W 3683 4822 051 20391 390Ω 5% 0.1W 3684 4822 051 20561 560Ω 5% 0.1W 3685 4822 051 20561 560Ω 5% 0.1W 3686 4822 117 11139 1k5 1% 0.1W 3691 4822 117 13577 330Ω 1% 1.25W 3692 4822 051 10102 1k 2% 0.25W 3693 4822 117 11503 220Ω 1% 0.1W 3801 4822 116 83872 220Ω 5% 0.5W 3802 4822 050 11002 1k 1% 0.4W 3803 4822 117 10837 100k 1% 0.1W 3804 4822 117 11149 82k 1% 0.1W 3805 4822 051 10102 1k 2% 0.25W 3806 4822 117 10837 100k 1% 0.1W 3807 4822 117 11149 82k 1% 0.1W 3808 4822 050 11002 1k 1% 0.4W 3809 4822 117 11927 75Ω 1% 0.1W 3831 4822 117 10834 47k 1% 0.1W 3832 4822 116 52175 100Ω 5% 0.5W 3833 4822 116 52175 100Ω 5% 0.5W 3836 4822 050 11002 1k 1% 0.4W 3837 4822 116 52175 100Ω 5% 0.5W 3838 4822 051 10102 1k 2% 0.25W 3839 4822 116 52175 100Ω 5% 0.5W 3840 4822 051 20472 4k7 5% 0.1W 3841 4822 051 20822 8k2 5% 0.1W 3842 4822 051 10102 1k 2% 0.25W 3849 4822 051 20471 470Ω 5% 0.1W 3901 4822 051 10102 1k 2% 0.25W 3902 4822 051 20332 3k3 5% 0.1W 3903 4822 051 20332 3k3 5% 0.1W 3903 4822 051 20822 8k2 5% 0.1W 3904 4822 117 10833 10k 1% 0.1W 3905 4822 051 20332 3k3 5% 0.1W 3906 4822 117 10833 10k 1% 0.1W 3907 4822 117 11507 6k8 1% 0.1W 3921 4822 051 20334 330k 5% 0.1W 3922 4822 051 20334 330k 5% 0.1W 3981 4822 116 83876 270Ω 5% 0.5W 3982 4822 116 83876 270Ω 5% 0.5W 4xxx 4822 051 10008 0Ω 5% 0.25W 4xxx 4822 051 20008 0Ω 5% 0.25W



5001 4822 157 51216 5.6µH 5002 2422 535 94639 10U 20% 5003 4822 157 11866 1.8µH 10% 5201 4822 157 11868 2.7µH 5% 5202 4822 157 51462 10µH 10% 5241 4822 157 51462 10µH 10% 5242 4822 157 11706 10µH 5% 5406 4822 157 11539 LIN CORRECTOR COIL 5408 4822 157 71401 27µH 5410 4822 157 71401 27µH 5444 2422 531 02446 DRIVER SC10009-03 5445 4822 140 10669 LOT 1142.5093D 5501 2422 549 44725 MAINS 30mH DMF2430H22 5505 4822 526 10704 100mH 5520 2422 531 02456 S359B4-09 5520 2422 531 02457 SS28010-06 5521 4822 526 10704 100mH 5560 4822 526 10704 100mH 5561 4822 157 52392 27µH 5562 4822 157 11411 100mH 5562 4822 526 10704 100mH 5563 4822 526 10704 100mH 5602 4822 157 11867 5.6µH 5% 5603 4822 157 11867 5.6µH 5% 5604 4822 157 11867 5.6µH 5% 5831 4822 157 11139 6.8µH 5% 5832 4822 157 11139 6.8µH 5% 5833 4822 157 11139 6.8µH 5% 5835 3198 018 31290 12U 10%



6001 4822 130 34142 BZX79-B33 6002 4822 130 11397 BAS316 6004 4822 130 10414 BA792 6201 4822 130 11397 BAS316 6202 4822 130 11397 BAS316 6206 4822 130 11416 PDZ6.8B 6241 4822 130 11416 PDZ6.8B 6402 4822 130 10871 SBYV27-200 6403 9340 559 50112 BY228/24 6404 4822 130 32896 BYD33M

Spare Parts List

EN 63L01H.2E 10.

6405 4822 130 42488 BYD33D 6406 5322 130 34331 BAV70 6407 4822 130 11397 BAS316 6408 4822 130 11397 BAS316 6409 4822 130 42488 BYD33D 6410 4822 130 42488 BYD33D 6411 4822 130 42488 BYD33D 6411 5322 130 81917 SB140 6412 4822 130 42488 BYD33D 6412 5322 130 81917 SB140 6413 4822 130 30621 1N4148 6414 4822 130 34167 BZX79-B6V2 6415 4822 130 11397 BAS316 6416 4822 130 11397 BAS316 6417 4822 130 11551 UDZS10B 6419 4822 130 34173 BZX79-B5V6 6420 4822 130 30862 BZX79-B9V1 6423 4822 130 42488 BYD33D 6471 4822 130 42488 BYD33D 6500 4822 130 31083 BYW55 6501 4822 130 31083 BYW55 6502 4822 130 31083 BYW55 6503 4822 130 31083 BYW55 6520 4822 130 42488 BYD33D 6523 4822 130 30621 1N4148 6540 4822 130 34167 BZX79-B6V2 6541 4822 130 61219 BZX79-B10 6560 9322 127 32682 BYW76-RAS15/10 6561 9322 127 32682 BYW76-RAS15/10 6563 4822 130 11397 BAS316 6564 9322 161 76682 SB340L-7024 6565 5322 130 34331 BAV70 6567 4822 130 11148 UDZ4.7B 6681 4822 130 31983 BAT85 6691 9322 172 20682 LED LTL-102SRHAP 6692 9322 174 42667 IR RECEIVER

6831 4822 130 30621 1N4148 6901 4822 051 20008 JUMP

TOSP4136UH1



7001 4822 130 63732 MMUN2212 7101 4822 130 60511 BC847B 7200 9352 706 22557 TDA9552H/N1/3/0607 7201 4822 130 60511 BC847B 7204 4822 130 60373 BC856B 7206 5322 130 42755 BC847C 7209 5322 130 42718 BFS20 7210 5322 130 42718 BFS20 7241 3198 010 44010 PDTA114ET 7401 9340 547 00215 PDTC143ZT 7402 9340 563 21127 BUT11APX-1200 7403 4822 130 40981 BC337-25 7404 4822 130 41087 BC638 7405 4822 130 60373 BC856B 7406 4822 130 60373 BC856B 7407 4822 130 40823 BD139 7408 4822 130 40823 BD139 7409 4822 130 60373 BC856B 7435 4822 130 40823 BD139 7471 4822 209 13176 TDA9302H 7515 8238 274 02070 TCET1103G 7520 9352 673 56112 IC TEA1507P/N1 7521 9322 160 62687 STP6NC80ZFP 7521 9322 164 04687 STP4NC80ZFP 7522 4822 130 60511 BC847B 7540 4822 130 40959 BC547B 7560 4822 209 15576 LE33CZ 7560 4822 209 16978 LF33CV 7561 9340 547 00215 PDTC143ZT 7562 4822 130 60373 BC856B 7564 4822 130 60373 BC856B 7602 9322 147 25682 M24C16-WBN6 7801 5322 209 11102 HEF4052BT 7803 4822 130 60511 BC847B 7804 4822 130 60511 BC847B 7831 9322 160 79682 MSP3415G-PO-B8 FM 7832 4822 130 60511 BC847B 7833 4822 130 60511 BC847B 7834 4822 130 60511 BC847B 7835 4822 130 60511 BC847B 7901 9322 158 65667 AN7522N

CRT Panel [B]

Various

0156 3119 107 17411 WIRETREE MAIN-SPK

0244 2422 025 04851 CON 3P

STEREO

0245 2422 025 04854 CON 6P Female 0254 2422 500 80076 SOC CRT 9P F N-NECK B 0254 2422 500 80077 SOC CRT V 9P F M-NECK B



2313 4822 122 33216 270pF 5% 50V 2313 4822 122 33575 220pF 5% 63V 2323 4822 122 33172 390pF 5% 50V 2331 4822 122 33172 390pF 5% 50V 2341 2020 558 90571 2N2 10% 1KV 2341 4822 126 14588 2.2nF 10% 1KV 2342 4822 121 70386 47nF 10% 250V 2343 4822 121 70386 47nF 10% 250V



3311 4822 051 20392 3k9 5% 0.1W 3312 4822 117 13577 330Ω 1% 1.25W 3313 4822 051 20109 10Ω 5% 0.1W 3314 4822 053 12183 18k 5% 3W 3316 4822 052 10689 68Ω 5% 0.33W 3317 3198 013 01520 1k5 2% 1/2W 3321 4822 051 20392 3k9 5% 0.1W 3322 4822 117 13577 330Ω 1% 1.25W 3323 4822 051 20109 10Ω 5% 0.1W 3324 4822 053 12183 18k 5% 3W 3326 4822 052 10689 68Ω 5% 0.33W 3327 3198 013 01520 1k5 2% 1/2W 3331 4822 051 20392 3k9 5% 0.1W 3332 4822 117 13577 330Ω 1% 1.25W 3333 4822 051 20109 10Ω 5% 0.1W 3334 4822 053 12183 18k 5% 3W 3336 4822 052 10689 68Ω 5% 0.33W 3337 3198 013 01520 1k5 2% 1/2W 3341 3198 013 01520 1k5 2% 1/2W 3347 4822 052 10221 220Ω 5% 0.33W 3348 3198 013 01520 1k5 2% 1/2W 3349 4822 052 10158 1Ω5 5% 0.33W 3349 4822 052 10188 1Ω8 5% 0.33W 3350 4822 052 10158 1Ω5 5% 0.33W 3350 4822 052 10188 1Ω8 5% 0.33W



5341 4822 157 11672 12µH 5% 5341 4822 157 50965 15µH 5342 4822 526 10704 100mH



6311 4822 130 30842 BAV21 6321 4822 130 30842 BAV21 6331 4822 130 30842 BAV21 6341 4822 130 30842 BAV21 6342 9337 587 20673 BA282 6343 4822 130 10837 UDZS8.2B 6344 4822 051 20008 JUMPER



7311 4822 130 41782 BF422 7312 4822 130 41782 BF422 7313 4822 130 41646 BF423 7321 4822 130 41782 BF422 7322 4822 130 41782 BF422 7323 4822 130 41646 BF423 7331 4822 130 41782 BF422 7332 4822 130 41782 BF422 7333 4822 130 41646 BF423

EPS 4 [F]

Various

1073 3139 137 22222 Ext. Power Supply Module

Clock Module [G]

Various

1076 3119 108 52471 Small digit disp 14" sets 1076 3119 108 52191 Small digit disp

UIR/LS/Vbat Module [H]

Various

C2 2238 586 59812 100N C3 2238 586 59812 100N C6 4822 126 14238 50V 2N2 C7 2238 586 59812 100N C8 2238 586 59812 100N D3 4822 130 10852 BZX284-C6V8 D4 4822 130 10852 BZX284-C6V8 D5 4822 130 10852 BZX284-C6V8 D9 4822 130 10852 BZX284-C6V8 F1 4822 071 54001 19372(400MA) Q1 4822 130 60511 BC847B Q2 4822 130 60373 BC856B Q4 9310 125 00235 N-CHANNEL MOS BSN20 Q5 4822 130 60373 BC856B Q6 4822 130 60511 BC847B Q7 4822 130 60511 BC847B Q9 4822 130 40959 BC547B R2 4822 051 30103 10K 5% 0,062W R3 4822 051 30103 10K 5% 0,062W R4 4822 051 30103 10K 5% 0,062W R5 4822 051 30272 2K7 5% 0,062W R6 4822 051 30101 100R 5% 0,062W R7 4822 051 30101 100R 5% 0,062W R8 4822 051 30102 1K 5% 0,062W R9 4822 051 30471 470R 5% 0,062W U1 9965 000 11573 MOD JACK U2 2422 026 05223 PHONE 1P Female 3.5 ST U3 5322 209 14481 HEF4053BT U4 4822 209 90008 L78M05CP D11 4822 130 34441 BZX79-B22 D12 4822 130 34441 BZX79-B22 Q10 4822 130 41782 BF422 R10 4822 051 30103 10K 5% 0,062W R11 4822 051 30103 10K 5% 0,062W R12 4822 051 30103 10K 5% 0,062W R13 4822 051 30103 10K 5% 0,062W R15 4822 051 30102 1K 5% 0,062W R17 4822 051 30103 10K 5% 0,062W R18 4822 117 13632 100K 1% 0.62W R19 4822 051 30101 100R 5% 0,062W R20 4822 051 30479 47R 5% 0,062W R21 4822 051 30102 1K 5% 0,062W R22 4822 051 30103 10K 5% 0,062W R23 4822 117 13632 100K 1% 0.62W R25 4822 051 30008 JUMPER R26 4822 051 30103 10K 5% 0,062W R29 2322 257 41332 3.3K 5% 5W R30 4822 116 52304 82K 5% 0,5W R31 4822 116 52304 82K 5% 0,5W R32 4822 051 30103 10K 5% 0,062W R33 4822 051 30008 JUMPER RT1 9965 000 11572 RXE030 0237 4822 267 10567 4P 0259 2422 025 16759 CON 5P Male 0262 2422 025 16936 CON 3P Male 1240 2422 025 06353 CON 5P Male 1246 2422 025 16601 CON 3P Male 1251 2422 025 15851 CON 4P Male

SP/LS Module [I]

Various

C1 4822 124 40207 100uF 20% 25V C5 2238 586 59812 100N C6 4822 126 14238 50V 2N2 D1 4822 130 34173 BZX79-B5V6 D2 4822 130 30621 1N4148 D3 4822 130 10852 BZX284-C6V8 D4 4822 130 10852 BZX284-C6V8 D5 4822 130 10852 BZX284-C6V8 D9 4822 130 10852 BZX284-C6V8 Q1 4822 130 60511 BC847B Q6 4822 130 60511 BC847B Q7 4822 130 60511 BC847B Q8 4822 130 60511 BC847B R1 4822 116 83876 270R 5% 0,5W R2 4822 051 30103 10K 5% 0,062W R3 4822 051 30103 10K 5% 0,062W R4 4822 051 30103 10K 5% 0,062W R5 4822 051 30101 100R 5% 0,062W R6 4822 051 30101 100R 5% 0,062W R7 4822 051 30101 100R 5% 0,062W R9 4822 051 30101 100R 5% 0,062W U1 9965 000 11573 JACK 95001-2661 HOR U2 2422 026 05223 PHONE 1P F 3.5 ST

EN 64 L01H.2E10.

D10 4822 130 81637 PMLL4148L D11 4822 130 34441 BZX79-B22 D12 4822 130 34441 BZX79-B22 R11 4822 051 30103 10K 5% 0,062W R12 4822 051 30103 10K 5% 0,062W R13 4822 051 30103 10K 5% 0,062W R20 4822 051 30479 47R 5% 0,062W R21 4822 051 30102 1K 5% 0,062W R22 4822 051 30103 10K 5% 0,062W R23 4822 117 13632 100K 1% 0.62W R24 4822 117 13632 100K 1% 0.62W RT1 9965 000 11572 RXE030 1246 2422 025 16382 CON 3P Male 1251 2422 020 00725 CON 3P Male 1259 4822 265 41391 B9B-EH-A

Interface Module [J]

Various

0217 2422 025 16385 CON 4P Male 0227 2422 025 15849 CON 6P Male 0228 2422 025 16386 CON 5P Male 0237 4822 267 10565 4P 0240 2422 025 11244 CON 7P Male 0242 4822 267 10557 B10B-EH-A 0251 4822 267 10565 4P 0259 2422 025 15848 CON 5P Male 1259 4822 265 41391 B9B-EH-A 1800 3135 010 03531 32PIN CON



2700 3198 017 41050 1µF 10V 2701 4822 126 14305 100nF 10% 16V 2702 3198 017 41050 1µF 10V 2703 4822 124 41584 100µF 20% 10V 2704 3198 017 41050 1µF 10V 2705 4822 122 33761 22pF 5% 50V 2709 4822 126 14305 100nF 10% 16V 2710 4822 126 14305 100nF 10% 16V 2711 4822 122 31765 100pF 2% 63V 2712 4822 122 31765 100pF 2% 63V 2713 4822 126 14305 100nF 10% 16V 2714 4822 126 14238 2N2 50V

Spare Parts List



6701 4822 130 42488 BYD33D 6702 4822 130 83757 MCL4148 6703 4822 130 34233 BZX79-B5V1 6704 4822 130 11666 BZX284-C8V2 6706 4822 130 11666 BZX284-C8V2



7700 4822 130 60511 BC847B 7701 4822 130 60511 BC847B 7705 4822 130 60373 BC856B 7706 4822 130 60511 BC847B 7708 4822 130 60511 BC847B 7710 9322 119 29685 DS1813R-5 7711 4822 130 60511 BC847B 7712 4822 130 60511 BC847B 7715 4822 130 60511 BC847B 7716 4822 130 60511 BC847B 7717 5322 209 73179 74HCT74D 7718 4822 130 60511 BC847B



3700 4822 051 30562 5k6 5% 0.063W 3701 4822 051 30223 22k 5% 0.062W 3702 4822 051 30223 22k 5% 0.062W 3703 4822 051 30759 75Ω 5% 0.062W 3704 4822 051 30472 4k7 5% 0.062W 3706 4822 051 30683 68k 5% 0.062W 3707 4822 051 30103 10k 5% 0.062W 3708 4822 117 12925 47k 1% 0.063W 3710 4822 117 12925 47k 1% 0.063W 3715 4822 051 30101 100Ω 5% 0.062W 3716 4822 051 30103 10k 5% 0.062W 3717 4822 051 30103 10k 5% 0.062W 3718 4822 051 30103 10k 5% 0.062W 3719 4822 051 30562 5k6 5% 0.063W 3720 4822 051 30103 10k 5% 0.062W 3721 4822 051 30472 4k7 5% 0.062W 3722 4822 051 30472 4k7 5% 0.062W 3729 4822 051 30103 10k 5% 0.062W 3731 4822 117 12968 820Ω 5% 0.62W 3733 4822 117 12925 47k 1% 0.063W 3734 4822 117 12925 47k 1% 0.063W 3736 4822 051 30759 75Ω 5% 0.062W 3737 4822 051 30124 120k 5% 0.062W 3738 4822 051 30682 6k8 5% 0.062W 3739 4822 053 11688 6Ω8 5% 2W 3740 4822 116 83872 220Ω 5% 0.5W 3741 4822 051 30102 1k 5% 0.062W 3743 4822 051 30101 100Ω 5% 0.062W 3744 4822 051 30101 100Ω 5% 0.062W 3745 4822 050 21003 10k 1% 0.6W 3746 4822 051 30103 10k 5% 0.062W 3748 4822 051 30103 10k 5% 0.062W 3749 4822 051 30103 10k 5% 0.062W 4xxx 4822 051 10008 0Ω 5% 0.25W 4xxx 4822 051 20008 0Ω 5% 0.25W



5705 4822 157 11149 56µH 5%

Philips L01H.2E Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page Contents Page

1. Technical Specifications, Connections and Chassis Overview

1.1 Technical Specifications

1.2 Connections

1.3 Chassis Overview

2. Safety & Maintenance Instructions, Warnings, and Notes

2.1 Safety Instructions For Repairs

2.3 Warnings

2.4 Notes

2.2 Maintenance Instructions

3. Directions for Use

4. Mechanical Instructions

4.1 Rear Cover Removal

4.2 Service Position Main Panel

4.3 Rear Cover Mounting

5. Service Modes, Error Codes and Fault Finding

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips (Related to CSM)

5.4 Error Buffer

5.5 The Blinking LED Procedure

5.6 Protections

5.7 Repair Tips

6. Block- and Wiring Diagram, Testpoints, I2C, and Supply Voltage Overview

Block Diagram

Wiring Diagram

Testpoint Overview

I2C and Supply Voltage Diagram

7. Schematics and PWB’s

Mono Carrier: Power Supply

Mono Carrier: Line Deflection

Mono Carrier: Frame Deflection

Mono Carrier: Tuner IF

Mono Carrier: Video IF + Sound IF

Mono Carrier: Synchronisation

Mono Carrier: Control

Mono Carrier: Audio Amplifier + Mono Sound Processing

Mono Carrier: NICAM + 2CS + BTSC (Stereo / SAP) Decoder

Mono Carrier: Audio / Video Source Switching

Mono Carrier: Front I/O + Front Control + Headphone

Mono Carrier: Rear I/O SCART

Layout Mono Carrier (Top View)

Layout Mono Carrier (Overview Bottom View)

Layout Mono Carrier (Part 1 Bottom View)

Layout Mono Carrier (Part 2 Bottom View)

Layout Mono Carrier (Part 3 Bottom View)

Layout Mono Carrier (Part 4 Bottom View)

CRT Panel

Layout CRT Panel (Top View)

Layout CRT Panel (Bottom View)

EPS 4 (External Power Supply)

Layout EPS 4 (External Power Supply)

Clock Display

UIR / LS / Vbat Module

Layout UIR / LS / Vbat Module (Top View)

SP/LS Module

Interface Panel

Layout Interface Panel

8. Alignments

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments and Settings

9. Circuit Description

9.1 Introduction

9.2 Audio Signal Processing

9.3 Video Signal Processing

9.4 Synchronisation

9.5 Deflection

9.6 Power Supply

9.7 Control

9.8 Abbreviation list

10. Spare Parts List

Mono Carrier [A1-14]

CRT Panel [B]

EPS 4 [F]

UIR/LS/Vbat Module [H]
