Philips L04.6HU Schematic

Color Television Chassis

L04.6HU

CA

G_16430_000.eps

260406

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 4

3. Directions for Use 6

4. Mechanical Instructions 7

5. Service Modes, Error Codes, and Fault Finding 10

6. Block Diagrams, Test Point Overviews, and

Waveforms

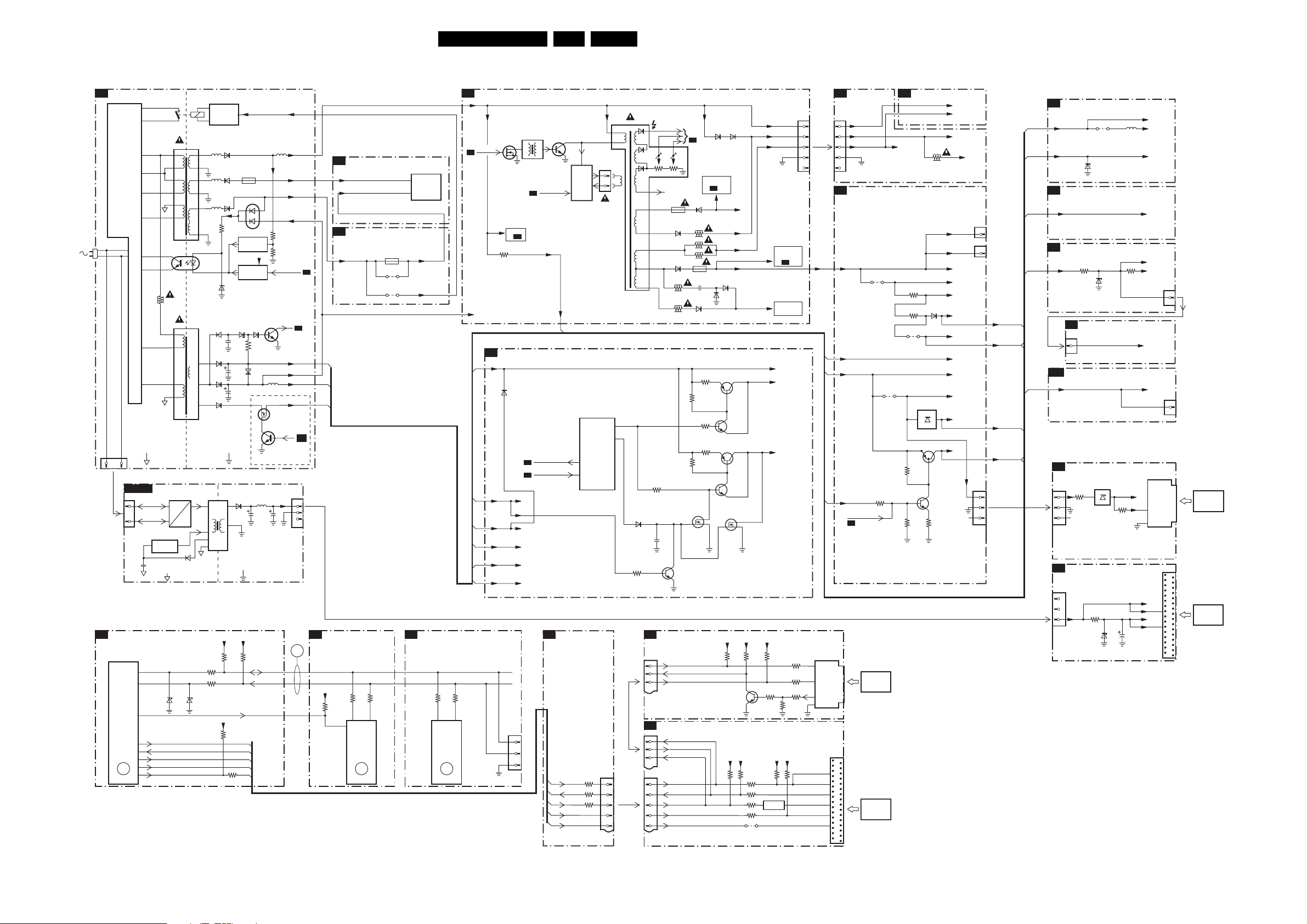

Wiring Diagram 19
Block Diagram Supply and Deflection 20
Testpoint Overview Mono Carrier 21
Block Diagram Video 22
Testpoint Overview CRT Panel 23
Block Diagram Audio/Control 24
I2C and Supply Voltage Overview 25

7. Circuit Diagrams and PWB Layouts Diagram PWB

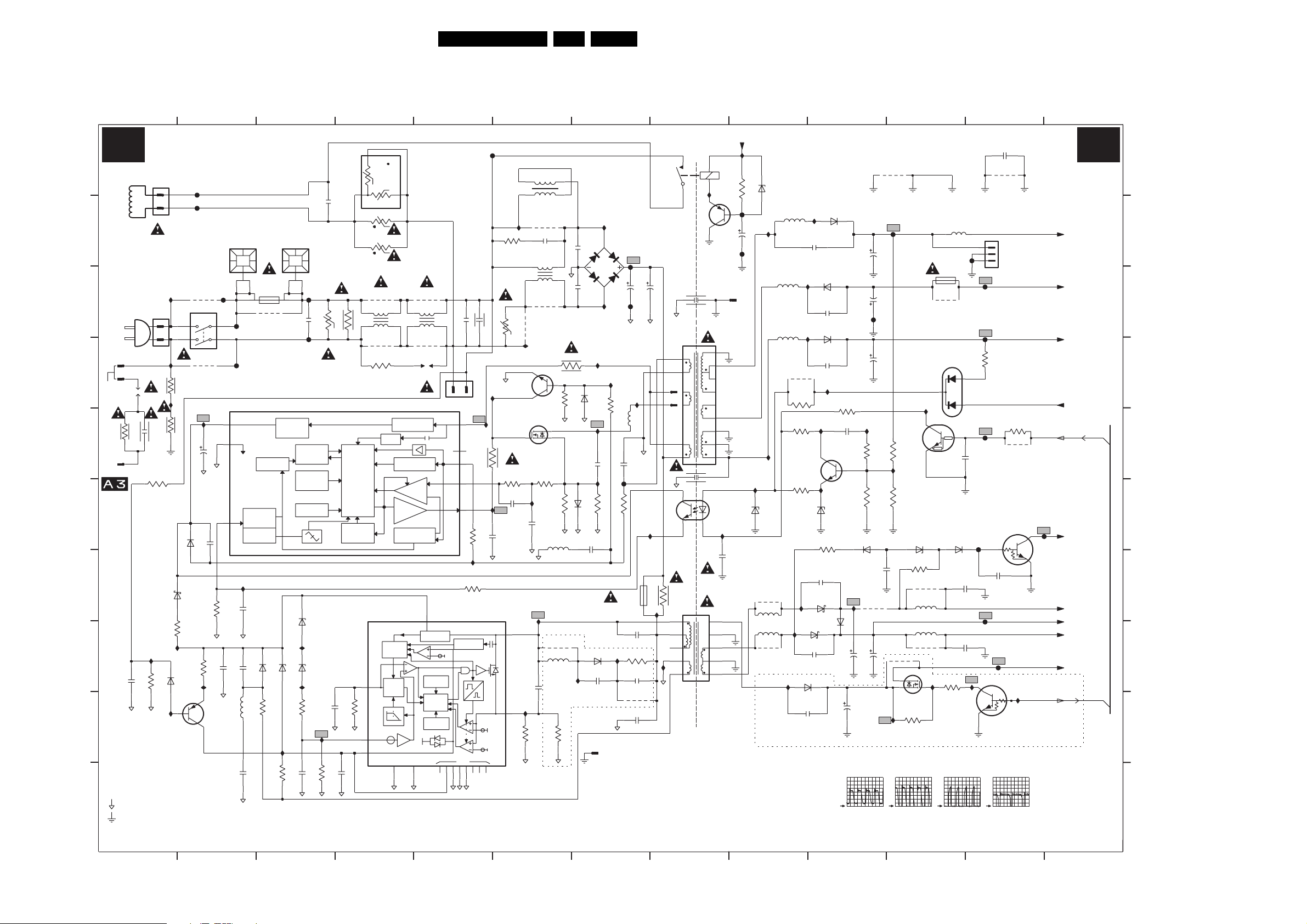

Mono Carrier: Power Supply (A1) 26 38-43
Mono Carrier: Diversity Table for [A1] 27 38-43

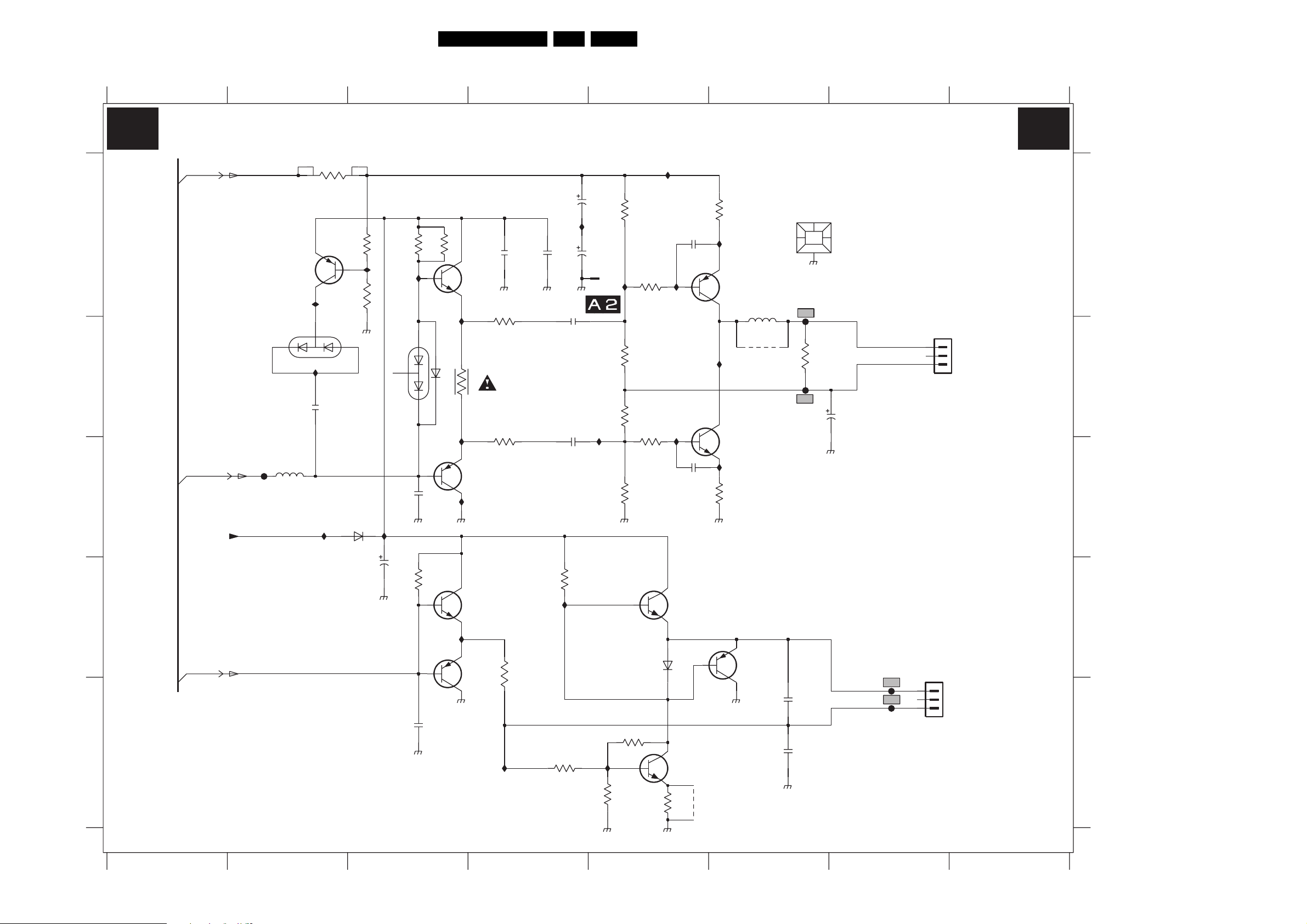

Mono Carrier: Deflection (A2) 28 38-43
Mono Carrier: Diversity Table for [A2] 29 38-43
Mono Carrier: Tuner IF (A3) 30 38-43

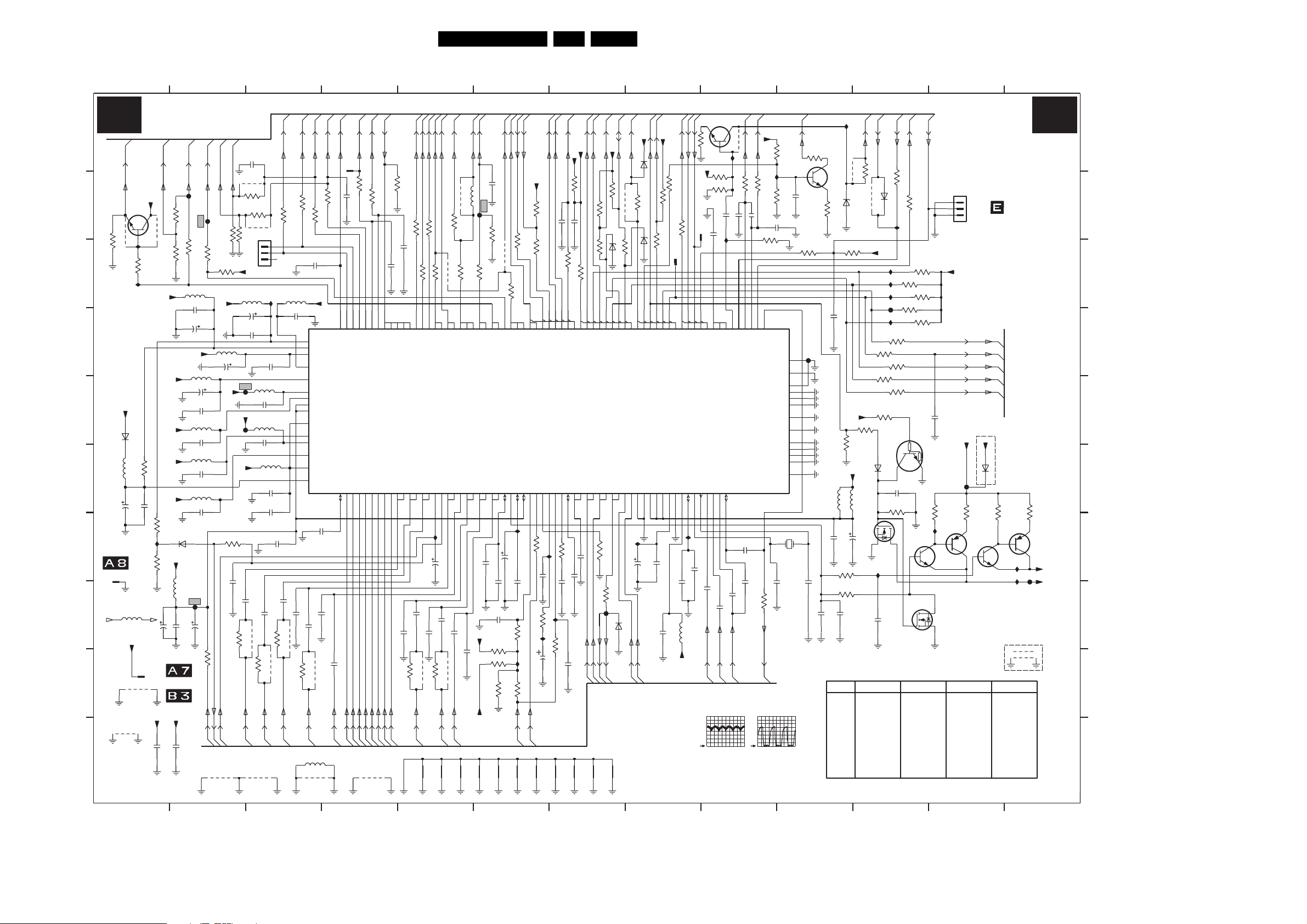

Mono Carrier: Hercules (A4) 31 38-43
Mono Carrier: Features & Connectivity (A5) 32 38-43

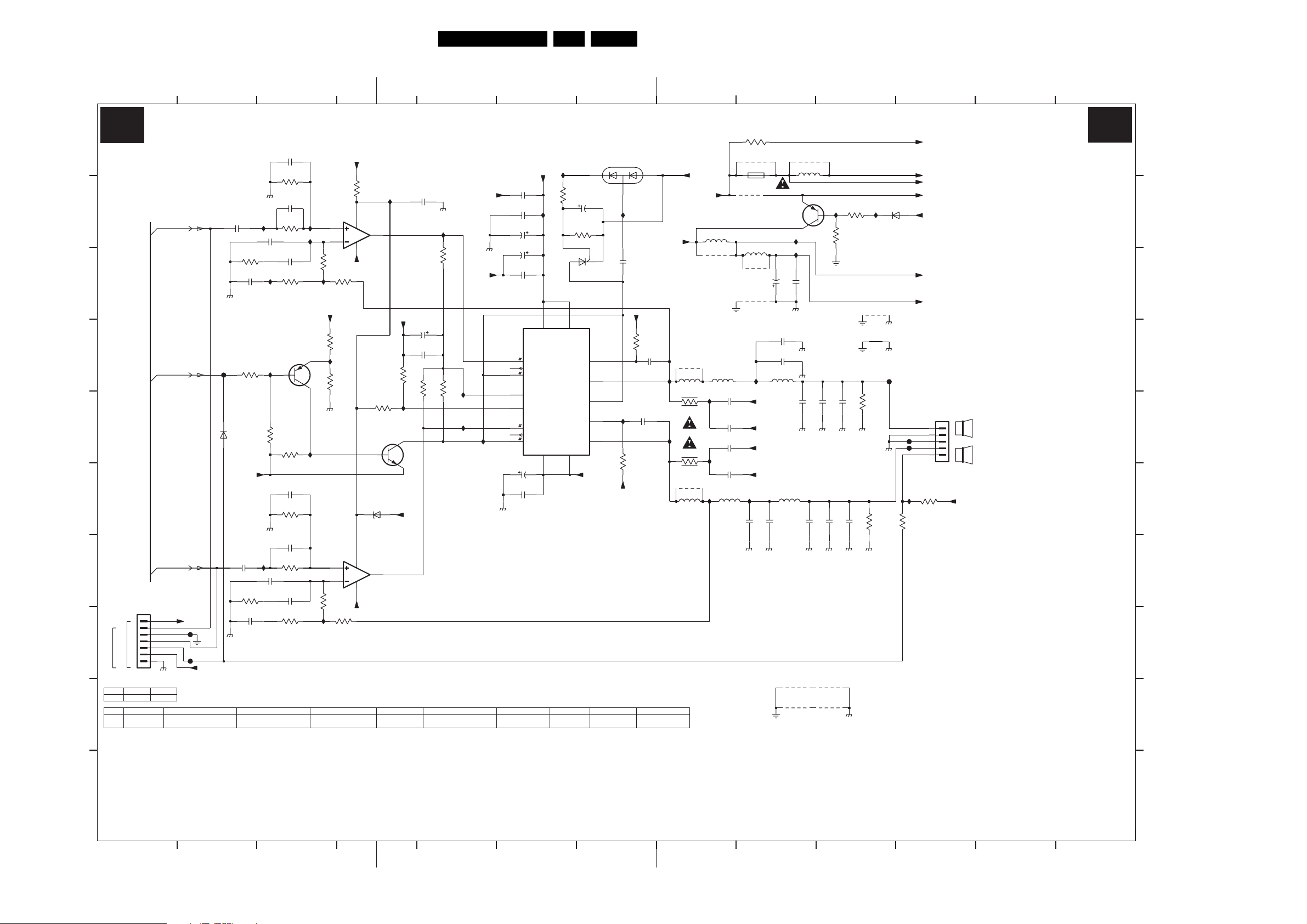

Mono Carrier: Class D - Audio Amplifier (A6) 33 38-43
Mono Carrier: Audio Amplifier (A7) 34 38-43
Mono Carrier: Rear I/O Cinch (A8) 35 38-43
Mono Carrier: Front Control (A9) 36 38-43
Mono Carrier: DVD PSU (optional) (A10) 37 38-43

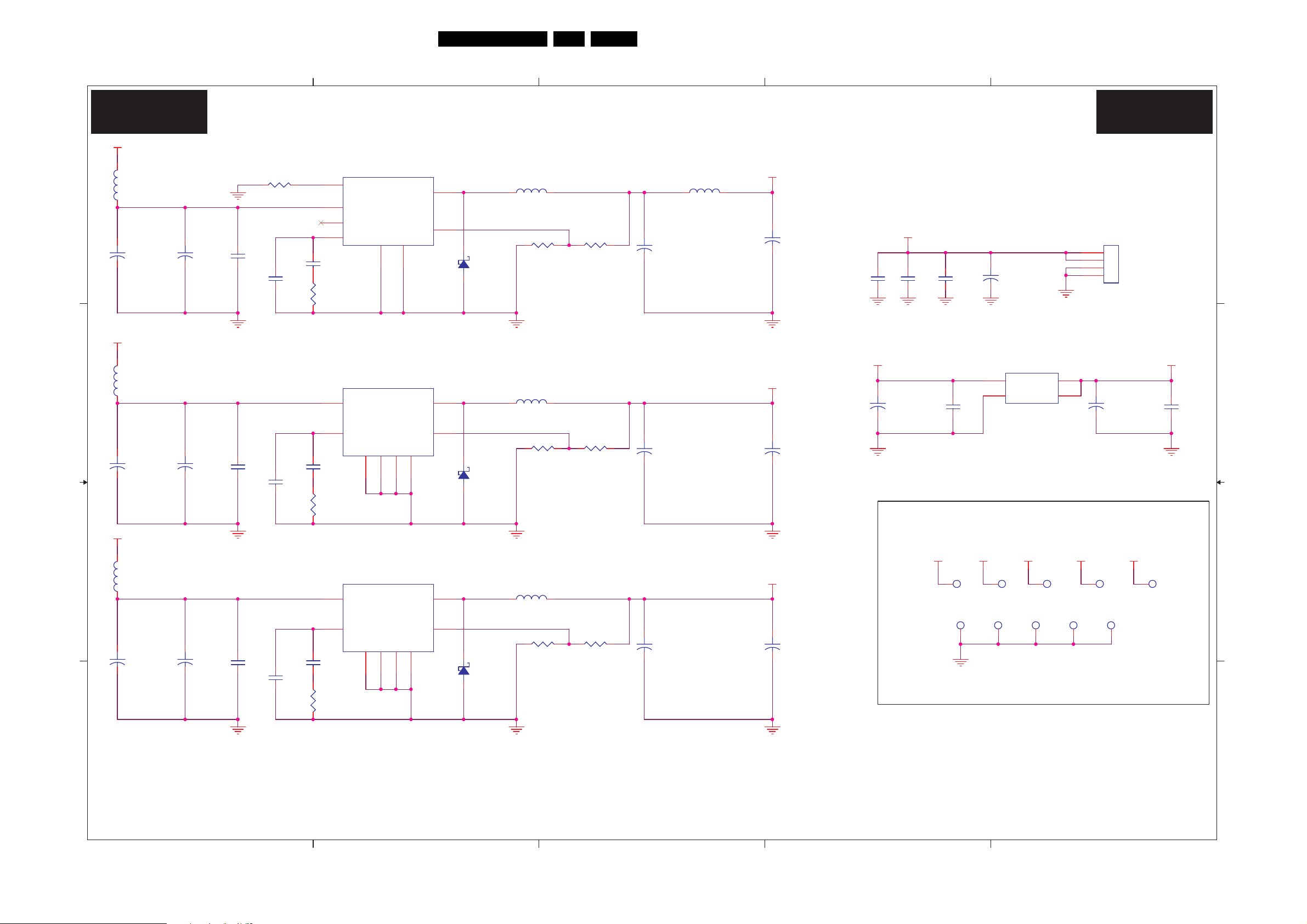

ATSC Panel: Power (ATSC2) 44 54-54
ATSC Panel: Reset, Pads, Spade Lug, I2C
EEPROM (ATSC3) 45 54-54

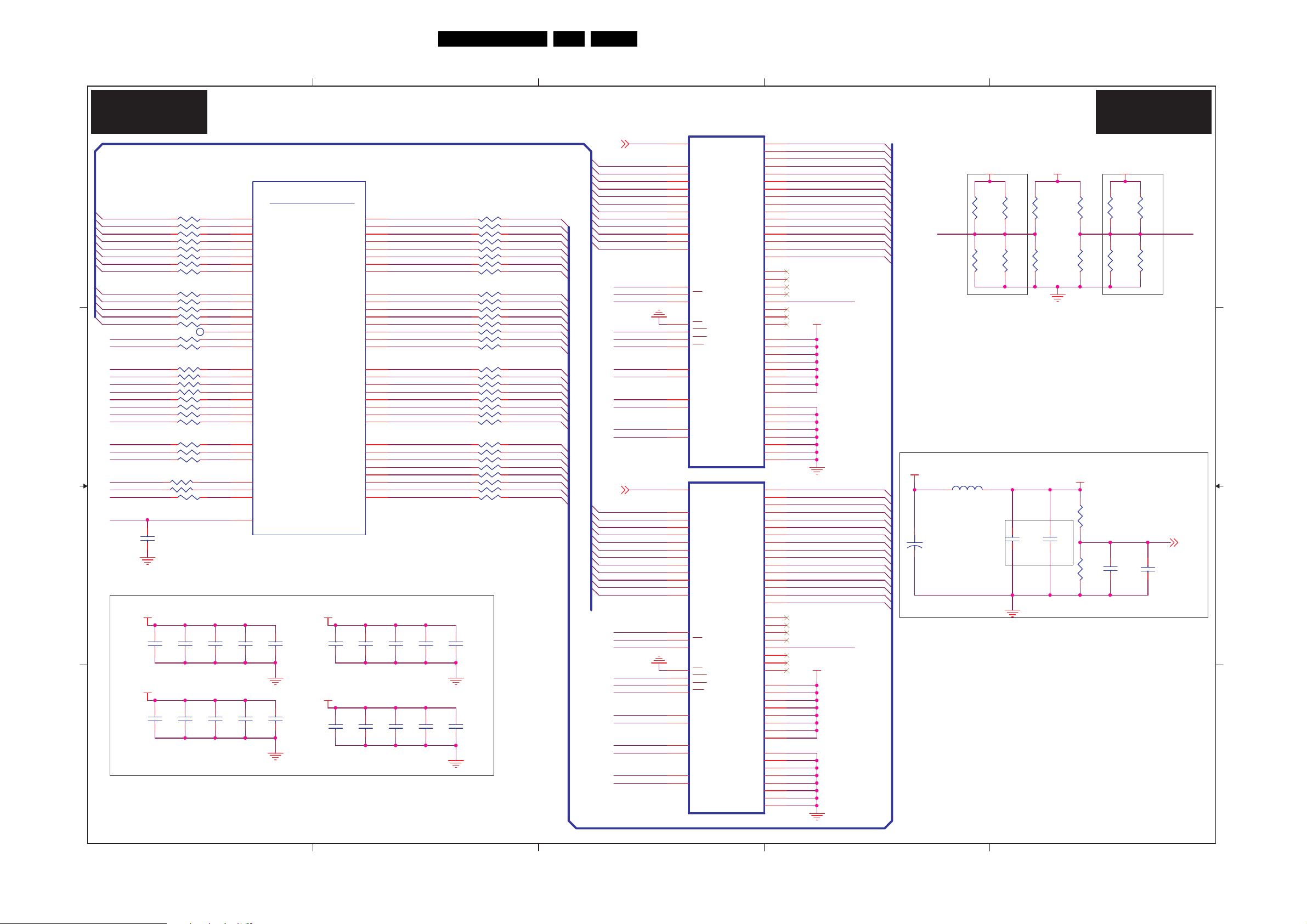

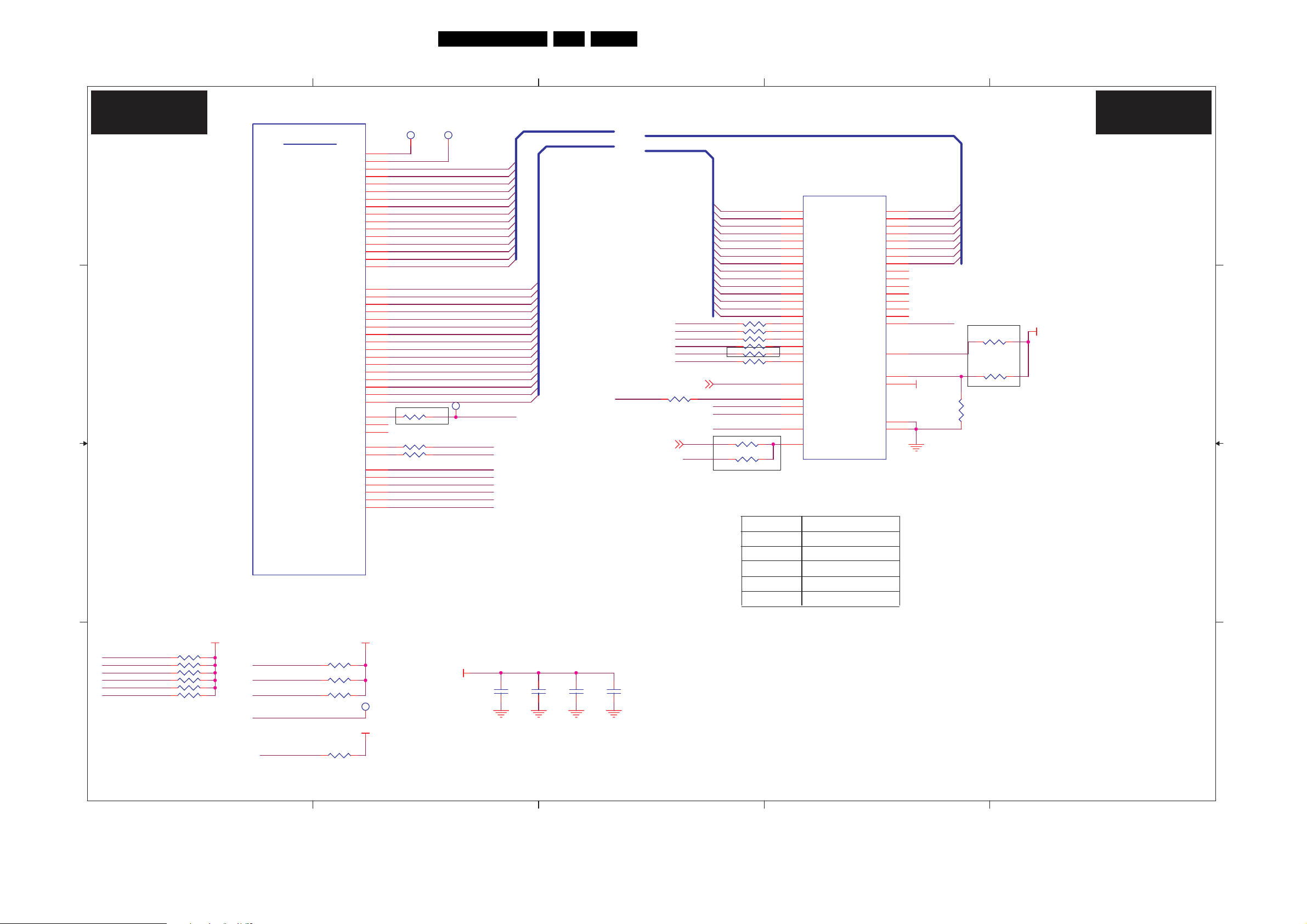

ATSC Panel: DDR SDRAM Interface (ATSC4) 46 54-54
ATSC Panel: Guest Bus & Flash (ATSC5) 47 54-54
ATSC Panel: Tuner (ATSC6) 48 54-54

©

Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

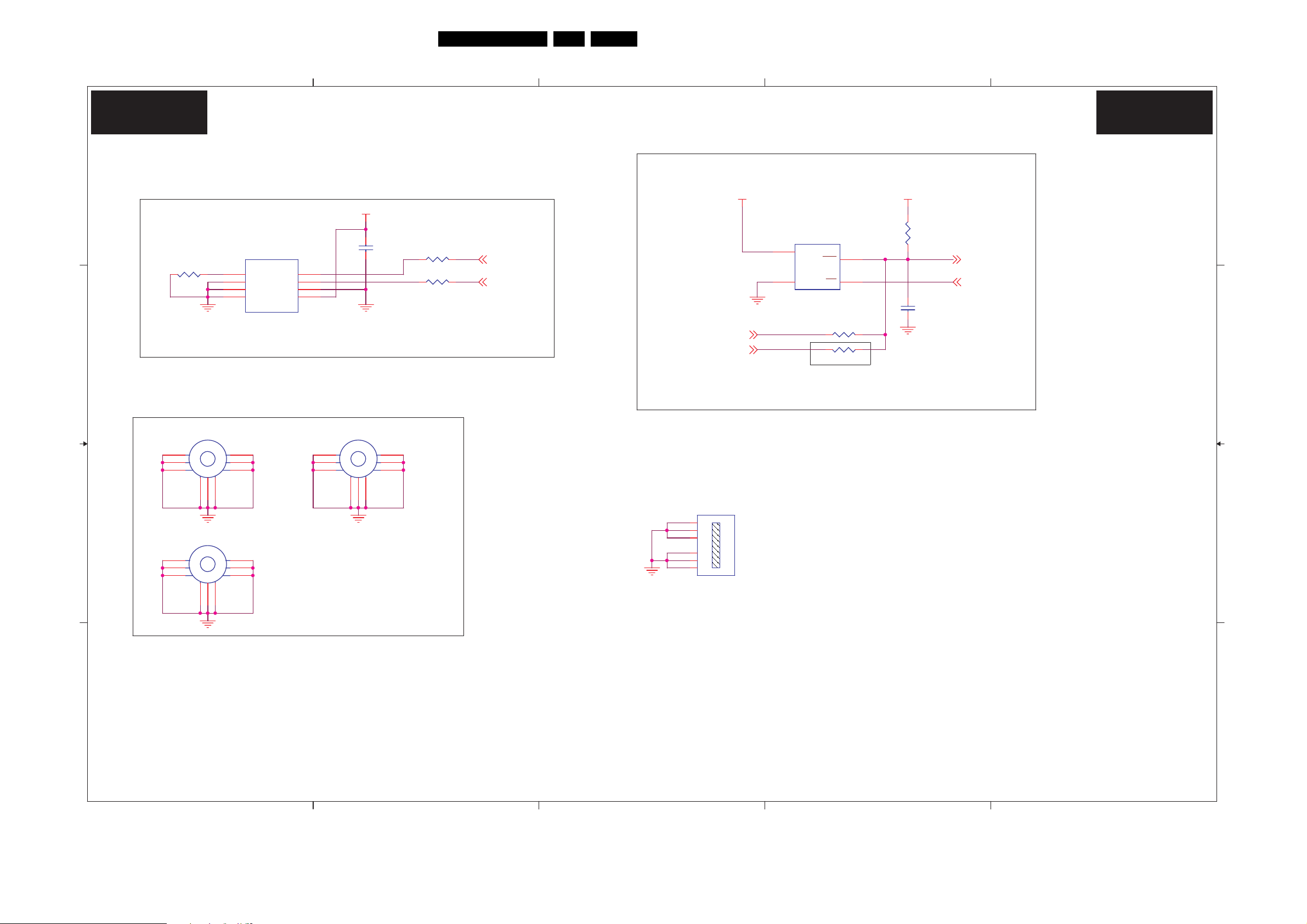

ATSC Panel: Connectors (ATSC7) 49 54-54
ATSC Panel: Video Out (ATSC8) 50 54-54
ATSC Panel: Audio Output (ATSC9) 51 54-54
ATSC Panel: Power & Gnd (ATSC10) 52 54-54
ATSC Panel: YUV Converter (ATSC11) 53 54-54

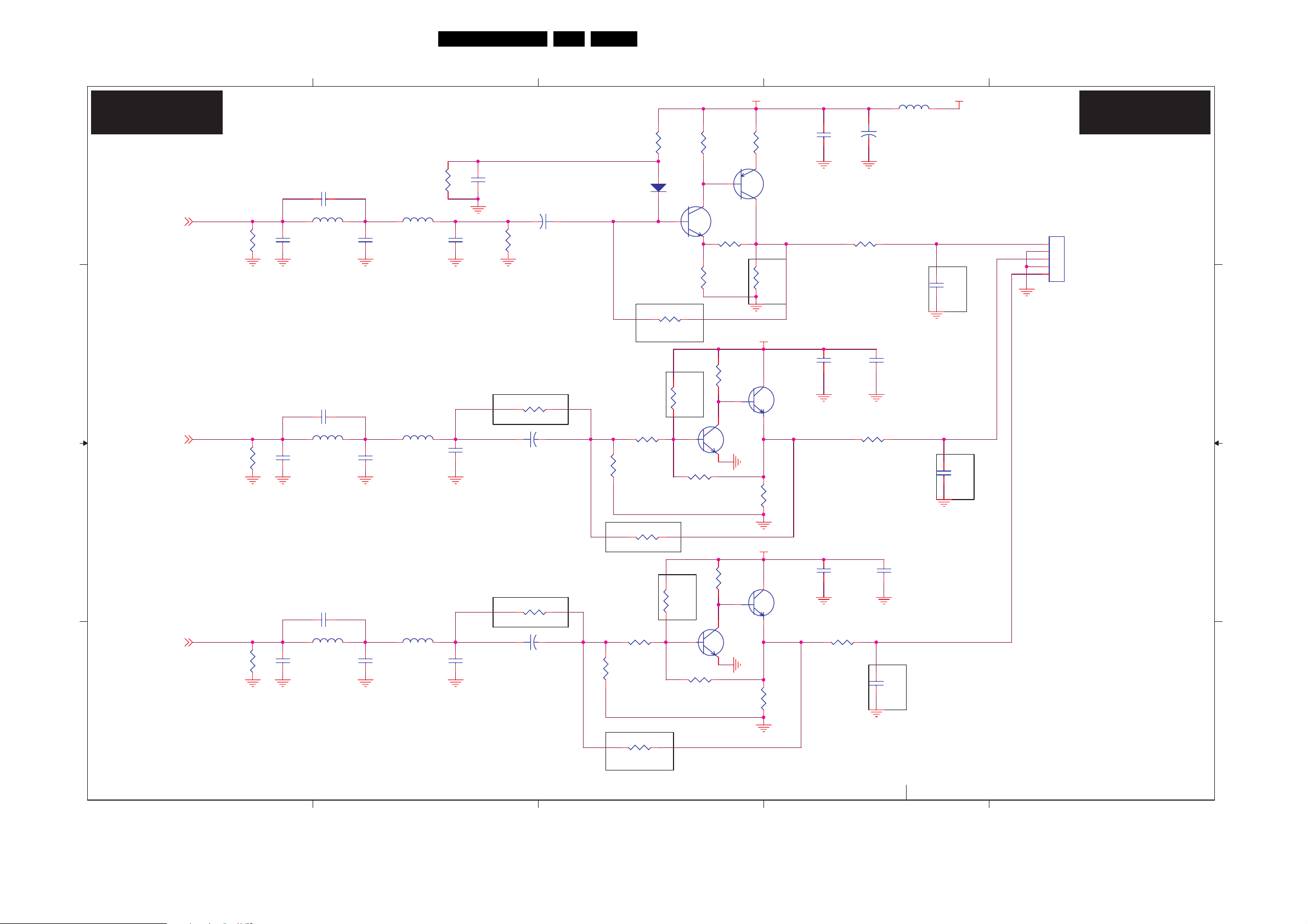

CRT Panel (B1) 55 57-57
CRT Panel: Eco Scavem (B2) 56 57-57
Side AV + Headphone Panel (D) 58 59-59

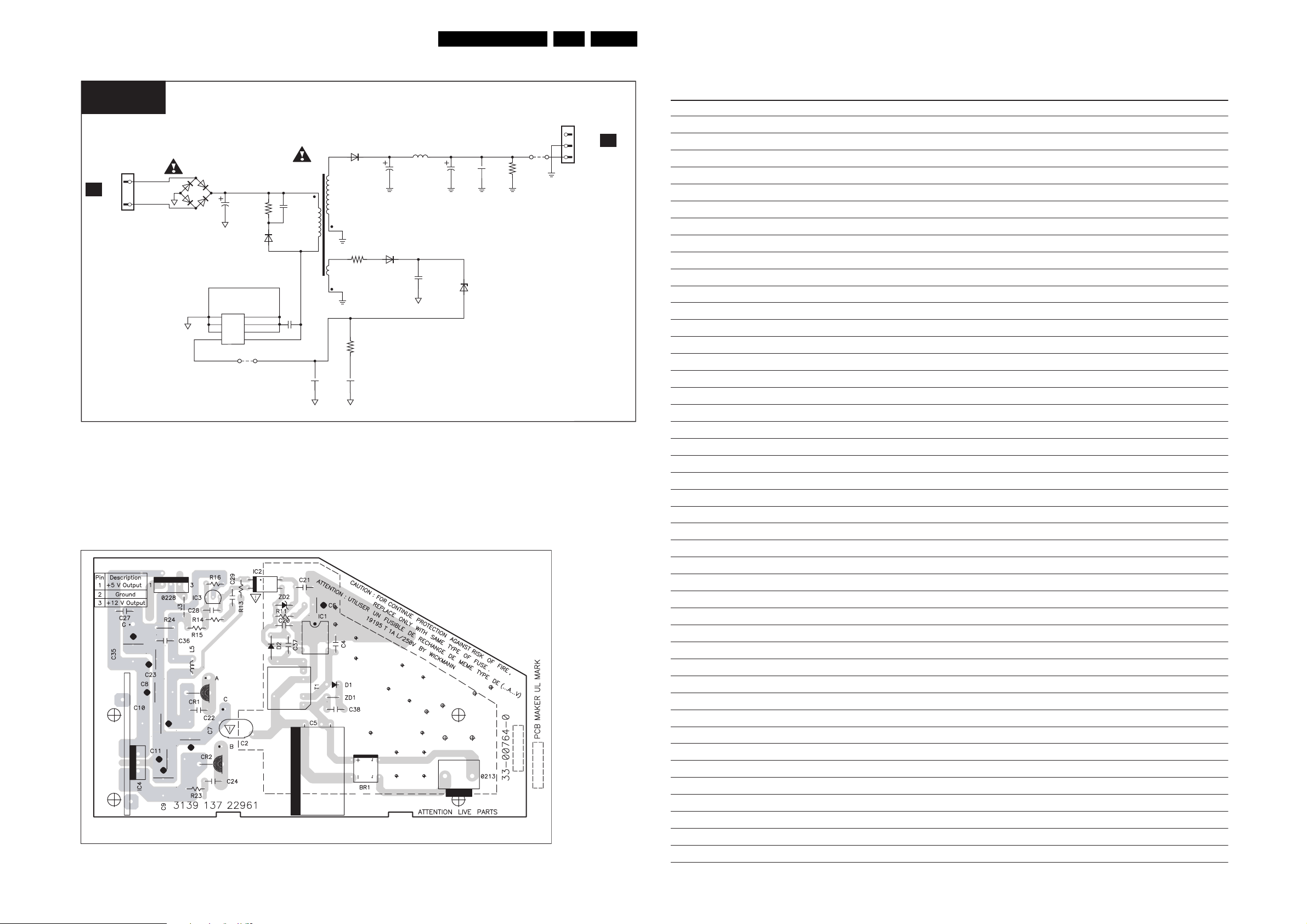

External Supply (EPS1B) 60 60
SP/LS Module (NA-LA) (I1) 61 n.a.
Interface Module (J1) 63 n.a.
Main Switch Panel (For SL5 Styling) (M) 65 66-66

8. Alignments 67

9. Circuit Descriptions, List of Abbreviations, and IC
Data Sheets 74
Abbreviation List 77
IC Data Sheets 78

10. Spare Parts List 79

11. Revision List 80

Published by WS 0665 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16430

EN 2 L04.6HU CA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connections

1.3 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

1.1 Technical Specifications

1.1.1 Vision

Display type : CRT, DV, RF
Screen size : 27”, 4:3
Tuning system : PLL
TV Color systems : ATSC (QAM, 8VSB)

IF picture carrier : 45.75 MHz
Video playback : NTSC

1.1.2 Sound

Sound systems : BTSC
Maximum power (W

) : 2 x 10

RMS

1.1.3 Miscellaneous

:NTSC

1.2 Connections

Note: The following connector color abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.

G_16430_001.eps

210406

Power supply:

- Mains voltage (V

- Mains frequency (Hz) : 60

) : 90 - 140

AC

Ambient conditions:

- Temperature range (°C) : +5 to +40

- Maximum humidity : 90% R.H.

Power consumption (values are indicative)

- Normal operation (W) : ≈ 120

- Stand-by (W) : < 1

1.1.4 Mechanical Styling

Model Number Styling Name

27HT4000D/27 SL3

27HT7210D/27 SL5

In above table the link is shown between the model number and
the (internal) Philips styling number. In this manual, sometimes
a refernce is made to this styling number. For a mechanical
drawing of the model, please check the quarterly published
Product Survey.

Figure 1-1 Connections overview (27HT7210D/27, see also DFU)

1.2.1 Rear Connections

Cinch: S/PDIF - Out

Bk - Coaxial 0.4 - 0.6V

/ 75 ohm kq

PP

Cable/Antenna - In

- - F-type (US) Coax, 75 ohm D

Service Connector (ComPair)

1 -SDA-S I
2-SCL-S I

2

C Data (0 - 5 V) jk

2

C Clock (0 - 5 V) j

3 -Ground Gnd H

Mini Jack: Ext. Bathroom speaker- Out

- External speaker
stereo jack, pins 1-3

RJ11: Smartplug

TM

1-CLOCK
2-DATA IN
3-+ 5 V
4 - DATA OUT
5 - GND
6 - IR DATA

Monitor Out - Cinch: Video CVBS - Out, Audio - Out

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm kq

PP

/10 kohm kq

RMS

/ 10 kohm kq

RMS

AV1 - Cinch: Video YPbPr - In

Gn - Video Y 1 V
Bu - Video Pb 0.7 V
Rd - Video Pr 0.7 V

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

AV1 - Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

Technical Specifications, Connections, and Chassis Overview

EN 3L04.6HU CA 1.

Rd - Audio R 0.5 V

/ 10 kohm jq

RMS

AV2 - Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

AV2 - SVHS (Hosiden): Video Y/C - In

1 - Ground Y Gnd H
2 - Ground C Gnd H

1.3 Chassis Overview

B1

B2

D

ATSC

CRT

ECO
SCAVEM

SIDE AV PANEL +
HEADPHONE

CRT PANEL

ATSC PANEL

3 - Video Y 1 V
4 - Video C 0.3 V

/ 75 ohm j

PP

P / 75 ohm j

PP

1.2.2 Side Connections

Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V
Bk - Head phone 32 - 600 ohm / 10 mW ot

MONO

CARRIER

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

TOP CONTROL PANEL (OPTIONAL)

MAINS SWITCH PANEL (OPTIONAL)

FRONT INTERFACE PANEL

(OPTIONAL)

POWER SUPPLY

LINE DEFLECTION

TUNER IF

HERCULES

FEATURES & CONNECTIVITIES

CLASS D AUDIO AMPLIFIER

AUDIO AMPLIFIER

REAR I/O CINCH

FRONT CONTROL

DVD POWER SUPPLY

E

M

J

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

Figure 1-2 PWB location

G_16430_002.eps

210406

EN 4 L04.6HU CA2.

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

Index of this chapter:

2.1 Safety Instructions

2.2 Maintenance Instructions

2.3 Warnings

2.4 Notes

2.1 Safety Instructions

Safety regulations require that during a repair:

• Due to the chassis concept, a very large part of the circuitry
(incl. deflection) is 'hot'. Therefore, connect the set to the
mains via an isolation transformer.

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

• Wear safety goggles when you replace the CRT.

Safety regulations require that after a repair, you must return
the set in its original condition. Pay, in particular, attention to
the following points:

• General repair instruction: as a strict precaution, we advise
you to re-solder the solder connections through which the
horizontal deflection current is flowing. In particular this is
valid for the:

1. Pins of the line output transformer (LOT).

2. Fly-back capacitor(s).

3. S-correction capacitor(s).

4. Line output transistor.

5. Pins of the connector with wires to the deflection coil.

6. Other components through which the deflection current

flows.
Note: This re-soldering is advised to prevent bad connections
due to metal fatigue in solder connections, and is therefore only
necessary for television sets more than two years old.

• Route the wire trees and EHT cable correctly and secure

them with the mounted cable clamps.

• Check the insulation of the mains cord for external

damage.

• Check the strain relief of the mains cord for proper function,

to prevent the cord from touching the CRT, hot
components, or heat sinks.

• Check the electrical DC resistance between the mains plug

and the secondary side (only for sets that have an isolated
power supply). Do this as follows:

1. Unplug the mains cord and connect a wire between the
two pins of the mains plug.

2. Turn on the main power switch (keep the mains cord
unplugged!).

3. Measure the resistance value between the pins of the
mains plug and the metal shielding of the tuner or the
aerial connection of the set. The reading should be
between 4.5 MΩ and 12 MΩ.

4. Switch the TV 'off' and remove the wire between the
two pins of the mains plug.

• Check the cabinet for defects, to prevent the possibility of
the customer touching any internal parts.

1. Perform the 'general repair instruction' noted above.

2. Clean the power supply and deflection circuitry on the
chassis.

3. Clean the picture tube panel and the neck of the picture
tube.

2.3 Warnings

• In order to prevent damage to ICs and transistors, avoid all
high voltage flashovers. In order to prevent damage to the
picture tube, use the method shown in Fig. 2-1, to
discharge the picture tube. Use a high voltage probe and a
multi-meter (position V_dc). Discharge until the meter
reading is 0 V (after approx. 30 s).

V

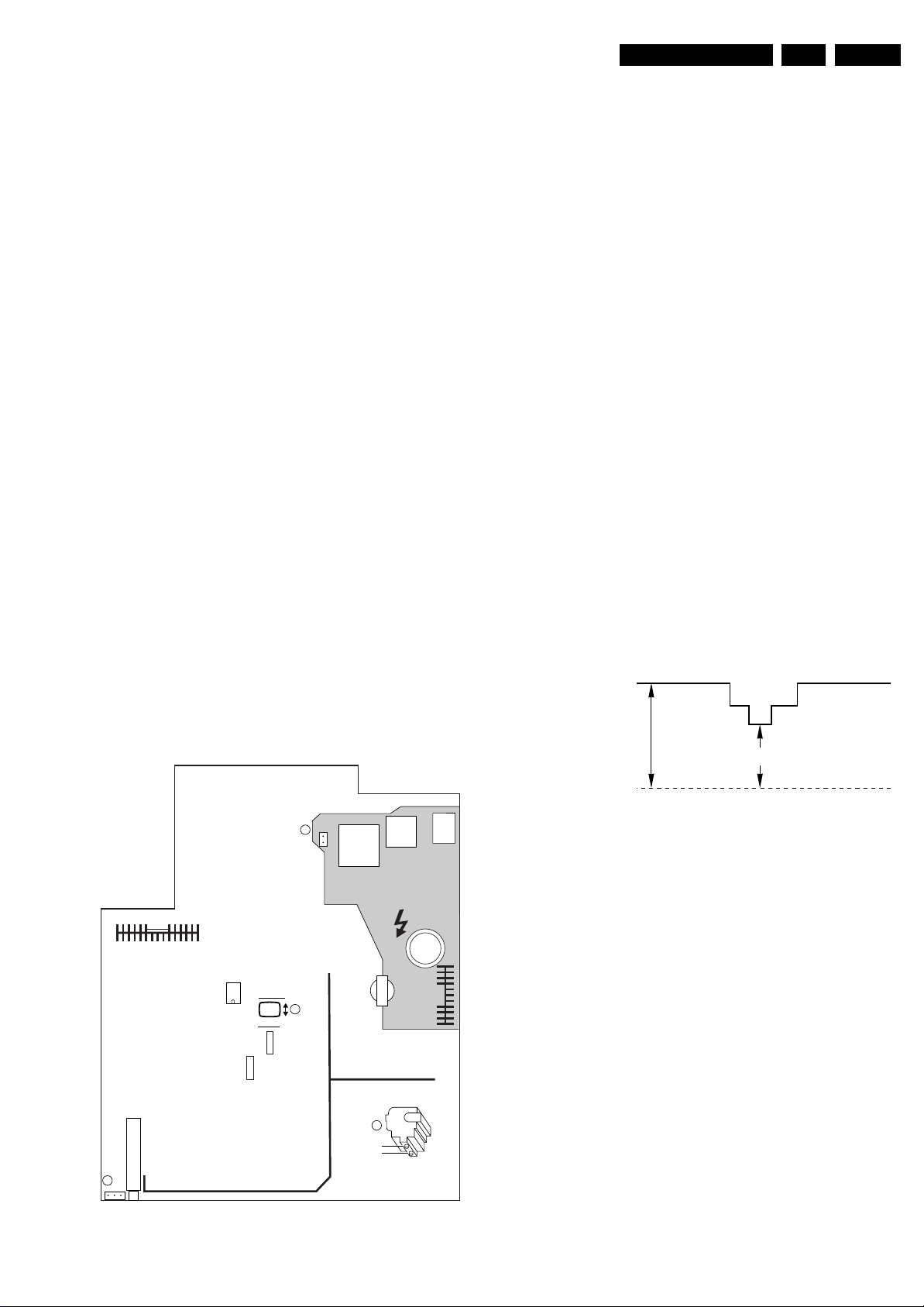

Figure 2-1 Discharge picture tube

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD, w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this potential. Available ESD
protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and ground cable)
4822 310 10671.

– Wristband tester 4822 344 13999.

• Together with the deflection unit and any multi-pole unit,
flat square picture tubes form an integrated unit. The
deflection and the multi-pole units are set optimally at the
factory. We do not recommend adjusting this unit during
repair.

• Be careful during measurements in the high voltage
section and on the picture tube.

• Never replace modules or other components while the unit
is 'on’.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.4 Notes

E_06532_007.eps

250304

2.2 Maintenance Instructions

We recommend a maintenance inspection carried out by
qualified service personnel. The interval depends on the usage
conditions:

• When a customer uses the set under normal
circumstances, for example in a living room, the
recommended interval is three to five years.

• When a customer uses the set in an environment with
higher dust, grease, or moisture levels, for example in a
kitchen, the recommended interval is one year.

• The maintenance inspection includes the following actions:

2.4.1 General

• Measure the voltages and waveforms with regard to the

chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry.

• The voltages and waveforms shown in the diagrams are
indicative. Measure them in the Service Default Mode (see
chapter 5) with a color bar signal and stereo sound (L: 3
kHz, R: 1 kHz unless stated otherwise) and picture carrier
at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel

3).

Safety Instructions, Warnings, and Notes

EN 5L04.6HU CA 2.

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in standby (F). These values are
indicated by means of the appropriate symbols.

• The picture tube panel has printed spark gaps. Each spark
gap is connected between an electrode of the picture tube
and the Aquadag coating.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

2.4.2 Schematic Notes

• All resistor values are in ohms and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are expressed in micro-farads (µ= x
10^-6), nano-farads (n= x 10^-9), or pico-farads (p= x 10^-

12).

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Electrical
Replacement Parts List. Therefore, always check this list
when there is any doubt.

2.4.3 Lead-free Solder

Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 1991
week 18).

Figure 2-2 Serial number example

Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.

E_06532_024.eps

230205

workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilise the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.

• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.

In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid mix of
two alloys).

2.4.4 Alternative BOM identification

In September 2003, Philips CE introduced a change in the way
the serial number (or production number, see Figure 2-2) is
composed. From this date on, the third digit in the serial
number (example: AG2B0335000001) indicates the number of
the alternative BOM (Bill of Materials used for producing the
specific model of TV set). It is possible that the same TV model
on the market is produced with e.g. two different types of
displays, coming from two different O.E.M.s.
By looking at the third digit of the serial number, the service
technician can see if there is more than one type of B.O.M.
used in the production of the TV set he is working with. He can
then consult the At Your Service Web site, where he can type
in the Commercial Type Version Number of the TV set (e.g.
28PW9515/12), after which a screen will appear that gives
information about the number of alternative B.O.M.s used.
If the third digit of the serial number contains the number 1
(example: AG1B033500001), then there is only one B.O.M.
version of the TV set on the market. If the third digit is a 2
(example: AG2B0335000001), then there are two different
B.O.M.s. Information about this is important for ordering

the correct spare parts!

For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26 = 35 different B.O.M.s can
be indicated by the third digit of the serial number.

P

b

Figure 2-3 Lead-free logo

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within

2.4.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

EN 6 L04.6HU CA3.

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

Directions for Use

4. Mechanical Instructions

Mechanical Instructions

EN 7L04.6HU CA 4.

Index of this chapter:

4.1 Set Disassembly

4.2 Service Position

4.3 Assy/Panel Removal

4.4 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation,
due to different set executions.

4.1 Set Disassembly

Warning: Be sure to disconnect the AC power from the set

before opening it.

4.1.1 Rear Cover

1. Remove all fixation screws of the rear cover (do not forget
the screws that hold the rear connection panel, and the
screws on the small black cover with the text “not to be
removed”).

2. Pull the rear cover backwards to remove it.

4.2 Service Position

Before placing the Mono Carrier in its service position, remove
the Front Interface assy/panel (see paragraph “Front Interface
Assy/Panel removal”) and the Side AV assy/panel (see
paragraph “Side AV Assy/Panel removal”).

1. Disconnect the degaussing coil [1].

2. Release the two fixation clamps (at the mid left and mid
right side of the bracket), and remove the bracket from the
bottom tray, by pulling it backwards [2].

3. Turn the chassis tray 90 degrees counter clockwise.

4. Move the panel bracket somewhat to the left and flip it 90
degrees [3], with the components towards the CRT.

5. Turn the panel bracket with the rear I/O toward the CRT.

6. Place the hook of the tray in the fixation hole of the cabinet
bottom [4] and secure it.

4.3 Assy/Panel Removal

4.3.1 Front Interface Assy/Panel Removal

1

2

3

1

3

E_14480_049.eps

110204

1

2

A

3

4

B

E_14480_048.eps

Figure 4-1 Service position Mono Carrier

110204

Figure 4-2 Front interface assy/panel removal

1. Remove the complete module from the bottom plate, by
pulling the two fixation clamps upward [1], while sliding the
module away from the CRT [2].
Note: these clamps are difficult to access.

2. Release the two fixation clamps [3] at the side of the
bracket, and lift the panel out of the bracket (it hinges at
one side).

4.3.2 Side AV Assy/Panel Removal

E_14480_050.eps

170204

Figure 4-3 Side AV assy/panel removal

1. Remove the two fixation screws, and remove the complete
Side AV assembly.

2. Release the two fixation clamps, and lift the panel out of the
bracket.

EN 8 L04.6HU CA4.

Mechanical Instructions

4.3.3 ATSC Module/Panel Removal

3

1

2

Figure 4-4 ATSC bracket

1. Disconnect all cables that lead to the module.

2. Unlock the clip [1] at the left side of the bracket and pull out
the ATSC module [2].

3. Release the fixation clips that hold the panel [3] and take
out the panel (it hinges at the bottom).

4.3.4 EPS1B Module/Panel Removal

3

F_15760_009.eps

151105

4.3.5 Interface Module/Panel Removal

1

Figure 4-6 Bracket with Interface Module

22

G_16430_004.eps

210406

1221

G_16430_003.eps

210406

Figure 4-5 EPS1B Module

1. Disconnect all cables that lead to the module.

2. Unlock the clip [1] at the lower side of the bracket and pull
out the EPS1B bracket.

3. Release the fixation clips that hold the panel [2] and take
out the panel.

1

G_16430_005.eps

210406

Figure 4-7 Interface Module

1. Loosen the screw [1] that fixes the bracket with the
Interface module [2] to the TV chassis, and reverse the
bracket to get access to the Interface Module (see Figure
“Bracket with Interface Module”).

2. Loosen the screw [1] in the middle of the Interface Module,
release the fixation clips (or shift the Interface Module
aside), and take it out of its bracket (see Figure “Interface
Module”).

3. Disconnect all cables that lead to the Interface Module.

4.3.6 SP/LS Module/Panel Removal

1

Figure 4-8 SP/LS Module

1. Loosen the screw [1] that fixes the bracket with the
Interface module to the TV chassis, and position the
bracket in such a way that it no longer blocks access to the
SP/LS module (see Figure “Bracket with Interface
Module”).

2. Unlock the connector [1] that fixes the SP/LS module to the
chassis, and take out the SP/LS module (see Figure “SP/
LS Module”).

3. Disconnect all cables that lead to the module.

Mechanical Instructions

G_16430_006.eps

210406

EN 9L04.6HU CA 4.

4.4 Set Re-assembly

To re-assemble the whole set, do all processes in reverse
order.

Note: before you mount the rear cover, perform the following
checks:

• Check whether the AC power cord is mounted correctly in
its guiding brackets.

• Check whether all cables are replaced in their original
position

EN 10 L04.6HU CA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 ComPair

5.4 Error Codes

5.5 The Blinking LED Procedure

5.6 Protections

5.7 Fault Finding and Repair Tips

5.1 Test Points

This chassis is equipped with test points in the service printing.
In the schematics test points are identified with a rectangle box
around Fxxx or Ixxx. These test points are specifically
mentioned in the “Test Point Overview” as “half moons” with a
dot in the center.

Perform measurements under the following conditions:

• Television set in Service Default Alignment Mode.

• Video input: Color bar signal.

• Audio input: 3 kHz left channel, 1 kHz right channel.

5.2 Service Modes

Service Default Alignment Mode (SDAM) offers several
features for the service technician, while the Customer Service
Mode (CSM) is used for communication between the call
center and the customer. For the TV setup main menu, please
refer to the DFU.

This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the abilities of structured troubleshooting, error code
reading, and software version readout for all chassis.
Minimum requirements for ComPair: a Pentium processor, a
Windows OS, and a CD-ROM drive (see also paragraph
"ComPair").

• Software version.

• Option settings.

• Error buffer reading and erasing.

• Software alignments.

How to Enter SDAM

To enter SDAM, use one of the following methods:

• Switch the optional RC2573GR remote controll to Setup
mode, and press the following key sequence on the remote
control transmitter: “062596" directly followed by the
M(enu) button (do not allow the display to time out between
entries while keying the sequence).

• Or via ComPair.

• Or Short circuit the SDAM jumper on the mono carrier (see
Chapter 7: Layout Mono Carrier: Top side, item 9252 in cel
C5) and apply AC power. Then press the power button
(remove the short circuit after start-up).

Caution: Entering SDAM by short-circuiting the SDAM jumper
will override the +8V-protection. Do this only for a short period.
When doing this, the service-technician must know exactly
what he is doing, as it could lead to damaging the set.

After entering SDAM, the following screen is visible, with “S” in
the upper right corner of the screen to indicate that the
television is in Service Default Alignment Mode.

00058 L06HU I 0.5D S

ERR 0 0 0 0 0
OP 034 004 161 009 060 117 000

HRM SW H3.03B
. CLEAR CLEARED

. ISP MODE OFF

. OPTIONS

5.2.1 Service Default Alignment Mode (SDAM)

Purpose

• To change option settings.

• To create a predefined setting to get the same
measurement results as given in this manual.

• To display / clear the error code buffer when leaving SDAM
with “standby” key on remote control.

• To override SW protections.

• To perform alignments.

• To start the blinking LED procedure.

Specifications

• Tuning frequency:
– 61.25 MHz (channel 3)

• Colour system:
–NTSC

• All picture settings at 50 % (brightness, color contrast,
hue).

• Bass, treble and balance at 50 %; volume at 25 %.

• All service-unfriendly modes (if present) are disabled, like:
– (sleep) timer,
– child/parental lock,
– blue mute,
– hotel/hospitality mode
– auto switch-off (when no IDENT video signal is

received for 15 minutes),
– skip / blank of non-favourite presets / channels,
– auto store of personal presets,
– auto user menu time-out.

• Operation hours counter.

. DEFLECTION

. TUNER

. WHITE TONE

. GEOMETRY

. 60Hz OFFSET

G_16430_008.eps

040506

Figure 5-1 SAM menu (example)

1. LLLL
This is the operation hours counter. It counts the normal
operation hours, not the standby hours.

2. AAAABC-X.Y
This is the software identification of the main micro
controller:
– A = the project name (L04H).
– B = the region: E= Europe, A= Asia Pacific, U= NAFTA,

L= LATAM.
– C = the feature and language
– X = the main software version number.
– Y = the sub software version number.

3. S
Indication of the actual mode. S= SDAM= Service Default
Alignment mode.

4. Error buffer
Five errors possible.

Service Modes, Error Codes, and Fault Finding

5. Option bytes
Shows the actual settings of the options; seven codes
possible.

6. Clear
Erases the contents of the error buffer. Select the CLEAR
menu item and press the MENU RIGHT key. The content
of the error buffer is cleared

7. ISP Mode
Can be used to switch on the television to ISP mode (for
uploading software)

8. Options
To set the Option Bytes. See chapter 8 for a detailed
description.

9. Deflection
To align the Deflection. See chapter 8 for a detailed
description.

10. Tuner
To align the Tuner. See chapter 8 for a detailed description.

11. White Tone
To align the White Tone. See chapter 8 for a detailed
description.

12. Geometry
To align the Geometry. See chapter 8 for a detailed
description.

13. 60Hz offset
To align the horizontal and vertical screen positions and
vertical amplitude at 60 Hz. See chapter 8 for a detailed
description.

How to Navigate

Use one of the following methods:

• In SDAM, select menu items with the CURSOR UP/DOWN
key on the remote control transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the CURSOR UP/DOWN key to display the
next / previous menu items.

• With the CURSOR LEFT/RIGHT keys, it is possible to:
– Activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

• When you press the MENU key in a submenu, you will
return to the previous menu.

How to Store Settings

To store settings first go back to the main menu (fig. 5-1) with
“MENU” button on the remote control and leave the SDAM with
the “STANDBY” button on the remote control.

How to Exit

Switch the set to STANDBY by pressing the power button on
the remote control transmitter. The error buffer is cleared. (If
you switch the set 'off' by removing the AC power, the set will
return in SDAM when AC power is re-applied and the error
buffer will not be cleared.)

1 00058 L06HU I 0.5D CSM

2 CODES 0 0 0 0 0

3 CODES 0 0 0 0 0

4 OP 034 004 161 009 060 117 000

5 AUTO AUTO STEREO

6

7

8 CO 31 CL 31 BR 31 SH 31

9 VL 13 BL 0
10 BS 31 TR 31

11 COMMERCIAL SMARTPORT OFF
12 CHANNEL TV2

Figure 5-2 CSM menu (example)

Menu Explanation

1. Indication of the operation hours counter, the chassis
firmware version, and the service mode (CSM= Customer
Service Mode).

2. Displays the software version used.

3. Displays the last five errors detected in the error code
buffer.

4. Displays the option bytes (decimal values).

5. Displays sound info of the set.

6. Indicates if the television is receiving an "IDENT" signal on
the selected source. If no "IDENT" signal is detected, the
display will read "NOT TUNED"

7. Reserved.

8. Displays various picture settings.

9. Displays various picture settings.

10. Displays various picture settings.

11. Displays if the TV set is in CONSUMER or COMMERCIAL
mode, and if it is on-line with e.g. a SmartPort DCM.

12. Displays the sound setting information.

How to Exit

To exit CSM, use one of the following methods:

• Press the MENU, STATUS/EXIT, or POWER button on the
remote control transmitter.

• Press the POWER button on the television set.

5.3 ComPair

EN 11L04.6HU CA 5.

G_16430_009.eps

210406

5.2.2 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV’s operation settings. The call center can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set. This helps the call center to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

How to Enter

To enter CSM, switch the optional RC2573GR remote controll
to Setup mode, and press its RECALL button.

Upon entering the Customer Service Mode, the following
screen will appear:

5.3.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I
yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with

2

C level) and

2

C commands

EN 12 L04.6HU CA5.

Service Modes, Error Codes, and Fault Finding

the Force/SearchMan electronic manual of the defective
chassis, schematics and PWBs are only a mouse click
away.

5.3.2 Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
(or RS-232) cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector(s).

The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatically (by communicating with the television):
ComPair can automatically read out the contents of the
entire error buffer. Diagnosis is done on I
ComPair can access the I
ComPair can send and receive I

2

C/UART bus of the television.

2

C/UART commands to
the microcontroller of the television. In this way, it is
possible for ComPair to communicate (read and write) to
devices on the I

2

C/UART buses of the TV-set.

• Manually (by asking questions to you): Automatic
diagnosis is only possible if the microcontroller of the
television is working correctly and only to a certain extent.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next
step in the fault finding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

5.3.3 How to Connect

2

C/UART level.

5.4 Error Codes

The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.

5.4.1 How To Read The Error Buffer

You can read the error buffer in 3 ways:

• On screen via the SAM (if you have a picture). Examples:
– ERROR: 0 0 0 0 0: No errors detected
– ERROR: 6 0 0 0 0: Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0: Error code 6 was detected first and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no
picture). See “The Blinking LED Procedure”.

•Via ComPair.

5.4.2 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu:
– To enter SAM, press the following key sequence on the

remote control transmitter: “062596” directly followed
by the OSD/STATUS button (do not allow the display
to time out between entries while keying the
sequence).

– Make sure the menu item CLEAR is highlighted. Use

the MENU UP/DOWN buttons, if necessary.

– Press the MENU RIGHT button to clear the error

buffer. The text on the right side of the “CLEAR” line will
change from “CLEAR?” to “CLEARED”

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the AC power from the
television set, the error buffer is not reset.

This is described in the chassis fault finding database in
ComPair.

TO

UART SERVICE

CONNECTOR

PC VCR I2CPower

9V DC

E_06532_021.eps

Figure 5-3 ComPair interface connection

5.3.4 How to Order

ComPair order codes (US):

• ComPair Software: ST4191.

• ComPair Interface Box: 4822 727 21631.

• AC Adapter: T405-ND.

• ComPair Quick Start Guide: ST4190.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630.

Note: If you encounter any problems, contact your local
support desk.

TO
I2C SERVICE
CONNECTOR

180804

5.4.3 Error Codes

In case of non-intermittent faults, write down the errors present
in the error buffer and clear the error buffer before you begin
the repair. This ensures that old error codes are no longer
present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
and not the actual cause of the problem (for example, a fault in
the protection detection circuitry can also lead to a protection).

Service Modes, Error Codes, and Fault Finding

EN 13L04.6HU CA 5.

Table 5-1 Error code overview

Error Device Error description Check item Diagram

0 Not applicable No Error

1 Not applicable X-Ray/Over-voltage protection (US only) 2411, 2412, 2413, 6404, 6411,

A2

6412

2 Not applicable High beam (BCI) protection 3404, 7405 A2

3 Not applicable Vertical guard protection 3466, 7451, 7452, 7453, 7454 A2

4 Tuner I

2

C error while communicating with 2nd tuner 1000, 5010, (PIP Module) F2

5 Not applicable +5v protection 7604, 7605 A5

2

6I

C bus General I2C error 7200, 3207, 3214 A4

7 Not applicable Power down (over current) protection - -

8 Not applicable EW protection (only for sets with EW circuitry) - -

2

9 24C16 I

10 Tuner I

C error while communicating with the EEPROM 7601, 3604, 3605 A5

2

C error while communicating with the PLL tuner 1000, 5001 A3

11 TDA6107/A Black current loop instability protection 7330, 3351, CRT B1

2

12 SDA9488X I

13 Not applicable I

14 DVD Loader I

15 TDA9178T/N1 I

16 TDA9887 I

17 ATSC module I

18 ATSC module I

C error while communicating with the PIP processor 7242 (PIP Module) F1

2

C error while communicating with the Voice Ctrl processor - -

2

C error while communicating with the DVD Interface module DVD Interface module DVD Loader

2

C error while communicating with the LTI module 7610 H

2

C error while communicating with the PIP Demodulator 7201 F2

2

C error while communicating with the IBO module - ATSC

2

C error while communicating with other I2C IBO module - ATSC

Note: For all error codes the following applies: error codes are
only valid when the module or device they refer to is used in the
TV set.

5.5 The Blinking LED Procedure

Using this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful when
there is no picture.

When the SDM is entered, the front LED will blink the contents
of the error-buffer:

• When all the error-codes are displayed, the sequence
finishes with a LED blink of 1.5 seconds,

• The sequence starts again.

Example of error buffer: 12 9 6 0 0
After entering SDM, the following occurs:

• 1 long blink of 5 seconds to start the sequence,

• 12 short blinks followed by a pause of 1.5 seconds,

• 9 short blinks followed by a pause of 1.5 seconds,

• 6 short blinks followed by a pause of 1.5 seconds,

• 1 long blink of 1.5 seconds to finish the sequence,

• The sequence starts again at 12 short blinks.

5.6 Protections

If a fault situation is detected, an error code will be generated;
and, if necessary, the television set will go into protection
mode. Blinking of the red LED at a frequency of 3 Hz indicates
the protection mode. In some error cases, the microprocessor
does not put the set in protection mode. The error codes of the
error buffer and the blinking LED procedure can be read via the
Service Default Menu (SDM), or via ComPair.

To get a quick diagnosis the chassis has three service modes
implemented:

• The (Digital) Customer Service Mode ((D)CSM).

• The Service Default Mode (SDM).

• The Service Alignment Mode (SAM).

For a detailed mode description, see the relevant sections.

5.7 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.7.1 NVM Editor

In some cases, it can be handy if one directly can change the
NVM contents. This can be done with the “NVM Editor” in SAM
mode. In the next table, some default NVM values are given.

Table 5-2 Default NVM values

Bit

Addr. (DEC)

EW (EW width) 58 28 2D

PW (EW parabola width) 59 13 14

HS (Horizontal shift) 53 2D 2B

HP (Horizontal Parallelogram) 54 2A 21

HB (Horizontal Bow) 55 20 1F

UCP(EW Upper Corner Parab.) 60 2A 29

LCP(EW Lower Corner Parab.) 61 30 33

TC (EW Trapezium) 62 12 14

VS (Vertical Slope) 63 1C 1F

VA (Vertical Amplitude) 64 15 1F

SC (S-Correction) 65 1E 1E

VSH (Vertical Shift) 66 1E 21

VX (Vertical Zoom) 67 19 19

VSC (Vertical scroll) 68 20 20

VL (Vertical linearity) 56 20 20

BLOR (Black Level Offset Red) 71 24 24

BLOG (Black Level Offset Grn) 72 1F 1F

AGC (AGC Take over) 69 14 14

27HT4000D/27 (HEX)

27HT7210D/27 (HEX)

EN 14 L04.6HU CA5.

Service Modes, Error Codes, and Fault Finding

Bit

OIF (IF-PLL Offset) 68 26 26

H60 (60 Hz Horizontal Shift) 150 00 00

PWL (Peak White Limit) 74 0A 0A

60 Hz Vertical amplitude 152 00 00

NVM_CVI_BLOR 71 24 24

NVM_CVI_BLOG 72 1F 1F

TXT Brightness 128 20 20

V60 offset (60Hz Vert. Ampl.) 151 00 00

NVM_CRYSTALALIGN 284 3F 3F

White-D Cool Red 134 20 20

White-D Cool Green 135 1B 1B

White-D Cool Blue 136 1A 1A

White-D Normal Red 137 00 00

White-D Normal Green 138 01 01

White-D Normal Blue 139 07 07

White-D Warm Red 140 00 00

White-D Warm Green 141 FB FB

White-D Warm Blue 142 EF EF

5.7.2 ATSC Module

Addr. (DEC)

27HT4000D/27 (HEX)

27HT7210D/27 (HEX)

5.7.3 Power Supply

Set Not Working

Check Power
Supply Mains

Switch

Bridge Rectifier

circuit 6500

Ok

Check DC

voltage at

2505/2507

Ok

Check
fusible

resistor 3532

Not Ok

Check

7512

Not Ok

Check fusible
resistor 3510 &
circuit before it

Check IC7511 &

IC7531

Ok

Set able to

start-up

Ye s

End

No

Check other

fusible resistor

and capacitor in

the circuit

E_14480_057.eps

190204

ATSC Module check

Check 10 V supply
from Main Chassis

Check Auxillary

OK?

Yes

Check UART Signal

(P1206)

OK?

Yes

Check Video &

Audio signal o/p

from ATSC Module

OK?

Yes

Check wiring and

connections of ATSC

Module

No

No

No

Power Supply

Check Hercules

UART o/p

Replace ATSC

Module

F_15760_010.eps

161105

Figure 5-4 Fault finding tree “ATSC Module check”

Figure 5-5 Fault finding tree “Set not working”

Set Does Not Start Up

Set Unable

to Start

Software
loaded?

Yes

Check

voltage

across 2552

No

Is Vbatt

approximately

140V

Yes

Check

voltage 2562

&2563

16V

Yes

Check 3V

across 2535

Yes

Check 6V

across 2535

Fuse Blown?

Load

Software

No

Yes

Check Power
Supply circuit

No

Change

Fuse

Yes

Set able to

Start

Yes

End

No

Check Line

Transistor 7405

E_14480_058.eps

Figure 5-6 Fault finding tree “Set does not start up”

170204

Service Modes, Error Codes, and Fault Finding

EN 15L04.6HU CA 5.

5.7.4 Deflection

One Thin Vertical Line

Quick check:

• Set in protection mode.

• LED blinking with error “3”.

One Thin Vertical Line

LED Blinking

Check all

connection and

peripheral at

Deflection Circuit in

place

Check

Line Transistor

7405

Is VBE between

200mV to 30mV & V

approximately 500mV

Replace transistor

Blank Screen

Blank Screen

Check Vg2
(fine tune)

Not Ok

Check Beam Current Limit

(voltage is 1.8V-2V when

brightness and contrast is

set to the maximum

Ok

Check heater voltage

(measure pin 9&10
at the CRT socket)

Yes

Check Horizontal

Deflection

Circuitry

E_14480_059.eps

170204

Check video supply

(2457) is approximately

180V

CB

Ok

Not Ok

Ok


appears?

Picture not appearing

Check deflection

circuit

Picture not appearing


appears?

Ok

Not Ok

Figure 5-7 Fault finding tree “One thin vertical line”

One Thin Horizontal Line

Quick check:

• Set in protection mode.

• LED blinking with error “2”.

One Horizontal

Thin Line

LED Blinking

Check all connection

and peripheral at

Deflection Circuit

in place

Check transistor

(7451, 7523, 7543) at

Vertical Deflection Circuitry

Replace transistor

Ok

Figure 5-9 Fault finding tree “Blank screen”

5.7.5 Source Selection

Set is not able to go into AV or any missing AV is encountered

E.g. AV1 is available but not able to enter to AV1: Check if the
option setting is correct.

Set is able to go to AV, but no Audio is heard.

1. Check that continuity of signal is there from the SCART/
Cinch input to the input of the Hercules.

2. If continuity is there and still no audio, check that option
settings are correct.

3. If logic setting is correct and still no audio, proceed to Audio
Decoder/Processor troubleshooting section.

Set is able to go into AV but no Video is available:

1. Check continuity from AV input to Hercules depending on
the input.

2. If continuity is available and yet no video, proceed to Video
Processor troubleshooting section.

End

E_14480_061.eps

170204

Check Vertical

Deflection Circuit

E_14480_060.eps

170204

Figure 5-8 Fault finding tree “One thin horizontal line”

5.7.6 Tuner and IF

No Picture

1. Check that the Option settings are correct.

2. If correct, check that supply voltages are there.

3. If supply voltages are present, check whether picture is
present in AV.

4. If picture is present in AV, check with the scope the Tuner
IF output signal by manual storage to a known channel.

5. If IF output is present, Tuner is working fine. If no IF output,
I2C data lines may be open, check continuity of I2C lines.
If I2C lines are ok, Tuner may be defect, replaced Tuner.

EN 16 L04.6HU CA5.

Service Modes, Error Codes, and Fault Finding

6. If Tuner IF is present and yet still no picture in RF mode, go
to Video Processing troubleshooting section.

No Picture, No Sound

Yes

Check tuning

supply voltage,

pin 9 of tuner

>30V & <35V

Check supply

voltage, pin 7 of

tuner

5V

Yes

Check Tuner

pin 4 & 5

I2C Bus

Ok

No

No

No

Check

VT Supply

Section

Check Power

Supply

Check other

functional area

No Picture,

No Sound,
Raster Ok

Check AGC

Voltage, pin 1

of tuner

AGC voltage
changes with

different signal

strength

No

Check AGC

circuit section

Unable To Perform Tuning

Unable to

perform tuning

Enter SDM

check optionbyte 1

Correct

Check if tuner

Supply Voltage

pin 7

Incorrect

5V

Yes

Check Tuner

Supply Voltage

Check I2C at pin

4 & 5 and tuner

Ok

Check other

functional area

Enter SDM and change

to the appropriate byte

Check Power

No

Supply

No

33V

Yes

Not Ok

I2C

Check I2C

Not Ok

circuit

Not Ok

Replace

Tuner

Not Ok

Tuner

E_14480_064.eps

Figure 5-12 Fault finding tree “Unable to perform tuning”

170204

Yes

Replace Tuner

E_14480_062.eps

Figure 5-10 Fault finding tree “No picture, no sound”

Picture Ok, No Sound

Picture Ok,

No Sound

Check IF output of

tuner, pin 11

CVBS

present?

Ye s

Check SAW filter output

(pin 4&5)

EU/AP/CH (QSS)- 1001

NA/LA/AP INT - 1002

No

Refer to fig.

"Power Supply:

Set not working"

170204

Output Ok?

Ye s

Check other

functional area

Replace SAW

No

filter

E_14480_063.eps

170204

Figure 5-11 Fault finding tree “Picture ok, no sound”

Service Modes, Error Codes, and Fault Finding

EN 17L04.6HU CA 5.

5.7.7 Controller

Below are some guidelines for troubleshooting of the Micro
Controller function. Normally Micro Controller should be
checked when there is a problem of startup.

1. Check that both +3.3 V_dc and +1.8 V_dc are present.

2. Check that crystal oscillator is working.

3. Check that Power Good signal is at “high” logic, normal
operation.

4. Check that Hercules is not in standby mode. Pin 15 of
Hercules should be 0 V_dc.

5. Make sure H-drive pulse is there. This can be checked at
resistor R3239. If H-drive does not exist, remove resistor
R3239 to check if there is loading.

Note: When the set shuts down after a few second after power
“on”, the main cause is that Vg2 not aligned properly, try
adjusting Vg2 during the few seconds of power “on”.

5.7.8 Video Processing

No Picture

When “no picture in RF”, first check if the microprocessor is
functioning ok in section “Controller”. If that is ok, follow the
next steps.
When “no picture in AV”, first check if the video source
selection is functioning ok in section “Source Selection”. If that
is ok, follow the next steps.

1. Check that normal operating conditions are met.

2. Check that there is video signal at pin 81. If no video,
demodulator part of the Hercules is faulty, replace with new
Hercules.

3. If video signal is available at pin 81, check pin 56, 57, and
58 for the RGB signal.

4. If signal is not available, try checking the BRIGHTNESS
and/or CONTRAST control, and make sure it is not at zero.

5. If still with the correct settings and no video is available,
proceed to the CRT/RGB amplifier diagram.

For sets with Scavem, and Scavem does not work, follow steps
below:

1. Check Scavem coil connector (position is 1361) if
connected; if not, connect it.

2. If connected, check NVM “bit storage” byte 1 bit 7; if it is not
“1”, set it to “1”.

3. If it is “1”, then check the data of the NVM addresses as in
table “Default NVM values“ (addresses 140, 141, and 142).
If the data is not correct, then set these addresses to the
table values.

4. If it still not works, track Scavem output from pin64 of
Hercules to CRT panel.

5.7.9 Audio Processing

No Sound

Picture Ok,

No Sound

Tuner IF Ok Check Tuner/IFNot Ok

Ok

Check AUDOUTLSL &

AUDOUTLSR pin at

UOCIII

Ok

Check Audio

Amplifier

Not Ok

Not Ok

Check UOCIII IC

Check Audio

Power Supply

Ok

Check Audio

Amplifier Circuit

and loud speaker

Ok

Check NVM

Not Ok

Figure 5-13 Fault finding tree “No sound”

No RF Audio for QSS/Inter-Carrier Stereo Sets.

1. Check pin 99 and 100 for SIF signal (for QSS) or pin 104
and 105 for video with SIF (for Inter-Carrier)

2. If signal is not present, check for the QSS/FMI bit settings.
Check also the NVM data.

3. If signals are present and still no audio, check the audio
supply voltage +8V are present.

4. If still no audio signal at Hercules output, Hercules is faulty.

No AV Audio.

1. Check troubleshooting methods in section “Source
Selection”.

2. Check the output of the Hercules to see if there is signal
available. If no, check the normal operating condition and
also the NVM data.

3. If still no audio signal at Hercules output, Hercules is faulty.

Note: If there is audio signal at Hercules output and no audio
at loudspeaker, proceed to Audio Amplifier troubleshooting
methods.

Check Power

Supply

Replace Audio

Amplifier

E_14480_065.eps

201005

5.7.10 Audio Amplifier

No RF as well as AV Audio at the Loudspeaker:

1. Check that the normal operation condition of the amplifier
is met.

2. If normal operation conditions are met, check the continuity
from Hercules output to input of the amplifier.

3. If continuity is there and still no audio, check speaker wire
connections. If still no audio, amplifier IC might be faulty.

EN 18 L04.6HU CA5.

Service Modes, Error Codes, and Fault Finding

Block Diagrams, Test Point Overviews, and Waveforms

6. Block Diagrams, Test Point Overviews, and Waveforms

Wiring Diagram

19L04.6HU CA 6.

WIRING DIAGRAM

RIGHT

SPEAKER

SIDE

D

A/V PANEL +
HEADPHONE

CVBS (YELLOW)

LEFT (WHITE)

RIGHT (RED)

HEADPHONE

1279

MAIN SWITCH PANEL

M

1693

6P

(component view)

B

1331

CRT PANEL

7P

5P

1351

1352

1332

CRT

SOCKET

1361

3P

AQUADAG

DEGAUSSING COIL

CRT

ROTATION

BLUE

RED

FRAME

COIL

B

YELLOW

GREEN

SCAVEM

COIL

EHT
CRT

LEFT

SPEAKER

CRT PANEL

1381

1693

1692

7

6P

7P

1

A

1507

2P

1504

2P

MONO
CARRIER

1252

7P

1254

5P

1278

3P

4P

5P

1280

15

1582

4P

(optional)

3P

1505

2P

MAINS
CORD

ATSC

5P

P12125PP12194PP12064PP1582

EXTERNAL
POWER SUPPLY

SPDIF

TUNER

SP/LS

I1

MODULE

(SMART PLUG +

BATH ROOM SPEAKER)

1246

1251

3P

1259

9P 3P

U2

1220

6

6P

1

1206

7P

1207

7P

1266

0262

3P

U1

COMPAIR

CONNECTOR

1005

3P

TUNER

1262

3P

1236

3P

I1

SP/LS

MODULE

1267

1265

1204

1264

1213

7

1

1245

1263

7P

1404

2P

7P

1212

1

1219

1

9

7P

9P

1227

3P

1229

3P

1401

1451

2P

5P

LOT

5401

0228

3P

EPS1B

J1

INTERFACE MODULE

1800

0228

5P

15

1534

EXTERNAL
POWER SUPPLY

1212

6P

32P

3P

1259

9P

1692

5P

1229

3P

1219

4P

0213

2P

1227

6P

16

1213

7P

G_16430_012.eps

260406

Block Diagrams, Test Point Overviews, and Waveforms

Block Diagram Supply and Deflection

SUPPLY AND DEFLECTION

POWER SUPPLY

A1

1505

Degaussing

1500

I511

6512

3519

7532

T4E

2511

6533

3530

Coil

I531

1504

7511
TEA1506T

2

Vcc

CONTROL

6

CTRL

STANDBY

SUPPLY

7531
TEA1623

3

Vcc

CONTROL

6

REG

11

AUX

2

1

5500 :
5501

DRAIN

DRIVER

IC

DEMAG

IC

SOURCE

SENSE

DRAIN

3507

t

6500

AC

I513

3513

14

3514

11

I519

3532

9

3517

7

3518

I533

14

2534

12

3538

6532

3534

3531

F508

2505

DC

MAIN

SUPPLY

3516

I516

D

S

7514

7512

G

6511

1503

42

1

3

5512

9

8

4

5

3

2

35321532

1A

4

5

1

2

HOT GROUND COLD GROUND

17

18

13

14

10

11

4

1

7515
TCET1103

2

3

5531

10

9

8

6

7541

ENERGIZING

CIRCUIT
(optional)

5551 5552

5562

5561

6564

6535

6536

6551

6563

6562

3571

6573

2564

2535

2536

V_DG

F552

1543

6571

7571

REFERENCE

CIRCUIT

+3V3

7573

STANDBY

CIRCUIT

6565 6566

3565

F536

6537

G

7561

DS

7536

Stdby_Con

I573

6576

7535

For IDTV only

Vbatt

F563

-Vaudio

F561

+Vaudio

+6VA

3575

3576

POWER-DOWN

A4

F564

+3V
+6VA
+6VA

+6V

F537

Vaux

I548

B

A4

DEFLECTION

A4

INTF_Y GREEN_IN

A4

2x

HERCULES

A5

EHTinfo

A2

56

97

7200-H
(SYNC)

20L04.6HU CA 6.

VIDEO

IDENT

MAIN

SYNC

SEPARATOR

EHTo

PHI 1

DETECTOR

VERTICAL

SYNC

SEPARATOR

3232

2240

HORIZONTAL

OSC.

SAND-

CASTLE

GENERATOR

X-RAY

PROTECTION

VERTICAL

DIVIDER

112

A2 A2

EHTinfo

113 116

VERTICAL

GUARD

DETECTOR

PHI 2

DETECTOR

VERTICAL

SAW-

THOOTH

Vguard

HORIZONTAL

OUTPUT

E/W

+

GEOMETRY

VERTICAL

OUTPUT

+

GEOMETRY

R.G.B.

BLANKING

LINE + FRAME DEFLECTION

A2

LINE

+

E/W

CORR.

7452

7411

3465

-12V

7454

Vbatt

1404
1

2

7451

7453

3

1

F402

HOR.
DEFL.
COIL

3461

3466

5450

3474

3471

F458

1451

1

2

F459

EHT

FOCUS VG2

10

6

5

7

8

9

Vguard

VER.
DEFL.
COIL

FRAME_FB

1454

3442

6481

Vbatt

A4

I433

TO

CRT

B1

+Vbatt

3481

3410

6483 6484

6453

6456

3457

3455

6401

3411

3451

2403

6452

3458

3484

3485

1452

2456

6459

Vbatt

7401 : 7403
7480 : 7483

Frame_FB

EHTb

EHTb

+

EHTinfo

+

EHTinfo

BCL

PROC.

F452

F453

F455

6454

6455

EHTb

Filament

VideoSupply

3401

F401

F_15760_034.eps

POWER-DOWN

A1

A4

BCL

A4

-12V

VideoSupply

Filament

+9V

VT_SUPPLY

A4

240406

1401

5

4

3

2

1

TO 1351

B1

CRT

+6VA

LINE

7408

F412

TO RGB
PROC.

7207

HDRIVE

HD

SANDCASTLE

A5

EW_DRIVE

62

63

108

-9V

7404

+8V

7410

3498

HD

6486

5402

E/W

+8V

3420 3440

I417

7484

7405

BU4508DX

F418

7406

3497

F414

OUTPUT
CIRCUIT

FRAME

+9V

106

107

VDRA

VDRB

F460

F461

3462

7455 7456

3463

Block Diagrams, Test Point Overviews, and Waveforms

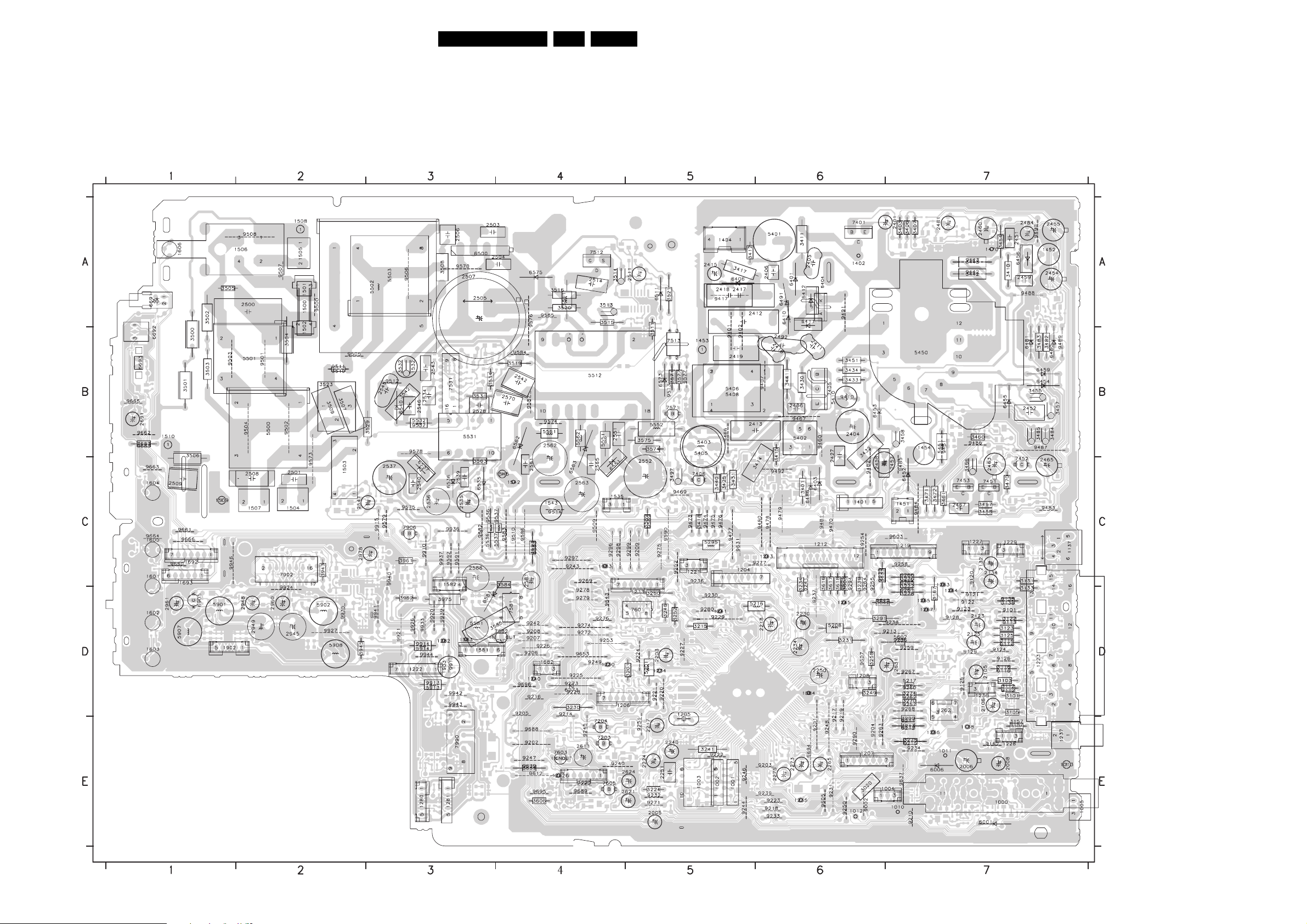

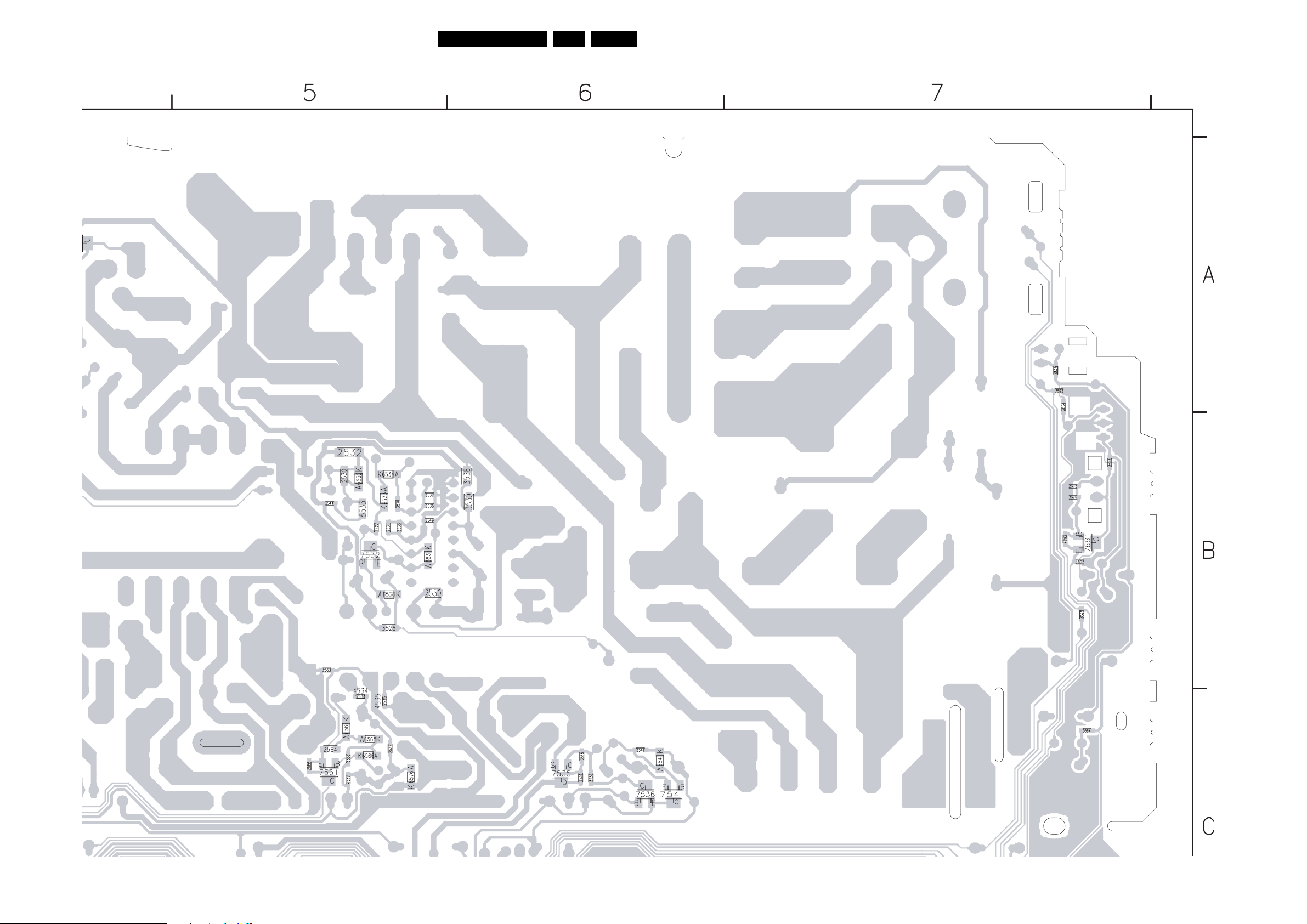

Testpoint Overview Mono Carrier

F001 E1
F002 E1
F003 E2
F004 E2
F005 E1
F006 E2
F007 E1
F008 E1
F009 D4

F010 E2

F108 D1

F011 E1

F109 D1

F101 D1

F110 C1

F102 D1

F111 D1

F103 D1

F112 C1

F104 D1

F113 C1

F105 D1

F115 C1

F106 D1

F116 C2

F107 D1

F117 C1

3139 123 5673.4

F119 E1
F120 E1
F121 E1
F122 D1
F123 D1
F138 D2
F200 D5
F201 C4
F202 D4

F203 D4
F204 C4
F205 C3
F206 C3
F207 D4
F208 D2
F209 E4
F210 E4
F211 E5

F212 E4
F213 E4
F214 D4
F215 D3
F216 C3
F217 C2
F218 C2
F219 D2
F220 D2

F221 D2
F222 C2
F223 D2
F224 C3
F225 C3
F226 D2
F227 E4
F228 C4
F229 C4

F230 D4
F232 D4
F233 D4
F237 D4
F238 D4
F239 D4
F240 C3
F241 C3
F242 C3

F243 C3
F244 D4
F245 C3
F247 E2
F248 E2
F249 E2
F250 C3
F251 D4
F270 D4

F401 C5
F402 B2
F404 B2
F407 B3
F412 C3
F414 A2
F415 A3
F416 A3
F417 A3

F418 B3
F419 B3
F420 B2
F451 C1
F452 C2
F453 B2
F454 C2
F455 B1
F456 A2

F457 A2
F458 C1
F459 C2
F460 C2
F461 C2
F462 A1
F463 B1
F464 A3
F465 A3

F466 A1
F500 C7
F501 B6
F502 B7
F503 A7
F504 A7
F505 A7
F506 A7
F507 A7

F508 A5
F509 A5
F510 B4
F535 C5
F536 C4
F537 C5
F541 C6
F542 C5
F551 C4

F552 B4
F561 C5
F562 B5
F563 C5
F564 C4
F573 C4
F581 D5
F582 D5
F583 C5

21L04.6HU CA 6.

F682 D7
F683 D7
F685 D7
F691 C7
F692 B7
F693 A7
F694 C7
F695 C7
F696 B7

F697 A7
F698 C7
F699 B7
F901 D6
F903 D7
F904 D7
F905 D7
F910 D6
F911 D6

F950 D6
F951 D6
F952 E6
F953 E5
F955 E6
F956 E5
I001 E1
I002 E1
I003 E2

I004 E2
I005 E4
I006 E3
I007 E1
I008 E3
I009 E3
I010 E3
I011 E1
I012 E2

I013 E2
I014 E1
I015 E1
I016 E1
I017 D4
I104 D1
I105 D1
I106 D1
I107 D1

I108 D1
I109 D2
I110 D1
I111 D1
I112 D1
I113 C1
I114 D1
I115 C1
I116 D2

I117 D1
I118 E1
I119 E1
I120 D1
I201 E4
I203 E3
I204 E4
I205 E4
I206 E4

I207 D2
I208 C3
I209 D3
I210 D3
I211 C3
I212 D3
I213 E4
I214 E4
I215 E3

I216 D3
I217 D2
I218 D2
I219 D2
I222 D4
I223 D4
I224 D4
I225 D4
I226 C3

I227 E4
I228 D4
I229 C4
I230 D4
I231 D4
I232 E2
I233 D2
I234 E5
I235 D4

SERVICE TESTPOINT

I236 D4
I240 E5
I241 E5
I401 A2
I402 A3
I403 A2
I404 A2
I405 A2
I406 A2

I407 A2
I409 A1
I410 A3
I412 A3
I413 C3
I414 B3
I415 C3
I416 C4
I417 B4

I418 B3
I419 C3
I421 B2
I422 B2
I423 B3
I424 A1
I425 C3
I426 B2
I427 B4

I428 B3
I429 A1
I430 A3
I431 C2
I432 B2
I433 A3
I434 C3
I443 A2
I444 A1

I445 A2
I446 C4
I448 A1
I449 B1
I451 B2
I452 A1
I453 B2
I455 B2
I456 B1

I457 B2
I458 B2
I459 B1
I460 C1
I461 C1
I462 C1
I463 B1
I464 C1
I465 A1

F_15760_043.eps

I466 B2
I467 A1
I468 B1
I469 A1
I470 B1
I471 C1
I472 C1
I473 A3
I474 A3

151105

I475 B1
I501 A6
I502 A6
I503 A7
I504 A7
I505 B7
I506 A6
I507 B6
I511 A4
I513 A4
I514 B4
I515 A4
I516 A4
I517 A4
I518 A4
I519 A4
I520 A4
I521 A4
I523 A4
I524 A4
I527 A4
I529 B6
I531 B5
I532 B6
I533 B6
I535 B6
I536 B5
I537 C5
I538 C5
I539 B6
I540 B5
I541 B5
I542 C6
I543 C6
I544 B6
I545 C6
I546 C6
I547 C6
I548 C6
I551 B4
I552 B4
I553 B6
I554 B5
I555 B5
I556 B5
I557 B5
I561 B5
I562 B5
I565 C5
I571 B4
I572 C4
I573 B4
I574 B4
I575 B4
I576 B4
I577 B4
I578 B4
I579 B4
I582 D5
I583 D5
I584 D5
I585 D5
I587 C5
I588 D5
I681 A7
I682 D7
I683 D7
I686 C7
I687 B7
I688 C7
I689 B7
I691 A7
I693 B7
I909 D6
I910 C6
I911 C6
I913 C6
I914 C6
I915 C6
I916 C7
I918 C6
I919 C6
I920 D6
I921 C6
I922 C6
I924 D6
I925 D6
I926 D7
I927 C6
I928 D7
I930 C7
I934 D7
I935 D7
I936 D7
I937 C7
I938 D6
I939 D7
I940 D6

I941 C6
I942 C6
I943 D7
I944 C6
I945 C7
I946 D6
I948 D6
I951 E5
I952 E5
I953 E6
I954 E6
I955 D5
I956 E6
I957 E6
I958 D5
I959 D5

Block Diagrams, Test Point Overviews, and Waveforms

Block Diagram Video

VIDEO

DCM

MODULE

A3

+5V

+5VS

FROM TUNER

ATSC PANEL

A4

TUNER IF

ATS C

SDA

SCL

INTERFACE MODULE (VIDEO PART)

- for “SYSTEM” version only -

11

22

18

17

19

20

12
31
32

9002

VT_SUPPLY

A2

50019003

1000 6, 7 9

TV

I002

3001

I001

3000

TV TUNER

5

HSYNC_OUT

CVBS_OUT

G_IN

B_IN

R_IN

FBL_IN

VSYNC_OUT
Y_VIDEO_IN
C_VIDEO_IN

VT

AGC

4

FM

IF

1

6001
BZX79-C33

F002

10

F004

11

VIDEO INTERFACE

7003

1002
1003

7705,7706

PULSE

FORMER

7716

7708

7720

PULSE

FORMER

SSIF

VIF_1

VIF_2

RF

SIF1

SIF2

SSIF

A4

7200-A (IF)

24

25

31

29

30

TO
AUDIO
PAR T
(optionel)

HERCULES

PHASE

DISC

VIDEO

TUNER IF

AGC

AUDIO IF

QSS/AM

22L04.6HU CA 6.

A5J1

1212

1

3

5

6

7

PLL

SOUND

MIXER

AM

SOUND

DET.

1219

SOUND

TRAP

FM/QSS

6

7

8

9

AM

SC1_FBL

SANDCASTLE

SWITCH

TO
AUDIO
PAR T

See block
diagram
AUDIO

N.C.

HD_PIP

ITV_V1OUT

86

1266

1245

A5

A8

A8

A5

A8

A5

A4

A5
A8

SW_SC2_CVBS

SC1_CVBS_IN

SC2_Y/CVBS_IN

SIDE_Y/CVBS_IN

CVBS1

SC2_CHROMA_IN

SIDE_CHROMA_IN

See block
diagram
DEFLECTION

7200-B (CVBS I/O + FILTERS + COLOUR DECODING)

81

74

71

78

70

77

INPUT

SWITCH

VIDEO
IDENT

CVBS/Y

C

COMB
FILTER
&TRAP

SWITCH

CHROMA/CVBS

OUTPUT
SWITCH

PAL, NTSC

SECAM

DECODER

1212 ATSC

1

-

2

-

3

-

4

Y

5

GND

TO P1212

U

6

GND

7
8

9
10
11
12

7200-C

INTF_CVBS_OUT

65

YintYint

Uint

Vint

SC1_FBL

N.C.

INSSW352

V

-

ATSC PANEL

-

-

-

(RGB/YPrPb/YUV
INPUT SWITCHING)

Yint

Uint

Vint

SELECTION

LOGIC

ATS C

FEATURES & CONNECTIVITIES

A5

1212

4

6

8

SC1_RED_IN

SC1_GREEN_IN

SC1_BLUE_IN

50

51

49

YPrPb2/
YPrPb3

SELECTION

DVD

TO

DVD

YUV

DVD

RGB
DVD

INTF_Y/GREE_IN

INTF_Pb/BLUE_IN

INTF_Pr/RED_IN

RGB2/
RGB3

SELECTION

RGB

TO

DVD

RGB

(YUV-SIGNAL)

53

DVD

TO

YUV

INTF_Y/GREE_IN

5554 58

57

YUV

DVD

INTF_Pr/RED_IN

INTF_Pb/BLUE_IN

59

TO

YUV

DIGITAL SIGNAL PROC.

- 4:3 LINEAR/NON-LINEAR SCALING

- DOUBLE WINDOW PROC.

ADC

DAC

DINT

Y

Pr

Pb

1219

1

N.C.

CVBS0

IF

HD

G

B

R

FBL

SC

Y/CVBS

Cin

See block
diagram
AUDIO

VCO

VIDEO

DEMOD

2

3

4

1212

1

3

5

6

7

1229

1

2

3

PLL

REAR I/O CINCH

A8

SVHS

154

AV1

V

YUV INPUT

Y

U

V

MONITOR

OUTPUT

V

SIDE AV

D

SVHS

32

154

VIDEO

IN

SC1_FBL

STRETCH

SKINTONE

F206

1V / div DC

20µs / div

1V / div DC

20us / div

F240 F241 F242

500mV / div DC

20µs / div

500mV / div DC

20µs / div

500mV / div DC

F224 F225 F226

ADDER

R_Y

G_Y

B_Y

500mV / div DC

20us / div

RGB

500mV / div DC

7200-E (RGB PROCESSING + CATHODE CALIBRATION)

R

G

B

64

500mV / div DC

20us / div

MATRIXSATURATION

20µs / div

20us / div

CLAMP

+

MUTE

F331 F332 F333

500mV / div DC

20µs / div

500mV / div DC

20µs / div

F338 F339 F341

BLUE

STRETCH

&

CONTRAST

50V / div DC

20us / div

FROM µP PART

R_OSD

G_OSD

OSD

INSERTION

B_OSD

50V / div DC

20us / div

FBL

BRIGHTNESS

PEAK WHITE

LIM.

BEAM

CURRENT

LIM.

+

500mV / div DC

20µs / div

50V / div DC

20us / div

CATHODE

CALIBRATION

46

3226

42

3227

OUTPUT

43

STAGE

3228

44

45

BCL

A2 A4

7308

BOUT

GOUT

ROUT

IBLACK

SVM

A5

CRT

B1

F240

F241

F242

13311204

B

1

1

2

3

4

5

6

7

ROT

G

2

R

3

4

5

6

7

+200V

+200VA

BC_INFO

SVM

ROT

F354

2351

3351

1351

SCAVEM

B2

ROT

SVM

F331

7330

3

F332

1

2

F333

VSVM

FILAMENT

F353

1351

123 45

to 1401

A2

DEFLECTION

FILAMENT

1381

1

ROTATION

OUTPUT

FILAMENT

VSVM

SCAVEM
OUTPUT

+200VA

F341

3332

7

B

3334

9

G

3336

8

R

5

5352

EHT-b

1332

11

F338

F339

B

6

G

8

R

10 9 5 7 1

ROTATION
COIL

2

(OPTIONAL)

1361

1

SCAVEM
COIL

2

(OPTIONAL)

AQUADAG

DEFLECTION

FOCUS

VG2

A2

FROM DEFLECTION

G_16430_013.eps

CRT

25kV

EHT

090506

F205

1229

SC2_Y/CVBS_IN

32

SC2_CHROMA_IN

SC1_CVBS_IN

SC1_RED_IN

1263

1264

1265

A5

1207

7606
7607

7

6

5

CONNECTION

SW_SC2_CVBS

SIDE_CHROMA_IN

SIDE_Y/CVBS_IN

SC1_GREEN_IN

SC1_BLUE_IN

SC2_CVBS_OUT

1252

Y

7

6

C

5

Y/CVBS_IN

1

2

3

Cin

F201 2V / div DC
F203 2V / div DC

HERCULES

A4

7200-D (YUV PROCESSING)

Y

Pr

Pb

500mV / div DC

10ms / div

F216 F217 F218

1V / div DC

20us / div

PEAKING

SCAVEM

PROC.

1V / div DC

20us / div

WHITE/BLACK

GAMMA COR.

TINT CONTROL

Block Diagrams, Test Point Overviews, and Waveforms

Testpoint Overview CRT Panel

SERVICE TEST POINT

23L04.6HU CA 6.

3139 123 5674.3

F_15760_039.eps

151105

Block Diagrams, Test Point Overviews, and Waveforms

Block Diagram Audio/Control

AUDIO

TUNER IF

A3

9002

+5V

+5VS

FROM TUNER

ATS C

ATSC PANEL

SDA

A4

SCL

A4

SEL-LLPIM

A4

REAR I/O CINCH

A8

AV1

L

R

AV2

L

R

SIDE AV

D

L

R

CONTROL

MAINS SWITCH PANEL

M

6004
TSOP1836

5V-STANDBY

ON/OFF

USA only

C+/-_V+/-

A9

1692

1

2

3

4

5

4x

VT_SUPPLY

A2

50019003

1000 6, 7 9

TV

I002

3001

I001

3000

TO P1219

ATS C

ATSC PANEL

6001

+6V

IR_IN

LED_SUPPLY

IR OUT

LED OUT

TV TUNER

5

7001

FILTER

SELECTION

1252

3

1

RC5_SWITCH

ON_OFF_LED

KEYBOARD

3690

VT

AGC

4

1

CONNECTIVITIES

A5

1207

3

1

1207

3

1

6694

-5V1

6001
BZX79-C33

10

FM

11

IF

SC1_L_IN

SC1_R_IN

SC2_L_IN

SC2_R_IN

SIDE_L_IN

SIDE_R_IN

INTF_L_IN

INTF_R_IN

1693

3

4

5

6

3691

4691

F002

F004

A9

1693

3

4

5

6

6693

6692
TSOP1836

LOCAL

KEYBOARD

(USA only)

ON/OFF

7003

1002
1003

1004

FRONT CONTROL

F692

6691

+

A4

SSIF

VIF_1

VIF_2

RF

SIF1

SIF2

1227

1

2

3

KEYBOARD

LIGHT_SENSOR

LIGHT_SENSOR

OR

OR

KEYBOARD

HERCULES

7200-A (IF)

24

25

31

29

30

IR

LED

IR1

LED

PHASE

DISC

VIDEO

IF

TUNER IF

AGC

AUDIO IF
QSS/AM

DCM

MODULE

24L04.6HU CA 6.

REAR I/O CINCH

A8

7200-F (AUDIO)

DIGITAL PART

SC1_R_OUT

HP

LS

IR

+5V

IR

92

SC1_L_OUT

N.C.

SC2_R_OUT

66

SC2_L_OUT

67

MAIN_OUTR

68

MAIN_OUTL

69

Stby_Con

A4

POWER_DOWN

A4

OR

OR

HP

+5V

12781254

Q1

Q6,Q7

Q8

INTF_R_IN 75

INTF_L_IN 76

SC2_R_IN 72

SC2_L_IN 73

SIDE_R_IN 79

SIDE_L_IN 80

SC1_R_IN 94

SC1_L_IN 95

I/O PORTS

+

IIC BUS

+

PWM

OUTPUTS

+

CPU

+

FM/QSS

SSIF

96 93

AM

22

20

21

17

16

27
26
23

3

WRITE_PROTECT

3207

3214

7205

SEL_LLPIM

ROT

1227

1

2

3

4

5

6

+3.3V

FM

DEM.

32043202

SDA

SCL

VCO

PLL

VIDEO

DEMOD

J1

1800
32 P CONN.

OR

To VIDEO PART
see block diagram
VIDEO

PLL

SOUND

MIXER

SOUND

DET.

INTERFACE MODULE
(AUDIO PART)

26

27

28

29

30

HERCULES (CONTROL)

A4

1682

2

KEY_PROTN 9

IR 32

LED

LIGHT-SENSOR 14

ITV_SCL

A1

SERVICE JUMPER

FM/QSS

AM

F_R_AUDIO_OUT

F_L_AUDIO_OUT

R_AUDIO_IN

L_AUDIO_IN

POWER_DOWN 31

9275

SDM

9252

AM

30

7200-G (Control)
TDA12001H1

TRANSCEIVER

I952

50mV / div AC

2ms / div

B2

A3

AMPLI

+

MUTE

MAIN_OUTL

MAIN_OUTR

A5

7

SELECTION

AUDIO AMPLIFIER

A7

I951

VOL_MUTE

A4

FEATURES

EEPROM

(NVM)

ERR

9

AUDIO

SOURCE

50mV / div AC

2ms / div

7991
7992

VOLUME

MUTE

+3.3V

8
6
5

36043605

ITV_DATA_OUT/SDA

ITV_DATA_IN

ITV_CLOCK

ITV/SCL

ITV_POR1

STDBY_CON

IIC

PROCESSING

7990
TDA2616Q

1

9

2

7991

1213

1
2
3
4
5
6
7

DIGITAL

SOUND

DIGITAL
STEREO

SOUND

DECODER

ERR

19

V AUDIO+1

-V AUDIO

7

4

6

5

ADC DAC

I951

I952

+

see

DIAGRAM

F952

500mV / div AC

2ms / div

F952

F955

F955

500mV / div AC

2ms / div

1280

5

4

2

1

AUDI O

SELECT

AUDI O

SELECT

I1

1259

J1

1259

TELETEXT

OR

(close caption)

ROM
RAM

1205

24MHz

119

118

ERR

15

Stdby_Con

18

23

24

25

10

VOL_MUTE

I2SD/1

Reset__5V

SEL_SC2_INTF

ITV_MSG

+

20

A1
A7

A7
A5

A5

A5

1230

1213

G

REAR IO CINCH

A8

ITV_MSG

1262

1
2
3

1692

SCART
CINCH

OUTPUT

OUTPUT

OUTPUT

SIDE I/O

D

SP/LS MODULE (SP, SMART PLUG PART)

DATA_OUT

1

DATA_IN

2

CLOCK

3

4

IR_OUT

5

R33

6

7

8

DCM_CLK

9

INTERFACE MODULE (CONTROL PARTS)(ONLY FOR SYSTEM SETS)

DATA_OUT/SDA

1

DATA_IN

2

CLOCK

3

4

5

6

STDBY N.C.

7

8

CLOCK_ENABLE

9

ITV_DATA_OUT/SDA

1

ITV_DATA_IN

2

ITV_CLOCK

3

4

ITV_SCL

5

ITV_POR1

6

7

N.C.

1

2

N.C.

3

4

N.C.

5

N.C.

1236

1

2

3

ENABLE

CLOCK

3164

3161

MUTING

7993, 7994

MUTE

SP/LS

I1

(LS, Loudspeaker part)

1246

1

2

3

SMART PLUG

4

2

1

3

+5V +5V

6

5

0262

1
2

Q9

3

DATA_OUT

DATA_IN

CLK

IR_DATA

SDA

SCL

7103

7140

MUTING

RT1

LOADER U1

DATA_OUT

DATA_IN

CLOCK

IR_DATA

GND

9

8

7

5

15

14

6

POR

J5

1800

SUBWOOFER

(optional)

MONITOR

OUT

U2

SMART

LOADER

N.C.

32P CONN.

MODULE

SPDIF

(optional)

1228

1

2

3

L

R

A5

L 8 Ohm/15W

R 8 Ohm/15W

16 Ohm

Bath Room

Speaker

DCM

G_16430_014.eps

260406

Block Diagrams, Test Point Overviews, and Waveforms

I2C and Supply Voltage Overview

SUPPLY LINES DIAGRAM

POWER SUPPLY

A1

5512

9

8

4

5

SUPPLY

PRIMARY

SIDE

1507

EPS1B

0213

3

2

3

4

3532

5531

4

5

1

2

HOT GROUND COLD GROUND

EXTERNAL POWER SUPPLY

BR1

AC

IC1

CONTROL

C21

HOT GROUND

I2C BUS INTERCONNECTION DIAGRAM

HERCULES

A4

7200

20

SET

PROCESSOR

21

PAR T O F

VIDEO­PROCESSER
(HERCULES)

22

ITV_DATA_OUT_SDA

27

ITV_DATA_IN

26

ITV_CLOCK

23

ITV_SCL

14

ERR
19,20

ITV_POR1

3

7541

1503

43

ENERGIZING

2

1

5551 5552

17

18

5562

14

13

5561

10

12

1

7515
TCET1103

2

6564

6535

10

6536

8

6537

6

T1

1

DC

2

5

4

D2

HOT

3207

3214

62116210

CIRCUIT
(optional)

6551

6563

6562

COLD

+3.3V

+3V3

3281

3571

7571

7573

6573

6565 6566

2564

2535 6676

2536

CR1

C

+3.3V

3202

3264

1543

6571

REFERENCE

CIRCUIT

STANDBY

CIRCUIT

C7

COLD GROUND

3204

WRITE_PROTECT

V_DG V_DG

3575

3576

+3V3

STDBY_CON

POWER-DOWN

7561

3565

5537

DS

7535

G

7536

only used in sets with IDTV

+12V

L5

C23

SDA

SCL

Vbatt

A7

-Vaudio -Vaudio

+Vaudio

+6VA

A6

A4

A4

+3V

A4
A5

+6VA

+6V

A4
A5

Vaux

A10

B

A4

0228

3
2
1

N.C.

FEATURES & CONNECTIONS

A5

ERR

6

+3.3V

3601

AUDIO_AMPLIFIER

Vaudio+1

CLASS D
AUDIO AMP

(RESERVED)

+Vaudio

see diversity table

*

36043605

56

7

7601
PCF8511
EEPROM

(NVM)

ERR

9

1903

9911

9910

25L04.6HU CA 6.

LINE + FRAME DEFLECTION

A2

+Vbatt

FILAMENT

R12

+5V

3717

CLOCK

Vbatt

To 6403, 3480,
3420, b-7401,
c-7403
on

A2

To
VERTICAL
DEFLECTION

+3V

+1.8V_A

+1.8V_B

R4

+5V

3729

R9

R6

R7R3

1401

1

2

3

4

5

DATA_OUT

DATA_IN

CLOCK

SMART PLUG

LOADER U1

4

6

1

3

2

5

SDA

SCL

POR

7202

Vbatt

TO

6483 6484

CRT

B1

To 3405, 3463,
3475
on

A2

6452

3458

VIDEO SUPPLY

3484

3485

1452

6454

6455

6459

3210

3211

3206

3209

3208

7210

G

7209

D

G

S

+5V

+5V

3745

-12V

FILAMENT

7204

7201-2

7203

7201-1

D

S

R11 R2

Q1

+5V

3716

+9V

+5V

3743

3715

3710

3744

9023

VIDEO SUPPLY

+5V

ENABLE

5445

EHT

FOCUS VG2

10

BCL

1454

6

5

7

8

9

DECDIG

3295

6207

2204

3217

SP/LS MODULE (CONTROL PART)

I1

1259

1

DATA_OUT

DATA_IN

2

CLOCK

3

INTERFACE MODULE (CONTROL PART)

J1

1259

1

DATA_OUT_SDA

DATA_IN

2

3

CLOCK

1213

DATA_OUT_SDA

1

DATA_IN

2

CLOCK

3

SCL

5

POR

6

6453

6456

3457 2456

3455

7990
TDA2616Q

5

OUTPUT

7

AUDIO

Vaudio+1

5402

A4

7405

EW_DRIVE

OUTPUT
CIRCUIT

CORR.

7404

HDRIVE

A4

To 6407
on

A2

3401

VT_SUPPLY

LINE

E/W

3

1

1404
1

2

+

HOR.
DEFL.
COIL

*

V_DG

A3

TUNER IF

3000

3001

54

1000

TUNER

ERR

10

+6VA (To 3445)

A4

+3V

A1

6201

A5

A5

A5

A1

A5

For

COMPAIR

only

HERCULES

+5V

+3.3V

+Vbutter

+6V

+8V

1005

1

2

3

A1

A1

+5V

+3.3V

+Vbutter

+6V

+8V

Stdby_Con

POWER_DOWN

FEATURES &

A5

CONNECTIONS

ITV_DATA_OUT 3626

ITV_DATA_IN

ITV_CLOCK 3628

ITV_SCL

ITV_POR1

VT_SUPPLY

A5, A3

15

31

7200

HERCULES

PWM1

1213

3625

115

16

1

2

3

5

6

CRT

B1

1351

1

2

FILAMENT

3

4

5

FEATURES & CONNECTIVITIES

A5

+9V

+9V

A1

+3V

A1

+6V

A2

VT_SUPPLY

RESET +5V

A4

DATA _O U T

IR _ DATA

CLOCK

+5V

DATA _I N

GND

1800

15

32P CONN.

9

8

7

14

6

VSVM

+200V

4611

3606

SMART

LOADER

DCM

MODULE

4604

SCAVEM

B2

FILAMENT

3639

3610 6610

9605

7603
L78L33ACZ

13

3608

3607

7604

3351

3609

7605

VSVM

FILAMENT

+200V

+200A

+9V

+9V

+9V

+9VA

+9VA_1

+8V

Vbuffer

+3V (N.C.)

+6V

+6VS

+3.3V

+5V

N.C.

1221

1

1212

12

1220

TUNER IF

A3

+5V

5001

+5V

A5

VT_SUPPLY

A2

REAR I/O CINCH

A8

A5

FRONT CONTROL

A9

A5

+8V

A4

A8

Vbuffer

A4

A10

A1

+3.3V

A4

A3,
A9

+5V

A4

1

2

3

1251

I1

1

2

3

J1

0228

1

2

3

9002

6001

-/C33

Vbutter

3690 3693

+6V

6694

-/C5V1

MAIN SWITCH PANEL

M

1693

DVD POWER SUPPLY

Vaux

INTERFACE MODULE (SUPPLY PART)

U4
LE50CZ

R1

MAIN_AUX

N.C.

INTERFACE MODULE (SUPPLY PART)

3740

6703

R5

+5V

2703

To TUNER
Pin 6.7

To TUNER
Pin 9

Vbutter

To L ED

To 3-6692
(IR_REC)

+5V-STANDBY

Vaux

SMART PLUG

LOADER U1

DATA_OUT

IR_DATA

+5V

CLOCK

3

+5V

DATA_IN

5

GND

+12V

+12V

+5V

+5V

1693

1

1582

1

1800

3

10

G_16430_015.eps

32P CONN.

SMART

LOADER

DCM

MODULE

260406

Circuit Diagrams and PWB Layouts

26L04.6HU CA 7.

7. Circuit Diagrams and PWB Layouts

Mono Carrier: Power Supply

V_DG

47K

3541

F541

25V47u

2541

1542

I571

6573

4534

F552 130V / div DC
F561 15V9 / div DC
F564 9V4 / div DC
F573 0V (N.A.)

9

6541

BZX384-C12

I551

I561

BZX79-C9V1

RES

5534

1u0

5535

1u0

4535

RES

L06 ATSC/ITV

9

5551

5562

5561

9513
RES

3571

*

3578

470R

3577

1K5

I537

I538

I539

STPS10L60D

I579

I562

6537

2540

1n

I552

2551

1n

SB160

6536

SB180

2539

470P

11

9510

AUDIO_GND2

F552

6563

*

2565

1n

6562

6551

*

10

Audio_Gnd

F562

AUDIO_GND1

2552

2563

160V

100u

*

*

2561

I572

I573

6572

3563

220R

2538

470P

6535

1n

7571

7V6

BC547B

6V2

I577

BZX384-B6V2

6576

Vaux_GND

2562

*

AUDIO_GND2

7573

PDTC114ET

82K

3575

I578

4K7

3576

I574

8V2

3579

2K2

2571

15n

I576

15K

3573

6V8

3574

*

6564

BAS316

Vaux_GND

I565

4537

BAS316

6.3V1m0
2536

2535

Vaux_GND

2537

2m2 16V

I513 I516 I519 I533

100V / div DC

5µs / div

2564

10V

2m2

I545

6565

*

3565

*

100n

4536

7535

SI2307DS

3535

1K0

100V / div DC

5µs / div

9536

RES

5536

RES

5537

RES

9537

RES

I547

11

AUDIO_GND1

5552

1543

1R

9514

*

6571
BAV70

K

6566

BAS316

3536

*

2V / div DC

5µs / div

27u

F551

2572

2547

1u0

2548

1u0

F563

F561

*

A1

A2

F573

10n

F535

Vaux_GND

F536

Vaux_GND

I548

Vaux_GND

12

2553

180P

9509

1535
3
2

For DVD

1

3572

7561
PDTC143ZT

-17V7

2566

100n

F537

7536

PDTC143ZT

100V / div DC

5µs / div

1210

Vaux_GND

3589

100R

9589

3V3

Vaux_GND

I546

F564

1

A1 A1

A

POWER SUPPLY

DEGAUSSING COIL

1504

2

1

B

I503

C

1505

2

1

D

1508

1509

For
Lightning
Protection

3506

3M3

2509

I504

3500

I505

3501

1n5

E

1510

F

TO 1013 OF

(For

Lightning

Protection)

3529

*

G

6512

3519

I541

2528

I553

*

*

3528

6538

*

3V8

I554

H

I

"$"

FOR MAINS 120V AC 170V (177V)

..V.. Normal Operation
(..V..) Standy Mode

J

HOT GROUND

COLD GROUND

220V AC 309V (317V)

2

F500

F501

1501

PFC5000 PFC5000

F503

9507

*

1506

56

*

4

2

1

MAINS SWITCH

*

3M3

3M3

6511

BAT54 COL

15K

13V

0V3

9508

I555

I511

2511

2517

RGP10D

*

3527

7532

*

3

15V5

50V

22u

3512

F505

F504

7511

TEA1506T/N1

2

3

Gnd

6

0V

1n0

1K2

10u

2532

Vcc

Ctrl

I527

2512

2530

5533

*

2544

*

Cell 11NC : 8239_125_0925
Function 11NC : 8239_125_0932

T4E.250V

For ITV only

INPUT

CONTROL

CIRCUIT

BURST

DETECTOR

100n

330p

6532

33u

3534

10n

1500

9500

MANAGEMENT

FREQUENCY

CONTROL

6531

BAV21WS

100R

I536

SUPPLY

3531

3

1502

F506

2500

F507

VOLTAGE
CONTRLLED
OSCILLATOR

OVER

TEMPERATURE

PROTECTIOM

POWER-ON

RESET

6533

I556

6534

BZX384-C15

I557

3530

4n7

2533

100K

2501

3505

470n

*

BZX384-B6V8

BZX384-B3V9

2531

220R

I531

2K2

3537

RES

V

3504

CONTROL

MAXIMUM

ON-TIME

PROTECTION

470p

2549

LOGIC

CIRCUIT

3533

100p

4

3

+t

Rs

3523

Rp

2

*

3507

+t

3509

+t

RES

9501
RES

5501

4

1

1M5

23

DMF-2405

9503
RES

3502

*

CURRENT SOURCE

VALLEY

CURRENT SOURCE

TEA1620 (Basic)

7531

TEA1623 (IDTV)

*

LOGIC

STOP

5

RC

OSC

1V

LOW FREQ

8K2

F

1.8 U

2.5V

6

REG

2V7

+

11

0V3

-

AUX

GND SGND NC

4

1

9502

*

5500

1

*

23

9504

*

3503

*

DSP

START-UP

START-UP

CURRENT
SENSING

OUTPUT
DRIVER

OVER

POWER

PROTECTION

3

SUPPLY

PWM

POWER-UP

10X

5

4

2

1507

For 70W Subwoofer

Drain

HVS

Demag

Sense

Driver

VCC

VALLEY

+

THERMAL
SHTDWN

PROT
LOGIC

RESET

789

110

RES

14

297V

7

0V

9

0V

11

2V2

I520

2502

1

3517

3518

3K3

131415 162

I513

2508

BLANK

+

+

F502

100n

I517

3514

2513

330K

SOURCE

DRAIN

*

I519

3510

470p

I506

470R

BC847B

3522

47K

2516

100n

-8V3

12

0V

6

*

*

23

14

DMF-2810

4R7

RES

9511

-T
I507

7514

2V3

7512

*

2V3

G

I518

2519

I533

68p

2534

I532

*

3538

5502

9506

2506

33n

5503

9505
RES

3515

1K0

100p

0V

81

45

2503

2504

3513

2K2

0V

47K

3524

D

295V

S

0R1

6575

3516

5513

1u0

9532

5532

I529

For IDTV Only

*

3539

2n2

6500

4

2n2

I514

6514

BAS316

I516

2514

I521

3520

1N5062

2518

10n

6540

2546

470p

Provision For
Lightning Protection

I501

2

*

3

I502

I524

*

1545

1n5

7

3521

I544

1

2505

3K3

5511

2515

F510

4R7

3511

For IDTV

F508

Only

*

I515

470p

1532

2550

33P

3542

68K

2545

10n

9512

2543

2n2

F509

T315MA

8

1503

LKS1AF

14

23

I542

Vaux_GND

"$"

RES

2507

I523

3532

I535

56

4

3

I540

2

110

5512

*

2

3

4

5

8

9

15V6

5V

3

7513

TCET1103(G)

*

5531

SS22220-03

HOT

F508 268V / div DC
F511 15V5 / div DC
F531 2V7 / div DC
F537 0V (N.A.)

*

2570

470P

14

2

COLD

2542

9V3

8V2

Vaux_GND

Vaux_GND

16V4

7541

BC857B3508

For Heatsink

18

17

16

15

14

13

12

11

10

I575

2573

7

8

9

I543

16V4

F542

Vaux_GND

AUDIO_GND1

AUDIO_GND2

220n

3139 123 5673.4

1

2

3

4

5

6

7

8

13

Vbatt

140V

-Vaudio

-16V

+Vaudio

+16V

+6VA

Stdby_Con

A4

POWER_DOWN

+3V

+6VA

+6V

Vaux

B

A4

F_15760_011.eps

181105

13

A

B

C

D

E

F

G

H

I

J

1500 B3
1501 B3
1502 B3
1503 A8
1504 A2
1505 C2
1506 C2
1507 D5
1508 C1
1509 C1
1510 D1
1532 F7
1535 B11
1542 B8
1543 B10
1545 G7
2500 C3
2501 A4
2502 C5
2503 B6
2504 B6
2505 B7
2506 B6
2507 B7
2508 C5
2509 D2
2511 D2
2512 F3
2513 E5
2514 D6
2515 D7
2516 E6
2517 E2
2518 E6
2519 E6
2528 G1
2530 F3
2531 G4
2532 F2
2533 H3
2534 G6
2535 F9
2536 F9
2537 G9
2538 E9
2539 F9
2540 G9
2541 B8
2542 B8
2543 G7
2544 H3
2545 G7
2546 G7
2547 F11
2548 F11
2549 H4
2550 F7
2551 B9
2552 B9
2553 A11
2561 C9
2562 C9
2563 B9
2564 E10
2565 C9
2566 E11
2570 D8
2571 D9
2572 D10
2573 E8
3500 C2
3501 D2
3502 C4
3503 C5
3504 C4
3505 C4
3506 D1
3507 B4
3508 B6
3509 B4
3510 C5
3511 E7
3512 F2
3513 C6
3514 D5
3515 D6
3516 E6
3517 E5
3518 F5
3519 F2
3520 E6
3521 D7
3522 D6
3523 A4
3524 D6
3527 F2
3528 G2
3529 D2
3530 G3
3531 H3
3532 F7
3533 G4
3534 G3
3535 G10
3536 G10
3537 H3
3538 G6
3539 G6
3541 A8
3542 F7
3563 E9
3565 E10
3571 D9
3572 C11
3573 D9
3574 E9

3575 D10
3576 E10
3577 D9
3578 D9
3579 D9
3589 D11
4534 F8
4535 F8
4536 F10
4537 F10
5500 C5
5501 C4
5502 A6
5503 B6
5511 D7
5512 C7
5513 E6
5531 F8
5532 F6
5533 G3
5534 F8
5535 F8
5536 F10
5537 F10
5551 B9
5552 B10
5561 C9
5562 B9
6500 B7
6511 E2
6512 F2
6514 D6
6531 F3
6532 F3
6533 F3
6534 F3
6535 F9
6536 F9
6537 G9
6538 G2
6540 F7
6541 A8
6551 B9
6562 C9
6563 B9
6564 E9
6565 E10
6566 E10
6571 C10
6572 E9
6573 E8
6575 E6
6576 F9
7511 D3
7512 D6
7513 E8
7514 C6
7531 F4
7532 G2
7535 G10
7536 G11
7541 B8
7561 E11
7571 D9
7573 D10
9500 C3
9501 B4
9502 B5
9503 C4
9504 C5
9505 C6
9506 B6
9507 B2
9508 C2
9509 A11
9510 A10
9511 C6
9512 G7
9513 C9
9514 B10
9532 F6
9536 F10
9537 F10
9589 D11
F500 A2
F501 A2
F502 A5
F503 B2
F504 C3
F505 C3
F506 B3
F507 C3
F508 B7
F509 C7
F510 D7
F535 E11
F536 F11
F537 F11
F541 B8
F542 B8
F551 B10
F552 B10
F561 C11
F562 C9
F563 B11
F564 E11
F573 D11
I501 B7
I502 C7
I503 B2
I504 C2
I505 D2
I506 B6
I507 C6
I511 D2
I513 D5

I514 C7
I515 D7
I516 D7
I517 C5
I518 E6
I519 E5
I520 E5
I521 D6
I523 E7
I524 C7
I527 F3
I529 G6
I531 G4
I532 G6
I533 F6
I535 F7
I536 G3
I537 F9
I538 F9

I539 G8
I540 F7
I541 F2
I542 A8
I543 A8
I544 F7
I545 G10
I546 G11
I547 G10
I548 G11
I551 B8
I552 B9
I553 F2
I554 G2
I555 G2
I556 F3
I557 G3
I561 D8
I562 C9
I565 F9
I571 D8
I572 D9
I573 D9
I574 D10
I575 E8
I576 D9
I577 E9
I578 D10
I579 B9

Circuit Diagrams and PWB Layouts

Mono Carrier: Diversity Table for [A1]

27L04.6HU CA 7.

21

DIVERSITY TABLE FOR POWER SUPPLY

NAFTA

LR

32RF

130V
2X5W

---

---

--- ---

---

--- ---

---

---

---

---

---

---

---

--- ---

---

--- ---

2X10W

250V 1N5

144V 3R

SS40310-01

BYV29X-500

JMP
JMP
JMP

---

---

--- ---

--- ---

---

---

---

---

---

--- ---

---

C

D

A

B

E

REGION

MAIN RANGE

27RF

27FSQ

VBATT

AUDIO

OUTPUT

1508

1510

2505
2506
2508
2509
2528 --­2542
2570
3505
3506
3507
3508
3514
3520
3527
3528
3529
3523
3565
3574
5500
5502
5512
6500
6538 --- --- --­6551
6565
7512
7532
9502
9504
9506

130V

2X5W

2X10W

200V 470U 200V 470U

250V 1N5

1MA/423V 1MA/423V

100R 100R
0R18 0R18 0R18 0R33

145V 1R5

15K 15K 15K

150K 150K 33K

SS40310-01

STTH8L06D

UDZS9.1B UDZS9.1B

FQPF9N50 FQPF9N50

JMP
JMP
JMP

A1

26WSRF
30WSRF

32FSQ

143V
2X5W

2X10W

---

---

200V 470U 400V 330U

---

---

250V 1N5 250V 1N 250V 1N 250V 1N

1MA/423V 1MA/612V 1MA/612V

---

144V 3R

--- ---

100R 47R

---

---

---

---

--- ---

SS40312-01

GBU6JL

BYV29X-500

UDZS9.1B UDZS7.5B UDZS7.5B UDZS7.5B

FQPF9N50 FQPF7N80 STP10NK8OZFP

--- BC857B

JMP
JMP
JMP

21RF

130V

2X10W 2X5W 2X10W 2X5W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

--- ---

275V 100N 275V 100N

250V 1N5 250V 1N5 250V 1N5

470N 470N

250V 470P 250V 470P 250V 470P

3M3 3M3

---

47K

1M

2M2 2M2

276V 4R5

18K

150K 150K 150K 150K 33K

10MH 2A

SS42315-01 SS42315-01 SS42315-01 SS49309-01 SS42316-01

GBU4JL GBU4JL GBU6JL GBU6JL GBU6JL
BAS316 BAS316 BAS316 BAS316

STTH8L06D

---

--- ---

JMP

25RF

29FSQ 29RF

130V 130V 130V 143V

2X10W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 330U 400V 330U 400V 330U

47R

0R33 0R22 0R33 0R33 0R33 0R33

47K

2M2

276V 4R5 276V4R5

10MH 2A 10MH 2A 10MH 2A

STTH8L06D

BC857B BC857B BC857B BC857B

JMP

43

2X5W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

275V 100N 275V 100N 275V 100N

250V 1N5 250V 1N5 250V 1N5 250V 1N5

1MA/612V

--- ---

--- ---

1M

18K

---

STTH8L06D STTH8L06D

--- ---

8

INDIACHINA

21/29RF

29FSQ

2X10W 2X5W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 33N

250V 1N5 250V 1N5

470N

250V 1N 250V 1N

250V 470P

1MA/612V

470R470R

47K

1M

2M2

20MH 1A5

65MH

SS42315-01

BYV29X-500GBU4JL

BAS316 BAS316 BAS316 BAS316
GBU4JL

FQPF7N80

---

---

---

130V 130V

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

450V 220U 450V 220U

--- ---

--- ---

470N 470N 470N

250V 470P 250V 470P

1MA/612V 1MA/612V

3M3 3M3

47K

1M

2M2

276V 4R5 276V 4R5

15K 15K

150K

--- ---

--- ---

SS42315-01

GBU4JLGBU6JL

STTH8L06D

UDZS10B UDZS10B

FQPF7N80 FQPF7N80

JMP
JMP JMP

2X15W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

250V 1N

47R

0R33

47K

1M

2M2

150K

SS42317-01

GBU4JL

STTH8L06D

JMP

470N 470N 470N 470N--- ---

47K

1M

2M2

18K

6

28WSRF
32WSRF

143V

2X10W 2X5W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

275V 100N 275V 100N 275V 100N 275V 100N

250V 470P 250V 470P

47R 47R

0R22 0R33

1M

2M2

276V 4R5

18K
33K 150K

10MH 2A

------

SS49308-01 SS42315-01

GBU6JL GBU4JL

BYV29X-500

UDZS7.5B UDZS10B

STP10NK8OZFP FQPF7N80

---

---

---

BC857B BC857B

---

---

------

JMP JMP

WIRE SIN

18ST BK

WIRE SIN

18ST BK

250V 1N5

276V 4R5

20MH 1A5

STTH8L06D

FQPF7N80

7

HR HR

21/25RF 29RF 34RF 21/29RF

130V

2X10W

180 SIN

400 SIN

---

47K

1M

2M2

15K

---

---

---

130V 130V

2X10W 2X10+20W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 33N

250V 1N5

250V 470P
1MA/612V

3M3 3M3

--- --- --- ---

47R 47R 47R

47K

1M

2M2

276V 4R5 276V 4R5

15K 15K

150K 150K

20MH 1A5

65MH

SS42315-01

GBU4JL

STTH8L06D

UDZS10B UDZS10B

BC857B BC857B BC857B BC857B

---

---

---

5

LATAM / AP

FR

29RF 28WSSF

WIRE SIN

180 SIN
18ST BK
WIRE SIN

400 SIN

18ST BK

---

470N 470N

3M3 3M3 3M3 3M3 3M3

47R

0R33

47K 47K

1M

2M2

18K

---

--- ---

JMP JMP JMP

--- --- --- ---

250V 1N
250V 470P 250V 470P
1MA/612V 1MA/612V 1MA/612V 1MA/612V

--- --- ---

--- --- ---

47R 47R

47K

1M

276V 4R5 276V 4R5

18K

---

STTH8L06D

UDZS7.5B

STP10NK8OZFPSTP10NK8OZFP

------

---

JMP JMP

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 330U 400V 330U 450V 220U 450V 220U 450V 220U

250V 1N 250V 1N 250V 1N 250V 1N

10MH 2A

BAS316 BAS316 BAS316 BAS316

UDZS7.5B

STP10NK8OZFP

109

EUROPE

HR

21RF

130V 130V

2X5W

2X10W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 220U 400V 220U 400V 220U

---

250V 1N5

250V 1N 250V 1N 250V 1N

1MA/612V 1MA/612V

3M3 3M3 3M3

--- --- ---

---------

---

47R

0R33

47K

1M

2M2

276V 4R5

15K

150K 150K 150K

20MH 1A5 20MH 1A5 20MH 1A5 20MH 1A5

---

SS42315-01 SS42315-01 SS42316-01 SS42316-01

GBU4JL GBU4JL GBU4JL

STTH8L06D

UDZS10B UDZS10B

FQPF7N80 FQPF7N80

BC857B BC857B

---

---

JMP

29RF

2X5W 2X10W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

---

275V 100N275V 100N

470N 470N

---

---

47R 47R

0R33 0R33 0R33 0R33

47K

1M

2M2

276V 4R5

15K 15K 15K 15K

20MH 1A5 20MH 1A5

---

SS42315-01

BAS316 BAS316 BAS316 BAS316

---

---

JMP

29RF

130V 143V 143V 143V

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 33N

275V 100N

250V 1N5250V 1N5

250V 470P250V 470P250V 470P

1MA/612V 1MA/612V

---

470R

47K
1M
2M2

276V 4R5

65MH

STTH8L06D

UDZS10B UDZS10B UDZS10B UDZS10B

FQPF7N80 FQPF7N80

BC857B BC857B

---

---

---

24WR

25/28BLD28WSSF

2X5W

2X10W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

400V 220U 400V 220U 400V 220U

275V 100N

250V 1N5 250V 1N5

470N 470N

250V 1N 250V 1N 250V 1N

250V 470P

3M3 3M3

47R 47R 47R

47K

2M2

276V 4R5 276V 4R5

33K 33K

GBU4JL

JMP

28WSRF

2X5W

2X10W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

---

400V 33N 400V 33N

275V 100N 275V 100N

250V 470P
1MA/612V 1MA/612V

---

1M

---

--- ---

---

470R

47K

1M

2M2

65MH

GBU4JL

STTH8L06DSTTH8L06D

FQPF7N80 FQPF7N80

BC857B BC857B

32WSRF

2X5W

2X10W

WIRE SIN

180 SIN

18ST BK

WIRE SIN

400 SIN

18ST BK

250V 1N5

470N

250V 470P

3M3

470R

0R33

47K

2M2

276V 4R5

15K
33K

38MH

SS42316-01

GBU4JL
BAS316

BYV29X-500STTH8L06D

--- ---

---

1M

131211

A

B

C

---

---

---

E

G

H

REGION

I

J

MAIN RANGE

SET

VBATT

AUDIO

OUTPUT

1545
2505
2537
2544
2545
2546
2570
3532
3533
3535
3536
3538
3539
3542
3574
5500
5512
5531
5532
5533
6500
6536
6537
6540
6551
6565
7531
7535
7536
9502
9504
9578
9579
9591
9592

L06

27RF

130V 143V 130V

2X5W 2X5W 2X5W

SIN 560
200V 680U 200V 680U 200V 680U
25V 2200U 25V 2200U 25V 2200U

50V 1NF 50V 1NF 50V 1NF
400V 4N7 400V 4N7 400V 4N7
1KV 470P 1KV 470P 1KV 470P

250V 470P 250V 470P 250V 470P

1R5 1R5 1R5
5K6 5K6 5K6

1K 1K 1K

1K 1K 1K
1R2 1R2 1R2
1R2 1R2 1R2

150K 150K 150K
150K 33K 150K

DMF2810 DMF2810
SS40511-00 SS40512-00 SS40511-00
SS22508-01 SS22508-01 SS22508-01

50R 100MHz 50R 100MHz50R 100MHz

1U0 1U0 1U0

GBU4J GBU6J GBU6J

SB240 SB240 SB240

STPS10LD60 STPS10LD60

RGP15J RGP15J RGP15J

STTH8L06D BYV29X-500 BYV29X-500

PDZ2.7B PDZ2.7B PDZ2.7B

TEA1623PH

Si2307DS Si2307DS Si2307DS
PDTC143ZT PDTC143ZT PDTC143ZT

STPS10LD60

--- --- ---

--- --- --­JMP JMP JMP
JMP
JMP JMP JMP
JMP JMP JMP

F

ATSC

L06

27FSQ

130V

2X5W

SIN 560
200V 680U
25V 2200U

50V 1NF
400V 4N7
1KV 470P

250V 470P

1R5
5K6

1K

1K
1R2
1R2

150K
150K

DMF2810
SS40511-00
SS22508-01
50R 100MHz

1U0

GBU4J

SB240

RGP15J

STTH8L06D

PDZ2.7B

TEA1623PH

Si2307DS
PDTC143ZT

---

--­JMP
JMP
JMP
JMP

LR

L06

32FS

SIN 560 SIN 560

TEA1623PH TEA1623PH

JMP JMP

L06

32RF

DMF2810

STPS10LD60

AUDIO

OUTPUT

REGION NAFTA

2X5W 2X10W 2X10+20W 2X15W

25V 2200uF
25V 2200uF

220R

220R
SB360
SB360

JMP

ROW

Main Switch

---

---

---

1543
2562
2563
3571
3572
6562
6563
9514

1506
9507
9508

--­25V 1000uF
25V 1000uF 25V 2200uF

220R

220R 220R 470R
SB360
SB360 SB360

JMP

---

JMP
JMP

2A 250V

25V 2200uF 25V 2200uF

220R

SB360 SB380

2A250V

25V 2200uF

680R

--- ---

SB380

F

G

H

I

J

3139 123 5673.4

1

F_15760_011d.eps

32 13

654

7

98

121110

151105

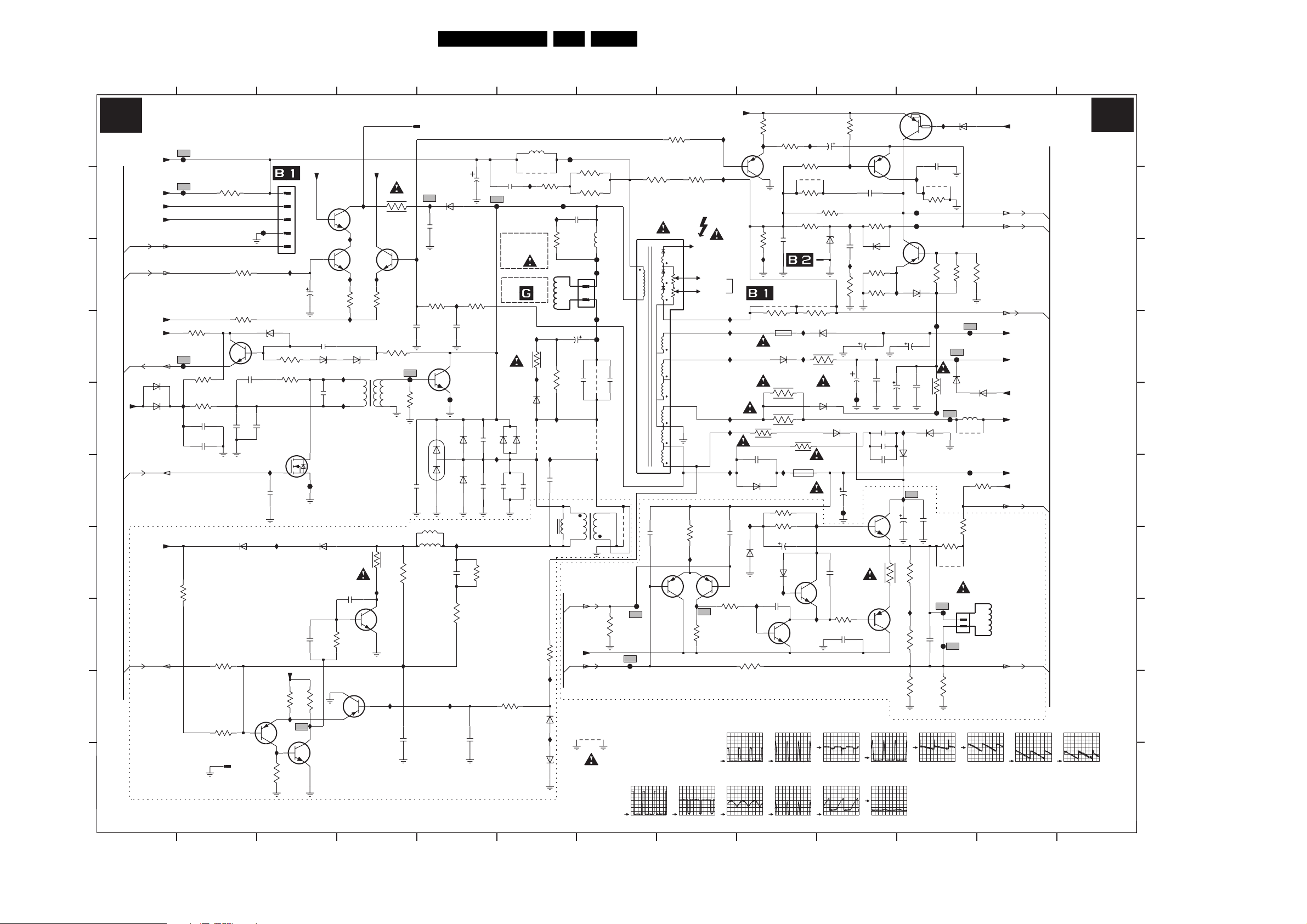

Mono Carrier: Deflection

1

A2

LINE + FRAME DEFLECTION

A

F402

Vbatt

EHTb

-12V

+6VA

F401

3445

C

B

VT_Supply

VideoSupply

Filament

A2

Frame_FB

A2

D

F412

HD

E

+9V

A4

6486

BAV21

6403

RGP10D

HDRIVE

A4

I419

3489

3414

2420

2414

F

Vbatt

G

3499

820K

H

EW_DRIVE

A4

I

Cell 11NC : 8239_125_0925
Function 11NC : 8239_125_0933

J

EW DRIVE

3139 123 5673.4

1

BC847B

47R

*

RES

1u0

7408

Circuit Diagrams and PWB Layouts

2

3401

68K

F404

3403

1K0

3405

3K3

6V

BZX384-C12

-2V2

1V

2409

100n

2421

2410

100n

6407

BAV21WS

3418

100R

7410

BC857B

3495

3V6

1453
RES

CRT PANEL
1

2

3

4

5

6443

100n

I413

2408

I427

I434

3498

To 1351 of

1401

I401

3441

680K
3415

1K0

7404
SI2306DS

1

0V7

1n

+9V

3420

I425

0V2

4K7

3

+9V +9V

7401
BUH2M20AP

7402
BC847B

50V4u7

2401

100p2486

68V

10n

2489

3

4V5

2

F407

6408

BAV21WS

10n

2482

3446

3440

470R

820K

7484
BC847B

3V3

I417

1V3

I404

34

45

From LOT 5450
(For A80ERF042X14

1402

Tube Only)

I418

I414

2488

100p

0V6

I402

I403

3406

390R

I406

64426441

1

3

PSD10-204B

7406
KTC2800

470R

7411
BC857B

5402

27V6

2V8

3407

3497

3411

680K

BC847B

I405

68R

3430

680K

5

6

1R0

I416

I415

I431

7403

3425

2425

F418

3416

2402

BU4508DX

33R

2411

100K

RES

I407

7405

0V

*

5403

5405

I433

2405

33n

6404

35m

3409

1K8

K

A

6401

BYD33V

2KV

1n

0V

DMV1500M

AK

I421

I409

2403

126V

F419

*

*

I423

2487

3431

33n

6412

6411

1n0

100K

2428

5

47u

2404

3410

3R3

2412

BYV29X-500

2413

BYV29X-500

3436

*

56n

*

*

F414

6410 RGP10D

I473

2416

6

5410

F420

RES

9410

2427

15n

HORIZONTAL

DEFLECTION

I432

3432

I474

22R

F415

1K0

2406

680p

3412

COIL

OR

To 1404 of

1404

3427

1K5

6491

*

I410

3404

I430

6406

BY228-1500

*

2492

9401

I422

I426

4R7

3417

RGP10D

I412

I428

*

2419

5406

*

3428 2R2

6488

BAS316

6489

BZX384-C33

2415

15K

12

4

CI-15

3

VDRA

A4

-12V

VDRB

A4

FRAME DEFLECTION

6 12

3433

220R
3434

220R

*

100V2u2

2417

*

5408

SC21329

4493

5401

1

4

9417

9402

28L04.6HU CA 7.

L.LIN

F416

F417

F464

F465

2418

2

1

3460

3488

10K

8

I443

I451

3452

*

EHT

TO PICTURE TUBE

+9V

7480
BC857B

0V

7

3451

*

LOT

5450

*

3

FOCUS

10

6

5

11

7

12

8

9

3462

I470

1V4

3463

500mV / div DC

20µs / div

8

VG2

2K2

-12V4
I468

1K0

0V8

BC857B

I465

I455

I457

I458

I475

I459

2462

7456

3469

1K0

F412 F414

2V / div DC

20µs / div

10V / div DC

20µs / div

1

*

9407

*

2K2

F461

F401 130V / div DC
F402 32V8 / div DC

F452 -13V4 / div DC

F453 190V8 / div DC

1n

2461

0V8

7455
BC857B

F460

I416 I417 I468I423 I433

20V / div DC

-12V4

20µs / div

7

I444

I448

2459

470p

6456

RGP15G

I460

1n

6457

I463

3461

2K2

9

2K2

3480

0V5

*

3453

2451

of CRT PANELTo

9442

3442

6K8

1454

MRT

6453

RGP10D

3484

3485

3455

1R0

I467

3465 330R

3464

330R

BAS316

6458

I471
2464

470p

-11V8

-12V4

200V / div DC

10V / div DC

9

3487

33R

*

TO 1382 of

1R

*

*

50V 100u2463

20µs / div

20µs / div

10

PDTA114ET

22K

3490

2481

7483

50V10u

BC857B

6V2

I424

3473

I469

680K

2453

BZX384-C4V7

I452

3493

F454

6459

2460

220p

3470

22R

2469

220n

5V / div DC

20µs / div

5ms / div

16V 470u

2457

16V470u

F457

-0V6

7453
BD136

16V1u0

RES

2454

-1V6

6451

1470

6452

3458

4R7

6481

1N4148

RGP10D

2468

F418 F455 F458 F459

I462

10V / div DC

2491

RES

BAS316

4u7

2452

7451
BD135

2V6

3476

2K2

6450

3478

6K8

3486

6K8

2458

2490

*

47n

-0V8

-1V1

-12V4

5V / div DC

20µs / div

5V / div DC

5ms / div

3n3

47n2456

3466

1V7

0V

17V1

I449

2484

24V

2465

I429

1V7

BZX79-B5V1

*

2455

16V 470u

RES

I456

6454

1R

3467

I472

3468

3471

I453

I466

3457

4R7

1452

1R

MRT

7454
BC847B

BAS316

-1V9

7452
BF422

I445

3491

56K

4477

3477

RES

3454

8K2

0V5

9443

3443

6K8

RGP10D

I461

I464

10

7482

F451

F462

6480

2480

I462

22u 100V

7481
BC857B

18V1

F463

100n

6455

RGP10D

RGP10D

2470

220R

2467

220R

3R3

20 V / div DC

5ms / div

11

7V9

2483

47n

4492

3492

56K

3482

3481

1u0

F458

11

I446

6482

BZX384-C6V8

3K3

3494

F453

6483

*

F466

F455

3437

2K0

4437

1451

15n

F459

3R3

3472

RES

F452

BAV21WS

5451

*

9451

F456

3474

10K

3483

6484

BAV21WS

3475

8K2

15K

1
2

1V / div DC

5ms / div

12

POWER_DOWN

EHTinfo

BCL

EHTb

-12V

VideoSupply

200V

Vbatt

Filament

+9V

-12V

Vguard

VERTICAL
DEFLECTION COIL

Frame_FB

F460 F461

500mV / div DC

5ms / div

A4

A4

A2

A4

A2

13

500mV / div DC

5ms / div

F_15760_012.eps

132

A2

161105

A

B

C

D

E

F

G

H

I

J

1401 B3
1402 A4
1404 C6
1451 F10
1452 E9
1453 H3
1454 C8
1470 B9
2401 C3
2402 C4
2403 C5
2404 A5
2405 B5
2406 B6
2408 E3
2409 D3
2410 D3
2411 E4
2412 D5
2413 E5
2414 D2
2415 C6
2416 E5
2417 D6
2418 D7
2419 E6
2420 D2
2421 D3
2425 G4
2427 A6
2428 G5
2451 B8
2452 E9
2453 B9
2454 C9
2455 C10
2456 D9
2457 D9
2458 D9
2459 D8
2460 E9
2461 E7
2462 E8
2463 E8
2464 F8
2465 E10
2467 F10
2468 F9
2469 F9
2470 E10
2480 D10
2481 A9
2482 F3
2483 A10
2484 D10
2486 C3
2487 F5
2488 F4
2489 D3
2490 D10
2491 B9
2492 E6
3401 B3
3403 B3
3404 C6
3405 C3
3406 C4
3407 C4
3409 C5
3410 C5
3411 B4
3412 B6
3414 D2
3415 D3
3416 D4
3417 D6
3418 G2
3420 G3
3425 F4
3427 G6
3428 G6
3430 C4
3431 F5
3432 A6
3433 A6
3434 B6
3436 F5
3437 E10
3440 G3
3441 C3
3442 C8
3443 C9
3445 C2
3446 F4
3451 A7
3452 A8
3453 B8
3454 B9
3455 D8
3457 D9
3458 C9
3460 F7
3461 G8
3462 E7
3463 F7
3464 E8
3465 E8
3466 F9
3467 F10
3468 F10
3469 F8
3470 F9
3471 G10
3472 G10
3473 B9
3474 E10
3475 E11
3476 B9
3477 B9
3478 B9
3480 A8
3481 D10
3482 B10
3483 B10
3484 D8
3485 D8
3486 C9
3487 A9
3488 A7
3489 C2
3490 A9
3491 A9
3492 B10
3493 C9
3494 B10
3495 G2
3497 F4
3498 H3
3499 F2
4437 F10
4477 A9
4492 B10
4493 G6
5401 B6
5402 D4
5403 E5

5405 E5
5406 E6
5408 E6
5410 A6
5450 B7
5451 D10
6401 B5
6403 D2
6404 E5
6406 D6
6407 E3
6408 E4
6410 D5
6411 E5
6412 D5
6441 C4
6442 C4
6443 C3
6450 B9
6451 B9
6452 C9
6453 C8
6454 E10
6455 D10
6456 E8
6457 E8
6458 F8
6459 D9
6480 C10
6481 D9
6482 A10
6483 D10
6484 D11
6486 D2
6488 G6
6489 H6
6491 D5
7401 B4
7402 B4
7403 B4
7404 D3
7405 C5
7406 F4
7408 C2
7410 G3
7411 G4
7451 E9
7452 F9
7453 F9
7454 F9
7455 F7
7456 F8
7480 A8
7481 B10
7482 A10
7483 A9
7484 H3
9401 D6
9402 D6
9407 E7
9410 A6
9417 D6
9442 C8
9443 C9
9451 D10
F401 B2
F402 A2
F404 B3
F407 E3
F412 C2
F414 B5
F415 B6
F416 B7
F417 B7
F418 D4
F419 D5
F420 A6
F451 B10
F452 C10
F453 C10
F454 D9
F455 D10
F456 E10
F457 E9
F458 F10
F459 F10
F460 F7
F461 G7
F462 B10
F463 C10
F464 C7
F465 C7
F466 D10
I401 B3
I402 B4
I403 B4
I404 C4
I405 C4
I406 C4
I407 B5
I409 C5
I410 C6
I412 D6
I413 E3
I414 D4
I415 G4
I416 F4
I417 G3
I418 D4
I419 D2
I421 G5
I422 G6
I423 E5
I424 A9
I425 G3
I426 G6
I427 E3
I428 D6
I429 A10
I430 D6
I431 G4
I432 B6
I433 B5
I434 H3
I443 A8
I444 A8
I445 A9
I446 A10
I448 B8
I449 C10
I451 A8
I452 B9
I453 C9
I455 C8
I456 D10
I457 C8
I458 D8
I459 E8
I460 E8
I461 E9
I462 E10
I463 F8
I464 F9
I465 C8
I466 C9
I467 E8

I468 F8
I469 B9
I470 F7
I471 F8
I472 F10
I473 E5
I474 B6
I475 D8

Circuit Diagrams and PWB Layouts

Mono Carrier: Diversity Table for [A2]

29L04.6HU CA 7.

DIVERSITY TABLE FOR DEFLECTION

A2

A

Region NAFTA

B

C

D

E

Tube

Size

LPD

27 V

2411
2412
2413
2416
2418
2419
2425
2451

2487 ­249047n-----47n- ---­3224
3295
3414
3431
3451
3452
3453
3467
3468
3471
3472
3473
3474
3481
3482
3483
3491
3494
3499
5401
5408
5450
5451
6404
6411
6412
7405
9407
9417

470pF

12nF

120nF

-

390nF

-

-

150nF

4u72457

680K 5%

8K2 5%

1R 1W 5%

82K 1%
68K 1%
18K 5%

33K 5%
120R 5%
220R 5%

3R3 1%
390K 5%

15K 5%

5R6 5%

22K 1%

56K 1%
100K 5%
180K 5%

-680K 5%

50uH

-

JF0501-21835B

27uH 10%

DVM1500M

-

-

BU4508DX

-

-

LPD LPD

LPD LPD LPD SMGK LPD

28 WR 29 RF 32 V 32 V RF 32 WR

1.2nF
13nF
15nF

3n3

-

390nF

33nF

150nF

1n5

680K 5%

10K 5%

2R2 1W 5%

82K 1%
82K 1%
15K 5%

22K 5%
120R 5%
150R 5%

2R7 1%

2R4 1%
680K 5%

12K 5%

5R6 5%

22K 1%

56K 1%
100K 5%

-

680K 5%

-

42uH

SC2132 9-00B

JF0501-85021B

JMP

-

BY229X-800

BY359X-1500

BU2725DX

-

JMP

1.5nF
15nF
39nF

-

330nF

2u2

33nF

180nF

1n5

680K 5%

8K2 5%

1R 1W 5%

82K 1%
68K 1%
15K 5%

33K 5%
120R 5%
150R 5%

2R4 1%-

2R4 1%
820K 5%

15K 5%

10R 5%

2K4 1%

5K6 1%
100K 5%
100K 5%
680K 5%

-

33uH

CU15

JF0501-21836B

33uH 10%

DVM1500M

-

-

BU4508DX

JMP

-

2.2nF
15nF
33nF

-

470nF

2u2

33nF

180nF

1n5

680K 5%

8K2 5%

0R33 1W 5%

82K 1%
75K 1%
15K 5%

22K 5%
220R 5%
150R 5%

2R4 1%

2R7 1%
820K 5%

15K 5%

2R7 5%

22K 1%

56K 1%

82K 5%
150K 5%

-330K 5%
33uH
CU15

JF0501-21140B

27uH 10%

DVM1500M

-

-

BU2725DX

JMP

-

680pF

12nF
33nF

4n7

270nF

2u2

10nF

150nF

2n2

560K 5%

8K2 5%

1R 1W 5%

10K 1%
68K 1%
6K8 5%

33K 5%
150R 5%
150R 5%

2R2 1%

2R2 1%
820K 5%

15K 5%

5R6 5%

22K 1%

56K 1%

68K 5%
680K 5%

25uH

CU15

JF0101-85020B

JMP

DVM1500M

BU4508DX

JMP

F

Region EUROPE

Tube

Size

2411
2412
2413

G

H

I

J

2416
2418
2419
2425
2451
2457 4u7 4u7 4u7 4u7 4u7 4u7 4u7
2487
249047n------­3224
3295
3414
3431
3451
3452
3453
3467
3468
3471
3472
3473
3474
3481
3482
3483
3491
3494
3499
5401
5408
5450
5451
6404
6411
6412
7405
9407
9417

3139 123 5673.4

1

LPD

21RF

470pF

8n2

33nF

-

470nF

2u2

33nF

220nF

1nF

1M 5%
8K2 5%
4R7 1W
82K 1%
68K 1%
18K 5%
22K 5%

220R 5%
220R 5%

3R3 1%
3R3 1%

470K 5%

15K 5%

-

-

­56K 5%
56K 5%

-680K 5%

82uH

CU15

1342.0033CY
22uH 10%

DVM1500M

-

-

BU4508DX

JMP

-

LPD LPD LPD LPD LPD

24 WR 25 I 28 I 29 RF 28 WR 28 WS

1n2
13nF
15nF

2n2

-

470nF

33nF

220nF

1nF

1M 5%

8K2 5%

4R7 1W

82K 1%
56K 1%
18K 5%

22K 5%
220R 5%
220R 5%

3R3 5%

3R3 1%
470K 5%

15K 5%

-

-

­56K 5%
56K 5%

-680K 5%

37uH

SC21329-00B

1342.0048B
22uH 10%

-

BY229X-800

BY359X-1500

BU2725DX

-

JMP

470pF

9n1

18nF

­390nF
470nF

33nF

220nF

1nF

1M 5%

8K2 5%

10R 1W 5%

82K 1%

120K 5%

18K 5%

33K 5%
220R 5%
220R 5%

1R5 1%

2R2 1%
680K 5%

15K 5%

-

-

­56K 5%
56K 5%

-

680K 5%

50uH

SC21329-00B

1342.0048B
27uH 10%

-

BY229X-800

BY359X-1500

BU2725DX

-

-

470pF

9n1

18nF

­390nF
470nF

33nF

220nF

1nF

1M 5%

8K2 5%

10R 1W 5%

82K 1%

120K 5%

18K 5%

33K 5%
220R 5%
220R 5%

1R5 1%

2R2 1%
680K 5%

15K 5%

-

-

­56K 5%
56K 5%

-680K 5%

50uH

SC21329-00B

1342.0048B
27uH 10%

-

BY229X-800

BY359X-1500

BU2725DX

-

-

1nF
13nF
33nF

360nF

2u2

33nF

220nF

1nF

1M 5%
8K2 5%
2R2 1W
82K 1%
68K 1%
18K 5%
33K 5%

220R 5%
220R 5%

2R2 1%
2R2 1%

680K 5%

15K 5%

56K 5%
56K 5%

25uH

CU15

1362.0016AB
39uH 10%

DVM1500M

BU4508DX

JMP

32 13121110

-680K 5%

-

-

-

-

-

-

-

-680K 5%

-

-

-

4321

330pF

13nF
18nF

-

-

430nF

33nF

180nF

1n5

680K 5%

8K2 5%

6R8 1W 5%

82K 1%
82K 1%
6K8 5%

22K 5%
220R 5%
220R 5%

1R8 1%

3R3 1%
820K 5%

15K 5%

4R7 5%

22K 1%

56K 1%

82K 5%
680K 5%

-680K 5%

42uH

SC2132 9-00B

JF0101-85021B

JMP

-

BY229X-800

BY359X-1500

BU2725DX

-

JMP

680pF

11nF
15nF

4n7

-

430nF

33nF

220nF

1nF

1M 5%

8K2 5%

3R3 1W

82K 1%

68K 1%

18K 5%

22K 5%
220R 5%
220R 5%

1R5 1%

6R8 1%
470K 5%

15K 5%

-

-

­56K 5%
56K 5%

-680K 5%

50uH
SC21329-00B
1362-0015AB

0.588 COL

-

BY229X-800

BY359X-1500

BU2725DX

-

JMP

4

5

6

LATAM

LPD

25 RF

1.2nF
15nF
33nF

390nF

2u2

33nF

100nF

1n5

680K 5%

8K2 5%

3R3 1W 5%

82K 1%
68K 1%
18K 5%

33K 5%
120R 5%
150R 5%

2R2 1%

2R 1%

680K 5%

15K 5%

100K 5%

33uH
CU15

JF0501-21835B

33uH 10%

DVM1500M

BU4508DX

JMP

LPD

25 RF

15nF 12nF 15nF 13nF 13nF
33nF 120nF 18nF 15nF

-

4u74u74u74u74u74u7

-

-

-

-

-680K 5%

-

-

- - - JMP JMP JMP -

-- -

360nF

2u2 470nF 390nF 430nF 2u2
33nF 33nF 33nF 33nF 33nF

100nF 150nF 120nF 150nF

4u7 4u7 4u7 4u7 4u7 4u7
1n5 1n5 1n5 1n5

680K 5% 680K 5% 680K 5% 560K 5%

8K2 5% 8K2 5% 8K2 5%

1R 1W 5% 1R 1W 5% 4R7 1W 5% 2R2 1W 5% 6R8 1W 5% 0R33 1W 5%

82K 1% 82K 1% 82K 1% 82K 1% 82K 1% 82K 1%
68K 1%
18K 5%

33K 5% 33K 5% 33K 5% 22K 5% 22K 5%
120R 5% 120R 5% 220R 5% 120R 5% 220R 5% 120R 5%
150R 5% 220R 5% 220R 5% 150R 5% 220R 5% 150R 5%

2R4 1% 2R2 1% 2R7 1%

2R4 1% 3R3 1% 3R3 1% 2R4 1%
820K 5% 390K 5% 1M 5%

15K 5% 15K 5%

-

-

-

100K 5% 100K 5% 82K 5%

--

-

680K 5% -680K 5% -680K 5%

37uH 50uH 16uH 42uH 42uH 25uH
CU15 SC2132 9-00B SC2132 9-00B SC2132 9-00B CU15

JF0501-2153B JF0501-21835B JF0501-21133B

27uH 10% 27uH 10% 39uH 10% JMP

DVM1500M - - - DMV1500M

- - BY229X-80 BY229X-80 BY229X-800 -

-

BU4508DX BU4508DX BU4508DX BU2725DX

JMP----JMP- JMPJMP JMP

LPD

27V

390nF 330nF

-

-

-

47n

68K 1% 120K 1% 82K 1% 82K 1% 68K 1%
18K 5% 27K 5% 15K 5% 6K8 5% 15K 5%

-

180K 5% 680K 5%

-

DVM1500M

- BY359X-1500 BY359X-1500 BY359X-1500 -

LPD

28WS

2n2

15K 5% 12K 5% 15K 5% 15K 5%

-

-

-

LPD

28WR

1.2nF1.2nF470pF680nF

3n3

-

10K 5% 8K2 5% 8K2 5%

680K 5% 820K 5% 1M 5%

5R6 5% 4R7 5%5R6 5%
22K 1% 22K 1%22K 1%
56K 1% 56K 1%56K 1%

100K 5% 82K 5% 82K 5%

-

680K 5%

JF0501-85021B JF0101-85021B JF0501-2136B

LPD

32WR

330pF

18nF 39nF

180nF 100nF

680K 5% 680K 5%

1R8 1% 1R8 1%
3R3 1% 2R2 1%

JMP 27uH 10%

BU2725DX BU4508DX

32 WR

680pF

11nF
15nF

2n2

-

470nF

33nF

220nF

1nF

1M 5%

8K2 5%

4R7 1W

82K 1%
68K 1%
18K 5%

22K 5%
220R 5%
220R 5%

3R3 1%

3R3 1%
470K 5%

15K 5%

-

-

­56K 5%
56K 5%

-680K 5%

25uH

SC21329-00B

1342.0042CY
22uH 10%

-

BY229X-800

BY359X-1500

BU4508DX

-

JMP JMP

680pF

11nF
15nF

4n7

-

430nF

33nF

220nF

4u7

1nF

1M 5%

8K2 5%

3R3 1W

68K 1%

18K 5%
220R 5%
220R 5%

1R5 1%

6R8 1%
470K 5%

15K 5%

-

-

­56K 5%
56K 5%

-

680K 5%
680K 5%

25uH

SC21329-00B

1362-0015AB

33uH 10%

-

BY229X-800

BY359X-1500

BU2725DX

-

65

7

1098

131211

A

AP

SMGK

29RF

1.5nF
15nF

--

3n3

33K 5%

-680K 5% -680K 5%-

CPT LPD LPD LPD LPD

21RF

220pF 680nF

-

-

--

-

-

-

68nF 33nF 33nF 18nF 33nF 33nF

220nF 360nF 330nF - 300nF 360nF

120nF 120nF 220nF 180nF 270nF 120nF 220nF 220nF 270nF 120nF 220nF

1M 5% 680K 5% 680K 5% 680K 5% 1M 5% 680K 5% 1M 5%

2K7 5%

10R 1W 5%

82K 1% 82K 1% 82K 1% 82K 1%
82K 1% 68K 1% 68K 1%
18K 5% 18K 5% 15K 5% 6K8 5% 18K 5% 18K 5% 18K 5% 15K 5% 18K 5% 18K 5% 15K 5% 18K 5%

33K 5% 33K 5% 33K 5% 22K 5% 33K 5% 33K 5%
220R 5% 120R 5% 120R 5% 220R 5% 150R 5% 120R 5% 220R 5% 120R 5% 150R 5% 220R 5% 120R 5% 220R 5%
220R 5% 150R 5% 150R 5% 220R 5% 150R 5% 150R 5% 220R 5% 150R 5%

2R2 1% 2R4 1%

3R9 1% 2R4 1% 2R4 1% 3R3 1% 2R2 1% 2R4 1% 4R7 1% 2R4 1% 2R2 1% 3R9 1% 2R4 1% 2R2 1%
390K 5% 820K 5% 680K 5% 820K 5%

15K 5% 15K 5% 15K 5%

82K 5% 100K 5% 82K 5%

680K 5% 680K 5% 680K 5% 680K 5% 680K 5%

82uH 37uH 33uH 42uH

JF0501-2135B

68uH 5%

DVM1500M

BU4508DX BU4508DX BU4508DX BU2725DX BU4508DX BU4508DX BU4508DX BU4508DX BU4508DX BU4508DX

25RF 29RF 32WR 34RF 25RF 21RF 29RF 34RF 21RF 29RF 29FSQ

1.2nF

15nF8n2

-

- 2u2 2u2
33nF

-

4u7 4u7 4u7 4u7 4u7
1nF 1n5 1nF 1n5 3n3 1n5 1nF 1nF 3n3 1nF 1nF 1nF

--- - - -- -- - --

8K2 5% 10K 5% 8K2 5% 7K5 1% 8K2 5%

1R 1W 5% 1R 1W 5% 6R8 1W 5% 6R8 1W 5% 1R 1W 5% 4R7 1W 5% 1R 1W 5% 6R8 1W 5% 10R 1W 5% 1R 1W 5% 4R7 1W 5%

-

-

---

- CU15 CU15 SC2132 9-00B CU15 CU15
JF0501-2135B

27uH 10% 27uH 10% 0.58mm COL 22uH 27uH 10% 68uH 5% 27uH 10% 22uH 68uH 5% 27uH 10% 22uH 10%

DVM1500M DVM1500M - DVM1500M DVM1500M

- -

-

- - - JMP - -

15nF 13nF 12nF 15nF 8n2 15nF 12nF 8n2 15nF 13nF

33nF 33nF 33nF10nF - 33nF 10nF - 33nF 33nF

2R4 1% 1R8 1% 2R2 1% 2R4 1% 3R9 1%

--

--

--

JF0501-2136B JF0101-85021B JF0501-2601B JF0501-2135B JF0501-2135B JF0501-2136B

-

-

- BY359X-1500 - -

330pF

430nF 2u2 2u2 - 2u2 2u2

82K 1% 68K 1% 68K 1% 68K 1% 68K 1% 68K 1% 82K 1% 68K 1% 56K 1%

15K 5% 15K 5% 15K 5% 15K 5% 15K 5% 15K 5% 15K 5% 15K 5% 15K 5%
4R7 5%
22K 1%
56K 1%

82K 5% 82K 5% 100K 5% 56K 5% 82K 5%

680K 1%

BY229X-800---

-JMP

1nF

10K 1% 82K 1% 82K 1% 82K 1% 10K 1% 82K 1%

430K 5% 820K 5% 680K 5% 680K 5% 430K 5% 390K 5%

42uH

LPD

680nF 220pF 1.2nF 1nF 220pF

--3n3 - -

4u7 4u7 4u7 4u7 4u7

-

-

-

-

-

-

-

680K 5% 680K 5% 56K 5% 56K 5% 56K 5%

-

37uH

CHINA INDIA

LPD

68nF

270nF 330nF 300nF 220nF 330nF 390nF

8K2 5% 10K 5% 7K5 1% 2K7 5% 10K 5% 8K2 5%

33K 5% 33K 5% 33K 5% 33K 5% 33K 5%

82uH 33uH 42uH 82uH 33uH 33uH

DVM1500M

-

-

-

--

-

LPD LPD CPD LPD SMGK

680pF1.2nF

33nF 33nF 68nF 33nF 39nF

- 3n3 3n3-- -

2u22u2-

4u7 4u7

680K 5% 1M 5% 1M 5% 680K 5% 1M 5%

82K 1% 82K 1%

2R4 1% 2R2 1%

-- - - - -

-- - - - -

-- - - - -

-- - - - --

-

CU15 CU15 - CU15 CU15

DVM1500M

JMP

150R 5% 220R 5% 150R 5% 220R 5%

82K 5% 82K 5% 82K 5% 56K 5%

JF0501-2601B JF0501-2135B JF0501-2136B JF0501-2133B

DVM1500M

-

-

-

-

JMP

2R2 1%

DVM1500M

-

-

-

-

2R4 1% 2R2 1%

680K 5% 680K 5%

56K 5%

DVM1500M

-

-

­BU4508DX BU4508DX

--

-

JMP

220nF

33K 5%

56K 5%

DVM1500M

-

-

-

-

JMP

-

-

-

-

B

C

D

E

F

G

H

I

J

F_15760_012d.eps

7

98

151105

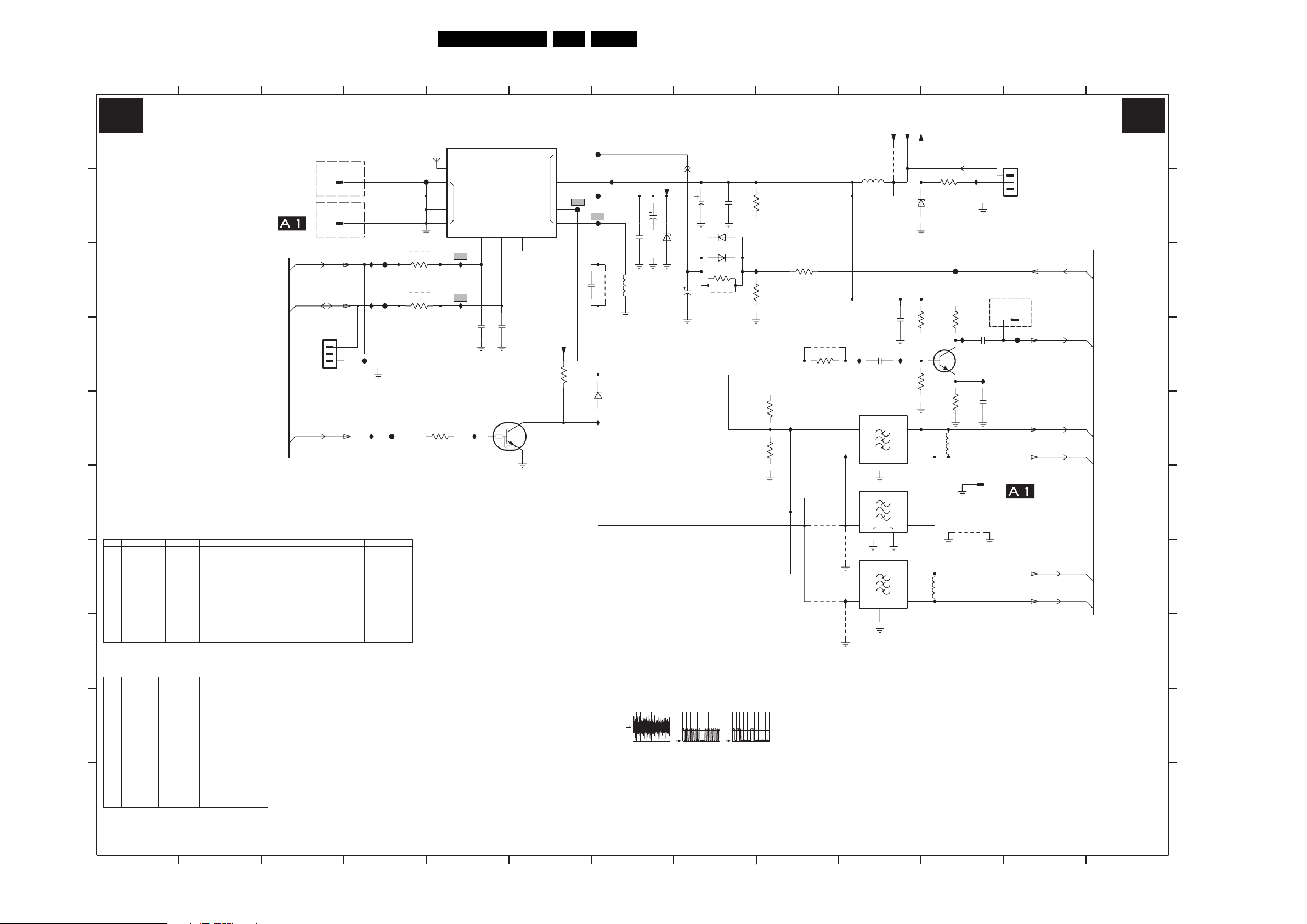

Mono Carrier: Tuner IF

1 9

TUNER IF

A3

A

B

C

D

E

F

ITEM

EU Normal

UV1316E/A I-4

1000
2002
2008
2009
2013

G

2014
2016
3010
3014
3016
3018
3019
5002
7003

H

ITEM NA/LA/AP INT

EU-QSS
K9656M

1001

K3953M

1002
1003

50V 10N

2003

3006
3007

I

3008
3009
4002

JMP
4003
4004
4006
4011

JMP
4012

BAS316

6002
6004

J

1SS356 1SS356

7001

PDTC124ET

3139 123 5673.4

EU FM Radio
UR1316/A I-3

50V 22P

68u

---

---

---

---

---

---

---

---

---

0U47

---

---

10K

2K2 2K2
6K8
2K2

---

---

---

---

68u

16V 100N

25V 1N
25V 1N
25V 1N

330R
820R
100K
560R
150K
0U47

BFS20

---

M1971M

---

---

---3002

---

---

--­JMP
JMP

--­JMP

---

---

---

---

---

1

EU Splitter

TEDE9-703A

50V 22P50V 22P

68u

---

---

---

---

---

---

---

---

---

0U47

AP QSS
K9362M
K7257M

---

50V 10N

---

10K10K

6K8 6K8
2K2 2K2

---

--­JMP
JMP

--­JMP

---

PDTC124ET

2

Circuit Diagrams and PWB Layouts

3

FOR ITV ONLY

1010

TO 0282

POWER SUPPLY

NA/LA/AP NTSC AP LNA

TEDH9-305A

---

100u

---

---

--- ---

---

---

---

---

---

---

0U39

------

CH QSS

K9352M

---

K6274M

50V 10N

---

10K---

2K2

JMP

---

---

JMP

---

JMP

---

1SS356

PDTC124ET

FOR EMC ONLY

OF

1011

A4

A4

1005

For Compair only

SEL_LLP|M

A4

UV1356A/A I G-3

50V 22P 50V 22P

100u

---

---

---

---

---

---

---

---

0U39

---

1
2
3

AP Splitter

68u

---

---

---

---

---

---

---

---

---

0U47

---

I014

I015

F011

I017

SCL

SDA

TEDE9-703A UV1356A/A I G-3

3

4

F005

4000

F007

F008

CH LNA

50V 22P

3000

RES

4001

3001

RES

F009

100u

---

---

---

---

---

---

---

---

---

0U39

---

Cell 11NC : 8239_125_0926
Function 11NC : 8239_125_0934

4

3006

30L04.6HU CA 7.

I009

I010

4002

4012

I003

1002

*

1

2

GND_28

1003

*

10

SWI

1

IN

2

ING

GND_28

1001

*

1

2

10

5001

4005

RES

2014

*

3

GND

38

3

GND_28

10

+5VS+5V

Vbuffer

9002

6006

BZX79-B8V2

3016

2009

** *

I007

1V1

3019

*

4

5

4

O1

5

O2

GND_28

4

5003

5

3020

220R

5004

1u8

F006

5V

3014

3018

I004

*

0V3

for EMC

11

*

7003

4013

I013

2016

*

I012

2013

1004
1
2

FOR DVD

3

ONLY

for ATSC

1012

F010

*

TO 1510 OF

1013

(For Lightning Protection)

GND_28

1211

RF_AGC

SSIF

VIF1

VIF2

SIF2

SIF1

12

A4

A4

A4

A4

A4

A4

+5 ADC

7

4.9V

5V

0V

IFGND

NC

6

34V5

F003

*

F001

F002

F004

2003

6004

1

2

6

9

10

11

83

+5V

3009

7

I016

VT_Supply

2005

10u 50V

47n

6001

2004

5002

4003

*

*

*

2008

*

I006

52

1000

*

12

MT

AS

I001

I002

TV TUNER

SCL5SDA

4

4.3V

2001

7001
PDTC124ET

I005

0V

RES

2002

4.3V

*

13

14

15

*

2006

BZX79-C33

*

8

470u

6002

BAS316

6003

3002

4006

*

2007

*
*

100n

3003

3004

I011

1K5

RES

3008

3007

*

*

IFGND

I008

3005

100R

4010

RES

3010

*

4004

*

*

IFGND

4011

*

*

IFGND

F003 0V (N.A.)

5

6

F004

200mV / div AC

10ms / div

7

I001 I002

1V / div DC

20µs / div

8

1V / div DC

20µs / div

9

13

A3

F_15760_013.eps

161105

13

A

B

C

D

E

F

G

H

I

J

1000 A5
1001 E9
1002 D9
1003 E9
1004 A11
1005 C3
1010 A3
1011 B3
1012 C11
1013 E10
2001 C5
2002 C5
2003 C6
2004 B7
2005 B7
2006 B7
2007 B8
2008 C7
2009 C9
2013 D10
2014 C9
2016 C10
3000 B4
3001 C4
3002 B8
3003 B8
3004 C8
3005 B8
3006 D5
3007 D8
3008 D8
3009 C6
3010 C9
3014 C10
3016 C10
3018 D10
3019 D10
3020 A10
4000 B4
4001 C4
4002 E9
4003 C6
4004 E9
4005 B9
4006 C8
4010 C9
4011 F9
4012 F9
4013 E10
5001 A9
5002 C6
5003 F10
5004 D10
6001 B7
6002 B8
6003 B8
6004 D6
6006 B10
7001 D5
7003 C10
9002 A9
F001 A6
F002 B6
F003 B6
F004 B6
F005 A5
F006 B10
F007 B4
F008 C4
F009 D4
F010 C11
F011 C4
I001 B5
I002 C5
I003 C9
I004 C10
I005 D5
I006 D6
I007 C9
I008 D8
I009 D9
I010 F9
I011 B8
I012 C10
I013 A10
I014 B4
I015 C4
I016 A6
I017 D4

Circuit Diagrams and PWB Layouts

31L04.6HU CA 7.

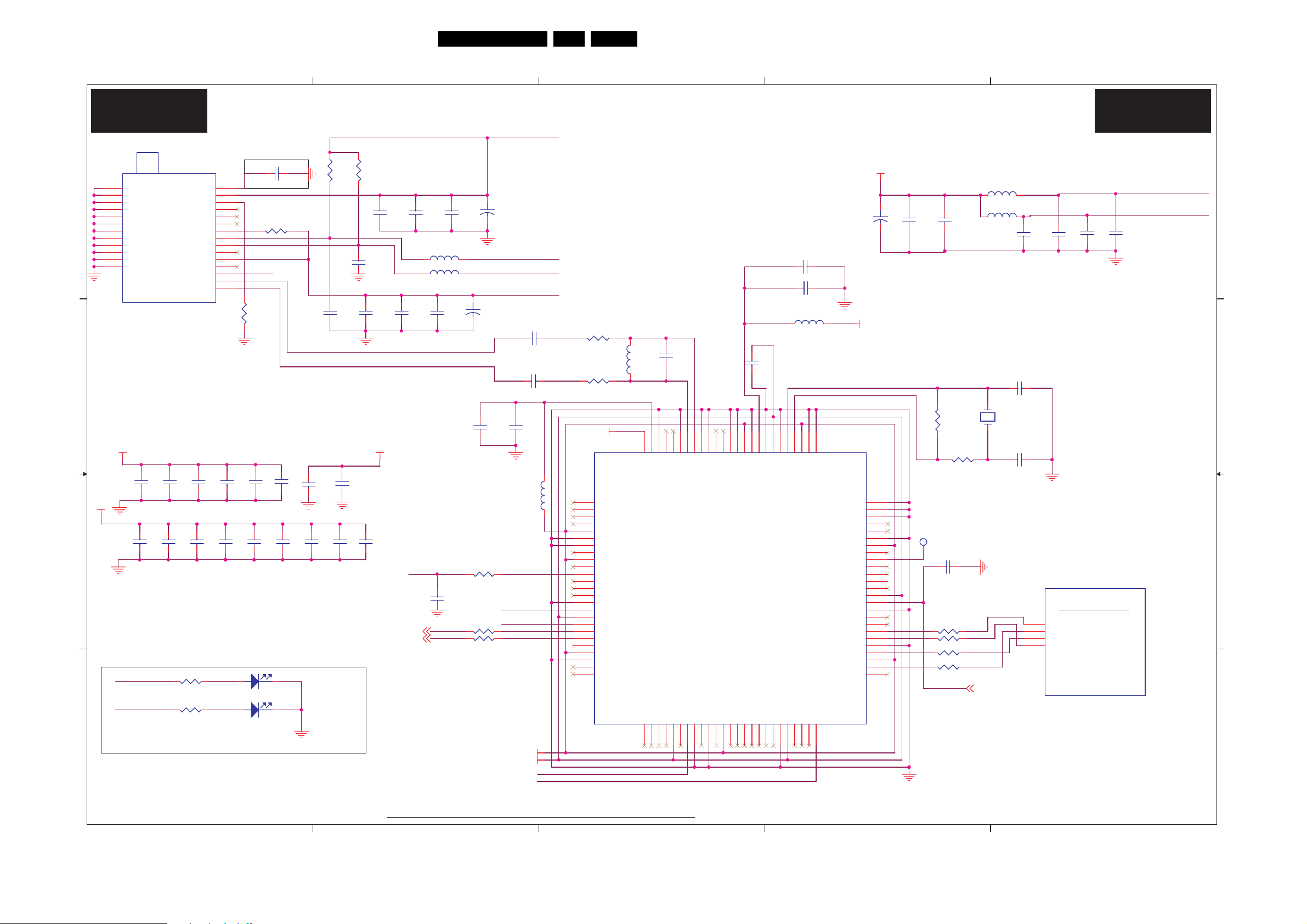

Mono Carrier: Hercules

A3

A8

MAIN_OUTR

RF_AGC

1235

3248

100R

100R

4V5

AGCOUT

4

A8

SC1_L_OUT

1

RT-01T-1.0B

3255

1n0

2289

3V3

3V3

3V6

3V8

6766696893

AUDOUTLSL

AUDOUTHPL

AUDOUTHPR

VIDEO

A8

A3

SSIF

SC1_R_OUT

100R

3256

100R

0V0

3V6

3V6

92

96

AVL

AUDOUTSL

AUDOUTSR

AUDOUTLSR

SIGNAL

2270

3222

SWO

100n

GND2

SSIF

2271

680R

GND2

REFO

A5

Bout

3226

100n

2V3

42

REFIN

BO

5

A5

A5

A5

A5

Rout

Gout

INTCO

INTF_CVBS_OUT

100R

100R

3228

100R

100R

3227

3289

2V4

2V4

0V0

65

43

44

RO

GO

CVBSO

PIP

PROCESSOR

AGC2SIF

AUDIOIN2L

AUDIOIN2R

AUDIOIN3L

AUDIOIN3R

AUDIOIN4L

AUDIOIN4R

AUDIOIN5L

839876

75

1V9

2V2

2V2

100p

GND2

10n

2255

INTF_L_IN

INTF_R_IN

SIDE_CHROMA_IN

A5

A5

A5

GND95

7372807995

2V2

2V2

2V2

2V2

SC2_R_IN

SIDE_L_IN

SIDE_R_IN

SC2_L_IN

A5

A8

A8

A5

9203

for EMC

AUDIOIN5RBBCLIN

PBIN3

50

49

94

2V2

1V3

2V2

1V3

2283

GND2

3275

SC1_R_IN

SC1_L_IN

SC1_CVBS_IN

A8

A8

GND2

G

2261

100p

YIN3

100R

A8

GND1

GND3

9215

c201

PRIN3

46

45

51

1V3

3V4

3V2

I211

2230

100n

2256

2287

100p

GND2

3274

*

SC2_Y|CVBS_IN

A8

c202

GND2

BLKIN

50V

4u7

100R

45

A8

A5

SC1_CVBS_OUT

ITV_V1OUT

5217

9260

*

3268

100R

for ITV only

3267

9201

100R

4V4

3V8

85

86

IFVO

DVBO

DVBO

FMRO

FMRO

C3

C2C4CVBS2

70

777471

1V4

1V6

1V6

100n

+5V

2260

100n

2285

9262

GND2

*

SIDE_Y|CVBS_IN

A5

c205

GND3

GND12

A2

EW_DRIVE

33n

2221

4u7

GND1

F205

3223

GND_1

3236

100R

3V5

0V8

108

63

AVL

EWD

FBISO

Y2Y3Y4

CVBS3

CVBS4

78

1V5

1V4

2u2

2244

2241

GND1

2254

1n0

100p

3243 33K

3251

+8V

c203

c210

GND_28

6

A5

A5

A5

I2SD|1

Reset_+5V

SW_SC2_CVBS

5K6

9204

3253

100R

1V3

1V4

62

81

CSY

SVO

IFVO

HOUT

DECBG

DECDIG

DECSDEM

91

115

109

2V3

2V8

2V3

50V

2275

10u

22n

2274

GND2

3244

33K3297

I205

10K

3295

EHTinfo

A2

c204

GND68

6

A5

A5

I2SCLK

+5V

SEL_SC2_INTF

4K7

3261

100R

3269

100R

3260

0V0

0V0

0V0

2425262732

23

O

CVBSI

I2SDI1

I2SDO1

7200

*

TDA12001H1

DECV1V8

EHTO

INSSW3

IREF

11

52

102

97

112

2V0

2V0

2V3

0V0

1V7

I215

100R

3231

6n8

100n

2235

GND1

3232

100R

I206

2240

GND1

15K

SC1_FBL

A8

c206

GND92

GND89

A5

I2SWS

0V0

I2SCLK

I2SDO2

PH1LF

PH2LF

113

4V0

I213

12K

I214

3224

1u5

c211

A9

IR

4K7

3215

100p

2279

2280

3216

0V0

5V5

INT0

I2SWS

PLLIFRSECPLL

88

110

87

1V5

2V0

2V3

390R

3247

100n

2239 220n

2263

GND2

1M0

2236

GND1

c207

GND95

7

A5

A9

+3.3V

LED

POWER_DOWN

1u0

10R

100R

3218

3V3

0V0

3V9

30322

31

T0

INT1

P0<0:5>

SIFAGC

SIFIN1

DVBAGC

100

0V3

0V3

2u2

2266

GND2

GND1

SIF1

SIF2

10n

A3

A3

c208

GND121

7

A3,A5

A3,A5

+3.3V

SCL

SDA

3K33202

3K3

WRITE_PROTECT

4219

*

3204

10R

BZX384-C5V6

3214

6211

GND121

3V3

3V3

2V2

3V3

2V1

2121

201817161576

T1

TX

RX

SCL

SDA

INT2

SIFIN2

VGUARD

VIFIN1

SWIO

DVBIN1

DVBIN2

105

116

99

0V5

2V0

39K

3241

GND1

3230

100R

F204

c200

BAS3166208

Vguard

VD

A2

A5

F201 2V / div DC
F203 2V / div DC

c209

8

A3

A6,A7

A1,A7

6209BAS316

POWER_DOWN

VOL_MUTE

SEL_LLP|M

100R3219

BZX384-C5V6

10R

6210

GND121

3207

0V0

3V4

3V2

0V0

PWM2

PWM1

PWM0

TPWM

P1<0:7>

VIFIN2

VREF_NEG_HPL+HPR

VREF_NEG_LSL+HPL

VREF_POS_HPR

VREF_POS_LSL

120

124

104

121

123

3V3

3V3

0V0

0V0

0V0

I212

2223

2218

47u 25V

GND92

2229

VIF2

VIF1

GND89

A3

A3

8

A8

A8

A5,A9

+3.3V

Stdby_Con

3252 10K

SC1_STATUS

LIGHT_SENSOR

4K7

3284

3298 100R

0V0

PWM3

VREF_POS_LSR+HPR

122

3V3

100n

3212

for ITV only

1234

0V5

0V0

14

ADC0

PWM4

P2<0:5>

VREFAD

VREFAD_NEG

VREFAD_POS

384039

0V0

3V3

1V6

GND89

2251

5213

220n

+3.3V

SC2_STATUS|ITV_MSG

for ITV only

100R

0V0

0V0

3V3

13

10

9

ADC2

ADC1

VSC

XTALIN

119

118

103

1V6

4V0

1V6

I203

2278

150n

GND1

7208

13V

*

1V4

3271220R

I207

+5V

3292

56K

3293

*

10n

GND2

2252

3n3

1230

2257

I216

2V0

2V5

645854

90

SVM

ADC3

QSSO

AMOUT

P3<0:3>

AUDEEM

UIN

VIN

XTALOUT

YIN

YSYNC

59

575556

2V0

1V5

1V5

1V5

1u0

100n

2246

2243

2247

100n

INTF_Pr|RED_IN

INTF_Pb|BLUE_IN

INTF_Y|GREEN_IN

A5

A5

A5

F205

500mV / div DC

10ms / div

9

9

4213

2248

0V3

*

VDRA

3237

1n0

GND1

106

UOUT

2242

100n

100n

100n

A2

1V2

VDRA

100R

2222

1V2

107

A2

+3.3V

VDRB

3235

100R

5n6

2245

3242

1K0

1V7

5V0

53

YOUT

VOUT

VDRB

VSSCOMB

VSSC1|P

VSSADC

2258

100R

INTF_Y_OUT

A5

F206

1V / div DC

20µs / div

3246

I208

3259

1n0

VSSP2

VSSC4
VSSC3
VSSC2

VSSA1

GNDA

GND3
GND2
GND1

GNDIF

HC49U

24MHZ576

2268

GND12

3225

22K

22K

1205

39p

128

2259

0V0

61
0V0

127
4
28

8

34

117

37
48
89
111

101

ROT

1V7

GND1

102

A5

BC847B

220n

3287

F202

0V0

0V0
0V0

0V0

0V0

0V0

0V0

0V0

0V0

0V0

0V0

39p2269

GND12

I217

3294

100R

13V

4214

1V

7205

6205

3245

220R

3201

100R

1K0

1n0

2282

GND121

GND68

GND125

GND121

GND95

+5V

GND12

GND92

3285

GND3
GND2

GND_1

GND1

+3.3V

GND_28

5214

5219

2217

2214

100n

3206

5K6

3296

5K6

4u7

2290

220n

2226

GND12

ITEM NO NAFTA

3217 10K 10K

3293 39K 39K

4213

7200 TDA12001H1/N1B50

7202

7208

10

11

A5

A5

A5

A5

SVM

INTF_FBL

3290

100R

*

BZX384-C27

KEY_protn

3205

15K

1K0

TDA12001H1/N1B51

3234

6202

4211

*

BAS316

I209

+3.3V

I228

I236

I222

F270

I235

3262

100R

3263

100R

3264

100R

3265

100R

3266

100R

3217

*

6207

BAS316

2204

22n

3203 150K

2V

7209

100u 10V

BSH103

GND_1

I204

10V4u7

2227

GND_1

--- ---

---

--- ---

BC847B BC847B BC847B

INTF_V_OUT

INTF_U_OUT

100R

3233

100R

3281

4K7

3280

4K7

3282

4K7

3283

4K7

3279

4K7

5V

-1V

GND_1

GND_1

7201-1
IMX1

5

2V6

LATAM EU

39K 22K

---

TDA12001H1/N1B50
TDA12021H1/N1B10

A9

KEY_protn

2277

7202

*

3208

I201

3

2V

2V

4

2V6

7210
BSH103

GND_1

1u0

27K

7203
BC327-25

11

12 13

1682
1
2
3

TDA12020H1/N1B11
TDA12021H1/N1B11

TOP CONTROL PANEL

+3.3V

A

B_1

C

D

E

+3V

+3.3V

6201

F200

1R0

3209

2V9

7201-2
IMX1

2

2V

2V6

JUMP

---

To 1010

A5

A5

A5

A5

A5

for ITV only

BAS316

27K

3211

7204

BC327-25

6
2V

I224

2V

1

I225

SERVICE JUMPER

AP

---

TDA12060H1/N1B11
TDA12020H1/N1B11
TDA12021H1/N1B11
TDA12020H1/N1B10
TDA12021H1/N1B10

PDTC114ETPDTC114ET

12

SDM
9252

1

A4 A4

HERCULES

3

A8

A8

A8

A

A5

SANDCASTLE

+5V

3273

GND68

7207

0v6

BC847B

2

4207

1

0v7

1K0

I219

3272

820R

I218

B

C

D

(+8V)

Vbuffer

6204

SS14

5211

3254

F

10V100u

2273

2272

GND2

G

To 1729 Of

Rear I/O Scart

H

1684

Vguard

I

requested by Gozali

5295

POWER_DOWN

requested by Leong

4209

IFGND

4212

GND3

Vguard

1683

J

3139 123 5673.4

1

A5

HD_PIP

3

3291

4215

3250

GND2

+5V

GND68

GND68

+1.8V_B

GND125

+3.3V

120R

+3.3V

100n

GND89

3220

180R

I226

BAS316

+1.8V_B

3221

390R

5201

10V
2206

2281

10u

TO 1282 OF

From 1410(pin2) of

CRT INTERFACE

PANEL

+6V+3V

2208

2207

220n

Vaux_GND

A2

A2

HD

HDRIVE

MAIN_OUTR_A

F208

1K0

F206

22K

3240

1K0

3239

100R

3238 2K2

5212

+5V

2276

100n
2265

GND3

10V100u

+5V

2224

GND1

5210

2250

100u 25V

2249

100n
5203

2210

220n
5215

2212

220n

5216

2211

220n

6203

F203

16V

220n

2203

100u

GND121

OR

100R

3288

Iblack

C

A5

A5

220n

Cell 11NC : 8239_125_0926
Function 11NC : 8239_125_0935

requested by Rama Rao

9205

2

MAIN_OUTL_A

22K

3286

5209

10V100u

+1.8V_A

F207

GND92

3229

1K0

2264

GND3

3276

BCL

A2

Vaux_GND

2288

1n0

9211

3200

10K

3213

10K

9212

3299 22K

for ITV only

+5V

5208

2234

100u

25V

2233

100n

GND1

F201

220n

+3.3V

+1.8V_A

GND95

GND92

560p

100n

2231

9266

100R

*

3277

SC1_BLUE_IN

A8

9202

SC2_L_OUT

3258

1208

1
2
3

I210

3V3
5V1
5V1
5V1

2238

220n

5207

2205

5205

3V3

2215

3V3

220n

3V3

5206

2V0

7V0

2216

220n
2225

220n

2213

220n

2237

100n

2232

3278

100R

9265

100R

*

SC1_RED_IN

SC1_GREEN_IN

A8

A8

GND_1

3

SC2_R_OUT

MAIN_OUTL

3249

100R

3257

100R

2253

10n

5202

+3.3V+5V

2209

GND121

220n

47

VP3

82

VP2

114

VP1

19

VDDP_3.3

5V0

60

VDDCOMB

126

2V0

VDDC4

5

2V0

VDDC3

29

2V0

VDDC2

12

VDDC1

2V0

33

2V0

VDDADC_1.8

125

VDDA3_3.3

35

VDDA2_3.3

41

VDDA1

36

VDDA_1.8

84

VCC8V

2267

2u2

GND2

100n

2286

100p

2284

10n

2262

GND2

9261

*

3270

9257

100R

*

SC2_CHROMA_IN

A8

requested by Hock Aun

5218

4210

1R0

3210

2V8

2V

+1.8V_A

F209

+1.8V_B

F_15760_014.eps

161105

13

A

B

C

D

E

F

G

H

I

J

1205 E9
1208 B3
1230 B8
1234 B8
1235 A4
1682 B11
1683 G2
1684 F1
2203 F2
2204 E10
2205 D3
2206 F2
2207 H2
2208 H2
2209 C3
2210 D2
2211 E2
2212 E2
2213 E3
2214 E9
2215 D3
2216 E3
2217 E10
2218 F7
2221 A6
2222 B8
2223 F7
2224 D2
2225 E3
2226 F9
2227 F10
2229 G7
2230 F5
2231 F3
2232 F3
2233 C3
2234 C3
2235 F6
2236 G6
2237 F3
2238 C3
2239 F6
2240 G6
2241 F6
2242 F8
2243 F8
2244 F5
2245 B9
2246 F8
2247 F8
2248 B8
2249 D2
2250 D2
2251 F8
2252 B8
2253 B4
2254 F6
2255 G4
2256 F5
2257 B8
2258 F9
2259 B9
2260 G5
2261 F5
2262 F3
2263 F6
2264 F3
2265 C2
2266 F7
2267 E4
2268 F9
2269 F9
2270 B4
2271 B5
2272 E2
2273 E1
2274 F6
2275 F6
2276 C2
2277 D11
2278 F8
2279 B6
2280 B6
2281 F2
2282 C9
2283 G5
2284 F4
2285 G5
2286 F3
2287 G5
2288 A3
2289 B4

2290 F9
3200 B3
3201 B10
3202 B7
3203 E10
3204 B7
3205 D10
3206 F10
3207 B7
3208 E11
3209 E11
3210 E12
3211 E11
3212 B8
3213 B3
3214 B7
3215 B6
3216 B6
3217 D10
3218 B7
3219 B7
3220 E2
3221 F2
3222 A4
3223 B6
3224 G6
3225 F9
3226 B5
3227 C5
3228 B5
3229 E3
3230 F7
3231 F6
3232 F6
3233 B10
3234 A10
3235 A9
3236 B5
3237 A8
3238 B2
3239 B2
3240 B2
3241 F7
3242 B9
3243 G6
3244 G6
3245 B9
3246 A9
3247 F6
3248 B4
3249 B3
3250 B2
3251 G6
3252 B8
3253 C6
3254 E2
3255 A4
3256 B4
3257 B4
3258 B3
3259 B9
3260 B6
3261 B6
3262 C10
3263 C10
3264 C10
3265 D10
3266 D10
3267 B5
3268 B5
3269 B6
3270 G3
3271 A8
3272 B2
3273 B1
3274 G5
3275 G5
3276 G3
3277 G3
3278 G3
3279 C10
3280 C10
3281 B10
3282 C10
3283 C10
3284 B7
3285 D10
3286 B3
3287 B9
3288 G2
3289 C5
3290 A10

3291 B2
3292 A8
3293 A8
3294 A9
3295 G6
3296 F10
3297 G6
3298 B8
3299 B3
4207 B1
4209 G2
4210 H4
4211 B10
4212 H1
4213 A8
4214 A10
4215 B2
4219 B7
5201 F2
5202 C3
5203 D2
5205 D3
5206 E3
5207 D3
5208 C3
5209 C3
5210 D2
5211 E1
5212 C2
5213 G8
5214 E10
5215 E2
5216 E2
5217 B5
5218 H4
5219 E9
5295 F2
6201 E11
6202 B10
6203 E2
6204 D1
6205 B10
6207 E10
6208 G7
6209 A7
6210 B7
6211 B7
7200 D6
7201-1 E10
7201-2 E11
7202 D10
7203 E11
7204 E11
7205 B9
7207 B1
7208 A8
7209 F10
7210 F11
9201 B5
9202 H3
9203 H4
9204 B6
9205 H3
9211 A3
9212 B3
9215 G5
9257 G4
9260 B5
9261 G3
9262 G5
9265 G3
9266 G3
F200 E11
F201 D3
F202 C9
F203 F2
F204 F7
F205 B6
F206 B2
F207 D3
F208 B2
F209 F12
F270 C10
I201 E11
I203 E8
I204 F10
I205 G6
I206 G6
I207 A8
I208 A9
I209 B10
I210 C3

I211 E5
I212 F7
I213 F6
I214 F6
I215 E6
I216 B8
I217 A10
I218 C1
I219 B2
I222 C10
I224 F12
I225 F12
I226 F2
I228 B10
I235 C10
I236 C10
c200 F7
c201 H5
c202 H5
c203 H6
c204 H6
c205 H5
c206 H6
c207 H6
c208 H7
c209 H7
c210 H5

c211 H6

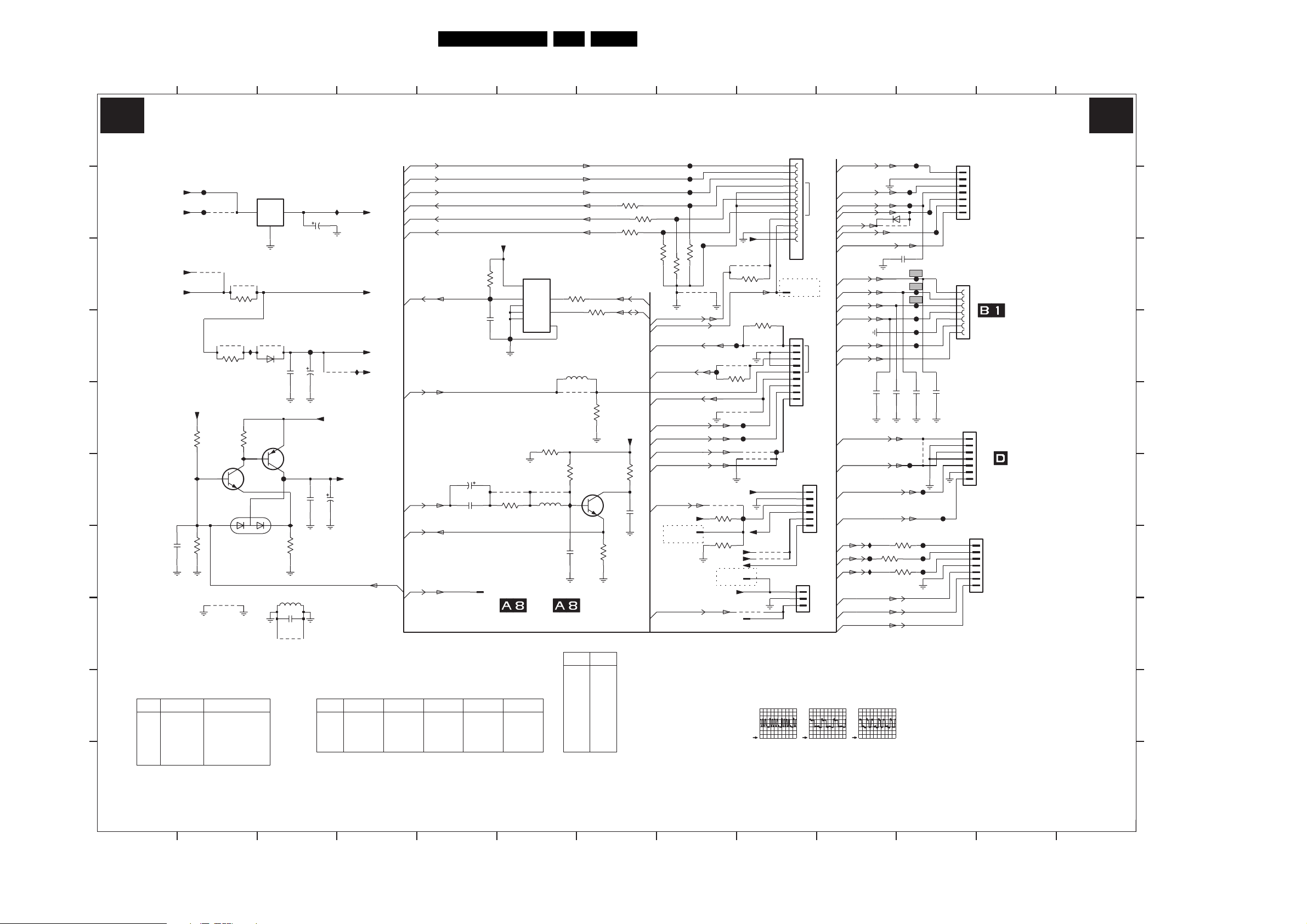

Circuit Diagrams and PWB Layouts

32L04.6HU CA 7.

Mono Carrier: Features & Connectivity

1

A5 A5

FEATURES & CONNECTIVITIES

2

3

4

5

6

7

8

9

10

11

12

A

B

C

D

E

G

H

3633

RES

9633

4601
4607

F220

1212
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15 16

For ITV
Only

1245

1219

1
2
3
4
5
6
7
8
9

1221
1
2
3

1220

1
2
3
4
5
6

To P1212 of

To P1219 of

ATSC PANEL

RES

RES

E

A4

D

A4

C

A4

B_1

A4

ATSC PANEL

B

A1

A

A4

SEL_SC2_INTF

A4

Bout

A4

Gout

A4

Rout

A4

Iblack

A4

SVM

A4

ROT

A4

SIDE_R_IN

A4

SIDE_L_IN

A4

SIDE_Y|CVBS_IN

A4

SIDE_CHROMA_IN

A4

I2SWS

A4

I2SCLK

A4

I2SD|1

A4

LIGHT_SENSOR

A4

A4

Stdby_Con

A4

6273

I229

F251

I231

C

BAV21

2626

F217

F218

75R

3619

GND3

INTF_FBL

A4

SANDCASTLE

A4

INTF_R_IN

A4

A4

INTF_L_IN

INTF_CVBS_IN

A2

VD

A4

HD_PIP

A4

INTF_CVBS_OUT

A4

ITV_V1OUT

A4

Stdby_Con

A4

For ITV
Only

I2SD|1

A4

3620

+9VA_1

F224

F225

F226

F216

3621

75R

4602

for EMC

1242

GND_1

F250

75R

F221

3623 100K

9612

3622

100K

For ITV
Only

+9V

F219

9642

3642

RES

4605
RES

F222

+3.3V

+3V

+5V

1243

1241

for ITV only

9604
RES

3603

100R

F223

GND_1

F227

+6VS

9280

+9V

9607
4606

+6V

SC2_CVBS_OUT

MUTING

INTF_V_OUT

INTF_U_OUT

INTF_Y_OUT

INTF_Y|GREEN_IN

INTF_Pb|BLUE_IN

INTF_Pr|RED_IN

2631

50V22u

2615

4u7

+3.3V

3601

F214

2601

F215

1240

(FOR CINCH)

4K7

3V3

1n0

4614

3614

100R

TO 1138

OF

7601

PCF85116

8

7
4
3
2

6

5

EEPROM

1

3636

33K

9235

RES

5602

4u7

TO 1763 & 1764

/

(FOR SCART)

OF

3635

2622

3604

100R

5605

120R
4603

47K

I233

7606
BC847B

33p

3605

100R

3611

3634

75R

3V3

3616

100R

3617

100R

3618

100R

SCL

A4

SDA

A4

Vbuffer

47R

3637

7V

100n

2617

1K0

A4

F210

+6VS

F211

I241

3606

4604

4611

150K

5V

+6V

+9V

+9VA

VT_Supply

F

2u2

3607

GND_1

27K

9603

2625

GND_1

4610
RES

3610

100R

6602
BAV99

A

9639

RES

3639

22R

3608

I227

1

IN

I240

27K

BC327-25

5V4

7604
BC847B

0V5

AK

7603
L78L33ACZ

OUTIN

COM

GND

2

GND_1

4612

6610

BAS316

7605

K

3

OUT

2620

GND_1

6V

5V

F213

3609

GND_1

5601

2630

1n0

4630

100n

GND_1

I234

GND_1

470R

2611

47u 16V

F212

2621

2623

10V100u

100n

GND_1

GND_1

+6V

2624

I230

9605

10V

100u

+5V

I232

Reset_+5V

+3.3V

+9VA_1

+8V

Vbuffer

A4

A4

A4

A4

A4

WRITE_PROTECT

A4

SW_SC2_CVBS

A4

INTF_CVBS_OUT

A4

A4

A4

A7

1212 ATSC

-

1

-

2

-

3

Y

4

GND

MTV

I

1213

1
2
3
4
5
6
7

I2SWS
I2SCLK
I2SDI1

GND

Light sensor

C

Stdby-con

ITV

ITV DATA OUT/SDA

ITV DATAIN

GND

ITV POR 1

Stdby-con

1206

DVD

A
B Power On

Bus Request

CITV CLOCK
D

Rx
Tx

E

-

iDTV

-

Power On

Bus Request

-

-

USB

-

Power On

Bus Request

Rx
TxITV SCL

PCMCIA

-

Power On

Bus Request

Rx
Tx

ATSC

-

Power On

Reset #

Rx
Tx

5
6

U

7

GND

8

V

9

-

10

-

11

-

12

-

F240 F241 F242

500mV / div DC

20µs / div

500mV / div DC

20µs / div

500mV / div DC

20µs / div

27p

3625

10R

9273

2627

2613

100n

3626

10R

3628

10R

F239

F233

27p

F247

F230

F240

F241

F242

F243

F244

F245

2628

F248

F228

F229

F232

F238

F237

27p

4609

2629

F249

27p

1206
1
2
3
4
5
6
7

1204
1
2
3
4
5
6
7

1207
1
2
3
4
5
6
7

1213
1
2
3
4
5
6
7

To P1206 of

ATSC PANEL

To 1331 of

CRT PANEL

To 1252 of

AV PANEL

RES

J

Cell 11NC : 8239_125_0926

3139 123 5673.4

1

2

3

4

5

6

Function 11NC : 8239_125_0935

7

8

9

10

11

12

13

F_15760_015.eps

080206

13

A

B

C

D

E

F

G

H

I

J

1204 C10
1206 A10
1207 D10
1212 A9
1213 E11
1219 C9
1220 E9
1221 F9
1240 F5
1241 F8
1242 E7
1243 F8
1245 C9
2601 C5
2611 B3
2613 B10
2615 E5
2617 E7
2620 D3
2621 D3
2622 E6
2623 E3
2624 E4
2625 E2
2626 D9
2627 D10
2628 D10
2629 D10
2630 F3
2631 E5
3601 C5
3603 B8
3604 C6
3605 C6
3606 D2
3607 E2
3608 D3
3609 E3
3610 C3
3611 D6
3614 E6
3616 B7
3617 B7
3618 B7
3619 B7
3620 B7
3621 B7
3622 E8
3623 E8
3625 E10
3626 E10
3628 F10
3633 C8
3634 E6
3635 E6
3636 D6
3637 E7
3639 C3
3642 D8
4601 E8
4602 C8
4603 D6
4604 B2
4605 D8
4606 D8
4607 F8
4609 D10
4610 C3
4611 B2
4612 C3
4614 E6
4630 F3
5601 F3
5602 E6
5605 D6
6273 B9
6602 E3
6610 C3
7601 B6
7603 B3
7604 E3
7605 D3
7606 E6
9235 E6
9273 B10
9280 F8
9603 F2
9604 B8
9605 D4
9607 D8
9612 E8
9633 C8
9639 C3

9642 C8
F210 B2
F211 B2
F212 C3
F213 E3
F214 C5
F215 C5
F216 B7
F217 B7
F218 B7
F219 C8
F220 D8
F221 C8
F222 D8
F223 D8
F224 A7
F225 A7
F226 B7
F227 E8
F228 E10
F229 E10
F230 A10
F232 F10
F233 B10
F237 B10
F238 B10
F239 B10
F240 B10
F241 C10
F242 C10
F243 C10
F244 C10
F245 C10
F247 E10
F248 E10
F249 E10
F250 B8
F251 E9
I227 D3
I229 E9
I230 B4
I231 F9
I232 C4
I233 E6
I234 E3
I240 C3
I241 E2

Circuit Diagrams and PWB Layouts

Mono Carrier: Class D - Audio Amplifier

33L04.6HU CA 7.

12

12

12

12

1385

13

A6

F_15760_016.eps

151105

13

131

A

A

B

B

C

C

D

E

E

F

F

G

G

H

H

I

I

J

J

-Vaudio

4911

5911

3955

4R7

3971

4R7

4912

5912

896

Vaudio-

+Vaudio

I936

I939

5914

RES

9914

I943

Vaux_GND

5901

33u

2955

680p

2954

2971

680p

2970

680p

5902

33u

680p

3975

*

9911

*

1903

VALUE

9910

5910

RES
4913

9915

I935

I940

2981

Audio_Gnd

MRT

Vaudio-

Vaudio+

Vaudio-

Vaudio+

220n

2972

9

7906

BC327-25

2978

2984

220n
2980

220n
5907

33u

220n

I926

I927

22u50V

2979

Audio_Gnd

2958

Audio_Gnd

5908

33u

4914

4915

9913

5913

RES

47n

Audio_Gnd

Audio_Gnd

220n

2957

2973

220n

Audio_Gnd

2974

4916

4917

I942

22K

3964

220n

2982

Audio_Gnd

2983

220n

Audio_Gnd

1010

3965

10K

15n

3956

15n

Audio_Gnd

I944

4910

Audio_Gnd

Audio_Gnd

10K

Audio_Gnd

10K

3972

6903

BAS316

F904

3945

I946

10K

F903
F905

11

+9VB

Vaudio+

Vaudio+1

V_DG

VT_Supply

Vaudio-

-V

1902

5
4
3
2
1

3957

39K

Vaudio+

2

-Vaudio

F911

Vaudio+

---

2

2930

100n

Audio_Gnd

F901

6901

BAS316

-Vaudio

2935

100n

Audio_Gnd

FUSE RAD LT 2A 250V IEC

3932

4K7

2933

120p

3962

4K7

3938

4K7

2938

120p

Audio_Gnd

I909

2934

220p

I913

I920

3946

Audio_Gnd

I925

2939

220p

---

1V5

47K

31

3

2931

560p
3931

150K

2928

1n0

3930

10K

2932

1u0

3933

2K7

7904
BC857B

3948

47K

2936

560p
3937

150K

2929

1n0

3936

10K

2937

1u0

3939

2K7

I910

3

I911

2

47K

3934

I914

+Vaudio

3959

1V6

I915

3961

-15V6

Audio_Gnd

I918

5

6

47K

3940

I948

JMP JMP

1

A6

A

A

B

B

C

C

D

D D

E

E

F

F

G

G

H

H

For ITV

3975

1903

I

I

9911

J

J

Cell 11NC : 8239_125_0929
Function 11NC : 8239_125_0938

CLASS D - AUDIO AMP

MAIN_OUTL

A4

VOL_MUTE

A4

MAIN_OUTR

A4

1222

1
2

F910

3
4

VOL_CTRL

5
6
7

For SUB Woofer

Audio_Gnd

Europe

ROW

100R, 2W

150R, 2W

AMP-ST-5W-GL

JMP

AMP-ST-10W+20W-GL AMP-ST-15W/20W-GL AMP-ST-5W-NO.SAV-EU

---

FUSE RAD LT 2A 250V IEC

3935

100K

3K9

470R

3941

100K

Vaudio+

3973

-V

-V

4

4

10K

8

-9V1

1

7901-1
LM393N

4

3947

39K

-15V6

6904

BZX384-C27

8

7901-2
LM393N

4

I941

Vaudio-

22K

3949

I919

7903

-2V8

BC847B

-V

-9V1

7

AMP-ST-10W-GL

JMP

---

2977

1u0

2960

22u

2942

100n

5 11

Vaudio-

Audio_Gnd

I916

Audio_Gnd

2K2

3942

Vaudio-

TDA8925J

-9V1

-2V7

4K7

2K2

3974

3943

I921

I922

AMP-ST-5W-NO.SAV-ITV-EU

---

-2V8

-8V8

-9V1

-2V8

I945

Audio_Gnd

AMP-ST-5W-ITV-GL

6

I928

Vaudio+

2951

47n

2950

47n

2949

35V470u

2948

22u

2947 Vaux_GND

47n

7902

VDD1

AMPLIFIER

1

SW1

2

REL1

4

EN1

9

STAB

15

POWERUP

17

SW2

16

REL2

14

EN2

VSS1

2945

470u

35V

2946

47n

JMP

------

3958

I924

5

VDD2

CLASS-D

VSS2

8

AMP-ST-5W-EU

2K2

6905

1

13

BOOT1

BOOT2

10

JMP

---

2961

3960

100K

P0102DA

OUT1

DIAG

OUT2

7

7

6906

BAV99

47u25V

2

12

11

Vaudio-

AMP-ST-10W-EU AMP-ST-5W-ITV-EU

I930

3

6

7

3

-2V8

10V5

10V7

JMP

---

2963

I937

3953

Vaudio+

10p

Vaudio+

3952

2953

1u0

39K

39K

2952

1u0

JMP

I934

I938

---

3139 123 5673.4

7

2

3

42

531

5

64

7

8

86

9

9

10

10

11

11

1222 F2
1902 D10
1903 A8
2928 B3
2929 E3
2930 B3
2931 A3
2932 B3
2933 B3
2934 B3
2935 E3
2936 E3
2937 F3
2938 F3
2939 F3
2942 C5
2945 D6
2946 E6
2947 B6
2948 B6
2949 B6
2950 B6
2951 A6
2952 C7
2953 D7
2954 D8
2955 D8
2957 D9
2958 D9
2960 C5
2961 B6
2963 B7
2970 D8
2971 D8
2972 E8
2973 E9
2974 E9
2977 B5
2978 B8
2979 B9
2980 C8
2981 E8
2982 D9
2983 E9
2984 C8
3930 B3
3931 A3
3932 B3
3933 B3
3934 B3
3935 B4
3936 E3
3937 E3
3938 F3
3939 F3
3940 F3
3941 F4
3942 B5
3943 D5
3945 E10
3946 D3
3947 D4
3948 D3
3949 C4
3952 C7
3953 D7
3955 D7
3956 D9
3957 E10
3958 B6
3959 C4
3960 B6
3961 D4
3962 C3
3964 B9
3965 B9
3971 D7
3972 E9
3973 A4
3974 D5
3975 A8
4910 C9
4911 C7
4912 E7
4913 B8
4914 G9
4915 G9
4916 G9
4917 G9
5901 C8
5902 E8
5907 C8

5908 E9
5910 B8
5911 C7
5912 E7
5913 A9
5914 B8
6901 D2
6903 B10
6904 E4
6905 B6
6906 A7
7901-1 B4
7901-2 F4
7902 C6
7903 D4
7904 C3
7906 B9
9910 B8
9911 A8
9913 A9
9914 B8
9915 C8
F901 C2
F903 D10
F904 C10
F905 D10
F910 F2
F911 F2
I909 B3
I910 B3
I911 B3
I913 B3
I914 C4
I915 C4
I916 B5
I918 D3
I919 D4
I920 C3
I921 D5
I922 D5
I924 B6
I925 E3
I926 B9
I927 B9
I928 A6
I930 B7
I934 C7
I935 C8
I936 D8
I937 D7
I938 D7
I939 E8
I940 E8
I941 B4
I942 B9
I943 D8
I944 B9
I945 D5
I946 E10
I948 F4

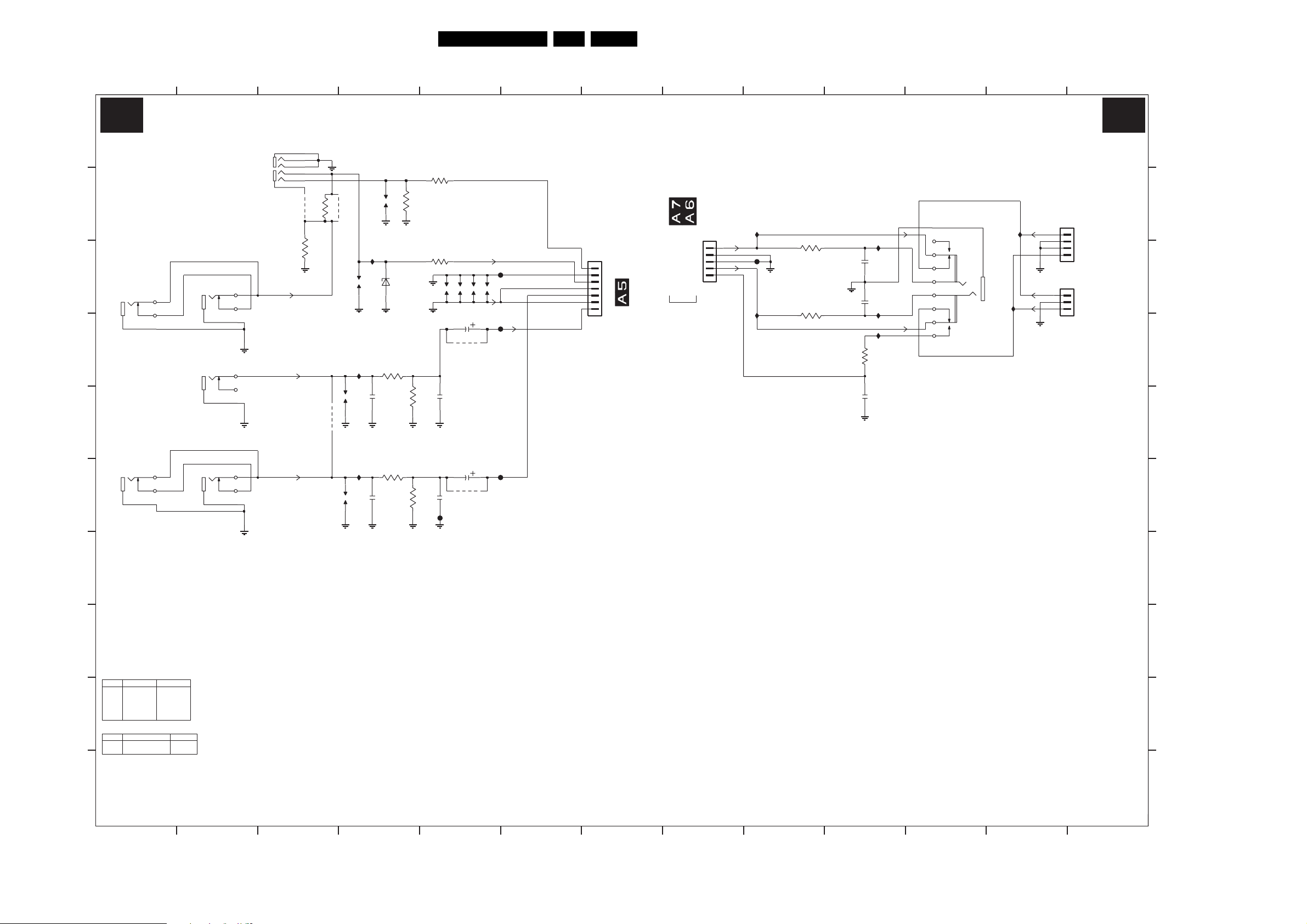

Circuit Diagrams and PWB Layouts

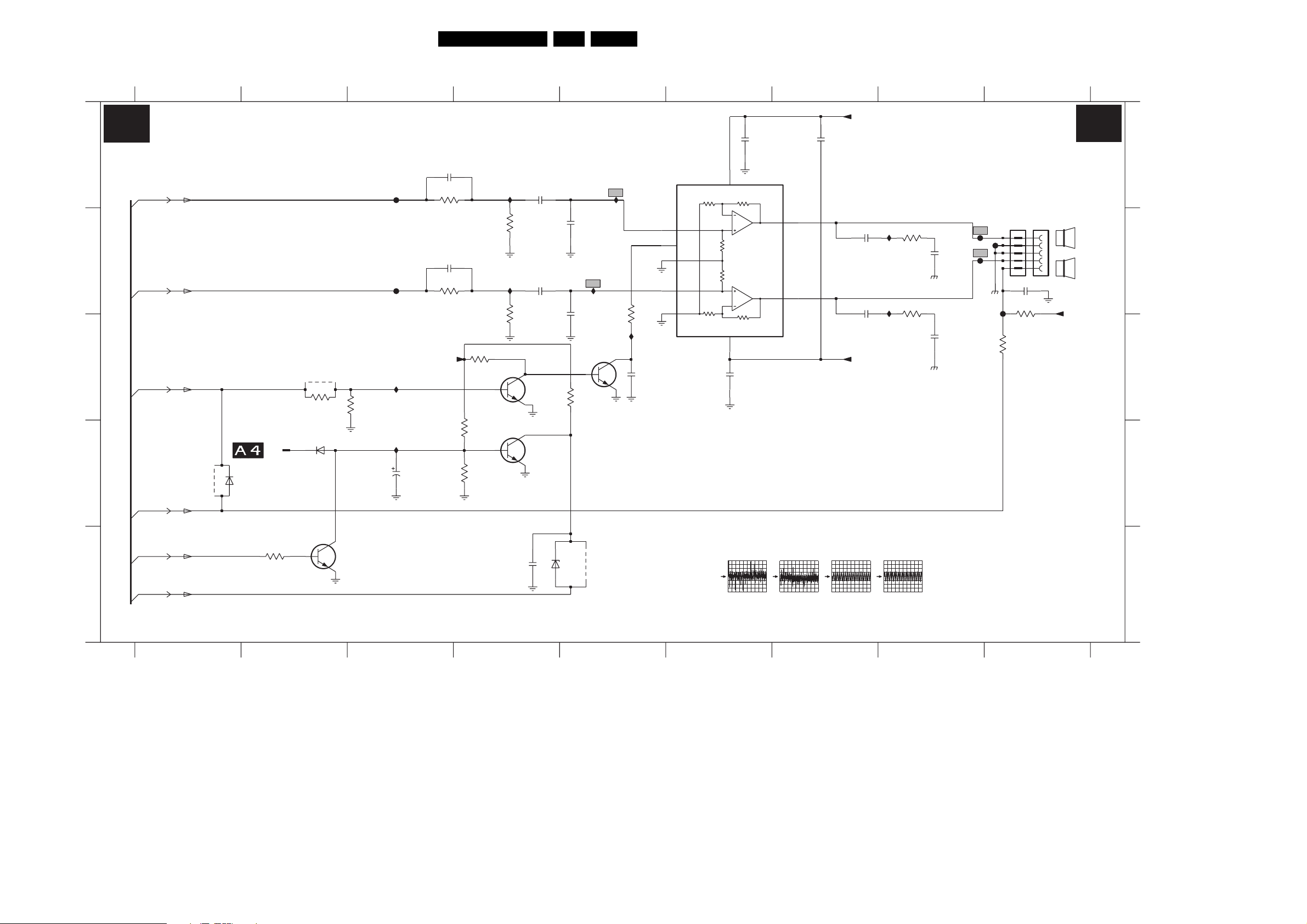

Mono Carrier: Audio Amplifier

34L04.6HU CA 7.

A7

A

A4

B

A4

C

A4

D

E

A5

3139 123 5673.4

123456789

AUDIO AMPLIFIER

MAIN_OUTL

MAIN_OUTR

VOL_MUTE

VOL_CTRL

Stdby_Con

MUTING

4991

TO 1683 OF

6991

BAS316

1282

3998

10K

4984

3984

56K

6990

BAS316

3986

7994
BC847B

27K

F950

F951

I958

I959

2917

100u 6.3V

2985

RES
3985

1K0

2991

RES
3991

1K0

Vaudio+1

3997

3999

*

3994

68K

100K

7992
BC847B

0V7

7993
BC847B

I953

3988

I954

3992

4K7

4K7

2918

2989

220n

2992

220n

4u7

6992

1n0

2990

I952

1n0

2993

7991
BC847B

3996

680K

4992

BZX384-C5V1

I951

I955

16V

3995

2916

47K

4u7

+16V

7990
TDA2616Q

INV1-

1

MUTE

2

V|GND

3

INV2-

9

INV12

8

+16V

-16V

2988

2987

7

VP+

VP-

5

100n

50mV / div AC

2ms / div

100n

100n

OUT1

OUT2

2986

4

6

I952I951 F952 F955

50mV / div AC

2ms / div

500mV / div AC

2ms / div

Vaudio+1

2994

22n

2995

22n

-Vaudio

3989

I956

10R

3993

I957

10R

500mV / div AC

2ms / div

AmpOutL

2996

Audio_Gnd

AmpOutR

2997

Audio_Gnd

47n

47n

F952

F953

F955

Audio_Gnd

F956

3983

1280 B9
1281 B9

I958 C3
I959 D3

1282 D2

A7

2916 C5
2917 D3
2918 E4
2985 A3

A

2986 A7
2987 A6
2988 C6
2989 A4
2990 B5
2991 B3

B

2992 B4
2993 B5
2994 B7
2995 B7
2996 B8
2997 C8
2998 B9
3982 B9
3983 C9
3984 C2
3985 A3
3986 C2
3988 B4

1280

1281

5

5
4

4

3

3

2

2

1

1

2998

2u2

3982

47K

8 ohm / 15W

8 ohm / 15W

Vaudio+1

3989 B8

C

3991 B3
3992 B4
3993 B8
3994 C4

3K9

3995 B5
3996 C5
3997 D4
3998 E2
3999 D4
4984 C2
4991 D1
4992 E5
6990 D2
6991 D1
6992 E4

D

7990 A6
7991 C5
7992 C4
7993 D4
7994 E2
F950 A3
F951 B3
F952 B8
F953 B9
F955 B8
F956 C9
I951 A5

E

I952 B5
I953 A4
I954 B4
I955 C5

F_15760_017.eps

181105

I956 B8
I957 B8

12

345678

9

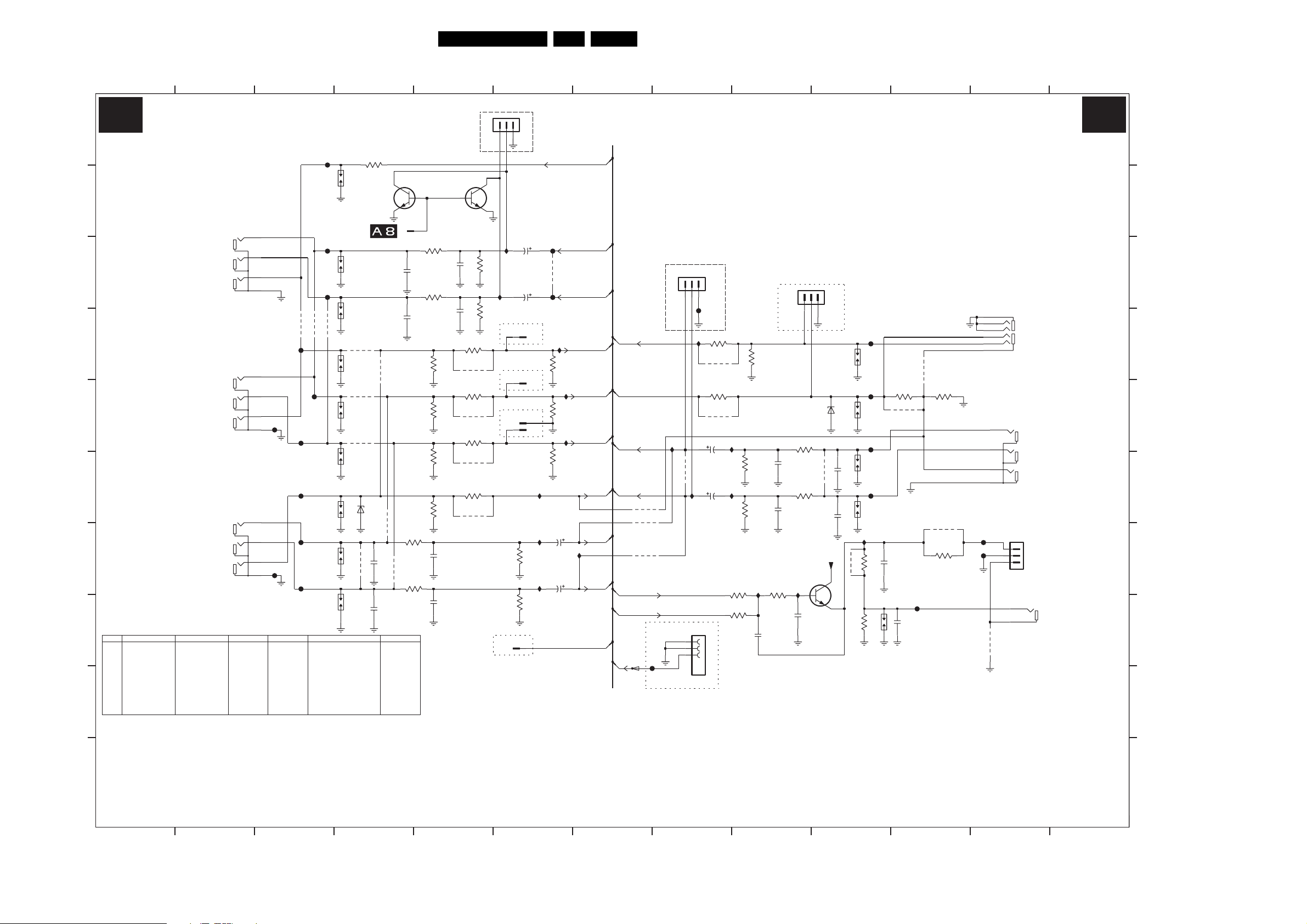

Mono Carrier: Rear I/O Cinch

2

1

1

A8

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

I

I

J

J

CN-R1 I/1 O/YUV-GL

ITEM

4101

4103
4109
4110
4111
4130
9112
9113
9114
9116

CELL 11NC : 8239_125_0928
FUNCTION 11NC : 8239_125_0937

3139 123 5673.4

1

REAR I/O CINCH

CN-R2 I/1 O/YUV-GL

---

---

---

---

---

---

--­JMP
JMP
JMP
JMP

2

MONITOR OUTPUT

---

---

---

---

--- ---

---

--­JMP
JMP
JMP
JMP

2

2

Circuit Diagrams and PWB Layouts

3

3

F101

1101

1223-1

3

L

R

2

1223-2

1

4

4101

*

F104

7

V

YUV INPUT

U

V

6

5

AV1

1223-3

F122

8

F106

F107

11

Y

L

R

10

9

V

CN-R2 I/1 O-GL

F123

12

F109

CN-R1 I/1 O-GL

--­JMP4102 JMP
JMP

---

---

---

---

--­JMP

---

---

JMP
JMP
JMP

---

---

---

---

JMP

---

--- ---

3

3

From 1240 OF

F102

1102

F103

1103

4102

4103

**

F105

F108

CN-R1 I/1 O/YUV-SY-ITV-GL

1104

1105

1106

1107

1108

1109

JMP

JMP
JMP
JMP
JMP
JMP
JMP

JMP
JMP

4106

4107

4108

6106

---

35L04.6HU CA 7.

6

123

I108

I107

For ITV

For ITV

For ITV

1266

1267

3124

3126

2105

10u

2106

10u

6

1263

1264

1265

47K

47K

6

6

F116

I110

I111

I112

SC2_CVBS_OUT

F117

SC2_L_OUT

4112

SC2_R_OUT

SC1_GREEN_IN

I104

75R

3169

I105

SC1_BLUE_IN

75R

3167

I106

SC1_RED_IN

75R

3168

SC1_CVBS_IN

2123

2u2 50V

2125

50V2u2

SC1_L_IN

I109

SC1_R_IN

SC1_FBL

7

7

A5

A4

A4

SC2_CHROMA_IN

A4

A4

SC2_Y|CVBS_IN

A4

A4

SC2_L_IN

A4

A4

SC2_R_IN

A4

A4

A4

SC2_L_OUT

A4

A4

SC2_R_OUT

A4

A4

SC2_STATUS|ITV_MSG

7

7

9101

4144

4115

for ITV only

F138

5

4

3101

68R

RES

2126

4105

2127

45

4 10

6

1

4109

4110

BZX284-C6V8

*

390p

4111

*

390p

CN-R1 I-ITV-LA

---

---

---

---

---

---

---

---

JMP

---

7104-2
IMX1

1138

2107

2108

3123

150R

3125

150R

390p

390p

5

ITV RES

1236

7104-1

3

IMX1

3103

3105

3111

3113

3115

3121

2122

2124

RES

RES

RES

75R

330p

330p

2103

2104

5

4

330p

3104

220K

3106

330p

220K

3112

RES

9112

*

3114

RES

9114

*

3116

RES

9116

*

3122

330R

9113

*

For ITV

2

150R

150R

5

I116

1227

84

8

for ITV

123

4113

I120

1262
1
2
3
456

8

8

I115

F115

3136

4136

3138

2132

2134

50V 2u2

7

RES

RES

9138

2u250V

I113

I114

3161

10K

3164

10K

9

9

for ITV

1229

123

75R

3135

6132

3131

3132

3134

47K

47K

I117

2158

150R

I118

2159

3133

150R

7103
BC847B

47n

RES

4104

Vbuffer

2136

2137

2131

330p

330p

2133

3166

2K2

47n

9

93

RES

10

10

390p

390p

10

9157

1113

1110

1111

1112

I119

3157

3156

F112

F113

F110

F111

1K0

47K

2163

1153

11

4116

3129

75R

9162

3162

22R

F120

100n

11 12

111

*

47p

2157

3130

75R

4130

F119

F121

1137

6
1
2
3
4
5

15

14

13

16

4117

1211

12

AV2

1224

L

R

V

1228
1
2
3

Sub Woofer

1237

2

1

12

SPDIF

13

13

A8

F_15760_018.eps

161105

13

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

I

I

J

J

1101 A4
1102 B4
1103 C4
1104 C4
1105 D4
1106 D4
1107 E4
1108 F4
1109 F4
1110 D9
1111 E9
1112 E9
1113 C9
1137 C11
1138 B5
1153 F10
1223-1 B3
1223-2 D3
1223-3 E3
1227 C7
1228 E11
1229 C9
1236 A5
1237 F11
1262 F8
1263 C6
1264 D6
1265 D6
1266 G6
1267 D6
2103 B5
2104 C5
2105 B6
2106 C6
2107 B4
2108 C4
2122 F5
2123 E6
2124 F5
2125 F6
2126 F4
2127 F4
2131 E8
2132 D8
2133 E8
2134 E8
2136 E9
2137 E9
2157 F10
2158 F8
2159 F9
2163 F10
3101 A4
3103 B5
3104 B5
3105 C5
3106 C5
3111 C5
3112 C5
3113 D5
3114 D5
3115 D5
3116 D5
3121 E5
3122 E5
3123 E5
3124 F6
3125 F5
3126 F6
3129 D10
3130 D10
3131 D9
3132 E8
3133 E9
3134 E8
3135 C8
3136 C8
3138 D8
3156 F9
3157 F9
3161 F8
3162 E10
3164 F8
3166 F8
3167 D6
3168 D6
3169 C6
4101 C3
4102 C4
4103 C3
4104 E9
4105 F4

4106 C4
4107 D4
4108 D4
4109 D4
4110 E4
4111 F4
4112 B6
4113 E7
4115 F7
4116 D10
4117 F11
4130 D10
4136 C8
4144 E7
6106 E4
6132 D9
7103 F9
7104-1 A5
7104-2 A5
9101 E7
9112 D5
9113 E5
9114 D5
9116 E5
9138 D8
9157 F9
9162 E10
F101 A4
F102 B4
F103 C4
F104 C3
F105 D3
F106 D3
F107 E3
F108 E3
F109 F3
F110 D9
F111 E9
F112 C9
F113 D9
F115 C8
F116 C6
F117 B6
F119 F11
F120 F10
F121 E11
F122 D3
F123 F3
F138 G7
I104 C6
I105 D6
I106 D6
I107 C5
I108 B6
I109 E6
I110 E6
I111 E6
I112 F6
I113 D8
I114 E8
I115 C8
I116 D7
I117 F8
I118 F9
I119 E9
I120 E8

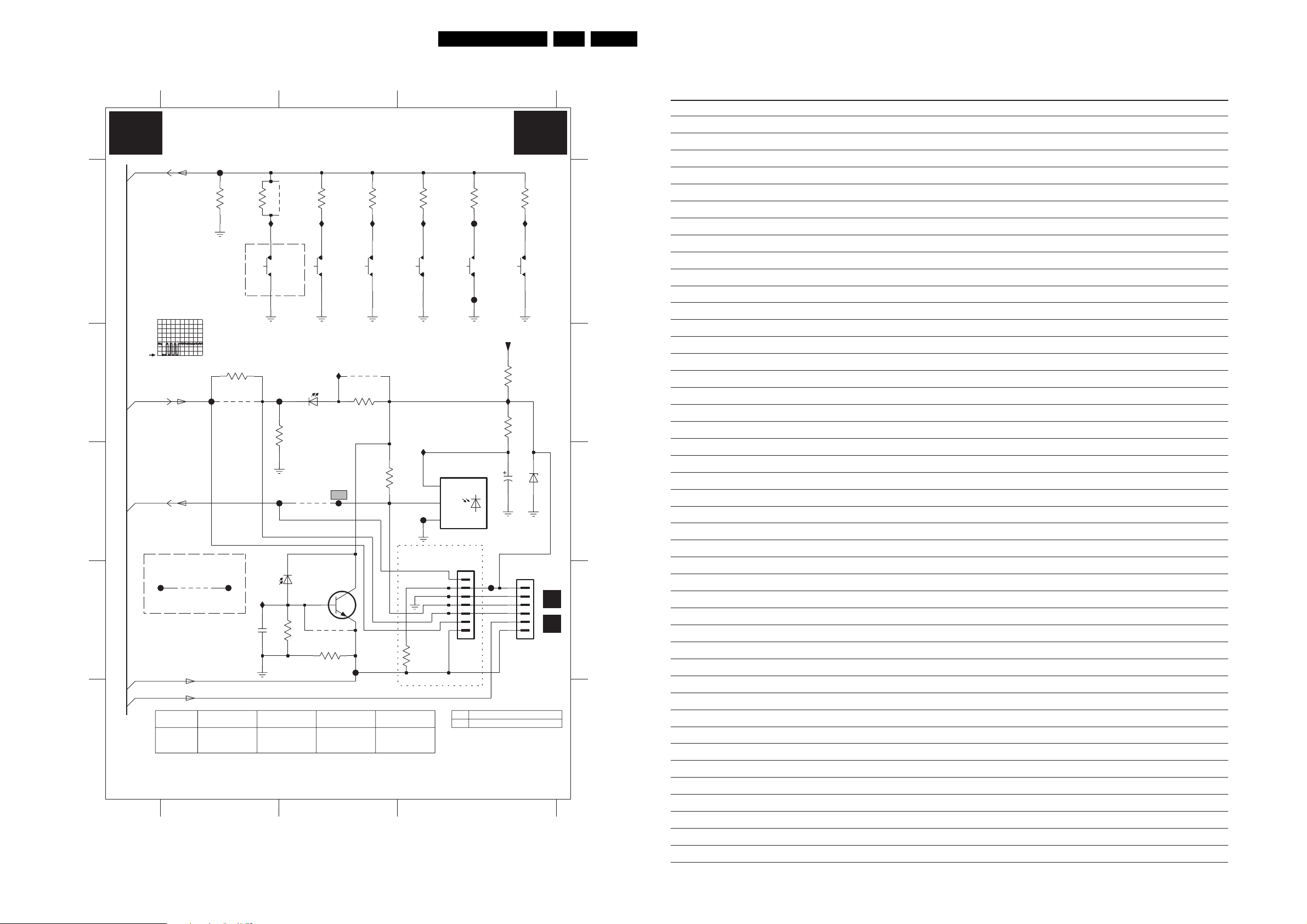

Circuit Diagrams and PWB Layouts

Mono Carrier: Front Control

36L04.6HU CA 7.

A

B

C

D

A9

KEY_PROTN

A4,A9

F692

A4

A4

For Engg Purpose Only

F694

LIGHT_SENSOR

A4

KEY_PROTN

A9

12 3

FRONT CONTROL

F682

1K2

3684

9683

DVD Eject

STANDBY LED

6691

1

*

*

4691

BPW46

*

680K

LTL-10224WHCR

I688

1604

I691

2

F692

7691
BC847B

4693

3697

10K

4695

RES

3691

330R

F698

EUITEM NO.

(RED)

2V / div DC

2ms / div

LED

IR

4694

6691

3689

3695

4692

F696

F695

NAFTA

LTL-10234WHCR

(GREEN)

RES

RES

3683

RES

I681

1606

POWER
TS

USA

F693

3692

F691

IR

LED_OUT

6693

I687

47n

3696

2692

LATAM

LTL-10234WHCR

(GREEN)

3685

150R

I682

1603

channel+

3694

IR_OUT

LTL-10224WHCR

channel-

I693

4K7

F699

for ITV only

3698

100R

AP

(RED)

3686

I683

390R

1602

6692
TSOP1836

3

VS

1

OUT

2

GND

IR RECEIVER

1692
1
2
3
4
5
6
7

4693

A9

1K8

3687

F683

1601

volume+

F685

F697

SETS WITH LIGHT_SENSOR

+6V

3690

3693

2691

3681

volume-

220R

I689

220R

100u

1693
1
2
3
4
5
6

JMP

820R

I686

1600

6694

To 1693 of

or 1693 of

BZX384-C5V1

M

J

A

B

C

D

Personal Notes:

1600 A3
1601 A3
1602 A3
1603 A2
1604 A2
1606 A2
1692 D3
1693 D3
2691 C3
2692 D1
3681 A3
3683 A1
3684 A2
3685 A2
3686 A3
3687 A3
3689 A1
3690 B3
3691 B2
3692 B1
3693 B3
3694 C2
3695 B1
3696 D2
3697 D2
3698 D3
4691 C2
4692 B1
4693 D2
4694 D1
4695 B2
6691 B2
6692 C3
6693 D1
6694 C3
7691 D2
9683 A2
F682 A1
F683 A3
F685 A3
F691 C2
F692 C2
F693 B2
F694 D1
F695 D1
F696 B1
F697 D3
F698 D2
F699 C3
I681 A2
I682 A2
I683 A3
I686 A3
I687 D1
I688 A2
I689 B3
I691 B2
I693 C3

3139 123 5673.4

12 3

F_15760_019.eps

161105

E_06532_012.eps

131004

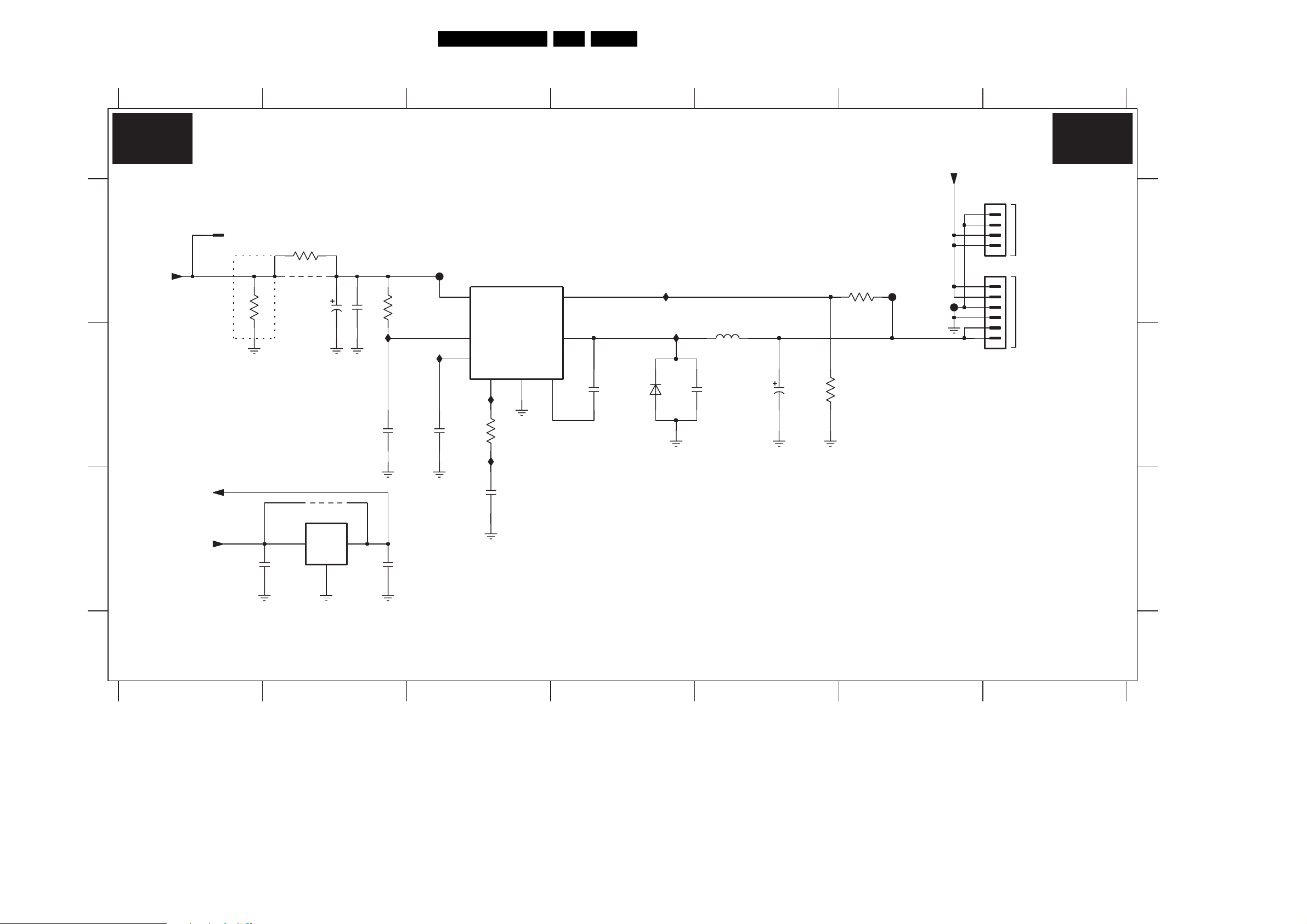

Mono Carrier: DVD PSU (optional)

1234567

DVD POWER SUPPLY (OPTIONAL)

A10 A10

1583

A

Vaux

B

+9VA

ITV only

3585

Vaux_GND

Circuit Diagrams and PWB Layouts

3593

9593

100R

25V

2581

100u

Vaux_GND

Vaux_GND

4581

7582

L78L08ACZ

2582

Vaux_GND

220n

I582

3581

2583

22K

2n2

Vaux_GND

F582

I583

2584

37L04.6HU CA 7.

7581
L4978

5

VCC

34

OSC

2

SS_INH

COMP GND BOOT

100n

I584

3582

2585

1

Vaux_GND

8K2

I585

22n

FB

OUT

67

8

2586

100n

I587

I588

6581

Vaux_GND

2587

SB340

1n0

5581

47u

2588

Vaux_GND

16V

1m0

4K7

3583

Vaux_GND

3584

2K7

F581

F583

Vaux_GND

+5V

Vaux

4
3
2
1

1
2
3
4
5
6

1582

1581

ITV only

DVD/IDTV

A

B

1581 A7
1582 A7
1583 A1
2581 A2
2582 A2
2583 B2
2584 B3
2585 C3
2586 B4
2587 B4
2588 B5
2589 C1
2590 C2
3581 A2
3582 B3
3583 B5
3584 A6
3585 A1
3593 A2
4581 C2
5581 B5
6581 B4
7581 A3
7582 C2
9593 A2
F581 A6
F582 A3
F583 A6
I582 B2
I583 B3
I584 B3
I585 B3
I587 A4
I588 B4

C

+9VB

MainSupplyGnd

3139 123 5673.4

13456

13

2u2

2589

OUTIN

COM

2

MainSupplyGnd

MainSupplyGnd

2

2590

2u2

Vaux_GND

C

F_15760_020.eps

161105

7

Circuit Diagrams and PWB Layouts

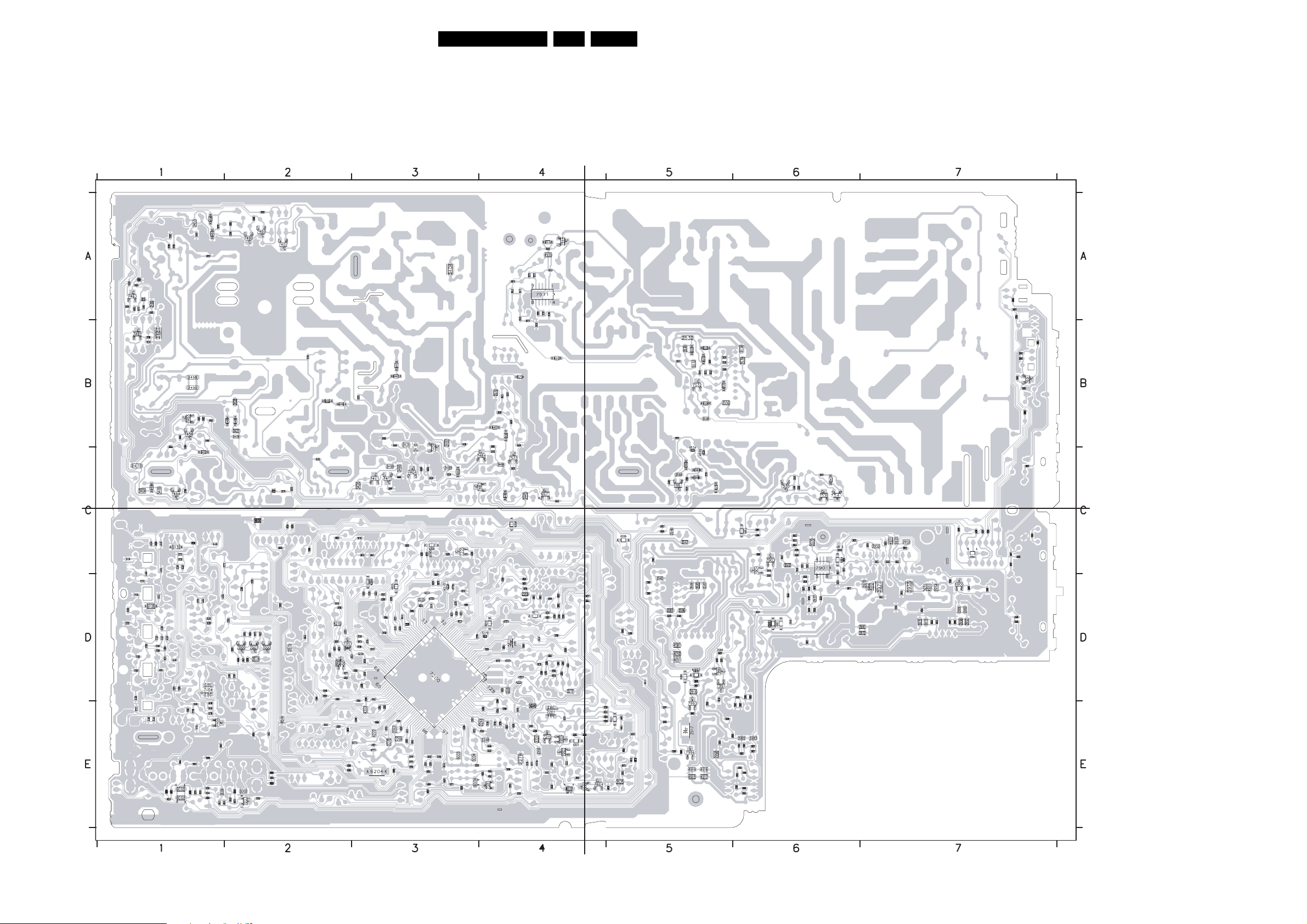

Layout Mono Carrier: (Top Side)

1000 E7
1001 E5
1002 E5
1003 E5
1004 E7
1005 E7
1010 E7
1011 E7
1012 E6
1013 E7
1137 C7

1138 E7
1204 C5
1205 D5
1206 D4
1207 E6
1208 D6
1212 C6
1213 D5
1219 C7
1220 E4
1221 C5

1222 D3
1223 D7
1227 C7
1228 E7
1229 C7
1230 D4
1234 D5
1236 D7
1237 E7
1240 D4
1241 D5

3139 123 5673.4

1242 E4
1243 C6
1245 D6
1262 D7
1263 C7
1264 D7
1265 D7
1266 E7
1267 D7
1280 E3
1281 E3

1282 D3
1401 C6
1402 A6
1404 A5
1451 C7
1452 A7
1453 B5
1454 B7
1470 A7
1500 A2
1501 A2

1502 B2
1503 C2
1504 C2
1505 A2
1506 A2
1507 C2
1508 A2
1509 C1
1510 B1
1532 B3
1535 C4

1542 C4
1543 C4
1545 C4
1581 D3
1582 C3
1583 D3
1600 C1
1601 C1
1602 D1
1603 D1
1604 C1

1606 A1
1682 D4
1683 C4
1684 D6
1692 C1
1693 C1
1902 D1
1903 D3
2005 E5
2006 E7
2008 E7

2105 D7
2106 D7
2123 D7
2125 D7
2132 C7
2134 C7
2203 D5
2217 E5
2218 D6
2224 E5
2230 D6

2234 D6
2240 E5
2250 D6
2251 E5
2265 E6
2273 E6
2275 E6
2401 A7
2404 B6
2405 A6
2406 A6

2411 B6
2412 A6
2413 B6
2415 A5
2416 B6
2417 A5
2418 A5
2419 B5
2427 B6
2451 A7
2452 B7

2454 A7
2455 A7
2457 C7
2458 C6
2459 A7
2460 A7
2463 C7
2465 C7
2467 C7
2481 A7
2484 A7

2486 B6
2492 B6
2500 A2
2501 C2
2502 C2
2503 A3
2504 A4
2505 A3
2506 A3
2507 A3
2508 C2

2509 C1
2511 A5
2514 A4
2528 B3
2534 B3
2535 C3
2536 C3
2537 C3
2539 C3
2540 C3
2541 C2

2542 B4
2543 B3
2545 B3
2546 B3
2551 B4
2552 C5
2561 C4
2562 B4
2563 C4
2565 C4
2570 B4

38L04.6HU CA 7.

2581 C4
2588 C3
2611 E4
2621 E5
2624 E5
2631 D7
2691 B1
2945 D2
2948 D2
2949 D2
2960 D2

2961 D1
2978 C2
3020 E6
3101 D7
3103 D7
3105 D7
3112 D7
3114 D7
3116 D7
3122 D7
3123 D7

3125 D7
3131 C7
3133 D7
3138 D7
3157 E7
3167 D7
3200 E7
3201 D5
3213 E7
3215 D5
3224 E5

3230 D4
3231 D6
3234 C6
3239 C6
3241 E5
3246 D5
3249 D6
3252 D5
3258 D6
3260 D5
3270 D7

3274 D7
3275 E7
3276 C7
3277 C7
3278 D7
3291 D6
3401 C6
3403 A7
3406 A7
3407 A7
3410 A7

3411 A6
3412 A5
3414 C6
3415 B6
3417 A5
3418 C5
3425 C5
3430 B6
3431 C5
3432 B6
3433 B6

3434 B6
3440 C5
3441 B6
3442 A7
3443 A7
3451 B6
3454 A7
3455 B7
3457 B7
3458 B7
3460 B7

3461 C7
3466 C7
3467 C7
3468 C7
3470 C7
3471 C7
3472 C7
3482 B7
3483 B7
3484 B7
3485 B7

3497 C5
3500 B1
3501 B1
3502 A1
3503 B1
3504 B2
3505 A1
3506 B1
3507 B2
3508 A3
3509 B2

3510 B2
3511 B5
3513 A4
3514 A4
3515 A4
3516 A4
3519 B4
3520 A4
3521 A5
3523 B2
3529 B3

3531 B3
3532 B3
3534 B3
3542 B3
3563 C3
3571 B5
3574 B5
3575 B5
3577 B5
3584 C4
3585 D4

3589 C5
3593 C4
3603 C6
3606 E4
3616 C6
3617 C6
3618 C6
3633 C6
3639 E4
3642 D6
3683 B1

3943 C2
3945 D2
3961 C3
3962 D3
3975 D3
5201 D5
5208 D6
5216 D6
5217 D7
5295 C5
5401 A6

5402 B6
5403 B5
5405 B5
5406 B5
5408 B5
5410 B6
5450 B7
5451 B7
5500 B2
5501 B2
5502 A3

F_15760_021.eps

151105

5503 A3
5511 A4
5512 B4
5512C B4
5512D B4
5531 B3
5532 B3
5536 C3
5537 C4
5551 B4
5552 B5

5561 B4
5562 B4
5581 D3
5602 D7
5901 D1
5902 D2
5907 D1
5908 D2
5913 D3
5914 D3
6001 E7
6006 E7
6273 D4
6401 A6
6403 C6
6404 A6
6406 A5
6410 A6
6411 A6
6412 A6
6452 C7
6453 B6
6454 B7
6455 B7
6456 A7
6459 B7
6480 B7
6481 B7
6486 C6
6491 A6
6500 A3
6511 A5
6535 C3
6536 C3
6537 C3
6540 B3
6551 C4
6562 B4
6563 C4
6573 B5
6575 A4
6581 D3
6691 A1
6692 B1
6693 B1
6905 D1
7203 E4
7204 E4
7401 A6
7405 B6
7406 C5
7451 C7
7452 C7
7453 C7
7512 A4
7513 B5
7531 B3
7571 B5
7581 D4
7582 D4
7601 D5
7603 E4
7605 E4
7902 C2
7906 C3
7990 E3
9002 E6
9101 D7
9112 D7
9113 D7
9114 D7
9116 D7
9120 C7
9121 D7
9122 D7
9123 D7
9124 D7
9125 D7
9126 D7
9128 D7
9129 D7
9138 D7
9157 E7
9162 E7
9201 E6
9202 E4
9203 E6
9204 E6
9205 D4
9206 D4
9207 D4
9208 D4
9209 C5
9210 E7
9211 E7
9212 E7
9213 D7
9214 D4
9215 E7

9216 D4
9217 D6
9218 E6
9219 D6
9220 D5
9221 D5
9222 E5
9223 E6
9224 D5
9225 D4
9226 D4
9227 D5
9228 D4
9229 D5
9230 D5
9231 E6
9232 E5
9233 E6
9234 E7
9235 D7
9236 C5
9237 D6
9238 D7
9239 E6
9240 E4
9241 C6
9242 D4
9243 C4
9244 E5
9245 E4
9246 E5
9247 E4
9248 E6
9249 D4
9250 E6
9251 E5
9252 C5
9253 D4
9254 C6
9255 C6
9257 D7
9258 C7
9259 D7
9260 D7
9261 D7
9262 D7
9263 E6
9264 C6
9265 C7
9266 C7
9267 D7
9268 D7
9269 C4
9271 E5
9272 D4
9273 D4
9274 D4
9275 C5
9276 D4
9277 C6
9278 D4
9279 D4
9280 D5
9290 E6
9294 C6
9296 C4
9297 C4
9298 C4
9299 C5
9401 B5
9402 B5
9407 B6
9410 B6
9417 A5
9442 A7
9443 A7
9451 B7
9460 B6
9466 B5
9467 B6
9469 C5
9470 C6
9473 C5
9474 C5
9475 C5
9476 C5
9477 C5
9478 C6
9479 C6
9480 C6
9481 C6
9482 C6
9483 C7
9484 C7
9485 C7
9486 B7
9487 B7
9488 A7
9489 B7

9490 A7
9491 A6
9492 C6
9500 A2
9501 B2
9502 B2
9503 B1
9504 B2
9505 B2
9506 A3
9507 A2
9508 A2
9509 C4
9510 C4
9511 B2
9512 B3
9513 B5
9514 C4
9532 B3
9536 C3
9537 C4
9570 A3
9573 C2
9574 B4
9575 C3
9576 A4
9577 B5
9578 B3
9579 C3
9582 C3
9583 C4
9584 B4
9585 A4
9586 C4
9587 B4
9589 C5
9590 C5
9591 C3
9592 C3
9593 C4
9603 C7
9604 C6
9605 E6
9607 D6
9612 E4
9631 C5
9633 C6
9637 E7
9639 E4
9642 D6
9643 D4
9653 D4
9660 C1
9661 C1
9662 B1
9663 C1
9664 C1
9665 B1
9666 C1
9683 B1
9688 E4
9689 E4
9690 E4
9694 E6
9695 E4
9696 D4
9910 C3
9911 D3
9913 D3
9914 D3
9915 C3
9920 D3
9921 D3
9924 D2
9926 D3
9927 D2
9933 D3
9935 D2
9936 C3
9937 C3
9939 D3
9940 C3
9941 D3
9942 D3
9943 D3
9944 D3
9946 C1

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Overview Bottom Side)

2001 E1
2002 E1
2003 E2
2004 E1
2007 E1
2009 E1
2013 E1
2014 E2
2016 E2
2103 D2
2104 E1

2107 D1
2108 D1
2122 D1
2124 D1
2126 D1
2127 D1
2131 C1
2133 C1
2136 C1
2137 D1
2157 E1

2158 E1
2159 E1
2163 E1
2204 E4
2205 D4
2206 D4
2207 E5
2208 E5
2209 D3
2210 D4
2211 D3

2212 D4
2213 D3
2214 E4
2215 D3
2216 D3
2221 E4
2222 E3
2223 D3
2225 D3
2226 E4
2227 E4

2229 D3
2231 D3
2232 D3
2233 D3
2235 E4
2236 E4
2237 D3
2238 E4
2239 E4
2241 E3
2242 D3

2243 D3
2244 E4
2245 E4
2246 D3
2247 D2
2248 E4
2249 D3
2252 D3
2253 E3
2254 E3
2255 E2

2256 D3
2257 E3
2258 D3
2259 D4
2260 E2
2261 E3
2262 D2
2263 E3
2264 D3
2266 E3
2267 E3

2268 E4
2269 E4
2270 E3
2271 E3
2272 E3
2274 E3
2276 E3
2277 D4
2278 E4
2279 D3
2280 D3

Part 1

F_15769_022a.eps

Part 3

F_15769_022c.eps

3139 123 5673.4

2281 D4
2282 D4
2283 E3
2284 E3
2285 E3
2286 D3
2287 D3
2288 D5
2289 D5
2290 E4
2402 A1

2403 A1
2408 C3
2409 B3
2410 C3
2414 C3
2420 C3
2421 B3
2425 C3
2428 B2
2453 A1
2456 B1

2461 B1
2462 B1
2464 C1
2468 C1
2469 B1
2470 C1
2480 A1
2482 B4
2483 A1
2487 B3
2488 C4

2489 B3
2490 B1
2491 A1
2512 A4
2513 A4
2515 B4
2516 A4
2517 A4
2518 A4
2519 A4
2530 B5

2531 B5
2532 B5
2533 B5
2538 C5
2544 B5
2547 C5
2548 C5
2549 B5
2550 B5
2553 B5
2564 C5

2566 C5
2571 B4
2572 C4
2573 B4
2582 C5
2583 D5
2584 D5
2585 D5
2586 D5
2587 D5
2589 D5

2590 D5
2601 D4
2613 D4
2614 D2
2615 D2
2617 D2
2620 E4
2622 D2
2623 E4
2625 E5
2626 C3

39L04.6HU CA 7.

2627 D3
2628 D3
2629 D3
2630 C2
2692 B7
2916 D5
2917 E5
2918 D5
2928 C6
2929 D6
2930 D6

2931 C6
2932 C6
2933 C6
2934 C6
2935 D6
2936 D6
2937 D6
2938 D6
2939 D6
2942 C7
2946 D7

2947 C7
2950 D7
2951 C7
2952 C7
2953 C7
2954 D7
2955 D7
2957 D7
2958 D7
2963 D7
2970 D7

2971 D7
2972 D7
2973 D7
2974 D7
2977 C6
2979 C6
2980 D7
2981 D7
2982 D7
2983 D7
2984 D7

2985 D6
2986 E5
2987 E5
2988 E5
2989 D6
2990 E6
2991 E6
2992 E6
2993 E6
2994 E6
2995 E6

2996 E6
2997 E6
2998 E5
3000 E1
3001 E1
3002 E1
3003 E1
3004 E1
3005 E1
3006 E4
3007 E4

3008 E2
3009 E3
3010 E2
3014 E1
3016 E1
3018 E1
3019 E2
3104 D2
3106 E1
3111 D1
3113 D1

3115 D1
3121 D1
3124 D1
3126 D1
3129 C1
3130 C1
3132 C1
3134 C1
3135 C1
3136 C1
3156 E1

Part 2

F_15769_022b.eps

Part 4

F_15769_022d.eps

3161 D1
3162 E1
3164 D1
3166 E1
3168 D2
3169 D2
3202 D4
3203 E4
3204 D4
3205 E4
3206 E4

3207 D4
3208 E4
3209 E4
3210 E4
3211 E4
3212 D4
3214 D4
3216 D3
3217 E4
3218 D3
3219 D4

3220 D3
3221 D3
3222 E3
3223 E5
3225 D3
3226 D3
3227 D3
3228 D3
3229 D3
3232 E4
3233 C3

3235 E4
3236 E4
3237 E4
3238 D2
3240 D2
3242 D3
3243 E4
3244 E3
3245 C3
3247 E3
3248 D2

3250 D2
3251 E3
3253 E3
3254 E3
3255 E2
3256 E2
3257 D2
3259 D4
3261 D4
3262 D4
3263 D4

3264 D4
3265 D4
3266 D4
3267 E3
3268 D2
3269 D4
3271 D2
3272 D2
3273 D3
3279 D4
3280 D4

F_15760_022.eps

3281 D4
3282 D4
3283 D4
3284 D4
3285 E4
3286 E2
3287 D4
3288 D4
3289 D3
3290 C3
3292 D2

151105

3293 D2
3294 C3
3295 E4
3296 E4
3297 E3
3298 D4
3299 E2
3404 A3
3405 A2
3409 A1
3416 B3
3420 C3
3427 B2
3428 B2
3436 B3
3437 C2
3445 C4
3446 C4
3452 B2
3453 A1
3462 B1
3463 B1
3464 C1
3465 C1
3469 C1
3473 A1
3474 C2
3475 C2
3476 A1
3477 A1
3478 B1
3480 A2
3481 B1
3486 B1
3487 A2
3488 A2
3489 C3
3490 A1
3491 A1
3492 A1
3493 A1
3494 A1
3495 C3
3498 C3
3499 C3
3512 A4
3517 A4
3518 A4
3522 A4
3524 A4
3527 B5
3528 B5
3530 B5
3533 B5
3535 C6
3536 C6
3537 B5
3538 B6
3539 B6
3541 C6
3565 C5
3572 C4
3573 B4
3576 B4
3578 B4
3579 B4
3581 D5
3582 D5
3583 D5
3601 D4
3604 D4
3605 D4
3607 E5
3608 E4
3609 E5
3610 E5
3614 D2
3619 C3
3620 C3
3621 C3
3622 E5
3623 E5
3625 D4
3626 D4
3628 D4
3631 D2
3634 D2
3635 D2
3636 D2
3637 D2
3681 C7
3684 C7
3685 D7
3686 D7
3687 C7
3689 C7
3690 C7
3691 A7
3692 A7
3693 B7

3694 A7
3695 B7
3696 B7
3697 B7
3698 C7
3930 C6
3931 C6
3932 C6
3933 C6
3934 C6
3935 C7
3936 D6
3937 D6
3938 D6
3939 D6
3940 D6
3941 D6
3942 C7
3946 D6
3947 C6
3948 C6
3949 C6
3952 C7
3953 C7
3955 D7
3956 D7
3957 D6
3958 D7
3959 C6
3960 D7
3964 C6
3965 C6
3971 D7
3972 D7
3973 D6
3974 C6
3982 E6
3983 E6
3984 D5
3985 D6
3986 D5
3988 E6
3989 E6
3991 E6
3992 E6
3993 E6
3994 D5
3995 E5
3996 D5
3997 D5
3998 E5
3999 E5
4000 E1
4001 E1
4002 E4
4003 E2
4004 E4
4005 E2
4006 E1
4010 E2
4011 E3
4012 E3
4013 E3
4015 E1
4101 D1
4102 D1
4103 D1
4104 C1
4105 D1
4106 D1
4107 D1
4108 D1
4109 D1
4110 D1
4111 D1
4112 C1
4113 C1
4115 D1
4116 C1
4117 E1
4130 C1
4136 C1
4144 D2
4207 D2
4209 E3
4210 D3
4211 D3
4212 D3
4213 D2
4214 C3
4215 D2
4219 D4
4221 D3
4222 E4
4223 E3
4224 E3
4226 E3
4227 E3
4240 C5
4241 C5

4437 C2
4470 A1
4474 C3
4477 A1
4492 A1
4493 C2
4533 A4
4534 C5
4535 C5
4536 C6
4537 C5
4581 D5
4601 E5
4602 C2
4604 E5
4605 C2
4606 C2
4607 E5
4609 E2
4610 E5
4611 D5
4612 E4
4620 C2
4630 C2
4631 D4
4635 C2
4637 D2
4642 E2
4644 E2
4645 D2
4646 D4
4648 D2
4649 E5
4650 D5
4651 D5
4691 C7
4692 B7
4693 B7
4694 C7
4695 A7
4696 C7
4910 D6
4911 D7
4912 D7
4913 C6
4914 E5
4915 E5
4916 E5
4917 E5
4921 C7
4984 D5
4991 D6
4992 D5
5001 E2
5002 E2
5003 E3
5004 E3
5202 D4
5203 D4
5205 D3
5206 D3
5207 D4
5209 E4
5210 D3
5211 E3
5212 E3
5213 D3
5214 E4
5215 D4
5218 D3
5219 E4
5513 B4
5533 B5
5534 C5
5535 C5
5601 C2
5910 C6
5911 D7
5912 D7
6002 E1
6003 E1
6004 E3
6106 D1
6132 C1
6201 E5
6202 D3
6203 D3
6204 E3
6205 C3
6207 E4
6208 C4
6209 C5
6210 D4
6211 D4
6407 B4
6408 B4
6441 B3
6442 B3
6443 C3
6450 A1

6451 A1
6457 C1
6458 C1
6482 C4
6483 B2
6484 B2
6488 B2
6489 B2
6512 B4
6514 A4
6531 B5
6532 B5
6533 B5
6534 B5
6538 B5
6541 C6
6564 C5
6565 C5
6566 C5
6571 C4
6572 B4
6576 C5
6602 E4
6610 E4
6694 C7
6901 D6
6903 C6
6904 C6
6906 D7
6990 D5
6991 D6
6992 D5
7001 E4
7003 E2
7103 E1
7104 D1
7200 D3
7201 E4
7202 E4
7205 C3
7207 D2
7208 D2
7209 E4
7210 E4
7402 A2
7403 A2
7404 C3
7408 C3
7410 C3
7411 C3
7454 C1
7455 B1
7456 B1
7480 A2
7481 B1
7482 C4
7483 A1
7484 C4
7511 A4
7514 A4
7532 B5
7535 C6
7536 C6
7541 C6
7561 C5
7573 C4
7602 D2
7604 E4
7606 D2
7607 D2
7691 B7
7901 C6
7903 C6
7904 C6
7991 D5
7992 D5
7993 E5
7994 E5

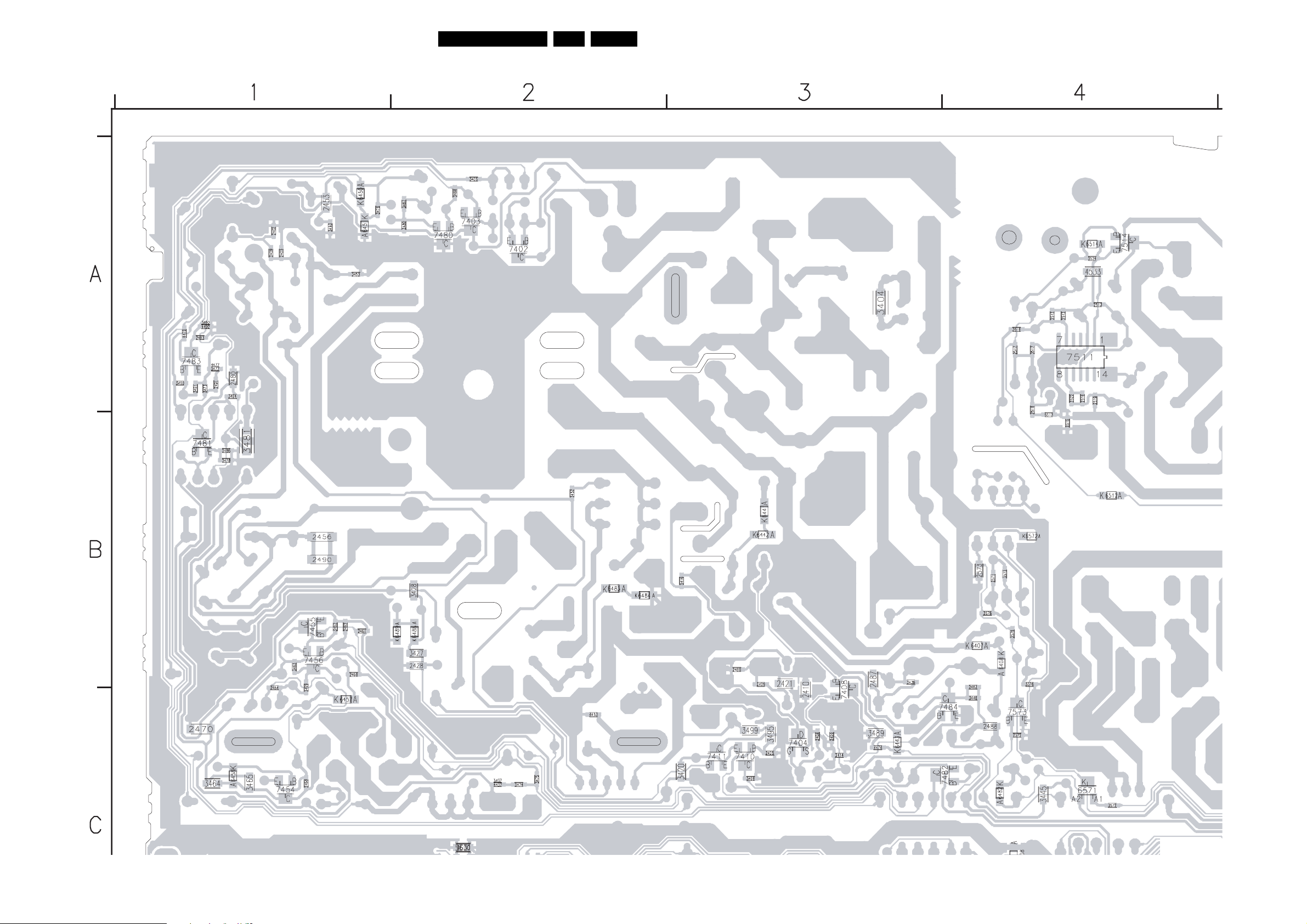

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 1 Bottom Side)

40L04.6HU CA 7.

Part 1

F_15760_022a.eps

151105

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 2 Bottom Side)

41L04.6HU CA 7.

Part 2

F_15760_022b.eps

151105

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 3 Bottom Side)

42L04.6HU CA 7.

Part 3

F_15760_022c.eps

151105

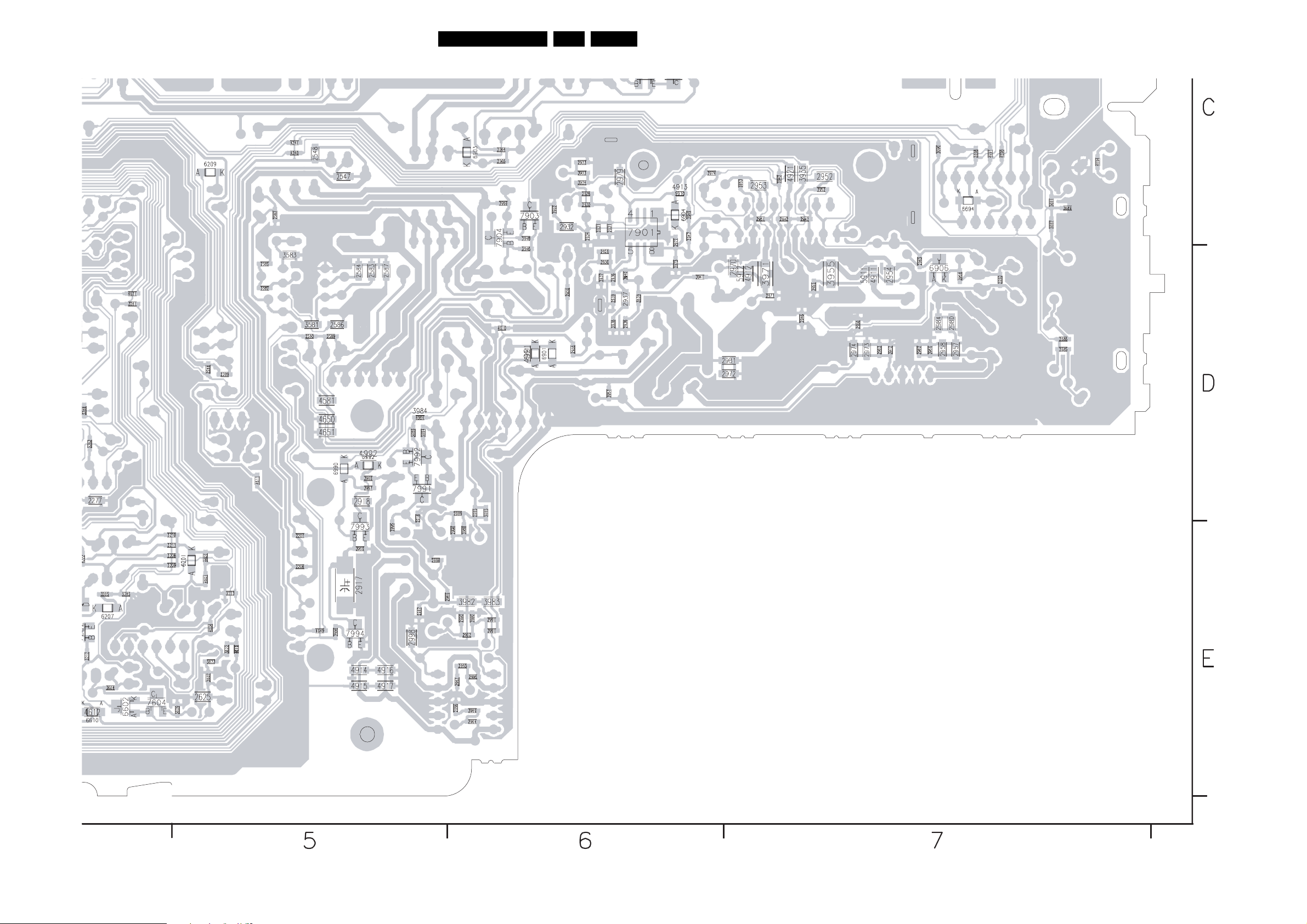

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 4 Bottom Side)

43L04.6HU CA 7.

Part 4

F_15760_022d.eps

151105

ATSC Panel: Power

5

Circuit Diagrams and PWB Layouts

44L04.6HU CA 7.

4

3

2

1

ATSC2 ATSC2

POWER

10VDC

E-L5973D

FB200
MLB-201209-0120P-N2

D D

+

CE200
470UF_16V

ELEC_DIP 8X11.5
20% 5mm pitch

1C-YXA-470-M-TA-8x11.5

+

CE201

10UF_50V

ELEC_DIP 5x11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

R209 4.7K

0603 5%

CB200

0.1uF

0603
X7R,K

C200

220pF

0603
NPO,J

DC-DC CONVERTOR,2.5A

U200

6

VREF

8

VCC

2

SYNC

4

COMP

C201
22nF

0603
X7R,K

R200

4.7K

0603
5%

1

OUT

5

INH

3

FB

GND

SO8

7

L200 33UH

12x12 20%, 2.1A, 0.057Rdc
MSCDRI-125-330-M

R201 3.3K

D200

20V,1A,DIODE
SOD-123FL

MBR120LSFT1G

R202 11K

1%0603

1%0603

L203
SQC575047T-4R7 M5750M

+

CE202
100UF_10V

ELEC_DIP 5x11
20% 2.5mm pitch
1A-YXA-100-M-T1-5x11

4.7uH

5VDC

FB201
MLB-201209-0120P-N2

C C

+

CE204
470UF_16V

ELEC_DIP 8X11.5
20% 5mm pitch

1C-YXA-470-M-TA-8x11.5

+

CE205

10UF_50V

ELEC_DIP 5x11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

CB201

0.1uF

0603
X7R,K

C202

220pF

0603
NPO,J

C203

22nF

0603
X7R,K

R203

4.7K

0603
5%

8

4

E-L5972D

DC-DC CONVERTOR,2A

U201

VIN

COMP

GND

GND

GND

6

723

Vout

VFB

GND

SO8

1

5

L201 33UH

12x12 20%, 2.1A, 0.057Rdc
MSCDRI-125-330-M

R204 3K

D201

20V,1A,DIODE
SOD-123FL

MBR120LSFT1G

R205 3.3K

1%0603

+

1%0603

CE206
100UF_10V

ELEC_DIP 5x11
20% 2.5mm pitch
1A-YXA-100-M-T1-5x11

5VDC

+

CE203
470UF_10V

ELEC_DIP 8X11.5
20% 5mm pitch
EGC-477-M-1A-8-11.5-TC

2V5DC

+

CE207
470UF_10V

ELEC_DIP 8X11.5
20% 5mm pitch
EGC-477-M-1A-8-11.5-TC

10VDC

CB207

0.1uF

0603
X7R,K

CB206

0.1uF

0603
X7R,K

CB203

0.1uF

0603
X7R,K

5VDC

CE213

+

10UF_50V

ELEC_DIP 5x11
20% 2.5mm pitch
EKM-106-M-1H-5-11-TU

CB204

0.1uF

0603
X7R,K

Power and Ground Test Points

+

CE212
470UF_25V

ELEC_DIP 10x12.5
20% 5mm pitch
EKM-477-M-1E-10-12.5-TC

U203

3 4

VIN TAB

1 2

GND VOUT

RT9164A-33PG

SOT-223

P1582

1
2
3
4

4 X 1 CONNECTOR

4P_2.50_THRUHOLE_Black

B4B-EH-A-K(LF)SN

+

CE214

100UF_10V

ELEC_DIP 5x11

20% 2.5mm pitch

1A-YXA-100-M-T1-5x11

3V3DC

CB205

0.1uF

0603
X7R,K

5VDC

10VDC 5VDC 3V3DC 2V5DC 1V8DC

FB202

B B

A A

MLB-201209-0120P-N2

+

CE208
470UF_16V

ELEC_DIP 8X11.5
20% 5mm pitch

1C-YXA-470-M-TA-8x11.5

+

CE209

10UF_50V

ELEC_DIP 5x11
20% 2.5mm pitch

1H-YXA-10-M-T1-5x11

CB202

0.1uF

0603
X7R,K

C204

220pF

0603
NPO,J

C205

22nF

0603
X7R,K

R206

4.7K

0603
5%

8

4

3139 267 2819.1

5

E-L5972D

DC-DC CONVERTOR,2A

U202

VIN

COMP

GND

GND

GND

6

723

Vout

VFB

GND

SO8

1

5

L202 33UH

12x12 20%, 2.1A, 0.057Rdc
MSCDRI-125-330-M

R207 3.3K

D202

20V/3A,DIODE
AXIAL DIP

MBR340

R208 1.5K

1%0603

TP5

TP2

1

TP6

1

TP3

1

TP7

1

TP4

1

TP8

1

1

1V8DC

+

CE210

1%0603

100UF_10V

ELEC_DIP 5x11
20% 2.5mm pitch
1A-YXA-100-M-T1-5x11

+

CE211
470UF_10V

ELEC_DIP 8X11.5
20% 5mm pitch
EGC-477-M-1A-8-11.5-TC

TP1

1

1

TP9

TP20

1

G_16430_026.eps

4

3

2

1

100506

Circuit Diagrams and PWB Layouts

45L04.6HU CA 7.

ATSC Panel: Reset, Pads, Spade Lug, I2C EEPROM

5

4

3

2

1

RESET, PADS, SPADE LUG, I2C EEP-ROM

ATSC3 ATSC3

Reset Cir cuit

D D

C C

I2C EEP-ROM

R306 10K

0603 5%

U301

1

A0

2
3
4 8

SDA

A1

SCL
A2
VSS VCC

CAT24WC04W

8P_SOIC

WP

3V3DC

3V3DC

U300

CB300

0.1uF

0603

5
6
7

X7R,K

R307 33

0603 5%

R308 33

0603 5%

I2C1DATA 6,7

I2C1CLK 6,7 RST_MAIN 7

JTAG_RSTN7

UPDATE_RST7

JTAG_RSTN

CAT811TTBI-T

4

VCC

1

GND

2

RST

3

MR

R301 0

0603 5%

R303 0

0603 5%

3V3DC

R304
1K

0603
5%

C300
10nF

0603
X7R,K

RESETN 5,7

don`t stuf f

Grounded Mounting Holes, PCB

PAD1
Gnd_Mount_Pad

4 9

6 8

B B

PAD5
Gnd_Mount_Pad

4 9

6 8

75

123

75

PAD2
Gnd_Mount_Pad

4 9

6 8

123

75

P1545

1
2
3

4
5
6

1 X 1 CONNECTOR

SL_THRUHOLE
0-10645-1
SPADE LUG
AMP

123

A A

3139 267 2819.1

5

4

3

2

1

G_16430_027.eps

100506

Circuit Diagrams and PWB Layouts

ATSC Panel: DDR SDRAM Interface

5

46L04.6HU CA 7.

4

3

2

1

ATSC4 ATSC4

DDR SDRAM INTERFACE

DDRA12

DDRA12

DDRDQ0
DDRDQ1
DDRDQ2
DDRDQ3
DDRDQ4
DDRDQ5
DDRDQ6
DDRDQ7
DDRDQ8
DDRDQ9
DDRDQ10
DDRDQ11
DDRDQ12
DDRDQ13
DDRDQ14
DDRDQ15

DDRDQ16
DDRDQ17
DDRDQ18
DDRDQ19
DDRDQ20
DDRDQ21
DDRDQ22
DDRDQ23
DDRDQ24
DDRDQ25
DDRDQ26
DDRDQ27
DDRDQ28
DDRDQ29
DDRDQ30
DDRDQ31

VREF Generatio n

2V5DC

+

CE400
470UF_16V

ELEC_DIP 8X11.5
20% 5mm pitch
1C-YXA-470-M-TA-8x11.5

2

R411
100

0603
1%

R407
100

0603
1%

R403
100

0603
1%

2V5DC

R405
100

0603
1%

VCC2_6_DDRVCC2_6_DDR

R409
100

0603
1%

R413
100

0603
1%

DDRCKNDDRCK

R408

R412
100

0603
1%

100

0603
1%

R404
100

0603
1%

R406
100

0603
1%

R410
100

0603
1%

R414
100

0603
1%

Don`t stuffDon`t stuff

PCB Location comment

R403 R404 R405 R406 place close by R419,R42 0

R407 R408 R409 R410 place close by U400 pin45,pi n46

R411 R412 R413 R414 place close by U401 pin45,pi n46

FB400

BLM31PG391SN1D

1206(3216)

CB423

0.1uF

0603
X7R,K

Don`t stuff

place close by pin49(DDR)

VCC2_6_DDR

CB422

0.1uF

0603
X7R,K

R400
2K

1%
0603

R401
2K

1%
0603

VREF

CB420

0.1uF

X7R,K
0603

CB424

0.1uF

0603
X7R,K

VREF

G_16430_028.eps

1

100506

DDRA[0:12]

VREF

U69B

DDR SDRAM CTLR

RA2G

DDRA0

D D

DDRA1
DDRA2
DDRA3
DDRA4
DDRA5
DDRA6
DDRA7

DDRA8
DDRA9
DDRA10
DDRA11
DDRA12

DDRBS0
DDRBS1

DDRDQS0
DDRDQS1
DDRDQS2
DDRDQS3
DDRDM0

C C

DDRDM1
DDRDM2
DDRDM3

DDRRASN
DDRCASN
DDRWEN

DDRCK
DDRCKN
DDRCKE

RA1C 22 X 8

RA5D 22 X 8

RA1D 22 X 8

RA5H 22 X 8

RA5G 22 X 8

RA8B 22 X 8

RA4A 22 X 8

RA8E 22 X 8

RA4B 22 X 8

RA8D 22 X 8

RA5E 22 X 8

RA4D 22 X 8

RA4C 22 X 8

TP40

RA5A 22 X 8

RA1F 22 X 8

R415 060339
R416 060339
R417 060339
R418 060339

RA2C 22 X 8

RA3F 22 X 8

RA6H 22 X 8

RA6A 22 X 8

RA1E 22 X 8

RA8H 22 X 8

RA1B 22 X 8

R419 060339
R420 060339

RA8A 22 X 8

CK
CKN

VREF

CB421

0.1uF

0603
X7R,K

B B

DDR Bypass Cap s

E1

SADR0

A10

SADR1

E2

SADR2

B9

SADR3

A9

SADR4

E15

SADR5

A8

SADR6

E16

SADR7

B8

SADR8

D16

SADR9

B10

SADR10

A7

SADR11

C8

A11

D3

C6
A15
A16

C12
B14

D2
E17

D1

C17
D17
D15

C9

E3

B3

A2
B4

SADR12
SADR13
SBS0
SBS1

SDQS0
SDQS1
SDQS2
SDQS3
SDQM0
SDQM1
SDQM2
SDQM3

SRASN
SCASN
SWEN

SCK
SCKN
SCKE

SVREF

1

SDATA0
SDATA1
SDATA2
SDATA3
SDATA4
SDATA5
SDATA6
SDATA7

SDATA8

SDATA9
SDATA10
SDATA11
SDATA12
SDATA13
SDATA14
SDATA15

SDATA16
SDATA17
SDATA18
SDATA19
SDATA20
SDATA21
SDATA22
SDATA23

SDATA24
SDATA25
SDATA26
SDATA27
SDATA28
SDATA29
SDATA30
SDATA31

B1
C4
B2
C3
C5
C2
A1
C1

B7
A3
A6
B5
A5
A4
B6
C7

B12
A13
C11
A12
A14
B11
B13
C10

C16
A17
C15
B15
C14
C13
B17
B16

ZR39640BGCC

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

22 X 8

VCC2_6_DDRVCC2_6_DDR

CB401

0.1uF

0603
X7R,K

CB411

0.1uF

0603
X7R,K

CB402

0.1uF

0603
X7R,K

CB412

0.1uF

0603
X7R,K

0.1uF

0603
X7R,K

CB413

0.1uF

0603
X7R,K

CB404

0.1uF

0603
X7R,K

CB414

0.1uF

0603
X7R,K

VCC2_6_DDR

CB400

0.1uF

0603
X7R,K

VCC2_6_DDR

CB410

0.1uF

0603
X7R,K

A A

CB403

CB405

0.1uF

0603
X7R,K

CB415

0.1uF

0603
X7R,K

CB406

0.1uF

0603
X7R,K

CB416

0.1uF

0603
X7R,K

CB407

0.1uF

0603
X7R,K

CB417

0.1uF

0603
X7R,K

CB408

0.1uF

0603
X7R,K

CB418

0.1uF

0603
X7R,K

CB409

0.1uF

0603
X7R,K

CB419

0.1uF

0603
X7R,K

RA3G

RA2D

RA2B

RA3D

RA2E

RA2F

RA2H

RA4E

RA3H

RA4G

RA3C

RA3B

RA3E

RA4H

RA4F

RA6G

RA6C

RA5C

RA6F

RA7H

RA5B

RA6D

RA5F

RA8C

RA7A

RA7G

RA7F

RA6B

RA6E

RA7B

RA7D

DDRDQ0
DDRDQ1
DDRDQ2
DDRDQ3
DDRDQ4
DDRDQ5
DDRDQ6
DDRDQ7

DDRDQ8
DDRDQ9
DDRDQ10
DDRDQ11
DDRDQ12
DDRDQ13
DDRDQ14
DDRDQ15

DDRDQ16
DDRDQ17
DDRDQ18
DDRDQ19
DDRDQ20
DDRDQ21
DDRDQ22
DDRDQ23

DDRDQ24
DDRDQ25
DDRDQ26
DDRDQ27
DDRDQ28
DDRDQ29
DDRDQ30
DDRDQ31

VREF

DDRDQ[0:31]

DDRA0
DDRA1
DDRA2
DDRA3
DDRA4
DDRA5
DDRA6
DDRA7
DDRA8
DDRA9
DDRA10
DDRA11

DDRCK
DDRCKN
DDRCKE

DDRRASN
DDRCASN
DDRWEN

DDRDQS0
DDRDQS1

DDRDM0
DDRDM1

DDRBS0
DDRBS1

DDRA0
DDRA1
DDRA2
DDRA3
DDRA4
DDRA5
DDRA6
DDRA7
DDRA8
DDRA9
DDRA10
DDRA11

DDRCK
DDRCKN
DDRCKE

DDRRASN
DDRCASN
DDRWEN

DDRDQS2
DDRDQS3

DDRDM2
DDRDM3

DDRBS0
DDRBS1

VREF

VREF

49

VREF

29

A0

30

A1

31

A2

32

A3

35

A4

36

A5

37

A6

38

A7

39

A8

40

A9

28

A10/AP

41

A11

45

CK

46

CK

44

CKE

24

CS

23

RAS

22

CAS

21

WE

16

LDQS

51

UDQS

20

LDM

47

UDM

26

BA0

27

BA1

K4DU551638F-LC50

66P_TSOPII

49

VREF

29

A0

30

A1

31

A2

32

A3

35

A4

36

A5

37

A6

38

A7

39

A8

40

A9

28

A10/AP

41

A11

45

CK

46

CK

44

CKE

24

CS

23

RAS

22

CAS

21

WE

16

LDQS

51

UDQS

20

LDM

47

UDM

26

BA0

27

BA1

K4DU551638F-LC50

66P_TSOPII

U400

U401

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

NC
NC
NC
NC
NC
NC
NC
NC

VDD

VDD

VDD

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VSS
VSS

VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

NC
NC
NC
NC
NC
NC
NC
NC

VDD

VDD

VDD

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VSS
VSS

VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

14
17
19
25
42
43
50
53

1
18
33
3
9
15
55
61

34
48
66
6
12
52
58
64

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

14
17
19
25
42
43
50
53

1
18
33
3
9
15
55
61

34
48
66
6
12
52
58
64

VCC2_6_DDR

VCC2_6_DDR

3139 267 2819.1

5

4

3

Circuit Diagrams and PWB Layouts

47L04.6HU CA 7.

ATSC Panel: Guest Bus & Flash

5

4

3

2

1

GUEST BUS & FLASH

ATSC5 ATSC5

Guest Bus

D D

C C

B B

U69A

GDAT15
GDAT14
GDAT13
GDAT12
GDAT11
GDAT10

GDAT9
GDAT8
GDAT7
GDAT6
GDAT5
GDAT4
GDAT3
GDAT2
GDAT1
GDAT0

GADR15
GADR14
GADR13
GADR12
GADR11
GADR10

GADR9
GADR8
GADR7
GADR6
GADR5
GADR4
GADR3
GADR2
GADR1
GADR0

GALE

GIORD_N

GIOWR_N

GOE_N

GWE_N

GCS_N0
GCS_N1
GCS_N2
GCS_N3
GCS_N4
GCS_N5

ZR39640BGCC

R15
K17
U12
U11
T13
R13
M17
R11
U13
M16
T14
R12
T16
L16
U15
R14

T8
R8
U6
R9
R7
U3
T7
U4
U8
T9
U9
U10
R10
T10
T12
T11

U16
T5
U5

T6
U7

P17
T15
L17
N17
U17
U14

TP502

1

R50027

0603 1%

0603 1%

R50127
R50227

0603 1%

TP501

1

GDAT13
GDAT12
GDAT11
GDAT10
GDAT9
GDAT8
GDAT7
GDAT6
GDAT5
GDAT4
GDAT3
GDAT2
GDAT1
GDAT0

GADR15
GADR14
GADR13
GADR12
GADR11
GADR10
GADR9
GADR8
GADR7
GADR6
GADR5
GADR4
GADR3
GADR2
GADR1
GADR0

TP503

NOR_WPN

1

DON`T STUFF

GOE_N
GWE_N

GCS_N0
GCS_N1
GCS_N2
GCS_N3
GCS_N4
GCS_N5

GDAT[0:13]

GADR[0:15]

GCS_N0

GDAT[0:13]

GADR[0:15]

R516 0

GPIO57

RESETN3,7

GDAT8
GDAT9
GDAT10
GDAT11
GDAT12
GDAT13

06035%

GDAT12

U501

GADR1
GADR2
GADR3
GADR4 GDAT3
GADR5 GDAT4
GADR6
GADR7
GADR8
GADR9
GADR10
GADR11
GADR12
GADR13
GADR14

GADR15

R518 0
R519 0
R520 0
R521 0
R522 0
R523 0

RESETN

GOE_N

GWE_N

NOR_WPN

R517 0

R550 0

25

A0

24

A1

23

A2

22

A3

21

A4

20

A5

19

A6

18

A7

8

A8

7

A9

6

A10

5

A11

4

A12

3

A13

2

A14

1

A15

48

A16

17

A17

16

A18

9

A19

10

A20

12

RESETN

26

CEN

28

OEN

11

WEN

14

VPP/WPN

15

06035%

RBN

S29GL032M-90TFIR4

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

NC1

BYTEN

VDD

VSS
VSS

OPTION

FLASH MEMORY OPTION

S29GL032M-90TFIR 4

R517

R522

R550

R551

R552

DON`T STUFF

STUFF

DON`T STUFF

DON`T STUFF

DON`T STUFF

DEFAULT S29GL032M-90TFIR4

GDAT0

29

GDAT1

31

GDAT2

33
35
38

GDAT5

40

GDAT6

42

GDAT7

44
30
32
34
36
39
41
43

GADR0

45

R551 0

13

BYTEn

47
37

3V3DC

27
46

R552 0

OPTION

R524

4.7K

3V3DC

3V3DC

GCS_N0
GCS_N1
GCS_N2
GCS_N3
GCS_N4
GCS_N5

A A

R503 4.7K
R504 4.7K
R505 4.7K
R506 4.7K R530 4.7K
R507 4.7K
R508 4.7K

GWE_N

GOE_N

NOR_WPN

GADR0

GPIO5

R509 4.7K

0603 5%

0603 5%

R512 4.7K

0603 5%

R531 4.7K

0603 5%

3139 267 2819.1

5

3V3DC

1

3V3DC

TP500

3V3DC

pin37

CB501

0.1uF

0603
X7R,K

CB502

0.1uF

0603
X7R,K

pin13pin47

CB503

0.1uF

0603
X7R,K

CB504

0.1uF

0603
X7R,K

G_16430_029.eps

4

3

2

1

100506

ATSC Panel: Tuner

5

Circuit Diagrams and PWB Layouts

48L04.6HU CA 7.

4

3

2

1

ATSC6 ATSC6

TUNER & OREN CASCADE DEMODULATOR

+5VT1

TU601

G1

GND

G2

GND

G3

GND

G4
G5
G6
G7
G8

G9
G10
G11
G12

I2C Addre s: C2

3V3DC

CB611

0.1uF

0603
X7R,K

C622
1nF

0603
NPO,5%

GND
GND
GND
GND
GND
GND
GND
GND
GND

C617
1nF

0603
NPO,5%

CB613

0.1uF

0603
X7R,K

D D

C C

1V8DC

B B

OD_25V

+5V

OOB

NC
AGC
NC1

A_SEL

SCL
SDA
NC2

+5V
AN_IF
IF_GC

IF_OUT1
IF_OUT2

TD1336OZ/FGHP

C618

CB612

1nF

0.1uF

0603

0603

NPO,5%

X7R,K

CB614

C623

0.1uF

1nF

0603

0603

X7R,K

NPO,5%

don`t stuff

TP_ERR

LOCK

A A

R620 220

0603 5%

R621 220

0603 5%

don`t stuff

C650 10nF

1
2
3
4
5
6

R601

7
8
9
10
11
12

IF_AGC

13
14
15

R617
75

0603

C619

C632

1.0uF

1nF

0603

0603

X7R,K

NPO,5%

C624

CB615

1nF

0.1uF

0603

0603

NPO,5%

X7R,K

1 2

LD600 C1632SRC

LD601 C1632VGC

1206RED_LED

1 2

1206GREEN_LED

0603X7R,K

00603

IF_N

IF_P

CB616

0.1uF

0603
X7R,K

R615
10K

5%
0603

C604
22pF

0603
NPO,K

C620

1.0uF

0603
X7R,K

CB617

C625

1.0uF

0.1uF

0603

0603

X7R,K

X7R,K

TS ERROR

LOCK

C621

1.0uF

0603
X7R,K

R616
47K

5%
0603

C603
22pF

0603
NPO,K

CB601

0.1uF

0603
X7R,K

1V8DC

CB600

0.1uF

0603
X7R,K

C600
10nF

0603
X7R,K

FB603 MLB-160808-0120 A-N2

0603

FB604 MLB-160808-0120 A-N2

0603

C605
10nF

0603
X7R,K

IF_AGC

CB610

0.1uF

0603
X7R,K

I2C1CLK3,7

I2C1DATA3,7

C601
100pF

0603
NPO,5%

C606
100pF

0603
NPO,5%

R603 2K

R604 0
R605 0

CE611

+

47UF_16V

ELEC_DIP 5X11
20% 2.5mm pitch
1C-YXA-47-M-T1-5x11

C631

1.0uF

0603
X7R,K

CE610

+

47UF_16V

ELEC_DIP 5X11
20% 2.5mm pitch
1C-YXA-47-M-T1-5x11

T_SCL

T_SDA

+5VT2

C607 10nF

C608 10nF

CB603

0.1uF

0603
X7R,K

MLB-201209-0120P-N2

FB606

IF_PWM

06031%

T_SDA

T_SCL

H_SCL
H_SDA

1V8DC
3V3DC

TP_ERR
LOCK

0603X7R,K

0603X7R,K

R612 47

R613 47

3V3DC

U601

1

PRM_1

2

SCAN_EN

3

TEST_MODE

4

DIN_0

5

VDD_COR_ADC

6

VSS_COR_ADC

7

VSS_COR1

8

SCAN_MODE

9

VDD_COR1

10

DIN_1

11

IF_AGC

12

RF_AGC

13

IIC_ADDR

14

DIN_2

15

VSS_PER1

16

TUNER_SDA

17

VDD_PER1

18

TUNER_SCL

19

HOST_SCL

20

HOST_SDA

21

DIN_3

22

VDD_COR2

23

VSS_COR2
STAT0/SCLK

25

DIN_4

06035%

L600
220nH

2012

MLI-201208-R2 2K

06035%

100

99

PRM_0

STAT1/SDAT

27

C609
47pF

0603
NPO,J

95

96

979493

98

AVSS_COR_ADC

AVDD_COR_ADC

AIN1_P

92

9190898887

AIN2_P

AIN1_N

AIN2_N

AVSS_COR_ADC

AVSS_COR_ADC

AVSS_COR_ADC

CAS-220/C

VDD_PER2

VSS_PER2

MPG_VALID

MPG_FAIL

MPG_CLK

DIN_5

29

282426

MPG_SOP

VSS_COR3

DIN_6

30

33

32

34

3639404143

35

31

AIN_OB_N

MPG_DO0

AIN_OB_P

VDD_COR3

37

5VDC

3V3DC

75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

GND
3_3V
1_8V

+

GND

CE600
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-106-M-1H-5- 11-TU

C630 1.0uF

CB606 0.1uF

FB607
MLB-201209-0 120 P-N2

CB620

0.1uF

0603
X7R,K

VPLA

848283

86

VDD_COR_PLL

AVSS_COR_ADC

AVDD_COR_ADC

MPG_DO1

MPG_DO2

DIN_7

38

81

85

VSS_COR_PLL

VDD_PER_OSC

AVSS_PER_PLL

AVDD_PER_PLL

MPG_DO3

MPG_DO4

MPG_DO5

DIN_8

45

44

42

VSS_PER_OSC

VSS_PER3

VDD_PER3 CLK0

46 80

XTI_IN

XT0

79

78

XTO

VD_COSC

MPG_DO6

DIN_9

48

47

0603X7R,K

0603X7R,K

77

76

VS_CLO

VS_COSC

VD_CLO

VD_PLO

VS_PLO
LO_OUTN
LO_OUTP

VSS_COR5

VDD_COR5

DRX_A9

CRX_A8_DSTR

AU_SCK_DSTR

AU_SD

AU_TEST

AU_WS

VDD_PER4

RESET_N

VSS_PER4

OOB_AGC/PRM_3

SDAT/STAT7
SCLK/STAT6

STAT2/LOCK

MPG_DO7

50

49

PRM_2

VSS_COR4

STAT5

VDD_COR4

STAT4
STAT3

LQFP100

C613

1nF

0603
NPO,5%

TP600

1

CB609 0.1uF

0603 X7R,K

2 7
1 8

3 6

4 5

FB608
MLB-201209-012 0P-N2

C614
560pF

0603
NPO,5%

R614
1M

0603

R609 100

RP600B 22x4
RP600A 22x4

RP600C 22x4

RP600D 22x4

06031%

MLB-201209-0120 P-N2

FB609

C611 18pF

Y600
25 MHz

C612 18pF

TU_RST 7

CB607

0.1uF

0603
X7R,K

0603 NPO,5%

0603 NPO,5%

R3
R5
R4

T2

C615

CB608

1nF

0.1uF

0603

0603

NPO,5%

X7R,K

ZR39640BGCC

TRANSPORT/POD I/F

TSDATA
TSDVALID
TSFRAME
TSCLK

+5VT1

C616
1nF

0603
NPO,5%

U69C

+5VT2

3139 267 2819.1

G_16430_030.eps

100506

5

4

3

2

1

ATSC Panel: Connectors

5

Circuit Diagrams and PWB Layouts

49L04.6HU CA 7.

4

3

2

1

ATSC7 ATSC7

CONNECTORS

U69D

D D

Super I/O

IRR

UART0TX
UART0RX

K3

K1
L3

IRR

UART0TX
UART0RX

3V3DC

5VDC

don`t stuf f

TP707

1

I2C0CLK
I2C0DATA
I2C1CLK
I2C1DATA

TRSTN
TDI
TDO
TMS
TCK
TAPSEL

GPIO0
GPIO1
GPIO2
GPIO3

RESETN

R730 30

R731 30

UART_SW

TRSTN

TDI
TDO
TMS

TCLK

GPIO0
GPIO1
GPIO2
GPIO3

CLKIN

GIRQ1
GIRQ3

3V3DC

L2
L1
K2
J1

H1
J3
G1
H2
J2
G2

T3
T4
R6
U2

N1

M2

M1

M15
N16
L15
K15

I2C0CLK

I2C0DAT

C C

B B

ZR39640BGCC

I2C1CLK

I2C1DAT

TAPSEL

RESETN

CLKOUT

XC_BUF_EN_N

XC_VCC5EN_N

TP700

1

R732 0

R733 0

TP701

1

I2C1CLK 3,6
I2C1DATA 3,6

R700 30

RESETN 3,5

06031%

06031%

GPIO5 5

UPDATE_RST 3
TU_RST 6

U700

DEBUG_TX

4

1A

7

2A

9

3A

12

4A

1

S

16

Vcc

8

GND

15

OE

SN74CBTLV3257DR

TP702

06031%

UART_SW

3V3DC

CB710

0.1uF

0603
X7R,K

P703

1
2
3
4

4 X 1 CONNECTOR

4P_2.50_THRUHOLE

HEADER

06035%

06035%

1

2

1B1

3

1B2

5

2B1

6

2B2

11

3B1

10

3B2

14

4B1

13

4B2

JTAG/EJ TAG

COM_TX

DEBUG_RX
COM_RX

PU1
PU2

P700

1 2
3 4
5 6
7 8
9 10

11 12
13 14

CON14A

don`t stuff

UART0TX

UART0RX

R736 33

0603 5%

R737 33

0603 5%

3V3DC

R750 0

R751 0

C712
5pF

0603
NPO,J

C713
5pF

0603
NPO,J

06035%

06035%

RV700
CT0402S14AHSG

0402

COM_TX

COM_RX

RV701
CT0402S14AHSG

0402

TP703

GPIO3

1

P701

1
2
3

S3B-PH-K-S

3P_2_THRUHOLE

Changed P701 from 4P_2.54mm Pitch
to 3P_2mmPitch (2005/06 /13)

3V3DC 3V3DC

R716

4.7K

0603
5%

GPIO2

TP704

1

Tx
GND
Rx

R717

4.7K

0603
5%

GPIO1

TP705

1

R718

4.7K

0603
5%

GPIO[3:0]

3

2

1

0

GPIO0

TP706

1

8bit-NOR

3V3DC3V3DC

R719

4.7K

0603
5%

don`t stuff

1

1

1

0

* Key Pin 12

JTAG_RSTN 3

R720

4.7K

0603
5%

R721

4.7K

0603
5%

R722

4.7K

0603
5%

R723

4.7K

0603
5%

don`t stuff don`t stuff don`t stuf f

TAPSEL

3V3DC

R715

4.7K

0603
5%

1
2
3

CON3

HDR-3P-2.54

DON`T STUFF R721,R719,R720,R722

P702

3V3DC

Y700

24.576MHz

C700
10pF

0603
NPO,J

C701
10pF

0603
NPO,J

PU1
PU2

TDI
TDO
TMS
TCK

A A

TRSTN

R702 1K
R703 1K

R704 1K
R705 4.7K
R706 1K
R707 1K

R708 1K

I2C0CLK
I2C0DATA

I2C1CLK
I2C1DATA

UART0RX
COM_TX
DEBUG_TX

UART_SW

R709 4.7K
R710 4.7K

R711 4.7K
R712 4.7K

3V3DC

R734 4.7K
R724 4.7K
R725 4.7K

R726 4.7K

COM_TX

COM_RX

RST_MAIN3

FB700

MLB-160808-0120A-N2

FB701

MLB-160808-0120A-N2

FB704

MLB-160808-0120A-N2

0603

0603

0603

C710
5pF

0603
NPO,J

C711
5pF

0603
NPO,J

C714
5pF

0603
NPO,J

P1206

1
2
3
4

4 X 1 CONNECTOR

4P_2.50_THRUHOLE_White
B4B-EH-A(LF)SN

G_16430_031.eps

3139 267 2819.1

5

4

3

2

1

100506

ATSC Panel: Video Out

5

Circuit Diagrams and PWB Layouts

50L04.6HU CA 7.

4

3

2

1

ATSC8 ATSC8

VIDEO OUT

U69G

Component Video

PR / RED

R801
75

0603
1%

Y / GREEN

R802
75

0603
1%

PB / BLUE

R803

TP802

75

0603
1%

R807 27
R808 27

Don`t stuff

Don`t stuff

Don`t stuff

Don`t stuff

TP8001TP801

1

PR / RED

Y / GREEN

PB / BLUE

R810
75

0603
1%

PR / RED

Y / GREEN

PB / BLUE

ELEC_DIP 5X11 20% 2.5mm pitch

ELEC_DIP 5X11 20% 2.5mm pitch

R820

R812

75

75

0603

0603

1%

1%

R821 0

R822 0

R823 0

CB825

0.1uF

0603
X7R,K

EKM-106-M-1H-5-11-TU

CB826

0.1uF

0603
X7R,K

CE819
10UF_50V

CE821
10UF_50V

EKM-106-M-1H-5-11-TU

CE823
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-106-M-1H-5-11-TU

+

+

+

06035%

06035%

06035%

PR

Y

PB

FB800
MLB-201209-0120P-N2

U800

4

VCC

1

Rin

2

Gin

3

Bin

GND

FMS6143

narrow SOIC8P

Rout
Gout

Bout

5VDC

8
7
6
5

R811 75

R814 75

R817 75

Don`t stuff

0603
1%

0603
1%

0603
1%

PR 11

Y11

PB 11

AVID_Y

G17

H17

D D

AVID_PR

DAC Gain

H16

RSET

R800
360_1%

0603

C C

1%

ZR39640BGCC

AVID_PB

OSDP

HSYNC

VSYNC

J17

K16

J15
J16

1

B B

A A

G_16430_032.eps

3139 267 2819.1

5

4

3

2

1

100506

Circuit Diagrams and PWB Layouts

ATSC Panel: Audio Output

5

51L04.6HU CA 7.

4

3

2

1

ATSC9 ATSC9

U69E

D D

C C

ZR39640BGCC

AUDIO OUTPUT

Audio

DDXLA

DDXLA

S/PDIF

P1

DDXLB

DDXLB

R2

DDXRA

P2

DDXRB

R1

IEC958

TP900

1

DDXRA

DDXRB

U1

T1

ADATAI[2]_DDXLA

ADATA0[0]_DDXLB
ADATAO[1]_DDXRA
ADATAO[2]_DDXRB

ADATA1[0]

don`t stuff

(DDX Audio Out Left)

R911 4.75K

R912 4.75K

0603
1%

0603
1%

(DDX Audio Out Right)

R922 4.75K

R923 4.75K

0603
1%

0603
1%

R913 4.75K

C905

470pF

0603
NPO,J

R914 4.75K

R924 4.75K

C906
470pF

0603
NPO,J

R925 4.75K

0603
1%

0603
1%

0603
1%

0603
1%

R915 4.75K

C907

150pF

0603
NPO,J

R916 4.75K

R926 4.75K

C908
150pF

0603
NPO,J

R927 4.75K

0603
1%

0603
1%

0603
1%

0603
1%

C909

150pF

0603
NPO,J

C910

150pF

0603
NPO,J

R917
15K

0603
5%

R929
15K

0603
5%

AUDP

AUDP

R918
15K

0603
5%

R930
15K

0603
5%

U901A

LM833MX

48

8P_MSOP

+

3

-

2

AUDP

R928 7.5K

C911 150pF

R932 7.5K

C912 150pF

06031%

0603
NPO,J

U901B

48

LM833MX

8P_MSOP

+

5

-

6

AUDP

06031%

0603
NPO,J

AUDP

+

CE917
470UF_16V

ELEC_DIP 8X11.5
20% 5mm pitch Low ESR
NXC 470uF16V

+

1

CE915
220UF_16V

ELEC_DIP 6.3X11
20% 2.5mm pitch
EKM-227-M-1C-E11-TU

FB900
MLB-160808-0120A-N2

R920
10K

0603
5%

CB919

0.1uF

0603
X7R,K

C917

100pF

0603
NPO,5%

CB921

0.1uF

0603
X7R,K

R960 47

don`t stuf f

AUDP

CB920

0.1uF

0603
X7R,K

CE916

7

+

220UF_16V

ELEC_DIP 6.3X11
20% 2.5mm pitch
EKM-227-M-1C-E11-TU

FB901
MLB-160808-0120A-N2

R933
10K

0603
5%

C918

100pF

0603
NPO,5%

10VDC

08055%

P1219

1
2
3
4
5

5X1 CONNECTER

5P_2.50_THRUHOLE_White
B5B-EH-A(LF)SN

don`t stuff

5VDC

U931

1

2

SN74LVC1G04

5P_DCK

NC

VCC

GND

INA

OUTY

U930

1

VDD
RO
DI
GND CO-

SN75179B

8P_SOIC

RI+

CO+

RI-

2
3
4 5

5
3

4

8
7
6

B B

CB930

0.1uF

0603
X7R,K

IEC958

A A

3139 267 2819.1

5

5VDC

CB922

0.1uF

0603
X7R,K

R950 270

4

4

D1

CB931

0.1uF

0603
X7R,K

06031%

R951
110

0603
1%

FB905
MLB-160808-0120A-N2

C920
47pF

0603
NPO,J

RV1014
CT0402S14AHSG

0402

D2

P900
RCA JACK

3
C1
C2

SCP621-X-N-S-800000

A1

A2

1

G_16430_033.eps

3

2

1

100506

Circuit Diagrams and PWB Layouts

52L04.6HU CA 7.

ATSC Panel: Power & Gnd

5

4

3

2

1

POWER AND GROUND (ATV & DDR)

ATSC10 ATSC10

3V3DC

D D

2V5DC

C C

3V3DC

B B

3V3DC

1V8DC

A A

FB1002
MLB-201209-0120P-N2

0805

FB1000
MLB-201209-0120P-N2

0805

FB1001
MLB-201209-0120P-N2

0805

CB1035

0.1uF

0603
X7R,K

CB1000

0.1uF

0603
X7R,K

CB1002

0.1uF

0603
X7R,K

CB1036

0.1uF

0603
X7R,K

CB1001

0.1uF

0603
X7R,K

C1003
1nF

0603
NPO,5%

ADAC_VDD

PLL_VDD

1V8DC

F15

H13

J13
L13

N11

N7

G5

J5

L5

F12
E13
E12
E11
E10

E9
E8
F6
E7
E6
E5

F13

G13
G12

K13

M13
M12

L12
N13
N12
N10

N9

N8
G6
M6

L6

N6

F5

H5

K5
M5

N5

H15

N3

M3 N2

POWER & GROUND

IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD

MVDD
MVDD
MVDD
MVDD
MVDD
MVDD
MVDD
MVDD
MVDD
MVDD
MVDD

CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD
CVDD

DAC_VDD

ADAC_VDD

PLL_AVDD PLL_AGND

ZR39640BGCC

U69F

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

NC

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

NC
NC

NC
NC

GNDDAC_P

GNDDAC_BS

ADAC_VSS

H12
K12
J12
F11
F10
H11
H10
G11
G10
K11
K10
J11
J10
M11
M10
L11
L10
F9
F8
H9
H8
G9
G8
K9
K8
J9
J8
M9
M8
L9
L8
F7
H7
H6
G7
K7
K6
J7
J6
M7
L7

F16

P16
N16
T17
R17
R16
K15
M15
L15
P15
N15
F3
F2
H3
G3

F1
U1

T1
F17

G16
G15

P3

FB1003
MLB-201209-0120P-N2

0805

2V5DC

3V3DC

1V8DC

1V8DC

CB1004

0.1uF

0603
X7R,K

CB1010

0.1uF

0603
X7R,K

CB1019

0.1uF

0603
X7R,K

CB1027

0.1uF

0603
X7R,K

CB1005

0.1uF

0603
X7R,K

CB1011

0.1uF

0603
X7R,K

CB1020

0.1uF

0603
X7R,K

CB1028

0.1uF

0603
X7R,K

CB1006

0.1uF

0603
X7R,K

CB1012

0.1uF

0603
X7R,K

CB1021

0.1uF

0603
X7R,K

CB1029

0.1uF

0603
X7R,K

+

CB1007

0.1uF

0603
X7R,K

CB1013

0.1uF

0603
X7R,K

CB1022

0.1uF

0603
X7R,K

CB1030

0.1uF

0603
X7R,K

CE1008
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

CB1014

0.1uF

0603
X7R,K

CB1023

0.1uF

0603
X7R,K

CB1031

0.1uF

0603
X7R,K

+

CE1009
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-106-M-1H-5-11-TU

+

CB1015

0.1uF

0603
X7R,K

CB1024

0.1uF

0603
X7R,K

CB1032

0.1uF

0603
X7R,K

CE1016
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

+

CE1025
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

+

CE1033
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

+

CE1017
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch

EKM-106-M-1H-5-11-TU

+

CE1026
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-106-M-1H-5-11-TU

+

CE1034
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-106-M-1H-5-11-TU

+

CE1018
10UF_50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-106-M-1H-5-11-TU

3139 267 2819.1

G_16430_034.eps

5

4

3

2

1

100506

Circuit Diagrams and PWB Layouts

53L04.6HU CA 7.

ATSC Panel: YUV Converter

5

YUV CONVERTER

ATSC11 ATSC11

D D

C1100 22pF

0603 NPO,K

L1100

R1100
75

0603
1%

R1110
75

0603
1%

2.2uH 0603

MLI-160808-2R2K

C1101
390pF

0603
NPO,5%

C1105 22pF

0603 NPO,K

L1101

2.2uH

MLI-160808-2R2K

C1106
390pF

0603
NPO,5%

0603

Y8

C C

PB8

0603

MLB-160808-0120A-N2
C1102
390pF

0603
NPO,5%

0603

MLB-160808-0120A-N2
C1107
390pF

0603
NPO,5%

FB1100

FB1101

4

C1104

R1102

33K

220nF

0603

0603

1%

Y5V,Z

CE1100

+

C1103
22pF

0603
NPO,K

C1108
22pF

0603
NPO,K

R1101
75

0603
1%

DON`T STUFF

R1135 0

CE1102

22uF50V

ELEC_DIP 5X11
20% 2.5mm pitch

1uF50V

ELEC_DIP 5X11
20% 2.5mm pitch
EKM-105-M-1H-5-11-TU

06035%

+

3

D1100
BAS16HT1G

SOD323

DON`T STUFF

R1111

0603 1%

R1112
75

0603
1%

21

R1109 0

DON`T STUFF

1.8K

R1103

100K

0603
1%

1

06035%

R1133
82K

0603
1%

2

R1114

0603 1%

R1104
1K

0603
1%

1

TR1100
BC847B

R1107

150

0603
1%

6

1

4.7K

120

R1113

8.2K

0603
1%

5

TR1102-1
BC847BS

R1106

2 3

0603 1%

12V_YUV

R1105

820

0603
1%

23

R1108
1K

0603
1%

12V_YUV

3

4

TR1101
BC857B

DON`T STUFF

TR1102-2
BC847BS

R1115
1K

0603
1%

CB1102

0.1uF

0603
X7R,K

R1130 0

CB1100

0.1uF

0603
X7R,K

R1131 0

2

FB1103

MLB-201209-0120P-N2

CE1101

+

220UF_16V

ELEC_DIP 6.3X11
20% 5mm pitch
EKM-227-M-1C-E11-TU

06035%

C1130
1nF

0603
NPO,5%

06035%

10VDC

C1120
5pF

0603
NPO,K

DON`T STUFF

C1121
5pF

0603
NPO,K

DON`T STUFF

1

P1212

1

Y

2
3

U

4
5

V

5X1 CONNECTER

B5B-EH-A-K(LF)SN
5P_2.50_THRUHOLE_Black

VIDEO OUT

B B

DON`T STUFF

C1109 22pF

0603 NPO,K

L1102

R1117
75

0603
1%

2.2uH

MLI-160808-2R2K

C1110
390pF

0603
NPO,5%

PR8

A A

0603

FB1102

0603

MLB-160808-0120A-N2

C1111
390pF

0603
NPO,5%

C1112
22pF

0603
NPO,K

R1136 0

CE1103

22uF50V

ELEC_DIP 5X11
20% 2.5mm pitch

06035%

+

R1116 0

DON`T STUFF

R1118

0603 1%

R1119
75

0603
1%

R1123 0

DON`T STUFF

2.4K

06035%

06035%

DON`T STUFF

R1134
82K

0603
1%

R1121

0603 1%

12V_YUV

R1120

8.2K

0603
1%

6

TR1103-1

4.7K

BC847BS

1

2

3

TR1103-2

4

BC847BS

R1122
1K

0603
1%

5

CB1101

0.1uF

0603
X7R,K

R1132 0

06035%

C1131
1nF

0603
NPO,5%

DON`T STUFF

C1122
5pF

0603
NPO,K

G_16430_035.eps

3139 267 2819.1

5

4

3

2

1

100506

Circuit Diagrams and PWB Layouts

54L04.6HU CA 7.

Layout ATSC Panel (Top Side)

Layout ATSC Panel (Bottom Side)

3139 267 2819.1

G_16430_024.eps

100506

3139 267 2819.1

G_16430_025.eps

100506

Circuit Diagrams and PWB Layouts

55L04.6HU CA 7.

CRT Panel

2332

1n5

6

F340

I336

3354

I353

5330

G

R

B

GND_CRT

1K5

CRT Sockets

1255

1

4

5

6

7

8

9

10

11

12

5356

7

10

11

12

5355

1256-A
1

5

6

CG

7

8

9

GND

RES

G3

G1

G2

CR

H1

H2

CB

3356

I355

9352

10R

2331

1254-A

1

5

6

7

8

9

10

11

12

10n

3357

3355

I357

G3

G1

CG

G2

CR

H1

H2

CB

GND

RES

2352

V

680p

ITEM

3328
3329
3330
3337
4328
4329
4330
4337
5351
9351

1332

THE REST

IND FXD LAL04A 22U PM10

T0 CRT SOCKET

3n3

2353

ROW

100R
100R
100R

---

---

---

---

---

JMP

AQUADAG

WIRE

RGB+DISPL-29FS_IN

100R
100R
100R

JMP

JMP

Blue

Green

Red

F331 F332 F333

108

---

---

---

---

---

5

T0 CRT SOCKET

1352

VG2

12

B1 B1

CRT PANEL

3

49

5

A

B

EHTb

B1

3k77

3k77

3k77

Vref

2.5V

Vdd

I337

+200VA

2330

6

188k7

A1

Vref

188k7

A2

Vref

188k7

A3

Vref

THERMAL

PROTECTION

GND

4

Vdd

Vdd

Vdd

100n

BC1

BC2

BC3

2334

10n

6332

6333

I330

3333

9OUT1

I333

100R

140V

I331

3335

8OUT2

140V

100R

I332

3331

7OUT3

140V

100R

5BCI

6V

7V

1n

2333

BAV21

6331

I335

BAV21

I334

3332

1K

BAV21

3334

1K

3336

1K

F338

F339

F341

C

D

E

0330

MECHPART

*

4328

3328 100R

*

4329

3329

7330
TDA6107

1IN1

2V5

3k75

100R

2IN2

2V5

3k75

3IN3

2V5

3k75

100R3330

4330

*

F

1331

F331

1

F332

2

F333

H

G

I

From 1204 of

Features &
Connectivities

ROT

B2

SVM_ROT

B2

VSVM

B2

3

F334

4

F335

5

F336

6

7

From 1401 of

Line + Frame
Deflection

BC_INFO

1351

6335

BZX384-C5V6

BZX384-C5V6

10n

3351

100R

6336

2336

6334

1

F351

I351

2

3

F352

4

5

2335

*

6337

BZX384-C5V6

BZX384-C5V6

10n

4337

3337

F354

2351

F356

*

9351

5351

*

5352

27u

*

+200V

+200VA

F353

10u

Filament

11

1

7

FOCUS

FROM LOT, MAIN CHASSIS

NOT USED

12

CRT

EHT

LINE + FRAME DEFLECTION

13

A

B

C

D

E

F

G

H

I

0330 B2
1254-A B7
1255 B6
1256-A B7
1331 E2
1332 B8
1351 G2
1352 G9
2330 B3
2331 E7
2332 D6
2333 D4
2334 B4
2335 G3
2336 G3
2351 G4
2352 F7
2353 F7
3328 D2
3329 C3
3330 D3
3331 D4
3332 D5
3333 C4
3334 C5
3335 C4
3336 C5
3337 F4
3351 G3
3354 F6
3355 E7
3356 B7
3357 E7
4328 D2
4329 C2
4330 D3
4337 E4
5330 G6
5351 F4
5352 F5
5355 E7
5356 E6
6331 C5
6332 C5
6333 C5
6334 F3
6335 F3
6336 F3
6337 F4
7330 C3
9351 F4
9352 E7
F331 E2
F332 E2
F333 E2
F334 F2
F335 F2
F336 F2
F338 C5
F339 C5
F340 C6
F341 D5
F351 G3
F352 G3
F353 G4
F354 G4
F356 F5
I330 C4
I331 C4
I332 D4
I333 C5
I334 D5
I335 D5
I336 C6
I337 D3
I351 G3
I353 F6
I355 E7
I357 B7

EHTb

B1

J

3139 123 5674.3

1

500mV / div DC

20µs / div

500mV / div DC

20µs / div

500mV / div DC

20µs / div

J

FAMILY BOARD 11 NC : 3139_123_5672
CRT BOARD 11 NC : 3139_123_5674

2

3

4

5

6

7

8

9

10

11

12

F_15760_023.eps

171105

13

CRT Panel: Eco Scavem

Circuit Diagrams and PWB Layouts

56L04.6HU CA 7.

12

345678

ECO SCAVEM

B2 B2

560R

68K

68K

560R

3365

10R

3369

10R

I360

I367

I371

17V7

7381
BC337-40

9V4

6381

8V7

7382
BC337-40

3374

2384

220p

83V

0V3

2385

220p

BAS316

RES

4374

I369

3364

3370

1K8

I368

83V

7363
2SA1358

35V

35V

7364
2SC3421

58V

I372

1R8

5361

9361
RES

7366
BC857B

2382

2383

0316

F361

3371

F362

100n

1u0

470R

2367

MECHPART

100V10u

F381

F382

3
2
1

3
2
1

1381

1361

TO

SCAVEM COIL

TO

ROTATION COIL

A

B

C

D

E

3139 123 5674.3

B1

VSVM

SVM_ROT

B1

ROT

B1

Filament

3373

1K8

20V

7376

BC857B

I374

AK

BAV996376

KA

I375

22n

2376

5331

F360

I386

3375

26V

3376

6383

RGP10D

180K

I373

68K

2381

I381

I361

AK

25V100u

3361

6361 BAV99

2387

3390

2386

14V4

A

K

13V

1K5

6362

47p

1K0

100n

3387

I362

BAS316

I364

I387

1K8

3362

20V

7361
BC847B

13V6

10R

14V

7362
BC857B

I363

7331
BC847B

7332
BC857B

2361

3388

33R

3389

33R

3381

I384

25047n

100R

2362

I383

1n0

4n7

3383

3384

10K

I370

2364

2365

4n7

2363

2368

To 1470 of

400

1K2

V

I365

I385

22u 100V

22u 100V

1382

3385

3363

I366

3366

3367

3368

8V7

3386

82K

0V6

1K0

F_15760_024.eps

171105

A

B

C

D

E

0316 A6
1361 B7
1381 D7
1382 A5
2361 A4
2362 A4
2363 A4
2364 A4
2365 B4
2367 B6
2368 A4
2376 B2
2381 D3
2382 E6
2383 E6
2384 A5
2385 C5
2386 E3
2387 C3
3361 A3
3362 B3
3363 A5
3364 A5
3365 A5
3366 B5
3367 B5
3368 C5
3369 B5
3370 C5
3371 B6
3373 A2
3374 E5
3375 A3
3376 A3
3381 D4
3383 D4
3384 E4
3385 E5
3386 E5
3387 A3
3388 A4
3389 B4
3390 D3
4374 E5
5331 C2
5361 A6
6361 B3
6362 B3
6376 B2
6381 D5
6383 C3
7331 D3
7332 D3
7361 A3
7362 C3
7363 A6
7364 C6
7366 D6
7376 A2
7381 D5
7382 E5
9361 B6
F360 C2
F361 A6
F362 B6
F381 E7
F382 E7
I360 A5
I361 A3
I362 B3
I363 C4

I364 C3
I365 B5
I366 A5
I367 A5
I368 A6
I369 B5
I370 A4
I371 B5
I372 C6
I373 A3
I374 A2
I375 B2
I381 C3
I383 D4
I384 E4
I385 E5
I386 C2
I387 D3

12345678

Circuit Diagrams and PWB Layouts

Layout CRT Panel (Top Side)

3139 123 5674.3

57L04.6HU CA 7.

0316 A2
0330 A1
1254 A2
1255 A2
1256 A2
1331 A1
1332 A1
1351 A1
1352 A1
1361 A2
1381 A2

1382 A2
2330 A1
2351 A1
2352 A1
2353 A2
2361 A2
2363 A2
2364 A2
2367 A2
2368 A2
2381 A2
3331 A1
3332 A2
3333 A1
3334 A1
3335 A1
3336 A1
3351 A1
3354 A2
3355 A1
3356 A1
3362 A2
3364 A2
3367 A2
3371 A2
3373 A1
3381 A2
5330 A1
5331 A2
5351 A1
5352 A2
5355 A1
5361 A2
6331 A1
6332 A1
6333 A1
6383 A2
7330 A1
7363 A2
7364 A2
7381 A2
7382 A2
9351 A1
9352 A1

F_15760_025.eps

151105

9361 A2
9373 A1
9390 A2

Layout CRT Panel (Bottom Side)

3139 123 5674.3

F_15760_026.eps

151105

2331 A2
2332 A1
2333 A2
2334 A2
2335 A2
2336 A2
2362 A1
2365 A1
2376 A1
2382 A1
2383 A1
2384 A1
2385 A1
2386 A1
2387 A1
3328 A2
3329 A2
3330 A2
3337 A2
3357 A2
3361 A1
3363 A1
3365 A1
3366 A1
3368 A1
3369 A1
3370 A1
3374 A1
3375 A1
3376 A1
3383 A1
3384 A1
3385 A1
3386 A1
3387 A1
3388 A1
3389 A1
3390 A1
4328 A2
4329 A2
4330 A2
4337 A2
4370 A1
4371 A2
4374 A1
6334 A2
6335 A2
6336 A2
6337 A2
6361 A1
6376 A1
6381 A1
7331 A1
7332 A1
7361 A1
7362 A1
7366 A1
7376 A1

Circuit Diagrams and PWB Layouts

58L04.6HU CA 7.

Side AV + Headphone Panel

2

3

4

51

6

7

810

9

1211

SIDE AV PANEL + HP PANEL

D D

A

6
1

B

C

D

E

F

G

*

*

1277-A

1277-B

VIDEO IN

1250-C

*

1250-A

*

1250-B

*

RIGHT

LEFT

2

3

1

Video_Gnd

8

9

7

5

6

4

1251
LAP5100-1411F

Video_Gnd

2
3
4
5

4180

3154

75R

3155

Video_Gnd

75R

9181

Video_Gnd

SG04

9152

RES

SG03

SG02

I155

I152

SG01

Video_Gnd

I157

6161

Video_Gnd

2173

RES

RES

2174

BZX79-C6V8

3153

*

3151

150R

75R

3158

Video_Gnd

3152

*

47K

3150

3159

100R

3160

100R

2172

2171

SG08

*

F151

330p

SG09

2175

2180

2u2

9175

9180

SG10

502u2

SG11

F153

F152

F150

1252

7
6
5
4
3
2
1

from Main Chassis 1207

1254

5
4
3
2
1

for 2X5W from 1280

for 2X10W from 1280

from Main Chassis

F154

I166

I162

3156

*

3157

*

2178

2176

3161

2181

I168

470pF

470pF

I163

I169

39K

1u

HEADPHONE

1

6

5

4

2

3

7

8

9

1232

I171

I170

4
3
2
1

3
2
1

1278

1279

13

TO
SPEAKER

TO
ECO SUB

A

B

C

D

E

F

G

1232 B10
1250-A D2
1250-B E2
1250-C C2
1251 B3
1252 B6
1254 B7
1277-A C2
1277-B E2
1278 B11
1279 C11
2171 E5
2172 D5
2173 D4
2174 E4
2175 C5
2176 C9
2178 B9
2180 E5
2181 D9
3150 E4
3151 E4
3152 D4
3153 C4
3154 B3
3155 B3
3156 B9
3157 C9
3158 B4
3159 A5
3160 B5
3161 C9
4180 B3
6161 C4
9152 D4
9175 C5
9180 E5
9181 B4
F150 E5
F151 E5
F152 C5
F153 B5
F154 B8
I152 E4
I155 C4
I157 B4
I162 C8
I163 C9
I166 B8
I168 B9
I169 C9
I170 B11
I171 C11
SG01 B4
SG02 C4
SG03 E4
SG04 D4
SG08 C5
SG09 C5
SG10 C5
SG11 C5

H

SIDE CINCH

Mono Set

ITEM

---

0250 YES

YES

0277
2172

--­3152
3153

ITEM
3156
3157

---

---

HP NA/LA/AP

120R 270R
120R

I

SIDE HEADPHONE

J

3139 123 5718.1

1

Stereo Set

---

330p

47K

150R

HP EU

270R

H

I

J

F_15760_027.eps

C

2

3

456

7

8

9

10

11

12

161105

13

Circuit Diagrams and PWB Layouts

59L04.6HU CA 7.

Layout Side AV + Headphone Panel (Top Side)

1232 A4
1250 A3
1251 A2

3139 123 5718.1

1252 A1
1254 A3
1277 A2

1278 A4
1279 A4
2171 A1

2172 A2
2173 A3
2174 A2

2175 A2
2180 A1
3150 A2

3151 A2
3152 A3
3153 A3

3154 A1
3155 A1
3156 A4

3157 A4
3158 A1
3159 A1

3160 A1
6161 A1
9152 A3

9175 A2
9180 A1
9181 A1

F_15760_028.eps

161105

Personal Notes:

Layout Side AV + Headphone Panel (Bottom Side)

2176 A1 2178 A1 2181 A2 3161 A2 4180 A3

3139 123 5718.1

F_15760_029.eps

161105

E_06532_012.eps

131004

External Supply

Circuit Diagrams and PWB Layouts

60L04.6HU CA 7.

EPS1B

to Chassis
CON 0213

A1

Powe r
Supply

0213

1

2

Live

Neutral

EXTERNAL SUPPLY

C

T1

1

2

SB360 31DQ06

A

3

4

C20
100n

Control

BR1
D4106

SA10-12 81-09034-0

ZD1

C5

100k

33uF

IC1
TOP222P MIP222P

1

8

2

7

6

5

L6

Source
Drain

3

4

C38
220pF

D1
UF4005G

C4

47p

CR1

R12

22R

R11
0R

C6
47uF

D2

1N4148

C7
220uF

L5

12uH

C21
100n

C22
330uF

C36
100n

ZD2
MTZJ108

R24
1K0

BC3

0228

Personal Notes:

CON 0228

1

+5V

2

3

Gnd

+12V

J1

Interface
module

3139 137 2296.1

3139 137 2296.1

E_14820_028.eps

150904

E_06532_012.eps

131004

SP/LS Module (NA-LA)

SP/LS(

SC SP/LS

A

Circuit Diagrams and PWB Layouts

61L04.6HU CA 7.

I1

SP/LS MODULE (NA-LA)

+5V

R5
100R

U1

RJ11

R17

112

4.7K

Cl ock

Dat a_i n

+5V

Data_out

Gnd

IR_data

2

R18

5.6K

1

2

2

1

1

2

3

4

5

6

+5V+5V

2

R19

22R 1W

1

Q9
BC857B

D6
C6V8

D7
C6V8

D3
C6V8D4C6V8D5C6V8

2

1

R20 47R

D9
C6V8

Q6
BC847B

R6 100R

R7 100R

R9 100R

R21 1K0

+5V

Q7
BC847B

R22
10K

R4
10K

R23 100K

R3 10K

+5V

R2
10K

Q1
BC847B

R11
10K

R12
10K

R13
10K

+5V+5V+5V+5V

1259

Dat a_o u t

Dat a_i n

Cl o c k

Gnd

IR_out

+3.3V

Gnd

+5V

DCM _c l k

9 -P_(W HI T E) _VE R_ CONN

R33
0R

1

2

3

4

5

6

7

8

9

0262

F-pin_conn_for_chassis_pl ug _in

3

2

1

U2

PHONE_JACK

J5
Fishhood

1

D11
C22V

C6

RT1 RXE030

2n2

D12
C22V

3139 188 61511_ SP/LS( EU ) Module
3139 188 61501_
3139 267 19341_ L05 AT

D10

LL 4148

1246

1

2

3

3 -P_(W HI T E) _VE R_C ON N

C5
100n

Spk-

Spk+

R24
100K

NA-LA ) Module

Module N

Q8
BC847B

+5V

1

+

U4
LE50CZ

OUT

C1
100uF

GND

2

D2

1N4148

3

IN

C7

+

1uF

1251

R1 270R

D1
C5V6

1

2

3

3-P_(BLACK)_VER_CONN

Mai n _aux

Gnd

Stdby

3139 123 6155.1

G_16430_019.eps

040506

Circuit Diagrams and PWB Layouts

62L04.6HU CA 7.

Layout SP/LS Module (NA-LA) (Top Side)

Layout SP/LS Module (NA-LA) (Bottom Side)

3139 123 6155.1

G_16430_020.eps

050506

3139 123 6155.1

G_16430_021.eps

050506

Interface Module

Circuit Diagrams and PWB Layouts

63L04.6HU CA 7.

J1

INTERFACE MODULE

To EPS 02 28

TO CHASSIS
CON 1582

(W hit e)

TO CHASSIS
CON 1220

TO CHASSIS
CON 1692

(B lack)

To SP/UIR
Connector
1259 & 1240

Data Out/SDA

(Whi te)

Clock Disable

Data Out/SDA

TO CHASS IS

CON 1213

(White)

Stdby_con

(B LAC K)

To C lock
Panel C on

0237

(B lack)

TO CHASSIS

CON 1212 & 1229/1729

+5Veps

GND

+12Veps

GND

+3.3Vep s

V_aux

V_aux

GND
GND

+6Vs
GND

+9V(Status)

+6V

+3.3V

+5V

IR

+5V

GND

Data In

Clock

GND

IR

STDBY

GND

5Vs

Data In

Clock

GND

SCL

POR

GND

VD
HD

CVBSO

(White)

SDA

SCL
+5V
GND

1212
EH-B(7 )

G

GND

B

GND

R

FBL

SC

(Whi te)

GND

Y/CVBS

Cin

0228
EH-B(5 )

1
2
3
4
5

(Red)

1582
EH-B(4 )

1
2
3
4

1220

1
2
3
4
5
6

EH-B(6)

White

1692
EH-B(5 )

1
2
3
4
5

1259
EH-B(9 )

1
2
3
4
5
6
7
8
9

1213
EH-B(7 )

1
2
3
4
5
6
7

1219
EH-B(4 )

1
2
3
4

0237

EH-B(4 )

1
2
3
4

1
2
3
4
5
6
7

1229

EH-B(3 )

1
2
3

+12V

+5V

AGND

AGND

6709 PRLL5817

6708

PRLL5817

4011

2725 47n

AGND

+5V

AGND

USA ONLY
3740

220R

+3V3

6707

PRLL5817

+5V

0R0

AGND

6703

AGND AGND

BZX79-C5V1

7719

BC327-25

+5V

4012
0R0

AGND

6704

AGND

+5V

2711

100p

AGND

2716 4u7

2726 4u7

+5V

+

2703

100u

13

4013
0R0

3747

10K

3716
10K

6706

AGND

BZX284-C8V2

+5V

3717
10K

3743
100R

3744 100R

2712

100p

2

AGND

+5V

+5V

3758

10K

1

2717

4u7

BZX284-C8V2

3729

4K7

3732

1K

2705
22pF

3

2

3745
10K

+5V

EGND

3753
100R

3748
150K

7717

BC847B

2706

22pF

EGND

3749

1K

3761

10K

3710

47K

3718

9.1K, 1%

3719

3.9K, 1%

3720

2.2K, 1%

2707
22pF

BC847B

5706

4.7u

2723

33p

2718

6.8u, E-Cap

3715

100R

AGND

7708

+12V

EGND

7718

BC847B

3

1

2

+5V

3708

3

1

7701

2

BC847B

AGND

HYSNC

5

+

6

-

2719 100nF

+5V

3

1

2

3755
27K

7716

BC847B

1

3756
10K

3741

1K

+5V

3759

1K

47K

+5V

2720

84

AGND

7720B

LM3 93

AGND

3731

820R
1K8 (USA)

3750
220R

2724

3

100n

2

3760

10K

1

AGND

100nF

3762

100R, 5%

7

2n2,Pol Cap

EGND

EGND

3754

75R

EUROPE &

AP ONLY

+5V

3707

10K

3

7700

2

BC847B

2714

27041u3706

3738
6K8

+5V

3751

16K, 1%

3

2

AGND

To C hassis
1227 & 1236
1727 & 1736

4011

4012

47K

6702

BAS216

AGND

7720A

84

LM 393

+

-

AGND

Audio_R_out

Audio_L_out

L2-in/mono

AP NAFTA EU

NNNNY

Y

1

3705
47K

+5V

3746
10K

+5V

3721

4K7

3752
2K2, 5%

1

2721

220pF

AGND

Audio_R_out

Audio_L_out

GND

1227

1
2

GND

R2-in

GND

3
4
5
6

EP-B(6)

(B lack)

3

2

1215
EH-B(3 )

1
2
3

(B lack)

3764 100R

3765

DGND

7711

BC847B

+5V

3722
4K7

1

DGND

100R

3

2

7706

BC847

2722

2733

+5V

3700
4K7

AGND

2715
82pF

3724

10K

4u7

4u7

1

2701

100n

Reset

AGND

1

2

3

VCC

GND

AGND

+5V

3

2

2710

100n

2709
100n

5705

56u

DS1813R-5

3725
2K2

7705
BC847

+5V

AGND

7710

DGND

DGND

AGND

2702

1u

3733
47K

3734
47K

2700

1u

+3V3

EGND

+5V

3735
75R

9020
0R0

+12V

EGND

EGND

DGND

EGND

AGND

3736

75R

AGND

32 PIN CONN

1

3.3Veps

2

GND_POW ER

3

+12Veps

4

GND II C

5

IR_data

6

POR

7

CLK

8

DAT A_ IN

9

DAT A_ OUT

10

5Veps

11

HSYNC_OUT

12

VSYNC _OUT

13

GND_CVB S_ in

14

SCL

15

SDA

16

Reserv ed

17

B_in

18

G_i n

19

R_in

20

FBL_in

21

GND_CVBS_out

22

CVBS_Out

23

NC

24

Reserv ed

25

NC

26

GND_Aud io_i n

27

F_R_aud_out

28

F_L_ aud_out

29

R_audio_in

30

L_audio_in

31

Y_video_in

32

C_video_in

1775

LV

1800

3139 123 6164.1

EGND

G_16430_018.eps

040506

Circuit Diagrams and PWB Layouts

64L04.6HU CA 7.

Layout Interface Module (Top Side)

Layout Interface Module (Bottom Side)

3139 123 6164.1

G_16430_022.eps

050506

3139 123 6164.1

G_16430_023.eps

050506

Circuit Diagrams and PWB Layouts

Main Switch Panel (For SL5 Styling)

123

MAINS SWITCH PANEL(SL5)

M M

RC5

GND

+8V6

0241

1
2
3
4
5
6
7
8
9

0242

5
4
3
2
1

S5B-EH

1693

1
2
3
4
5
6

I005

A

BACKLIGHT_TOP

B

C

D

From 1693 of

CONTROL

E

3139 123 6015.3

ON/OFF LED

5V-STANDBY

GND KEYBOARD

KEYBOARD

LIGHT SENSOR

A9

FRONT

123

0V

0V

3V

5V3

0V

0V

0V5

RC5_SWITCH

F001

F002

F003

F004

F005

F007

F009

F008

*

9010

I013

ON_OFF_LED

LIGHT_SENSOR

RES

3010

5V-STANDBY

5V-STANDBY

3007

RES

I009

2001

100u 10V

7001

RES

4008

*

3008

10K

8V6

3006

330R

I015

6005

BZX384-C3V3

4007

6004
TSOP1836

3

1

2

GND

6006

3009

KEYBOARD

VS

OUT

5V-STANDBY

LTR-301

I016

2002

680K

65L04.6HU CA 7.

456789

0201 B7
0202 B9

8V6

5V-STANDBY

0241 A1
0242 B2
1002 D5
1003 D5

A

B

C

1004 C6
1005 D6
1006 D5
1031 A8
1032 C9
1693 D2
2001 D3
2002 E3
2003 C4
2004 B6
2030 B8
3001 A4
3002 A5
3003 A5
3004 A4
3005 B4
3006 C3
3007 D3
3008 E3
3009 E3
3010 C2
3011 C4
3013 C5
3014 C5
3015 C5
3016 C5
3017 C5
3018 D6
3019 C6
3020 D4
3021 A5
3022 A5
3023 A6
3030 B8
3031 B7
3032 C7
4001 A4
4002 A4

3004

100R
4001

*

I004

I020

*

4003

4002

4004

3001

*

6001

560R

21

LTL-10224WHCR

*

6002-2

GREEN

I010

TLUV5300

3005

*

3013

390R

4005

*

I017

2003

10n

9011

*

3011

560R

3002

1K0

3003

330R

330R

I012

12

3

2

I006

4006

*

I021

3014

I018

1002

BZX384-C3V3

6002-1

TLUV5300

ORANGE-RED

*

3015

560R

150R

C+

6008

I027

3021

4K7

3022

100R

PDTC114ET

I025 I023

90179013 9015

*

3017

270R

3016

390R

I019

C-

1003

I029

7003

1004

I026

3018

5V-STANDBY

7002
PDTA114ET

3019

3K3

V+

6003

BAT85

1K5

1005

6009

2004

I024

BAS316

I030

4n7

V-

I028

3023

21

6007

270R

MAINS

I031

BLUE LED

LTL-10224WHCR

HOT MAINS SWITCH

F011

AC

IN

0201

2

F010

1

3M3

3031

I002

3M3

3032

I003

1

3

COLD

9031

1031

SDDF

6

9032

3030

1032

0202
2
1

2

F013

4

F012

5

I007

1n5

3M3

2030

I008

*

4003 A4
4004 B4

D

4005 B4
4006 B5

9019

USA ONLY

3020

560R
9020

*

I011

1006

POWER

4007 A3
4008 E3
6001 A4
6002-1 B5
6002-2 B4
6003 C6
6004 C3
6005 D3
6006 E3
6007 B6

E

6008 A5
6009 A6

47n

7001 E3
7002 A6
7003 B6
9010 C2
9011 C4

F_15760_030.eps

161105

9013 C5
9015 C5
9017 C5

45

6789

9019 D4
9020 E4
9031 A8
9032 B8
F001 A2
F002 A2
F003 A2
F004 A2
F005 A2
F007 B2
F008 B2
F009 B2
F010 B7
F011 B7
F012 B9
F013 B9
I002 B7
I003 C7
I004 A4
I005 D2
I006 B5
I007 B9
I008 C9
I009 D3
I010 C4
I011 D4
I012 A5
I013 D2
I015 D3
I016 E3
I017 C4
I018 D5
I019 D5
I020 B4
I021 C5
I023 C6
I024 D6
I025 C5
I026 D6
I027 A5
I028 A6
I029 A6
I030 B6
I031 B6

Circuit Diagrams and PWB Layouts

66L04.6HU CA 7.

Layout Main Switch Panel (For SL5 Styling) (Top Side)

0201 A2
0202 A2
0241 C2
0242 D2
1002 E1
1003 E1
1004 D1
1005 D1
1006 A1
1031 A2
1032 B2
1693 B2
2001 B1
2003 D1
2030 B2
3001 B1
3007 B1
3010 D2
3011 D2
3013 E1
3014 E1
3015 E1
3016 E1
3017 D1
3018 E1
3019 D1
3020 A1
3030 B2
3031 A2
3032 B2
6001 B1
6002 B1
6003 D1
6004 B1
6006 B1
6007 A1
9010 D1
9011 D2
9013 D1
9015 E2
9017 E1
9019 C2
9020 A1
9031 A2
9032 A2
9040 B2
9041 C1
9043 C2
9044 C1
9045 C1
9046 C1
9047 C1
9048 C2

Layout Main Switch Panel (For SL5 Styling) (Bottom Side)

2002 B2
2004 B2
3002 B2
3003 B2
3004 B2
3005 B2
3006 B2
3008 B2
3009 B2
3021 B2
3022 B2
3023 B2
4001 B2
4002 B2
4003 B2
4004 B2
4005 B2
4006 B2
4007 C1
4008 B2
4040 D1
6005 B2
6008 B2
6009 B2
7001 B2
7002 B2
7003 B2

3139 123 6015.3

F_15760_031.eps

161105

3139 123 6015.3

F_15760_032.eps

161105

8. Alignments

Alignments

EN 67L04.6HU CA 8.

Index of this chapter:

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments and Settings

Notes:

• The Service Default Mode (SDM) and Service Alignment
Mode (SAM) are described in chapter 5. Menu navigation
is done with the CURSOR UP, DOWN, LEFT or RIGHT
keys of the remote control transmitter.

• Figures below can deviate slightly from the actual situation,
due to different set executions.

8.1 General Alignment Conditions

8.1.1 Start Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage (depends on region):
– AP-NTSC: 120 V
– AP-PAL-multi: 120 - 230 V
– EU: 230 V

AC

– LATAM-NTSC: 120 - 230 V
– US: 120 V

AC

• Connect the set to the AC Power via an isolation
transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply).
Caution: It is not allowed to use heatsinks as ground.

• Test probe: Ri > 10 Mohm, Ci < 20 pF.

• Use an isolated trimmer/screwdriver to perform
alignments.

or 230 VAC / 50 Hz (± 10%).

AC

/ 50 Hz (± 10%).

AC

/ 50 Hz (± 10%).

/ 50 Hz (± 10%).

AC

/ 60 Hz (± 10%).

8.2.1 Vg2 Adjustment

1. Activate the SAM.

2. Go to the WHITE TONE sub menu.

3. Set the values of NORMAL RED, GREEN, and BLUE to
“32”.

4. Go, via the MENU key, to the normal user menu and set

5. SATURATION/COLOR to “0”.

6. CONTRAST to “0”.

7. BRIGHTNESS to minimum (OSD just visible).

8. Return to the SAM via the MENU key.

9. Connect the RF output of a pattern generator to the
antenna input. Test pattern is a 'black' picture (blank
screen on CRT without any OSD info) with a signal
strength of 1 V_pp.

10. Connect the 10:1 probe to the positive side of the vertical
deflection (positive flyback pulse). Ground the scope at the
CRT-panel. Trigger the scope on the vertical pulse.

11. Measure with a 100:1 probe (Ri > 10 Mohm, Ci < 3.5 pF) at
the cathodes of the picture tube socket (pin 8 - RED, pin 6

- GREEN and pin 11 - BLUE). Measure the level of the
black current measuring pulses. These are the 2nd line
(Red), 3rd line (Green), and 4th line (Blue) directly after the
frame blanking.
Remark: This chassis is using a TDA110xx (Hercules)
series. There are two different measuring pulses at each of
the R, G, and B cathodes. The above-mentioned level
applies to the lower pulse (which is the nearer one to the
ground) of the gun with highest cut-off voltage.

12. Select the cathode with the highest V_dc value for the
alignment. Adjust the V_cutoff of this gun with the
SCREEN potentiometer (see figure “Top view family
board”) on the LOT to the 160V.

13. Restore BRIGHTNESS and CONTRAST to normal (= 31).

8.2 Hardware Alignments

7990

7601

9275

SDM

9252

1221

1204

1000 (TUNER)

D

1005

ComPair

max.

V

0V Ref.

1504

C

1506

Figure 8-2 V_cutoff waveform

CUTOFF

[VDC]

E_06532_011.eps

110204

8.2.2 Focusing

1. Tune the set to a circle or crosshatch test pattern (use an
external video pattern generator).

2. Choose picture mode NATURAL (or MOVIES) with the
SMART PICTURE button on the remote control
transmitter.

A

5512

3. Adjust the FOCUS potentiometer (see figure “Top view
family board”) until the vertical lines at 2/3 from east and
west, at the height of the center line, are of minimum width
without visible haze. Also the vertical lines may not be too
wide compared to the central lines in the picture. Check
this for both cross-hatch and circle pattern.

B

LOT

Focus

Screen

VG2

E_14480_030.eps

130204

Figure 8-1 Top view family board

EN 68 L04.6HU CA8.

8.3 Software Alignments and Settings

Alignments

S

Options

Remarks:

type 062596 M to
to enter

press standby to
exit

80 L06HU1 0.5D S

ERR 0 0 0 0 0
OP 34 4 161 9 60 117 0

HRM SW H3.03B . AKB ON
. CLEAR CLEARED . BRIGHTNESS ||||||----- 31
. ISP MODE OFF . CONTRAST ||||||----- 31
. OPTIONS
. DEFLECTION
. TUNER
. WHITE TONE
. GEOMETRY
. 60HZ OFFSET

DEFLECT

. OP1 34
. OP2 4
. OP3 161
. OP4 9
. OP5 117
. OP6 0
. LOAD DEFAULT >

S

ION

S

TUNER

. IFPLL 38
. AGC 35
. SL 0
. CFA0 OFF
. CL 8
. YD 0

WHITE

TONE

GEOMETRY

60HZ

OFFSET

S

. NORMAL RED 32
. NORMAL GREEN 25
. NORMAL BLUE 29
. DELTA COOL RED 0
. DELTA COOL GREEN 1
. DELTA COOL BLUE 7
. DELTA WARM RED 0
. DELTA WARM GREEN -5
. DELTA WARM BLUE -17

S

. SC 30
. SBL OFF
. VS 26
. VSH 33
. VA 39
. HS 43
. EW 46
. PW 17

S

.HS60 0
.VSH60 0
.VA60 0

G_16430_017.eps

260406

Figure 8-3 Service Mode overview (Analog TV mode)

Enter the Service Alignment Mode (see also chapter 5 “Service

Modes, ....”). The SAM menu will now appear on the screen.

Select one of the following alignments:

• Options

• Tuner

• White Tone

• Geometry

• Audio

8.3.1 Options

Options are used to control the presence/absence of certain
features and hardware.

How to change an Option Byte

An Option Byte represents a number of different options.
Changing these bytes directly, makes it possible to set all
options very fast. All options are controlled via seven option
bytes. Select the option byte (OP1.. OP7) with the MENU UP/
DOWN keys, and enter the new value.

Leaving the OPTION submenu saves the changes in the
Option Byte settings. Some changes will only take effect after
the set has been switched “off” and “on” with the AC power
switch (cold start).

Alignments

EN 69L04.6HU CA 8.

How to calculate the value of an Option Byte

Calculate an Option Byte value (OP1 .. OP7) in the following
way:

• Check the status of the single option bits (OB): are they
enabled (1) or disabled (0).

• When an option bit is enabled (1) it represents a certain
value (see column “Bit value” in table below). When an
option bit is disabled, its value is 0.

• The total value of an Option Byte (decimal) is formed by the
sum of its eight option bits. The factory values are printed
on a sticker on the CRT.

Table 8-1 Option Byte calculation

Bit (value) OP1 OP2 OP3 OP4 OP5 OP6 OP7

0 (1) OB10 OB20 OB30 OB40 OB50 OB60 OB70

1 (2) OB11 OB21 OB31 OB41 OB51 OB61 OB71

2 (4) OB12 OB22 OB32 OB42 OB52 OB62 OB72

3 (8) OB13 OB23 OB33 OB43 OB53 OB63 OB73

4 (16) OB14 OB24 OB34 OB44 OB54 OB64 OB74

5 (32) OB15 OB25 OB35 OB45 OB55 OB65 OB75

6 (64) OB16 OB26 OB36 OB46 OB56 OB66 OB76

7 (128) OB17 OB27 OB37 OB47 OB57 OB67 OB77

Total: Sum Sum Sum Sum Sum Sum Sum

EN 70 L04.6HU CA8.

Option Bit Assignment

Table 8-2 Option code overview per model

Byte Bit Option Model

Byte_0 (TV System) 7 Not Used 0 0

600

5 Default sound 1 1

4 BG (orWEST EU)-001,I(or UK)-010 0 0

3 DK (or EAST EU)-011,M-100,LL (or FRANCE)-101 0 0

2 Sound Board 0 0

1 Mono-000,Multi Stereo-001 1 1

0 BTSC Stereo-010, AVStereo-011 0 0

Decimal (visible in Options menu) 34 34

Hex 22 22

Byte_1 (Pin Usage) 7 Not Used 0 0

6 WideScreen 0 0

5 Rotation 0 0

4QSS 0 0

3Uir Msg 0 0

2SPI I2C 0 1

1 Not Used 0 0

000

Decimal (visible in Options menu) 04

Hex 00 04

Alignments

27HT4000D/27 27HT7210D/27

Byte_2 (Devices) 7 SCAVEM 1 1

6 Comb Filter 0 0

5EW 0 1

4OSD FRONT 0 0

3 Radio 0 0

2LNA 0 0

1 Tuner 0 0

0 None-00,Philips-01,Alps-10 1 1

Decimal (visible in Options menu) 129 161

Hex 81 A1

Byte_3 (Devices) 7 Not Used 0 0

6 Soft Clipper 0 0

5 Not Used 0 0

4 0 0

3 SmartPort 0 1

2 Active-Off LED 0 0

1WSL 0 0

0 None-00, 4136-01, 34836-10 1 1

Decimal (visible in Options menu) 19

Hex 01 09

Byte_4 (AV, Tuning) 7 Not Used 0 0

6 AV3YC 0 0

5CVI 1 1

4 AV2YC 1 1

3AV3 1 1

2AV2 1 1

1AV1 1 0

0RGB 0 0

Decimal (visible in Options menu) 62 60

Hex 3E 3C

Alignments

Byte Bit Option Model

Byte_5 (Feature) 7ITV Ring 0 0

6Protection 1 1

5WatchDog 1 1

4 No Ident Standby 1 1

3 Buzzer Type 0 0

2 None=00, Internal=01, External=10 1 1

1Clock Type 0 0

0 None-00,OSD-01,LED-10 1 1

Decimal (visible in Options menu) 117 117

Hex 75 75

Byte_6 (Power) 7 Not Used 0 0

600

5 0 0

400

300

200

1 Card POR 0 0

000

Decimal (visible in Options menu) 00

Hex 00 00

EN 71L04.6HU CA 8.

EN 72 L04.6HU CA8.

Alignments

8.3.2 Tuner

Note: Described alignments are only necessary when the NVM

(item 7601) is replaced.

IF PLL

This adjustment is auto-aligned. Therefore, no action is
required.

AGC (AGC take over point)

1. Set the external pattern generator to a color bar video
signal and connect the RF output to aerial input. Set
amplitude to 10 mV and set frequency to 61.25 MHz
(channel 3).

2. Connect a DC multimeter to pin 1 of the tuner (item 1000
on the main panel).

3. Activate the SAM.

4. Go to the TUNER sub menu.

5. Select AGC with the UP/DOWN cursor keys.

6. Adjust the AGC-value (default value is 27) with the LEFT/
RIGHT cursor keys until the voltage at pin 1 of the tuner lies
between 3.8 and 2.3 V (default value is “20”).

7. Switch the set to STANDBY, in order to store the
alignments.

CL (Cathode drive level)

Always set to “5”.

8.3.3 White Tone

8.3.4 Geometry

The geometry alignments menu contains several items to align
the set, in order to obtain correct picture geometry.

1

2

3

4

5

6

7

8

VERT. SLOPE

VERT. SHIFT

VERT. AMPLITUDE

V.S-CORRECTION

HOR. SHIFT

HOR. AMPLITUDE

E/W PARABOLE

UPPER E/W CORNER

In the WHITE TONE sub menu, the values of the black cut off
level can be adjusted. Normally, no alignment is needed, and
you can use the given default values.
The color temperature mode (NORMAL, COOL and WARM)
and the color (R, G, and B) can be selected with the UP/DOWN
RIGHT/LEFT cursor keys. The value can be changed with the
LEFT/RIGHT cursor keys. First, select the values for the
NORMAL color temperature. Then select the values for the
COOL and WARM mode. After alignment, switch the set to
STANDBY, in order to store the alignments.

Default settings: See table “NVM Default values” in chapter 5

“Service Modes, ....”.

9

10

11

12

LOWER E/W CORNER

E/W TRAPEZIUM

HOR. PARALLELOGRAM

HOR. BOW

E_06532_010.eps

110204

Figure 8-4 Geometry alignments

1. Connect an external video pattern generator to the aerial
input of the TV-set and input a crosshatch test pattern. Set
the generator amplitude to at least 1 mV and set frequency
to 61.25 MHz (channel 3).

2. Set 'Smart Picture' to NATURAL (or MOVIES).

3. Activate the SAM menu (see chapter 5 “Service Modes,
...”).

4. Go to the GEOMETRY sub menu.

5. Choose HORIZONTAL or VERTICAL alignment

Now the following alignments can be performed:

Alignments

EN 73L04.6HU CA 8.

Horizontal

• Horizontal Parallelogram (HP). Align straight vertical
lines in the top and the bottom; vertical rotation around the
center.

• Horizontal Bow (HB). Align straight horizontal lines in the
top and the bottom; horizontal rotation around the center.

• Horizontal Shift (HS). Align the horizontal center of the
picture to the horizontal center of the CRT.

• East West Width (EW). Align the picture width until the
complete test pattern is visible.

• East West Parabola (PW). Align straight vertical lines at
the sides of the screen.

• Upper Corner Parabola (UCP). Align straight vertical lines
in the upper corners of the screen.

• Lower Corner Parabola (LCP). Align straight vertical lines
in the lower corners of the screen.

• East West Trapezium (TC). Align straight vertical lines in
the middle of the screen.

• H60 (Delta HSH for 60Hz, if present). Align straight
horizontal lines if NTSC system is used (60 Hz) i.s.o. PAL
(50 Hz). Default value is “9”.

Vertical

• Service blanking (SBL). Switch the blanking of the lower
half of the screen “on” or “off” (to be used in combination
with the vertical slope alignment).

• Vertical Shift (VSH). Align the vertical centering so that
the test pattern is located vertically in the middle. Repeat
the 'vertical amplitude' alignment if necessary.

• Vertical slope (VS). Align the vertical center of the picture
to the vertical center of the CRT. This is the first of the
vertical alignments to perform. For an easy alignment, set
SBL to “on”.

• Vertical Amplitude (VA). Align the vertical amplitude so
that the complete test pattern is visible.

• Vertical S-Correction (SC). Align the vertical linearity,
meaning that vertical intervals of a grid pattern must be
equal over the entire screen height.

• Vertical Zoom (VX, if present). The vertical zoom is
added in for the purpose of development. It helps the
designer to set proper values for the movie expand or
movie(16x9) compress. Default value is “25”.

• V60 (Delta VAM for 60Hz, if present). Align straight
vertical lines if NTSC system (60 Hz) is used i.s.o. PAL (50
Hz). Default value is “-2”.

In the table “NVM Default values” in chapter 5 “Service Modes,

....”, you will find the GEOMETRY default values for the

different sets.

8.3.5 Audio

No alignments are needed for the audio sub menu. Use the
given default values.

QSS (Quasi Split Sound)

• For NICAM/2CS sound system (EU/AP, except for AP­NTSC), set to “On”.

• For AV-Stereo sound system (sets without NICAM), set to
“On”.

• For all other sets (NAFTA/LATAM/AP-NTSC), set to “Off”.

FMI (Freq. Modulation Intercarrier)

• For NICAM/2CS sound system (EU/AP, except for AP­NTSC), set to “On”.

• For AV-Stereo sound system (sets without NICAM), set to
“Off”.

• For dBx/non-dBx sound systems, set to “On”,

EN 74 L04.6HU CA9.

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

9. Circuit Descriptions, List of Abbreviations, and IC Data Sheets

Index of this chapter:

9.1 Introduction

9.2 ATSC Module

9.3 Supply Architecture

9.4 Power Modes

9.5 Abbreviation List

9.6 IC Data Sheets

9.1 Introduction

SEL_LL/

H_Reset

SCART_1

Status

SCART_

2 Status

g

i

L

n

S

e

Notes:

•Only new circuits compared to the L04 chassis are
described in this chapter. For the other circuit descriptions,
see the L04 manual.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the diagrams in sections “Block
Diagrams, ...”, and/or “Electrical Diagrams”. Where
necessary, you will find a separate drawing for clarification.

TUNER

ATSC

panel

I retsaMI1suB C

Sound

Amp

_

y

n

e

V5

_

b

t

o

l

d

u

o

t

C

V

S

m

18

15

P2.0

P2.3

16

P2.2

13

ADC1

10

ADC2

t

h

14

ADC0

r

o

s

P2.1

17

RT_C
O

o

il

P0.1

HERCULES

NVM

eRes+_
t

MVN

PW

UART COMM

24

P2.4

22

P1.3

20

SDA

SCL

21

INT2

3

INT1

31

ADC3

9

32

INT0

P1.5/TX

1

P2.5

P1.4/TX

2

6

7

B

A

,
C

Power_Down

Key Board

IR

TV_IRQ

Figure 9-1 Chassis block diagram

The “L04.6 ATSC” platform is derived from the L04 chassis. It
is designed to be a Standard Definition (SD) 60 Hz set for the
NAFTA market segments. Screen sizes of standard TV models
are 27- and 32-inch, but the iTV/Hotel TV version (L04.6HU
CA) uses 27 inch screens only.
The "L04" chassis, developed by Philips Singapore BCT MTV,
was a global “50/60Hz” chassis for the BASIC and BASIC+
market segment.
The fundamental electrical properties and key components of
L04.6 ATSC are:

• Hercules = TDA12000 with integrated Video processing,
Sound processing and Microprocessor.

• Audio Amplifier = TDA2616Q with the capability to drive up
to 2X10W stereo sets.

• Zoran ZR39640: ATSC decoder + Scalar.

• The L04.6HU CA (iTV/Hotel TV), contains some additional
modules: the EPS1B (power supply for extra functions), the
SP/LS (Smart Plug and bathroom speaker), and an
Interface module (not used in standard models).

The standard architecture consists of a Main panel (called
"family board"), a Picture Tube panel, a Side I/O panel, a Top
Control panel, and an ATSC panel. The Main panel carries the
small and large signals on the same board, and uses primarily
conventional components, with some surface mounted devices
in the audio and video processing part.

F_15760_040.eps

161105

The ATSC digital module is a TV bolt on module with a
terrestrial RF Digital ATSC 8VSB (Free to Air) front end and
Cable RF Digital ATSC, QAM (Cable in-the-clear) front end.
For Service, this is a black box. When defective, this module
must be replaced, and the defective module must be send to
the centralized repair workshop.

The functions for video/audio processing, microprocessor (uP),
and CC/Teletext (TXT) decoding are all combined in one IC
(TDA120xxH, item 7200), the so-called third generation
Ultimate One Chip (UOC-III) or “Hercules”. This chip is
mounted on the “solder” side of the main panel, and has the
following features:

• Control, small signal, mono/stereo, and extensive Audio/
Video switching in one IC.

• Upgrade with digital sound & video processing.

• Alignment free IF.

• FM sound 4.5/5.5/6.0/6.5, no traps/bandpass filters.

• Full multi-standard color decoder.

• One Xtal reference for all functions (microprocessor, RCP,
TXT/CC, RDS, color decoder, and stereo sound
processor).

The tuning system features 181 channels with on-screen
display. The main tuning system uses a tuner, a
microcomputer, and a memory IC mounted on the main panel.
The microcomputer communicates with the memory IC, the
customer keyboard, remote receiver, tuner, signal processor IC
and the audio output IC via the I2C bus. The memory IC retains

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

EN 75L04.6HU CA 9.

the settings for favorite stations, customer-preferred settings,
and service / factory data.
The on-screen graphics and closed caption decoding are done
within the microprocessor where they are added to the main
signal.

The chassis uses a Switching Mode Power Supply (SMPS) for
the main voltage source. The chassis has a 'hot' ground
reference on the primary side and a cold ground reference on

RF

Tuner

IF

IF section

(SAW & Amp)

ATSC/QAM

(CAS-2)

TS

DDR

32MB

MPEG
Decoder
ZR39640

S/PDIF Out

the secondary side of the power supply and the rest of the
chassis.

9.2 ATSC Module

9.2.1 Block Diagram

RF Loop-through to Analogue Tuner

Flash

4MB

EEPROM

512B

I2C

Power On, Reset

L/R

Y
U

V

TV
chassis

RS-232 (SW download)

DTV board

The module functionality includes digital cable and terrestrial
reception and processing, digital terrestrial (8VSB ATSC) and
digital cable (QAM & 8VSB ATSC) free to air reception and
processing, and S/PDIF audio output possibility (coaxial). The
ATSC module provides its own OSD (On Screen Display)
capsulated in the main video output and handles EPG (digital,
based on PSIP information), CC (digital) and V-Chip (digital).
The module can be controlled via RS-232C by a host controller.
The ATSC module has one physical RF input for cable or
terrestrial. The CAS-2 IC sends the serial Transport Stream to
the MPEG-2 decoder after demodulation of the digital 8-VSB
ATSC RF (Terrestrial or Cable) and 64-256 QAM (Cable in-the­clear). The MPEG2 Transport Stream is routed to the ZR39640
IC where it is parsed into video, audio, and data streams. After
the video stream decoding, processing, and conversion, the
video is coming out of the module on the main video output
(480i, analogue YUV). The audio stream is decoded,
processed, and DA converted, and is coming out of the module
on the audio output (analogue L/R, standard or Dolby­ProLogic down-mixed – and S/PDIF).

5V, 3.3V, 2.5V, 1.8V

Figure 9-2 Block diagram ATSC module

UART

Power 10V

F_15760_007.eps

141105

Table 9-1 ATSC module connector pinning overview

Pin No Signal Name Name Explanation

Connector P1206

1 Rx RS-232 Rx

2GND GND

3 Tx RS-232 Tx

4 RESET# Module Reset Signal

Connector P1212

1 Y Video Y signal out to TV chassis

2GND GND

3 U Video U signal Out to TV chassis

4GND GND

5 V Video V signal Out to TV chassis

Connector P1219

1 R_OUT Audio Right signal out to TV chassis

2GND GND

3 L_OUT Audio Left signal out to TV chassis

4GND GND

5 Reserved Reserved

Connector P1582

1 10V Supply

2 10V Supply

3GND GND

4GND GND

EN 76 L04.6HU CA9.

Connector P701

1 Tx 3.3V TTL (RS232 Tx for Service port)

2GND GND

3 Rx 3.3V TTL (RS232 Rx for Service port)

9.3 Supply Architecture

9.3.1 Block Diagram

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

SWITCH

FILTER

&

MH COIL

RECTIF IER

MAINS SM PS

AUX SMPS

Vbatt ( To def lection )

-Vaudio

+Vaudio

Stdby_Con (From Hercules)

+3.3V ( To Hercules)

+1

2V (To ATSC panel)

Figure 9-3 Block diagram Power Supply

The L04.6 power management consists of two Switched Mode
Power Supplies (SMPS).

The Main SMPS delivers Vbat and Vaudio. The Aux SMPS
delivers 3.3V, 12V to derive Hercules and Tuner on the main
chassis, and also to provide the 3.3V, 6V and 10V supply to the
ATSC Module The Aux SMPS also gives out the
POWER_DOWN signal to the Hercules. This is an early
warning signal on power failure used to mute the sound and
EHT discharge.

The Hercules gives out STDBY_CON signal to the Main
SMPS. This is to enable the Main SMPS in normal operation,

RELAYDEGAUS S

F_15760_041.eps

161105

and disable it during Stand-by. Figure above gives the block
diagram of the complete chassis power supply.

STBY_CON

This signal is generated by the Hercules. It is logic “Low” (0V)
under normal operation and in Semi Stand-by of the TV, and
High (3.3V) during Stand-by.

POWER_DOWN

This signal is generated by the Aux SMPS. It is logic “High”
(3V3) under normal operation of the TV and goes “Low” (0V)
when the AC Power input voltage of the supply goes below 70
V

.

AC

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

r

,

EN 77L04.6HU CA 9.

B (Hercules Port)

This port is used to switch “on” the +12V of the ATSC panel. It
is logic “High” (3.3V) under normal operation and in Semi
Stand-by of the TV, and “Low” (0V) during Standby.

9.4 Power Modes

“OFF”

e

I2C.

“PROTECTION”

Pull out AC
mains cable

Plug in/out AC Power cable

Keypad,
Remote Controller,

“STANDBY”

Tim

Figure 9-4 Power modes transition diagram

The chassis has four power supply modes for efficient power
management and protection management. They are: “ON”,
“OFF”, “STANDBY”, and “PROTECTION”. Transitions
between any power modes are shown in figure above.

9.4.1 OFF Mode

The set is completely switched “off” from the AC Power. This is
done with the AC. For NAFTA it means disconnecting the TV
from the mains by pulling out the AC Power cable. When the
mains is connected, this mode transits to “STANDBY”. The
transition timing for a “cold” start from “OFF” state to “ON” is
such that from the instance the Hercules gets a hard reset, in
12 s or less, the audio and video must be present.

9.4.2 ON Mode

This is the normal operating mode. All the power supply lines
in the chassis are available. All the circuits in the set are active.
From this mode, it is possible to transit to “STANDBY,
“PROTECTION”, or “OFF” mode.

9.4.3 STANDBY Mode

The total power consumption of the TV set in this mode shall
be equal or less than 1 W (“GREEN” requirement).The Standby
State will be indicated by the LED (LED “off”). In this state, only
the Hercules uP and NVM are powered. Rest of the chassis
sub-systems are disconnected. Control ports STDBY_CON
and AUX_ON are defined to control this status. In this mode,
the Hercules and peripherals are set to the lowest power
consumption mode (SLEEP MODE) by software. From this
mode it shall be possible to transit to “ON” or “OFF” mode.

9.4.4 PROTECTION Mode

The power profile for the PROTECTION mode is as low as
required to allow “soft” diagnostics, error detection, and to
indicate LED flashes to flag the type of fault. The horizontal
deflection is “off” in this mode. From the protection mode the
only possible transition is to “OFF” mode and “ON” mode.
Special cases to disable

Protection circuit

“ON”

F_15760_042.eps

Plug out AC Power cable

161105

9.5 Abbreviation List

2CS 2 Carrier (or Channel) Stereo
ACI Automatic Channel Installation:

algorithm that installs TV sets directly
from cable network by means of a

predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AFT Automatic Fine Tuning
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific region
AR Aspect Ratio: 4 by 3 or 16 by 9
ATS Automatic Tuning System
AV External Audio Video
AVL Automatic Volume Leveler
BCL Beam Current Limitation
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
CC Closed Caption
CCC Continuous Cathode Calibration
ComPair Computer aided rePair
CRT Cathode Ray Tube or picture tube
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
CVI Component Video Input
DAC Digital to Analogue Converter
DBX Dynamic Bass Expander or noise

reduction system in BTSC
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFU Direction For Use: description for the

end user
DNR Dynamic Noise Reduction
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for dealers to enter

e.g. service mode
DVD Digital Versatile Disc
EEPROM Electrically Erasable and

Programmable Read Only Memory
EHT Extra High Tension
EHT-INFO Extra High Tension information
EPG Electronic Programming Guide
EU Europe
EW East West, related to horizontal

deflection of the set
EXT External (source), entering the set via

SCART or Cinch
FBL Fast Blanking: DC signal

accompanying RGB signals
FILAMENT Filament of CRT
FM Field Memory or Frequency

Modulation
H Horizontal sync signal
HP Headphone
I Monochrome TV system. Sound

carrier distance is 6.0 MHz
I2C Integrated IC bus
IF Intermediate Frequency

EN 78 L04.6HU CA9.

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

IIC Integrated IC bus
ITV Institutional TV
LATAM Latin American countries like Brazil,

Argentina, etc.
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LS Large Screen or Loudspeaker
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N = 3.579545 MHz,

NTSC 4.43 = 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non Volatile Memory: IC containing

TV related data e.g. alignments
OB Option Bit
OC Open Circuit
OP Option Byte
OSD On Screen Display
PAL Phase Alternating Line. Color system

mainly used in West Europe (color

carrier = 4.433619 MHz) and South

America (color carrier PAL M =

3.575612 MHz and PAL N = 3.582056

MHz)
PCB Printed Circuit board
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency

POR Power-On Reset
PTP Picture Tube Panel (or CRT-panel)
RAM Random Access Memory
RC Remote Control handset
RGB Red, Green, and Blue video signals
ROM Read Only Memory
SDAM Service Default / Alignment Mode
SAP Second Audio Program
SC Sandcastle: pulse derived from sync

signals
S/C Short Circuit
SCL Serial Clock
SDA Serial Data
SECAM SEequence Couleur Avec Memoire.

Color system mainly used in France

and East Europe. Color carriers =

4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SS Small Screen
STBY Standby
SVHS Super Video Home System
SW Software
THD Total Harmonic Distortion
TXT Teletext
uP Microprocessor
UOC Ultimate One Chip
V Vertical sync signal
V_BAT Main supply voltage for the deflection

stage (mostly 141 V)
V-chip Violence Chip
VCR Video Cassette Recorder
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
XTAL Quartz crystal
YC Luminance (Y) and Chrominance (C)

signal

9.6 IC Data Sheets

Not applicable

10. Spare Parts List

Not available at the time of publishing

Spare Parts List

EN 79L04.6HU CA 10.

EN 80 L04.6HU CA11.

11. Revision List

Manual xxxx xxx xxxx.0

• First release.

Revision List
