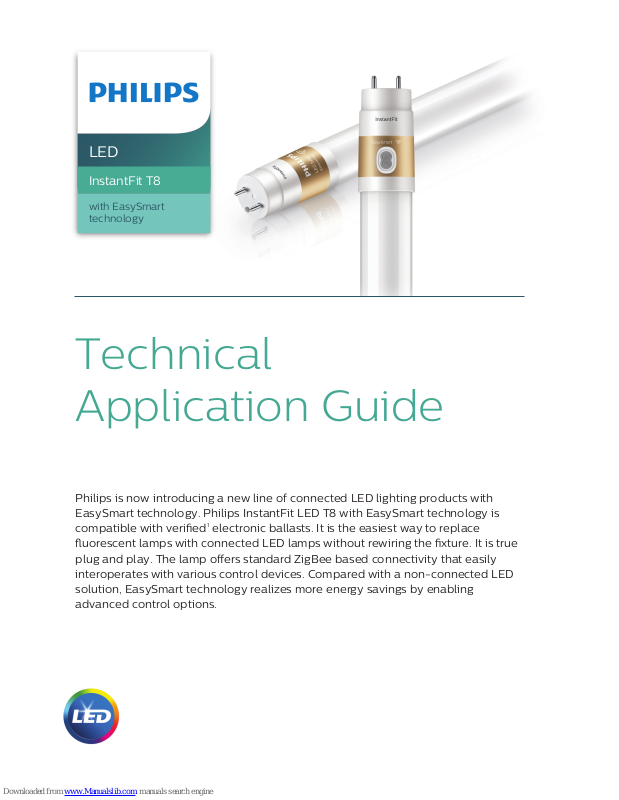

Philips is now introducing a new line of connected LED lighting products with
EasySmart technology. Philips InstantFit LED T8 with EasySmart technology is
compatible with veried
1
electronic ballasts. It is the easiest way to replace
uorescent lamps with connected LED lamps without rewiring the xture. It is true
plug and play. The lamp oers standard ZigBee based connectivity that easily
interoperates with various control devices. Compared with a non-connected LED
solution, EasySmart technology realizes more energy savings by enabling
advanced control options.
Drivers
• Compatible with verified electronic ballasts
• Designed and approved to UL, CSA and FCC
Dimension
• Compliant with IEC and ANSI standards
LED
• Latest innovation in LED chip design
2
User comfort
• Uniform light output with advanced optical design.
• Personal light setting to enhance user comfort and
productivity.
• Typical CRI 82.
Reliability
• Reliable operation between -20°C and +45°C
ambient temperature.
• Tested to B50 L70 requirement. Lamps are rated
for 50,000 hours.
• 200,000 switching cycles.
Safety
• Over voltage and over temperature protection.
• Complies with relevant UL and CSA safety
requirements.
• Shatterproof polycarbonate (PC) material.
Environment
• No Mercury.
• Low Carbon Footprint.
Ballast Compatibility
• Innovative driver design that enables a
“plug-and-play” LED solution.
• Compatible with veried1 electronic ballast.
• Quick and easy installation.
Connectivity
• ZigBee based wireless interface.
• Reliable and secure wireless communication,
nominal range 40 feet.
• Up to 50 lamps in one network.
• Easy commissioning and (re-)conguration from
the oor.
Control Functionality
• Automatic on/o and dimming based on
occupancy detection and daylight variation.
• Personal dimming and scene setting with ZigBee
wireless switch.
• High-end trimming to help save energy and
extend lamp life.
Energy Savings
• Energy savings of 50% or more* when used with
advanced control such as dimming, occupancy
sensing and daylight harvesting.
• DLC listed.
Product Features
Optics
• Advanced optical system with
high efficiency reflector
Connectivity
• Standard ZigBee based wireless interface
• Integrated infrared (IR) receiver
Thermal
• Enhanced thermal
management features
IR receiver
* 50% energy savings compared to an F32T8 when dimmed
at least 30% for 10% of the time product is on.
Applications
Private Oce
Restroom
3
Communication between lamps, switches and sensors is ZigBee based. To facilitate the installation,
Philips provides an IR programming tool as accessory. Your control device manufacturer will provide
a tool (ie: mobile app), to commission the sensor and switch.
* Philips InstantFit LED T8 with EasySmart technology uses ZigBee protocol to communicate with each other and control devices.
* EasySmart IR programming tool communicates with individual lamp via infrared.
System Overview
Philips InstantFit LED T8 with
EasySmart Technology
ZigBee Wirel ess Switch
Philips EasySmart IR
Programming Tool
Commission Tool, e.g. mobile app
Occupancy Sensor and
Daylight Sensor (optional)
Classroom
Open-plan Oce
Common Area
StairwellCorridor
Conference Room
