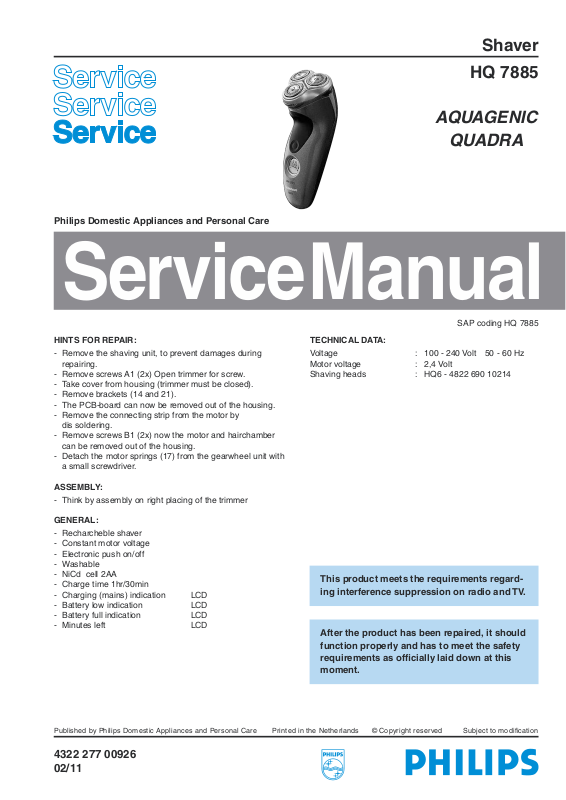

Philips HQ 7885 Service Manual

Shaver

HQ 7885

AQUAGENIC

QUADRA

Philips Domestic Appliances and Personal Care

Service Manual

SAP coding HQ 7885

HINTS FOR REPAIR:

- Remove the shaving unit, to prevent damages during
repairing.

- Remove screws A1 (2x) Open trimmer for screw.

- Take cover from housing (trimmer must be closed).

- Remove brackets (14 and 21).

- The PCB-board can now be removed out of the housing.

- Remove the connecting strip from the motor by
dis soldering.

- Remove screws B1 (2x) now the motor and hairchamber
can be removed out of the housing.

- Detach the motor springs (17) from the gearwheel unit with
a small screwdriver.

ASSEMBLY:

- Think by assembly on right placing of the trimmer

GENERAL:

- Recharcheble shaver

- Constant motor voltage

- Electronic push on/off

- Washable

- NiCd cell 2AA

- Charge time 1hr/30min

- Charging (mains) indication LCD

- Battery low indication LCD

- Battery full indication LCD

- Minutes left LCD

TECHNICAL DATA:

Voltage : 100 - 240 Volt 50 - 60 Hz
Motor voltage : 2,4 Volt
Shaving heads : HQ6 - 4822 690 10214

This product meets the requirements regard­ing interference suppression on radio and TV.

After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

4322 277 00926
02/11

HQ 7885

25

26

5

19

27

6

20

28

1

21

2

7

8

22

9

10

23

B1

3

4

1 4822 479 30183 cleaning brush
2 4222 036 07070 housing NOR
3 4822 466 12232 rubber seal
4 4822 219 10722 power plug NOR
5 4222 036 06550 protecting cap
6 4222 036 06560 bracket

7 4822 690 10214 HQ6 shaving heads
8 4822 214 13059 power modul
9 4822 402 11319 retaining bracket
10 4222 036 06600 hair chamber
11 4822 265 11548 connecting pins

11

12

13

14

15

16

17

18

12 4822 522 10762 driving unit
13 4822 466 12233 sealing plate
14 4222 036 06610 bracket small
15 4822 522 10763 pinion
16 4822 361 21783 motor
17 4822 492 71735 motor clamp

18 4222 036 03200 connecting strip assy
19 4222 036 06630 trimmer assy
20 4222 036 06640 trimmer slide assy
21 4222 036 06650 bracket large
22 4822 532 13149 spacer AA

24

A1

23 4222 036 06151 2-AA pack NiCd
24 4222 036 07090 cover
25 4822 135 00282 LCD assy
26 4822 256 10572 LCD hold bracket
27 4222 036 02950 spring hinge
28 4222 036 07330 unlock knob

A1 4822 502 14657 S.t. screw spec/T8
B 4822 502 14544 S.t. screw 1,8x18/T8
4222 036 06960 pouch NOR
