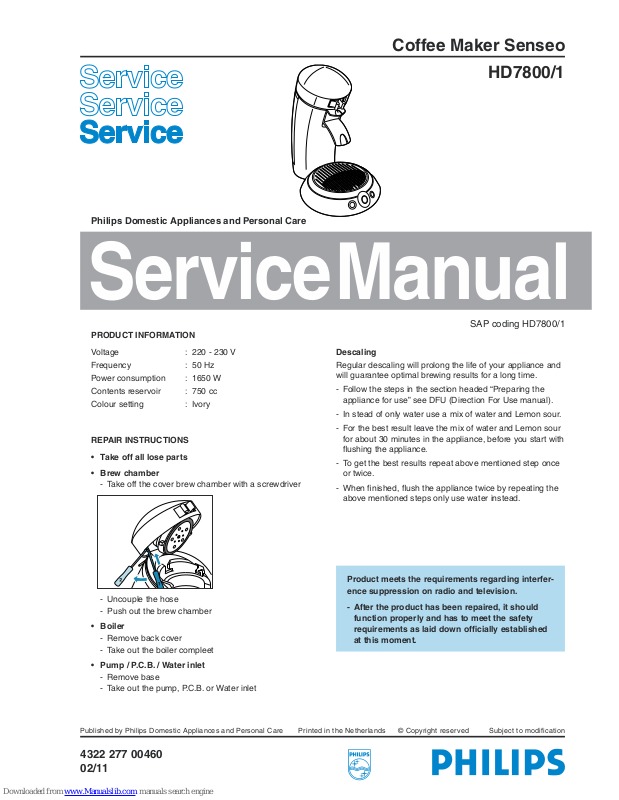

Philips HD7801 Service Manual

Service Manual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffee Maker Senseo

HD7800/1

4322 277 00460
02/11

SAP coding HD7800/1

PRODUCT INFORMATION

Voltage : 220 - 230 V

Frequency : 50 Hz

Power consumption : 1650 W

Contents reservoir : 750 cc

Colour setting : Ivory

REPAIR INSTRUCTIONS

• Take off all lose parts

• Brew chamber

- Take off the cover brew chamber with a screwdriver

- Uncouple the hose

- Push out the brew chamber

• Boiler

- Remove back cover

- Take out the boiler compleet

• Pump / P.C.B. / Water inlet

- Remove base

- Take out the pump, P.C.B. or Water inlet

Descaling

Regular descaling will prolong the life of your appliance and
will guarantee optimal brewing results for a long time.

- Follow the steps in the section headed “Preparing the
appliance for use” see DFU (Direction For Use manual).

- In stead of only water use a mix of water and Lemon sour.

- For the best result leave the mix of water and Lemon sour
for about 30 minutes in the appliance, before you start with
fl ushing the appliance.

- To get the best results repeat above mentioned step once
or twice.

- When fi nished, fl ush the appliance twice by repeating the
above mentioned steps only use water instead.

Product meets the requirements regarding interfer­ence suppression on radio and television.

- After the product has been repaired, it should
function properly and has to meet the safety
requirements as laid down offi cially established
at this moment.

1

2

3

4

5

7

8

9

10

30

13

2-4

HD7800/1

Pos Service code Description

1 9965 000 07733 Pad-holder single
2 9965 000 07734 Pad-holder double
3 9965 000 07735 Foam chamber assy
4 9965 000 07736 Drip tray cover
5 9965 000 07737 Drip tray

6
7 9965 000 07739 Push buttons assy inc. light and wires
8 9965 000 07740 Base
9 9965 000 07741 Foot
10 9965 000 07742 Lock ring spring
11 9965 000 07743 Thermostat

Pos Service code Description

12 9965 000 07744 Temp. sensor
13 9965 000 07745 Water level sensor
14 9965 000 07746 Boiler comp. Incl. 11, 12 and frame
15 9965 000 07747 Back cover
16 9965 000 07748 Water tank assy

17 9965 000 07749 Brew chamber radial seal
18 9965 000 13585 O-ring brew chamber
19
20 9965 000 07752 Cover brew chamber assy
21 9965 000 07750 O-ring pump
22
