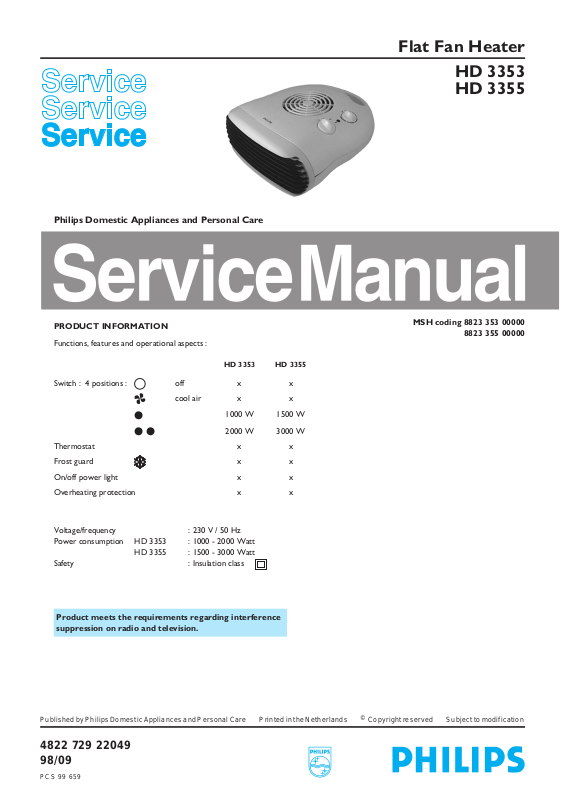

Philips HD 3355, HD 3353 Service Manual
Philips Domestic Appliances and Personal Care
Flat Fan Heater
HD 3353
HD 3355
PRODUCT INFORMATION
Functions, features and operational aspects :
HD 3353 HD 3355
Switch : 4 positions : off x x
cool air x x
●
●●
Thermostat x x
Frost guard x x
On/off power light x x
Overheating protection x x
Voltage/frequency : 230V/50Hz
Power consumption HD 3353 : 1000 - 2000 Watt
HD 3355 : 1500 - 3000 Watt
Safety : Insulation class
1000 W 1500 W
2000 W 3000 W
MSH coding 8823 353 00000
8823 355 00000
Product meets the requirements regarding interference
suppression on radio and television.
PublishedbyPhilipsDomesticAppliancesandPersonalCare PrintedintheNetherlands
4822 729 22049
98/09
PCS 99 659
©
Copyrightreserved Subjecttomodification
DISASSEMBLY ADVICE PARTS LIST HD 3353 / HD 3355
remove: screw A 2x
remove: upper plate
remove: operation knobs 2x
remove: switch block
remove: pilot light
remove: screw B 2x
remove: thermostat
FAN
remove: ring C
remove: fan
POS. DESCRIPTION SERVICE CODE
1 KNOB 4822 410 12173
2 KNOB THERMOSTAT 4822 410 12174
3 POWER LIGHT 4822 134 10056
4 SUPPORT 4822 404 10984
5 THERMOSTAT HD 3353 4822 282 10299
NOTE: AFTER THE PRODUCT HAS BEEN REPAIRED, IT
SHOULD FUNCTION PROPERLY AND HAS TO
MEET THE SAFETY REQUIREMENTS AND
LEGAL REGULATIONS AS LAID DOWN AND
OFFICIALLY ESTABLISHED AT THIS MOMENT.
THERMOSTAT HD 3355 4822 282 10341
6 SWITCH 4822 273 10319
7 FAN 4822 361 11147
Possible complaints
The heater doesn’t function :
1) When set to the cool air setting
action: Set the thermostat knob to the highest position.
2) The overheating safety device has been activated
action: To reset the overheating device, remove the
mains plug from the wall socket and let the
heater cool down for 30 minutes.
4
1000 W
1000 W
P. L.
= PILOT LIGHT (Not included in HD3271)
= SWITCH
= MOTOR
L
N
T
L
= LINE
N
= NEUTRE
T = THERMOSTAT (Not included in HD3271)
C. O.
= CUT OUT
3
2
1
S
C. O.
P. L.
S
M
DAP0244
NOTE:
When a cordset has to be replaced, always use a cordset with
core wires with a diameter of 1.0 mm
2
.
Parts, with numbers from 100 upwards, cannot be ordered
separatly.
M
