Philips FWM572/BK quick start guide

y

CD1/2/3

MUTE

REPEAT

PROGRAM SHUFFLE

DSC

DBB

DISPLAY

DIM

SLEEP

TITLE

ALBUM

AUX

TUNER

VOL

TIMER
ON/OFF

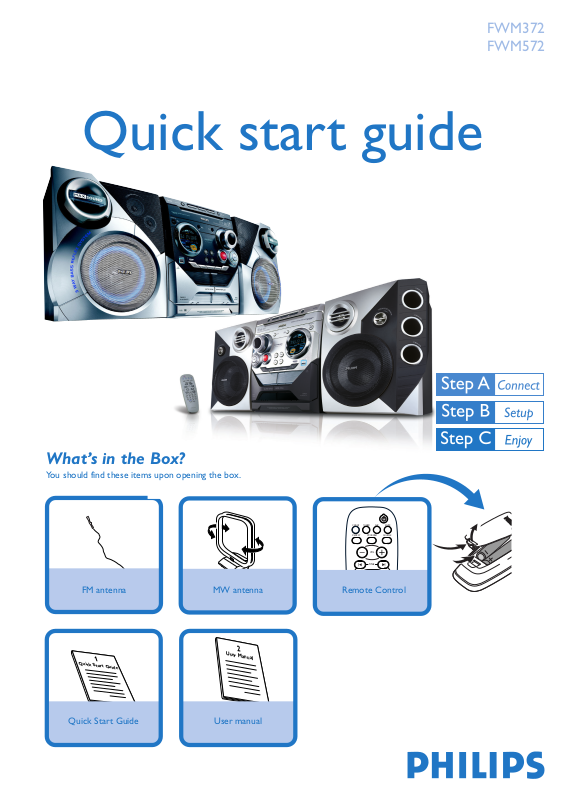

Quick start guide

FWM372
FWM572

What’s in the Box?

You should find these items upon opening the box.

FM antenna MW antenna Remote Control

1

Quick Start Guide

Quick Start Guide

User manual

2

User Manual

1

SPEAKERS 6Ω

R

+

–

L

–

+

AM ANTENNA



LR

MW loop

antenna

AUX/
CDR

IN

AC

MAINS

AC power cord

FM AERIAL

75W

FM wire antenna

VOLTAGE

NOT FOR ALL

VERSIONS

SELECTOR

110V­127V

220V­240V

Connect the speaker cables.

2

Connect the MW and FM antennas.

3

Connect the power cable of the system.

Tip

See the User Manual for how to
connect other equipment to this
system.

Setting the clock

IMPORTANT!
– To set clock in the Eco Power mode, press and hold STANDBY-ON/ECO
POWER 2 on the set for 3 seconds or more to switch to normal standby mode
first before proceeding with the procedures below.

1

In standby or view clock mode, press CLOCK•TIMER once. In other
source mode, press CLOCK•TIMER twice.

2

Press à or á repeatedly to set the hour.

3

Press í or ë repeatedly to set the minute.

4

Press CLOCK•TIMER again to store the setting.

SetupSetup

C

Enjoy

Playing a disc

1

Press OPEN•CLOSE to open the disc tray and load up to two
discs on the individual disc trays. To load the third disc, press DISC

CHANGE.

➜ Make sure the label side of each loaded disc is facing up.

2

Press OPEN•CLOSE again to close the disc tray.

3

Use DSC 1/2/3 (or CD 1/2/3 on the remote control) to select a
disc for playback and then press ÉÅ to start playback.

2

2

1

1

4

To stop playback, press STOP9 .

Programming and tuning to
radio stations

1

Press TUNER to select the tuner source.

2

Press PROGRAM for more than two seconds to program all
available stations in order of waveband.

3

Press í or ë until the desired preset station is displayed.

C

Playing a USB mass storage device

With the Hi-Fi system, you can use USB flash memory (USB 2.0 or USB1.1),

USB flash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to
work with this Hi-Fi system).

Enjoy

1

Insert the USB device’s USB plug into the socket on the set.

2

Press CD/USB once or more to select USB (or USB DIRECT on the remote control).

3

Play the USB’s audio files as you do with the albums/tracks on a CD,

Tip

Detailed playback features and additional functions are described in the
accompany owner's manual.

2005 C Koninklijie Philips Electronics N.V. All rights reserved.
