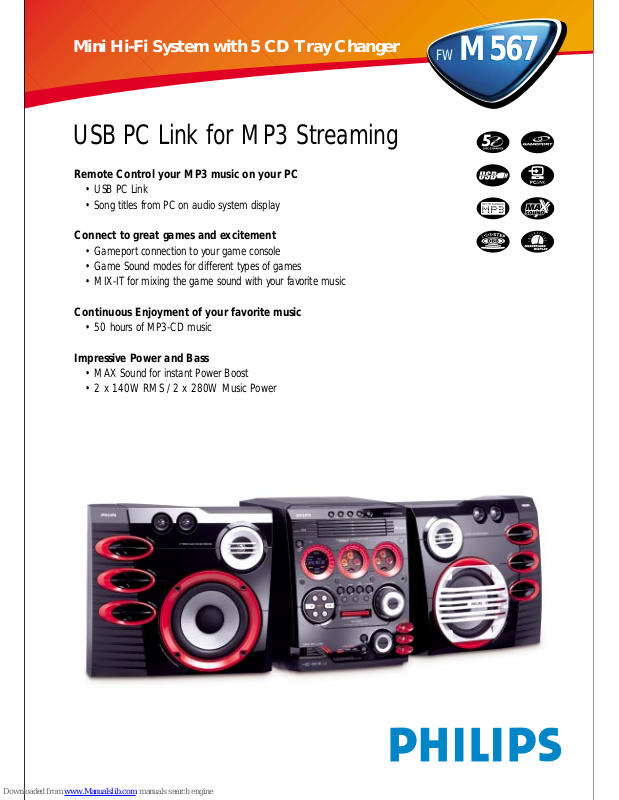

Mini Hi-Fi System with 5 CD Tray Changer
USB PC Link for MP3 Streaming
Remote Control your MP3 music on your PC
• USB PC Link
• Song titles from PC on audio system display
Connect to great games and excitement
• Gameport connection to your game console
• Game Sound modes for different types of games
• MIX-IT for mixing the game sound with your favorite music
FW M567
FW M567
Continuous Enjoyment of your favorite music
• 50 hours of MP3-CD music
Impressive Power and Bass
• MAX Sound for instant Power Boost
• 2 x 140W RMS / 2 x 280W Music Power
32
Page 2
Mini Hi-Fi System with 5 CD Tray Changer
standard product information
FW M567
FW M567
game port
• Front game port connection
• Game volume control
• 3 game sound modes
(speed, punch & blast)
• MIX-IT
USB PC link
• Bundled MusicMatch Jukebox software
• Track info display
• Navigate via set remote control for Play,
Pause, Stop, Next and Previous track
disc player
• 5 CD Changer
• Plays CD, CD-R, CD-RW & MP3-CD discs
• 99 tracks CD random program
• Play modes (repeat/shuffle/program)
• CD Repeat (track/disc/all)
tuner
• FM/MW Digital Tuning with 40 presets
• Autostore facility
• Plug & Play for easy installation of radio
stations
• RDS - station name, programme type,
RDS text, clock set, 'NEWS'
sound
• MAX Sound for instant Power Boost
• Digital Sound control
(rock, pop, jazz, optimal)
• Virtual Ambience control
(cinema, hall, concert, arcade, cyber)
• 3-step Dynamic Bass Boost
amplifier
• 2 x 280 watts Music Power
• 2 x 140 watts RMS
loudspeaker boxes
• 3 way Bass Reflex speaker system
• 6.5" woofer
• 2" Ferro Fluid tweeter
• 1" Polydome piezo
• Detachable grilles
connections
• Audio Input Analog : AUX (cinch) & Game
Port
• Audio Input Digital : USB PC Link
• Audio Output Analog : line out (cinch)
• Video Input : composite cinch
• Video Output : composite cinch
• Stereo headphones : 3.5mm stereo jack
• Antenna : FM coaxial, MW loop
general
• FTD display
• Dim mode
• Clock, Alarm & Sleep timer
• 32 key Remote Control
• Demo mode
• Eco power standby mode (<1 watt)
• Interactive Dashboard display with VU
meter
Gameport
With the growing demand for game consoles, we will see a
similar increase in the need for a complete entertainment
system that can give enhancement to the sound quality of
games. Gameport allows users to connect their game
console to the Philips Mini Hi-Fi system to enjoy a total
game immersion experience by having powerful sound
output. Through the Game Sound Mode, the user can also
select the type of sound setting to best suit the game
currently on play; i.e. Blast for Explosive and Shooting
games; Punch for games with lots of kicks and punches
and Speed for games which involves high speed driving
and flying. The Game Mix function (MIX-IT) allows users
to mix their game sound to their favorite music from CD,
Radio Stations or an external source such as Portable CD,
MP3 Player, etc.
USB PC Link
USB PC Link allows the user to turn his PC Hard Disk into
a 'Massive MP3 Music Jukebox'. User can playback their
MP3 Music Collection from their PC via powerful Amplifier
and Speakers on the Philips Audio System. Consumers can
use the remote control to navigate through the contents
stored in the MusicMatch Jukebox. In addition, personal
setting on this MP3 music is also possible via the audio
system. During streaming of MP3 music from the PC via
USB PC Link, the display on the audio system will give the
track information such as Song title and playtime. You can
now sit back on your sofa and navigate through your MP3
music music from the PC via 'Audio System Remote
Control' e.g. Play, Pause, Stop, Next, Previous track. There is
no need to run back to your PC for this.
MAX Sound for instant Power Boost
Consumers constantly want maximum performance from
their Audio System but most do not know how to achieve
this through their system's equalizer setting. They would
like to have a convenient sound feature that at the push of
a button enables them to obtain the maximum sound
performance from their Audio System. MAX Sound
technology produces instant boosting in bass, maximizes
the volume performance, and instantly creates the most
impressive listening experience with just the touch of the
MAX button.
remote control physical info
EAN: 87 10895 75024 0 (/22)
AUX/GAME
USB PC LINK
TITLE
ALBUM
REPEAT PROGRAM SHUFFLE DISPLAY
DIM SLEEP CLK/TIMERTIMER ON/OFF
MAX ON/OFF
DSC VAC
MUTE
GAME GAME
SOUND MIX-IT
Product Dimensions:
265 mm W x 322 mm H x 390 mm D (center unit)
348 mm W x 322 mm H x 245 mm D (speakers)
Package Dimensions:
532 mm W x 726 mm H x 411 mm D
Product weight : 21 kg
Carton contains: 5 CD Changer Mini System, Multi-Function
Remote Control, Operating Instructions, Warranty Information
Printed in Singapore
Date Printed : Nov 2002
Specifications subject to change without notice.
© 2002 Koninklijke Philips Electronics N. V.
