Mini Hi-Fi System

FW-

M55

with 3 CD changer

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM1

Page 2

3139 115 20071

Deutsch

∂ППЛУИО¿

Português

Suomi

Dansk

Svenska

Italiano

Nederlands

Español

Français

English

Norge

Typeskilt finnes på apparatens underside.

Observer:

Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio FW-M55 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM2

Page 3

3139 115 20071

EnglishFrançais

Español

NederlandsItalianoSvenskaDanskSuomiPortuguês∂ППЛУИО¿

Deutsch

CLASS 1

LASER PRODUCT

English .....................................5

Français .................................27

Español ..................................51

Deutsch ..................................73

Nederlands ............................ 97

Italiano .................................121

Svenska ...............................145

Dansk ...................................167

Suomi ...................................189

Português ............................211

∂ППЛУИО¿

............................ 225

INDEX

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM3

Page 4

3139 115 20071

English

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM4

Page 5

3139 115 20071

English

General Information

• The type plate (which contains the serial number) is located at the rear of the system.

• Recording is permissible if copyright or other rights of third parties are not infringed.

• This product complies with the radio interference requirements of the European Community.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

CONTENTS GENERAL INFORMATION SAFETY INFORMATION

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the disc player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

• Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.

• To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

Accessories

(Supplied)

– Remote control – Batteries (two AA size) for remote

control

– AM loop antenna – FM wire antenna – AC power cord

Safety Information

• Before operating the system, check that the operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer. The typeplate is located at the rear of your system.

• When the system is switched on, do not move it around.

• Place the system on a solid base (e.g. a cabinet).

• Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm clearance from the rear and the top of the unit and 5 cm from each side.

• Do not expose the system to excessive moisture, rain, sand or heat sources.

• Under no circumstances should you repair the system yourself, as this will invalidate the warranty!

General Information ................. 5

Safety Information .................... 5

Preparation .......................... 6 - 7

Controls ............................... 8 - 10

Operating The System .... 10 - 12

CD / MP3-CD .................... 13 - 15

Tuner.................................. 16 - 18

Tape ................................... 18 - 19

AUX/CDR ...................................20

Recording ......................... 20 - 21

Clock ......................................... 22

Timer.................................. 22 - 23

Sleep Timer ..............................23

Specifications ......................... 24

Maintenance ............................25

Troubleshooting .............. 25 - 26

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM5

Page 6

3139 115 20071

English

PREPARATION

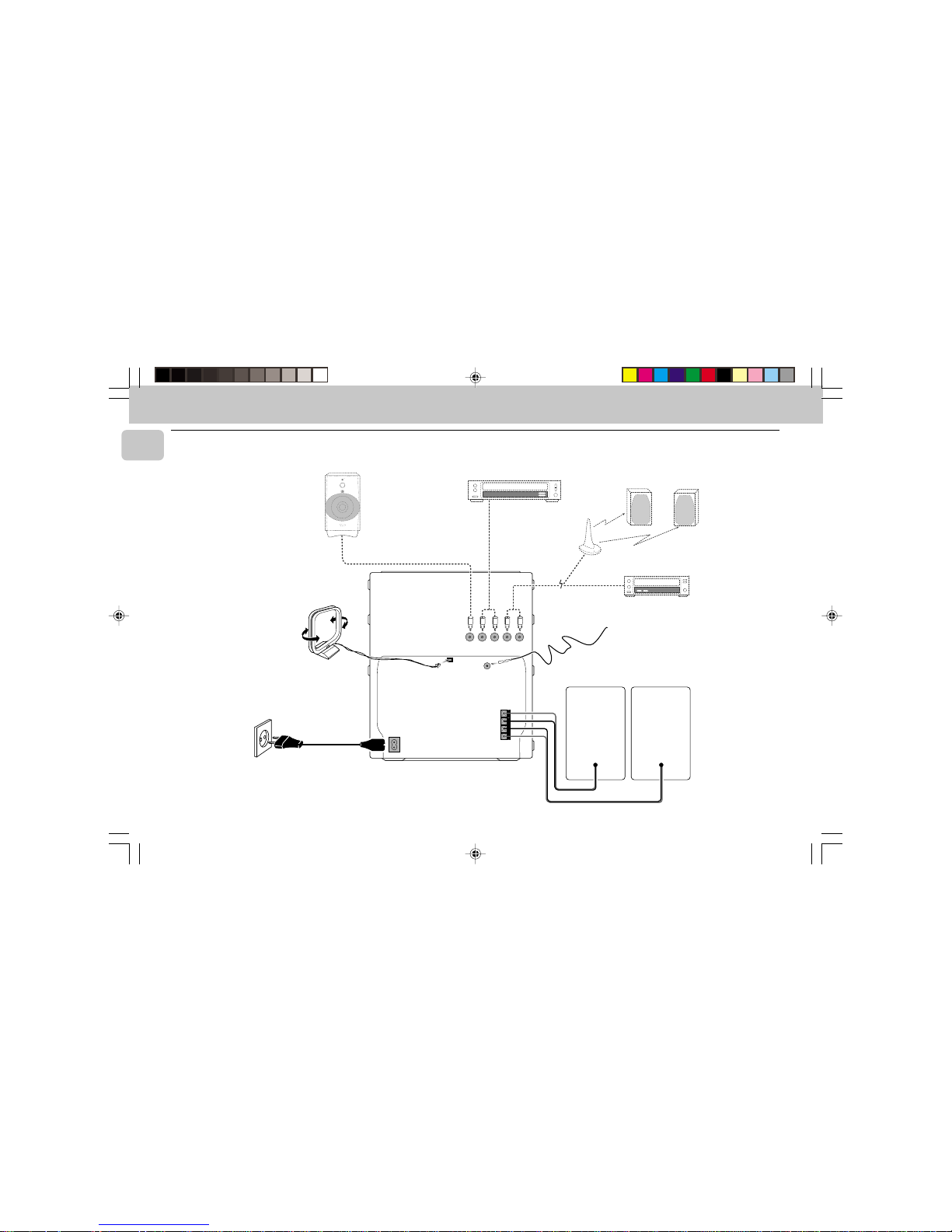

Rear Connections

AM ANTENNA

MAINS

FRONT

AUDIO OUT

–

FM ANTENNA 75Ω

LRLR

HIGH POWER SUBWOOFER

STANDBY ON

CUT OFF FREQUENCY

60Hz 150Hz

MIN MAX

AUDIO IN

AUX/CDR IN

SUB-

WOOFER

OUT LINE OUT

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM6

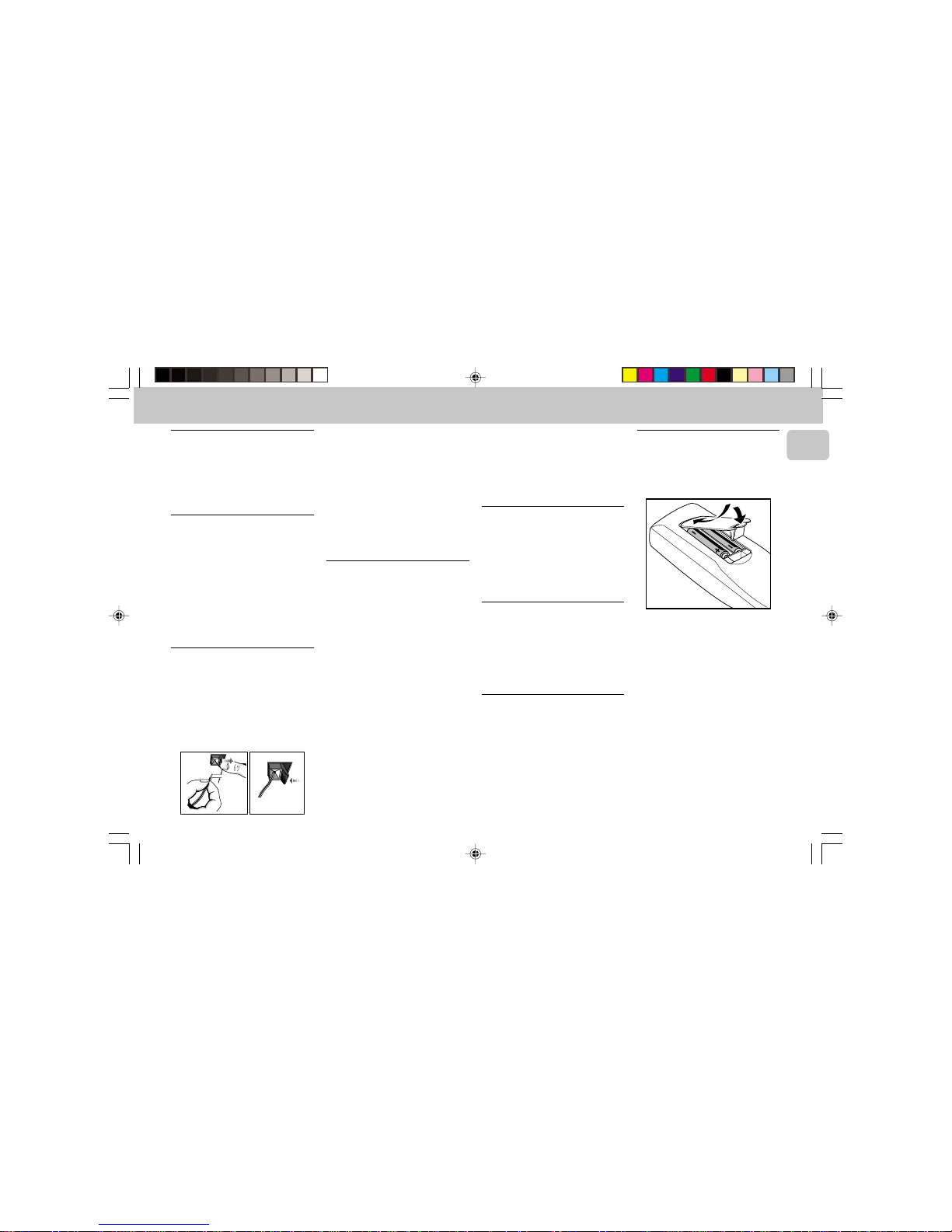

Page 7

3139 115 20071

English

CAUTION:

– For optimal sound performance, it is

recommended to use the supplied speakers.

– Do not connect more than one speaker

to any one pair of +/- speaker terminal.

– Do not connect speakers with

impedance lower than the speakers supplied. Please refer to SPECIFICATION section of this manual.

D Line Out Connection

(wireless

ready)

You can connect the audio left and right LINE OUT terminals to a optional CD Recorder ANALOG IN terminals. This allows you to record in an analogue format.

You can also install additional optional front active speakers away from the system (e.g. in another room) to reduce the inconvenience of running long speaker wires across rooms. You can place as many remote speakers as you like provided they operate at the same radio frequency. Connect the wireless radio frequency transmitter to the LINE OUT terminals. Place the active speakers at your preferred location. Be sure to follow the instructions supplied with the active speakers.

PREPARATION

Inserting batteries into the Remote Control

• Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.

• To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.

Note: – Availability of wireless transmitter and

its peripherals are subjected to the approval of local authorities. Please check with respective local safety or approving authority.

E Connecting other

equipment to your system

You can connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals at the rear of the system.

F Subwoofer Out Connection

Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.

G AC Power Supply

After all other connections have been made, connect the AC power cord to the system and to the wall outlet.

A AM Loop Antenna

Connection

Connect the supplied loop antenna to the AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.

B FM Wire Antenna

Connection

Connect the supplied FM wire antenna to the FM ANTENNA 75 Ω terminal. Adjust the position of the FM antenna for the best reception.

Outdoor Antenna

For better FM stereo reception connect an outdoor FM antenna to the FM ANTENNA 75 Ω terminal using a 75 Ω coaxial wire.

C Speakers Connection

• Connect the right speaker to Front

terminal R, with the colored wire to + and the black wire to -.

• Connect the left speaker to Front

terminal L, with the colored wire to + and the black wire to -.

• Clip the stripped portion of the speaker wire as shown.

unlock lock

12 mm

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM7

Page 8

3139 115 20071

English

CONTROLS

STEREO

BACK

HSD

REPEAT

REC LW

T.A.

NEWS

SOUND NAVIGATION

DUB

(HSD)

MINI HIFI SYSTEM

TIMER

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

SHUFFLE

PROGRAM

INCREDIBLE

SURROUND

DYNAMIC BASS BOOST

TAPECD

PROG

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEARSEARCH • TUNING

PLAY PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

DISC CHANGE

DISC 1 DISC 2 DISC 3

OPEN•CLOSE

A. REV

STANDBY ON

NEWS/TA

RDS

SIDE

MP3•CD

MP3-CD

PLAYBACK

CHANGER

VOLUME

≤

∞

8 7

(

¡ ™

ALBUM

MP3-CD

TITLE

DBB DSC

ÅÉ

VOLUME

TAPE 1/2

MUTE

CD 1/2/3

AUX

TUNER

SLEEPPROG

REPEAT

TITLE

7 ( *

2 )

›

‹

(

* ¡

ALBUM

DISPLAY DISPLAY

)

≥

•

º ª

⁄

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM8

Page 9

3139 115 20071

English

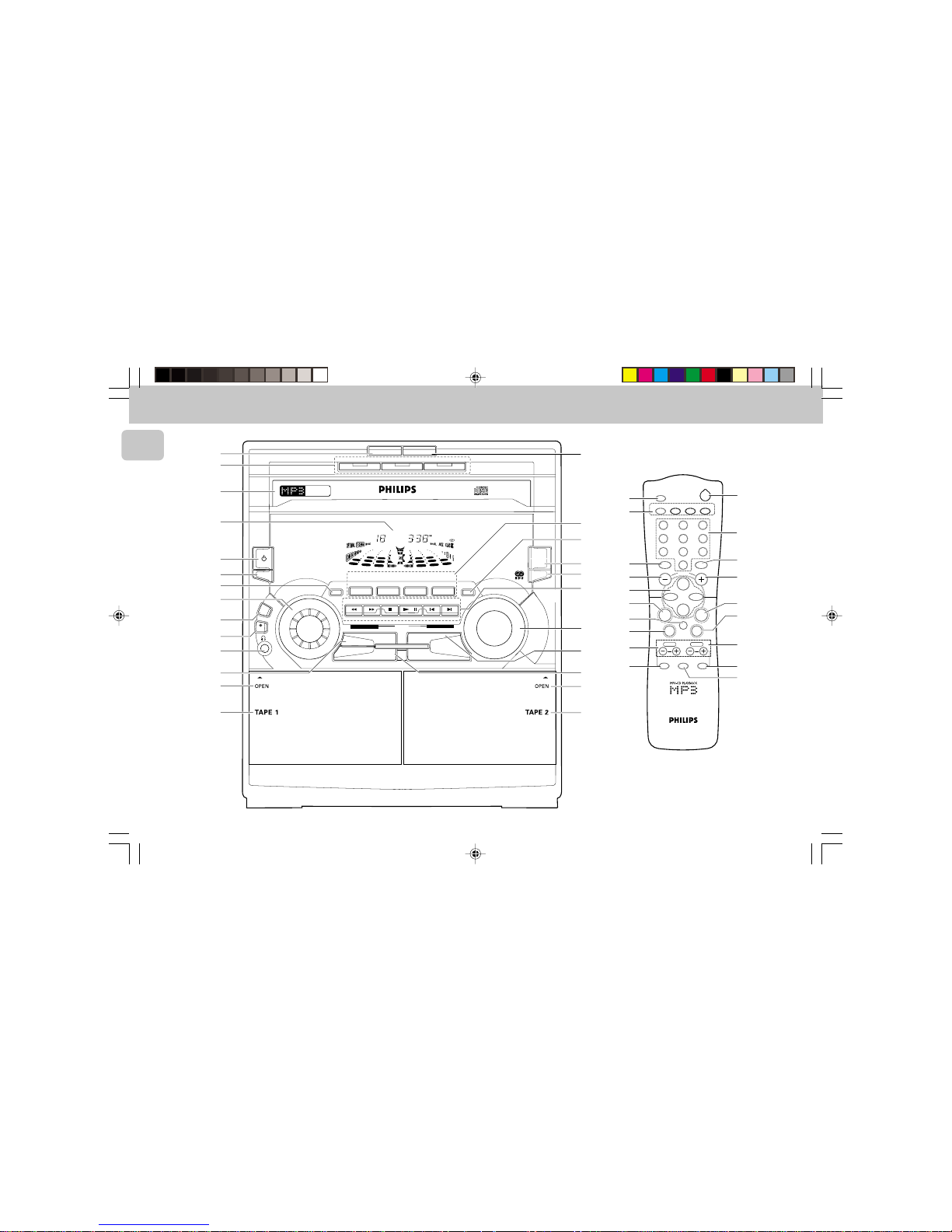

CONTROLS

Controls on the system and remote control

1 STANDBY ON

– to switch the system on or to standby

mode.

– to use for EASY SET.

2 INCREDIBLE SURROUND

– to switch on or off the surround sound

effect.

3 n

– to connect headphones.

4 REC (RECORD)

– to start recording on tape deck 2.

5 DUB (HIGH SPEED DUBBING

[HSD])

– to dub a tape in normal or fast speed.

6 JOG

– to select the desired equalizer display. – to select the desired DSC setting. You

must select the DSC feature first.

– to select the desired level of

Incredible Surround Sound. You must select the Incredible Surround Sound feature first.

7 PROGRAM (PROG)

for CD/MP3-CD…to program disc

tracks.

for TUNER ..... to program preset radio

stations.

for CLOCK ..... to select 12 or 24 hour

in clock setting mode

(on the system only)

8 CLOCK/TIMER

– to view the clock, set the clock or set

the timer.

9 DISPLAY SCREEN

– to view the current setting of the

system.

0 DISC CAROUSEL TRAY ! DISC 1 / DISC 2 / DISC 3

(DISC DIRECT PLAY)

– to select a disc tray for playback.

@ DISC CHANGE

– to change disc(s).

# OPEN•CLOSE

– to open or close the disc carousel tray.

$ SOURCE – to select the following:

CD / (CD 1•2•3) / (MP3•CD)

– to select CD/MP3 mode. When CD/

MP3-CD playback is stopped, press to select the disc tray 1, 2 or 3.

TUNER / (BAND)

– to select Tuner mode. When in tuner

mode, press to select the waveband: FM, MW or LW.

TAPE / (TAPE 1• 2)

– to select Tape mode. When tape

playback is stopped, press to select either tape deck 1 or 2.

AUX / (CDR/VIDEO)

– to select sound from an external

source (e.g. TV, VCR, Laser Disc player, DVD player or CD Recorder). When in Aux mode, press to select either AUX or CDR.

% A. REV (AUTO REVERSE)

– available in tape deck 2 only. – to select the desired play modes

( å / ∂ / ∫ ).

^ RDS

– to select RDS data in the following

order: station name, program type and radio text.

& NEWS/TA

– to hear News or Traffic Announcement

data automatically.

* MODE SELECTION

SEARCH•TUNING à á

for CD/MP3-CD…to search backward/

forward.

for TUNER ..... to tune to a lower or

higher radio frequency.

for TAPE ........ to rewind or fast

forward a tape.

for CLOCK ..... to set the hour

(on the

system only)

STOP•CLEAR Ç

for CD/MP3-CD…to stop disc

playback or to clear a

program.

for TUNER ..... to stop programming.

for TAPE ........ to stop playback or

recording.

for DEMO ......

(on the system only)

to start or stop demonstration mode.

PLAY É / PAUSE Å

for CD/MP3-CD…to start or interrupt

playback.

for TAPE ........ to start playback.

PREV í / SIDE / NEXT ë (PRESET 43 )

for CD ............ to skip to the beginning

of the previous, or next track.

for TUNER ..... to select a preset

station in memory.

for TAPE ........ to select tape side

(back or front) in tape deck 2 only.

for CLOCK ..... to set the minute

(on

the system only)

( VOLUME

– to increase or decrease the volume.

) DYNAMIC BASS BOOST (DBB)

– to select a bass boost level or to

switch off bass boost.

¡ DIGITAL SOUND CONTROL (DSC)

– to select the desired sound effect :

OPTIMAL, CLASSIC, TECHNO, JAZZ, ROCK or VOCAL.

™ OPEN

– to open tape deck 2.

£ TAPE DECK 2 ≤ TAPE DECK 1 ∞ OPEN

– to open tape deck 1.

§ MUTE

– to switch off the sound temporarily.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM9

Page 10

3139 115 20071

English

CONTROLS OPERATING THE SYSTEM

≥ ALBUM

– to select previous/next Album for

MP3-CD only.

• DISPLAY (ALBUM)

– to view MP3-CD Album.

ª REPEAT

– to repeat a disc track or the current

disc.

º DISPLAY (TITLE)

– to view MP3-CD Title.

⁄ TITLE

– to select previous/next Title for MP3-

CD only.

¤ SLEEP

– to switch the system to standby mode

at a selected time.

‹ DIGIT 0 – 9

(numbers consisting more than two figures must be keyed in within 2 seconds.)

for CD/MP3-CD…to key in a disc track

for playback or programming.

...................... to select another track

during playback.

› B

– to switch the system to standby mode.

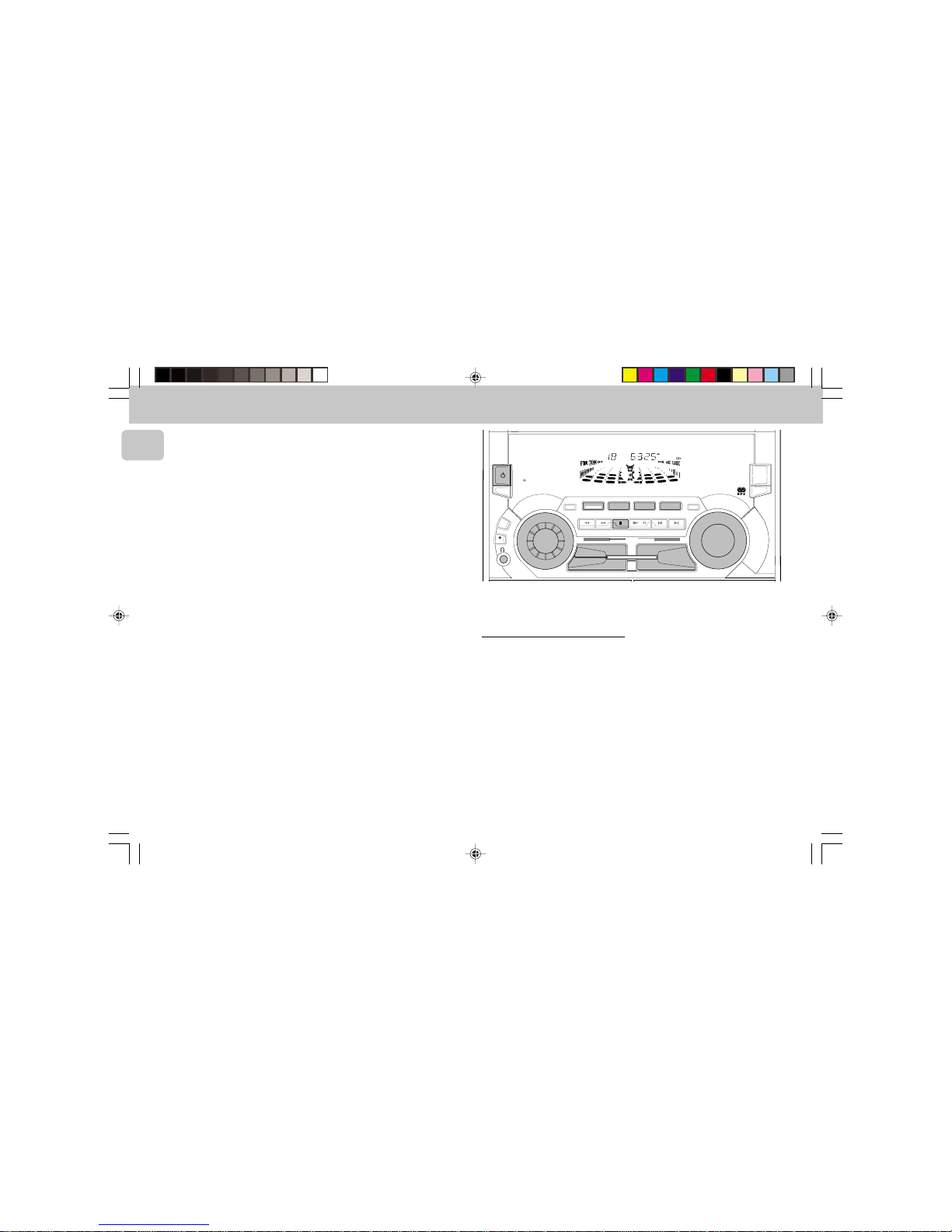

STEREO

BACK

HSD

REC

T.A.

NEWS

INCREDIBLE SURROUND

DYNAMIC BASS BOOST

TAPE

PROG

CLOCK/ TIMER

S D

)

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

MINI HIFI SYSTEM

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

SHUFFLE

PROGRAM

DIGITAL

SOUND CONTROL

REPEAT

A. REV

STANDBY ON

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

NEWS/TA

RDS

VOLUME

Important: Before you operate the system, complete the preparation procedures.

Demonstration mode

The system has a demonstration mode that shows the various features offered by the system.

When the system is switched on for the first time, the demonstration mode will start automatically.

Notes: – During the demonstration, if you press

any source (or standby-on) button, the system will switch to the respective mode (or standby).

– When the system is switched to standby

mode, the demonstration will resume 5 seconds later.

To stop the demonstration mode

• Press and hold Ç

(on the system only)

for

5 seconds

when the system is in

demonstration mode.

™ The demonstration will stop. ™ "DEMO OFF" is displayed. ™ The system will switch to standby

mode.

Notes: – When the system is switched on from

the main power outlet, the CD carousel tray may open and close again to initialize the set.

– Even though the AC power cord is

removed from and reconnected to the wall socket, the demonstration will remain off until it is switched on again.

Notes for remote control: – First select the source you wish to

control by pressing one of the source select keys on the remote control (e.g. CD, TUNER, etc.).

– Then select the desired function

(É, í, ë, etc.).

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM10

Page 11

3139 115 20071

English

OPERATING THE SYSTEM

To start the demonstration mode

• Press and hold Ç

(on the system only)

for

5 seconds

when the system is in standby mode. ™ The demonstration will begin.

Easy Set

EASY SET allows you to store all available radio stations and RDS stations automatically.

1 Press and hold STANDBY ON

(on the

system only)

for

5 seconds

; when the system is in standby or demonstration mode. ™ "EASY SET" will be displayed,

and followed by "TUNER" and then "AUTO".

™ EASY SET will start searching for all

RDS radio stations with sufficient signal strength and then followed by radio stations on FM, MW and LW band respectively. Weak RDS radio stations may be stored in later presets.

™ All available RDS and radio stations

with sufficient signal strength will be stored. Up to 40 presets may be stored.

2 The system will proceed to set the RDS

time automatically with the stored RDS preset station.

• If no RDS station is available in the first preset station, the program will exit automatically. ™ After a radio station is found,

"EASY SET" will be displayed and followed by "TIME".

• When searching RDS time; ™ "SEARCH RDS TIME" will be

displayed.

™ When RDS time is read, "RDS

TIME" will be displayed. The

current time will be displayed for 2 seconds and stored automatically.

Notes: – EASY SET will start with the RDS

station, if there are still presets available, it will continue to store the FM, MW and LW bands respectively.

– When EASY SET is used, all previously

stored radio stations will be replaced.

– The last preset radio station or the first

available RDS station will appear on the display when EASY SET is completed.

– If RDS station does not transmit RDS

time within 90 seconds, the program will exit automatically and the display will show “

NO RDS TIME

”.

Switching the system ON

• Press CD, TUNER, TAPE or AUX.

You can also switch on the system by pressing any one of the DISC DIRECT PLAY buttons.

Switching the system to standby mode

• Press STANDBY ON or B on the

remote control. ™ The system will switch to standby

mode.

Selecting the Source

• Press the respective source selection

button: CD, TUNER, TAPE or AUX. ™ The display indicates the selected

source.

Note: – For an external source, make sure you

have connected the audio left and right OUT terminals of the external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX/ CDR IN terminals.

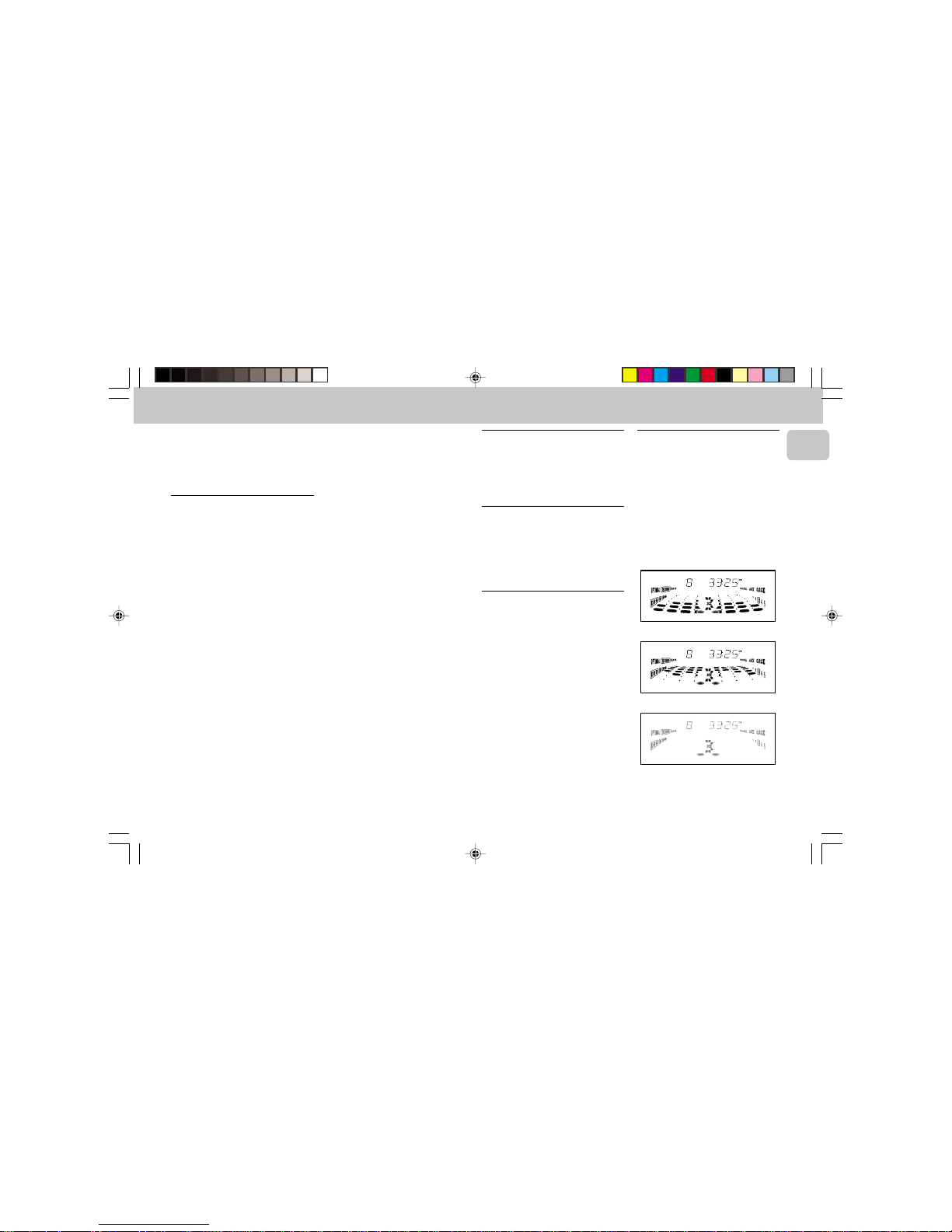

Selecting the Equalizer Display

You can select the desired equalizer display for the system. You must not press the DSC or INCREDIBLE SURROUND button on the system before using the JOG control.

• Adjust the JOG control to select the

desired Equalizer Display, NORMAL, TOP DOWN, or NITE MODE. ™ The selected display will be shown.

NORMAL Display

FRONT

STEREO

BACK

HSD

REPEAT

REC LW

T.A.

NEWS

TIMER

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

PROGRAM

TOP DOWN Display

FRONT

STEREO

BACK

HSD

REPEAT

REC LW

T.A.

NEWS

TIMER

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

PROGRAM

NITE MODE Display

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

FRONT

STEREO

BACK

HSD

REPEAT

REC LW

T.A.

NEWS

TIMER

PROGRAM

Note: – In NITE MODE, all lights will be

switched off and the display brightness will be dimmed.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM11

Page 12

3139 115 20071

English

OPERATING THE SYSTEM

Sound Control

VOLUME ADJUSTMENT

Adjust VOLUME to increase or decrease the sound level.

For Personal Listening

Connect the headphones plug to the n socket at the front of the system. The speakers will be muted.

INCREDIBLE SURROUND

Normal stereo sound is determined by the distance between the front speakers. When Incredible Surround is switched on, it magnifies the virtual distance between the front speakers for an incredibly wide, enveloping, stereo effect. There are 12 different Incredible Surround levels available for selection.

• Press INCREDIBLE SURROUND to

switch on. ™ The INCREDIBLE SURROUND display lights

up.

™ "IS XX" will be displayed.

Note: – "XX" is the last selected Incredible

Surround level.

You can change the Incredible Surround level with the JOG.

• Adjust the JOG control to select the desired Incredible Surround level immediately after selecting the Incredible Surround feature. ™ The Incredible Surround level will

increase or decrease between level 1 and 12.

To switch off Incredible Surround

• Press INCREDIBLE SURROUND again.

™ The INCREDIBLE SURROUND display is

switched off.

™ "IS OFF" will be displayed.

DIGITAL SOUND CONTROL (DSC)

The DSC feature enables you to adjust the system to suit your type of music.

• Press DIGITAL SOUND CONTROL (DSC) to select OPTIMAL, CLASSIC,

TECHNO, JAZZ, ROCK or VOCAL. ™ The selected digital sound is

encircled.

™ "OPTIMAL X, CLASSIC,

TECHNO X, JAZZ X, ROCK X or VOCAL X" will be

displayed. "X" is the pre-selected level.

With the JOG control, you can change the level of any DSC setting except CLASSIC.

• First select the DSC feature, then adjust the JOG control until the desired digital sound setting level is reached. ™ The digital sound setting level will

increase or decrease between level 1 and 5.

Note: – For neutral setting, select CLASSIC and

switch off DBB.

DYNAMIC BASS BOOST (DBB)

There are three DBB settings to enhance the bass response.

• Press DBB briefly to select a bass boost level. ™ The respective DBB level will be

encircled and lit.

™ "BEAT", "PUNCH" or "BLAST"

will be displayed.

To switch off DBB

• Press DBB briefly until "DBB OFF" is displayed.

Note: – Some CDs or tapes might be recorded in

high modulation, which causes a distortion at high volume. If this occurs, switch off DBB or reduce the volume.

Automatic DSC-DBB selection

The best DBB setting is generated automatically for each DSC selection. You can manually select the DBB setting that best suits your listening environment.

MUTE (on remote control only)

This feature allows you to temporarily switch off the sound without switching off the system when you require a moment of silence.

1 Press MUTE on the remote control to

switch off the sound. ™ "MUTE" will be displayed.

2 Press MUTE again on the remote

control or increase the VOLUME level to switch on the sound.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM12

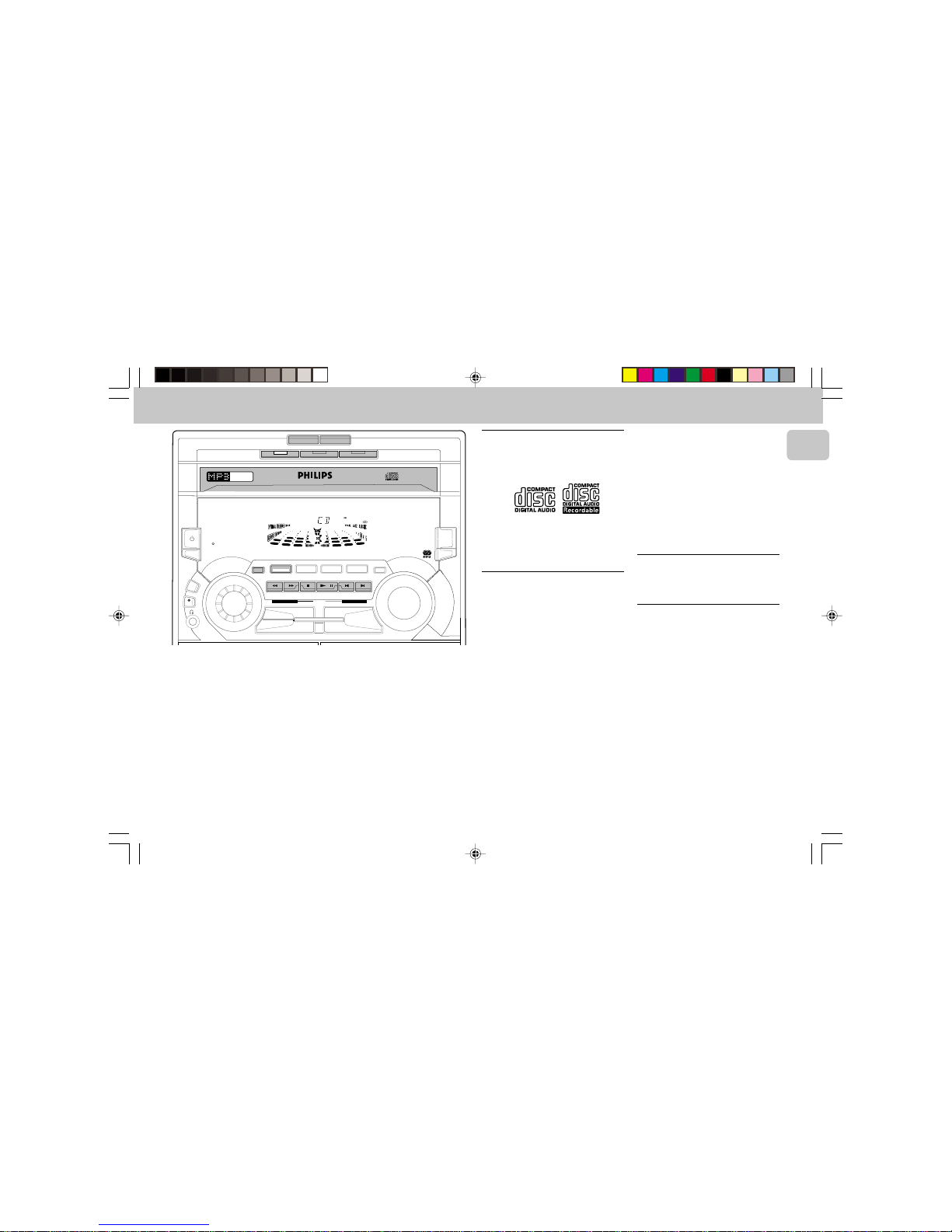

Page 13

3139 115 20071

English

Warning!

1) This system is designed for conventional Discs. Do not use any accessories such as disc stabilizer rings or disc treatment sheets, etc., which may damage the disc mechanism.

2) Do not load more than one disc into each tray.

3) When the disc changer is loaded with Discs, do not turn over or shake the system. This may jam the changer.

You may load three discs in the disc changer for continuous playback without interruption.

TIMER

STEREO

BACK

HSD

REPEAT

REC LW

T.A.

NEWS

DISC CHANGE

DISC 1 DISC 2 DISC 3

OPEN•CLOSE

)

MINI HIFI SYSTEM

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

SHUFFLE

PROGRAM

INCREDIBLE

SURROUND

DYNAMIC BASS BOOST

TAPE

PROG

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

A. REV

STANDBY ON

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

NEWS/TA

RDS

MP3-CD

PLAYBACK

CHANGER

VOLUME

CD / MP3-CD

Discs for playback

This system can playback all audio CD, finalized audio CD-Recorder and MP3 format discs.

Note: – For mixed mode discs, only one mode

will be selected for playback depending on the recording format.

Loading the Disc Changer

1 Press CD to select CD/MP3-CD mode. 2 Press OPEN•CLOSE.

™ The disc carousel tray slides out.

3 Load a disc with the printed side up in

the right tray.

• You can load another disc in the left tray.

• To load the third disc, press the DISC CHANGE button.

™ The disc carousel tray will rotate

until the empty tray is ready for loading.

™ Playback will always start with the

disc in the inner disc tray.

4 Press OPEN•CLOSE to close the disc

carousel tray. ™ The total number of tracks and the

playing time of the last selected disc appear on the display.

For MP3-CD only:

™ The first Album and the first Title

information appear on the display.

Notes: – To ensure good system performance,

wait until the disc changer completely reads the disc before proceeding.

– For MP3-CD, the disc reading time may

exceed 10 seconds due to the large number of songs compiled into one disc.

Disc Direct Play

You can play a disc directly by pressing the

DISC 1, DISC 2 or DISC 3 button.

Playing a normal disc

1 Press PLAYÉÅ to start playback.

™ The disc tray, track number and

elapsed playing time of the current track appear on the display.

• To interrupt playback, press PAUSE

ÉÅ. ™ The playing time flashes.

• To resume playback, press PLAYÉÅ

again.

2 To stop playback, press Ç.

Note: – During Disc Reading mode, if you press

any button, "

PLEASE WAIT

" will

be displayed.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM13

Page 14

3139 115 20071

English

CD / MP3-CD

Disc Change

You can change the outer two discs while the third inner disc is stopped or is playing.

1 Press DISC CHANGE.

™ The disc carousel tray slides out.

2 Replace the discs in the left and right

disc trays.

• If you press DISC CHANGE again

during playback, the disc will stop playing. ™ The disc carousel tray will rotate

until the inner tray is rotated out and is ready for changing.

3 Press OPEN•CLOSE to close the disc

carousel tray.

Selecting a desired track

Selecting a desired track when playback is stopped

• Press digit 0 – 9 on the remote control

to select the desired track. ™ Playback will start immediately for

the selected track.

™ The selected track number and

elapsed playing time appear on the display.

Selecting a desired track during playback

• Press í or ë

(or digit 0-9 on the

remote control)

until the desired track appears on the display. ™ The selected track number and

elapsed playing time appear on the display.

• If you press í once it will skip to the

beginning of the previous track and play the track.

For MP3-CD only

1 Press ALBUM

+ until the desired

Album appears on the display.

2 Press TITLE

+ until the desired

Title appears on the display. ™ The selected track number and

elapsed playing time appear on the display.

3 Press PLAYÉÅ to start playback.

Searching for a particular passage during playback

• Press à or á until the desired

passage is located. ™ The volume will be reduced.

• Press PLAYÉÅ to resume normal

playback.

Programming Tracks

Programming tracks of a loaded disc is possible when playback is stopped. The display will indicate the total tracks stored in the program. Up to 99 tracks can be stored in the memory in any order. When 99 tracks are stored and you attempt to store another track, the display will show “FULL”.

1 Load the desired discs in the disc trays. 2 Press the CD (CD 1•2•3) button to

select the disc tray. ™ Programming can only be done on the

selected disc.

3 Press PROG to start programming.

™ The PROGRAM starts flashing. ™ It will cancel any previously

programmed tracks and selected repeat mode.

4 Pressí or ë

(or digit 0-9 on the

remote control)

to select the desired

track.

• For MP3-CD, press ALBUM

and TITLE

+ to select the

desired Album and Title for programming.

5 Press PROG to store the track.

• Repeat steps 4 to 5 to store other tracks.

6 Press Ç once to end programming.

™ The total number of tracks

programmed and total playing time appear on the display.

Notes: – For MP3-CD, total playing time will not

be shown.

– If the total playing time is more than

“

99:59

” then “

--:--

” appears on the display instead of the total playing time.

– If the system is reading the disc,

programming is not possible,

“

READING DISC

” will be

displayed.

– During programming, if no button is

pressed within 20 seconds, the system will exit program mode automatically.

Reviewing the program

Reviewing of program is possible only when playback is stopped. 1 Press í or ë repeatedly to review

the programmed tracks.

2 Press Ç to exit review mode.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM14

Page 15

3139 115 20071

English

Playing the program

1 Press PLAY ÉÅ to start program

playback. ™ "PLAY PROGRAM" will be

displayed.

™ The track number and elapsed

playing time of the current track will appear on the display.

• If you press REPEAT during program

playback, all programmed tracks will be played repeatedly.

™ “REPEAT TRACK”, "REPEAT

PROGRAM" or "REPEAT OFF"

will be displayed.

™ The REPEAT and PROGRAM appear on

the display.

2 Press Ç to stop program playback.

Note: – If you press any other DISC DIRECT

PLAY buttons, the system will play the selected disc or track and the stored program will be cleared.

Erasing the program

(when

playback is stopped)

• Press Ç.

™ “PROGRAM CLEARED” will be

displayed.

Note: – The program will be erased when the

system is disconnected from the power supply, the system is switched to standby mode, when you change source or when you change the program disc.

Repeat

(only on remote control)

You can play the current track or the current disc repeatedly during playback.

1 Press REPEAT on the remote control to

select the various repeat modes.

™ “REPEAT TRACK”, “REPEAT

DISC”or “REPEAT OFF” will

be displayed.

™ The REPEAT appears on the display.

• The current track or disc will now be

played repeatedly until you pressÇ.

2 Press REPEAT until the "REPEAT

OFF" mode is displayed to resume

normal playback. ™ The REPEAT disappears from the

display.

CD / MP3-CD

MP3 Disc

Album

This feature allows you to view and select the next or previous MP3-CD Album.

• Press ALBUM -/+ to scroll through

the previous or next Album name until the desired Album appears on the display. ™ The selected Album will appear on

the display and follow by "AXX TXXX".

Title

This feature allows you to view and select the next or previous MP3-CD Title.

• Press TITLE -/+ to scroll through

the previous or next Title name until the desired Title appears on the display.. ™ The selected Title will appear on the

display and followed by "AXX TXXX".

Notes: – "A" represents ALBUM and "T"

represents TITLE, "XX" or "

XXX

" is the

current selected Album or Title number.

– The ALBUM and TITLE will only be

displayed once when selected. To view the selected ALBUM or TITLE again, press the respective DISPLAY button on the remote control.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM15

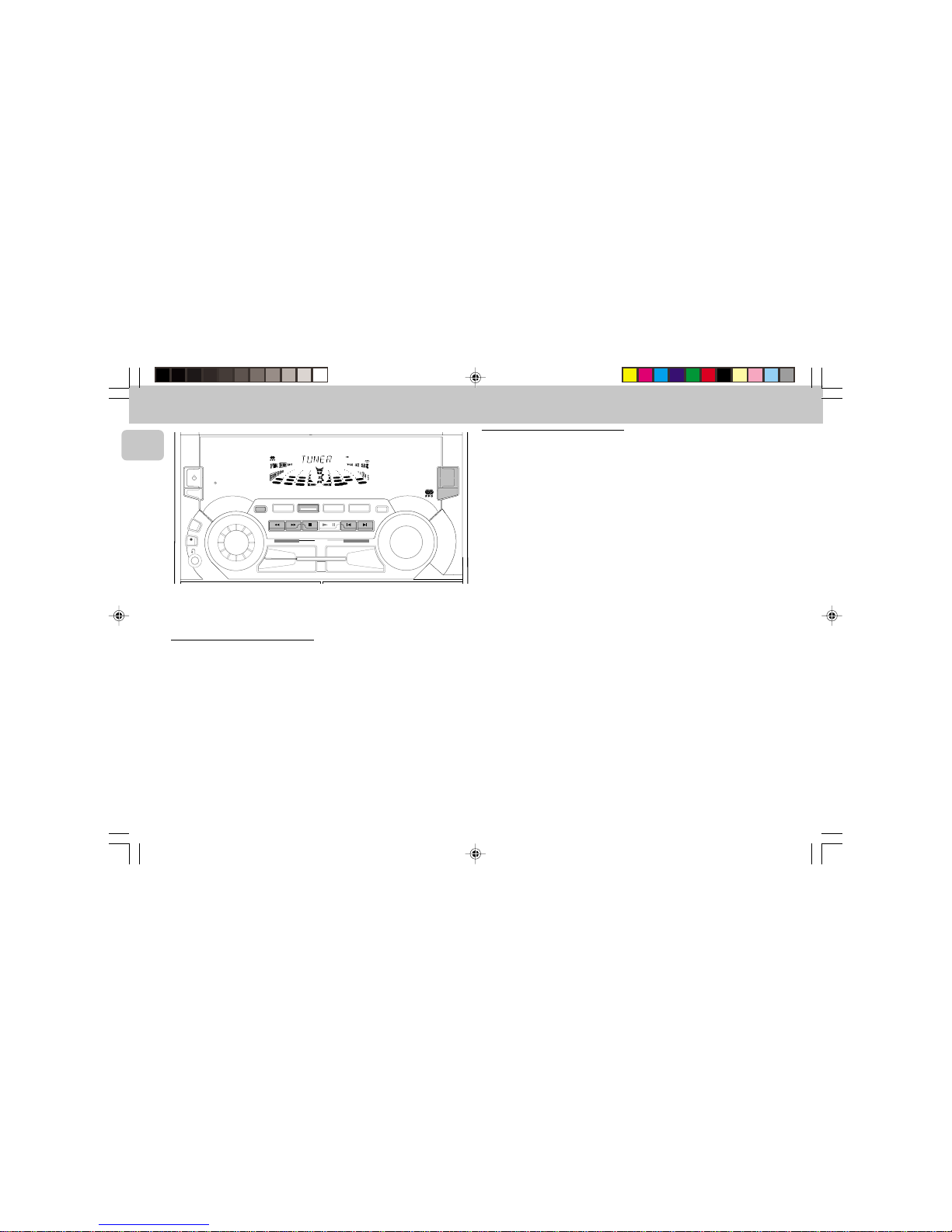

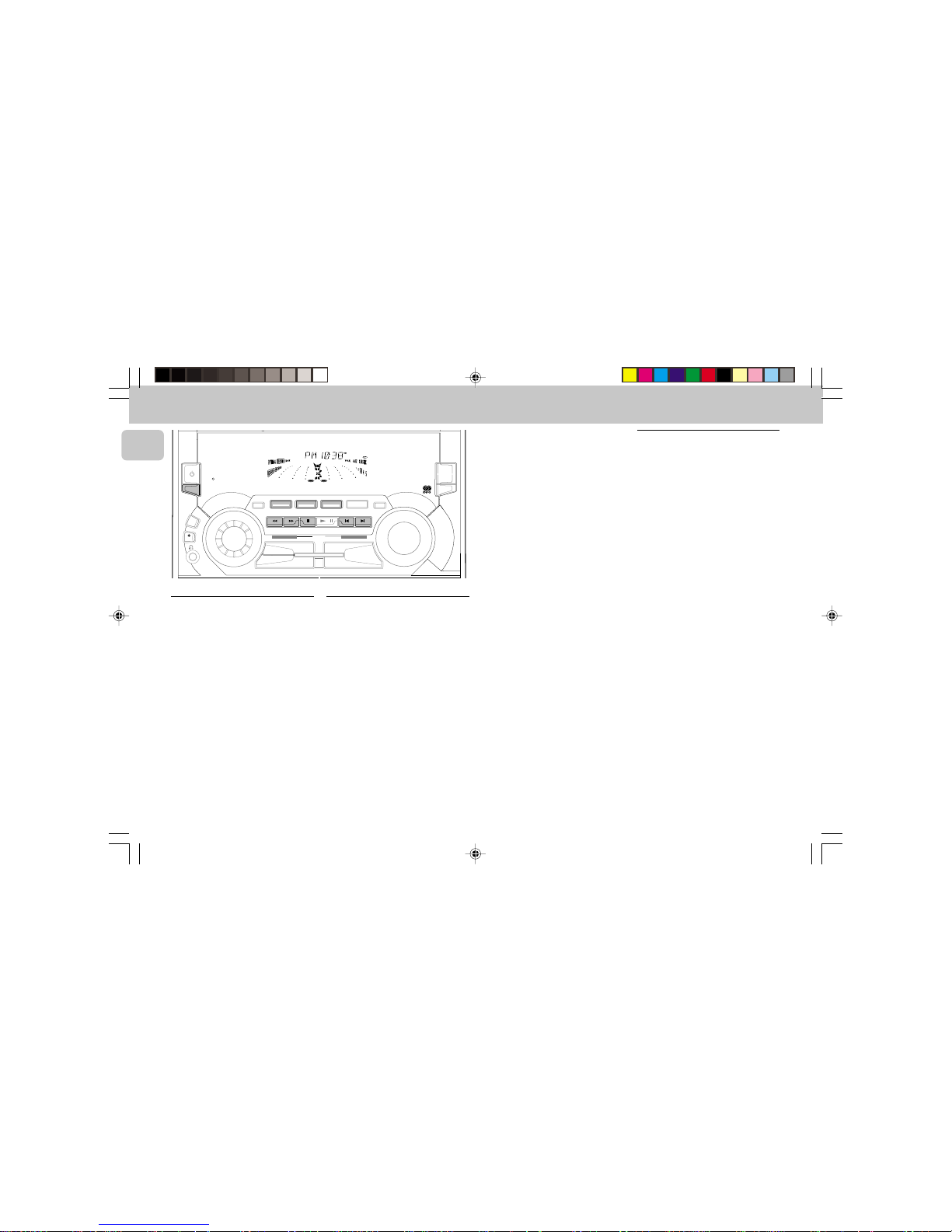

Page 16

3139 115 20071

English

REPEAT T.A.

TIMER

PROG

BACK

HSD

SHUFFLE

REC LW

B ( H

)

MINI HIFI SYSTEM

FRONT

STEREO

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

INCREDIBLE

SURROUND

DYNAMIC BASS BOOST

TAPE

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

NEWS

A. REV

STANDBY ON

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

NEWS/TA

RDS

PROGRAM

VOLUME

Note: – For 'EASY SET' feature, please refer to

page 11.

Tuning to radio stations

1 Press TUNER (BAND) to select TUNER

mode. ™ "TUNER" will be displayed.

A few seconds later, the current radio frequency will be displayed.

2 Press TUNER (BAND) again to select

the desired waveband : FM, MW or LW.

3 Press à or á for more than one

second, then release. ™ The display will show "SEARCH"

until a radio station with sufficient signal strength is found.

• Repeat this procedure until the desired station is reached.

• To tune to a weak station, briefly press à or á repeatedly until the display shows the desired frequency and/or when the best reception has been obtained.

Storing Preset Stations

You can store up to 40 radio stations in the memory. When a preset radio station is selected, the preset number appears next to the frequency on the display.

Automatic programming 1 Press TUNER (BAND). 2 Press PROG for more than one second.

™ The PROGRAM starts flashing and

"AUTO" will be displayed.

™ The system will start searching for all

radio stations with RDS and then followed by radio stations on FM, MW and LW band respectively.

™ All available stations will be stored

automatically. The frequency and preset number will be displayed briefly.

™ The system will stop searching when

all the available radio stations are stored or when the memory for 40 preset radio stations is used.

™ The system will remain tuned to the

last stored preset radio station.

Notes: – You can cancel the automatic

programming by pressing PROG or

(on the system only).

– If you want to reserve a section of

preset numbers, for example preset numbers 1 to 9, select preset 10 before starting automatic programming, only the preset numbers 10 to 40 will be programmed.

Manual programming 1 Press TUNER (BAND). 2 Press TUNER (BAND) again to select

the desired waveband : FM, MW or LW.

3 Press PROG for less than one second.

™ The PROGRAM starts flashing. ™ The next available preset number will

be displayed for selection.

4 Press à or á to tune to the desired

frequency.

• If you wish to store the radio station to another preset number, press 4 or 3 to select the desired preset number.

5 Press PROG again.

™ The PROGRAM disappears and the

radio station will be stored.

• Repeat

steps 3 – 5

to store other preset

radio stations.

Notes: – When 40 radio stations are stored and

you attempt to store another radio station, the display will show "

FULL

”. If you want to change an existing preset number, repeat steps 3 – 5.

– You can cancel manual programming by

pressing Ç (on the system only).

– During programming, if no button is

pressed within 20 seconds, the system will exit program mode automatically.

TUNER

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM16

Page 17

3139 115 20071

English

Receiving RDS Radio Station

RDS (Radio Data System) is a broadcasting service that allows FM stations to send additional information along with the regular FM radio signal. This additional information can contain:

• STATION NAME: The radio station

name is displayed.

• PROGRAM TYPE: The following

program types exist and can be received by your tuner: News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M, Rock M, M.O.R. (middle of the road music), Light M, Classics, Other M, No type.

• RADIO TEXT (RT): text messages

appear in the display.

When you have tuned to a RDS station, the RDS logo (Ç) and the radio station name will appear on the display:

• The display normally shows the radio station name if available. By repeatedly pressing RDS button you can change the type of display information:

™ The display shows in turn:

STATION NAME ™ PROGRAM TYPE ™ RADIO TEXT ™ TUNED FREQUENCY ™ STATION NAME ...

Note: – When you press the RDS button and the

display shows "

NO RDS

", it indicates that either the tuned station is not transmitting RDS signal or it is a non RDS station.

RDS Clock

Some RDS station may be transmitting a real clock time at an interval of every minute.

Setting the time with RDS clock 1 Press CLOCK/TIMER.

™ "--:--" or current time appears on

the display.

2 Press CLOCK/TIMER once more to

enter clock setting mode. ™ "00:00" or current time starts

flashing.

3 Press RDS.

™ The message "SEARCH RDS

TIME" will be displayed.

™ If the station does not transmit RDS

clock, "NO RDS TIME" will be displayed.

™ When the RDS clock is read, "RDS

TIME" will be displayed. The

current clock time is displayed for 2 seconds and will be stored automatically.

™ If within 90 seconds, the RDS time is

not detected, "NO RDS TIME" will be displayed.

Note: – Some RDS station may be transmitting a

real time clock at a minute interval. The accuracy of the transmitted time depends on the transmitting RDS station.

NEWS/TA (Traffic Announcement)

(only available in Radio Station with RDS)

You can activate NEWS or TA function in Standby, Demonstration or any source mode except Tuner mode. Once the News Program Type (for NEWS function) or Traffic Announcement data (for TA function) is detected in any of the selected RDS stations, it will switch to TUNER mode automatically.

NEWS/TA key toggles in the following sequence :

NEWS ™ TA ™ OFF ™ NEWS

To start NEWS or TA function 1 Press NEWS/TA to select NEWS

function. ™ The NEWS and "NEWS" will be

displayed.

• If you want to select TA function, press NEWS/TA again. ™ The TA and "TA" will be displayed.

TUNER

Tuning to Preset Radio Stations

• Press 4 or 3 to select the desired preset number. ™ The preset number, radio frequency,

and waveband appear on the display.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM17

Page 18

3139 115 20071

English

TUNER TAPE

STEREO

BACK

HSD

SHUFFLE

PROGRAM

REC

NEWS

TIMER

REPEAT

T.A.

DUB

(HSD)

MINI HIFI SYSTEM

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

INCREDIBLE SURROUND

DYNAMIC BASS BOOST

TAPE

PROG

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

A. REV

STANDBY ON

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

NEWS/TA

RDS

VOLUME

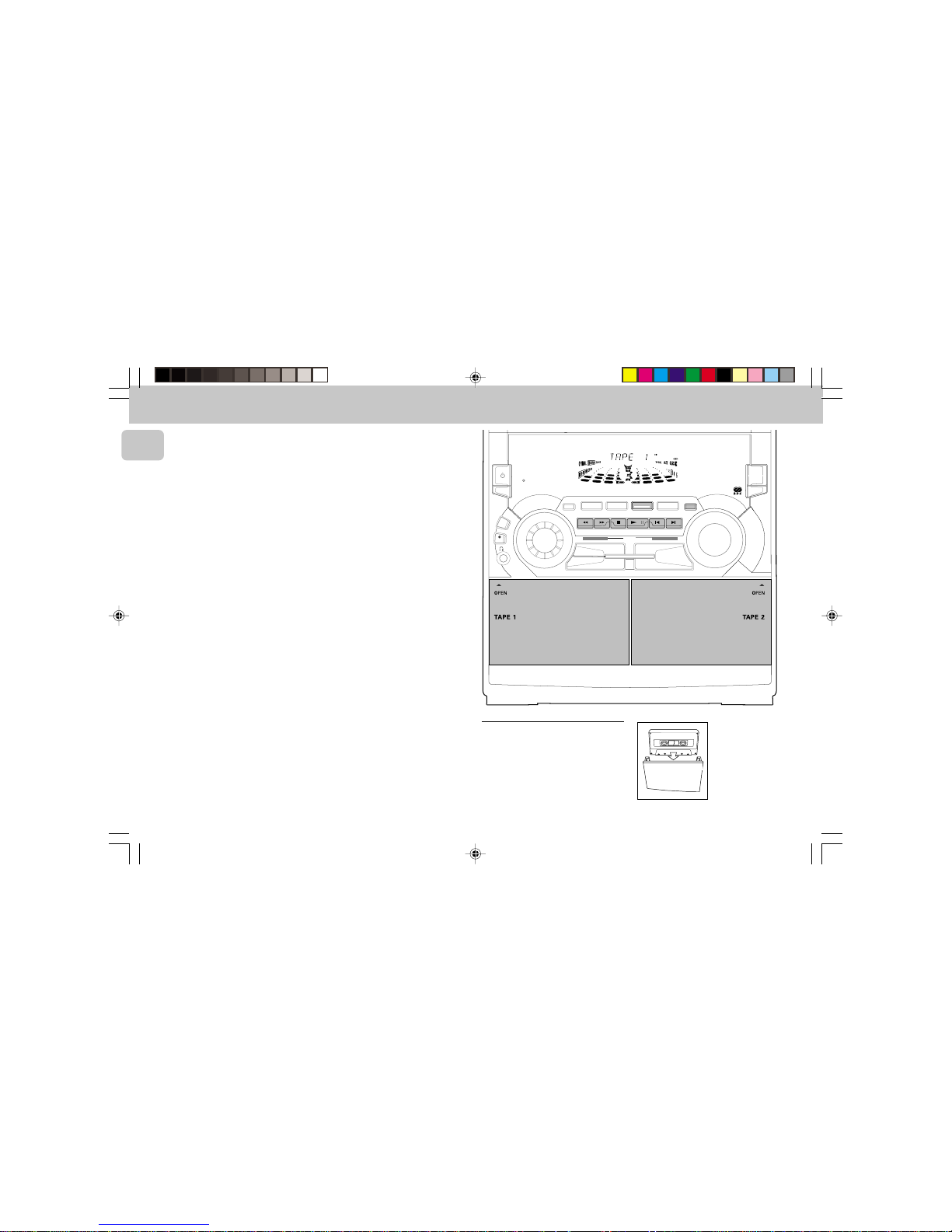

Loading a tape

1 Press OPEN. 2 The tape deck door opens. 3 Load the tape with the open side

downward and the full spool to the left.

4 Close the tape deck door.

2 When NEWS or TA is selected;

• It will scan stations stored in the first 5 preset and wait for the News Program Type / Traffic Announcement data to be available in any of these RDS stations. During the search : ™ The current source activity will

remain uninterrupted.

™ If no RDS station is found in the first

5 presets, the NEWS/TA function will be switched off. The display will show "NO RDS NEWS" or "NO RDS TA" and NEWS or TA will disappear from the display.

• When NEWS/TA transmission is detected, the system will switch to Tuner mode. ™ The NEWS or TA starts flashing.

To cancel NEWS or TA function

• Press NEWS/TA until the NEWS or TA disappears and "TA OFF" is displayed.

Notes: – If you are listening to a non RDS TUNER

radio station and should you decide to hear NEWS or TA, first select other source (e.g. CD, TAPE or AUX), then press NEWS/TA.

– Before using the NEWS or TA feature,

ensure that the first 5 presets are RDS stations.

– The NEWS/TA works only once for each

activation.

– During News bulletin or Traffic

Announcement, you can press any available source or Tuner function keys to cancel NEWS/TA function and execute the relevant source mode.

– If set is switched to Tuner source, the

NEWS/TA function will be cancelled, "

NEWS OFF

" or "

TA OFF

" will be displayed immediately after the "

TUNER

" message.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM18

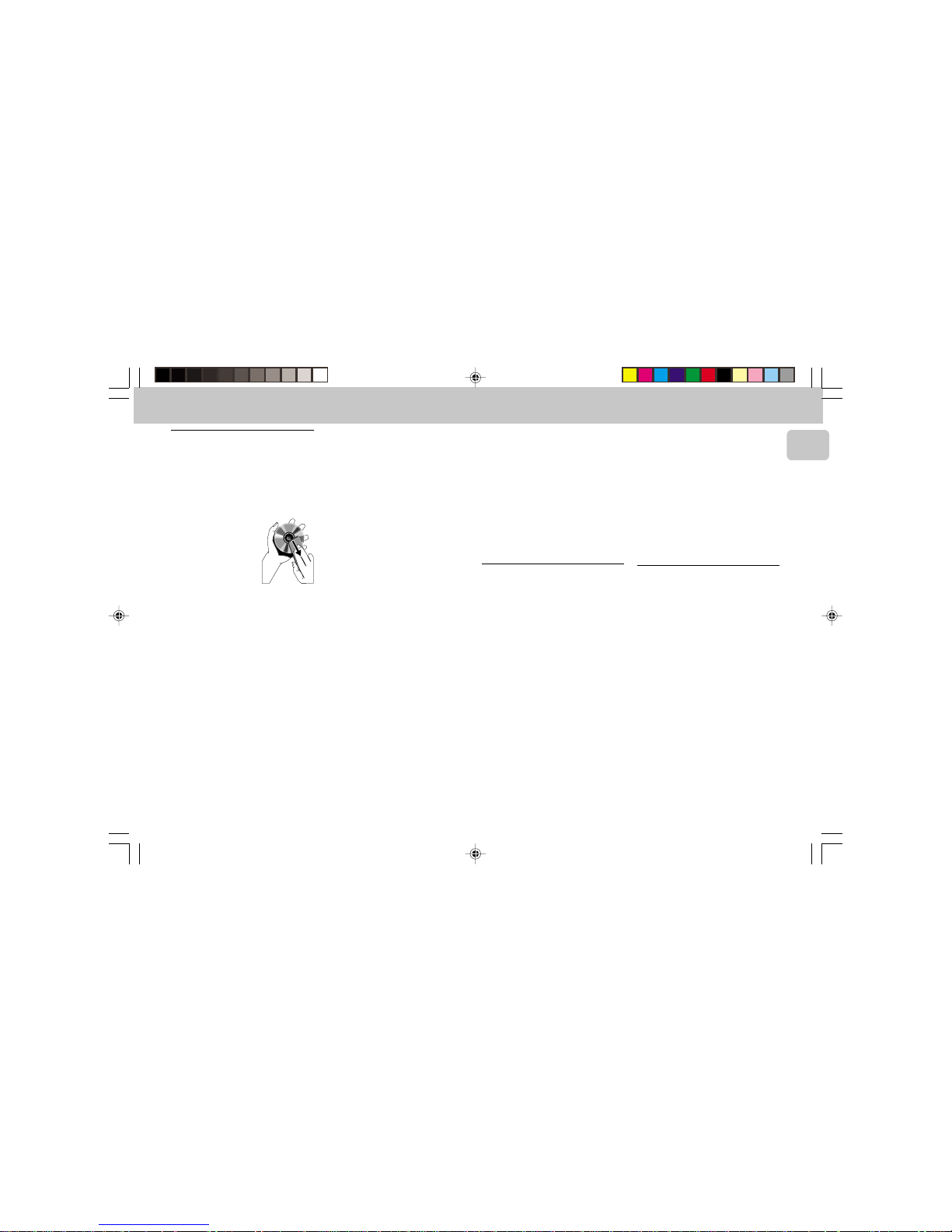

Page 19

3139 115 20071

English

TAPE

Tape Side

(only on tape deck 2)

• Press í or ë to select the tape side

for playback or recording. ™ The BACK or FRONT appear on the

display, depending on the tape side selected.

™ "T2 <<<" or "T2 >>>" will be

displayed.

™ When recording, the BACK or FRONT

display will be flashing.

Auto Reverse Playback

(only on

tape deck 2)

• Press A. REV to select the different

playback modes.

åå

å ...... to record or playback on one side

of the tape. The tape stops at the end of one side.

∂∂

∂ ..... to record or playback on both

sides of the tape. The tape then stops.

∫∫

∫ ... to playback continuously on both

sides of the tape up to a maximum of 10 times per side unless you press Ç.

Tape Playback

1 Press TAPE ( TAPE 1•2 ) to select TAPE

mode. ™ "TAPE 1" or "TAPE 2" will be

displayed, and followed by "T1 or T2" with "<<< or >>>".

• Press TAPE ( TAPE 1•2 ) again to select

either tape deck 1 or tape deck 2.

2 Load the tape into the desired tape

deck.

3 Press PLAYÉÅ to start playback.

• If tape 1 is selected for playback; ™ "T1 " with ">" scrolling right will be

displayed.

• If tape 2 is selected for playback; ™ "T2 " with "< or >" scrolling left or

right will be displayed depending on the tape side selected.

3a(for playback on tape deck 2 only)

• Press í or ë to select tape side

(see

Tape Side)

• Press A. REV to select the different type of playback mode

(see Auto Reverse

Playback)

4 Press Ç to end playback.

™ "T1 or T2" with "<<< or >>>"

will be displayed.

Rewind/Fast Forward

When playback is stopped 1 You can rewind or fast forward the tape

by pressing à or á respectively. ™ If rewinding, "T1 < or T2 <"

with "<" scrolling left will be displayed.

™ If fast forwarding, "T1 > or

T2 >" with ">" scrolling right will

be displayed

™ The tape will stop automatically at

the end of the rewinding or fast forwarding.

2 Press Ç to stop rewinding or fast

forwarding.

During playback

• Press and hold à or á until the

desired passage is located. ™ "T1 or T2" with "<< or >>"

scrolling left or right will be displayed depending on which button is pressed.

™ During searching, the sound is

reduced to a low volume.

™ When you release à or á, the

tape continues playing.

Notes: – During rewinding or fast forwarding of a

tape, it is also possible to select another source (e.g. CD, TUNER, or AUX).

– Before playing a tape, check and tighten

slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism.

– C-120 tape is extremely thin and is

easily deformed or damaged. It is not recommended for use in this system.

– Store the tapes at room temperature

and do not put them too close to a magnetic field (for example, a transformer, TV, or speaker).

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM19

Page 20

3139 115 20071

English

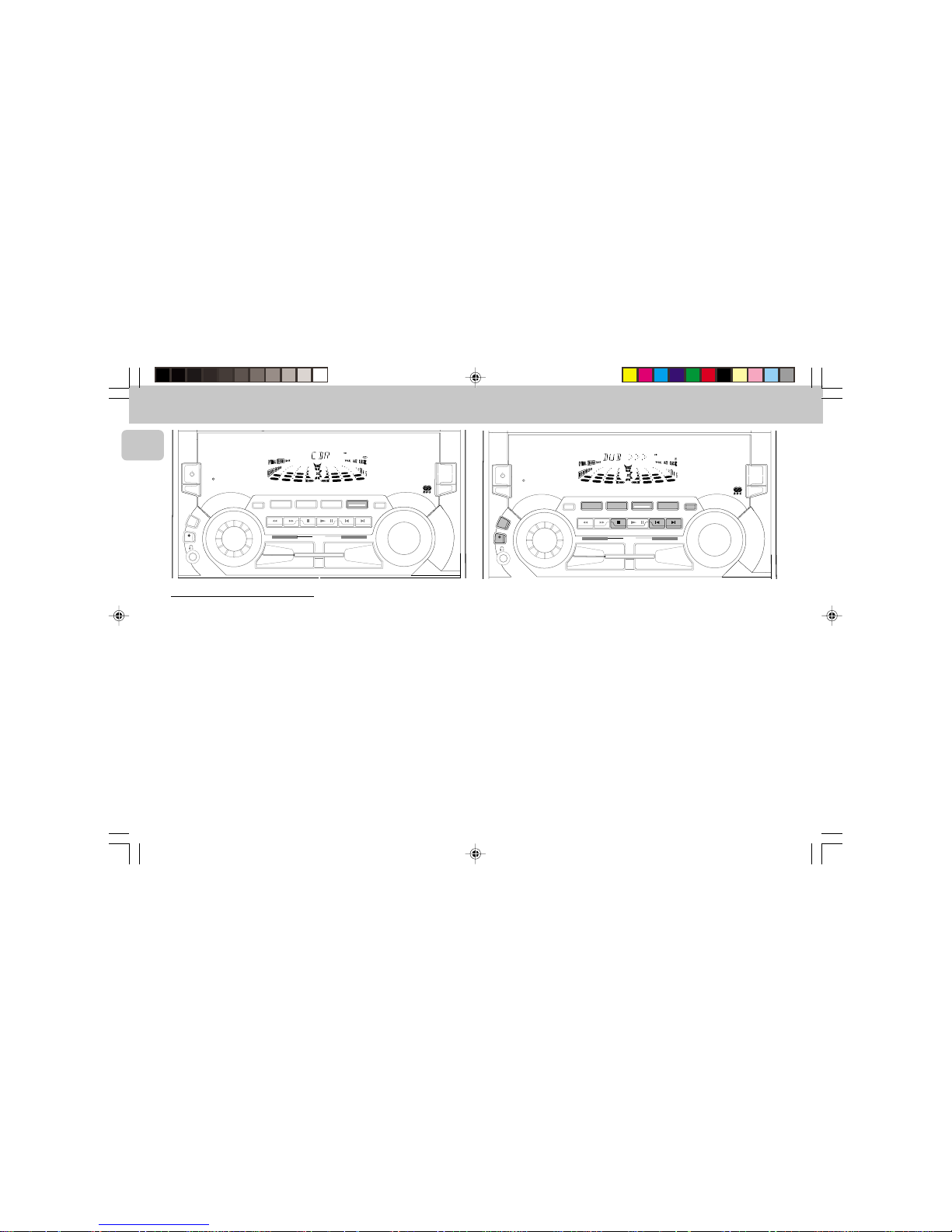

REC

SHUFFLE

TIMER

STEREO

BACK

HSD

REPEAT

PROGRAM

T.A.

NEWS

)

MINI HIFI SYSTEM

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

INCREDIBLE SURROUND

DYNAMIC BASS BOOST

TAPE

PROG

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

A. REV

STANDBY ON

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

NEWS/TA

RDS

VOLUME

AUX/CDR RECORDING

Selecting External Equipment

If you have connected the audio out terminals of the external equipment (TV, VCR, Laser Disc player, DVD player, or CD Recorder) to the AUX/CDR IN terminals, you can hear the enhanced sound from the system.

1 Press AUX to select CDR mode.

™ "CDR" will be displayed.

2 Press AUX again to select the external

(normal AUX) mode. ™ "AUX" will be displayed.

Notes: – There are two Auxiliary modes:

i. the normal AUX mode. ii. the CDR mode, where the LINE OUT

of this mini system is muted. You will not be able to record or listen to the sound from the LINE OUT.

– You are advised not to listen to and

record from the same source simultaneously.

– All the sound control features (e.g. DSC,

DBB, etc.) are available for selection.

REPEAT

SHUFFLE

PROGRAM

TIMER

STEREO

BACK

HSD

T.A.

NEWS

)

MINI HIFI SYSTEM

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

REC

INCREDIBLE SURROUND

DYNAMIC BASS BOOST

TAPE

PROG

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

A. REV

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

STANDBY ON

NEWS/TA

RDS

VOLUME

Notes: – It is not possible to change tape side

during recording.

– For recording, use only tape of IEC type I

(normal tape) or IEC type II (Cr02).

– The tape is secured at both ends with

leader tape. At the beginning and end of tape, nothing will be recorded for six to seven seconds.

– The recording level is set automatically,

regardless of the position of Volume, DBB, Incredible Surround or DSC.

– To prevent accidental recording, break

out the tab on the left shoulder of the tape side you want to protect.

– If “

CHECK TAPE

” is displayed, the protection tab has been broken. Put a piece of clear adhesive tape over the opening. Do not cover the Cr02 tape detection hole when covering the tab opening.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM20

Page 21

3139 115 20071

English

RECORDING

4 Press DUB (HSD)

once

for normal

speed dubbing or

twice (within 2

seconds)

for high speed dubbing.

™ "NORMAL" (normal speed) or

"FAST" (high speed) will be displayed, followed by "DUB" with "< or >" scrolling left or right depending on the tape side selected.

™ The HSD appears on the display

during high speed dubbing.

• Dubbing will start immediately. ™ The REC starts flashing.

5 Press Ç to stop dubbing.

Notes: – Only

å å

mode is available during

dubbing.

– At the end of side A, flip the tapes to

side B and repeat the procedure.

– Dubbing of tapes is only possible from

tape deck 1 to tape deck 2.

– To ensure good dubbing, use tapes of

the same length.

– During high speed dubbing in Tape

mode, the sound is reduced to a low volume.

– You can listen to another source while

dubbing.

Recording from other sources

(only on tape deck 2)

1 Press TAPE ( TAPE 1•2 ) to select tape

deck 2.

2 Load a blank tape into tape deck 2 with

the open side downward.

3 Press í or ë to select the recording

tape side

(see Tape Side under TAPE

section)

4 Press CD, TUNER or AUX.

• Start playback of the selected source. 5 Press REC to start recording.

™ The REC starts flashing.

6 Press Ç to stop recording.

Notes: – Only

åå

∂∂

∂

mode is available

during recording .

– During recording, it is not possible to

listen to another source.

Dubbing tapes

(from tape deck 1 to

tape deck 2)

1 Press TAPE ( TAPE 1•2 ) to select tape

deck 2.

2 Load the prerecorded tape into tape

deck 1 with full spool to the left and a blank tape into tape deck 2 with full spool aside.

3 Press í or ë to select the recording

tape side

(see Tape Side under TAPE

section)

CD/MP3-CD Synchro Start Recording

1 Load a blank tape into tape deck 2 and a

disc into a disc tray.

2 Press CD to select CD/MP3-CD mode.

• You can program the tracks in the order you want them to be recorded (see Programming Tracks). If not, select the disc by pressing CD (CD 1•2•3) and the tracks are recorded according to the order on the selected disc.

3 Press REC to start recording.

™ The REC starts flashing.

• Disc will start playback automatically.

4 Press Ç to stop recording.

One Touch Recording

• For One Touch Recording, as soon as you press REC, the current source (CD, TUNER or AUX) will be recorded on tape deck 2.

1 Load a blank tape in tape deck 2. 2 Press REC to start recording.

™ The REC starts flashing.

3 Press Ç to stop recording.

Note: – When you press RECORD while in TAPE

mode, "

SELECT SOURCE

" will be displayed. One Touch Recording is not possible in TAPE mode.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM21

Page 22

3139 115 20071

English

SHUFFLE

PROGRAM

STEREO

BACK

HSD

REPEAT

REC LW

T.A.

NEWS

(

)

MINI HIFI SYSTEM

TIMER

FRONT

60Hz

500Hz

250Hz

1KHz

2KHz

4KHz

8KHz

INCREDIBLE SURROUND

DYNAMIC BASS BOOST

TAPE

PROG

CLOCK/ TIMER

TUNER AUX

PRESET

▲

STOP•CLEAR

SEARCH • TUNING

PLAY

PAUSE PREV NEXT

CD1 • 2 • 3

CDR/VIDEO

BAND

TAPE 1 • 2

DIGITAL

SOUND CONTROL

A. REV

STANDBY ON

SIDE

SOUND NAVIGATION

MP3•CD

ALBUM

MP3-CD

TITLE

NEWS/TA

RDS

VOLUME

View Clock

You can view the clock (if it is set) if the system is in Standby mode or when any sound source is selected (CD, TUNER, etc.). The clock will be displayed for about 7 seconds.

• Press CLOCK/TIMER briefly. ™ "PM 10:38 or 22:38" (the

current time) will be displayed depending on whether you have selected 12- or 24-hour mode.

™ "--

:--" will be displayed if the

clock is not set.

Clock Setting

The clock can be set in either 12- or 24hour mode, e.g. "AM 12:00" or "00:00". Before setting the clock, you must be in the View Clock mode.

1 Press CLOCK/TIMER to select clock

mode.

2 Press PROG

(on the system only)

to select 12- and 24- hour mode. ™ If 12-hour mode is selected,

"AM 12:00" starts flashing.

™ If 24-hour mode is selected,

"00:00" starts flashing.

3 Set the hour with à or á on the

system.

4 Set the minute with í or ë on the

system.

5 Press CLOCK/TIMER again to store the

setting. ™ The clock starts.

• To exit without storing the setting, press

Ç on the system.

Notes: – During clock setting, if no button is

pressed within 90 seconds, the system will exit clock setting mode automatically.

– When a power interruption occurs, the

clock setting is erased.

– To set the time with RDS clock, see

"Receiving RDS Radio Station" under TUNER section.

Timer Setting

• The system can switch on to CD, TUNER, or TAPE 2 mode automatically at a preset time. It can serve as an alarm to wake you up.

• Before setting the timer, make sure the clock is set correctly.

• The timer will always be switched on once it is set.

• The volume of the timer will increase from the minimum level until the volume level before the set is switched to standby mode.

1 Press and hold CLOCK/TIMER for more

than

2 seconds

to select timer mode.

™ “ AM 12:00” or “00:00" or the

last timer setting starts flashing depending on whether you have selected 12- or 24-hour mode.

™ The TIMER starts flashing. ™ The selected source is lit while other

available sources are flashing.

2 Press CD, TUNER or TAPE to select the

desired source.

• Before selecting CD or TAPE, make sure a disc or tape is loaded in the disc tray or tape deck 2.

3 Press à or á on the system to set

the hour for the timer to start.

4 Press í or ë on the system to set

the minute for the timer to start.

CLOCK TIMER

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM22

Page 23

3139 115 20071

English

5 Press CLOCK/TIMER to store the start

time.

™ The timer is now set. ™ The TIMER remains on the display.

• At the preset time, the timer will be activated. ™ The selected source will be played.

Notes: – During timer setting, if no button is

pressed within 90 seconds, the system will exit timer setting mode automatically.

– If the source selected is TUNER, the last

tuned frequency will be switched on.

– If the source selected is CD, playback

will begin with the first track of the selected disc or program. If the CD trays are empty, TUNER will be selected instead.

– If the source selected is TAPE, and if the

preset time is reached during high speed dubbing, the TUNER will be selected instead.

– The timer will not activate if a recording

is in progress.

To switch off the TIMER 1 Press and hold CLOCK/TIMER for more

than

2 seconds

2 Press Ç on the system to cancel the

timer.

™ The timer is now switched off. ™ The display will show "OFF" and the

TIMER disappears.

To start the TIMER again

(for the same

preset time and source)

1 Press and hold CLOCK/TIMER for more

than

2 seconds

2 Press CLOCK/TIMER again to store the

start time.

™ The timer is now on. ™ The TIMER appears on the display.

TIMER SLEEP TIMER

Sleep Timer

(only on remote control)

This feature allows you to select a length of time after which the system will switch to the standby mode automatically.

1 Press SLEEP on the remote control

repeatedly to select a period of time. ™ The selections are as follows (time in

minutes):

60 ™ 45 ™ 30 ™ 15 ™ OFF ™ 60 …

™ "SLEEP XX" or "OFF" will be

displayed. "XX" is the time in minutes.

2 When you reach the desired length of

time, stop pressing the SLEEP button. ™ After this amount of time passes, the

system will switch to the standby mode.

To switch off the Sleep Timer

• Press SLEEP repeatedly until "OFF" is displayed, or press the STANDBY ON button.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM23

Page 24

3139 115 20071

English

SPECIFICATIONS

Specifications

AMPLIFIER

Output power ..................... 2 x 80 W MPO / 2 x 40 W RMS

(1)

Signal-to-noise ratio ....................................≥ 75 dBA (IEC)

Frequency response .........................40 – 20000 Hz, ± 3 dB

Input sensitivity

AUX/CDR In ............................................................... 1 V

Output

Speakers ................................................................ ≥ 6 Ω

Headphones ............................................ 32 Ω – 1000 Ω

Subwoofer Out ........................... 1.5 V ±2dB, > 22000 Ω

Line Out .................................. 500 mV ±2dB, > 22000 Ω

(1) (6 Ω, 1 kHz, 10% THD)

DISC PLAYER

Number of programmable tracks ................................... 99

Frequency response ..................................... 40 – 20000 Hz

Signal-to-noise ratio ............................................ ≥ 76 dBA

Channel separation .................................... ≥ 79 dB (1 kHz)

Total harmonic distortion .......................... < 0.02% (1 kHz)

MPEG 1 Layer 3 (MP3-CD) ............................ MPEG AUDIO

MP3-CD bit rate ......................................... 128 – 320 kbps

TUNER

FM wave range ......................................... 87.5 – 108 MHz

MW wave range ........................................ 531 – 1602 kHz

LW wave range............................................ 153 – 279 kHz

Number of presets .......................................................... 40

Antenna

FM .................................................................. 75 Ω wire

AM ............................................................ Loop antenna

TAPE DECK

Frequency response

CrO2 tape (type II) .......................... 60 – 15000 Hz (5 dB)

Normal tape (type I) ....................... 60 – 15000 Hz (5 dB)

Signal-to-noise ratio

CrO2 tape (type II) ............................................ ≥ 50 dBA

Normal tape (type I) ......................................... ≥ 47 dBA

Wow and flutter .............................................. ≤ 0.4% DIN

SPEAKERS

System .............................. 2-way; double port bass reflex

Impedance ................................................................... 6 Ω

Woofer .................................................................. 1 x 5.25"

Tweeter................................................................... 1 x 2.5"

Dimensions (w x h x d) ..................... 240 x 310 x 315 (mm)

Weight .............................................................. 3.9 kg each

GENERAL INFORMATION

Material/finish ..................................... Polystyrene/Metal

AC Power ............................................ 220 – 230 V / 50 Hz

Power Consumption

Active ..................................................................... 75 W

Standby ............................................................... < 15 W

Dimensions (w x h x d) ..................... 265 x 310 x 390 (mm)

Weight (without speakers) ..................................... 7.33 kg

Subject to modification

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM24

Page 25

3139 115 20071

English

MAINTENANCE TROUBLESHOOTING

Warning! Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee. Do not open the set as there is a risk of electric shock.

• If a fault occurs, check the points listed below before taking the system for repair.

• Should any problems persist after you have made these checks, consult your nearest dealer or service center.

Disc Player Operation

“UNREADABLE DISC” is displayed.

• The disc is inserted upside down.

™

Place disc with printed side up.

• Moisture condensation at the lens.

™ Wait until lens has adjusted to normal

room temperature.

• The disc is dirty, badly scratched or

warped.

™

Clean or replace the disc.

• The disc lens is dirty or dusty

™

See section under Maintenance (page

25).

• The CD-R disc is not properly recorded for the use of a standard CD player.

™

The CD-RW disc is inserted.

™

Read the instruction booklet of your CD-Recorder on how to finalize a recording.

™

A incorrect MP3-CD format disc is inserted.

“NO DISC” is displayed.

• There is no disc in the disc tray.

™

Insert a disc.

Radio Reception

Poor radio reception.

• The signal is too weak.

™

Adjust the antenna.

™

Connect an external antenna for better reception.

• The TV or VCR is too close to the stereo system.

™

Separate the stereo system from the TV or VCR.

“NO RDS TEXT” is displayed.

• RDS text message is not available.

™

Select another RDS station.

Maintenance

Cleaning the Cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog records.

Cleaning the disc lens

• After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

• To ensure good recording and playback quality, clean the heads, the capstan(s), and pressure roller(s) after every 50 hours of tape operation.

• Use a cotton swab slightly moistened with cleaning fluid or alcohol.

• You can also clean the heads by playing a cleaning tape once.

Demagnetizing the heads

• Use a demagnetizing tape available at your dealer.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM25

Page 26

3139 115 20071

English

TROUBLESHOOTING

General

System does not react when any button is pressed.

• Electrostatic discharge.

™

Press STANDBY ON to switch the system off. Remove the AC power plug from the wall outlet, then reconnect the power plug and switch on the system again.

No or poor sound.

• Volume is not turned up.

™

Adjust VOLUME.

• The headphones are connected.

™

Disconnect the headphones.

• Speakers are not connected or are

connected wrongly.

™

Check that the speakers are connected correctly.

™

Make sure the stripped speaker wire is clamped.

• The MP3-CD bit rate below 128 kbps.

™

Make sure the MP3-CD was recorded with minimum 128 kbps bit rate.

Reversed left and right sound.

• Speakers are connected wrongly.

™

Check the speaker connections and location.

Tape Deck Operation

Recording or playback cannot be made or there is a decrease in audio level.

• Dirty tape heads, capstans or pressure rollers.

™

See section on tape deck maintenance (page 25).

• Magnetic build-up in the record/ playback head.

™

Use demagnetizing tape.

Tape deck door cannot open.

• Power failure or AC power plug disconnect from the wall outlet during tape playback.

™

Reconnect the AC power plug and switch on the system again.

Lack of bass sound or apparently imprecise physical location of musical instruments.

• Speakers are connected wrongly.

™

Check the speaker connection for proper phasing, colored/black wires to colored/black terminals.

Remote control has no effect on the system.

• Wrong source is selected.

™

Select the source (CD, TUNER, etc.) before pressing the function button (É, í, ë, etc.).

• The distance to the system is too large.

™

Reduce the distance.

• Batteries are inserted incorrectly.

™

Insert the batteries with their polarities (+/– signs) as indicated.

• Batteries are exhausted.

™

Replace the batteries.

Timer is not working.

• Clock is not set.

™

Set the clock.

• Timer is not switched on.

™

Press CLOCK/TIMER to switch on the timer.

• Recording is in progress.

™

Stop recording.

Clock setting is erased.

• There was a power failure.

™

Reset the clock.

System displays features automatically; buttons flash continuously.

• Demonstration mode is switched on.

™

Press and hold Ç (on the system only) for 5 seconds to switch off the demonstration.

There is a howling sound at the external source.

• You hear feedback when you are listening from AUX mode.

™

Press AUX to select CDR mode.

All lighted buttons are not lit.

• Equalizer Display is switched on in NITE mode.

™

Adjust JOG to select other Equalizer Display.

FWM55-22-GB-ENG-V01 12/8/00, 1:57 PM26
