Philips FWD798-37B User Manual

Download

DVD Mini-HiFi System

FWD798

Thank you for choosing Philips.

Need help fast?

Read your Quick Use Guide and/or Owner's Manual first for quick tips

that make using your Philips product

more enjoyable.

If you have read your instructions

and still need assistance,

you may access our online help at

www.philips.com/usasupport

1-888-PHILIPS (744-5477)

(and Model / Serial number)

or call

while with your product.

Philips vous remercie de

votre confiance.

Besoin d'une aide

rapide?

Les Guide d'utilisation rapide et Manuel de l'utilisateur regorgent d'astuces destinées à

simplifier l'utilisation de votre produit Philips.

Toutefois, si vous ne parvenez pas à résoudre

votre probléme, vous pouvez accéder à

notre aide en ligne à l'adresse

www.philips.com/usasupport

ou formez le

1-800-661-6162 (Francophone)

1-888-PHILIPS (744-5477) (English speaking)

Veillez à avoir votre produit à

portée de main.

(et model / serial nombre)

Gracias por escoger Philips

Necesita ayuda

inmediata?

Lea primero la Guía de uso rápido o el

Manual del usuario, en donde encontrará

consejos que le ayudarán a disfrutar

plenamente de su producto Philips.

Si después de leerlo aún necesita ayuda,

consulte nuestro servicio de

asistencia en línea en

www.philips.com/usasupport

o llame al teléfono

1-888-PHILIPS (744-5477) y tenga a mano el producto. (y número de model / serial)

Canada

English:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français:

Cet appareil numérique n'emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Class B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

≤

∞

3 4

5 6 7

8 9

™ ¡

)

(

* &

% $

# @

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near

water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the

safety purpose of the

polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult and electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/ accessories

specified by the manufacturer.

AC Polarized

Plug

12.

13.

Unplug this apparatus during lightning

storms or when unused for long periods of time.

14.

Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid hs been spilled or objects have fallen into the apprartus, the apparatus has been exposed to rain or moisture, does not operate normaly, or has been dropped.

15.

Bettery usage CAUTION – To

prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:

● Install all batteries correctly, + and – as

marked on the unit.

● Do not mix batteries (old and new or

carbon and alkaline, etc.).

● Remove batteries when the unit is not used

for a long time.

16.

Apparatus shall not be exposed to dripping or splashing.

17.

Do not place any sources of danger on the apparatus. (e.g. liquid filled objects,

lighted candles).

18.

This product may contain lead and mercury. Disposal of these material may be regulated due to environment considerations.

For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

Use only with the cart, stand,

tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

EL 6475-E004: 03/12

'CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTRE'.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

ATTENTION

L'utilisation des commandes ou réglages ou le non-respect des procédures ci-incluses peuvent se traduire par une exposition dangereuse à l'irradiation.

ATENCIÓN

El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

Index

English ------------------------------------------------ 8

Français -------------------------------------------- 54

Español ------------------------------------------- 100

English

Français

Español

Contents

English

General Information/ Maintenance

Features ................................................................ 10

Discs for playback .............................................. 10

Region codes

Supplied accessories .......................................... 10

Environmental information .............................. 11

Care and safety information ............................ 11

Connections

Step 1: Placing speakers and subwoofer........ 12

Step 2: Connecting speakers and subwoofer ....

................................................................................ 12

Step 3: Connecting TV set ......................... 13~14

Using Video In jack (CVBS) Using Component Video In jack (Pr Pb Y) Using S-Video In jack Using an accessory RF modulator

Step 4: Connecting FM/AM antennas ............. 15

Step 5: Connecting the power cord............... 15

Step 6: Connecting a VCR or cable/satellite

box ......................................................................... 16

Step 7: Connecting digital audio equipment . 16

Basic playback controls ..................................... 25

Skipping to another title (track)/chapter Fast search Continuing playback from the last stop point

Selecting various mode functions ............ 25~26

Repeat play mode Shuffle play mode Repeating a section within a chapter/track

Programing favorite tracks ............................... 26

Changing discs during playback ....................... 27

Special DVD/VCD features....................... 27~29

Changing subtitle language Changing sound track language Searching for a particular passage Displaying the disc information during playback Moving to another title (track) / chapter Playing from a selected point Using the system menu Playing in slow motion mode Zooming in Viewing from another angle Advancing by frames

Speaker Level Adjust

Checking the contents of DVD

Special VCD/SVCD features ............................ 29

Playback control (PBC)

Functional Overview

Controls on the system .................................... 17

Remote control ........................................... 18~19

Basic Functions

Plug and Play (for tuner installation) .............. 20

Demonstration mode ........................................ 20

Preparations

Step 1: Inserting batteries into the remote

control .................................................................. 21

Step 2: Setting the clock ............................ 21~22

Step 3: Setting the TV set ................................. 22

Step 4: Setting speakers .................................... 23

Step 5: Setting language preference................ 23

Disc Operations

Playing discs ......................................................... 24

Using the disc menu .......................................... 24

MP3/ DIVX/ WMA/ Picture Disc Operations

Playing MP3/ WMA/ Picture disc (Kodak, JPEG)

................................................................................ 30

Playing DIVX disc ............................................... 31

DVD Menu Operations

Using the menu bar ........................................... 32

Using the setup menu ................................ 33~37

Setting the TV shape

Using progressive scan to improve image quality

Setting the screen saver Night mode - turning on/off Test Tone Kara Score DivX(R) VOD Changing the password Restricting playback by setting parental level

Contents

Tuner Operations

Tuning to radio stations .................................... 38

Presetting radio stations ............................ 38~39

Automatic preset programming Manual preset programming

Selecting a preset radio station ....................... 39

Deleting a preset radio station

Ta pe Operation/Recording

Ta pe playback ...................................................... 40

General information on recording ................. 40

Preparation for recording ................................ 41

Disc synchro recording..................................... 41

Clock/Timer Operations

Viewing the clock ............................................... 42

Setting the timer .......................................... 42~43

Viewing the timer ............................................... 43

Setting the sleep timer ...................................... 43

Sound and Volume Controls

Sound control ..................................................... 44

MAX Sound DBB (Dynamic Bass Boost) Selecting sound effect

Volume control ................................................... 44

Changing the volume level Switching off the volume temporarily Listening through headphones

Specifications ........................................... 47

English

Tr oubleshooting ............................. 48~49

Glossary ......................................................... 50

Other Functions

Switching on/off .................................................. 45

Switching the system on Switching the system to standby mode Power saving automatic standby

Dimming the display .......................................... 45

Vocal ...................................................................... 45

Key control .......................................................... 46

Echo ....................................................................... 46

Karaoke ................................................................ 46

Listening to external sources .......................... 46

General Information/Maintenance

English

Features

Your DVD Micro System with 5.1-channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology

Other features include:

Built-in DTS and Dolby Digital decoder, supporting virtual surround and stereo.

Additional Component Connections

Lets you connect other audio and audio/visual components to the system so you can use the system’s surround sound speakers.

Night mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Parental control (rating level)

Lets you set a rating level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep timer

Enables the system to switch to standby mode automatically at a preset time.

Progressive Scan

Provides high quality flicker-free images for film based sources. When a picture refreshes, its ver tical resolution can double to 525 lines.

Note: –To fully enjoy the progressive scan feature, you need a progressive scan TV.

• The max. MP3 track number is 999.

• Supported sampling frequencies for MP3 disc:

32 kHz, 44.1 kHz, 48 kHz.

• Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps).

– Following formats can’t be supported

• The files like *.VMA, *.AAC, *.DLF, *.M3U,

*.PLS, *.WAV

• Non-English Album/Title name

• The discs recorded under Joliet format

• MP3 Pro and MP3 with ID3 tag.

Region codes

DVDs must be labeled for ALL regions or for Region 1 in order to play on this system. You

cannot play discs that are labeled for other regions.

Notes: – For mixed mode discs, only one mode will be selected for playback according to the recording format. – If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this system.

ALL

Supplied accessories

– Composite video cable (yellow)

Discs for playback

Your DVD Mini Hi-Fi System will play:

– Digital Video Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Digital Video Discs + Rewritable (DVD+RW) – Compact Discs (CDs) – Picture (Kodak, JPEG) files on CDR(W) – DivX(R) disc on CD-R(W): – DivX 3.11, 4.x and 5.x – WMA – Supported MP3-CD format.

• ISO 9660 / UDF format

• Max. title/album name –12 characters

• Max. nested directory is 8 levels.

• The max. album number is 32.

Max. title number plus album is 255.

– Component video cables (red/blue/green)

– Audio cables (white, red)

– DIN OUT cable

- FM wire antenna

– AM loop antenna

– Remote Control and two AA batteries

– This instruction booklet and a Quick Use Guide

General Information/Maintenance

CBABC

Environmental information

Any unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Care and safety information

Avoid high temperatures, moisture, water and dust

● Do not expose the system, batteries or discs to

humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep disc trays closed to avoid dust buildup on the lens.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

Avoid condensation problem

● The lens may cloud over when the player is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Do not block the vents

● Do not operate the system in an enclosed

cabinet and allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.

10 cm

(4 inches)

10 cm

(4 inches)

DVD Mini Hi-Fi System

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers table-cloths, curtains, etc.

Cleaning the cabinet

● Use soft cloth slightly moistened with a mild

detergent solution. Do not use a solution

10 cm

(4 inches)

containing alcohol, spirits, ammonia or abrasives.

Cleaning discs

● To clean a CD, wipe it in a

straight line from the center towards the edge using soft and lint-free cloth. A cleaning agent may damage the disc.

● Write only on the printed side

of a CDR(W) and only with a soft felt-tipped pen.

● Handle the disc by its edge. Do not touch the

surface.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Finding a suitable location

● Place the player on a flat, hard, stable surface.

Cleaning the head and the tape paths

● To ensure good recording and playback quality,

clean the head A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You also can clean the head by playing a

cleaning tape once.

Demagnetising the head

● Use a demagnetising tape available at your

dealer.

● The standby switch does not disconnect the

apparatus from mains.

● The apparatus shall not be exposed to dripping

or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

● Install this unit near the AC outlet and where the

AC Power can be reached easily.

● When the system is switched to standby mode,

it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall sockets.

English

Connections

English

Step 1: Placing speakers and subwoofer

Step 2:Connecting speakers and subwoofer

Center speaker

Left speaker

Right speaker

For best possible surround sound, all speakers (except subwoofer) should be placed at the same distance from the listening position .

•Place the front left and right speakers at equal distances from the TV set and at an angle of approximately 45 degrees from the listening position.

•Place the center speaker above the TV set or the system so the center channel’s sound is localized.

•Place the surround speakers at normal listening ear level facing each other.

•Place the subwoofer on the floor near the TV set.

Notes: –To avoid magnetic interference, do not position the front speakers too close to your TV set. – Allow adequate ventilation around the DVD Mini Hi-Fi System.

IMPORTANT! The type plate is located on the rear of the system.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it.

Speaker

(right)

Speaker

(Left)

•Connect the speaker wires to the SPEAKERS (FRONT) terminals, right speaker to “R” and left speaker to “L”, coloured (marked) wire to “+” and black (unmarked) wire to “–”. Fully insert the stripped portion of the speaker wire into the terminal as shown.

•Connect the Surround Speakers and Center Speaker system using the supplied speaker cables to the speaker jacks on the SUBWOOFER by matching the colours of the jacks and speaker plugs.

•Connect the subwoofer using the supplied speaker cable to the DIN OUT jack on the DVD Mini Hi-Fi System.

•Connect the AC MAINS .

Front Left(L)

speakers

Front Rignt(R)

Center Surround(Rear) Left(L)

Surround(Rear) Right(R)

––

Black Black

Black

White

Green

Blue

Grey

Notes: –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Red

Step 3: Connecting TV set

Connections

English

IMPORTANT! –You only need to make one video connection from the following options, according to the capabilities of your TV system. – S-Video or Component Video connection provides higher picture quality. These options must be available on your TV set. – Connect the system directly to the TV set.

Using Video In jack (CVBS)

● Use the composite video cable (yellow) to

connect the system’s VIDEO jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV set.

● To listen to TV channels through this system, use

the audio cables (white/red) to connect AUX IN (L/R) jacks to the corresponding AUDIO

OUT jacks on the TV set.

● Deactivate Progressive Scan through SYSTEM

MENU. Refer to “Using the Setup Menu- Using Progressive Scan to improve image quality”.

Using component Video In jack (Pr Pb Y)

● Use the component video cables (red/blue/

green) to connect the system’s Pr Pb Y jacks to the corresponding Component video input jacks (or labeled as Pr/Cr Pb/Cb Y or YUV) on the TV set.

● To listen to TV channels through this system, use

the audio cables (white/red) to connect AUX IN jacks to the corresponding AUDIO OUT

jacks on the TV set.

● If you are using a Progressive Scan TV set (TV

with Progressive Scan or ProScan capability), activate the PROGRESSIVE SCAN function through SYSTEM MENU.

Connections

English

Using S-Video In jack

● Use the S-Video cable (not supplied) to

connect the system’s S-VIDEO jack to the S-Video input jack (or labeled as Y/C or SVHS) on the TV set.

● To listen to TV channels through this system,

use the audio cables (white/red) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV set.

● Deactivate Progressive Scan through

SYSTEM MENU. Refer to “Using the Setup Menu- Using Progressive Scan to improve image quality”.

IMPORTANT! – If your TV set only has a single Antenna In jack (or labeled as 75 ohm or RF In), you will need a RF modulator in order to view the DVD playback via TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

Using an accessory RF modulator

● Use the composite cable (yellow) to connect the

system’s VIDEO jack to the video input jack on the RF modulator.

● Use the RF coaxial cable (not supplied) to

connect the RF modulator to your TV’s RF jack.

● Deactivate Progressive Scan through SYSTEM

MENU. Refer to “Using the Setup Menu- Using

Progressive Scan to improve image quality”.

Connections

Step 4: Connecting FM/AM antennas

● Connect the supplied AM loop antenna to the

MW (AM) jack. Place the AM loop antenna on a shelf or attach it to a stand or wall.

● Connect the supplied FM antenna to the FM

jack. Extend the FM antenna and fix its end to the wall.

For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA terminal.

Step 5: Connecting the power

cord

After everything is connected properly, plug in the AC power cord to the power outlet.

Never make or change any connection with the power switched on.

On the DVD Mini Hi-Fi System

“AUTO INSTALL-PRESS PLAY” may appear on the display panel. Press 2; on the front panel to search and store all available radio stations or press 9 to exit (See “Tuner OperationsPresetting radio stations”).

English

Notes: – Adjust the position of the antennas for optimal reception. –Position the antennas as far as possible from your TV set, VCR or other radiation sources to prevent unwanted interference.

Connections

English

Step 6: Connecting a VCR or

cable/satellite box

Step 7: Connecting digital audio

equipment

Viewing and listening to playback

1 Connect the VCR or Cable/Satellite Box to the

TV system as shown.

2 Connect the system’s AUX IN jacks to the

AUDIO OUT jacks on the VCR or Cable/ Satellite box.

Before starting operation, press AUX on the remote control to select “AUX” in order to activate the input source.

Using the VCR for recording DVDs

Some DVDs are copy-protected. You cannot record or dub protected discs using a VCR.

3 Connect the system’s VIDEO jack to the VIDEO

IN jack on the VCR.

4 Connect the system’s LINE OUT (R/L) jacks

to the AUDIO IN jacks on the VCR. This will allow you to make analog stereo (two channel, right and left) recording.

To view DVD playback while recording

You must connect the system to your TV system using the S-VIDEO (as shown above) or the Component (Pr Pb Y) video connection.

Recording (digital)

Connect the system’s DIGITAL OUT jack to the DIGITAL IN jack on a digital recording device (DTS-Digital Theater System compatible, with a Dolby Digital decoder, for example).

Functional Overview

Controls on the system

1 STANDBY ON

– to switch the system on, to Standby mode.

2 DISPLAY SCREEN

– to view the current status of the system.

3 SOURCE

– to select the following:

DISC (DISC 1•2•3)

– to select disc tray 1, 2 or 3

TUNER (BAND)

– to select waveband: FM or AM.

TAPE (TAPE 1-2)

– to select tape deck 1 or 2.

AUX

–to select a connected external source: TV/VCR ,

AUX (auxiliary).

4 MIC VOL.

– to adjust the mixing level for karaoke or

microphone recording.

5 MIC IN

– to connect microphone jack.

6 SOUND

– to select various sound effect.

7 DISPLAY/OSD

– to display disc information during disc playback.

8 PROGRAM

– in disc mode, to program favorite tracks. – in tuner mode, to program favorite stations.

9 CLOCK/TIMER

– to view and set clock/ timer.

0 TAPE DECK 1/ 2 ! SURROUND

- to select various surround sound effect.

@ 5OPEN

– to open the tape deck door.

# MAX SOUND

–To activate/deactivate MAX sound and select

DBB level(DBB 1, DBB 2, DBB3) .

$ STOP 7

for DISC .................... to stop playback or to clear a

programme.

for TAPE..................... to stop playback.

for DEMO ................ (in Standby mode) to activate/

deactivate demonstration. for PLUG&PLAY ...(on the system only) to exit

plug&play mode.

% 38 (PLAY/PAUSE)

for DISC .................... to star t or interrupt playback.

for TAPE ..................... to start playback or interrupt

playback. for PLUG&PLAY... (on the system only) to initiate

plug & play mode.

^ PREV / PRESET / NEXT O P

(TITLE – / +)

for DISC .................... to select previous/next title,

chapter or track during playback.

for TUNER ............... to select a preset radio

station.

for CLOCK/TIMER .. to set the hour.

& SEARCH•TUNING 1 / ¡

(ALBUM – / +)

for DISC .................... to search backward/forward.

to select previous/next album in MP3/WMA stop

mode.

for TAPE ..................... to rewind or fast forward.

for TUNER ............... to tune to a lower or higher

radio frequency. for CLOCK/ TIMER .. to set the minute.

* ;

– to connect headphones.

( MASTER VOLUME

– to increase or decrease the volume.

) IR SENSOR

– point the remote control towards this sensor.

¡ DISC TRAYS ™ OPEN•CLOSE

– to open or close the disc tray.

£ DISC1/ DISC2/ DISC3

– to select a disc tray for playback.

≤ DISC CHANGE

– to change disc(s).

∞ RECORD

– to start recording on tape deck 2.

§ AUTO REPLAY

– In tape mode, to select continuous playback in

either REPLAY or PLAY mode only.

English

Functional Overview

English

Remote control

•

≥

∞

Notes: – First, select the source you wish to control by pressing one of the source select keys on the remote control (DISC or TUNER, for example). – Then select the desired function (¡, O or P for example).

1 SOURCE

– to select the relevant active mode: DISC1/2/3,

TUNER, TAPE1/2 or AUX.

– TUNER: toggles between FM and AM band.

2 DISC MENU (disc mode only)

– to enter or exit the disc contents menu.

3 SYSTEM MENU (disc mode only)

– to enter or exit the system menu bar.

4 1 / ¡ / 5 / 4

– to select movement direction in disc contents

menu/system menu bar.

– in tuner mode, to tune to lower or higher radio

frequency. (1 / ¡)

– in Disc mode, press to fast reverse/forward the

disc.

5 O/ P

– in Disc mode, press to skip to the previous/next

chapter/track.

* (

)

™

≤

– in Tuner mode, to select a preset radio station

number

6 PLAY/PAUSE 2;

– to start or interr upt disc playback. – to resume playback from last stop point.

7 STOP 9

– to stop playing the disc.

8 REPEAT

– to select variations of continuous playback.

9 REPEAT A-B

– to repeat a specific section on a disc.

0 SUBTITLE

– to select desired subtitle.

! AUDIO

– to select the audio channel.

@ 2

– to switch to standby mode.

# Numeric Keypad (0-9)

– to enter a track/title number of the disc. – to enter a number of preset radio stations.

$ VOL +/-

– adjust the volume level. – adjust key control/ ECHO level in karaoke mode.

% OK

– to exit or confirm the selection.

^ GOTO

– to go direct to desired title, chapter or time.

& PROGRAM

– in Disc mode, to program favorite tracks. – in Tuner mode, to program favorite stations.

* SHUFFLE

– to playback in random mode.

( ECHO

– to adjust the echo level in karaoke mode.

) KEY

– to change the tone level to suit your vocal

range.

¡ DISPLAY (OSD)

– to view the time, title or chapter information.

™ MUTE

– to interrupt or resume sound reproduction.

£ DIM

– to select different brightness for VFD.

≤ DBB/MAX

– to select the desired DBB level (DBB 1, DBB 2,

DBB3) and activate/deactivate MAX sound.

∞ SOUND

– to select various sound effect.

§ CLOCK/TIMER

– to view and set clock/ timer.

≥ SURROUND

– to select various surround sound effect.

•

SLEEP

– to set the sleep (auto-off) timer function.

Functional Overview

English

Basic Functions

English

Plug and Play (for tuner installation)

Plug and play allows you to store all available radio stations automatically.

If plug and play has not been installed

1 When you turn on the system, “AUTO

INSTALL- PRESS PLAY” will be displayed.

2 Press 38 on the system to start installation.

➜ “INSTALL” will be displayed and followed by

“TUNER” and then “AUTO SEARCHING”.

➜ PROG will start to flash. ➜ The system will search all radio stations on

the FM band, and then the AM band.

➜ All available radio stations with strong signal

strength will be stored automatically.

➜ The system will stop searching when all

available radio stations are stored or when the memory for 40 preset radio stations is full.

➜ The first preset radio station will play when

Plug and Play is completed.

Reinstalling plug and play

1 In Standby or demonstration mode, press and

hold 38 on the system until “AUTO INSTALL-PRESS PLAY” is displayed.

2 Press 38 again to start installation.

➜ All previously stored radio stations will be

replaced.

Demonstration mode

The system has a demonstration mode that shows various features offered by the system.

Activating demonstration

● In Standby mode, press and hold STOP 7 for

more than 5 seconds to activate demo mode.

➜ “DEMO ON” is displayed. ➜ Demonstration will begin.

Deactivating demonstration

● Press and hold STOP 7 on the system until

“DEMO OFF” is displayed.

➜ The system will switch to Standby mode.

Note: – If you don’t deactivate demostration before switching to Standby mode, the system will enter the demostration mode after 7 seconds. – Even if you remove the AC power cord and reconnect it to the wall socket, the demonstration will remain off until you activate it again.

To exit without storing the plug and play

● Press 7 on the system.

Notes: – When the power is turned on, the disc tray may open and close to initialise the system. – If Plug and Play installation is not completed, it will be reinitiated the next time you power on the system. – If auto-install is not preset, the system will store the radio station automatically. – If there is no antenna connected, “CHECK ANTENNA” will scroll on the display.

Preparations

IMPORTANT! – Make sure to complete the preparation procedures before operating the system.

Step 1: Inserting batteries into

the remote control

1 Open the batter y compar tment. 2 Place two batteries (Type R06 or AA) in the

compartment with the correct polarity as indicated by “+” and “–” symbols.

3 Close the cover.

Using the remote control to operate the system

1 Point the remote control directly

at the remote sensor (IR) on the front panel.

2 Select the source you wish to

control by pressing one of the source select buttons on the remote control (for example TAPE1/2, TUNER).

3 Then select the desired function (for example

2;, O or P).

CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.

Step 2: Setting the clock

The clock can be set in either 12-hour or 24-

hour mode (“PM 00:00” or “00:00” for example).

1 The clock can be set in any source mode.

➜ If you have not set the clock, “--:--” will be

shown on the display.

2 Press and hold CLOCK/TIMER until “SELECT

CLOCK OR TIMER” is displayed.

➜ Press O or P to change the display to

“CLOCK”.

➜ Press CLOCK/TIMER again to confirm.

3 Press O or P on the system to set the

hours.

4 Press 1 or ¡ on the system to set the

minutes.

5 Press CLOCK/TIMER to confirm your setting.

The system will store the setting automatically and go back to its previous status.

➜ The time setting becomes effective.

Note: –In AUX mode, setting clock using remote control is not possible.

To exit the setting without storing (in standby mode)

● Press 9 on the system to exit.

➜ “CANCEL” will appear on the display.

● Press STANDBY ON to exit setting mode and

go into POWER ON mode.

● You can also press DISC, DISC1~3, DISC

CHANGE, OPEN/CLOSE to exit setting

mode and go to disc mode.

● The system will also exit setting mode and go to

TUNER, TAPE or AUX mode when you press the corresponding source button.

Viewing the clock in any source mode

● When you have set the clock, press CLOCK/

TIMER to view clock. Press DISPLAY on the

system to toggle between 12-hour and 24-hour modes.

➜ The time will be displayed for 5 seconds and

then the system will go back to its previous status.

English

Preparations

English

Notes: – The clock will be cancelled when the power cord is disconnected or if a power failure occurs. – During clock setting, if no button is pressed within 10 seconds, the system will exit the setting mode and go back to its previous status.

Step 3: Setting the TV set

IMPORTANT! – Make sure you have completed all the necessary connections. (See Connections – Connecting TV set)

1 Press DISC (DISC 1•2•3) on the front panel

(or press DISC 1/2/3 on the remote control).

2 Tu rn on the TV set and set to the correct Video-

In channel. You should see the blue Philips DVD background screen on the TV set.

➜ You may go to channel 1 on your TV set, then

press the channel down button repeatedly until you see the Video In channel.

➜ Or, you can use the TV remote control to

select different video modes.

➜ Or, set TV to channel 3 or 4 if you are using

an RF modulator.

1 In disc mode, stop playback and press SYSTEM

MENU.

2 Select icon and press 4. 3 Press 1 / ¡ / 5 / 4 keys on the remote

control to toggle through the functions and select your preferred option.

➜ Move to and press ¡ . ➜ Move to “TV System” and press ¡.

AUTO

– Select this if the connected TV set is compatible with both NTSC and PAL (multi system). The output format will be consistent with the video signal of the disc.

NTSC

– Select this if the connected TV set is NTSC system. It will change the video signal of a PAL video disc and output to NTSC system.

PA L

– Select this if the connected TV set is PAL system. It will change the video signal of an NTSC disc and output to PAL format.

4 Select an item and press OK.

Selecting the color system that matches your TV set

This DVD Mini Hi-Fi System is compatible with both NTSC and PAL. For the playback of a DVD disc on this DVD Mini Hi-Fi System, the color systems of the DVD, TV set and DVD Mini Hi-Fi System should match.

1 342

To remove the menu Press SYSTEM MENU.

Preparations

Step 4: Setting speakers

IMPORTANT! – This function is only available when you have connected other 3.1-channel speakers.

You can adjust the delay time (center and rear only) for individual speakers to optimize the sound effect according to your surroundings and setup. Speaker settings are only active in the case of Multi-channel audio output.

342

PBC

1 In disc mode, press SYSTEM MENU. 2 Select icon and press 4.

3 Press 1 / ¡ / 5 / 4 keys on the remote

control to select your preferred option.

➜ Move to ➜ Move to “CENTER DELAY” or “REAR

DELAY” and press ¡.

and press ¡.

4 Press ¡ to set CENTER DELAY or REAR

DELAY values you want.

➜ Use longer delay time if the surround

speakers are closer to the listener than the front speakers.

5 Press OK to confirm.

Step 5: Setting language

preference

You can select your preferred language settings so that this DVD Mini Hi-Fi System will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the language set by default will be used instead. But the menu language of the DVD Mini Hi-Fi System cannot be changed once selected.

PBC

1 In disc mode, stop playback and press SYSTEM

MENU.

2 Select icon and press 4. 3 Press 1 / ¡ / 5 / 4 keys on the remote

control to select your preferred option.

➜ Move to and press ¡. ➜ Move to one of the following and press ¡.

– Audio (disc’s soundtrack) – Subtitle (disc’s subtitles) – Disc Menu (on screen menu) – Divx (R) VOD

4 Press 5 / 4 to select a language and press OK. 5 Repeat steps 3~4 for other settings.

To remove the menu Press SYSTEM MENU.

English

To remove the menu Press SYSTEM MENU.

Disc Operations

English

IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the disc mechanism. – Do not move the system during playback. Doing so may damage the system. – Do not push on the disc tray or put any object other than disc on the disc tray. Doing so may cause the system to malfunction. –DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc matches the regional code of your player. – According to the format requirement of DVD or VCD, some operations may be different or restricted.

Playing discs

1 Press STANDBY ON to switch on the system,

and then press DISC to select disc mode.

2 Power on the TV system and set to the correct

Video In channel (See ”Setting the TV set”).

➜ You should see the blue Philips DVD

background screen on the TV set.

3 Press OPEN/CLOSE to open the disc tray and

load a disc respectively in the first two disc trays.. To load the third disc, press DISC CHANGE.

➜ The disc tray will rotate until the empty tray is

ready for loading.

➜ Make sure the disc label is facing up. For

double-sided discs, load the side you want to play facing down.

4 Press OPEN•CLOSE to close the disc tray.

➜ “READING” will be displayed. ➜ In the stop mode, press DISC 1/2/3 on the

remote control repeatedly to select DISC 1, DISC 2 or DISC 3 cyclically.

● Some discs can play automatically. For discs with

Ta b le Of Contents, a menu may appear on the TV screen. When the menu is displayed, press 1 / ¡ / 5 / 4 keys to highlight your selection and press OK to confirm. To select a play option, press numeric keys (0-9).

➜ If the disc is locked by parental control, you

must enter your four-digital password (See “Changing the password”).

5 Press 38 to star t playback.

For MP3/ DiVX/WMA

● Load an MP3/ DIVX/ WMA disc in the disc tray. ➜ Press DISC MENU to select menu on/off. ➜ For how to select your desired title in the

stop mode and when the menu is set to on, please refer to”MP3/ DIVX/ WMA/Picture Disc Operations”.

Notes: – Load discs with the label side facing up. –To ensure good system performance, wait until disc reading is completed before proceeding.

Using the disc menu

For disc with Table Of Contents, a menu may appear on the TV screen once you load the disc.

To select a playback feature or item

● Press 1 / ¡ / 5 / 4 or numeric keys

(0-9) on the remote control, then press 38 or OK to start playback.

To access or remove the menu

● Press DISC MENU on the remote control.

Disc Operations

Basic playback controls

To play discs in all the disc trays

● Press 38. ➜ All the available discs will play once, then stop. ➜ During playback, the selected disc tray and

elapsed playing time of the current track will appear on the display.

To start playback from a selected disc tray

● Press DISC 1, DISC 2 or DISC 3.

To interrupt playback

● Press 38.

● To resume playback, press 38 again.

To stop playback

● Press 7.

Skipping to another title (track) / chapter

● Press O or P on the front panel or on the

remote control repeatedly during playback to skip previous or next. Each press will take the disc to the beginning of the previous or next title (track) / chapter.

Note: – If the player has been set to repeat chapter (track), pressing this button will replay the same chapter (track) from its beginning.

To go directly to any title (track) / chapter

For CD/VCD/MP3

● Use the numeric keys (0-9) to enter the number of the desired track.

For DVD

● Please see “Moving to another title(track)/ chapter”.

Fast search

1 Press 1 or ¡ on the front panel (or on

the remote control) to fast reverse or forward the disc.

2 To resume normal play, press 38.

To cancel the resume mode

● Press 7 again, or go into STANDBY, POWER

OFF or press OPEN/CLOSE key.

Notes: – Resume information will be erased if you have changed the disc, opened the disc tray, changed source or disconnected the system from the power supply. – This function is not available for MP3/DIVX/ WMA disc.

Selecting various mode functions

Repeat play mode

You can only select the Repeat play mode during playback.

For DVD - repeat chapter/title

● Press REPEAT repeatedly to select the

following: REPEAT CHAPTER ➜ REPEAT TITLE ➜ REPEAT OFF

For SVCD/VCD/CD - repeat track/disc

● Press REPEAT repeatedly to select the

following: REPEAT TRACK ➜ REPEAT DISC ➜ REPEAT ALL ➜ REPEAT OFF

During program playback

● Press REPEAT repeatedly to select the

following: REPEAT ONE PROGRAMMED TRACK ➜ REPEAT ALL PROGRAMMED TRACKS ➜ REPEAT OFF

For MP3 repeat - track/album/disc

MENU ON:

● Press REPEAT repeatedly to select the

following: REPEAT TRACK ➜ REPEAT ALBUM ➜ REPEAT DISC ➜ REPEAT ALL ➜ REPEAT OFF

English

Continuing playback from the last stop point

● In stop mode and before the disc is removed,

press 38 to resume playback from where you have stopped.

Disc Operations

English

MENU OFF:

● Press REPEAT repeatedly to select the

following: REPEAT TRACK ➜ REPEAT DISC ➜ REPEAT ALL ➜ REPEAT OFF

Notes: – When you open the disc tray, the Repeat function will be cancelled automatically. –For SVCD and VCD 2.0 discs, the Repeat function is not available when the PBC function is set to ON. – If discs of different formats are loaded, the Repeat function is only available for the current disc.

Shuffle play mode

In this mode, all tracks in the current directory will be played once in a random order.

1 In stop mode, press SHUFFLE to play in a

shuffle order.

➜ Playback will star t from the first disc to the

last one.

2 Press SHUFFLE repeatedly to select the

following: SHUFFLE DISC ➜ REPEAT SHUFFLE DISC ➜ SHUFFLE ALL ➜ REPEAT SHUFFLE ALL ➜ SHUFFLE OFF

3 Press 38 to start shuffle play.

In shuffle playback mode:

● Press P button to select another track in a

shuffle order.

4 Press 9 to stop shuffle playback.

To cancel Shuffle mode:

● In stop mode, press 9 again to cancel SHUFFLE

function.

Notes: – In Tuner, Tape or AUX mode, this button does not function. –When the disc tray is opened, the Shuffle function will be cancelled automatically. – In the Shuffle playback mode, the system only supports the same disc format. – This function is only available for CD or VCD (PBC OFF).

Repeating a section within a chapter/ track

You can play a specific section in a chapter/track repeatedly.

1 Press REPEAT A-B at your chosen start point. 2 Press REPEAT A-B again at your chosen end

point.

➜ The passage will now repeat continuously.

3 To resume normal play, press REPEAT A-B

again. “A TO B CANCELLED” will be shown on the TV screen.

Note: – The REPEAT A-B function can only be set within the same chapter or track.

Programing favorite tracks

You can play the contents of the disc in the order you want. At most 99 tracks can be stored.

1 Load the desired discs on the disc trays. 2 Press the DISC button to select the disc tray.

➜ Programming can only be done on the

selected disc.

3 While playback is stopped, press PROGRAM

to enter program mode.

➜ “P 00 : 00” is displayed.

4 Use the numeric keys (0-9) to input the track

number in the order you want.

➜ If you attempt to program more than 99

tracks, “FULL” is displayed.

5 Press OK to store the track.

● Repeat steps 3-5 to store other tracks.

6 Press 38 to play the program. 7 To stop playback, press 7 once. 8 To exit the program mode, press 7 again.

Note: – This function is not available for DVD or MP3/ DIVX/ WMA discs .

Disc Operations

Changing discs during playback

1 Press DISC CHANGE.

➜ The disc tray will open without interrupting

playback.

2 To change the inner disc, press DISC

CHANGE again.

➜ The active disc will stop playing and the disc

tray will close to retrieve the inner disc, then reopen with the inner disc accessible.

Special DVD/VCD features

Changing subtitle language

This operation only works on DVDs with multiple subtitle languages.

● Press SUBTITLE to select the desired

language.

Changing sound track language

This operation only works on DVDs with multiple audio languages.

● Press AUDIO to select the desired language.

For VCD:

● Press AUDIO to select the desired audio

channels for sound. This function is only available for discs recorded with different channels. When microphone plugged in: LEFT VOCAL p RIGHT VOCAL p MONO LEFT p MONO RIGHT p STEREO When microphone unplugged: MONO LEFT p MONO RIGHT p STEREO

Note: – If your desired language is not set in the disc, you cannot select the language via this function.

Searching for a particular passage

1 Press 1 or ¡ on the system (or on the

remote control) to select fast reverse search or fast forward search respectively.

2 Press 1 or ¡ on the system (or on the

remote control) repeatedly to select the required search speed:

For DVD or MP3/ WMA

(reverse): FR X2 p FR X4 p FR X6 p FR X8 p PLAY (forward): FF X2 p FF X4 p FF X6 p FF X8 p PLAY

For SVCD, VCD or CD

(reverse): FR X1 p FR X2 p FR X3 p FR X4 p PLAY (forward): FF X1 p FF X2 p FF X3 p FF X4 p PLAY

3 To resume normal play, press 38.

Displaying the disc information during playback

● In disc mode, press DISPLAY repeatedly to

select the following display information:

Moving to another title (track) / chapter

Some discs may contain more than one title or chapter. If the disc has a title or chapter menu recorded on it, you can start playback from the selected item.

1 Press GOTO on the remote control to display

the message of title and chapter, and use 1 or ¡ to highlight an item.

2 Use numeric keys (0-9) to select a desired

title/chapter number.

3 Press OK to star t playback.

Note: – Selecting a title or chapter might not be possible on certain discs.

English

Disc Operations

English

Playing from a selected point

This function allows you to start playback at any chosen time on the disc.

For DVD

1 Press GOTO twice to activate time menu. 2 Enter hours, minutes and seconds from left to

right in the time edit box using the numeric keys (0-9).

➜ Each time an item has been entered, the next

item will be highlighted.

3 Press OK to star t playback.

For SVCD, VCD or CD

4 Press GOTO to activate time menu, and

“GOTO -- : --” will be displayed on the TV screen.

5 Enter minutes and seconds from left to right in

the time edit box using the numeric keys (0-

9).

6 Press OK to star t playback.

Notes: – In repeat disc or repeat all mode, you can search a desired time point. – This function is only available in PBC OFF mode. – This function is not available for MP3/ WMA disc.

Using the System Menu

Some operations can be carried out directly via the menu bar on the TV screen without

interupting disc playback.

1 Press SYSTEM MENU.

➜ The menu bar will be displayed across the

top of the TV screen.

2 Press 1 or ¡ to select:

SETUP MENU p SLOW p ZOOM p ANGLE p STEP p PBC pSPK LEVEL ADJ

3 Press 4 to select the highlighted icon and press

1 / ¡ / 5 / 4 to select your preferred option.

4 Press OK to confirm a highlighted selection. 5 To exit, press SYSTEM MENU.

IMPORTANT! Some operations may be different or restricted according to the disc format. Refer to the jacket or case of the disc you are playing.

Note:

– When you press a button and appears on the TV screen, this means the function is not available

on the current disc or at the current time.

Playing in slow motion mode

For DVD

1 Select from the menu bar and press 4

repeatedly to select the required slow motion speed: SF X 1/2 p SF X 1/4 p SF X 1/8 p SR X 1/2 p SR X 1/4 p SR X 1/8 p PLAY SF = slow forward SR = slow reverse

For VCD

1 Press 4 to select the required slow motion

speed: (forward): SF X 1/1 p SF X 1/2 p SF X 1/3 pPLAY

2 Press 38 to cancel the slow function.

Note: – This function is not available for CD or MP3/ WMA disc.

Zooming in

This function allows you to enlarge the picture on the TV screen and pan through the enlarged image.

Disc Operations

1 Select from the menu bar and press 4

repeatedly to change the following zooming scale: ZOOM X1.5 pZOOM X2 pZOOM X4 pZOOM OFF

2 To pan through the enlarged image, press

SYSTEM MENU to exit and press 1 / ¡ / 5 / 4 buttons to move the zoomed picture left, right, up or down.

3 To exit ZOOM mode, select “ZOOM OFF”

from the menu bar.

Viewing from another angle

If the playing DVD disc is recorded with multiple camera angles , the ANGLE mark on the setup page will be set to ON automatically. This allows you to view the picture from different angles. Angle selection is determined by the disc format.

● Select from the menu bar and press 4

button to select the desired angle: 1/4, 2/4, 3/4 or 4/4.

➜ Playback changes to the selected angle.

1 Select

from the menu bar and press 4 to

select subwoofer level, rear level, center level or OFF.

2 Press VOL -/+ keys to adjust the speakers’ levels

from -7dB to +8dB.

Checking the contents of DVD

1 Press DISC MENU on the remote control.

➜ If the current title has a menu, the menu will

appear on the screen. Otherwise, the disc menu will be displayed.

2 Press 1 / ¡ / 5 / 4 to select the desired

title or chapter, and then press 38 or OK.

➜ Playback start from the selected title or

chapter.

3 Press DISC MENU on the remote control to

go to disc menu of the disc.

Note: – If no title menu or root menu is recorded in the DVD disc, pressing this button will restart playback from the first track.

Special VCD/SVCD features

Playback control (PBC)

PBC playback allows you to play Video CD interactively, following the menu on the display.

English

Advancing by frames

1 Select from the menu bar and press 4 to

play the disc step by step (one frame each step).

2 To resume normal play, press 38.

Note: – This function is not available for CD or MP3/ WMA disc.

Speaker Level Adjust

PBC

● Select from the menu bar and press 4 to

toggle between PBC ON and PBC OFF.

Playing a disc with PBC function

● If PBC OFF, the system will start playback

automatically.

● If PBC ON, the PBC menu (if available) will

appear on the TV screen for selection. Use the numeric keys (0-9) to enter your choice.

Note: – This function is not available for CD/DVD or MP3/ DIVX/ WMA disc .

MP3/ DIVX/ WMA/ Picture Disc Operations

English

Playing MP3/ WMA/ Picture disc (Kodak, JPEG)

IMPORTANT! –You have to turn on your TV set and set to the correct Video In channel. (See Setting the TV set.)

MP3/ WMA/JPEG Picture disc

1 Load an MP3/WMA/ Picture (JPEG) disc.

➜ The disc reading time may exceed 30

seconds due to complexity of the directory/file configuration.

2 The album/picture menu will appear on the TV

screen. If not, press DISC MENU on the

remote control.

(example for MP3 disc menu)

Kodak Picture disc

1 Load a Kodak Picture disc.

➜ The disc reading time may exceed 30

seconds due to complexity of the directory/file configuration.

2 Playback will star t automatically. 3 Press 9.

➜ 9 thumbnail pictures will appear on the TV

screen.

(example for picture disc menu)



3 In stop mode, press 1 / ¡ / 5 / 4 on

remote control to select a desired album/title, then press OK or 2; to confirm .

● You can also use the numeric keys (0-9) to

enter your choice.

4 To stop playback, press 9. 5 Press and hold 1 or ¡ on the system to

select previous/next album.

If the MP3/ WMA menu is switched off

● You can only play the current title by pressing

2;. While in playback mode, press O or P to select the previous/next title.

➜ The title number will appear.

Note: – No album search function in menu off mode.

6 During JPEG or Kodak Picture disc playback,

press KEY repeatedly to select different slideshow view options. There are 12 options for selection. The selected option will be displayed on the TV screen.

4 Press O or P to view the previous/next page

(if available).

5 Press 1 / ¡ / 5 / 4 to move within the

menu and press OK to select the desired picture to play.

6 Press KEY to star t the slide-show playback.

During playback, you can:

● Press O or P to select another picture in the

current folder.

● Press 1 / ¡ / 5 / 4 on the remote

control to rotate or flip the picture files.

● Select “ZOOM ON” and press 1 / ¡ on

the system (or press and hold 1 / ¡ on the remote control ) to zoom the picture in and out.

● Press 2; to pause/resume playback.

Notes: – Due to the recording nature of Digital Audio MP3 (DAM), only digital audio music will play. – It is normal to experience an occasional “skip” while you are listening to your MP3 discs. –For multi-session discs with different formats, only the first session can be read and played. – DISC MENU does not function during Kodak Picture disc playback.

MP3/ WMA/ DivX/ Picture Disc Operations

Playing DivX disc

There are two types of subtitle available on DivX disc: embedded subtitle and external subtitle.

1 Load a DivX disc.

➜ Press DISC MENU to set the menu on. ➜ In stop mode, the SMART NAVI appears on

the TV screen .

When playing DivX disc with embedded subtitle

2 Press 5 / 4 to select DivX Movie, and then

press OK to start playback.

3 When playing disc, press SUBTITLE button on

the remote control to select: SUBTILTE 1/8 p SUBTILTE 2/8 p SUBTILTE 3/8 p SUBTILTE 4/8 p SUBTILTE 5/8 p SUBTILTE 6/8 p SUBTILTE 7/8 p SUBTILTE 8/8 p SUBTILTE OFF.

Note:

- The maximum number of subtitle languages stipulated by the manufacturer is 8/8.

When playing DivX disc with external subtitle

4 Press 5 / 4 on the remote control to select an

external subtitle option .

5 Press SUBTITLE to select subtitle file .

- “DivX SUBTITLE SELECTED” appears on the TV screen.

6 Press 5 / 4 to highlight the movie file, and

press OK to confirm.

➜ The playback will star t accordingly.

7 During playback, you can zoom the picture by

selecting zoom icon from the menu bar and press 4 to select ZOOMX2 or ZOOM OFF.

Notes:

- During playback, press SUBTITLE button on remote control to select available font: SUBTITLE 1/1, ENCODING LATIN 1, ENCODING LATIN 2, ENCODING CYRILLIC, ENCODING CP1254, ENCODING CP1251, ENCODING CP1250, SUBTITLE OFF.

- If an external subtitle has been selected, the DivX embedded subtitle will be deactivated.

- This model supports LATIN 1, LATIN 2, and LATIN CYRILLIC, ENCODING CP1254, ENCODING CP1251, ENCODING CP1250 fonts.

- LATIN 1 font supports the following languages: Albanian, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Rhaeto-Roamanic, Scottish, Spanish, Swedish, Afrikaans and Swahili.

- LATIN 2 supports the following languages: Bosnian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian, Serbo-Croatian, Slovak, Slovenian, Upper Sorbian and Lower Sorbian.

- LATIN CYRILLIC font supports the following languages: Russian, Ukrainian and Belarusian.

- Standard fronts (CP1254): Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish.

- Cyrillic fronts (CP1251): Bulgarian, Belorussian, English, Macedonian, Moldavian, Russian, Serbian and Ukrainian.

- Central Europe fronts (CP1250): Albanian, Croat, Czech, Dutch, English, German, Hungarian, Irish, Polish, Romanian, Slovak, Slovene and Sorbian.

- Subtitle files with the following filename extension are supported: .sub, .srt and .smi.

English

DVD Menu Operations

English

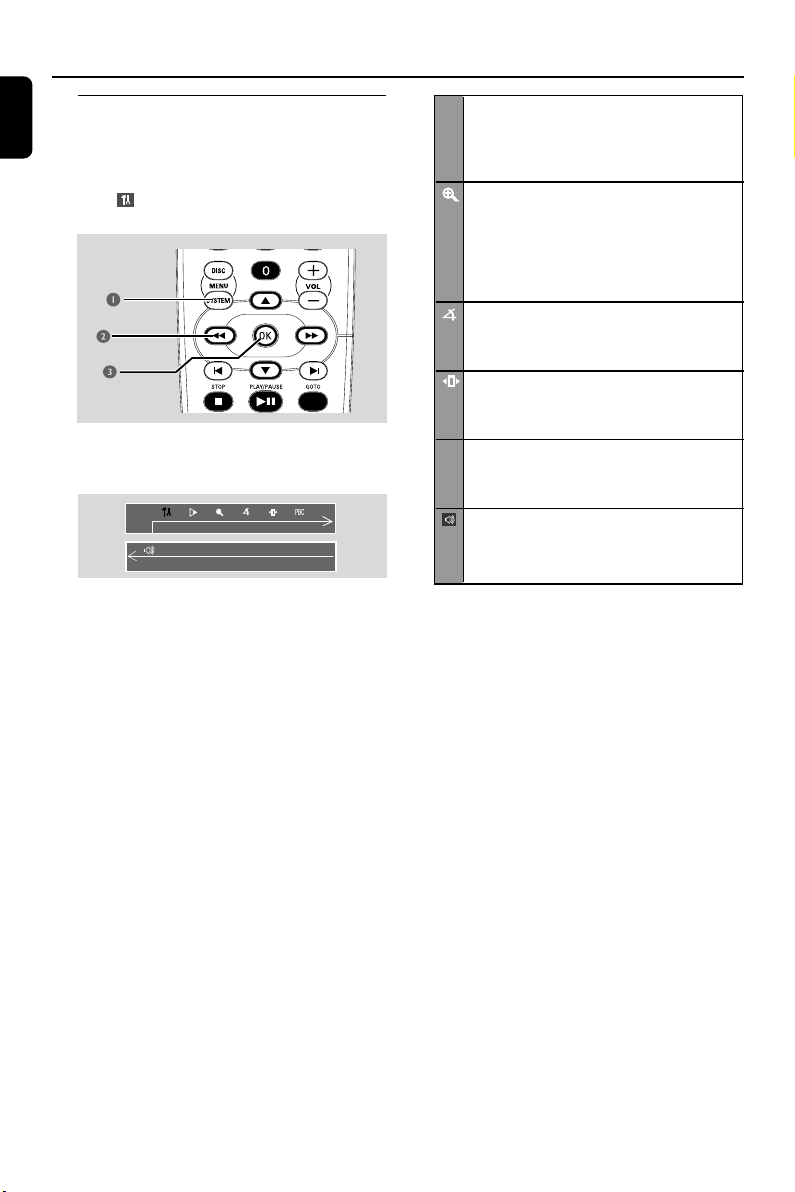

Using the menu bar

You can continue some operations directly via the menu bar on the TV screen without interrupting the disc playback. But when you enter (SETUP MENU), the playback will pause.

1 In disc mode, press SYSTEM MENU.

➜ The menu bar will appear across the top of

the TV set screen.

2 Press the 1 / ¡ / 5 / 4 on the remote

control to navigate in the menu.

➜ Press 1 / ¡ to move through the menu

bar.

➜ Press 4 to enter the selection.

3 Press OK to confirm the selection.

➜ Playback will resume or begin automatically.

x SLOW

The slow motion speed will display. Press 4 repeatedly to select a reverse or forward slow motion speed. To cancel the slow function, press 2;.

ZOOM

Press 4 repeatedly to select an enlarged picture ratio: 1.5, 2 or 4. You can press 1 /

/ 3 / 4 to move within the enlarged

picture on the TV set. To resume normal playback, repeat the above step to select ZOOM OFF.

ANGLE

Press 4 to view the same scene from different angles if the DVD is recorded with multiangles.

STEP

Press 4 repeatedly to play forward the disc step by step (one frame every step). To cancel the step function, press 2;.

PBC

Press 4 to select PBC ON or OFF, and then playback will stop automatically. (Only for VCD/SVCD discs.)

SPK LEVEL ADJ

Press 4 to select subwoofer level, rear level , center level or OFF cyclically. Press VOL -/+ keys to adjust its’ levels from -7dB to +8dB.

To remove the menu Press SYSTEM MENU or OK.

IMPORTANT! – Some operations may be different or restricted according to the disc format. Refer to the jacket or care of the disc you are playing.

DVD Menu Operations

Using the setup menu (user preference settings)

This DVD setup is carried out via your TV set, enabling you to customize the DVD Mini Hi-Fi System to suit your particular requirements.

1 In disc mode, press SYSTEM MENU.

➜ The menu bar will appear across the top of

the TV screen.

2 Select icon and press 4 to enter the setup

menu. Then press 3 / 4 to select one of the setup menu options and press ¡ to enter the menu.

➜ Playback will pause.

PBC

SETUP MENU

Picture Setup

Sound Setup

Language Setup

Feature Setup

3 Press 1 / ¡ / 5 / 4 on the remote

control to navigate in the menu.

4 Press OK to confirm your selection.

➜ Playback will resume or begin automatically.

Setting the TV shape

Make sure the format you need is available on the disc. If not, your setting will be invalid.

PAN SCAN

4:3 PS (Pan and Scan mode) Select this if you have a conventional TV set and your DVD is not formatted for wide screen viewing. A wide picture will display on the whole TV screen with a portion automatically cut off.

4:3 LB (Letterbox mode) Select this if you have a conventional TV set and your DVD is formatted for wide screen viewing. Black bars appear on the upper and lower portions of the TV screen.

16:9 (Wide-screen TV) Select this if you have a wide-screen TV set (you must also set your wide screen TV to “full size”).

16:9 (Wide screen)

4:3 LB (Letter Box)

English

Removing the menu Press SYSTEM MENU or OK.

Note: – Some features of the Setup Menu are described in “Preparations”.

4:3 PS (Pan Scan)

Note: – Setting the TV shape is only available when the disc is in the stop position.

DVD Menu Operations

English

Using progressive scan to improve image quality

This feature is only available when you have connected this system, through the Component Video jacks, to a Progressive Scan TV system.

OFF

Select this if a conventional TV set is connected to your system.

To enjoy the full quality potential offered by progressive scan feature.

Notes: –A progressive scan TV set is required. –The progressive scan video quality is only possible through PrPbY output connection.

To deactivate Progressive Scan manually

If the progressive function is activated, but your TV does not support progressive function or PrPbY cable is not connected accordingly, there will be a blank screen.

1 In stop mode, press and hold OPEN/CLOSE

on the front panel to open the disc tray.

2 Press numeric key “1”.

➜ The blue Philips DVD background appears on

the TV screen.

Setting the screen saver

Helpful Hints: – If a blank/ distorted TV screen appears, wait for 15 seconds for auto recovery. –To deactivate the progressive scan function, use the menu on the TV screen.

If set to ON, the screen saver will be activated when you leave the system in stop or pause mode for 5 minutes. The default setting is ON.

DVD Menu Operations

Night mode - turning on/off

Off

Select this when you want to enjoy the surround sound with its full dynamic range.

Select this to level out the volume. High volume output will be softened and low volume output will be brought upward to an audible level. This feature is only available for movies with Dolby Digital mode.

Test Tone

The system will start testing the speaker from left speaker to right speaker cyclically until you exit tone test.

Notes: –You can press 1 to exit test tone mode at any time. – The master volume can be adjusted during tone test.

SCORE OFF

Select this when you want to canel the kara score function.

SCORE ON

Select this when you want to sing with a microphone. The system will record your kara score.

DivX (R) VOD

Philips provides you the DivX(R) VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX(R) VOD service. For more information, visit: www.divx.com/vod.

1 In disc mode, press SYSTEM MENU. 2 Select icon and press 4. 3 Press 1 / ¡ / 5 / 4 on the remote

control to navigate in the menu.

➜ Move to icon and press ¡. ➜ Move to “DivX (R) VOD”. ➜ Press OK on the remote control, and the

registration code will appear.

English

Kara Score

4 Use the registration code to purchase or rent

the videos from DivX(R) VOD service www.divx.com/vod. Follow the instruction and download the video onto a CD-R for playback on this system.

Helpful Hint:

- All the download videos DivX(R) VOD can only be played back on this system.

DVD Menu Operations

English

Changing the password

You can change the four-digit code used as Password.

1 In disc mode, press SYSTEM MENU. 2 Select icon and press 4. 3 Press 1 / ¡ / 5 / 4 on the remote

control to navigate in the menu.

➜ Move to icon and press ¡. ➜ Move to “PASSWORD” and press ¡.

4 Use the numeric keys (0-9) to enter your

four-digit code.

➜ The password supplied by default is 1234. ➜ If you forget the four-digit code, press 9 four

times, the system will change back to the default password.

● Go to “Password” and enter your new code.

Then, enter the same code again to confirm.

5 Press SYSTEM MENU again to remove the

menu.

DVD Menu Operations

Restricting playback by setting parental level

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country specific. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

1 In disc mode, press SYSTEM MENU.

2 Select icon and press 4.

3 Use 1 / ¡ / 5 / 4 on the remote control

to navigate in the menu.

➜ Move to icon and press ¡. ➜ Move to “PARENTAL” and press ¡.

4 Use the numeric keys (0-9) to enter the four-

digit code. You may have to enter the same code twice.

➜ If not successful, see “Using the Setup Menu -

Changing the password”.

5 Press 3 / 4 to select a rating level between 1-8

and press OK.

➜ DVDs rated above the level you select will

not play unless you enter your four-digit password or choose a higher level rating. Select ‘No Parental’ to deactivate Parental level and have all discs play.

6 Press SYSTEM MENU again to remove the

menu.

Rating explanations NO PARENTAL – It will play all discs. 8 ADULT – material for adults only; viewed

only by adults due to graphic sexual scenes, violence, or language. 7 NC-17 – No children under age 17; not recommended for children under age 17. 6 PG-R – Parental Guidance – Restricted; recommended that parents restrict children under 17 from viewing or allow them to view only when supervised by a parent or adult guardian. 4 PG 13 – Material is unsuitable for children under age 13.

3 PG – Parental Guidance suggested. 1 G – General Audience; recommended as

acceptable for viewers of all ages.

English

– Menu language

To set the screen display language. The default setting is English.

– Default

If RESET is selected, all the items in the setup menu will be reset to their default settings, except “Parental Setting” and “Password”.

Tuner Operations

English

IMPORTANT! –Make sure FM and AM antennas are connected.

Tuning to radio stations

1 Press TUNER to select “FM XX” or “MW XX”

(AM X).

2 Press and hold 1 / ¡ on the system or on

the remote control until the frequency indication starts to change, then release.

➜The next radio station will be tuned

automatically.

3 To tune a weak station, press 1 / ¡ on the

system or on the remote control to search until a radio station with sufficient signal strength is found.

Presetting radio stations

You can store up to 40 preset radio stations in the memory, starting from FM and followed by AM bands.

Automatic preset programming

You can start automatic presetting from a selected preset number.

➜ PROG will start to flash. ➜ The system will start to search all radio

stations on the FM band, then AM band.

➜ All radio stations with strong signal strength

will be stored automatically.

➜ The system will stop searching when all

available radio stations are stored or when the memory of 40 preset radio stations is full.

➜ The first preset radio station will then be

played when completed.

To stop storing the automatic preset

● Press 7 to stop storing the automatic preset.

Note: – If no preset number is selected, automatic preset will begin from “01” and all your former presets will be overridden.

1 Press TUNER (BAND) to select TUNER mode.

➜ The current radio frequency will appear on

the display.

To begin automatic preset from a desired preset number

● Press O / P or numeric keys (0-9) to

select the desired preset number.

2 Press and hold PROGRAM for 3 seconds,

“AUTO SEARCHING” appears on the display.

Manual preset programming

1 Press TUNER (BAND) repeatedly to select the

desired tuner band: FM or AM.

2 Press and hold 1 / ¡ on the system or on

the remote control to search a radio frequency.

3 Press PROGRAM.

➜ “PROG” and “01” will display.

4 Press O / P or numeric keys (0-9) to

select the desired preset number.

5 After selecting an address number, press

PROGRAM again to store the radio station.

● Repeat steps 3-5 to store other preset radio

stations.

To stop storing the manual preset

● Press 7 on the system.

Note: – If you attempt to store more than 40 preset radio stations, “FULL” will be displayed.

Selecting a preset radio station

● In tuner mode, press O / P or use the

numeric keys (0-9) to select the desired preset number.

➜ The preset number, radio frequency, and

waveband are displayed.

Tuner Operations

English

Deleting a preset radio station

1 Press O or P to select the preset radio station

to be erased.

2 Press 7 on the system, “PRESET DELETED”

appears on the display.

➜ The preset numbers of all other preset radio

stations in the band with higher numbers are also decreased by one.

● Repeat steps 1-2 to erase other preset radio

stations.

Ta pe Operation/Recording

English

IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – Store tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV set or speaker).

Rewinding or forwarding fast when playback is stopped

1 Press 1 or ¡ on the front panel or on the

remote control.

2 Press 7 when you reach the desired passage.

Resetting tape counter number

● In stop mode, press 7.

Ta pe playback

1 Press 5 to open the tape deck door. 2 Insert a recorded tape and close the tape door.

● Load the tape with the open side down and the

full spool to the left.

3 Press TAPE or TAPE1/2 on the remote control

repeatedly to select tape deck 1 or tape deck 2.

➜ The selected tape deck number is displayed.

4 Press 38 to start playback.

To stop playback

● Press 7.

Changing the playback mode

● Press AUTO REPLAY repeatedly to select:

PLAY or REPLAY. The default setting is PLAY.

REPLAY ...................... the tape will rewind

automatically at the end of playback and replay. It will replay up to max. 10 times or until you press 9.

PLAY .............................. the selected side will be

played once.

General information on recording

● If you don’t intend to record via the

microphone, unplug it to avoid unwanted recording source.

● For recording, only use tape of IEC type I(normal

tape).

● The recording level is set automatically,

regardless of the position of the Volume, Vocal, Key control and so forth.

● The type is secured at both ends with leader

tape. At the beginning and end of the tape, nothing will be recorded for seven seconds.

● To prevent accidental recording, break out the

tab on the left shoulder of the tape side you want to protect.

● Press RECORD in Disc, Tape, Tuner or AUX

mode, “PLEASE CHECK TAPE 2” will scroll on the display if there is no recordable tape in tape deck 2.

IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only in tape deck

Preparation for recording

1 Load a recordable tape into tape deck 2 with

the full spool to the left.

2 Prepare the source to the recorded.

DISC – load the disc(s) TUNER – tune to the desired radio station. TAPE – load the prerecorded tape into tape

deck 1 with the full spool to the left. AUX – connect external equipment.

3 Press DISC, TAPE, TUNER or AUX to select

the source.

4 Start to play the selected source. 5 Press RECORD to start recording.

To stop recording

● Press 9 on the system.

Ta pe Operation/Recording

English

Disc synchro recording

1 Press DISC to select the disc.

● You can record programmed tracks in the order

you want.

2 Press RECORD to start recording.

➜ “REC” will flash, but the first 7 seconds of the

start passage will not be recorded.

Selecting another track during recording

1 Press 2;. 2 Press O or P to select another track.

To stop recording

● Press 9.

➜ Recording and disc playback will stop

simultaneously.

Clock/Timer Operations

English

Viewing the clock

The clock (if it is set) will be shown in Standby mode. Press CLOCK/TIMER to view clock in any source mode.

● Press DISPLAY on the system to select 12-

hour or 24-hour mode.

➜ If the clock has not been set, “--:--“ will blink

until you set the clock.

Setting the clock - see “Preparations”.

Setting the timer

The system can switch to DISC, TUNER or TAPE mode automatically at a preset time, serving as an alarm to wake you up.

IMPORTANT ! – Before setting the timer, ensure that the clock is set correctly. – The timer will always be switched on once set. – The timer will not start if a recording is in progress. – The time can be set in 24-hour mode.

1 Press and hold CLOCK/TIMER until “SELECT

CLOCK OR TIMER” is displayed.

➜ Press O or P to change the display to

“TIMER”.

➜ Press CLOCK/TIMER again to confirm. ➜ TIMER will start to flash. ➜ The selected source will be displayed.

2 Press DISC, TUNER or TAPE (1/2) to select

timer mode. The corresponding source will appear on the display.

DISC - load the disc. TUNER - Tune to the desired radio station. TAPE 1 - Load the prerecorded tape into tape

deck 1.

3 Press O or P on the system or remote control

to set the hours .

4 Press 1 or ¡ on the system or remote

control to set the minutes.

5 Press CLOCK/TIMER to store the setting.

➜ “TIMER ON” will be displayed for 5 seconds. ➜ The timer will star t to work. ➜ The timer will always be switched on once it

has been set.

Note: – Setting timer using remote control is not possible in AUX mode.

● At the preset time, the selected source

will play for 30 minutes before it switches to standby mode (If no button is pressed within the time frame).

To exit without storing the setting

● Press 7 on the system.

Timer Operations

To deactivate the timer

● Press and hold CLOCK/TIMER until “SELECT

CLOCK OR TIMER” is displayed.

➜ Press O or P to change the display to

“TIMER”.

➜ Press CLOCK/TIMER again to confirm. ➜ “TIMER OFF” will be displayed and TIMER

will disappear.

Notes: – In the disc mode, playback will begin with the first track of the last selected disc or other trays if the disc is empty. If all disc trays are empty, the system will automatically switch to Tuner mode. – During timer setting, if no button is pressed within 10 seconds, the system will exit timer setting mode automatically. – When the system is powered on, if the memorized volume level is less than 8, the system will automatically adjust to 8 increasingly. If the memorized volume level is more than 20, the system will adjust to 20. – The timer will be cancelled when the power cord is disconnected or if a power failure occurs.

Viewing the timer

1 Press CLOCK/TIMER twice to view timer in

any source mode. Timer will be shown on the display for 5 seconds.

2 If no timer has been set, “NO TIMER” will be

displayed for 5 seconds.

Setting the sleep timer

The sleep timer enables the system to switch to Standby mode automatically at a preset time.

● Press SLEEP on the remote control repeatedly

and stop at the desired preset turn-off time.

➜ The following options are available (time in

minutes):

15 p30 p45 p60 p90 p120 pOFF

p......

➜ “SLEEP” will show on the display panel

unless “OFF” is selected.

To check or change the setting

● Press SLEEP once to show the remaining time

before switching off. If you continue pressing the SLEEP button, the next Sleep Timer option will appear on the display.

To cancel the sleep timer

● Press SLEEP repeatedly until “OFF” is displayed,

or press the STANDBY ON button.

English

Sound and Volume Controls

English

Sound control

MAX Sound

MAX sound provides the best mixture of various sound features.

● Press MAX SOUND on the system or DBB/

MAX button on the remote control to select

MAX ON to achieve optimal sound.

➜ When MAX sound is activated, MAX icon

will blink and “MAX ON” will appear on the display for 3 seconds. MAX LED will be lighted.

● Press MAX SOUND or DBB/MAX button

again to select MAX OFF to deactivate MAX function.

➜ When MAX sound is deactivated, “MAX

OFF” will appear on the display for 3 seconds.

MAX LED and MAX icon will turn off.

Note: – When MAX sound is selected, other sound modes will be switched off automatically.

DBB (Dynamic Bass Boost)

To enhance the bass response, Press MAX SOUND on the system or DBB/MAX button

on the remote control one or more to select : DBB 1, DBB 2, DBB 3 .

➜ Display shows DBB level briefly if DBB is

activated. DBB icon lights up.

➜ If DBB is deactivated, the DBB icon will turn

off.

Note: – Some discs or tapes might be recorded in high modulation, which causes a distortion at high volume. If this occurs, deactivate DBB or reduce the volume.

Playing a DVD/VCD

● You can select Virtual Ambience Control (VAC)

as follows:

–ACTION, DRAMA, SCI-FI, CONCERT.

Playing a CD/MP3/WMA or in TUNER, TAPE or AUX mode

● You can select Digital Sound Control (DSC):

– DIGITAL, CLASSIC, ROCK, JAZZ.

Volume control

Changing the volume level

● Rotate VOLUME clockwise / anti-clockwise (or

press VOL +/-) to increase or decrease the volume level.

➜ “VOL MIN” is displayed at minimum level . ➜ “VOL MAX” is displayed at maximum level.

Switching off the volume temporarily

● Press MUTE. ➜ “MUTE ON” is displayed.

Press MUTE again to cancel the MUTE mode.

➜ “MUTE OFF” will appear.

Note: Press MUTE again or increase/ decrease the volume level to cancel the MUTE mode.

Listening through headphones

Connecting headphones to ; on the system will switch off the speakers.

Disconnecting the headphones will switch on the speakers again.

Selecting sound effect

The digital sound effect allows you to select from various preset modes that control the frequency bands of sound to optimize certain musical styles. It greatly enhances the excitement and enjoyment of your favorite music.

● Press SOUND repeatedly to select the

available sound effect.

Other Functions

Switching on/off

Switching the system ON

In Standby/ Demonstration mode

● Press STANDBY ON.

➜ The system will go back to its previous status.

● Press DISC, TUNER, TAPE, AUX.

➜ The system will switch to the selected source.

Switching the system to STANDBY mode

In demonstration mode

● Press and hold STOP 7 on the system.

In any other source mode

● Press and hold STANDBY ON (or 2 on the

remote control).

➜ When the system is in Standby mode, the

time will appear on the display.

Switching to ECO POWER standby mode

In any other source mode

● Press STANDBY ON (or 2 on the remote

control) to switch the system to the ECO POWER standby mode.

● If the system is in the ECO POWER mode, you

can press and hold STANDBY ON (or 2 on the remote control) to switch to the standby mode.

Vocal

This function allows you to fade out the original vocal from a karaoke. Press AUDIO key to select different audio modes.

For DVD karaoke discs:

AUDIO 1, AUDIO 2, AUDIO 1 VOCAL, AUDIO 2 VOCAL.

For VCD karaoke discs:

LEFT VOCAL, RIGHT VOCAL, MONO LEFT, MONO RIGHT or STEREO.

English

Power saving automatic standby

As a power-saving feature, the system will automatically switch to Standby mode if you don’t press any button within 30 minutes in the stop mode.

Dimming the display

● Press DIM repeatedly to select different levels of

brightness for the display: HIGH, MID or LOW.

Other Functions

English

Key control

This feature allows you to change the key tone when you play a DVD or VCD disc.

● Press KEY.

➜ “KEY CONTROL ON” will be display on the

TV screen for 5 seconds.

➜ The Key Control indicator will flash when you

press VOL +/- to change the key tone level.

➜ If you don’t adjust the key control level within

5 seconds, the indicator will turn off.

● Press KEY again to exit key control mode. ➜ “KEY CONTROL OFF” will be displayed on

the TV screen for 5 seconds.

Echo

This feature allows you to add echo while singing or talking through a microphone.

● Press ECHO. ➜ “ECHO CONTROL ON” will be display on

the TV screen for 5 seconds.

➜ Press VOL +/- to change the echo level

between 1 and 8.

- Select OFF to switch off Echo.

● Press ECHO again to exit ECHO CONTROL

mode.

➜ “ECHO CONTROL OFF” will be displayed

on the TV screen for 5 seconds.

- You can also press OK to exit ECHO CONTROL mode.

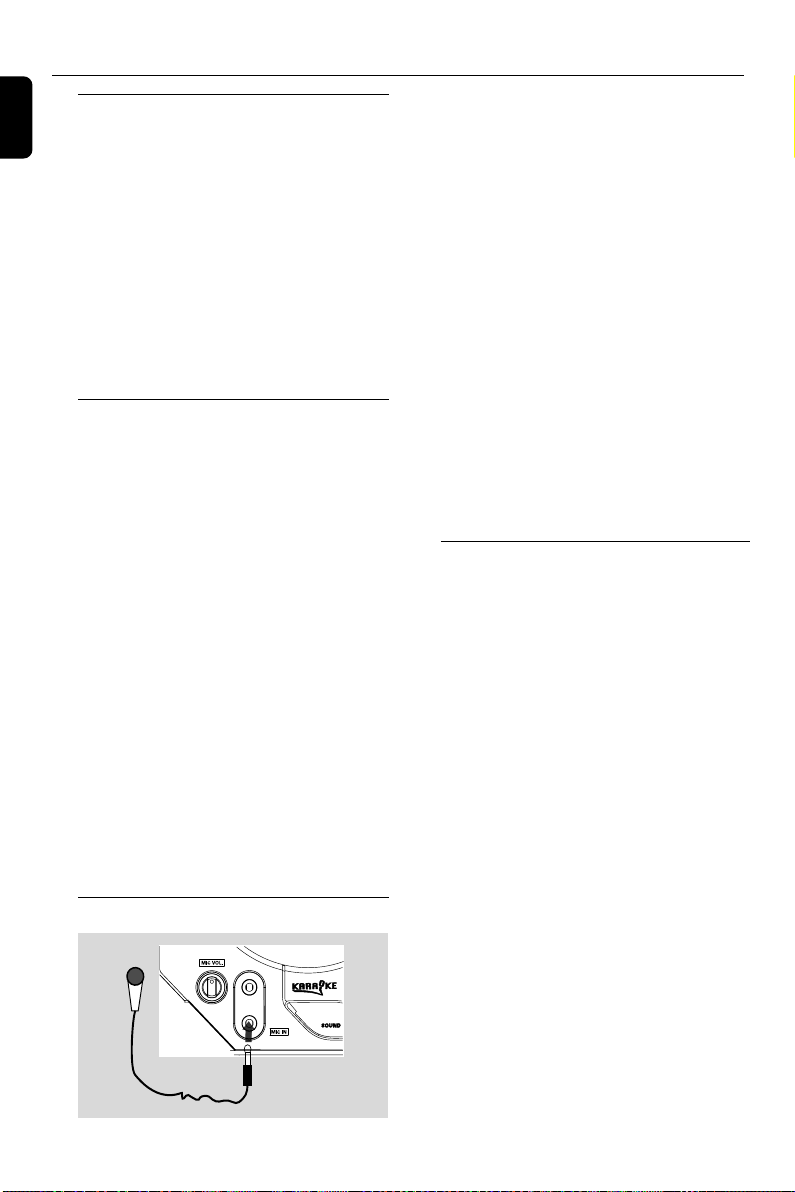

Connect a microphone (not supplied) to the system to sing along with the music source.

1 Connect a microphone to the MIC jack.

➜ “MICROPHONE PLUG IN” will display on

your TV screen.

● Before connecting the microphone, set the MIC

VOL. to the minimum level to prevent howling.

2 Press DISC (1/2/3) to select the source to be

mixed and start playback.

3 Adjust the volume of the source through

VOLUME control.

4 Adjust the microphone volume through MIC

VOL. control.

Notes: –Keep the microphone away from the speakers to prevent howling. – “MICROPHONE PLUG OUT” will display on your TV screen when you plug out the microphone.

Listening to external sources

1 Connect the audio out terminals of the external

equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX IN terminals of your system.

2 Press AUX to select AUX mode directly.

➜ “AUX” will be displayed.

Notes: –Echo will be disabled automatically when the microphone is unplugged. –“PLEASE INSERT MIC” is displayed on your TV screen if you have not connected the microphone to the system in ECHO CONTROL ON mode.

Karaoke

Notes: –You are advised not to listen to and record from the same source simultaneously. – All navigation sound control features are available.

Specifications

AMPLIFIER SECTION

Output power ..........................................................750W

Front .....................................2 × 85 W RMS FTC (1)

Rear ....................................... 2 × 20 W RMS FTC (1)

Center .......................................... 40 W RMS FTC (1)

Subwoofer.................................. 55 W RMS FTC (2)

Frequency Response . 180 Hz - 16 kHz / ± 3 dB

Signal-to-Noise Ratio .......... > 60dB (A-weighted)

Input Sensitivity

AUX/TV In........................................................ 500 mV

Output Sensitivity

Headphone ..................................... 1000 mV + 2dB

Line Out ..................................... 450 mV – 550 mV

Notes: (1) 1kHz 1% THD; (2) 100Hz 1% THD.

TUNER SECTION

Tuning Range ...........................................................................

......................... FM 87.5 – 108 MHz ( 50 kHz steps)

......................... AM 530 – 1710 kHz (10 kHz steps)

Signal-to-Noise Ratio ................................ FM ≥ 55 dB

.................................................................. AM ≥ 35 dB DIN

TAPE SECTION

Frequency Response

Normal tape (type 1) .........................125Hz-8 Kz

Signal-to-Noise Ratio

Normal tape (type 1) ............................. ≥ 45 dBA

Wow and flutter .................................................. ≤ 0.35%

DVD SECTION

Laser Type ................................................ Semiconductor

Disc Diameter .............................................. 12cm / 8cm

Video Decoding ........................... MPEG-2 / MPEG-1

Video DAC ................................................................ 10 Bits

Signal System ............................................... PAL / NTSC

Video Format ..................................................... 4:3 / 16:9

Video S/N ........................................... 56 dB (minimum)

Composite Video Output ................ 1.0 Vp-p, 75 Ω

S-Video Output ....................... Y - 0.714 Vp-p, 75 Ω

........................................................... C - 0.286 Vp-p, 75 Ω

Audio DAC .......................................... 24 Bits / 96 kHz

Frequency Response ....4 Hz - 20 kHz (44.1kHz)

...................................................... 4 Hz - 22 kHz (48kHz)

...................................................... 4 Hz - 44 kHz (96kHz)

MAIN UNIT

Power Supply Rating ................................. 120 V/60Hz

Power Consumption

Active ........................................................................ 85 W

Eco power .............................................................. <1W

Dimensions (w × h × d) . 265× 310 × 355 (mm)

Weight....................................................................... 5.52 kg

Packaging Dimensions (w × h × d) .............................

...................................................... 611 x 885 x 524 (mm)

Gross weight ................................................................. 40Kg

SPEAKERS

Front speakers

System ...................................................3-way, Bass reflex

Impedance ........................................................................ 2 Ω

Speaker drivers ................................... 2 × 6.5” woofer,

................................................................................. 2” tweeter

Frequency response ........................ 50 Hz – 20 kHz

Dimensions (w × h × d) ...................................................

................................................. 235 × 457 × 246.5 (mm)

Weight.................................................................... 7 kg/each

Center or Surround speakers

System.......................................2 multi directional driver

Impedance.......................4Ω (center) /6Ω(surround)

Speaker drivers................................................1x4”woofer

............................................................................1x2.5”tweeter

Frequency response ....................... .150HZ--18KHZ

Dimensions(w x h x d)......................................................

...................140 x 310 x 310mm (surround speaker)

............ 245.5 x 130 x 159.7mm (center speaker)

Weight...................................... 1.5 kg (center speaker)

................................ 3.41 kg/ each (surround speaker)

SUBWOOFER

Impedance........................................................................ 4 Ω

Speaker driver...................................... ......................1× 6.5”

Frequency response. .................................. 30-200 HZ

Dimensions(w x h x d )................................................

...................................................... 200 x 320 x 380 (mm)

Weight ...........................................................................6.2kg

Specifications and external appearance are subject to change without notice.

English

Troubleshooting

English

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

Problem

No power.

“NO DISC” is displayed.

No picture.

Distorted or poor picture.

The aspect ratio of the screen cannot be changed even though you have set the TV shape.

The DVD player does not start playback.

Solution

✔ Check if the AC power cord is properly

connected.

✔ Check if the disc is inserted upside down. ✔ Wait until the moisture condensed at the lens

has cleared.

✔ Replace or clean the disc, see “Maintenance”. ✔ Use a readable disc or correctly recorded format

MP3-CD.

✔ Select the appropriate video input mode on the

TV set.

✔ Check if the TV set is switched on. ✔ Check the video connection. ✔ Check if the system is securely connected.

✔ Sometimes a slight picture distortion may appear.

This is not a malfunction.

✔ Clean the disc. ✔ Connect the system to the S-video input of your

TV set.

✔ The aspect ratio is fixed on the DVD disc. ✔ The aspect ratio may not be changed for some

TV systems.

✔ Insert a readable disc. ✔ Check the disc type, color system and region

code.

✔ Clean the disc. ✔ Place the disc with the playback side down. ✔ Press SYSTEM MENU to turn off the setup

menu.

✔ Cancel the parental control rating function or

change the rating level.

✔ Moisture has condensed inside the system.

Remove the disc and leave the system turned on for about an hour.

The system does not respond when the buttons are pressed.

✔ Disconnect the power plug from the jack, and

insert again.

Tr oubleshooting

Problem

The language for the sound or subtitle cannot be changed when playing a DVD.

No image is output when a function is selected.

Sound cannot be heard or is of poor quality

Poor radio reception.

Recording or playback cannot be made

The tape deck door cannot open

Left and right sound outputs are reversed.

The remote control does not function.

Solution

✔ Multi-language sound or subtitle is not recorded

on the DVD.

✔ Changing the language for the sound or subtitle

is prohibited on the DVD.

✔ Make sure the component is connected

correctly.

✔ Press the correct function button for the input

source.

✔ Adjust the volume. ✔ Disconnect the headphones. ✔ Check that the speakers are connected correctly. ✔ Check if the stripped speaker wire is clamped. ✔ If the system is in pause, slow motion or fast

forward/reverse mode, press 2; to resume the normal play mode.

✔ Make sure the MP3-CD was recorded within 32-

256 kbps bit rate with sampling frequencies at 48 kHz, 44.1 kHz or 32 kHz.

✔ If the signal is too weak, adjust the antenna or

connect an external antenna for better reception.

✔ Increase the distance between the System and

your TV set or VCR.

✔ Clean deck parts, see “Maintenance”. ✔ Use only NORMAL tape. ✔ Apply a piece of adhesive tape over the missing

tab space.

✔ Remove and reconnect the AC power plug and

switch on the system again.

✔ Check the speaker connections and location.

✔ Point the remote control at the remote control

sensor of the unit.

✔ Reduce the distance to the player. ✔ Remove any possible obstacles. ✔ Replace the batteries with new ones. ✔ Check that the batteries are loaded correctly.

English

The display is dark

The timer is not working

The Clock/Timer setting is erased

✔ Press DIM again.

✔ Set the clock correctly. ✔ If recording is in progress, stop it

✔ Power has been interrupted or the power cord

has been disconnected. Reset the clock/timer.

Glossary

English

Analog: Sound that has not been turned into

numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right.

Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9.

AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV set, Stereo, etc.).

Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate better the sound quality. However, higher bit rates use more space on a Disc.

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Component Video Out Jacks: Jacks on the back of the DVD System that sends high-quality video to a TV set that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.).

Disc menu: A screen display prepared for the selection of images, sound, subtitles, multi-angles, etc recorded on a DVD.

Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right and center).

DTS: Digital Theater Systems. This is a surround sound system, but different from Dolby Digital. The formats were developed by different companies.

JPEG: A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.

MP3: A file format with a sound data compression system, “MPE” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. Through the MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.

Multichannel: DVD is specified to have all

sound tracks constitute one sound field. Multichannel refers to a structure of sound tracks having three or more channels.

Parental control: A function of the DVD to

limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.

PCM (Pulse Code Modulation): A system

for converting analog sound signal to digital signal for later processing without data compression.

Playback control (PBC): Refers to the signal

recorded on video CDs or SVCDs for reproduction control. By using screen menus recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.

Progressive Scan (P-Scan): It displays all the

horizontal lines of a picture at one time, as a signal frame. This system can conver t interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution. A progressive scan TV set is needed to receive progressive scan output from the system.

Region code: A system allowing discs to be

played only in preset regions. This unit will only play discs that have compatible region codes. You can find the region code of your unit from the product label. Some discs are compatible with more than one region (or ALL regions).

S-Video: Produces a clear picture by sending

separate signals for luminance and the color. You can use S-Video only if your TV set has S-Video In jack.

Sampling Frequency: Frequency of data

sampling when analog data is converted to digital data. Sampling frequency numerically represents how many times the original analog signal is sampled per second.

Surround: A system for users to create

realistic three-dimensional sound fields full of realism by arranging multiple speakers around the listener.

Title: The longest section of a picture or music

feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.

VIDEO OUT jack: Jack on the back of the

DVD System that sends video to TV.

Philips FWD798-37B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
