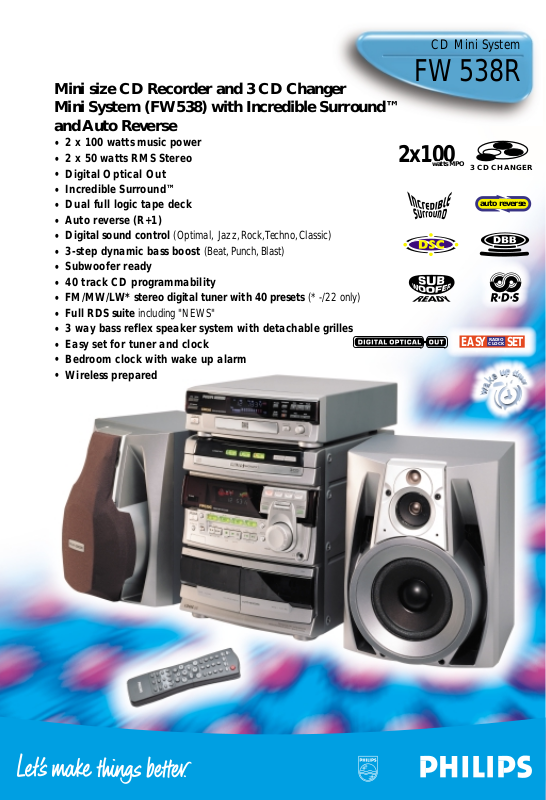

CD Mini System
FW538R
Mini size CD Recorder and 3 CD Changer
Mini System (FW538) with Incredible Surround™ and Auto Reverse
•2 x 100 watts music power
•2 x 50 watts RMS Stereo
•Digital Optical Out
•Incredible Surround™
•Dual full logic tape deck
•Auto reverse (R+1)
• Digital sound control (Optimal, Jazz, Rock,Techno, Classic)
•3-step dynamic bass boost (Beat, Punch, Blast)
•Subwoofer ready
•40 track CD programmability
•FM/MW/LW* stereo digital tuner with 40 presets (* -/22 only)
•Full RDS suite including "NEWS"
•3 way bass reflex speaker system with detachable grilles
• Easy set for tuner and clock
•Bedroom clock with wake up alarm
•Wireless prepared
2x 0 |
MPO |
10watts MPO |
3 CD CHANGER |
|
auto reverse
EASY RADIO SET
CLOCK
CD Mini System
FW538R
CD recorder and 3 CD changer mini system
standard product information
Mini System amplifier
•2 x 100 watts music power
•2 x 50 watts RMS, ± 10% THD, 6 ohm, 1kHz
•Incredible Surround™
•digital sound control
(optimal, jazz, rock, techno, classic)
•3-step dynamic bass boost (Beat, Punch, Blast)
•signal attentuated bass control compact disc player
•motorized front loading 3 CD changer
•digital servo technology
•bit-check D/A converter
•40 track CD random program
•play mode (repeat/shuffle/program)
•change 2 discs while playing 1 tuner
•RDS - station name, programme type, RDS text, clock set
•RDS - "NEWS" feature
•FM/MW/LW* stereo digital tuner with 40 presets (* -/22 only)
•easy set/auto store for tuner and clock tape deck
•dual full logic tape deck
•auto reverse (R+1)
•high speed dubbing
•CD synchro recording
•continuous play
•automatic recording level control
•automatic tape type selection
•electronic speed control and full auto stop loudspeaker boxes
•3-way bass reflex
•5.5" woofer
•2.5" tweeter
•1" polydome tweeter
•detachable grilles
•4 hyper energy bass ports for deep powerful bass reproduction
connections
•stereo headphones : 3.5mm stereo jack
•video/aux : cinch type sockets
•subwoofer output : cinch type socket for active subwoofer
•line out - wireless prepared
•optical out for CD recording general
•fluorescent tube display
•clock/timer
•wake up with CD, tuner or tape
•31-key remote control
•PINGS (Philips Intelligent Navigation Guidance System) for ease of operation
•automatic clock set via RDS
Mini CD Recorder audio
•frequency response 20 - 20kHz
•playback S/N 98 dB
•playback dynamic range 95 dB
•playback total harmonic distortion 85 dB
•recording S/N 90 dB
•recording dynamic range 92 dB
•recording total harmonic distortion 85 dB
•headphone 0-5 Vrms, 8-2000 ohm recording values for line input/ouput
•digital coaxial input 44.1 +/- 100ppm
•digital optical input 44.1 +/- 100ppm
•analogue input 700m Vrms/50k ohm - 0 dB
•line ouput voltage 2 Vrms +/- 2 dB
•digital coaxial output 0.5 Vpp/75 ohm recording functions
•recording on CD-R & CD-RW disc
•auto start recording per disc general
•compact disc digital audio (CD recorder)
•2 channels
AUX/DVD |
|
2 |
CD 1/2/3 TAPE 1/2 |
TUNER |
CDR |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
INC. SURR. |
0 |
PROG. |
|
|
|
|
VOLUME |
|
|
É |
|
í |
|
ë |
à |
Ç |
á |
|
Å |
|
DBB |
SIDE |
DSC |
REPEAT SHUFFLE
|
/21m /21 |
/22 |
/30 |
/34 |
Asia Pacific |
• |
|
|
|
Australia/NZ |
|
|
|
|
Middle East/S Africa |
|
|
|
|
Latam |
|
|
|
|
Europe |
|
• |
|
• |
E Europe |
|
|
|
tuner
FM65.81-74MHz |
|
|
• |
FM87.5-108MHz |
• |
• |
• |
MW522-1602kHz |
• |
• |
• |
FM75 ohm clickfit |
• |
• |
• |
mains supply |
|
|
|
120/230V 50~60Hz |
• |
|
|
230V/50Hz |
|
• |
• |
general |
|
|
|
made in sticker |
|
• |
|
Incredible Surround™
Incredible Surround™ magnifies the virtual distance between the speakers. Press the Incredible Surround™ button and the room will be full of good stereo music. No need to move the speakers away from the center unit. For those who don't want to rearrange their lives to fit their hifi.
Product Dimensions: Mini System
267mm W x 310mm H x 310mm D (electronics)
240mm W x 310mm H x 305mm D (speakers) Package Dimensions:
637mm W x 410mm H x 544mm D Product Dimensions: Mini CD Recorder 264mm W x 305mm H x 86mm D Package Dimensions:
637mm W x 410mm H x 544mm D Product weight: 17.5 kg (mini system) Product weight: 4 kg (mini CD recorder)
Carton contains: CD Mini System, CD Recorder, Multi-Function Remote Control, Batteries, Operating instructions, Warranty information, FM antenna, AM antenna, Optical cable
Printed in Singapore Date printed : May 1998
Specifications subject to change without notice.
Incredible Surround™ is a Trademark of Philips Consumer Electronics Company
