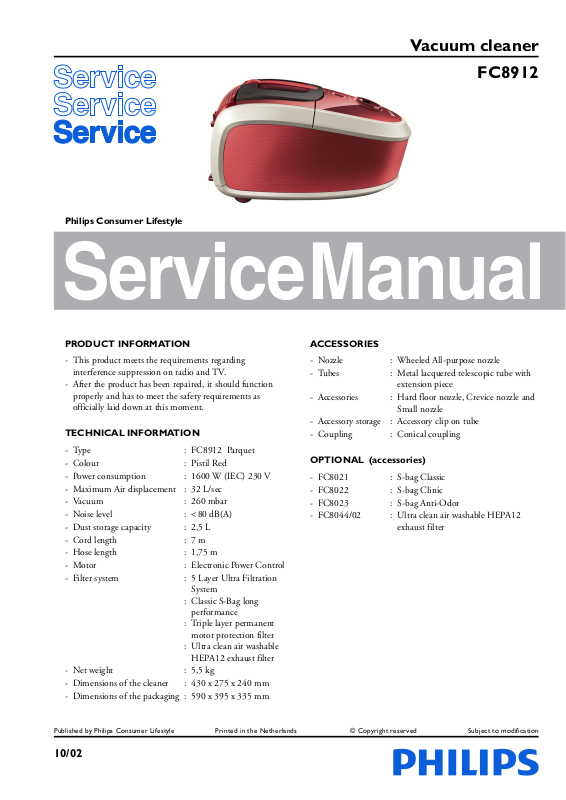

Vacuum cleaner
FC8912
Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Type : FC8912 Parquet
- Colour : Pistil Red
- Power consumption : 1600 W (IEC) 230 V
- Maximum Air displacement : 32 L/sec
- Vacuum : 260 mbar
- Noise level : 80 dB(A)
- Dust storage capacity : 2,5 L
- Cord length : 7 m
- Hose length : 1,75 m
- Motor : Electronic Power Control
- Filter system : 5 Layer Ultra Filtration
System
: Classic S-Bag long
performance
: Triple layer permanent
motor protection filter
: Ultra clean air washable
HEPA12 exhaust filter
- Net weight : 5,5 kg
- Dimensions of the cleaner : 430 x 275 x 240 mm
- Dimensions of the packaging : 590 x 395 x 335 mm

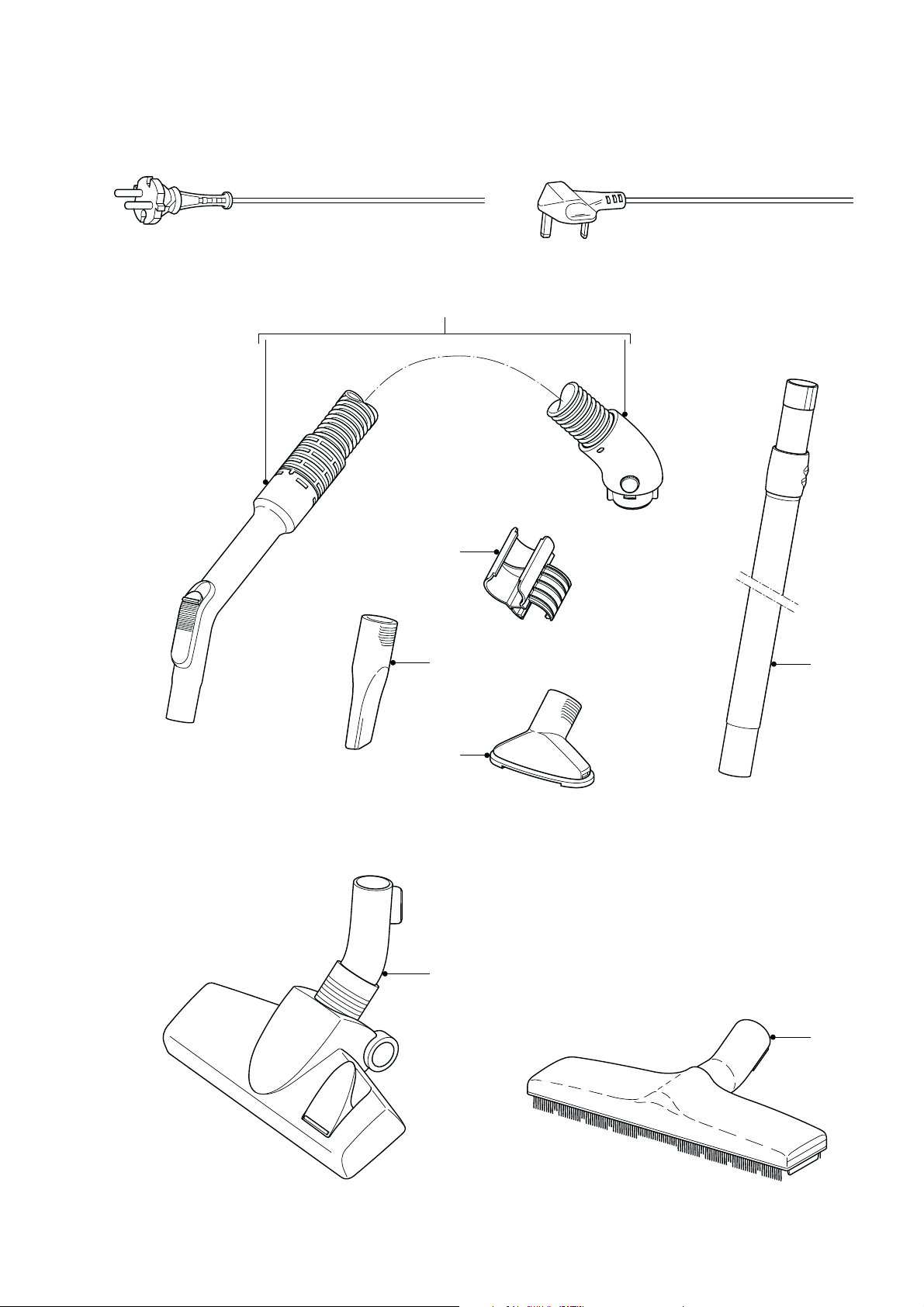

ACCESSORIES
- Nozzle : Wheeled All-purpose nozzle
- Tubes : Metal lacquered telescopic tube with
extension piece
- Accessories : Hard floor nozzle, Crevice nozzle and
Small nozzle
- Accessory storage : Accessory clip on tube
- Coupling : Conical coupling
OPTIONAL (accessories)
- FC8021 : S-bag Classic
- FC8022 : S-bag Clinic
- FC8023 : S-bag Anti-Odor
- FC8044/02 : Ultra clean air washable HEPA12
exhaust filter
Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
10/02
Page 2
FC8912
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- To open the appliance, first remove the Outlet Grill and
Exhaust Filter.

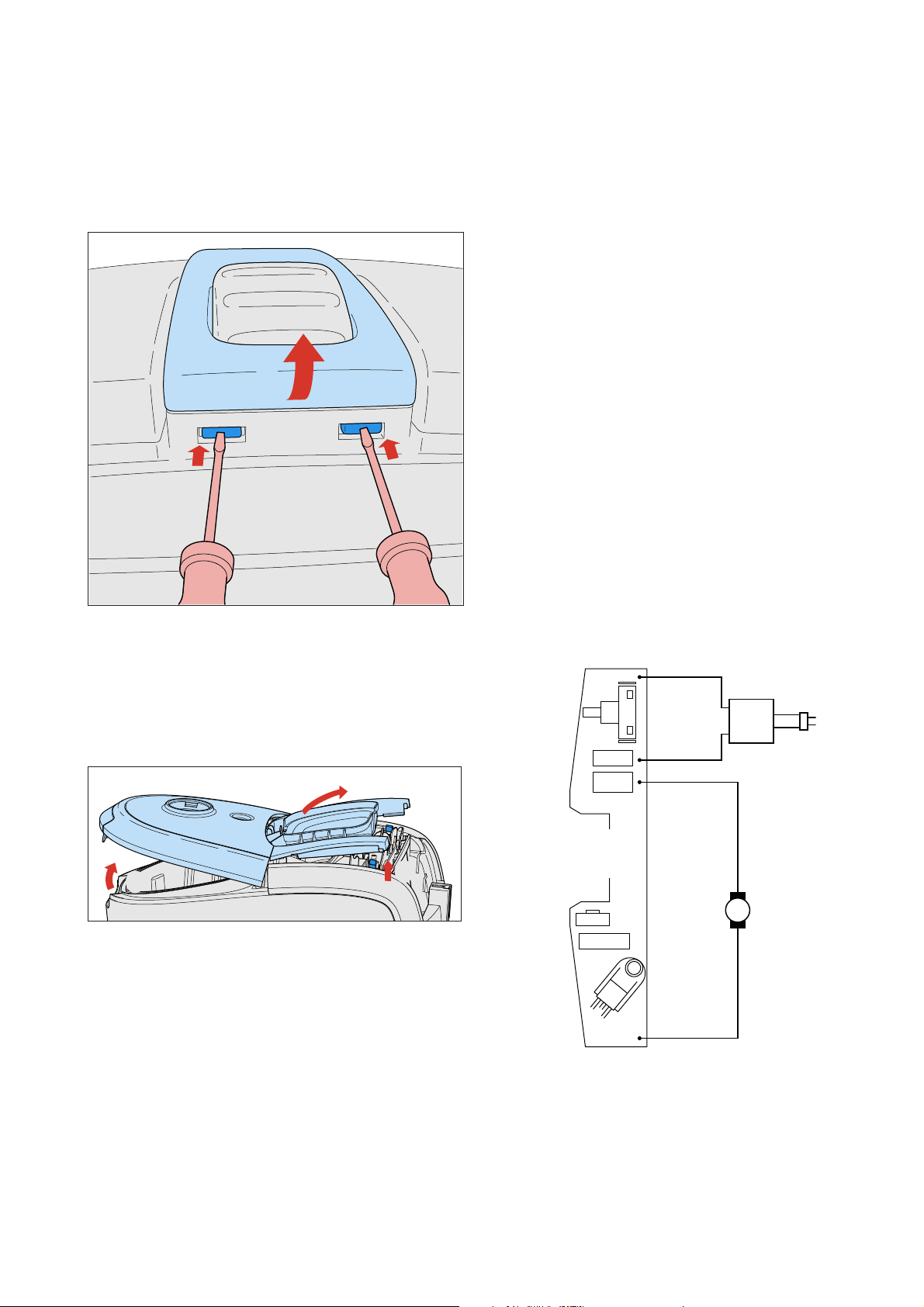

- Remove the Handle Cover by pushing the retaining pins
inwards (see picture). Take out the Roller Top.
2
1
1
REPAIR INSTRUCTION
- The spare parts have been standardized as much as possible.
- Cotton dust bags are used in countries where paper dust
bags are not available.
- Depending on the original cord, the spare cord must be
shortened to the length of the original cord.
- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn.
- Item 3, safety valve, opens to cool the motor if the air
displacement is too low or when the airflow is blocked.
- When the vacuum cleaner is used to clean fine dust the
pores of the dust bag may become clogged, causing the
passage of air through the dust bag to become obstructed.
As a result the dust bag-full indicator will indicate the dust
bag needs to be replaced, even though the dust bag is not
full at all.
In this case, replace the dust bag anyhow.
- Unscrew screws C of the Handle Bottom (Two Torx head
screws T15).
- Remove the Buttons and Handle Bottom, mind the Roller
Bottom attached to the PCB.
- Remove the Handle inlay by unhooking the back side of the
inlay, and then simultaneously opening the Dust Cover and
pulling the Handle Inlay up- and backwards (see picture).
3
2
- Remove the Dust Cover by unhooking the hinges.
- Unscrew screws D and remove the left and right Back
Bumper. Unscrew and unclick the Back Panel.
- Unscrew the 9 screws E from the Dust Chamber Motor
Pod.
- You can now access all internal components.
- When the repair is finished, check whether all functions of
the appliance work properly.
- To disassemble the cord winder, use TORX screwdriver
no. T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).
- Reassembly in reverse order of disassembly, make sure you
route all electrical cables correctly.
1
ELECTRICAL DIAGRAM
Blue
Brown
Black
Motor
Power
Module
White
Cord
Winder
M
2-7
Page 3
PARTS LIST
Pos Service code Description
1*
4222 459 46931
2
4222 459 46881
3
4322 005 10321
4
4222 459 46941
5*
4322 000 39441
6*
4222 459 47481
7
4222 459 46951
8
4222 459 46981
9
4222 459 47011
10
4222 459 47101
11
4222 459 47041
12
4322 000 09970
13
4222 459 47071
14
4322 001 74531
15
4222 459 47181
16
4222 459 47271
17
4222 459 47111
18
4322 000 39431
19
4222 459 47211
20
4341 003 02390
21
4322 001 74521
22
4222 459 47281
23
4322 006 24161
24
4222 459 47241
25
4222 459 47311
26*
4322 000 39090
27
4322 000 39461
28
4222 459 47141
29
4322 001 74511
30
4322 009 09400
31
4322 000 39451
32
4222 459 45608
33
4322 001 74501
34
4222 459 47161
35
4222 459 47431
36*
4322 009 00371
37
4222 459 47371
38
4222 459 47151
39
4222 459 47171
40
4322 000 39421
41
4322 000 39411
42
4222 459 47341
43
4222 459 47401
44*
4322 006 07390
45*
4222 006 02170
46
4322 006 07441
47
4322 004 23620
48*
4341 003 02470
49
4322 003 41421
50
4341 004 20100
51
4322 004 23810
52
4322 004 23780
Dust Bag Holder Grey
Dust Cover assy Pistil Red Parquet
DBFI assy
Dust Bag Detector Kit
Triple Inlet Filter
Inlet Grille
Handle Cover Pistil Red
Roller Top Red
Handle Bottom Pisitil Red
Roller Base
Buttons Black
Button Spring
Handle Inlay Pistil Red
Dust Chamber Seal
Back Bumper Left White
CW Lever
Dust Chamber Motor Pod Red
Silencer 3
Back Bumper Right White
Switch Lever
Hose PCB
Cord Outlet Bottom Red
PCB assy
Outlet Grill Pistil Red
Back Panel Pistil Red
HEPA12 Exhaust Filter
Exhaust Seal
Motor Housing Top
Buffer Ring Front
Motor kit 1461
Silencer 4
Motor Bracket
Buffer Back
Motor Housing Bottom
Cast Dish assy
Cord winder (No Cord)
Side Wall Pistil Red
Inlet Seal
S-class Sealing
Silencer 2
Silencer 1
Lower Housing White
Rear Wheel assy Red
Cord (EU)
Cord (UK)
Hose assy Red
Telescopic Tube Conical
Accessory Clip
Crevice nozzle Conical
Small nozzle Conical
Standard nozzle Conical
Hard Floor nozzle Conical
FC8912
* Standardized part
3-7
Page 4

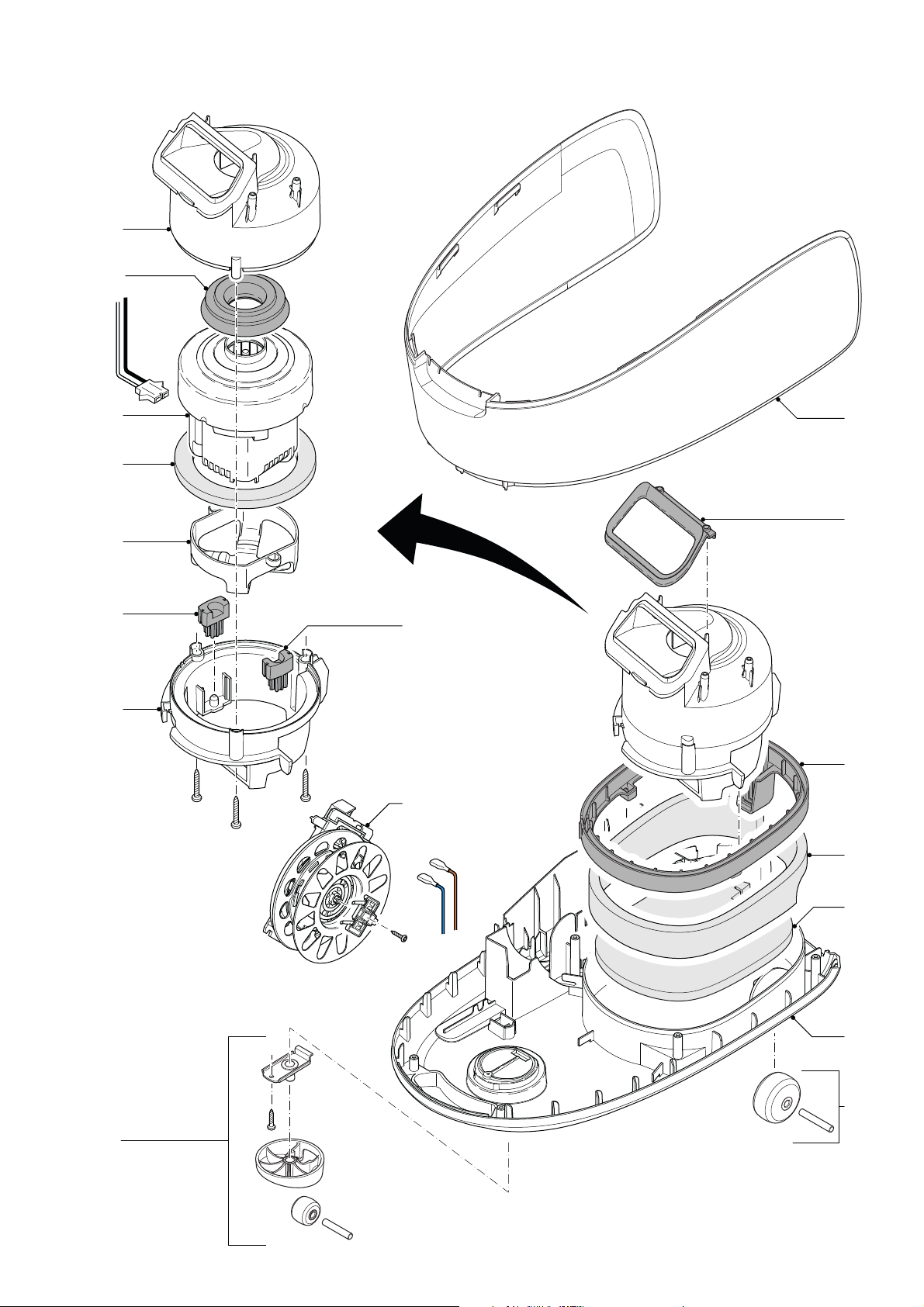

EXPLODED VIEW
1
FC8912
7
8
C
C
9
10
11
2
12
A
A
13
3
4
B
5
6
14
4-7
Page 5

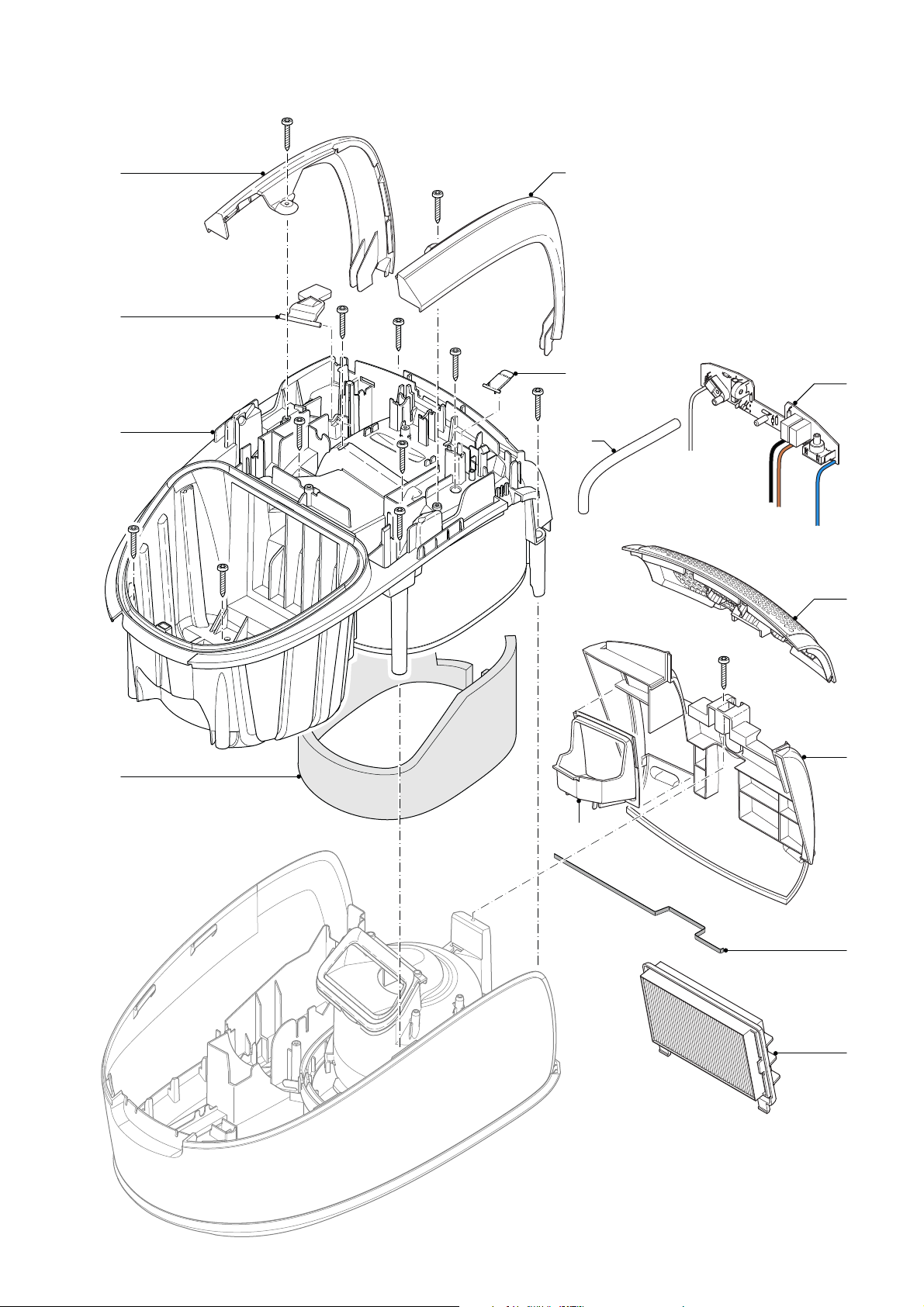

EXPLODED VIEW
FC8912
D
15
16
17
19
D
E
9x
20
21
Z
Y
X
23
W
24
18
F
25
22
27
26
5-7
Page 6

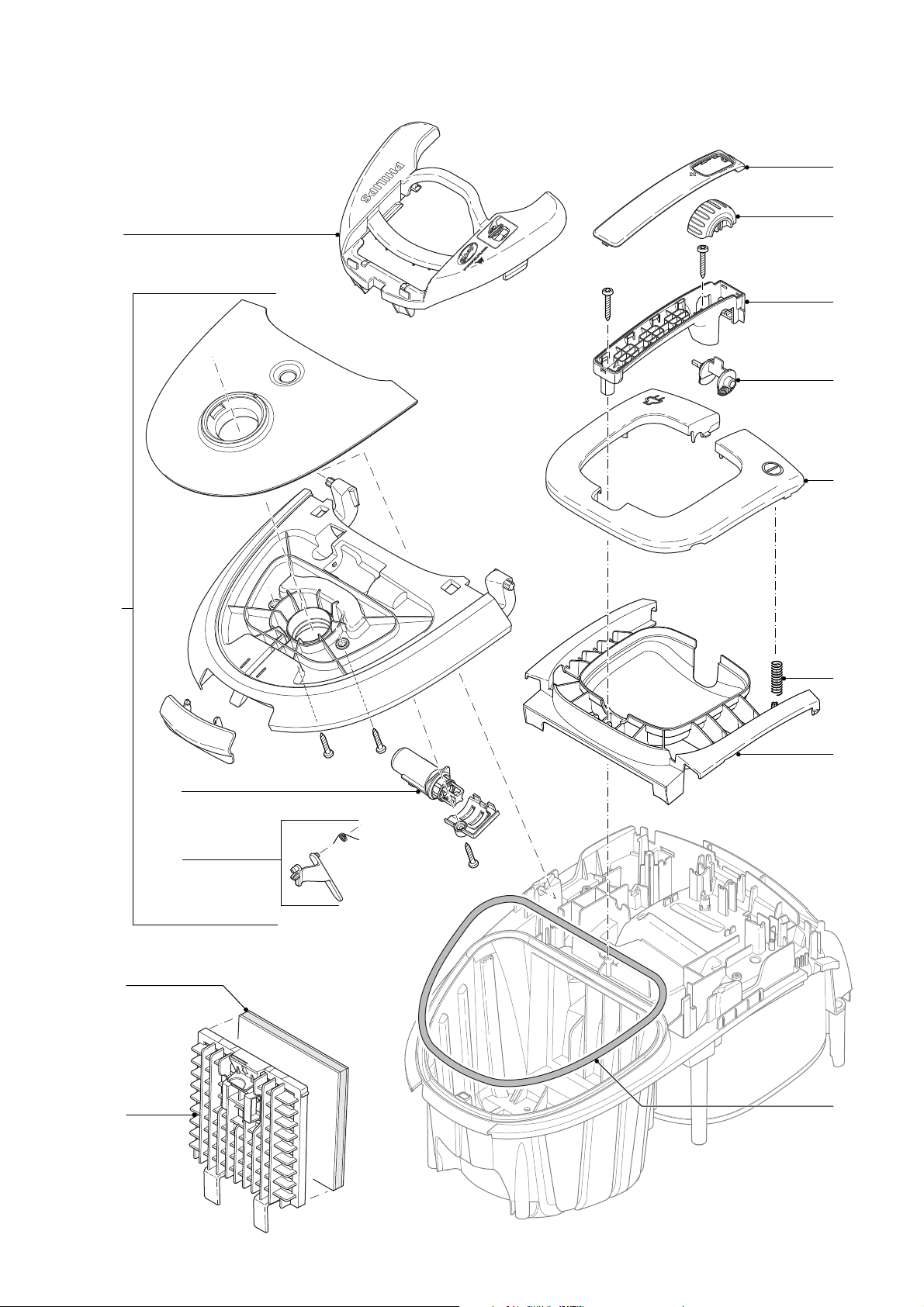

EXPLODED VIEW
28
29
Y
Z
FC8912
30
31
32
33
34
G
3x
37
38
33
39
36
40
35
41
W
X
42
H
43
6-7
Page 7
EXPLODED VIEW
FC8912
Europe Ø 4.8mm 44
46
48
45U.K. / H.K.
49
50
51
47
52
7-7
