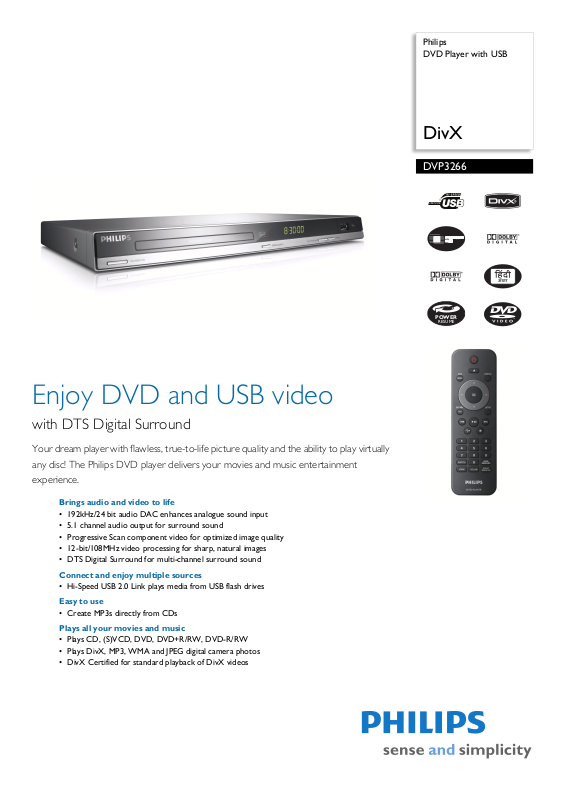

Philips DVP3266 User Manual

Philips DVD Player with USB

DivX

DVP3266

POWER

RESUME

Enjoy DVD and USB video

with DTS Digital Surround

Your dream player with flawless, true-to-life picture quality and the ability to play virtually any disc! The Philips DVD player delivers your movies and music entertainment experience.

Brings audio and video to life

• 192kHz/24 bit audio DAC enhances analogue sound input

• 5.1 channel audio output for surround sound

• Progressive Scan component video for optimized image quality

• 12-bit/108MHz video processing for sharp, natural images

• DTS Digital Surround for multi-channel surround sound

Connect and enjoy multiple sources

• Hi-Speed USB 2.0 Link plays media from USB flash drives

Easy to use

• Create MP3s directly from CDs

Plays all your movies and music

• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW

• Plays DivX, MP3, WMA and JPEG digital camera photos

• DivX Certified for standard playback of DivX videos

DVD Player with USB

DivX

DVP3266/94

Specifications Product highlights

Picture/Display

• D/A converter: 12 bit, 108 MHz

• Picture enhancement: Progressive Scan, Video upsampling

Sound

• D/A converter: 24 bit, 192 kHz

• Frequency response: 30-20000 Hz

• Signal to noise ratio: >90 dB

• Distortion and Noise (1kHz): >65 dB

• Crosstalk (1kHz): >70 dB

• Dynamic Range (1kHz): >80 dB

• Sound System: Dolby Digital

Video Playback

• Playback Media: CD, CD-R/CD-RW, Video CD/ SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW, DVD-Video

• Compression formats: MPEG1, MPEG2, DivX

3.11, DivX 4.x, DivX 5.x, DivX 6.0

• Video disc playback system: PAL, NTSC

Audio Playback

• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD

• Compression format: MP3, Dolby Digital, PCM, WMA

• MP3 bit rates: 32 - 320 kbps

Still Picture Playback

• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-R/RW, Picture CD, Kodak Picture CD

• Picture compression format: JPEG

• Picture enhancement: Flip photos, Rotate, Zoom, Slideshow

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: DivX, JPEG Still pictures, MP3

Connectivity

• Rear Connections: Digital coaxial out, Composite video (CVBS) output, ComponentVideo out Progressive, Analog audio Multi-channel out

Convenience

• Child Protection: Child Lock, Parental Control

• On-Screen Display languages: English

Power

• Power supply: 110-240V, 50/60 Hz

• Power consumption: < 10 W

• Standby power consumption: < 1 W

Accessories

• Included Accessories: Audio/Video cable, 2 x AAA Batteries, Remote Control, World Wide Warranty leaflet, User Manual

Dimensions

• Set dimensions (W x H x D): 360 x 37 x 210 mm

• Packaging dimensions (W x H x D): 415

x 82 x 282 mm

•

192kHz/24 bit audio DAC

192KHz sampling enables you to have an accurate representation of the original sound curves. Together with a 24-bit resolution, more information is captured from the original analogue sound wave form, giving a much richer audio reproduction.

5.1 channel audio output

Plays it all

Play virtually any media format you want - whether they be DivX, MP3s, WMA or JPEGs. Experience the unbeatable convenience of great playability, and the luxury of sharing media files on your TV or home theater system - in the comfort of your living room.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of se nd ing a fi eld co mp ris in g t he od d l ine s t o t he sc re en fi rs t, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Create MP3s

Convert the contents of your favorite CDs to MP3 files on your Philips product, and store it directly on a thumbdrive or on your portable media player through a USB cable. Enjoy the convenience of creating MP3 files right in your living room, without a PC, and even while the CD is playing.

DTS Digital Surround

DTS delivers superior surround sound with your DVD movies.

Issue date 2008-11-15

Version: 1.0.7

12 NC: 8670 000 36041 EAN: 87 12581 38710 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
