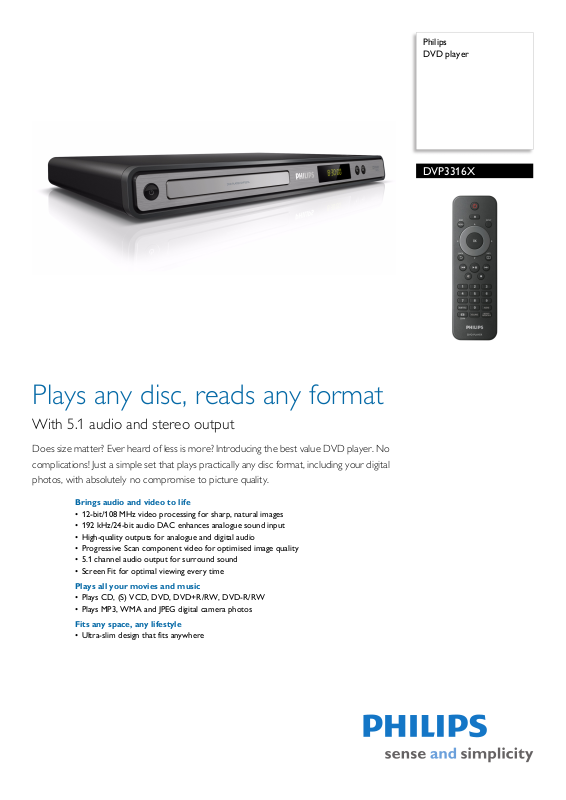

Page 1
Philips
DVD player
DVP3316X
Plays any disc, reads any format
With 5.1 audio and stereo output
Does size matter? Ever heard of less is more? Introducing the best value DVD player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos, with absolutely no compromise to picture quality.
Brings audio and video to life
• 12-bit/108 MHz video processing for sharp, natural images
• 192 kHz/24-bit audio DAC enhances analogue sound input
• High-quality outputs for analogue and digital audio
• Progressive Scan component video for optimised image quality
• 5.1 channel audio output for surround sound
• Screen Fit for optimal viewing every time
Plays all your movies and music
• Plays CD, (S) VCD, DVD, DVD+R/RW, DVD-R/RW
• Plays MP3, WMA and JPEG digital camera photos
Fits any space, any lifestyle
• Ultra-slim design that fits anywhere
Page 2
DVD player
POWER
RESUME
Highlights
DVP3316X/94
192 kHz/24-bit audio DAC
192 kHz sampling enables you to have an
accurate representation of the original sound
curves. Together with a 24-bit resolution,
more information is captured from the original
analogue sound wave form, giving a much
richer audio reproduction.
Plays it all
Play MP3s, WMA and JPEGs, and experience
th
e convenience of sharing media files on your
TV or home theatre system - in the comfort of
your living room.
Progressive Scan
Progressive Scan doubles the vertical
resolution of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, it
writes both fields at the same time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
Screen Fit
Whatever you're watching, on whatever TV,
Screen Fit ensures that the picture fills the
whole screen. Annoying black bars on the top
and bottom are eliminated, without any
tedious manual adjustments to make. Simply
press the Screen Fit button, choose the format
and enjoy your movie in full screen
Page 3
DVD player
Specifications
DVP3316X/94
Picture/Display
• D/A converter: 12-bit, 108 MHz
• Picture enhancement: Progressi
upsampling
ve scan, Video
Sound
• D/A converter: 24-bit, 192 kHz
• Frequency response: 30-20,000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1 kHz): 65 dB
• Crosstalk (1 kHz): 70 dB
• Dynamic Range (1 kHz): 80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD-R/-RW, DVD+R/+RW, DVDVideo
• Compression formats: MPEG1, MPEG2
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD
• MP3 bit rates: 32 - 320 kbps
• Compression format: Dolby Di
PCM
gital, MP3, WMA,
Still Picture Playback
• Playback Media: DVD-R/-RW, DVD+R/+RW, CDR/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate,
Sli
deshow, Zoom, Slideshow with MP3 playback
Multimedia Applications
• Playback Formats: JPEG Still pictures, MP3
Connectivity
• Rear Connections: Analogue audio Left/Right out,
Composite video (CVBS) output, Digital coaxial
out, ComponentVideo out Progressive
Convenience
• Child Protection: Parental Control, Child Lock
• On-Screen Display languages: English, Hindi
Power
• Power consumption: < 10 W
• Power supply: 110-240V, 50/60 Hz
• Standby power consumption: < 1 W
Accessories
• Included accessories: 2 x AAA Batteries, Remote
Control, World Wide Warranty leaflet, User
Manual, Audio/Video cable
Dimensions
•Set dimensions (W x H x D): 360 x 37 x 209 mm
• Packaging dimensions (W x H x D):
5 x 82 x 282 mm
41
• Set weight: 1.3 kg
• Weight incl. Packaging: 2.4 kg
•
Issue date 2009-12-21
Version: 1.0.5
12 NC: 8670 000 51495
EAN: 87 12581 47678 6
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
